1 Metamorphism and Metamorphic Rocks

2 Daily Question Correctly place the following statements in the Venn Diagram. 1.Occurs at divergent boundaries 2.Occurs at convergent boundaries 3.Forms as a result of melting (magma) 4.Temperature is an agent 5.Pressure is an agent 6.Generates foliated rocks 7.Forms as a result of being near an intrusion of magma 8.Found in mountain belts 9.May have been originally been a metamorphic rock 10.Form at temperatures above 200 o C 11.May underlie several adjacent states Igneous Rocks Contact Metamorphic Rocks Regional Metamorphic rocks

3 Definitions Metamorphism – mineralogical, chemical, and physical changes that occur in solid rocks. Occurs at depths greater than that of lithification (Diagenesis). Solid state recrystallization – changes that occur without the rock melting (rocks that melt are igneous).

4 Factors influencing Metamorphism Temperature Pressure Fluid Time Agents of Metamorphism

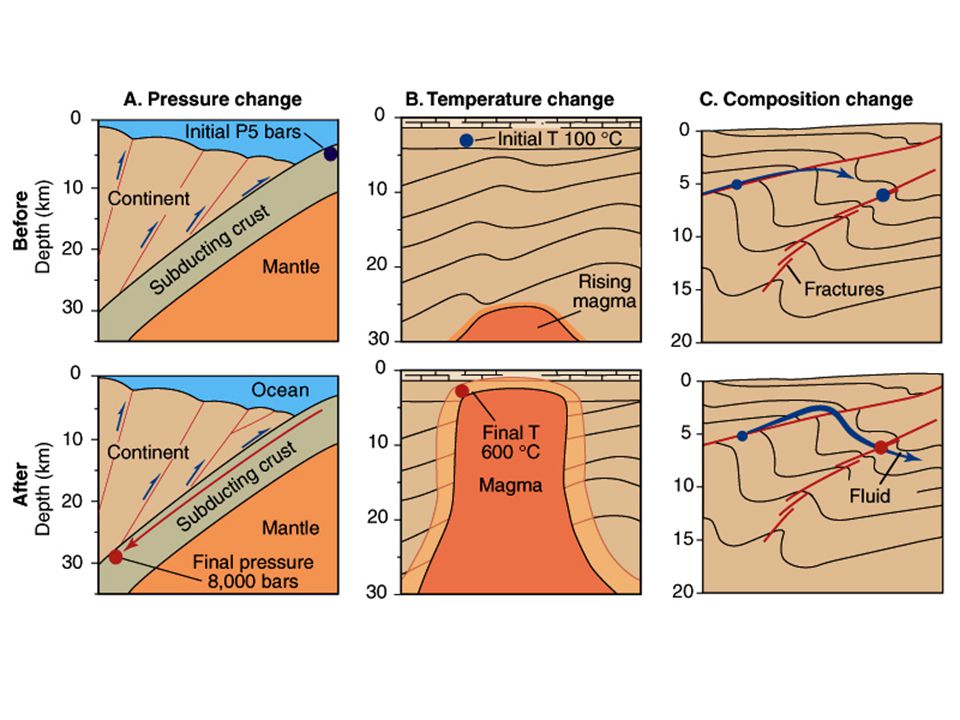

5

6 Factors influencing Metamorphism Temperature below about 150 o C, most minerals are stable (little or no metamorphism) above 150 o C, reaction rate increases as temperature increases, new minerals begin to form above 600 o C, some minerals begin to melt (transition to igneous rocks) Temperature a function of depth within the Earth and the presence of a magma

7 Factors influencing Metamorphism Pressure as pressure increases, pore spaces reduced and density increases, pore fluids are expelled Minerals recrystallize and begin to realign Differential stress pressure is greater in one direction than in another

8 Temperature, Pressure and Rock Type

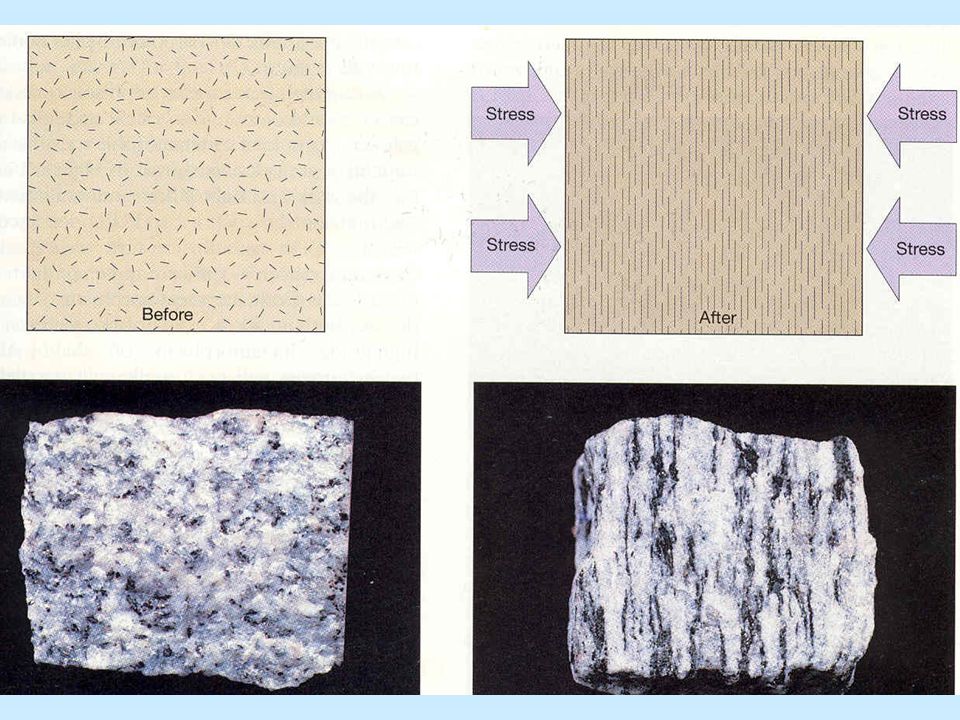

9

10 Effects of Stress Uniform Differential

11 Factors influencing Metamorphism Pore fluids (water and carbon dioxide) as pressure increases, pore fluids are expelled Pore fluids increase the rate of metamorphic reactions by: storing ions involved in reactions moving ions from one place to another Chemical Fluids from Magmas Carry ions from the melt Fluids increase the temperature in the rock

12 Veins Solutions are deposited in fractures and joints

13 Factors influencing Metamorphism Time solid state recrystallization is a slow process in general, size of minerals increases with time

14 Types of Metamorphism 1.Burial Metamorphism 2. Contact Metamorphism 3. Regional Metamorphism

15 Metamorphism & Plate Tectonics

16 Types of Metamorphism Burial Metamorphism most common type, occurs where crust is greater than 5 km thick Relatively low temperature and pressure (low grade metamorphism) Maximum stress vertical, foliation parallel to ground surface

17

18 Types of Metamorphism Contact metamorphism Occurs in rocks around a magma body High temperature (heat from magma) “bakes” the rock around the magma creating an alternation High temperature & fluid primary agents, little to no pressure (occurs at shallow depths in the crust)

19 Non-foliated Metamorphic Rocks Granular texture Interlocking grains Composed primarily of one mineral Uniform grain size

20 Contact Metamorphism

21

22 Types of Metamorphism Regional metamorphism Large scale – large volume of rock is affected Associated with convergent plate margins and mountain building Folding and faulting increase thickness of the crust Occurs over a range of temperatures and pressures Fluids are also present Low grade to high grade metamorphism Will have zones of contact metamorphism

23 Regional Metamorphism

24 Metamorphic Grade

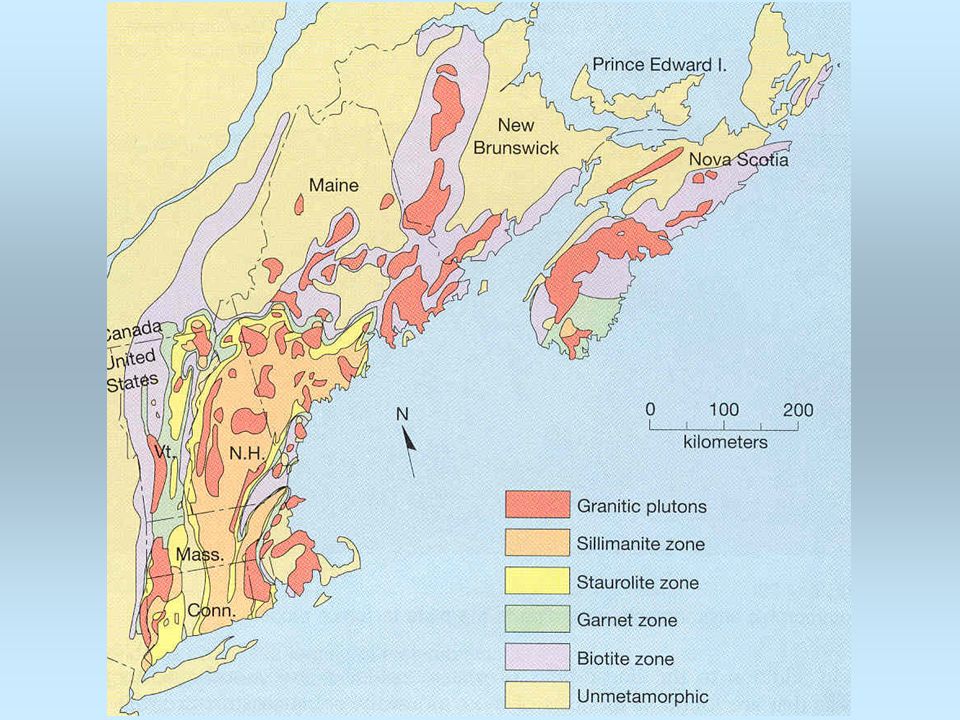

25

26 As pressure and/or temperature increases, the grade of metamorphism increases

27 Low Grade Metamorphism Example: Slate Rocks become more dense and compact forms at low temperature and pressure microscopic crystals dull luster clay and mica minerals foliated

28 Low Grade - Slate

29 Metamorphic Grade

30 Intermediate Grade Metamorphism Example: Phyllite intermediate temperature and pressure small crystals shiny luster mostly mica minerals foliated

31 Intermediate Grade – Phyllite

32 Metamorphic Grade

33 High Grade Metamorphism Example: Schist high temperature and pressure large crystals mica-rich foliated

34 High Grade - Schist

35 Metamorphic Grade

36 High Grade Metamorphism Example: Gneiss high temperature and pressure large crystals mica-poor foliated

37 High Grade - Gneiss

38 Rock Cycle

39 Regional Revisited Slate Phyllite Schist, Gneiss Magma

40 Nonfoliated - Marble metamorphosed limestone (CaCO 3 ) bedding and fossils obliterated

41 Nonfoliated - Quartzite metamorphosed quartz-rich sandstone Pore spaces filled with SiO 2

42 Metamorphic Facies Different minerals form at different temperatures and pressures Group of stable minerals define a facies
