1 Energy and Electrons

2 Wave-Particle Duality JJ Thomson won the Nobel prize for describing the electron as a particle. His son, George Thomson won the Nobel prize for describing the wave-like nature of the electron. The electron is a particle! The electron is an energy wave!

3 Confused??? You’ve Got Company! “No familiar conceptions can be woven around the electron; something unknown is doing we don’t know what.” Physicist Sir Arthur Eddington The Nature of the Physical World 1934

4 The Wave-like Electron Louis deBroglie The electron propagates through space as an energy wave. To understand the atom, one must understand the behavior of electromagnetic waves.

5 c = C = speed of light, a constant (3.00 x 10 8 m/s) = frequency, in units of hertz (hz, sec -1 ) = wavelength, in meters Electromagnetic radiation propagates through space as a wave moving at the speed of light.

6 Types of electromagnetic radiation:

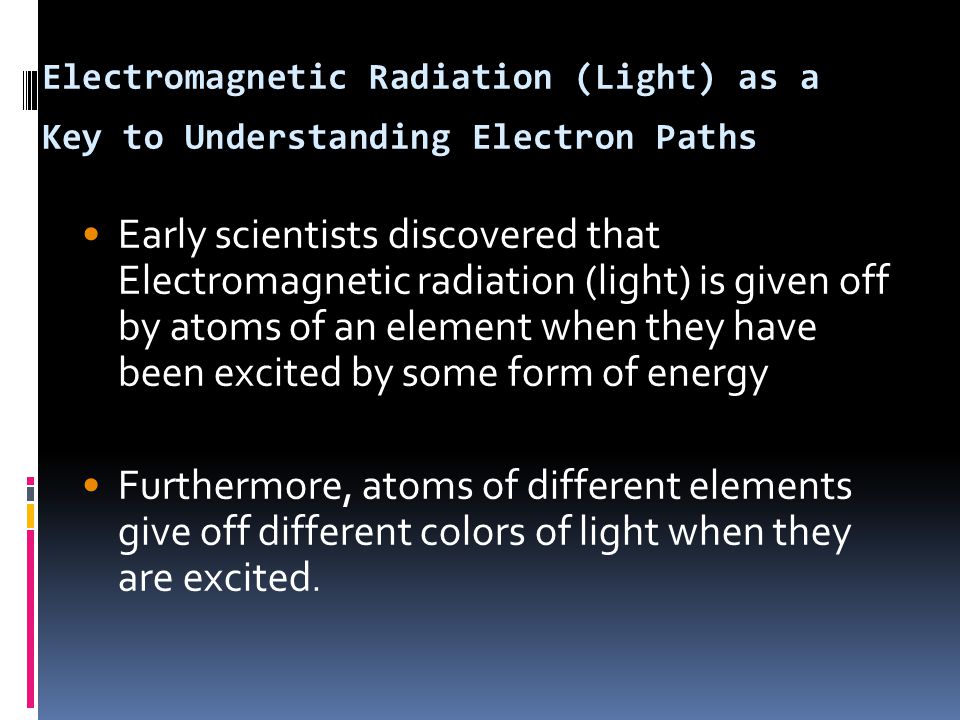

7 Electromagnetic Radiation (Light) as a Key to Understanding Electron Paths Early scientists discovered that Electromagnetic radiation (light) is given off by atoms of an element when they have been excited by some form of energy Furthermore, atoms of different elements give off different colors of light when they are excited.

8 When salts containing Li, Cu, and Na dissolved in methyl alcohol are set on fire, brilliant colors result. Li Cu Na

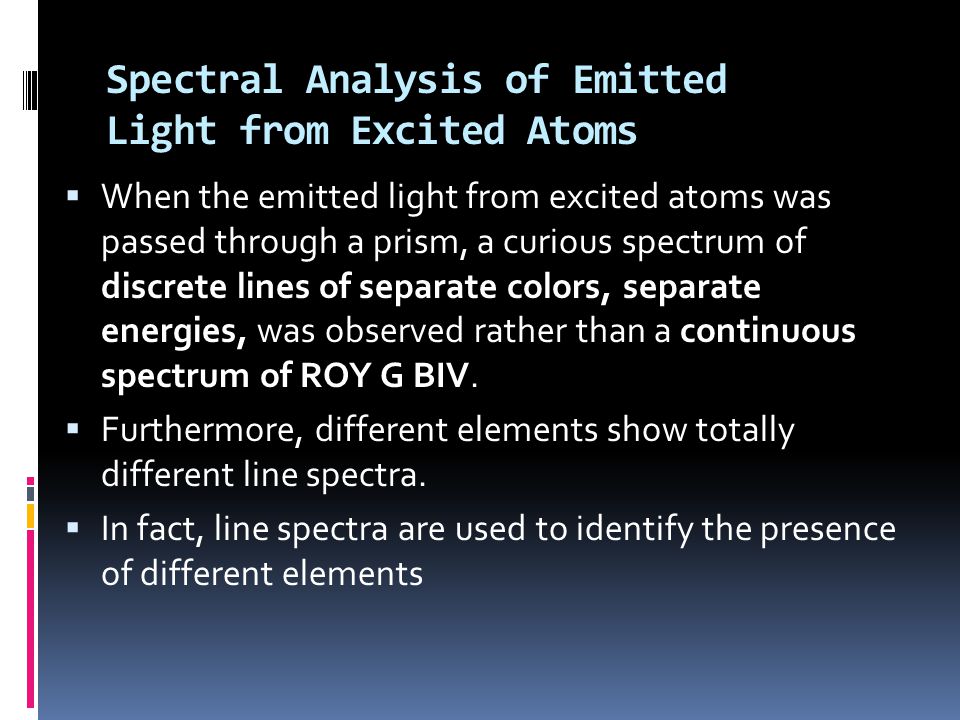

9 Spectral Analysis of Emitted Light from Excited Atoms  When the emitted light from excited atoms was passed through a prism, a curious spectrum of discrete lines of separate colors, separate energies, was observed rather than a continuous spectrum of ROY G BIV.  Furthermore, different elements show totally different line spectra.  In fact, line spectra are used to identify the presence of different elements

10

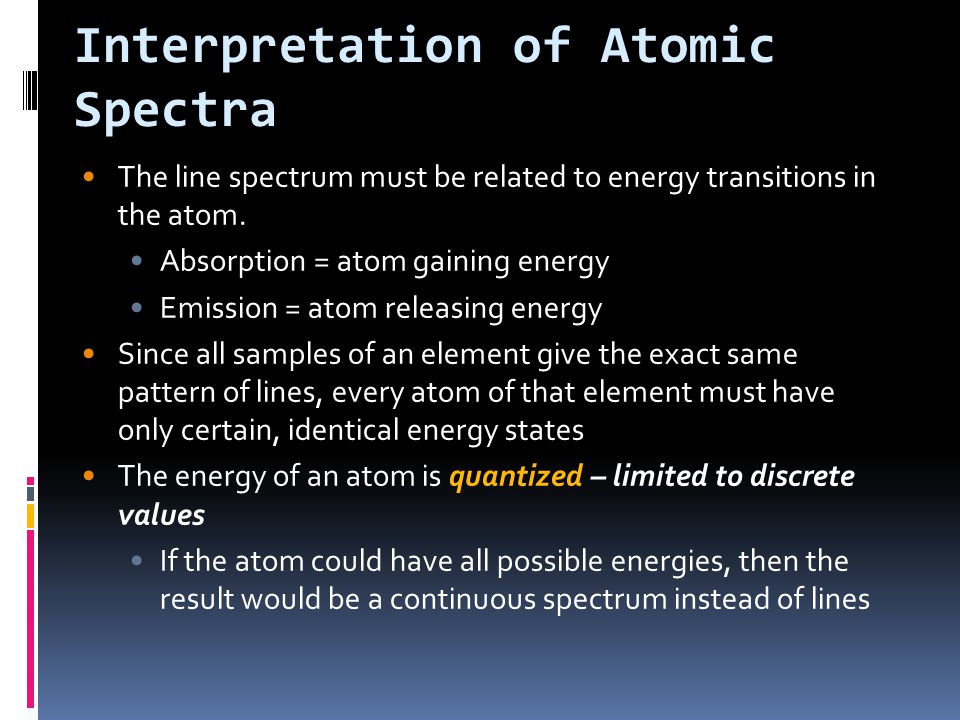

11 Interpretation of Atomic Spectra The line spectrum must be related to energy transitions in the atom. Absorption = atom gaining energy Emission = atom releasing energy Since all samples of an element give the exact same pattern of lines, every atom of that element must have only certain, identical energy states The energy of an atom is quantized – limited to discrete values If the atom could have all possible energies, then the result would be a continuous spectrum instead of lines

12 Continuous Spectrum Atomic Line Spectrum Na

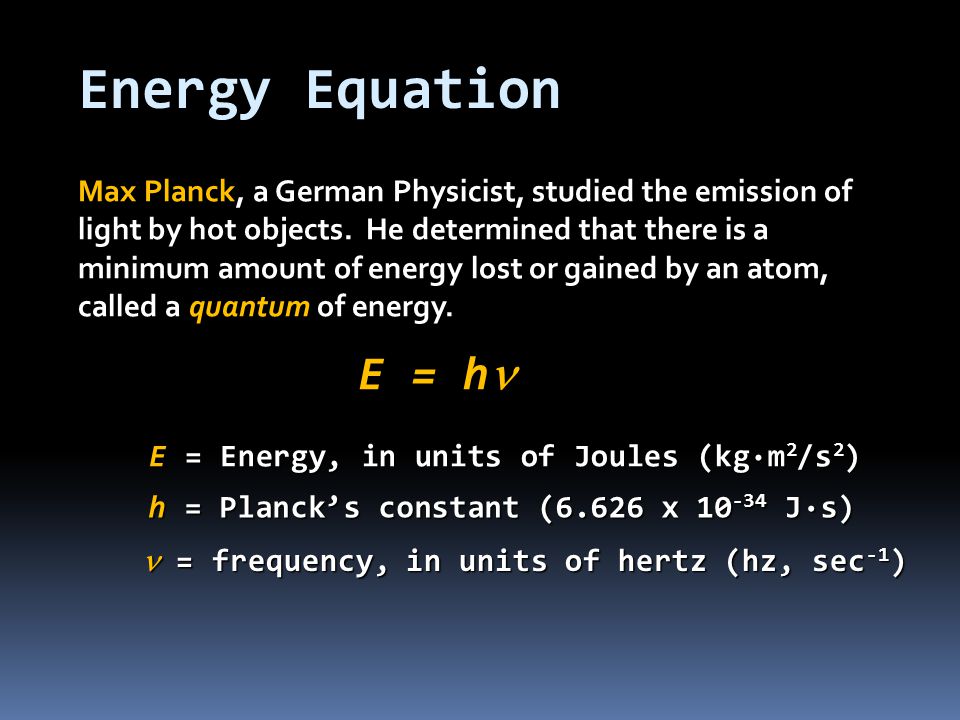

13 E = h E = Energy, in units of Joules (kg·m 2 /s 2 ) h = Planck’s constant (6.626 x J·s) = frequency, in units of hertz (hz, sec -1 ) = frequency, in units of hertz (hz, sec -1 ) Max Planck, a German Physicist, studied the emission of light by hot objects. He determined that there is a minimum amount of energy lost or gained by an atom, called a quantum of energy. Energy Equation

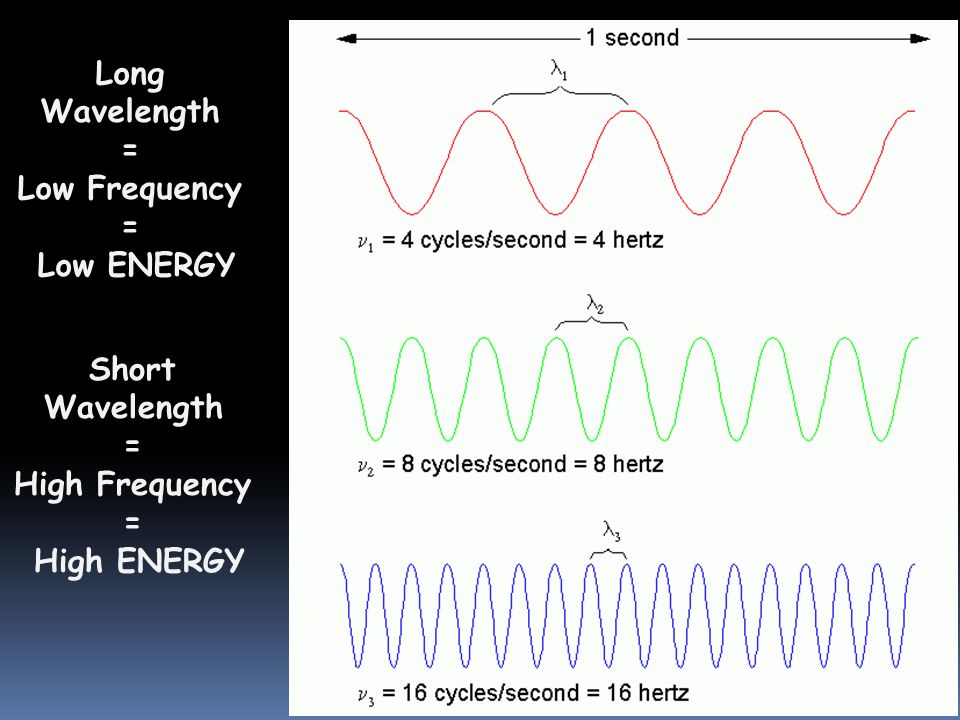

14 Long Wavelength = Low Frequency = Low ENERGY Short Wavelength = High Frequency = High ENERGY Wavelength Table

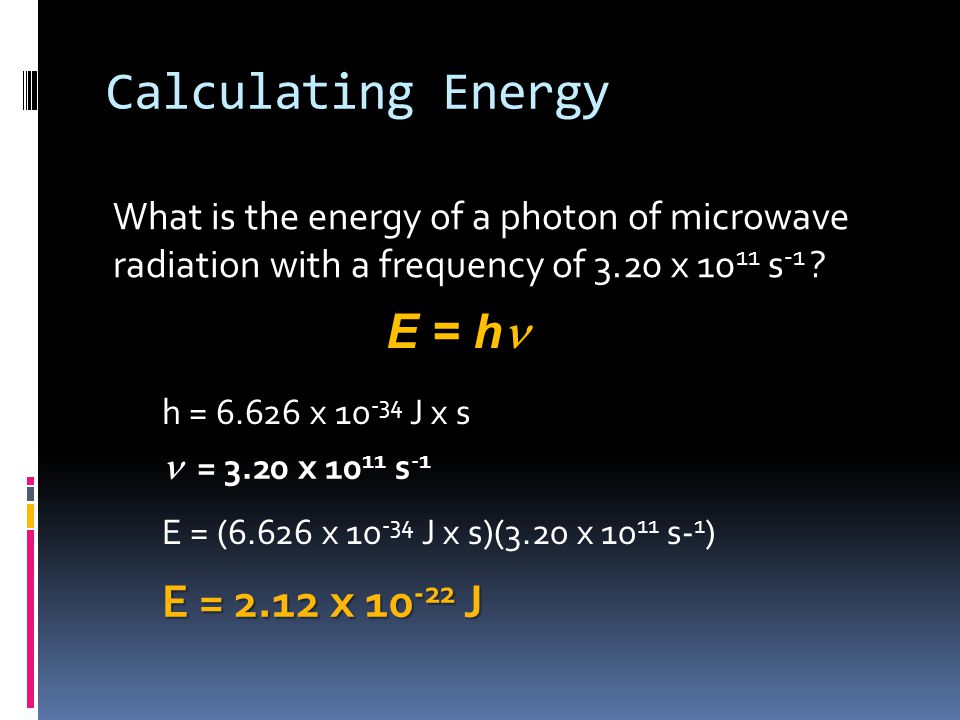

15 Calculating Energy What is the energy of a photon of microwave radiation with a frequency of 3.20 x s -1 ? E = h h = x J x s = 3.20 x s -1 E = (6.626 x J x s)(3.20 x s- 1 ) E = 2.12 x J

16 Calculating frequency Orange light has a wavelength of 6.20 x m. What is the frequency? c = speed of light = 3.00 x 10 8 m/s 3.0 x 10 8 m/s 6.2 x m = 4.8 x s -1

17 Relating Frequency, Wavelength and Energy Common re-arrangements:
