1

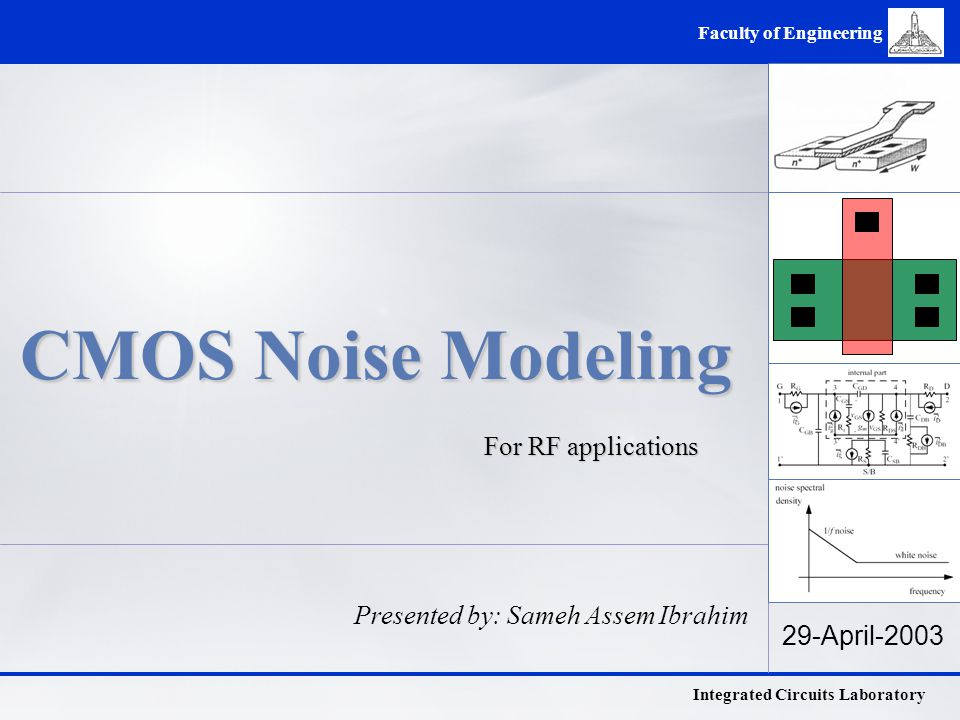

Integrated Circuits Laboratory Faculty of Engineering 29-April-2003 CMOS Noise Modeling For RF applications Presented by: Sameh Assem Ibrahim

2
2/29 Integrated Circuits Laboratory Faculty of Engineering What is noise ? Some unwanted fluctuations that, when added to a signal, reduces its information content. Classified into internal or external noise. Internal noise: Generated by components within the systems such as resisters and transistors. External noise: Generated by sources outside the system such as atmosphere and man-made. Noise defines the lowest limit of the signal that can be detected.

3

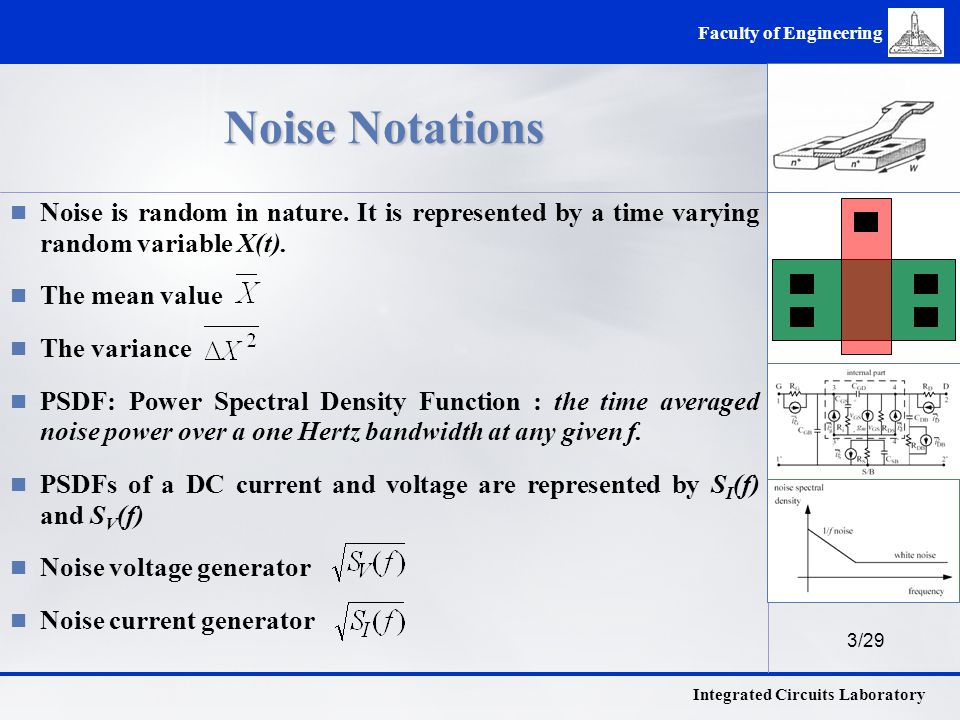

3/29 Integrated Circuits Laboratory Faculty of Engineering Noise Notations Noise is random in nature. It is represented by a time varying random variable X(t). The mean value The variance PSDF: Power Spectral Density Function : the time averaged noise power over a one Hertz bandwidth at any given f. PSDFs of a DC current and voltage are represented by S I (f) and S V (f) Noise voltage generator Noise current generator

4
4/29 Integrated Circuits Laboratory Faculty of Engineering Types of Noise in SC Devices 1. Thermal Noise M.B. Johnson was the first to report careful measurement of Thermal noise in 1927. White noise. (Independent on frequency) The most fundamental and important noise in electronic devices. Physical explanation: Random travelling of electrons due to collisions with the lattice of the semiconductor. S V (f)=4kTR S I (f)=4kT/R

5
5/29 Integrated Circuits Laboratory Faculty of Engineering Types of Noise in SC Devices 2. Shot Noise First discovered and explained by W. Schottky in 1918. White noise. (Independent on frequency) Exists whenever a DC current flows and electrons cross potential barriers. Physical explanation: Fluctuation of the emission rate of carriers. S I (f)=2qI

6
6/29 Integrated Circuits Laboratory Faculty of Engineering Types of Noise in SC Devices 3. Flicker Noise 1/f n noise with n close to unity. (Pink noise) 1. The carrier number fluctuation model (Δn) proposed by McWorther: Flicker noise is attributed to the trapping and de- trapping processes of the charges in the oxide traps at the Si-SiO 2 interface. 2. The mobility fluctuation model (Δμ) proposed by Hooge: Flicker noise results from bulk mobility fluctuation on the basis of empirical hypothesis. 3. The unified model by Hung : Δn model at high bias and Δμ model at low bias

7

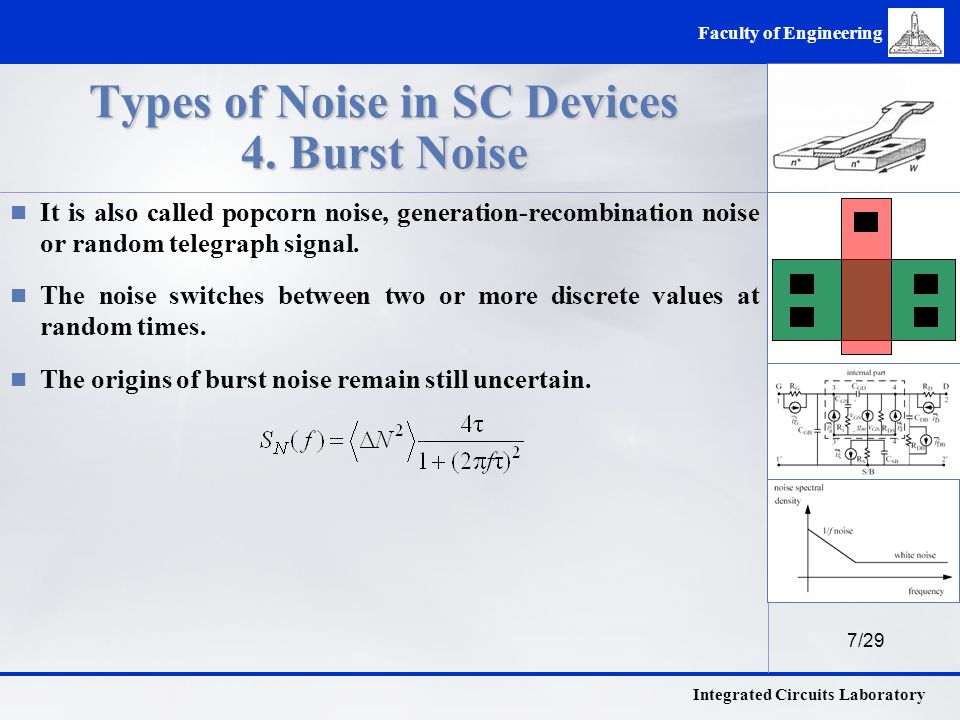

7/29 Integrated Circuits Laboratory Faculty of Engineering Types of Noise in SC Devices 4. Burst Noise It is also called popcorn noise, generation-recombination noise or random telegraph signal. The noise switches between two or more discrete values at random times. The origins of burst noise remain still uncertain.

8

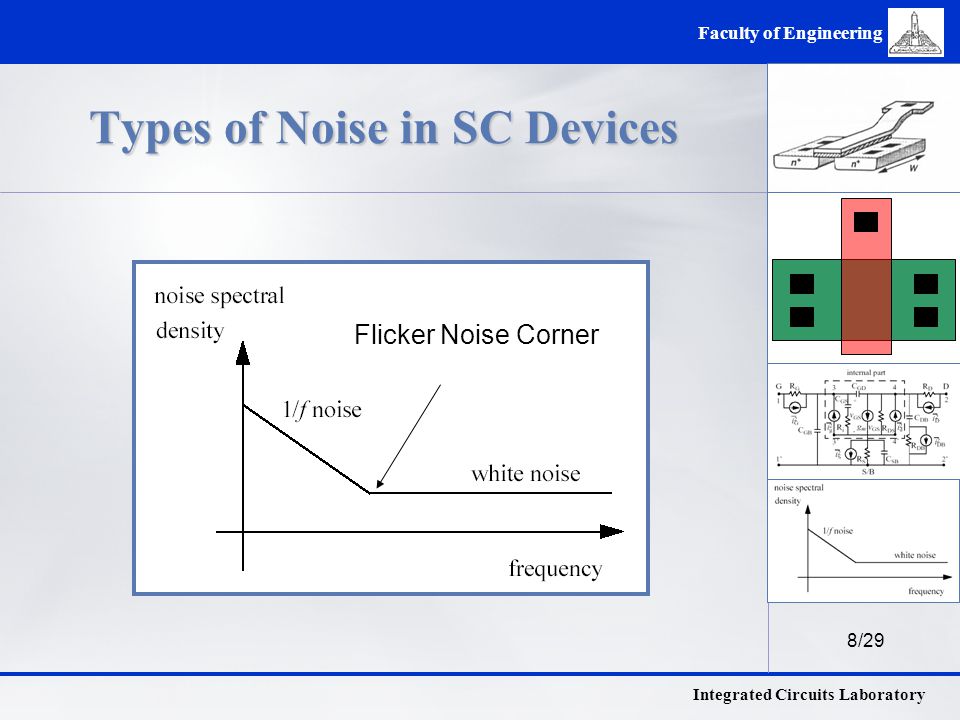

8/29 Integrated Circuits Laboratory Faculty of Engineering Types of Noise in SC Devices Flicker Noise Corner

9

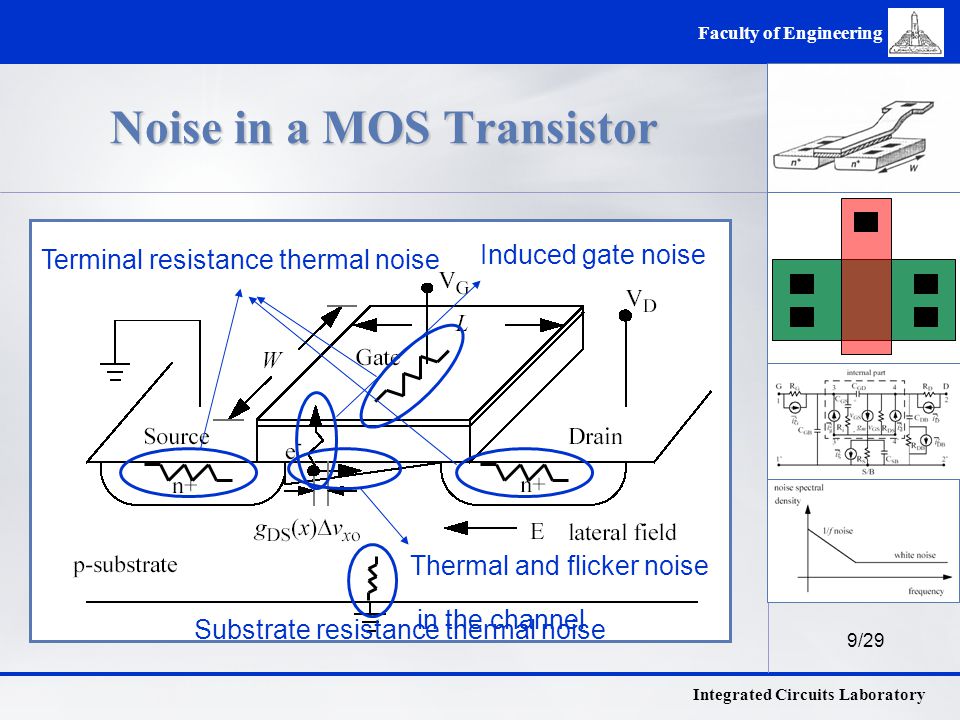

9/29 Integrated Circuits Laboratory Faculty of Engineering Noise in a MOS Transistor Terminal resistance thermal noise Substrate resistance thermal noise Thermal and flicker noise in the channel Induced gate noise

10

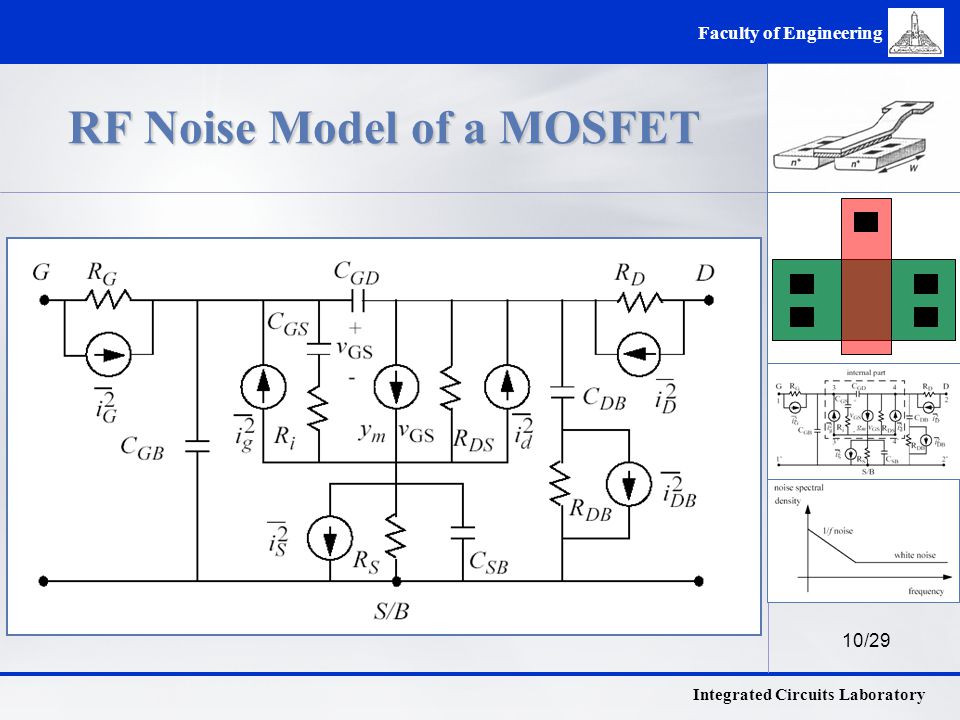

10/29 Integrated Circuits Laboratory Faculty of Engineering RF Noise Model of a MOSFET

11
11/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Modeling 1 At HF, the dominant noise contribution comes from the channel thermal noise. Results from the random thermal motion of carriers in the channel. At zero V DS, the channel can be treated as a homogeneous resistor. This gives S Id (f)=4.k.T.g do where k is Boltzman constant T is absolute temperature g do is channel conductance at zero drain-source voltage

12

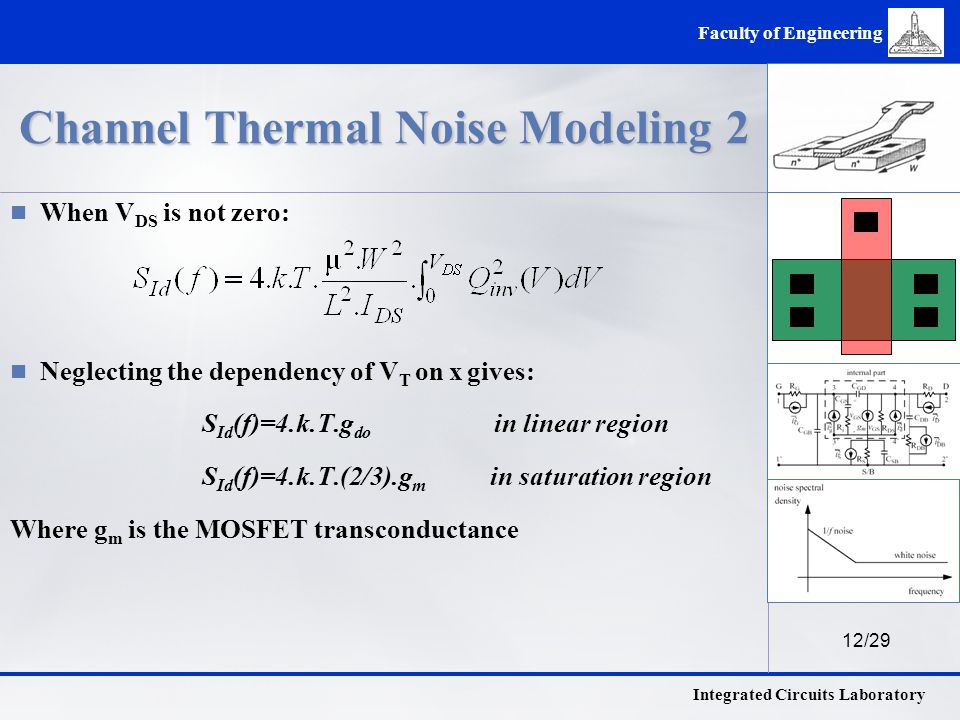

12/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Modeling 2 When V DS is not zero: Neglecting the dependency of V T on x gives: S Id (f)=4.k.T.g do in linear region S Id (f)=4.k.T.(2/3).g m in saturation region Where g m is the MOSFET transconductance

13
13/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Modeling 3 If the dependency of V T on x is considered, we can write: Where is a bias dependent factor. For long channel devices: for linear region for saturation region For short channel devices, velocity saturation and hot electrons effects must be considered. This gives a higher Whereis for the long channel device is the relaxation time

14
14/29 Integrated Circuits Laboratory Faculty of Engineering For NLEV = 3 : Linear region Saturation region is a model parameter Channel Thermal Noise Models HSPICE Model A parameter NLEV used to select different equations for calculating channel thermal noise. For NLEV < 3 : Used for both saturation and linear regions Velocity saturation is not considered It is not adequate for short channel devices At V DS =0 S id (f) = 0

15
15/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Models BSIM3v3 Model The standard MOSFET model for industry use. A parameter NOIMOD used to select different equations for calculating channel thermal noise. For NOIMOD = 1,3 : It solved the problem at V DS =0 but underestimates noise in linear region For NOIMOD = 2,4 : Velocity saturation is not considered It is not adequate for short channel devices

16

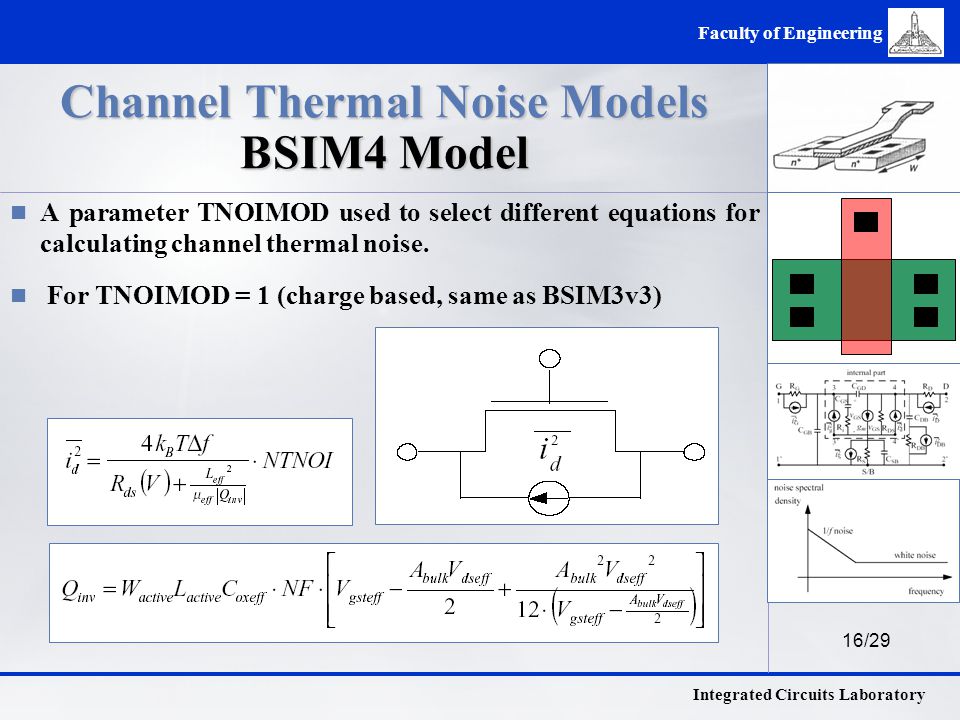

16/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Models BSIM4 Model A parameter TNOIMOD used to select different equations for calculating channel thermal noise. For TNOIMOD = 1 (charge based, same as BSIM3v3)

17

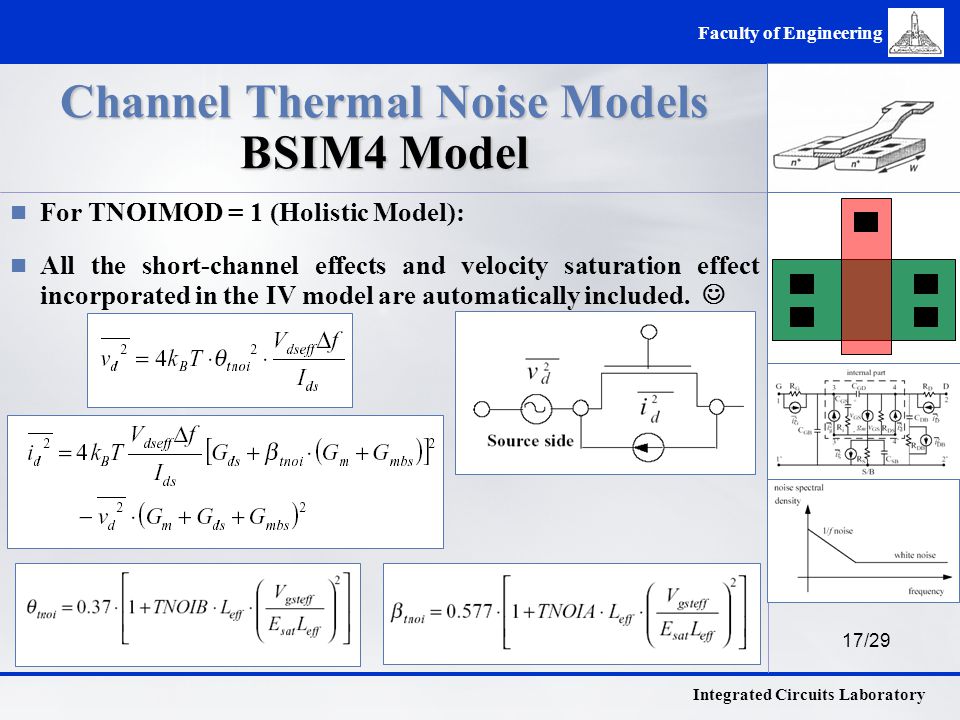

17/29 Integrated Circuits Laboratory Faculty of Engineering Channel Thermal Noise Models BSIM4 Model For TNOIMOD = 1 (Holistic Model): All the short-channel effects and velocity saturation effect incorporated in the IV model are automatically included.

18
18/29 Integrated Circuits Laboratory Faculty of Engineering Induced Gate Noise Modeling At HF, noise current in the channel generates noise in the gate through the gate-channel capacitance C ox WL. It is correlated to the channel thermal noise. Still under research and difficult to model. It is not very critical for frequencies much smaller than f T of the devices. Modeled in BSIM4 noise model. Can be approximated as :

19

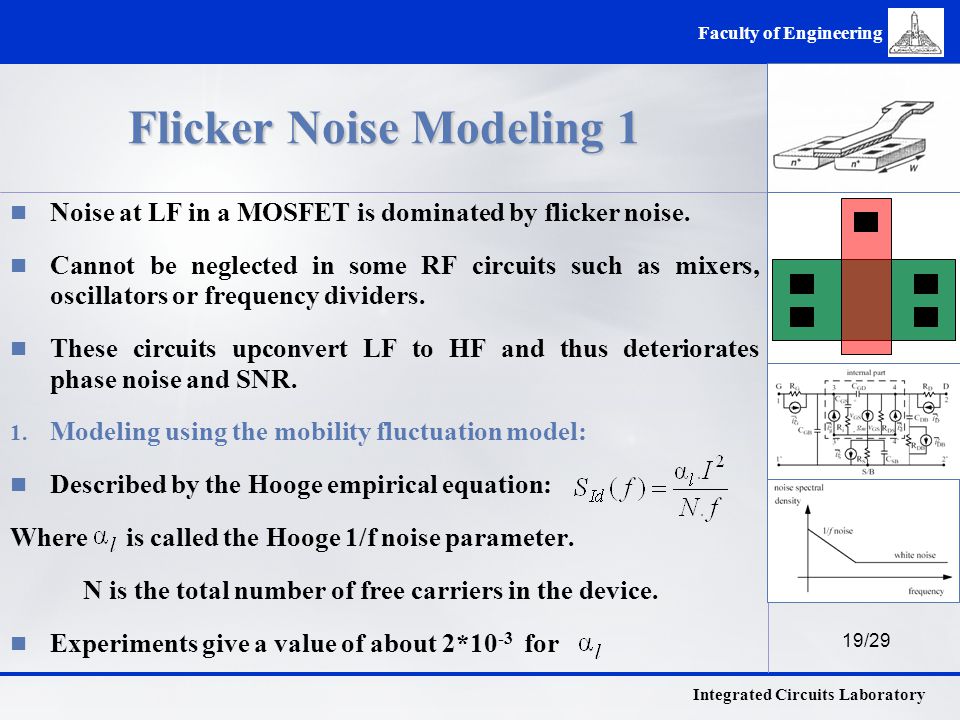

19/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Modeling 1 Noise at LF in a MOSFET is dominated by flicker noise. Cannot be neglected in some RF circuits such as mixers, oscillators or frequency dividers. These circuits upconvert LF to HF and thus deteriorates phase noise and SNR. 1. Modeling using the mobility fluctuation model: Described by the Hooge empirical equation: Where is called the Hooge 1/f noise parameter. N is the total number of free carriers in the device. Experiments give a value of about 2*10 -3 for

20

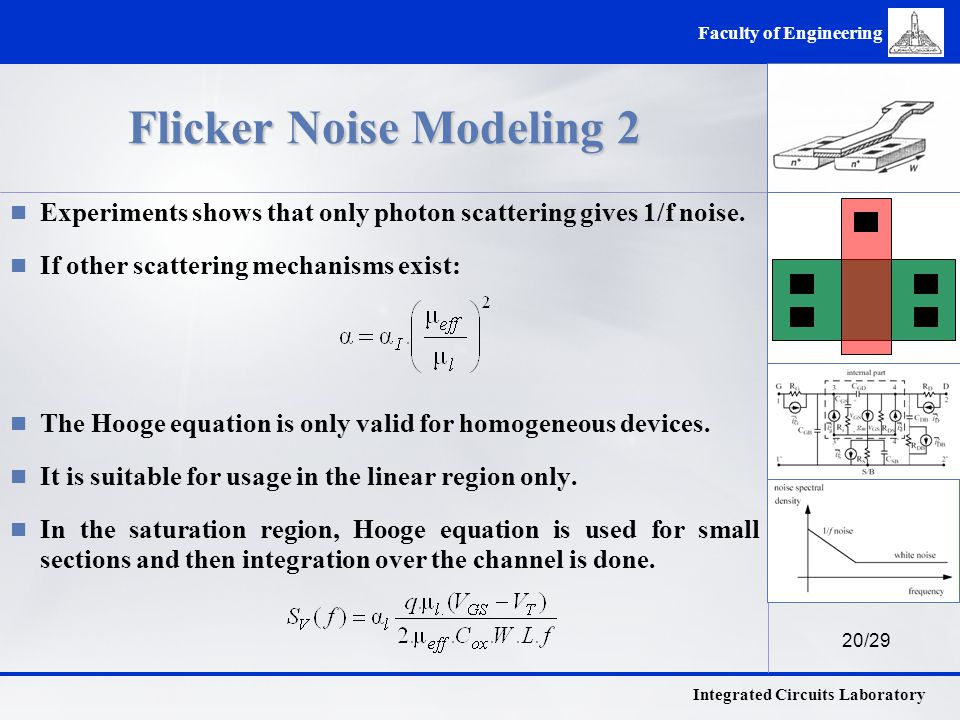

20/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Modeling 2 Experiments shows that only photon scattering gives 1/f noise. If other scattering mechanisms exist: The Hooge equation is only valid for homogeneous devices. It is suitable for usage in the linear region only. In the saturation region, Hooge equation is used for small sections and then integration over the channel is done.

21
21/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Modeling 3 2. Modeling using the number fluctuation model: Statistics of trapping and de-trapping of free carries in oxide traps yields a fluctuation in the number of trapped carriers This causes fluctuations in the channel free carriers. Fluctuations in the channel current thus results. The final result will be

22

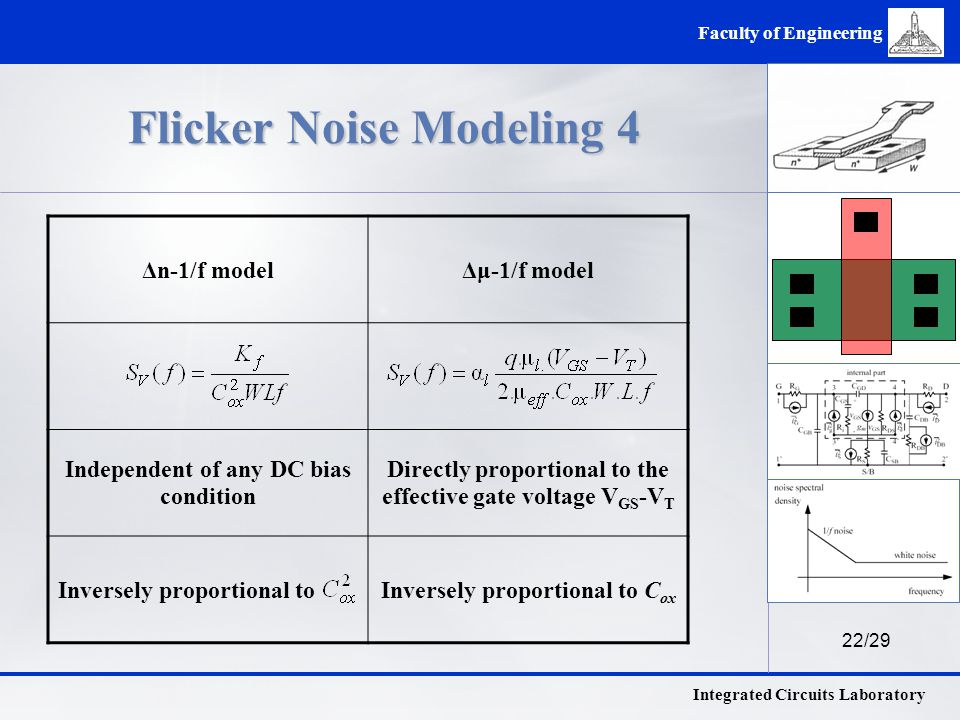

22/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Modeling 4 Δn-1/f modelΔμ-1/f model Independent of any DC bias condition Directly proportional to the effective gate voltage V GS -V T Inversely proportional toInversely proportional to C ox

23

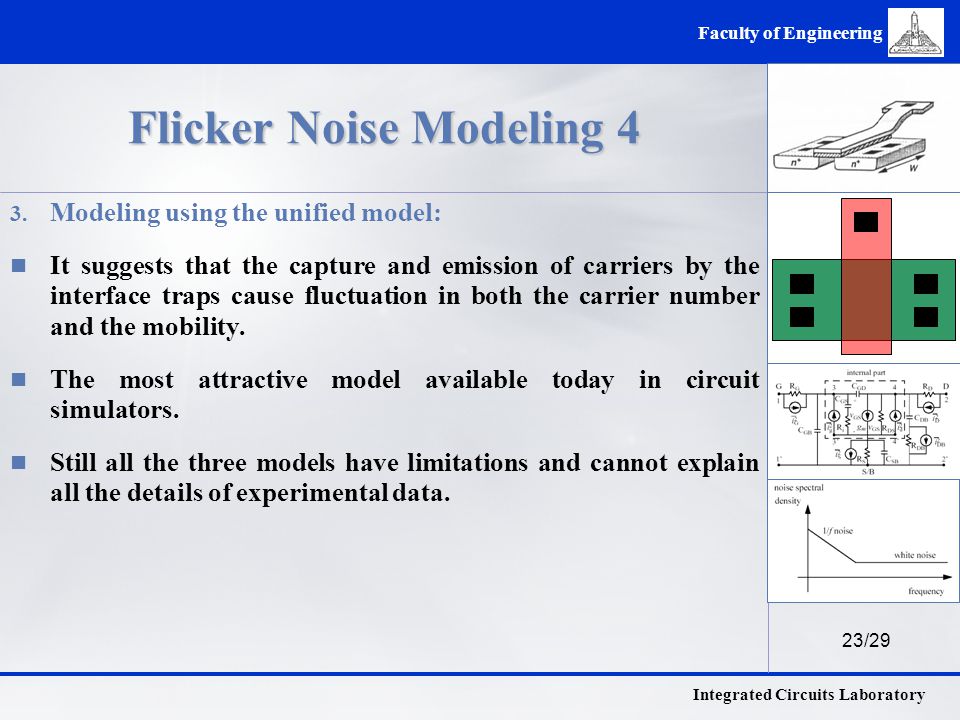

23/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Modeling 4 3. Modeling using the unified model: It suggests that the capture and emission of carriers by the interface traps cause fluctuation in both the carrier number and the mobility. The most attractive model available today in circuit simulators. Still all the three models have limitations and cannot explain all the details of experimental data.

24

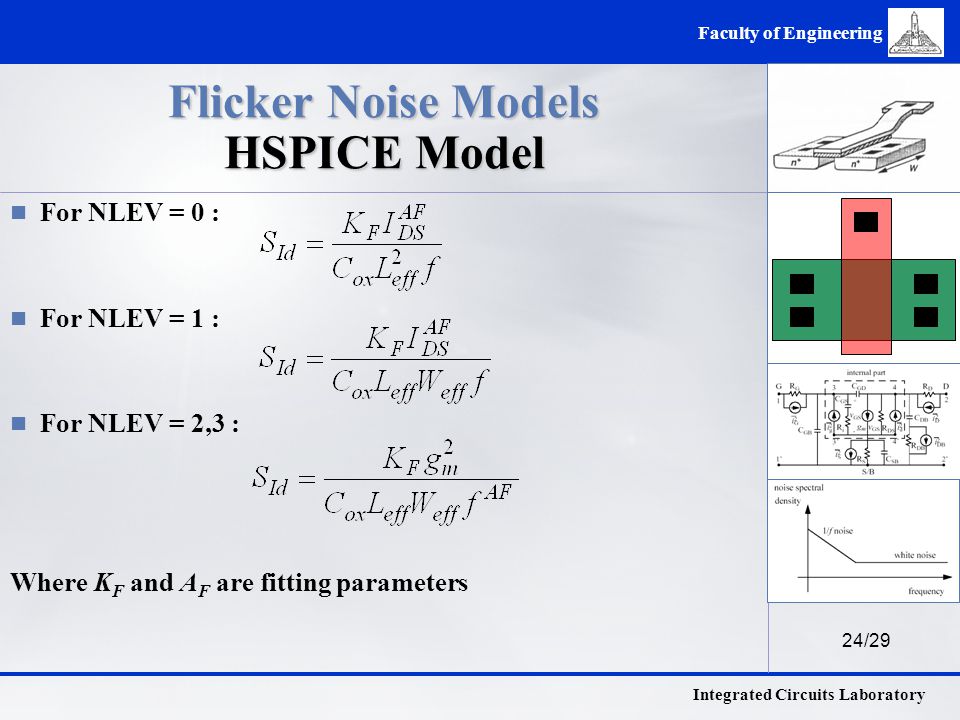

24/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Models HSPICE Model For NLEV = 0 : For NLEV = 1 : For NLEV = 2,3 : Where K F and A F are fitting parameters

25
25/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Models BSIM3v3 Model For NOIMOD = 1,4 : (SPICE2 flicker noise model) For NOIMOD = 2,3 : (Unified flicker noise model) If V GS > V T + 0.1:

26
26/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Models BSIM3v3 Model Otherwise And S limit the calculated flicker noise for V GS = V T + 0.1

27

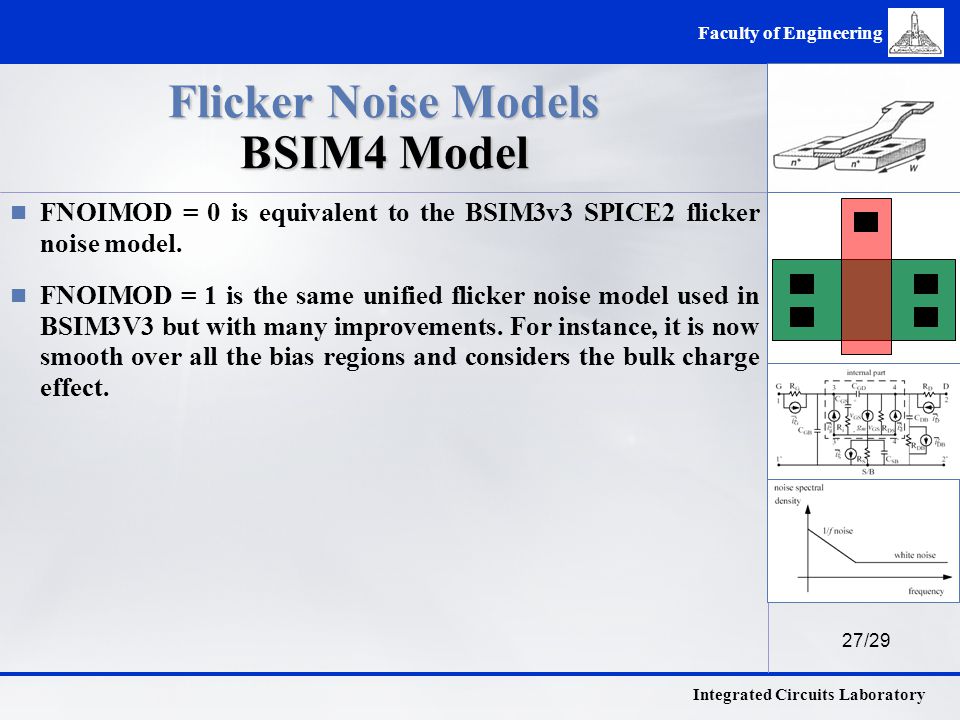

27/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise Models BSIM4 Model FNOIMOD = 0 is equivalent to the BSIM3v3 SPICE2 flicker noise model. FNOIMOD = 1 is the same unified flicker noise model used in BSIM3V3 but with many improvements. For instance, it is now smooth over all the bias regions and considers the bulk charge effect.

28
28/29 Integrated Circuits Laboratory Faculty of Engineering Flicker Noise in Switched MOSFET circuits Flicker Noise estimates based on standard models can be quite inaccurate especially for switched circuits. Switched circuits are widely used in RF applications. Examples are switched capacitor networks, modulators, demodulators and frequency converters. Measured 1/f noise in these circuits is much lower than estimates. The discrepancy results from the very high probability that the traps are empty when the transistor is OFF. A model was developed to account for this discrepancy. This model is called the nonstationary model. [5]

29

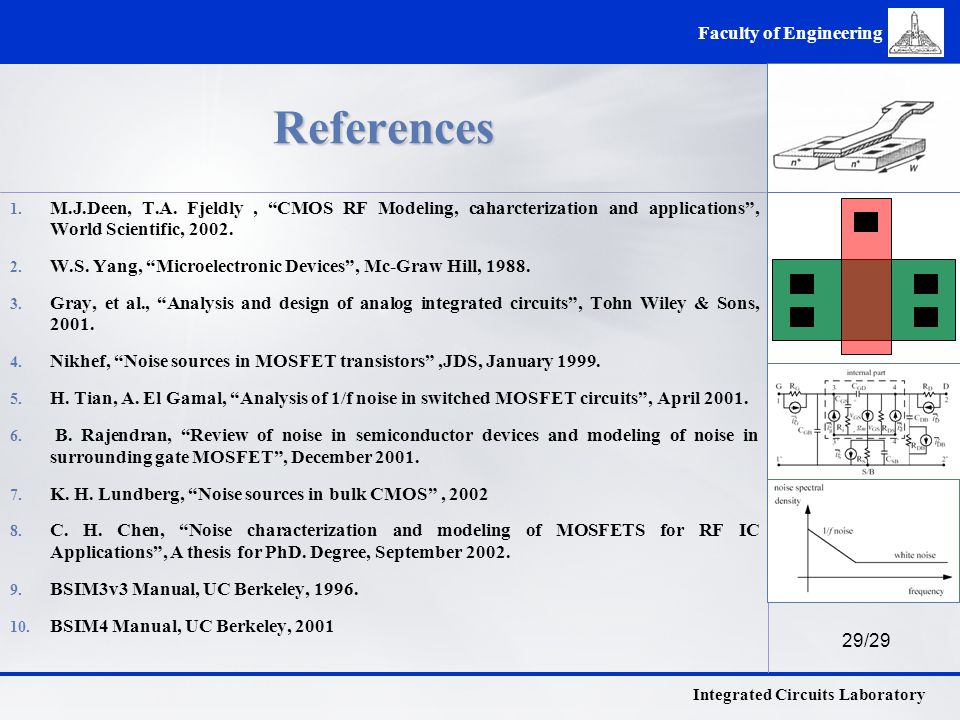

29/29 Integrated Circuits Laboratory Faculty of EngineeringReferences 1. M.J.Deen, T.A. Fjeldly, “CMOS RF Modeling, caharcterization and applications”, World Scientific, 2002. 2. W.S. Yang, “Microelectronic Devices”, Mc-Graw Hill, 1988. 3. Gray, et al., “Analysis and design of analog integrated circuits”, Tohn Wiley & Sons, 2001. 4. Nikhef, “Noise sources in MOSFET transistors”,JDS, January 1999. 5. H. Tian, A. El Gamal, “Analysis of 1/f noise in switched MOSFET circuits”, April 2001. 6. B. Rajendran, “Review of noise in semiconductor devices and modeling of noise in surrounding gate MOSFET”, December 2001. 7. K. H. Lundberg, “Noise sources in bulk CMOS”, 2002 8. C. H. Chen, “Noise characterization and modeling of MOSFETS for RF IC Applications”, A thesis for PhD. Degree, September 2002. 9. BSIM3v3 Manual, UC Berkeley, 1996. 10. BSIM4 Manual, UC Berkeley, 2001
