Computing the Sphericity and Roundness of Rocks Heather Dunlop Robotics-811 Dec. 1, 2005

Data Set Images of rocks and their sphericity and roundness as determined by geologists. Assume segmentation problem is solved.

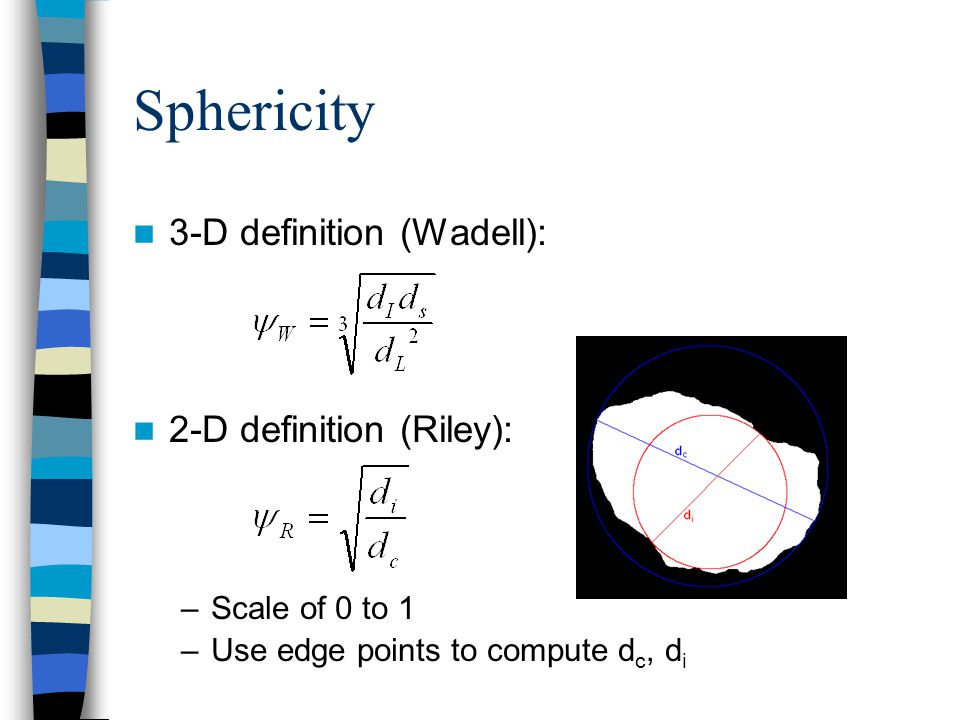

Sphericity 3-D definition (Wadell): 2-D definition (Riley): –Scale of 0 to 1 –Use edge points to compute d c, d i

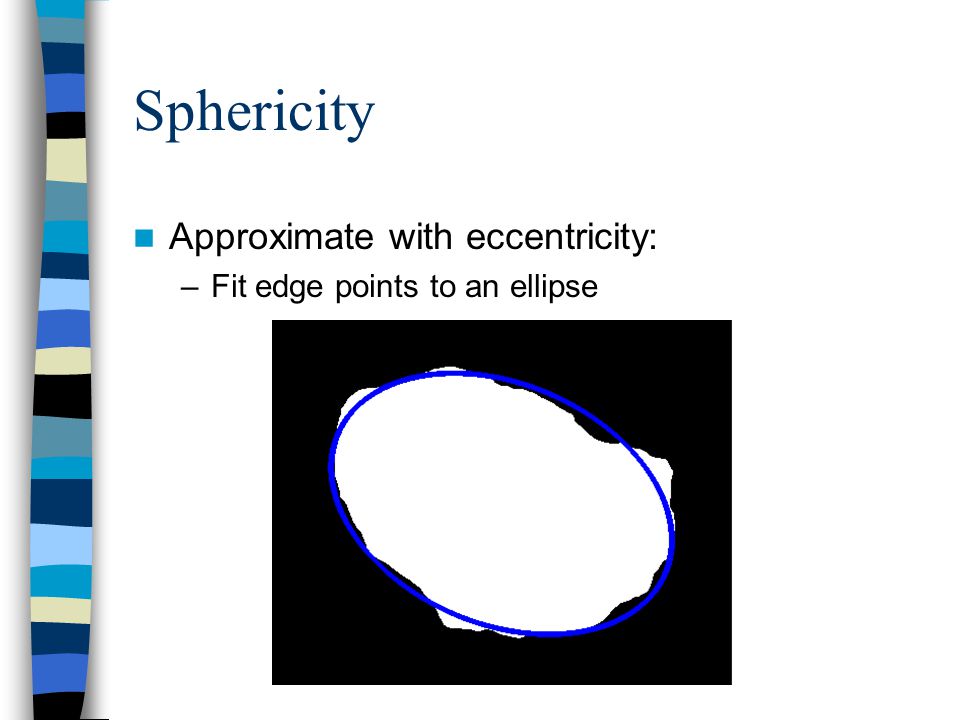

Sphericity Approximate with eccentricity: –Fit edge points to an ellipse

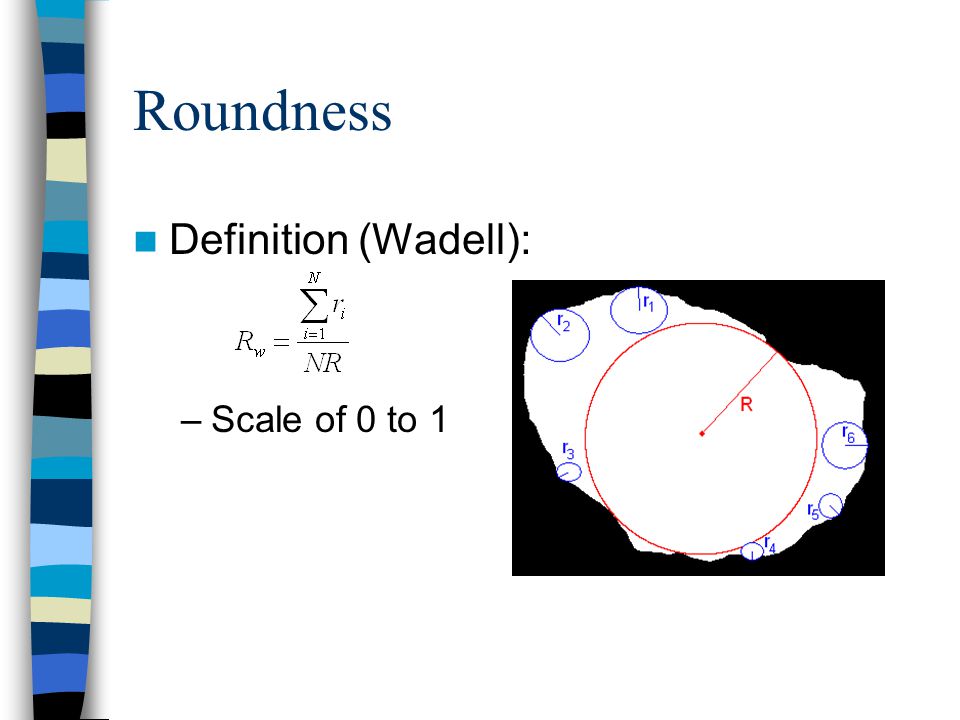

Roundness Definition (Wadell): –Scale of 0 to 1

Roundness Requires detection of corners: 1.Assume all edge points are corners. 2.Assume edge points with largest radius of curvature are corners.

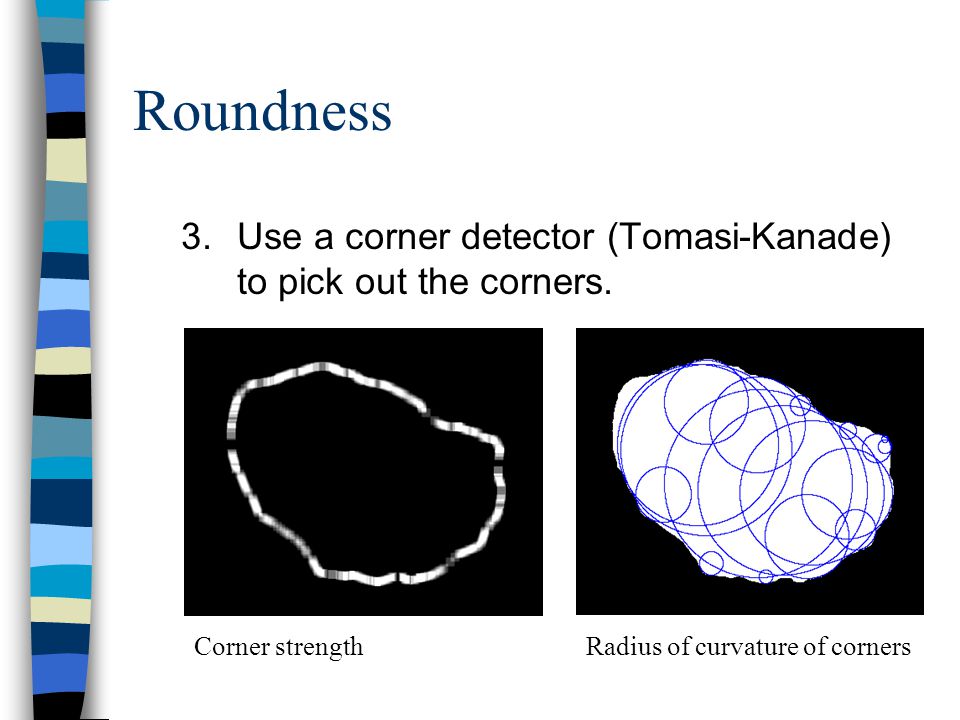

Roundness 3.Use a corner detector (Tomasi-Kanade) to pick out the corners. Corner strengthRadius of curvature of corners

Experiments Geologists often use a chart such as this for quick estimation of sphericity and roundness Problem: different scale Crofts, 1974

Experiments Scale is given for roundness –convert 0 to 1 into 1 to 6: logarithmic scale Not given scale for sphericity –Photocopy and scan chart and compute sphericity using both methods to obtain conversion

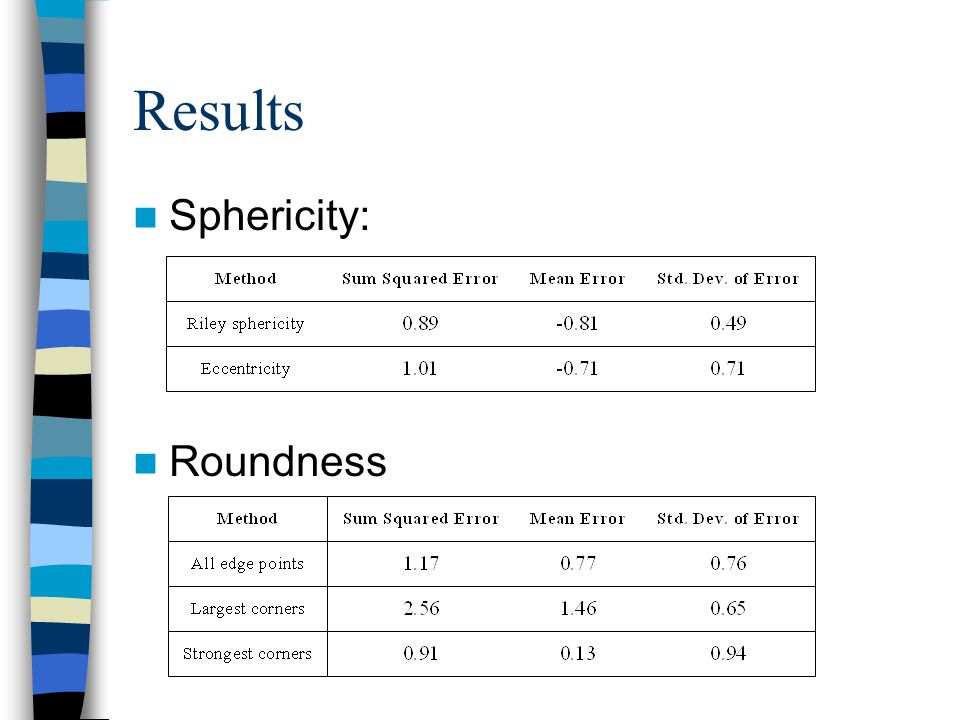

Results Sphericity: Roundness

Future Work Need to test with whole data set –Only 10 rocks have been used so far Segmentation –Images were segmented by hand –For testing with all 195 rocks to be practical, need segmentation
