E – 177 1250 gpm Pump / 500 gallon Tank / 1,000’ 5” Hose.

Similar presentations


Presentation on theme: "E – 177 1250 gpm Pump / 500 gallon Tank / 1,000’ 5” Hose."— Presentation transcript:

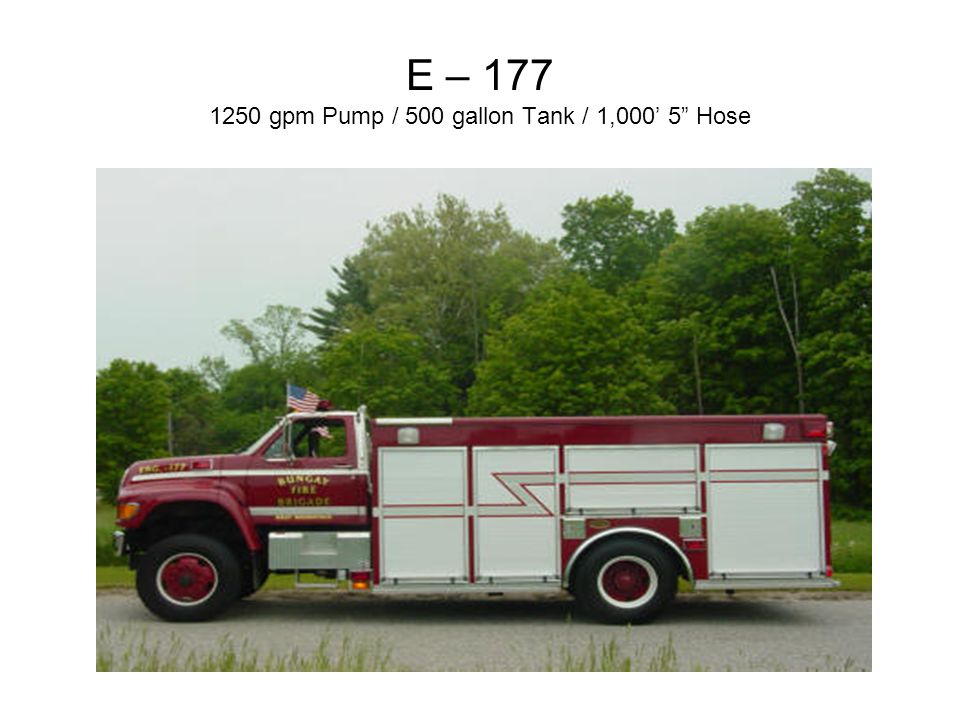

1 E – gpm Pump / 500 gallon Tank / 1,000’ 5” Hose

2 Driver’s Compartment -Power Switch -Driver’s Controls -Radios -Emergency Lights / Sirens -Truck Fire Extinguisher -Fuel Key in Glove Box -UHF Portable Radio

3 Compartment 1 Driver’s Side -Top -300’ of Forestry Hose -Two Y’s 2 ½” to Forestry Thread -2 ½” to Garden Hose Y -Various Nozzles -Middle -Dead Man Stand -Forestry Rake Heads / Machete -Bottom -Hand Line -Extra Length of 1 ¾” -Roll of Forestry Hose -Garden Hose for filling Indian Tanks

4 Compartment 2 -Top -Floating Strainer w/Cam Lock -Towel -Middle -Two 5 Gallon Pales of Foam -In Line Foam Inductor -Drinking Water -Bottom -EMS Bag -Gloves -Head Blocks -CPR Board

5 Compartment 3 -Indian Packs -Chain Saw -Helmet w/Ear Protection -Chaps

6 Compartment 4 -Wheel Chocks -Intakes -6” & 3” -Discharges -3” & LDH -Drains

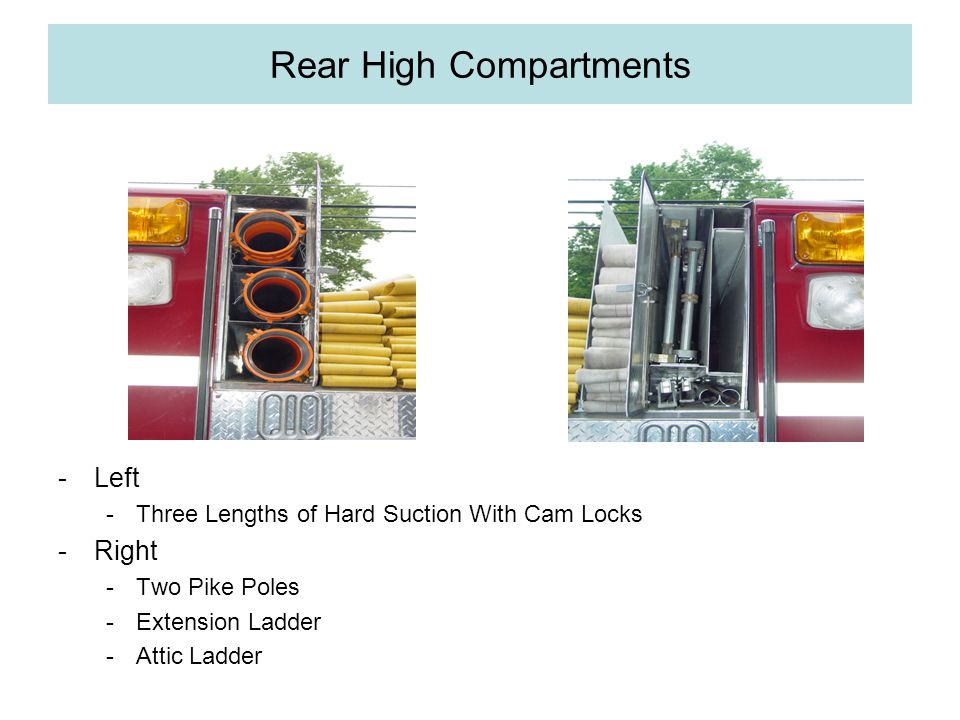

7 Rear High Compartments -Left -Three Lengths of Hard Suction With Cam Locks -Right -Two Pike Poles -Extension Ladder -Attic Ladder

8 Hose Bed -1,000’ of 5” Large Diameter Hose -300’ of 3” Hose

9 Pump Panel -Controls -Gauges -Indicator Lights

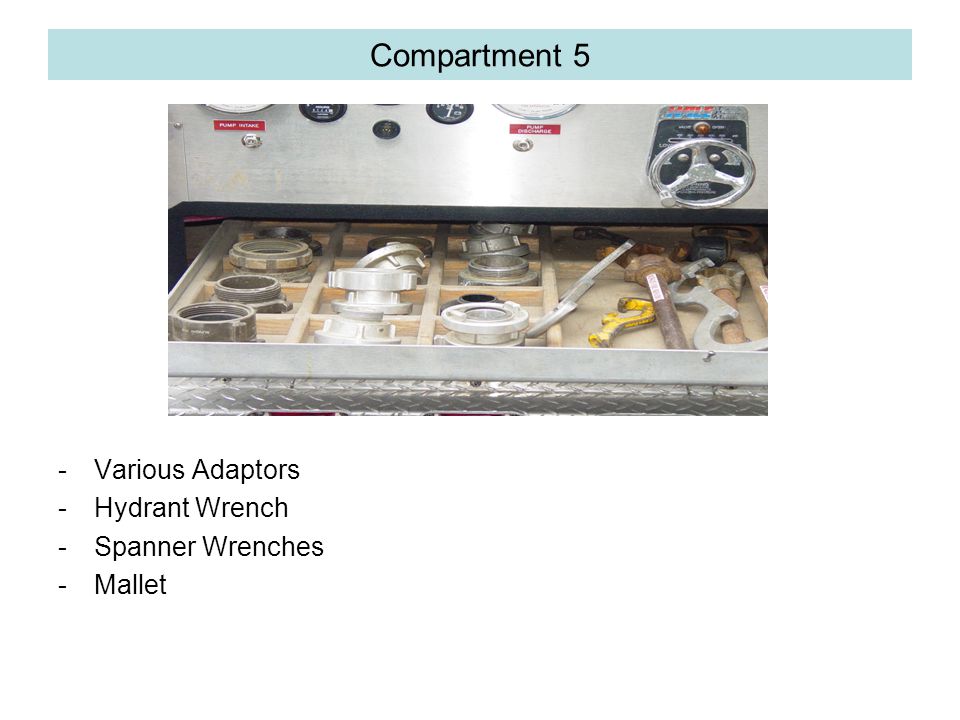

10 Compartment 5 -Various Adaptors -Hydrant Wrench -Spanner Wrenches -Mallet

11 Compartment 6 -Intakes -6” -3” -Discharges -Two 3” discharges -Drains

12 Compartment 7 -Two SCBA’s -Extra SCBA Masks

13 Compartment 8 -Top -Relief Vavle -Hydrant Setup (2 ball valves 1 steamer connection 4” Thread to 5” Storz). -Middle -1 Length of 3” for Dead Man -Two 4” Storz to 2 ½” Threaded Male Adaptors -One 4” Storz to 2 ½” Threaded Female -Bottom -1 Length of 5” Supply Hose -1 Length of 4” Supply Hose

14 Compartment 9 -Top -Two 4” – 5” Storz Adaptors -Indian Tank -Booster Hose -Middle -Eastford Cam-Lock Adaptor -Cistern Cam-Lock Adaptor -4” Siamese -Axes -Tarp -Booster Hose Retract Button -Bottom -Hand Line -Extra Length of 1 ¾” Hand Line Hose

15 Extras -Water Thief Located on Hose Bed -Fuel (Diesel) Key Located in Glove Box -Forestry Brooms and Rake Handles Located in Front Section of Hose Bed
