1 Input devices and interaction Ruth Aylett

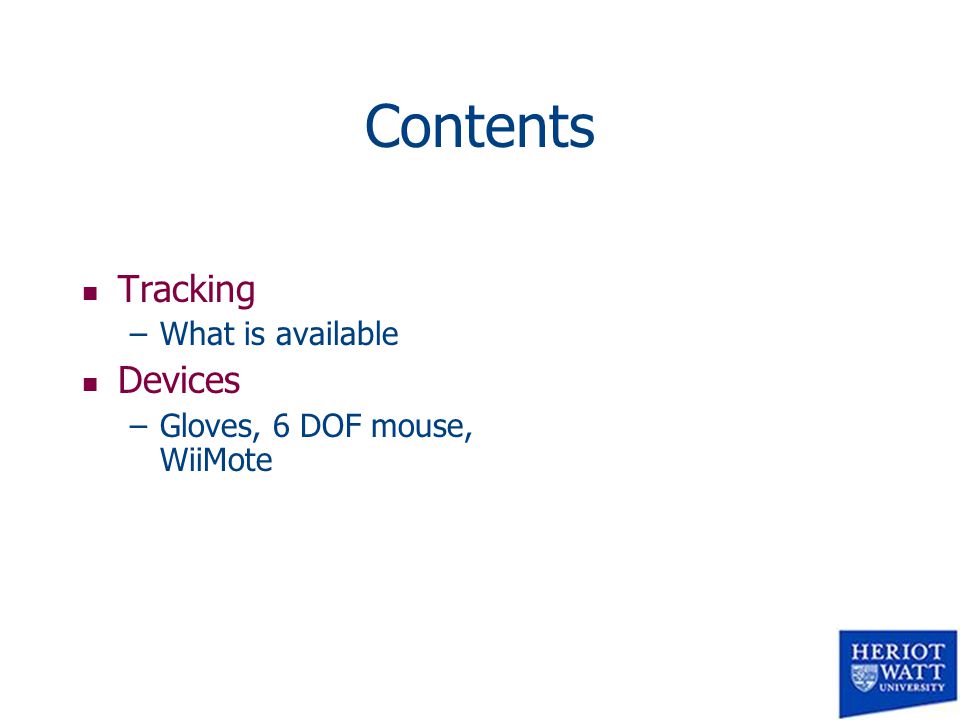

2 Contents n Tracking –What is available n Devices –Gloves, 6 DOF mouse, WiiMote

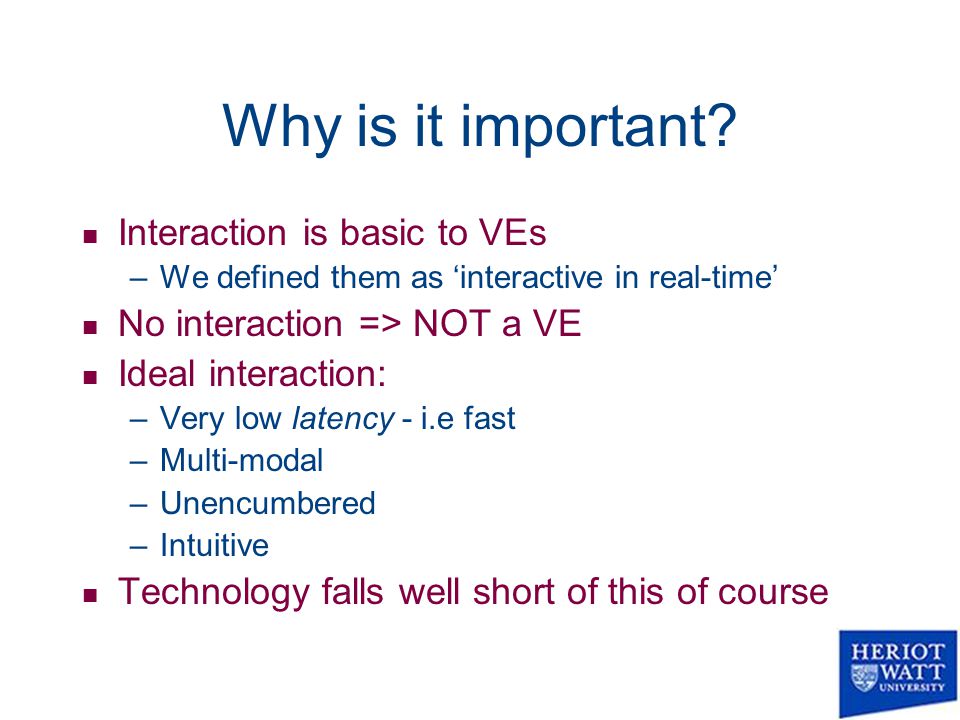

3 Why is it important? n Interaction is basic to VEs –We defined them as ‘interactive in real-time’ n No interaction => NOT a VE n Ideal interaction: –Very low latency - i.e fast –Multi-modal –Unencumbered –Intuitive n Technology falls well short of this of course

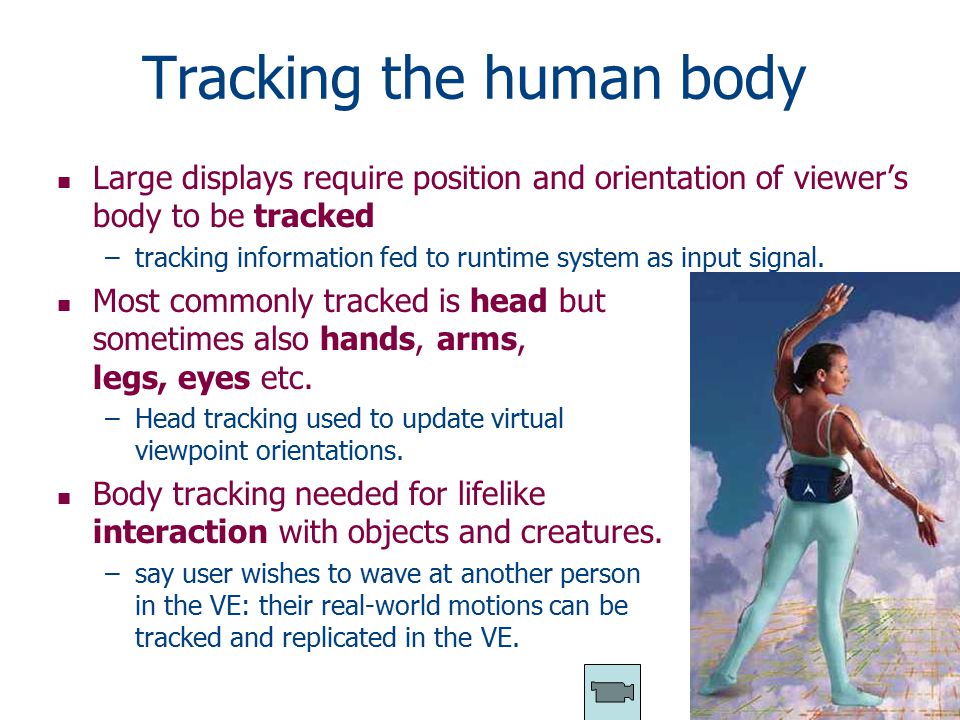

4 Tracking the human body n Large displays require position and orientation of viewer’s body to be tracked –tracking information fed to runtime system as input signal. n Most commonly tracked is head but sometimes also hands, arms, legs, eyes etc. –Head tracking used to update virtual viewpoint orientations. n Body tracking needed for lifelike interaction with objects and creatures. –say user wishes to wave at another person in the VE: their real-world motions can be tracked and replicated in the VE.

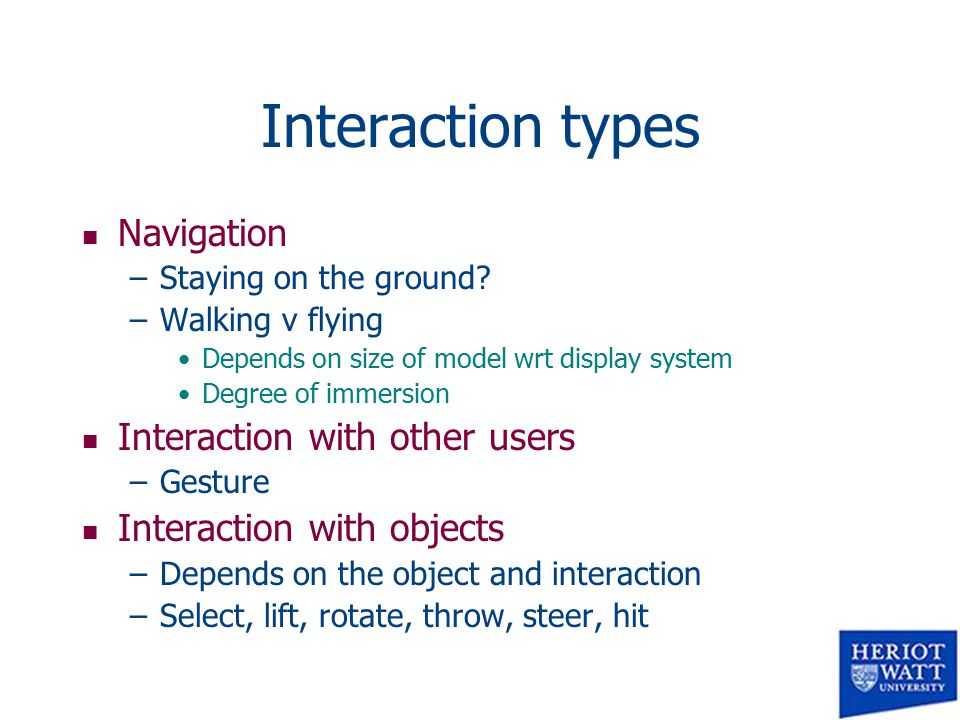

5 Interaction types n Navigation –Staying on the ground? –Walking v flying Depends on size of model wrt display system Degree of immersion n Interaction with other users –Gesture n Interaction with objects –Depends on the object and interaction –Select, lift, rotate, throw, steer, hit

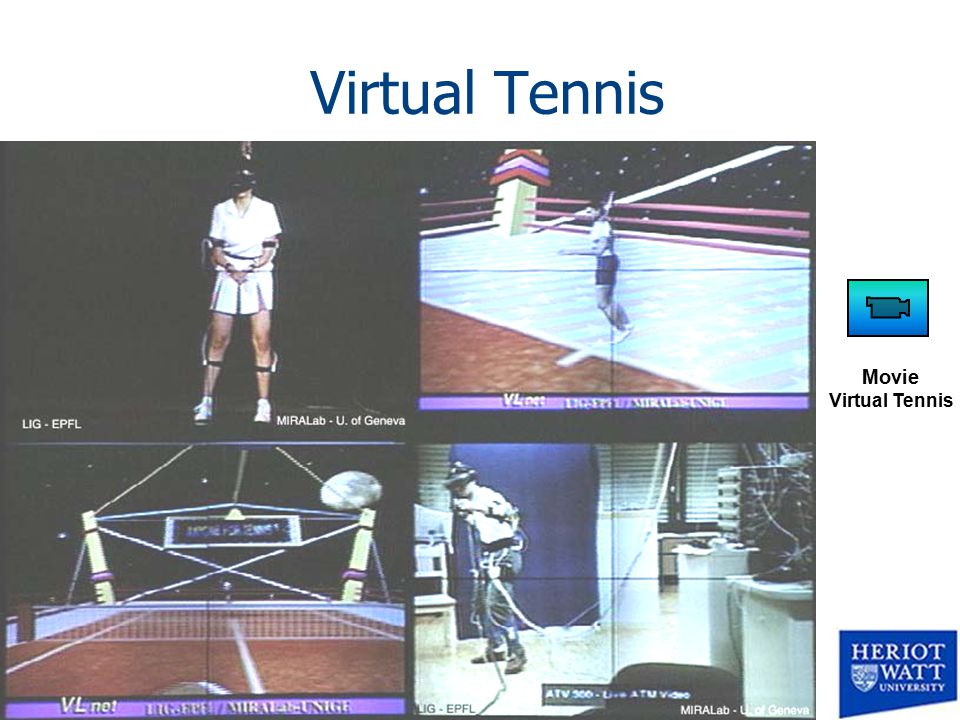

6 Virtual Tennis Movie Virtual Tennis

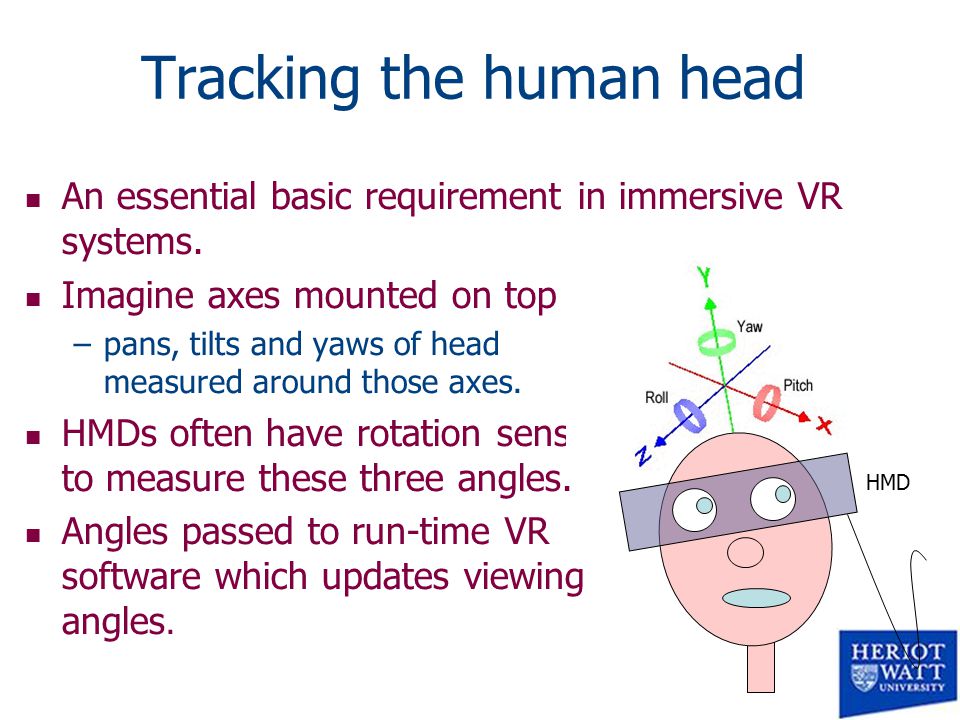

7 Tracking the human head n An essential basic requirement in immersive VR systems. n Imagine axes mounted on top of your head –pans, tilts and yaws of head measured around those axes. n HMDs often have rotation sensors to measure these three angles. n Angles passed to run-time VR software which updates viewing angles. HMD

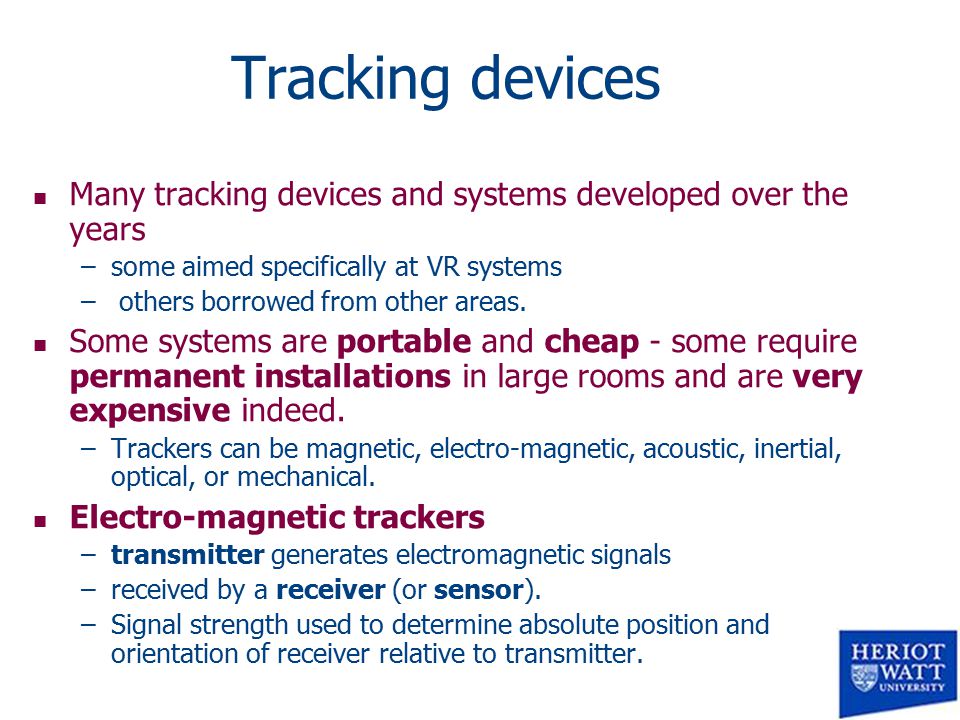

8 Tracking devices n Many tracking devices and systems developed over the years –some aimed specifically at VR systems – others borrowed from other areas. n Some systems are portable and cheap - some require permanent installations in large rooms and are very expensive indeed. –Trackers can be magnetic, electro-magnetic, acoustic, inertial, optical, or mechanical. n Electro-magnetic trackers –transmitter generates electromagnetic signals –received by a receiver (or sensor). –Signal strength used to determine absolute position and orientation of receiver relative to transmitter.

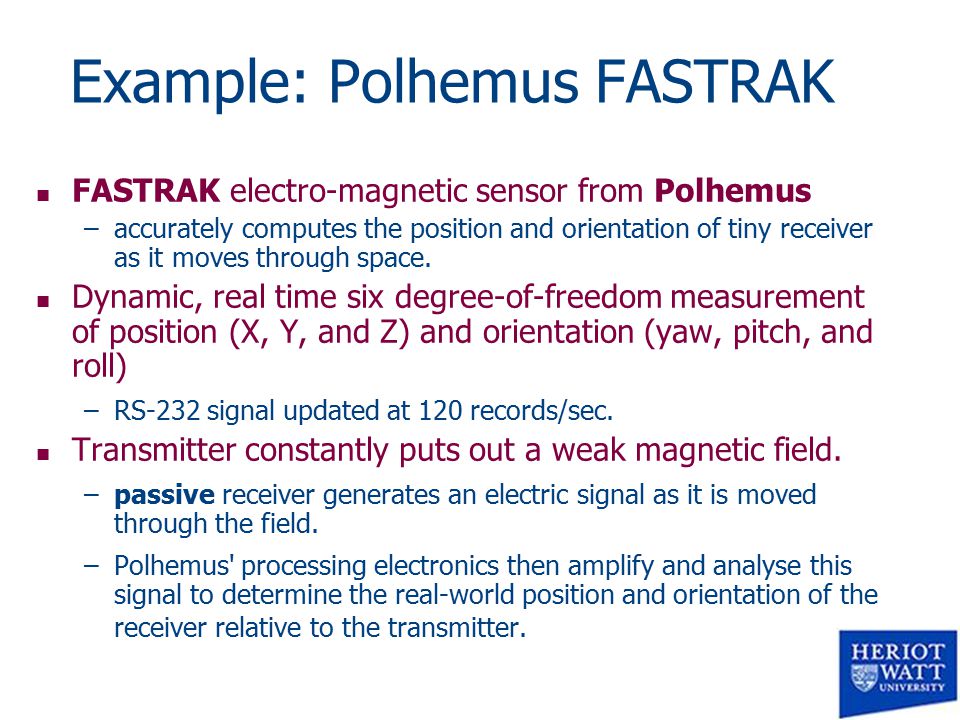

9 Example: Polhemus FASTRAK n FASTRAK electro-magnetic sensor from Polhemus –accurately computes the position and orientation of tiny receiver as it moves through space. n Dynamic, real time six degree-of-freedom measurement of position (X, Y, and Z) and orientation (yaw, pitch, and roll) –RS-232 signal updated at 120 records/sec. n Transmitter constantly puts out a weak magnetic field. –passive receiver generates an electric signal as it is moved through the field. –Polhemus' processing electronics then amplify and analyse this signal to determine the real-world position and orientation of the receiver relative to the transmitter.

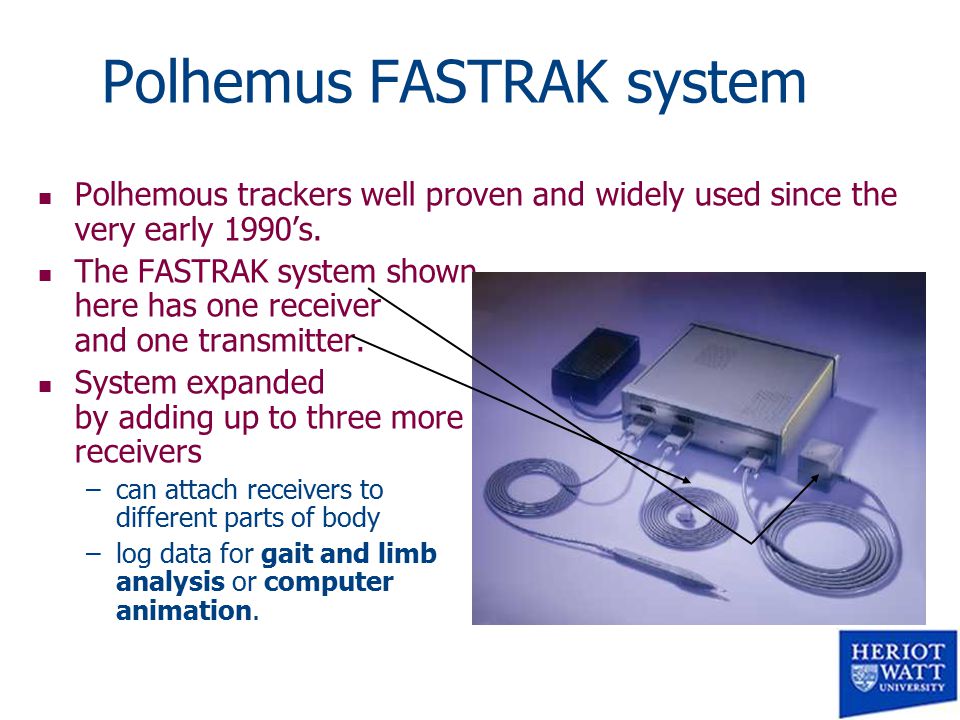

10 Polhemus FASTRAK system n Polhemous trackers well proven and widely used since the very early 1990’s. n The FASTRAK system shown here has one receiver and one transmitter. n System expanded by adding up to three more receivers –can attach receivers to different parts of body –log data for gait and limb analysis or computer animation.

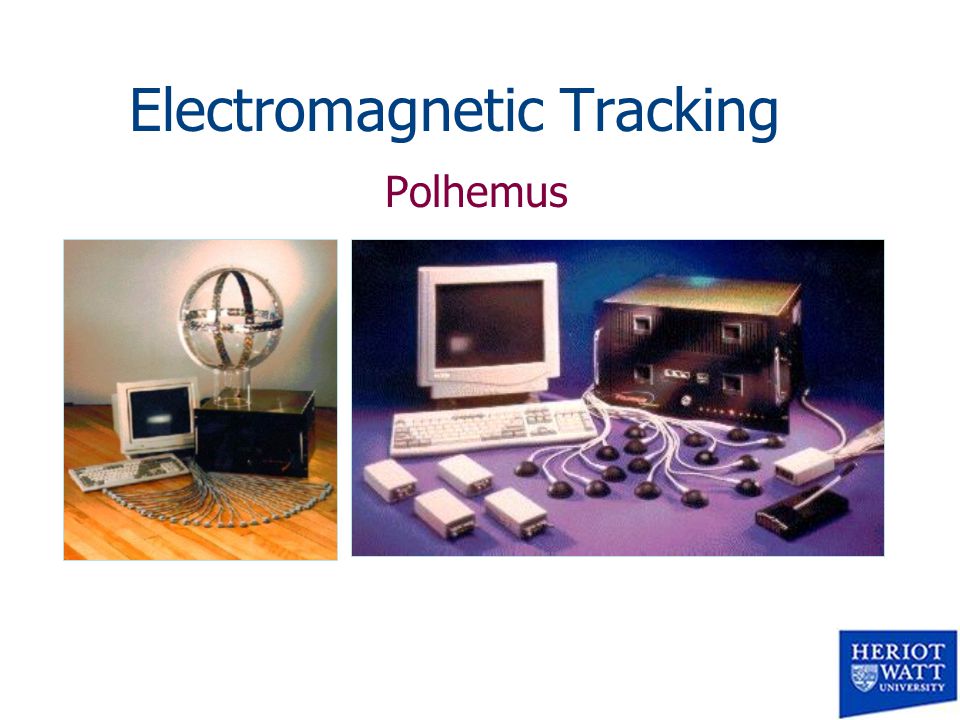

11 Electromagnetic Tracking Polhemus

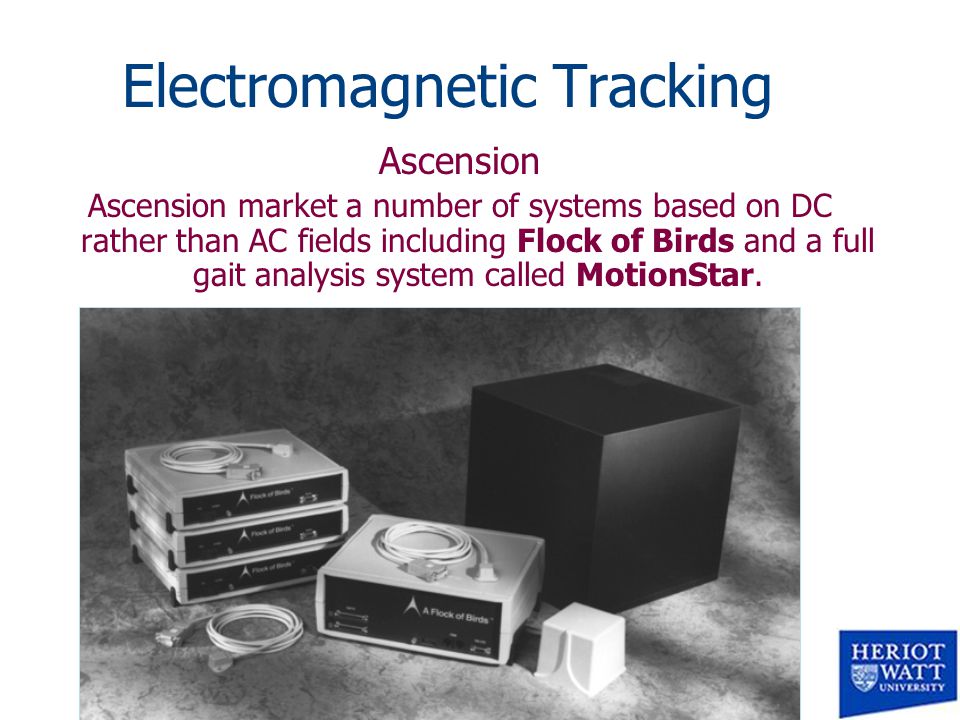

12 Electromagnetic Tracking Ascension Ascension market a number of systems based on DC rather than AC fields including Flock of Birds and a full gait analysis system called MotionStar.

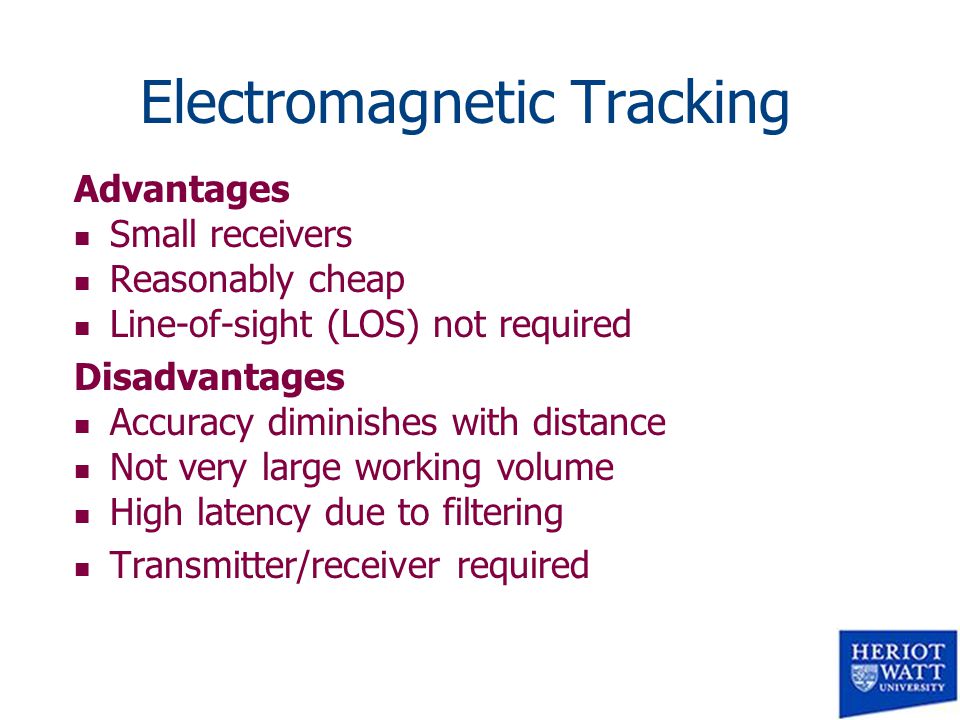

13 Electromagnetic Tracking Advantages n Small receivers n Reasonably cheap n Line-of-sight (LOS) not required Disadvantages n Accuracy diminishes with distance n Not very large working volume n High latency due to filtering n Transmitter/receiver required

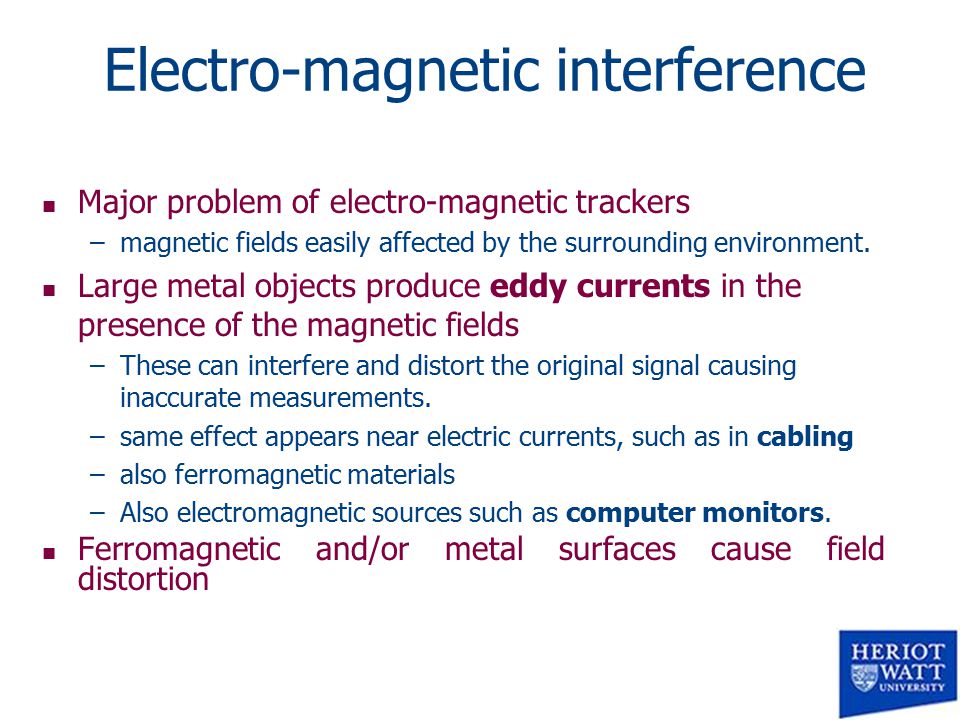

14 Electro-magnetic interference n Major problem of electro-magnetic trackers –magnetic fields easily affected by the surrounding environment. n Large metal objects produce eddy currents in the presence of the magnetic fields –These can interfere and distort the original signal causing inaccurate measurements. –same effect appears near electric currents, such as in cabling –also ferromagnetic materials –Also electromagnetic sources such as computer monitors. n Ferromagnetic and/or metal surfaces cause field distortion

15 Ultrasonic trackers n Two main components –transmitter generating an ultrasound signal – receiver detecting the signal. n Distance is calculated by measuring time-of-flight of ultrasonic pulse. –Three transmitters and receivers needed to calculate full 3D position and orientation. n Ultrasonic tracking used by Logitech Head Tracker (shown) and 3D mouse.

16 Ultrasonic trackers n The Power Glove made by toy company Mattel (who make Barbie) –introduced in 1989 for use with the Nintendo Entertainment System (NES). n Ultrasonic device for use in place of standard Nintendo controllers n Detected finger motion –Plus full set of buttons on the wrist. n In fact not much use for Nintendo gamers –But amazingly advanced piece of VR kit for its time.

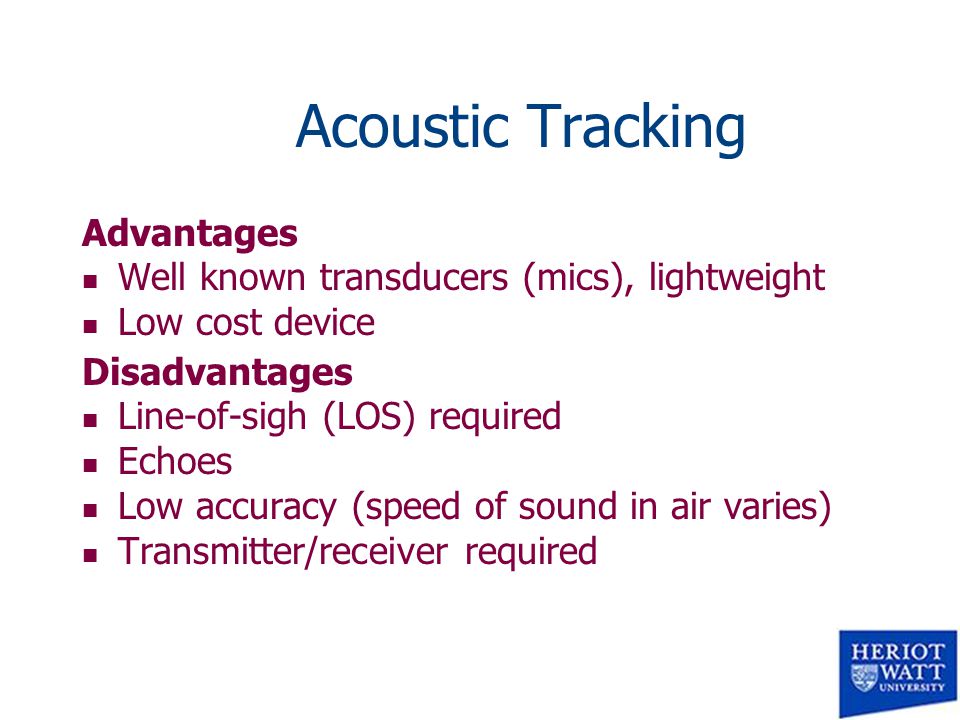

17 Acoustic Tracking Advantages n Well known transducers (mics), lightweight n Low cost device Disadvantages n Line-of-sigh (LOS) required n Echoes n Low accuracy (speed of sound in air varies) n Transmitter/receiver required

18 Inertial tracking systems n Very popular (because cheap) –based on inertial gyro technology –Detects acceleration and thus can calculate velocity (since mass in known) giving 3DoF –Newish example is the Intersense IS-300. n Can be coupled with ‘add-on’ ultrasonic system to give 6 DoF sensing –example of a hybrid technology tracker. n IS-300 can operate in metallic environments, –6 DoF tracker operates only in LoS of transmitter. n Other examples: Intersense Intertrax2 and the Ascension 3D-Bird.

19 Inertial Tracking Advantages n Cheap n Small size n No transmitter/receiver required n LOS not required Disadvantages n Only 3 DOF on their own n Drift n Not accurate for slow movements

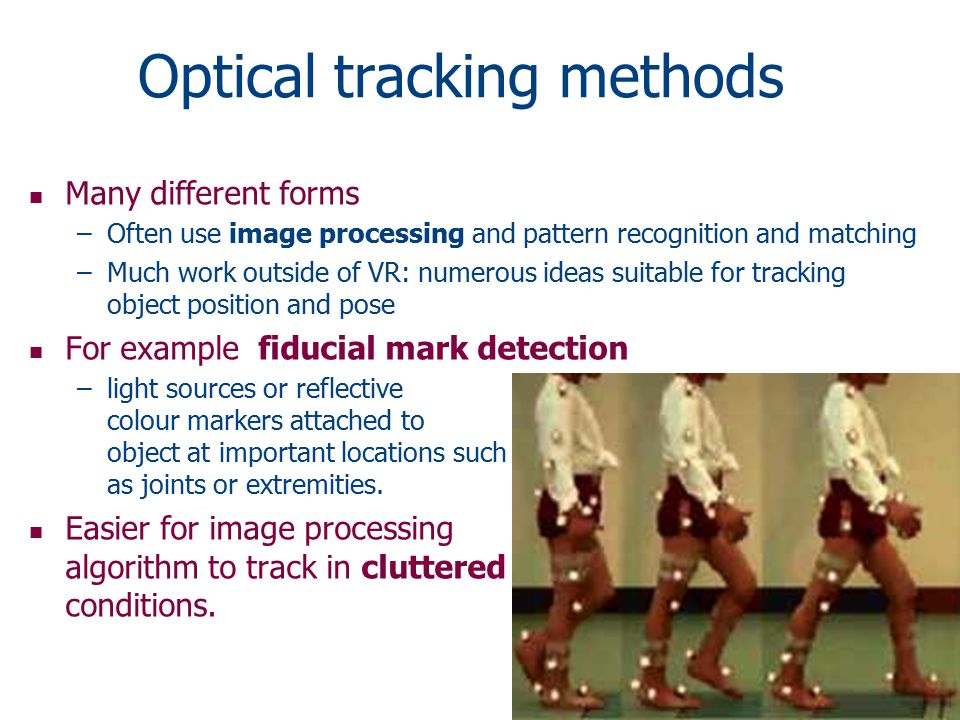

20 Optical tracking methods n Many different forms –Often use image processing and pattern recognition and matching –Much work outside of VR: numerous ideas suitable for tracking object position and pose n For example fiducial mark detection –light sources or reflective colour markers attached to object at important locations such as joints or extremities. n Easier for image processing algorithm to track in cluttered conditions.

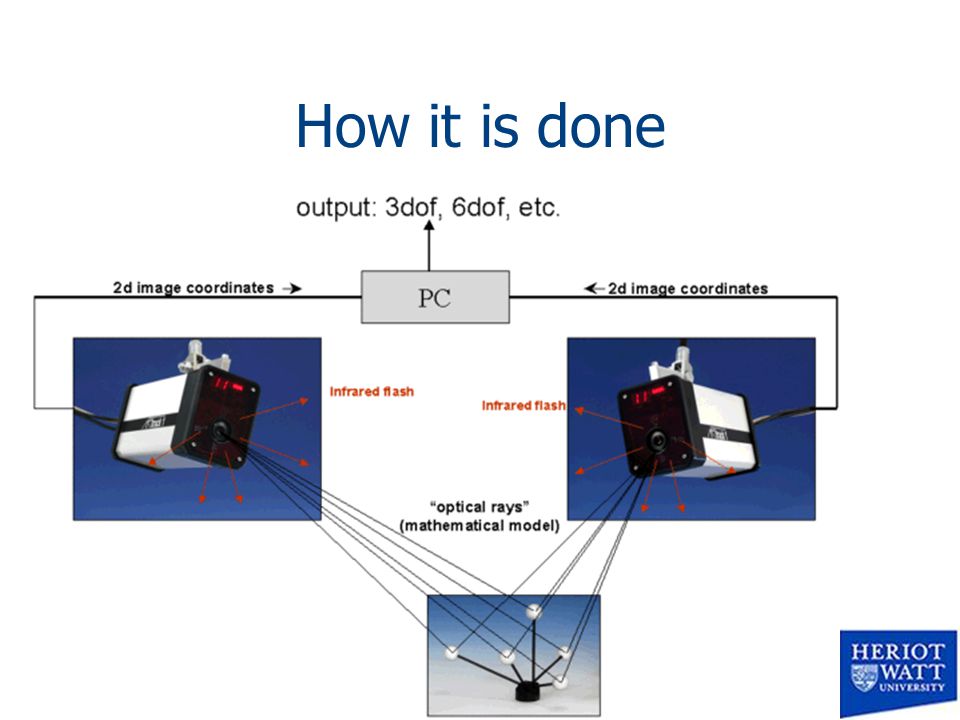

21 How it is done

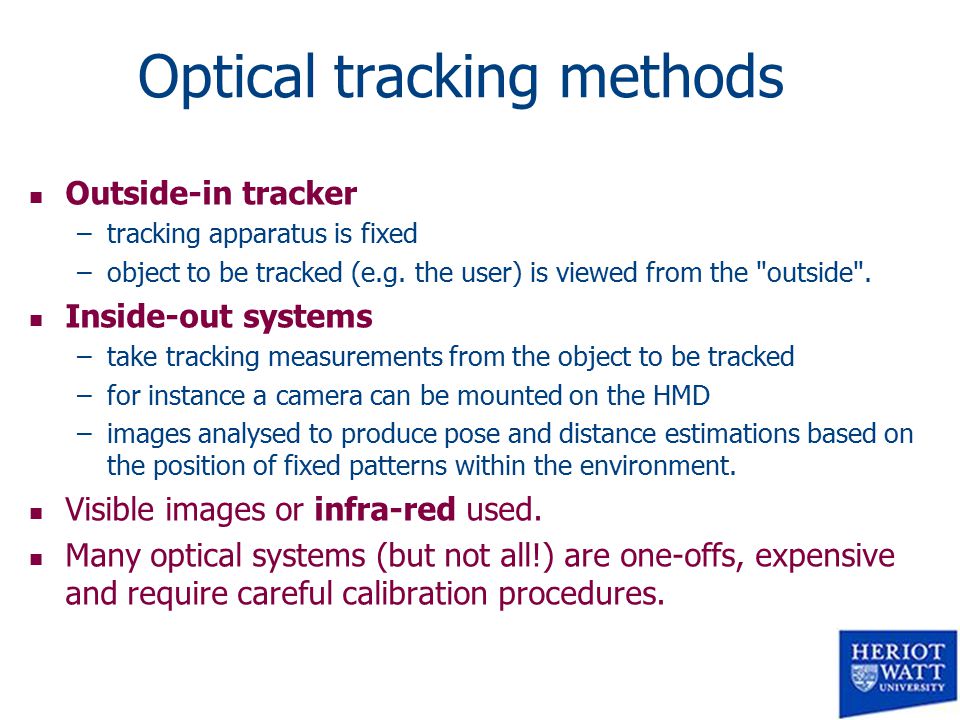

22 Optical tracking methods n Outside-in tracker –tracking apparatus is fixed –object to be tracked (e.g. the user) is viewed from the "outside". n Inside-out systems –take tracking measurements from the object to be tracked –for instance a camera can be mounted on the HMD –images analysed to produce pose and distance estimations based on the position of fixed patterns within the environment. n Visible images or infra-red used. n Many optical systems (but not all!) are one-offs, expensive and require careful calibration procedures.

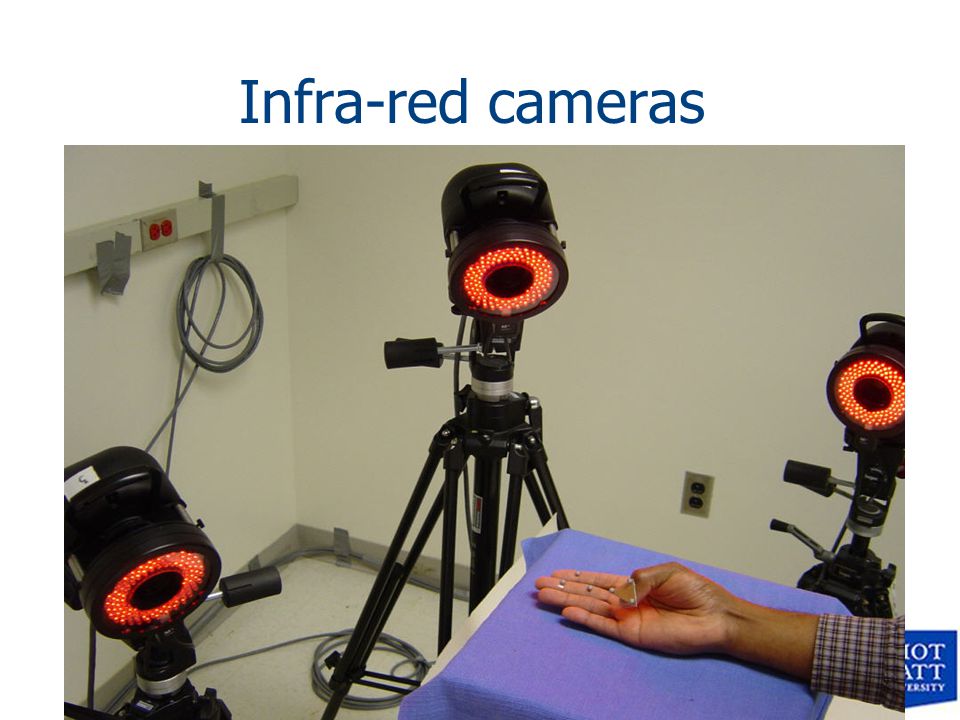

23 Infra-red cameras

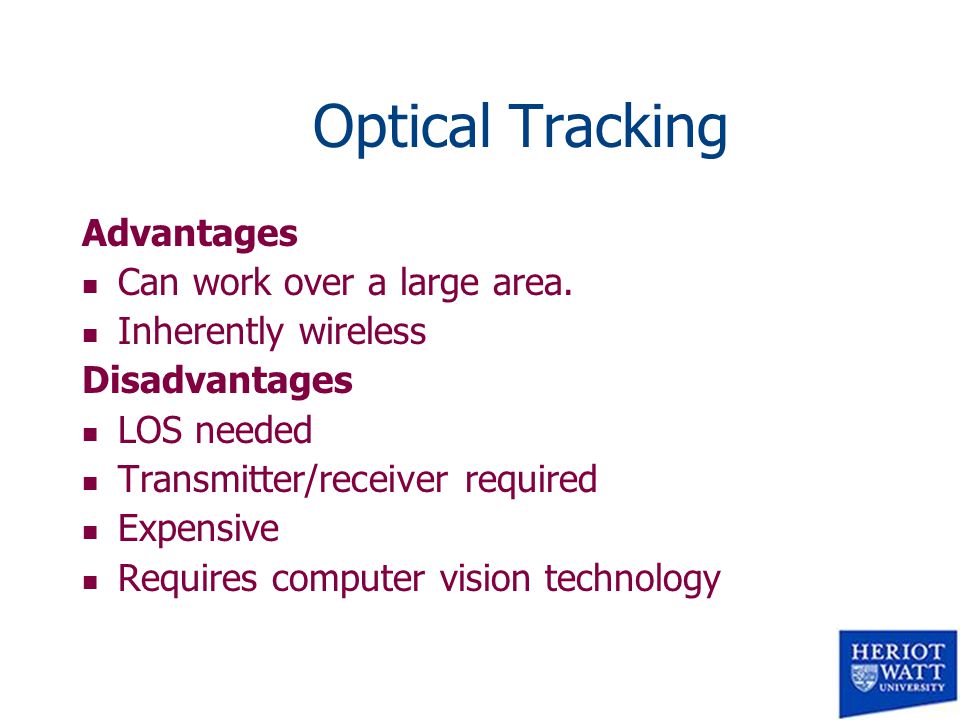

24 Optical Tracking Advantages n Can work over a large area. n Inherently wireless Disadvantages n LOS needed n Transmitter/receiver required n Expensive n Requires computer vision technology

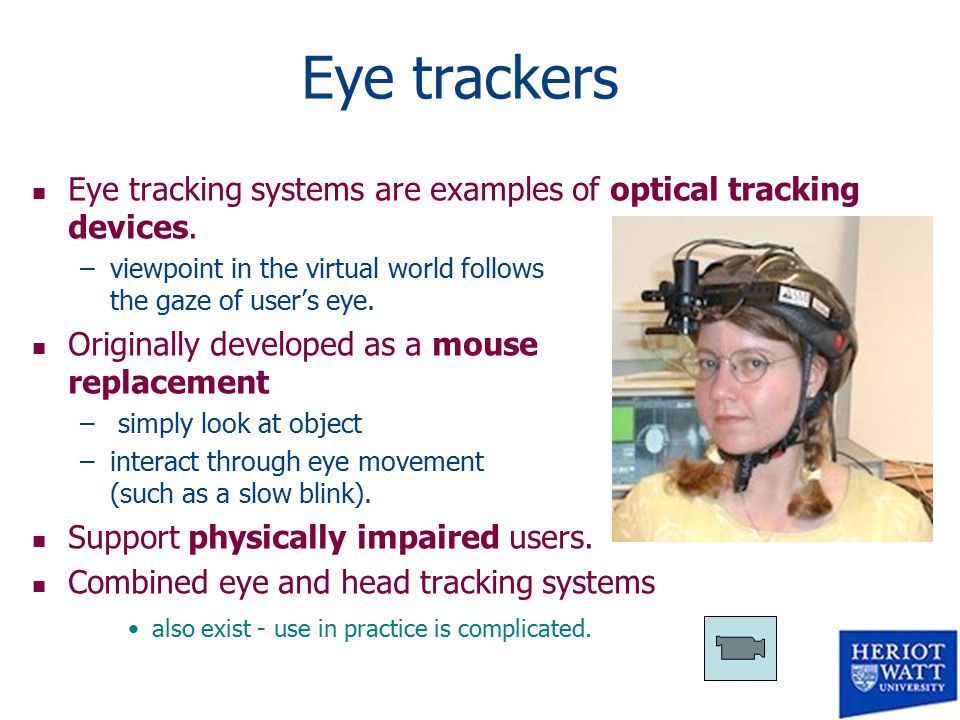

25 Eye trackers n Eye tracking systems are examples of optical tracking devices. –viewpoint in the virtual world follows the gaze of user’s eye. n Originally developed as a mouse replacement – simply look at object –interact through eye movement (such as a slow blink). n Support physically impaired users. n Combined eye and head tracking systems also exist - use in practice is complicated.

26 Mechanical trackers n Mechanical linkage system –arm-like structure of several joint, one end fixed, the other free to move with the user. n Measure position and angular orientation of free end –by measuring angles at each joint and factoring in length of each segment. n Fake Space BOOM (right)

27 Mechanical Tracking Advantages n Simple sensors, no need for transmitter/receiver n low-cost device n very low latency n High positional accuracy Disadvantages n The user is tethered n Lots of inertia n Typically small working volume n Mechanical parts wear out

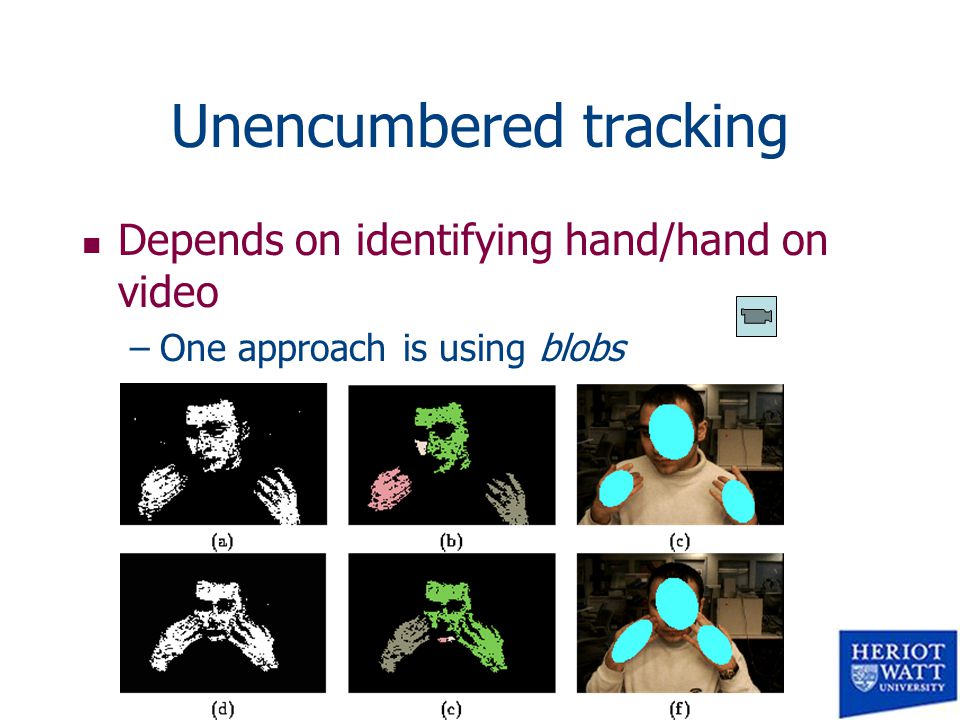

28 Unencumbered tracking n Depends on identifying hand/hand on video –One approach is using blobs

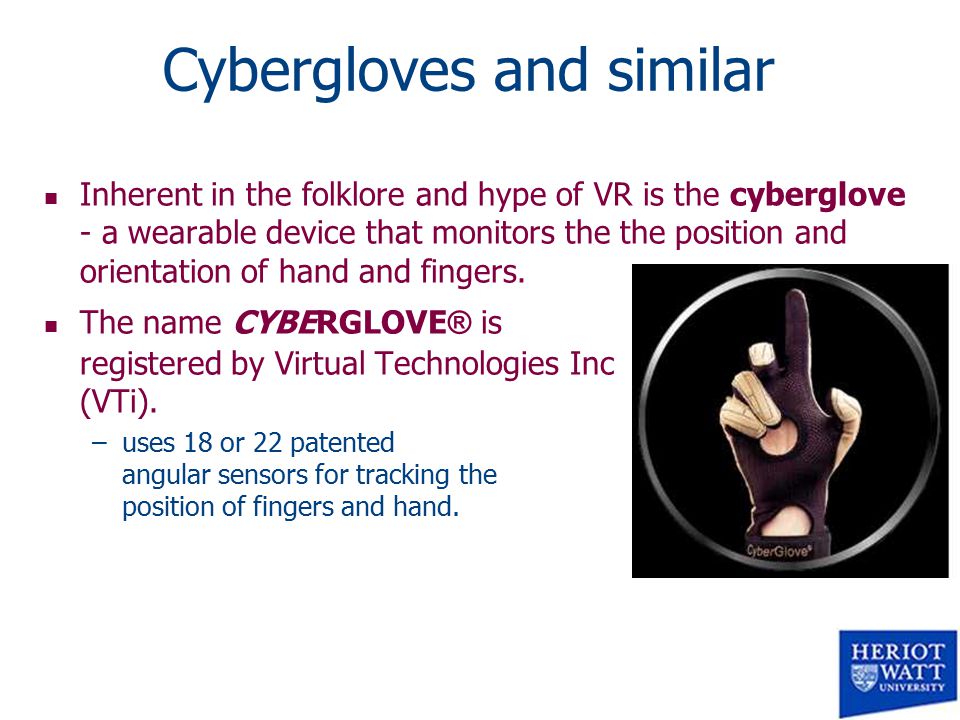

29 Cybergloves and similar n Inherent in the folklore and hype of VR is the cyberglove - a wearable device that monitors the the position and orientation of hand and fingers. The name CYBERGLOVE ® is registered by Virtual Technologies Inc (VTi). –uses 18 or 22 patented angular sensors for tracking the position of fingers and hand.

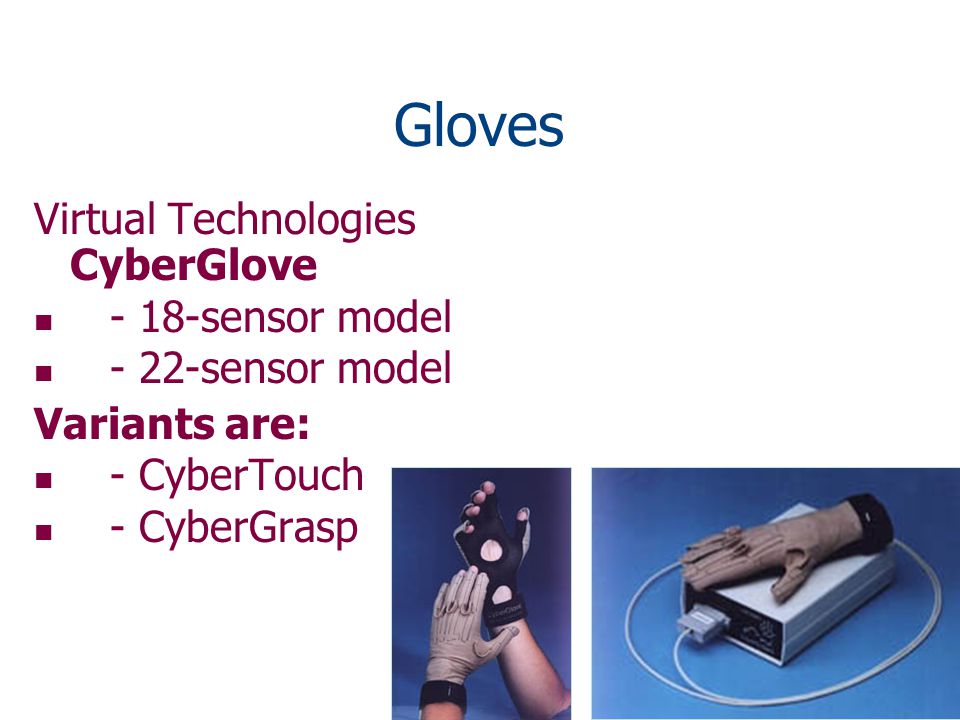

30 Gloves Virtual Technologies CyberGlove n - 18-sensor model n - 22-sensor model Variants are: n - CyberTouch n - CyberGrasp

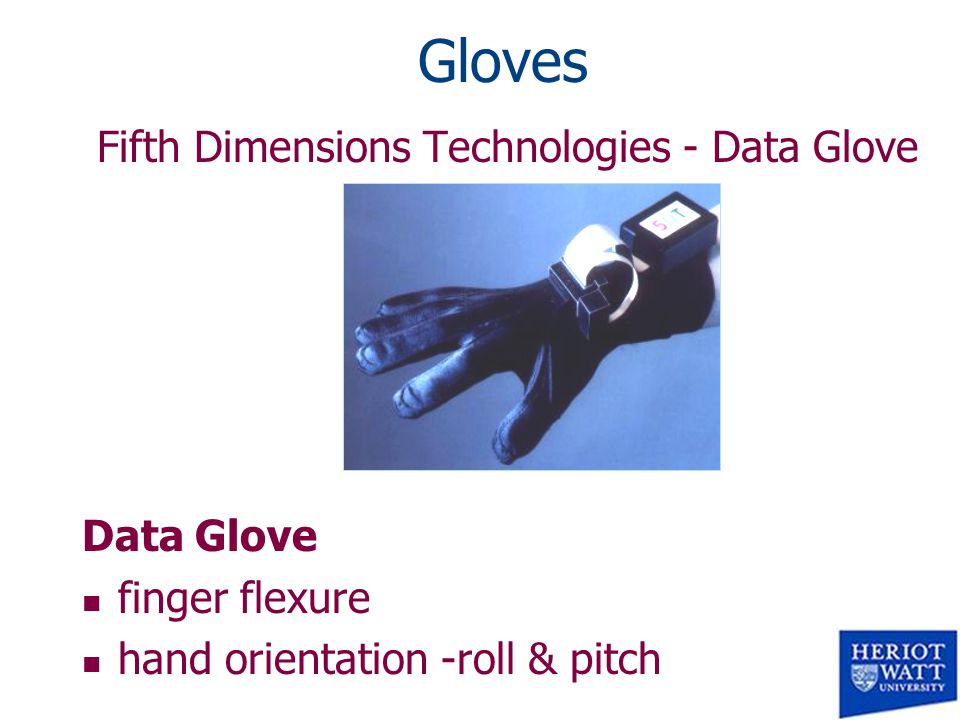

31 Gloves Fifth Dimensions Technologies - Data Glove Data Glove n finger flexure n hand orientation -roll & pitch

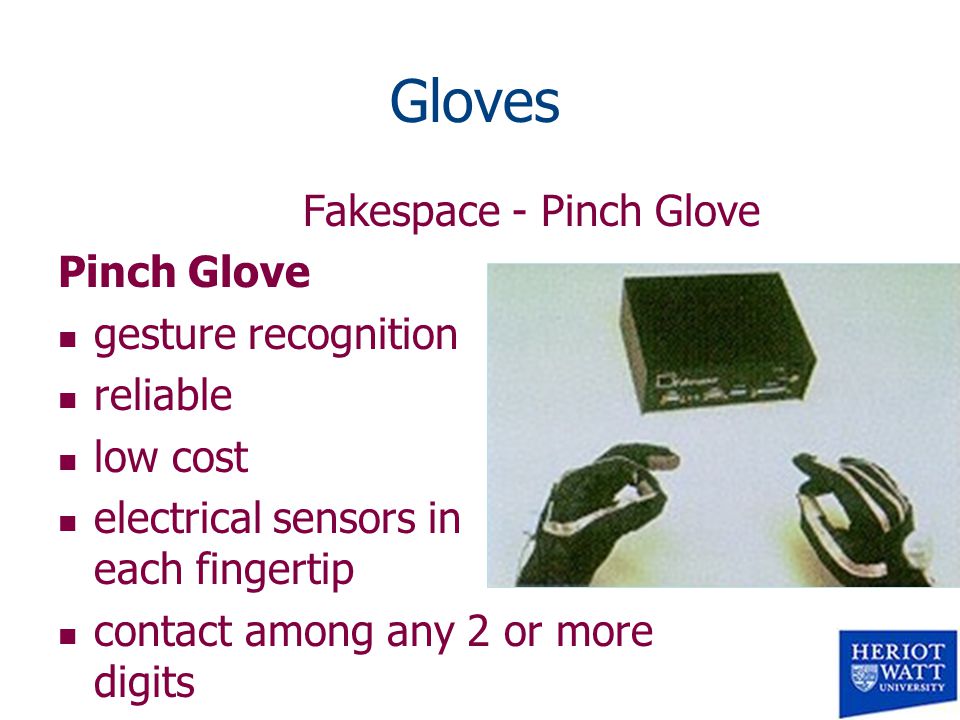

32 Gloves Fakespace - Pinch Glove Pinch Glove n gesture recognition n reliable n low cost n electrical sensors in each fingertip n contact among any 2 or more digits

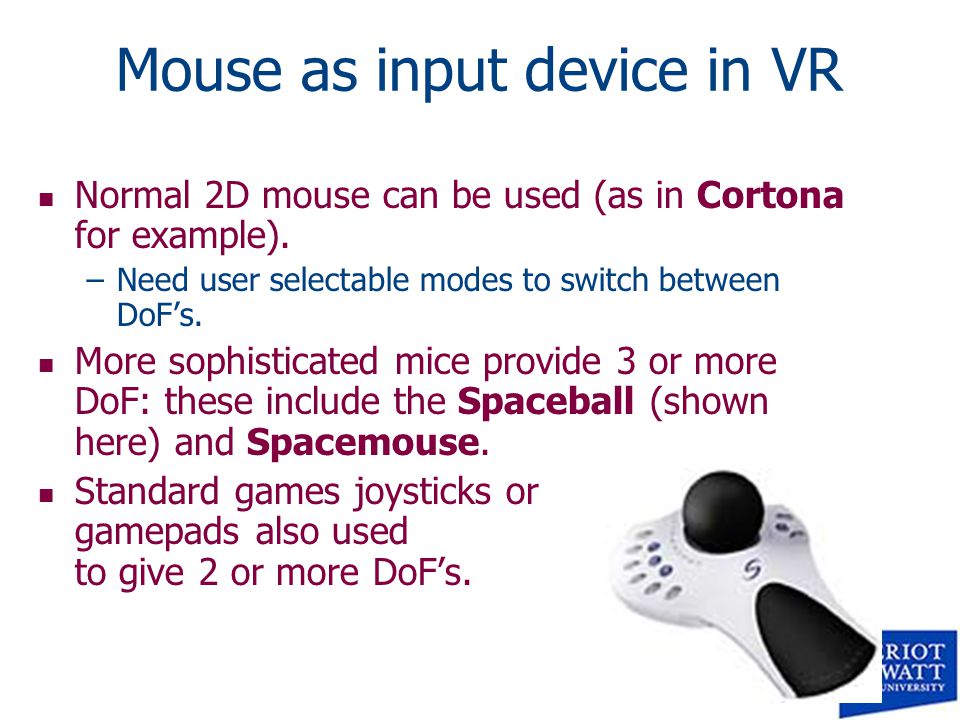

33 Mouse as input device in VR n Normal 2D mouse can be used (as in Cortona for example). –Need user selectable modes to switch between DoF’s. n More sophisticated mice provide 3 or more DoF: these include the Spaceball (shown here) and Spacemouse. n Standard games joysticks or gamepads also used to give 2 or more DoF’s.

34 6 DOF “Mice” n 3 translation DOF n 3 rotation DOF

35 6 DOF “Mice” Spaceball by Labtec Spacemouse by DLR (Logitech - USA)

36 6 DOF “Mice” Cyberpuck SpaceOrb

37 The WiiMote n 3 accelerometers –Enough for 6 DOF –But will drift –Bluetooth connection to 10m n Optical (IR) sensor –To 5m from sensor bar –Triangulation from ends of bar –Allows accurate pointing n Speaker

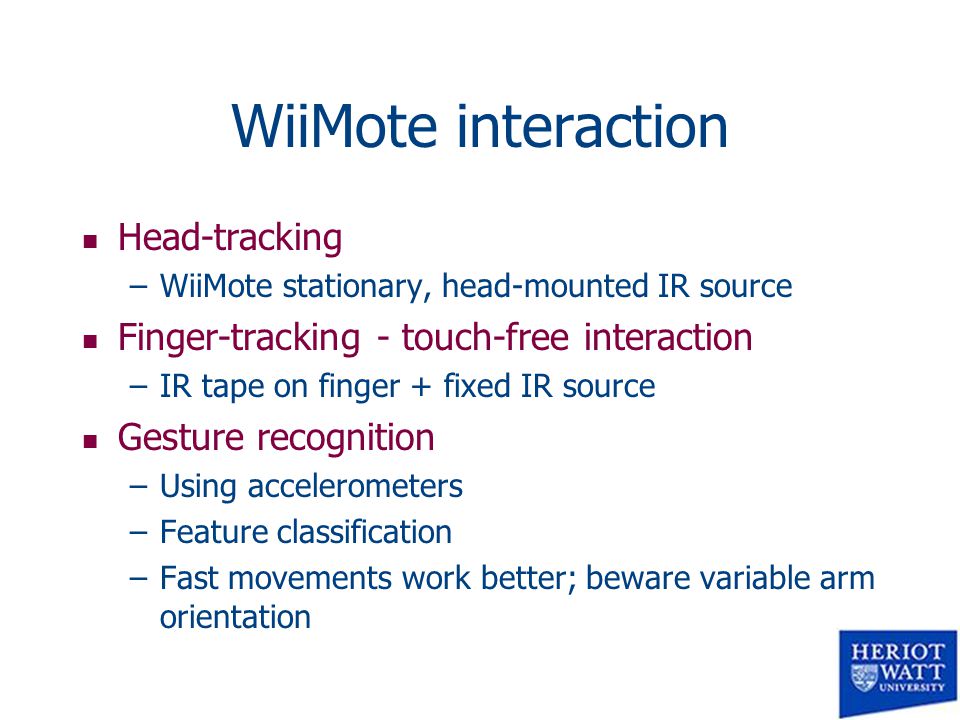

38 WiiMote interaction n Head-tracking –WiiMote stationary, head-mounted IR source n Finger-tracking - touch-free interaction –IR tape on finger + fixed IR source n Gesture recognition –Using accelerometers –Feature classification –Fast movements work better; beware variable arm orientation

39 Software n Free libraries –WiiGLE augsburg.de/documents/WiiGLE/doku.phphttp://mm-werkstatt.informatik.uni- augsburg.de/documents/WiiGLE/doku.php Provides a set of classifiers –WiiGee Java-based, one classifier n Issues with Bluetooth stacks –Flakey implementations, especially Vista –BlueSoleil seems a good driver
