© 2012 Autodesk Structural Workflows for Autodesk ® Plant Design Suite Projects Abraham Koenig Technical Specialists Manager AEC/ENI Central Europe Alexandre Mihalache Technical Specialist Plant and Structure South Europe
© 2012 Autodesk Class Summary This class will highlight the main structural design and code check workflows in a Plant environment We will focus on AutoCAD ® Plant 3D (early stages steel members design) and Autodesk ® Revit ® Structure (steel and concrete design) Lastly, we will learn about workflows including finite elements and code check software like Autodesk ® Robot ™ Structural Analysis

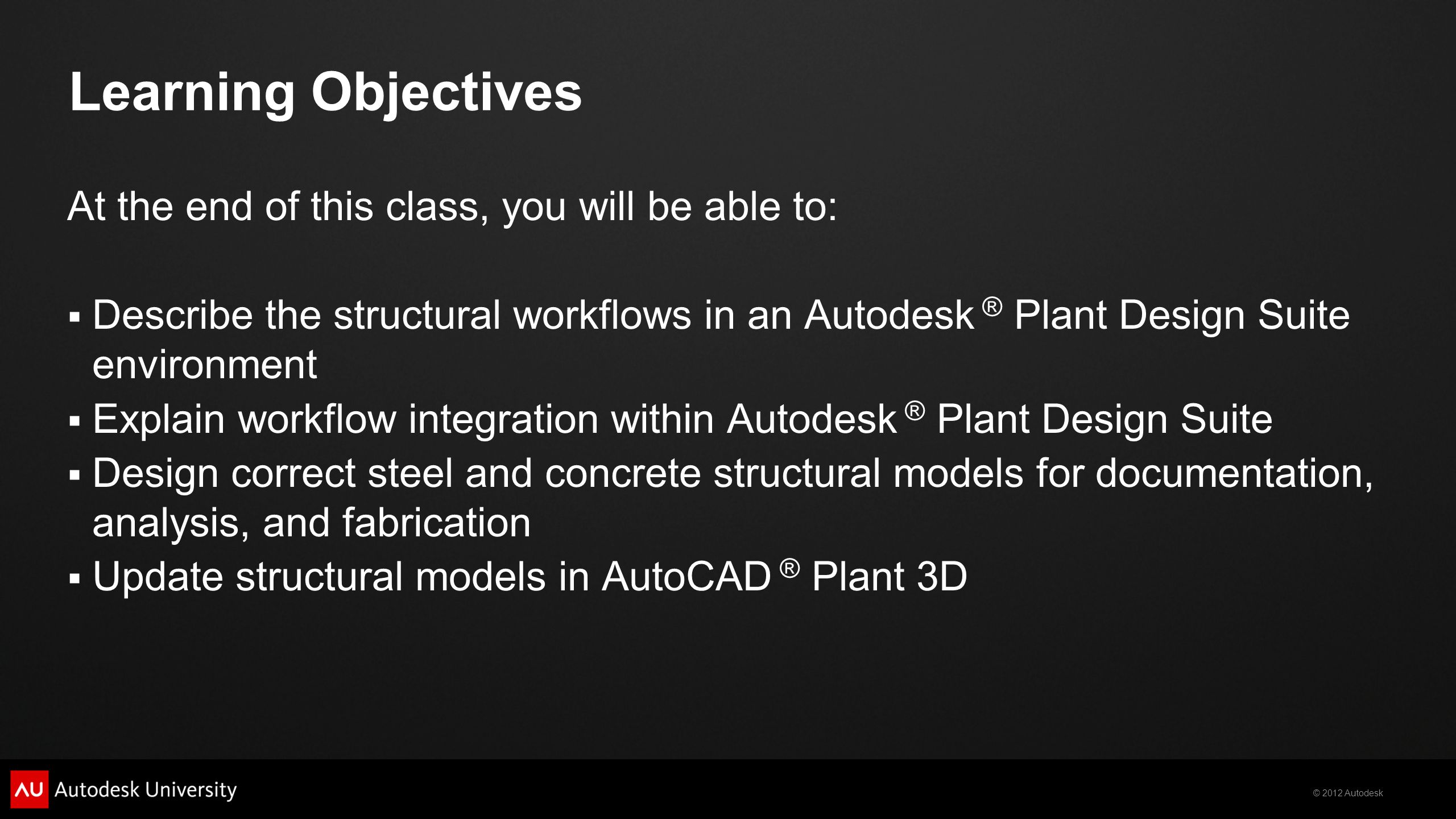

© 2012 Autodesk Learning Objectives At the end of this class, you will be able to: Describe the structural workflows in an Autodesk ® Plant Design Suite environment Explain workflow integration within Autodesk ® Plant Design Suite Design correct steel and concrete structural models for documentation, analysis, and fabrication Update structural models in AutoCAD ® Plant 3D
© 2012 Autodesk Agenda Portfolio Structural workflows Early stages design Design and basic analysis Code check Fabrication and deliverables Wrap up and Q&A session

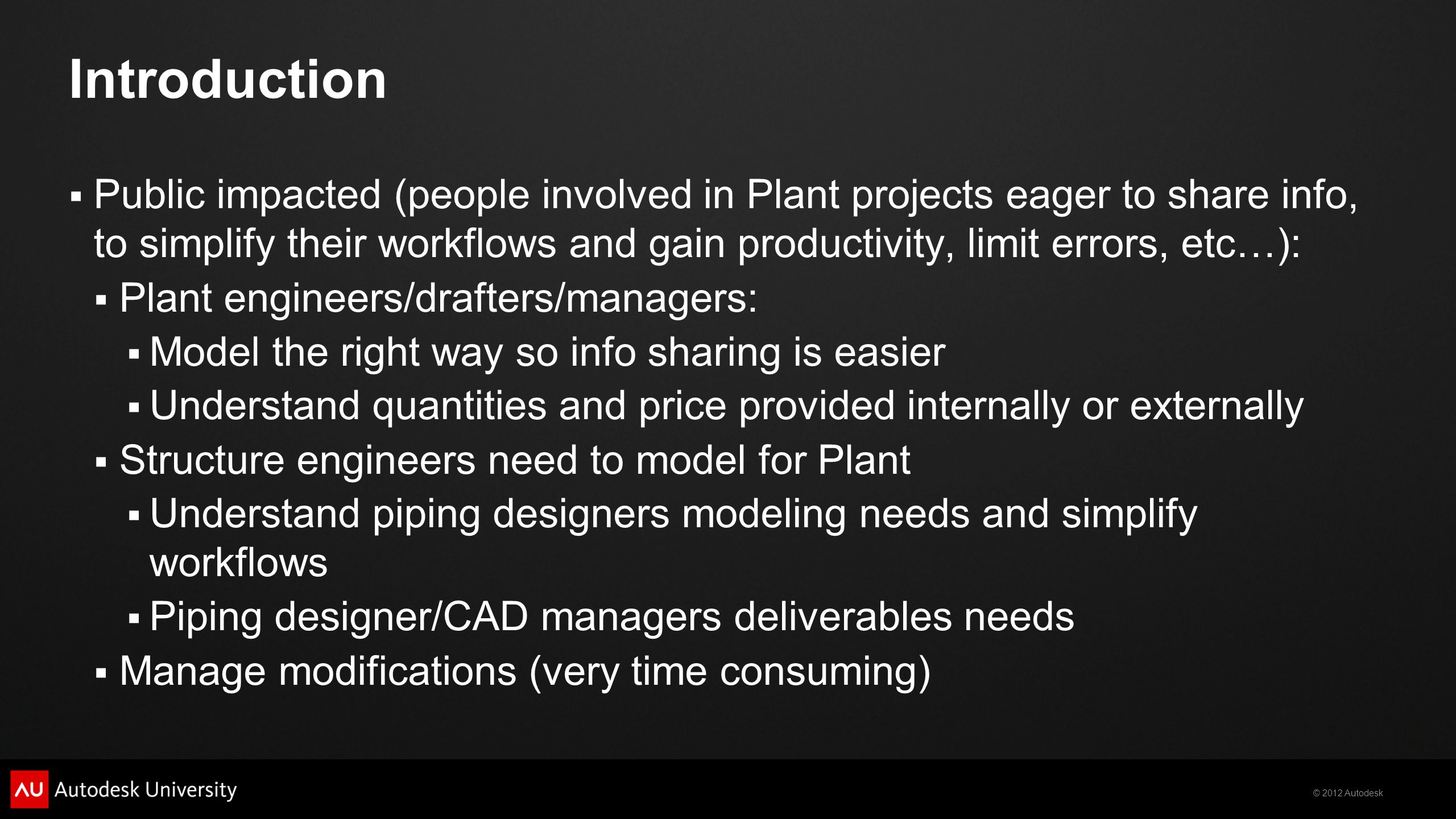

© 2012 Autodesk Introduction Public impacted (people involved in Plant projects eager to share info, to simplify their workflows and gain productivity, limit errors, etc…): Plant engineers/drafters/managers: Model the right way so info sharing is easier Understand quantities and price provided internally or externally Structure engineers need to model for Plant Understand piping designers modeling needs and simplify workflows Piping designer/CAD managers deliverables needs Manage modifications (very time consuming)
© 2012 Autodesk Portfolio

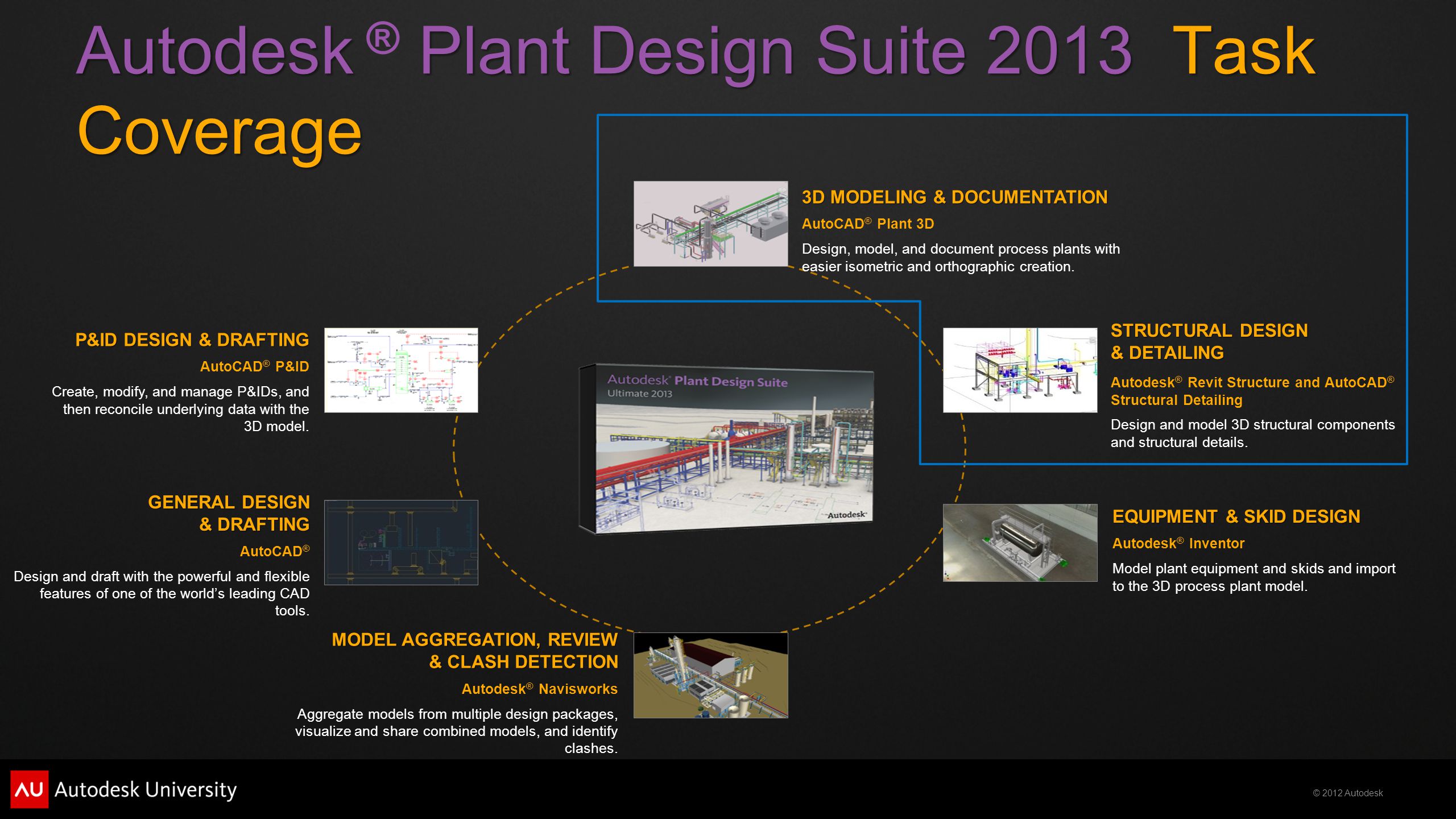

© 2012 Autodesk Autodesk ® Plant Design Suite 2013 Autodesk ® Plant Design Suite provides comprehensive plant design software in a convenient, cost- effective package. Design, model, and review plant projects more effectively. The suite helps you innovate ahead of the competition and communicate with greater clarity. Keep projects on schedule and within budget. Standard Streamline P&ID Design and 2D Drafting AutoCAD ® 2013 AutoCAD ® P&ID 2013 Autodesk ® Sketchbook ® Designer 2013 Autodesk ® Showcase ® 2013 Premium Efficient 3D Piping, Design & Visualization AutoCAD ® Plant 3D 2013 AutoCAD ® Structural Detailing 2013 Autodesk ® Revit ® Structure 2013 Autodesk ® Navisworks ® Simulate 2013 Autodesk ® Plant Design Suite Standard 2013 Ultimate Multidiscipline Plant Layout & Piping Design Tools Autodesk ® Navisworks ® Manage 2013 Autodesk ® Inventor ® 2013 Autodesk ® Plant Design Suite Premium 2013
© 2012 Autodesk P&ID DESIGN & DRAFTING AutoCAD ® P&ID Create, modify, and manage P&IDs, and then reconcile underlying data with the 3D model. MODEL AGGREGATION, REVIEW & CLASH DETECTION Autodesk ® Navisworks Aggregate models from multiple design packages, visualize and share combined models, and identify clashes. 3D MODELING & DOCUMENTATION AutoCAD ® Plant 3D Design, model, and document process plants with easier isometric and orthographic creation. GENERAL DESIGN & DRAFTING AutoCAD ® Design and draft with the powerful and flexible features of one of the world’s leading CAD tools. STRUCTURAL DESIGN & DETAILING Autodesk ® Revit Structure and AutoCAD ® Structural Detailing Design and model 3D structural components and structural details. EQUIPMENT & SKID DESIGN Autodesk ® Inventor Model plant equipment and skids and import to the 3D process plant model. Autodesk Plant Design Suite 2013 Task Coverage Autodesk ® Plant Design Suite 2013 Task Coverage
© 2012 Autodesk Autodesk ® 360 is a cloud computing platform that provides a broad set of features, cloud services and products that can help you improve the way you design, visualize, simulate, and share your work with others anytime, anywhere. Autodesk ® 360

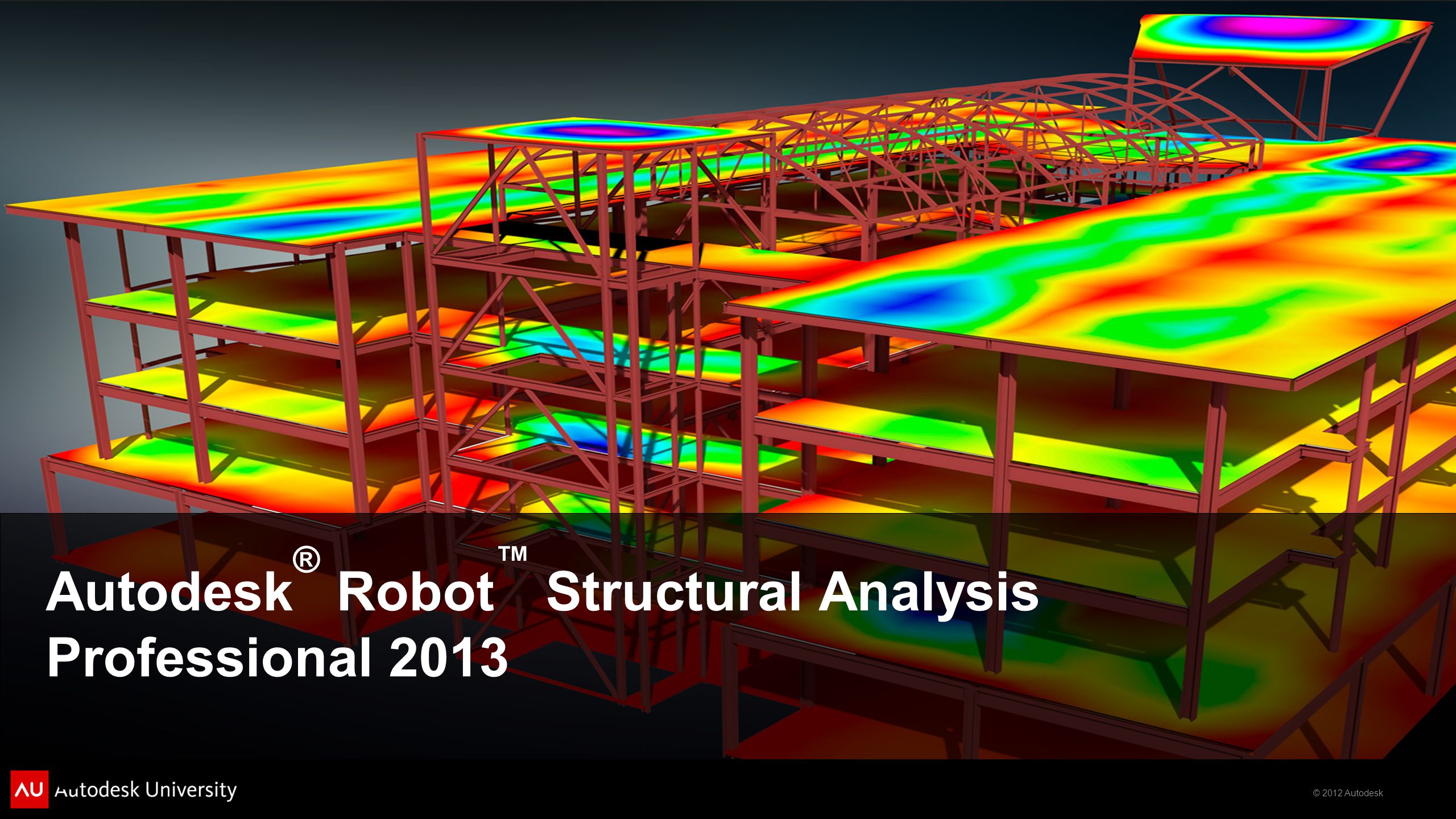

© 2012 Autodesk Autodesk ® Robot ™ Structural Analysis Professional 2013

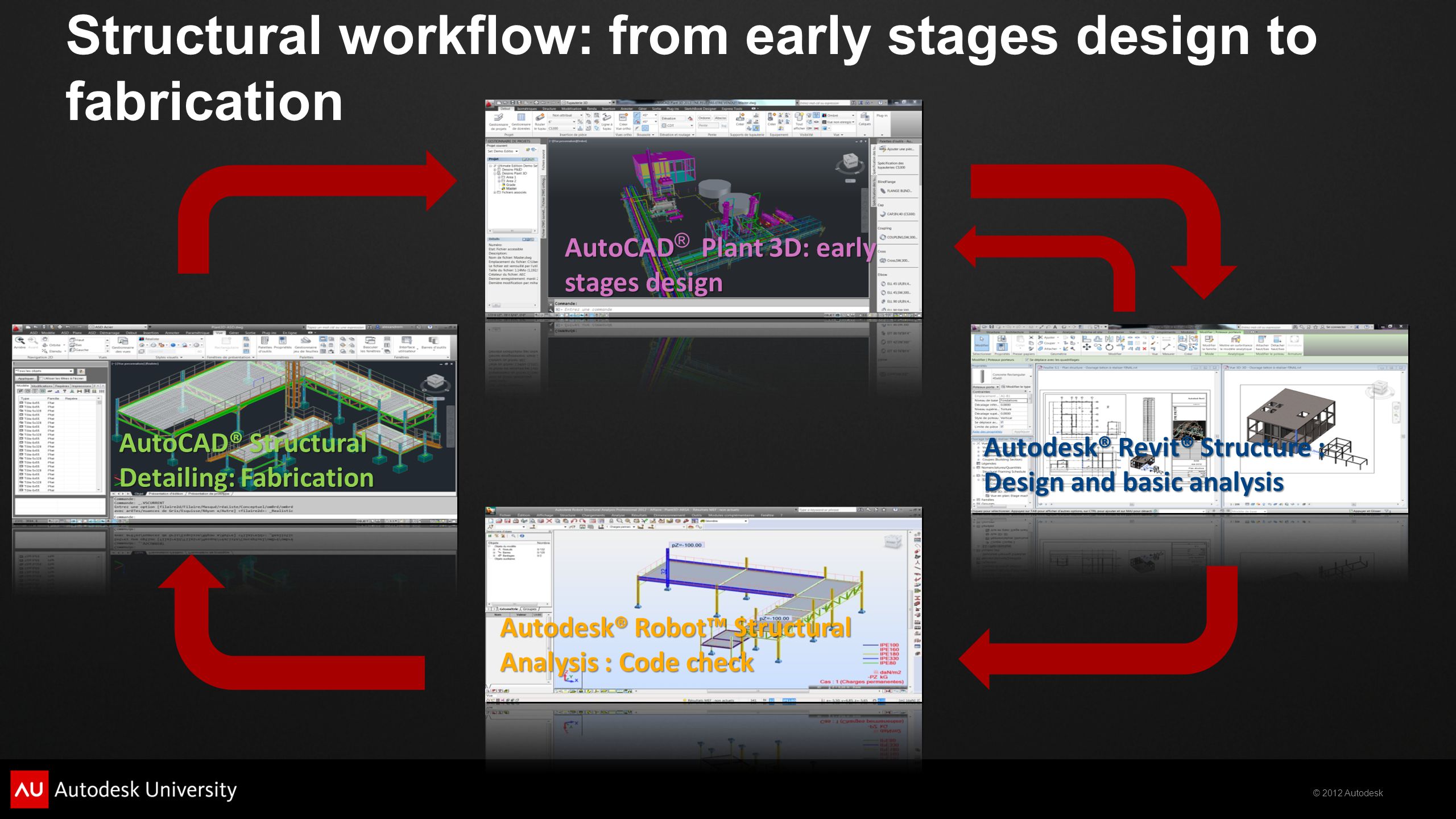

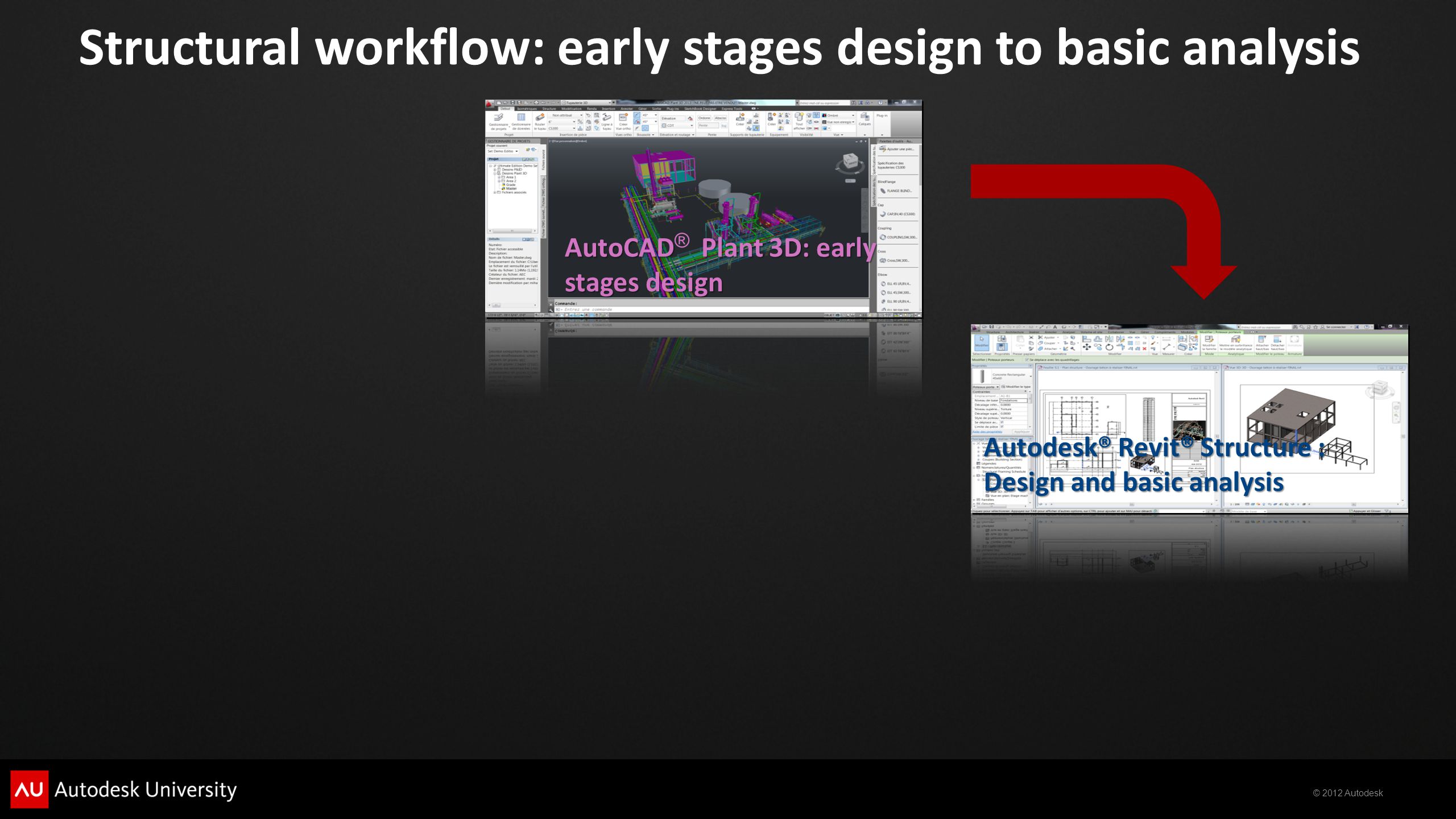

© 2012 Autodesk Structural workflow: from early stages design to fabrication Autodesk® Revit® Structure : Design and basic analysis AutoCAD® Structural Detailing: Fabrication Autodesk® Robot™ Structural Analysis : Code check AutoCAD Plant 3D: early stages design AutoCAD ® Plant 3D: early stages design

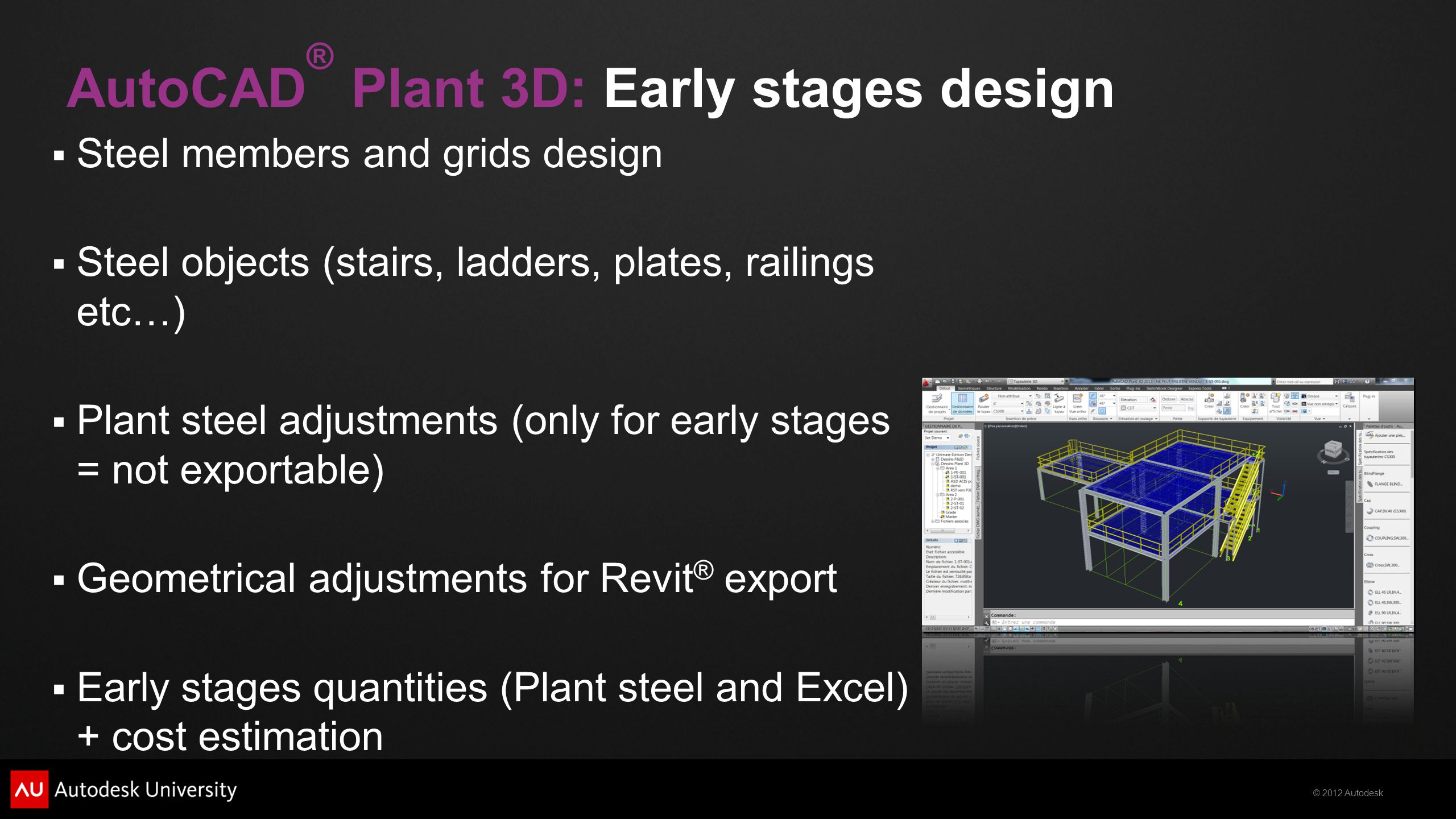

© 2012 Autodesk AutoCAD ® Plant 3D: Early stages design Steel members and grids design Steel objects (stairs, ladders, plates, railings etc…) Plant steel adjustments (only for early stages = not exportable) Geometrical adjustments for Revit ® export Early stages quantities (Plant steel and Excel) + cost estimation

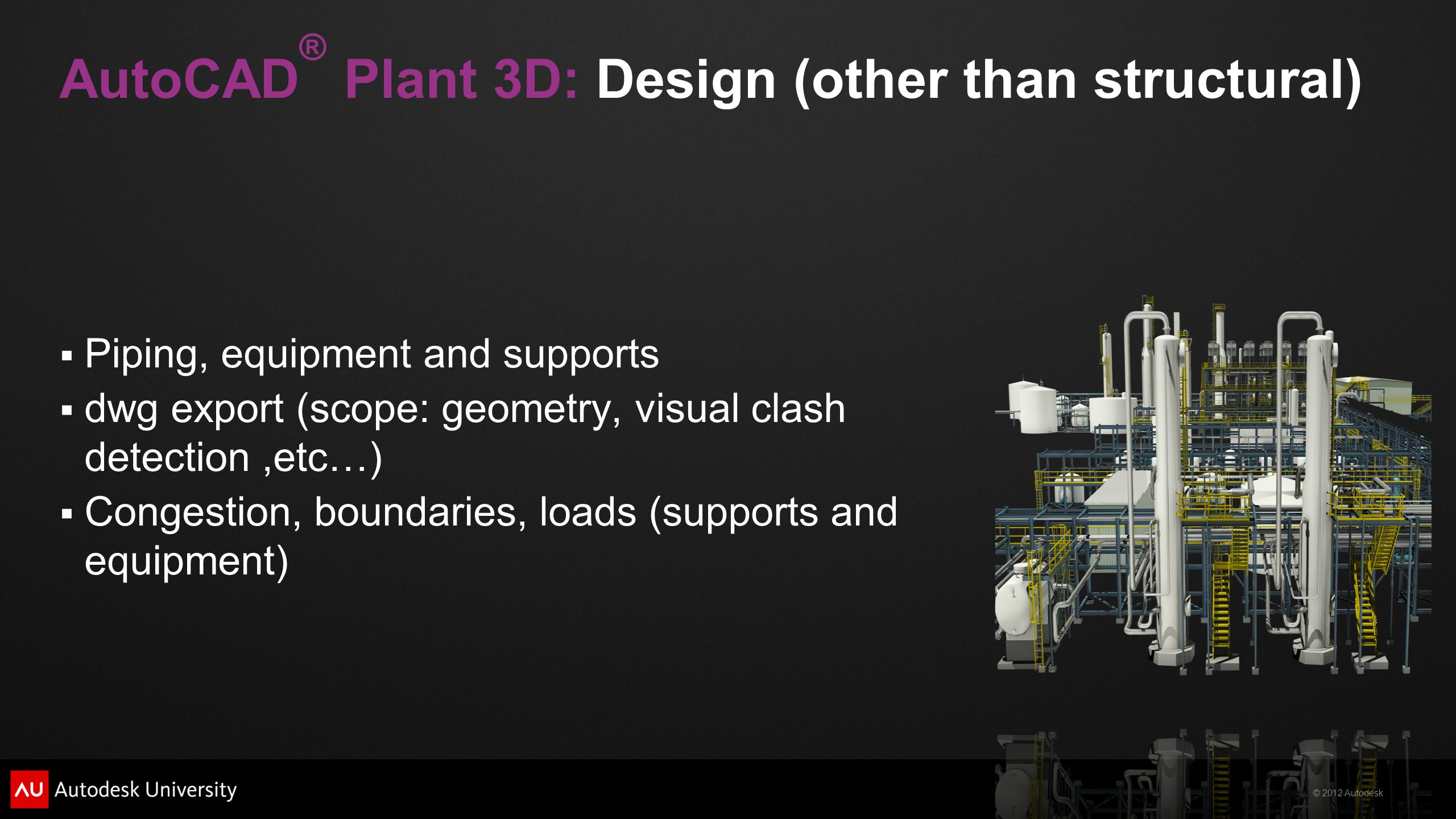

© 2012 Autodesk AutoCAD ® Plant 3D: Design (other than structural) Piping, equipment and supports dwg export (scope: geometry, visual clash detection,etc…) Congestion, boundaries, loads (supports and equipment)

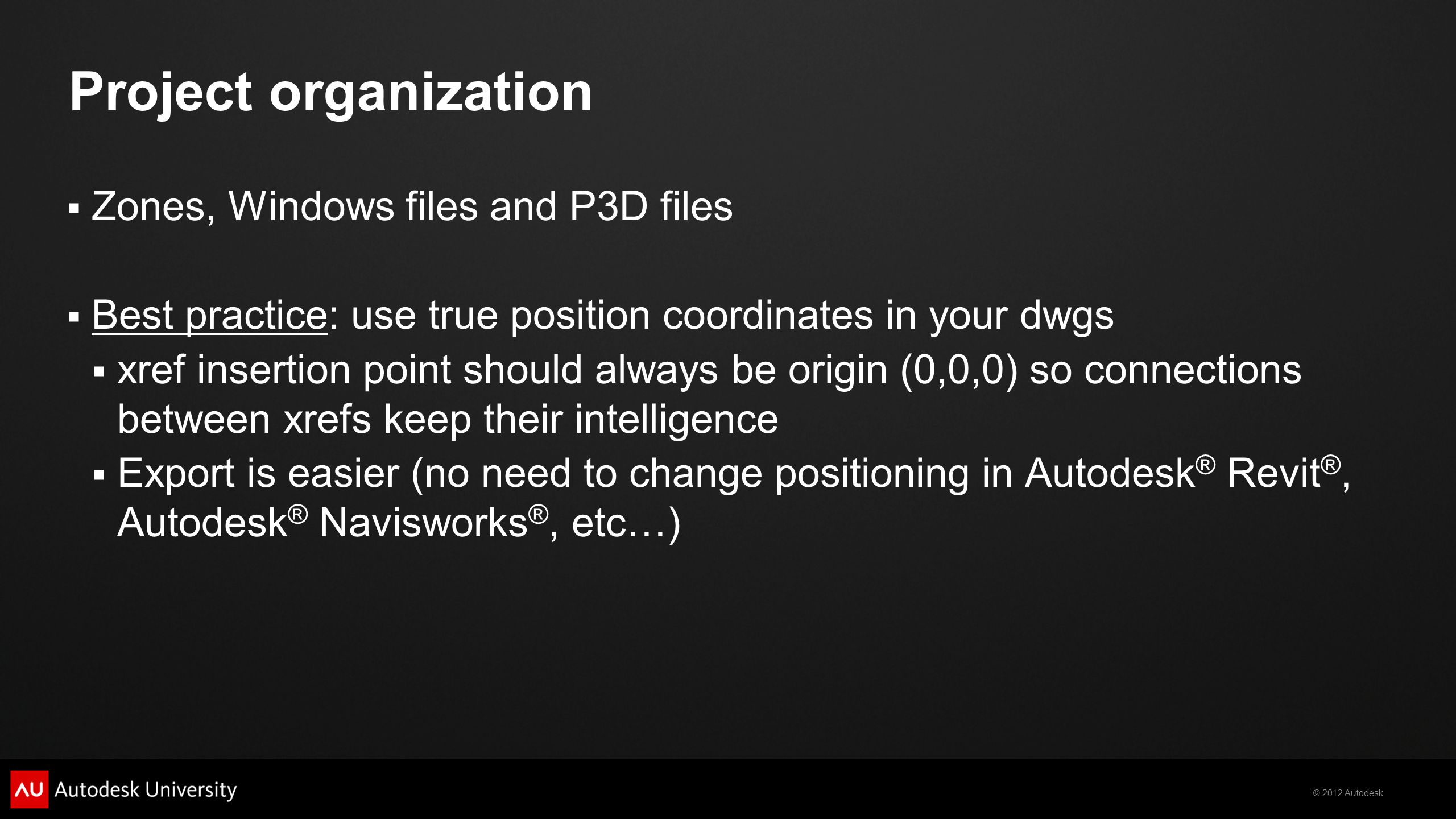

© 2012 Autodesk Project organization Zones, Windows files and P3D files Best practice: use true position coordinates in your dwgs xref insertion point should always be origin (0,0,0) so connections between xrefs keep their intelligence Export is easier (no need to change positioning in Autodesk ® Revit ®, Autodesk ® Navisworks ®, etc…)
© 2012 Autodesk Autodesk® Revit® Structure : Design and basic analysis AutoCAD Plant 3D: early stages design AutoCAD ® Plant 3D: early stages design Structural workflow: early stages design to basic analysis

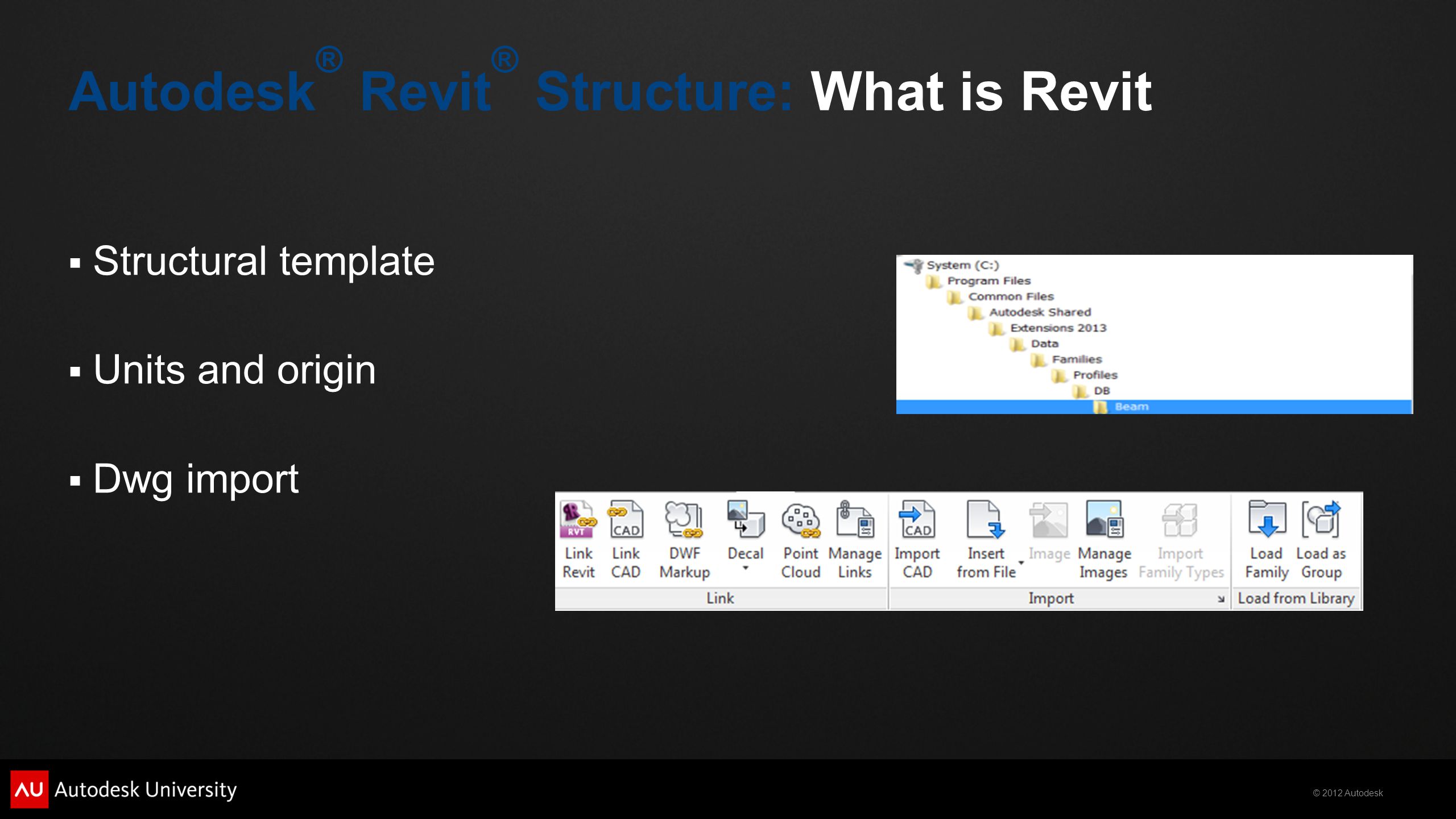

© 2012 Autodesk Autodesk ® Revit ® Structure: What is Revit Structural template Units and origin Dwg import

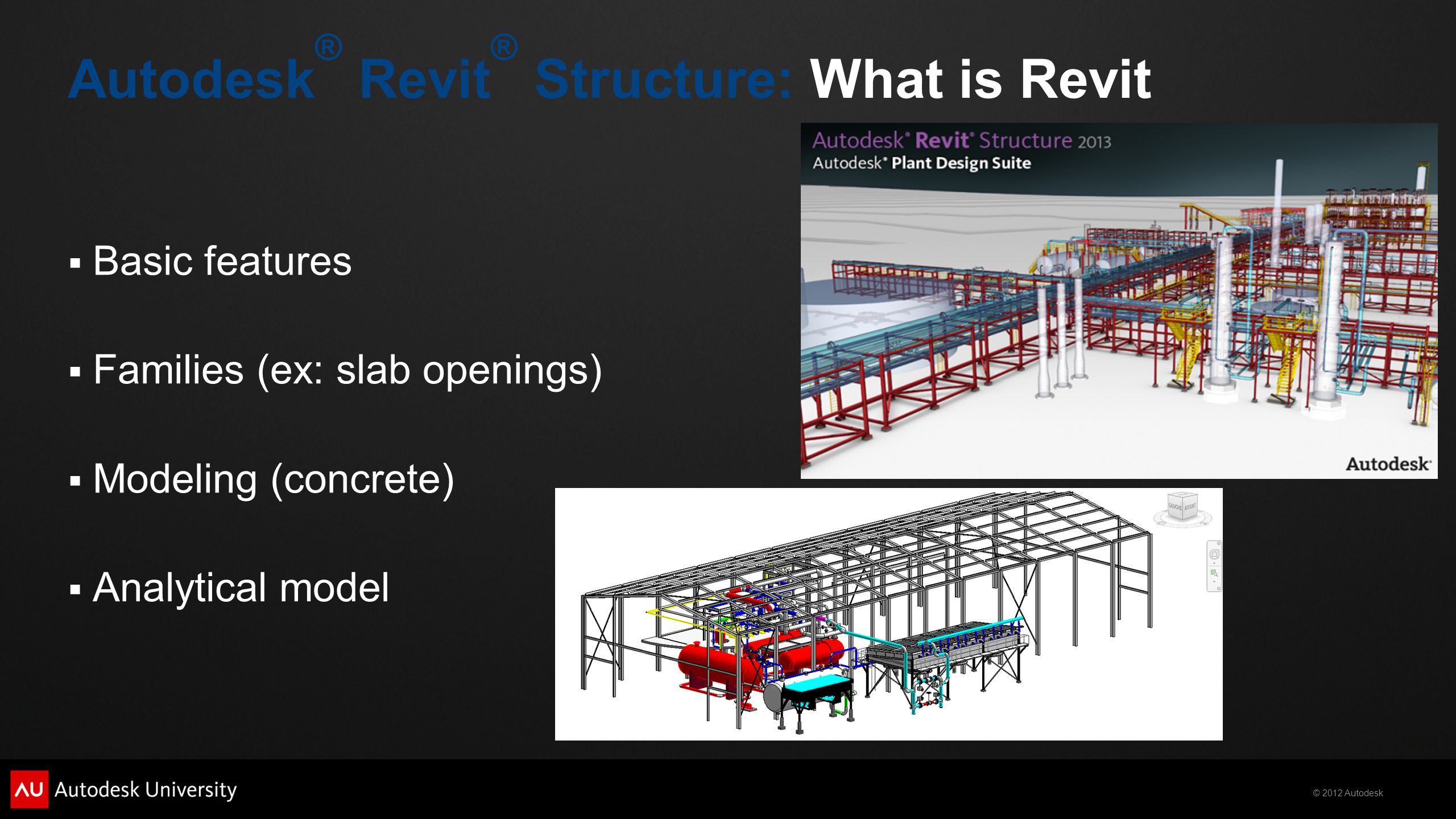

© 2012 Autodesk Basic features Families (ex: slab openings) Modeling (concrete) Analytical model Autodesk ® Revit ® Structure: What is Revit
© 2012 Autodesk Revit ® Extensions Autodesk ® Subscription Families (steel members) automatically loaded Steel building frame SDNF Auto mapping of sections/materials Mapping of steel sections/materials (if needed) Autodesk ® Revit ® Structure: Revit ® Extensions
© 2012 Autodesk Steel members orientation Link DWG Link vs Import Hangers (supports) Support loads (geometrical info from P3D) Equipment Autodesk ® Revit ® Structure: Plant structural data

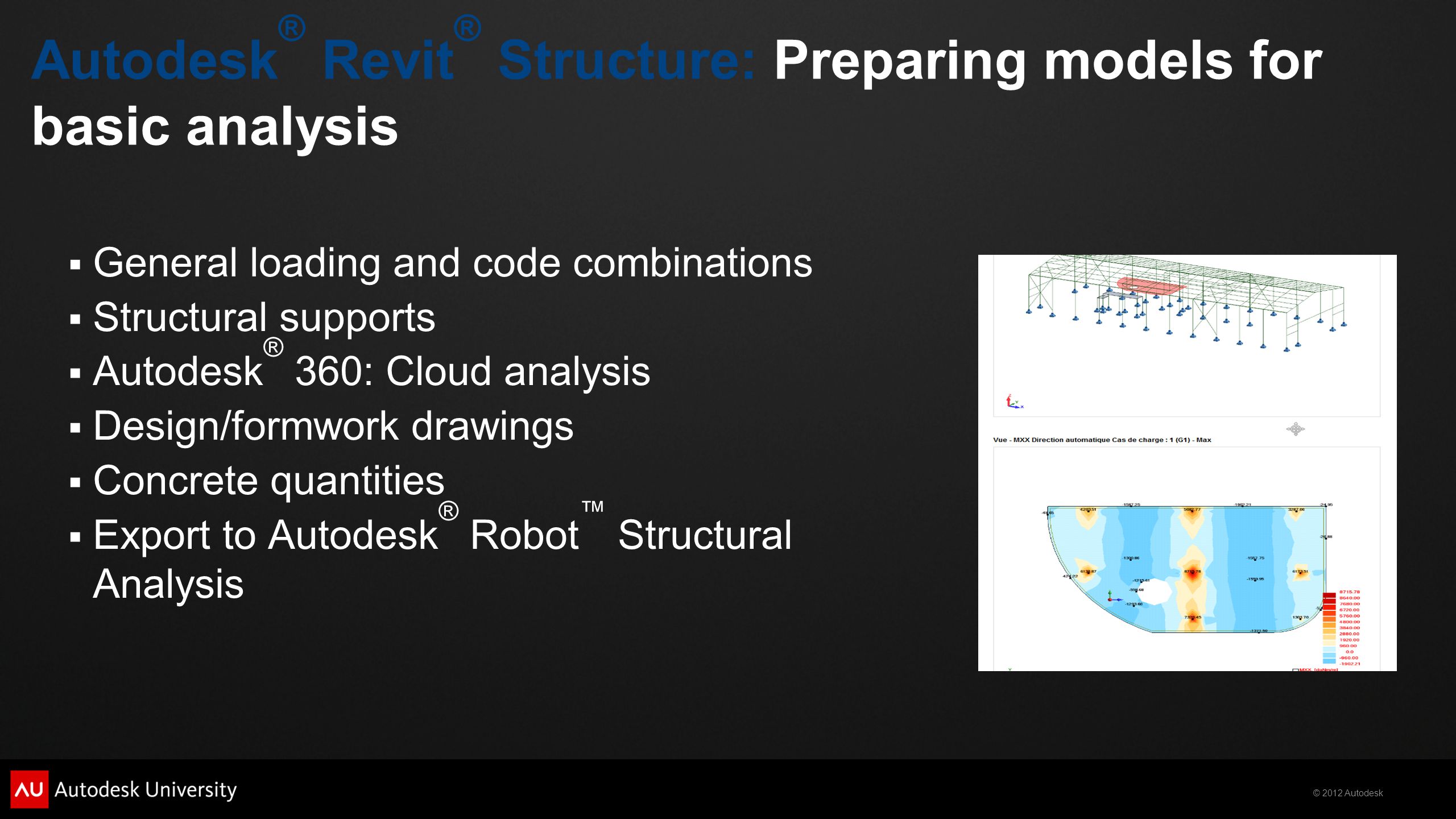

© 2012 Autodesk General loading and code combinations Structural supports Autodesk ® 360: Cloud analysis Design/formwork drawings Concrete quantities Export to Autodesk ® Robot ™ Structural Analysis Autodesk ® Revit ® Structure: Preparing models for basic analysis
© 2012 Autodesk Structural workflow: analysis to code check Autodesk® Revit® Structure : Design and basic analysis Autodesk® Robot™ Structural Analysis : Code check

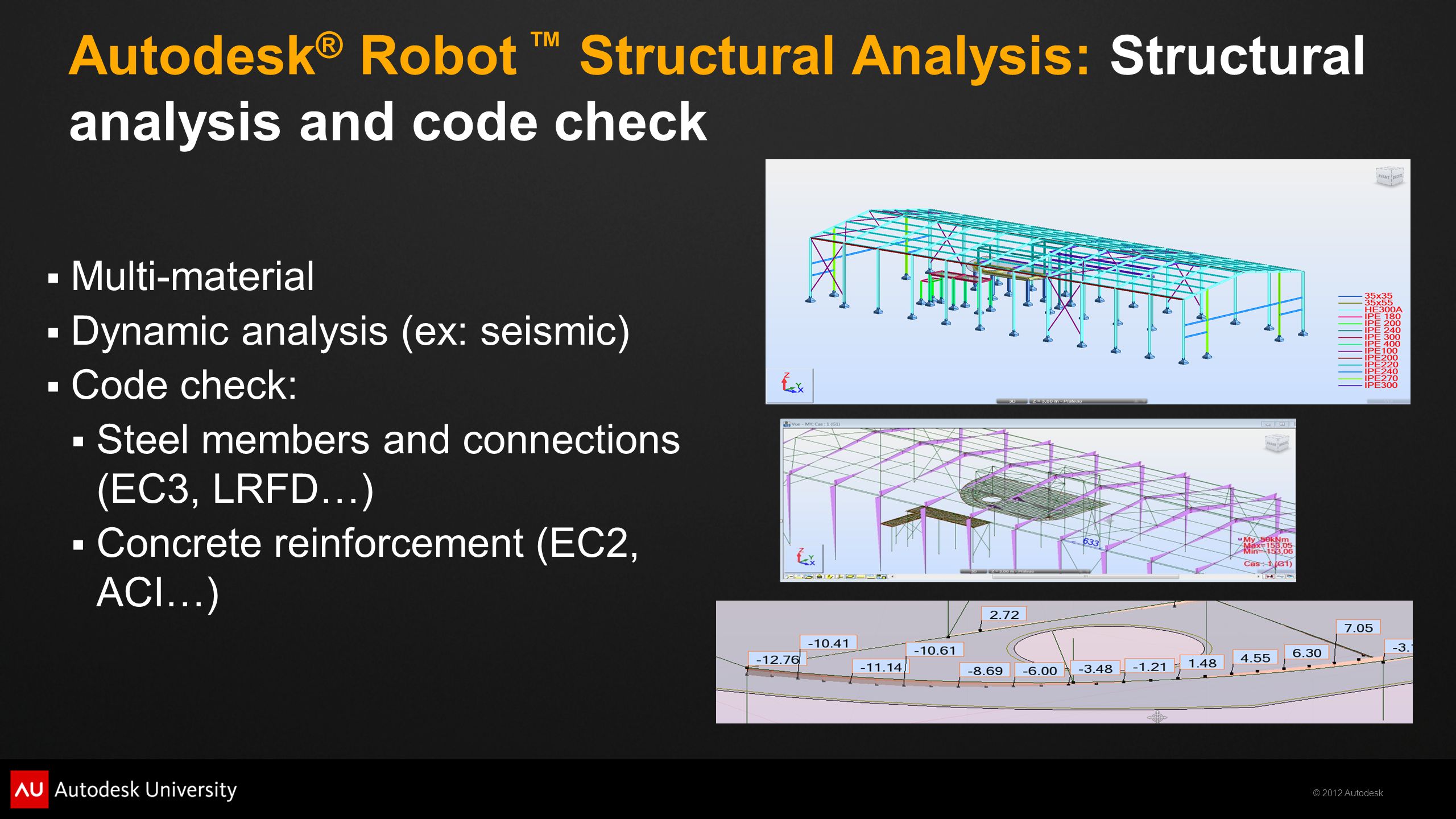

© 2012 Autodesk Autodesk ® Robot ™ Structural Analysis: Structural analysis and code check Multi-material Dynamic analysis (ex: seismic) Code check: Steel members and connections (EC3, LRFD…) Concrete reinforcement (EC2, ACI…)
© 2012 Autodesk Autodesk ® Robot ™ Structural Analysis: Beams and columns supporting piping Code check Columns and slab concrete reinforcement Steel connections Update of RST model

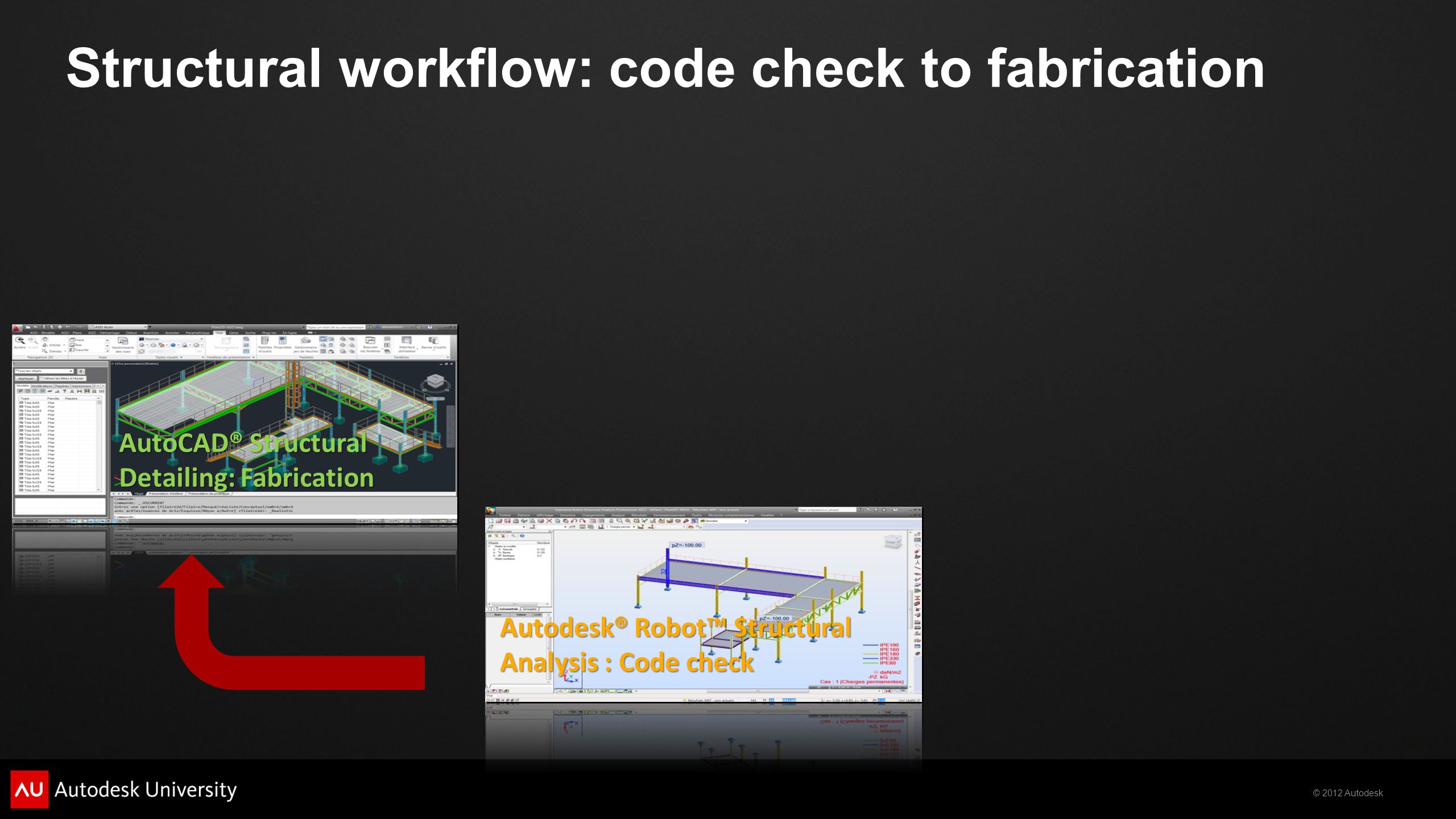

© 2012 Autodesk Structural workflow: code check to fabrication AutoCAD® Structural Detailing: Fabrication Autodesk® Robot™ Structural Analysis : Code check
© 2012 Autodesk AutoCAD ® Structural Detailing: AutoCAD ® Structural Detailing: Fabrication drawings Auto numbering Connections Other members Drawings (groups) Steel members final quantities vs early stages quantities
© 2012 Autodesk ® Structural workflow: back to AutoCAD ® Plant 3D Autodesk® Revit® Structure : Design and basic analysis AutoCAD® Structural Detailing: Fabrication AutoCAD Plant 3D: early stages design AutoCAD ® Plant 3D: early stages design
© 2012 Autodesk AutoCAD ® Plant 3D: global model Global visualization (ASD and RST import) Ortho drawings
