1 Speech and Gesture Corpus From Designing to Piloting Gheida Shahrour Supervised by Prof. Martin Russell Dr Neil Cooke Electronic, Electrical and Computer Engineering University of Birmingham

2 Motivation Our research focuses on modelling human behaviour from body motion. No dataset which could serve our research focus.

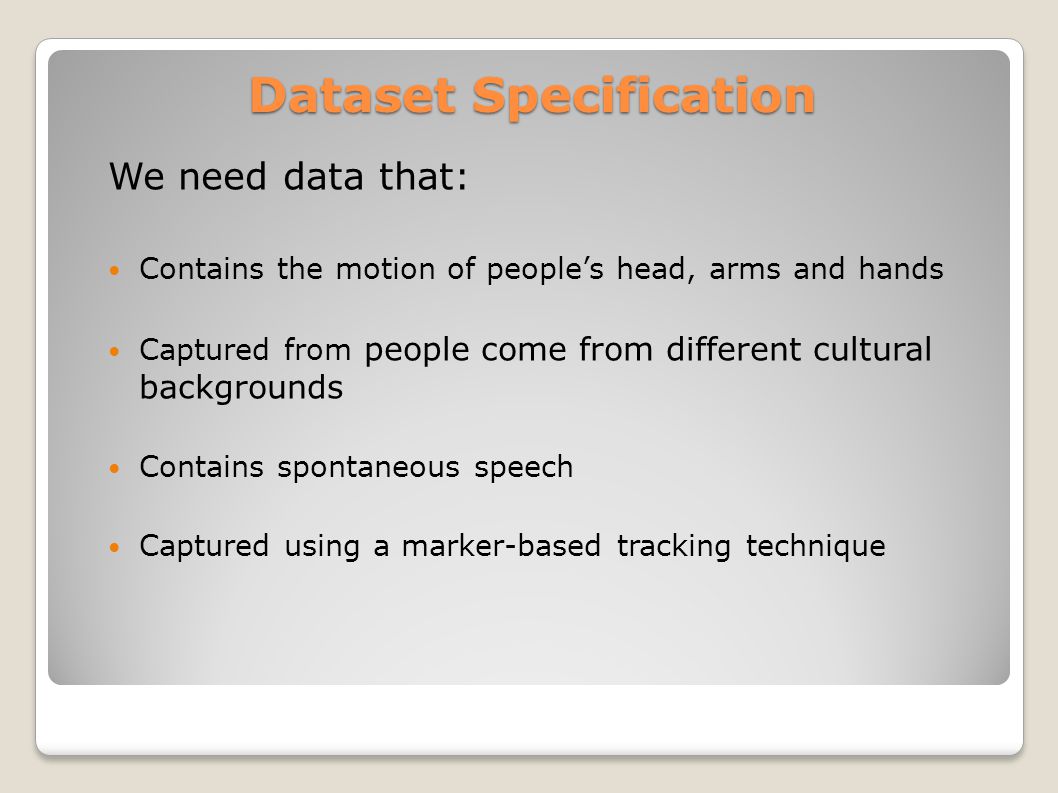

3 Dataset Specification We need data that: Contains the motion of people’s head, arms and hands Captured from people come from different cultural backgrounds Contains spontaneous speech Captured using a marker-based tracking technique

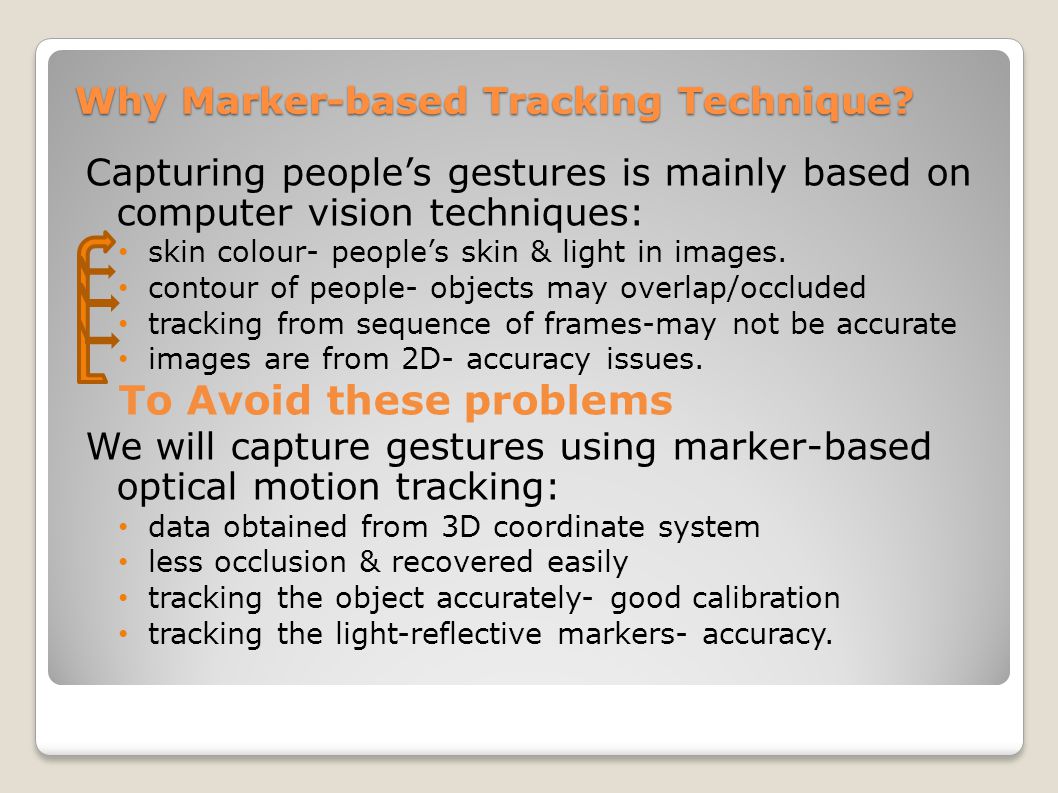

4 Why Marker-based Tracking Technique? Capturing people’s gestures is mainly based on computer vision techniques: skin colour- people’s skin & light in images. contour of people- objects may overlap/occluded tracking from sequence of frames-may not be accurate images are from 2D- accuracy issues. To Avoid these problems We will capture gestures using marker-based optical motion tracking: data obtained from 3D coordinate system less occlusion & recovered easily tracking the object accurately- good calibration tracking the light-reflective markers- accuracy.

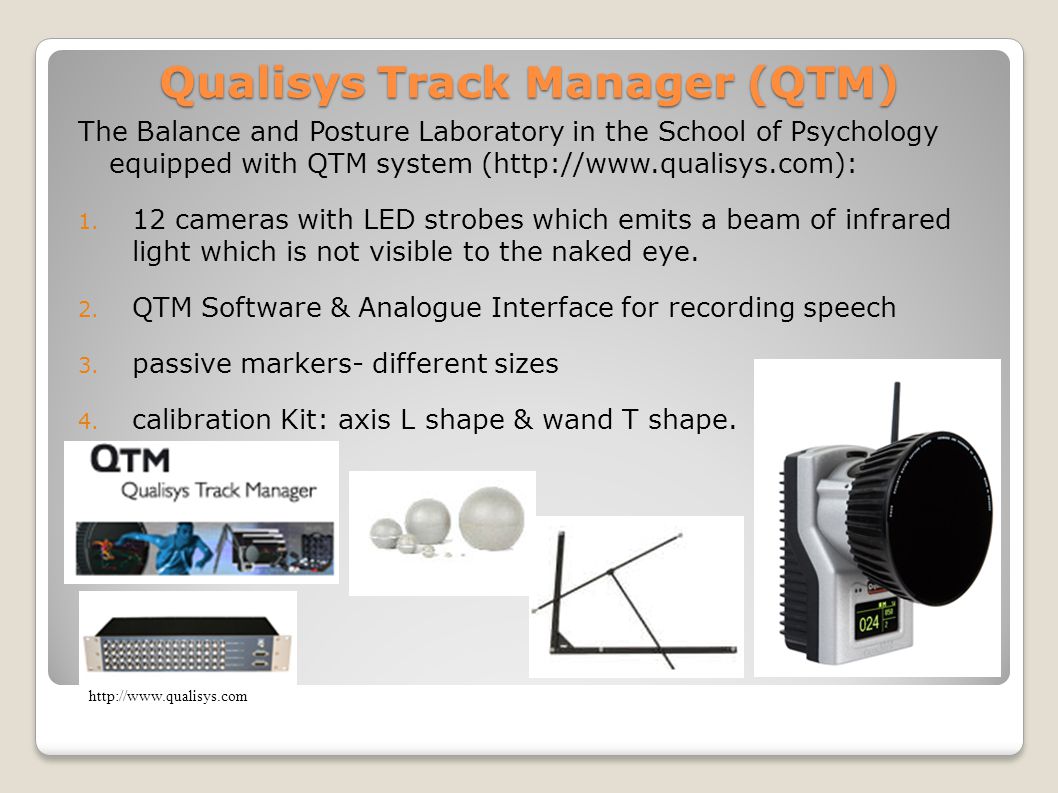

5 Qualisys Track Manager (QTM) The Balance and Posture Laboratory in the School of Psychology equipped with QTM system (http://www.qualisys.com): cameras with LED strobes which emits a beam of infrared light which is not visible to the naked eye. 2. QTM Software & Analogue Interface for recording speech 3. passive markers- different sizes 4. calibration Kit: axis L shape & wand T shape.

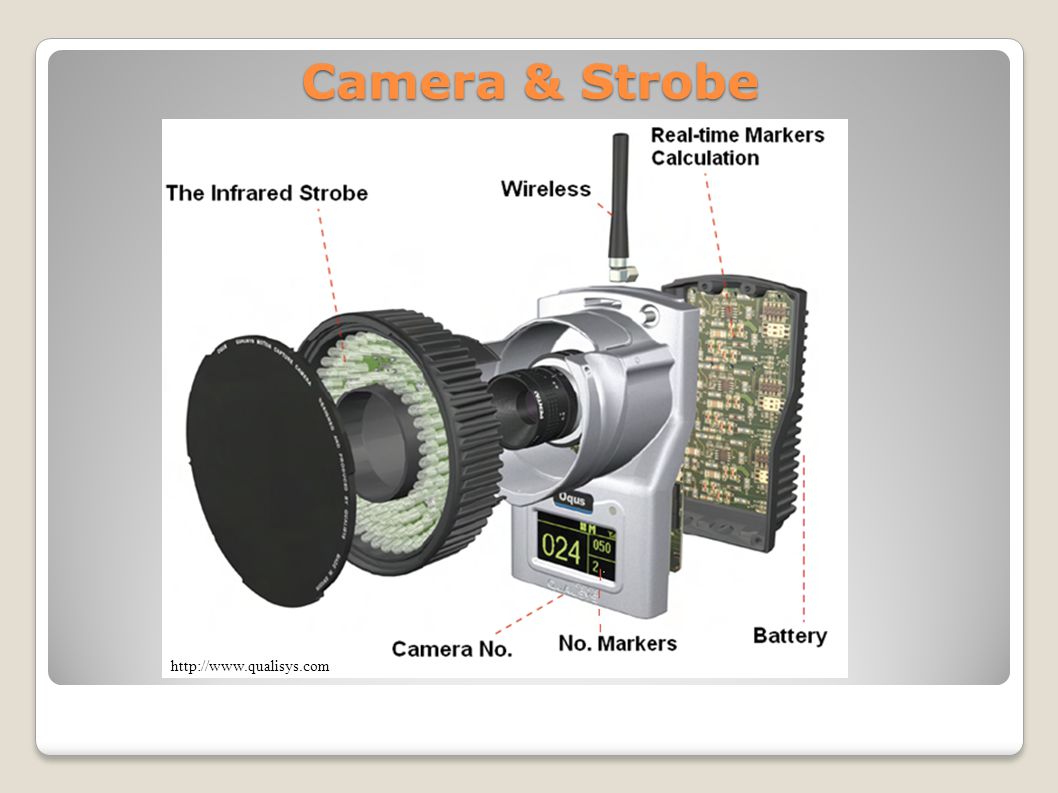

6 Camera & Strobe

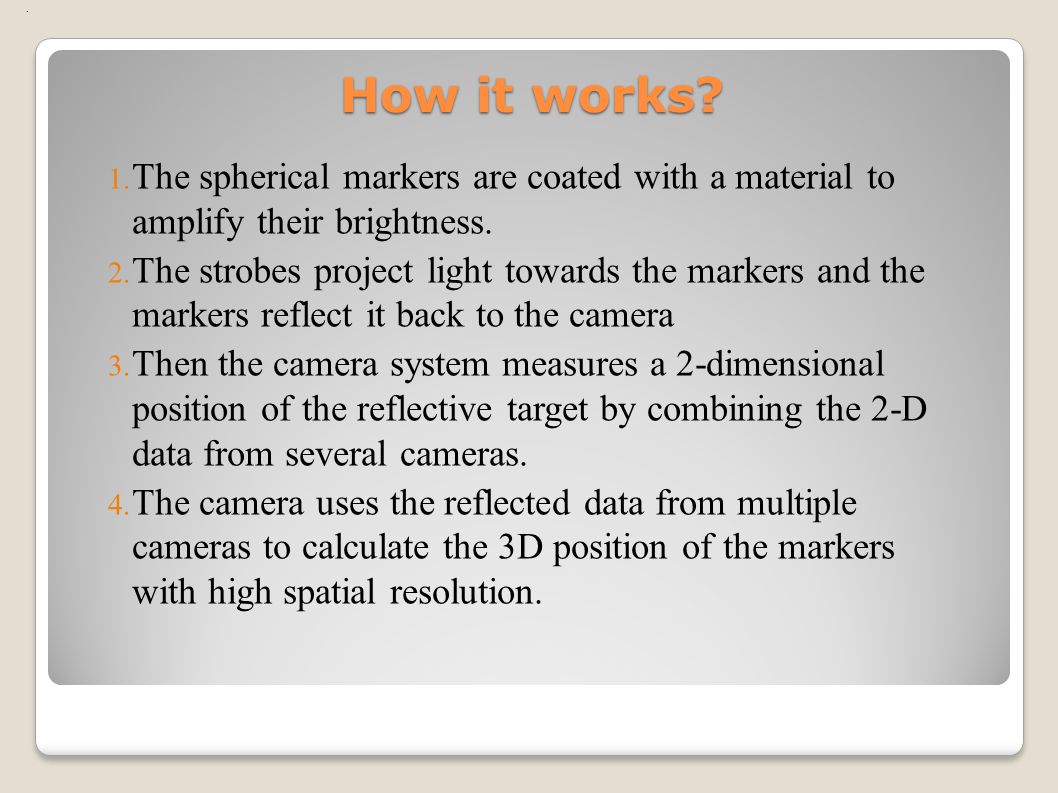

7 How it works? 1. The spherical markers are coated with a material to amplify their brightness. 2. The strobes project light towards the markers and the markers reflect it back to the camera 3. Then the camera system measures a 2-dimensional position of the reflective target by combining the 2-D data from several cameras. 4. The camera uses the reflected data from multiple cameras to calculate the 3D position of the markers with high spatial resolution..

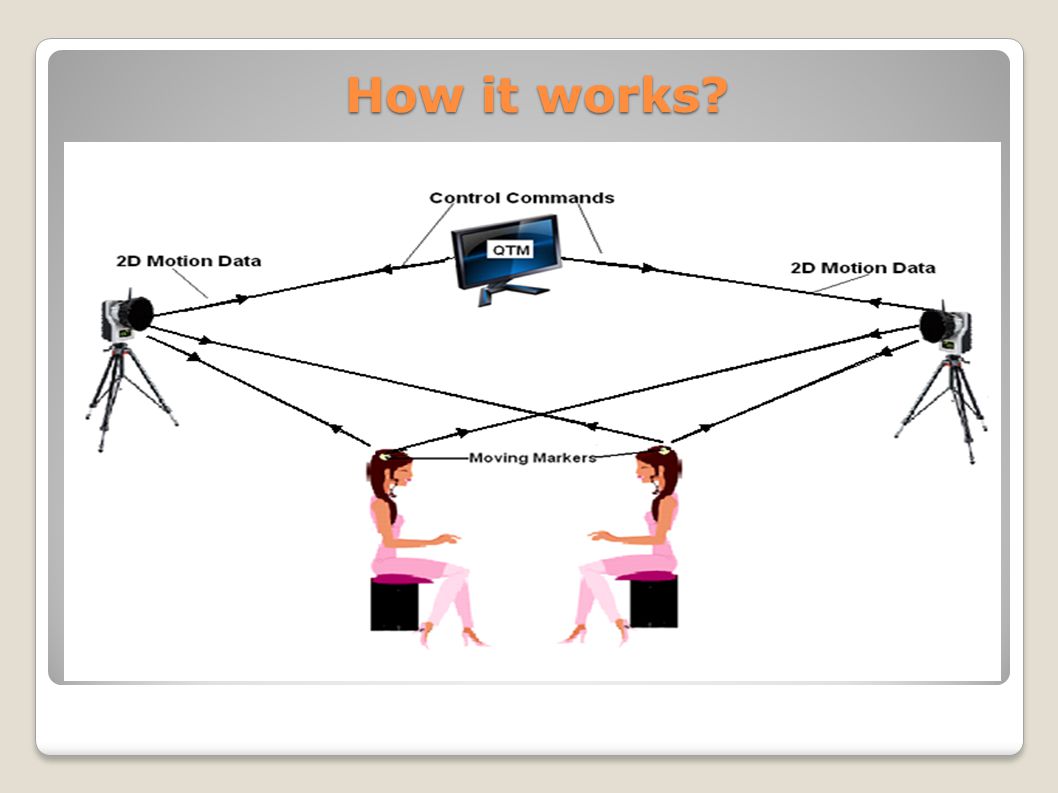

8 How it works?

9 The Process of Capturing data Attach markers on the objects of interest- how? Define the measurement area where subjects will stand Test the area Calibrate the area Capture your data Save your data.

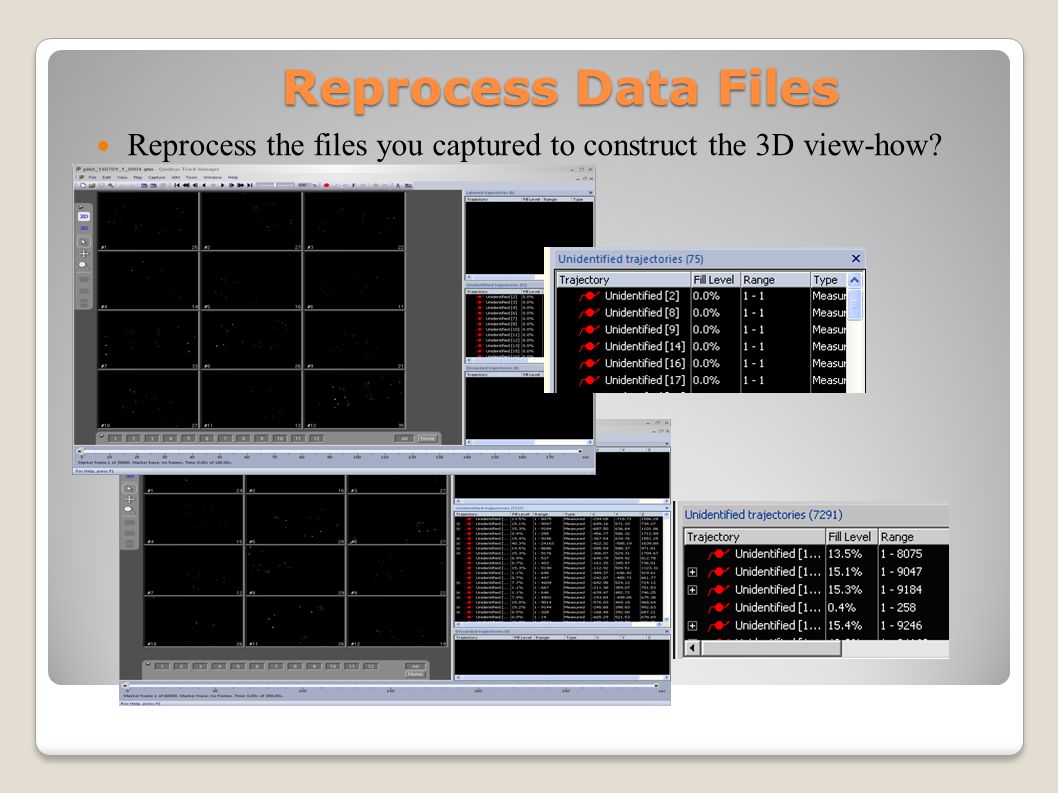

10 Reprocess Data Files Reprocess the files you captured to construct the 3D view-how?

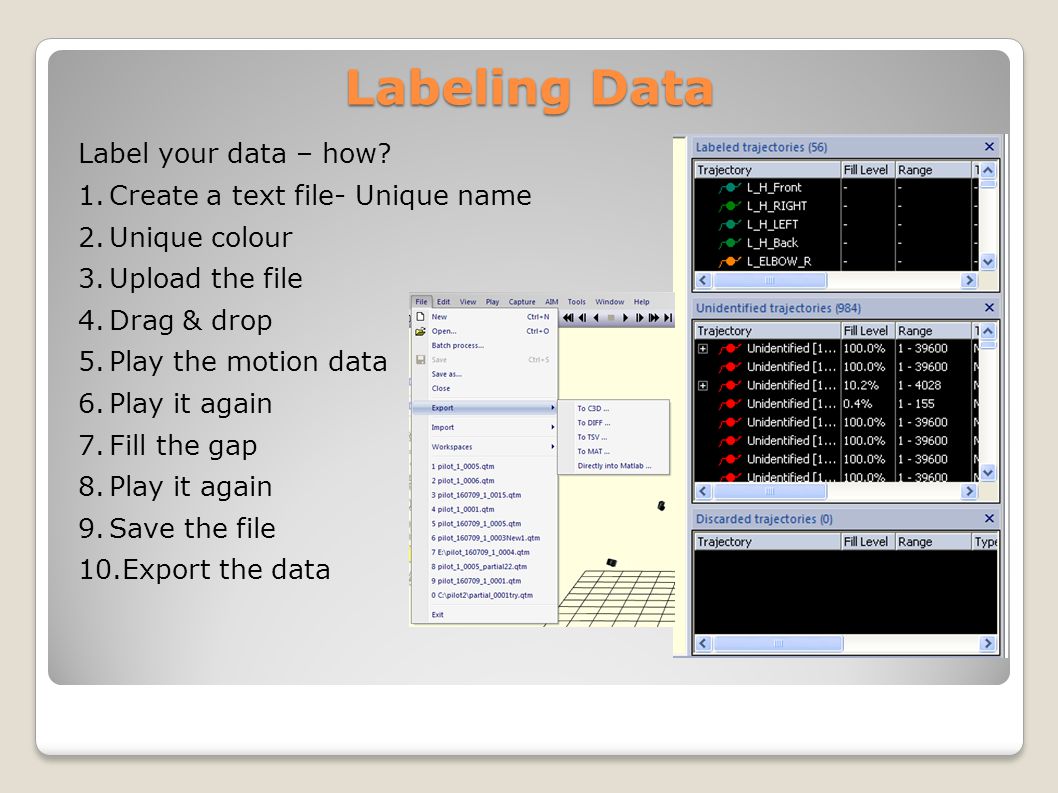

11 Labeling Data Label your data – how? 1.Create a text file- Unique name 2.Unique colour 3.Upload the file 4.Drag & drop 5.Play the motion data 6.Play it again 7.Fill the gap 8.Play it again 9.Save the file 10.Export the data

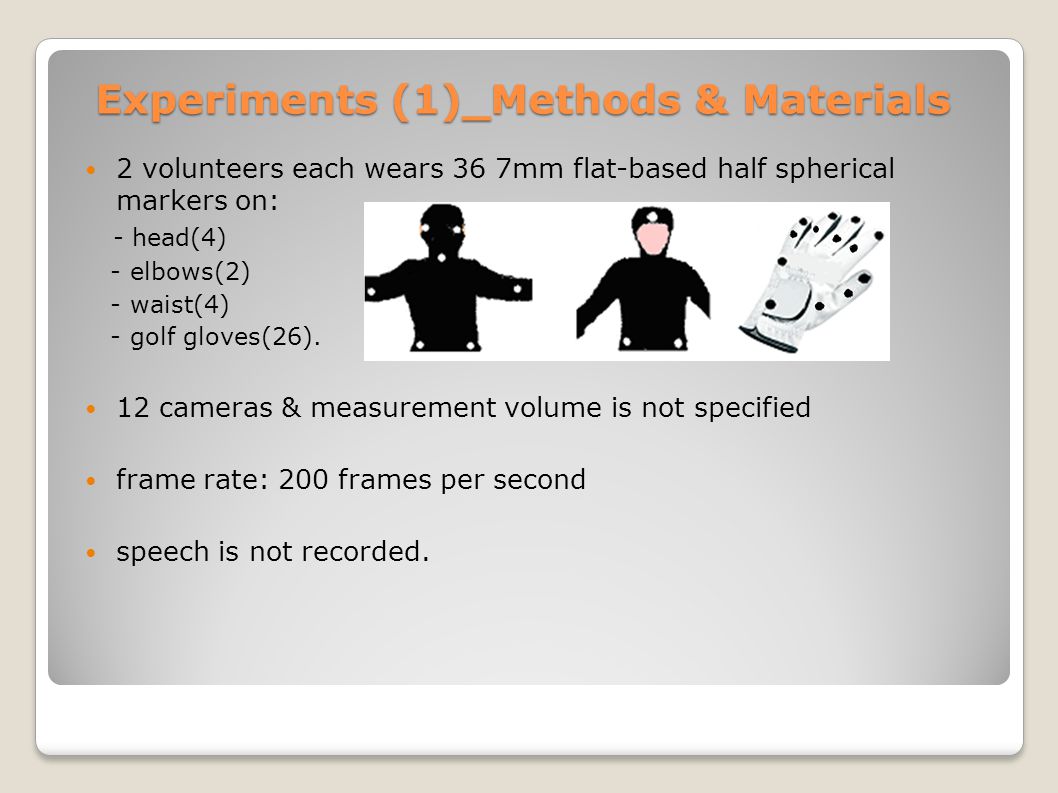

12 Experiments (1)_Methods & Materials 2 volunteers each wears 36 7mm flat-based half spherical markers on: - head(4) - elbows(2) - waist(4) - golf gloves(26). 12 cameras & measurement volume is not specified frame rate: 200 frames per second speech is not recorded.

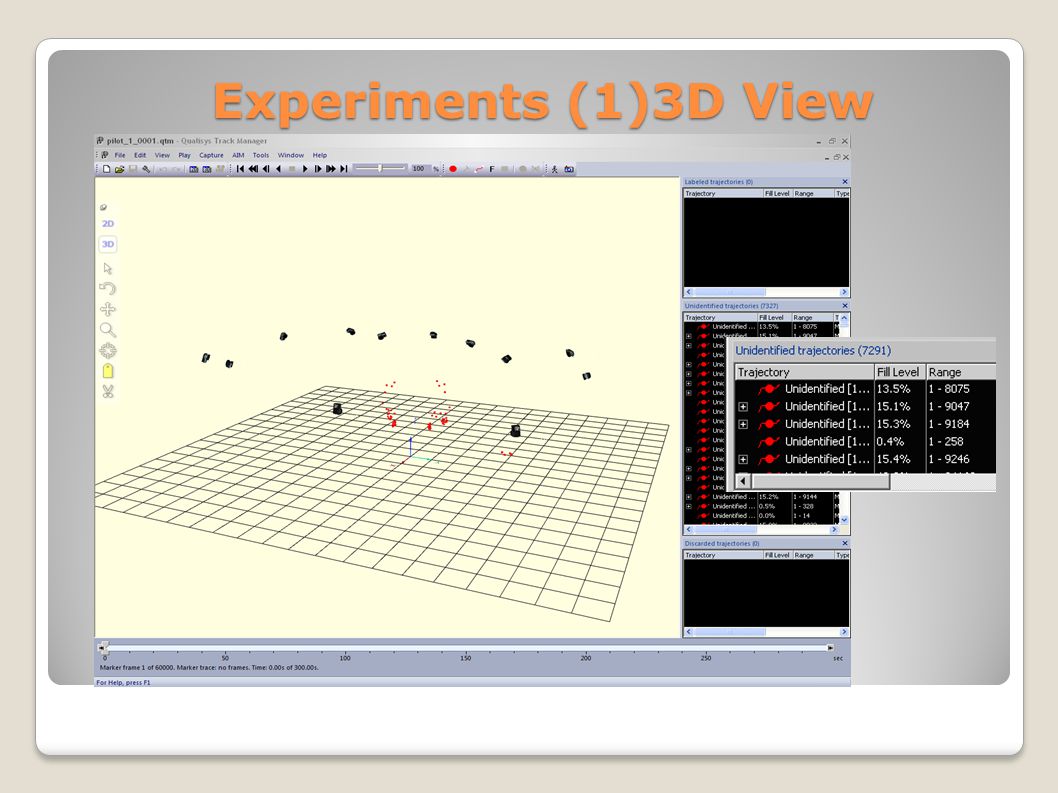

13 Experiments (1)3D View

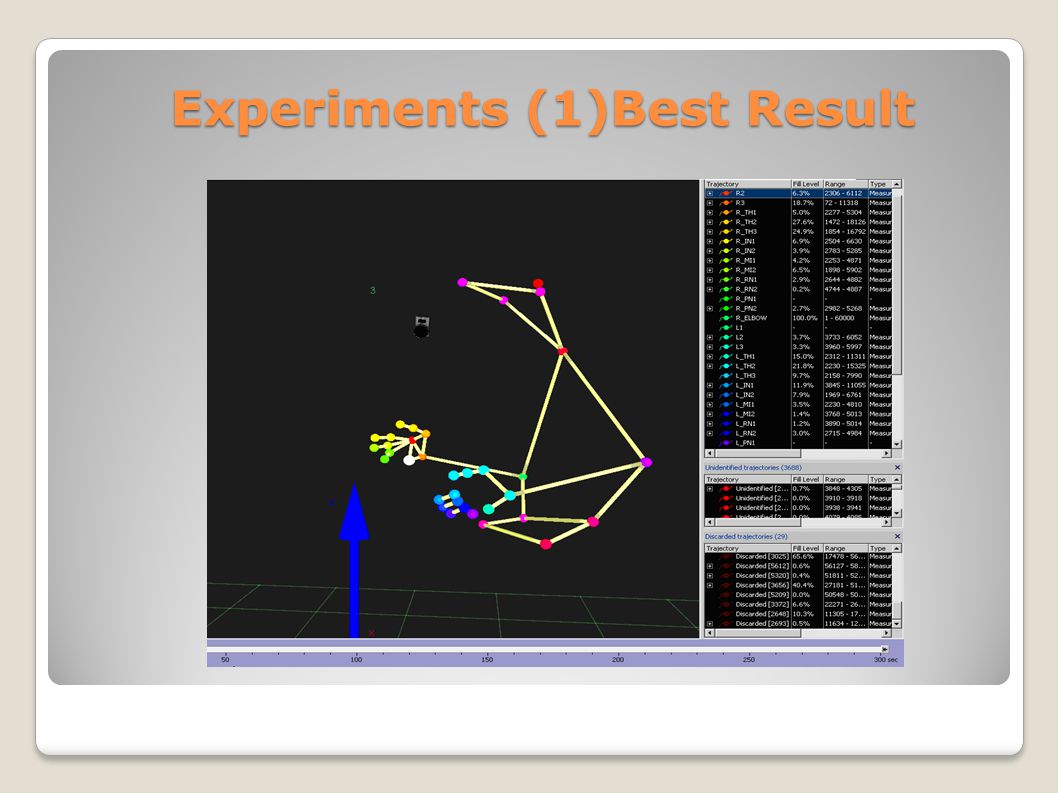

14 Experiments (1)Best Result

15 Experiment (2)_Motivation To improve the quality of data. 1. Quantity: number of unidentified markers’ trajectories should be the same number of the markers used in the experiment. 2. Quality: No loss of markers, ghost markers The technique: the reduction both the number of markers & the measurement volume

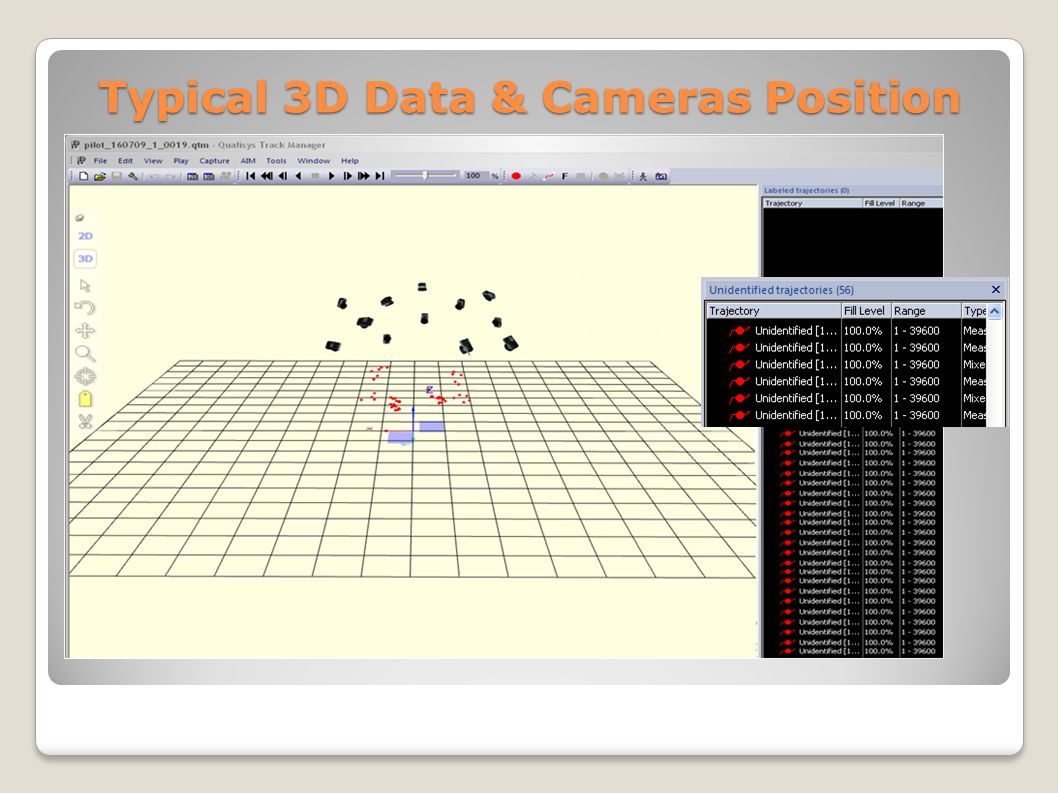

16 Typical 3D Data & Cameras Position

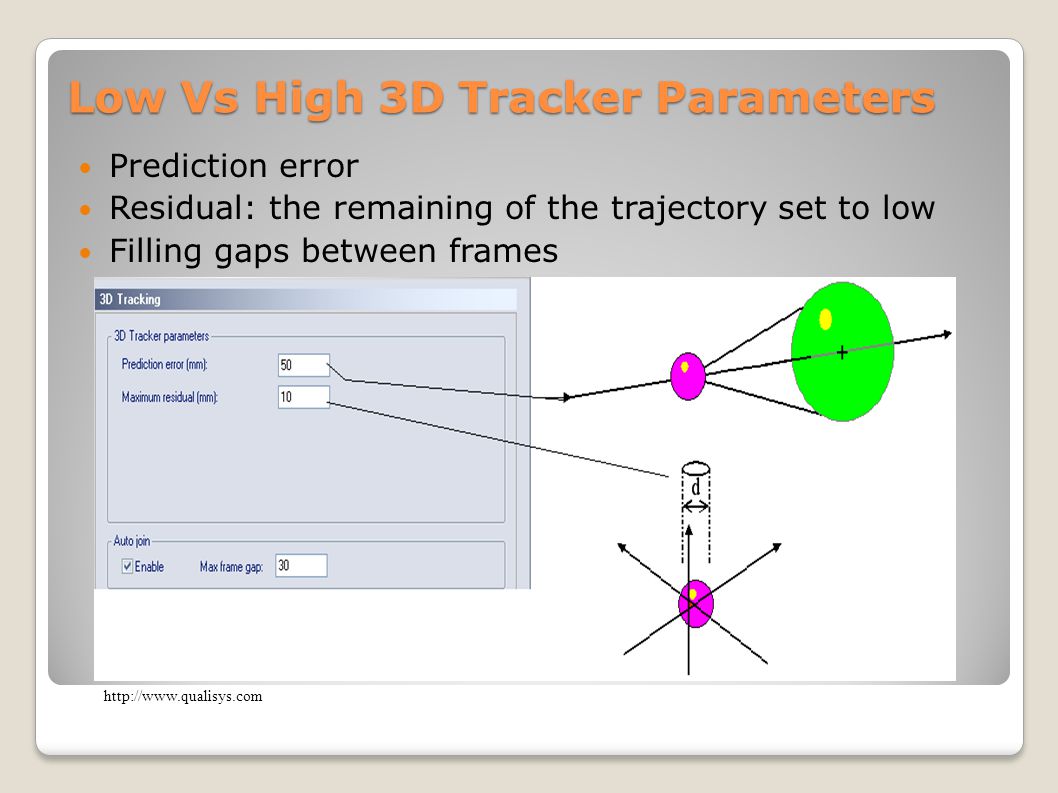

17 Low Vs High 3D Tracker Parameters Prediction error Residual: the remaining of the trajectory set to low Filling gaps between frames

18 Markers’ Trajectories & Filling the Gap

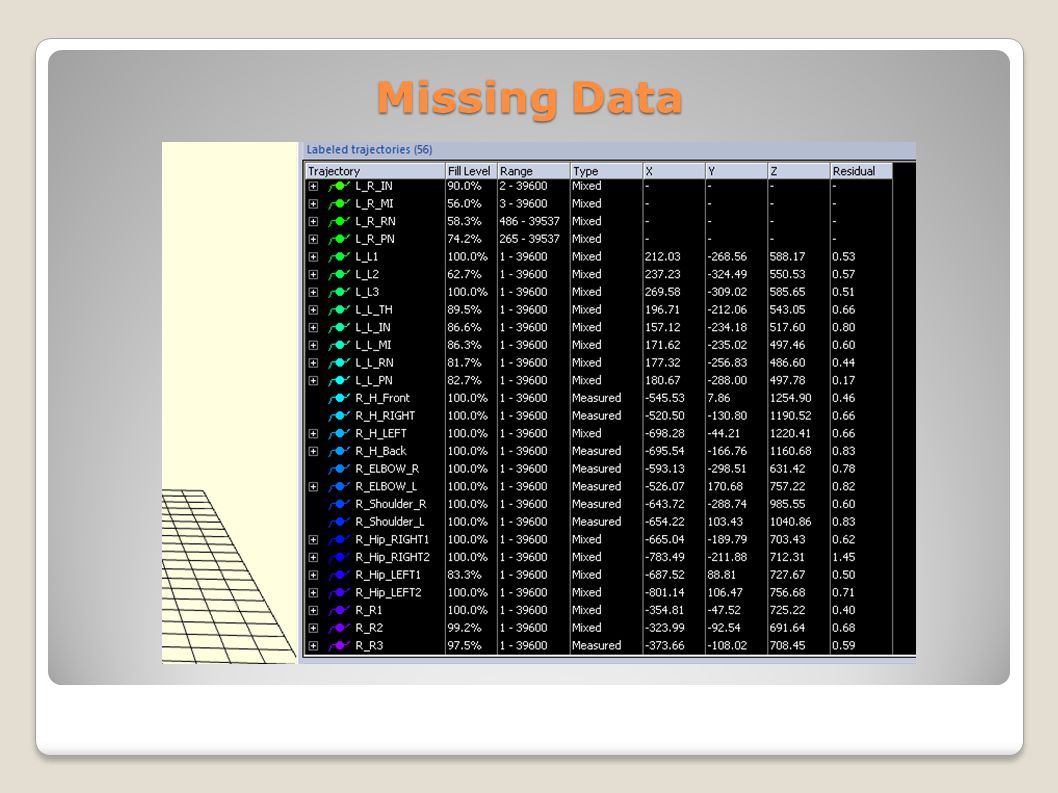

19 Missing Data

20 How to Fill these Gaps?

21 Experiments (2)_Methods & Materials 3 volunteers each wears 28 7mm flat-based half spherical markers on: - head(4) - elbows(2) - shoulders(2) - waist(4) - golf gloves(16)

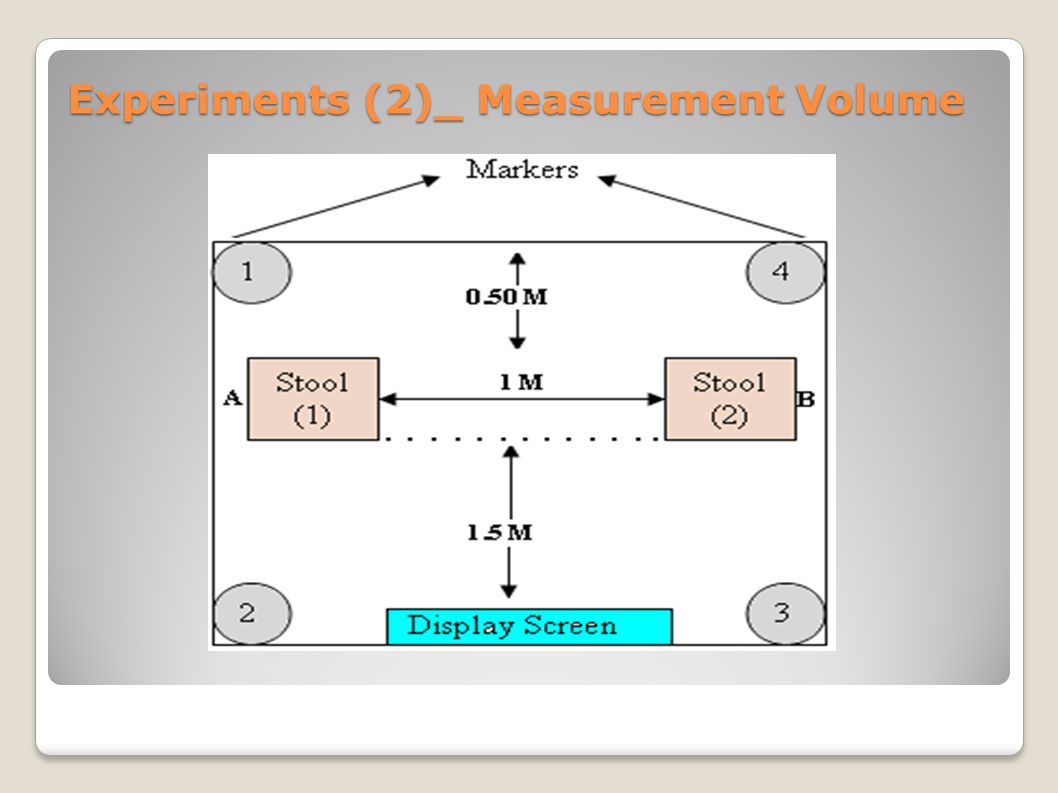

22 Experiments (2)_ Measurement Volume

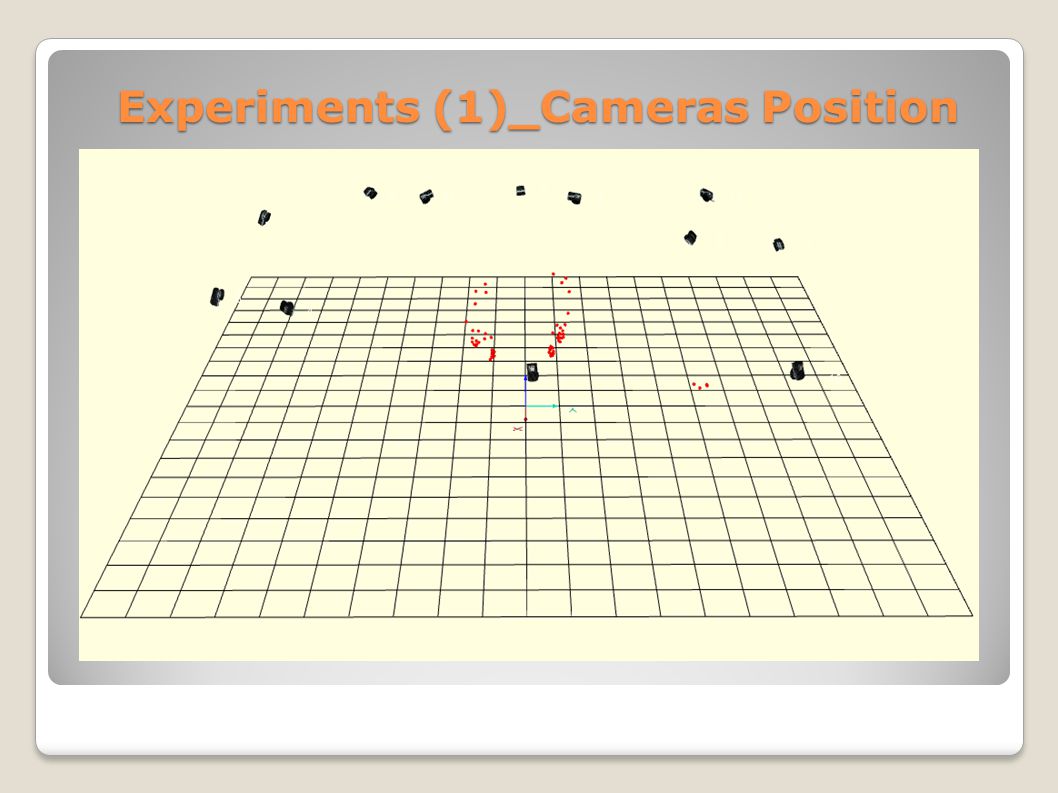

23 Experiments (1)_Cameras Position

24 Experiments (2)_Cameras Position

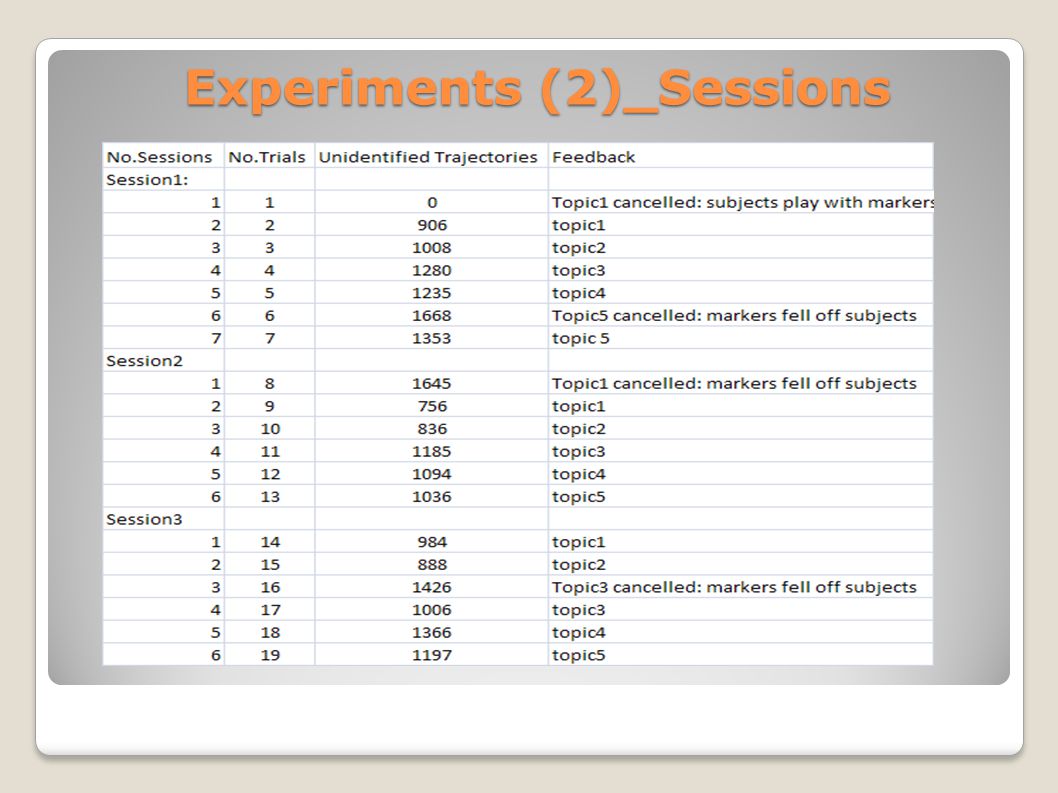

25 Experiments (2)_Sessions

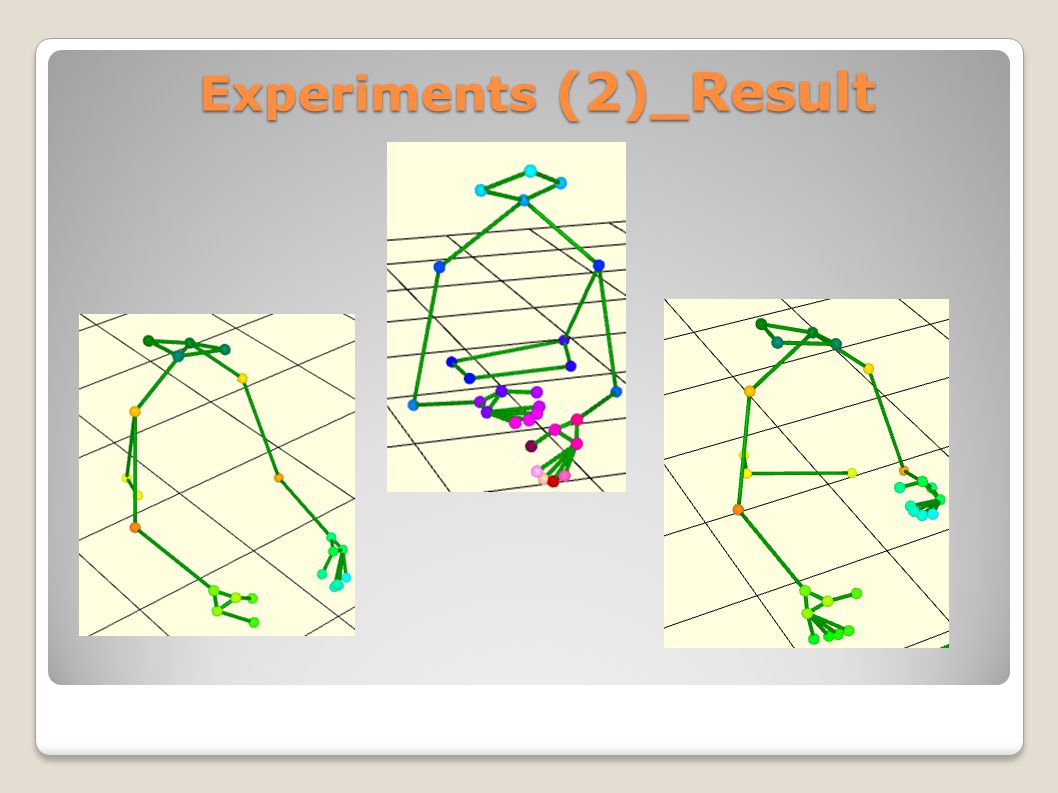

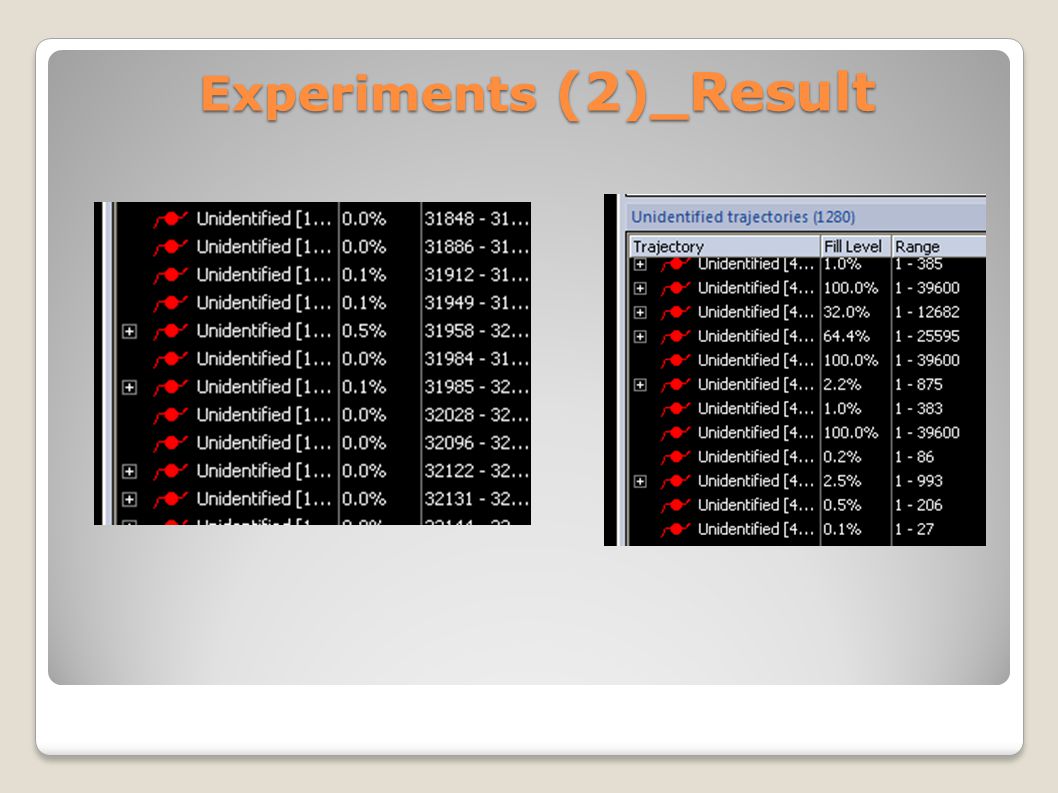

26 Experiments (2)_Result

27

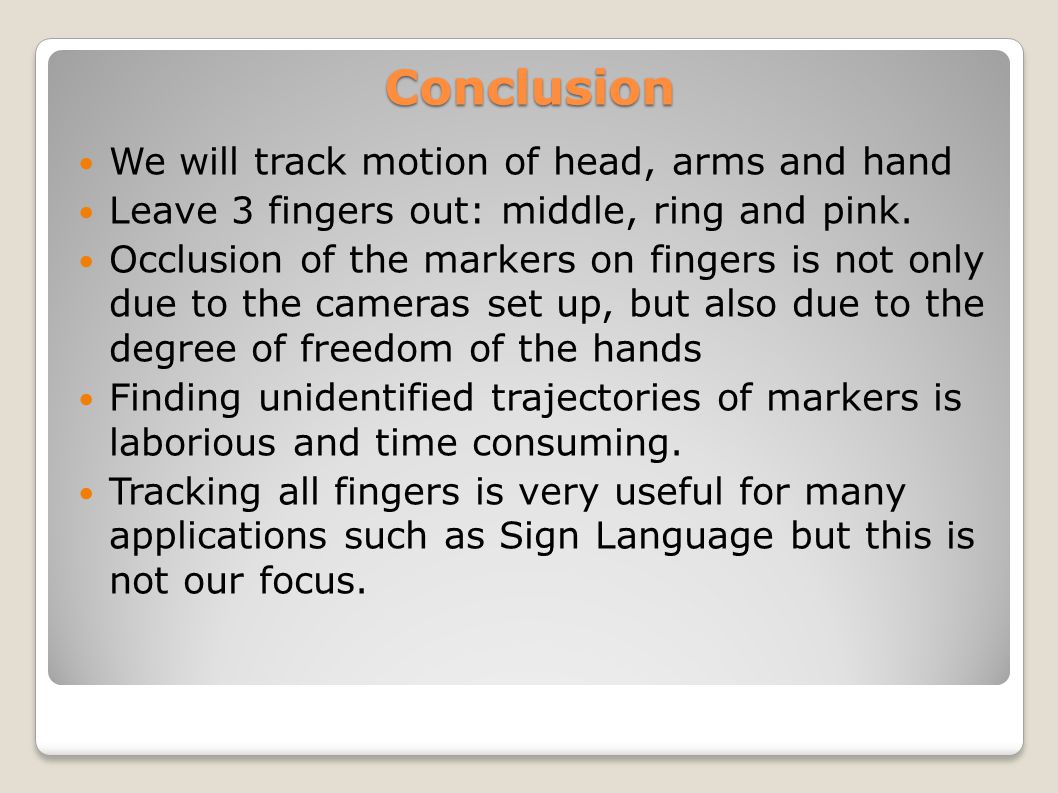

28 Conclusion We will track motion of head, arms and hand Leave 3 fingers out: middle, ring and pink. Occlusion of the markers on fingers is not only due to the cameras set up, but also due to the degree of freedom of the hands Finding unidentified trajectories of markers is laborious and time consuming. Tracking all fingers is very useful for many applications such as Sign Language but this is not our focus.

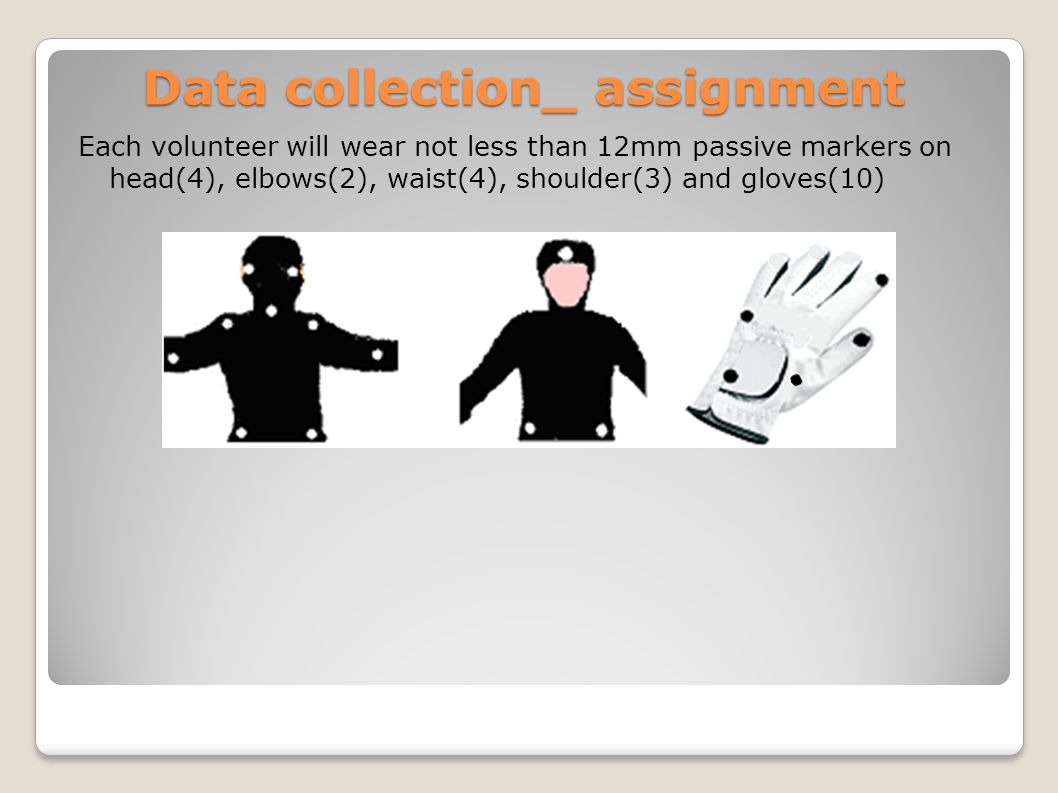

29 Data collection_ assignment Each volunteer will wear not less than 12mm passive markers on head(4), elbows(2), waist(4), shoulder(3) and gloves(10)

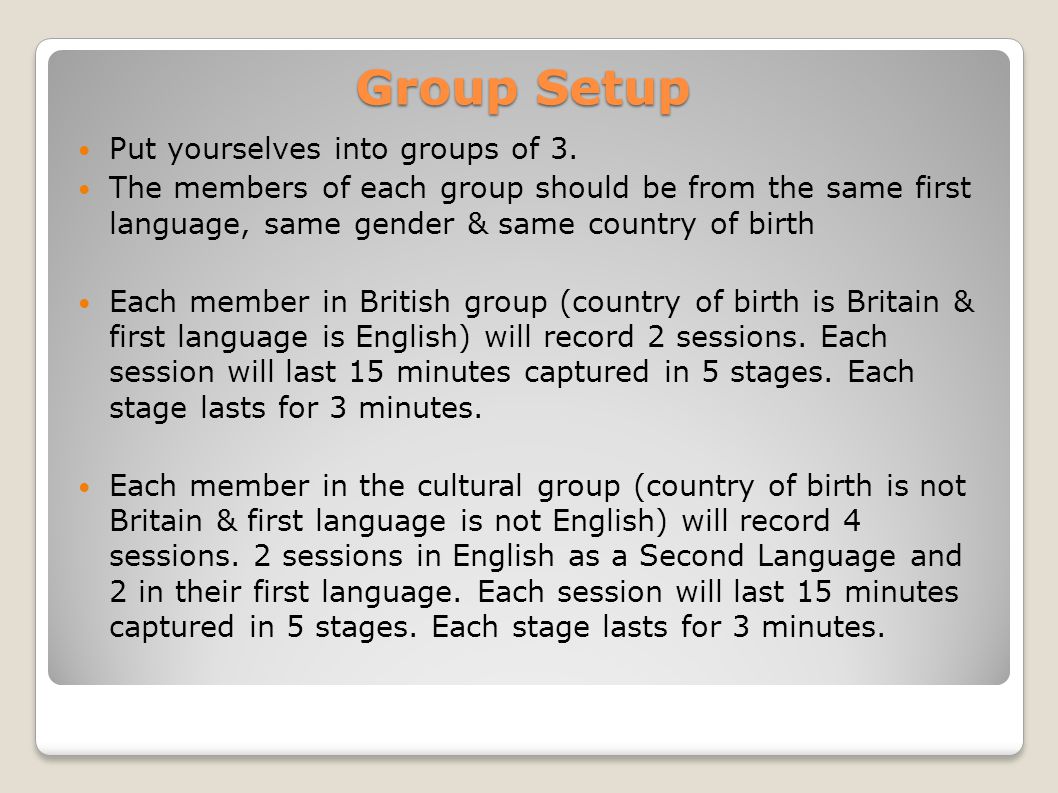

30 Group Setup Put yourselves into groups of 3. The members of each group should be from the same first language, same gender & same country of birth Each member in British group (country of birth is Britain & first language is English) will record 2 sessions. Each session will last 15 minutes captured in 5 stages. Each stage lasts for 3 minutes. Each member in the cultural group (country of birth is not Britain & first language is not English) will record 4 sessions. 2 sessions in English as a Second Language and 2 in their first language. Each session will last 15 minutes captured in 5 stages. Each stage lasts for 3 minutes.

31 Any Question?
