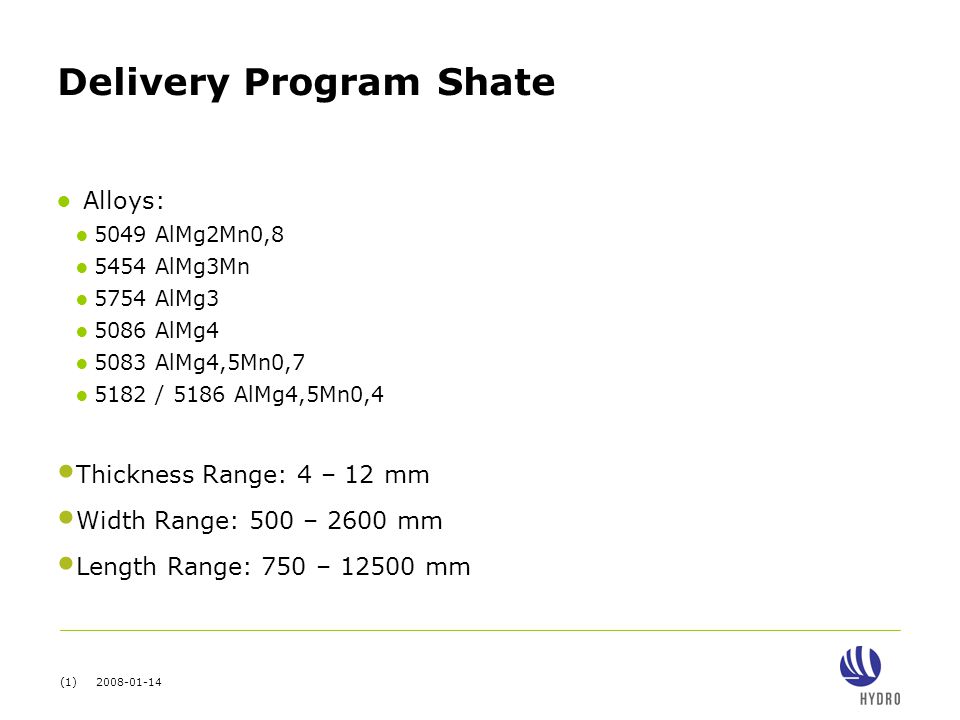

1 (1) Delivery Program Shate ● Alloys: ● 5049 AlMg2Mn0,8 ● 5454 AlMg3Mn ● 5754 AlMg3 ● 5086 AlMg4 ● 5083 AlMg4,5Mn0,7 ● 5182 / 5186 AlMg4,5Mn0,4 Thickness Range: 4 – 12 mm Width Range: 500 – 2600 mm Length Range: 750 – mm

2 (2) Applications of Shate Material Transport Industry: ● Trucks and Trailers ● Silo Trailer ● Road Tanker ● Tipper Bodies ● Shipbuilding ● Fast ferries, Boats and Yachts ● Superstructures of Cruiseliners Industrial Applications: ● Stationary Silos ● Spiral welded tubes ● Electric power plants ● Cryogenic Applications

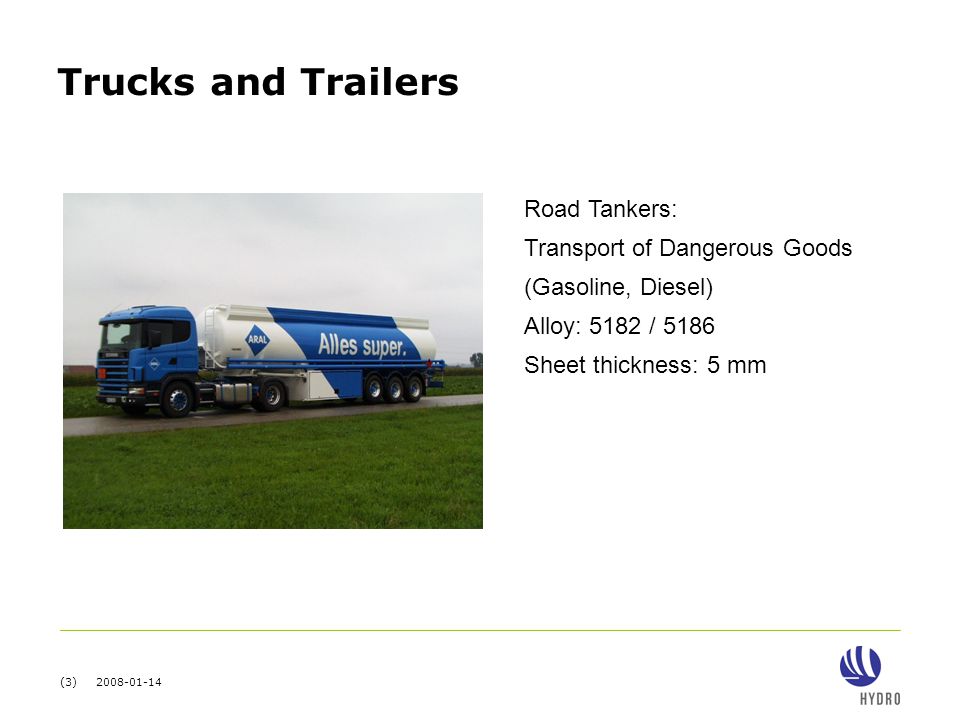

3 (3) Trucks and Trailers Road Tankers: Transport of Dangerous Goods (Gasoline, Diesel) Alloy: 5182 / 5186 Sheet thickness: 5 mm

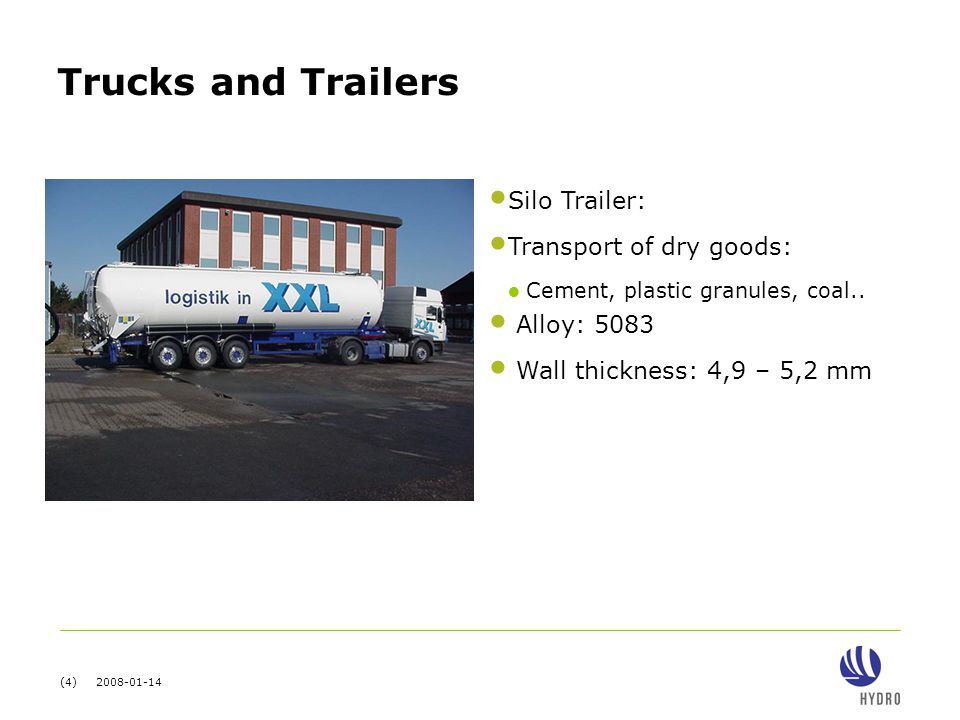

4 (4) Trucks and Trailers Silo Trailer: Transport of dry goods: ● Cement, plastic granules, coal.. Alloy: 5083 Wall thickness: 4,9 – 5,2 mm

5 (5) Trucks and Trailers ● Tipper bodies: ● Open transport of rigid goods: ● sand, gravel.... ● agricultural products ● Alloys: 5454, 5754, 5083

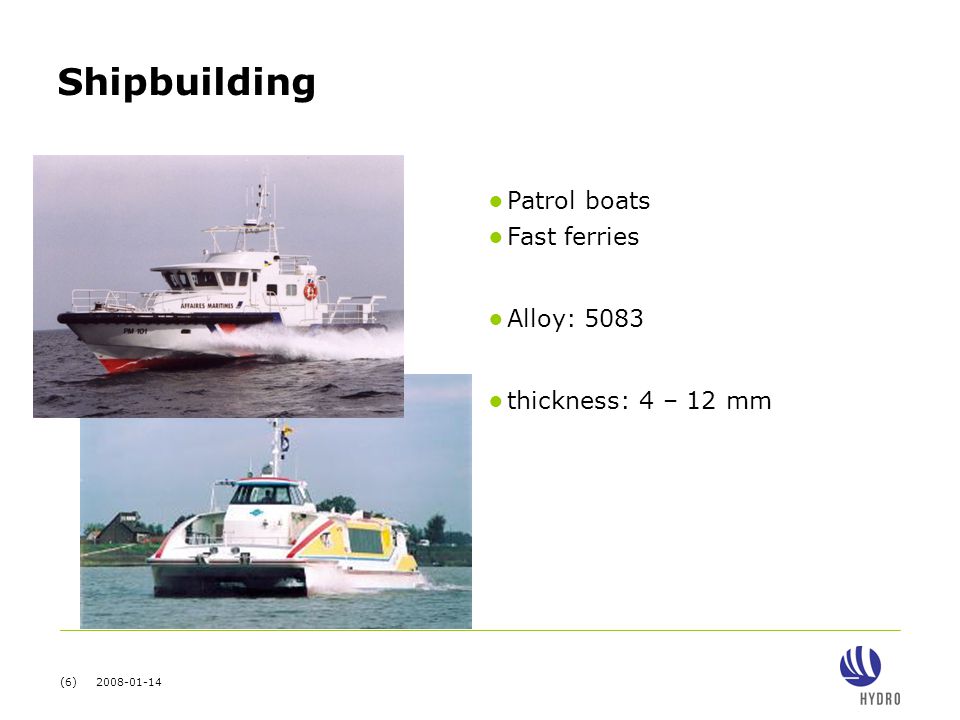

6 (6) Shipbuilding ● Patrol boats ● Fast ferries ● Alloy: 5083 ● thickness: 4 – 12 mm

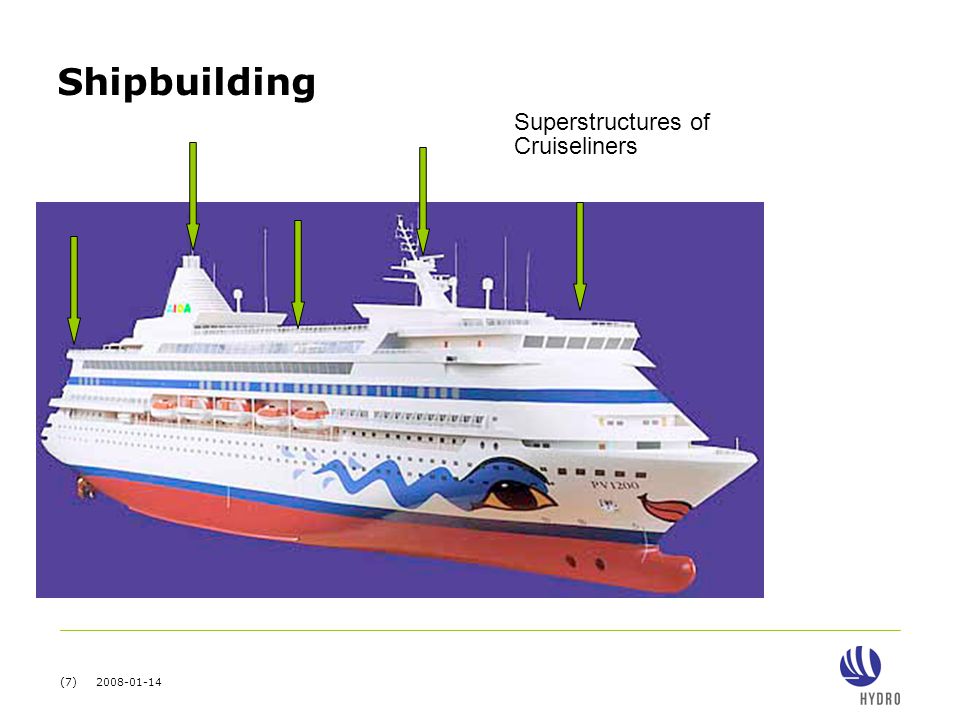

7 (7) Shipbuilding Superstructures of Cruiseliners

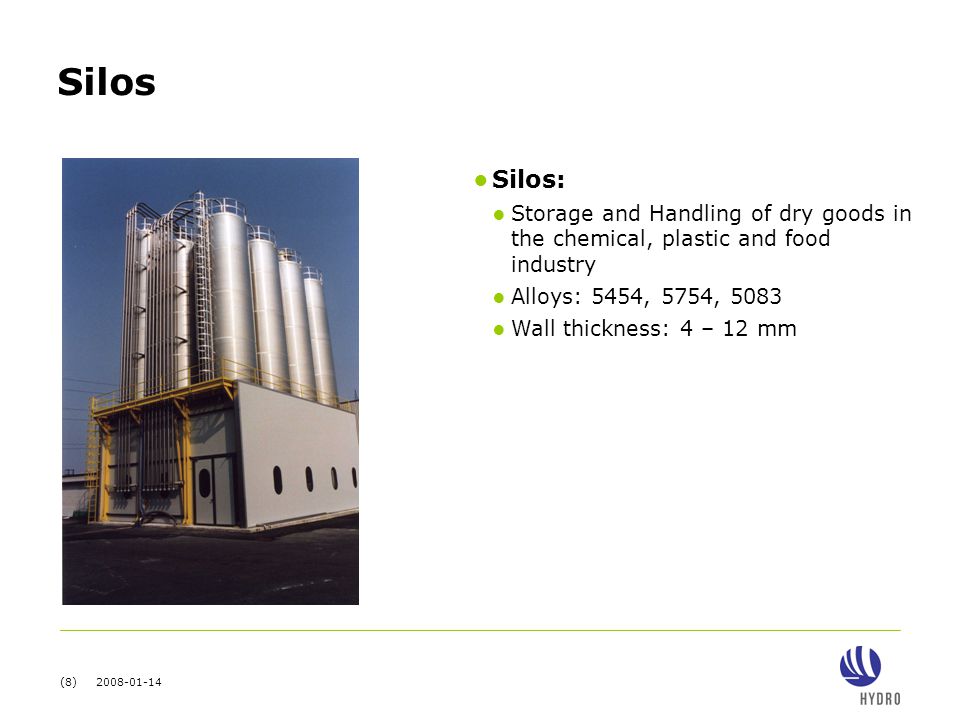

8 (8) Silos ● Silos: ● Storage and Handling of dry goods in the chemical, plastic and food industry ● Alloys: 5454, 5754, 5083 ● Wall thickness: 4 – 12 mm

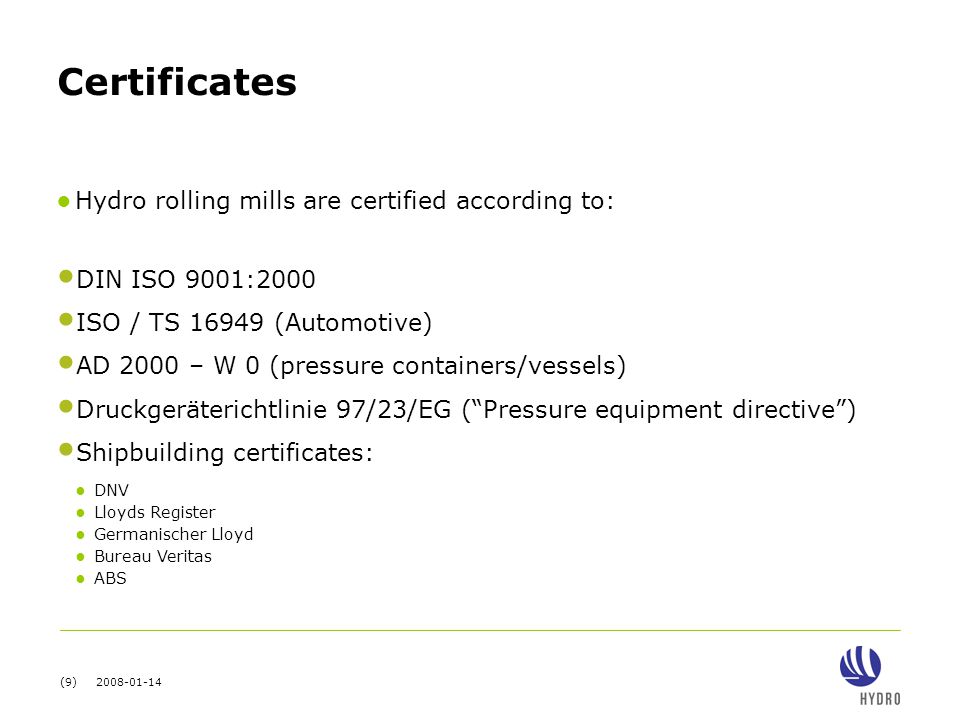

9 (9) Certificates ● Hydro rolling mills are certified according to: DIN ISO 9001:2000 ISO / TS (Automotive) AD 2000 – W 0 (pressure containers/vessels) Druckgeräterichtlinie 97/23/EG (“Pressure equipment directive”) Shipbuilding certificates: ● DNV ● Lloyds Register ● Germanischer Lloyd ● Bureau Veritas ● ABS
