1 TRANSPORTATION MANAGEMENT EQUIPMENT TYPES

2 MOTOR CARRIERS SPECIAL VEHICLES  DRY VAN  OPEN TOP  FLATBED  TANK TRAILER  REFRIGERATED VEHICLES  HIGH CUBE  SPEACIAL (Liquefied gas/automobiles)

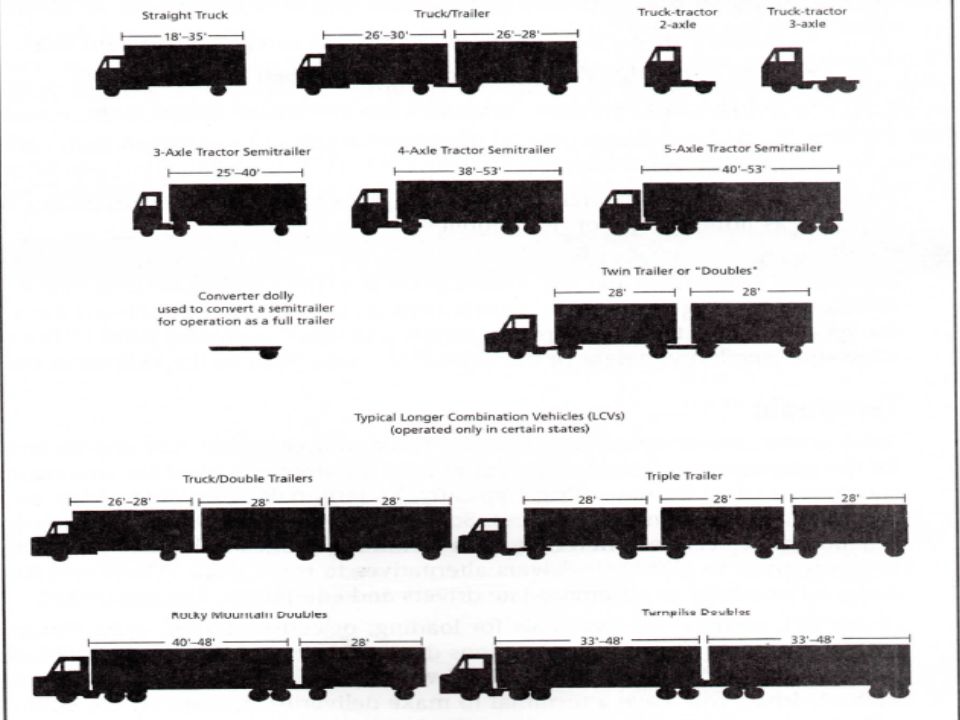

3

4 Different types of road vehicle  Delivery vans  Flat-bed lorries

5  Box-bodied lorries  Articulated lorries  Lorry and trailer

6 Conventional Box Trailer Curtain Sider Semi- Trailer

7

8 Dimensions of Semi-Trailer  13.6 x 2.45 x 2.7 m (dimensions may vary)  Maximum allowed load capacity kg

9 Semi Trailer Capacity  The trailer holds 33 Euro pallets or 26 UK pallets  Volume 90 m³  Most suitable for palletized cargo  Cargo can be loaded from the back, from the sides and from the top

10 Dimensions of Twin Trailer  Tractor vehicle and two seperate trailer  Common trailer lengths are m (may vary)  The maximum allowed total length of both trailers is m  Maximum allowed load capacity kg

11 Twin Trailer Capacity  The trailer holds 38 Euro pallets or 30 UK pallets  Total volume m3  A full trailer is most suitable for large-volume, lightweight “volume goods” (pillows, bedcovers, wool, soft furniture).  Also suitable for lightweight pallets  Cargo can be loaded from the back, from the sides and from the top

12 Dimensions of Jumbo (Mega) Trailer  13.6 x 2.45 x 3 m (the 4 m long front end of the trailer is 2.6 m high)  Maximum allowed load capacity kg

13 Jumbo (Mega) Trailer Capacity  The volume of the trailer is 96 m3  Particularly suitable for lightweight, voluminous goods  Cargo can be loaded from the back, from the sides and from the top

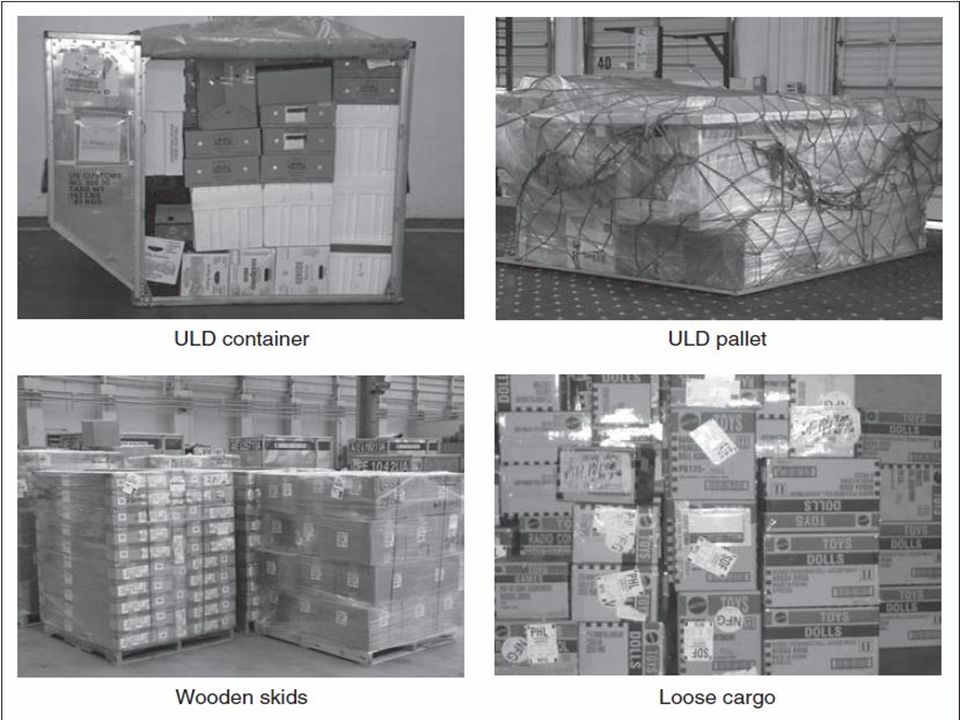

14 AIR CARGO  Bulk cargo  Unit Load Device (ULD Pallets Containers Igloo

15

16 Air Cargo Load

17 Pallets  Maximum net weight: kgs  Maximum net weight: kgs

18 ULD (Unit Load Device)  Maximum net weight: 1501 kgs.  Maximum net weight: 1134 kgs.

19 RAILWAY  CARLOAD: Basic unit of measurement of freight handling used by railroads.  Car types; Boxcar(plain) Boxcar(equipped) Hopper car Covered hopper Flatcar Refrigerator car Gondola Tank car

20 Standard Boxcar  can carry from 70 to 100 tons.  carry a wide range of products; rolled paper, pulp, metals, Appliances, any bagged and palletized material.

21 Flatcar  Provide an open platform.  More flexible than other cars  Products Transformers Tractors Specialized cargo etc  Bulkhead Flatcar

22 Covered Hopper  Roof equipped with hatches to load commodity into 2-3 compartments.  Bottom of each compartmenet has a gate for unloading.  Two groups; small, jumbo  Weight capacity 70 to 110 tons.  Designed for bulk commodities  Open-top Hopper  Carry coal,coke,ore

23 Plain Gondola  Open, flat-bottom cars.  Weight capacity 70 to 110 tons.  Carry bulk producst; Metal Coal Coke Sand Ore Scrap

24 Tank car  Shipment of bulk liquids.  Primary types; General service, Heat coil and insulated cars High pressure tank cars, Acid and sulphur cars, Tank train cars

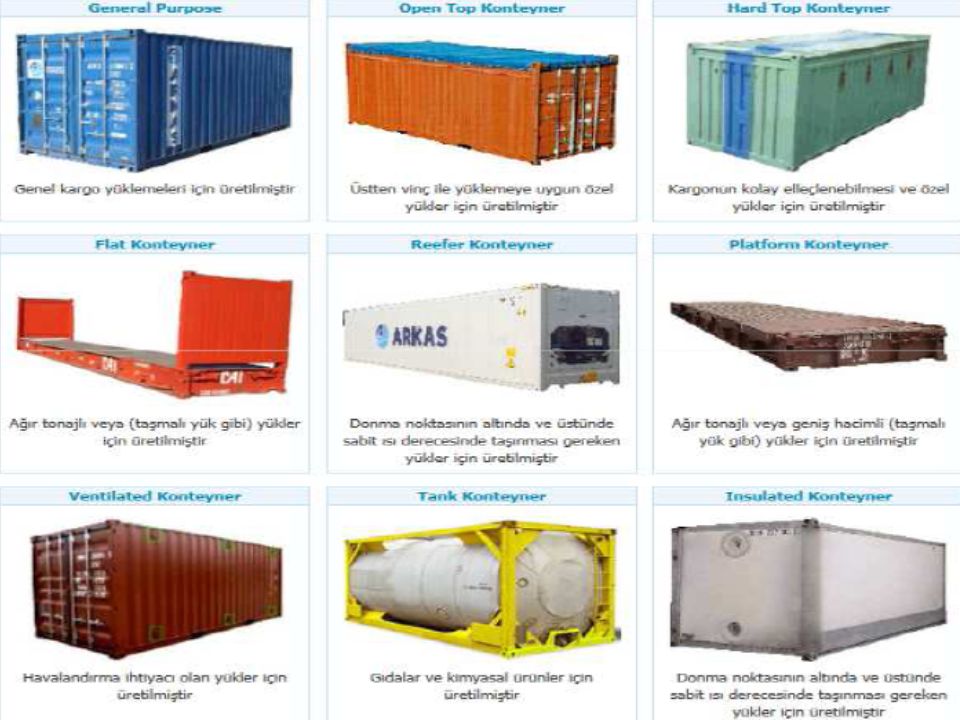

25 Maritime Transportation  Containers  Vessels / Ships  Handling Equipments

26

27

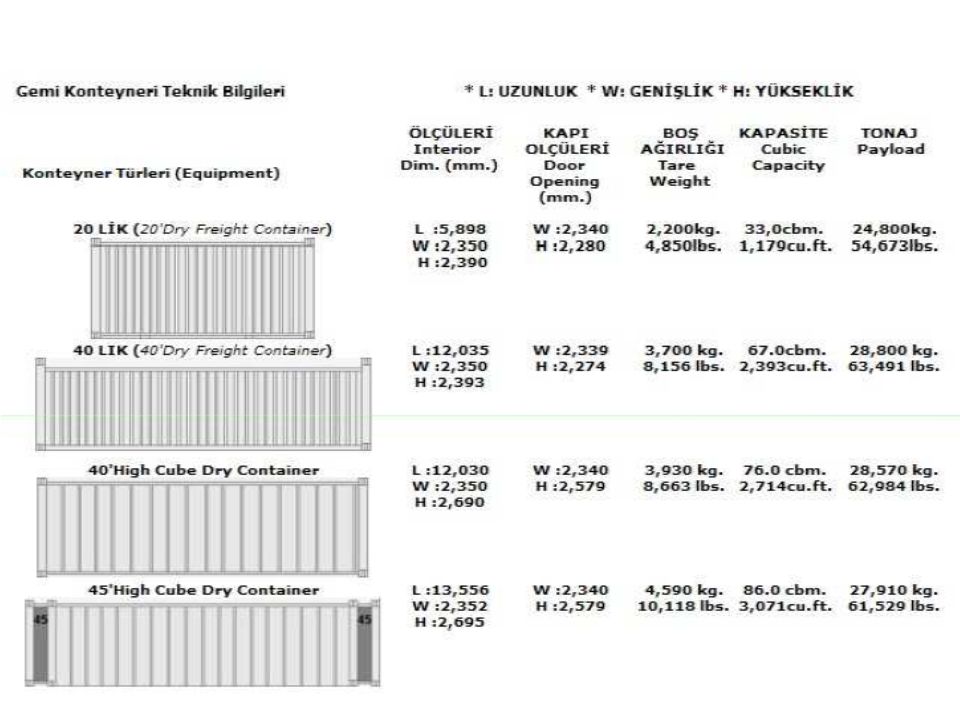

28

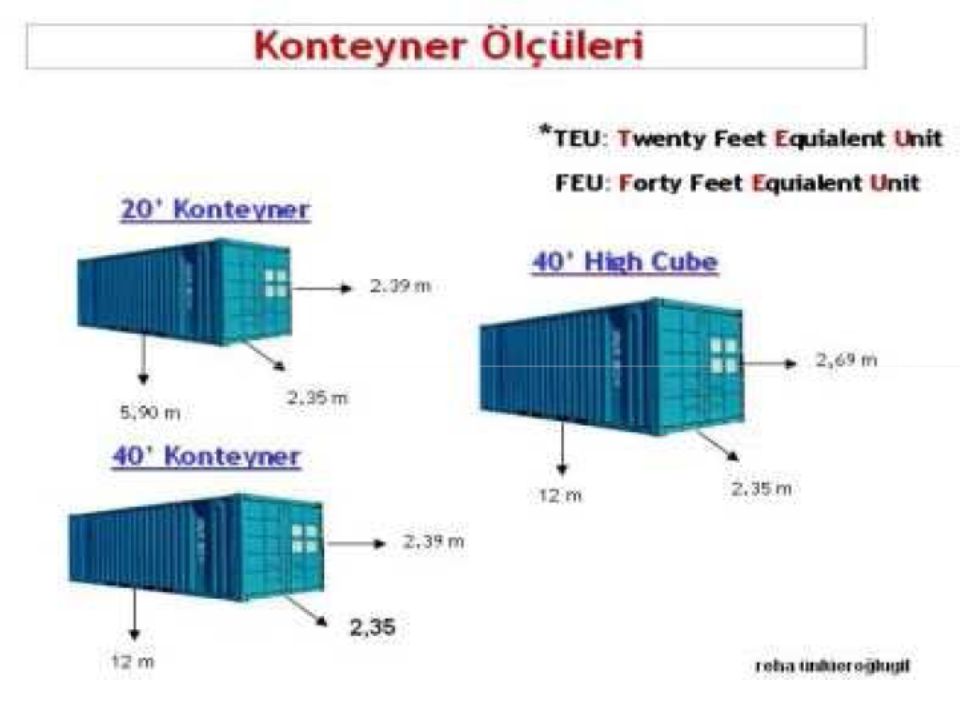

29

30

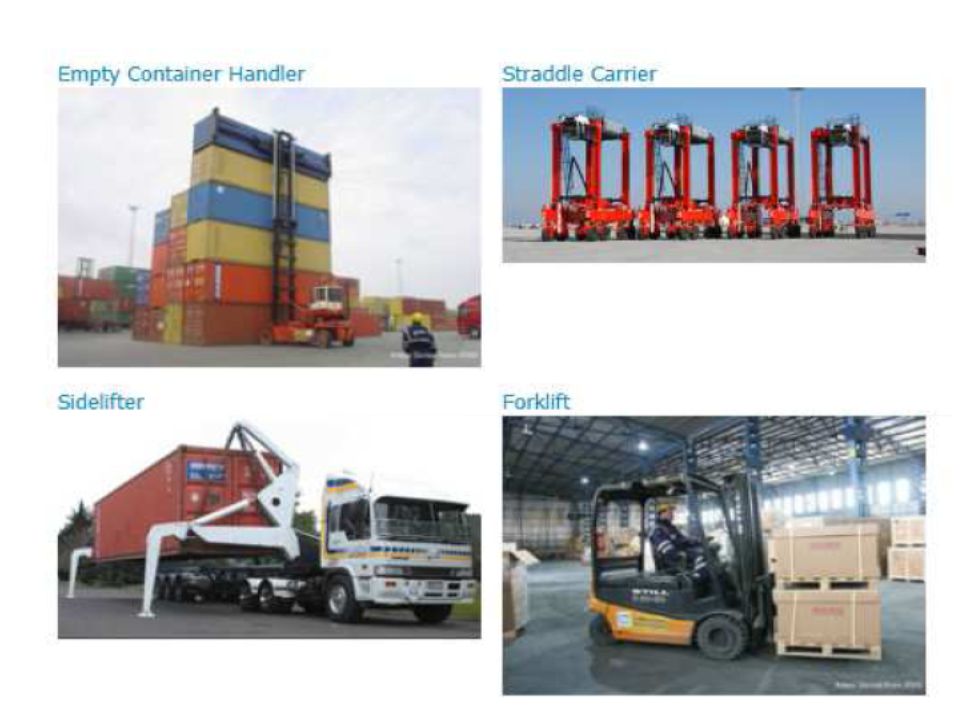

31 PORT EQUIPMENTS

32

33 Equipment Selection Criterias Payload  Passanger x hour  Passanger km / hour  Cargo quantity x hour  Cargo quantity / hour Range Available equipment Maintanace & Repair Smooth load/discharge Operating Cost Fuel efficiency Sensitiveness to the environment Safety and comfort Additional equipment required Scrap or second hand cost
