1 Imaging of Pregnant and Lactating Patients Evidence-based review and recommendations Dr. Robert Walter, Department of Medical Imaging Royal Inland Hospital

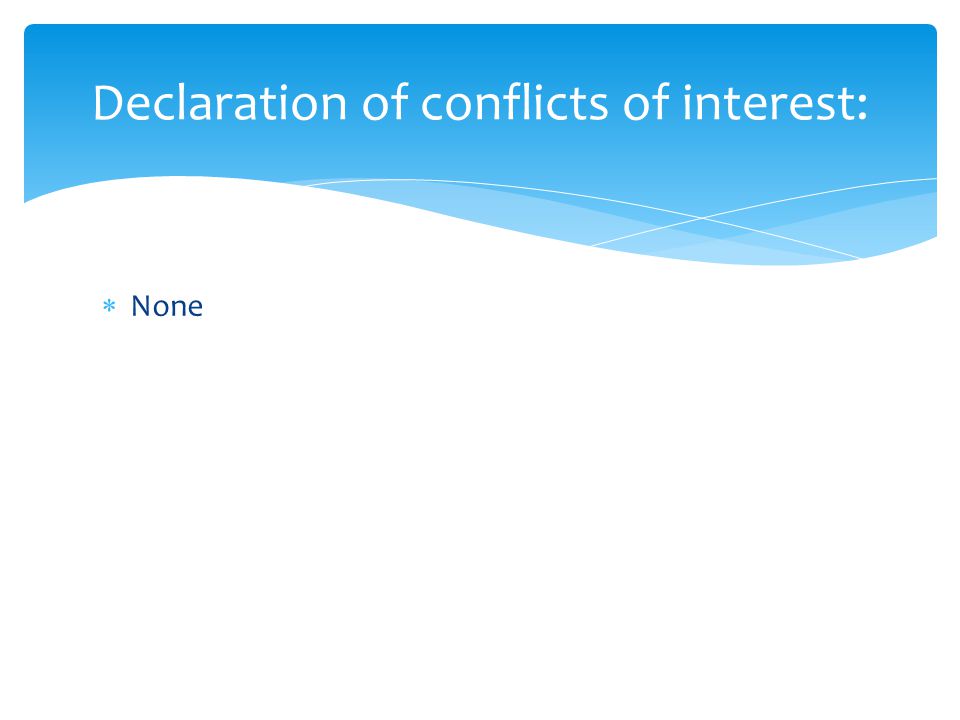

2  None Declaration of conflicts of interest:

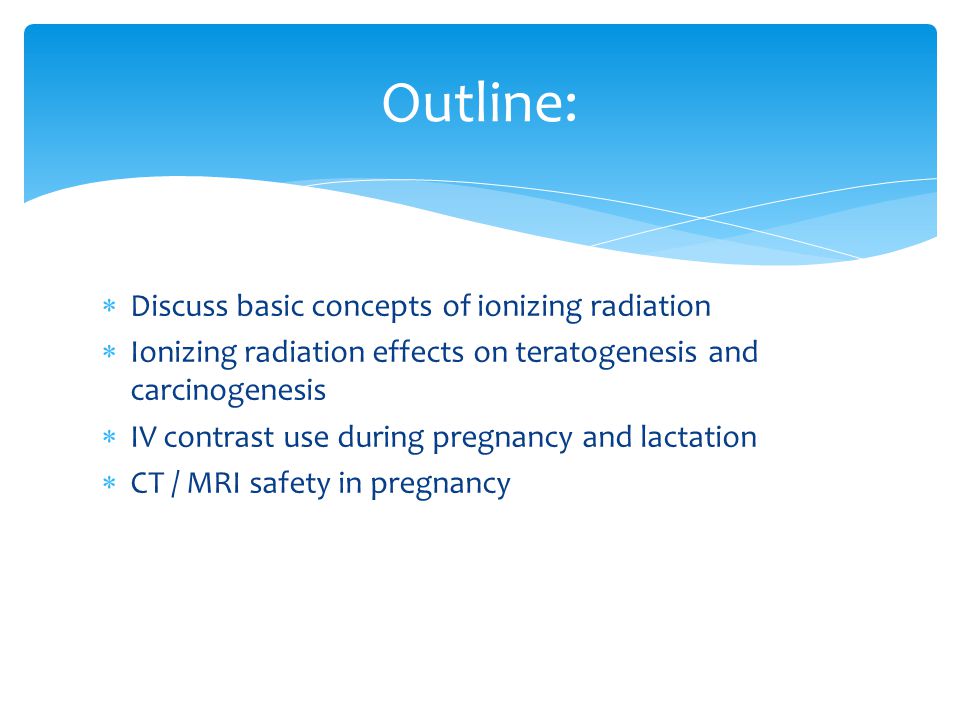

3  Discuss basic concepts of ionizing radiation  Ionizing radiation effects on teratogenesis and carcinogenesis  IV contrast use during pregnancy and lactation  CT / MRI safety in pregnancy Outline:

4  Trauma imaging in pregnancy  Pulmonary embolism imaging  Imaging of acute appendicitis  Imaging of urolithiasis  Imaging in cholecystitis Con’t:

5

6

7

8

9 Radiation unitsSI unitsNon-SI units ExposureRoentgens Absorbed doseGray100 Rads Equivalent doseSievert100 Rem Effective doseSievert100 Rem 10 mSv = 1 Rem

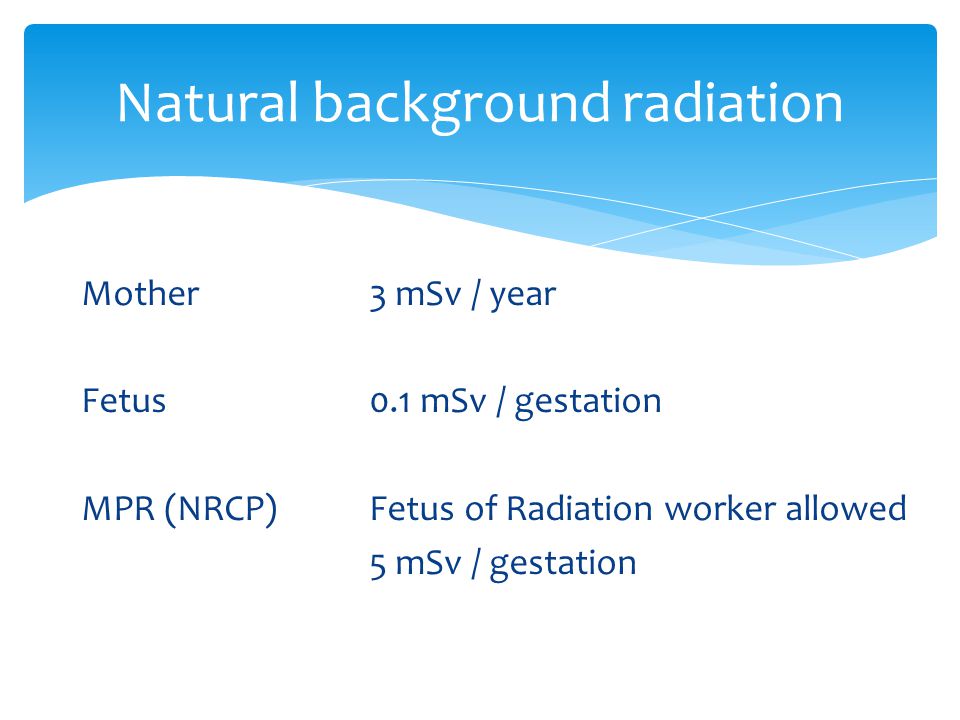

10 Mother3 mSv / year Fetus0.1 mSv / gestation MPR (NRCP)Fetus of Radiation worker allowed 5 mSv / gestation Natural background radiation

11 Relative radiation levels

12

13 Gestational Age Radiation dose <50 mGy50 – 100 mGy> 100 mGy 0 – 2 wksNone 3 – 4 wksProbably nonePossible spontaneous abortion 5 – 10 wksSubtle/uncertain Possible malformations dose 11 – 17 wks Subtle/uncertain Risk of IQ with dose 18 – 27 wkNoneIQ not measurably affected > 27 wksNone Summary of deterministic effects: None

14 Estimated fetal dose:

15 Estimated CT fetal dose:

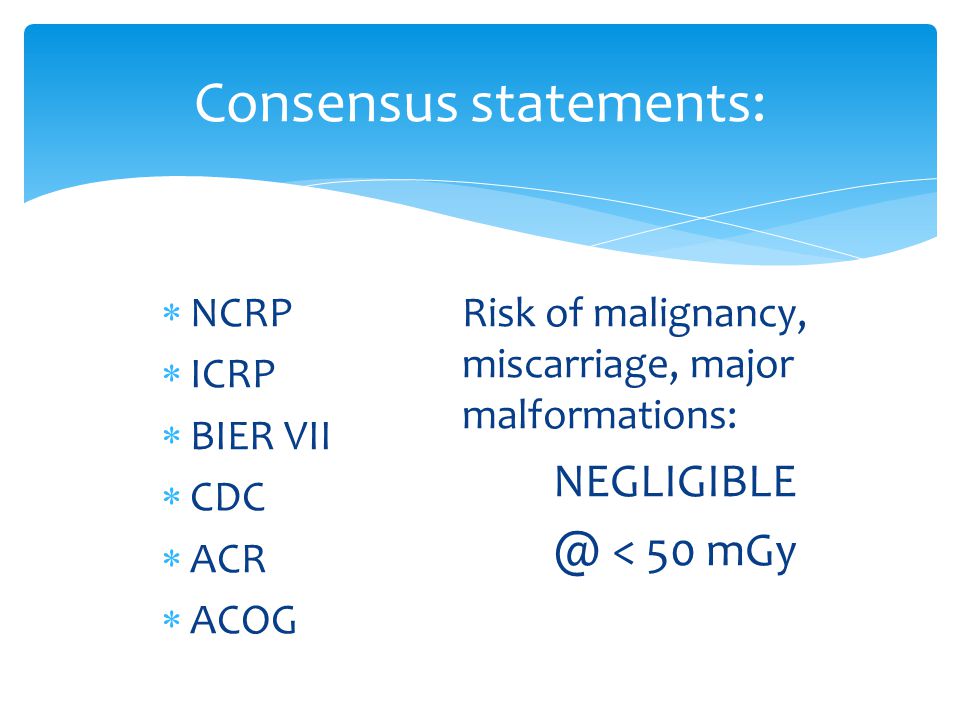

16 Consensus statements:  NCRP  ICRP  BIER VII  CDC  ACR  ACOG Risk of malignancy, miscarriage, major malformations: < 50 mGy

17 Spontaneous abortion15% Major malformation 3% Prematurity / IUGR 4% Mental retardation 1% Spontaneous pregnancy risks:

18 Carcinogenic risks to fetus less well- established:

19  Patel el al. Radiographics 2007  Valentin. Annals ICRP 2000  Doll et al. British Journal of Radiology 1997 Increased risk of childhood cancer with in-utero irradiation:

20 Childhood Carcinogenic Risk: 1 cancer / 500 fetuses [ICRP estimate] 30 mGy dose

21 Lifetime Carcinogenic Risk: 40 cancer / 5000 fetuses [ACR practice guidelines] 20 mGy dose

22 Post natal Carcinogenic Risk 100 mSv Non-radiation causes 1 cancer / 100 people [BIER VII Lifetime risk model] 42 cancer / 100 people

23 Risks of Pediatric CT

24 Minimize the radiation exposure and dose in accordance with ALARA principle. The bottom line:

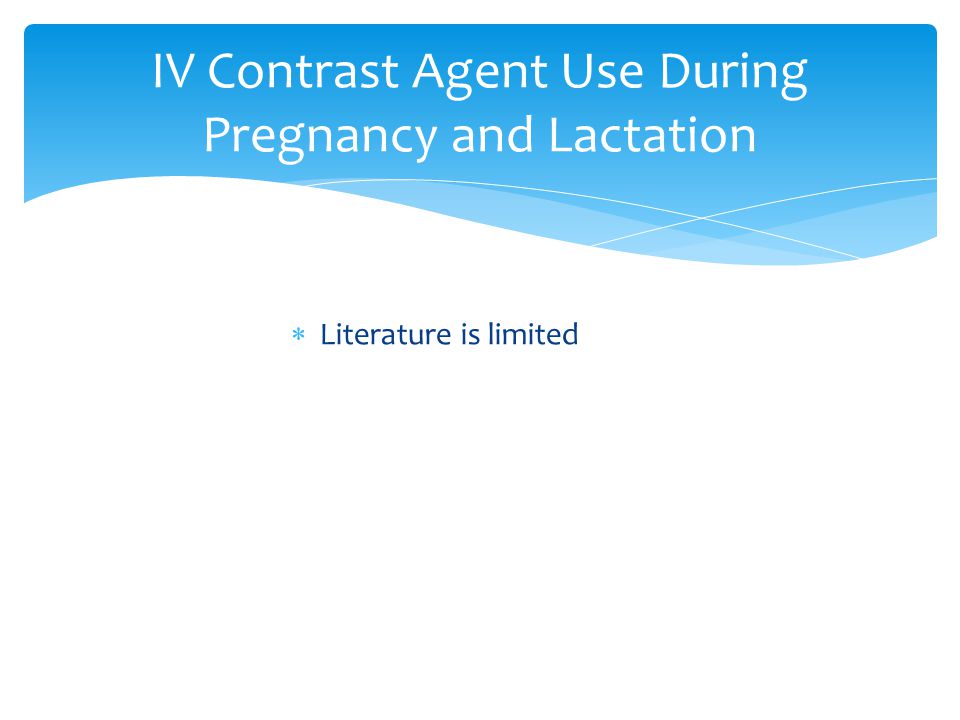

25  Literature is limited IV Contrast Agent Use During Pregnancy and Lactation

26

27  Less than 1% of maternal dose excreted in milk  Less than of that absorbed by neonate  No reports of toxicity or allergy  Option to pump and discard Lactation

28  Gadolinium and iodinated agents  cross the placenta  Iodine-based contrast  No teratogenic affects reported  No reports of sequelae from IV use  Use only as needed Pregnancy

29  Gadolinium  is a teratogen in high and multiple doses in animal models  No harm reported in human fetuses exposed ACR – use only if benefit to the mother is overwhelming CAR – IV Contrast should not be used

30  CT  Avoid if alternative, but may be essential  Dose reduction strategies  MRI  No deleterious fetal effects shown  Safety during pregnancy not established  Potential risk of RF heating effects and acoustic noise on fetus not validated  CAR recommends if information cannot be acquired by US CT and MRI Safety in Pregnancy

31 Acute Trauma in Pregnancy  6 – 7 % of pregnancy will have significant trauma  A leading cause of non- obstetrical maternal death

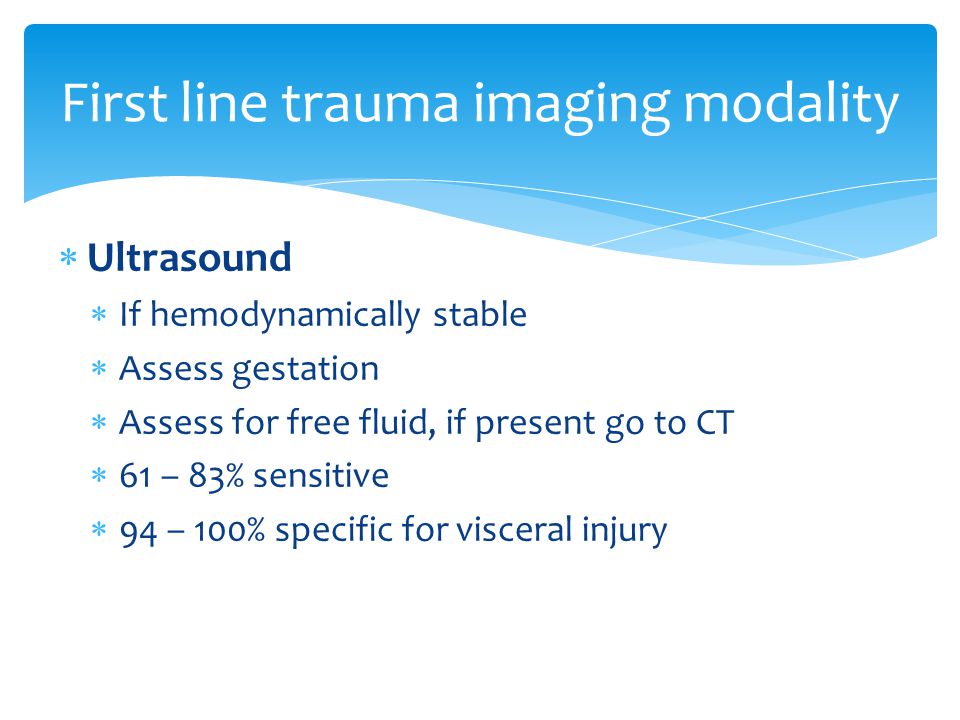

32  Ultrasound  If hemodynamically stable  Assess gestation  Assess for free fluid, if present go to CT  61 – 83% sensitive  94 – 100% specific for visceral injury First line trauma imaging modality

33

34  CT with contrast  Reference standard for organ injury in trauma  No delay, IV contrast is safe  C+ abdomen dose is well-below 50 mSv  Acute Multi-trauma  If CT dose is above 100 mGy due to multiple studies, elevated risk of malformation and childhood cancer  If termination is being considered, consult medical physicist Second line imaging in pregnancy

35

36  Venous thromboembolism is the number 1 cause of maternal mortality in the developed world.  Pregnancy associated PE is 7 – 10 times the incidence in age-matched controls  15 – 24% of untreated DVTs develop PE  PE has 15% fatality rate Acute Pulmonary Embolism

37  Usual signs and symptoms overlap with standard symptoms of pregnancy  D-dimer can be false positive and false negative  Wells criteria and Geneva scores are less reliable Diagnosis of PE in Pregnancy

38

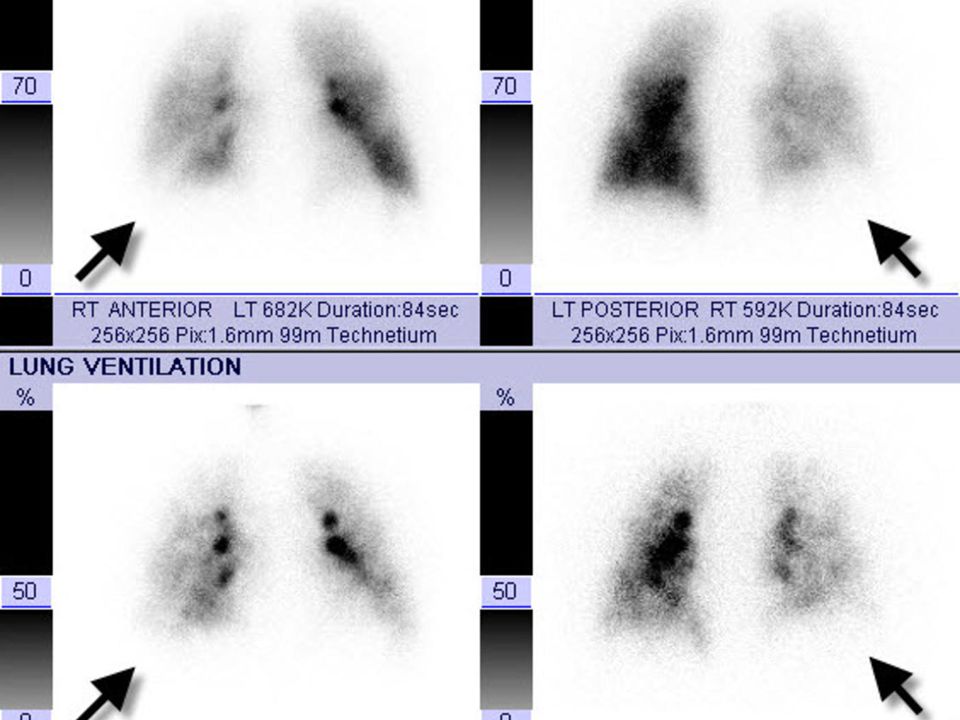

39 Suspect PE do D-Dimer Suspect PE do D-Dimer Negative (98%) specific STOP Negative (98%) specific STOP Positive do leg US Positive do leg US Positive STOP AND TREAT Positive STOP AND TREAT Negative BUT ??? do CXR Negative BUT ??? do CXR Negative do V/Q scan Negative do V/Q scan Positive ??? Pneumonia Positive ??? Pneumonia Negative STOP Negative STOP Indeterminate do Chest CT Indeterminate do Chest CT High probability STOP AND TREAT High probability STOP AND TREAT

40

41

42  Leading cause of non- obstetrical surgery in pregnancy  1 / 1700 pregnancies  Pregnant patient more likely to present with appendix rupture  Diagnosis is challenging Acute (and not so cute) Appendicitis

43  Graded compression sonography  Reported sensitivity 85 – 100%  Specificity 92 – 96%  Recent CT and MR studies not supportive of these claims. If study indeterminate?  MRI  Sensitivity 90 – 100%  Specificity 93 – 98%  Identification of alternative disease processes  Availability issue Suspected appendicitis

44

45

46

47  CT  Sensitivity 92%  Specificity 99%  Dose reduction strategies Wallace et al. Journal Gastrointestinal Surg 2008 Dx appendicitis clinically - 54% negative Add ultrasound - 36% Add CT - 8% Suspected appendicitis

48

49

50

51  1 / 3300 pregnant patients develops obstructive renal stones  70 – 80% pass spontaneously  Ultrasound primary modality with 34 – 95% sensitivity for stone  If US equivocal / non-diagnostic, do CT KUB  Possible second line test = MR Urography, but less sensitive for stones Acute urolithiasis

52

53

54

55  Second most common non-obstetrical emergency requiring surgery during pregnancy  Pregnant females at increased risk  Abdominal US = primary modality  Positive predictive value 94% with gallstones, gall bladder wall thickening, and sonographic Murphy’s sign Acute cholecystitis

56

57  MRCP (MR cholangiopancreatography) = most appropriate second line imaging test  More sensitive than ultrasound for bile duct stones  98% sensitive for biliary disease  94% specific  ERCP  Restricted to therapeutic intervention for bile duct stones  Multiple risk factors Normal gall bladder, bile duct dilatation by ultrasound

58

59  At typical diagnostic CT doses, teratogenicity is not an issue but in-utero exposure does increase the risk of carcinoma  CT or MR contrast agent use during lactation has no reports of sequelae  CT contrast during pregnancy, no fetal problems reported  Gadolinium contrast in pregnancy is relatively contraindicated In Summary:

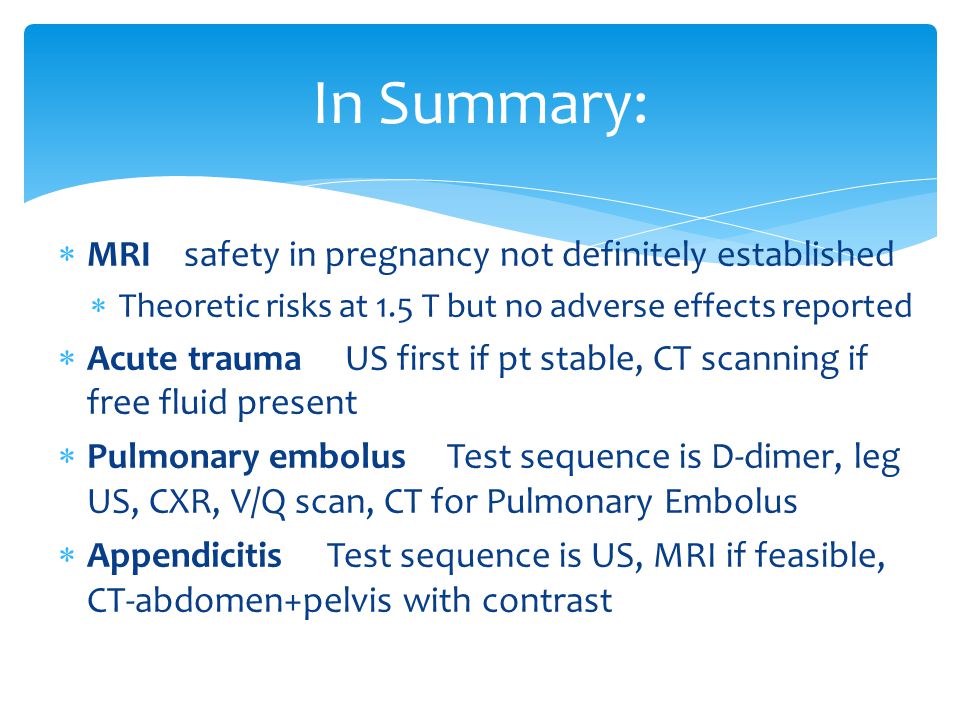

60  MRI safety in pregnancy not definitely established  Theoretic risks at 1.5 T but no adverse effects reported  Acute trauma US first if pt stable, CT scanning if free fluid present  Pulmonary embolus Test sequence is D-dimer, leg US, CXR, V/Q scan, CT for Pulmonary Embolus  Appendicitis Test sequence is US, MRI if feasible, CT-abdomen+pelvis with contrast In Summary:

61  Urolithiasis Test sequence is US, Renal colic CT, (MRU)  Cholecystitis Test sequence is US, MRCP, ERCP only for stone removal  A L A R A In Summary:

62
