Stability of Earthlike Planets in the Habitable Zones of five Extrasolar Systems Renate Zechner 6 th Alexander von Humboldt Colloquium for Celestial Mechanics Bad Hofgastein 23.03.2004

3

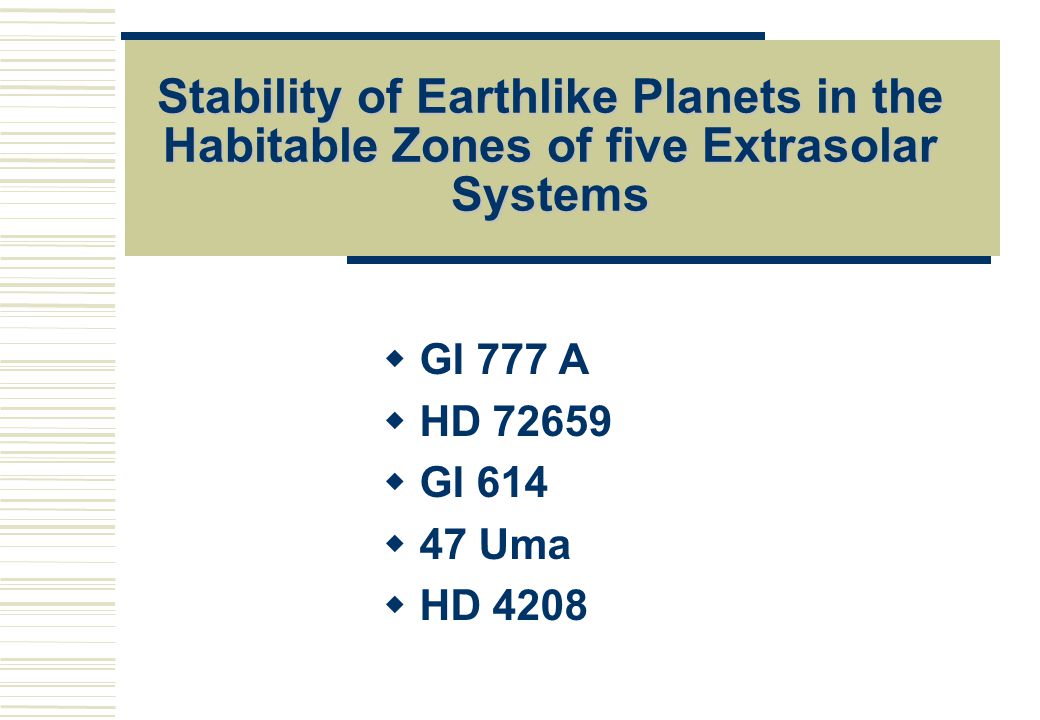

Stability of Earthlike Planets in the Habitable Zones of five Extrasolar Systems Gl 777 A HD 72659 Gl 614 47 Uma HD 4208

4
Stability of Earthlike Planets in the Habitable Zones of five Extrasolar Systems Chaos and Stability in Planetary Systems 1 st September – 26 th September 2003

5

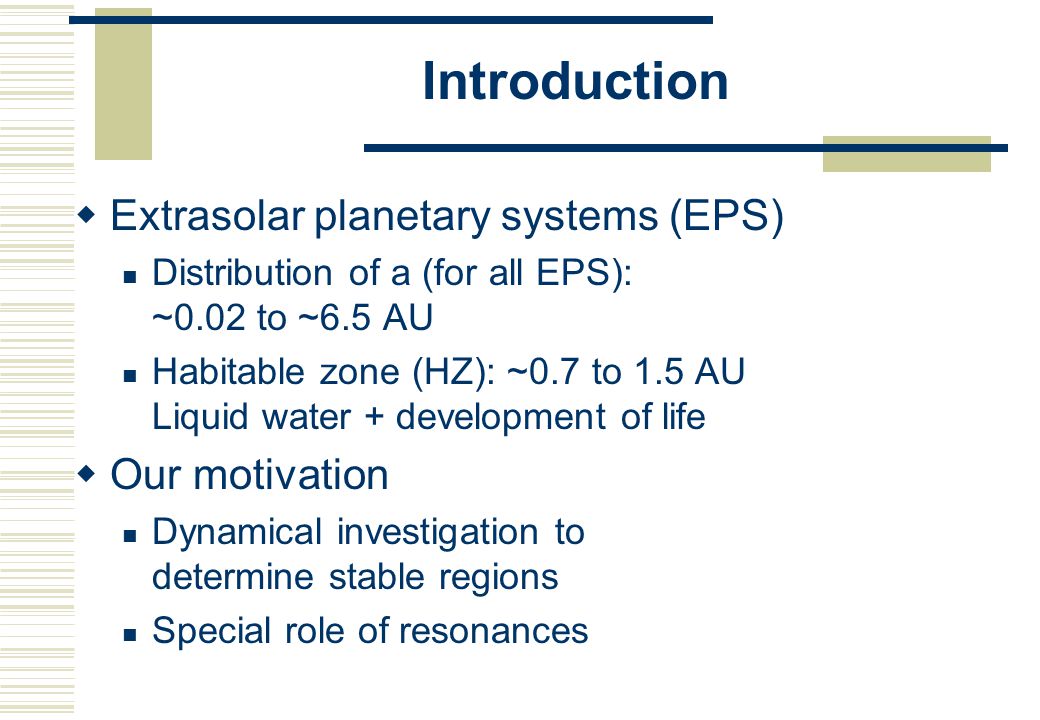

Introduction Extrasolar planetary systems (EPS) Distribution of a (for all EPS): ~0.02 to ~6.5 AU Habitable zone (HZ): ~0.7 to 1.5 AU Liquid water + development of life Our motivation Dynamical investigation to determine stable regions Special role of resonances

6

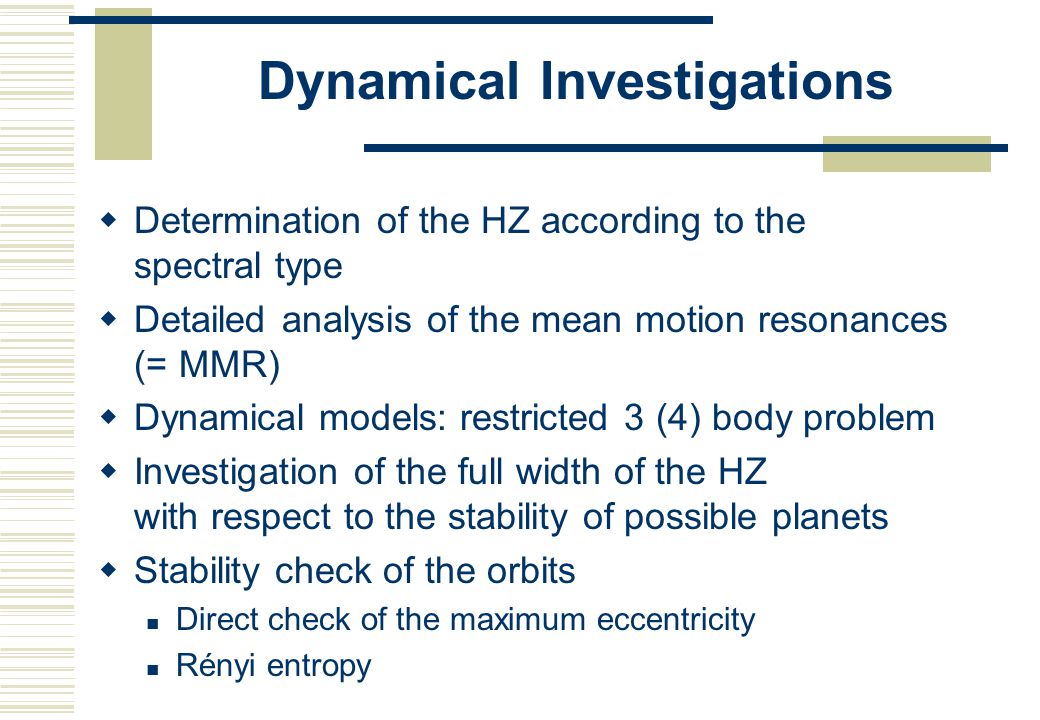

Dynamical Investigations Determination of the HZ according to the spectral type Detailed analysis of the mean motion resonances (= MMR) Dynamical models: restricted 3 (4) body problem Investigation of the full width of the HZ with respect to the stability of possible planets Stability check of the orbits Direct check of the maximum eccentricity Rényi entropy

7

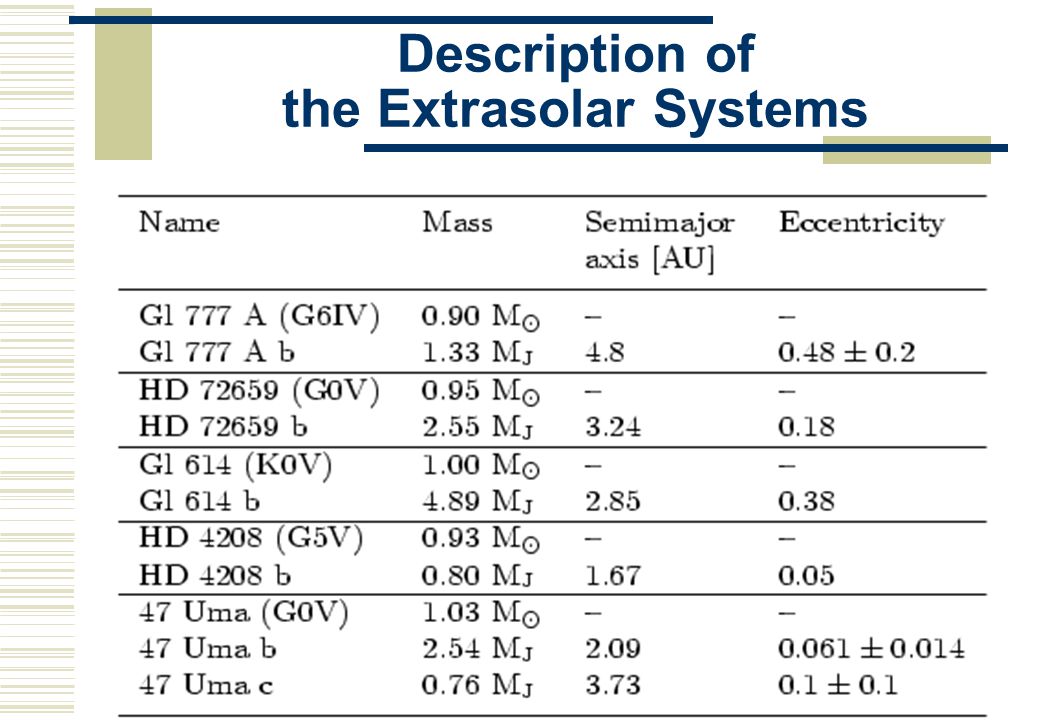

Description of the Extrasolar Systems Main characteristics of the 5 systems

8

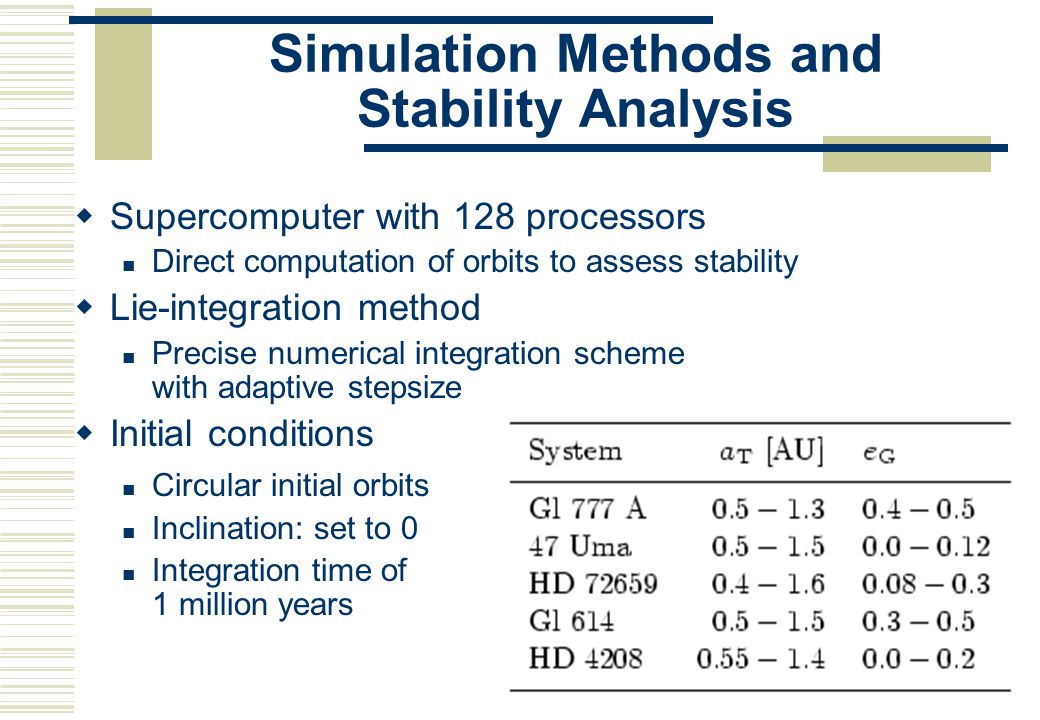

Simulation Methods and Stability Analysis Supercomputer with 128 processors Direct computation of orbits to assess stability Lie-integration method Precise numerical integration scheme with adaptive stepsize Initial conditions Circular initial orbits Inclination: set to 0 Integration time of 1 million years

9

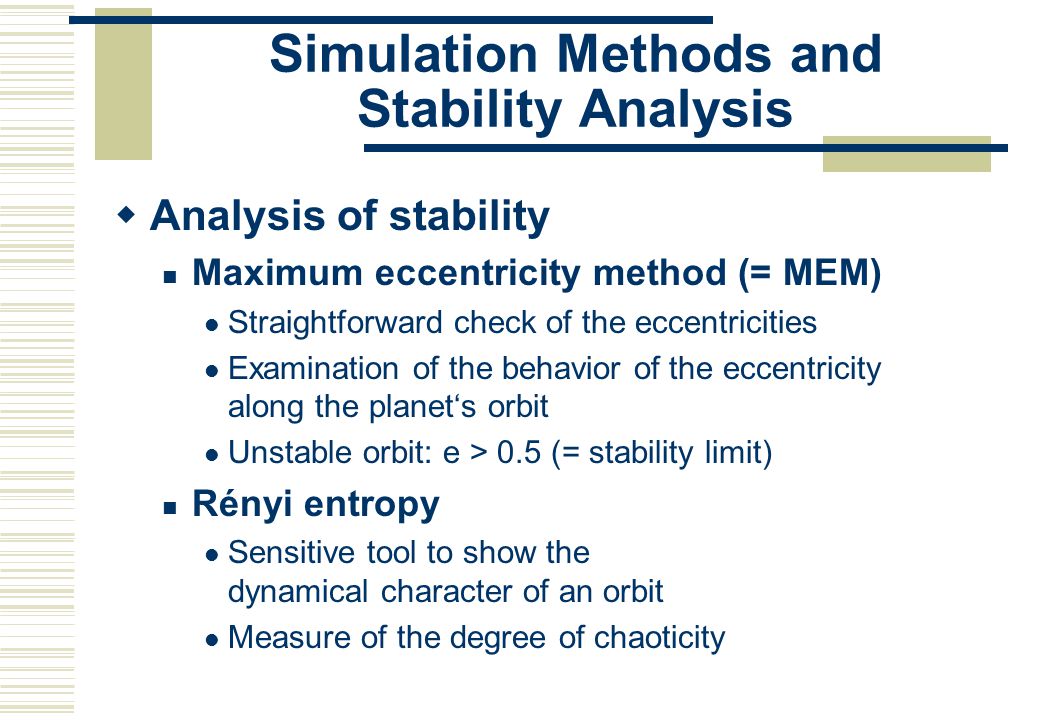

Simulation Methods and Stability Analysis Analysis of stability Maximum eccentricity method (= MEM) Straightforward check of the eccentricities Examination of the behavior of the eccentricity along the planet‘s orbit Unstable orbit: e > 0.5 (= stability limit) Rényi entropy Sensitive tool to show the dynamical character of an orbit Measure of the degree of chaoticity

10

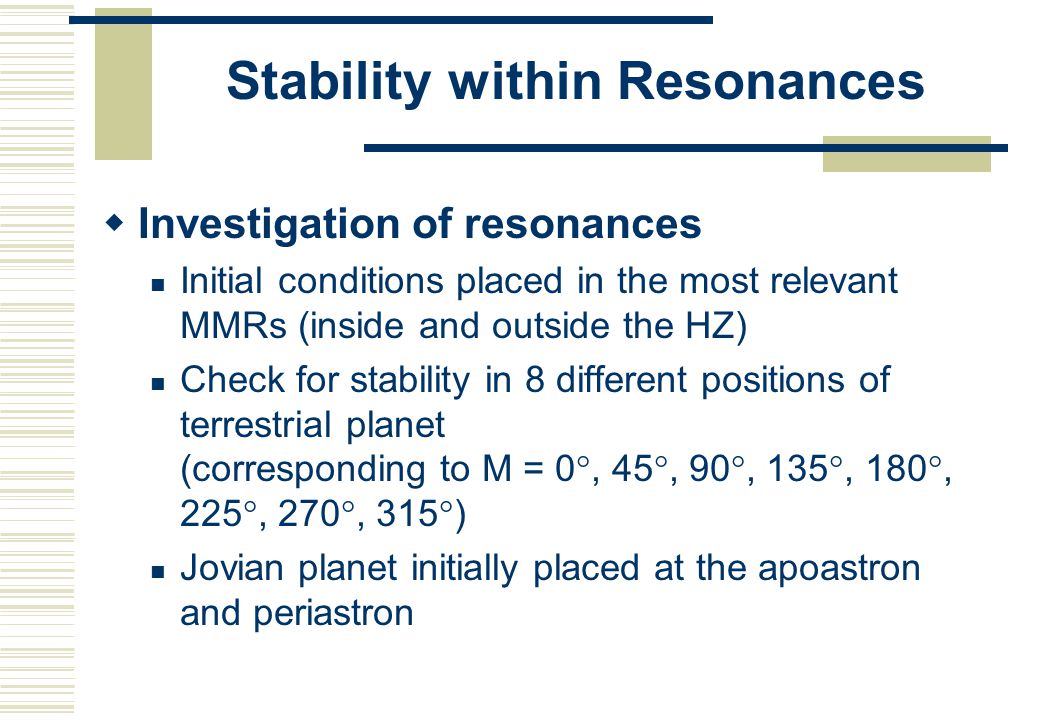

Stability within Resonances Investigation of resonances Initial conditions placed in the most relevant MMRs (inside and outside the HZ) Check for stability in 8 different positions of terrestrial planet (corresponding to M = 0°, 45°, 90°, 135°, 180°, 225°, 270°, 315°) Jovian planet initially placed at the apoastron and periastron

11

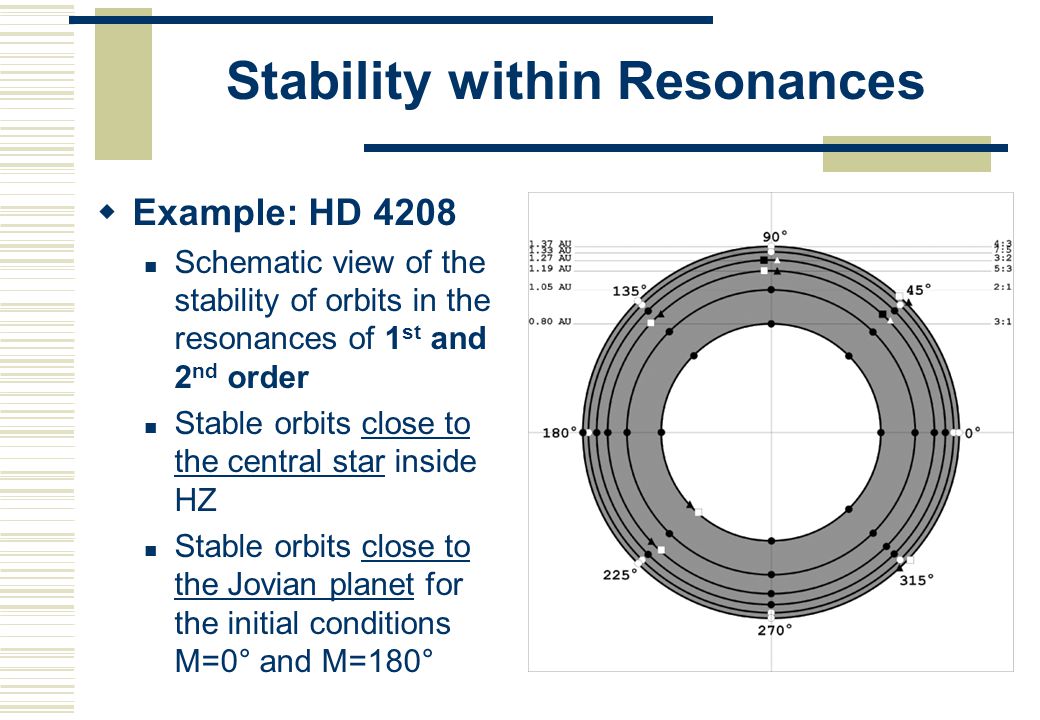

Stability within Resonances Example: HD 4208 Schematic view of the stability of orbits in the resonances of 1 st and 2 nd order Stable orbits close to the central star inside HZ Stable orbits close to the Jovian planet for the initial conditions M=0° and M=180°

12
Stability within Resonances Stability of orbits in the MMRs

13

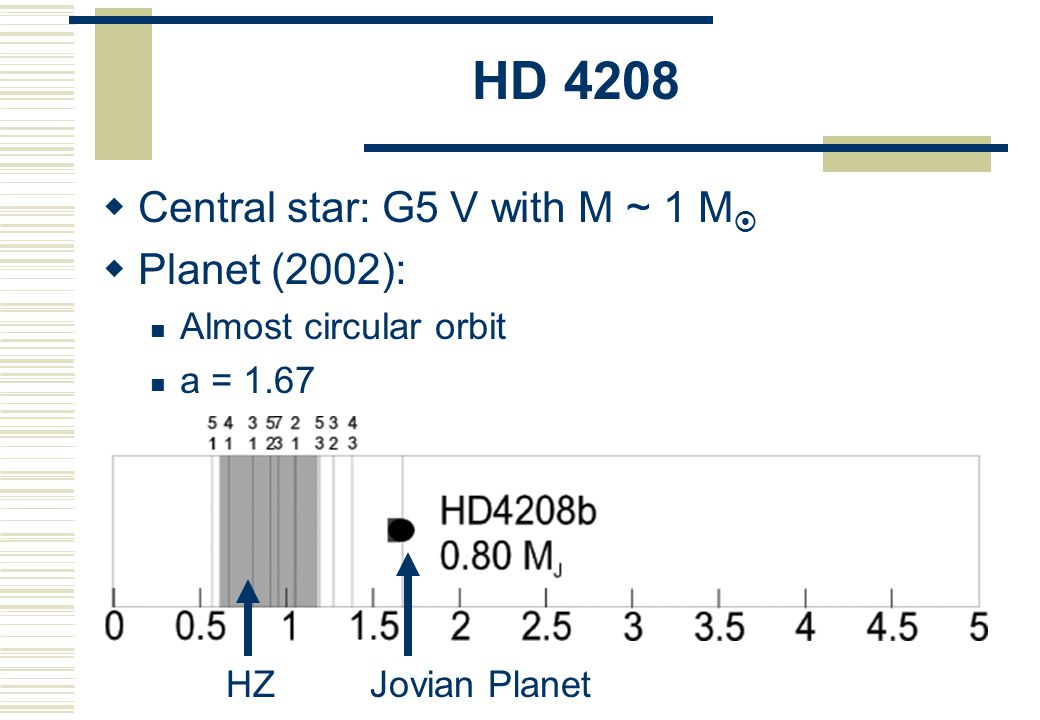

HD 4208 Central star: G5 V with M ~ 1 M Planet (2002): Almost circular orbit a = 1.67 HZ Jovian Planet

14

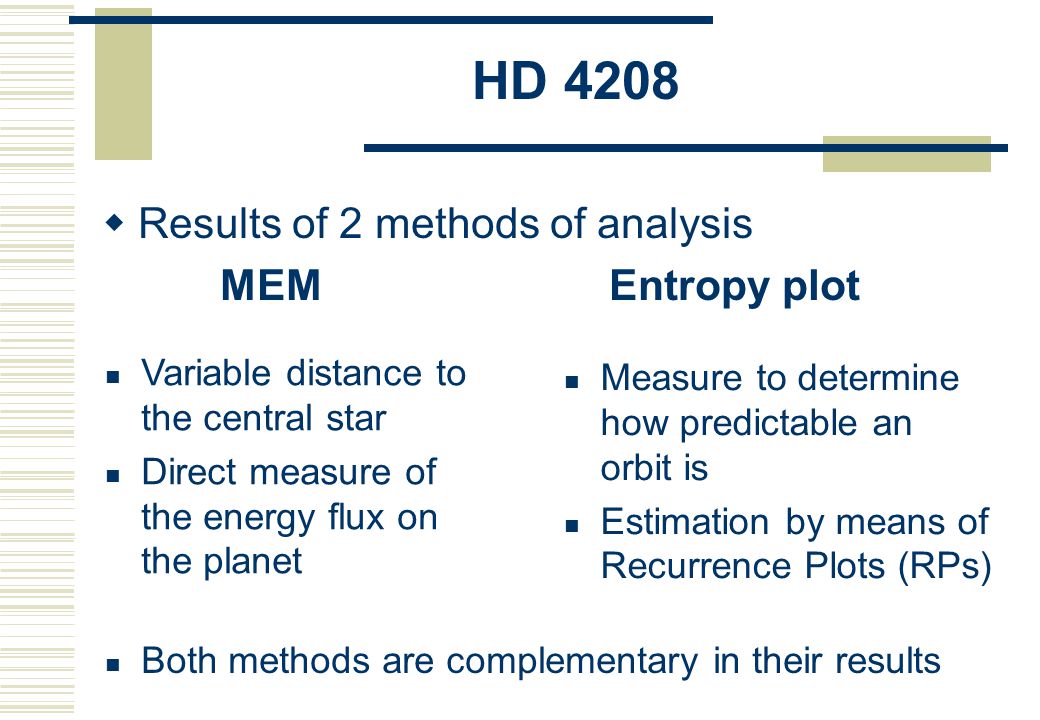

HD 4208 Results of 2 methods of analysis MEM Entropy plot Variable distance to the central star Direct measure of the energy flux on the planet Measure to determine how predictable an orbit is Estimation by means of Recurrence Plots (RPs) Both methods are complementary in their results

15
HD 4208 Results: Initial condition diagrams MEM Entropy plot

16

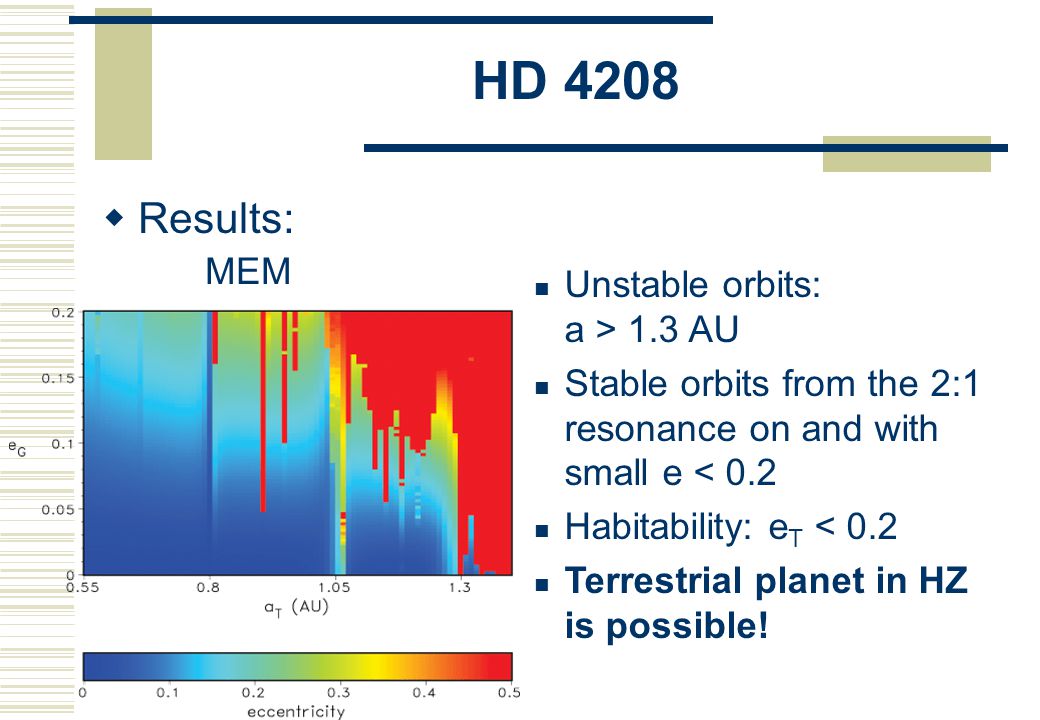

HD 4208 Results: MEM Unstable orbits: a > 1.3 AU Stable orbits from the 2:1 resonance on and with small e < 0.2 Habitability: e T < 0.2 Terrestrial planet in HZ is possible!

17

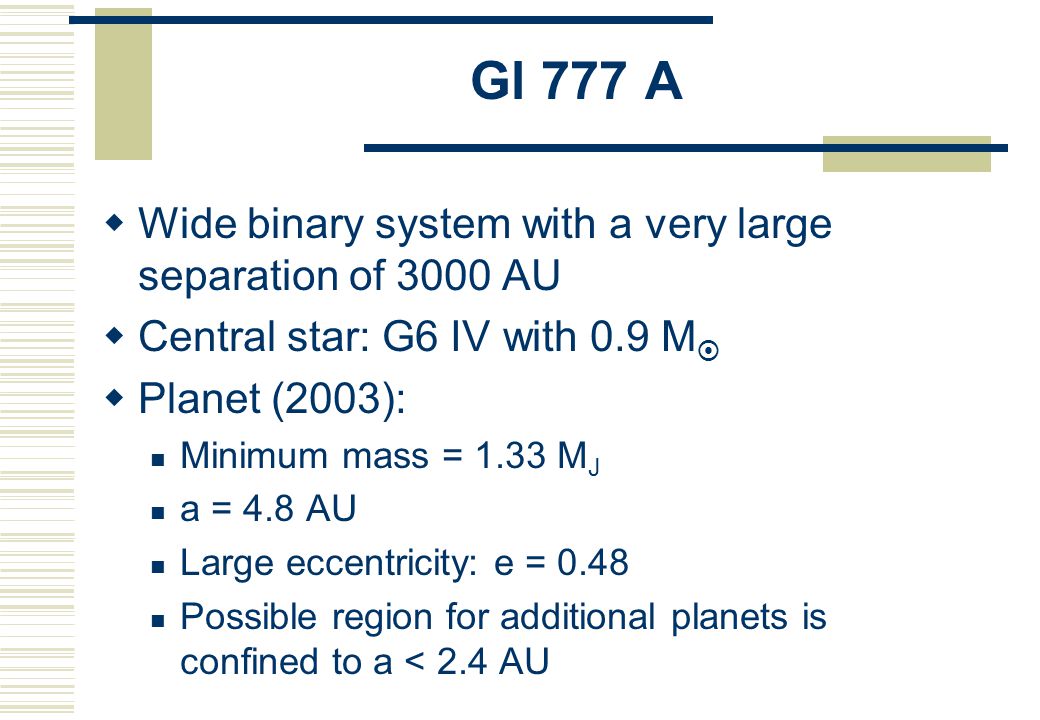

Gl 777 A Wide binary system with a very large separation of 3000 AU Central star: G6 IV with 0.9 M Planet (2003): Minimum mass = 1.33 M J a = 4.8 AU Large eccentricity: e = 0.48 Possible region for additional planets is confined to a < 2.4 AU

18

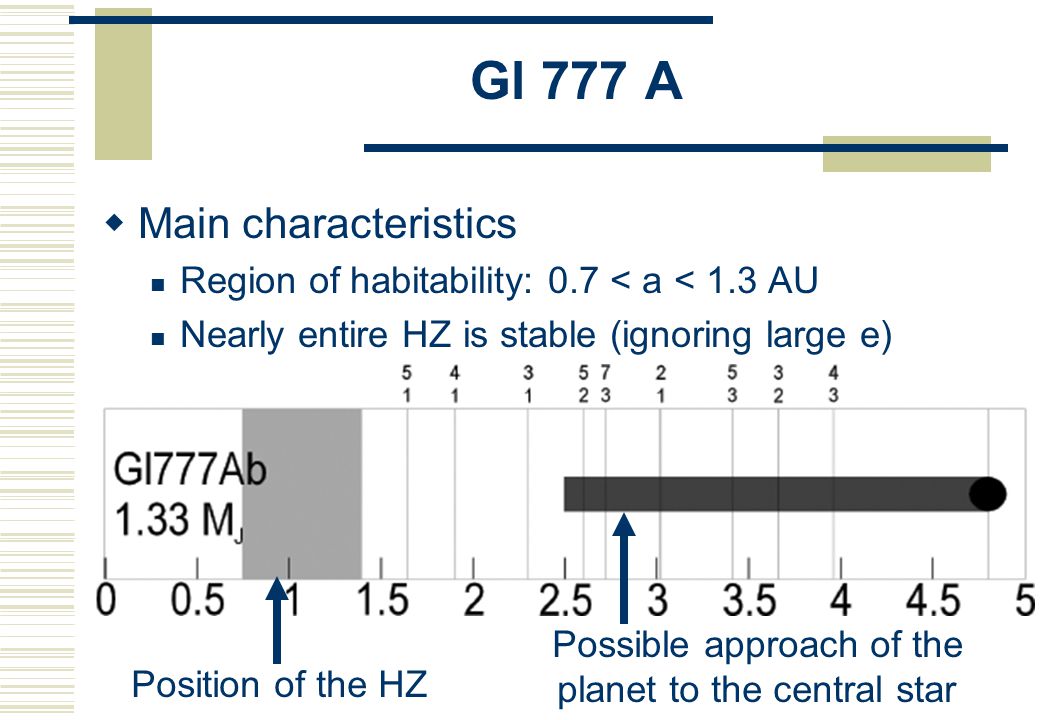

Gl 777 A Main characteristics Region of habitability: 0.7 < a < 1.3 AU Nearly entire HZ is stable (ignoring large e) Possible approach of the planet to the central star Position of the HZ

19
Gl 777 A Results: Initial condition diagrams MEM Entropy plot

20

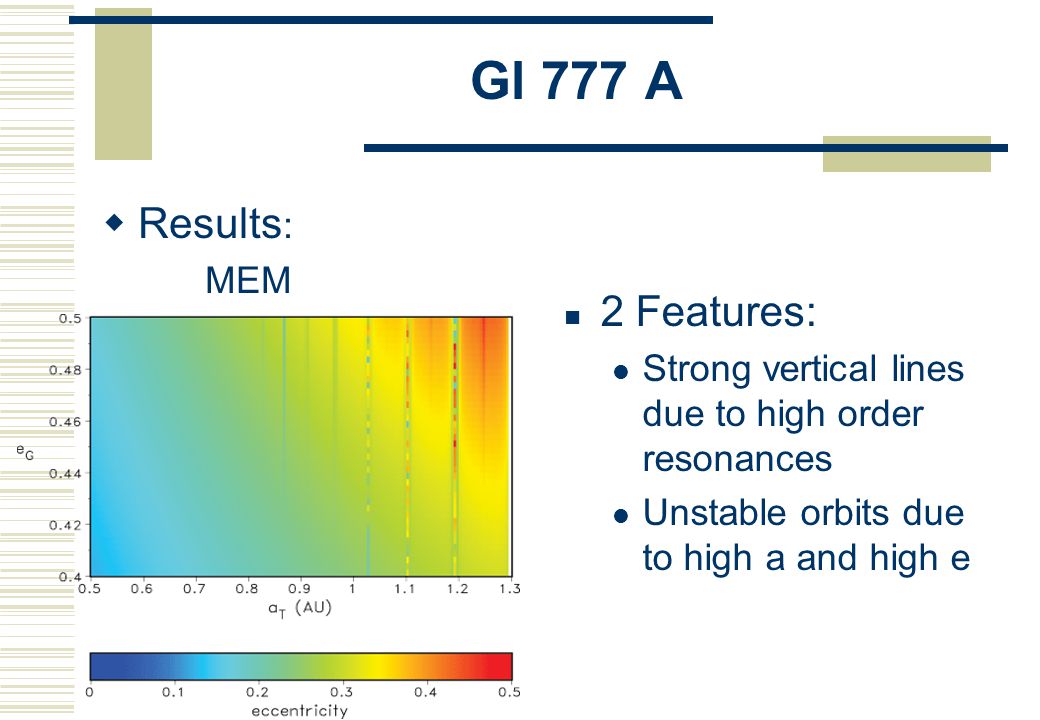

Gl 777 A Results : MEM 2 Features: Strong vertical lines due to high order resonances Unstable orbits due to high a and high e

21
Gl 777 A Results: Planet could survive long enough in the HZ with a < 1 AU Terrestrial planet is possible! Entropy plot

22

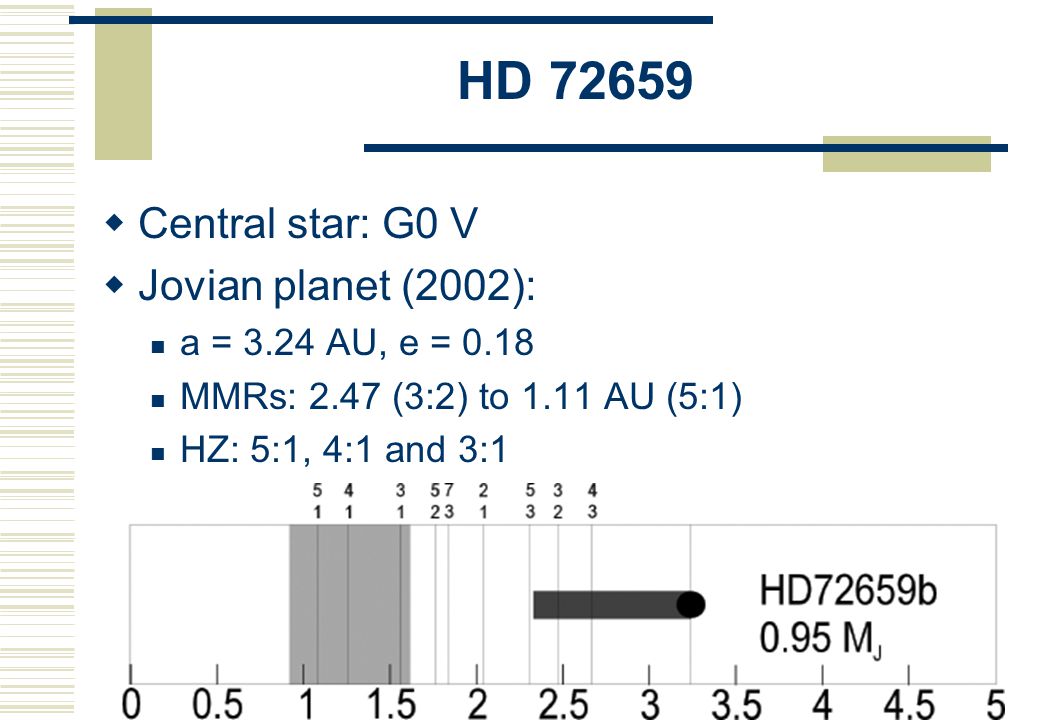

HD 72659 Central star: G0 V Jovian planet (2002): a = 3.24 AU, e = 0.18 MMRs: 2.47 (3:2) to 1.11 AU (5:1) HZ: 5:1, 4:1 and 3:1

23

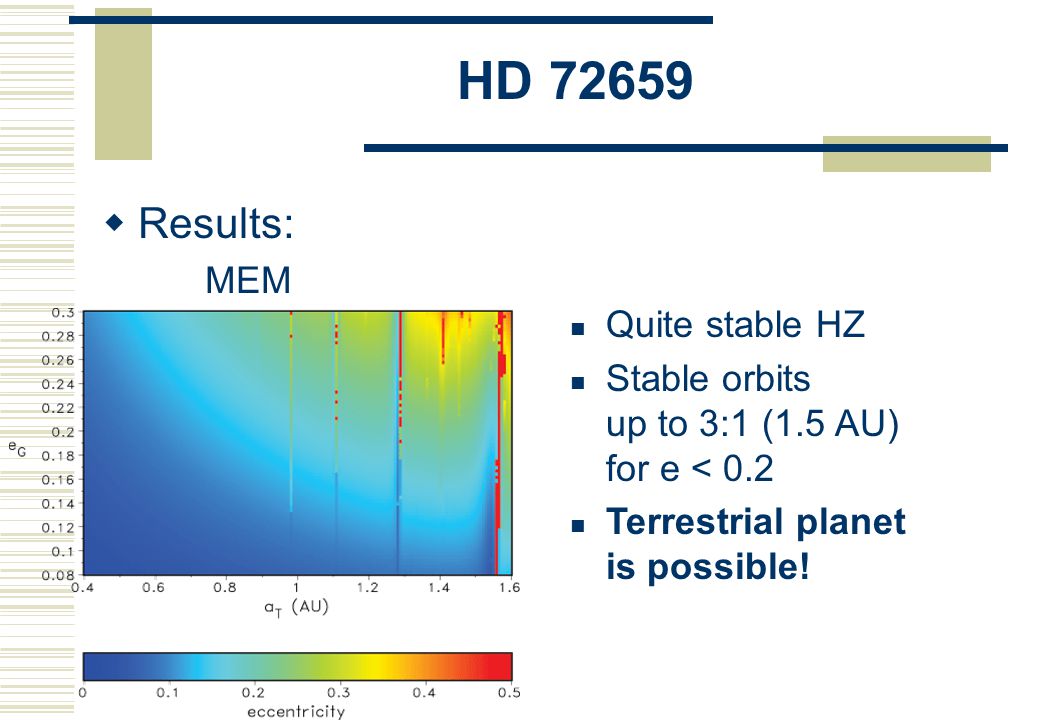

HD 72659 Results: MEM Quite stable HZ Stable orbits up to 3:1 (1.5 AU) for e < 0.2 Terrestrial planet is possible!

24

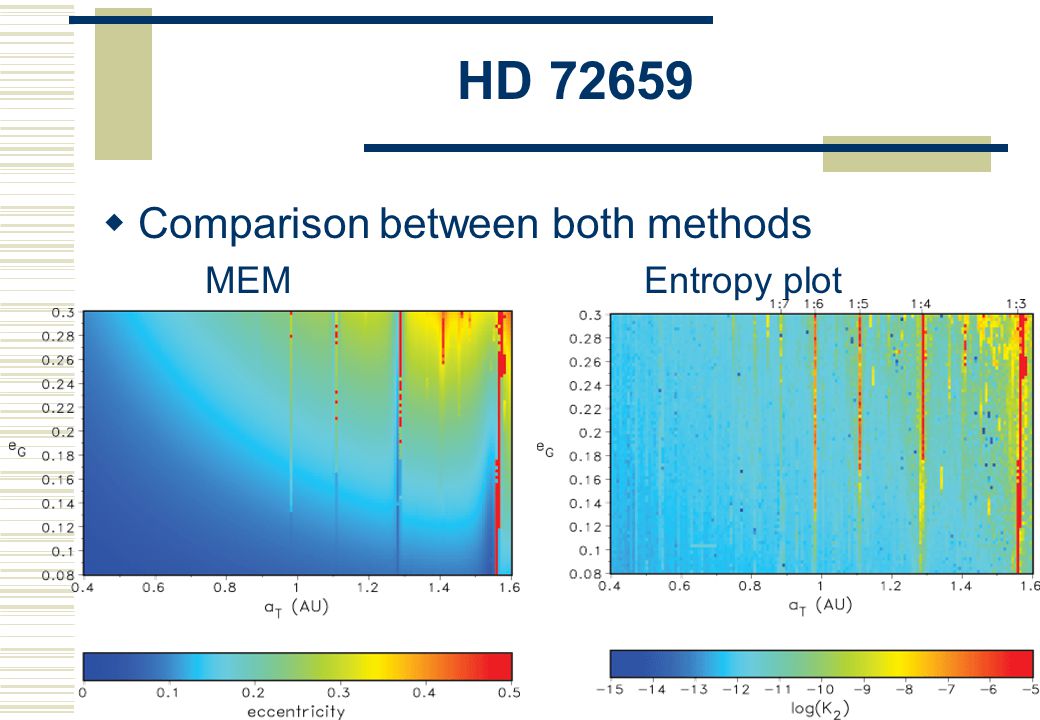

HD 72659 Comparison between both methods MEM Entropy plot

25

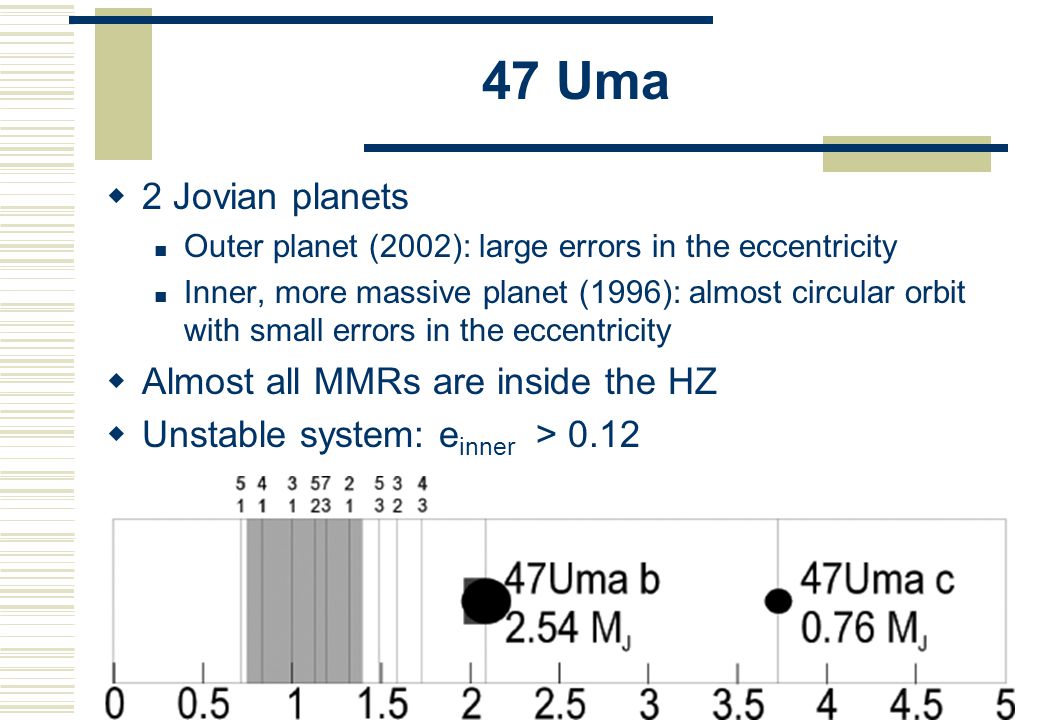

47 Uma 2 Jovian planets Outer planet (2002): large errors in the eccentricity Inner, more massive planet (1996): almost circular orbit with small errors in the eccentricity Almost all MMRs are inside the HZ Unstable system: e inner > 0.12

26

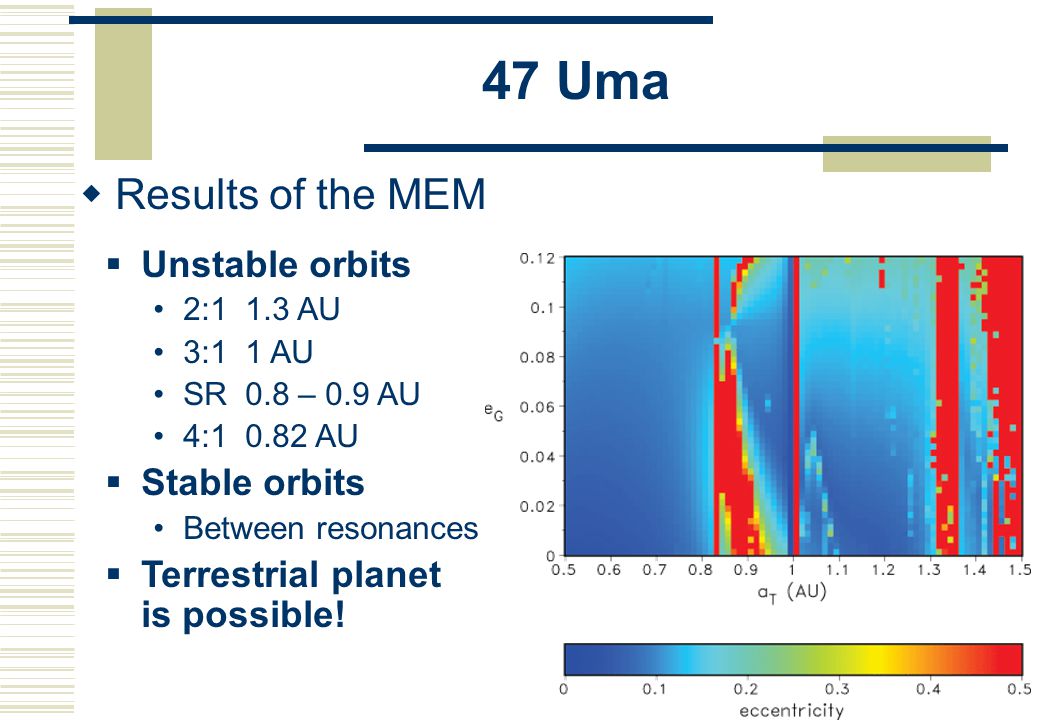

47 Uma Results of the MEM Unstable orbits 2:1 1.3 AU 3:1 1 AU SR 0.8 – 0.9 AU 4:1 0.82 AU Stable orbits Between resonances Terrestrial planet is possible!

27

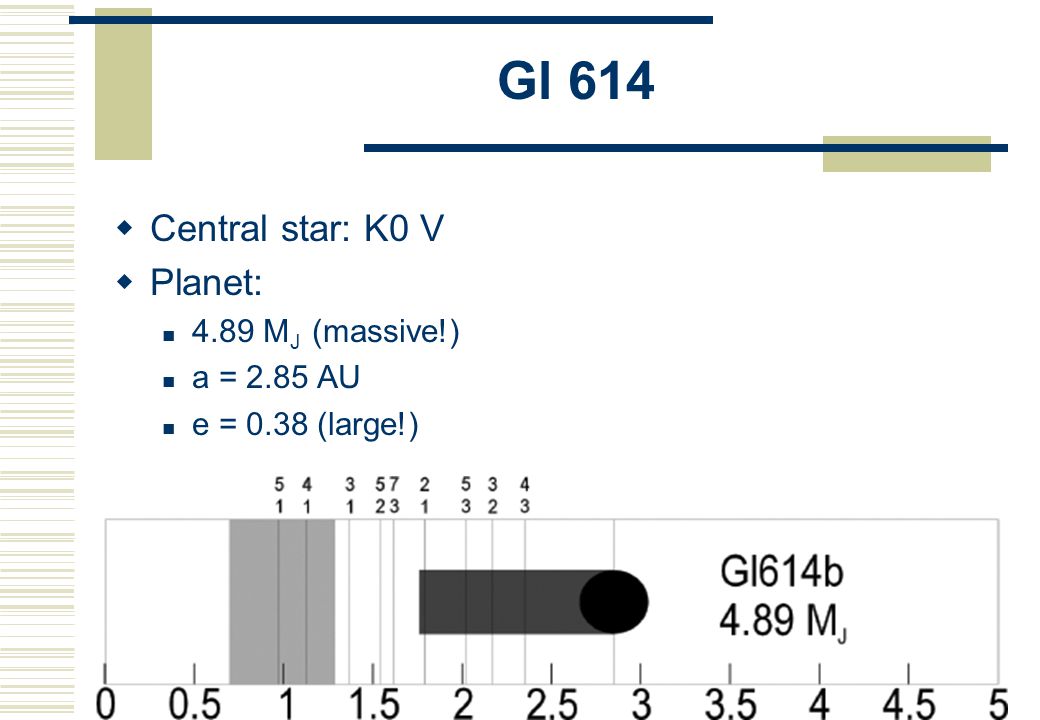

Gl 614 Central star: K0 V Planet: 4.89 M J (massive!) a = 2.85 AU e = 0.38 (large!)

28
Gl 614 Results of the MEM Unstable orbits: up to 6:1 Stable orbits: only for a < 0.7 AU Exclude terrestrial planets within HZ!

29

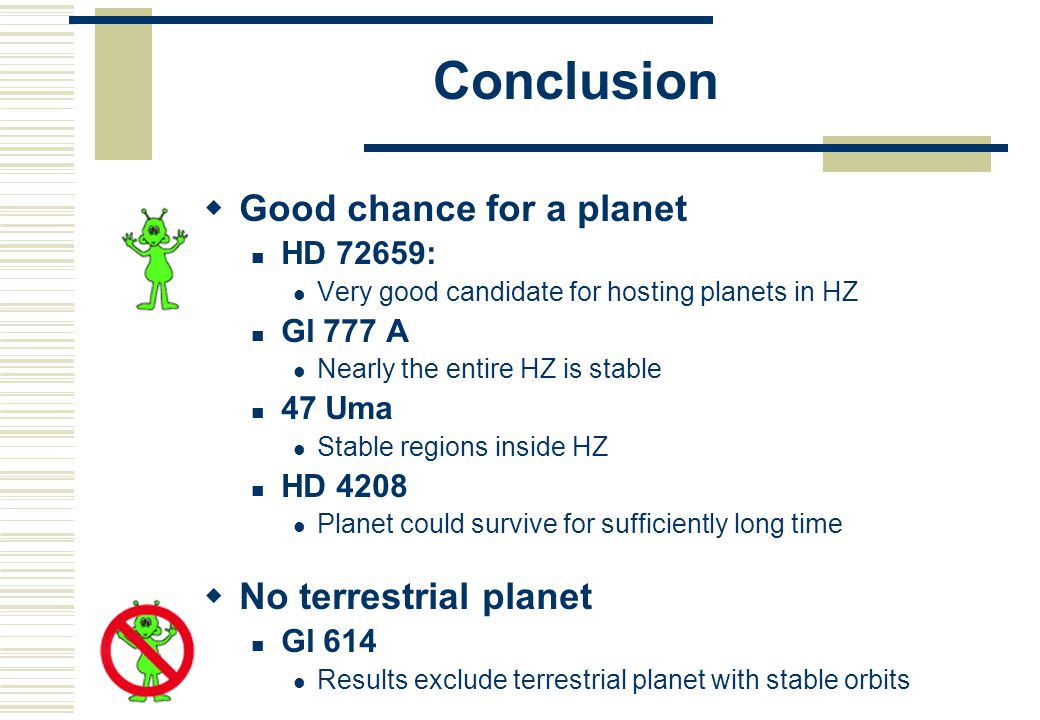

Conclusion Good chance for a planet HD 72659: Very good candidate for hosting planets in HZ Gl 777 A Nearly the entire HZ is stable 47 Uma Stable regions inside HZ HD 4208 Planet could survive for sufficiently long time No terrestrial planet Gl 614 Results exclude terrestrial planet with stable orbits

30
Stability of Terrestrial Planets in the Habitable Zones of five Extrasolar Systems
