Armend Hoxha Trevor Hodde Kexin Shi Mizan: A system for Dynamic Load Balancing in Large-Scale Graph Processing Presented by:

2
A System for Dynamic Load Balancing Pregel HADI Pegasus X-RIME Mizan (arabic) : a double-pan scale We’ll focus on Pregel, since Mizan is a refined Pregel system.

3
A scalable graph mining system Message passing based programming model It improved the overall performance by 1-2 orders of magnitude over a traditional MapReduce implementation for a wide array of graph mining algorithms: Page Rank Shortest paths problems Bipartite matching Semi-clustering Pregel

4
A scalable graph mining system Message passing based programming model It improved the overall performance by 1-2 orders of magnitude over a traditional MapReduce implementation for a wide array of graph mining algorithms: Page Rank Shortest paths problems Bipartite matching Semi-clustering Pregel

5
A scalable graph mining system Message passing based programming model It improved the overall performance by 1-2 orders of magnitude over a traditional MapReduce implementation for a wide array of graph mining algorithms: Page Rank Shortest paths problems Bipartite matching Semi-clustering Existing implementations focus primarily on graph partitioning as a preprocessing step to balance computation. Pregel

6

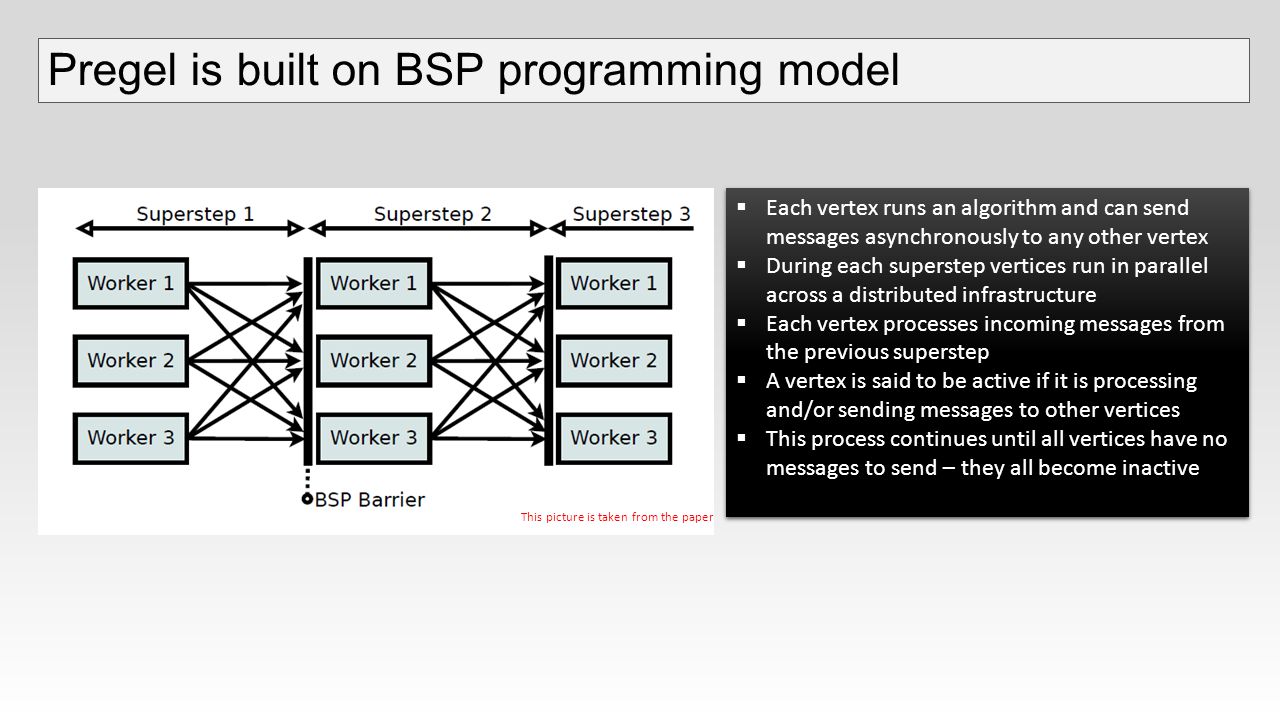

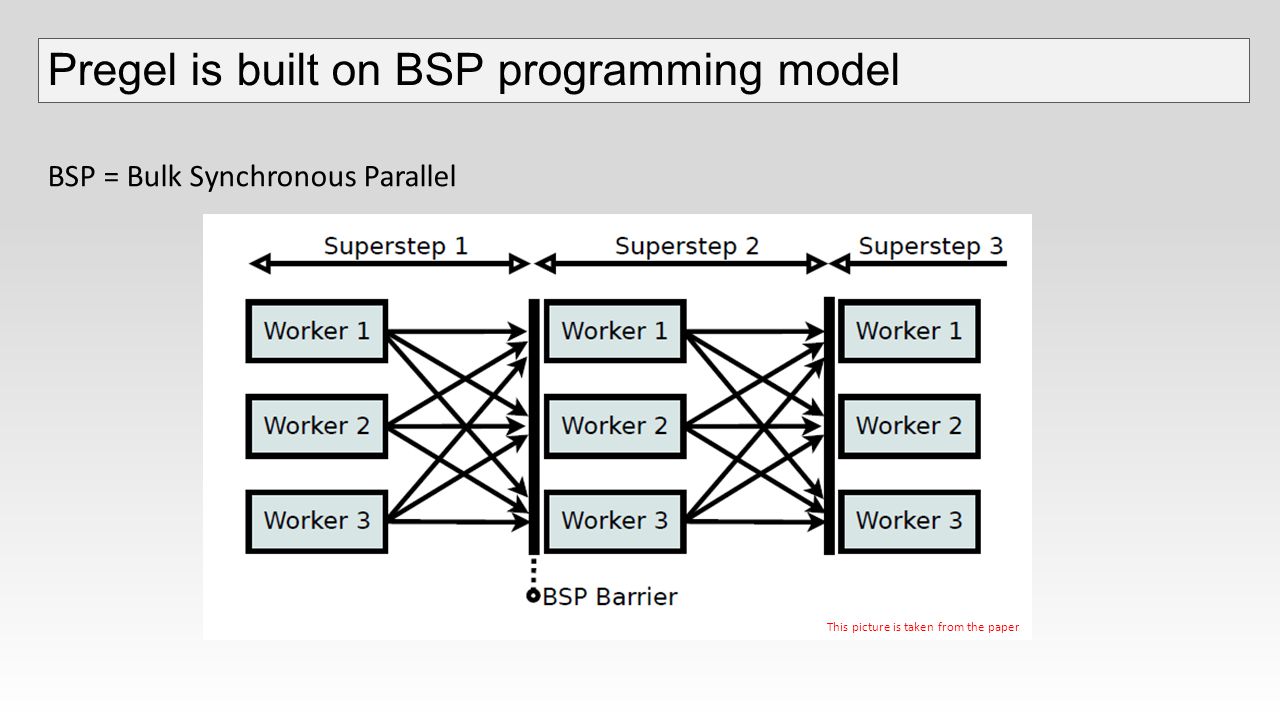

Pregel is built on BSP programming model BSP = Bulk Synchronous Parallel This picture is taken from the paper

7
Pregel is built on BSP programming model Each vertex runs an algorithm and can send messages asynchronously to any other vertex During each superstep vertices run in parallel across a distributed infrastructure Each vertex processes incoming messages from the previous superstep A vertex is said to be active if it is processing and/or sending messages to other vertices This process continues until all vertices have no messages to send – they all become inactive Each vertex runs an algorithm and can send messages asynchronously to any other vertex During each superstep vertices run in parallel across a distributed infrastructure Each vertex processes incoming messages from the previous superstep A vertex is said to be active if it is processing and/or sending messages to other vertices This process continues until all vertices have no messages to send – they all become inactive This picture is taken from the paper

8

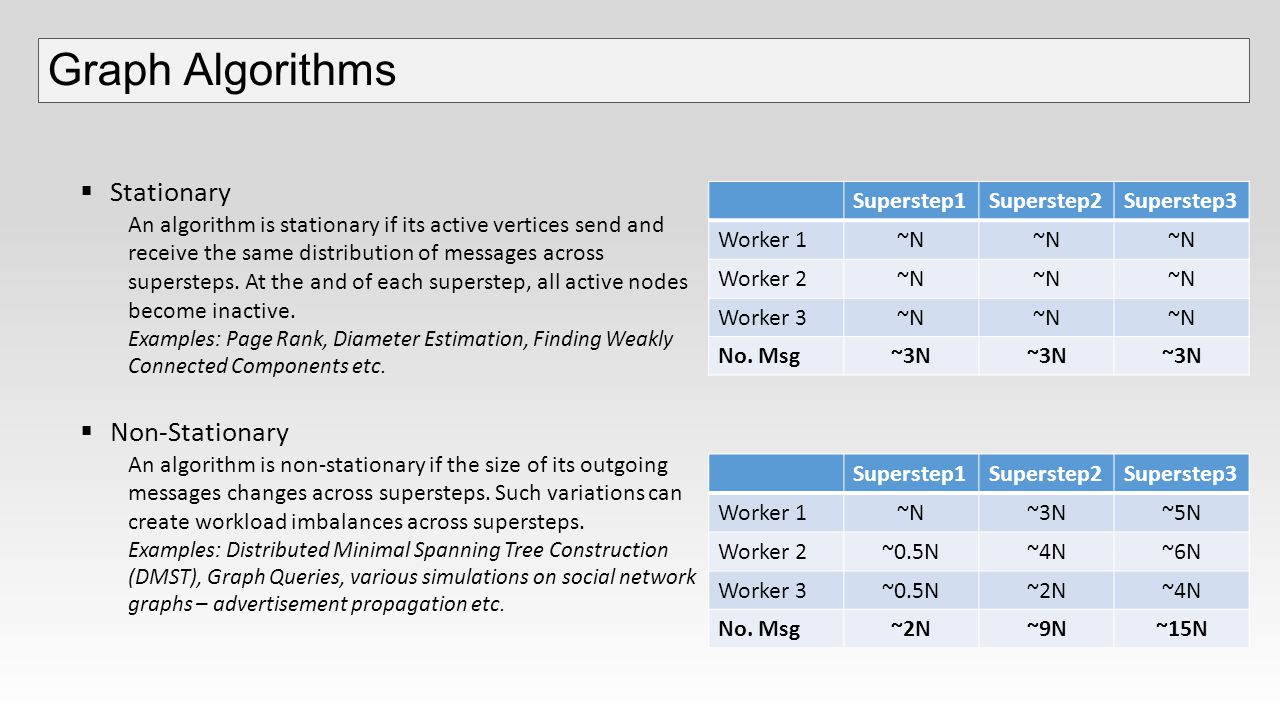

Graph Algorithms Stationary An algorithm is stationary if its active vertices send and receive the same distribution of messages across supersteps. At the and of each superstep, all active nodes become inactive. Examples: Page Rank, Diameter Estimation, Finding Weakly Connected Components etc. Non-Stationary An algorithm is non-stationary if the size of its outgoing messages changes across supersteps. Such variations can create workload imbalances across supersteps. Examples: Distributed Minimal Spanning Tree Construction (DMST), Graph Queries, various simulations on social network graphs – advertisement propagation etc. Superstep1Superstep2Superstep3 Worker 1~N Worker 2~N Worker 3~N No. Msg~3N Superstep1Superstep2Superstep3 Worker 1~N~3N~5N Worker 2~0.5N~4N~6N Worker 3~0.5N~2N~4N No. Msg~2N~9N~15N

9

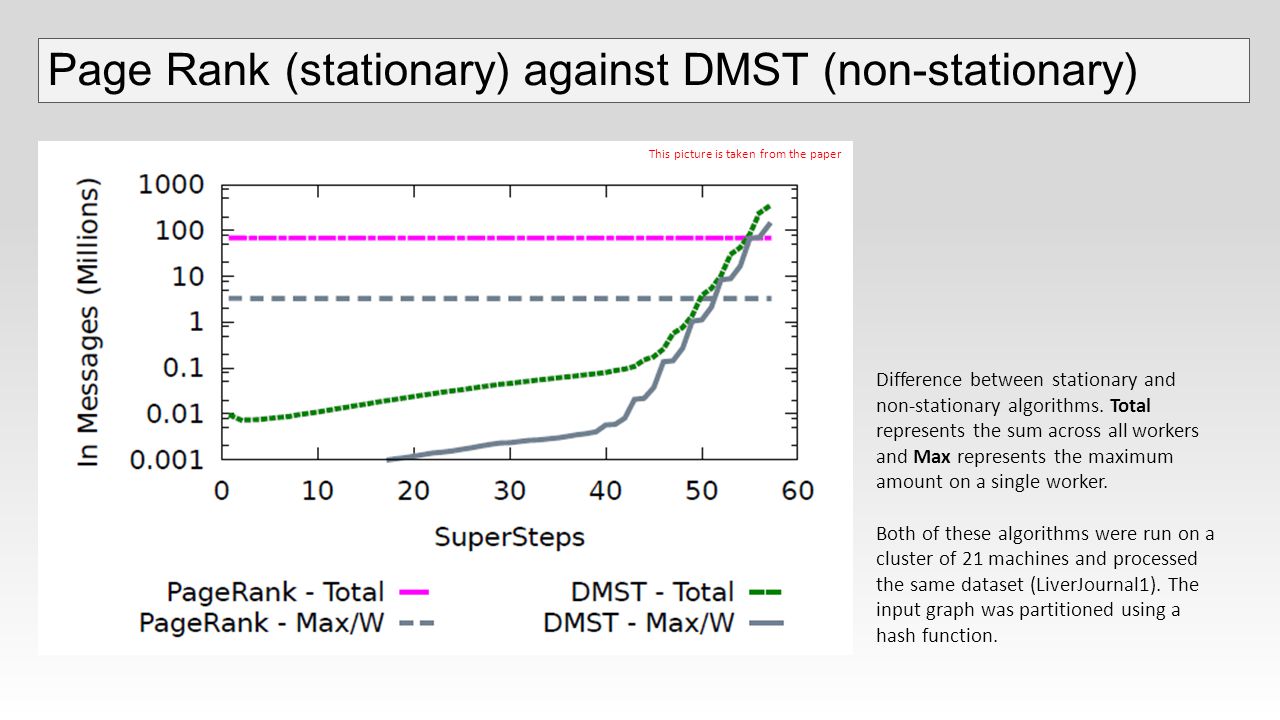

Page Rank (stationary) against DMST (non-stationary) Difference between stationary and non-stationary algorithms. Total represents the sum across all workers and Max represents the maximum amount on a single worker. Both of these algorithms were run on a cluster of 21 machines and processed the same dataset (LiverJournal1). The input graph was partitioned using a hash function. This picture is taken from the paper

10
What causes imbalance in non-stationary algorithms? There are two sources of imbalance: -one originating from graph structure, and -another from the algorithm behavior This picture is taken from the paper

11

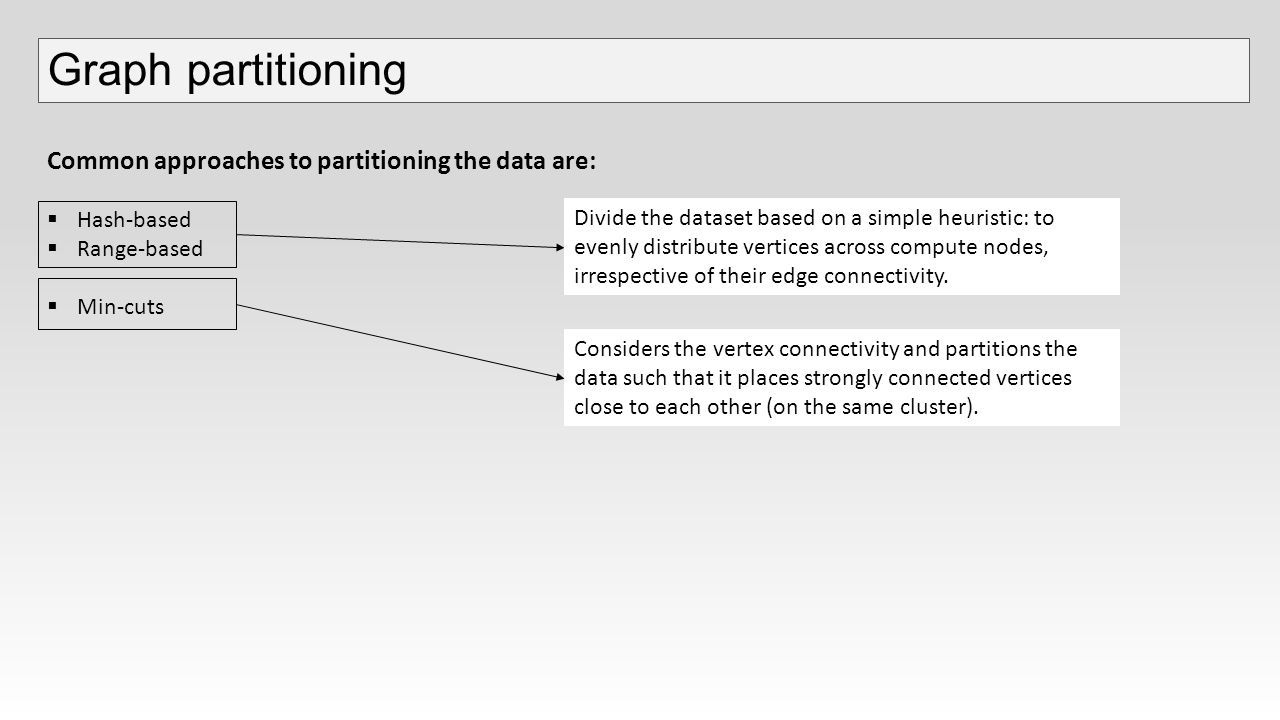

Graph partitioning Common approaches to partitioning the data are: Hash-based Range-based Min-cuts Divide the dataset based on a simple heuristic: to evenly distribute vertices across compute nodes, irrespective of their edge connectivity. Considers the vertex connectivity and partitions the data such that it places strongly connected vertices close to each other (on the same cluster).

12
Graph partitioning Common approaches to partitioning the data are: Hash-based Range-based Min-cuts Divide the dataset based on a simple heuristic: to evenly distribute vertices across compute nodes, irrespective of their edge connectivity. Considers the vertex connectivity and partitions the data such that it places strongly connected vertices close to each other (on the same cluster). Both of these partitioning strategies result in graph dependent performance.

13

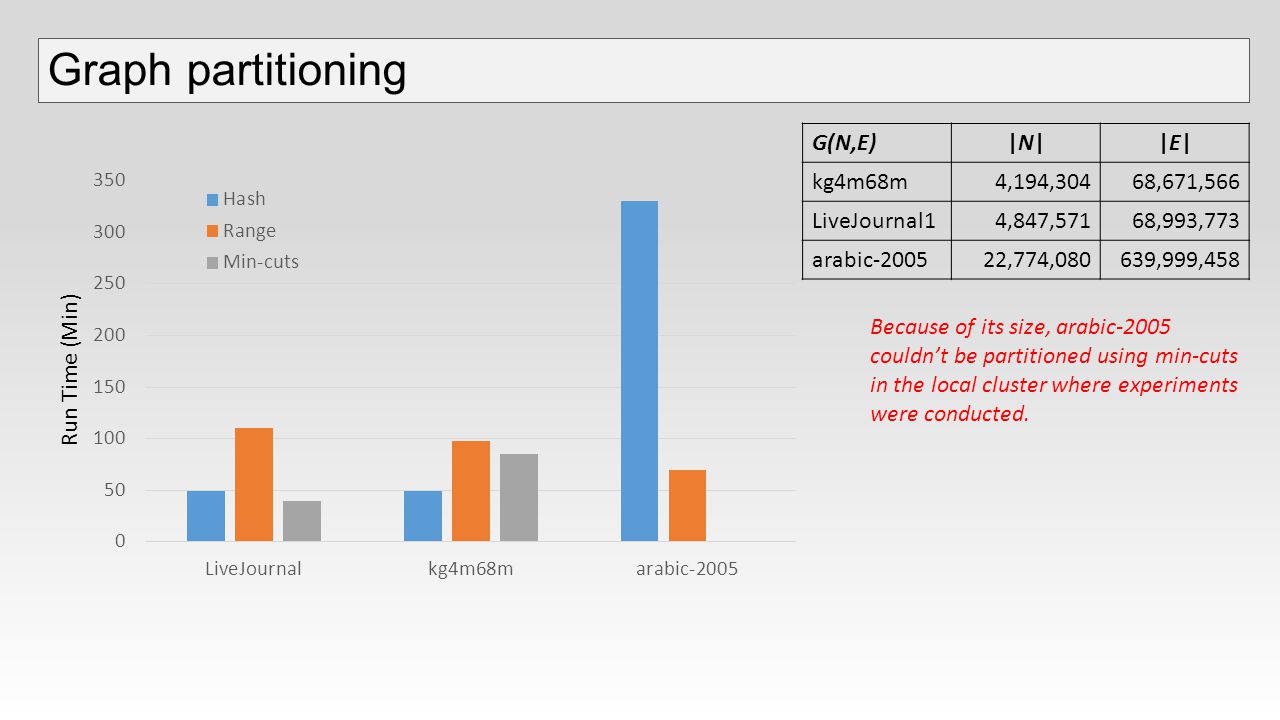

Graph partitioning G(N,E)|N||N||E||E| kg4m68m4,194,30468,671,566 LiveJournal14,847,57168,993,773 arabic-200522,774,080639,999,458 Run Time (Min) Because of its size, arabic-2005 couldn’t be partitioned using min-cuts in the local cluster where experiments were conducted.

14

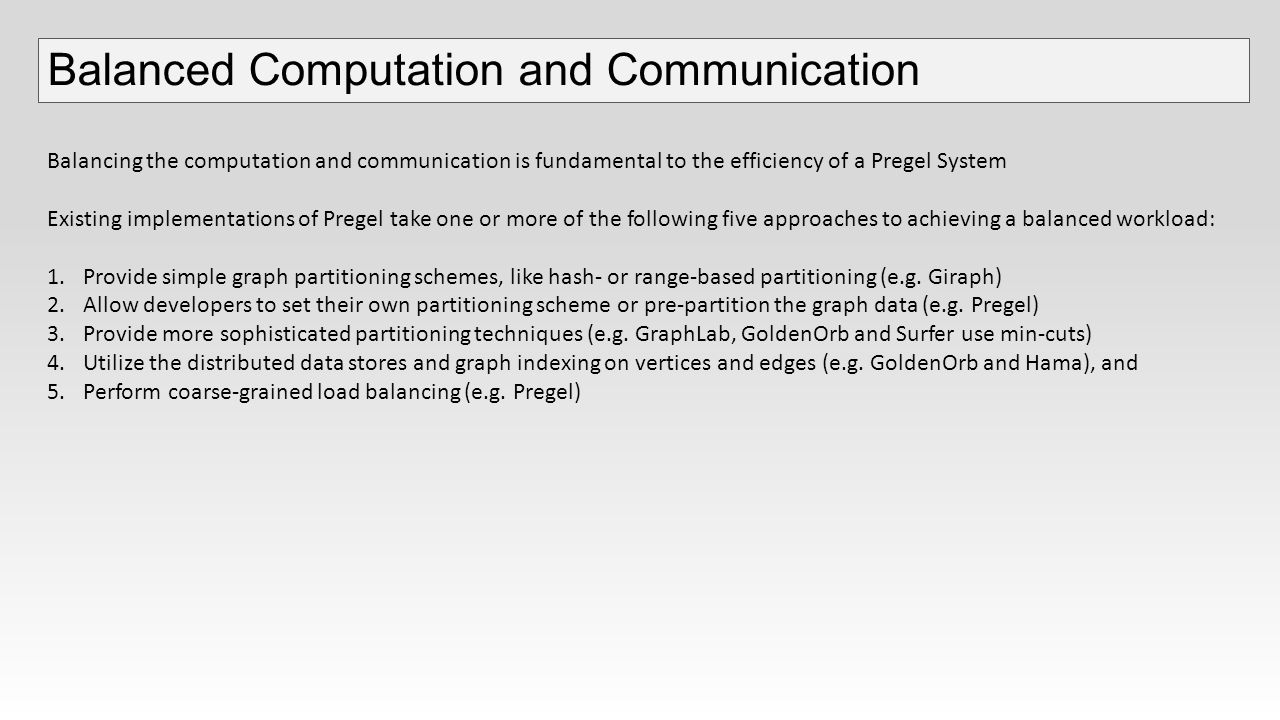

Balanced Computation and Communication Balancing the computation and communication is fundamental to the efficiency of a Pregel System Existing implementations of Pregel take one or more of the following five approaches to achieving a balanced workload: 1.Provide simple graph partitioning schemes, like hash- or range-based partitioning (e.g. Giraph) 2.Allow developers to set their own partitioning scheme or pre-partition the graph data (e.g. Pregel) 3.Provide more sophisticated partitioning techniques (e.g. GraphLab, GoldenOrb and Surfer use min-cuts) 4.Utilize the distributed data stores and graph indexing on vertices and edges (e.g. GoldenOrb and Hama), and 5.Perform coarse-grained load balancing (e.g. Pregel)

15
Balanced Computation and Communication Balancing the computation and communication is fundamental to the efficiency of a Pregel System Existing implementations of Pregel take one or more of the following five approaches to achieving a balanced workload: 1.Provide simple graph partitioning schemes, like hash- or range-based partitioning (e.g. Giraph) 2.Allow developers to set their own partitioning scheme or pre-partition the graph data (e.g. Pregel) 3.Provide more sophisticated partitioning techniques (e.g. GraphLab, GoldenOrb and Surfer use min-cuts) 4.Utilize the distributed data stores and graph indexing on vertices and edges (e.g. GoldenOrb and Hama), and 5.Perform coarse-grained load balancing (e.g. Pregel) All of the approaches above assume that: The structure of the graph is static, The algorithm has predictable behavior or Developer knows about the runtime characteristics of the algorithm.

16

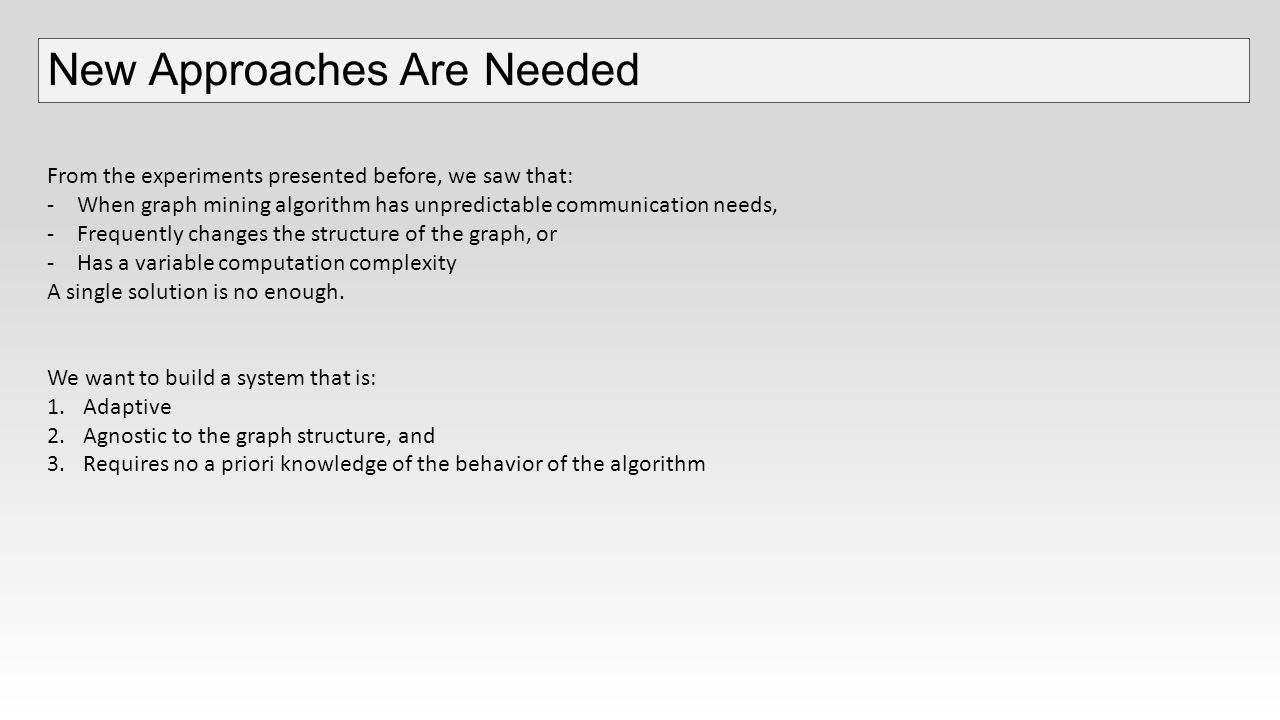

New Approaches Are Needed From the experiments presented before, we saw that: -When graph mining algorithm has unpredictable communication needs, -Frequently changes the structure of the graph, or -Has a variable computation complexity A single solution is no enough. We want to build a system that is: 1.Adaptive 2.Agnostic to the graph structure, and 3.Requires no a priori knowledge of the behavior of the algorithm

17
M I Z A N

18
Binary Space Partitioning graph processing framework A way of “recursively subdividing space” into sets which are collected into a graph (or in this case, a tree) Open source, written in C++ Extends the Pregel API (you can read more here)here Pregel is a scalable system for “Large-Scale Graph Processing” Known to improve MapReduce performance by 1-2 orders of magnitude Focuses on efficient load balancing across workers in a cluster Two major steps in this process Monitoring Migration Planning What is Mizan?

19
Mizan monitors certain metrics for each worker node to ensure equal load balancing Number of outgoing messages to other nodes Only messages sent to remote workers are counted, not messages rerouted to the same worker Total incoming messages This includes messages rerouted to the same worker because queue size can affect performance Response time Measured from the time at which the node begins processing a message until it finishes Monitoring (The easy part)

20

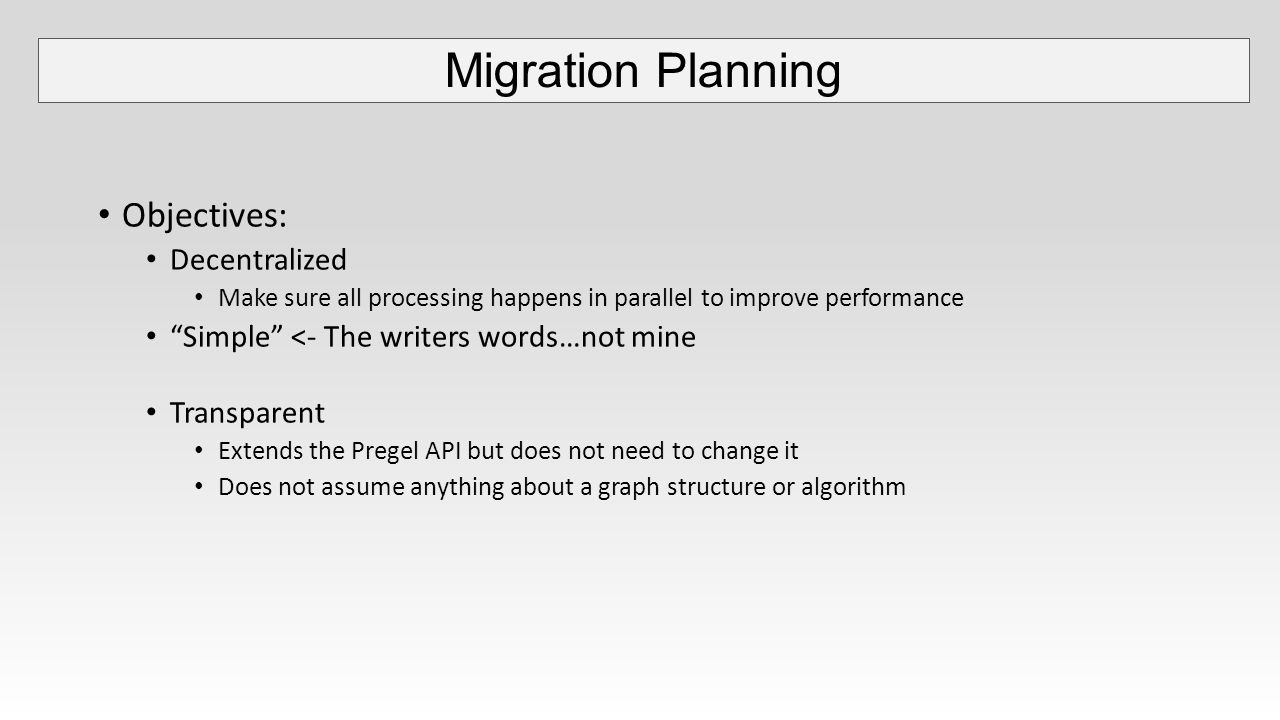

Objectives: Decentralized Make sure all processing happens in parallel to improve performance “Simple” <- The writers words…not mine Transparent Extends the Pregel API but does not need to change it Does not assume anything about a graph structure or algorithm Migration Planning

21
5 easy steps to find the “strongest cause” of workload imbalance among the three monitored metrics Provides a way to detect and (hopefully) prevent instability due to workload imbalance Migration Planning (more)

22
Step 1: Identify the source of imbalance Compare the worker’s execution time against a normal distribution and flag any outliers Remember: Mizan monitors each vertex for those 3 metrics Outgoing Messages to remote nodes All incoming messages Response time Migration Planning (the steps)

23
Migration Planning (step 1 picture) This picture is taken from the paper

24
Step 1: Identify the source of imbalance Step 2: Select the migration objective Detects the largest cause of workload imbalance by comparing metrics for incoming and outgoing messages for each worker with the worker’s execution time The result of this comparison will tell the system what needs optimization: Optimize outgoing messages Optimize incoming messages Optimize response time Migration Planning (the steps)

25
Step 1: Identify the source of imbalance Step 2: Select the migration objective Step 3: Pair over-utilized workers with under-utilized ones All workers create and execute the migration plan in parallel Each worker can be paired with up to one other worker Migration Planning (the steps) This picture is taken from the paper

26

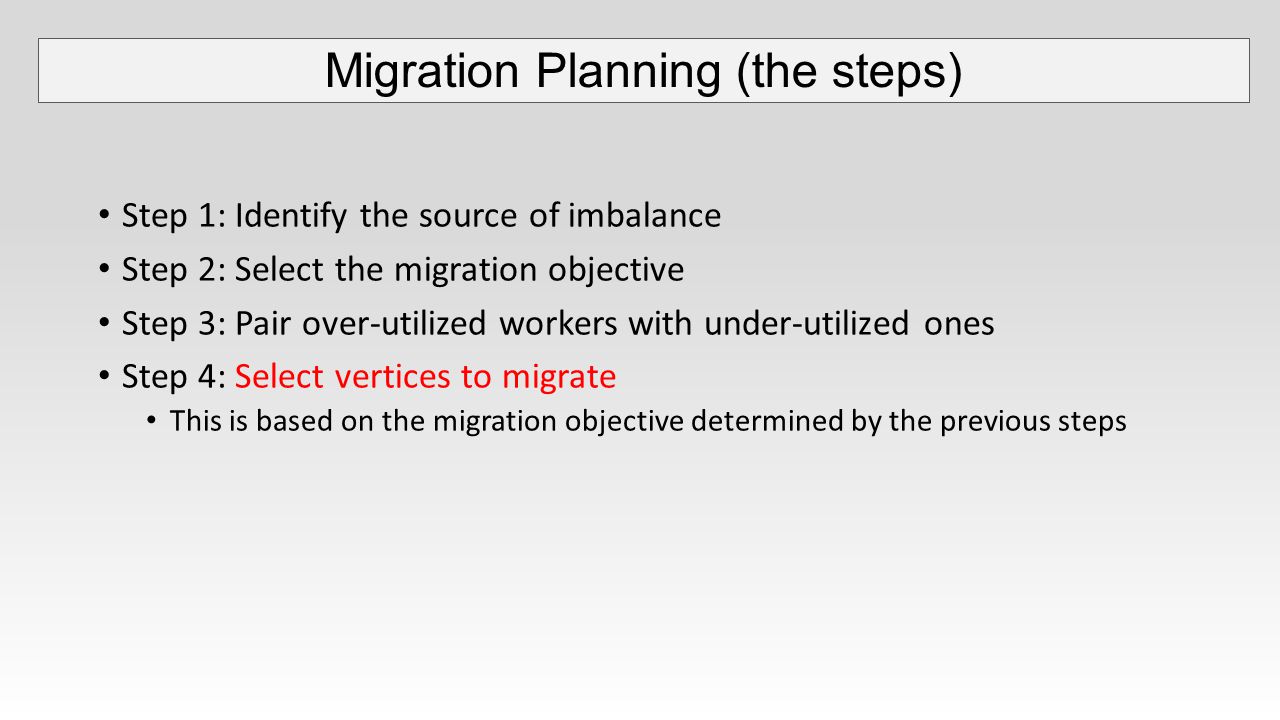

Step 1: Identify the source of imbalance Step 2: Select the migration objective Step 3: Pair over-utilized workers with under-utilized ones Step 4: Select vertices to migrate This is based on the migration objective determined by the previous steps Migration Planning (the steps)

27

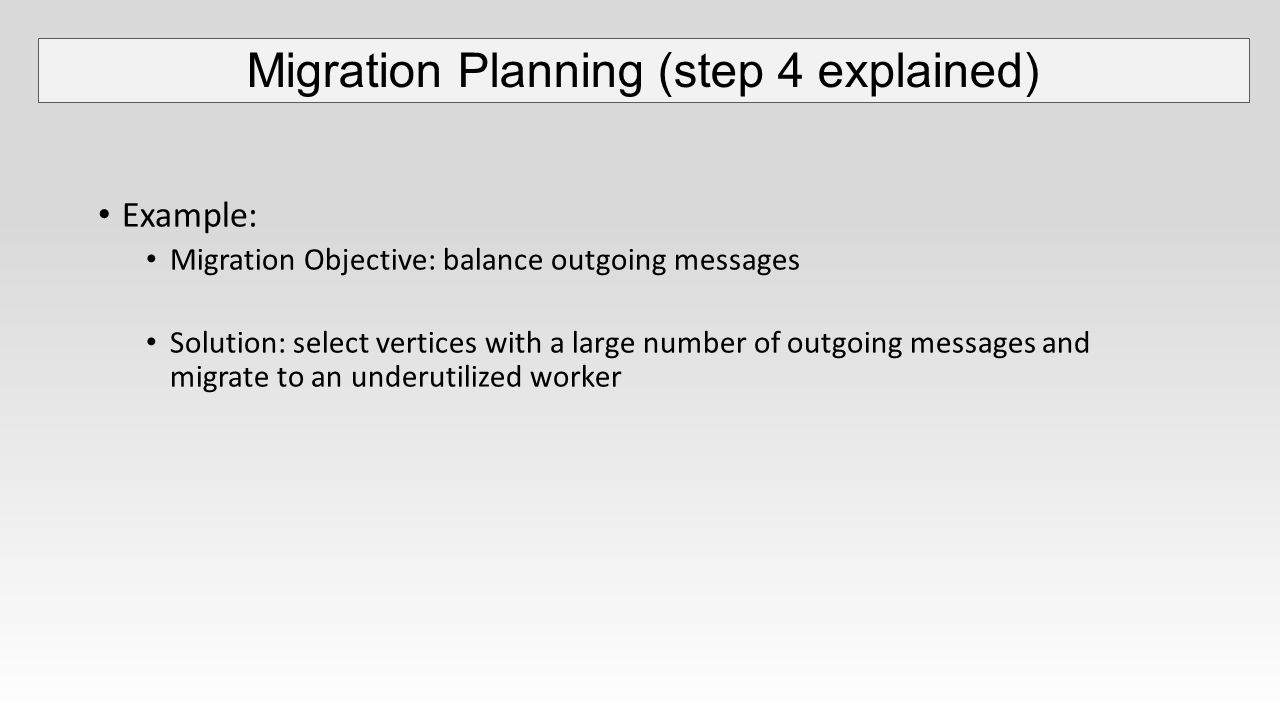

Example: Migration Objective: balance outgoing messages Solution: select vertices with a large number of outgoing messages and migrate to an underutilized worker Migration Planning (step 4 explained)

28

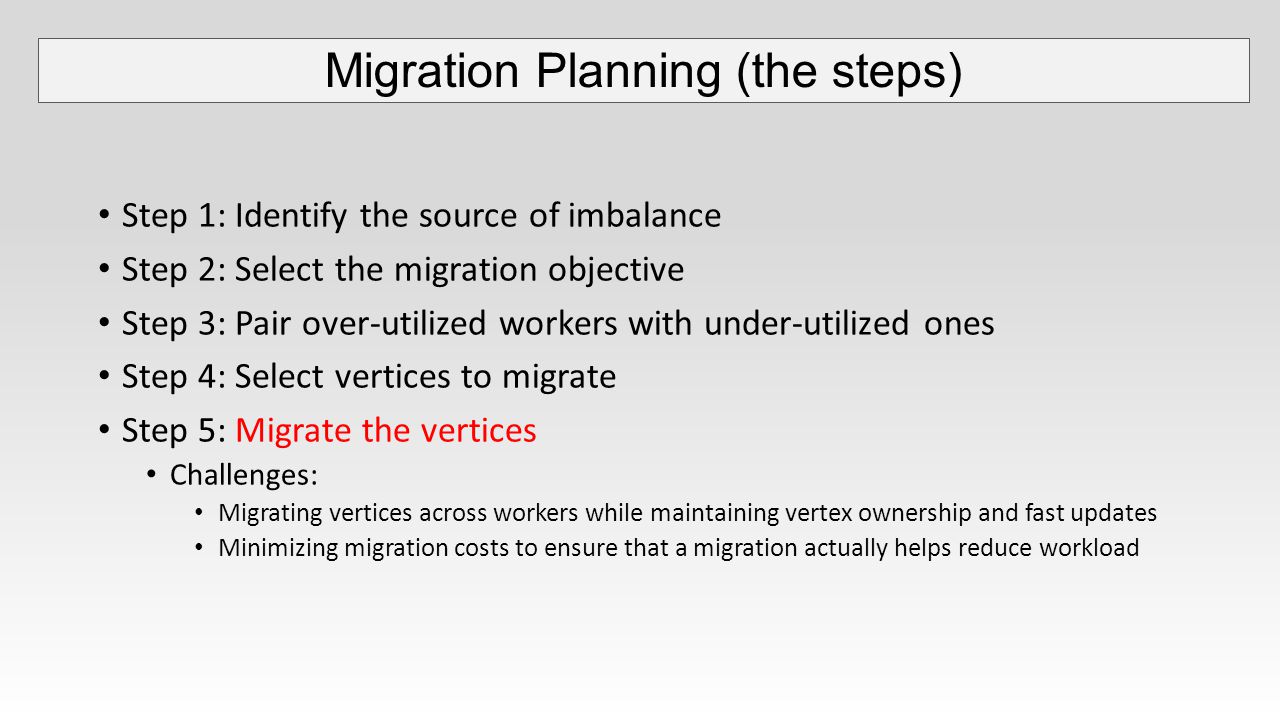

Step 1: Identify the source of imbalance Step 2: Select the migration objective Step 3: Pair over-utilized workers with under-utilized ones Step 4: Select vertices to migrate Step 5: Migrate the vertices Challenges: Migrating vertices across workers while maintaining vertex ownership and fast updates Minimizing migration costs to ensure that a migration actually helps reduce workload Migration Planning (the steps)

29
Mizan uses a distributed hash table to implement a lookup service Vertex v can execute at any worker V’s home worker ID = hash(ID) mod N Workers ask the home worker of v for its location The home worker is notified with the new location as v migrates Maintaining Vertex Ownership

30
This picture is taken from the paper

31

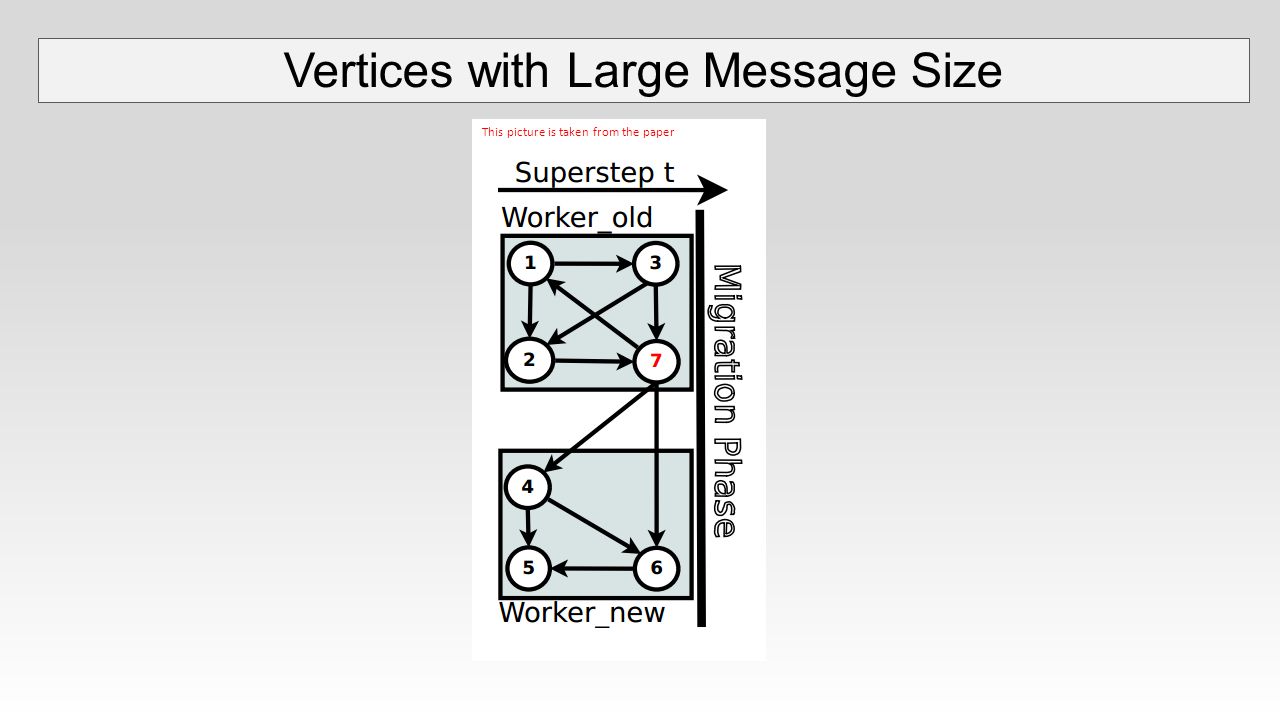

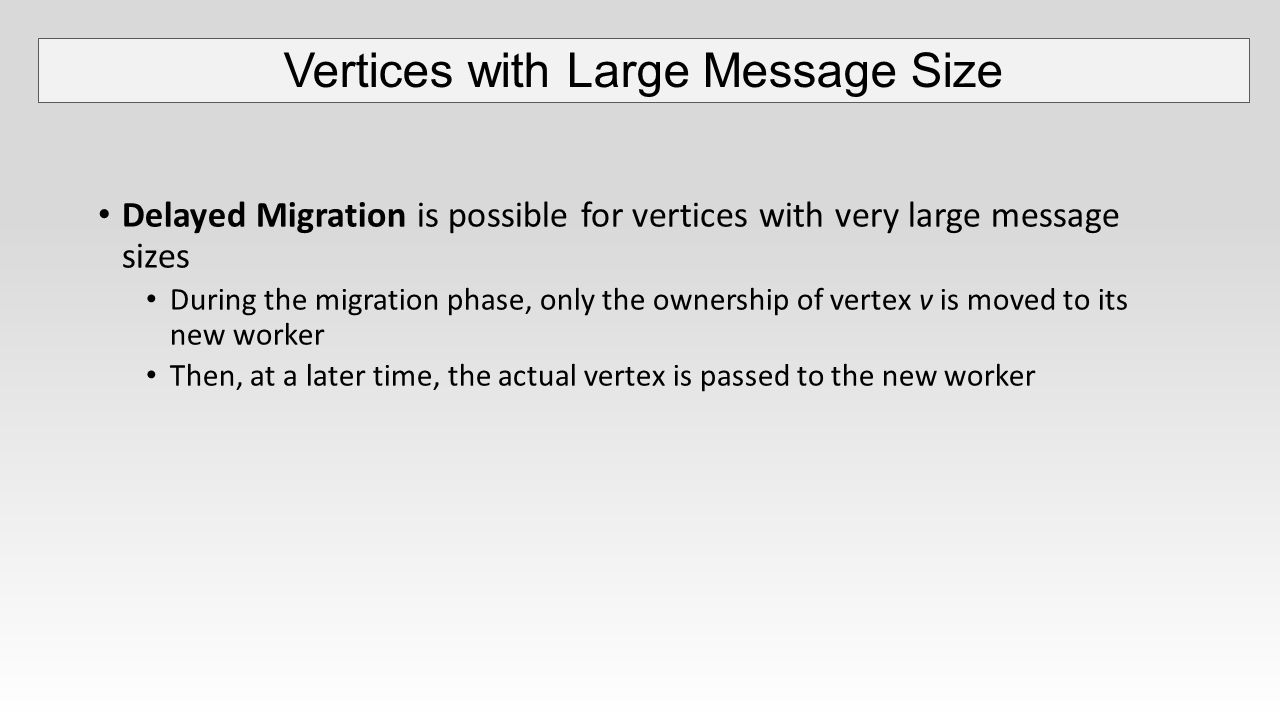

Delayed Migration is possible for vertices with very large message sizes During the migration phase, only the ownership of vertex v is moved to its new worker Then, at a later time, the actual vertex is passed to the new worker Vertices with Large Message Size

32
This picture is taken from the paper

33

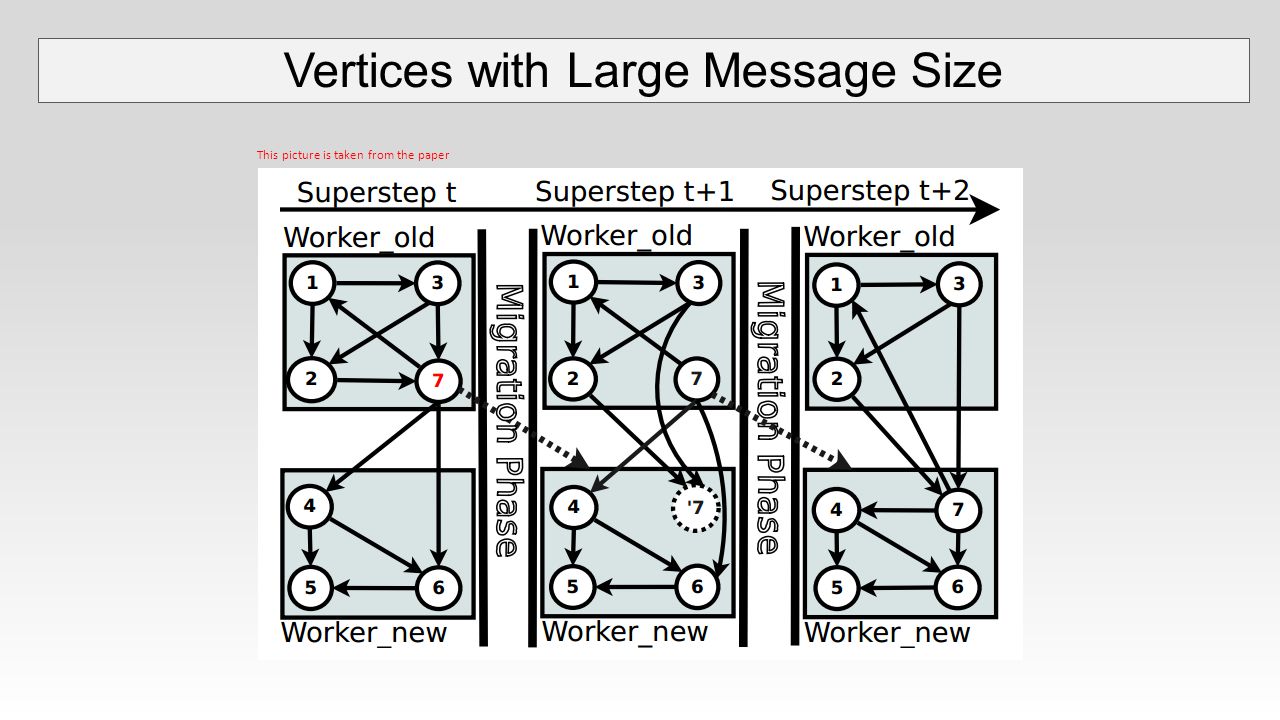

Vertices with Large Message Size This picture is taken from the paper

34
Vertices with Large Message Size This picture is taken from the paper

35
Mizan is implemented on C++ with MPI with three variations: Static Mizan: Emulates Giraph, disables dynamic migration Work stealing (WS): Emulates Pregel's coarse-grained dynamic load balancing Mizan: Activates dynamic migration Experimental Setup

36
Runs on local cluster of 21 machines: Mix of i5 and i7 processors with 16GB RAM Each IBM Blue Gene/P supercomputer with 1024 compute nodes: Each is a 4 core PowerPC450 CPU at 850MHz with 4GB RAM Experimental Setup

37

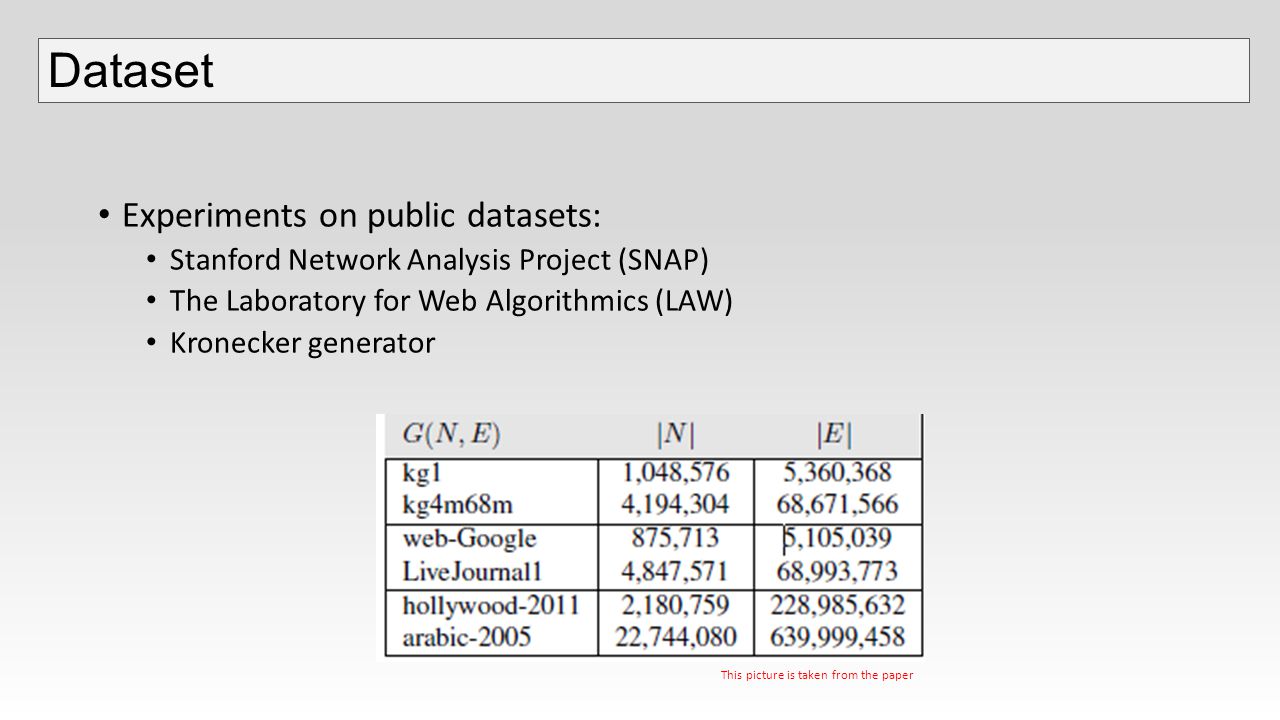

Experiments on public datasets: Stanford Network Analysis Project (SNAP) The Laboratory for Web Algorithmics (LAW) Kronecker generator Dataset This picture is taken from the paper

38

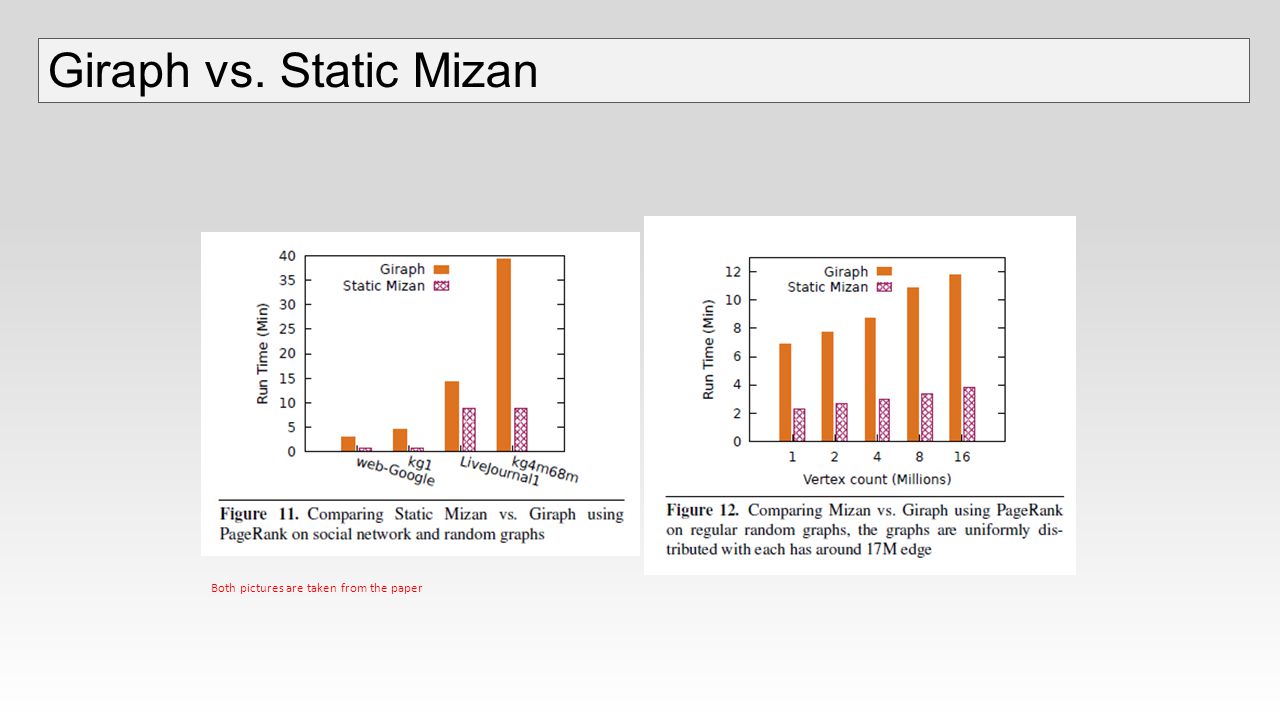

Giraph vs. Static Mizan Both pictures are taken from the paper

39

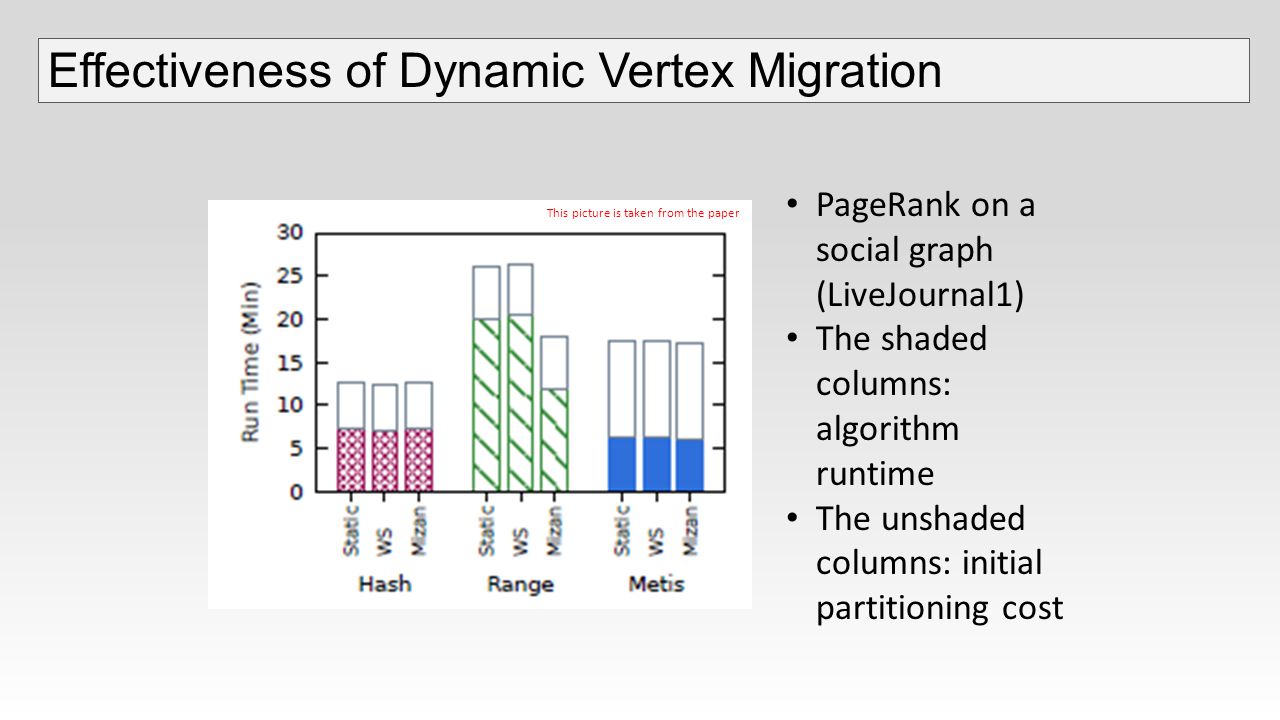

PageRank on a social graph (LiveJournal1) The shaded columns: algorithm runtime The unshaded columns: initial partitioning cost Effectiveness of Dynamic Vertex Migration This picture is taken from the paper

40

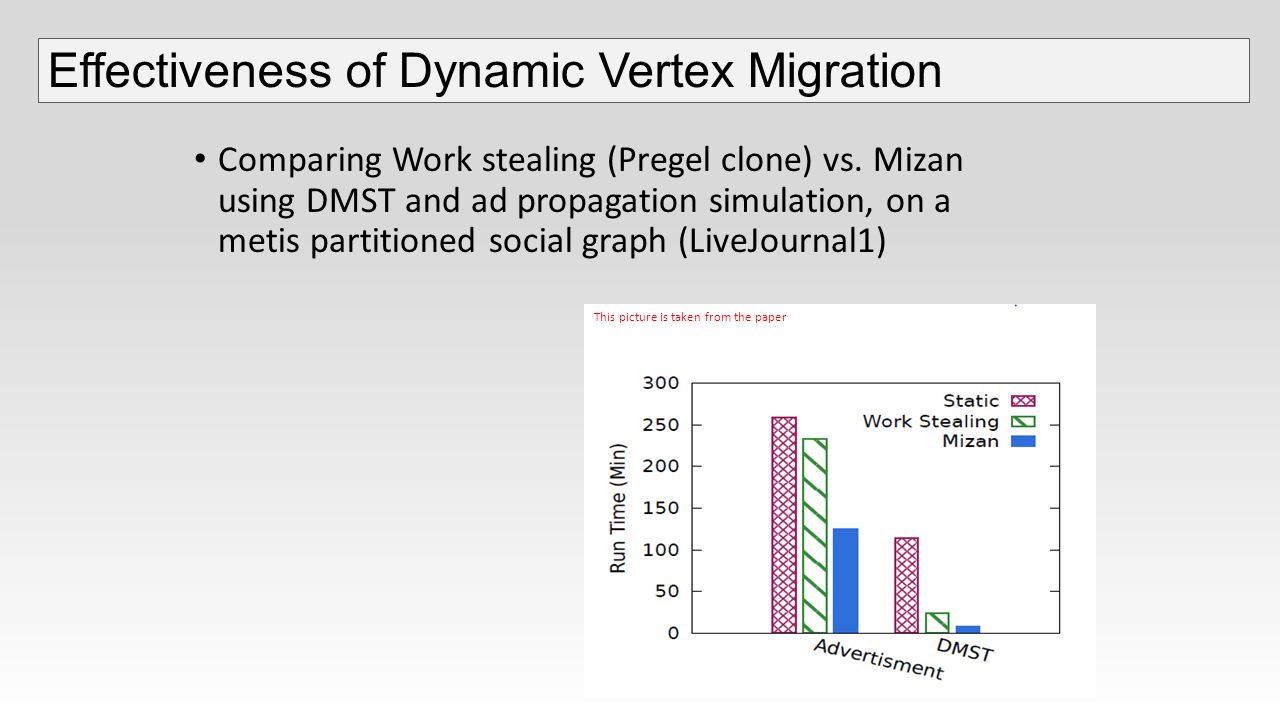

Comparing Work stealing (Pregel clone) vs. Mizan using DMST and ad propagation simulation, on a metis partitioned social graph (LiveJournal1) Effectiveness of Dynamic Vertex Migration This picture is taken from the paper

41

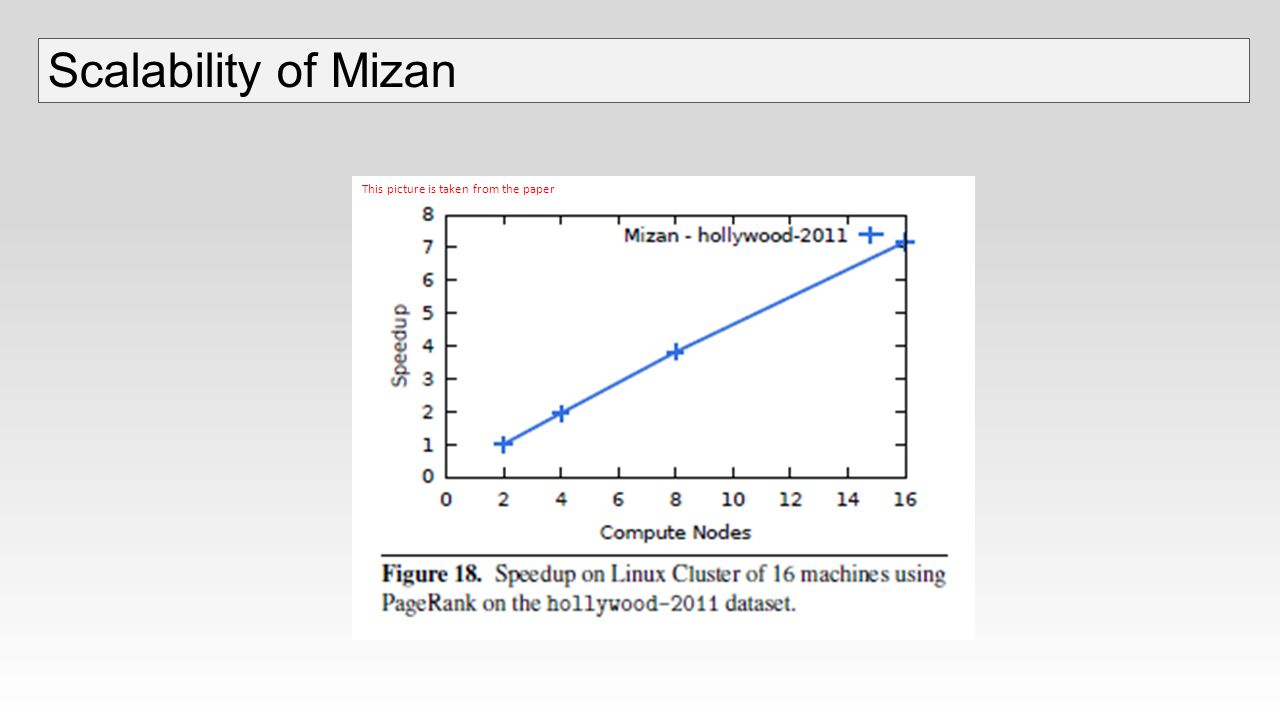

Scalability of Mizan This picture is taken from the paper

42
Scalability of Mizan This picture is taken from the paper

43

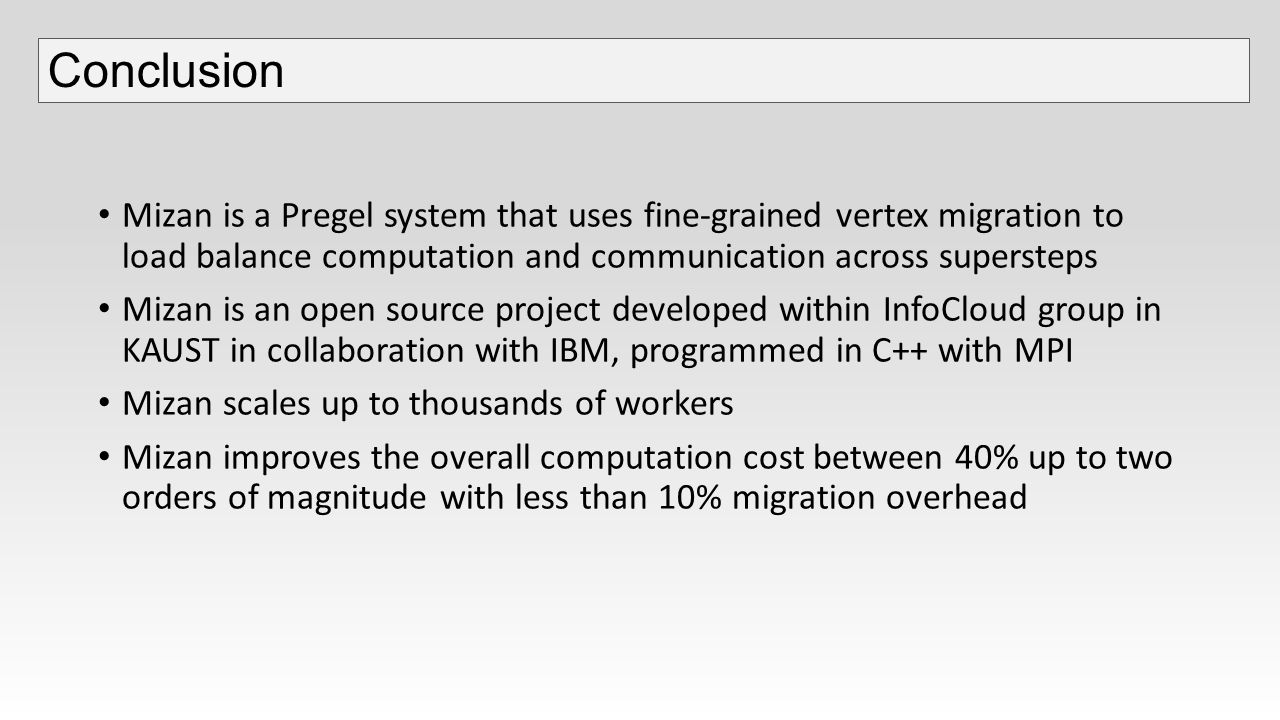

Mizan is a Pregel system that uses fine-grained vertex migration to load balance computation and communication across supersteps Mizan is an open source project developed within InfoCloud group in KAUST in collaboration with IBM, programmed in C++ with MPI Mizan scales up to thousands of workers Mizan improves the overall computation cost between 40% up to two orders of magnitude with less than 10% migration overhead Conclusion

44

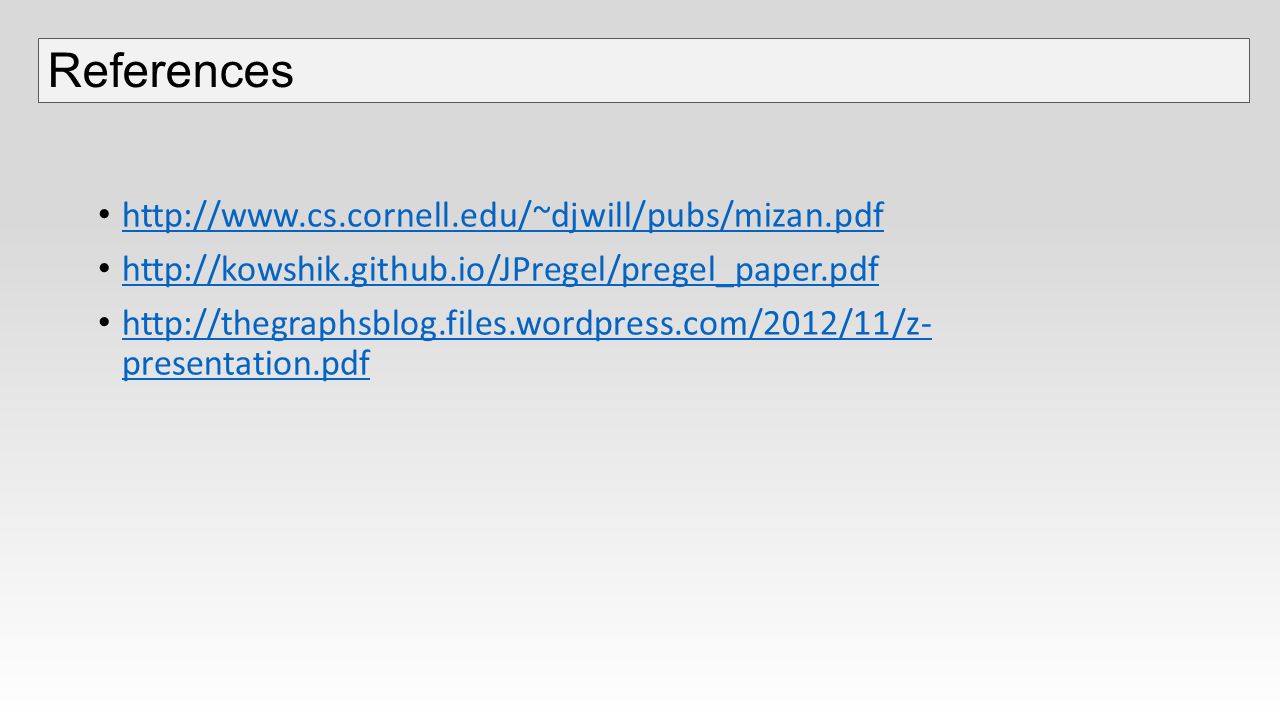

http://www.cs.cornell.edu/~djwill/pubs/mizan.pdf http://kowshik.github.io/JPregel/pregel_paper.pdf http://thegraphsblog.files.wordpress.com/2012/11/z- presentation.pdf http://thegraphsblog.files.wordpress.com/2012/11/z- presentation.pdf References

45
Thank you!
