1 Scaling up Reuse Jonathan Essex Sustainable Construction Manager, BioRegional 07801 541 924

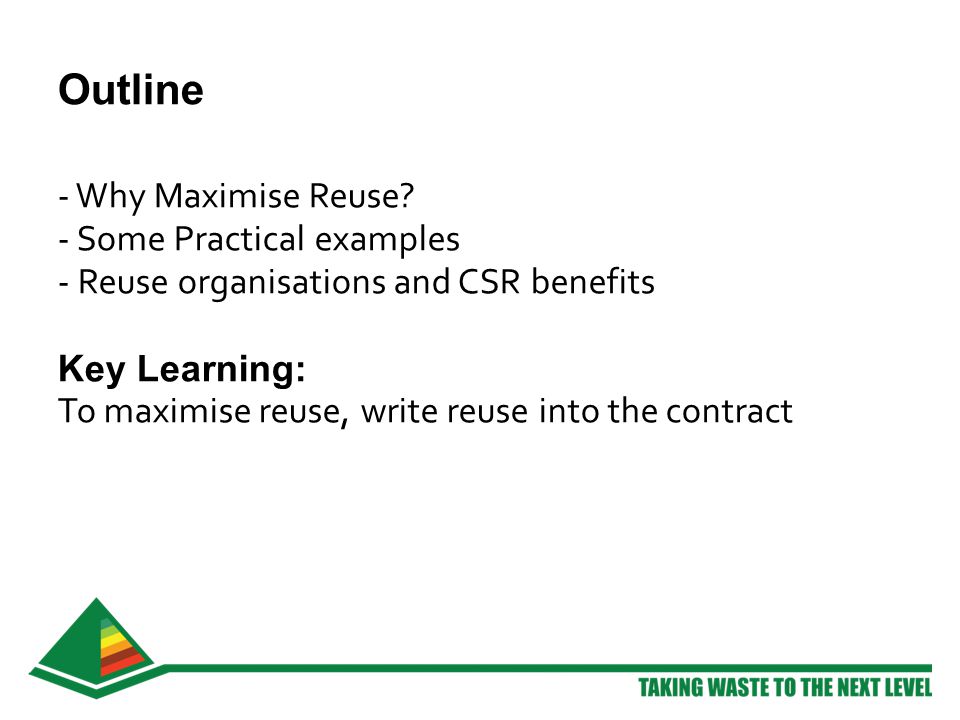

2 Outline - Why Maximise Reuse? - Some Practical examples - Reuse organisations and CSR benefits Key Learning: To maximise reuse, write reuse into the contract

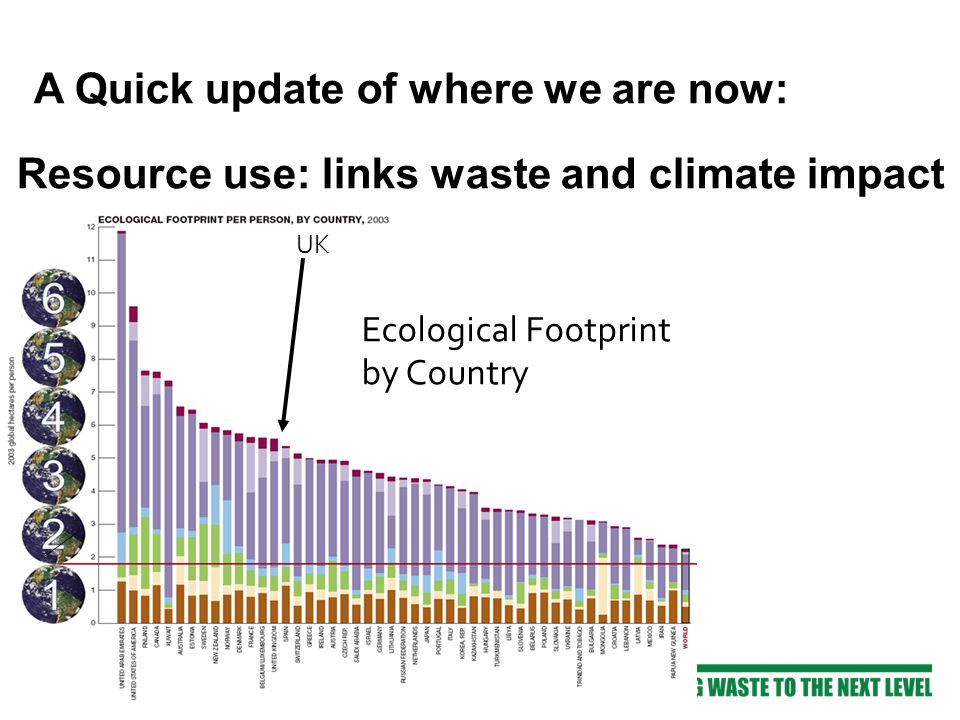

3 Ecological Footprint by Country UK A Quick update of where we are now: Resource use: links waste and climate impact

4 50% of impact is what we build and buy Ecological Footprint of average UK resident: 5.45 Gha CO2 emissions of average UK resident: 11.87 tonnes Figures derived from REAP by BioRegional

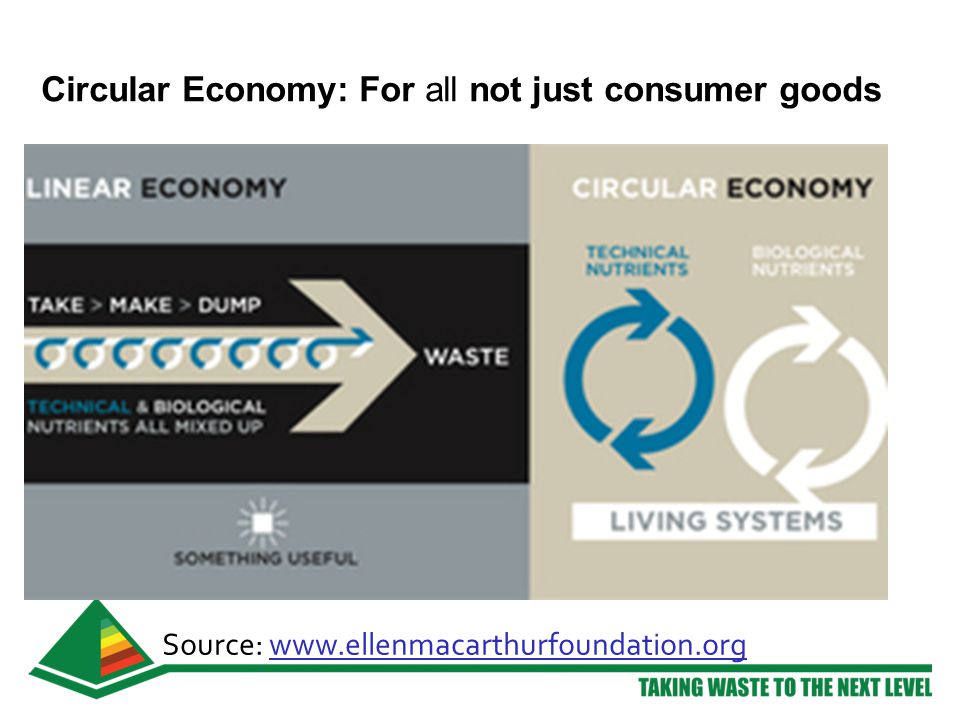

5 Circular Economy: For all not just consumer goods Source:

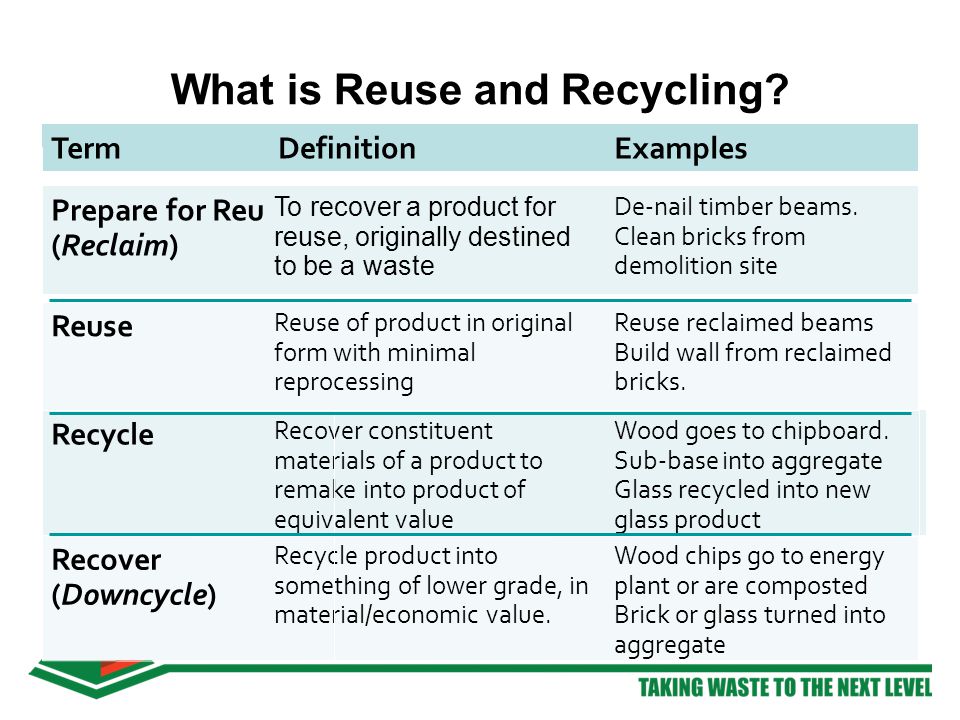

6 What is Reuse and Recycling? TermDefinitionExamples Prepare for Reuse (Reclaim) To recover a product for reuse, originally destined to be a waste De-nail timber beams. Clean bricks from demolition site Reuse Reuse of product in original form with minimal reprocessing Reuse reclaimed beams Build wall from reclaimed bricks. Recycle Recover constituent materials of a product to remake into product of equivalent value Wood goes to chipboard. Sub-base into aggregate Glass recycled into new glass product Recover (Downcycle) Recycle product into something of lower grade, in material/economic value. Wood chips go to energy plant or are composted Brick or glass turned into aggregate

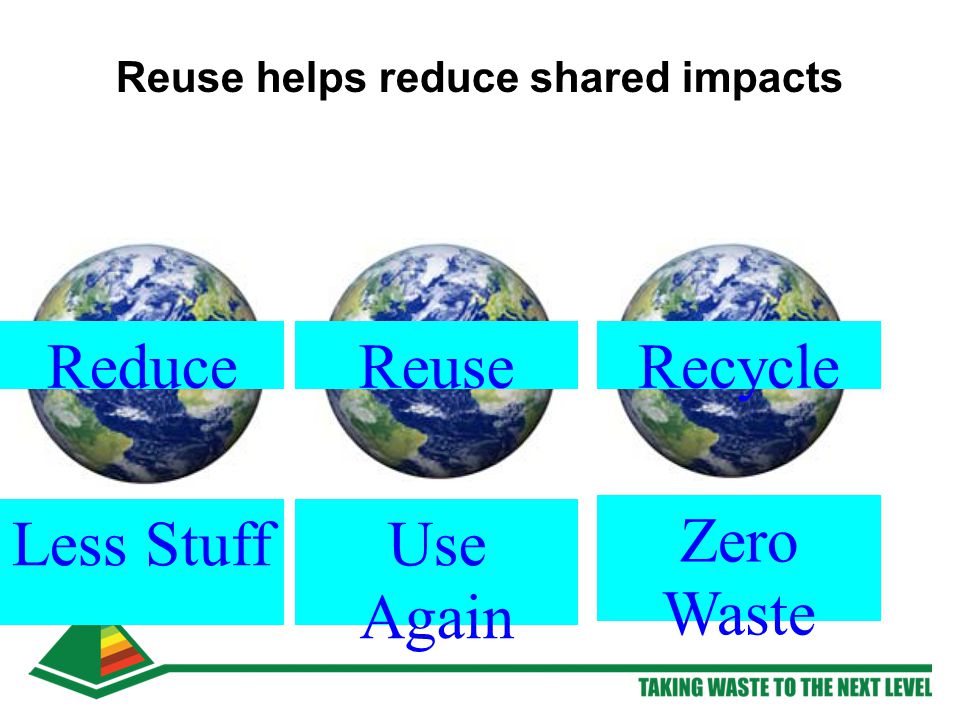

7 Reuse helps reduce shared impacts ReduceReuseRecycle Less StuffUse Again Zero Waste

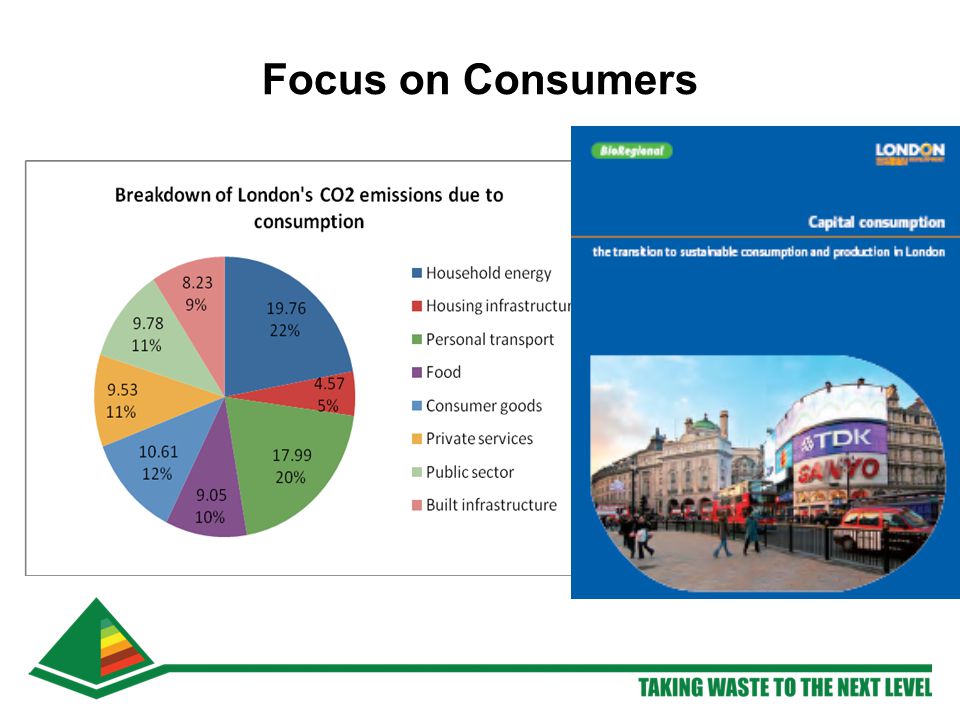

8 Focus on Consumers

9 Plan to share cuts across all sectors

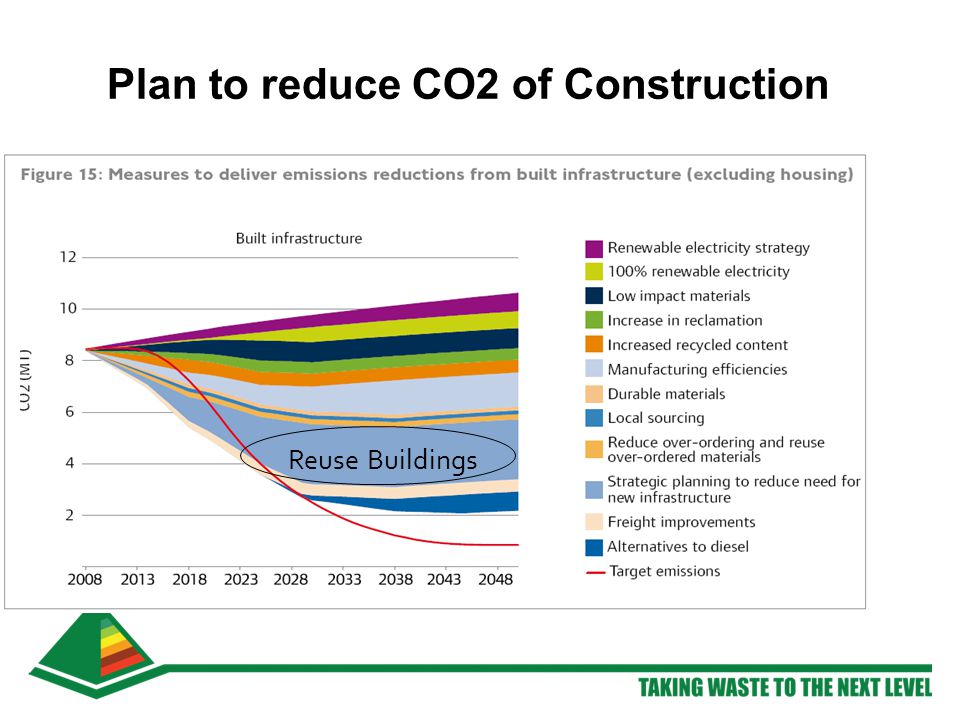

10 Plan to reduce CO2 of Construction Reuse Buildings

11 Plan to reduce CO2 of Construction Good Fac. Mgt.

12 Why worry about Embodied Carbon? Estimates that it is approximately 1 tonne CO2/m2 office 9,000 tonnes/km dual carriageway 56 tonnesCO2/ave. new house ( 25 million homes 50% embodied carbon is to maintain what we already have in the UK

13 Products = 80% of Construction CO2 Taken from the Low Carbon Construction Innovation and Growth Team Final Report, 2010

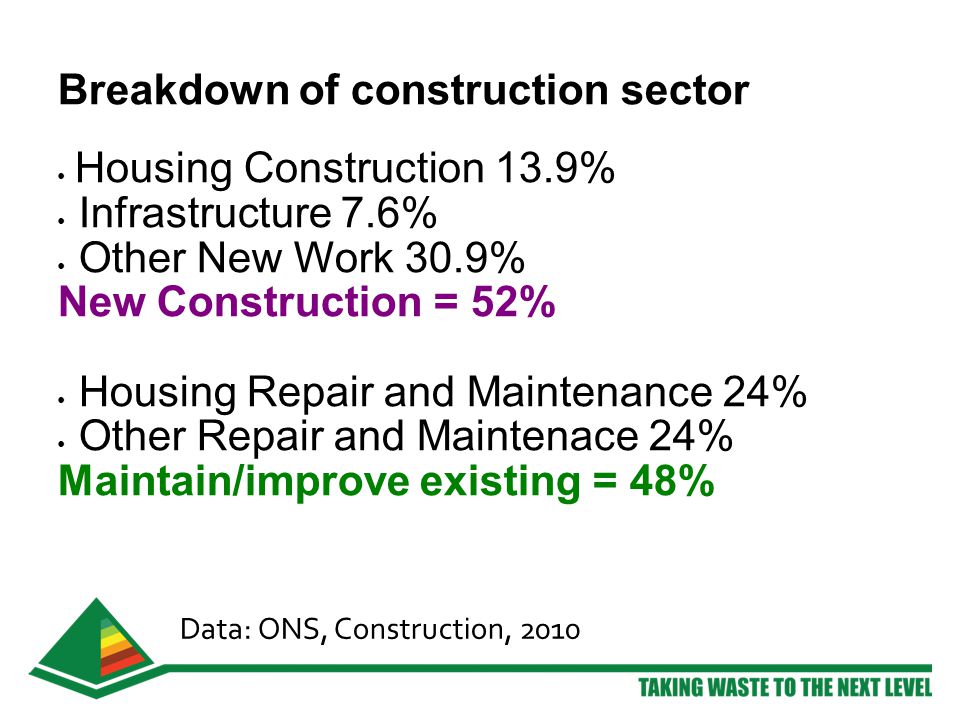

14 Breakdown of construction sector Housing Construction 13.9% Infrastructure 7.6% Other New Work 30.9% New Construction = 52% Housing Repair and Maintenance 24% Other Repair and Maintenace 24% Maintain/improve existing = 48% Data: ONS, Construction, 2010

15 Includes structure, fit-out and furnishings. Modelling Operational and Embodied CO2e over 60 years for an AC office (Weight, 2011) Why worry about Embodied Carbon?

16 Embodied Carbon – Worth Saving Carpet Tiles 15-20 kgCO2/m2 Glass – 910 kgCO2/tonne Smart Phone – 20kgCO2 (see Computer – 300 kgCO2 (7 kgCO2 back if recycle) Sources: 1. Carpet tiles and glass – Bath Uni. ICE Database (2011) 2. Phone: 3. Computer: Footprinting-of-IT-Products.pdf

17 Optimum Resource Use = Reuse? Embodied carbon means rethinking waste

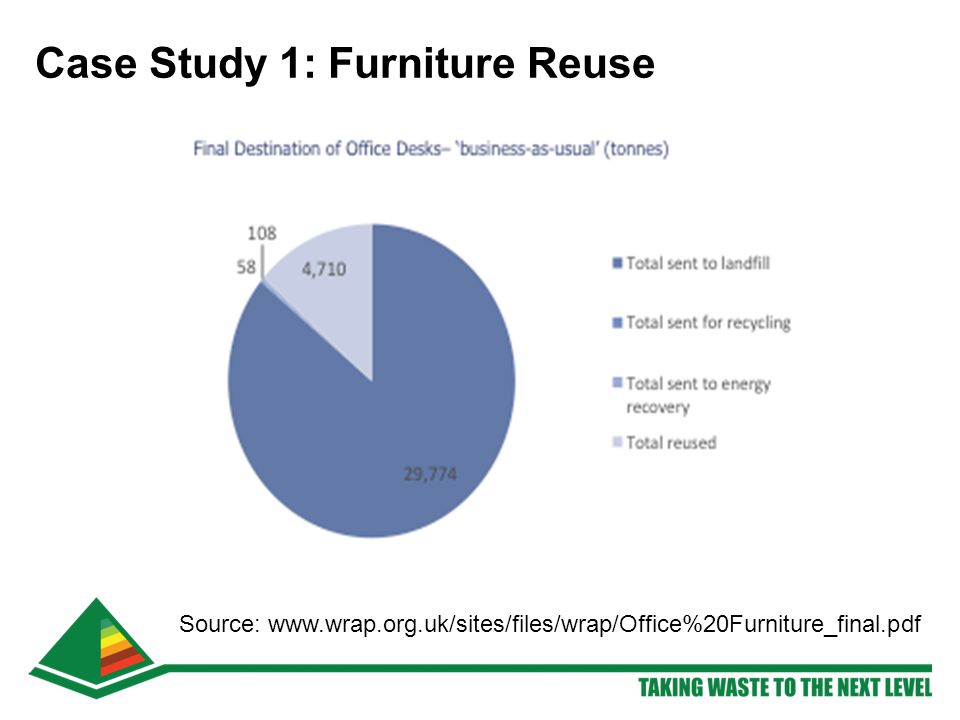

18 Case Study 1: Furniture Reuse Source:

19 Case Study 1: Furniture Reuse

20 “Businesses that reuse office chairs and desks are saving over £14 million a year, as well as helping to reduce carbon emissions and increase jobs in the UK”, according to new research by WRAP (2011).

21 Case Study 1: Furniture Reuse "Hundreds of community organisations across the country have for many years been quietly salvaging, restoring and redistributing discarded furniture and equipment to provide vital help to families and other people in need, creating employment and training thousands of volunteers in the process."

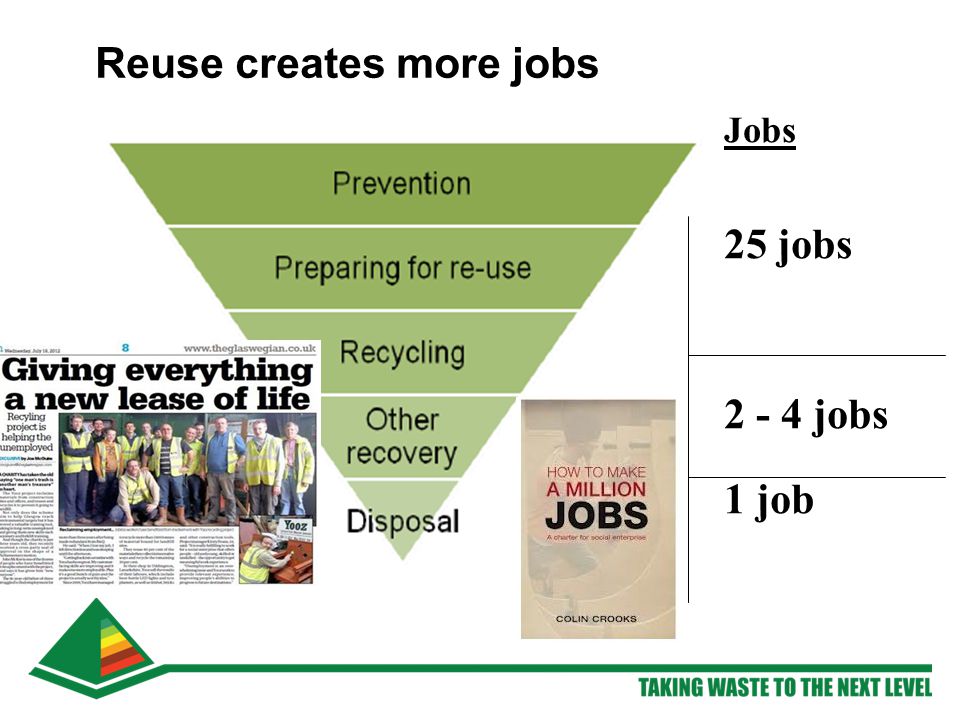

22 Reuse creates more jobs Jobs 25 jobs 2 - 4 jobs 1 job

23 Case Study 2: Computer Reuse

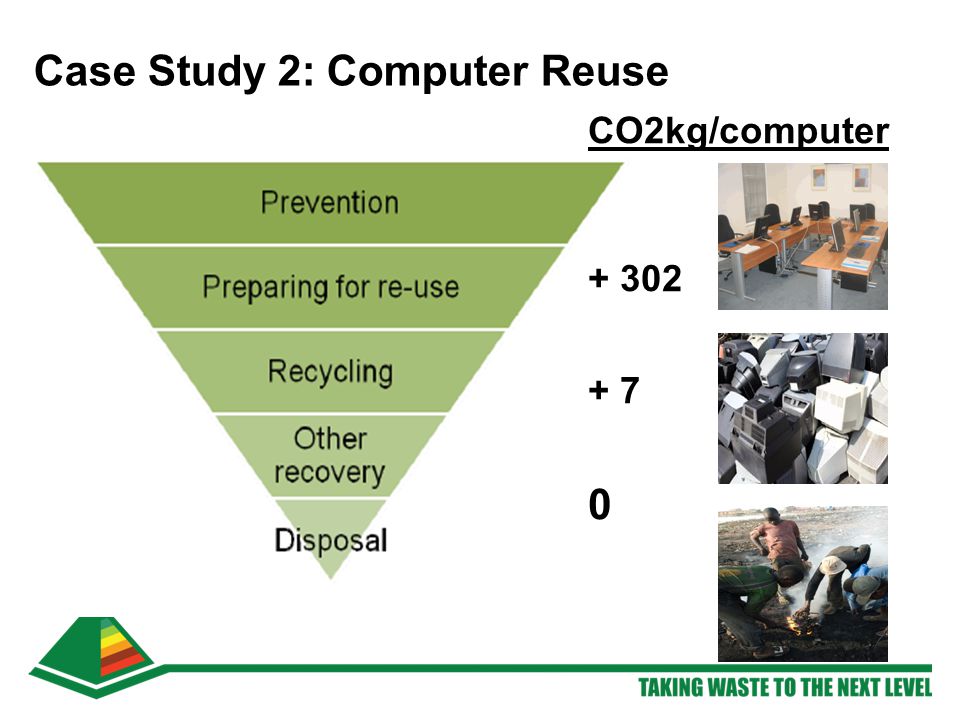

24 CO2kg/computer + 302 + 7 0

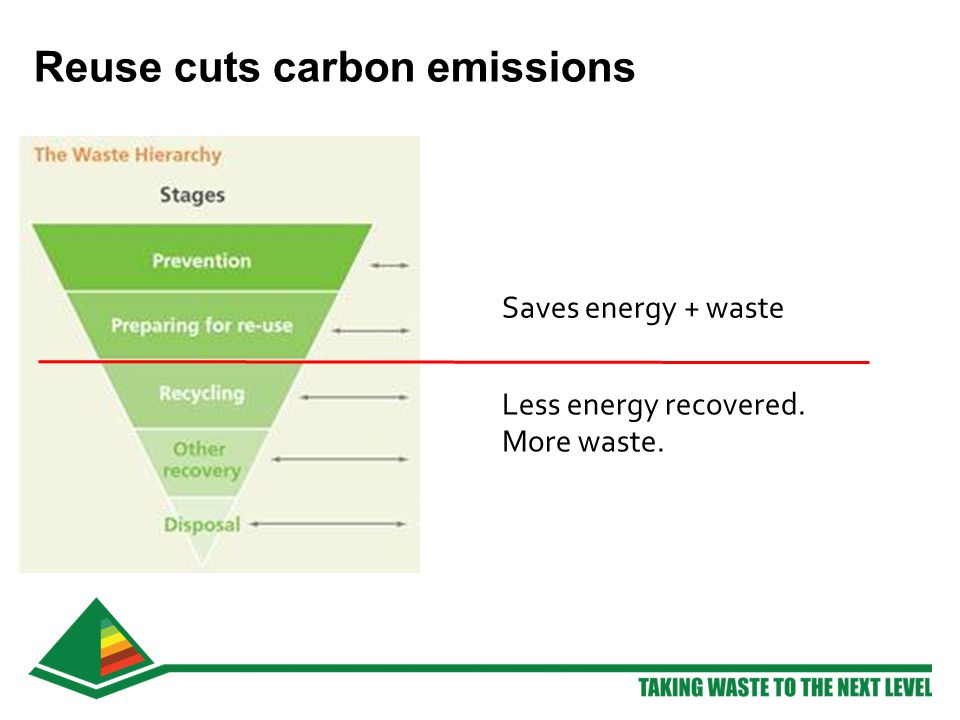

25 Saves energy + waste Less energy recovered. More waste. Reuse cuts carbon emissions

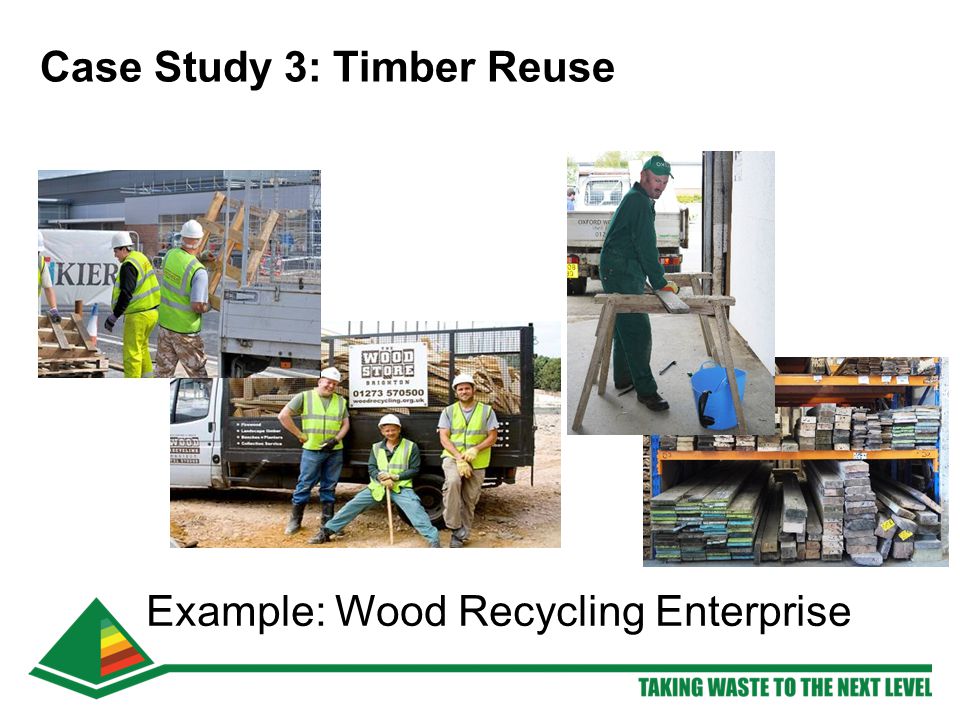

26 Example: Wood Recycling Enterprise Case Study 3: Timber Reuse

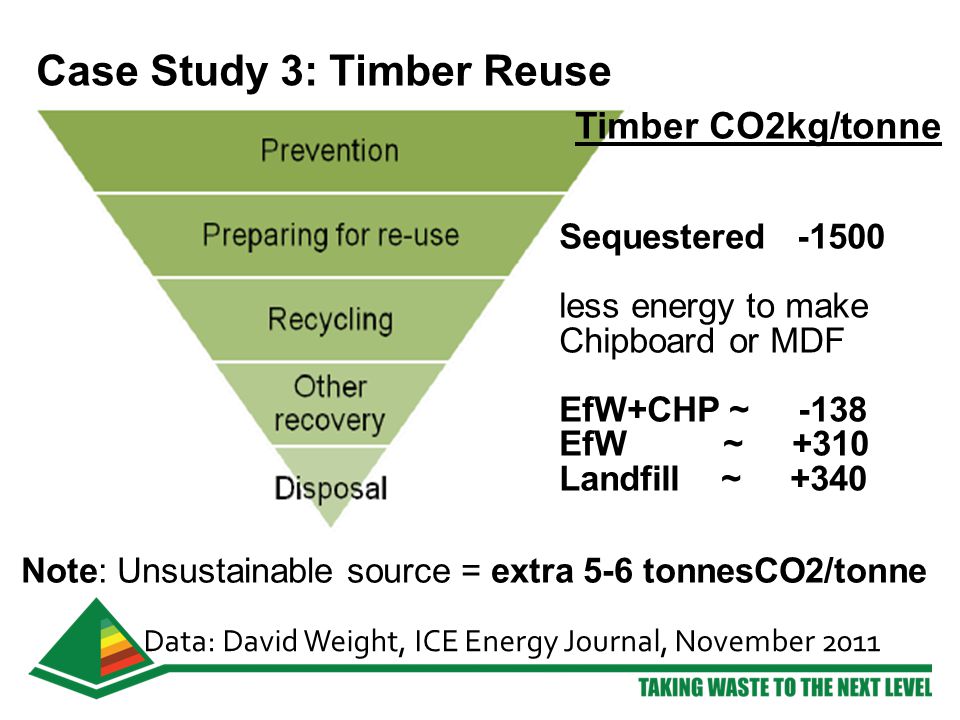

27 Timber CO2kg/tonne Sequestered -1500 less energy to make Chipboard or MDF EfW+CHP ~ -138 EfW ~ +310 Landfill ~ +340 Data: David Weight, ICE Energy Journal, November 2011 Note: Unsustainable source = extra 5-6 tonnesCO2/tonne Case Study 3: Timber Reuse

28 Less timber reused: a lost opportunity Much Less Reuse. The timber reused in UK fell by 250,000 tonnes in 10 years until 2007. (10 of 16Mt/year imported, 10% comes from outside EU). Special. We burn elm floorboards we used to reuse, for which you cannot source new. New enterprises not plugging the gap. 20+ wood recycling not-for-profit enterprises reuse 0.4% of this. Wasted carbon. The carbon saved by reuse (reducing need for virgin timber) is over twice CO2 on saving from a energy-from-waste plant. CO2 for deforestation average 1tonneCO2/ tonne timber used globally.

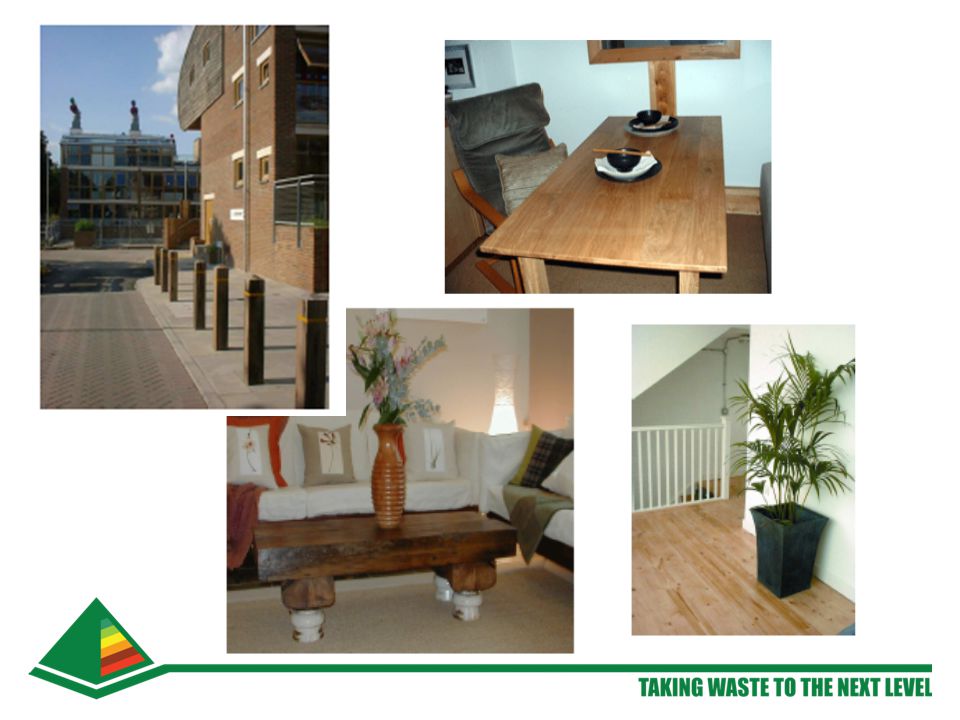

29 Reclaimed timber Sourced from reclamation yards Or taken directly out of demolition jobs Or from refurbishment Joists can be: Reused as joists or Milled into floorboards Studwork: not structural or visible 54km at BedZED carbon benefit, cost neutral


31 Even best sites have left overs… New homes for product: Play Association Tower Hamlets, Hackney Children's Scrap project, Hawkwood Allotments, Selby Trust, Arcola Theatre… Case Study 4: Refurbish + Construction Surplus

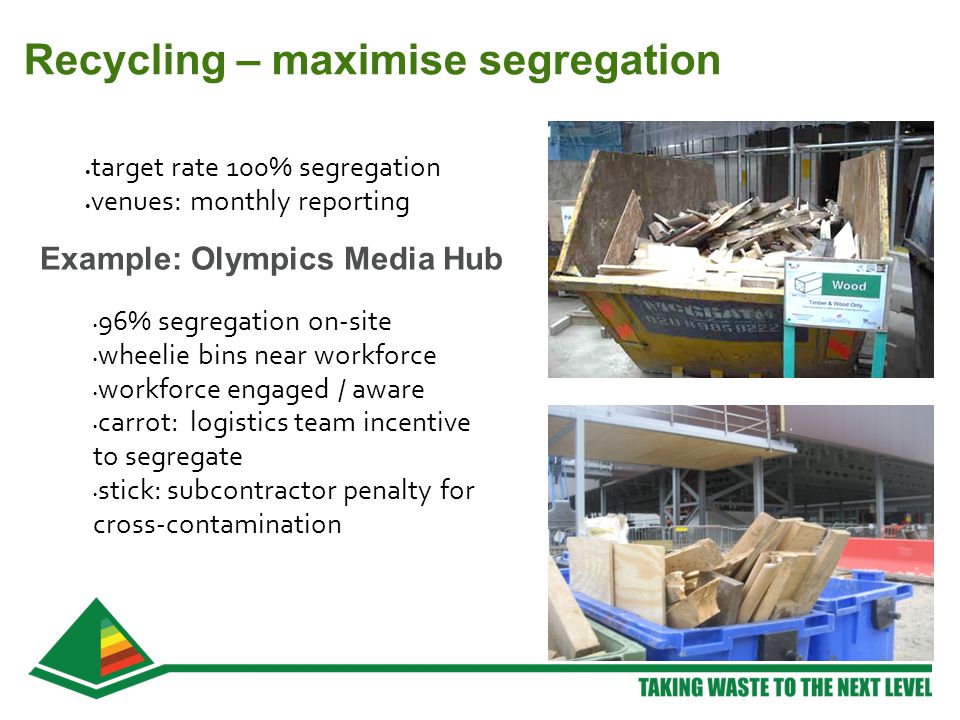

32 Recycling – maximise segregation target rate 100% segregation venues: monthly reporting Example: Olympics Media Hub 96% segregation on-site wheelie bins near workforce workforce engaged / aware carrot: logistics team incentive to segregate stick: subcontractor penalty for cross-contamination

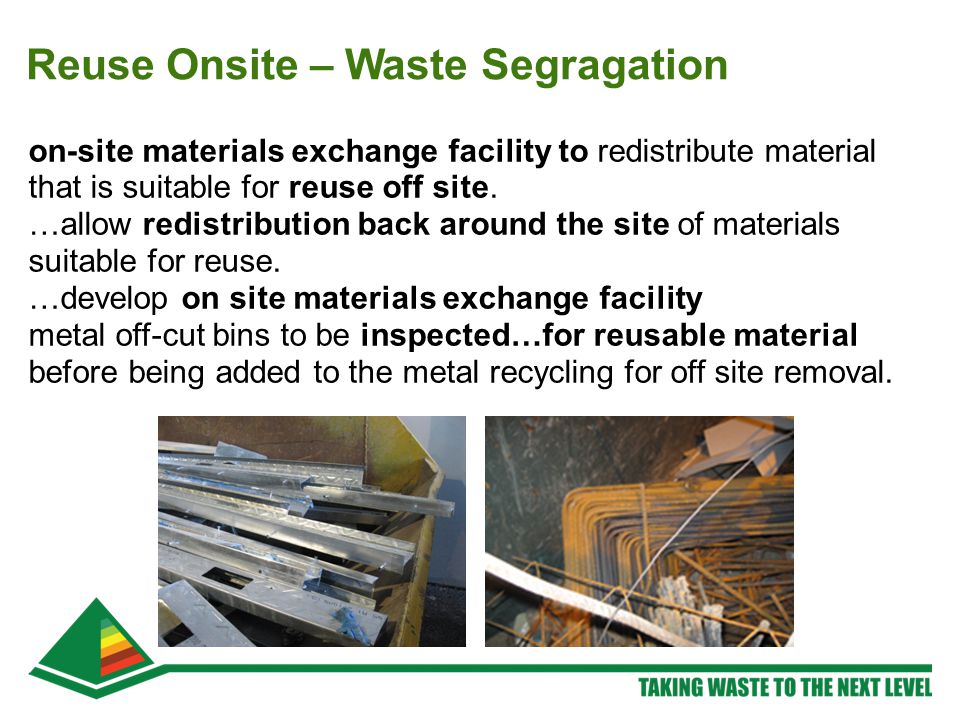

33 Reuse Onsite – Waste Segragation on-site materials exchange facility to redistribute material that is suitable for reuse off site. …allow redistribution back around the site of materials suitable for reuse. …develop on site materials exchange facility metal off-cut bins to be inspected…for reusable material before being added to the metal recycling for off site removal.

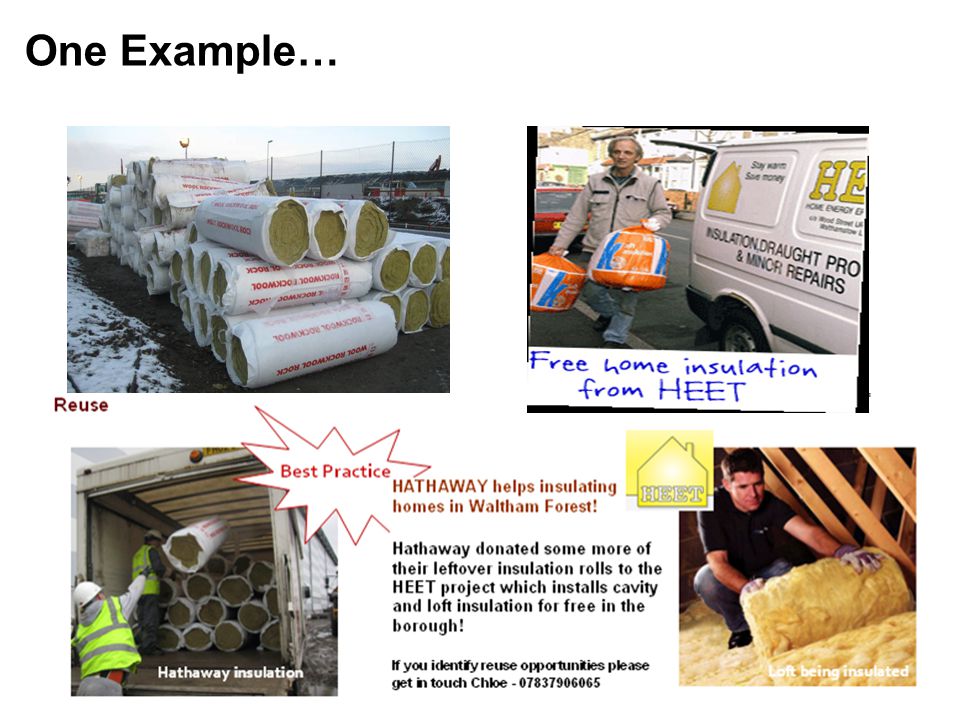

34 One Example…

35 ‘Arcola Theatre brings the very best of the worlds performing and visual arts to the people of the world living and working in London’ The Guardian

36 Reclaimed – other examples

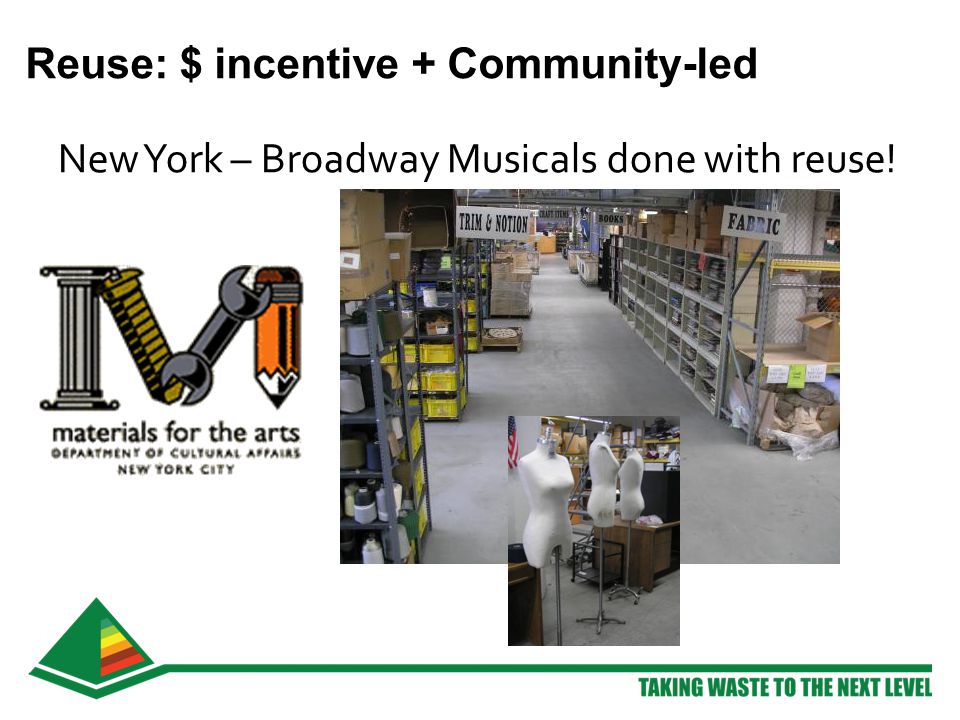

37 Reuse: $ incentive + Community-led New York – Broadway Musicals done with reuse!

38 M & E - overcome barriers

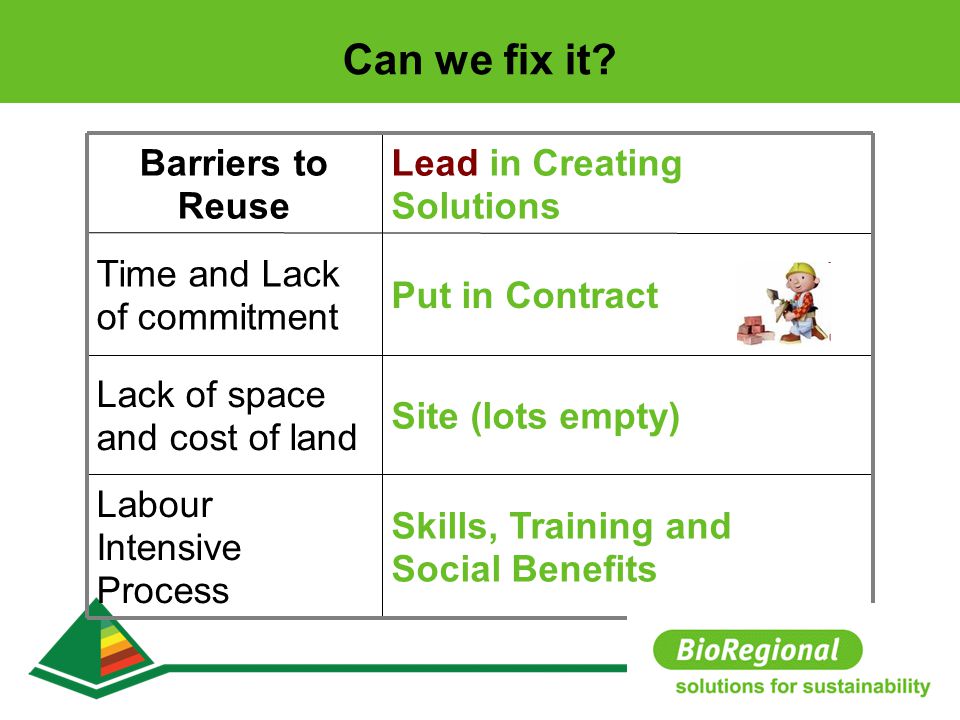

39 Barriers to Reuse Lead in Creating Solutions Time and Lack of commitment Put in Contract Lack of space and cost of land Site (lots empty) Labour Intensive Process Skills, Training and Social Benefits Can we fix it?

40 Yes We Can… in London Centres to Reuse All Products Mayor's Office Press ReleaseMayor's Office Press Release "£8m to create UK’s first city-wide reuse and repair service." (May 2010)

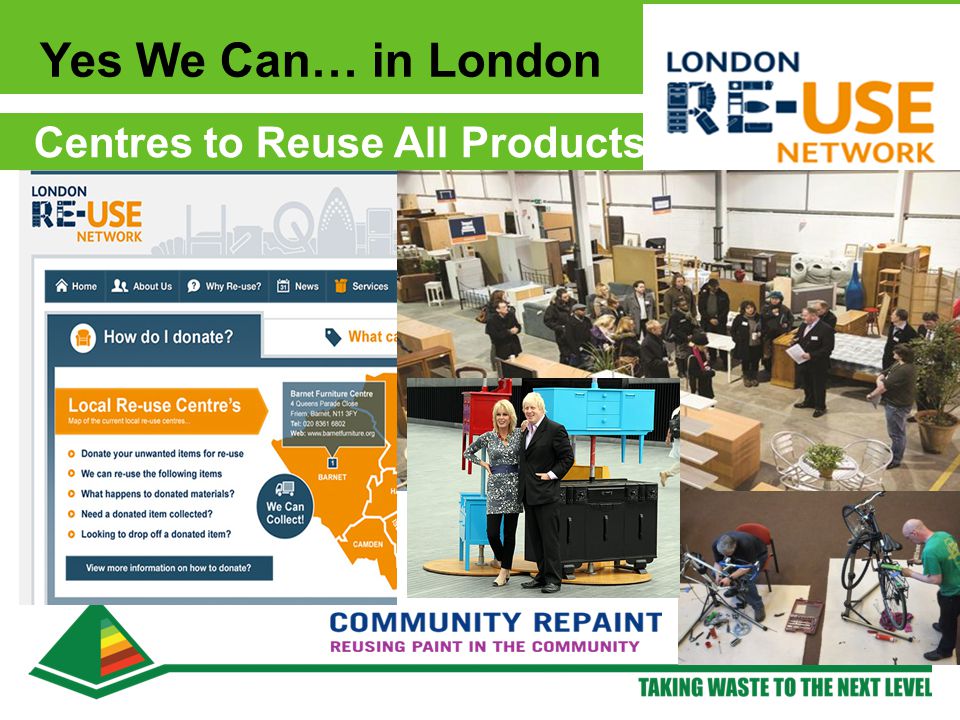

41 Yes We Can… in London Centres to Reuse All Products

42 Yes We Can… in London Centres to Reuse All Products Bricks, blocks, Paving, flags Plumbing, drainage Timber, windows, doors Paint/decorating supplies. fixing

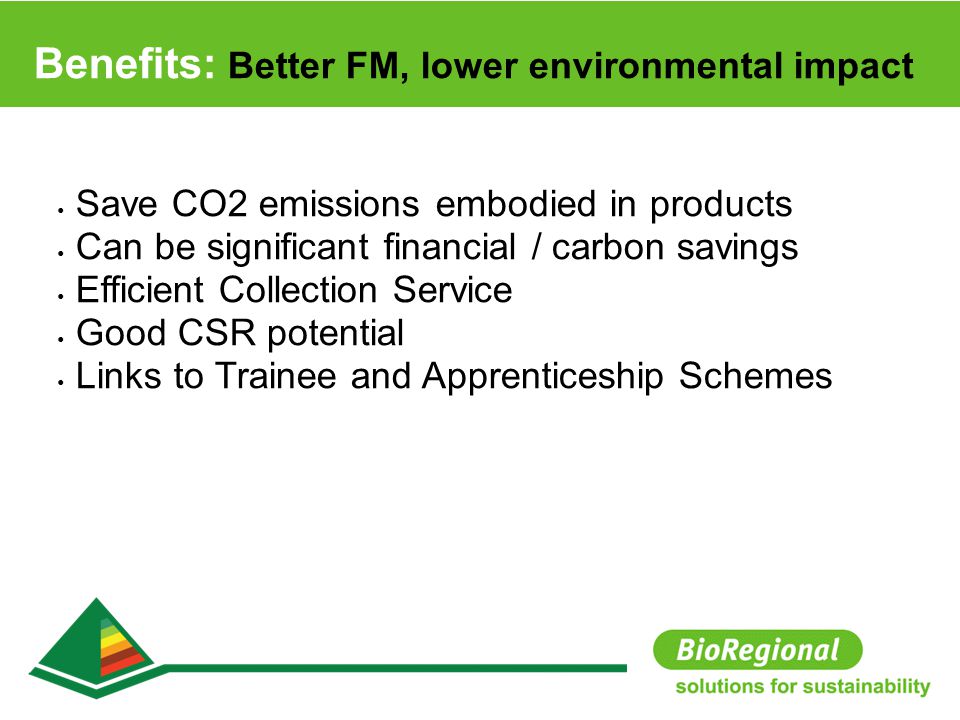

43 Save CO2 emissions embodied in products Can be significant financial / carbon savings Efficient Collection Service Good CSR potential Links to Trainee and Apprenticeship Schemes Benefits: Better FM, lower environmental impact

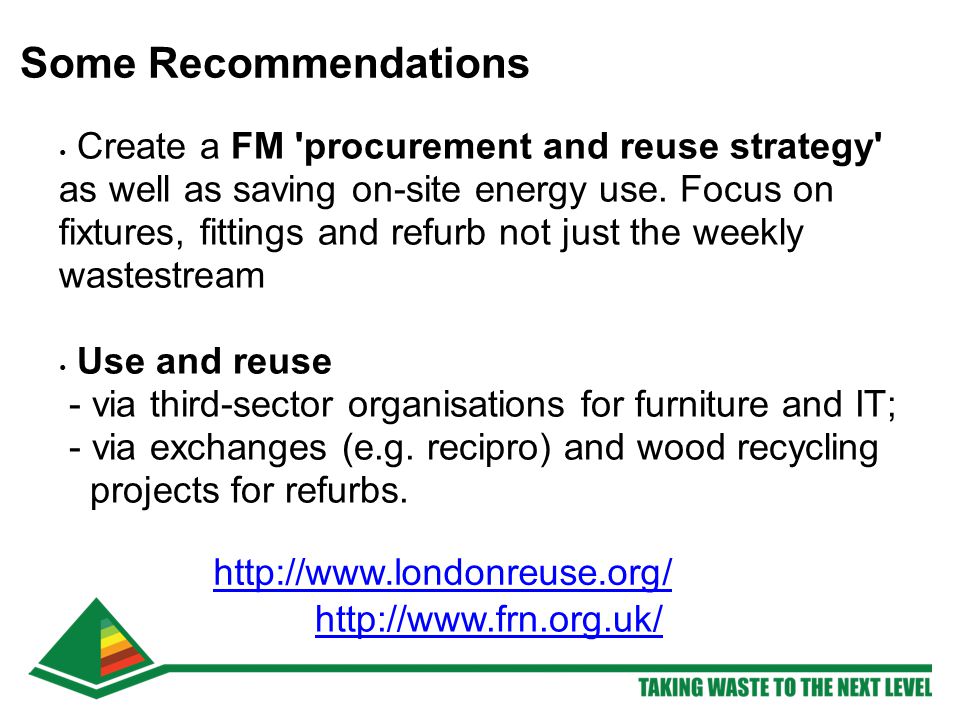

44 Some Recommendations Create a FM 'procurement and reuse strategy' as well as saving on-site energy use. Focus on fixtures, fittings and refurb not just the weekly wastestream Use and reuse - via third-sector organisations for furniture and IT; - via exchanges (e.g. recipro) and wood recycling projects for refurbs.

45 Thank You Jonathan Essex Sustainable Construction Manager, BioRegional 07801 541 924 27th September 2013
