1 Environmentally-friendly insulation systems made from natural wood fibres We care about your well-being

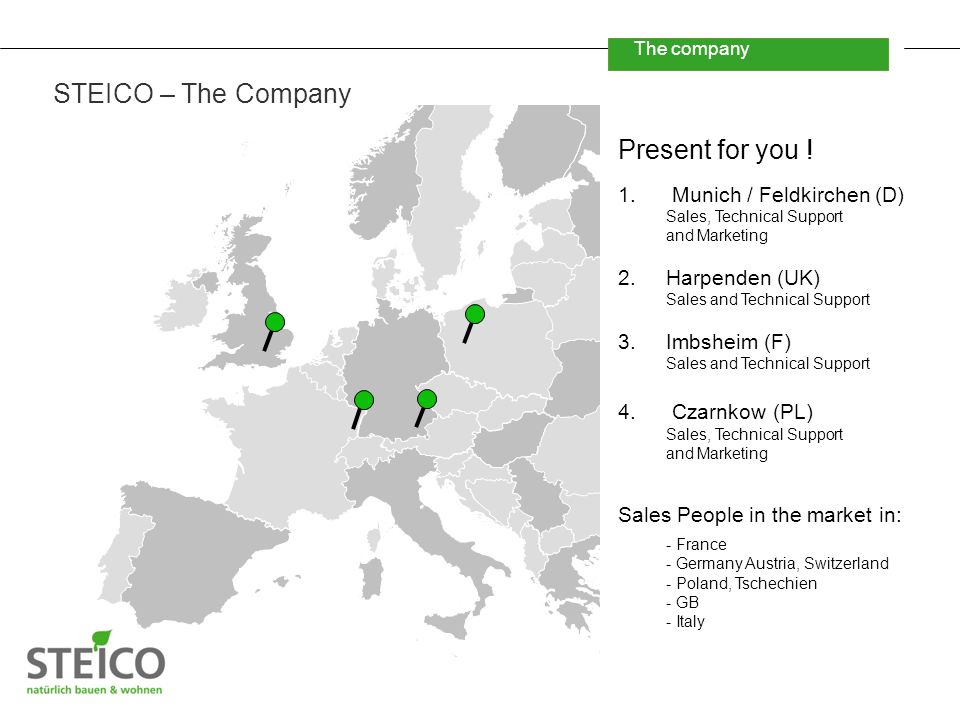

2 The company STEICO – The Company Present for you ! 1. Munich / Feldkirchen (D)  Sales, Technical Support  and Marketing 2.Harpenden (UK)  Sales and Technical Support 3.Imbsheim (F)  Sales and Technical Support 4. Czarnkow (PL)  Sales, Technical Support  and Marketing Sales People in the market in: - France - Germany Austria, Switzerland - Poland, Tschechien - GB - Italy

3 The company STEICO Available ! Hemp and wood fibre insulation, Panels and I Joist from Mill in Czarnkow (PL) Wood fibre insulation and Panels from Mill in Casteljaloux (F) Wood fibre insulation and Panels from Mill in Czarna Woda (PL) Total 900 employees

4 Product knowledge

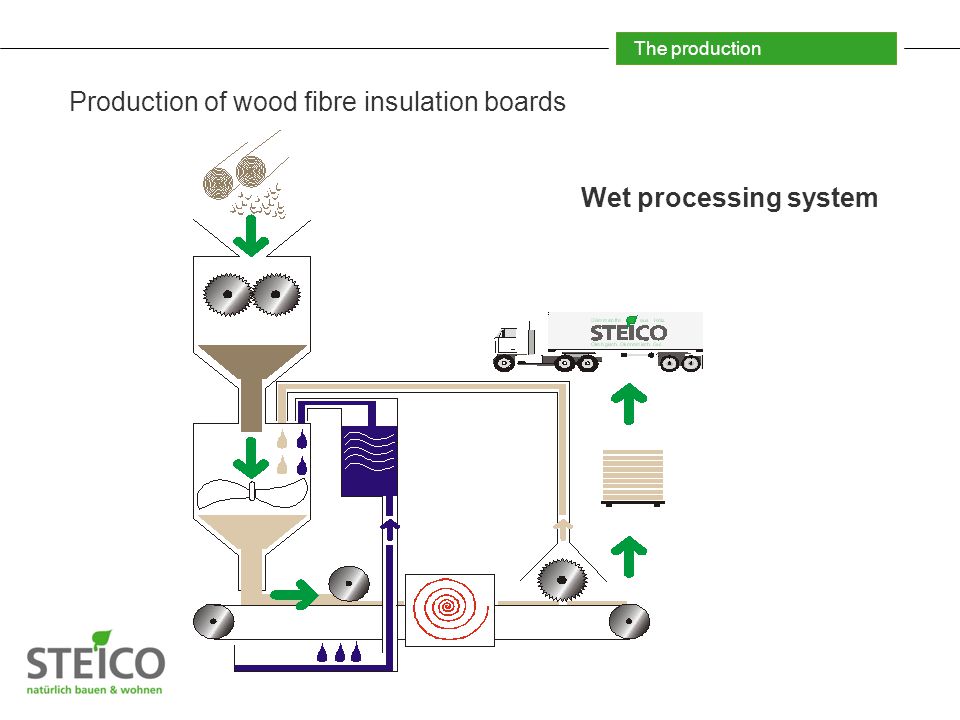

5 The production Production of wood fibre insulation boards Wet processing system

6 Product knowledge

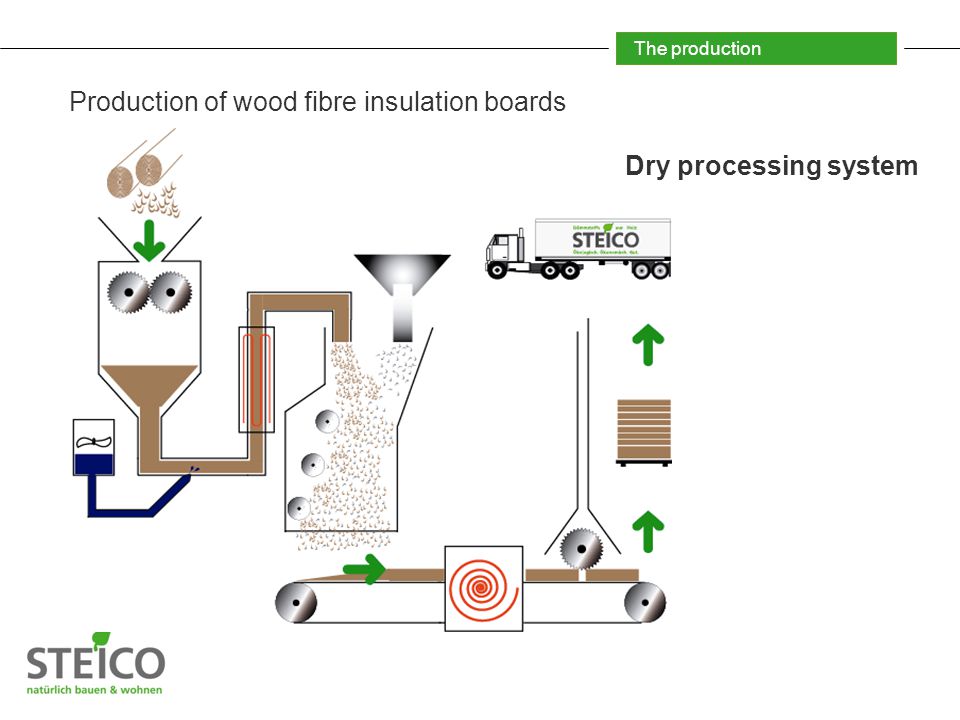

7 The production Production of wood fibre insulation boards Dry processing system

8 Product knowledge

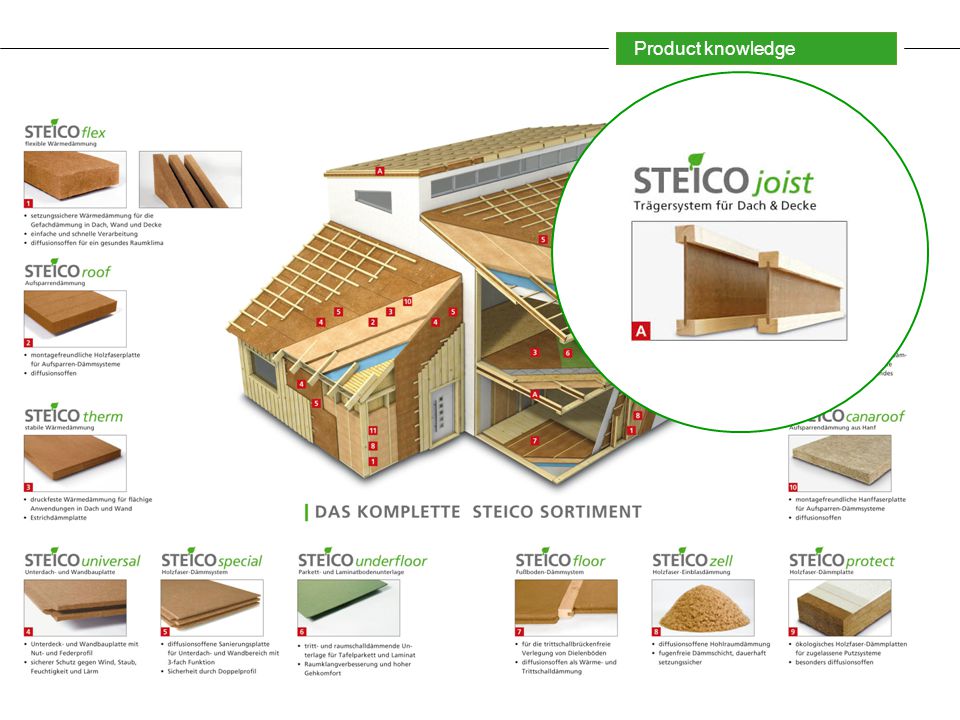

9

10 The production I joist Production production area ca m² built in 2006 includes mechanical grading for flange material total capacity of 50 Mio. linea metre Investment 12 Mio. Euro

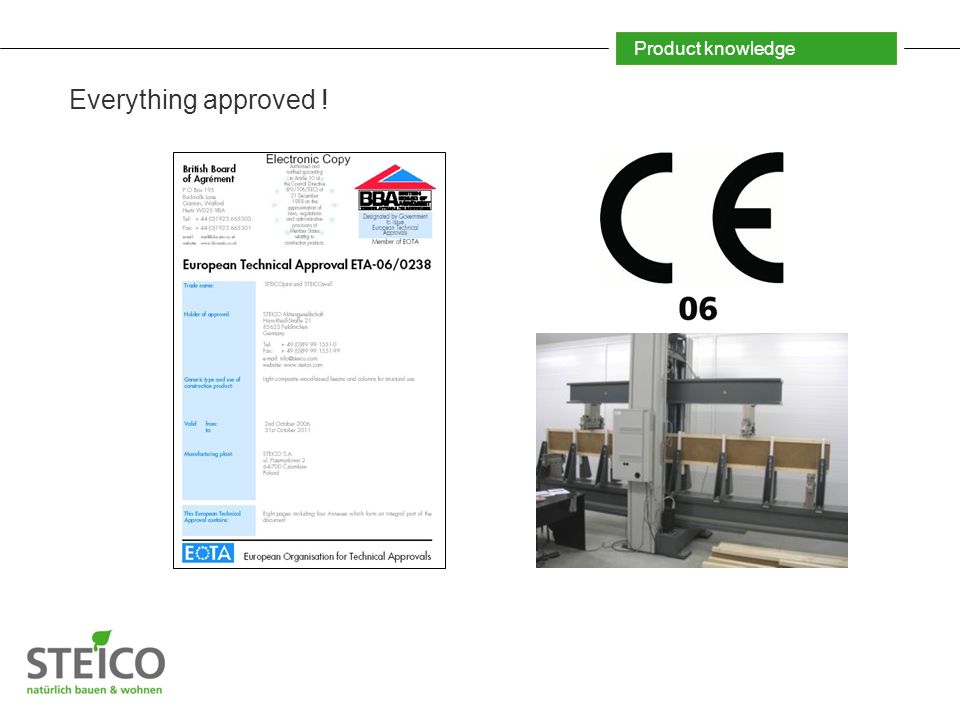

11 Product knowledge Everything approved !

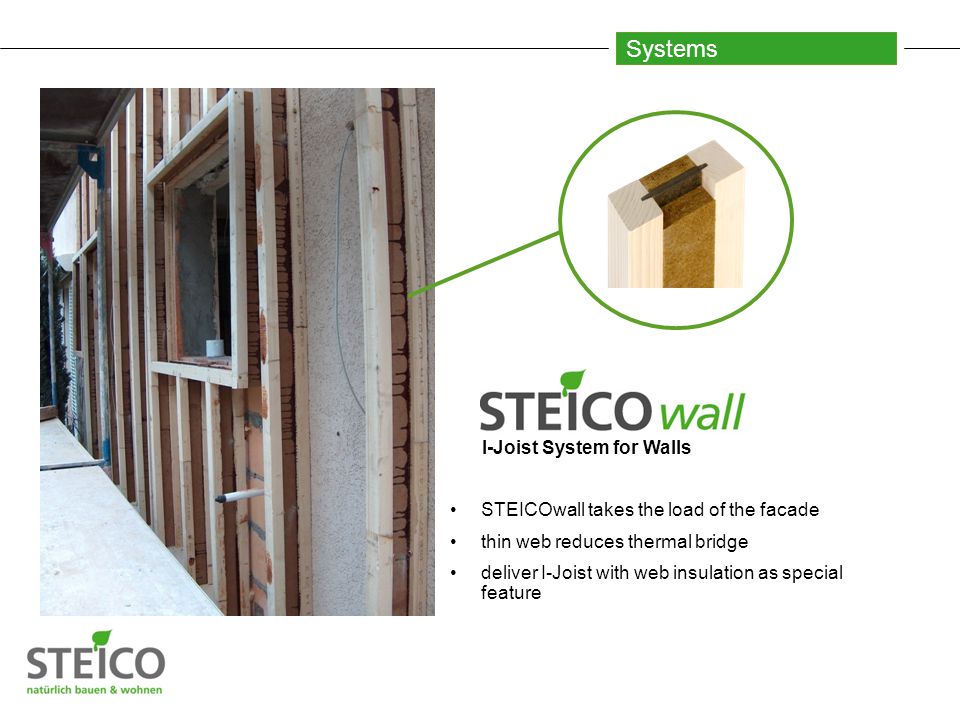

12 Systems I-Joist System for Walls STEICOwall takes the load of the facade thin web reduces thermal bridge deliver I-Joist with web insulation as special feature

13 Product Size 1300 x 590 mm 2600 x 1180 mm Thickness(20) / 40 – 80 mm Thermal conductivity0,049 W/(m*K) Densityapp. 250 kg/m³

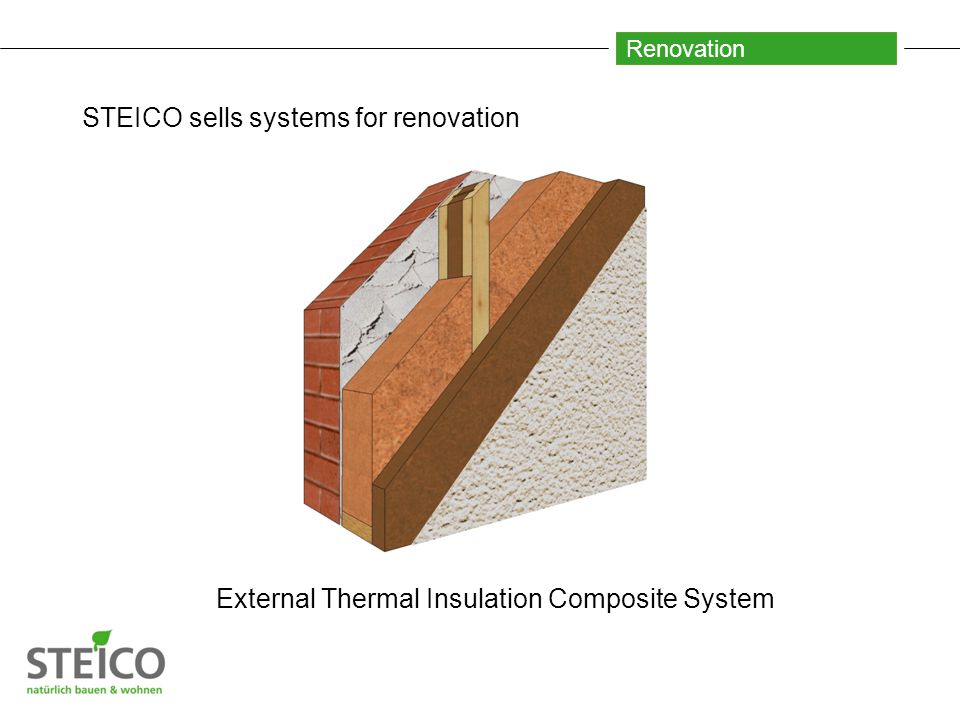

14 Renovation STEICO sells systems for renovation External Thermal Insulation Composite System

15 Benefit for the Customer

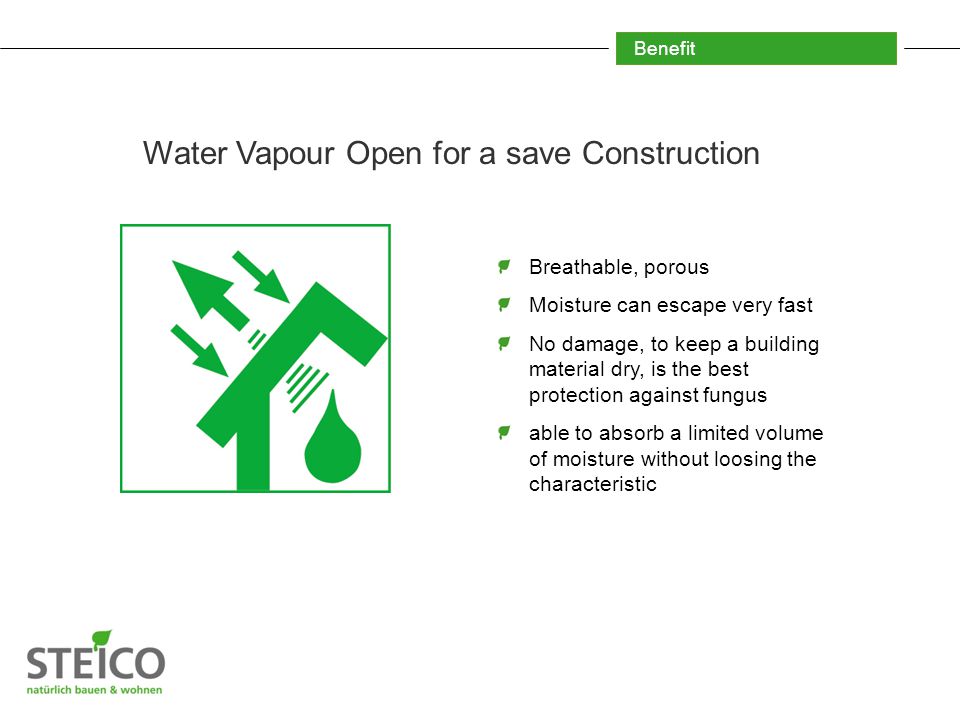

16 Benefit Water Vapour Open for a save Construction Breathable, porous Moisture can escape very fast No damage, to keep a building material dry, is the best protection against fungus able to absorb a limited volume of moisture without loosing the characteristic

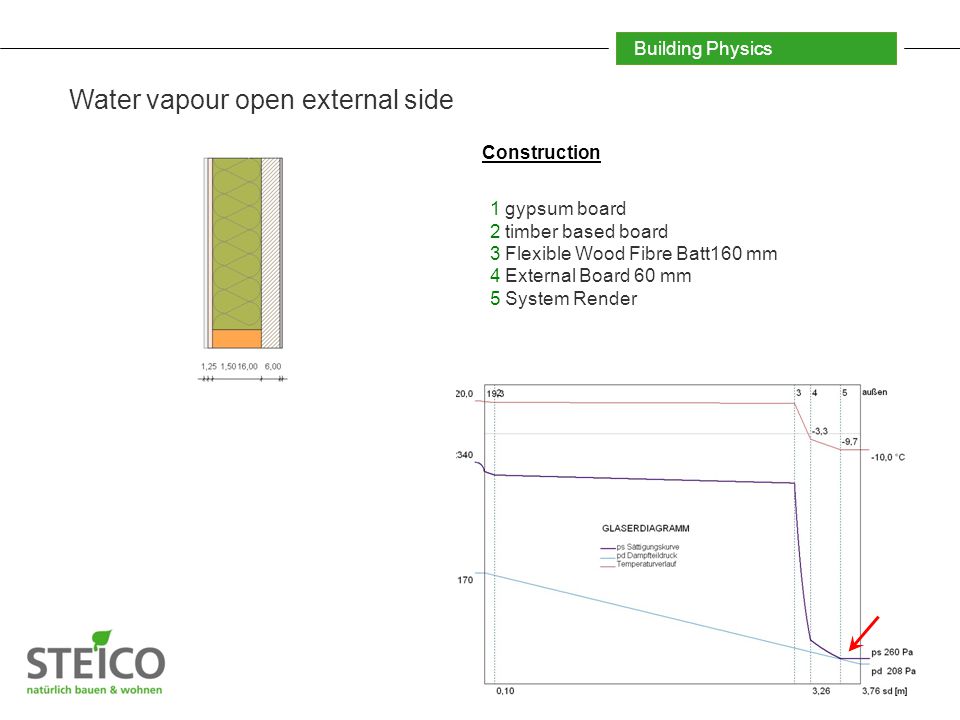

17 Building Physics Water vapour open external side 1 gypsum board 2 timber based board 3 Flexible Wood Fibre Batt160 mm 4 External Board 60 mm 5 System Render Construction

18 Building Physics External side with a diffusion barrier 1 gypsum board 2 timber based board 3 Flexible Wood Fibre Batt 160 mm 4 Polystyrene 040, diffusion barrier 5 Render system Construction m W,T = 157 g/m² m W,V = 277 g/m²

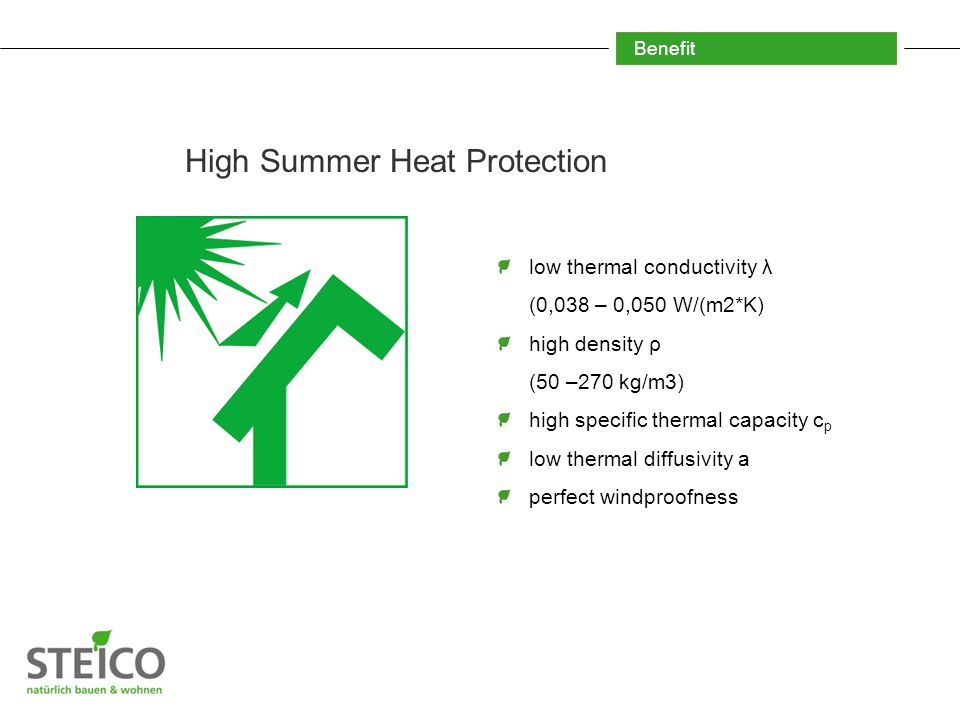

19 Benefit High Summer Heat Protection low thermal conductivity λ (0,038 – 0,050 W/(m2*K) high density ρ (50 –270 kg/m3) high specific thermal capacity c p low thermal diffusivity a perfect windproofness

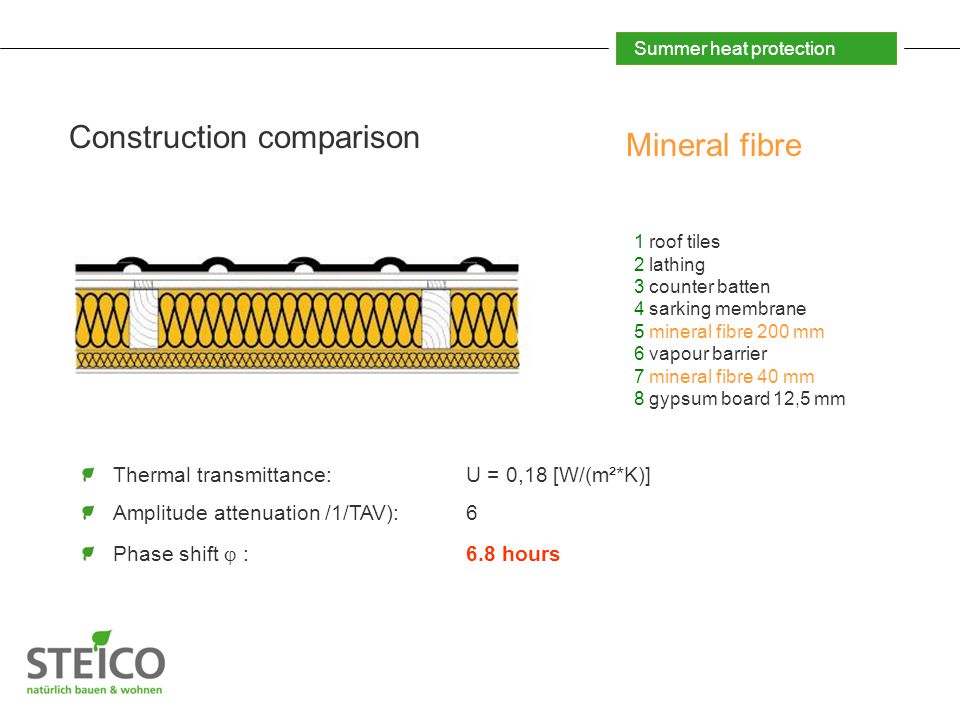

20 Summer heat protection Construction comparison 1 roof tiles 2 lathing 3 counter batten 4 sarking membrane 5 mineral fibre 200 mm 6 vapour barrier 7 mineral fibre 40 mm 8 gypsum board 12,5 mm Mineral fibre Thermal transmittance: U = 0,18 [W/(m²*K)] Amplitude attenuation /1/TAV):6 Phase shift  :6.8 hours

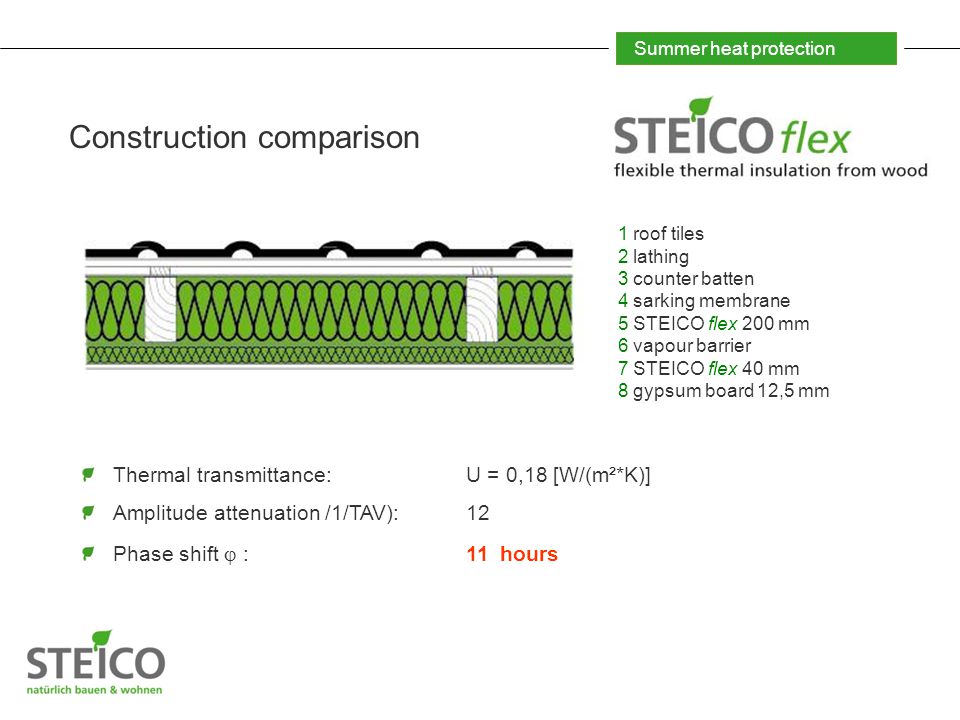

21 Summer heat protection Construction comparison Thermal transmittance: U = 0,18 [W/(m²*K)] Amplitude attenuation /1/TAV):12 Phase shift  :11 hours 1 roof tiles 2 lathing 3 counter batten 4 sarking membrane 5 STEICO flex 200 mm 6 vapour barrier 7 STEICO flex 40 mm 8 gypsum board 12,5 mm

22 Benefit Sustainible row materials Helps to bind CO 2 Using fast growing hemp or pine wood fibre Production is based direct in the forest, reduces expenditure for row material transportation No synthetic glue required, only produced with natural lignin

23 Benefit Easy Handling Stability during installation Excellent stiffness keeps the material in shape Natural fibre does not cause any allergy

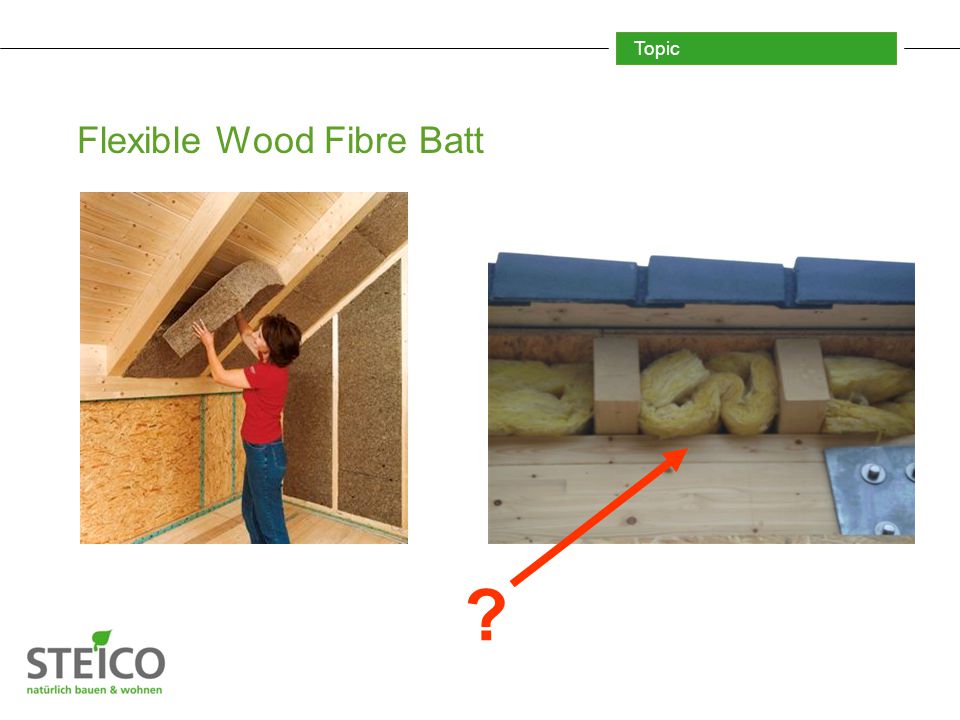

24 Topic Flexible Wood Fibre Batt ?

25 Benefit High Sound Improvement high density ρ (50 –270 kg/m3) Soft surface with the possibility to use flexible wood fibre

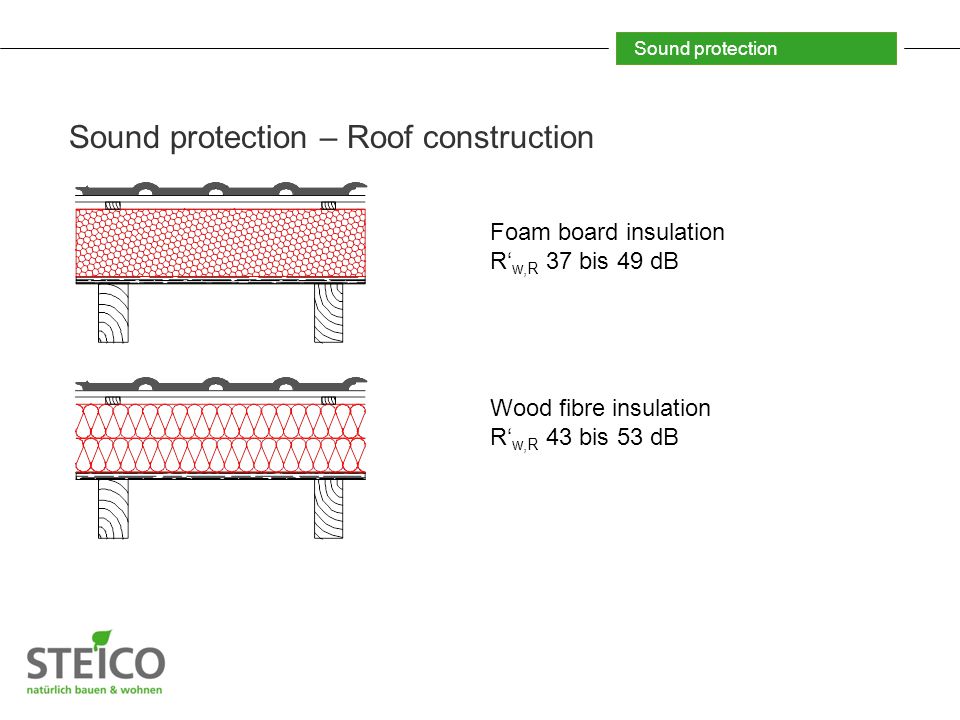

26 Sound protection Sound protection – Roof construction Foam board insulation R‘ w,R 37 bis 49 dB Wood fibre insulation R‘ w,R 43 bis 53 dB

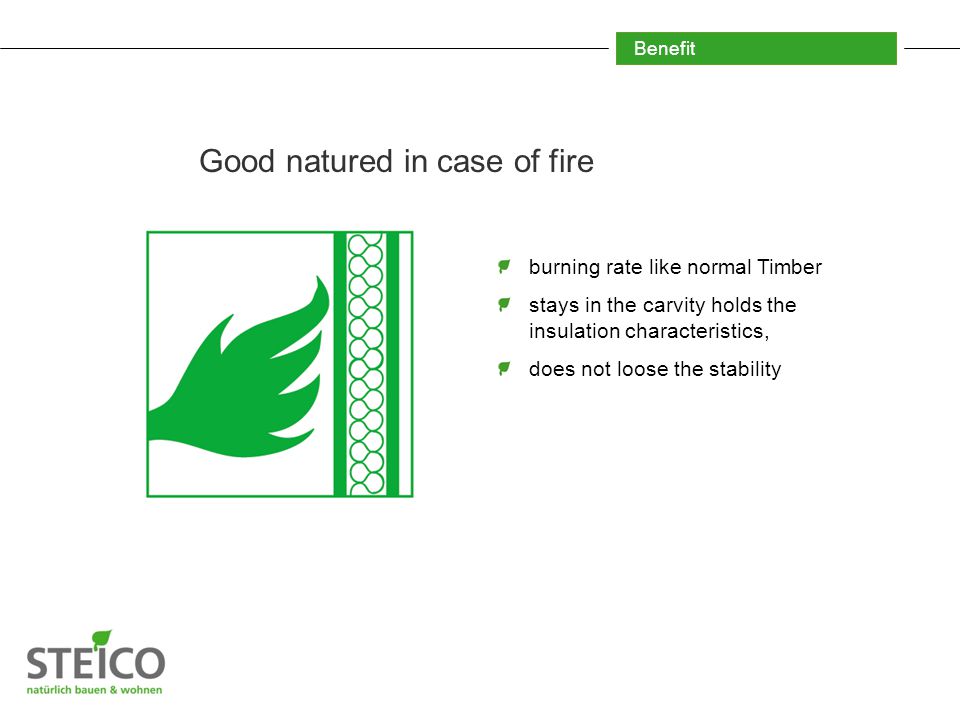

27 Benefit Good natured in case of fire burning rate like normal Timber stays in the carvity holds the insulation characteristics, does not loose the stability

28 Fire class Comparison: natural fibre to mineral wool

29 Benefit Natural insulation with aproved quality Production certified ISO 9001: 2000

30 Service Sales tools Check listTechnical GuideLiterature to convince the end user

31 Thanks for your Attention
