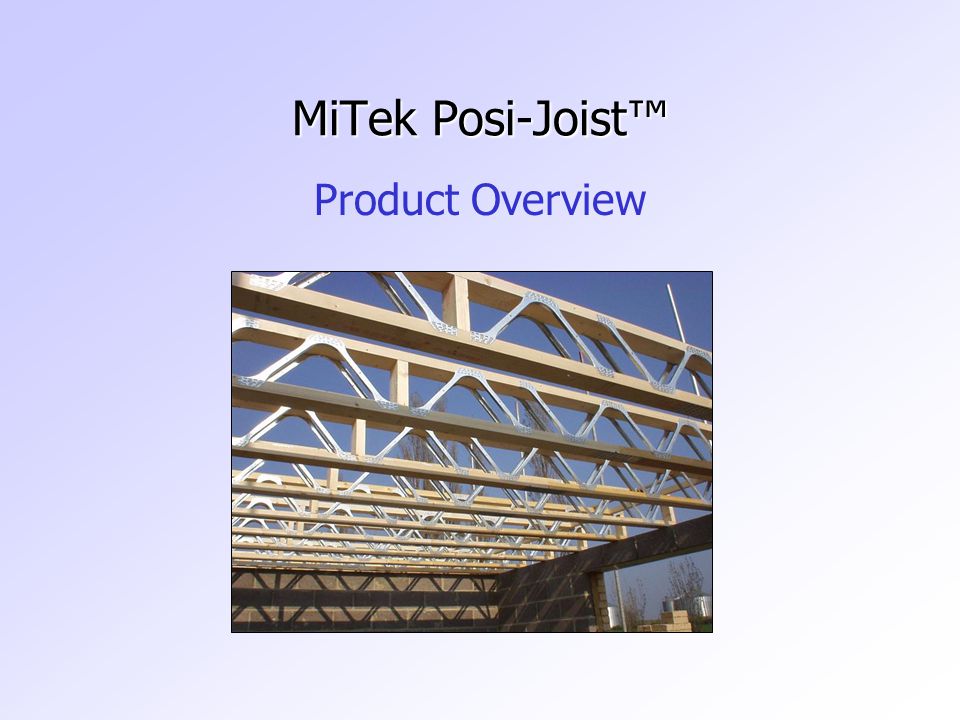

1 MiTek Posi-Joist™ Product Overview

2 What is a Posi-Joist™ ? In Essence they are Warren Girders Manufactured from TR26 Grade Truss Timber & Posi-Strut™ Steel Webs

3 Common Questions What depths do they come in?

4 Posi-Joist™ Depths Posi-Strut™Overall DepthGap Depth PS8202mm108mm PS9N225mm131mm PS10N254mm160mm PS12302mm208mm PS14N373mm279mm PS16N421mm327mm However There are also a number of factors to consider here, like span, centres, flange width and loading conditions. Beams may also be on edge With 47mm timber on flat, there are 6 sizes of web / joist

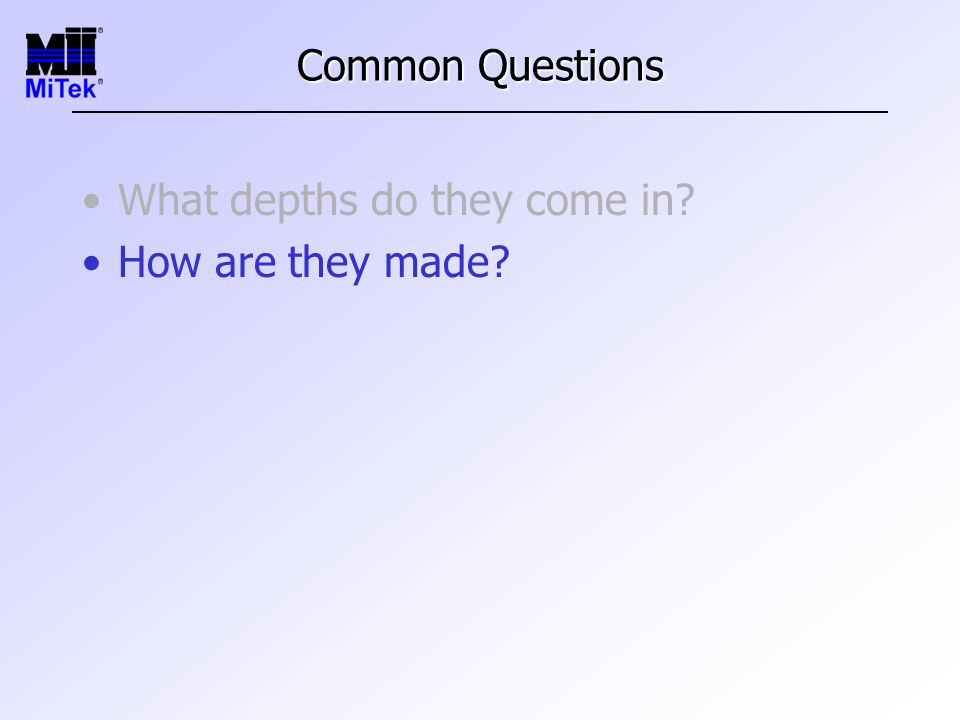

5 Common Questions What depths do they come in? How are they made?

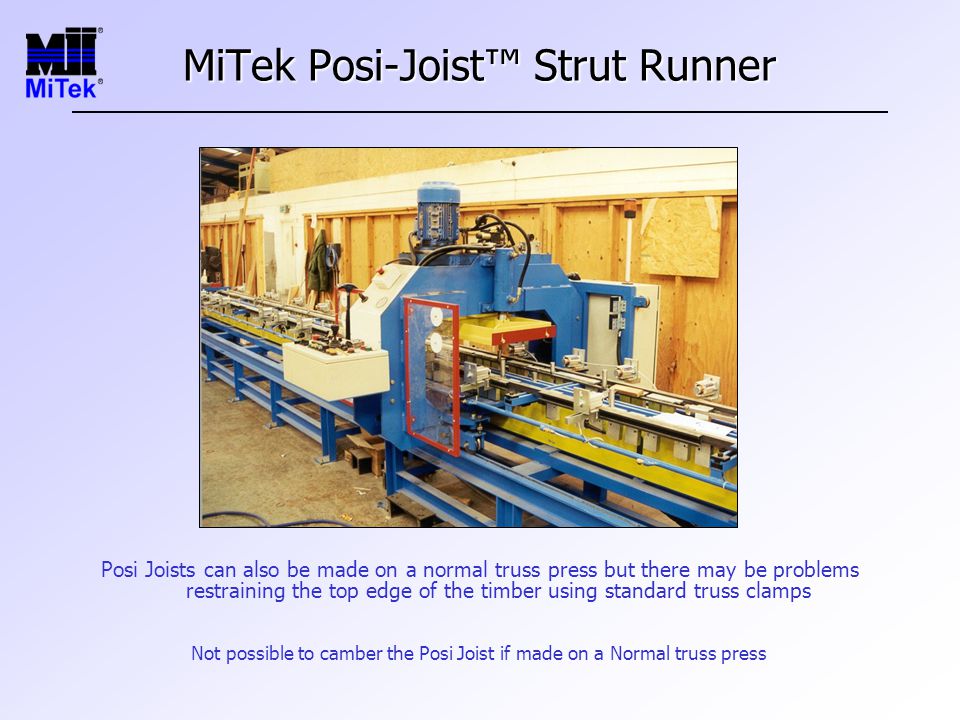

6 MiTek Posi-Joist™ Strut Runner Posi Joists can also be made on a normal truss press but there may be problems restraining the top edge of the timber using standard truss clamps Not possible to camber the Posi Joist if made on a Normal truss press

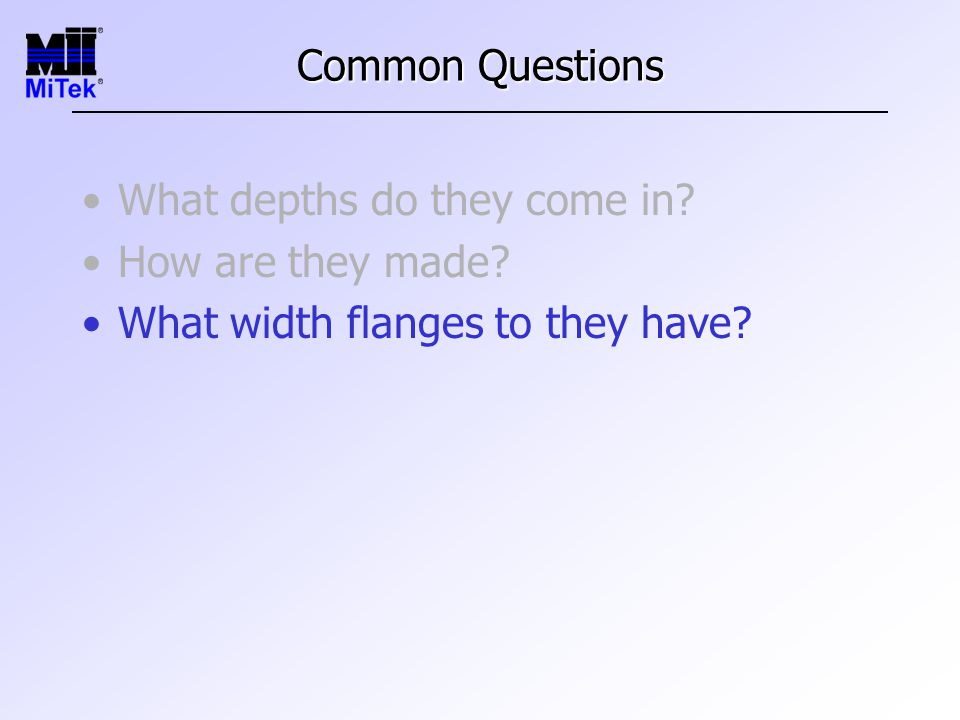

7 Common Questions What depths do they come in? How are they made? What width flanges to they have?

8 Flange Widths 47mm on edge 72mm - 147mm on flat Maximum 4ply on edge Maximum 2 ply on flat (Up to 294mm) On a standard run of joists you ideally want the flange width to be 72mm or 97mm on flat. Maximum recommended chords on edge are 97mm

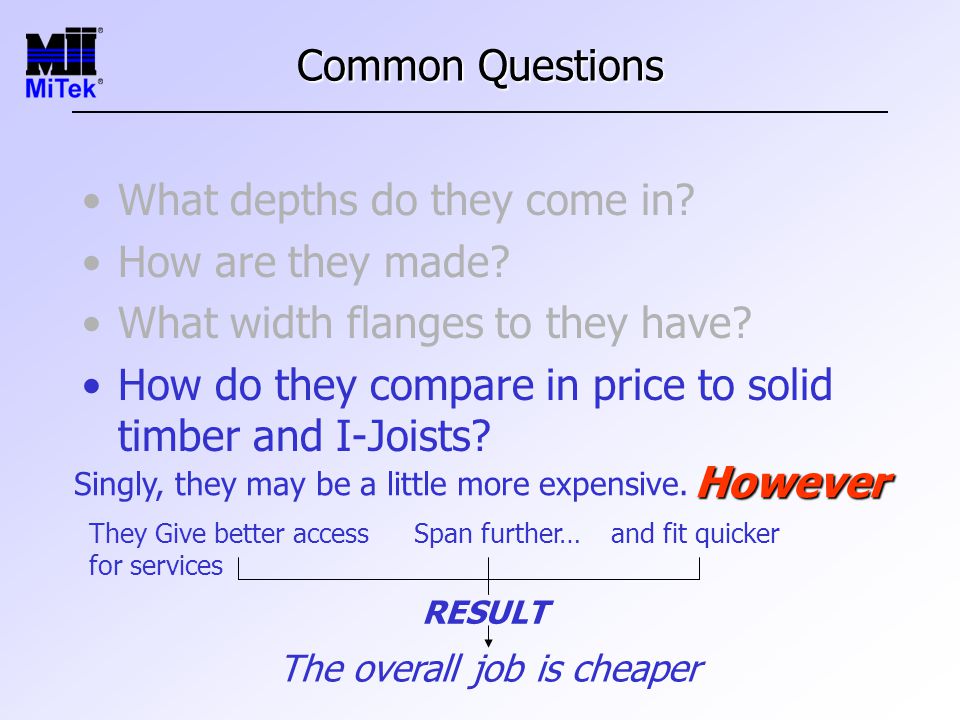

9 Common Questions What depths do they come in? How are they made? What width flanges to they have? How do they compare in price to solid timber and I-Joists? Singly, they may be a little more expensive. However and fit quickerSpan further…They Give better access for services RESULT The overall job is cheaper

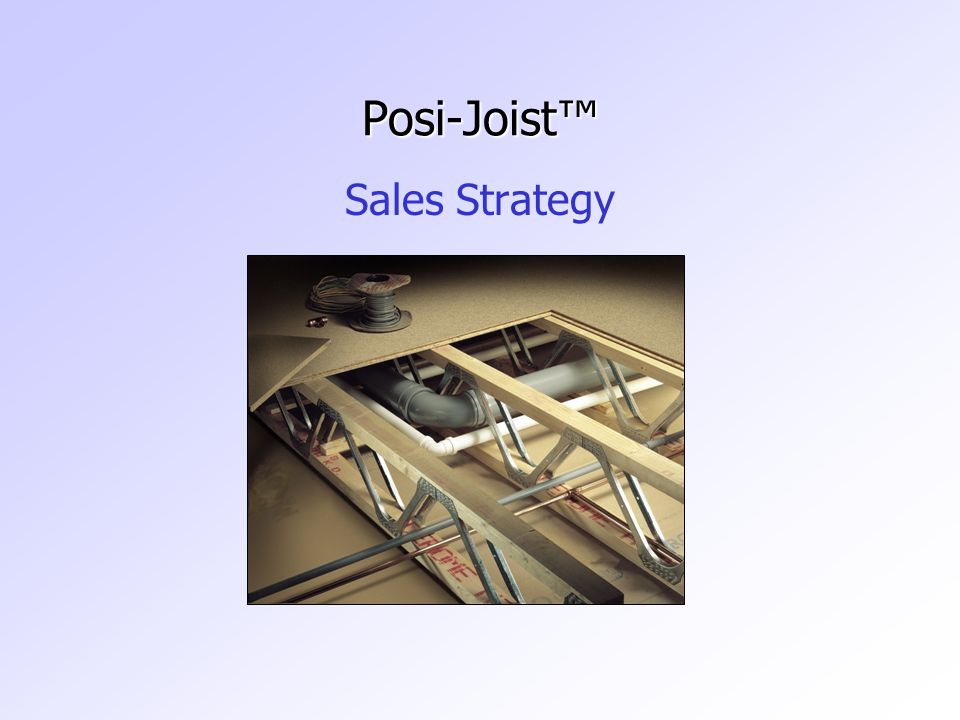

10 Posi-Joist™ Sales Strategy

11 Selling Points for Posi-Joist™ Access for services

12 Access for Services Note soil pipe next to the bearing

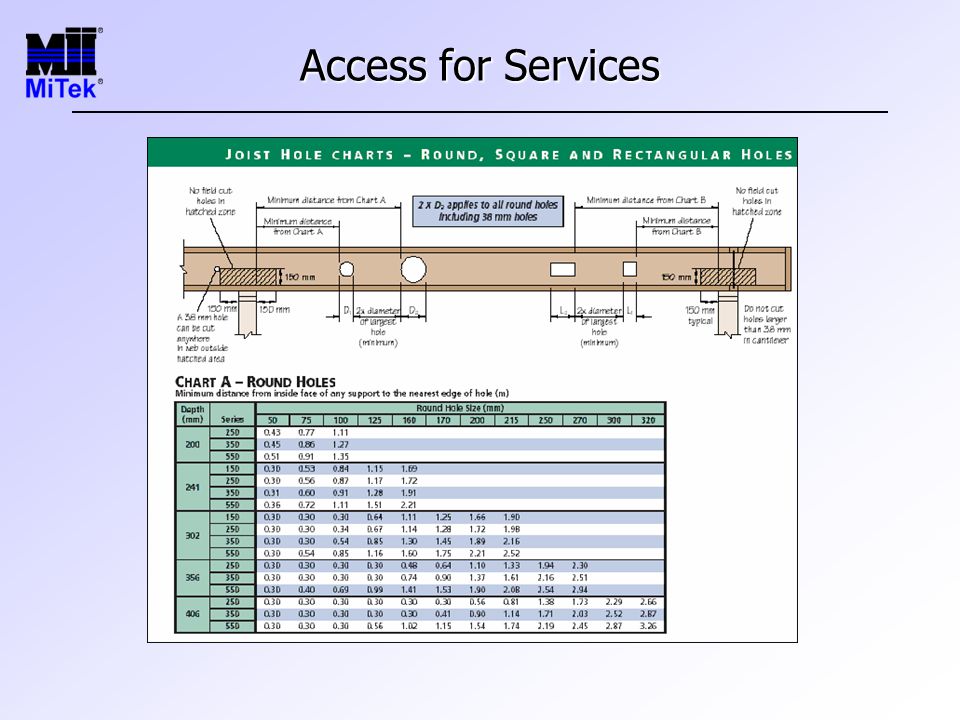

13 Access for Services

14 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist

15 I-Joist Span Tables 241 deep, Series 550 Rating 45 Spans 4.3m

16 Posi-Joist™ Spans 254 deep PS10N Spans 5.14m – That’s 0.84m more

17 Posi-Joist™ Spans Based on 400mm centres and standard loads 72mm97mm122mm147mm PS PS 9N PS 10N PS

18 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist Inherently stable – faster assembly, minimal bracing

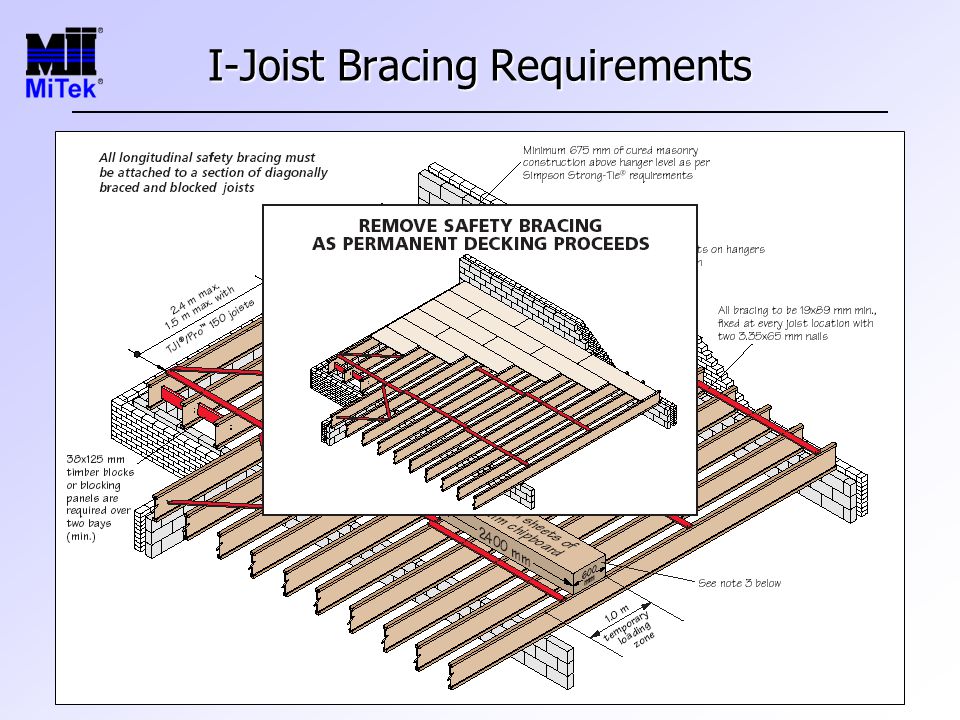

19 I-Joist Bracing Requirements

20 Posi-Joist™ Bracing Requirements

21 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist Inherently stable – faster assembly, minimal bracing Light weight

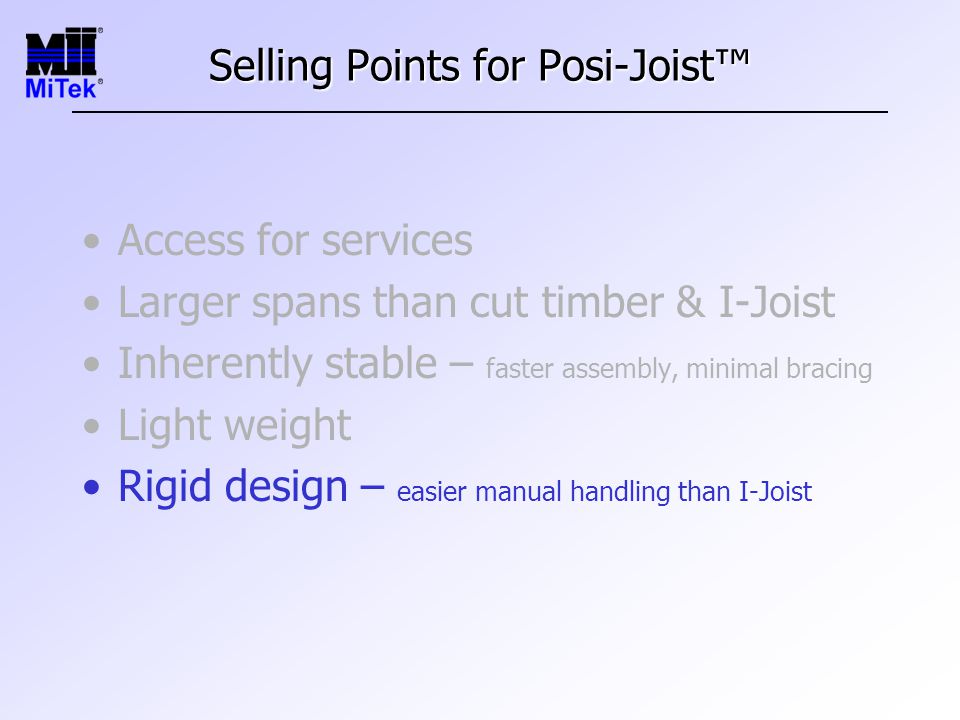

22 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist Inherently stable – faster assembly, minimal bracing Light weight Rigid design – easier manual handling than I-Joist

23 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist Inherently stable – faster assembly, minimal bracing Light weight Rigid design – easier manual handling than I-Joist Squeak free – cross grain shrinkage is minimal

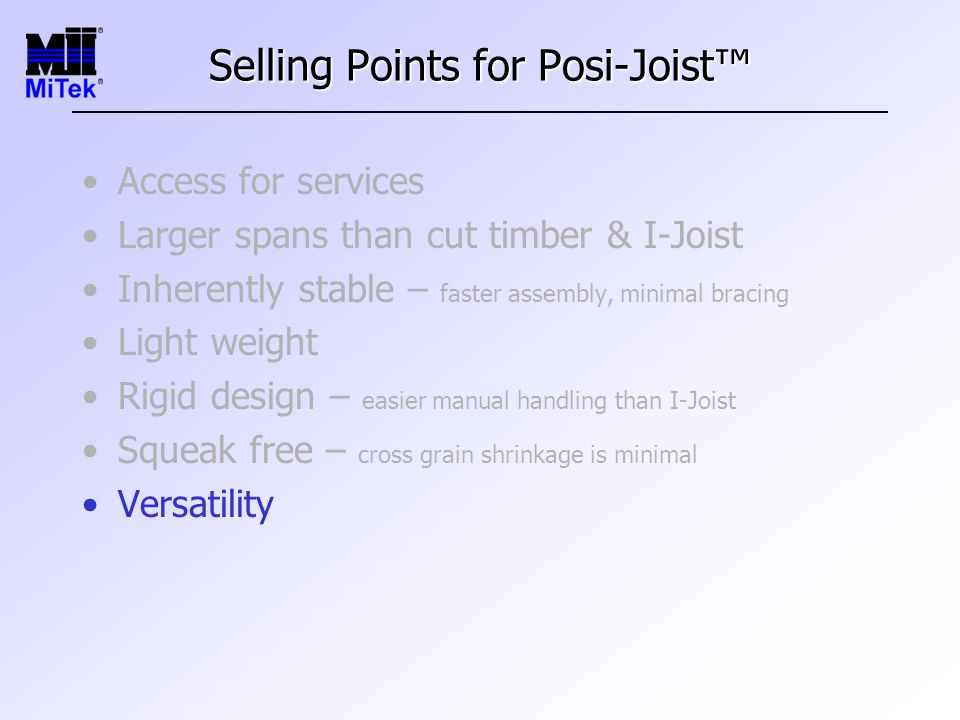

24 Selling Points for Posi-Joist™ Access for services Larger spans than cut timber & I-Joist Inherently stable – faster assembly, minimal bracing Light weight Rigid design – easier manual handling than I-Joist Squeak free – cross grain shrinkage is minimal Versatility

25 Posi-Joist™ Versatility TRIMMABLE ENDS TOP BEARING

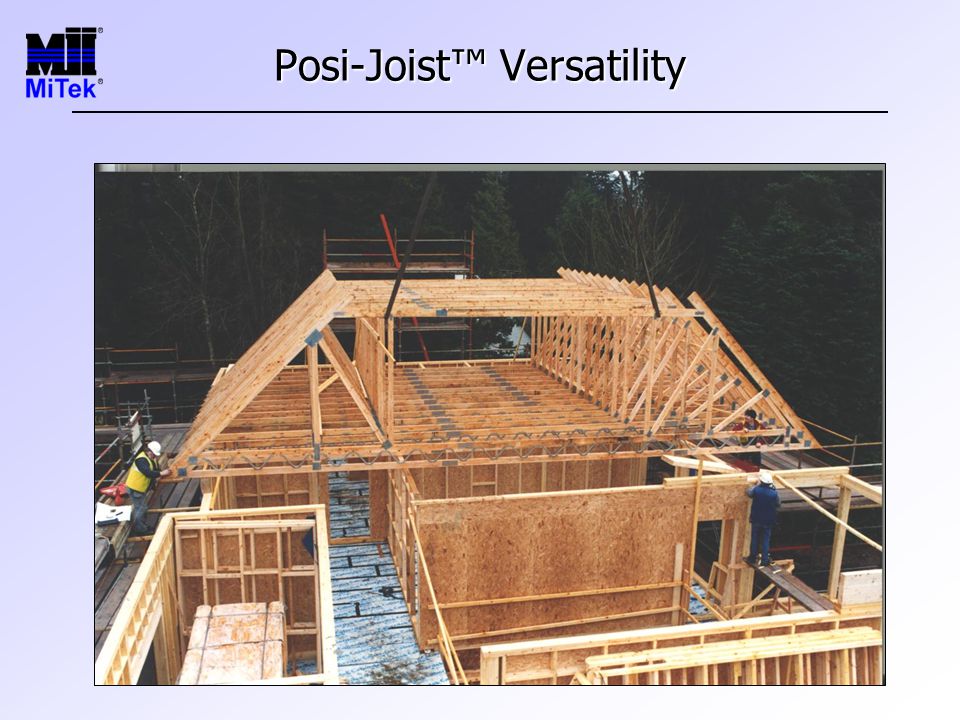

26 Posi-Joist™ Versatility

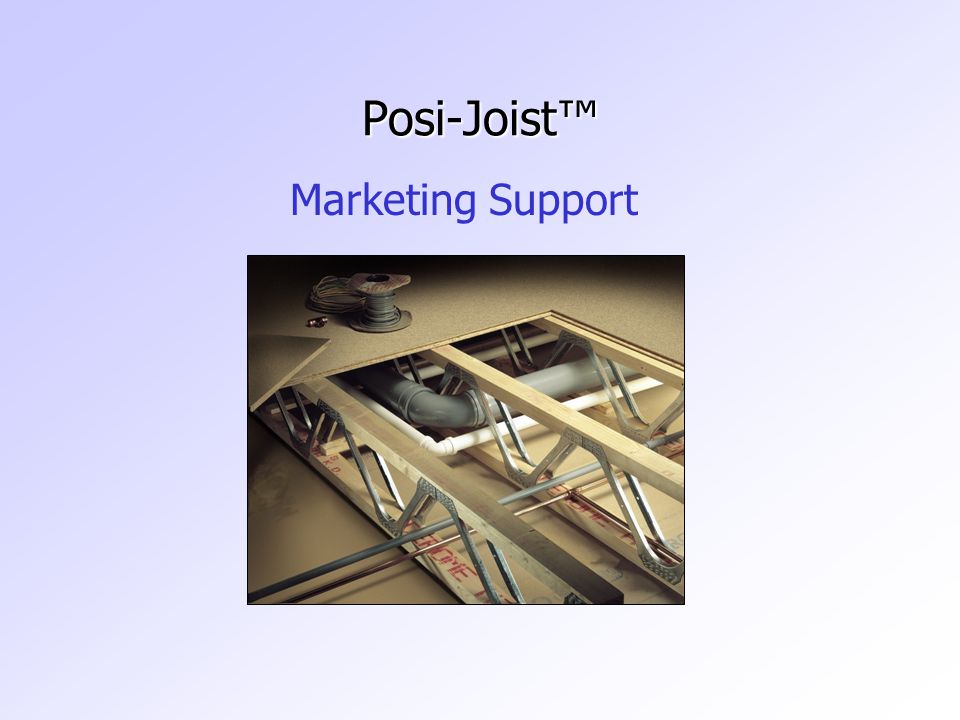

27 Posi-Joist™ Marketing Support

28 Monthly Adverts in Industry Publications House Builder Homebuilding and Renovating DABS Specifier Review A B C & D

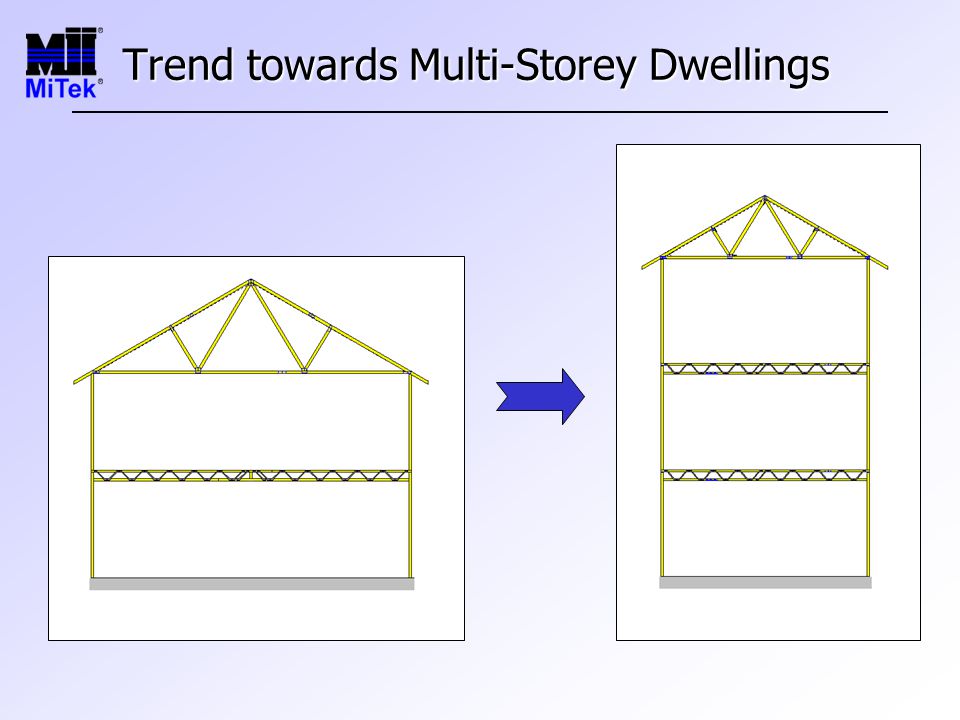

29 Trend towards Multi-Storey Dwellings

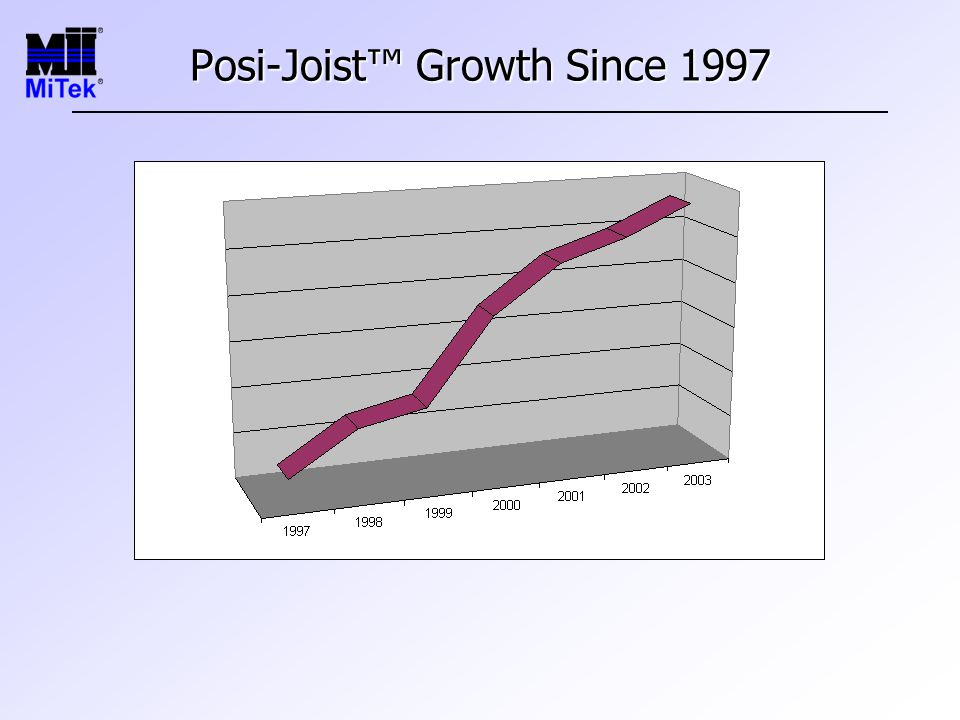

30 Posi-Joist™ Growth Since 1997

31 Posi-Joists™
