2

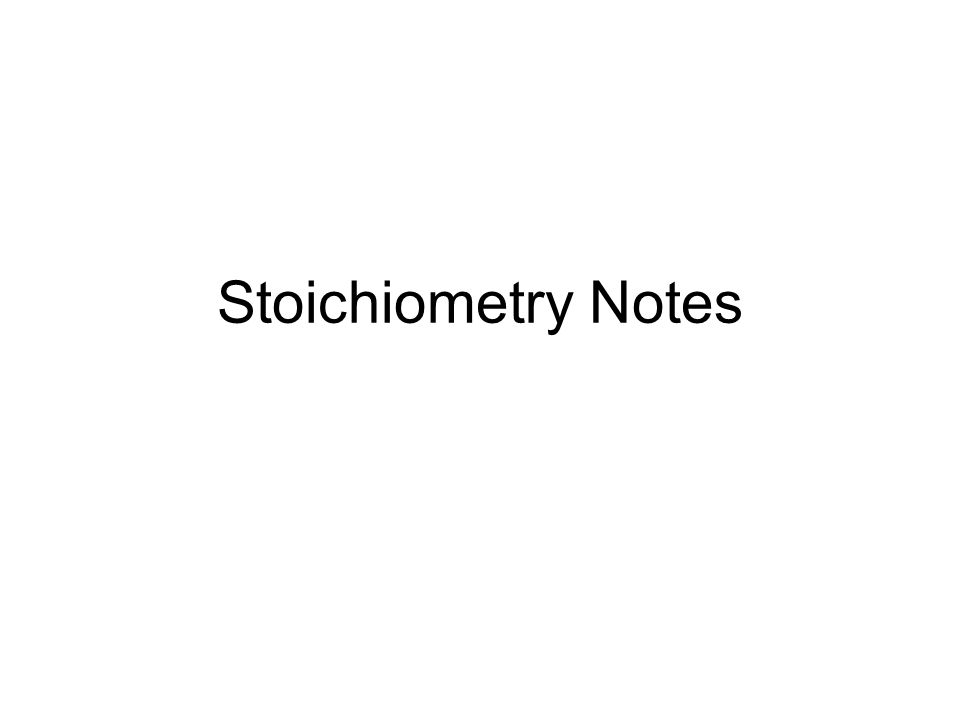

Stoichiometry Notes

3

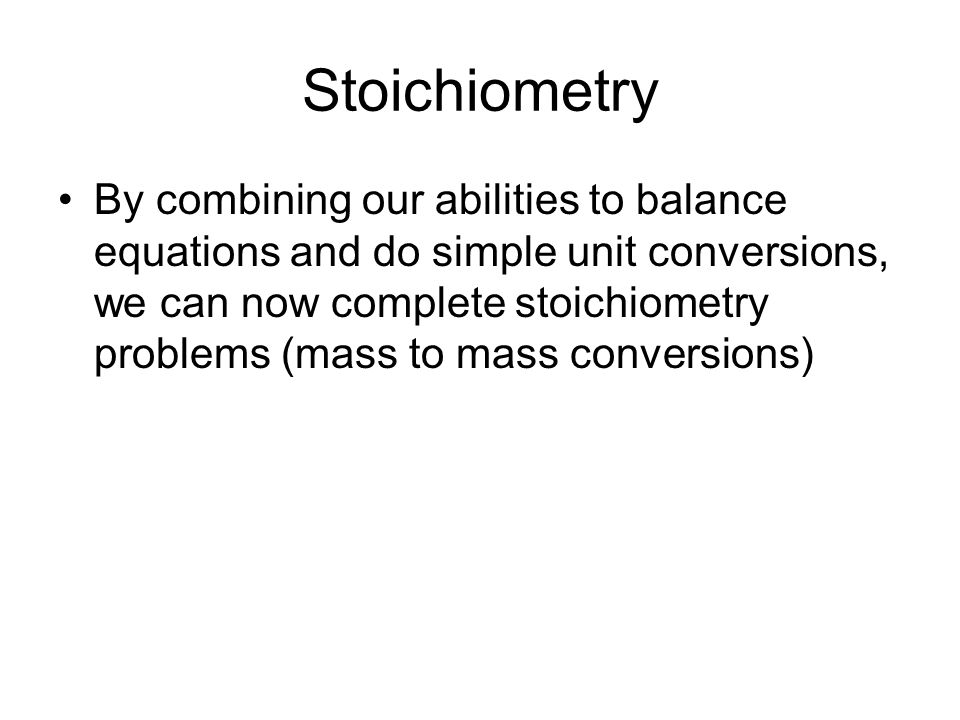

Stoichiometry By combining our abilities to balance equations and do simple unit conversions, we can now complete stoichiometry problems (mass to mass conversions)

4
Particle and Mole Relationships Chemical reactions stop when one of the reactants is used up. Stoichiometry is the study of quantitative relationships between the amounts of reactants used and amounts of products formed by a chemical reaction.Stoichiometry

5
Particle and Mole Relationships (cont.) Stoichiometry is based on the law of conservation of mass. The mass of reactants equals the mass of the products.

6
Particle and Mole Relationships (cont.)

7
A mole ratio is a ratio between the numbers of moles of any two substances in a balanced equation. Refer to coefficients in the balanced equation to determine the mole ratio.mole ratio

8
Stoichiometry Stoichiometry problems consist of predicting the amount of grams of product that will form from a reaction if you know how many grams of reactant you have, or predicting the number of grams of reactant that will be needed to produce a certain amount of product.

9

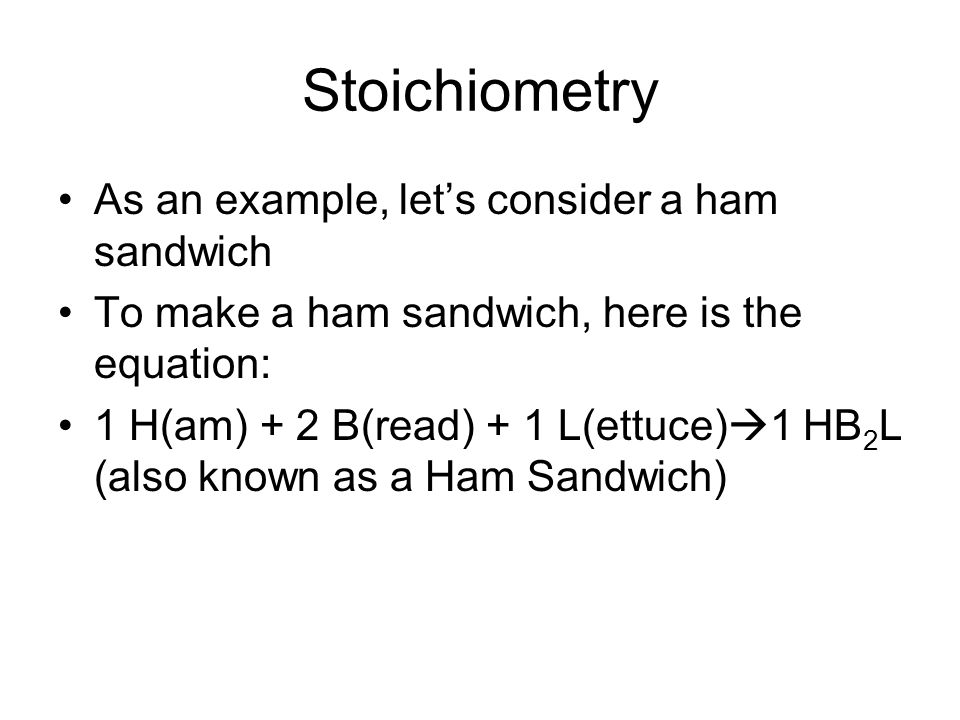

Stoichiometry As an example, let’s consider a ham sandwich To make a ham sandwich, here is the equation: 1 H(am) + 2 B(read) + 1 L(ettuce) 1 HB 2 L (also known as a Ham Sandwich)

10

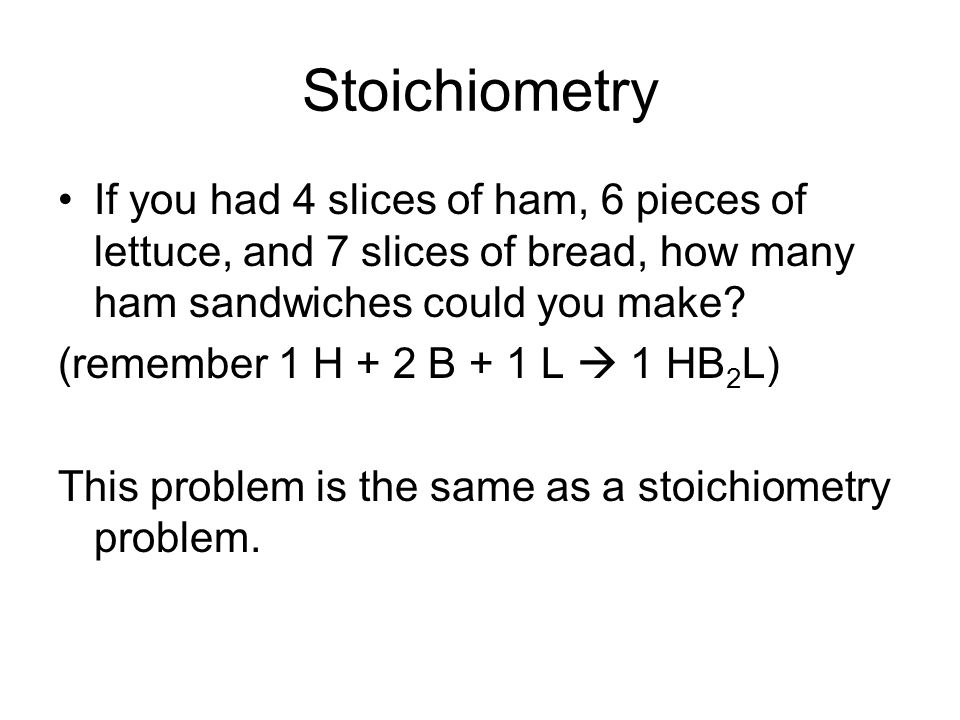

Stoichiometry If you had 4 slices of ham, 6 pieces of lettuce, and 7 slices of bread, how many ham sandwiches could you make? (remember 1 H + 2 B + 1 L 1 HB 2 L) This problem is the same as a stoichiometry problem.

11

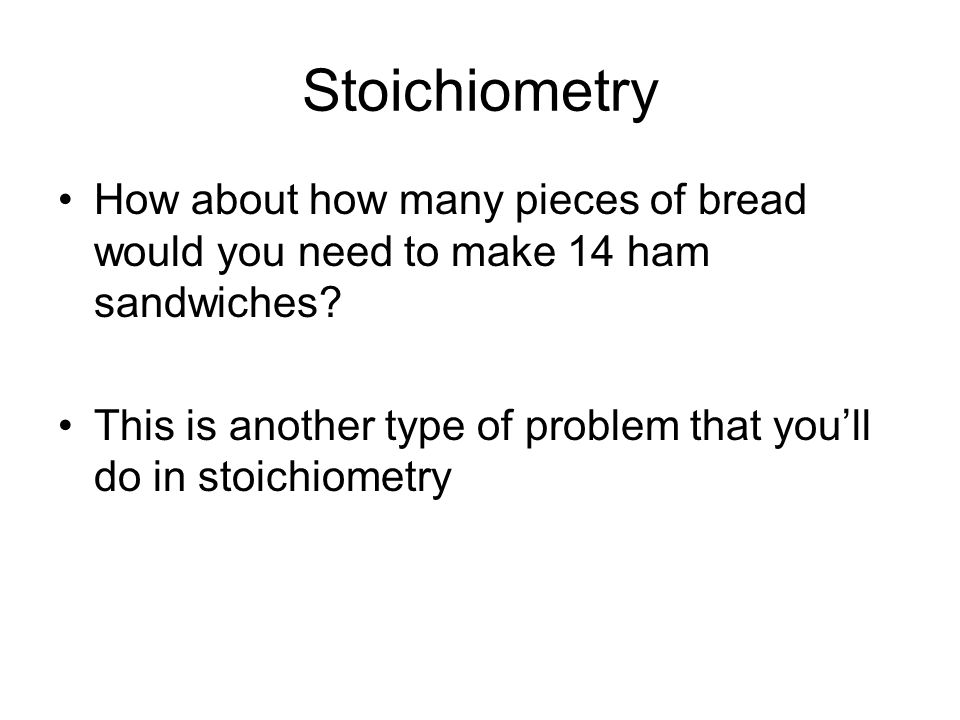

Stoichiometry How about how many pieces of bread would you need to make 14 ham sandwiches? This is another type of problem that you’ll do in stoichiometry

12
Using Stoichiometry All stoichiometric calculations begins with a balanced chemical equation. 4Fe(s) + 3O 2 (g) 2Fe 2 O 3 (s)

13
Using Stoichiometry (cont.)

14
Steps to solve mole-to-mole, mole-to- mass, and mass-to-mass stoichiometric problems 1.Complete Step 1 by writing the balanced chemical equation for the reaction. 2.To determine where to start your calculations, note the unit of the given substance. If mass (in grams) of the given substance is the starting unit, begin your calculations with Step 2. If amount (in moles) of the given substance is the starting unit, skip Step 2 and begin your calculations with Step 3.

15
Using Stoichiometry (cont.) 3. The end point of the calculation depends on the desired unit of the unknown substance. If the answer must be in moles, stop after completing Step 3. If the answer must be in grams, stop after completing Step 4.

16
Stoichiometry We will solve these problems using a “T” chart just like we did for unit conversions, but we will add additional cells Given infoUnits to convert intoUnits to convert into etc Units to cancelUnits to canceletc and we use additional conversion factors

17
http://www.mhhe.com/physsci/chemistry/e ssentialchemistry/flash/limitr15.swfhttp://www.mhhe.com/physsci/chemistry/e ssentialchemistry/flash/limitr15.swf

18
How would you determine how many ham sandwiches you could make if you had 16 g of bread? Ham = 2.1 g per slice Lettuce = 1.8 g per slice Bread = 2.4 g per slice

19
Stoichiometry The additional factors we will use include: 1.___ moles of Y = ___ moles of Z where the coefficients in a balanced equation gives us the numbers that replace the blank spots

20
Stoichiometry 2. 1 mole = (molar mass) # of grams 3.Density (# of grams/L) = 1 Liter of solid, liquid, or aqueous solution (or 0.001 L if density is given in mass/mL or mass/cm 3 ) 4.22.4 Liters of any gas (at STP)= 1 mole 5.1 mole = 6.022 x 10 23 parts (atoms, ions, molecules, etc) STP = standard temperature and pressure

21
Stoichiometry grams X Amoles XCmoles Y Agrams Y D E B B E D liters Xatoms Xatoms Yliters Y A: 1 mole = (molar mass) # of grams B: 1 mole = 6.022 x 10 23 parts (atoms, ions, molecules, etc) C: (Coefficient of balanced equation) moles X = (Coefficient of balanced equation) moles Y D: Density: (# of grams) = 1 Liter of solid, liquid, or aqueous solution (or 0.001 L if density is given in mass/mL or mass/cm 3 ) E: 22.4 Liters of any gas (at STP)= 1 mole

22

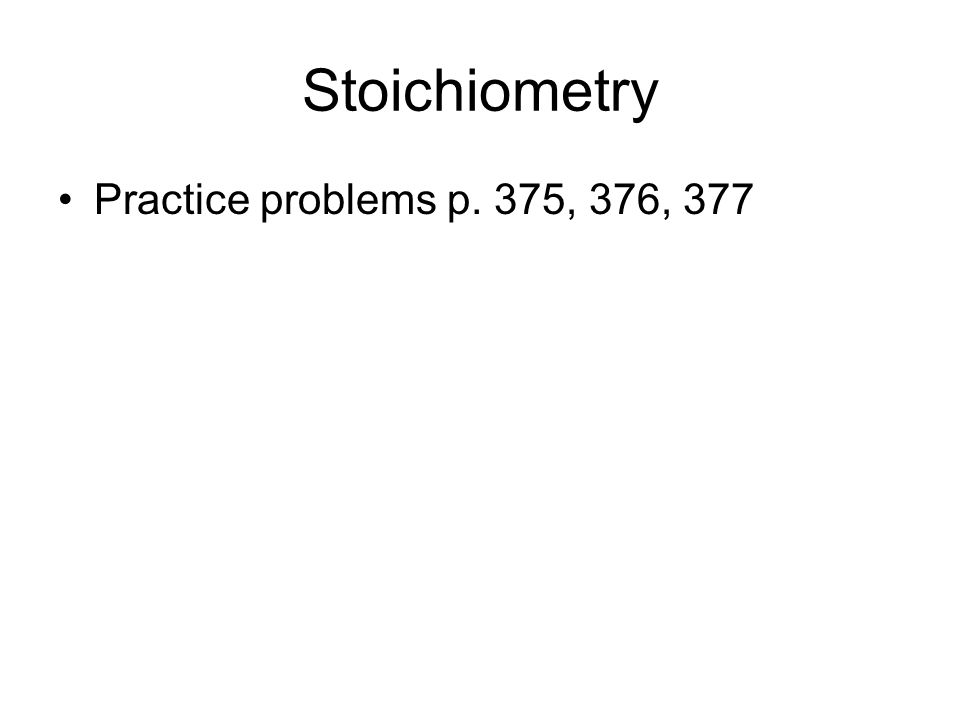

Stoichiometry Practice problems p. 375, 376, 377

23
Limiting and Excess Reactants Let’s return to the ham sandwich example. (remember 1 H + 2 B + 1 L 1 HB 2 L) If you have 4 pieces of ham, 6 pieces of lettuce, and 7 slices of bread, how many leftover pieces of ham and lettuce will you have? This is known as a limiting reactant problem

24

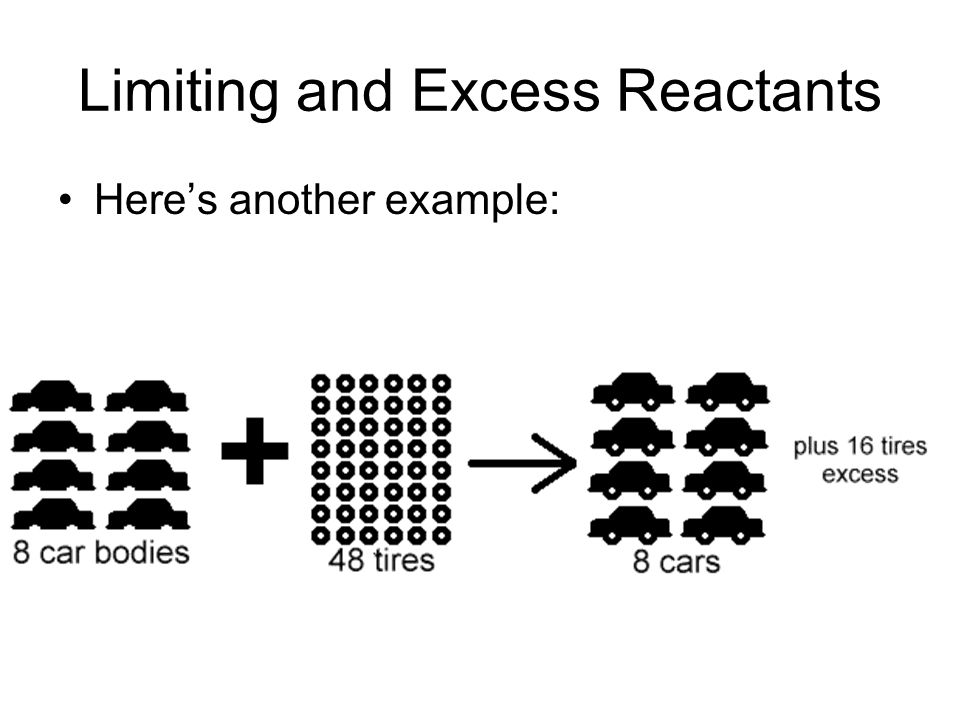

Limiting and Excess Reactants Here’s another example:

25
Why do reactions stop? Reactions proceed until one of the reactants is used up and one is left in excess. The limiting reactant limits the extent of the reaction and, thereby, determines the amount of product formed.limiting reactant The excess reactants are all the leftover unused reactants.excess reactants

26
Why do reactions stop? (cont.) Determining the limiting reactant is important because the amount of the product formed depends on this reactant.

27
Limiting and Excess Reactants http://www.mhhe.com/physsci/chemistry/e ssentialchemistry/flash/limitr15.swfhttp://www.mhhe.com/physsci/chemistry/e ssentialchemistry/flash/limitr15.swf

28
Limiting and Excess Reactants Once the limiting reactant has been determined, you can use it to calculate how much of the other reactants will be consumed, and how much of the products will be produced. To determine how much will be left over, simply subtract the consumed/produced amounts from the available amounts.

29
Calculating the Product when a Reactant is Limiting S 8 (l) + 4Cl 2 (g) → 4S 2 Cl 2 (l) 200.0g S 8 and 100.0g Cl 2 Determine which is the limiting reactant

30
Calculating the Product when a Reactant is Limiting (cont.) Calculating the amount of product formed

31
Calculating the Product when a Reactant is Limiting (cont.) Determine the amount of the excess reactant

32
Calculating the Product when a Reactant is Limiting (cont.) Using an excess of a reactant can speed up the reaction. Using an excess of a reactant can drive a reaction to completion.

33
Limiting and Excess Reactants Do practice problems #23 and 24 on pg. 383

34
Limiting and Excess Reactants Stoichiometry Pizza Exercise (on handout) Find out how many pizzas you can make using the amount of each ingredient Whichever ingredient makes the least pizzas is the limiting reactant.

35
How much product? (cont.) The theoretical yield is the maximum amount of product that can be produced from a given amount of reactant.theoretical yield The actual yield is the amount of product actually produced when the chemical reaction is carried out in an experiment.actual yield The percent yield of a product is the ratio of the actual yield expressed as a percent.percent yield

36
Percent Yield You can also use stoichiometry calculations to determine percent yield in a reaction. The amount that you actually get may be more or less than the amount that you would predict in a stoichiometry problem. If you divide the actual yield by the theoretical yield (predicted), you can determine the % yield.

37
Percent Yield in the Marketplace Percent yield is important in the cost effectiveness of many industrial manufacturing processes. Laboratory reactions do not always produce the calculated amount of products. Reactants stick to containers. Competing reactions form other products.

38

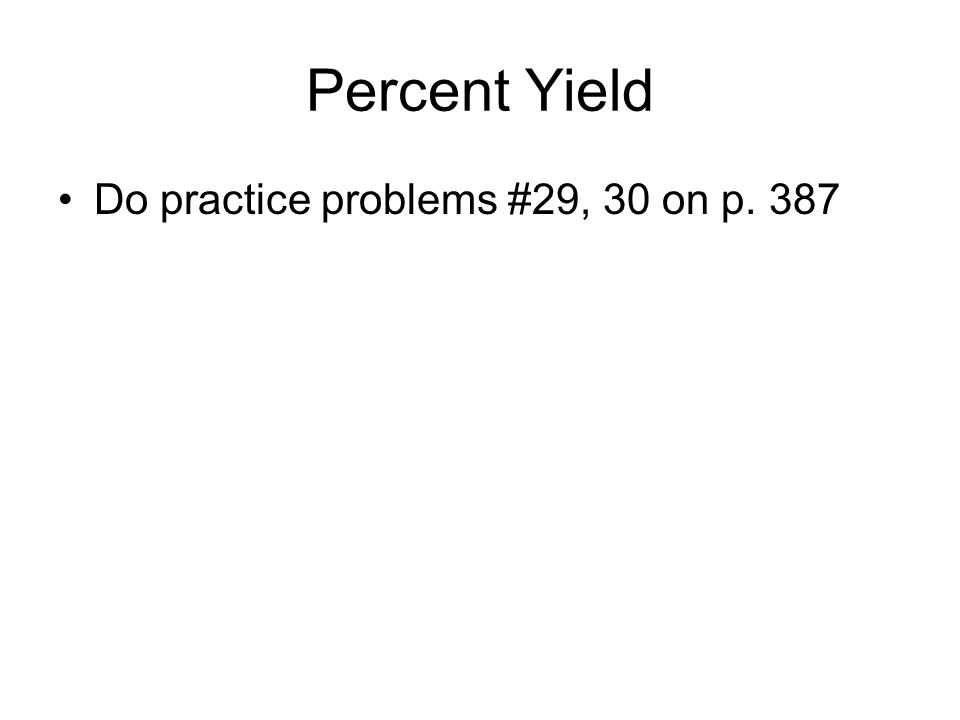

Percent Yield Do practice problems #29, 30 on p. 387
