Hossein Sameti Department of Computer Engineering Sharif University of Technology

2

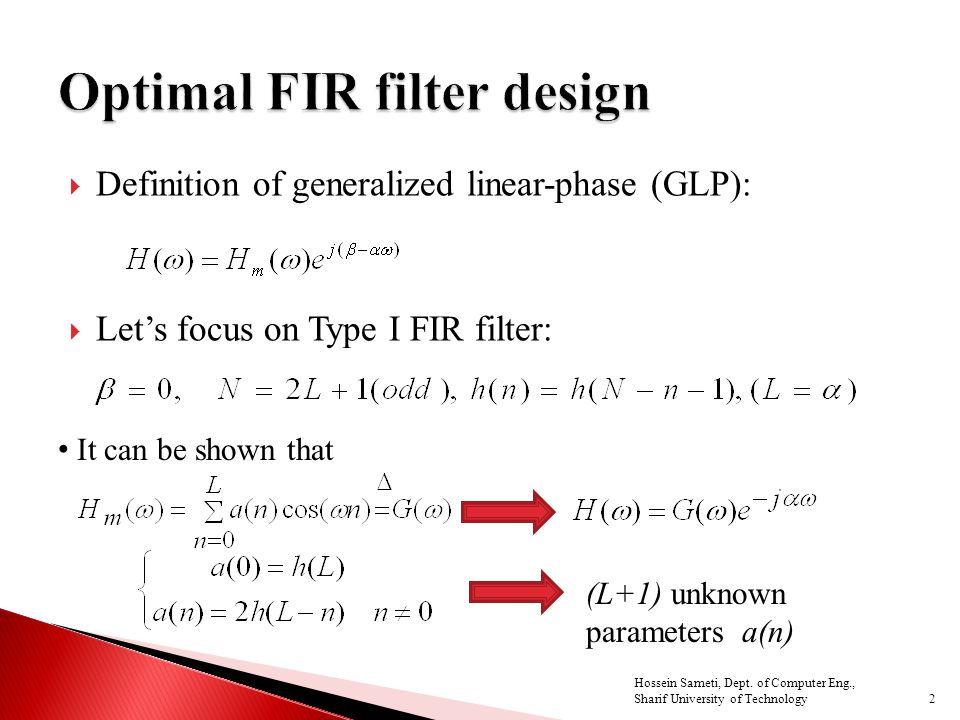

Definition of generalized linear-phase (GLP): Let’s focus on Type I FIR filter: 2 It can be shown that (L+1) unknown parameters a(n) Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

3
3 Given determine coefficients of G(ω) (i.e. a(n)) such that L is minimized (minimum length of the filter). Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

4

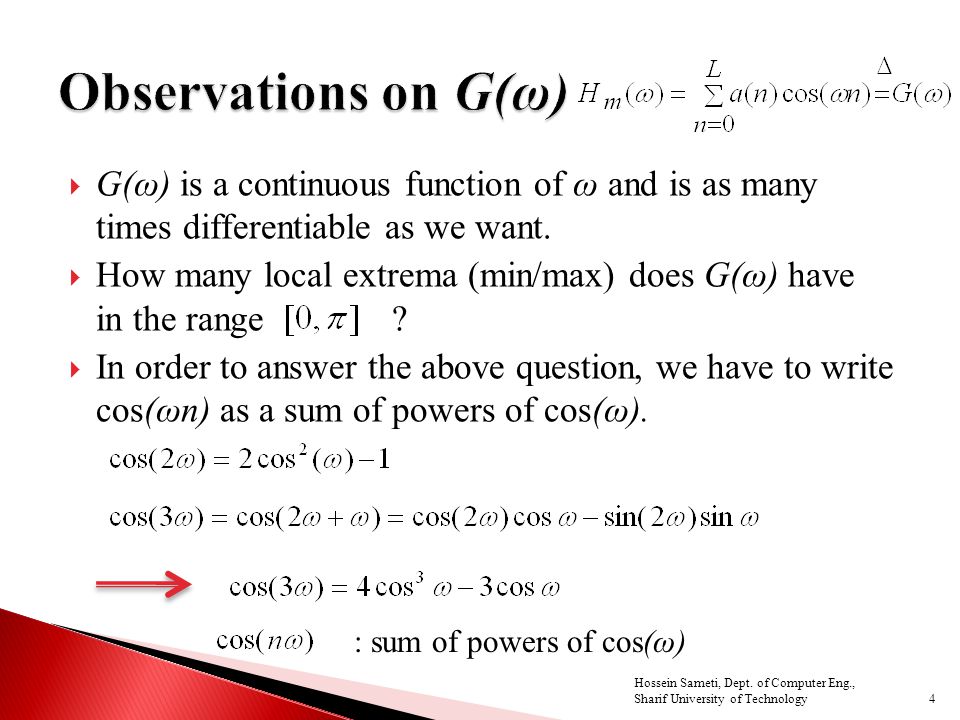

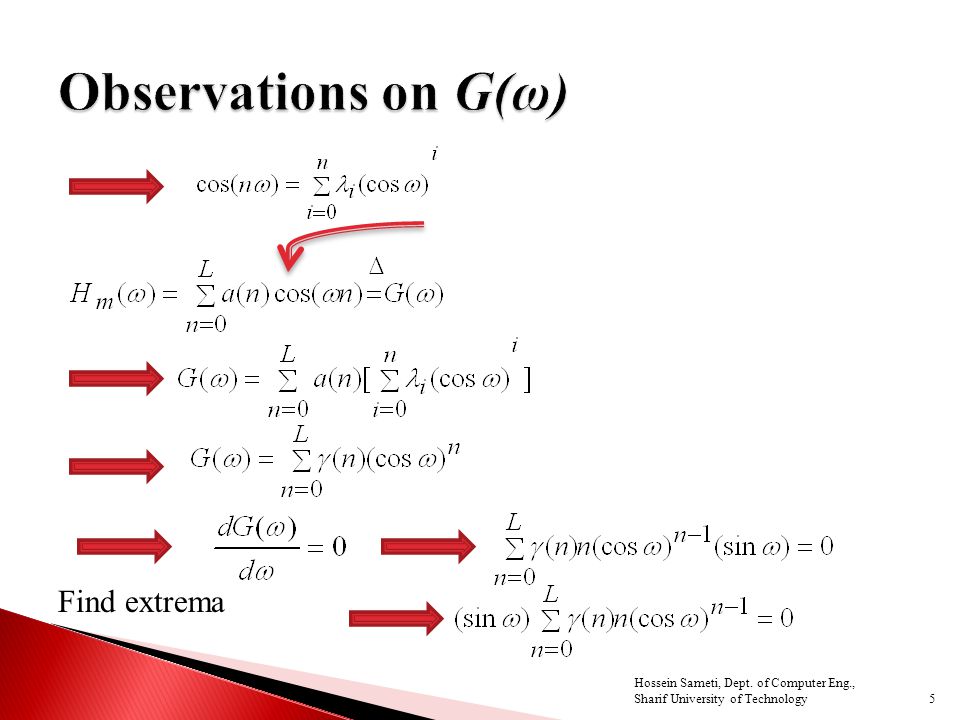

G(ω) is a continuous function of ω and is as many times differentiable as we want. How many local extrema (min/max) does G(ω) have in the range ? In order to answer the above question, we have to write cos(ωn) as a sum of powers of cos(ω). 4 : sum of powers of cos(ω) Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

5
5 Find extrema Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

6
6 Polynomial of degree L-1 Maximum of L-1 real zeros Max. total number of real zeros: L+1 Conclusion: The maximum number of real zeros for (derivative of the frequency response of type I FIR filter) is L+1, where (N is the number of taps). Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

7
7 Given determine coefficients of G(ω) (i.e. a(n)) such that L is minimized (minimum length of the filter). Problem AProblem BProblem C Problem A Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

8

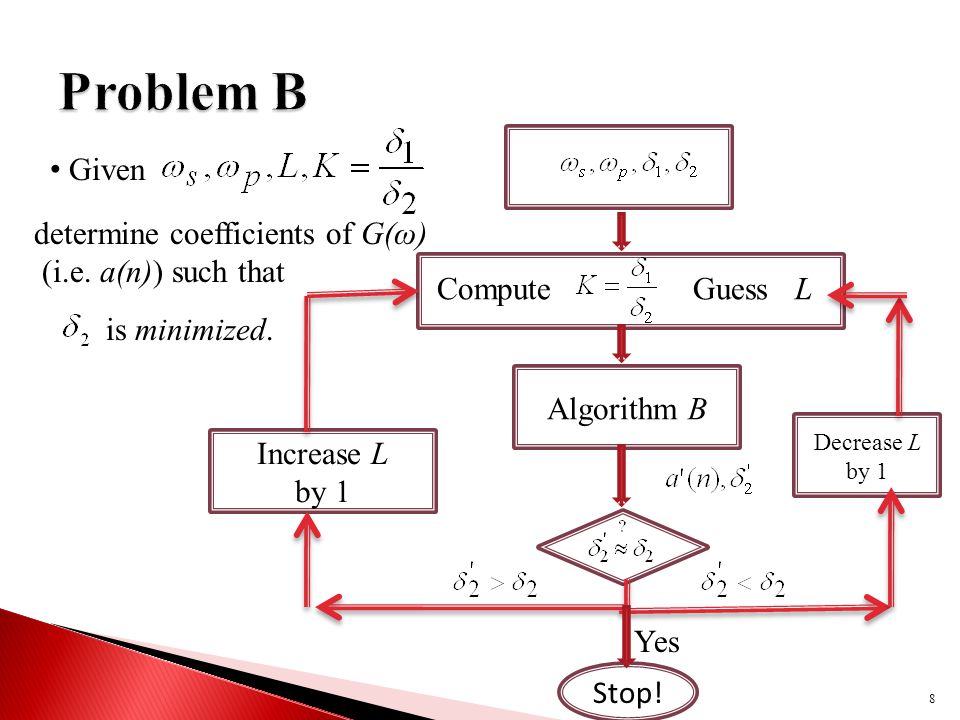

8 Given determine coefficients of G(ω) (i.e. a(n)) such that is minimized. ComputeGuess L Algorithm B Increase L by 1 Decrease L by 1 Yes Stop!

9

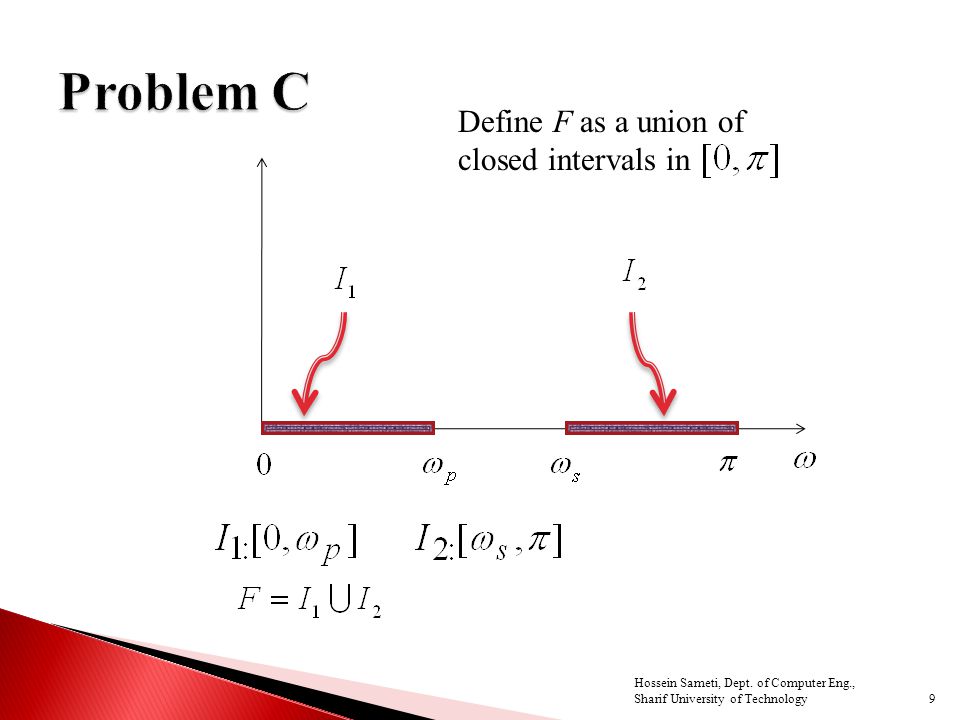

9 Define F as a union of closed intervals in Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

10

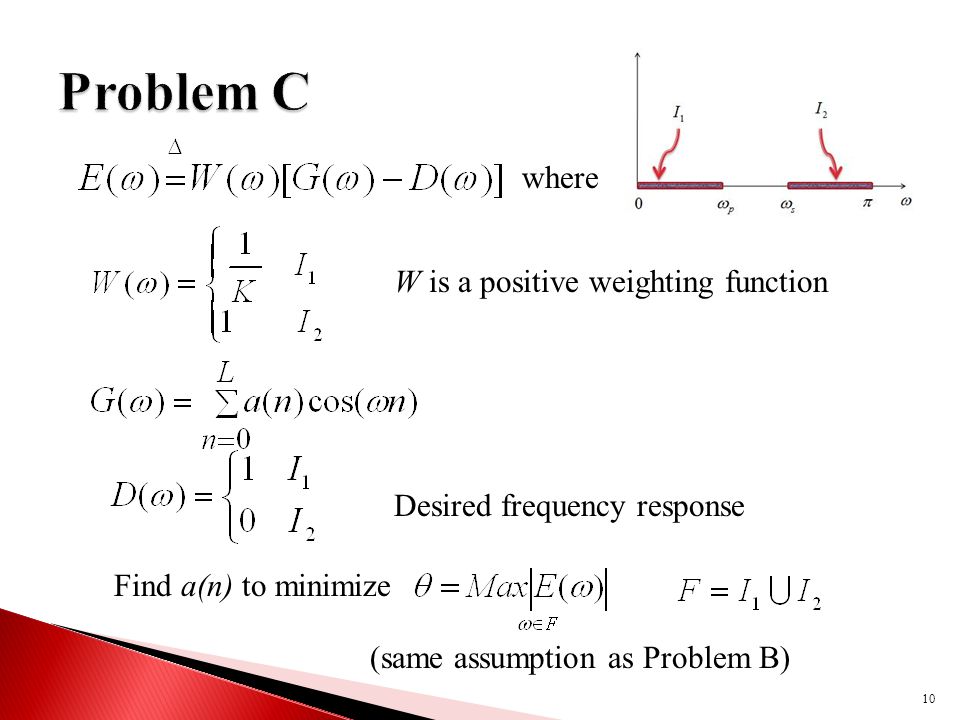

10 where W is a positive weighting function Desired frequency response Find a(n) to minimize (same assumption as Problem B)

11
We start by showing that 11 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

12

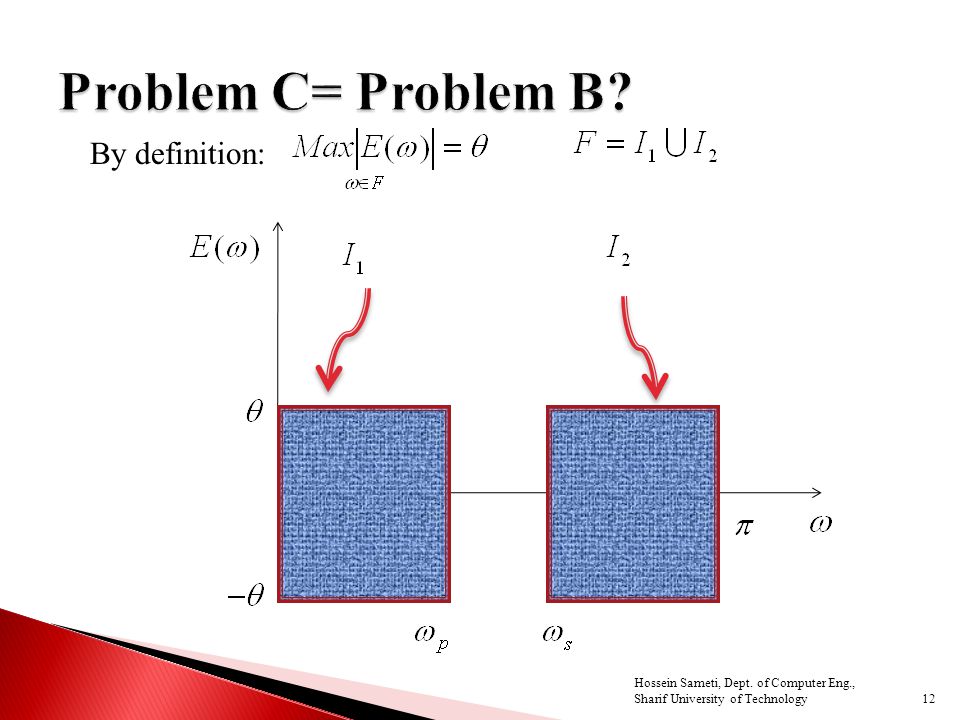

12 By definition: Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

13
13 By definition: Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

14
14 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

15

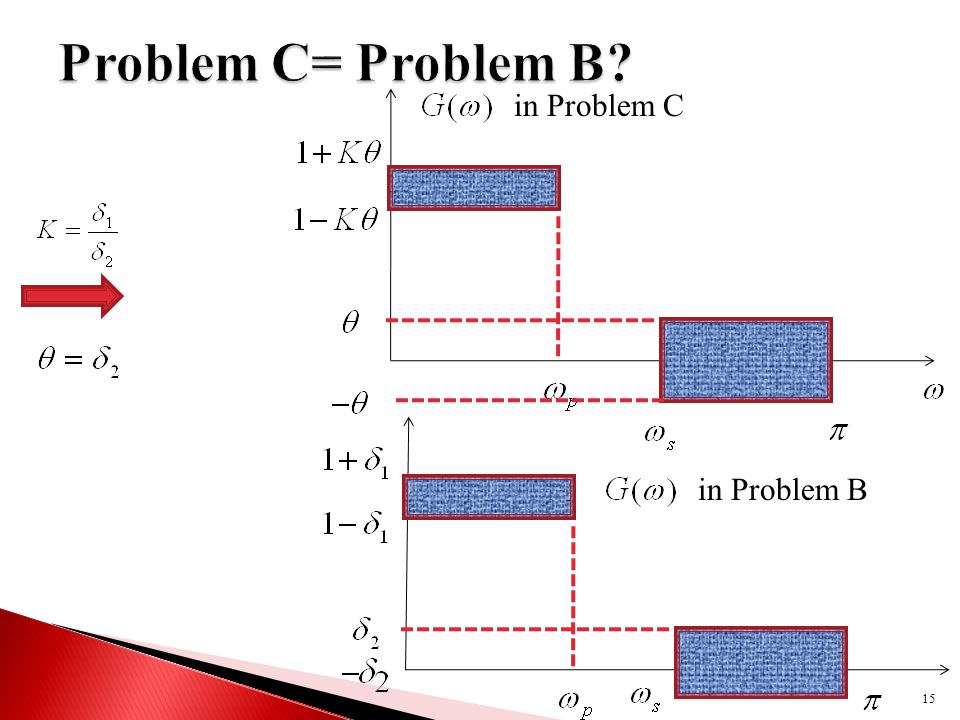

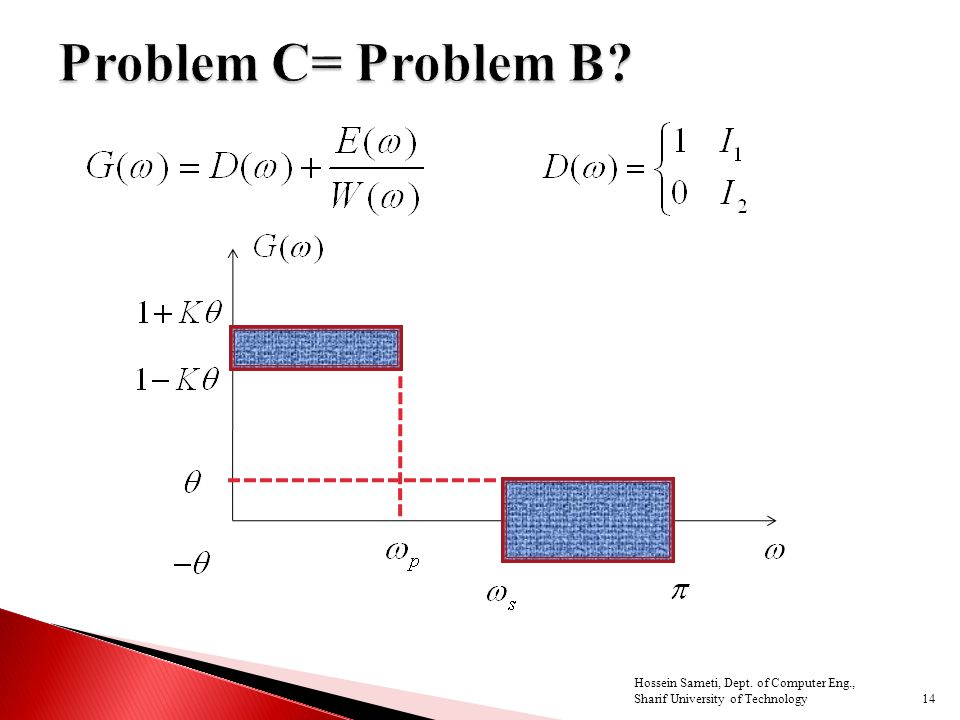

15 in Problem C in Problem B

16

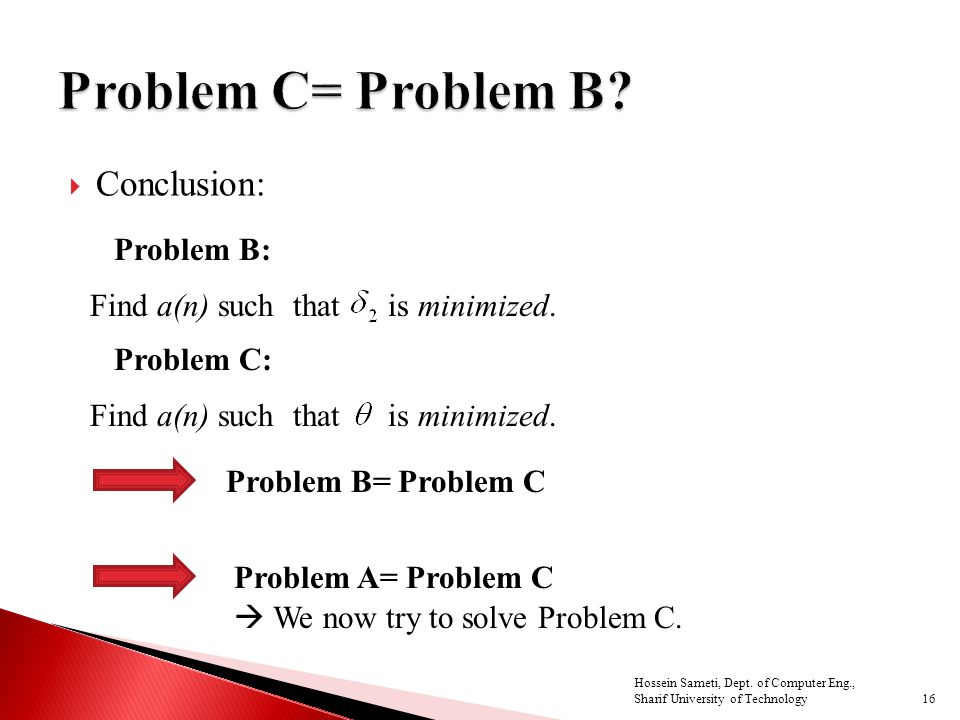

Conclusion: 16 Find a(n) such that is minimized. Problem B: Find a(n) such that is minimized. Problem C: Problem B= Problem C Problem A= Problem C We now try to solve Problem C. Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

17

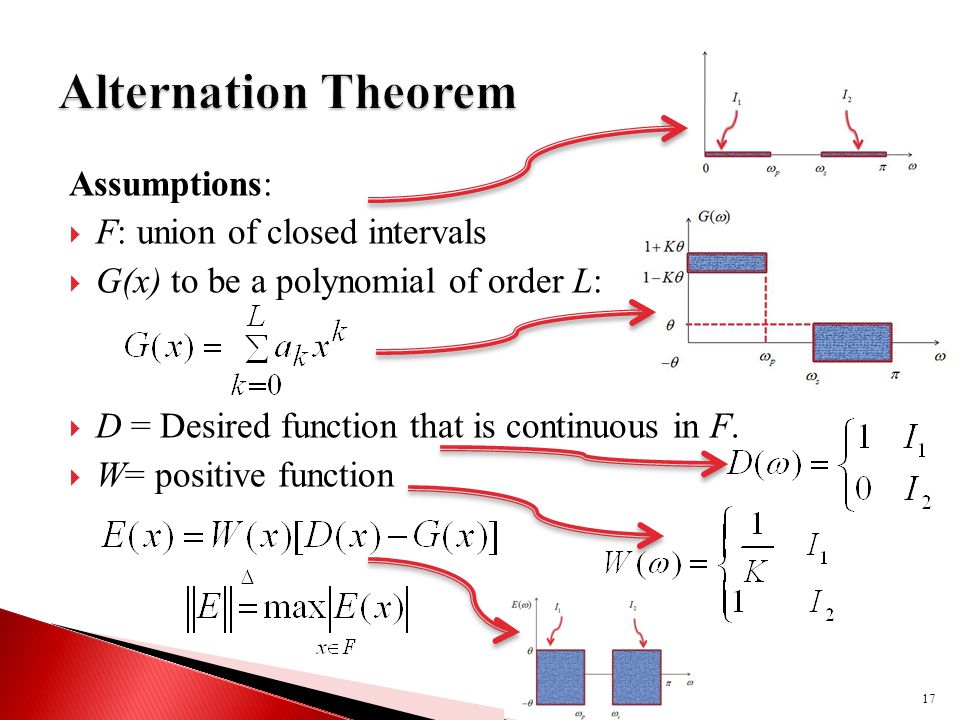

Assumptions: F: union of closed intervals G(x) to be a polynomial of order L: D = Desired function that is continuous in F. W= positive function 17

18
The necessary and sufficient conditions for G(x) to be unique Lth order polynomial that minimizes is that E(x) exhibits at least L+2 alternations, i.e., there are at least L+2 values of x such that 18 for a polynomial of degree 4 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

19

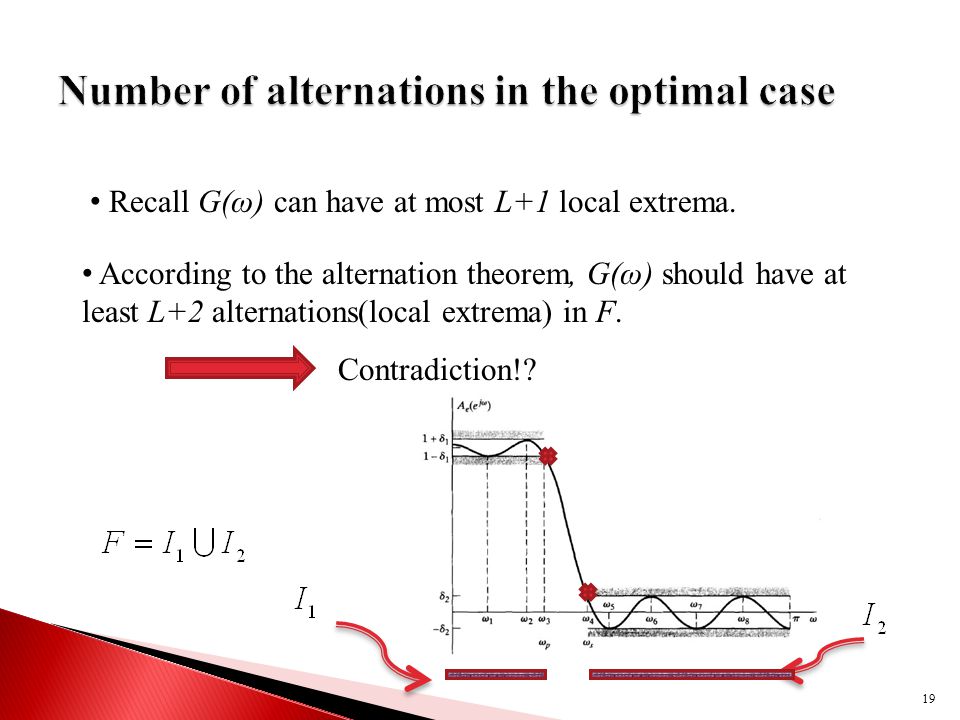

19 Recall G(ω) can have at most L+1 local extrema. According to the alternation theorem, G(ω) should have at least L+2 alternations(local extrema) in F. Contradiction!?

20

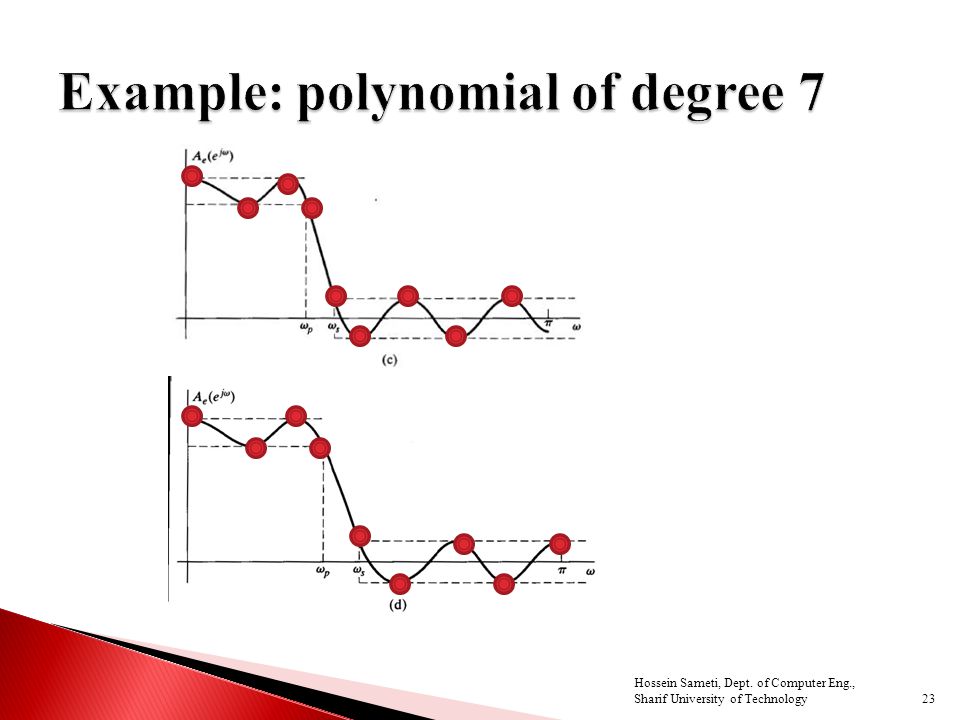

20 can also be alternation frequencies, although they are not local extrema. G(ω) can have at most L+3 local extrema in F. Ex: Polynomial of degree 7 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

21

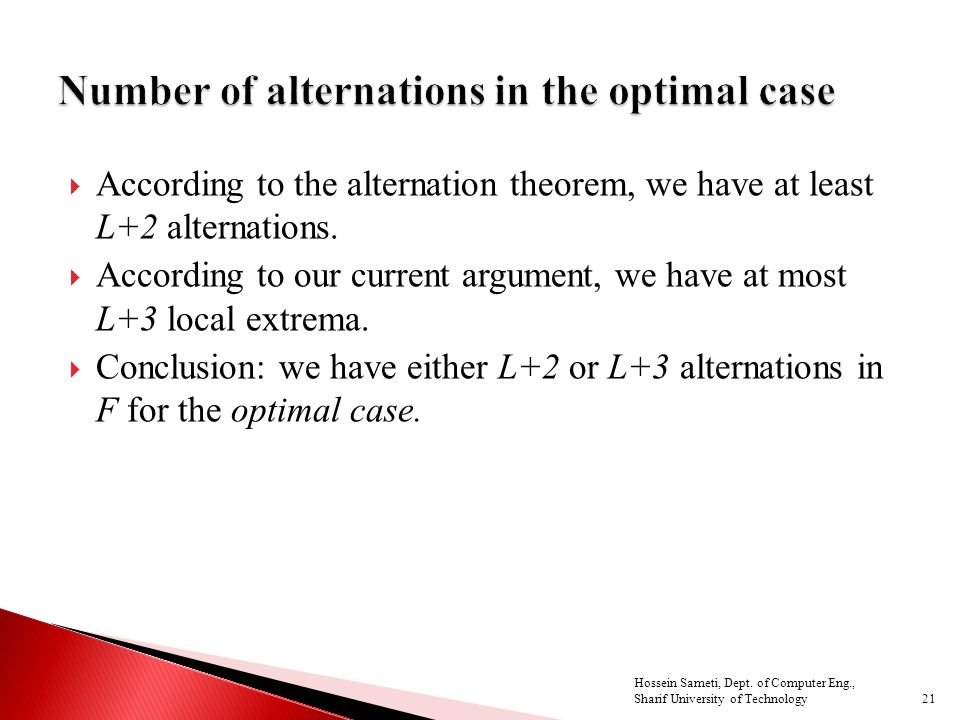

21 According to the alternation theorem, we have at least L+2 alternations. According to our current argument, we have at most L+3 local extrema. Conclusion: we have either L+2 or L+3 alternations in F for the optimal case. Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

22
22 Extra-ripple case Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

23
23 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

24

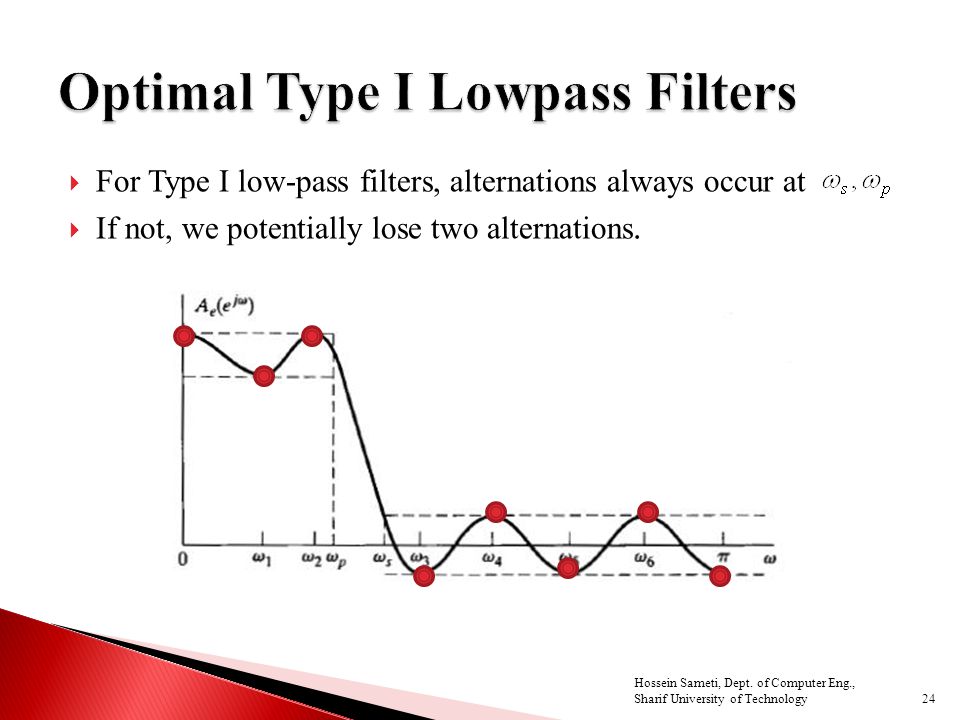

For Type I low-pass filters, alternations always occur at If not, we potentially lose two alternations. 24 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

25
25 Equi-ripple except possibly at Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

26

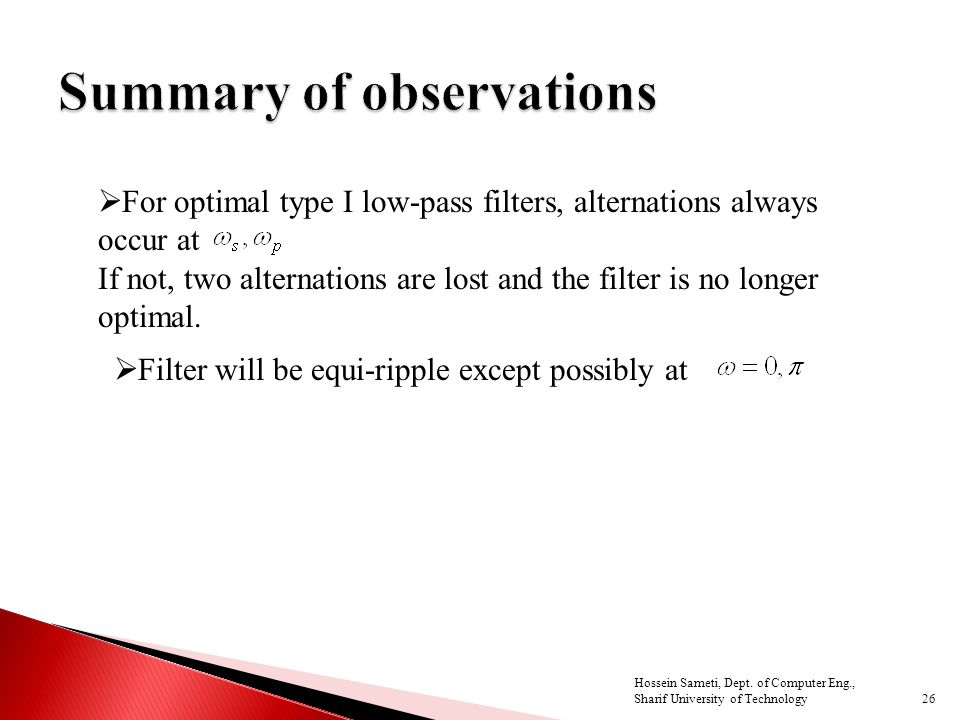

26 For optimal type I low-pass filters, alternations always occur at If not, two alternations are lost and the filter is no longer optimal. Filter will be equi-ripple except possibly at Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

27

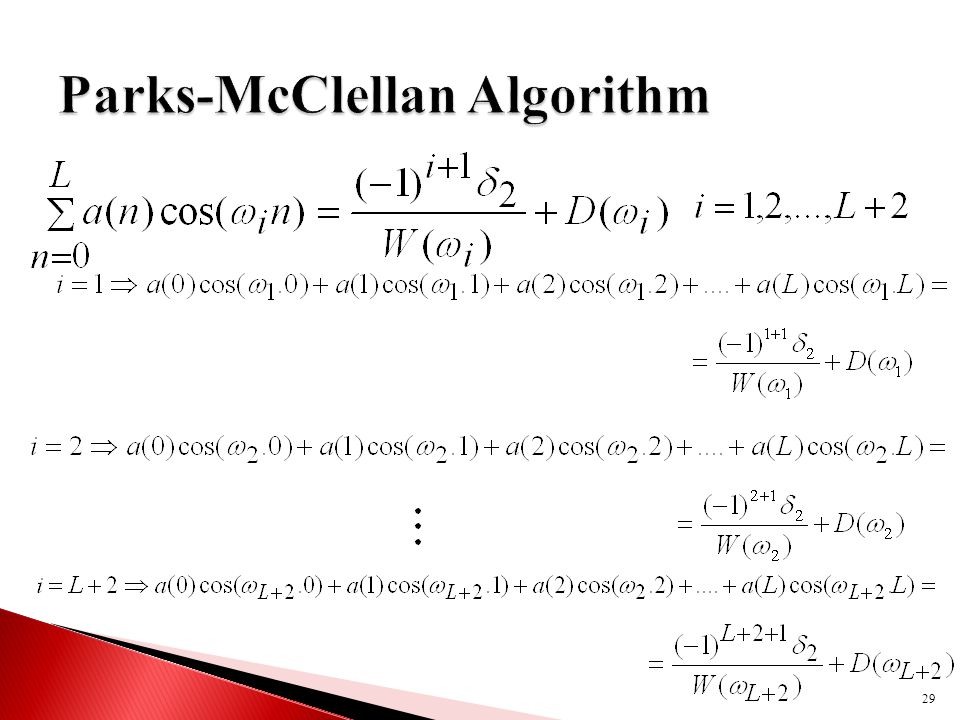

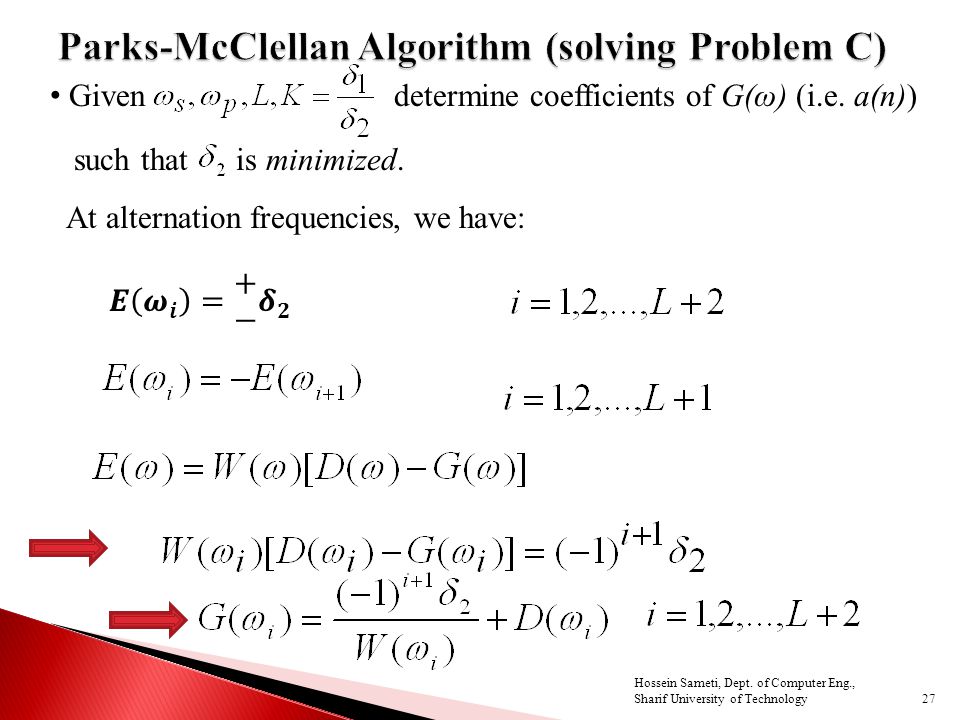

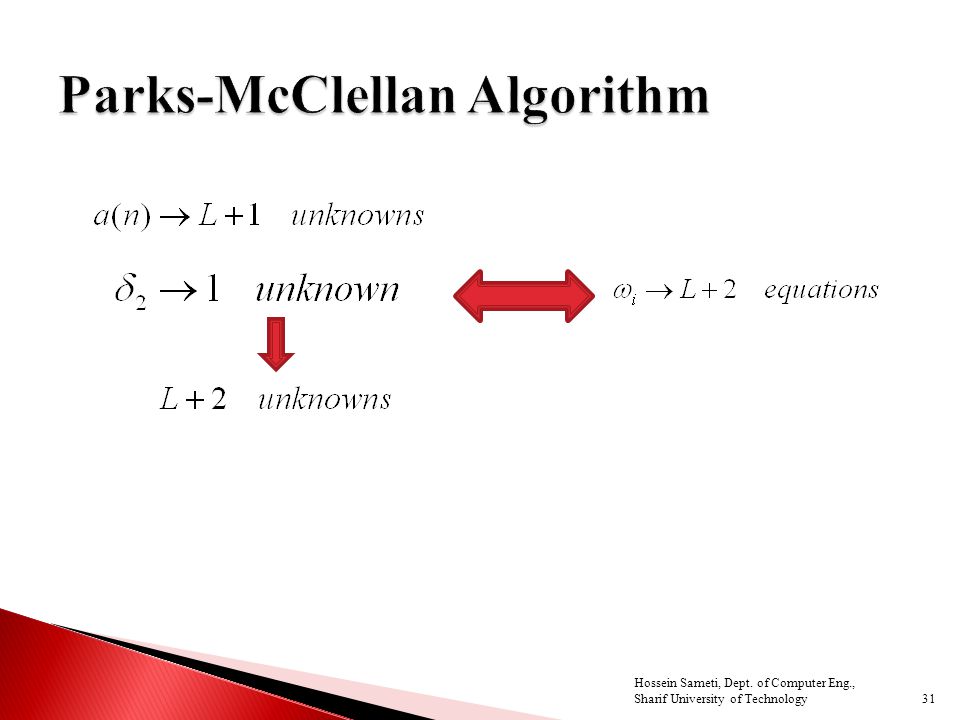

27 Given determine coefficients of G(ω) (i.e. a(n)) such that is minimized. At alternation frequencies, we have: Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

28
28 Equating Eq.1 and Eq.2 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

29
29

30
30 L+2 linear equations and L+2 unknowns Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

31
31 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

32
32 It can be shown that if 's are known, then can be derived using the following formulae: Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

33
33 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

34
34 Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

35
35

36

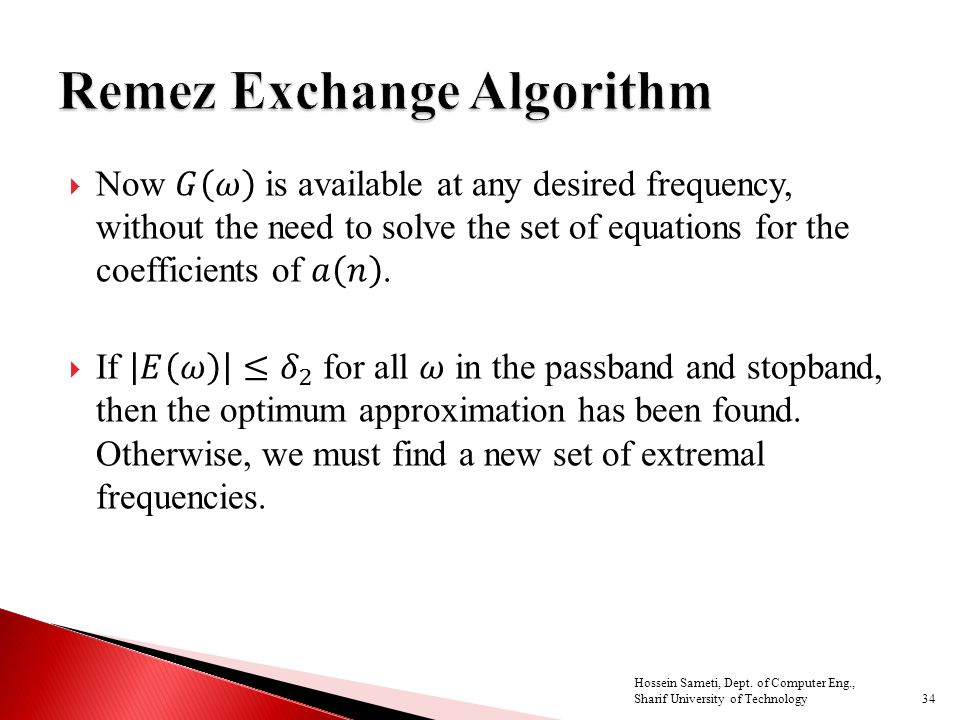

36 Original alternation frequency Next alternation frequency Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

37

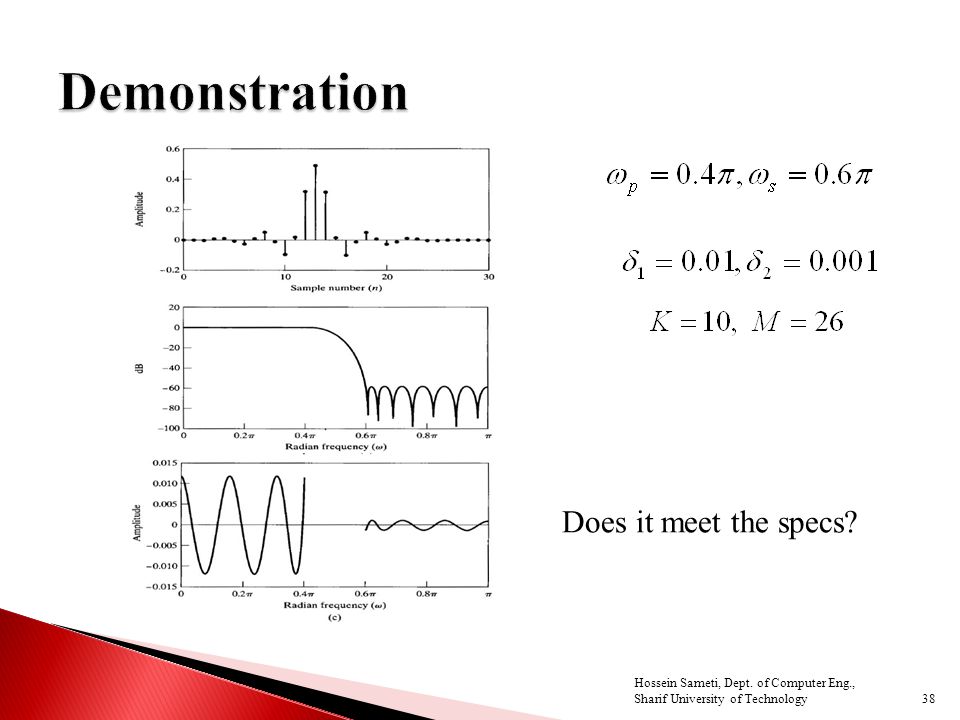

App. estimate of L: App. Length of Kaiser filter: 37 Example: Optimal filter: Kaiser filter: Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

38
38 Does it meet the specs? Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology

39
39 Increase the length of the filter by 1. Does it meet the specs? Hossein Sameti, Dept. of Computer Eng., Sharif University of Technology
