Dynamic Modeling I Drawn largely from Sage QASS #27, by Huckfeldt, Kohfeld, and Likens. Courtney Brown, Ph.D. Emory University

2

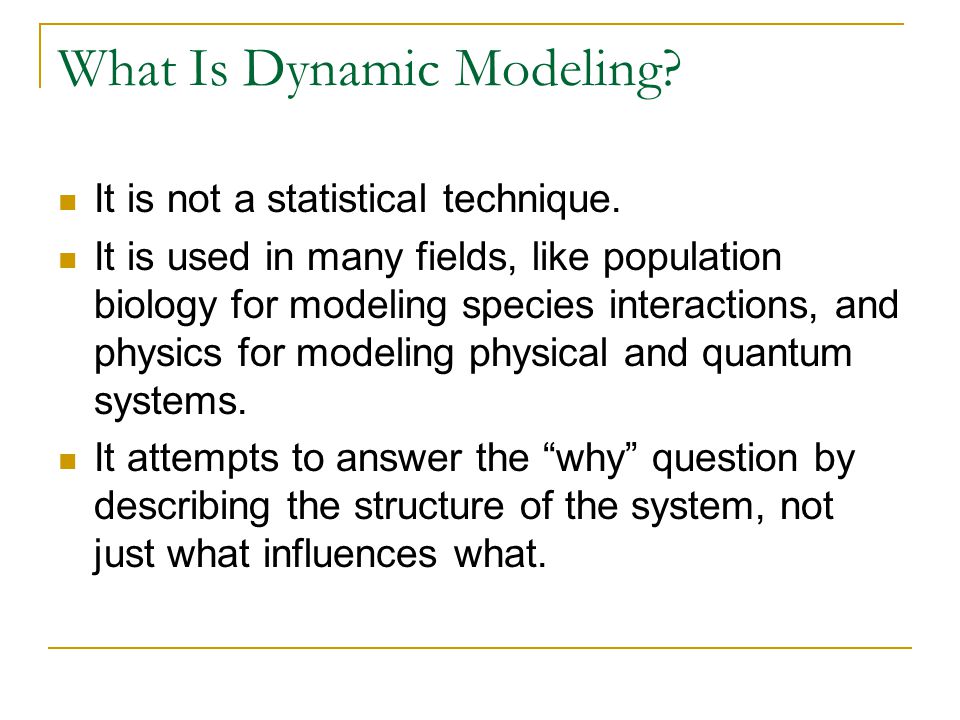

What Is Dynamic Modeling? It is not a statistical technique. It is used in many fields, like population biology for modeling species interactions, and physics for modeling physical and quantum systems. It attempts to answer the “why” question by describing the structure of the system, not just what influences what.

3
Statistical Modeling vs. Dynamic Modeling Statistical modeling focuses on how certain variable correlate with other variables. This shows influence. Dynamic modeling focuses on the structure of systems. For example, there is a correlation between stepping on the gas pedal of a car and the speed of the car. But a dynamic model would specify the physical linkages between the pedal, the engine, the wheels, and the resulting speed.

4

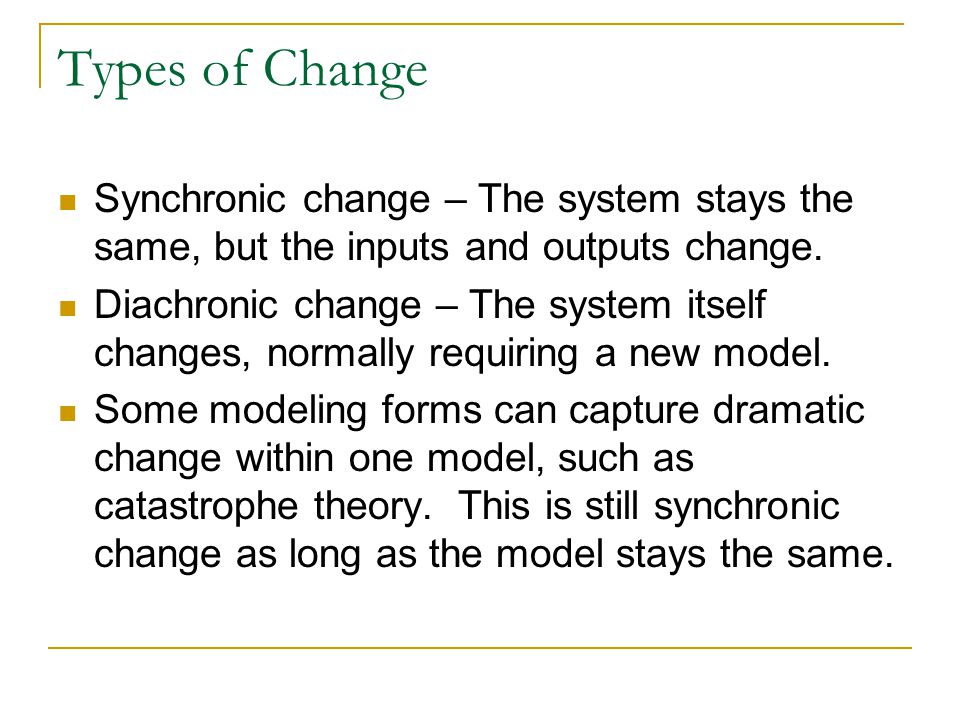

Types of Change Synchronic change – The system stays the same, but the inputs and outputs change. Diachronic change – The system itself changes, normally requiring a new model. Some modeling forms can capture dramatic change within one model, such as catastrophe theory. This is still synchronic change as long as the model stays the same.

5

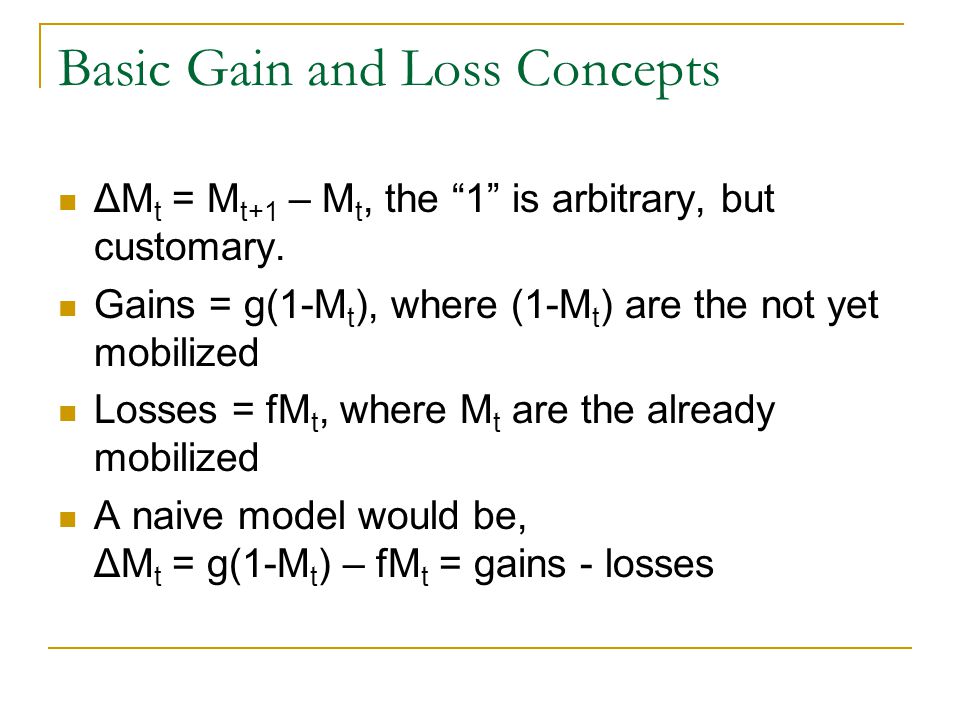

Basic Gain and Loss Concepts ΔM t = M t+1 – M t, the “1” is arbitrary, but customary. Gains = g(1-M t ), where (1-M t ) are the not yet mobilized Losses = fM t, where M t are the already mobilized A naive model would be, ΔM t = g(1-M t ) – fM t = gains - losses

6
This can be re-phrased as M t+1 – M t = g(1-M t ) – fM t M t+1 = g(1-M t ) – fM t + M t M t+1 = g + M t (1–g–f), a first-order difference equation with constant coefficients. This can be estimated as M t+1 = β 0 + β 1 M t, where β 0 = g, and β 1 = (1-g-f)

7

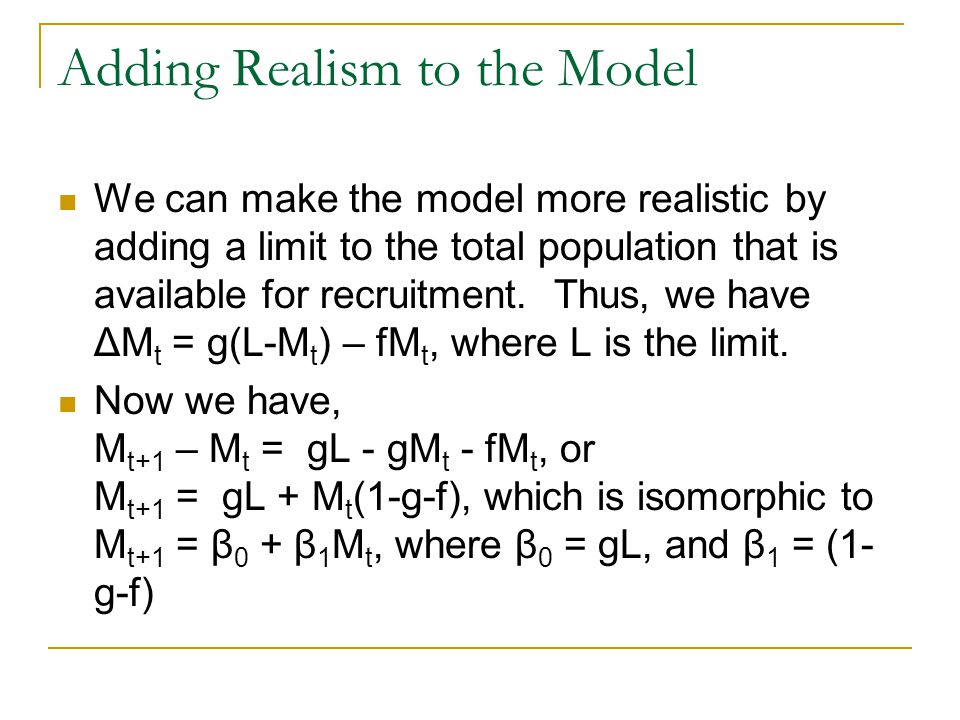

Adding Realism to the Model We can make the model more realistic by adding a limit to the total population that is available for recruitment. Thus, we have ΔM t = g(L-M t ) – fM t, where L is the limit. Now we have, M t+1 – M t = gL - gM t - fM t, or M t+1 = gL + M t (1-g-f), which is isomorphic to M t+1 = β 0 + β 1 M t, where β 0 = gL, and β 1 = (1- g-f)

8
Equilibrium Value We can obtain the equilibrium value from the reduced form version of the model, M t+1 = β 0 + β 1 M t, which is M*= β 0 /(1- β 1 ). We can also deduce the qualitative behavior of the model as well from this reduced form version. But ultimately we want to find the values of the parameters g, f, and L.

9
Descriptive Constraints 0 < f < 1 0 < g < 1 0 < L < 1 If β 1 is negative, the trajectory will oscillate. If β 1 is positive, the trajectory will be monotonic. If (1-f-g) < 0, the trajectory will be oscillatory. This means that 1-f

10

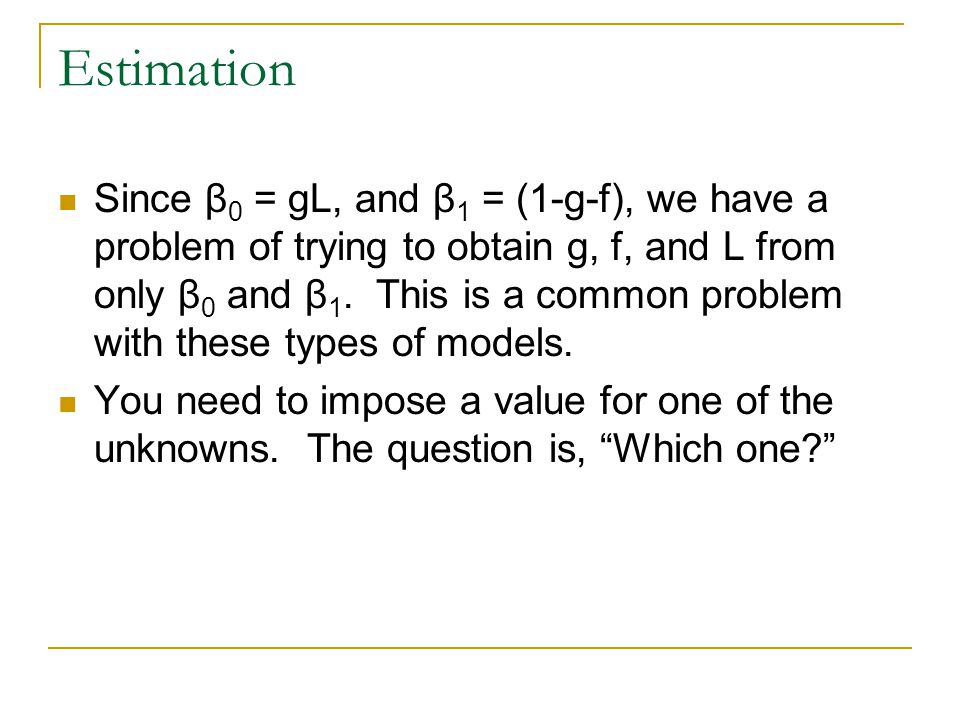

Estimation Since β 0 = gL, and β 1 = (1-g-f), we have a problem of trying to obtain g, f, and L from only β 0 and β 1. This is a common problem with these types of models. You need to impose a value for one of the unknowns. The question is, “Which one?”

11
Constraints on Parameter Sometimes one can use constraints on the parameters to produce guidance for resolving over-determined systems. This can be tricky, and it often involves a bit of luck. The easiest way is to pick some convenient parameter and assign it some reasonable value. In our example with the parameter L, one might simply make L equal to 1, an ultimate limit.

12

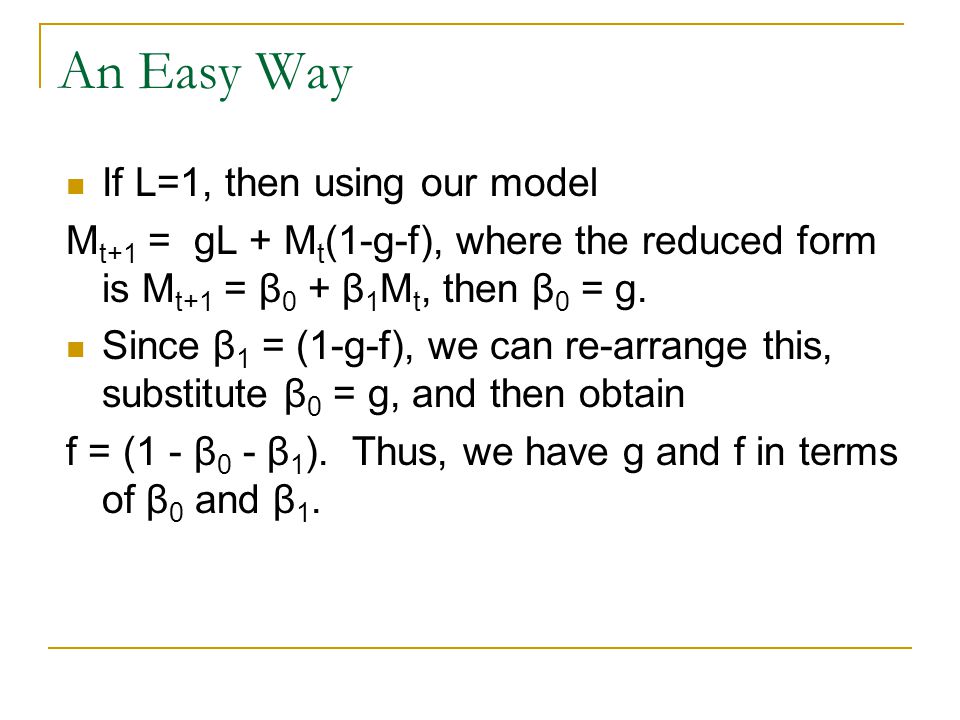

If L=1, then using our model M t+1 = gL + M t (1-g-f), where the reduced form is M t+1 = β 0 + β 1 M t, then β 0 = g. Since β 1 = (1-g-f), we can re-arrange this, substitute β 0 = g, and then obtain f = (1 - β 0 - β 1 ). Thus, we have g and f in terms of β 0 and β 1. An Easy Way

13

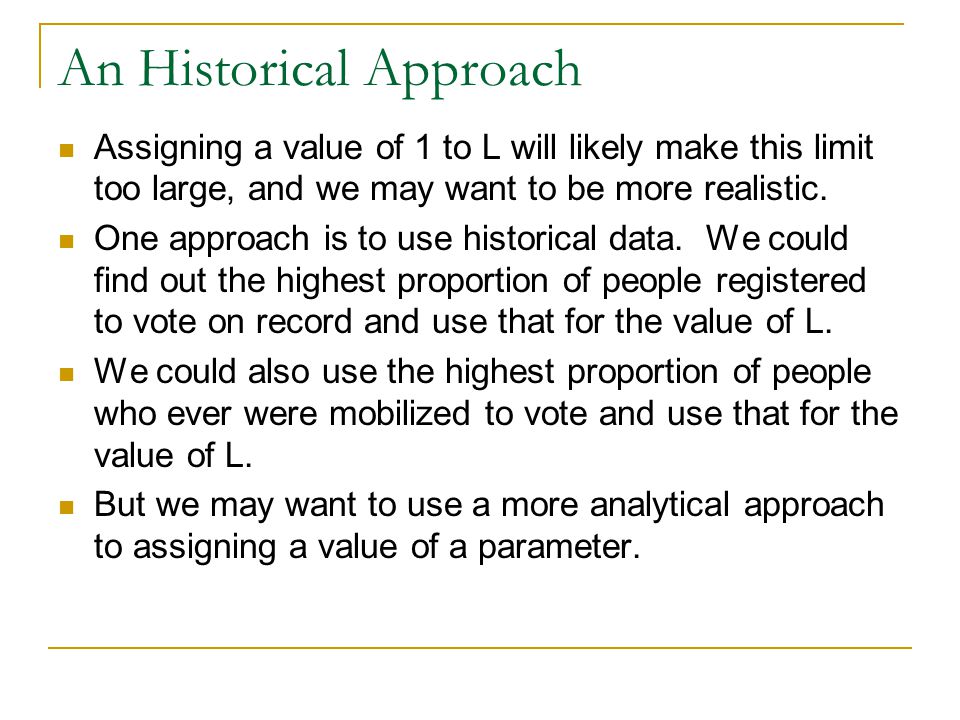

An Historical Approach Assigning a value of 1 to L will likely make this limit too large, and we may want to be more realistic. One approach is to use historical data. We could find out the highest proportion of people registered to vote on record and use that for the value of L. We could also use the highest proportion of people who ever were mobilized to vote and use that for the value of L. But we may want to use a more analytical approach to assigning a value of a parameter.

14

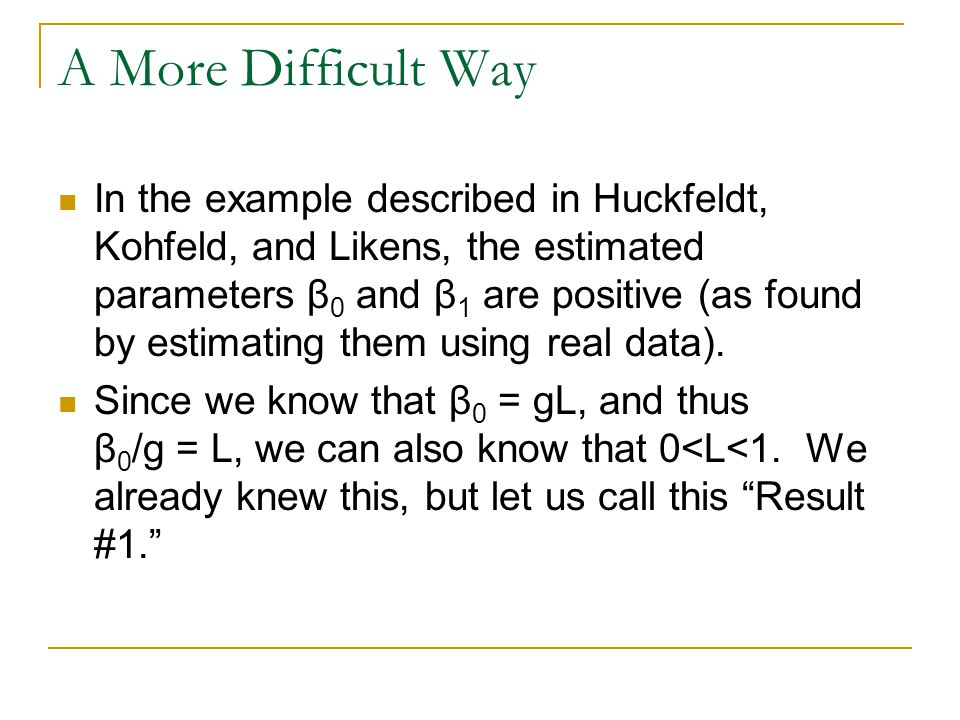

A More Difficult Way In the example described in Huckfeldt, Kohfeld, and Likens, the estimated parameters β 0 and β 1 are positive (as found by estimating them using real data). Since we know that β 0 = gL, and thus β 0 /g = L, we can also know that 0

15
Now let us substitute β 0 /g = L into the inequality 0

16

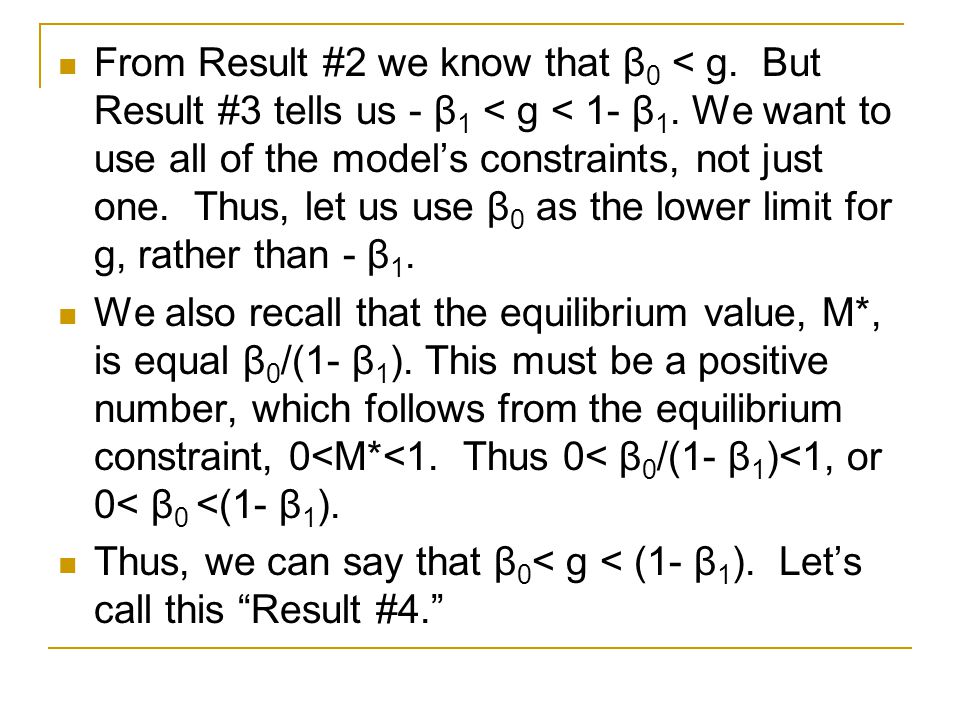

From Result #2 we know that β 0 < g. But Result #3 tells us - β 1 < g < 1- β 1. We want to use all of the model’s constraints, not just one. Thus, let us use β 0 as the lower limit for g, rather than - β 1. We also recall that the equilibrium value, M*, is equal β 0 /(1- β 1 ). This must be a positive number, which follows from the equilibrium constraint, 0

17

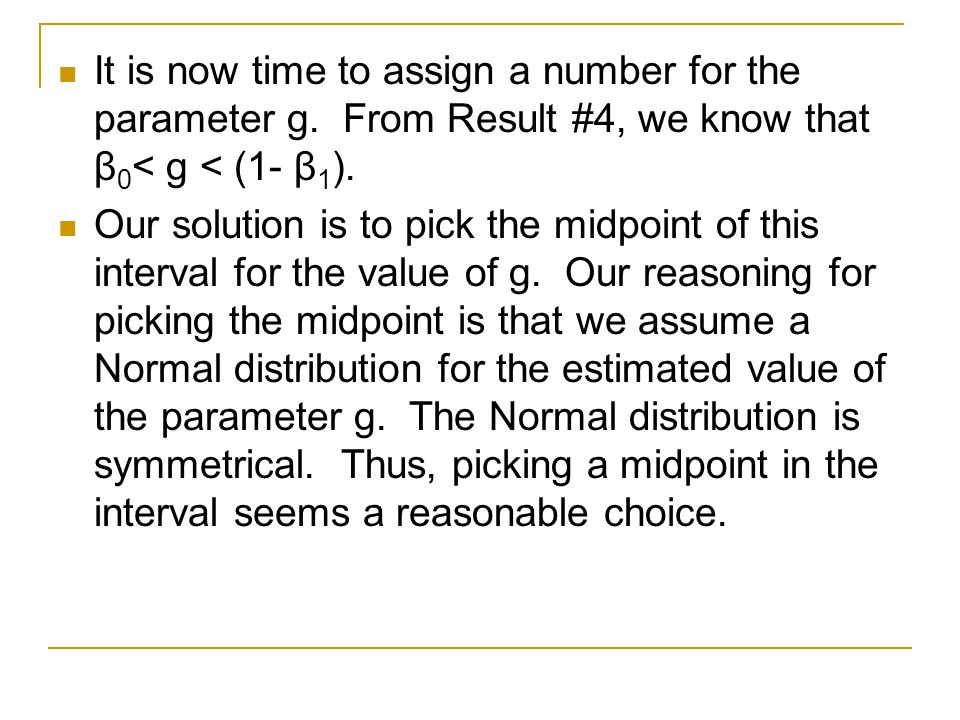

It is now time to assign a number for the parameter g. From Result #4, we know that β 0 < g < (1- β 1 ). Our solution is to pick the midpoint of this interval for the value of g. Our reasoning for picking the midpoint is that we assume a Normal distribution for the estimated value of the parameter g. The Normal distribution is symmetrical. Thus, picking a midpoint in the interval seems a reasonable choice.

18
In the example used by Huckfeldt, Kohfeld, and Likens, they found the following values for the parameters by estimating using ordinary least squares: β 0 = 0.14, and β 1 = 0.62. Thus, 0.14 < g < (1-0.62), or 0.14 < g < 0.38. Picking the midpoint, g = (0.14 + 0.38)/2, or g=0.26, which is our final result for this problem.

19
Now we want to substitute g back into the original equations and solve for g and L algebraically. Recall that β 0 = gL and β 1 = (1-g-f). Thus we can write 0.14 = (0.26)L, and 0.62 = (1-f-0.26). Thus, L=0.54, and f=0.12.
