1 CCIN2P3 Network FJPPL 2015

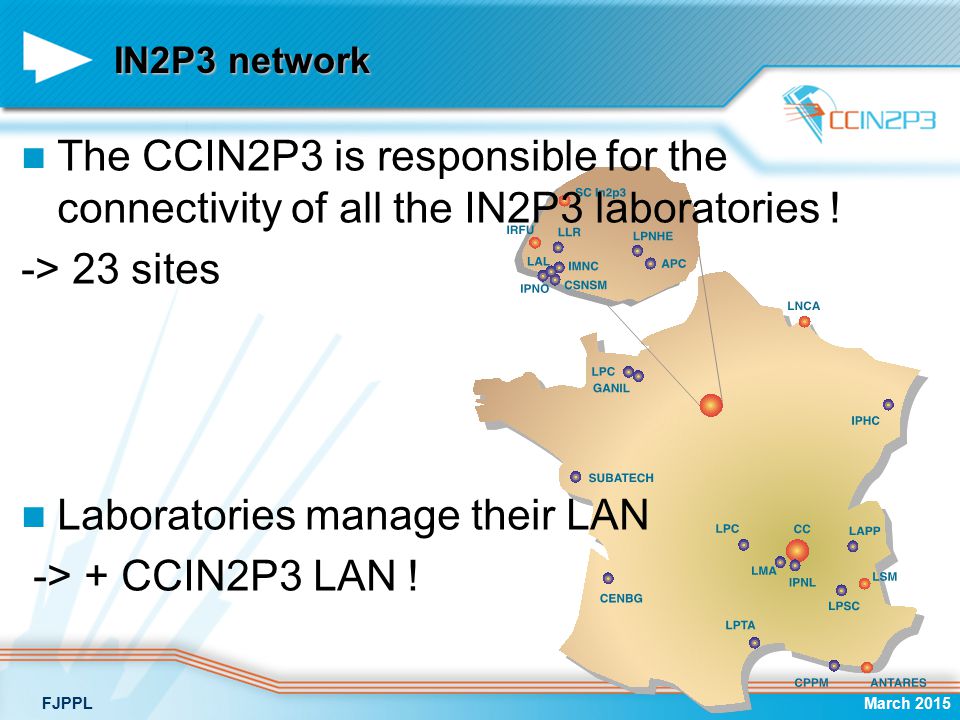

2 The CCIN2P3 is responsible for the connectivity of all the IN2P3 laboratories ! -> 23 sites Laboratories manage their LAN -> + CCIN2P3 LAN ! IN2P3 network March 2015FJPPL

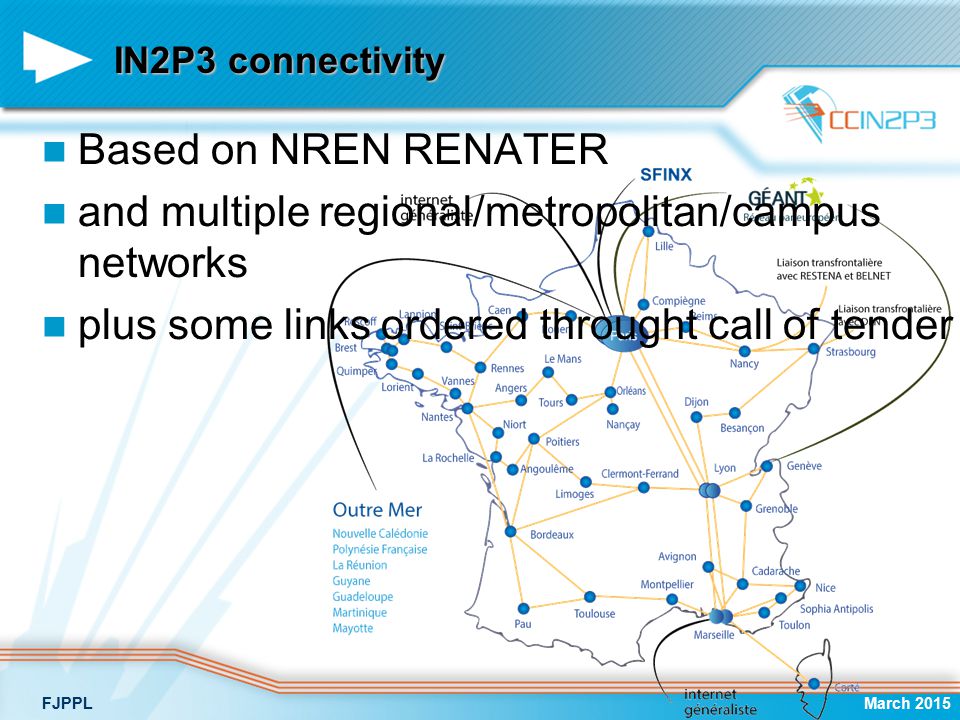

3 IN2P3 connectivity Based on NREN RENATER and multiple regional/metropolitan/campus networks plus some links ordered throught call of tender March 2015FJPPL

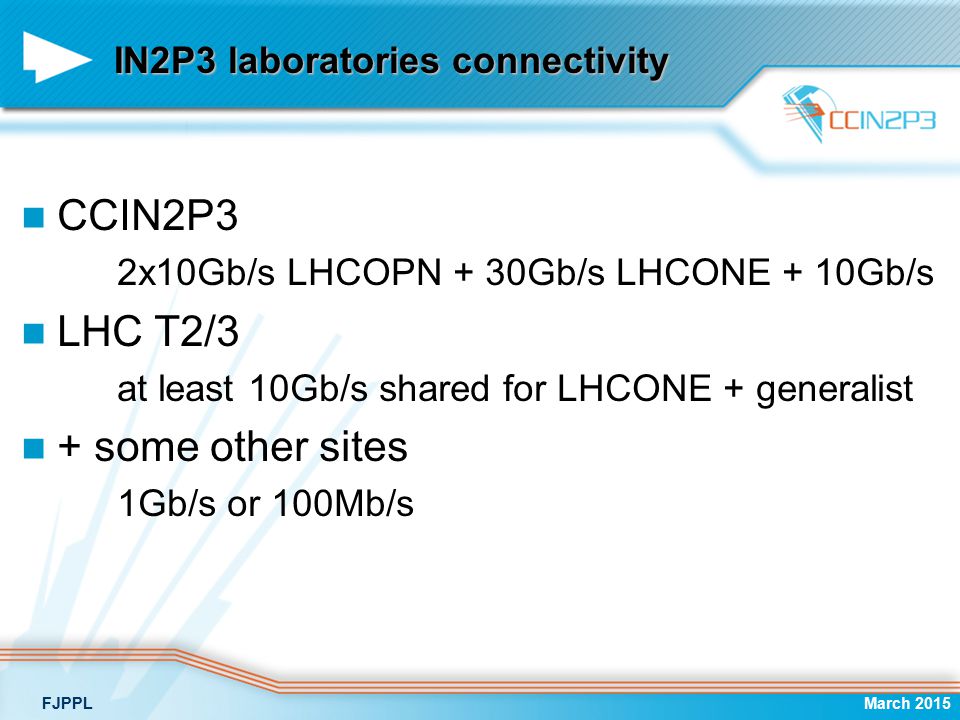

4 IN2P3 laboratories connectivity CCIN2P3 2x10Gb/s LHCOPN + 30Gb/s LHCONE + 10Gb/s LHC T2/3 at least 10Gb/s shared for LHCONE + generalist + some other sites 1Gb/s or 100Mb/s March 2015FJPPL

5 RENATER March 2015FJPPL

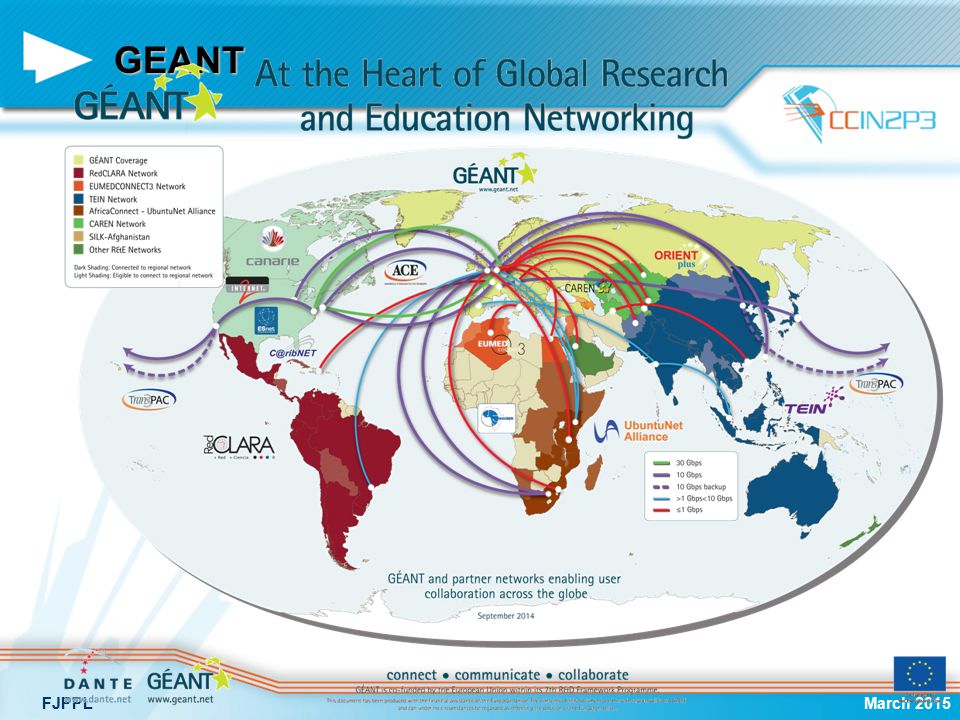

6 GEANT March 2015FJPPL

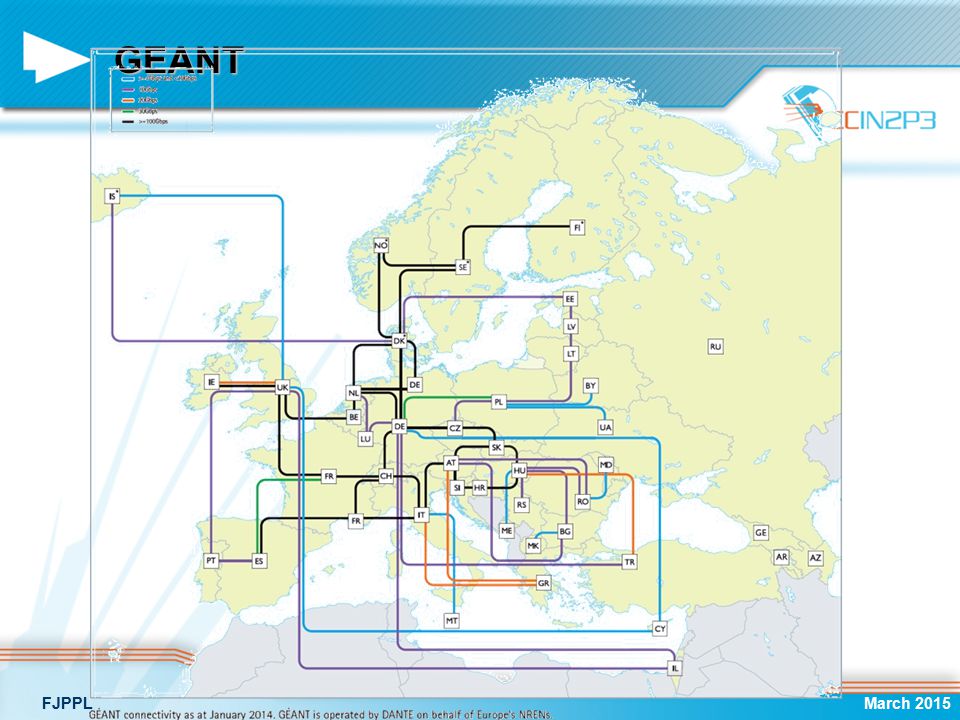

7 GEANT March 2015FJPPL

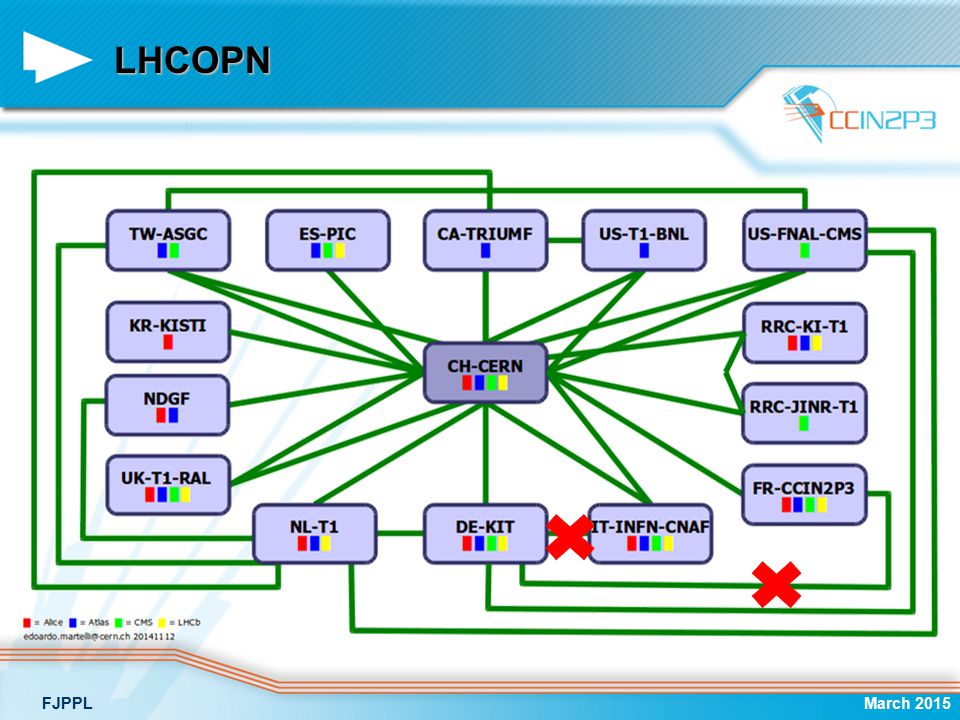

8 LHCOPN March 2015FJPPL

9 LHCONE France March 2015FJPPL CCIN2P3 CEA-IRFU IPNHO LAL LPNHE APC GRIF - Distributed T2) T1 Paris1 Jussieu Lyon1 LPSC Others T2 CPPM LLR IPHC Subatech Orsay Clermont Genève LPC Clermont LHCONE 10G λ dédiée MPLS-TE 10G partagé Backup optique LHCOPN Kehl 10G λ dédiée

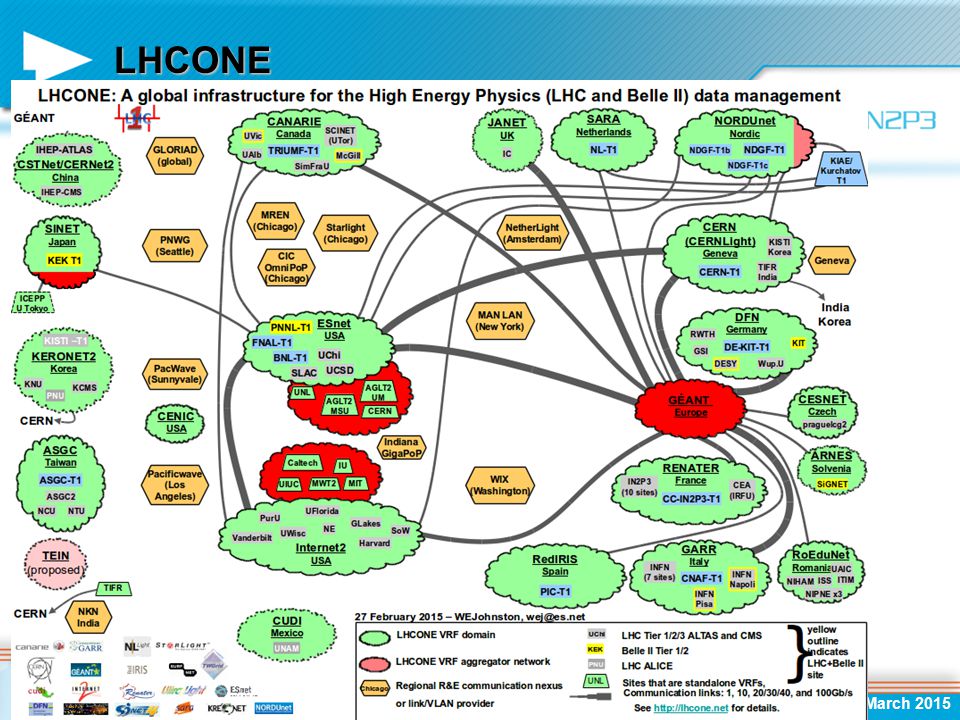

10 LHCONE March 2015FJPPL

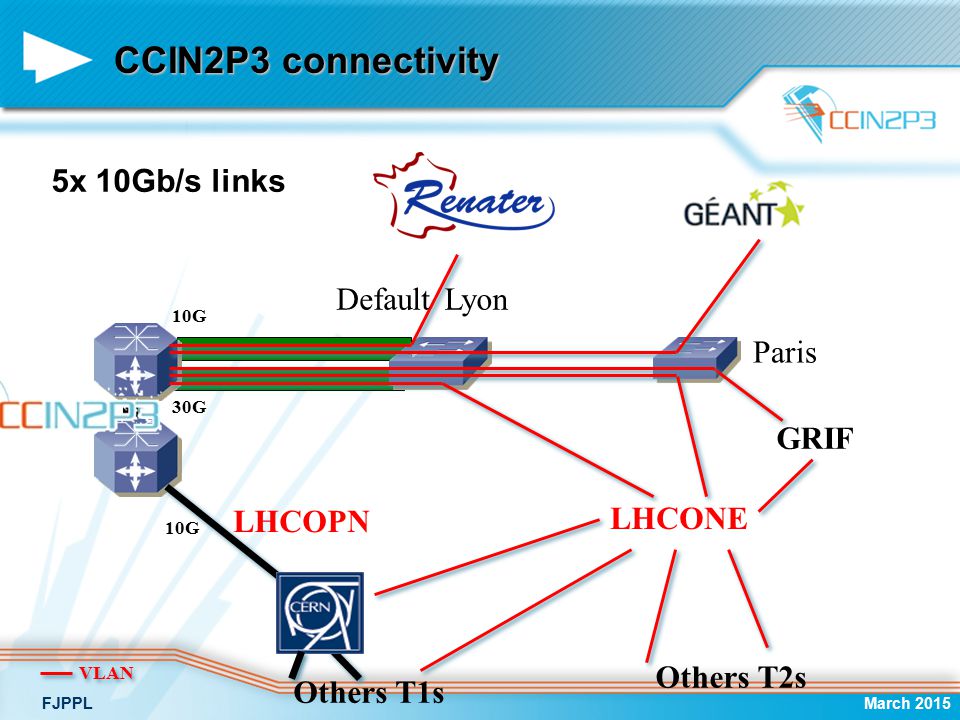

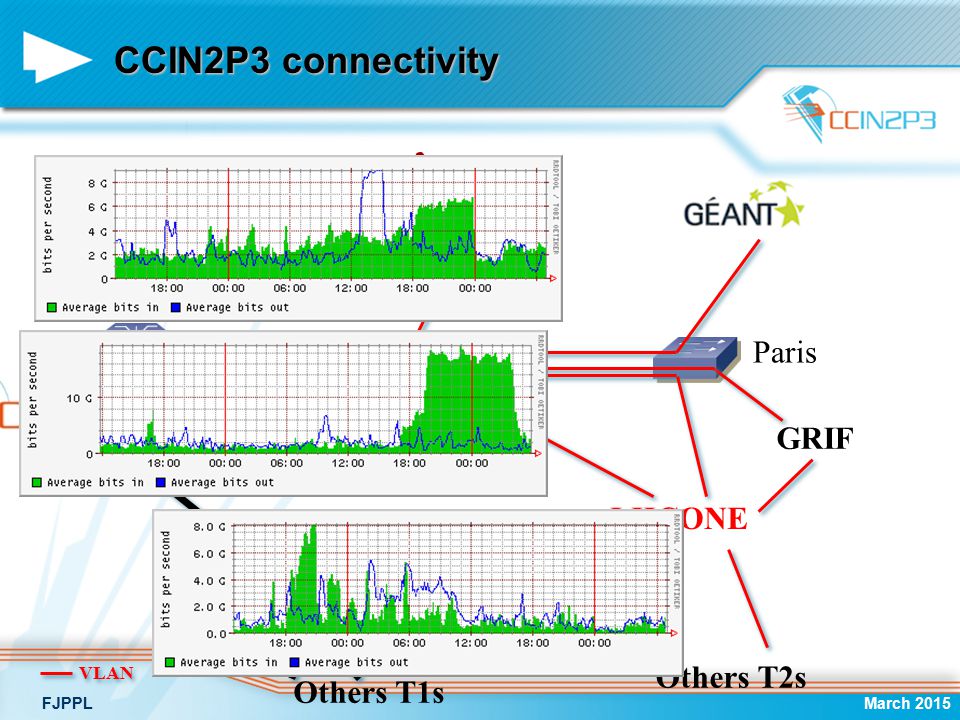

11 CCIN2P3 connectivity March 2015FJPPL Paris LHCOPN 5x 10Gb/s links Default GRIF LHCONE Others T2s VLAN Lyon Others T1s 10G 30G 10G

12 CCIN2P3 connectivity March 2015FJPPL Paris LHCOPN 5x 10Gb/s links Default GRIF LHCONE Others T2s VLAN Lyon Others T1s 10G 30G 10G

13 CCIN2P3 LAN March 2015FJPPL > 1000 computing servers > 500 data servers 4 libraries of 10K tapes > 40 PB 4 libraries of 10K tapes > 40 PB > 15 PB RAID disk

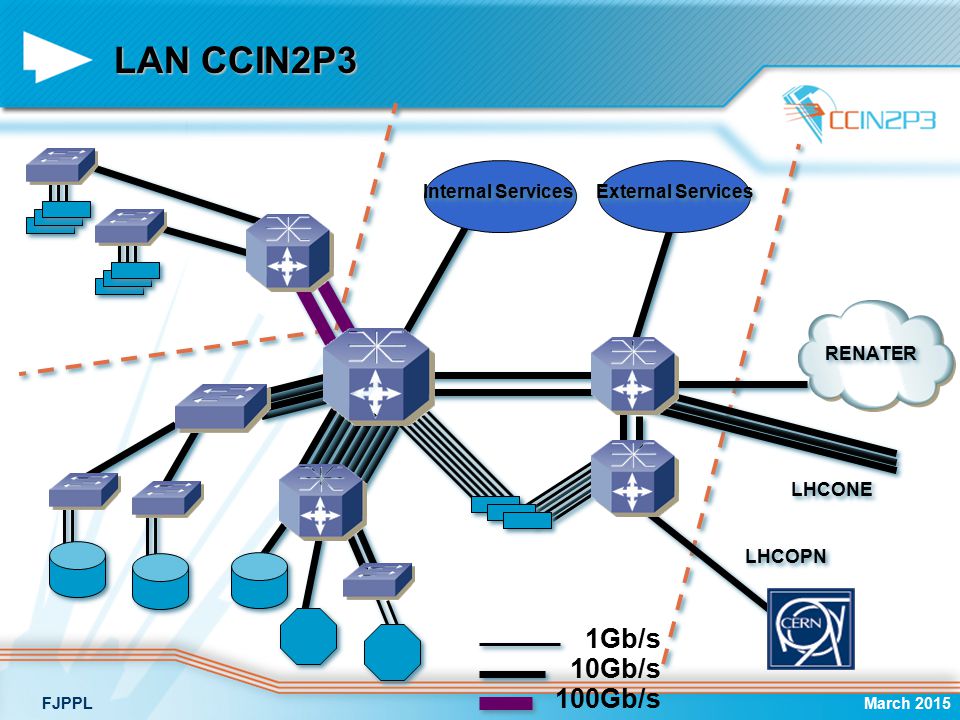

14 LAN CCIN2P3 March 2015FJPPL Internal Services External Services RENATER LHCONE LHCOPN 10Gb/s 100Gb/s 1Gb/s

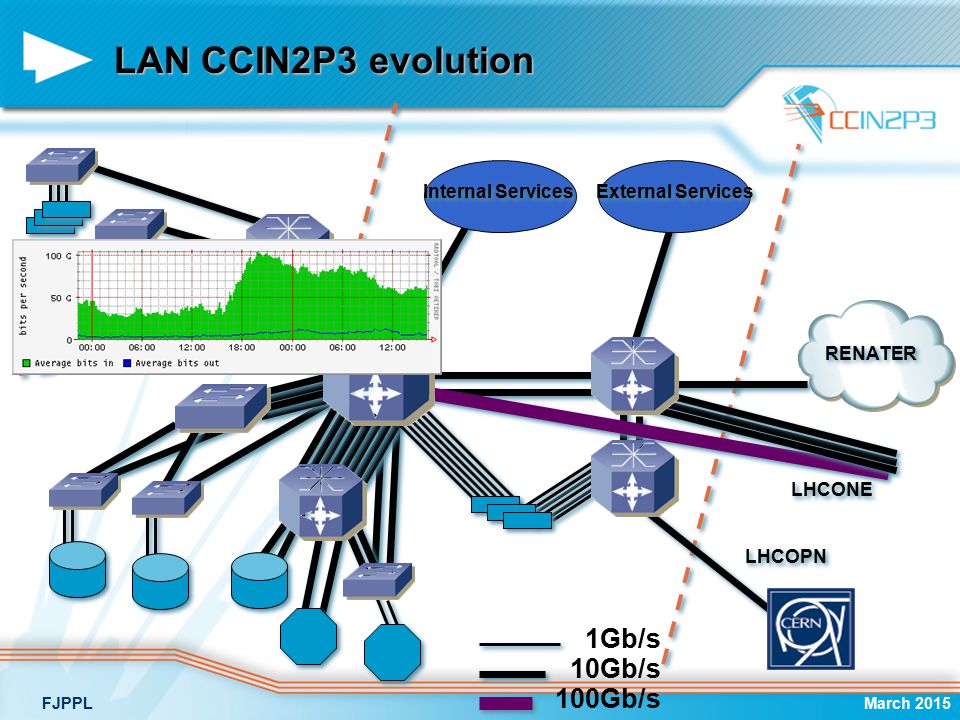

15 LAN CCIN2P3 evolution March 2015FJPPL Internal Services External Services RENATER LHCONE LHCOPN 10Gb/s 100Gb/s 1Gb/s

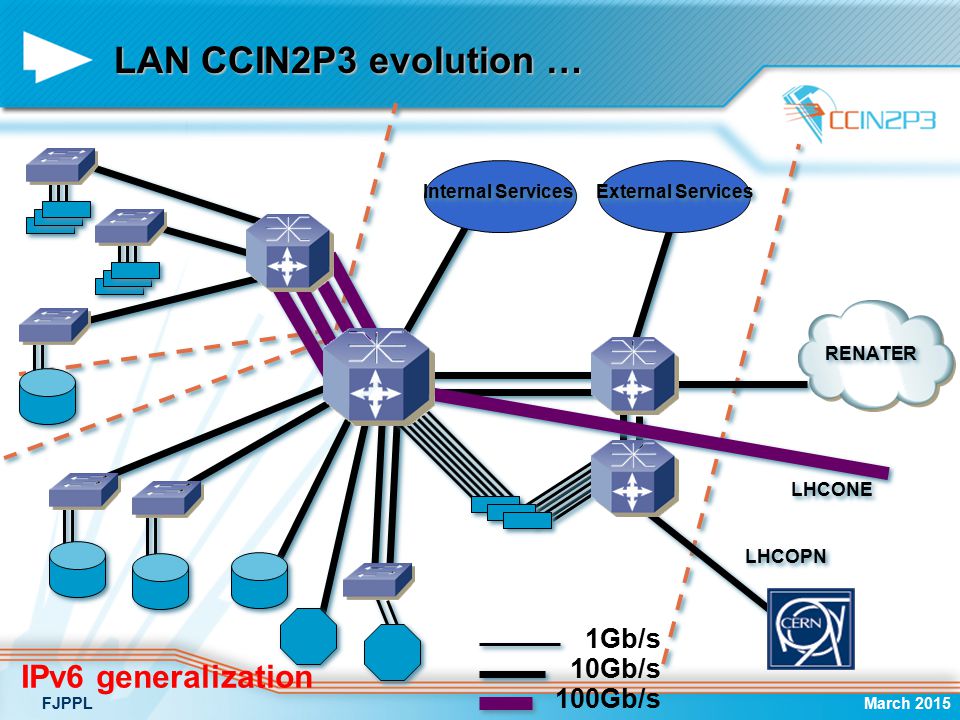

16 LAN CCIN2P3 evolution … March 2015FJPPL Internal Services External Services RENATER LHCONE LHCOPN 10Gb/s 100Gb/s 1Gb/s IPv6 generalization

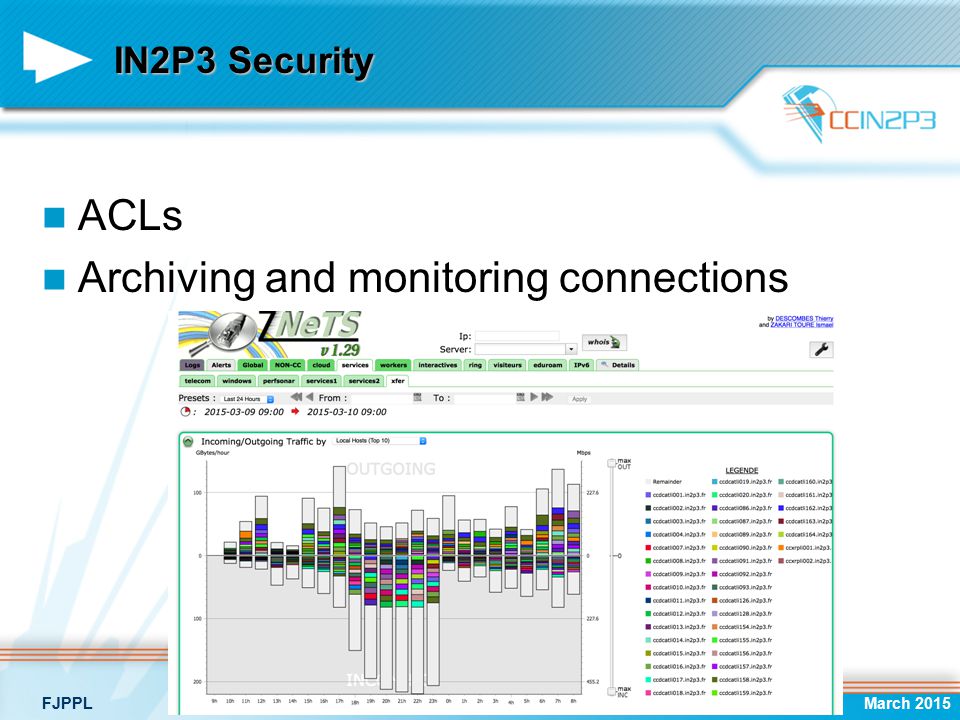

17 IN2P3 Security ACLs Archiving and monitoring connections March 2015FJPPL

18 IN2P3 Statistics March 2015FJPPL

19 March 2015FJPPL
