1 HRP223 2008 Copyright © 1999-2008 Leland Stanford Junior University. All rights reserved. Warning: This presentation is protected by copyright law and international treaties. Unauthorized reproduction of this presentation, or any portion of it, may result in severe civil and criminal penalties and will be prosecuted to maximum extent possible under the law. HRP 223 - 2008 Topic 7 – How Reports Work

2 HRP223 2008 When do I do what?  If you need to produce summaries of data down columns, use the Describe menu.  If you need to summarize data across the rows (change the values in cells), use the Filter and Query tool.

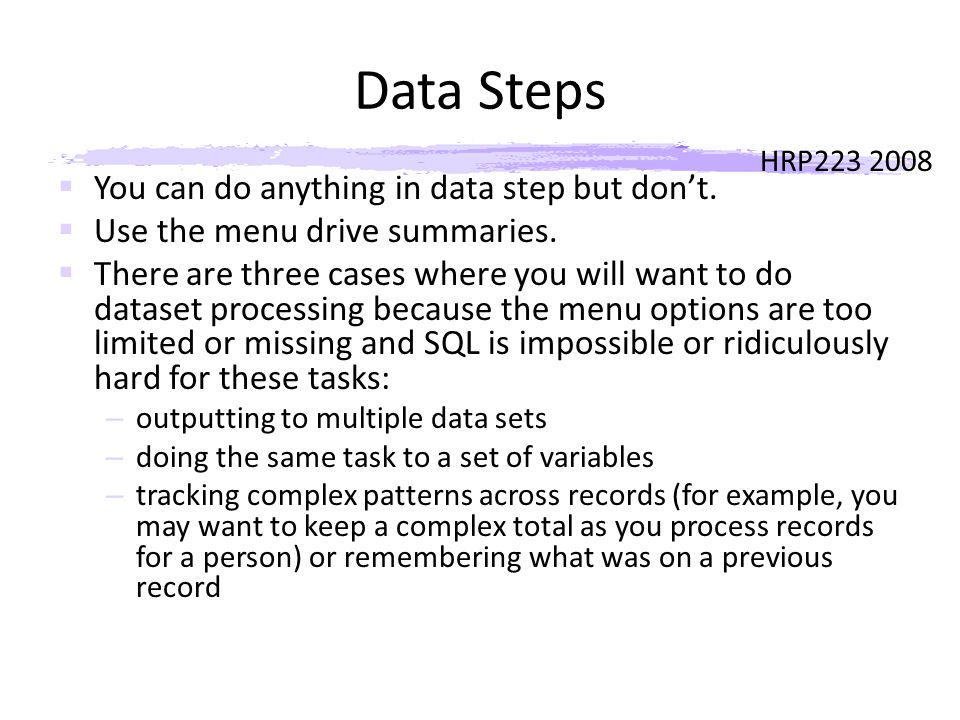

3 HRP223 2008 Data Steps  You can do anything in data step but don’t.  Use the menu drive summaries.  There are three cases where you will want to do dataset processing because the menu options are too limited or missing and SQL is impossible or ridiculously hard for these tasks: – outputting to multiple data sets – doing the same task to a set of variables – tracking complex patterns across records (for example, you may want to keep a complex total as you process records for a person) or remembering what was on a previous record

4 HRP223 2008 Retain  It is a horrible way to organize data but some people use blanks to indicate you are on the same subject.  This causes issues for SAS because SAS erases the PDV whenever it loads in new data. You need to tell it to remember values across records.  You can tell SAS to retain (remember) variables.

5 HRP223 2008 Retain  The PDV wants to work like this:

6 HRP223 2008 Retain  You want to give the retained variable the subject ID when you have one.

7 HRP223 2008 Retain  If the ID is not missing, you want to copy the retained ID into the blank.  You don’t need to copy lastDude into the new data set.

8 HRP223 2008 Retain Both

9 HRP223 2008 After Slicing and Dicing  After you build tables with the correct data, you will want to print reports. – Simple Tables – Complex Summaries – Numeric Summaries – Graphics  The Graphical User Interface in EG is excellent for these tasks but you will want to make some tweaks which I will show you.

10 HRP223 2008 A Simple Printed Report  Say you have a dataset with band names and album names and you want to print it in a report:  Use the List Data… menu option from the Describe menu:

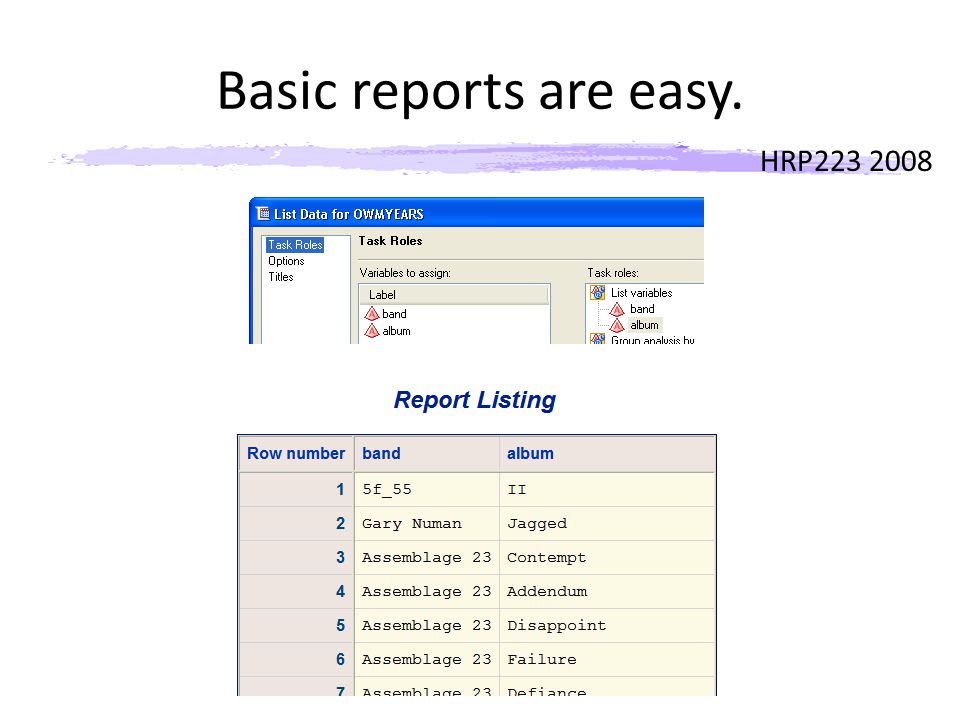

11 HRP223 2008 Basic reports are easy.

12 HRP223 2008 Looking Better

13 HRP223 2008 Changing Code  As you tweak checkboxes or other options, EG is rewriting code:

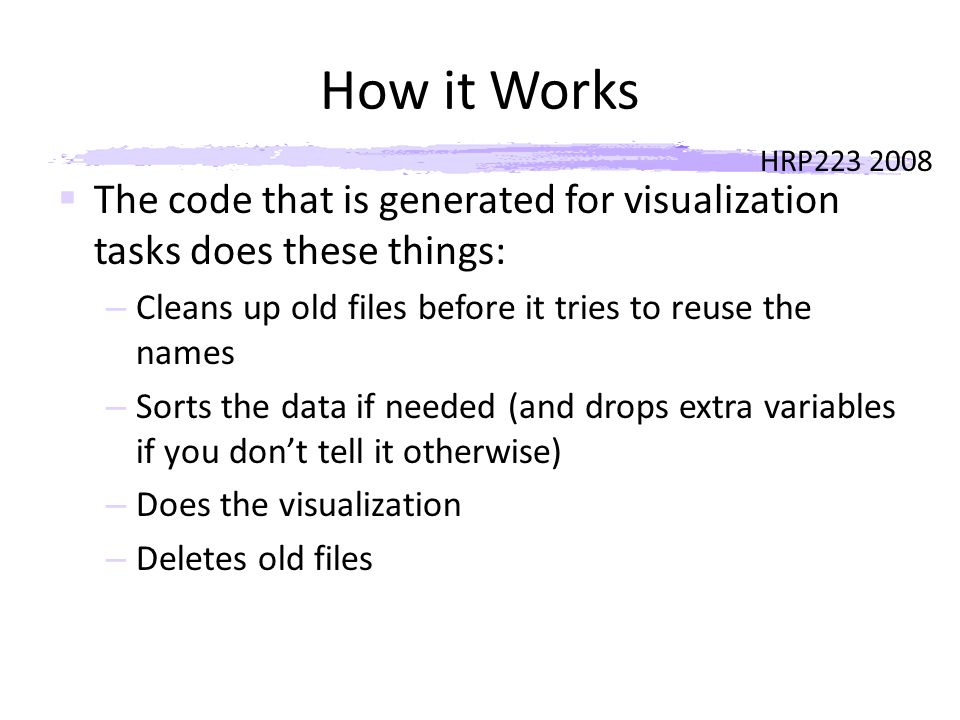

14 HRP223 2008 How it Works  The code that is generated for visualization tasks does these things: – Cleans up old files before it tries to reuse the names – Sorts the data if needed (and drops extra variables if you don’t tell it otherwise) – Does the visualization – Deletes old files

15 HRP223 2008 The code will look something like this:

16 HRP223 2008 If your code looks different… I recommend setting this to never.

17 HRP223 2008 Titles  The titles look lousy. I want the title to say “Ray plays 5f_55 too loud” and “Ray plays Assemblage 23 too loud”, etc..  Use #byval(theVariable) to show the group as the title at the top of the page.

18 HRP223 2008 Almost…. Closer….

19 HRP223 2008

20 Niceties  You can justify titles or footnotes to the left or right or add hyperlinks.  Right click on the node that has the report and choose Open Last Submitted Code. Then type anything to have it make a copy for you to edit. Add the code to left justify

21 HRP223 2008 Adding hyperlinks is easy also.

22 HRP223 2008 File Names  It is convenient to add the name of the project to titles or footnotes.  There is an automatic macro variable called _clientprojectname which has the path to the project.

23 HRP223 2008 %scan(&_clientprojectname, -1, \)  This is a macro function that says parse the path into words by dividing only at \ and select the first word starting on the right.

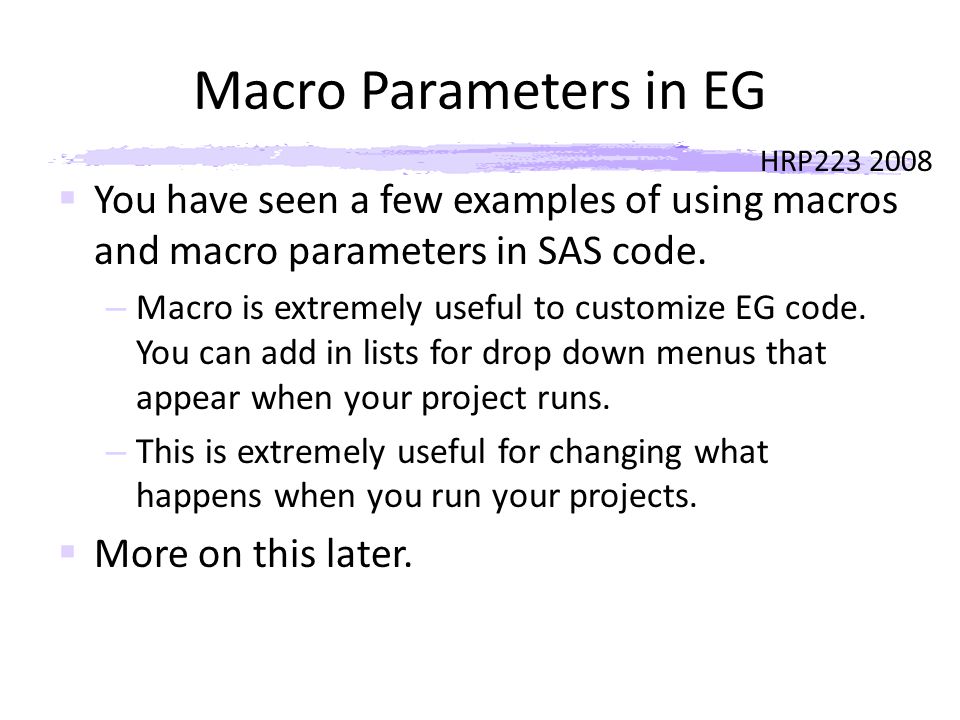

24 HRP223 2008 Macro Parameters in EG  You have seen a few examples of using macros and macro parameters in SAS code. – Macro is extremely useful to customize EG code. You can add in lists for drop down menus that appear when your project runs. – This is extremely useful for changing what happens when you run your projects.  More on this later.

25 HRP223 2008 Looking at Data  There is a dataset in the Walker book where he looks to see if two categorical predictors impact the mean hemoglobin scores. – Cancer type – Active vs. placebo  I want to visualize the data first and use the formal statistics to confirm what I have seen.

26 HRP223 2008 Summaries  I want good looking boxplots, histograms and numeric summaries. The Box Plot menu choice is an embarrassment.

27 HRP223 2008 By default you do NOT see outliers. Fix that.

28 HRP223 2008 A lovely plot of white space…. With no mean symbols….

29 HRP223 2008

30 Histograms  The histograms you get from the Distribution Analysis tool are not too bad but I would not try to publish them.

31 HRP223 2008 Cancer Type  It looks like there are some subtle differences.

32 HRP223 2008 SAS 9.2  SAS did major work to graphics in 9.2. I have not seen EG 4.2 yet but I am hopeful.

33 HRP223 2008 Pretty Summary Tables  Proc Tabulate is arguably the most user-hostile part of SAS. It is hidden nicely by the Summary Tables item under the Describe menu.

34 HRP223 2008 Drag the classification variables into the table. Drag and drop the analysis variable.

35 HRP223 2008 Drag and drop useful statistics.

36 HRP223 2008 Drag All to the margins. Drag the analysis variable to the line below All.

37 HRP223 2008 Drag in the statistics of interest.

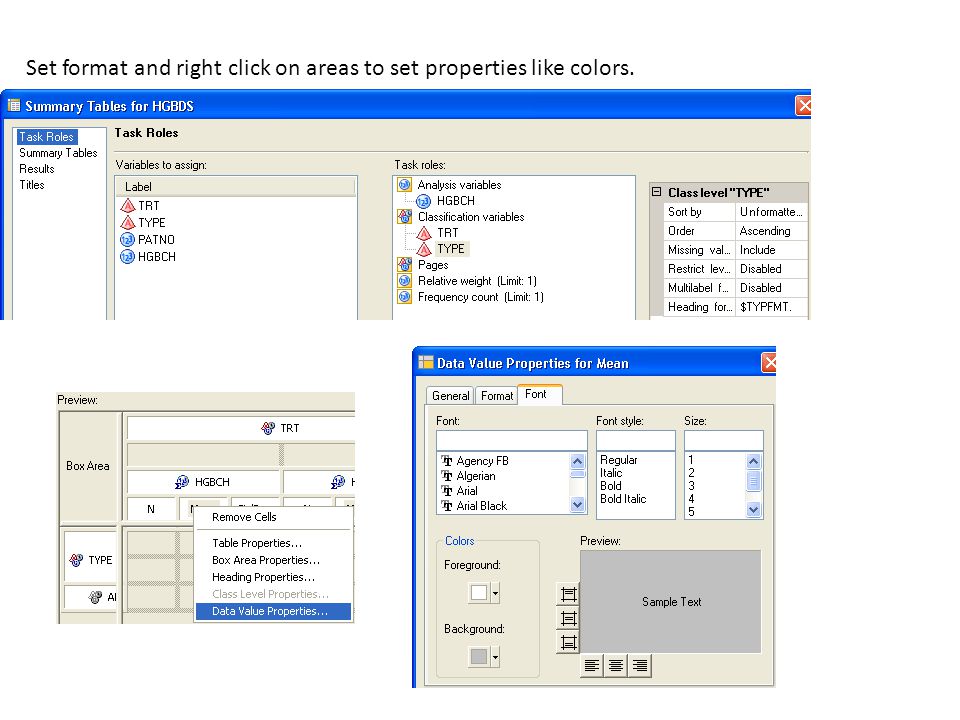

38 HRP223 2008 Set format and right click on areas to set properties like colors.

39 HRP223 2008 This is what I got after a bunch of right clicking and tweaking the “Heading Properties” and one change to the Box Area.

40 HRP223 2008 General Appearance I don’t like the general color scheme and I want this to go to a PDF file.

41 HRP223 2008 Instant PDF Visit the Style Manager on the Tools menu to browse the different style templates.

42 HRP223 2008 ODS  The Output Delivery System is the subsystem of SAS that controls output, including file types created and the appearance of the content. You can take any block of code and surround it with instructions to use ODS to send the output from an analysis to different output “pipes.”  There is no easy way to redirect output from several nodes in the flowchart into a single PDF.  Right click and choose “Open Last Submitted Code” and copy it (the blocks of code you want) to combine them into a single new code node.

43 HRP223 2008 Pipes  You open the ODS pipe by typing: ods html body="path"; ods pdf body ="path";  You close it with the corresponding close statement: ods html close; ods pdf close;

44 HRP223 2008 HTLM  My code to produce HTML looks like this: ods html file=‘blah-body.htm' contents="blah-contents.htm" frame="blah-frame.htm" page="blah-page.htm" path ="c:\projects\blah\" (url=none) gpath="c:\projects\blah\" (url=none); Store the HTLM files and graphics here. Do not specify the exact location of the files. or body

45 HRP223 2008 ODS Example ods html body="blah-body.htm" contents="blah-contents.htm" frame="blah-frame.htm" page="blah-page.htm" path ="c:\blah\" (url=none) gpath="c:\blah\" (url=none); proc print data=blah;run; proc print data=blah2;run; ods html close; Call it index.html if going to a webpage.

46 HRP223 2008

47 HTML Style Templates  You can add this to the ods html line to change the appearance of the output: /style= SomeStyle  Where SomeStyle includes lots of already made choices like: BarrettsBlue, Beige, Brick, D3d,Default, FancyPrinter, Minimal, NoFontDefault, Printer, RTF, SansPrinter, SASWeb, SerifPrinter, StatDoc  I usually use default, minimal, journal or printer.

48 HRP223 2008 ODS for Word Processing  If you want good looking output to go into a word processor, tell ODS to output into RTF (rich text format): ods rtf file = "c:\SomeName.rtf" bodytitle ;  At the end of the program include this: ods rtf close; SAS wants to put titles into the document’s header. If you use “bodytitle” it will put the titles into the body of the text document.

49 HRP223 2008 ODS Example  To get SAS to produce a subset of the output, you use the ods select subsectionName statement. ods select BasicMeasures; proc univariate data = repver.f_repver3; var age_st; run;  The trick is to figure out the name of the subsection you want. To find the subsection name, you can dig through the SAS documentation or just use the ODS trace statement.

50 HRP223 2008 ods trace on; proc univariate data=repver.f_repver3; var age_st; run; ods trace off;  After you have the names of the subsections you want, remember to remove or comment out the ods trace statements.

51 HRP223 2008 ODS Output to Tables  You can also send specific parts of output directly to a table like this: ods output TestsForLocation = work.blah; proc univariate data = repver.f_repver3; var age_st; run;

52 HRP223 2008 Exclude  Specify the name of the table you want to exclude: ods pdf; ods exclude statistics; proc ttest data=graze; class GrazeType; var WtGain; run; ods pdf close;  The exclude will impact the next procedure only.

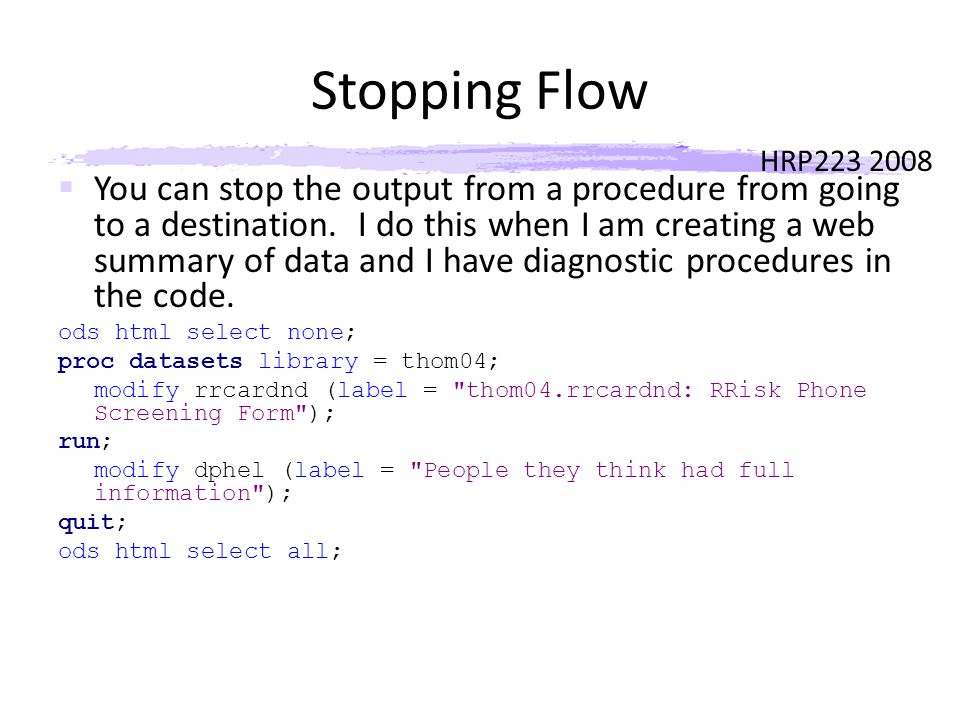

53 HRP223 2008 Stopping Flow  You can stop the output from a procedure from going to a destination. I do this when I am creating a web summary of data and I have diagnostic procedures in the code. ods html select none; proc datasets library = thom04; modify rrcardnd (label = "thom04.rrcardnd: RRisk Phone Screening Form"); run; modify dphel (label = "People they think had full information"); quit; ods html select all;
