1 Lesson 4 Shell Plating and Framing

2

3 Contents Bottom Shell Side Shell Framing Transverse longitudinal Structural members

4 Language Points butt weld fiilet weld strake keel pounding region panting region

5 Plug welding, T-welding, lap welding, fillet welding, butt-welding

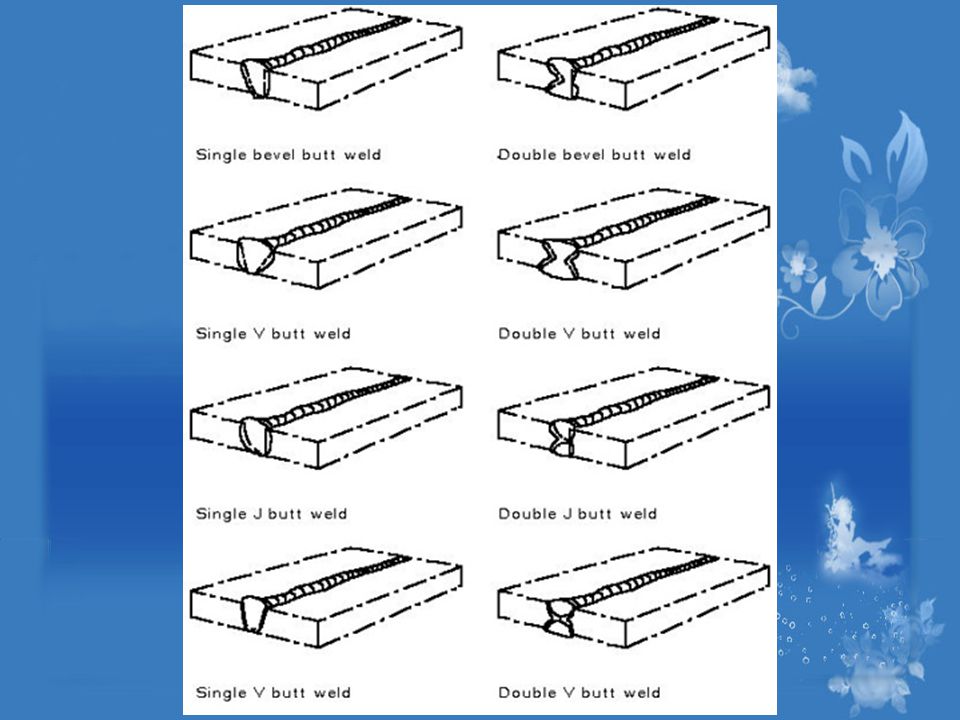

6 butt weld Butt weld welds where two pieces of metal are joined at surfaces that are at 90 degree angles to the surface of at least one of the other pieces There are many types of butt welds, but all fall within one of these categories: single welded butt joints, double welded butt joint, and open or closed butt joints. A single welded butt joint is the name for a joint that has only been welded from one side. A double welded butt joint is created when the weld has been welded from both sides. With double welding, the depths of each weld can vary slightly.

7

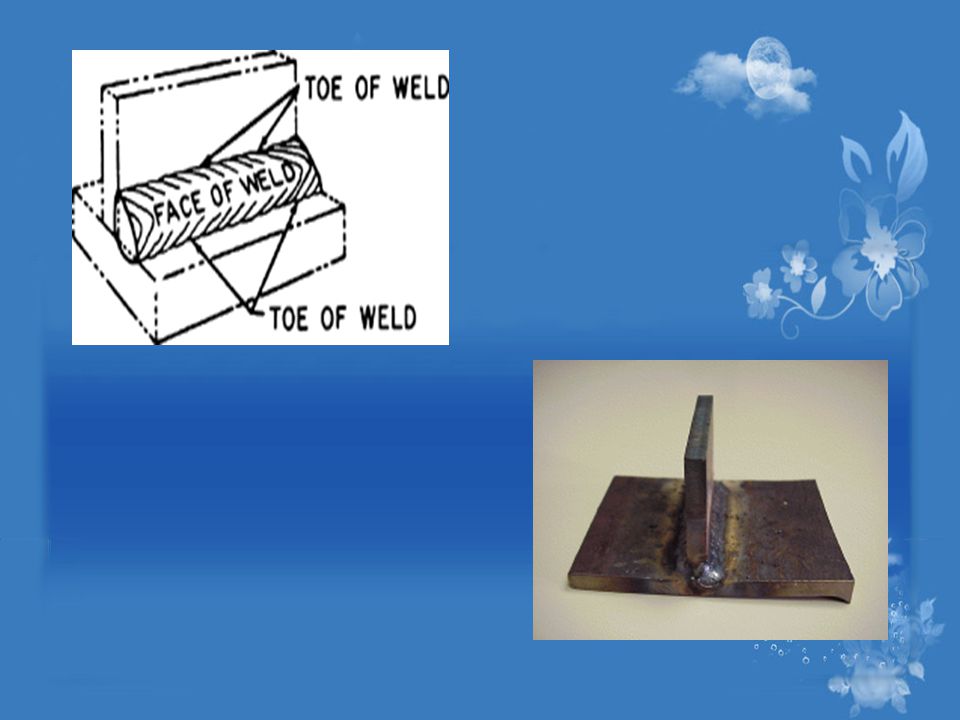

8 fillet weld A weld of approximately triangular cross section joining two surfaces, approximately at right angles to each other, as in a lap joint.

9

10 strake a longitudinal strip along the side of a boat, usually constructed by laying panels end to end. Strakes are important structural components of boats of all sizes and can be made from wood, metal, and other building materials. When a ship is designed, the layout of strakes is considered ahead of time to make sure panels of the right size and shape are cut, with the goal of minimal wastage and an even, aesthetically pleasing appearance. Some strakes have special names, depending on their position along the hull. The very top strip is known as the sheer strake, while the panel next to the keel is the garboard strake. Boating companies may also use the term “strake” to refer to a strip added to increase control and speed. This is not an integral part of the hull, but an added component that will jut out from the finished boat. These are usually found on the bottom of the boat and can cut down on spray, a concern for some recreational boaters.keel

11

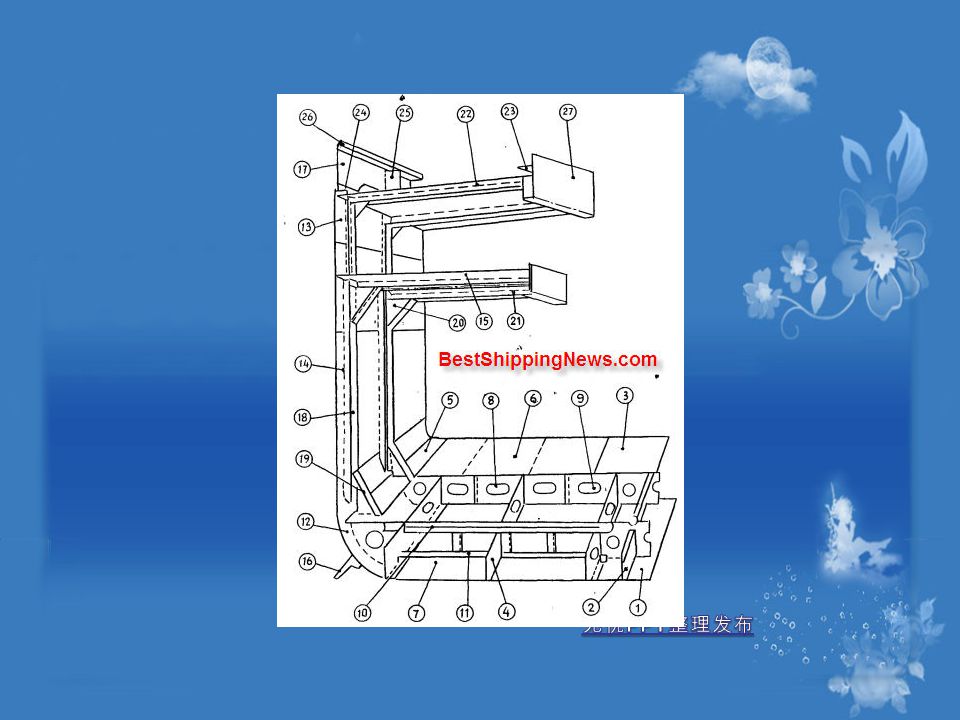

12 1. Plate Keel 2. Center girder 3. Center (line) strake 4. Side girder 5. Horizontal margin plate 6. Inner bottom plating 7. Bottom plating 8. Floor 9. Manhole 10. Reverse frame 11. Main frame 12. Bilge strake 13. Sheer strake 14. Side plating 15. Upper deck 16. Bilge keel 17. Bulwark plating 18. Frame 19. Tank side bracket 20. Beam bracket 21. Deck beam 22. Shelter deck 23. Horizontal stiffener 24. Gunwale angle 25. Bulwark stay 26. Hand rail 27. Hatch side coaming

13

14 keel The principal structural member of a ship, running lengthwise along the center line from bow to stern, to which the frames are attached.

15 pounding &panting –Panting stresses is an in and out motion of the plating in the bows of a ship and is caused by unequal water pressure as the bow passes through successive waves. –Pounding stresses exist when ships is pitching. Ship’s bows lift clear of the water and come down heavily. It causes damage to the bottom and girder at the bow.

16 Panting is the in-and-out movement of the shell plating that results from variations in water pressure as the vessel pitches in a seaway. Special structural arrangements are provided in the bow region to strengthen the shell plating against this action. These arrangements include: 1. horizontal plates welded to the sides of the vessel (known as panting stringers) 2.transverse beams extending from side to side (known as panting beams) 3. partial bulkheads On some vessels, panting beams are replaced by perforated flats. Perforated flats are flat plates, similar to decks, with round holes cut in them.

17 Pounding results from the heaving or pitching of the vessel, which causes the forward region to ‘slam’ down on the water. To resist pounding, the shell plating is increased in thickness, frame spacing is reduced, and additional side girders and solid plate floors are fitted in the forward region.

18

19

20 Bottom shell plating –Throughout the length of the ship the width and thickness of the keel plate remain constant where a flat plate keel is fitted. Its thickness is never less than that of the adjoining bottom plating. –Strakes of bottom plating to the bilges have their greatest thickness over 40 percent of the ship’s length amidships, where the bending stresses are highest. The bottom plating then tapers to the lesser thickness at the ends of the ship, apart from increased thickness requirements in way of the pounding region.

21

22 Side shell plating The upper strakes of plating adjacent to the strength deck is referred to as the ‘sheer-strake’. The connection between the sheer strake and strength deck can present a problem, and a rounded gunwale may be adopted to solve this problem where the plating is heavy. This is often the case over the midship portion of large tankers and bulk carriers. Butt welds are then employed to make connections rather than the less satisfactory fillet weld at the perpendicular connection of the vertical sheer-strake and horizontal strength deck stringer plate. The radius of the rounded gunwale must be adequate (not less than 15 times the thickness) and any welded guardrails and fairleads are kept off the radiused plate if possible

23

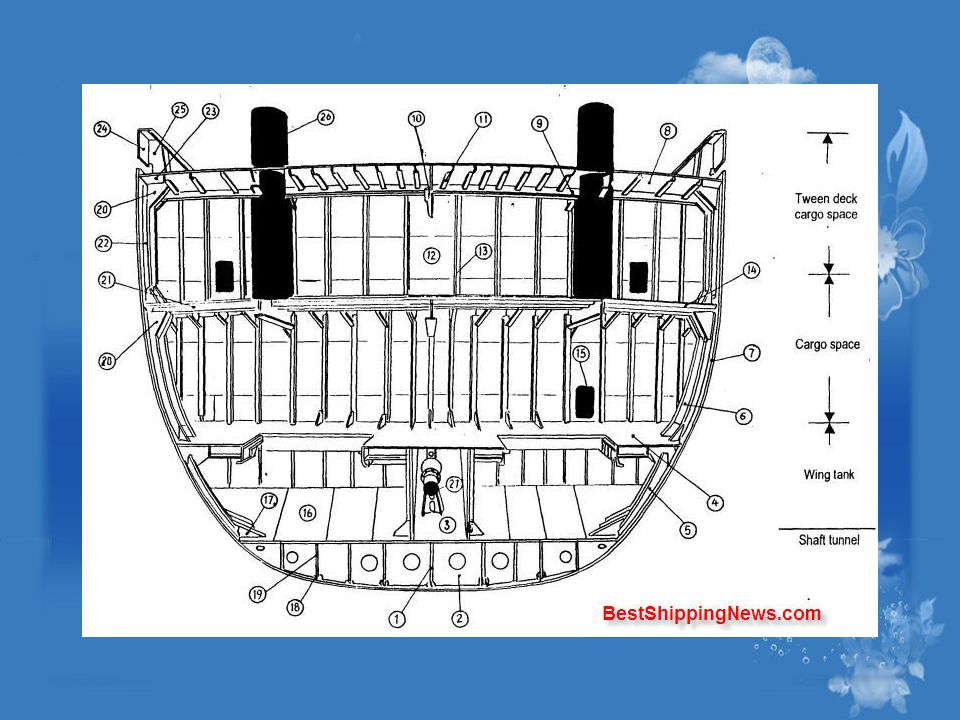

24 1. Center girder 2. Floor 3. Shaft tunnel 4. Tank top plate 5. Tank side frame 6. Hold frame 7. Shell plating 8. Upper deck 9. Transverse beam 10. Deck girder 11. Deck long. 12. Water tight bulkhead 13. Bulkhead stiffener 14. Second deck 15. Manhole 16. Inner bottom plate 17. Tank side bracket 18. Bottom long. 19. Vertical stiffener 20. Beam bracket 21. Deck beam 22. Tween deck frame 23. Stringer plate 24. Bulwark plate 25. Bulwark stay 26. Derrick post 27. Screw shaft

25 Components of Framing frame: On side plating, running vertically (up and down) beam: Under decks, runs transversely transverse: Under decks (deck transverse) and on bottom plating (bottom transverse) but not in Double Bottoms. Runs transversely but much heavier in construction than a beam. floors: Found only in double bottoms, running transversely. stringer: On side plating and longitudinal bulkheads, runs horizontally, forward and aft.

26 longitudinal:Found in longitudinally framed ships, under decks, on side plating, on longitudinal bulkheads, on bottom plating and under the tank too. These members run fore and aft. girder: Found under decks and on the bottom plating. Girders run forward and aft and are deep and heavy in construction. These are important longitudinal strength members. Also increase the breadth of the forecastle and provides space for the mooring. scantlings: A ship construction term used generally to define dimensions of various parts of the structure. Used to mean breadth, length, diameter, thickness, height etc.

27 Transverse Framing 1. This is system of framing is used in vessels of relatively less length, where longitudinal bending moments are not excessive. The framing system consists essentially of rings of strengthening around the shell plating. 2. Under the deck, deck beams are fitted at every frame space. A frame space is the distance between one frame on the side plating to the next frame. 3. On the side plating, frames are fitted to stiffen the plating. The deck beams are connected to the frames on the side by means of beam knees. Beam knees are very efficient connections as compared to joining the bean directly to the frame.

28 Longitudinal Framing 1. This is a common method of framing found in long ships usually those exceeding 100 m in length. The system is designed to withstand longitudinal bending moments, which are pronounced in long vessels. 2. The main feature of strengthening in this system is the longitudinal, an L shaped stiffener, which is fitted under the decks, on the side plating, on the bottom plating under the tank top and on the longitudinal bulkheads as well. The longitudinals run the full length of the vessel, from forward to aft, providing longitudinal strength..

29 Fig.I Transverse Framing of single deck hull Fig.II Longitudinal Framing of hull

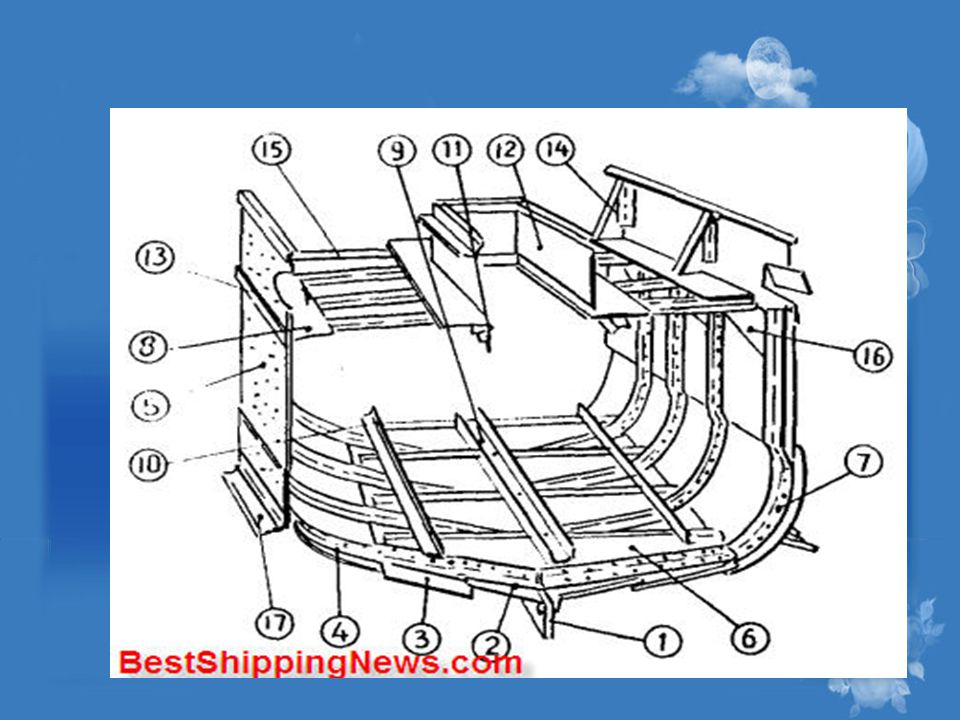

30 1.deck plating 2.sheer strake 3.side plating 4.bilge strake 5.bottom plating 6.centerline vertical keel 7.flat keel 8.side keel 9.beam bracket 10.deck longitudinal 11.frame 12.web frame 13.side longitudinal bracket 14.bracket 15.beam 16.transverse bulkhead plate 1.upper deck 2.deck girder 3.deck longitudinal 4.top side plating 5.web beam 6.horizontal stiffener 7.web beam 8.bracket 9.side longitudinal 10.longitudinal bulkhead 11.web frame 12.strut

31 Assignment Memorize the language points Review the drawings with structure terms
