2
To show that the Kauffman Bracket is unchanged under each of the three Reidemeister moves. First explain the basics of knot theory. Then show you what the Reidemeister moves are, and how they affect knots. Finally, illustrate the Kauffman Bracket and it’s applications.

3

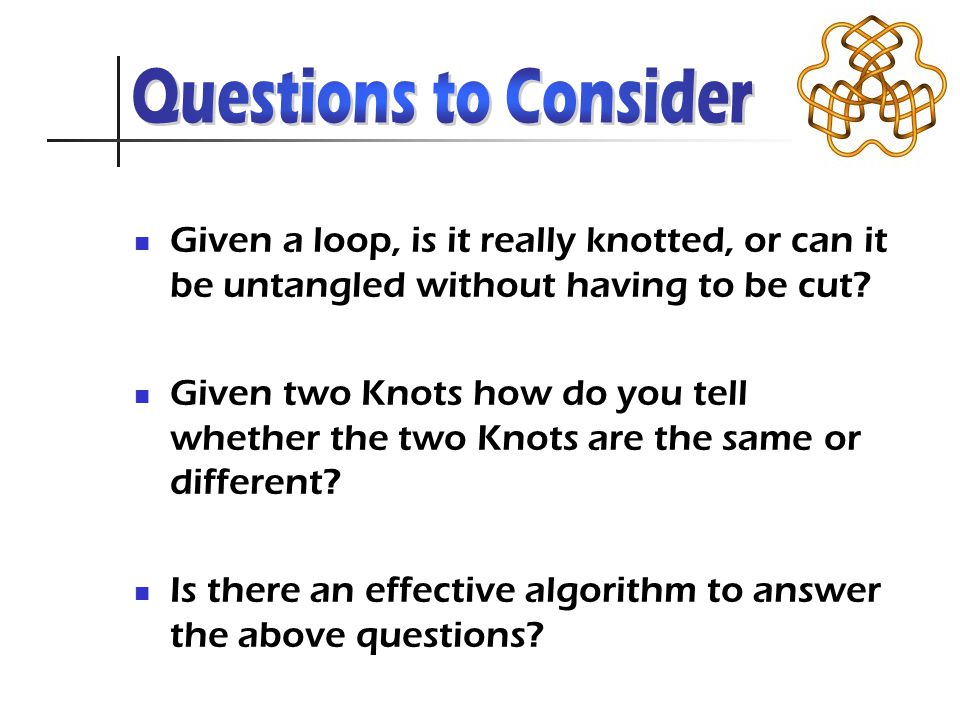

Given a loop, is it really knotted, or can it be untangled without having to be cut? Given two Knots how do you tell whether the two Knots are the same or different? Is there an effective algorithm to answer the above questions?

4
A piece of string with a knot tied in it Glue the ends together because it is necessary in knot theory that a knot be a continuous loop.

5

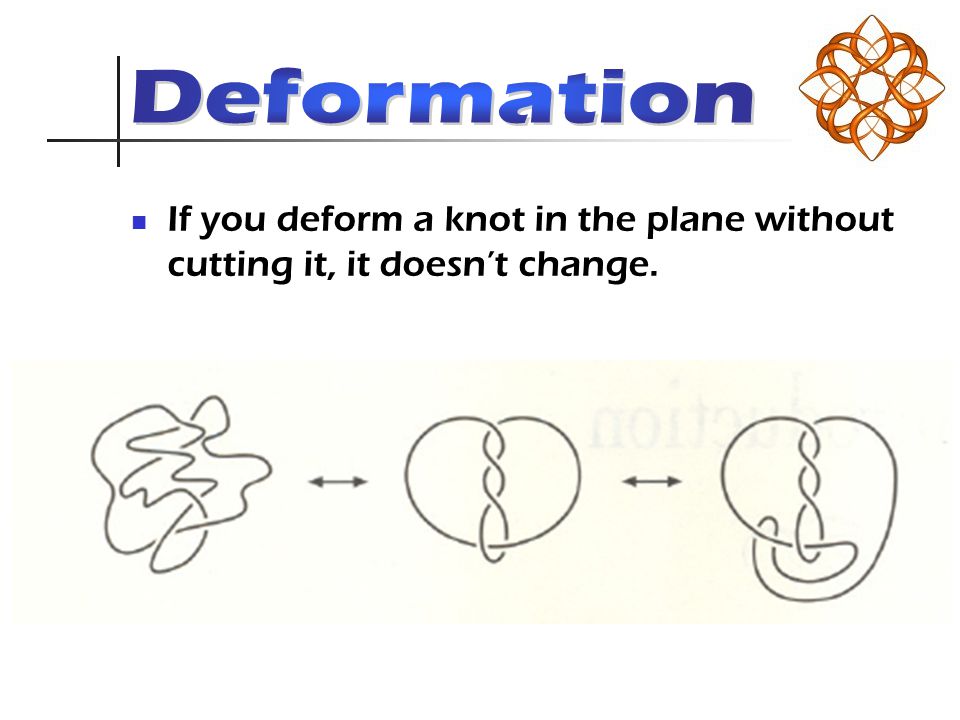

If you deform a knot in the plane without cutting it, it doesn’t change.

6
Goes under, over, under, over…

7
The simplest knot. An unknotted circle, or the trivial knot. You can move from the one view of a knot to another view using a series of Reidemeister moves.

8

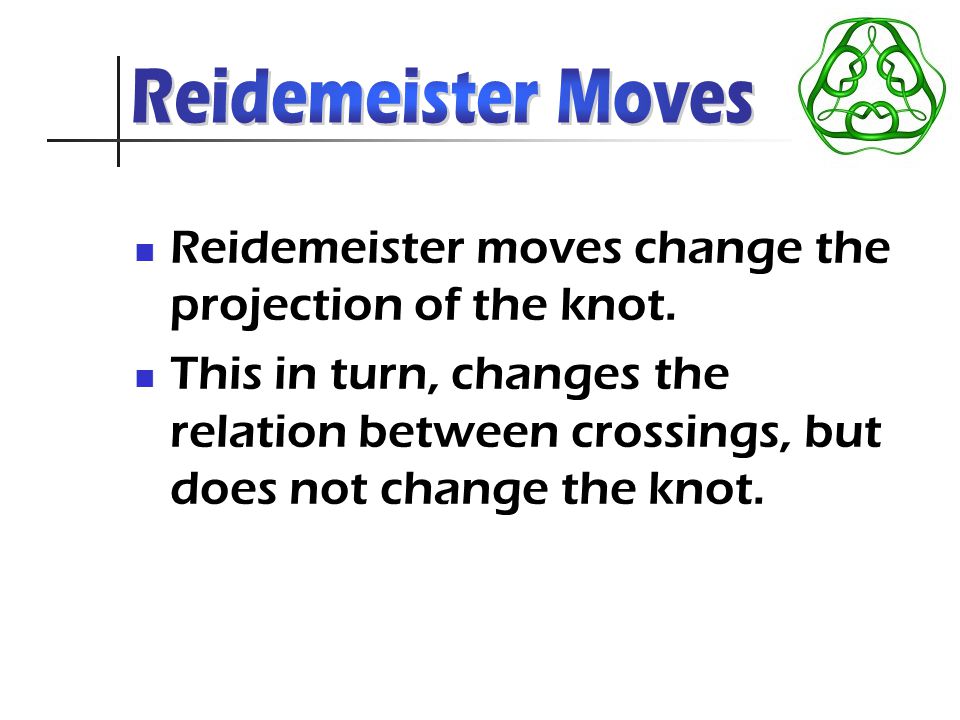

Reidemeister moves change the projection of the knot. This in turn, changes the relation between crossings, but does not change the knot.

9
First: Allows us to put in/take out a twist. Second: Allows us to either add two crossings or remove two crossings. Third: Allows us to slide a strand of the knot from one side of a crossing to the other.

10

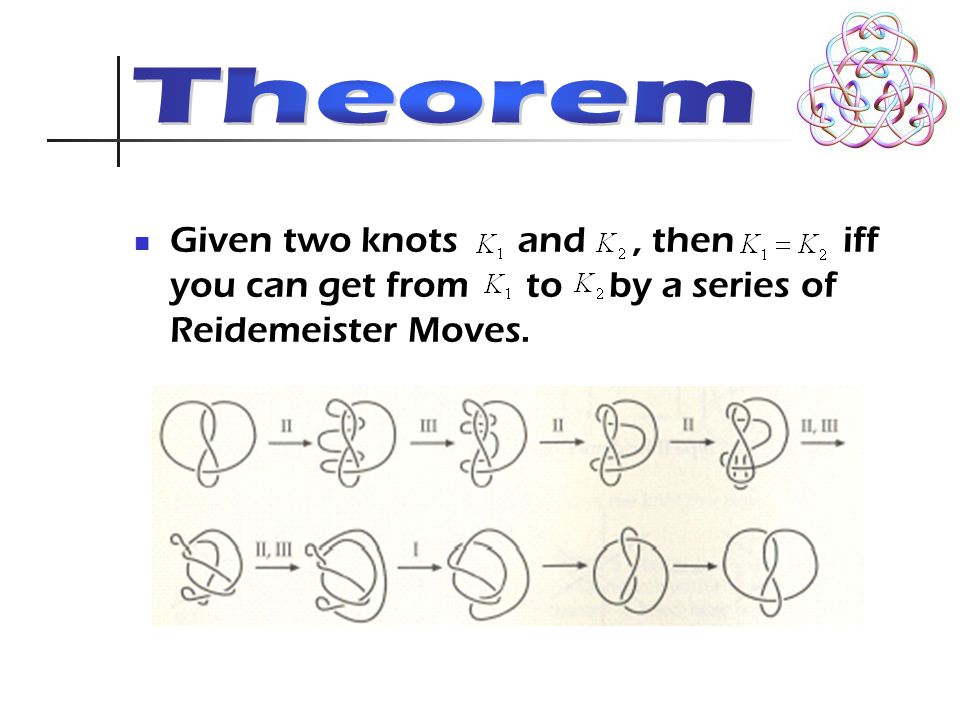

Given two knotsand, then iff you can get from to by a series of Reidemeister Moves.

11

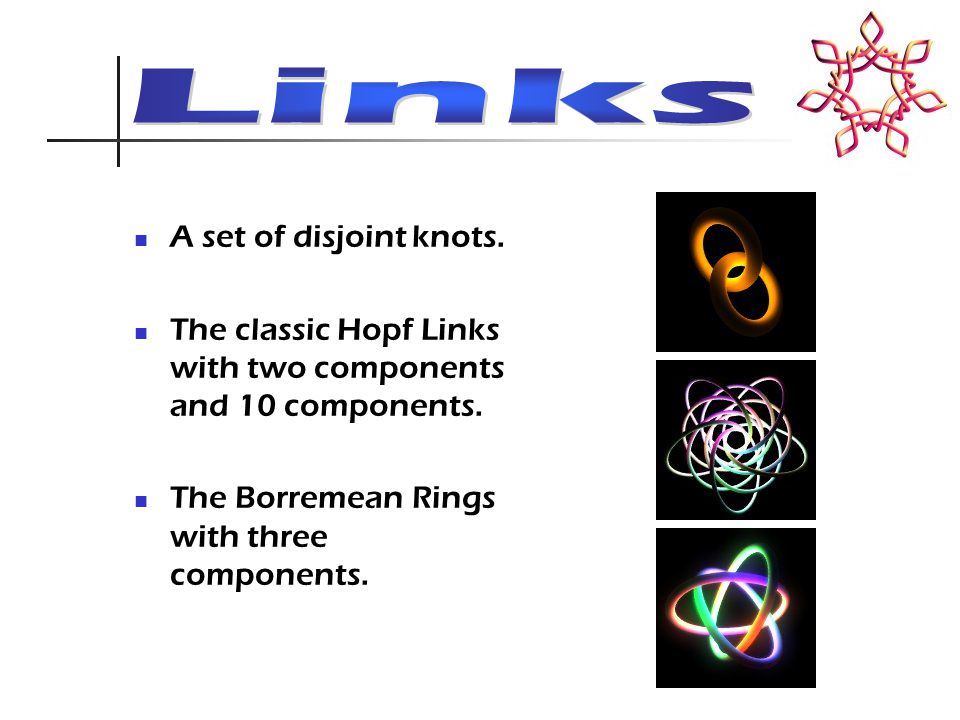

A set of disjoint knots. The classic Hopf Links with two components and 10 components. The Borremean Rings with three components.

12

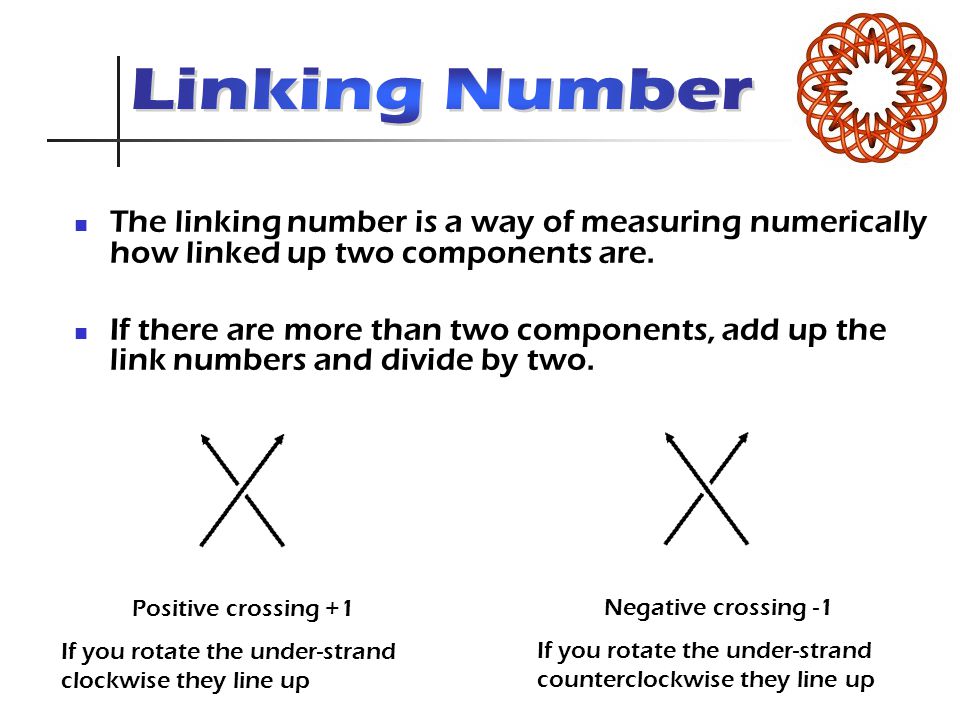

The linking number is a way of measuring numerically how linked up two components are. If there are more than two components, add up the link numbers and divide by two. Positive crossing +1 If you rotate the under-strand clockwise they line up Negative crossing -1 If you rotate the under-strand counterclockwise they line up

13
Rotate under strand Linking number is +1

14
The linking number is unaffected by all three Reidemeister moves. Therefore it is an invariant of the oriented link. +1 +1 +1

15
To calculate the writhe you must start with an oriented knot or link projection. At each crossing you will have either a +1 or a -1. The writhe is the sum of these numbers. It is expressed as where is a link projection. +1 1+1-1-1=0 So the writhe of the figure eight knot is 0

16

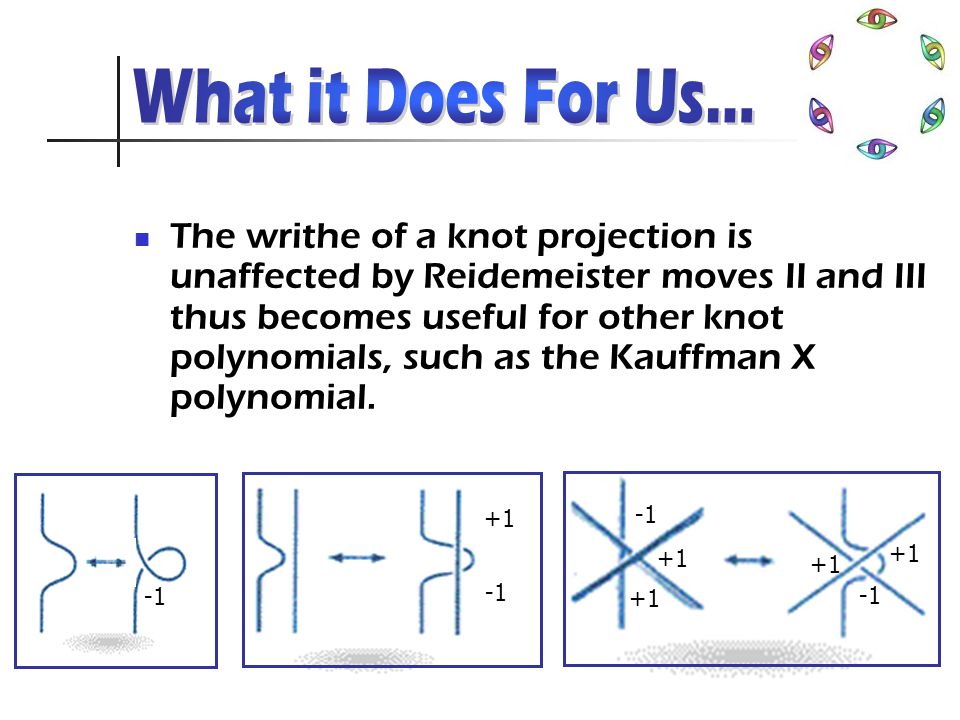

The writhe of a knot projection is unaffected by Reidemeister moves II and III thus becomes useful for other knot polynomials, such as the Kauffman X polynomial. +1 +1 +1 +1

17

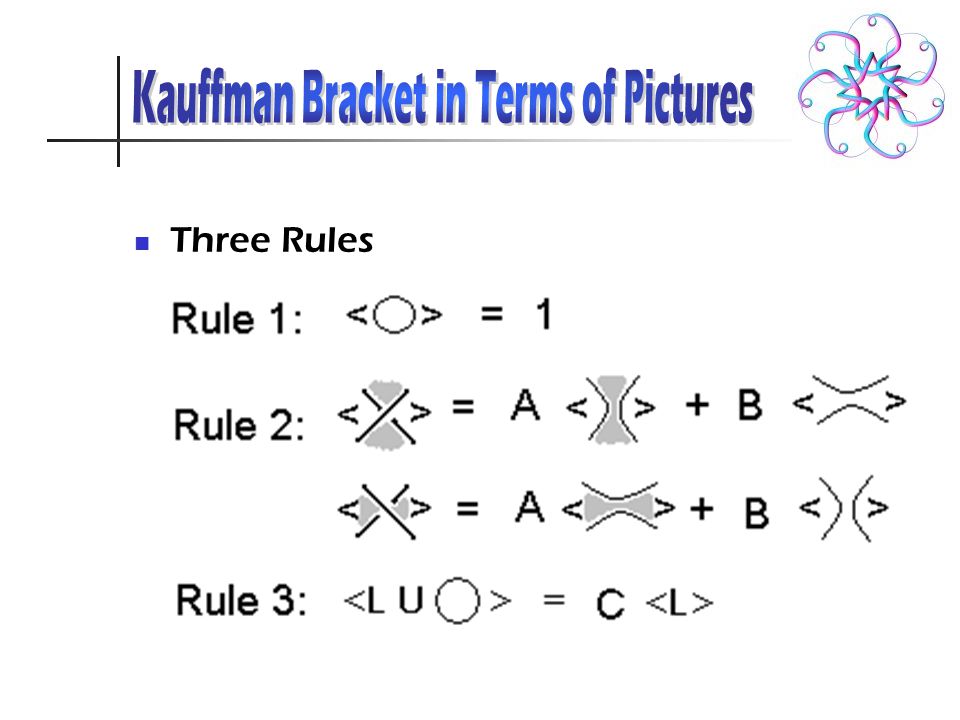

Three Rules

18
In order to show that a given polynomial is in fact knot/link invariant, it is necessary and sufficient to show that the invariant in question is unchanged under each of the three Reidemeister moves. I.E. I need to show that the Kauffman Bracket is unchanged under each of the three Reidemeister moves.

20
We want the polynomials to satisfy the Reidemiester moves so, let’s find B in terms of A. The same is done to determine C:

22
Three Rules

23

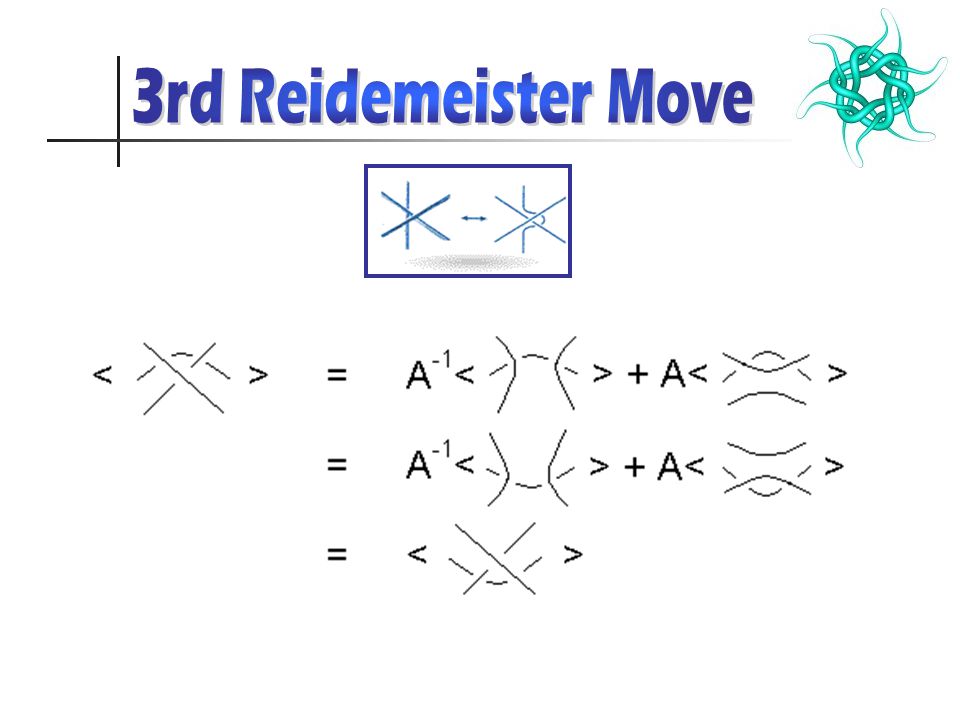

This shows that the bracket polynomial is invariant under Reidemeister moves II and III i.e. is an invariant of regular isotopy. It is not an invariant under Reidemeister I The next task is to find a way to make it work.

24

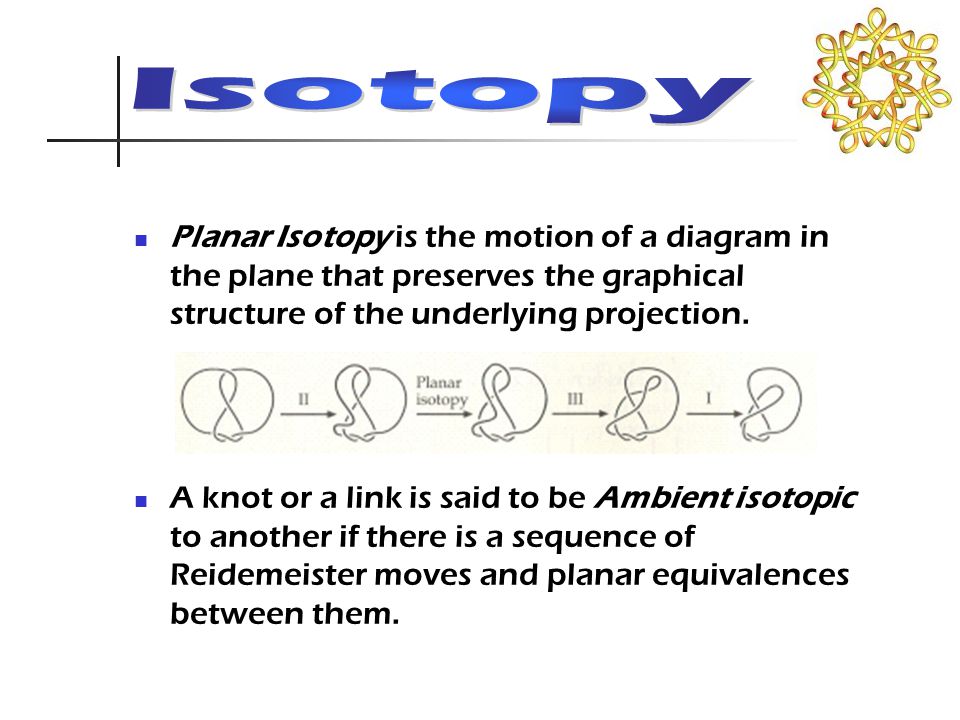

Planar Isotopy is the motion of a diagram in the plane that preserves the graphical structure of the underlying projection. A knot or a link is said to be Ambient isotopic to another if there is a sequence of Reidemeister moves and planar equivalences between them.

26

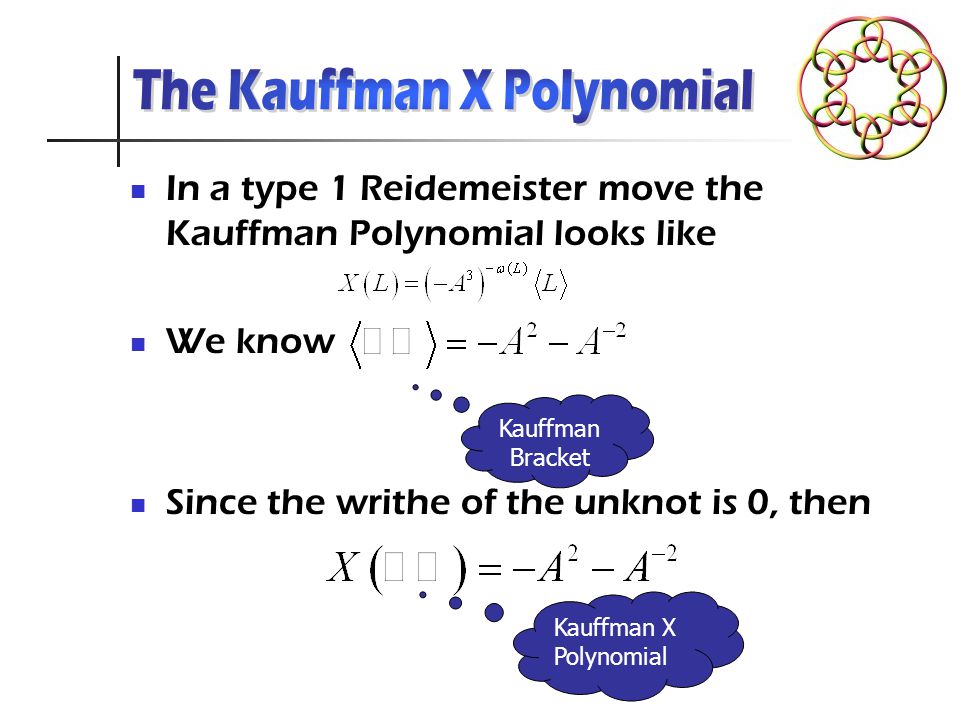

In a type 1 Reidemeister move the Kauffman Polynomial looks like We know Since the writhe of the unknot is 0, then Kauffman X Polynomial Kauffman Bracket

27

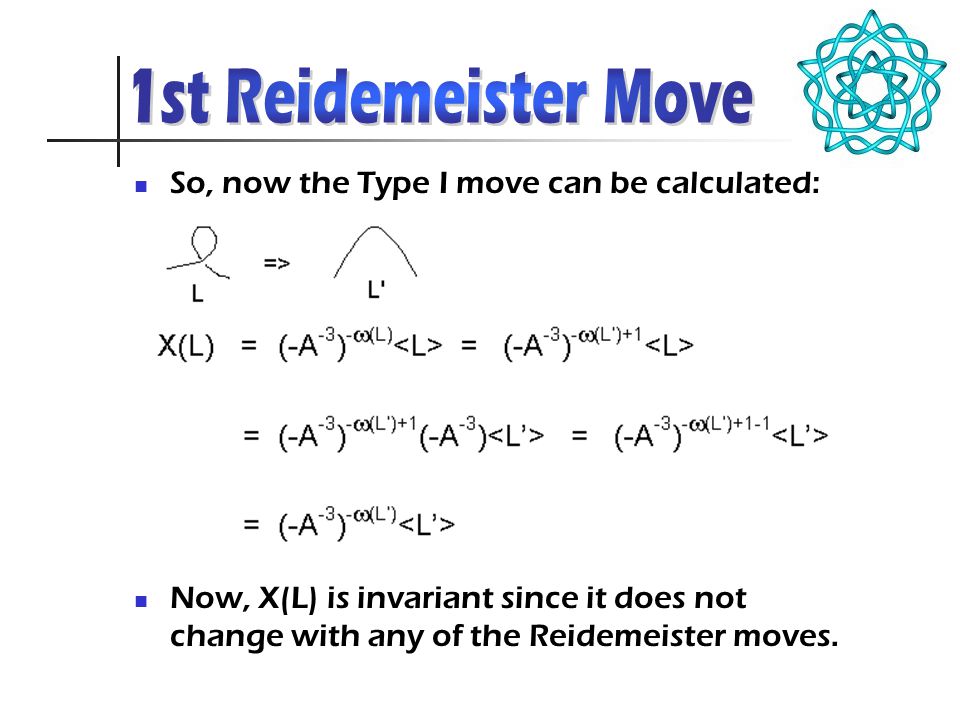

So, now the Type I move can be calculated: Now, X(L) is invariant since it does not change with any of the Reidemeister moves.

28
Hopf Link

29

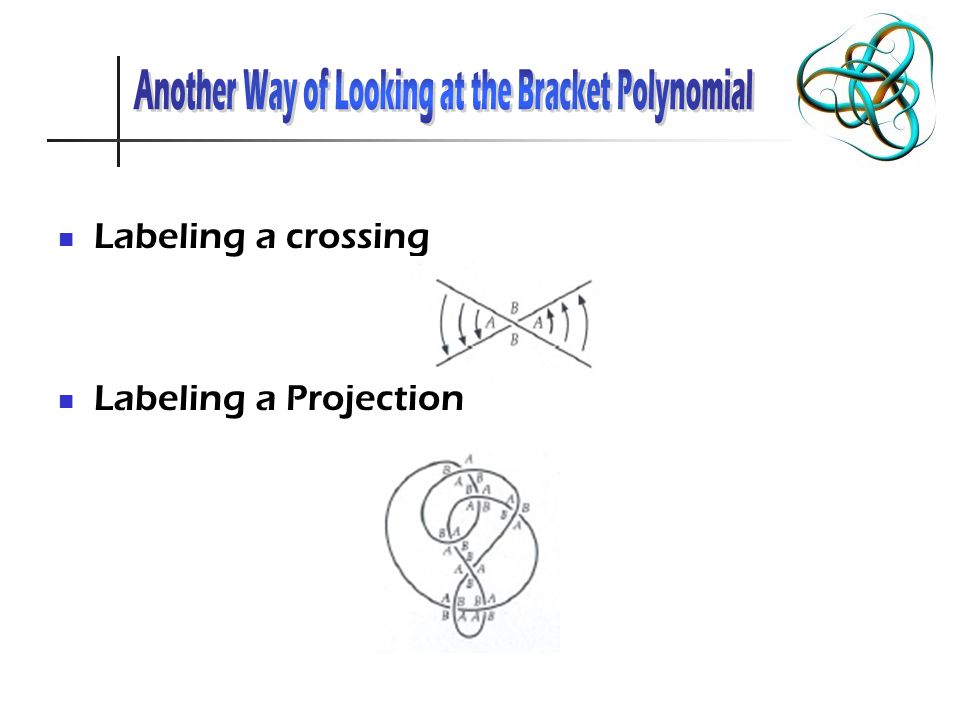

Labeling a crossing Labeling a Projection

30
Crossing A-Split B-Split

31
The choice of how to split all n-crossings in a projection L. Denoted: Notice that this particular state of the trefoil contributes to the bracket polynomial of this projection

32

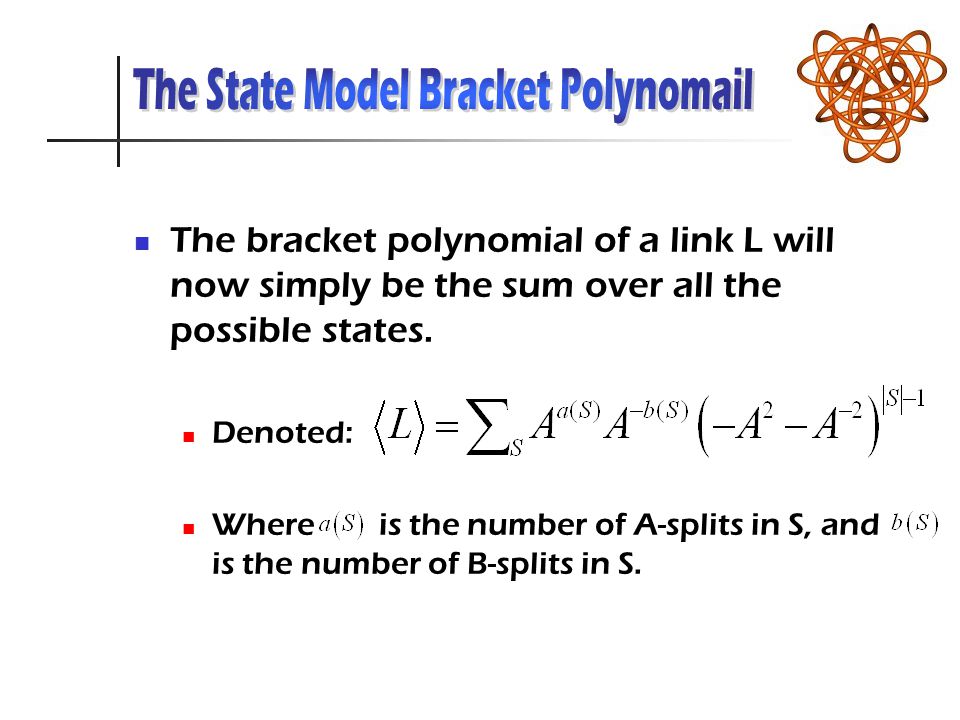

The bracket polynomial of a link L will now simply be the sum over all the possible states. Denoted: Where is the number of A-splits in S, and is the number of B-splits in S.

33
To compute the bracket polynomial of the trefoil knot. There are 3 crossings so there will be states

34
It is hard to tell the unknot from a messy projection of it, or for that matter, any knot from a messy projection of it. If does not equal, then can’t be the same knot as. However, the converse is not necessarily true.

35
I have proved that the Bracket polynomial is invariant under the three Reidemeister moves.

36
Knot Theory has many applications in other fields, specifically biology. Knot theory aids in DNA research of knotted or tangled DNA.

37

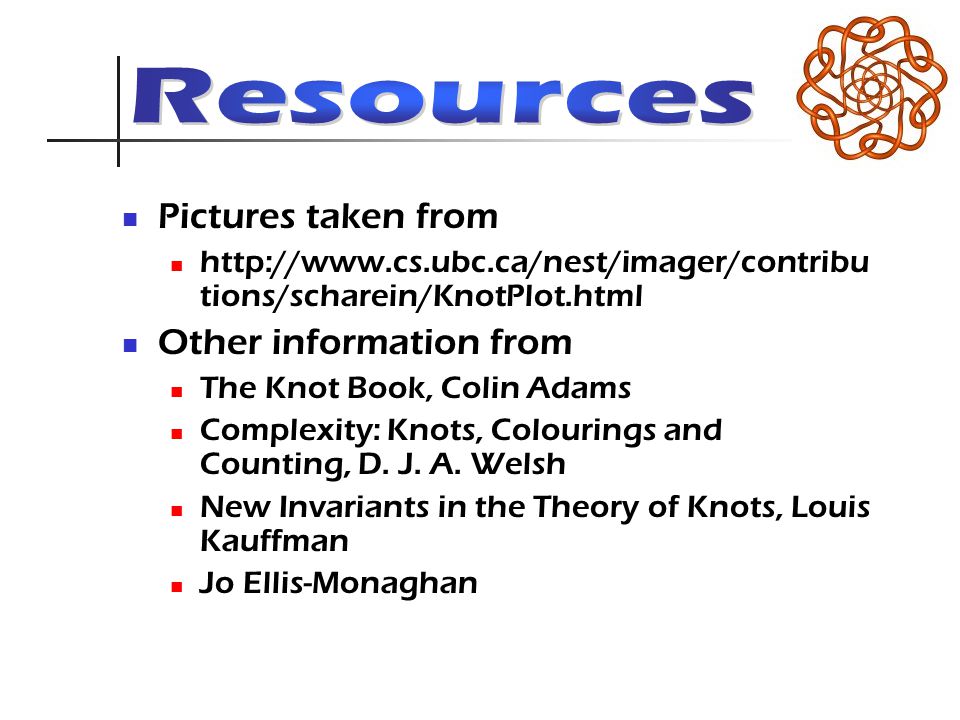

Pictures taken from http://www.cs.ubc.ca/nest/imager/contribu tions/scharein/KnotPlot.html Other information from The Knot Book, Colin Adams Complexity: Knots, Colourings and Counting, D. J. A. Welsh New Invariants in the Theory of Knots, Louis Kauffman Jo Ellis-Monaghan

41
Labeling Technique for Shaded Knot/Link Projections Begin with the shaded knot projection. If the top strand ‘spins’ left to sweep out black then it’s a + crossing. If the top strand ‘spins’ right then it’s a – crossing. - +

42

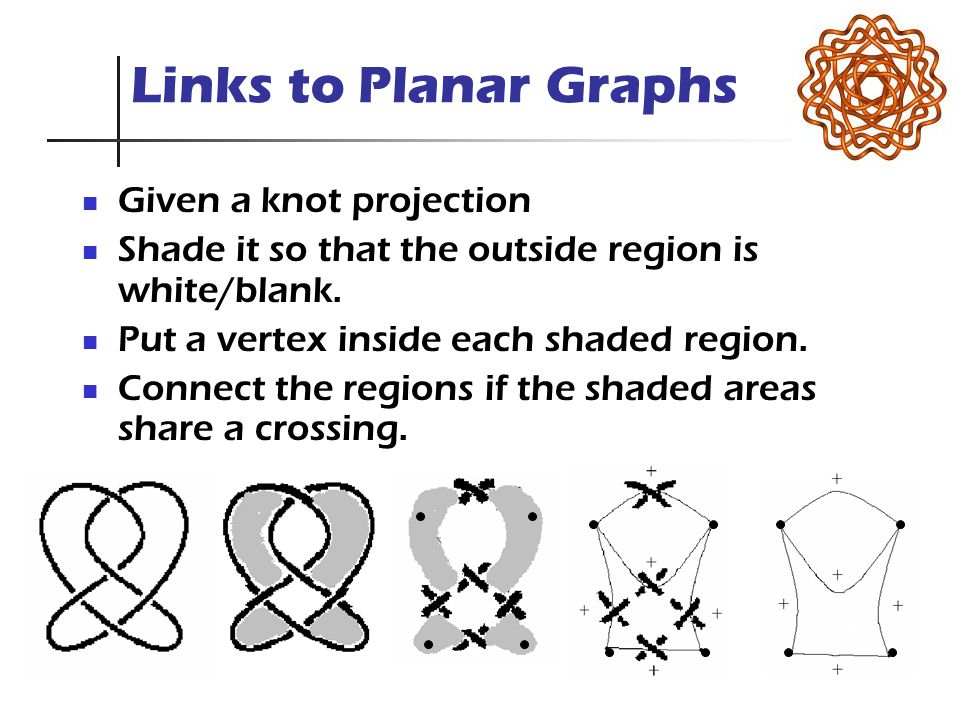

Links to Planar Graphs Given a knot projection Shade it so that the outside region is white/blank. Put a vertex inside each shaded region. Connect the regions if the shaded areas share a crossing.

43

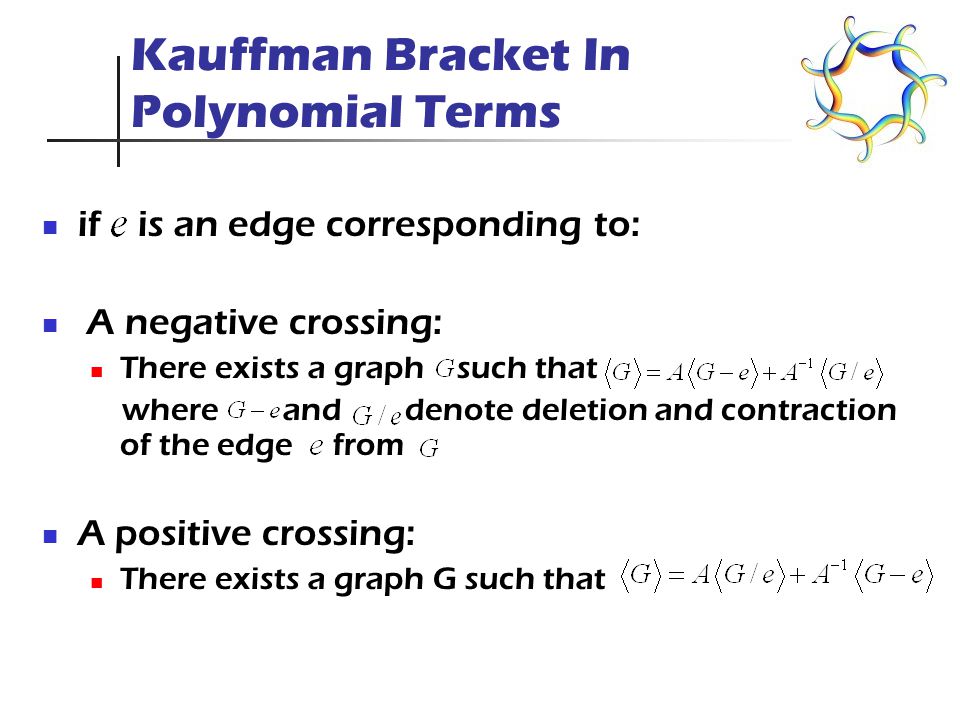

Kauffman Bracket In Polynomial Terms if is an edge corresponding to: A negative crossing: There exists a graph such that where and denote deletion and contraction of the edge from A positive crossing: There exists a graph G such that
