1 CSE 380 – Computer Game Programming Introduction ITS 102 – 3D Modeling for Games Introduction

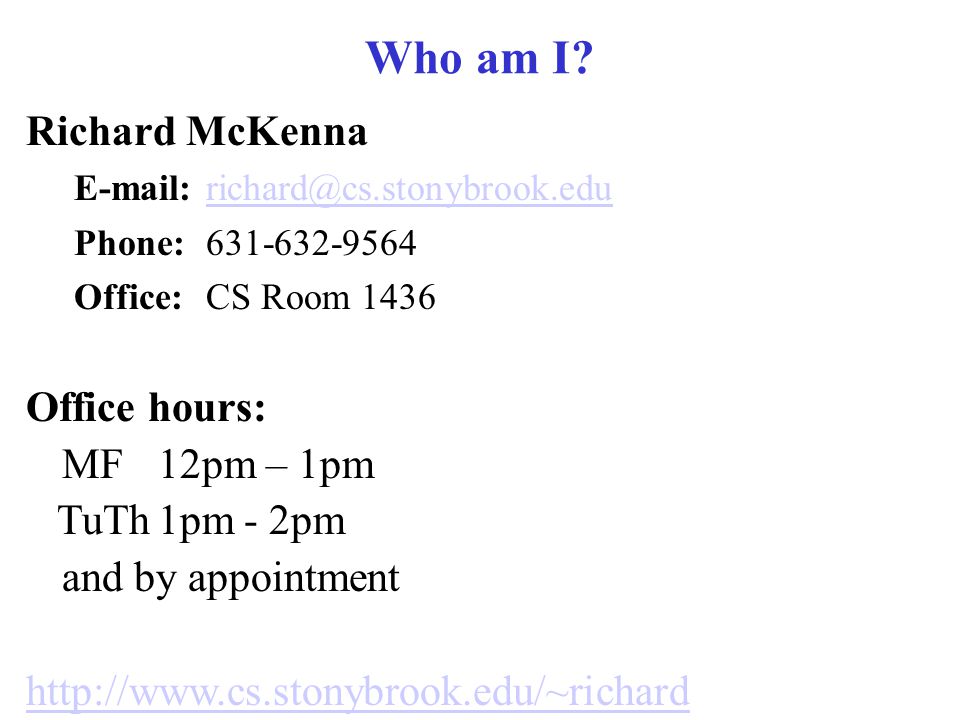

2 Who am I? Richard McKenna E-mail: Phone: 631-632-9564 Office: CS Room 1436 Office hours: MF12pm – 1pm TuTh1pm - 2pm and by appointment

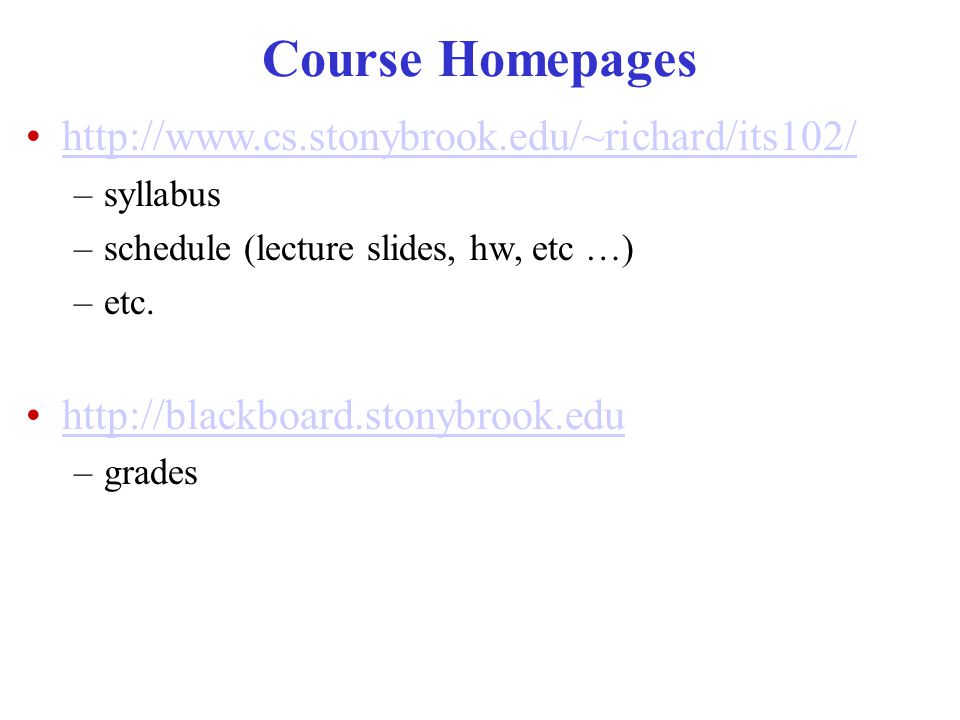

3 Course Homepages –syllabus –schedule (lecture slides, hw, etc …) –etc. –grades

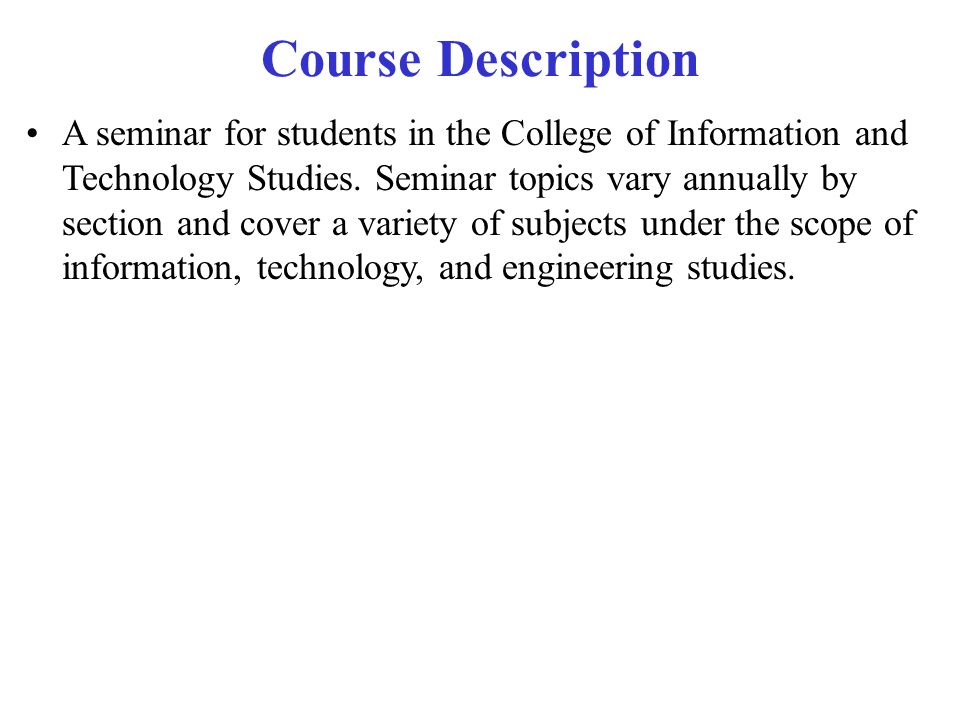

4 Course Description A seminar for students in the College of Information and Technology Studies. Seminar topics vary annually by section and cover a variety of subjects under the scope of information, technology, and engineering studies.

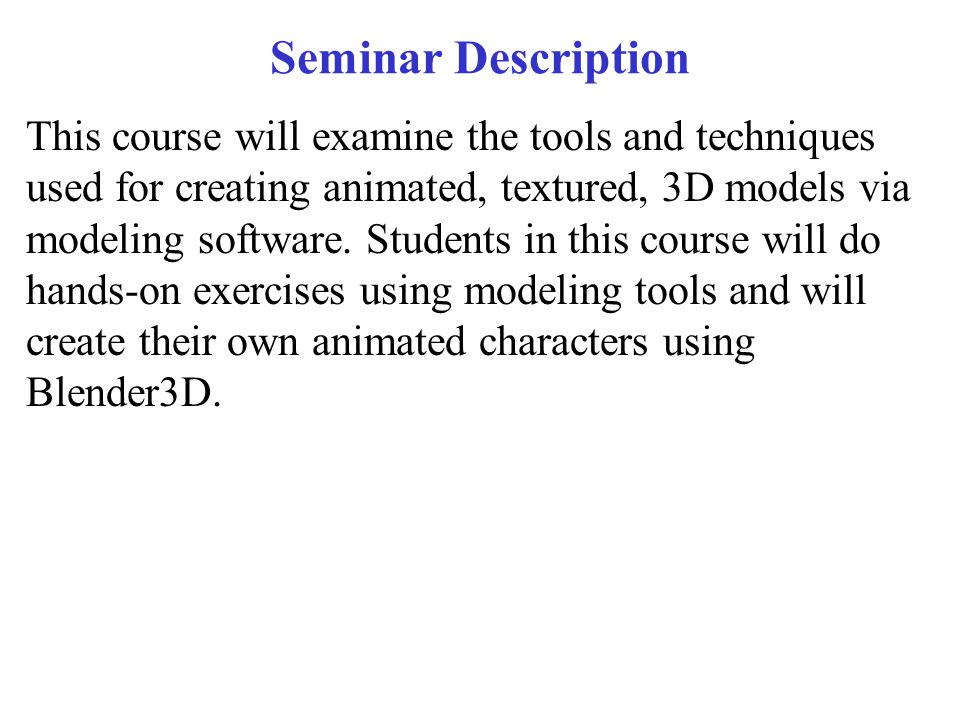

5 Seminar Description This course will examine the tools and techniques used for creating animated, textured, 3D models via modeling software. Students in this course will do hands-on exercises using modeling tools and will create their own animated characters using Blender3D.

6 Course Goals To impart a strong sense of academic community To acquaint first-year students with a full-time member of the faculty engaged in ITS-related studies To provide students with an opportunity to engage directly with an academic topic in a small setting To allow for experimentation in curriculum design

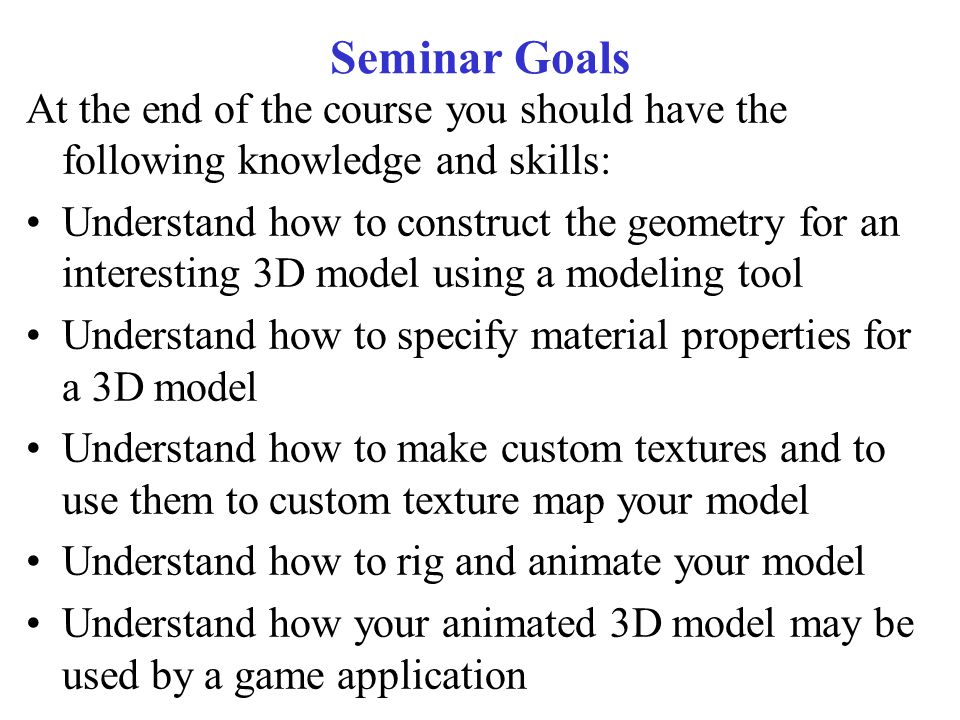

7 Seminar Goals At the end of the course you should have the following knowledge and skills: Understand how to construct the geometry for an interesting 3D model using a modeling tool Understand how to specify material properties for a 3D model Understand how to make custom textures and to use them to custom texture map your model Understand how to rig and animate your model Understand how your animated 3D model may be used by a game application

8 Course Topics 3D Concepts Using Blender3D Meshes Materials Textures 3D Animation The Blender Game Engine

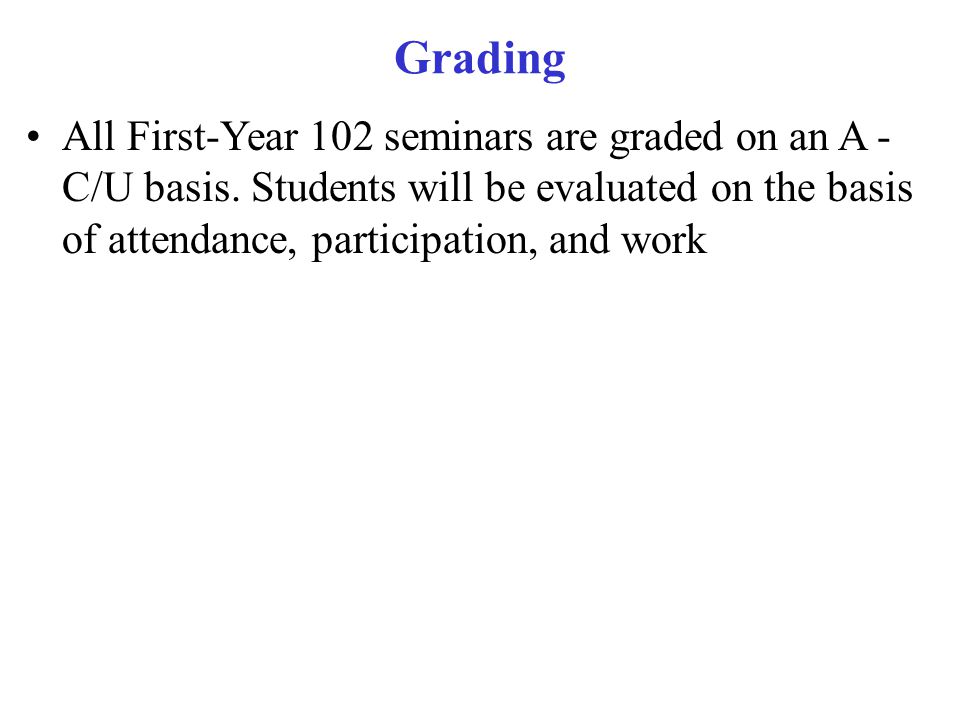

9 Grading All First-Year 102 seminars are graded on an A - C/U basis. Students will be evaluated on the basis of attendance, participation, and work

10 Course Requirements Class Attendance/Participation Insect Project Game-Related Event Participation –Nerdfest: Friday, 2/14 @ 6pm in SAC Ballroom –Gamers Guild Playtest Night: Thursday, 5/1 @ 7pm in CS Lobby –Game Programming Competition: Friday, 5/16 @ Wang Center ITS Requirement

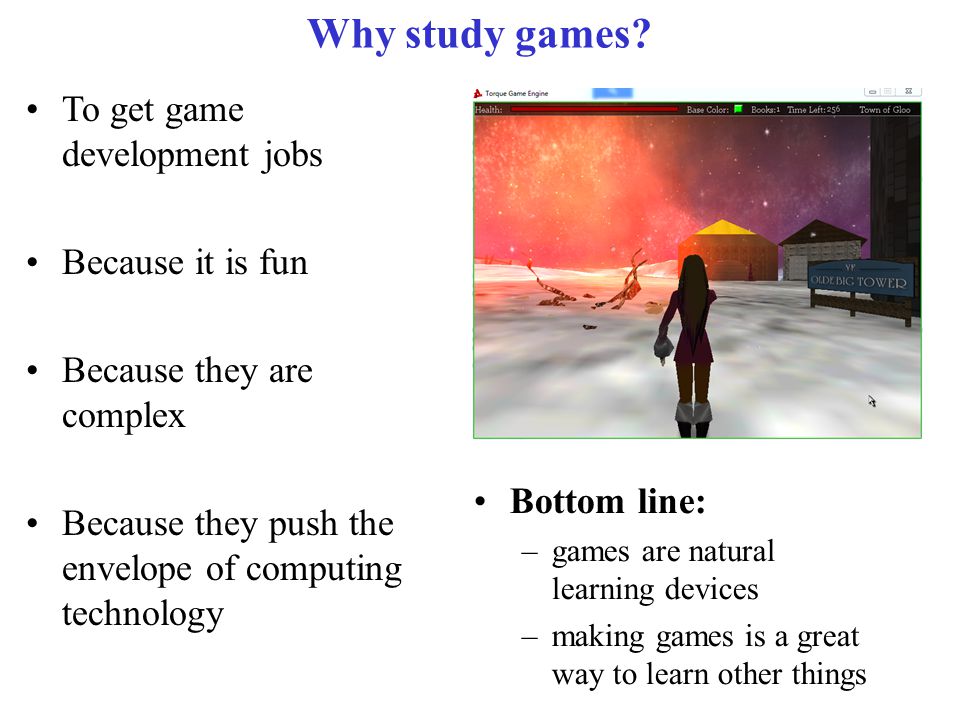

11 Why study games? To get game development jobs Because it is fun Because they are complex Because they push the envelope of computing technology Bottom line: –games are natural learning devices –making games is a great way to learn other things

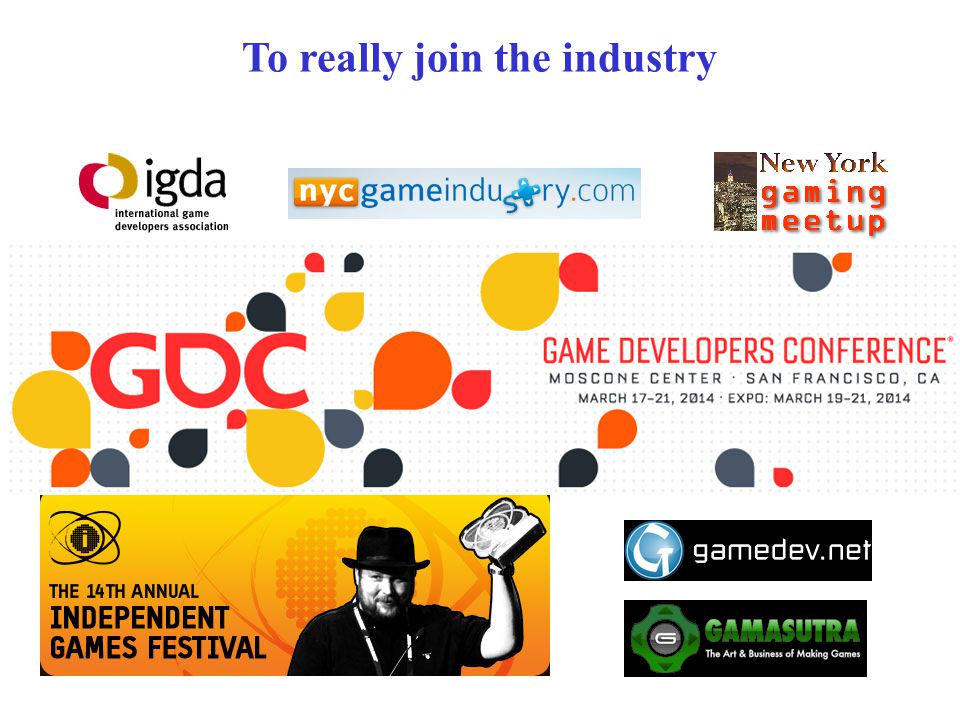

12 To really join the industry

13 Modern Games are Complex Can be very complex Technologies used: –2D & 3D Graphics –Sound & Music –Networking –Artificial Intelligence –Physics Simulation –Parallel Processing –Custom scripting languages –Etc. All of it must be implemented efficiently

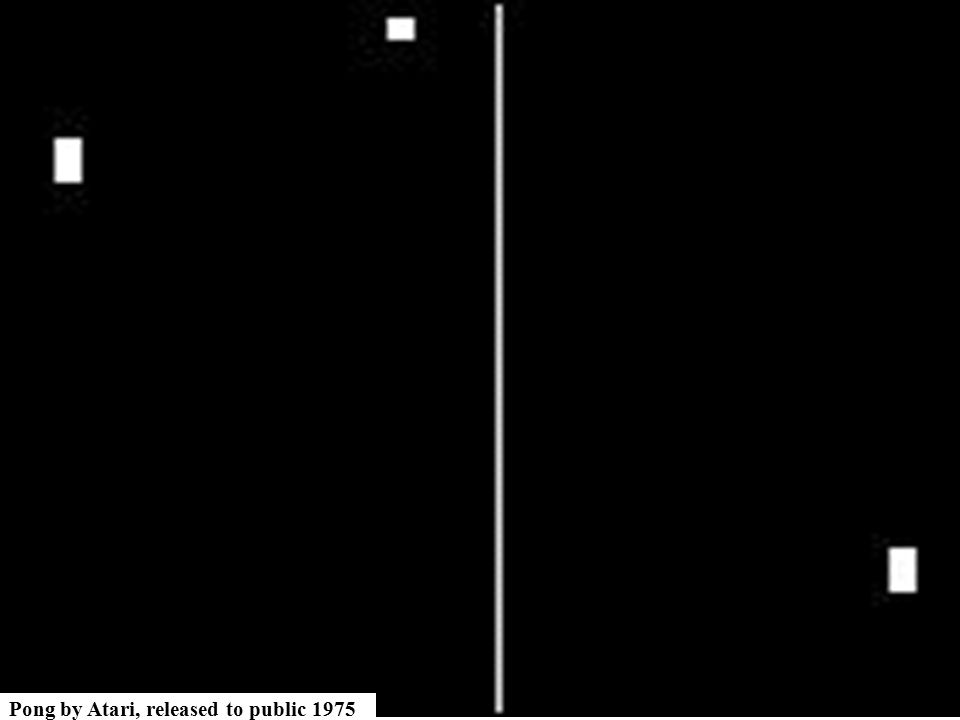

14 Pong by Atari, released to public 1975

15 Battlefield 3 by Electronic Arts/DICE

16 Blizzard’s World of Warcraft Over 10,000,000 subscribers –thousands play simultaneously –players in countries around the world Requires: –Rich graphical environment –Complex networking –Semi-nude dancing Needs an army to make it. And: –maintain –update –count profits

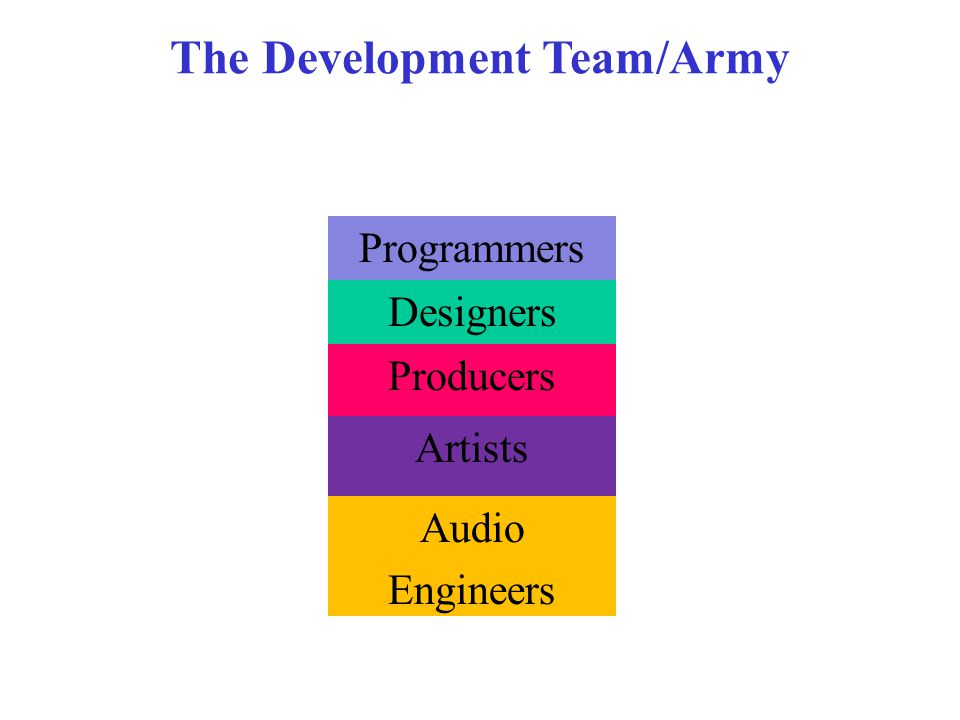

17 The Development Team/Army Designers Artists Audio Engineers Producers Programmers

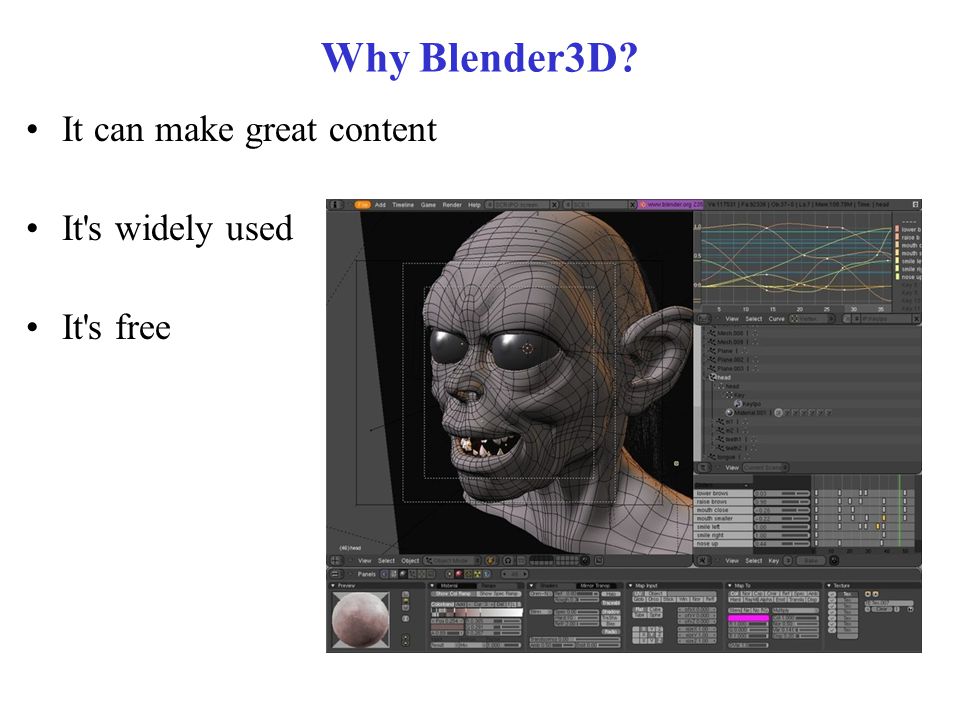

18 Why Blender3D? It can make great content It's widely used It's free

19 Download & Install blender blender Latest version 2.65a

20 Blender 3D: Noob to Pro

21 What can blender do? Create 3D content Create 3D worlds Produce realistic, beautiful, fantastic 2D projected renderings of 3D content/worlds

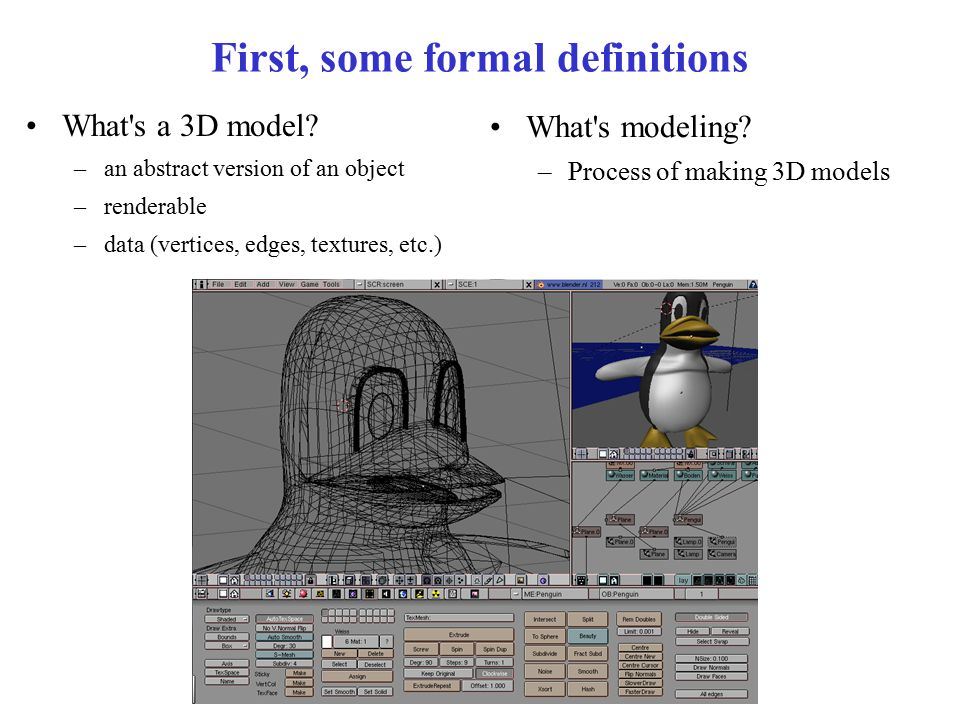

22 First, some formal definitions What's a 3D model? –an abstract version of an object –renderable –data (vertices, edges, textures, etc.) What's modeling? –Process of making 3D models

23 Model Data Vertices Edges Faces Surface Normals

24 Steps in the Modeling Process Object modeling Shading Lighting Rigging Posing

25 3D World Construction & Rendering Based on Geometry Imagine a model of this room Everything needs a position in 3D space –think 3D coordinates (x, y, z) –Where's the origin (0,0,0) of our room?

26 Blender3D Axes X, Y, Z –Cartesian Coordinates –Are negative coordinates ok? Right-handed System, Huh?

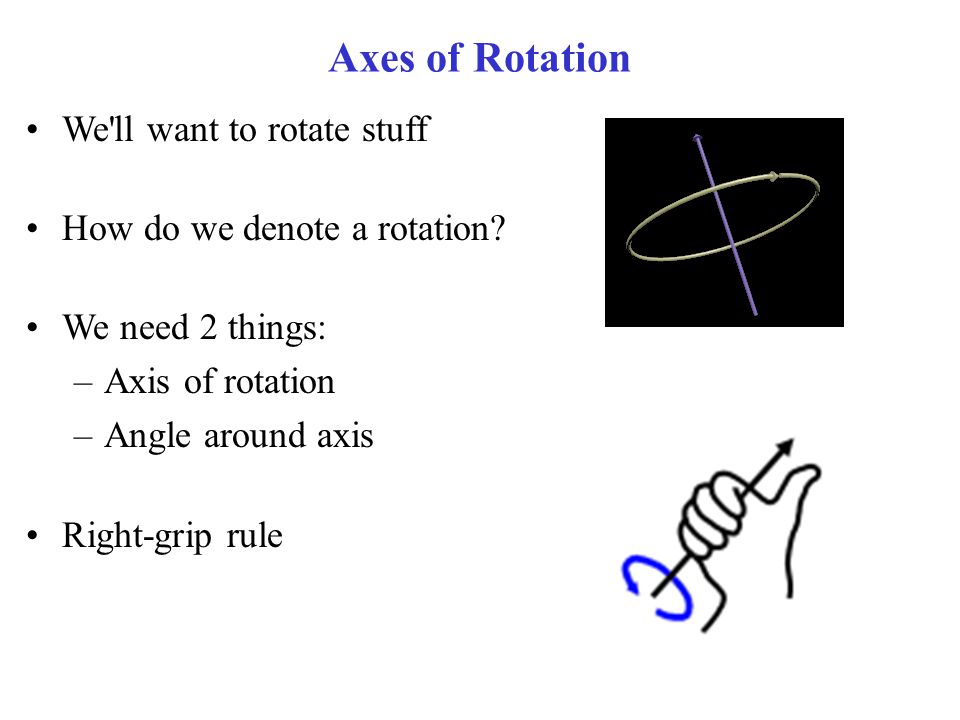

27 Axes of Rotation We'll want to rotate stuff How do we denote a rotation? We need 2 things: –Axis of rotation –Angle around axis Right-grip rule

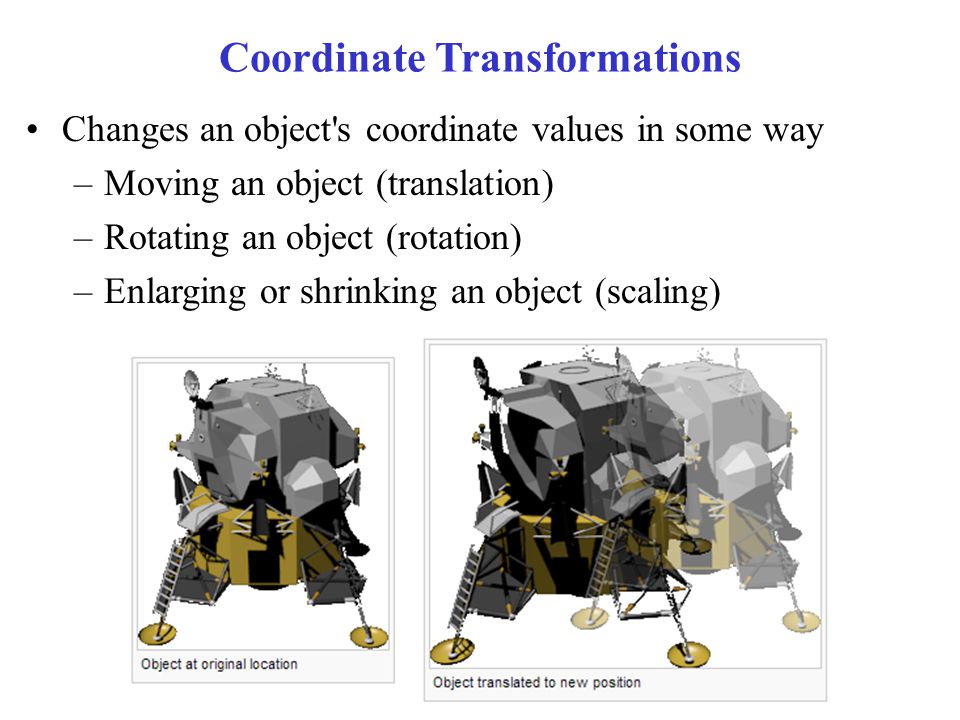

28 Coordinate Transformations Changes an object's coordinate values in some way –Moving an object (translation) –Rotating an object (rotation) –Enlarging or shrinking an object (scaling)

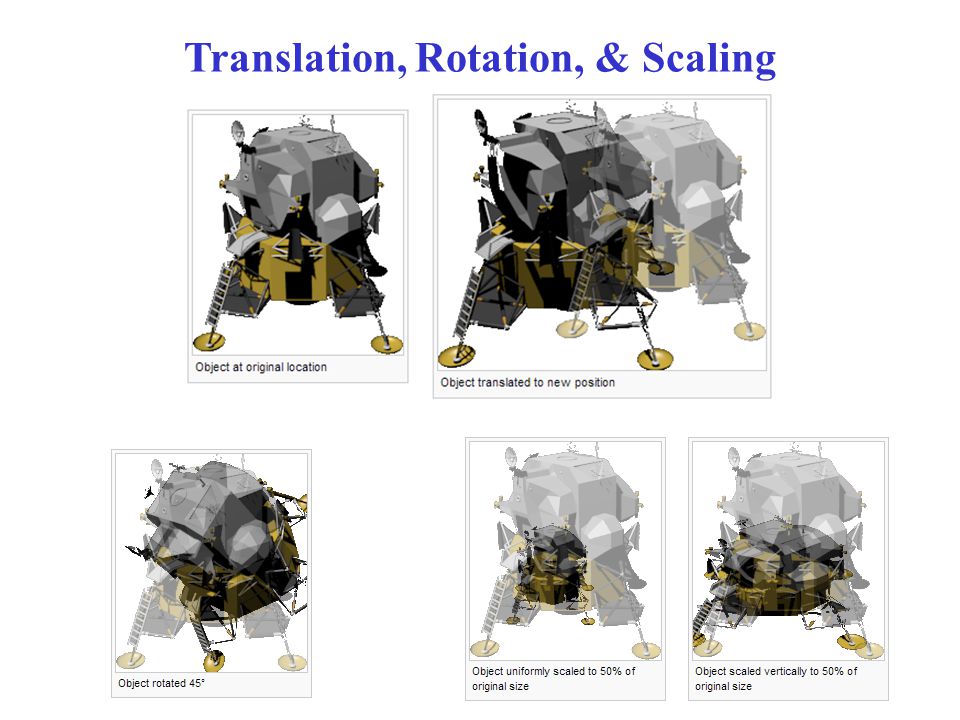

29 Translation, Rotation, & Scaling

30 Multiple Transformations They can be combined on an object Order of processing matters

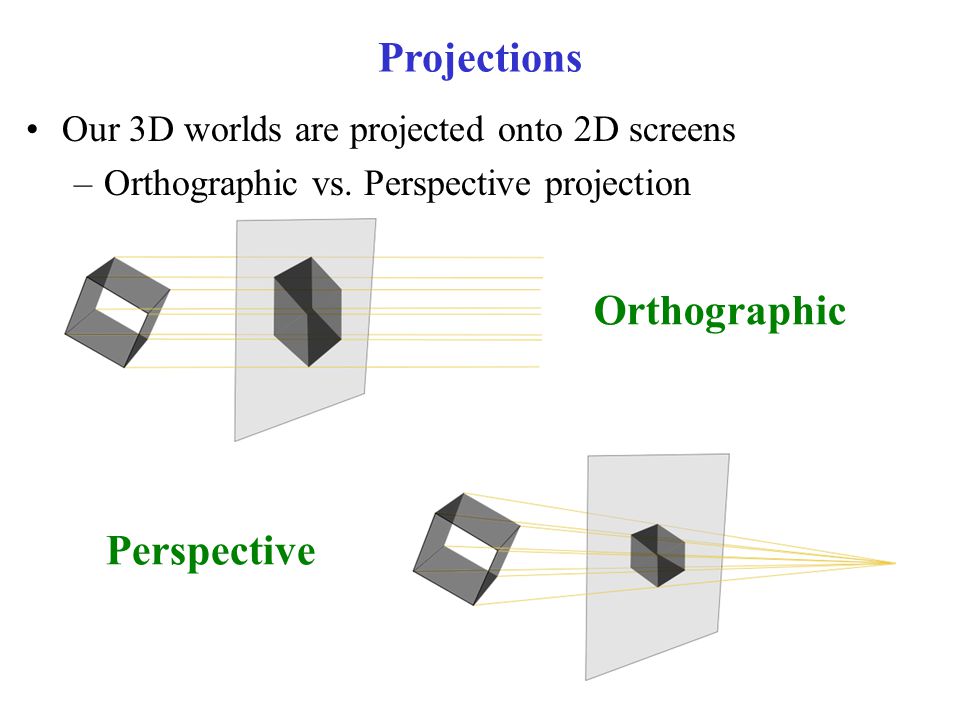

31 Projections Our 3D worlds are projected onto 2D screens –Orthographic vs. Perspective projection Orthographic Perspective

32 Orthographic views can be useful. Why?

33 Perspective Projection uses Foreshortening What's that? –nearby objects rendered larger than faraway objects –gives the illusion of depth and distance

34 What's a vanishing point? Imagine looking down a set of train tracks They appear to converge at a point on the horizon This is the vanishing point

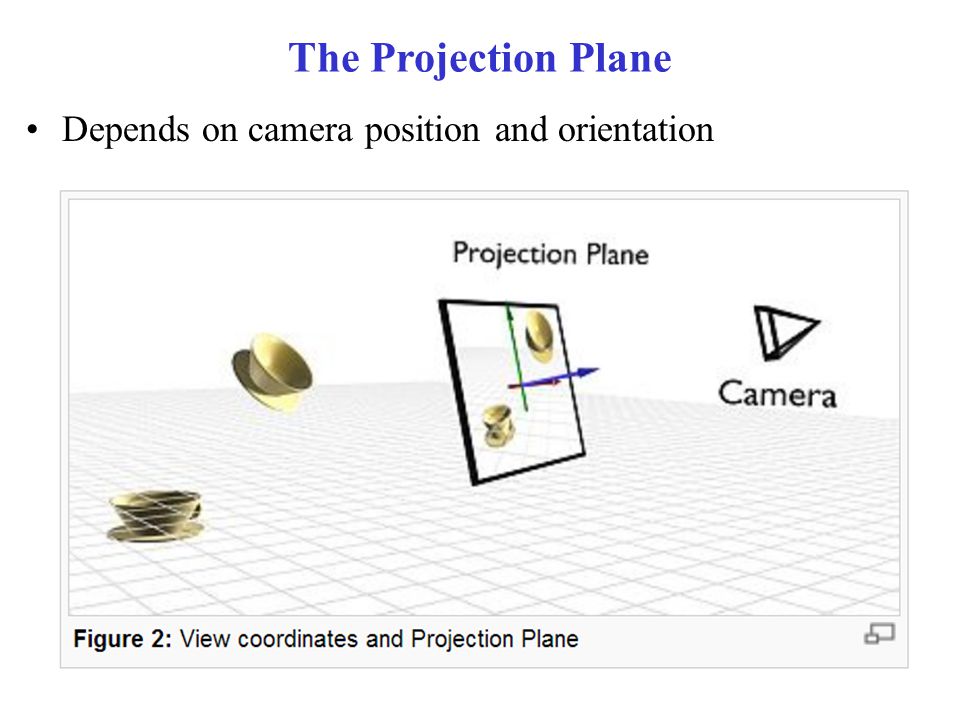

35 The Projection Plane Depends on camera position and orientation

36 Blender Coordinates Global Coordinate System –each scene has its own –fixed origin & orientation –virtual camera may be moved about Local Coordinate System –each object has its own
