1 Reproduction in Flowering Plants

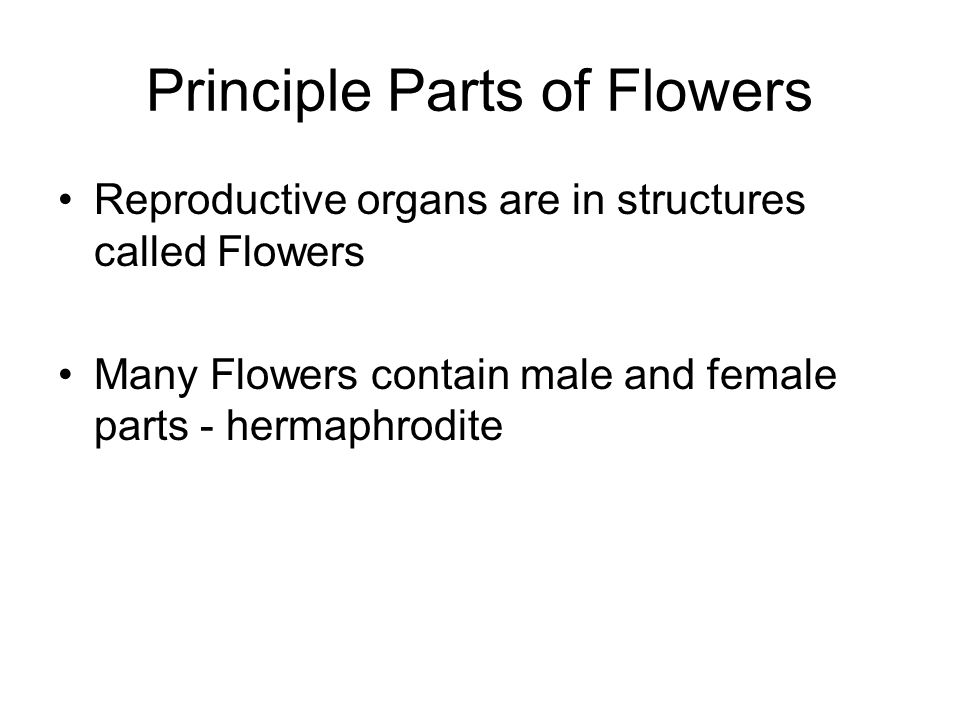

2 Principle Parts of Flowers Reproductive organs are in structures called Flowers Many Flowers contain male and female parts - hermaphrodite

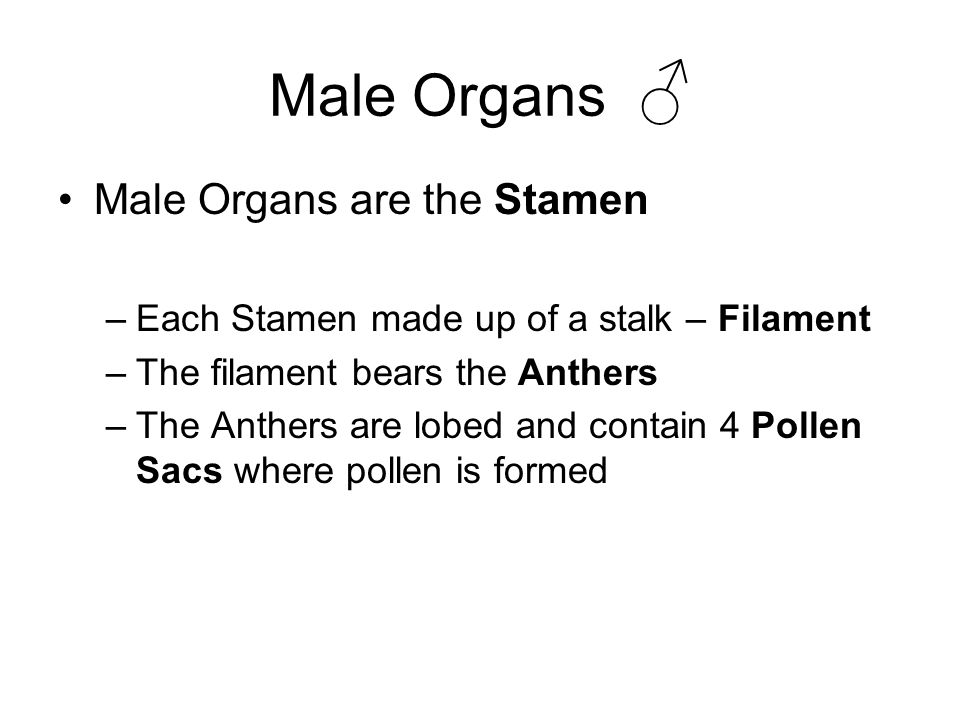

3 Male Organs ♂ Male Organs are the Stamen –Each Stamen made up of a stalk – Filament –The filament bears the Anthers –The Anthers are lobed and contain 4 Pollen Sacs where pollen is formed

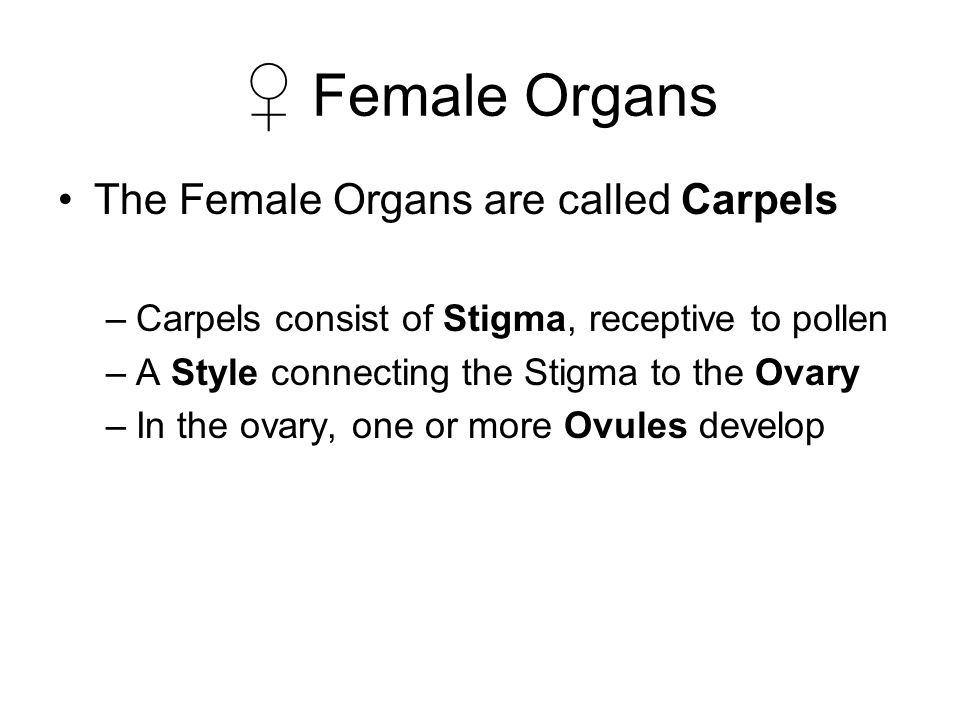

4 ♀ Female Organs The Female Organs are called Carpels –Carpels consist of Stigma, receptive to pollen –A Style connecting the Stigma to the Ovary –In the ovary, one or more Ovules develop

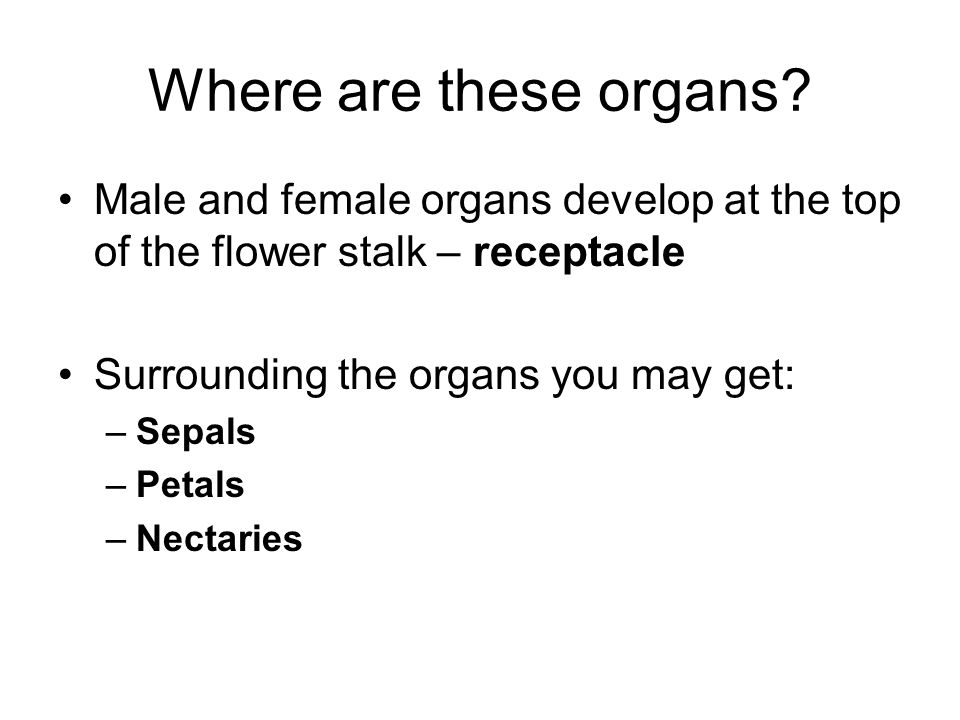

5 Where are these organs? Male and female organs develop at the top of the flower stalk – receptacle Surrounding the organs you may get: –Sepals –Petals –Nectaries

6 Generalised Dicot Flower Page 4 of Sex HOP

7 Insect Pollinated

8 Wind Pollinated (Grass) Page 6 of Sex HOP

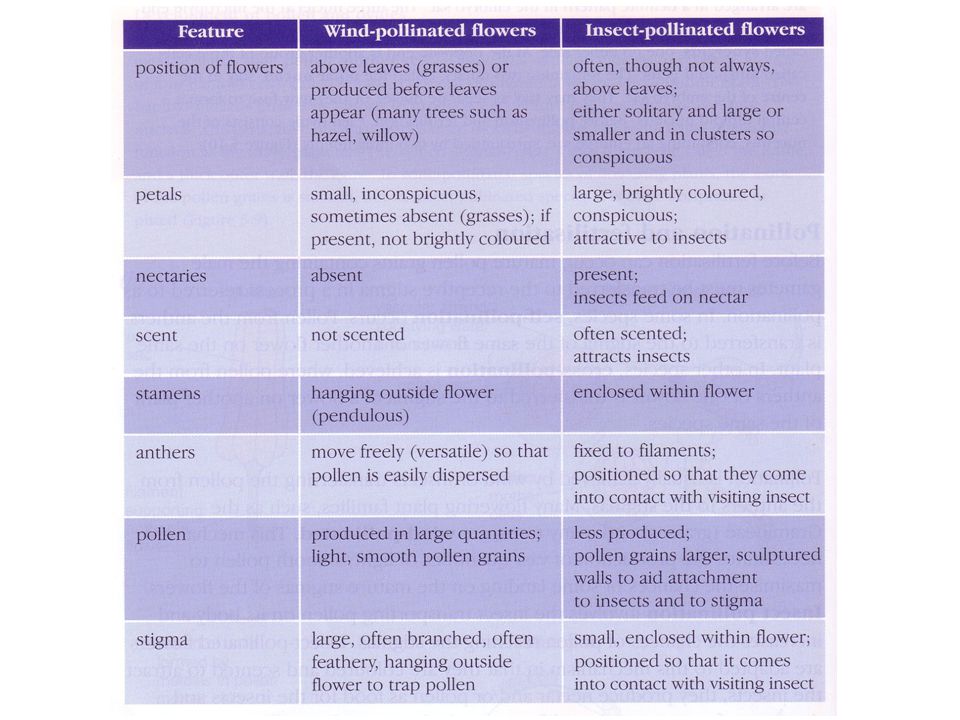

9 Compare wind vs insect

10

11 Gametogenesis

12 Microspores  Pollen

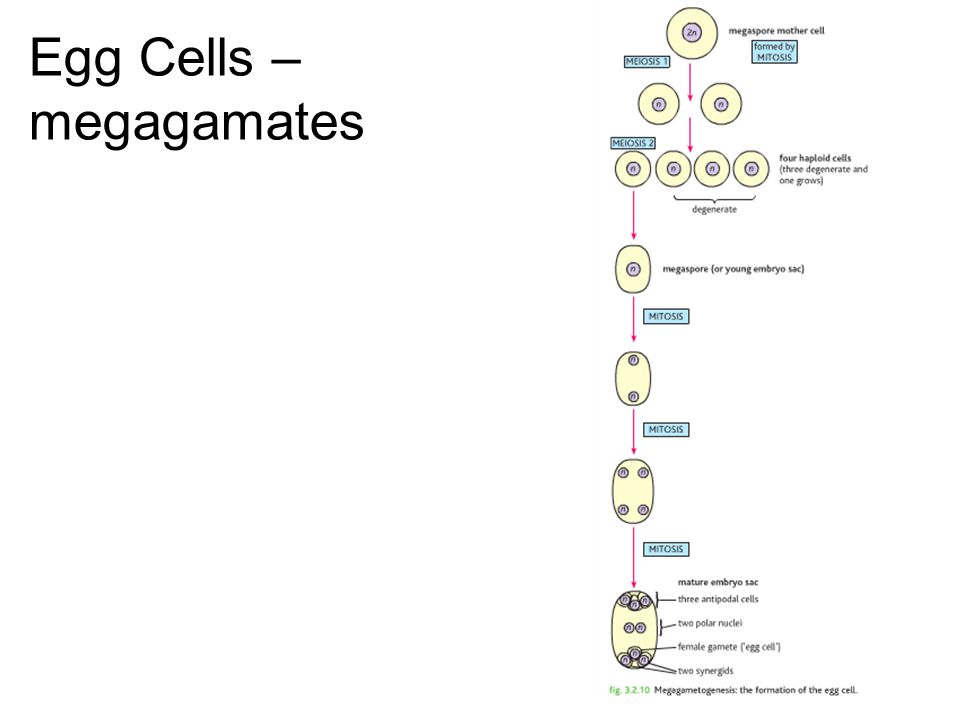

13 Egg Cells – megagamates

14 Pollination & Fertilisation

15 Pollination Before fertilisation, mature pollen needs to be transferred to the receptive Stigma –That is POLLINATION

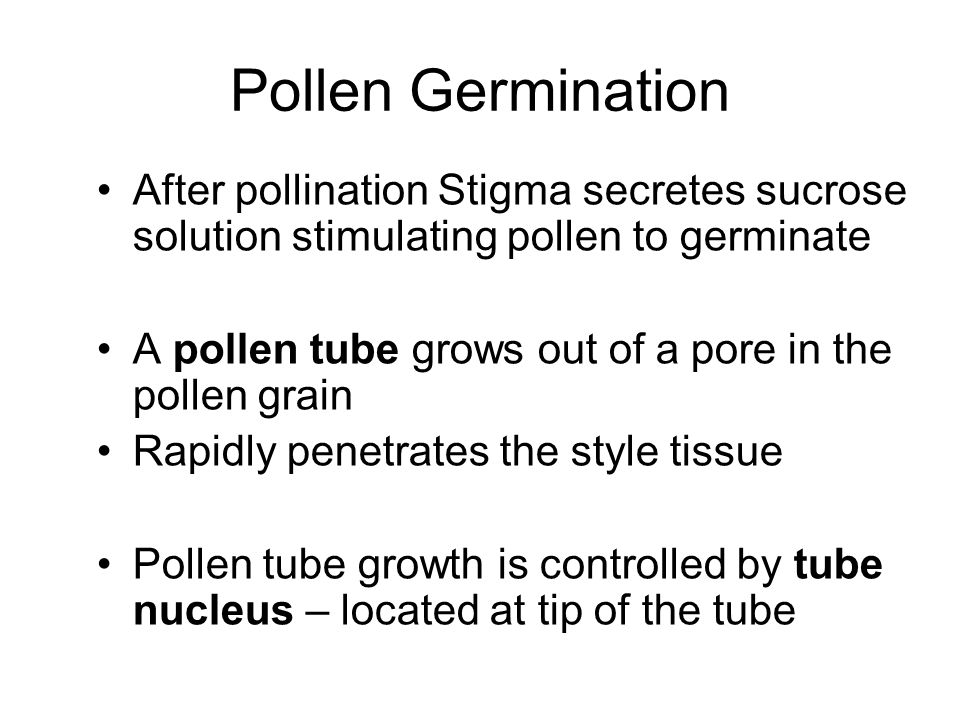

16 Pollen Germination After pollination Stigma secretes sucrose solution stimulating pollen to germinate A pollen tube grows out of a pore in the pollen grain Rapidly penetrates the style tissue Pollen tube growth is controlled by tube nucleus – located at tip of the tube

17 Pollen Germination Secretes digestive enzymes to allow penetration Pollen tubes are: –Positively hydrotropic –Negatively aerotropic –When approaching ovule it becomes positively chemotropic to a substance produced by the micropyle

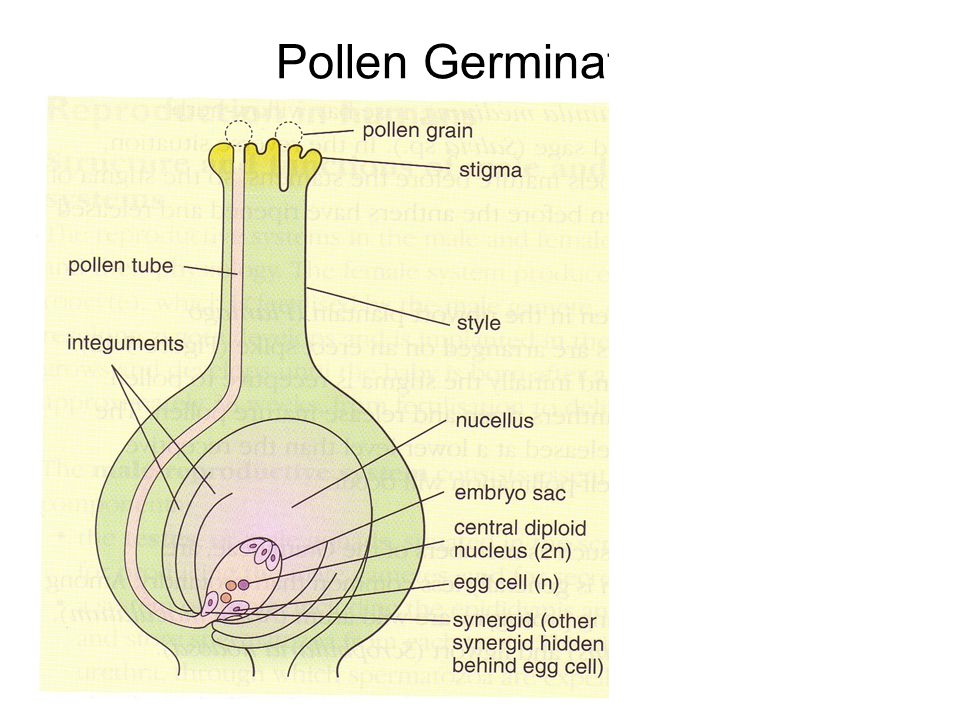

18 Pollen Germination

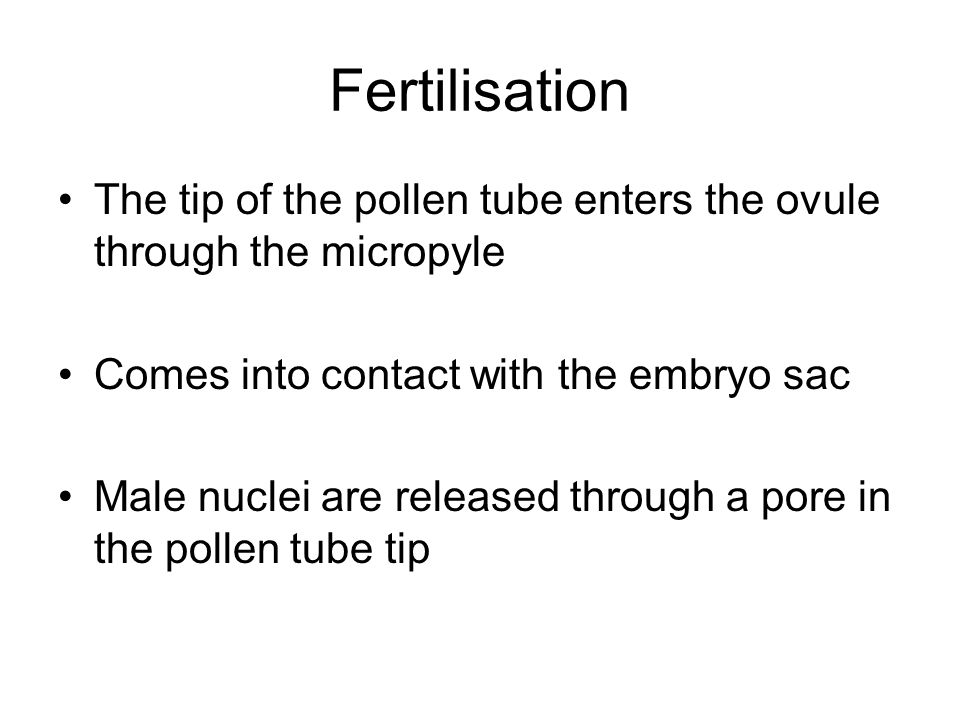

19 Fertilisation The tip of the pollen tube enters the ovule through the micropyle Comes into contact with the embryo sac Male nuclei are released through a pore in the pollen tube tip

20 Double Fertilisation One male nucleus fuses with egg nucleus to form diploid zygote –Gives rise to the embryo Other male nucleus fuses with the 2 polar nuclei (2n fusion/diploid nucleus) to make a triploid nucleus (3n) –primary endosperm nucleus –Gives rise to the endosperm nutritive tissue

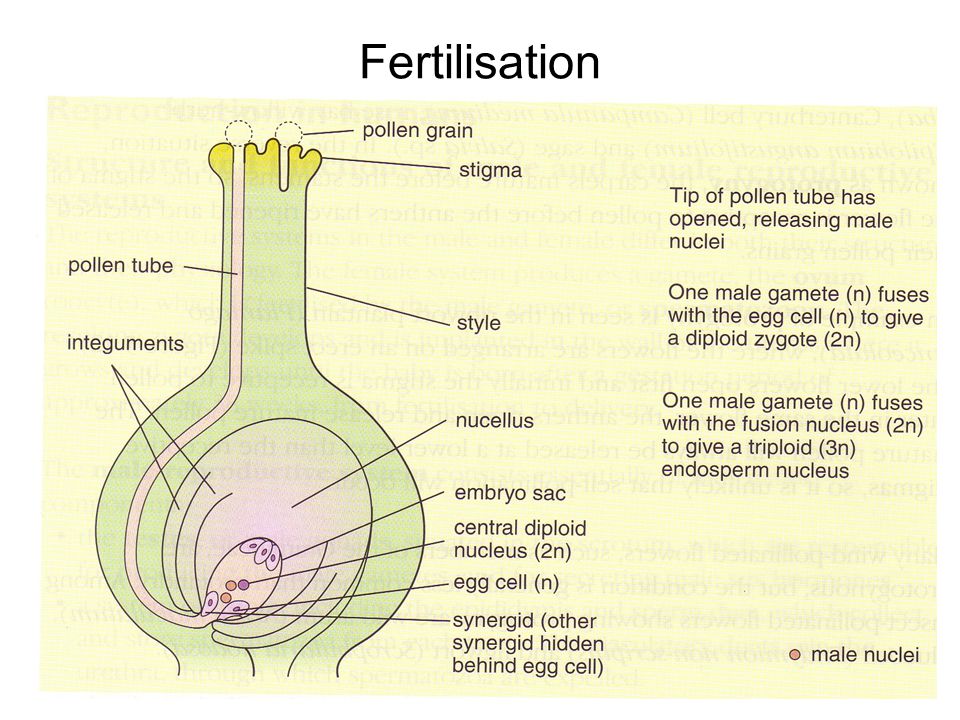

21 Fertilisation

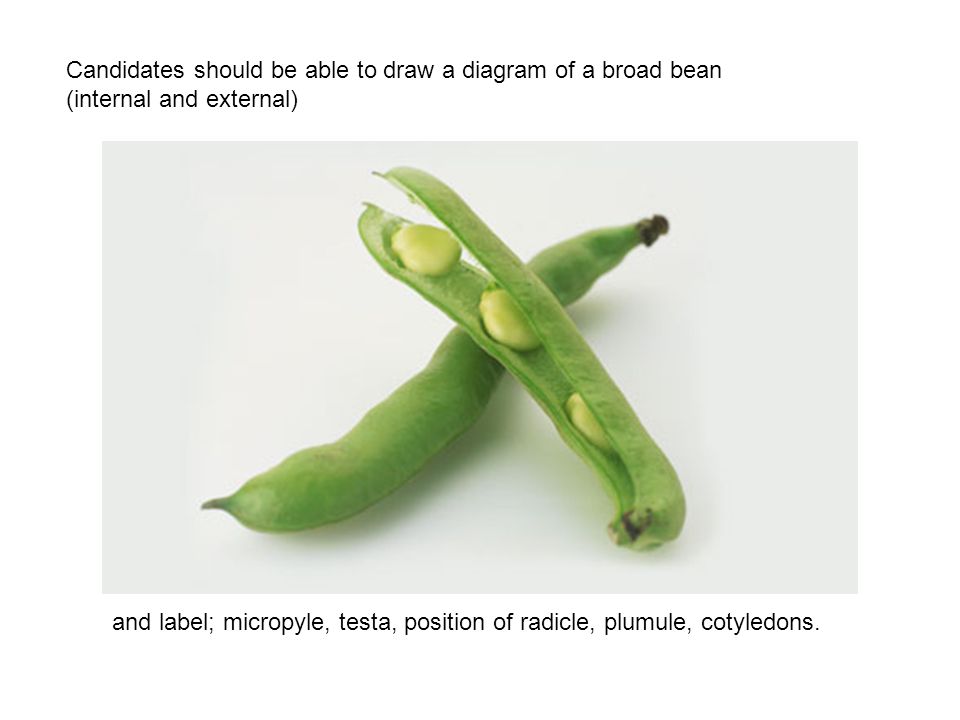

22 Candidates should be able to draw a diagram of a broad bean (internal and external) and label; micropyle, testa, position of radicle, plumule, cotyledons.

23 Candidates should be able to describe the germination of the broad bean, including the uptake of water and mobilisation of food reserves.

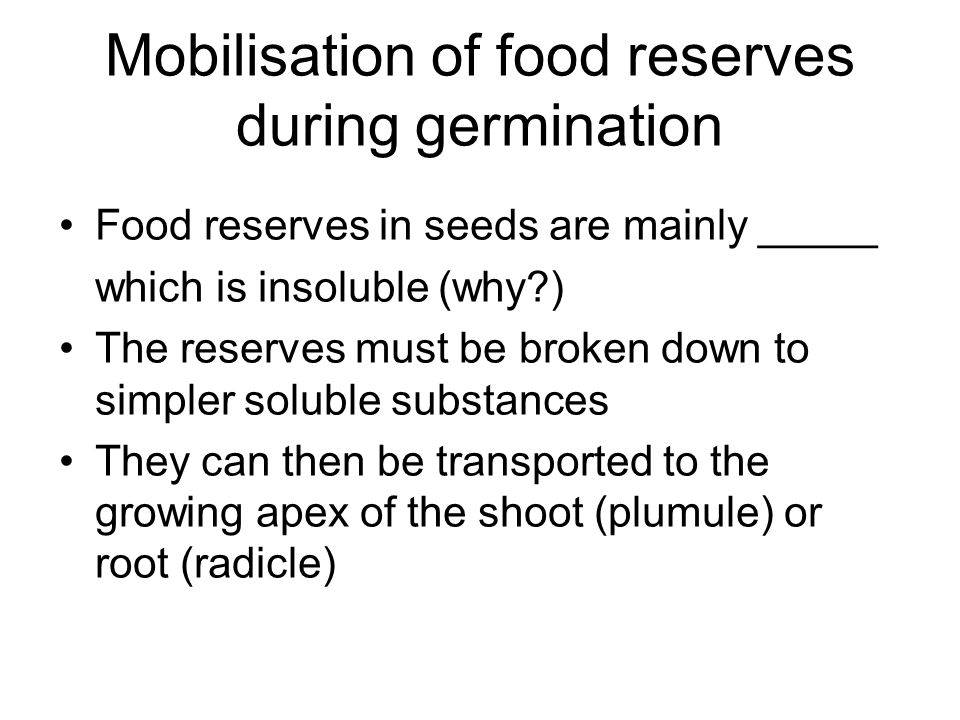

24 Mobilisation of food reserves during germination Food reserves in seeds are mainly _____ which is insoluble (why?) The reserves must be broken down to simpler soluble substances They can then be transported to the growing apex of the shoot (plumule) or root (radicle)

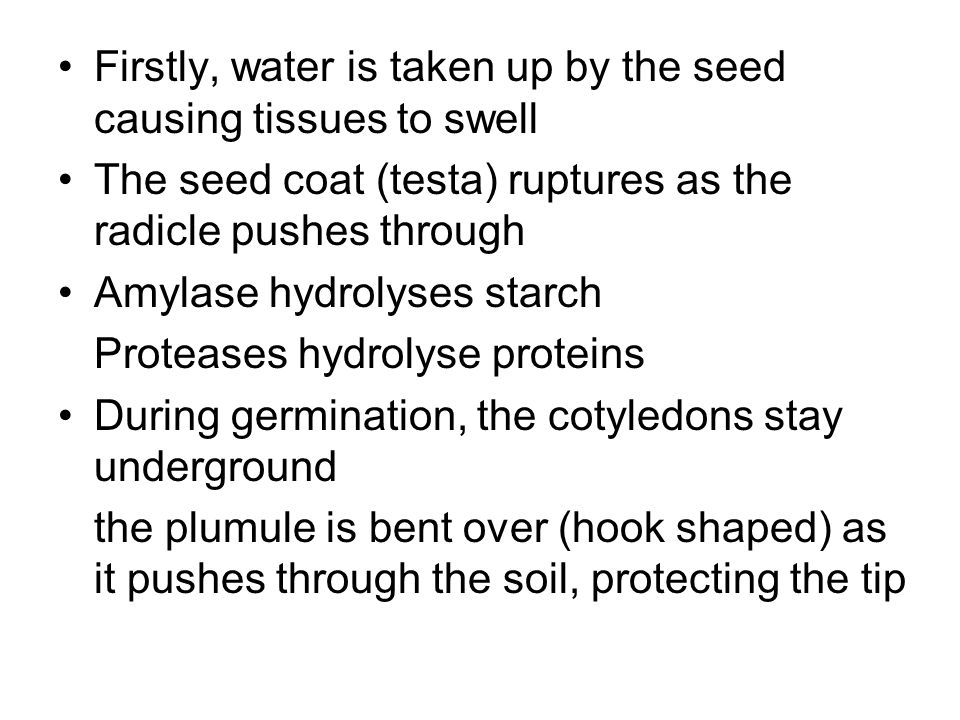

25 Firstly, water is taken up by the seed causing tissues to swell The seed coat (testa) ruptures as the radicle pushes through Amylase hydrolyses starch Proteases hydrolyse proteins During germination, the cotyledons stay underground the plumule is bent over (hook shaped) as it pushes through the soil, protecting the tip

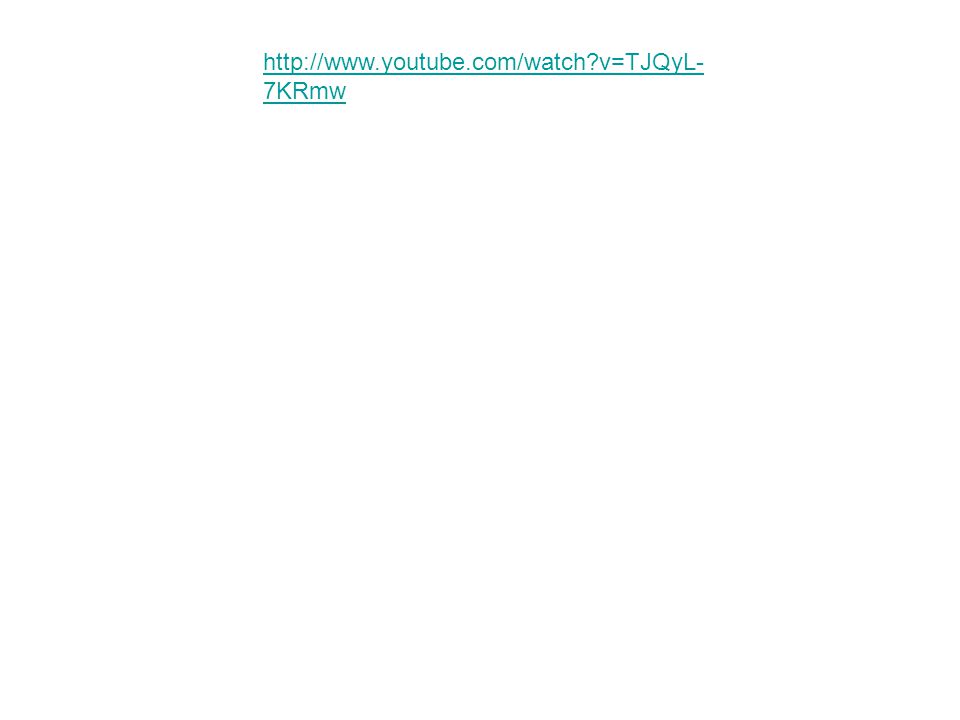

26 7KRmw
