1

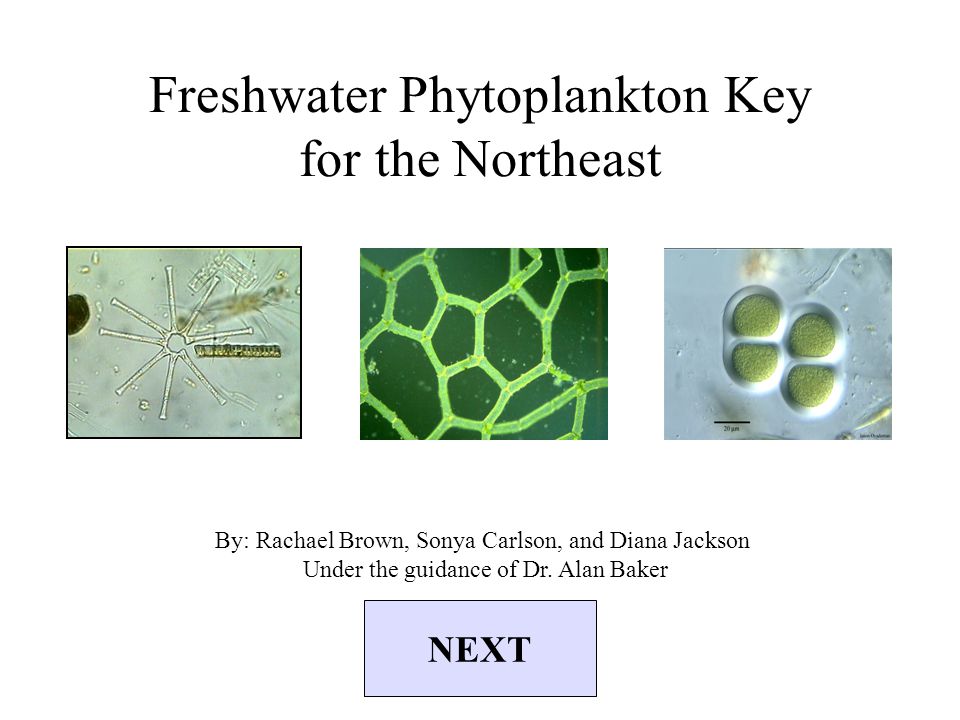

Freshwater Phytoplankton Key for the Northeast By: Rachael Brown, Sonya Carlson, and Diana Jackson Under the guidance of Dr. Alan Baker NEXT

2
Introduction: This photographic key is intended to aid in identification of freshwater algae to the Genus level. Proceed through this key by clicking on the picture that most resembles your organism. Buttons to know: Home: Go to the beginning page at any time Back: Go to the last page viewed Forward: Go to the next page in the key To Start Key Click Here START

3

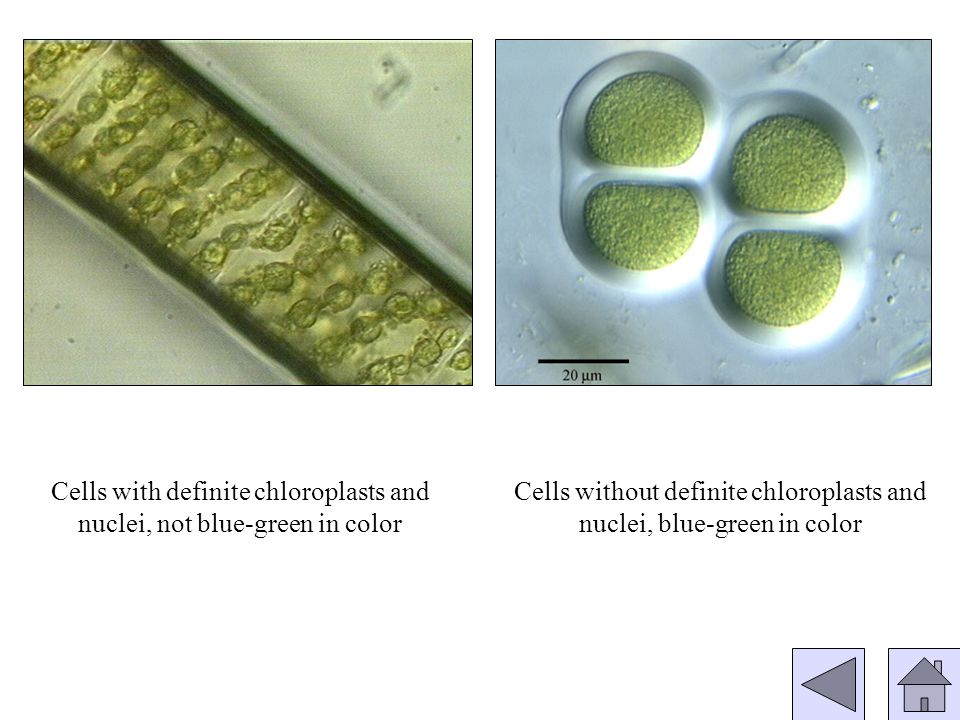

Cells with definite chloroplasts and nuclei, not blue-green in color Cells without definite chloroplasts and nuclei, blue-green in color

4

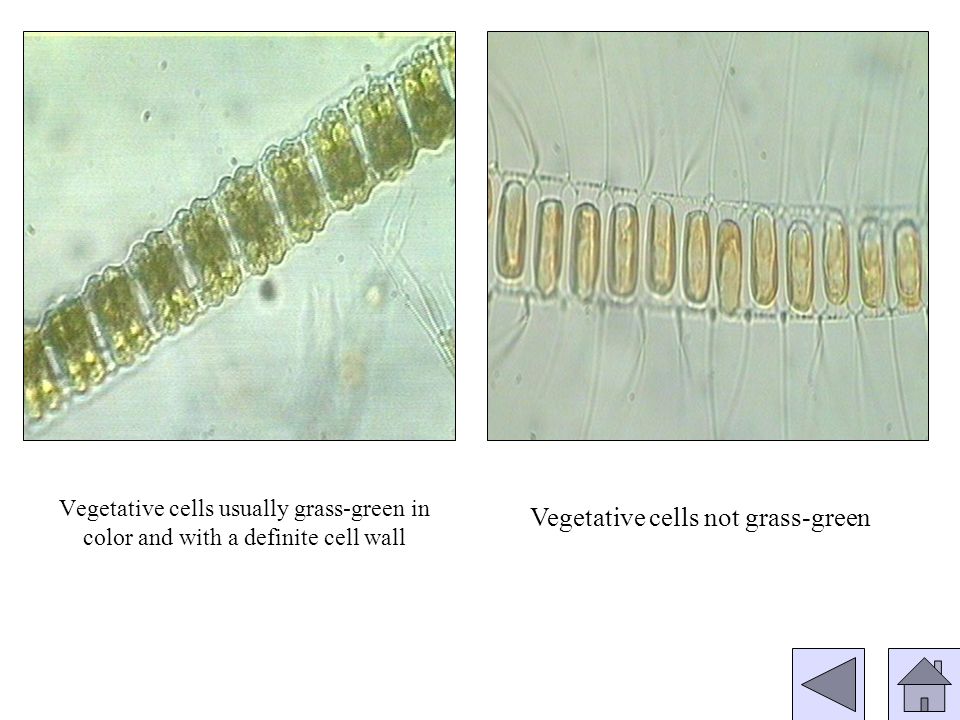

Vegetative cells usually grass-green in color and with a definite cell wall Vegetative cells not grass-green

5

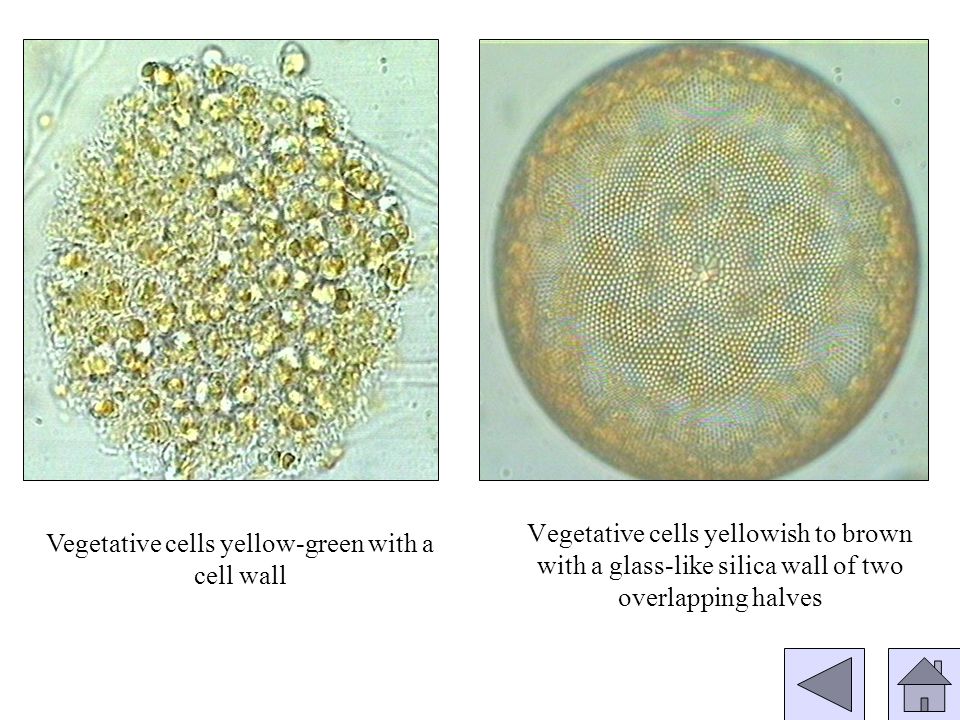

Vegetative cells yellowish to brown with a glass-like silica wall of two overlapping halves Vegetative cells yellow-green with a cell wall

6

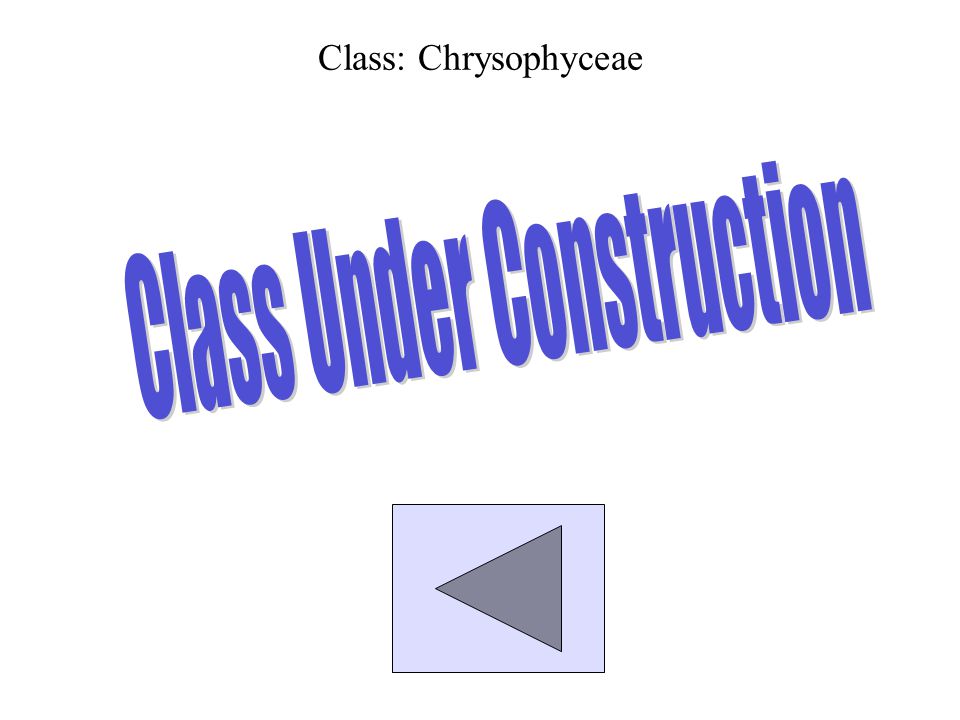

Class: Chrysophyceae

7

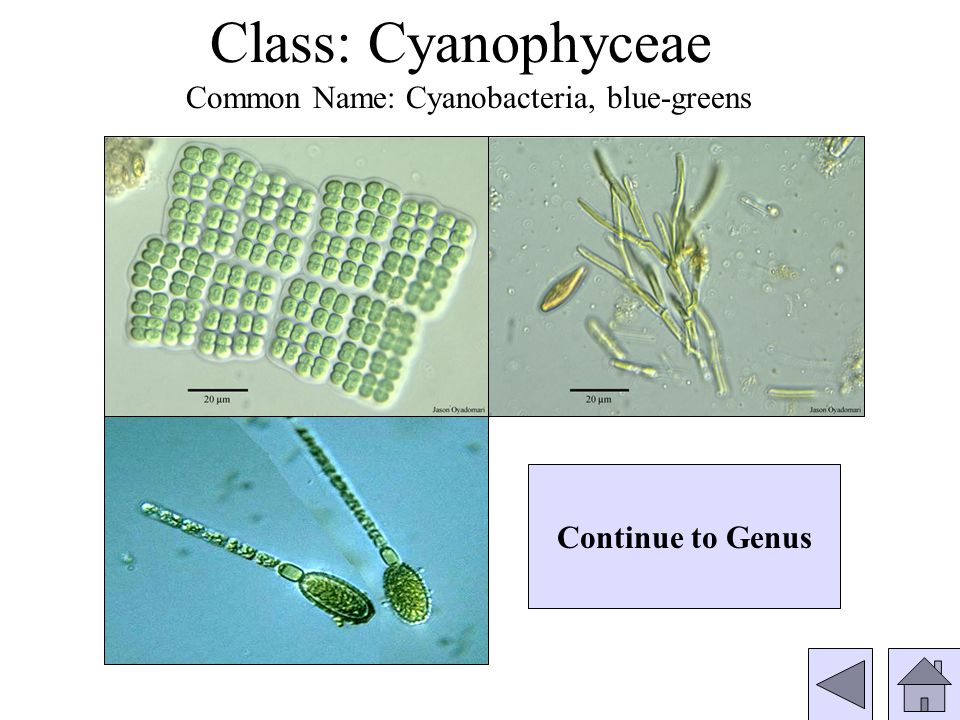

Class: Cyanophyceae Common Name: Cyanobacteria, blue-greens Continue to Genus

8

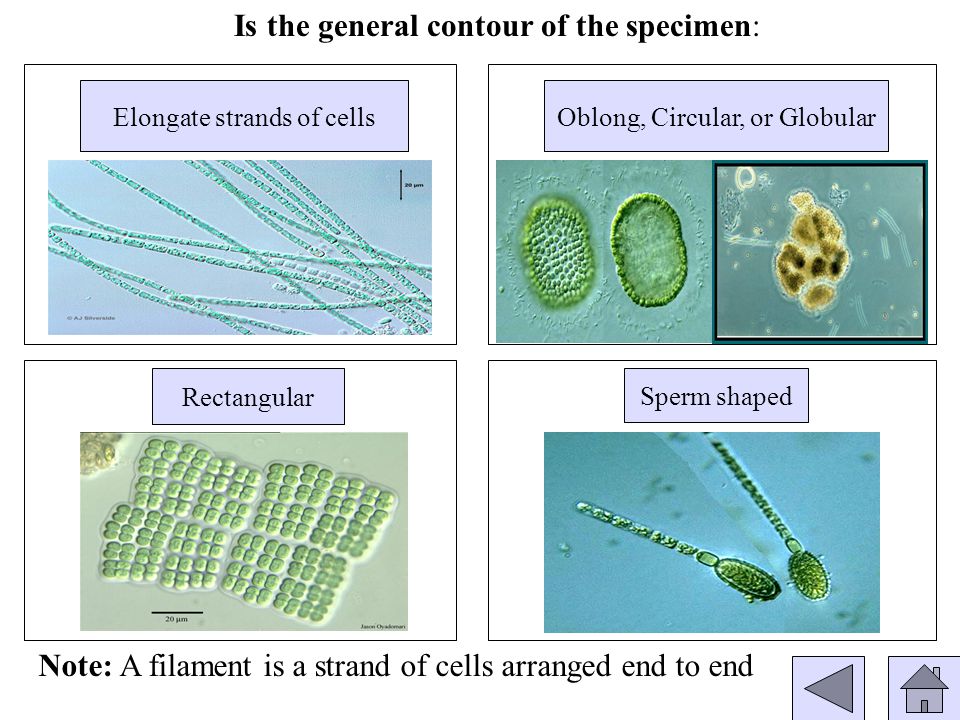

Rectangular Is the general contour of the specimen: Elongate strands of cellsOblong, Circular, or Globular Sperm shaped Note: A filament is a strand of cells arranged end to end

9
Are the filaments: Unbranched Branched Elongate filaments of cells

10
Genus: Microthamnion

11
Filaments are found alone Unbranched: Filaments form together in parallel colonies (rafts)

12
Option A: Oblong Option B: Circular Option C: Globular Oblong, Circular, or Globular

13
Head has thin membrane Head has thick wavy membrane Sperm-Shaped

14
Genus: Aphanocapsa

15
Genus: Aphanothece

16
Genus: Chroococcus

17
Genus: Coelosphaerium

18
Genus: Gloeocapsa

19

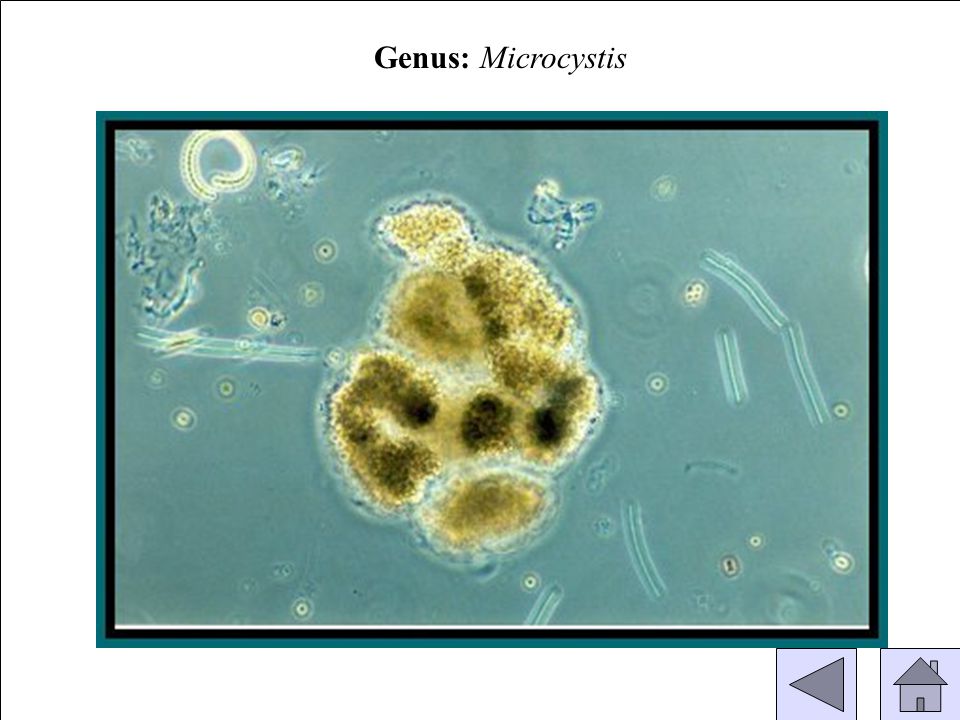

Genus: Microcystis

20

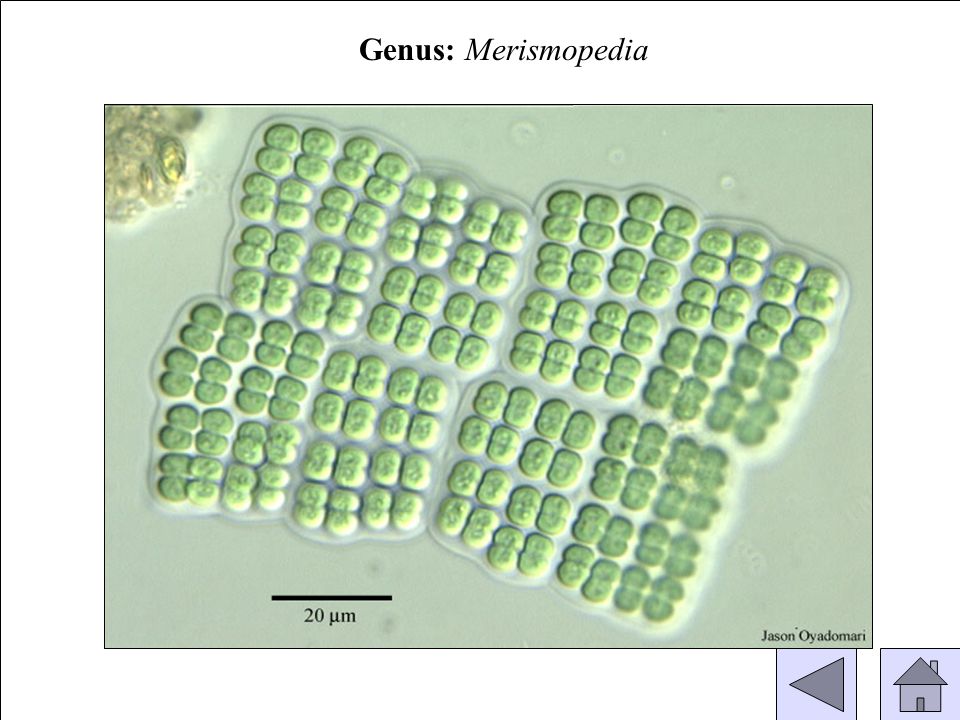

Genus: Merismopedia

21
Genus: Cylindrospermum

22
Genus: Gloeotrichia

23
Genus: Anabaena

24
Genus: Aphanizomenon

25
Genus: Calothrix

26
Genus: Chamaesiphon

27
Genus: Lyngbya

28
Genus: Nostoc

29
Genus: Oscillatoria

30
Filaments are joined at one end Filaments are parallel and are not joined together at any end

31

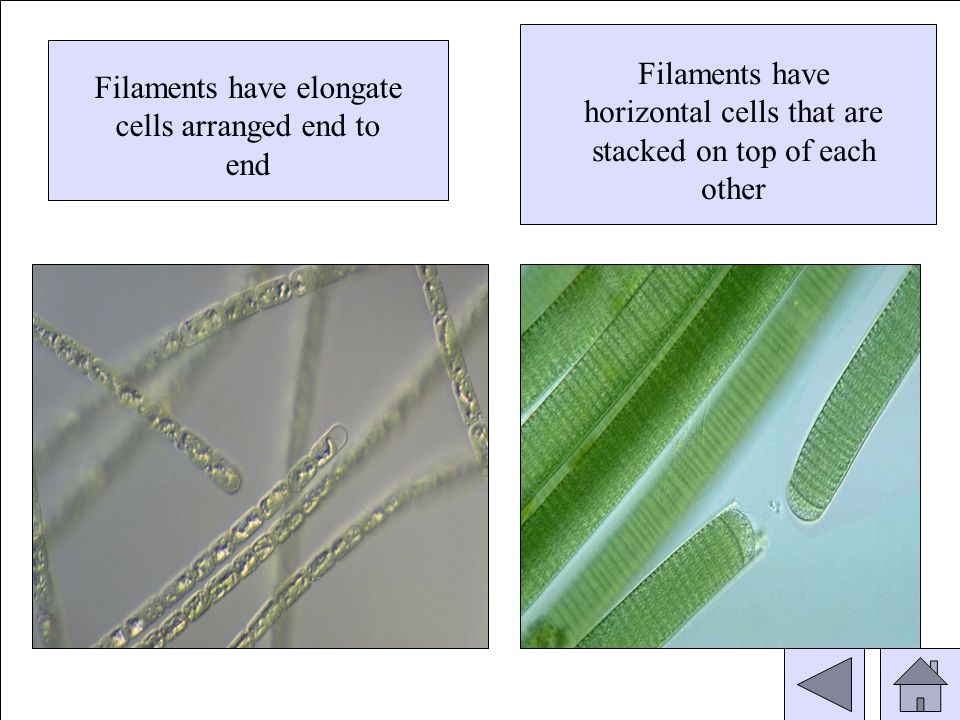

Filaments have elongate cells arranged end to end Filaments have horizontal cells that are stacked on top of each other

32
Filaments Found Alone Cells are round and are arranged in long filaments (like strands of pearls) Elongate unicells are found on a substrate unicells

33
Cell shape is rectangular Cell shape is oblong

34
Filaments are spaced apart from each other Filaments are lumped together

35
Option A: Oblong Cells float freely apart from each other Cells join in even numbers and have a clear membrane around them

36
Option B: Circular Cells are free floating with thin clear membranes Cells are congregated and encased in a round membrane

37

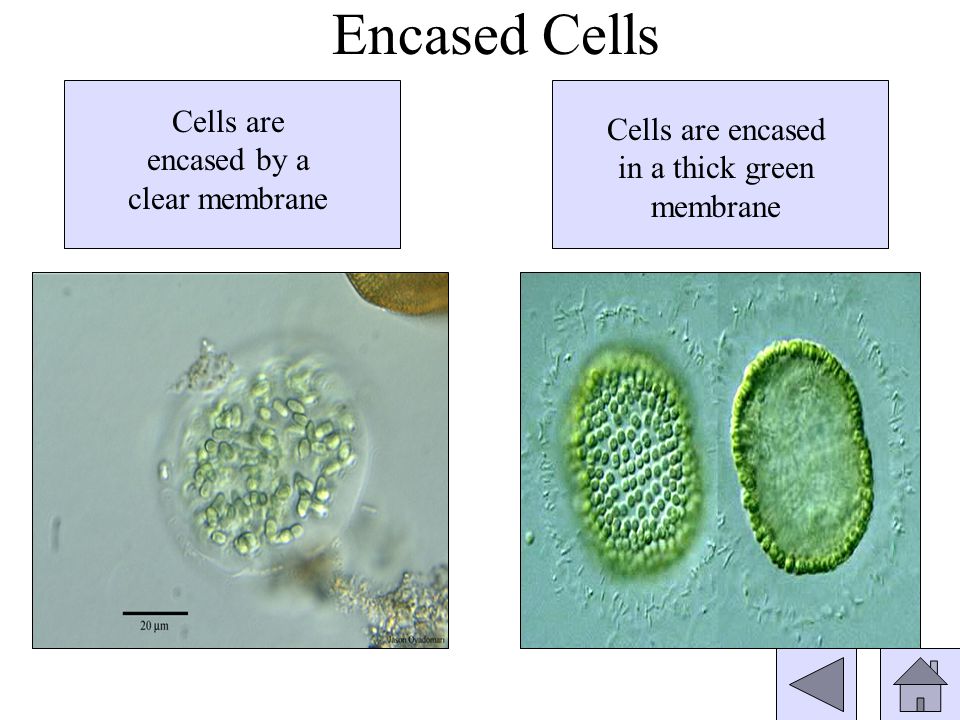

Encased Cells Cells are encased by a clear membrane Cells are encased in a thick green membrane

38

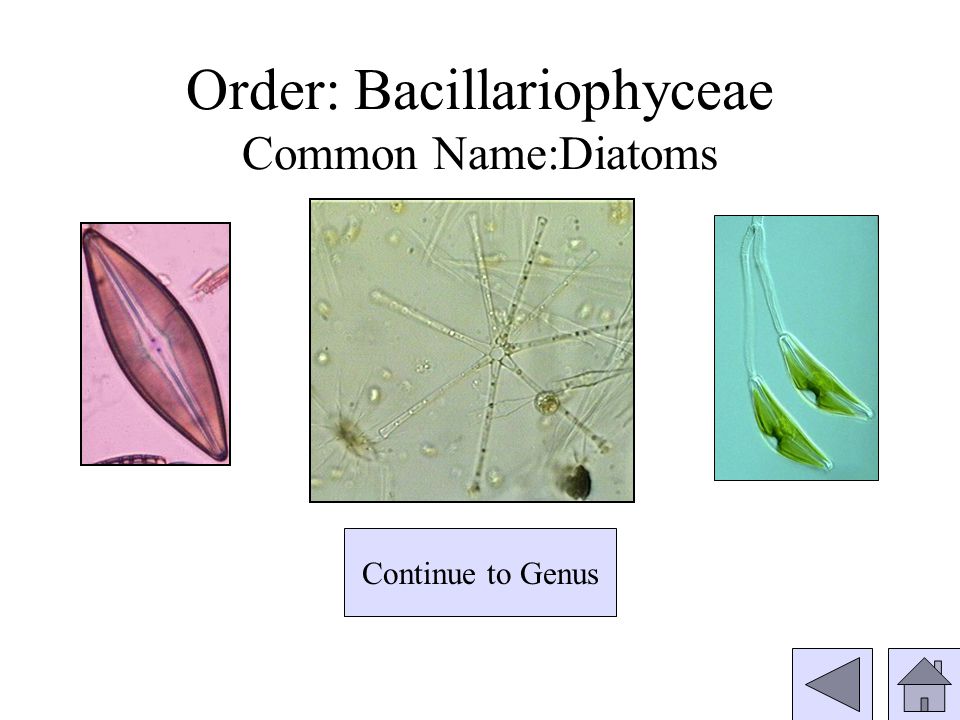

Order: Bacillariophyceae Common Name:Diatoms Continue to Genus

39
Is the shape of the organism rectangular? Is the shape of the organism circular or oval? Does organism have stalks?

40

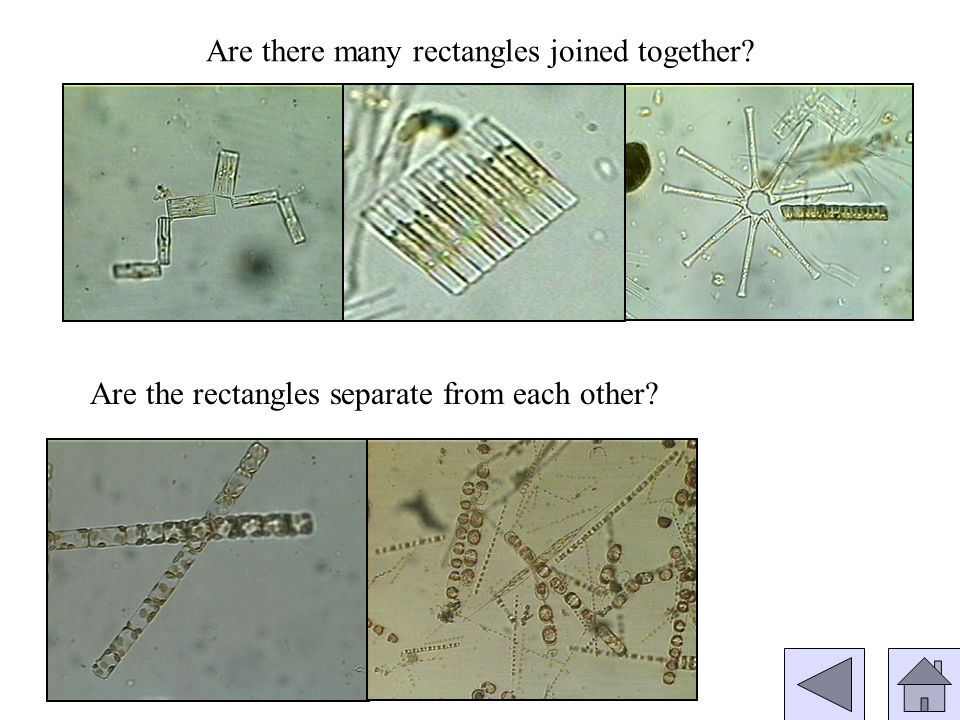

Are there many rectangles joined together? Are the rectangles separate from each other?

41
Do the rectangles make a line or stairstep formation? Do the rectangles form a star? Do the rectangles form a box?

42
Genus: Tabellaria

43
Genus: Asterionella

44
Genus: Eunotia

45
Width (W) of individual cells is 1/10 of the length (L) W L W L Width (W) of individual cells is 1/5 of the length (L)

46
Genus: Fragilaria

48

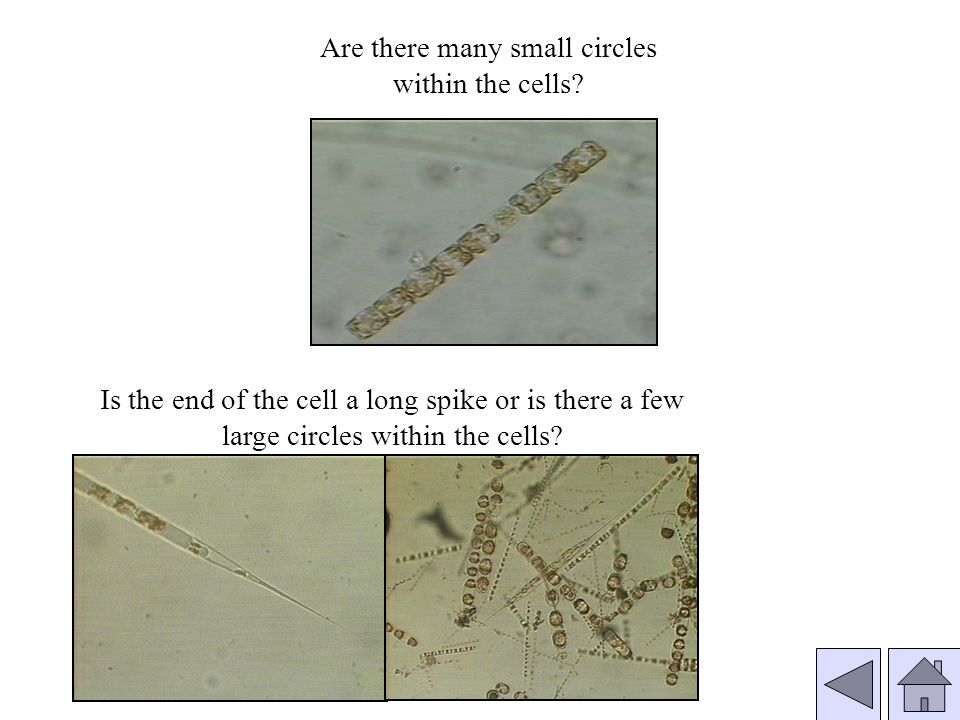

Are there many small circles within the cells? Is the end of the cell a long spike or is there a few large circles within the cells?

49
Genus: Melosira

50
Genus: Rhizosolenia

51
Is the middle of the cell wider than either end? Is the end of the cell opposite of the stalk the widest section?

52
Genus: Cymbella

53
Genus: Gomphonema

54
Are there smaller circles within the large circle? Are there lines around the edge of the circle? Is the shape of the organism oval?

55
Genus: Cocconeis

56
Genus: Cyclotella

57
Is the cell extremely long and skinny with the length (L) more than 15 times as much the width (W)?

58
Genus: Synedra

59

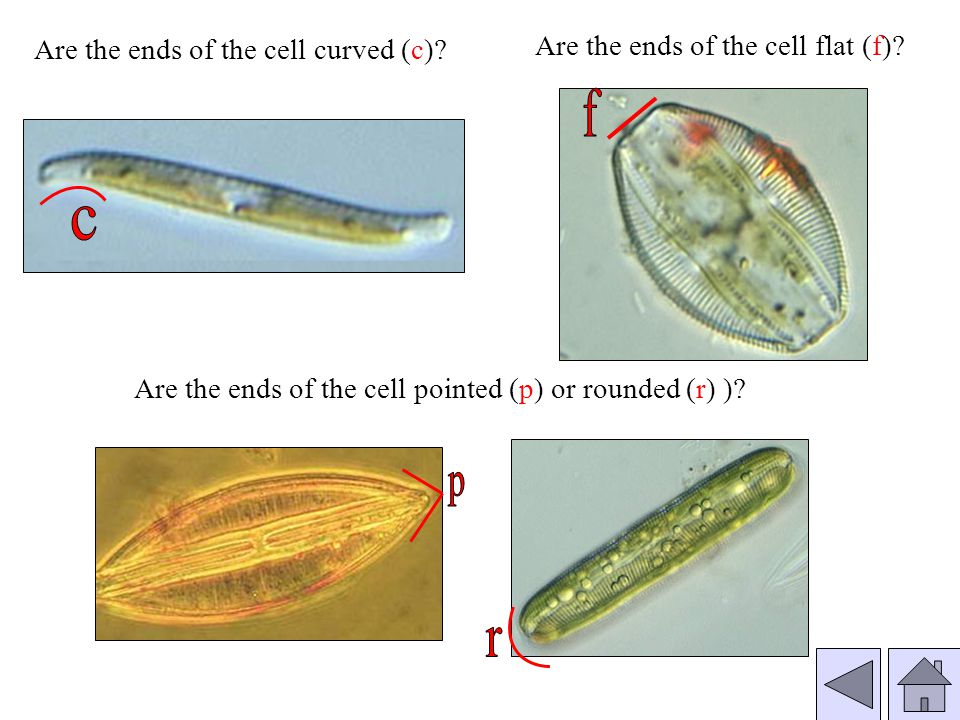

Are the ends of the cell pointed (p) or rounded (r) )? Are the ends of the cell curved (c)? Are the ends of the cell flat (f)?

60

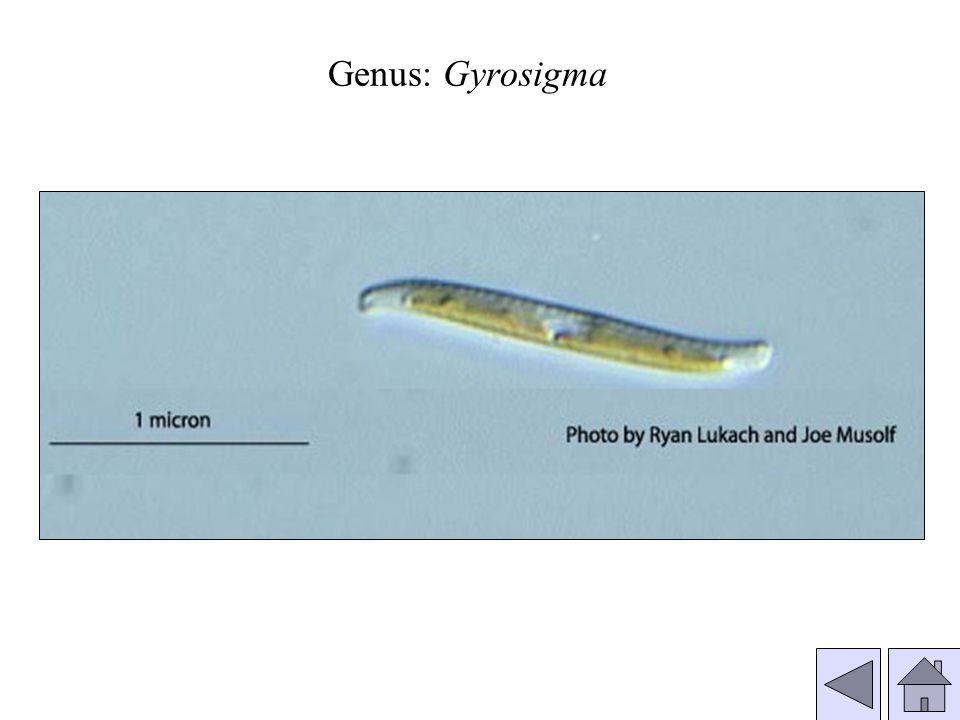

Genus: Gyrosigma

61
Genus: Amphora

62

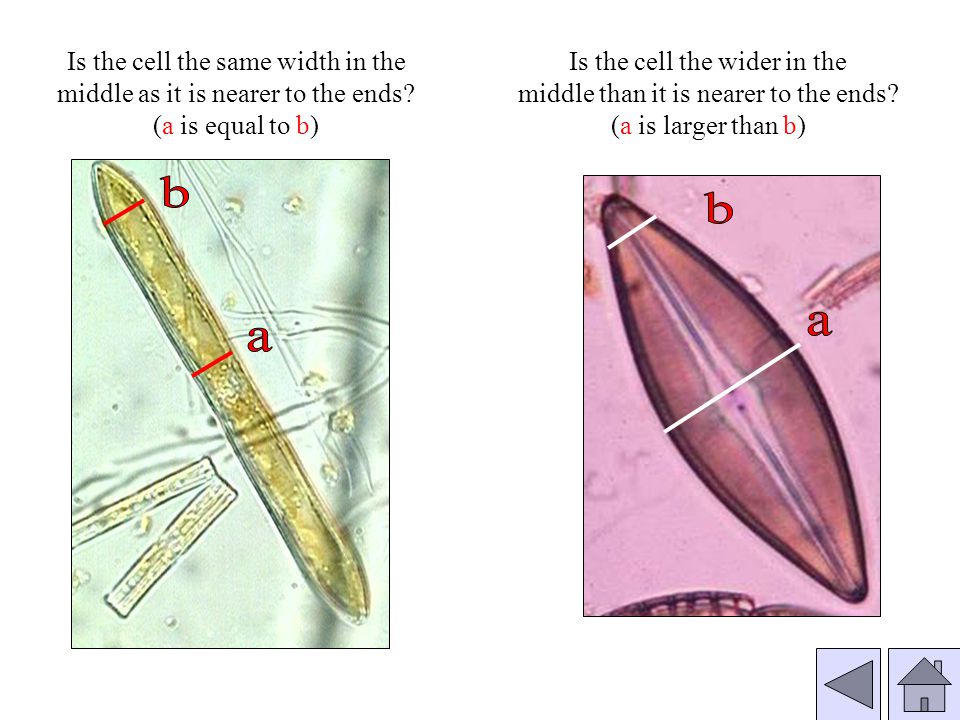

Is the cell the same width in the middle as it is nearer to the ends? (a is equal to b) Is the cell the wider in the middle than it is nearer to the ends? (a is larger than b)

63
Is the edge of the oval smooth? Does the edge of the oval have a distinct bump? Bump Smooth

64
Is there a distinct line down the length of the cell? Distinct Line Is no distinct line visible in the center of the cell?

65
Is the center area of the middle line is wider than the ends of the middle line with a distinct break in the center? Is the middle line even in width with a distinct break in the center? Is the middle line complete with no distinct break in the center?

66

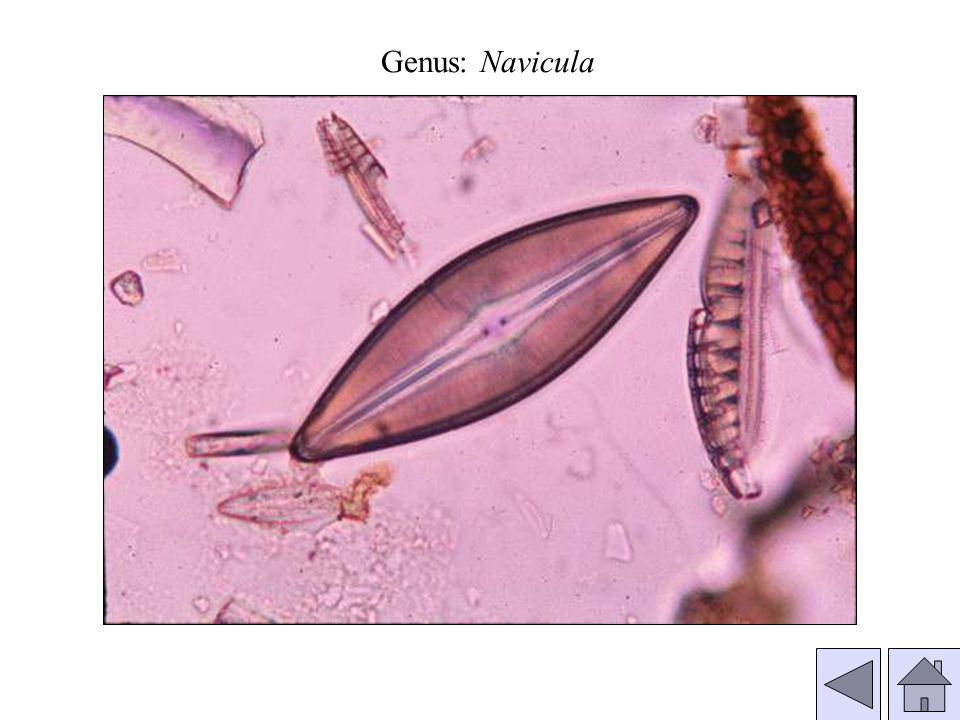

Genus: Navicula

67
Genus: Frustulia

68
Genus: Opephora

69
Is the cell long and skinny with the length (L) more than 5 times as much the width (W)? Is the cell short with the length (L) less than 5 times as much the width (W)?

70
Genus: Diatoma

71
Genus: Amphipleura

72

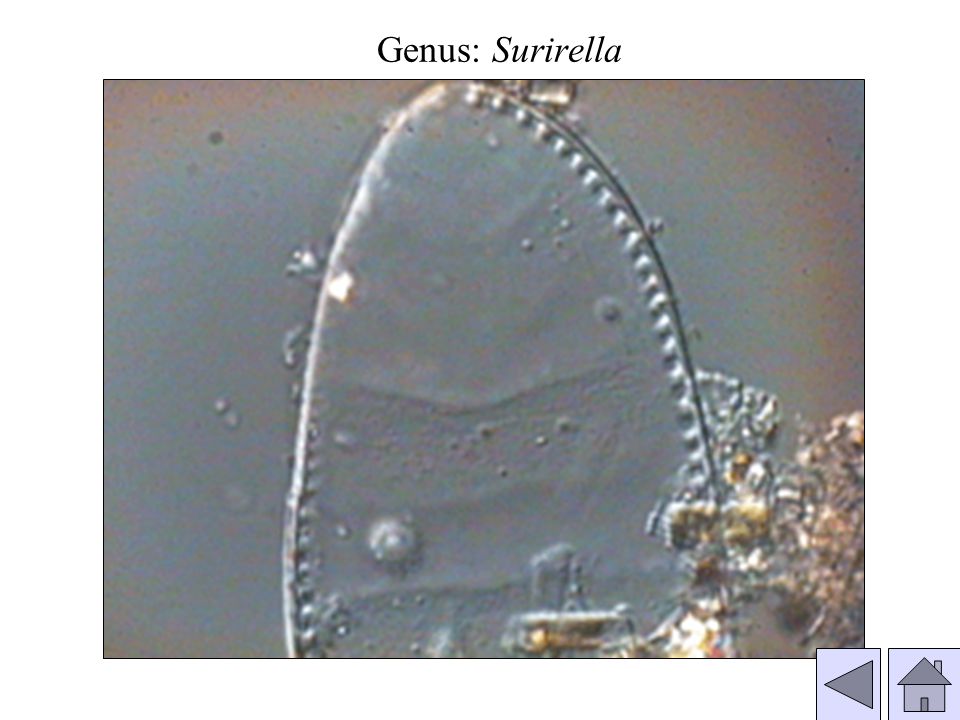

Genus: Surirella

73
Are there distinct parallel lines extending from the middle of the cell to the edge? Is the interior of the cell a homogenous color without lines? Lines

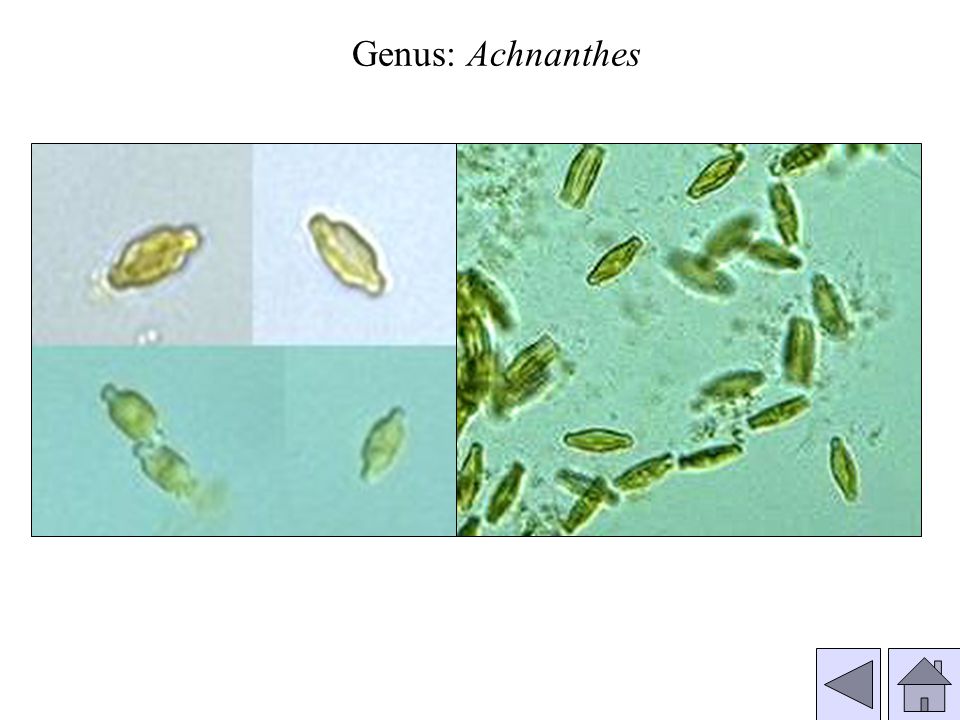

74
Genus: Achnanthes

75
Genus: Rhopalodia

76
Are the ends distinctly pointed? Are the ends distinctly rounded?

77
Genus: Nitzschia

78
Genus: Pinnularia

79
Actinastrum

80
Ankistrodesmus

81

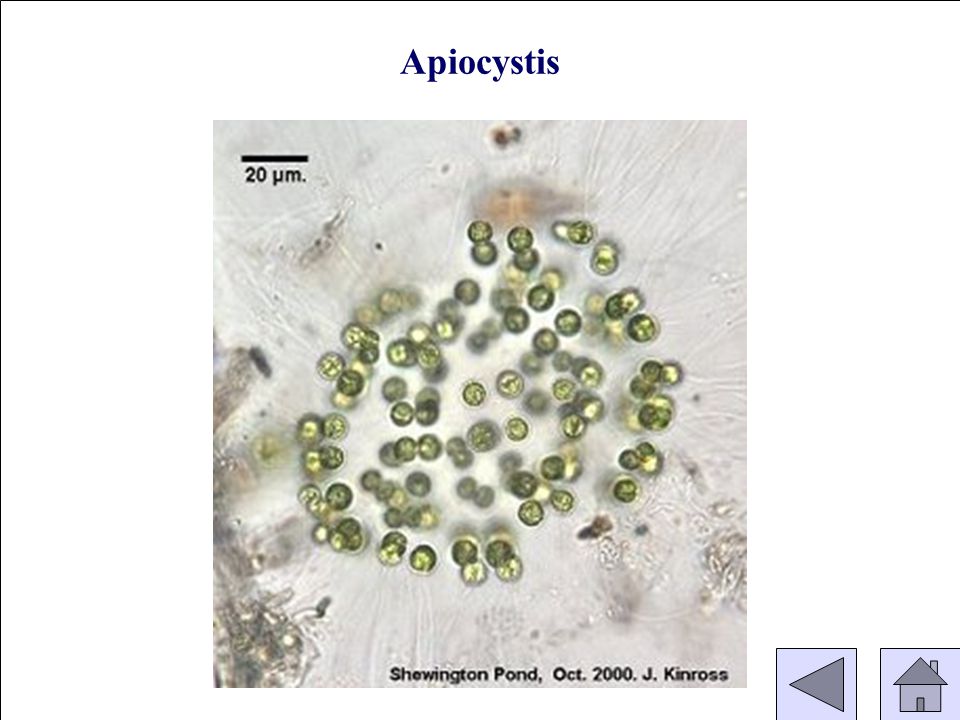

Apiocystis

82

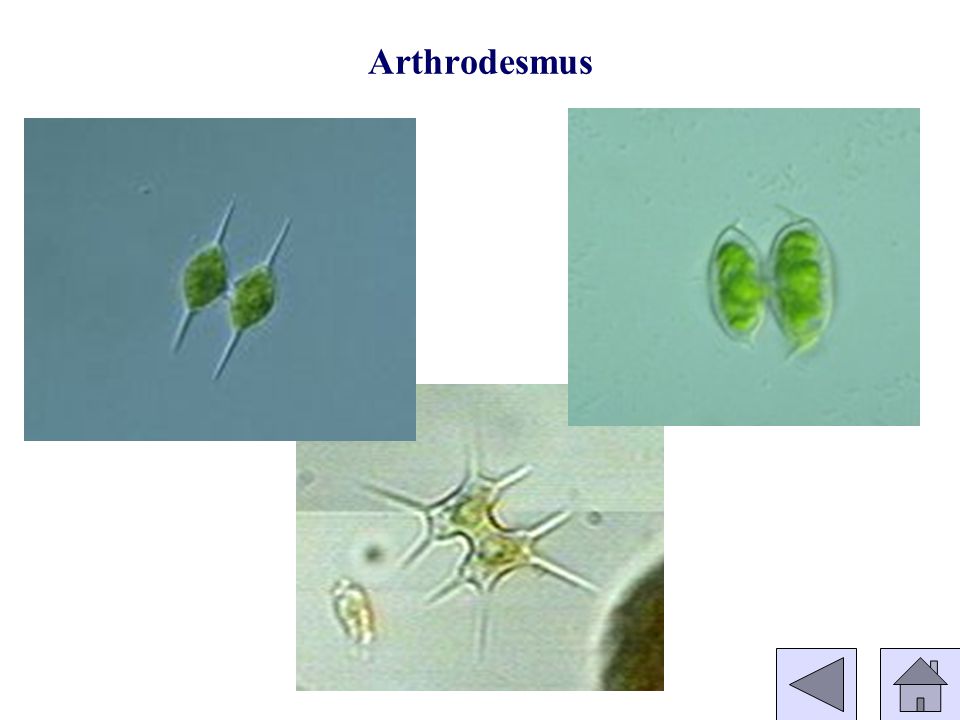

Arthrodesmus

83
Bulbochaete

84
Carteria

85
Centritractus

86
Chaetophora

87
Chaetosphaeridium

88
Characiopsis

89
Characium

90
Chlamydomonas

91
Chlorella

92

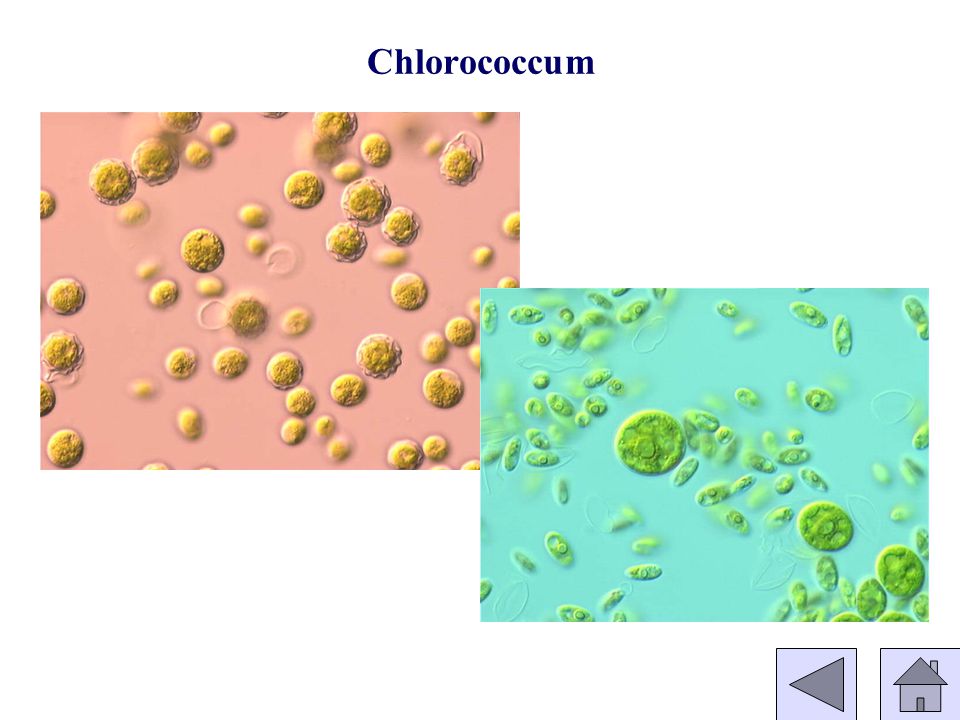

Chlorococcum

93
Cladophora

94
Closterium

95
Coelastrum

96
Coelosphaerium

97
Coleochaete

98
Cosmarium

99
Crucigenia

100
Desmidium

101
Dictyosphaerium

102
Dimorphococcus

103
Docidium

104
Euastrum

105
Eudorina

106
Gloeocystis

107
Gonium

108
Haematococcus

109
Hormidium

110
Hyalotheca

111
Hydrodictyon

112
Kirchneriella

113

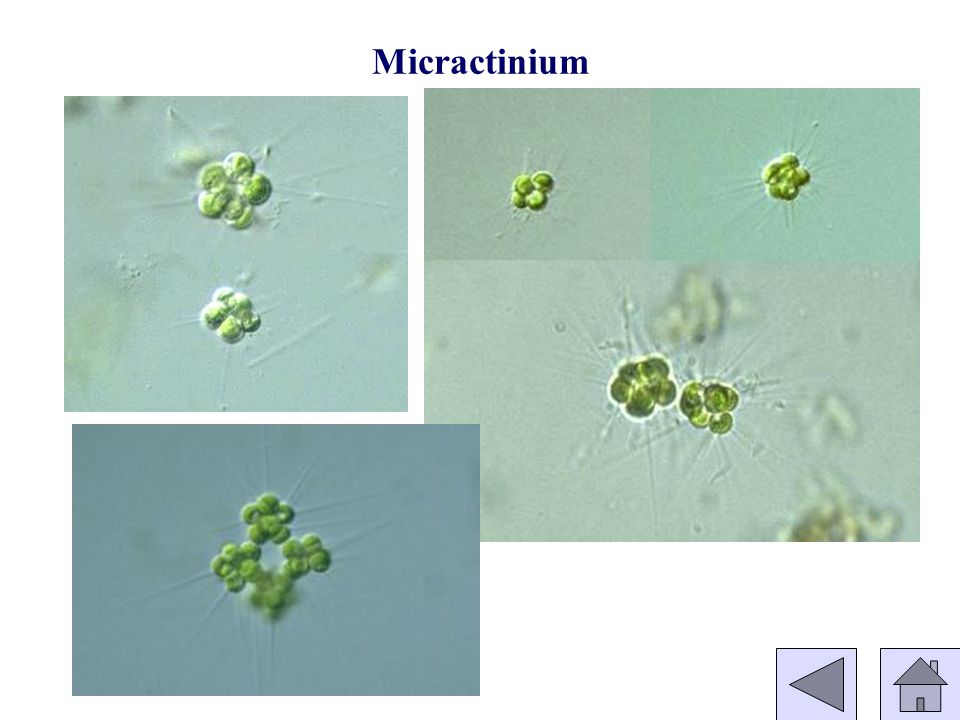

Micractinium

114
Micrasterias

115

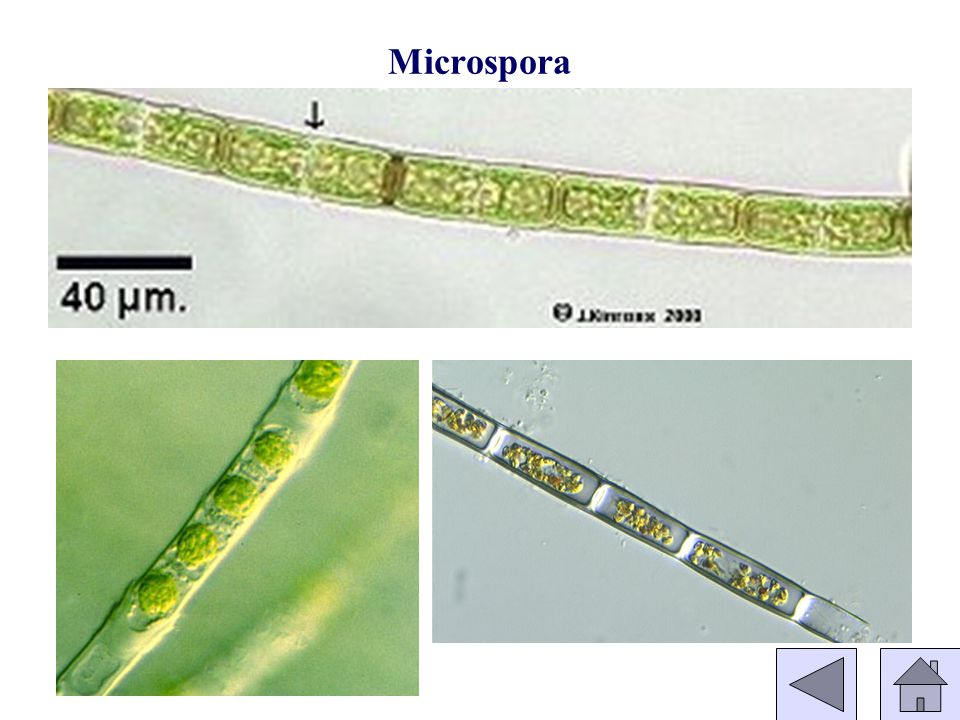

Microspora

116
(Conjugating) Mougeotia

117
Oedogonium

118
Onychonema

119
Oocystis

120
Palmella

121
Palmellocystis

122
Pandorina

123
Pediastrum

124
Planktosphaeria

125
Pleurotaenium

126
Scenedesmus

127
Selenastrum

128
Spirogyra

129
Staurodesmus

130
Tetraedron

131
Ulothrix

132
Volvox

133
Xanthidium

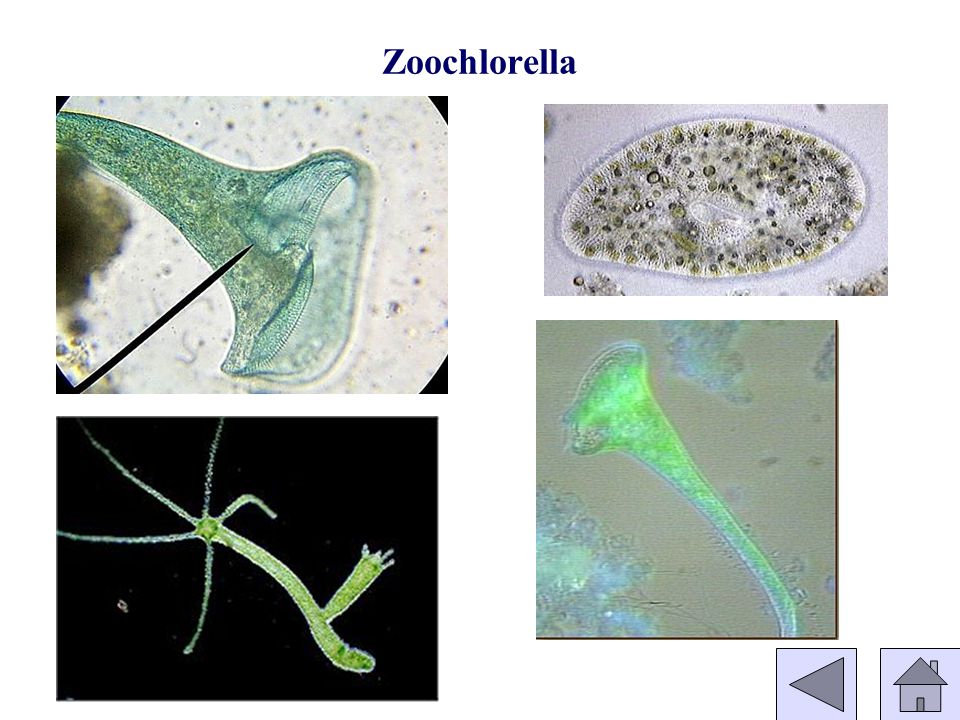

134
Zoochlorella

135
Zygnema

136

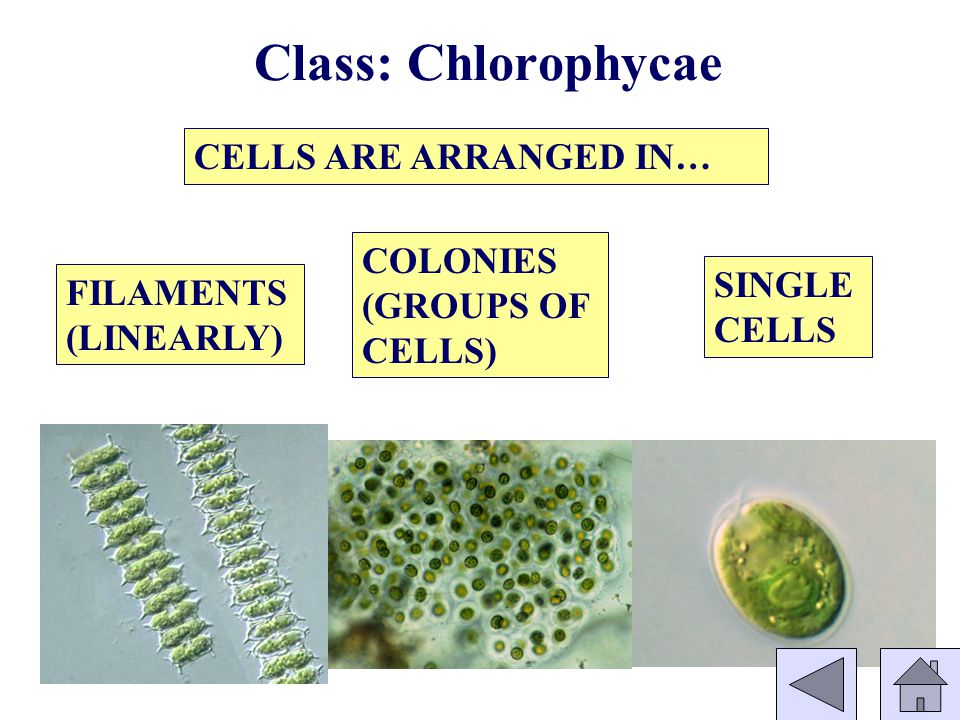

COLONIES (GROUPS OF CELLS) FILAMENTS (LINEARLY) CELLS ARE ARRANGED IN… SINGLE CELLS Class: Chlorophycae

137
COLONIES ARE… FLAT (2-D)SPHERICAL (3-D)

138
CELLS IN FILAMENTS HAVE… ONE CHLOROPLAST TWO CHLOROPLASTS MANY CHLOROPLASTS

139
SINGLE CELLS ARE… UNICELLULARHEMISPHERES

140

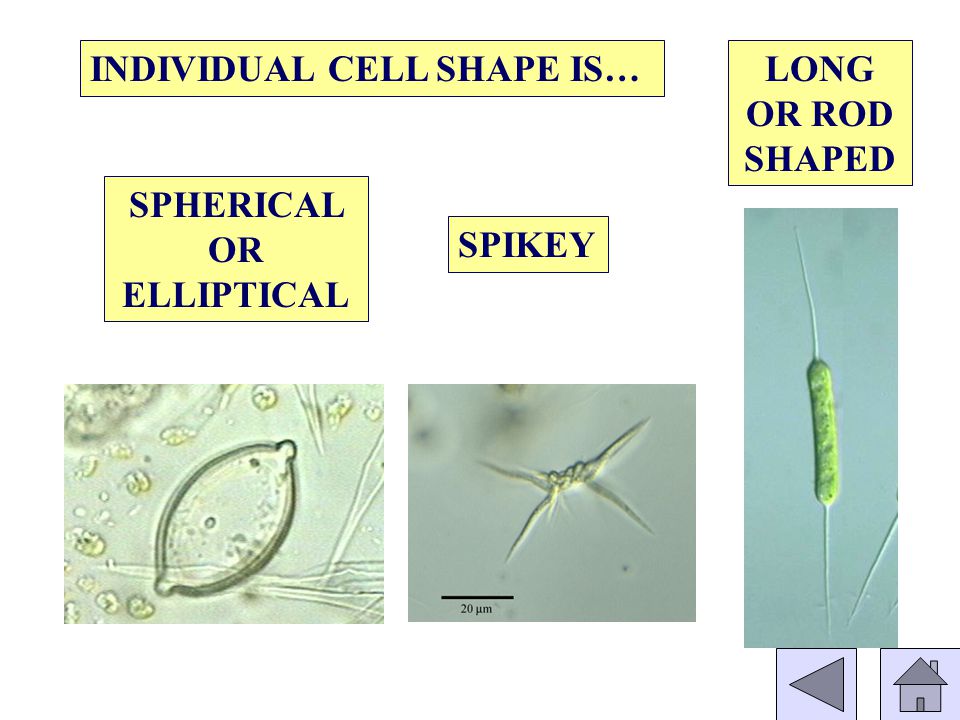

INDIVIDUAL CELL SHAPE IS… SPHERICAL OR ELLIPTICAL LONG OR ROD SHAPED SPIKEY

141

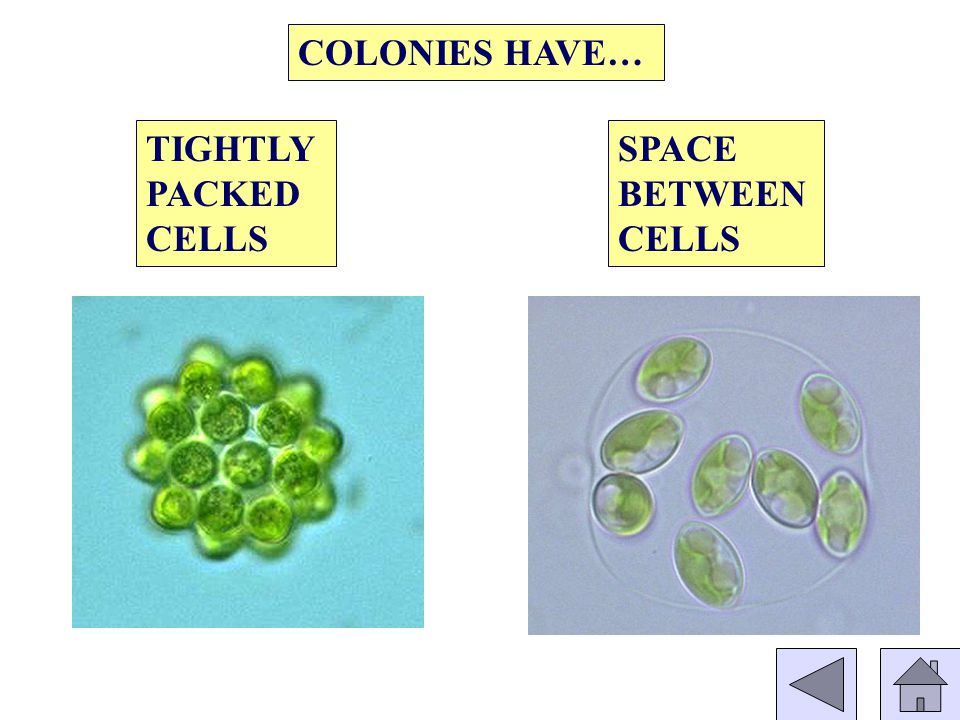

COLONIES HAVE… TIGHTLY PACKED CELLS SPACE BETWEEN CELLS

142
FILAMENTS ARE… SINGULAR BRANCHED

143
HEMICELLS ARE… LONG AND NARROW SEMICIRCULAR

144
CHLOROPLASTS ARE… CLUMPED SPIRALED

145
ARE CELLS IN THE FILIMENT… SHORT LONG

146
Does your algae look like any of these?
