Studies On Production Of Cellulase Enzyme by isolated Fungus and Its Application In Pulp And Paper Industry Presented by: ASHISH KUMAR Under the Supervision of: Dr. R. K. Jain Scientist –F (HOD Biotechnology) Central Pulp And Paper Research Institute (Saharanpur)
Introduction An enzyme is a protein molecule that is a biological catalyst with three characteristics. First, the basic function of a enzyme is to increase the rate of reaction. Second, most enzymes act specifically with only one reactant (called a substrate) to produce a product. The third and most remarkable characteristic is that enzymes are regulated from a state of low activity to high activity and vice versa. Cellulose Cellulose is an organic compound with the formula (C 6 H 10 O 5 ) n, a polysaccharide consisting of a linear chain of several hundred to over ten thousand β(1→4) linked D- glucose units. Fig. Chemical structure of cellulose molecule

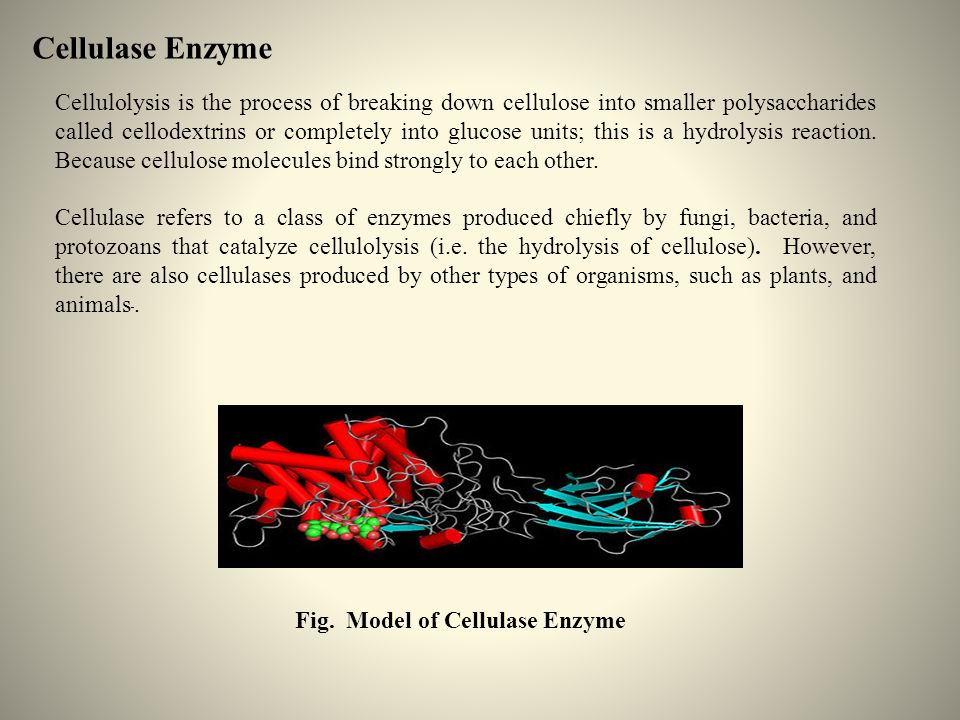

Cellulase Enzyme Cellulolysis is the process of breaking down cellulose into smaller polysaccharides called cellodextrins or completely into glucose units; this is a hydrolysis reaction. Because cellulose molecules bind strongly to each other. Cellulase refers to a class of enzymes produced chiefly by fungi, bacteria, and protozoans that catalyze cellulolysis (i.e. the hydrolysis of cellulose). However, there are also cellulases produced by other types of organisms, such as plants, and animals. Fig. Model of Cellulase Enzyme
Mode of Action of Cellulase Enzyme Fig. Mode of Action of Cellulase Enzyme
Application of Cellulase Enzyme Cellulase Enzyme Used for Various Industrial Applications. Such As Animal feed House hold laundry detergent Fruit juice and beverage processing Baking Industry Alcohol production Application of Cellulase Enzyme In Pulp And Paper Industry offers new options for many applications, including stickis control, pitch control, deinking, drainage aids, refining aids, wet and slime preservation and boils outs. Enzymes are neutral, non-corrosive and deliver, so they provides reduced environmental impact. Bio-refining Bio-deinking
Objectives Objective of the present study is to isolate cellulase producing microorganism, production and application of cellulase enzyme produced by the isolate microorganism. Present study is detailed as below- 1.Isolation of cellulase producing microorganisms. 2.Purification and screening of isolated fungi for cellulase production. 3. Studies on physical, chemical and nutritional parameters of selected fungi a) Determination of Optimal temperature for growth of selected fungal strains b) Determination of optimum pH for growth & enzyme production c)Study of effect of various Substrates on growth, cellulase production of selected fungal strains S2 and S3. 4. Application of cellulase enzyme in Pulp and Paper Industry – Biodeinking. 5. Conservation of Environment and Natural resource.
Material & Methods Sample Collection: Table. Details of Samples Collected From Different Sources S.NoSample NameDateTimePlaceWeatherpH 1 C.P.P.R.I.garden soil 7/2/113:15 Hrs C.P.P.R.I. Campus garden Sunny, slight windy 6.5 2Paper Mill soil7/2/114:15 Hrs Paper Mill, SRE. Sunny, slight windy 6.0 3Vermicompost9/2/111:45 Hrs C.P.P.R.I. Campus Very hot, sunny 6.5 4 Sugercane Industry soil 10/2/119:10 Hrs Sugercane Industry Sunny, Slight windy 6.2

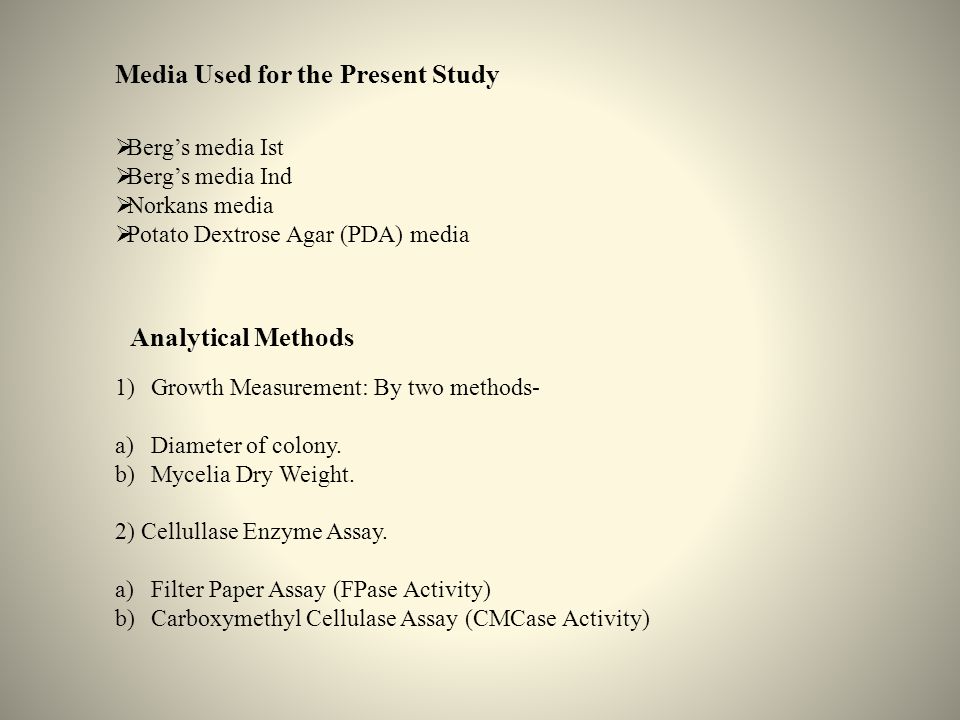

Media Used for the Present Study Berg’s media Ist Berg’s media Ind Norkans media Potato Dextrose Agar (PDA) media Analytical Methods 1)Growth Measurement: By two methods- a)Diameter of colony. b)Mycelia Dry Weight. 2) Cellullase Enzyme Assay. a)Filter Paper Assay (FPase Activity) b)Carboxymethyl Cellulase Assay (CMCase Activity)

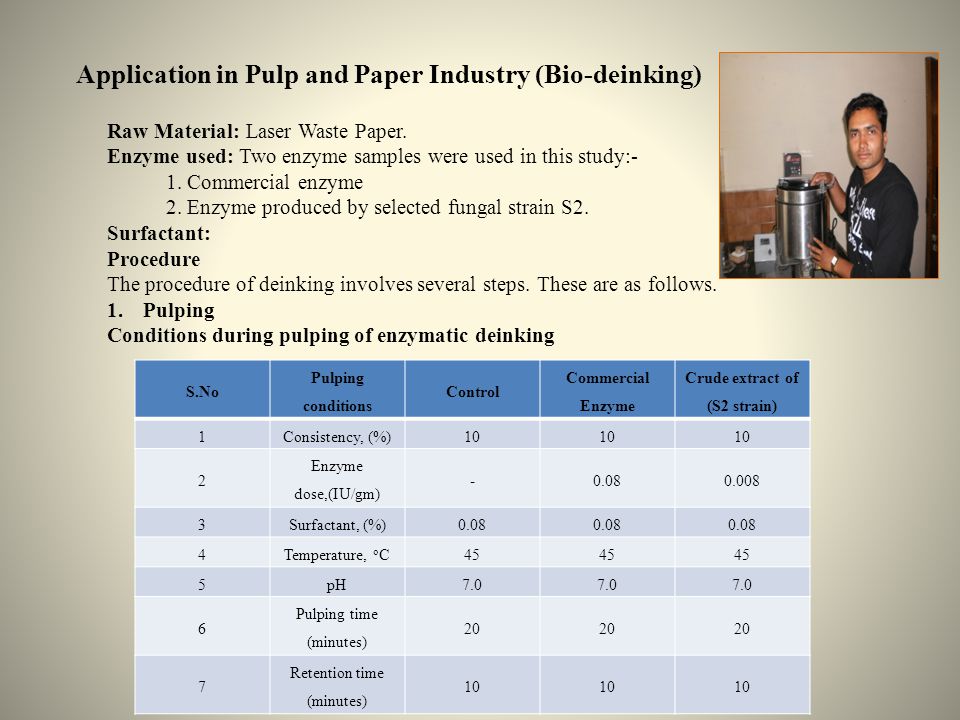

Application in Pulp and Paper Industry (Bio-deinking) Raw Material: Laser Waste Paper. Enzyme used: Two enzyme samples were used in this study:- 1. Commercial enzyme 2. Enzyme produced by selected fungal strain S2. Surfactant: Procedure The procedure of deinking involves several steps. These are as follows. 1.Pulping Conditions during pulping of enzymatic deinking S.No Pulping conditions Control Commercial Enzyme Crude extract of (S2 strain) 1Consistency, (%)10 2 Enzyme dose,(IU/gm) -0.080.008 3Surfactant, (%)0.08 4Temperature, o C45 5pH7.0 6 Pulping time (minutes) 20 7 Retention time (minutes) 10

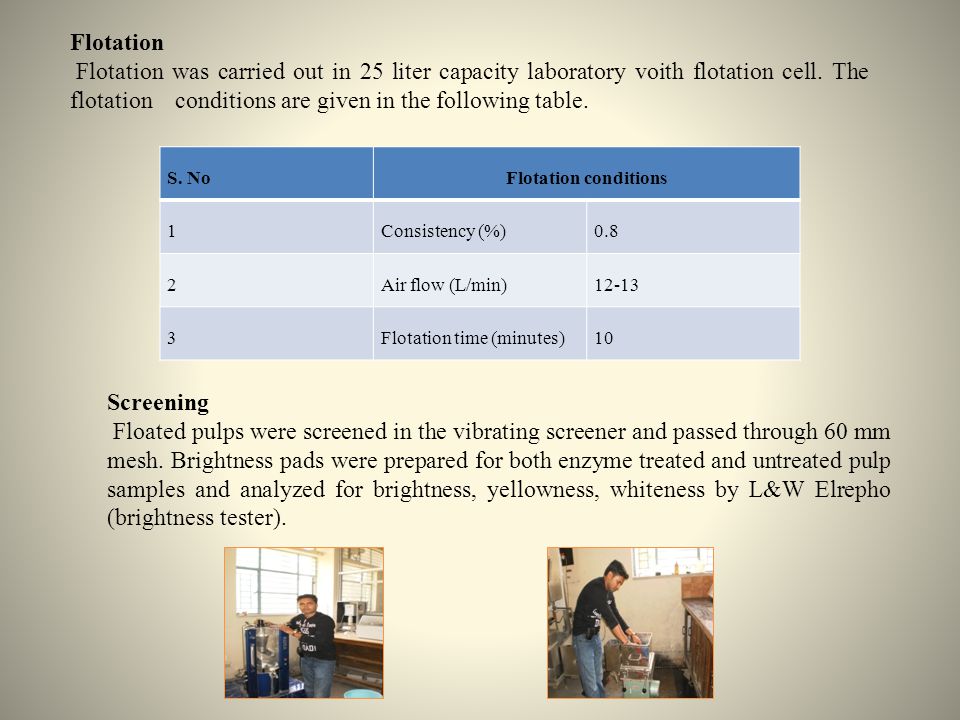

Flotation Flotation was carried out in 25 liter capacity laboratory voith flotation cell. The flotation conditions are given in the following table. Screening Floated pulps were screened in the vibrating screener and passed through 60 mm mesh. Brightness pads were prepared for both enzyme treated and untreated pulp samples and analyzed for brightness, yellowness, whiteness by L&W Elrepho (brightness tester). S. NoFlotation conditions 1Consistency (%)0.8 2Air flow (L/min)12-13 3Flotation time (minutes)10
Isolation of Cellulase Producing Fungi With Soil From Different Sources To isolate fungi with cellulase activity, the samples were collected from the sources as detailed in material & methods. Isolation from above cited samples was done by serial dilution method. After serial dilution, the inoculated plates were incubated at 34ºC for 3 to 4 days. After incubation, the plates were observed for the microbial growth. Table: Microbial Flora of Different Sources MediaSampleDilution Factor No. of colonies Morphology of Colonies BERG’ MEDIA-I C.P.P.R.I. garden soil 10 -3 10 -4 44(2- white, 1-green and 1- black) 2 No growth Paper mill soil 10 -3 10 -4 5 3(white) 2 (green) 3 3 (1-white and 2- green) Vermicompost 10 -3 10 -4 5 5(3-white and 2-green) 3(2- green and 1- black) 2 2(2- green) Sugercane Industry soil10 -3 10 -4 5353 5(2-Green,1- black and 1- white) 3(1 green, 2 black)
Cont….. BERG’S MEDIA –II C.P.P.R.I. garden soil 10 -3 10 -4 22 ( light yellow) --No growth. Vermicompost 10 -3 10 -4 6 4 (3- white and 1- yellow) 2 (1- yellow and 1- whitish black) 2 1 (light black) 1 (whitish black) Paper mill soil 10 -3 10 -4 2 One colony with green color, One colony with green color 2 One colony with green color, One colony with brown color Sugercane Industry 10- 3 10 -4 33(2-green and 1- yellow) 22(1- green and 1- brown)
Screening of Isolated Fungi Screening of isolated fungi for cellulase activity The results for screening of isolated fungi, one fungal strain from C.P.P.R.I garden soil, one fungal strain from vermicompost, two from paper mill soil shown colorless zone when flooded with Congo red dye on Berg’ medium used. These four fungal strains were used for further study. Fig:- Screening of Cellulase Producing Fungi by Congo Red Dye Control S1 S2 S3 S4

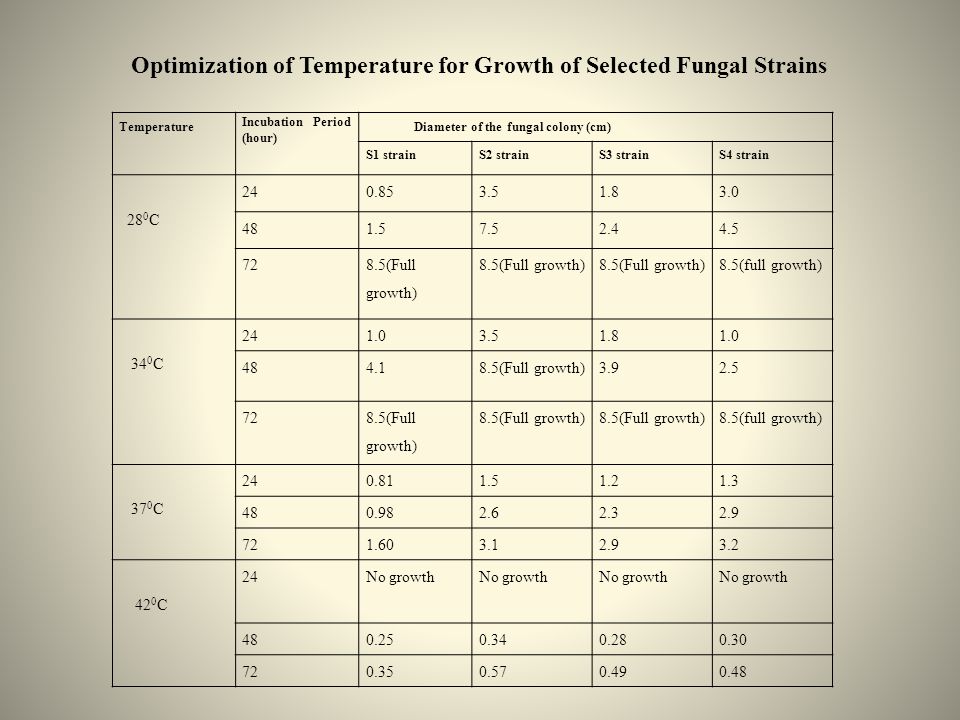

Optimization of Temperature for Growth of Selected Fungal Strains Temperature Incubation Period (hour) Diameter of the fungal colony (cm) S1 strainS2 strainS3 strainS4 strain 28 0 C 240.8126.96.36.199 4188.8.131.52.5 72 8.5(Full growth) 8.5(Full growth) 8.5(full growth) 34 0 C 241.03.51.81.0 484.18.5(Full growth)3.92.5 72 8.5(Full growth) 8.5(full growth) 37 0 C 240.8184.108.40.206 480.9220.127.116.11 721.603.12.93.2 42 0 C 24No growth 480.250.340.280.30 720.350.570.490.48

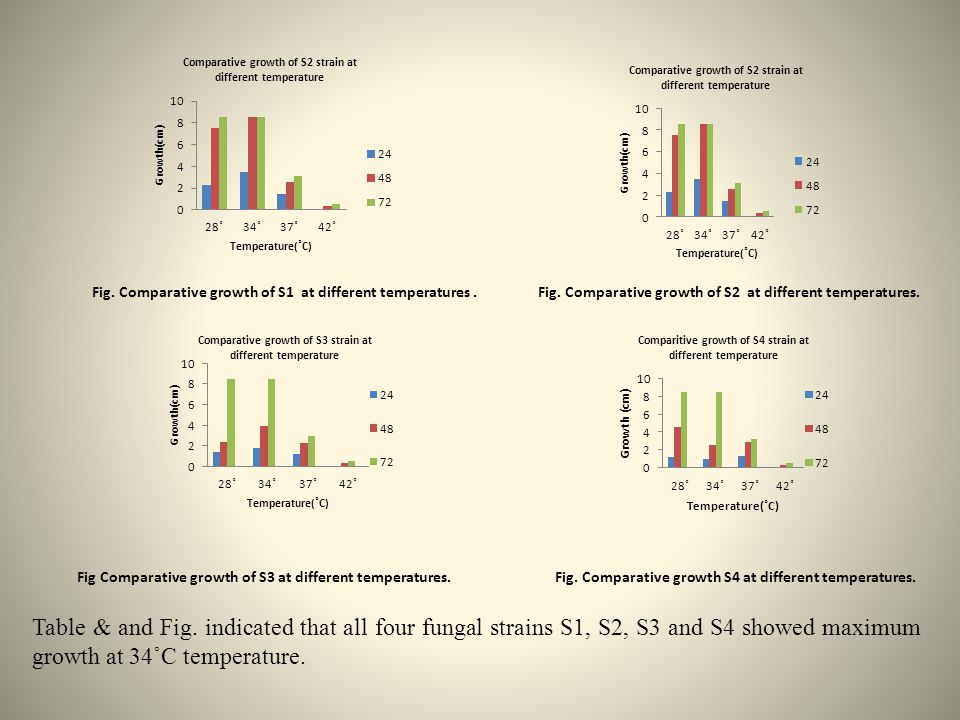

Fig. Comparative growth of S1 at different temperatures. Fig. Comparative growth of S2 at different temperatures. Fig Comparative growth of S3 at different temperatures. Fig. Comparative growth S4 at different temperatures. Table & and Fig. indicated that all four fungal strains S1, S2, S3 and S4 showed maximum growth at 34˚C temperature.
Optimization of pH for Growth of Selected Fungal Strains S. No. Initial pH Final pHGrowth (gm)Cellulase Activity (IU/ml) of fungal strains S2S3S2S3 S2 Strain S3 Strain CMCaseFPaseCMCaseFPase 14.04.64.8 0.0420.0300.0800.0310.0430.027 18.104.22.168.035.0.0400.0920.0620.0450.032 35.05.95.70.0380.0370.0620.0320.0390.028 22.214.171.124.0300.0230.0510.0290.0340.027 56.06.5 0.0260.0280.0530.0260.0230.021 Above table indicated that fungal strain S2 and S3 showed maximum Cellulase activity i.e. 0.092 IU/ml and 0.045 IU/ml for CMCase and 0.062 IU/ml and 0.032 IU/ml for FPase respectively at 4.5 pH.
Effect of Various Substrates on Biomass Production And Cellulase Enzyme Production By Selected Fungal Strains S2 The isolated fungal strains S2 were used for further enzyme production. In this study Wheat bran and CMC were used as substrates. Table: Effect of various substrates (Wheat bran and CMC) on growth and Cellulase production of selected fungal strain S2. InducersS. No Incubation period (Days) Final pHBiomass Enzyme Activity (IU/ml) CMCaseFPase CMC 1.46.50.0100.0380.020 2.66.50.0120.0460.040 3.86.50.0150.0600.042 4.106.60.0190.0620.044 5.126.50.0250.0620.049 6.146.30.0280.0480.042 7.166.10.0310.0420.032 Wheat bran 1.46.40.0250.0350.019 2.66.20.0300.0480.032 3.86.60.0340.0540.040 4.106.30.038`0.0580.048 5.126.60.0410.0680.056 6.146.30.0430.0620.042 7.166.10.0480.0400.028
FPase activity of cellulase enzyme at different pH and Temperatures pH FPase activity, Temperature, IU/ml 40 o C50 o C60 o C70 o C 40.0450.0480.0470.041 50.0510.0520.0480.042 60.0480.0470.0440.041 70.045 0.0420.041 8 0.0430.0400.000

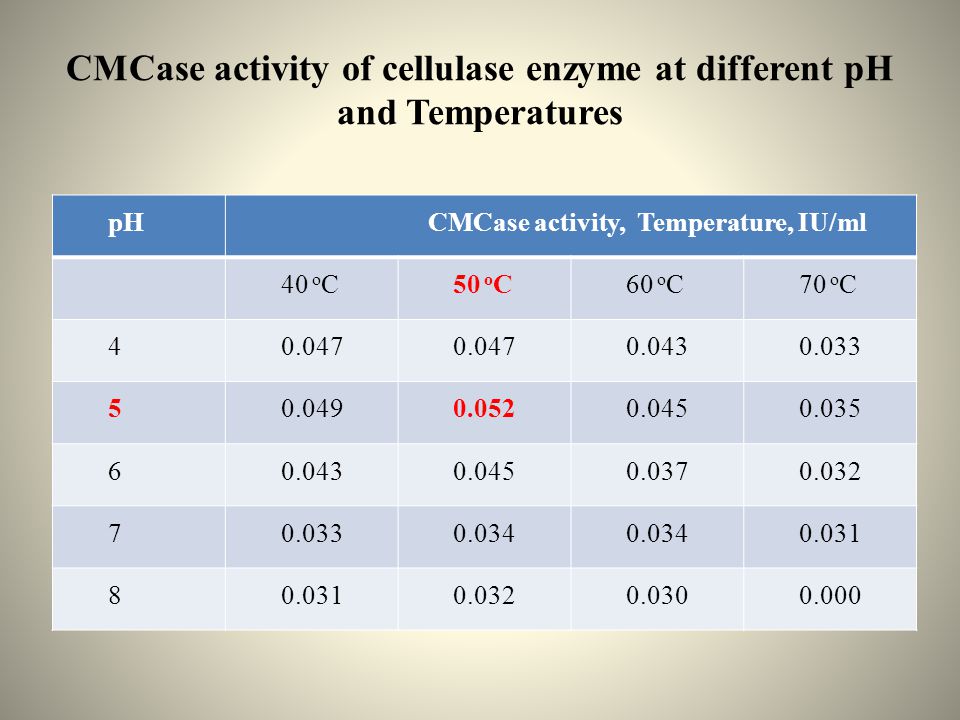

CMCase activity of cellulase enzyme at different pH and Temperatures pH CMCase activity, Temperature, IU/ml 40 o C50 o C60 o C70 o C 40.047 0.0430.033 50.0490.0520.0450.035 60.0430.0450.0370.032 70.0330.034 0.031 8 0.0320.0300.000

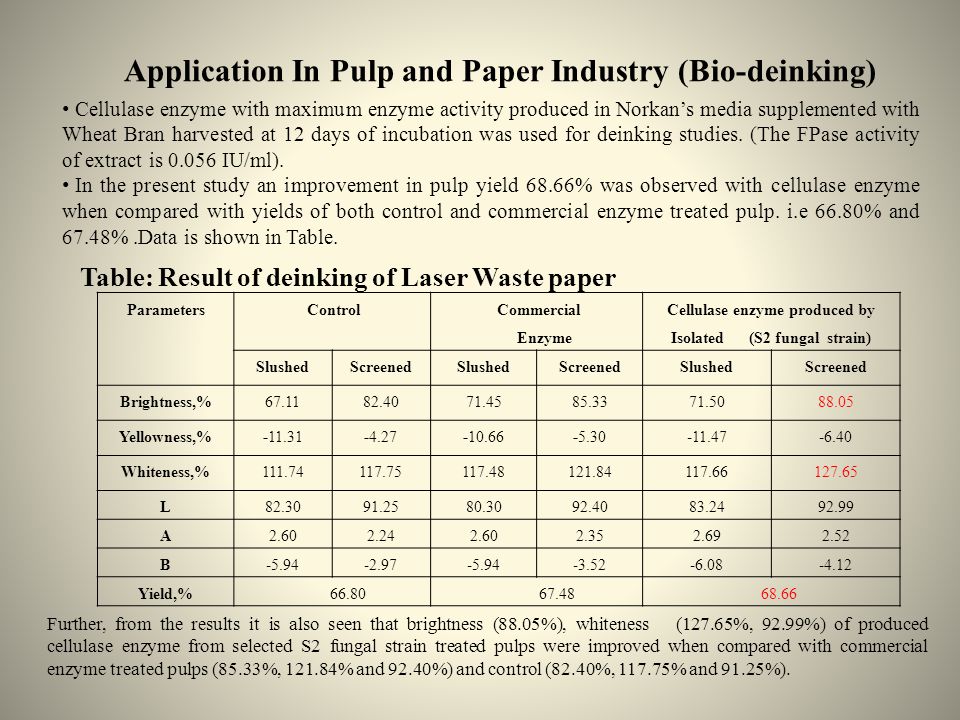

Application In Pulp and Paper Industry (Bio-deinking) Cellulase enzyme with maximum enzyme activity produced in Norkan’s media supplemented with Wheat Bran harvested at 12 days of incubation was used for deinking studies. (The FPase activity of extract is 0.056 IU/ml). In the present study an improvement in pulp yield 68.66% was observed with cellulase enzyme when compared with yields of both control and commercial enzyme treated pulp. i.e 66.80% and 67.48%.Data is shown in Table. Table: Result of deinking of Laser Waste paper Parameters Control Commercial Enzyme Cellulase enzyme produced by Isolated (S2 fungal strain) SlushedScreenedSlushedScreenedSlushedScreened Brightness,%67.1182.4071.4585.3371.5088.05 Yellowness,%-11.31-4.27-10.66-5.30-11.47-6.40 Whiteness,%111.74117.75117.48121.84117.66127.65 L82.3091.2580.3092.4083.2492.99 A2.602.242.602.352.692.52 B-5.94-2.97-5.94-3.52-6.08-4.12 Yield,% 66.80 67.48 68.66 Further, from the results it is also seen that brightness (88.05%), whiteness (127.65%, 92.99%) of produced cellulase enzyme from selected S2 fungal strain treated pulps were improved when compared with commercial enzyme treated pulps (85.33%, 121.84% and 92.40%) and control (82.40%, 117.75% and 91.25%).

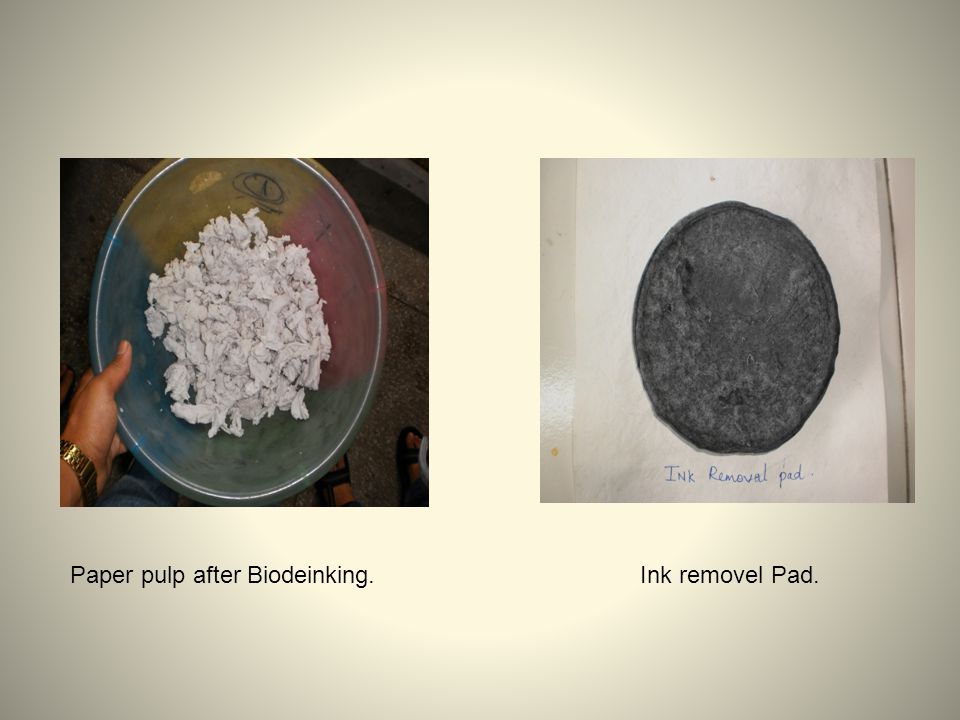

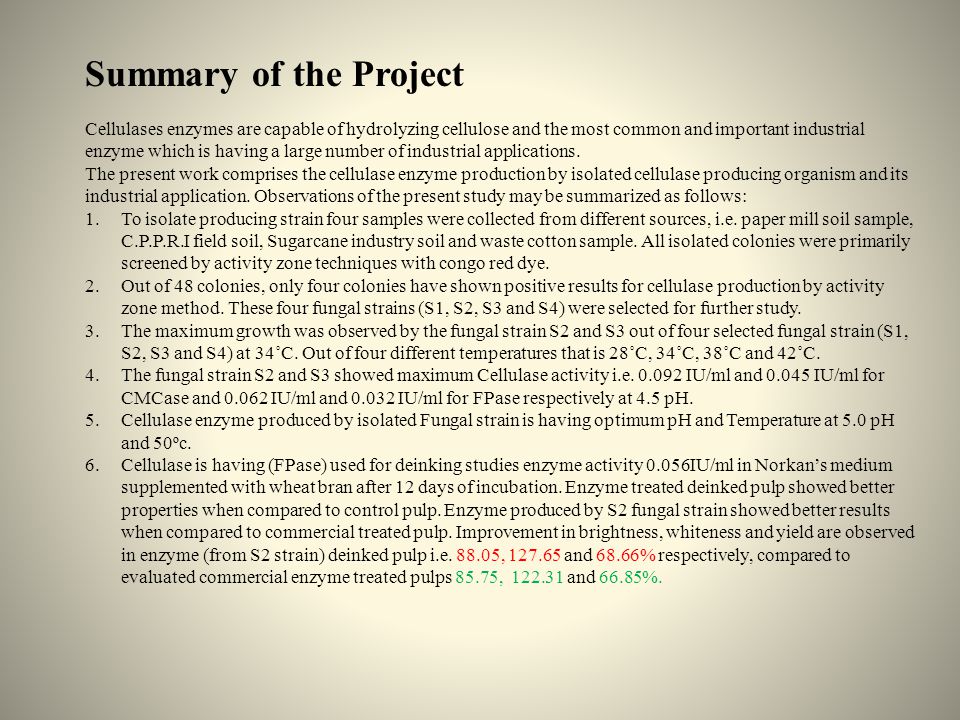

Summary of the Project Cellulases enzymes are capable of hydrolyzing cellulose and the most common and important industrial enzyme which is having a large number of industrial applications. The present work comprises the cellulase enzyme production by isolated cellulase producing organism and its industrial application. Observations of the present study may be summarized as follows: 1.To isolate producing strain four samples were collected from different sources, i.e. paper mill soil sample, C.P.P.R.I field soil, Sugarcane industry soil and waste cotton sample. All isolated colonies were primarily screened by activity zone techniques with congo red dye. 2.Out of 48 colonies, only four colonies have shown positive results for cellulase production by activity zone method. These four fungal strains (S1, S2, S3 and S4) were selected for further study. 3.The maximum growth was observed by the fungal strain S2 and S3 out of four selected fungal strain (S1, S2, S3 and S4) at 34˚C. Out of four different temperatures that is 28˚C, 34˚C, 38˚C and 42˚C. 4.The fungal strain S2 and S3 showed maximum Cellulase activity i.e. 0.092 IU/ml and 0.045 IU/ml for CMCase and 0.062 IU/ml and 0.032 IU/ml for FPase respectively at 4.5 pH. 5.Cellulase enzyme produced by isolated Fungal strain is having optimum pH and Temperature at 5.0 pH and 50ºc. 6.Cellulase is having (FPase) used for deinking studies enzyme activity 0.056IU/ml in Norkan’s medium supplemented with wheat bran after 12 days of incubation. Enzyme treated deinked pulp showed better properties when compared to control pulp. Enzyme produced by S2 fungal strain showed better results when compared to commercial treated pulp. Improvement in brightness, whiteness and yield are observed in enzyme (from S2 strain) deinked pulp i.e. 88.05, 127.65 and 68.66% respectively, compared to evaluated commercial enzyme treated pulps 85.75, 122.31 and 66.85%.
Conclusion We conclude that the strain S2 has better deinking efficiency when compared with commercial deinking enzyme indication that this enzyme can be efficiently used for deinking of laser waste paper. The fungal strain S2 and S3 showed maximum Cellulase activity i.e. 0.092 IU/ml and 0.045 IU/ml for CMCase and 0.062 IU/ml and 0.032 IU/ml for FPase respectively at 4.5 pH. Other Commercially used enzyme like BIOFUELZYME, CEL50, NOVAZYME show the activity i.e. 0.085 IU/ml for CMCase and 0.054 IU/ml for FPase at 4.5 pH. In Pulp and Paper Industries(Biodeinking) S2 Strain show following results:- Improvement in brightness, whiteness and yield are observed in enzyme (from S2 strain) deinked pulp i.e. 88.05, 127.65 and 68.66% compared to evaluated commercial enzyme (NOVAZYME) treated pulps 85.75, 122.31 and 66.85% This enzyme is cheaper and Ecofriendly because if we used this enzyme (Biodeinking), we may prevent cutting of trees and we can recycled the waste paper. So, by this we can conserve the nature and natural resources(Environment).
