1 An Efficient Technology Mapping Algorithm Targeting Routing Congestion Under Delay Constraints Rupesh S. Shelar Intel Corporation Hillsboro, OR Prashant Saxena Synopsys Inc Hillsboro, OR Xinning Wang Intel Corporation Hillsboro, OR Sachin S. Sapatnekar University of Minnesota Minneapolis, MN International Symposium on Physical Design San Francisco April 5, 2005

2 2 Outline Introduction Algorithm Overview Congestion Map Generation Slack-constrained Covering Results & Conclusion

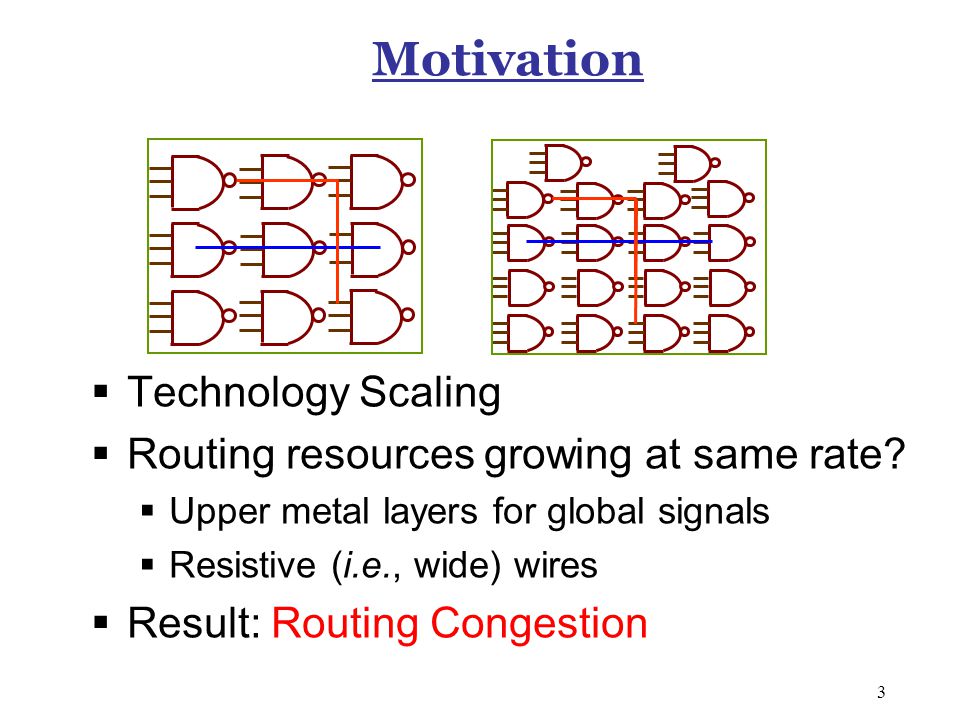

3 3 Motivation  Technology Scaling  Routing resources growing at same rate?  Upper metal layers for global signals  Resistive (i.e., wide) wires  Result: Routing Congestion

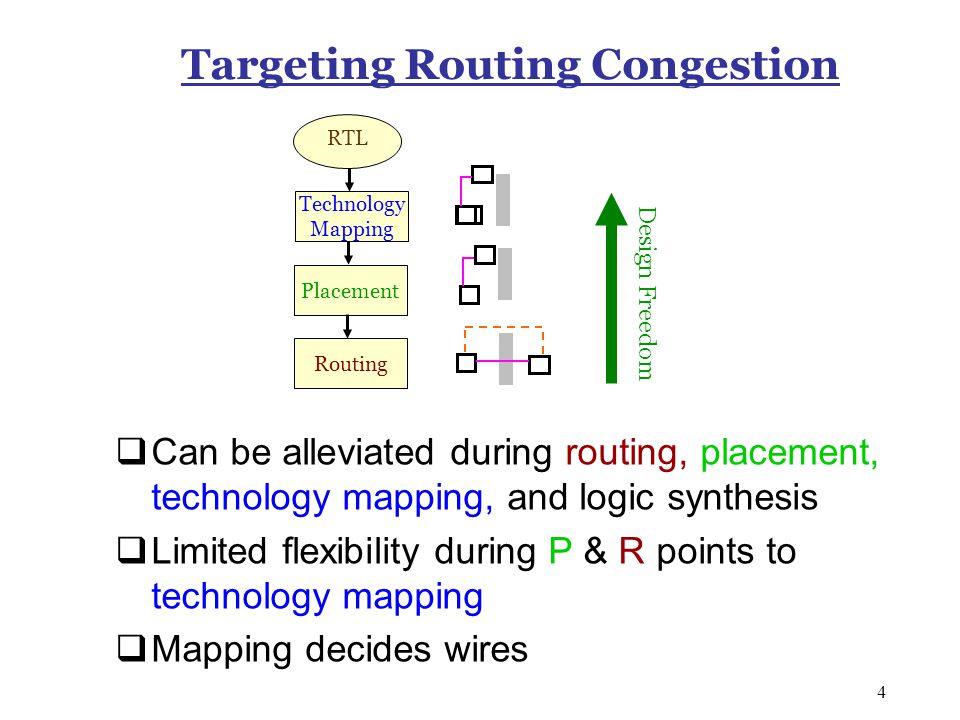

4 4 Targeting Routing Congestion  Can be alleviated during routing, placement, technology mapping, and logic synthesis  Limited flexibility during P & R points to technology mapping  Mapping decides wires Design Freedom Placement RTL Routing Technology Mapping

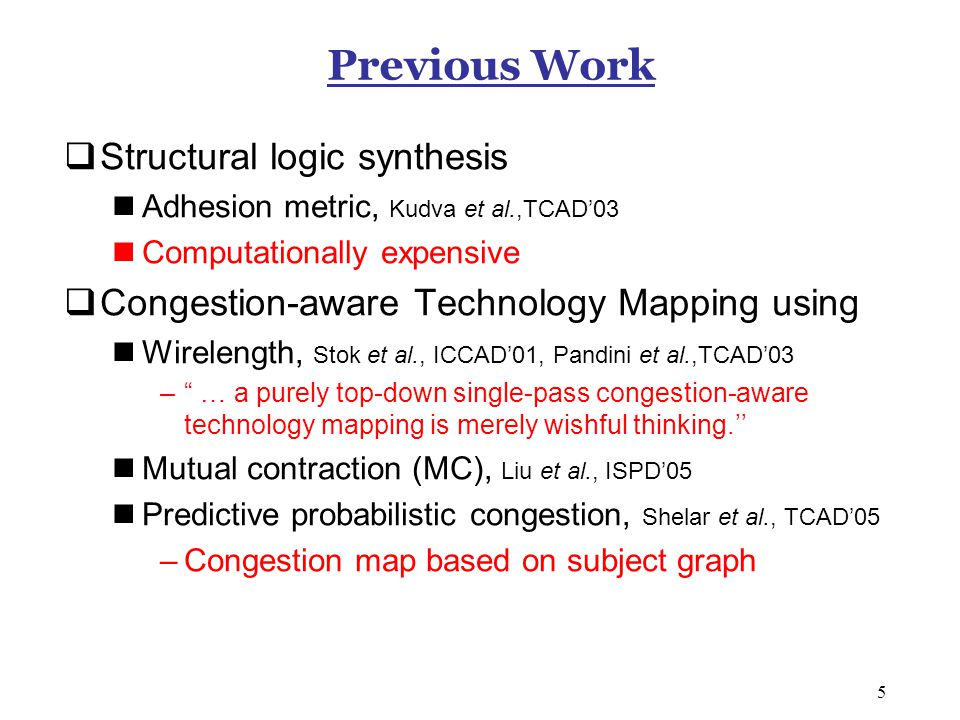

5 5 Previous Work  Structural logic synthesis Adhesion metric, Kudva et al.,TCAD’03 Computationally expensive  Congestion-aware Technology Mapping using Wirelength, Stok et al., ICCAD’01, Pandini et al.,TCAD’03 –“ … a purely top-down single-pass congestion-aware technology mapping is merely wishful thinking.’’ Mutual contraction (MC), Liu et al., ISPD’05 Predictive probabilistic congestion, Shelar et al., TCAD’05 –Congestion map based on subject graph

6 6 Outline Introduction Algorithm Overview Congestion Map Generation Slack-constrained Covering Results & Conclusion

7 7 Problem Definition  Minimize routing congestion under delay constraints during technology mapping  Dynamic programming for delay constraints  Routing congestion: captured by track overflow and max. congestion  Minimize total track overflow under delay constraints

8 8 Employing Placement-level Metric  Wirelength and mutual contraction cannot capture track overflow  Predictive probabilistic congestion map can Same congestion map for different choices  Can we instead employ placement-/routing-level metric? Technology Mapping Placement Routing RTL Predictive PCM, Mutual Contraction, Wirelength Probabilistic CM (PCM) Congestion Map (CM) Estimation Error

9 9 Probabilistic Congestion Map  Probabilistic congestion map, a post-placement metric Lou et al., TCAD’02; Westra et al., ISPD’04 Pin 2 Pin All routes equally possible: Probability of any route =1/6 1/12 3/12 5/12 3/12 1/12 2/12 1/12 2/12 1/12 3/12 5/12 3/12 1/12

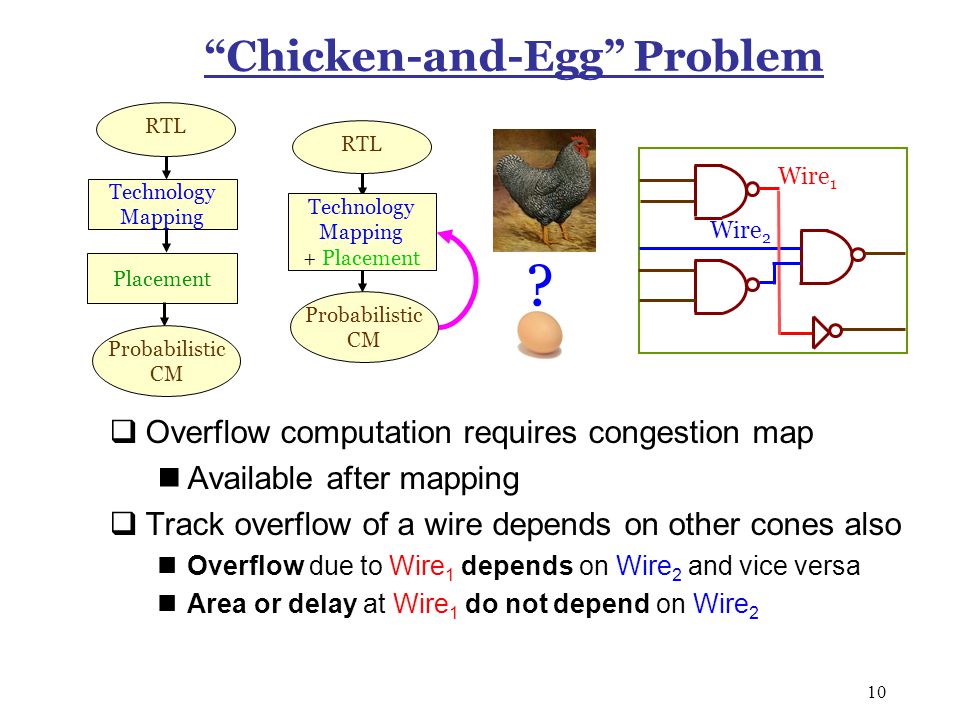

10 10 “Chicken-and-Egg” Problem  Overflow computation requires congestion map Available after mapping  Track overflow of a wire depends on other cones also Overflow due to Wire 1 depends on Wire 2 and vice versa Area or delay at Wire 1 do not depend on Wire 2 Placement RTL Probabilistic CM Technology Mapping ? RTL Probabilistic CM Technology Mapping + Placement Wire 1 Wire 2

11 11 Solution Overview  Track overflow cannot be computed incrementally, but congestion maps can. Construct congestion maps using algebraic operations  Defer track overflow computation to covering Requires congestion maps capturing all wires in mapping solutions  Overcome the “chicken-and-egg” problem: Construct congestion maps bottom-up during matching Compute track overflow during covering

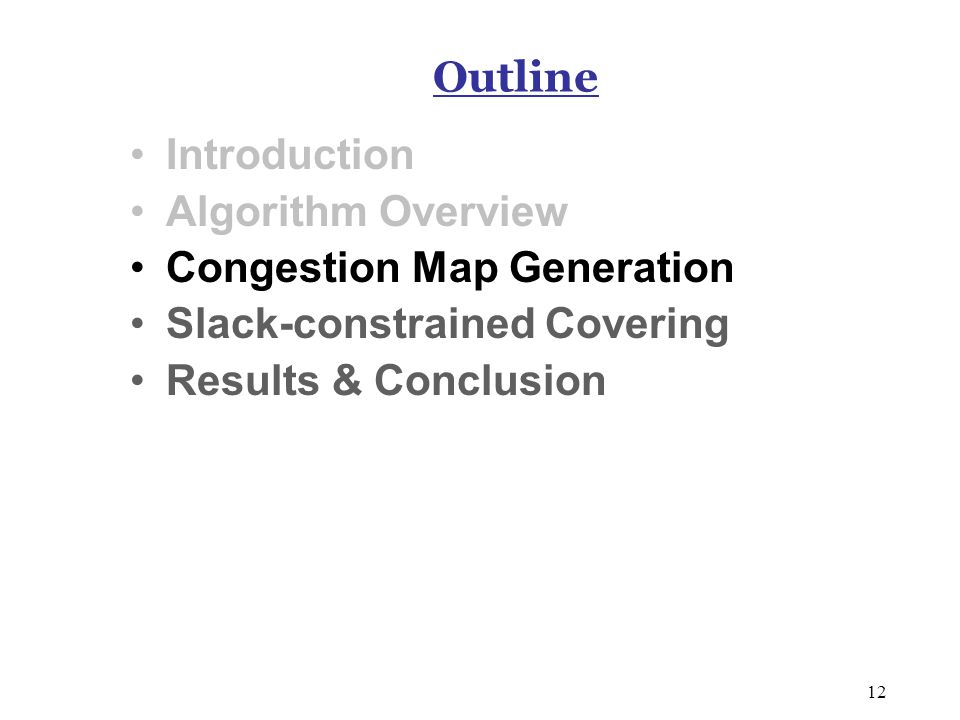

12 12 Outline Introduction Algorithm Overview Congestion Map Generation Slack-constrained Covering Results & Conclusion

13 13 The Matching Phase  Store the load-delay curve containing non-inferior delay matches Performed for all nodes in topological order  Compute congestion map for each non-inferior match Load Delay L1L1 L2L2 M1M1 M2M2 M3M3 D1D1 D2D2 M1M1 M2M2 M3M3 C unknown

14 14 Algebraic Addition for Congestion Maps N2N2 N3N3 N1N1 M1M =

15 15 Handling Multiple Fanouts  For forward propagation, divide congestion maps by the number of fanouts Allows correct computation of maps for solutions at PO’s N1N1 N2N2 N3N

16 16 Congestion Map Generation  Congestion map for a match at a node represents wires from the fan-in cone only  Add congestion maps for matches at PO’s to get congestion map for an entire solution  Extensible to congestion based on fast global routing  Applicable to generation and propagation of any 2-D maps, e.g., power-density map

17 17 Outline Introduction Algorithm Overview Congestion Map Generation Slack-constrained Covering Results & Conclusion

18 18 Exploiting Slacks  Classical covering: choose an optimum delay match For C load =15, M 2 is optimal with Delay = 50  Assume: slack of 10 M 1 and M 3 also satisfy delay constraints  Allow non-delay-optimal matches on non-critical paths M 1 or M 3 preferred if the corresponding overflows smaller Load Delay M1M1 M2M2 M3M M1M1 M2M2 M3M

19 19 Slack-constrained Covering  Compute delays and slacks at the primary outputs (PO’s) due to delay-optimal solution  Compute corresponding congestion map  For all nodes in reverse topological order, –Compute delay and track overflow due to delay- optimal and congestion-optimal matches –If congestion-optimal match exists, store it –Else, store delay-optimal match –Propagate updated slacks to inputs of match

20 20 Extensions and Complexity  Slack-constrained covering applicable for Different cost functions, e.g., maximum congestion Traditional objectives, e.g., area, power  Time complexity Linear in number of nodes (for a fixed library and layout area) Run-times practical  Memory complexity High memory requirement due to congestion map storage for all matches –Asymptotically same as conventional Memory efficient variants possible Current implementation applicable up to ~5,000 cells Ideal for ECO mode hot-spot (re-)synthesis

21 21 Outline Introduction Algorithm Overview Congestion Map Generation Slack-constrained Covering Results & Conclusion

22 22 Experimental Setup  Mapping algorithm incorporated in SIS  Capo for placement  Timing driven routing  ISCAS’85 benchmarks  100 nm process parameters from Predictive Technology Model  Library: enhanced lib2.genlib with up to 4 strengths for each gate  Experiments on 400 MHz Sun Ultra Sparc 60  Comparison with conventional mapping in SIS Subject Graph Placement Routing Timing Analysis Technology Mapping

23 23 Track Overflow Comparison

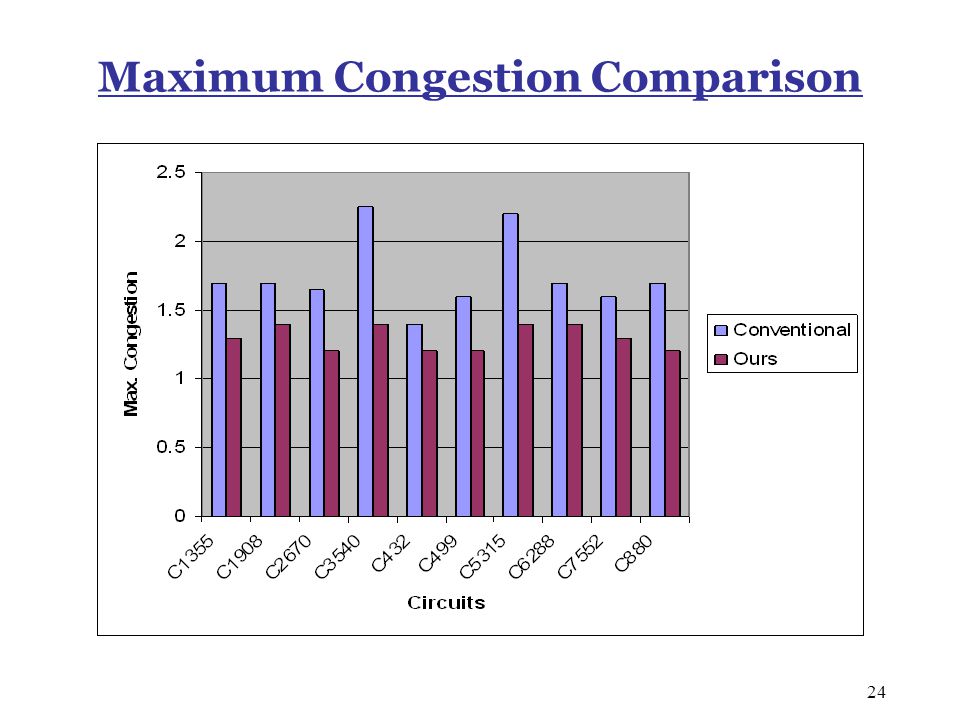

24 24 Maximum Congestion Comparison

25 25 Delay Comparison

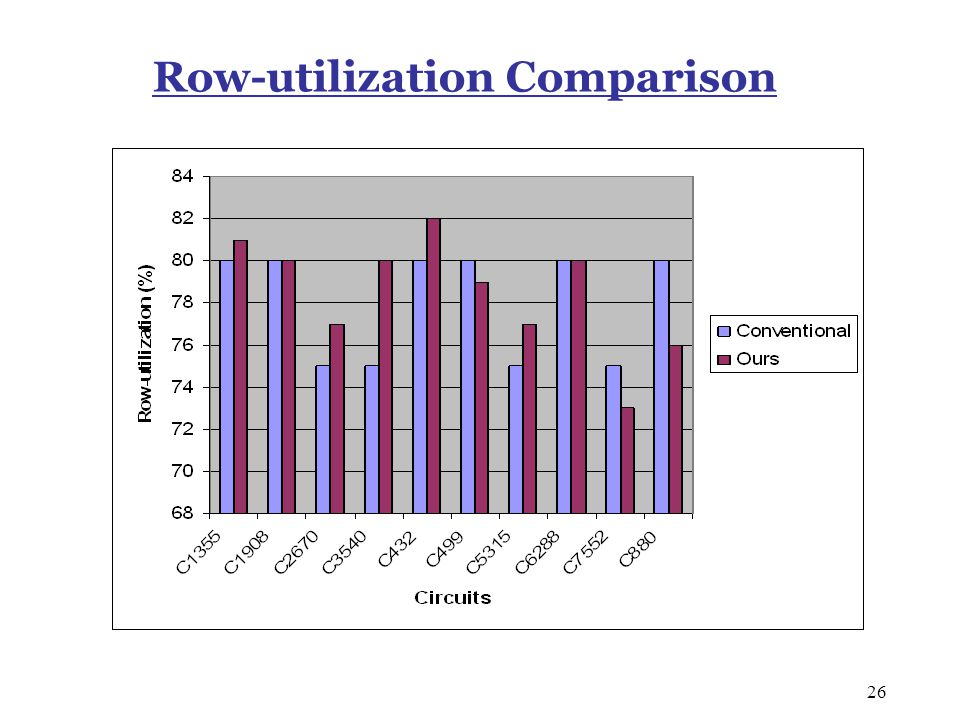

26 26 Row-utilization Comparison

27 27 Run-time Comparison

28 28 Summary of Experimental Results  Track overflows: 44% better  Delays: no adverse impact  Maximum congestion: 25% better  Row-utilization: no significant correlation  Run-times: 2x worse, but still practical

29 29 Conclusion  Presented a delay-optimal mapping algorithm to minimize routing congestion  Validated effectiveness on benchmark circuits  Algorithmic framework applicable for optimization of other cost functions and properties  Future directions Implementation of memory efficient version Placement-legalization based flow Application to ECO-mode logic (re-)synthesis

30 30 Backup

31 31 Analogy with Classical Matching  Mapping for area optimization under delay constraint, Chaudhary et al., TCAD’95  Similarities The gate-area for a match at a given node represents gates only due to the nodes in the fan-in cone Similarly, congestion map for a match at a given node represents wires due to the nodes in fan-in cone Gate-area divided at multiple fanout points Congestion-maps divided at multiple fanout points  Differences Ensures delay optimality Wire-delays accounted for in the delay computation Routing congestion more complex than gate-area

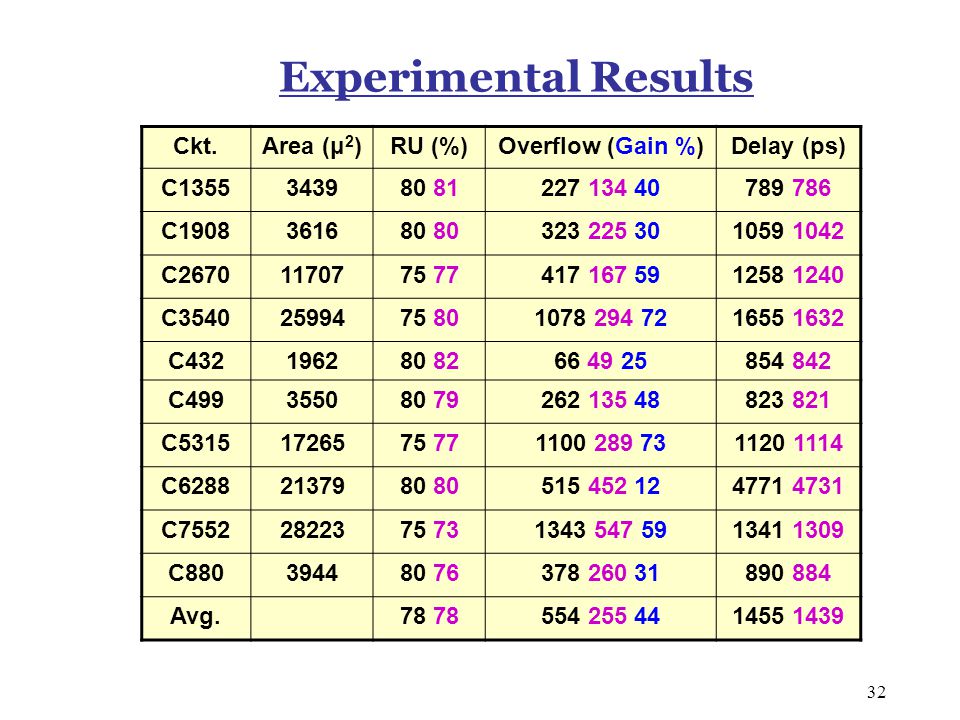

32 32 Experimental Results Ckt.Area (μ 2 )RU (%)Overflow (Gain %)Delay (ps) C C C C C C C C C C Avg

33 33 Experimental Results (Continued) Ckt.MC# of CellsRun-time (s) C C C C C C C C C C Avg
