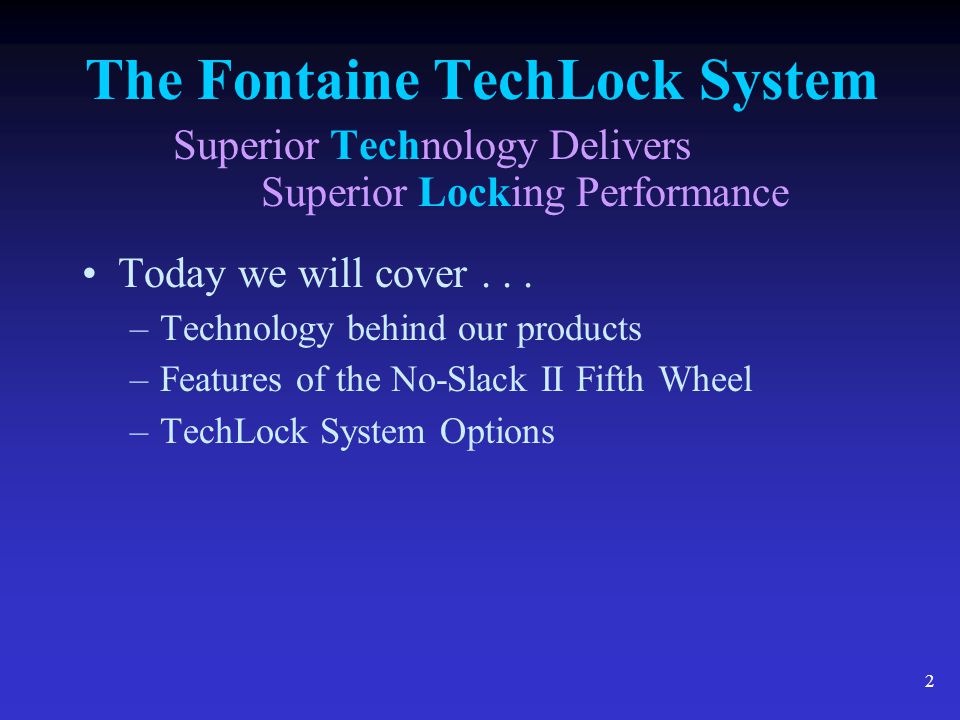

2 2 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Today we will cover... –Technology behind our products –Features of the No-Slack II Fifth Wheel –TechLock System Options

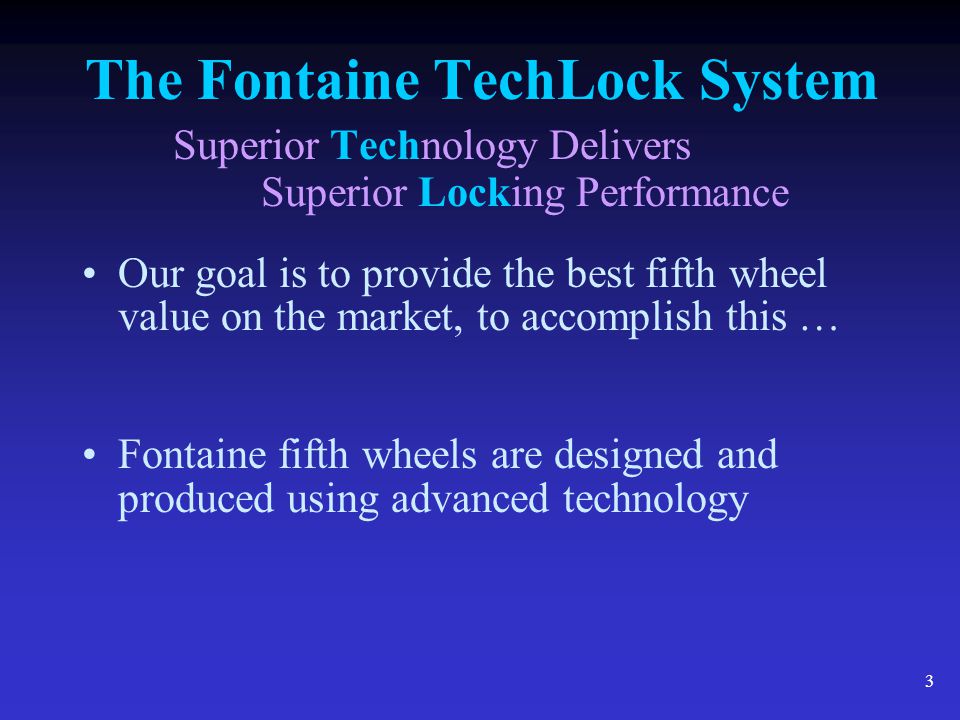

3 3 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Our goal is to provide the best fifth wheel value on the market, to accomplish this … Fontaine fifth wheels are designed and produced using advanced technology

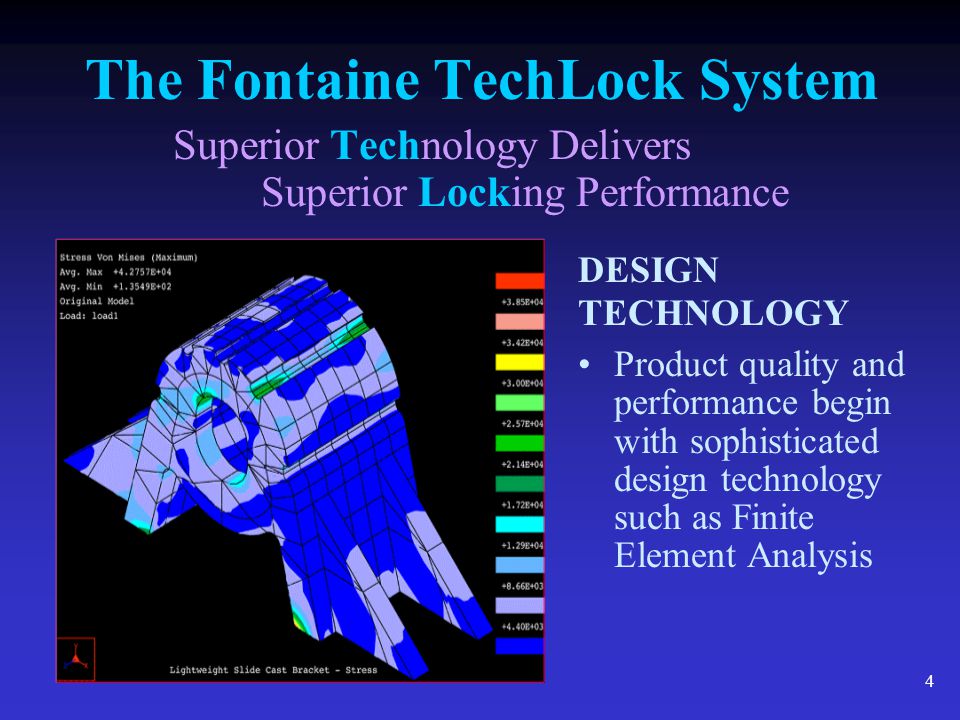

4 4 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance DESIGN TECHNOLOGY Product quality and performance begin with sophisticated design technology such as Finite Element Analysis

5 5 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Features of the No-Slack II Fifth Wheel Safety Trigger Prevents High-Hitch Automatic Slack Adjusting Lock Positive Secondary Lock Low Opening Pull Force Large Load Bearing Surface Light Weight

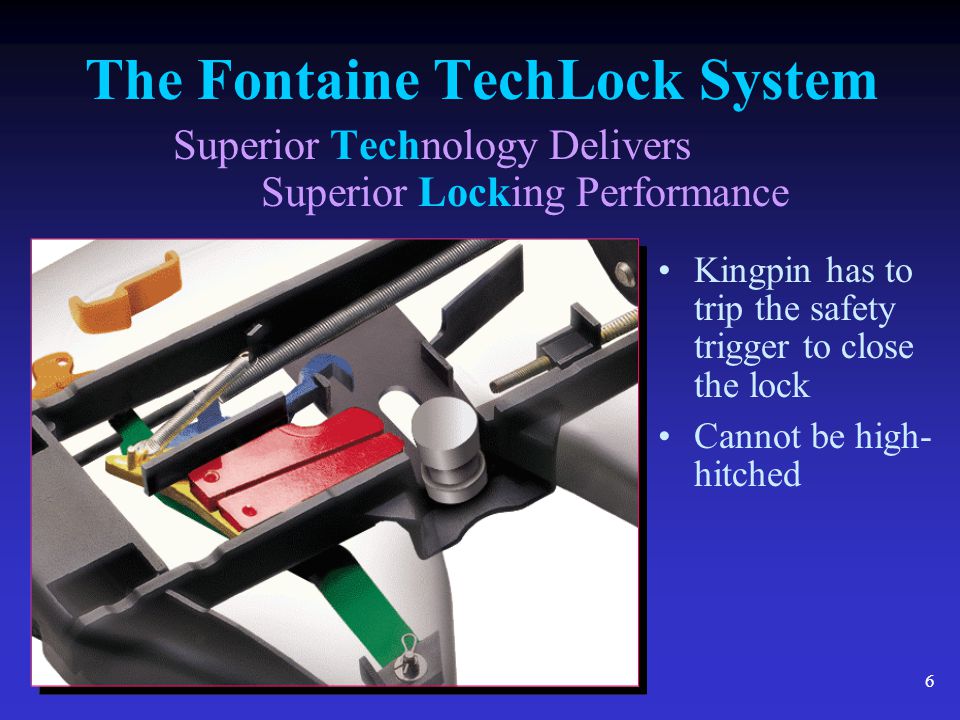

6 6 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Kingpin has to trip the safety trigger to close the lock Cannot be high- hitched

7 7 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Patented No- Slack II jaw and wedge locking system elim- inates slack automatically to save time, cut labor cost and reduce wear

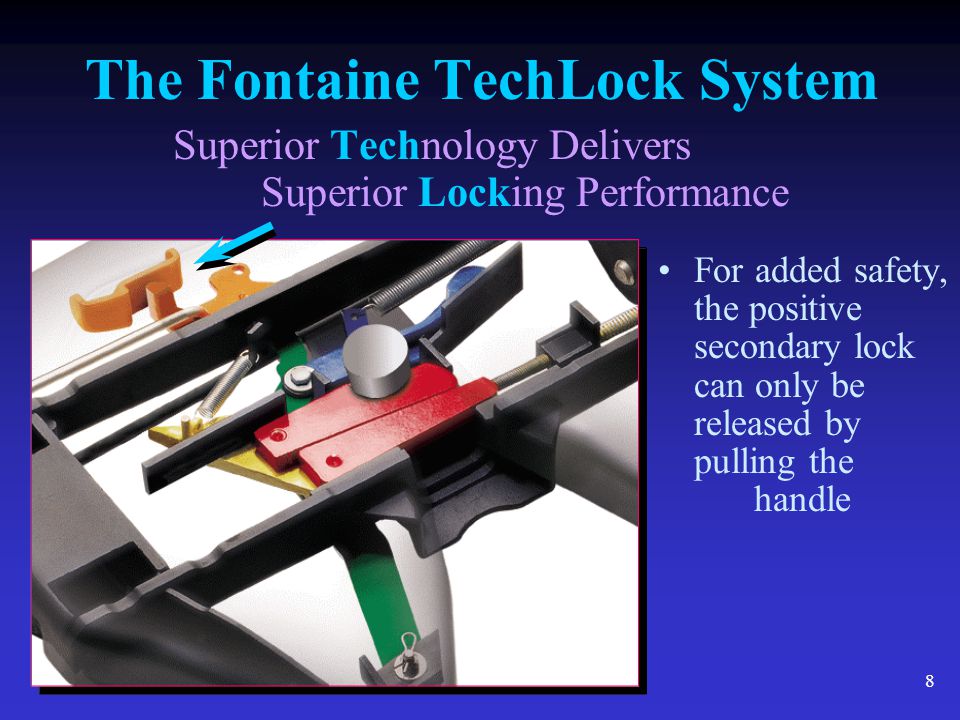

8 8 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance For added safety, the positive secondary lock can only be released by pulling the handle

9 9 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Patented Automatic Secondary Lock - Closed

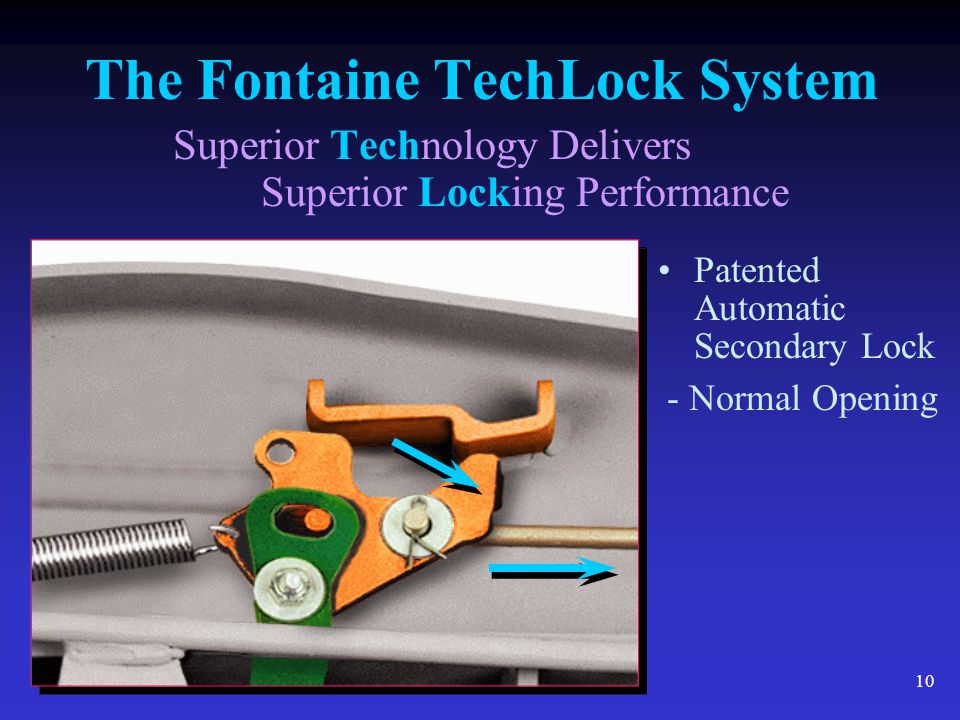

10 10 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Patented Automatic Secondary Lock - Normal Opening

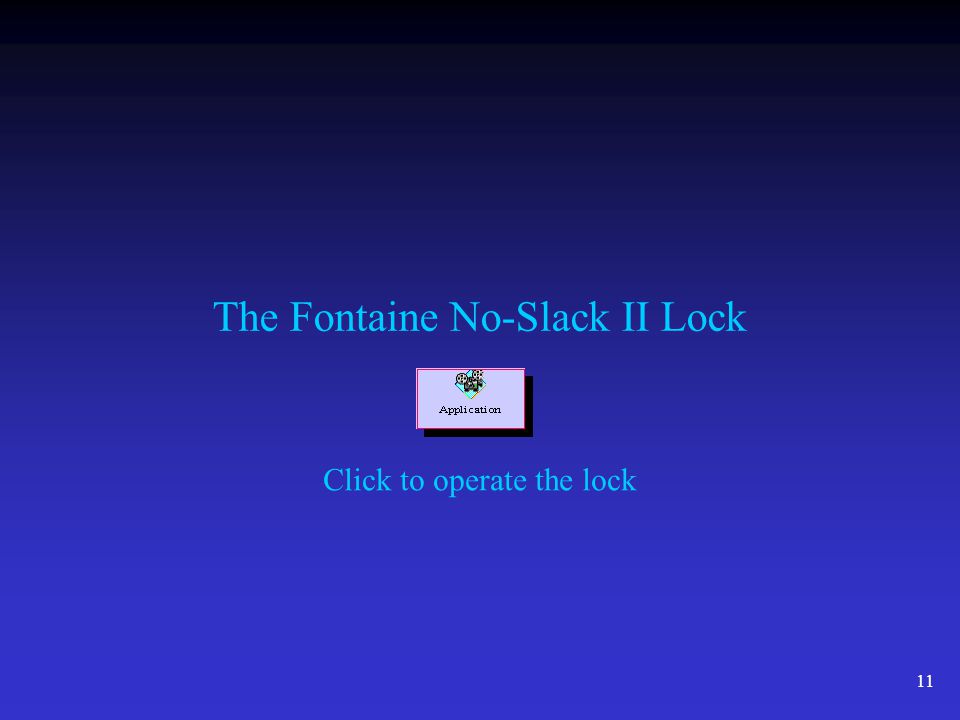

11 11 The Fontaine No-Slack II Lock Click to operate the lock

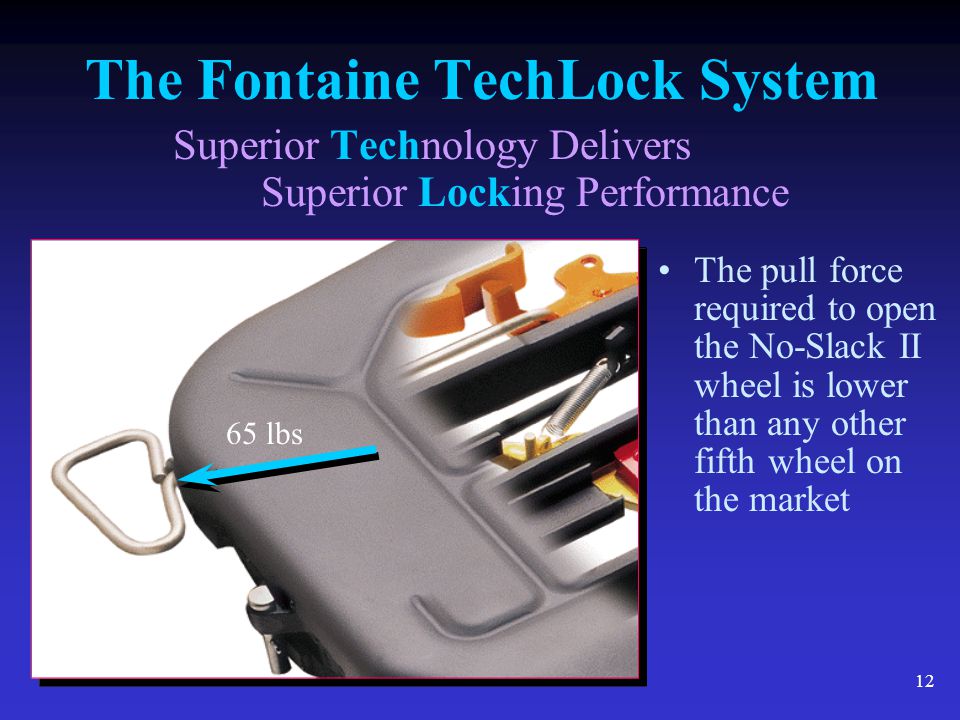

12 12 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance The pull force required to open the No-Slack II wheel is lower than any other fifth wheel on the market 65 lbs

13 13 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Increased surface contact with the trailer plate provides increased stability and durability

14 14 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Increased Surface Area = Increased Stability Fleetmaster sq. in. No-Slack II sq. in. The No-Slack II has 13% more surface area than the Fleetmaster!

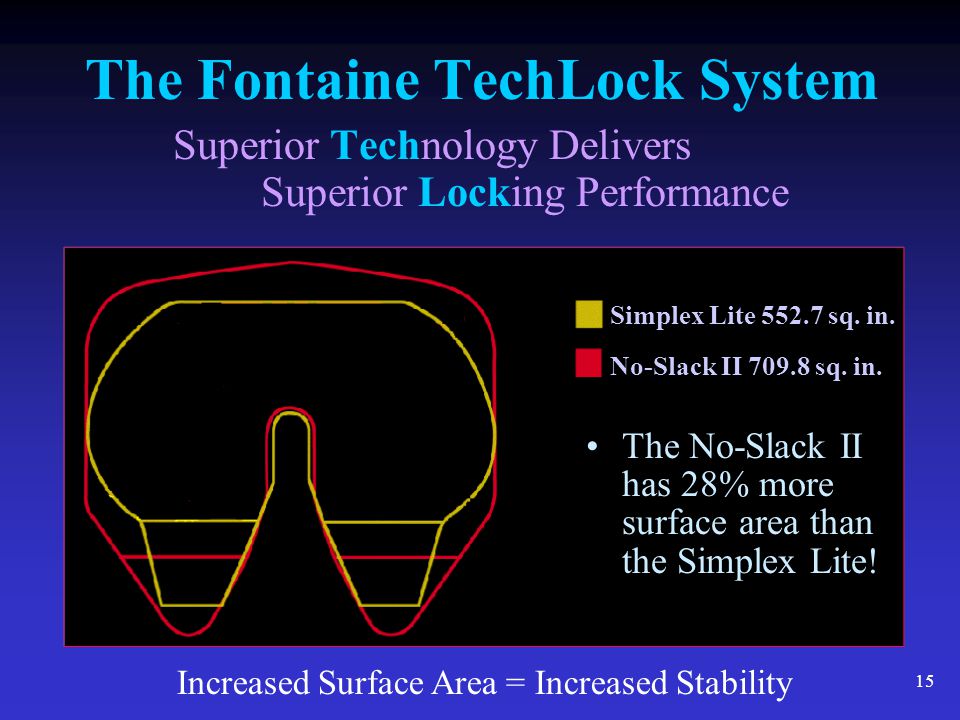

15 15 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Increased Surface Area = Increased Stability Simplex Lite sq. in. No-Slack II sq. in. The No-Slack II has 28% more surface area than the Simplex Lite!

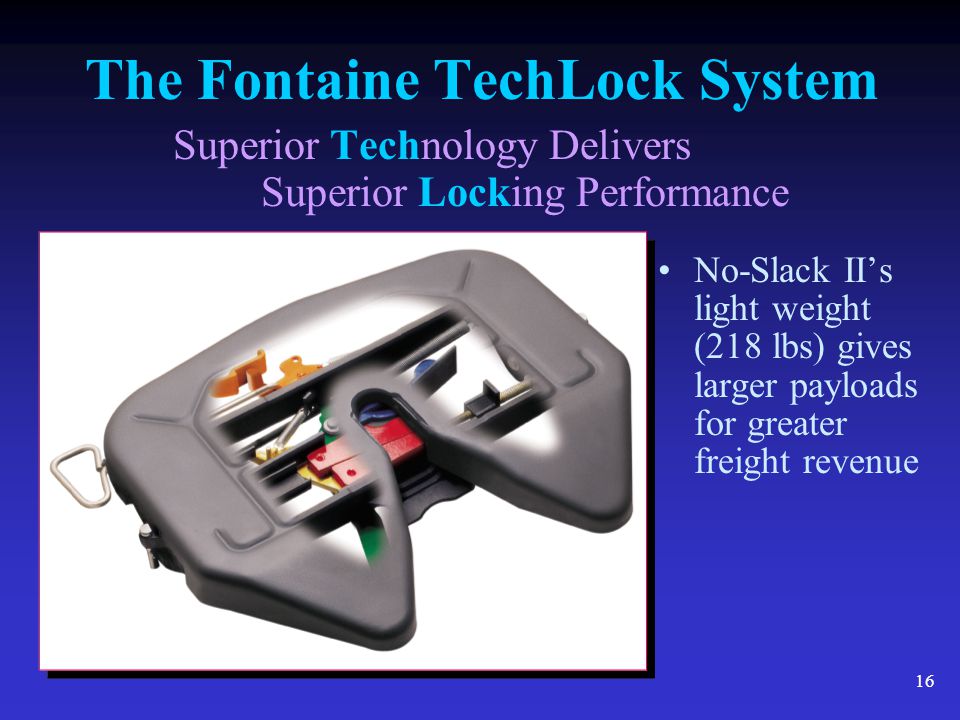

16 16 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance No-Slack II’s light weight (218 lbs) gives larger payloads for greater freight revenue

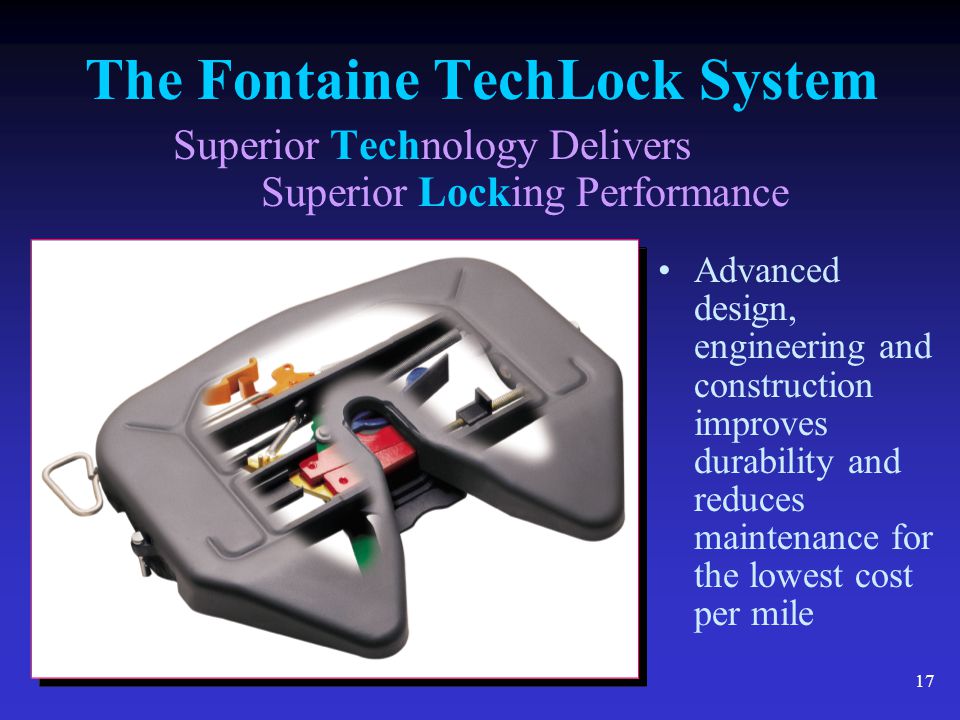

17 17 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Advanced design, engineering and construction improves durability and reduces maintenance for the lowest cost per mile

18 18 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance TechLock System Options

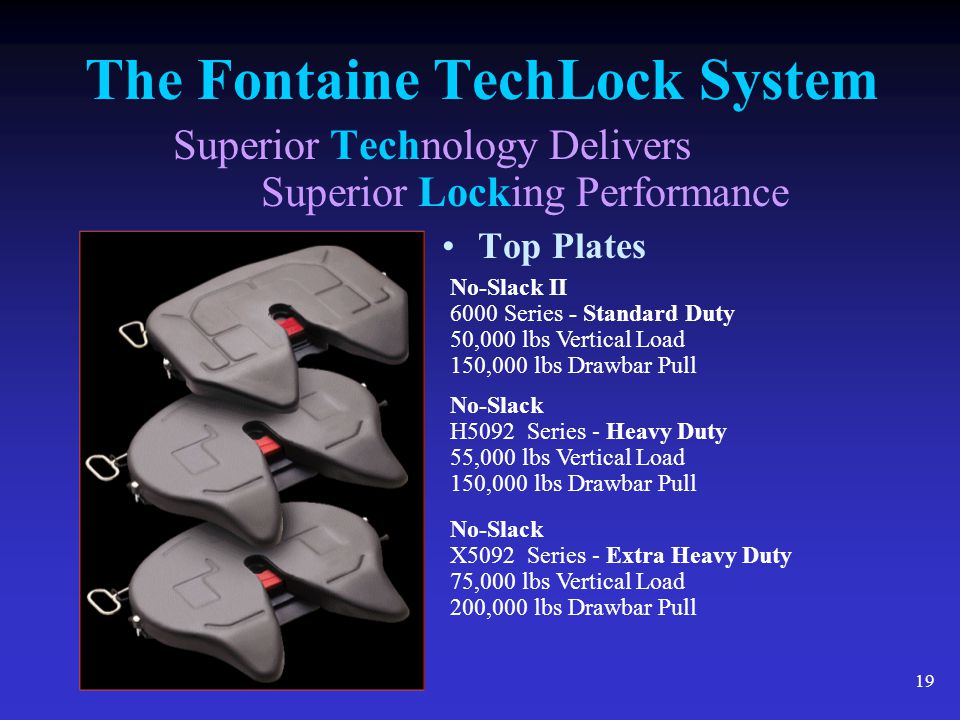

19 19 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance Top Plates No-Slack II 6000 Series - Standard Duty 50,000 lbs Vertical Load 150,000 lbs Drawbar Pull No-Slack H5092 Series - Heavy Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull No-Slack X5092 Series - Extra Heavy Duty 75,000 lbs Vertical Load 200,000 lbs Drawbar Pull

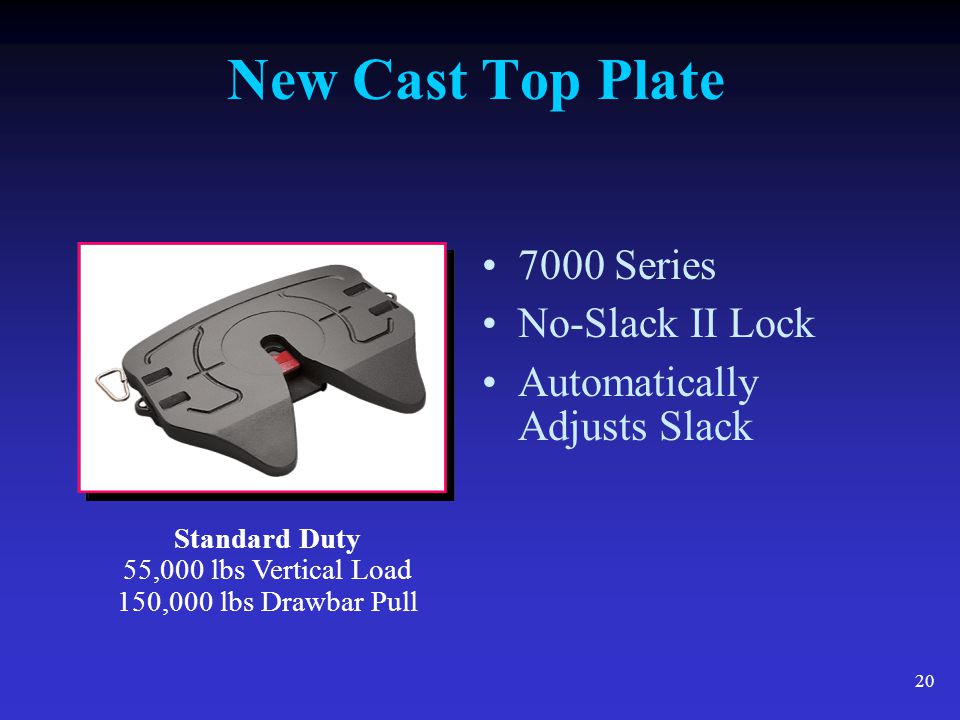

20 20 New Cast Top Plate 7000 Series No-Slack II Lock Automatically Adjusts Slack Standard Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull

21 21 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance 6000 Series Standard Duty –50,000 lbs Vertical Load –150,000 lbs Drawbar Pull

22 22 The Fontaine TechLock System Superior Technology Delivers Superior Locking Performance 5092 Series Heavy and Extra Heavy Duty –H5092 Series Heavy Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull –X5092 Series Extra Heavy Duty 75,000 lbs Vertical Load 200,000 lbs Drawbar Pull

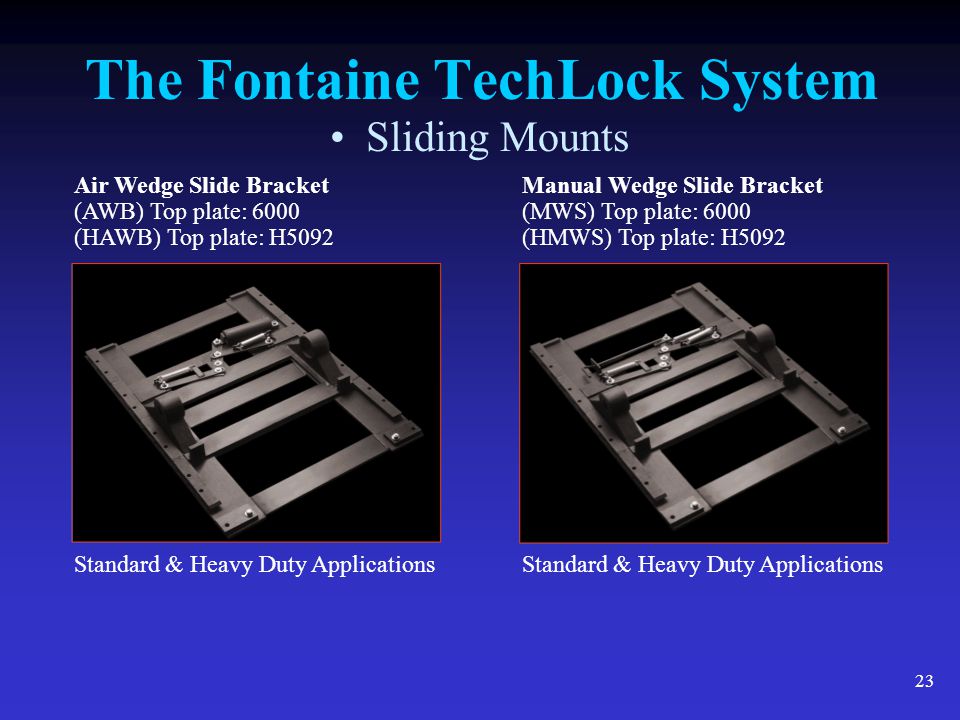

23 23 The Fontaine TechLock System Sliding Mounts Air Wedge Slide Bracket (AWB) Top plate: 6000 (HAWB) Top plate: H5092 Manual Wedge Slide Bracket (MWS) Top plate: 6000 (HMWS) Top plate: H5092 Standard & Heavy Duty Applications

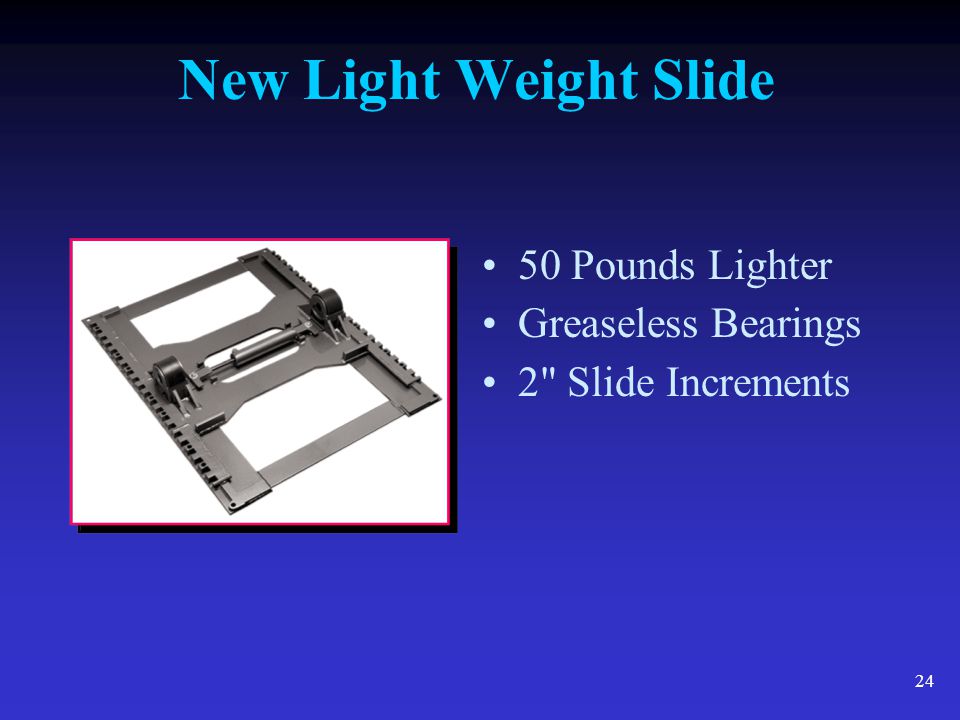

24 24 New Light Weight Slide 50 Pounds Lighter Greaseless Bearings 2" Slide Increments

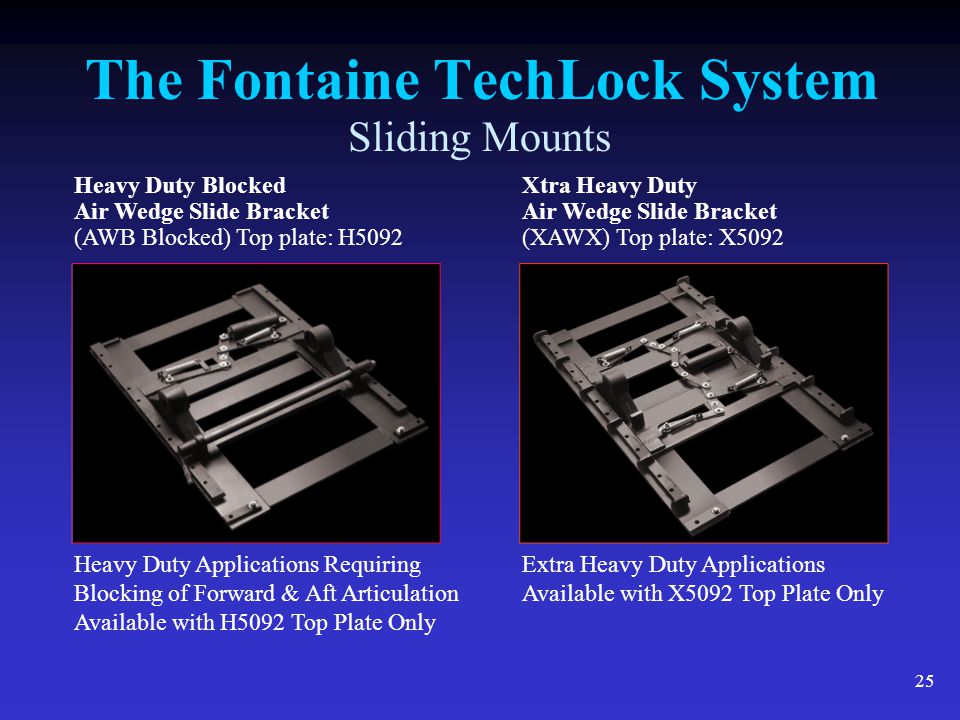

25 25 The Fontaine TechLock System Sliding Mounts Heavy Duty Blocked Air Wedge Slide Bracket (AWB Blocked) Top plate: H5092 Xtra Heavy Duty Air Wedge Slide Bracket (XAWX) Top plate: X5092 Heavy Duty Applications Requiring Blocking of Forward & Aft Articulation Available with H5092 Top Plate Only Extra Heavy Duty Applications Available with X5092 Top Plate Only

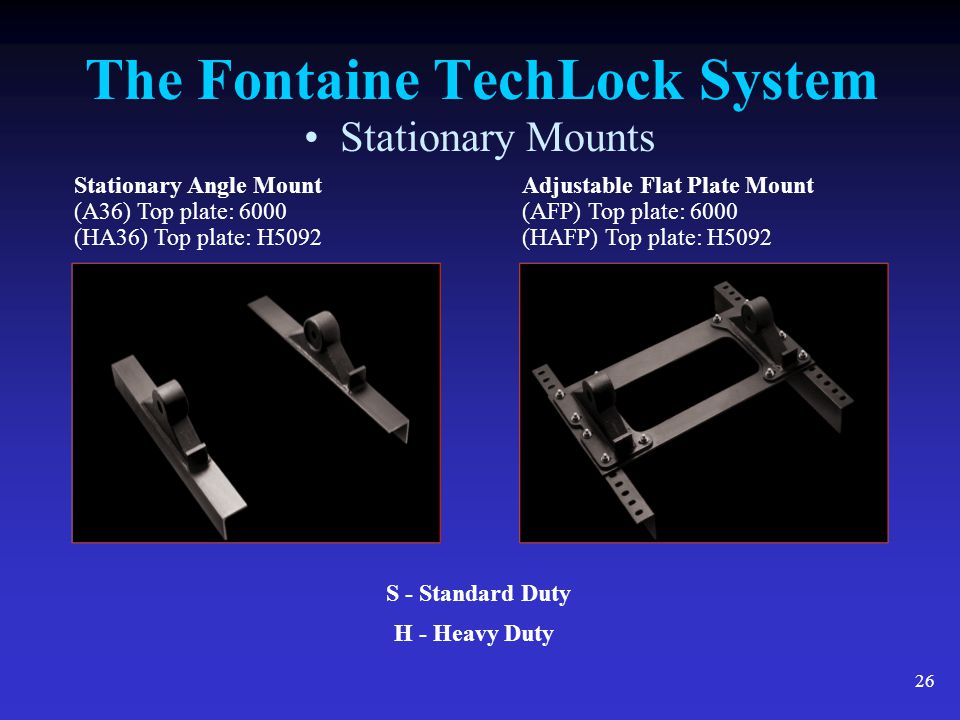

26 26 The Fontaine TechLock System Stationary Mounts Stationary Angle Mount (A36) Top plate: 6000 (HA36) Top plate: H5092 Adjustable Flat Plate Mount (AFP) Top plate: 6000 (HAFP) Top plate: H5092 S - Standard Duty H - Heavy Duty
