1 Wide FoV IAC telescopes Initial Design Considerations Goal Problem(s) Designs: pros & cons Where are we going? Conclusions Vladimir Vassiliev Pierre-Francoys Brousseau Stephen Fegan (UCLA)

2 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA km 2 Telescope Target Parameters Light collecting area: 40 m 2 (QE=50%) – 100 m 2 (QE=20%) Effective Aperture: 7 m – 12 m Field of View: 15 deg (0.26 rad) Viewing Solid Angle: 180 deg 2 Image quality: 1’=0.017 deg (<2 deg) – 5’ (<7.5 deg) (?) Wavelength range: ~0.3 – ~0.6 micron Focal Plane Instrument: Array of light sensors: ~1024x1024 Pixel: 0.86’ per pixel Plate Scale: 0.5mm per arcmin (0.5 m diameter II) 3.8 mm per arcmin (3.3 m diameter mosaic of MAPMTs [H9500] -> 1.6 m [H? 32x32]) If trend continues to 2020 and ~ 1000 sources detected => 4 – 5 sources per field of view

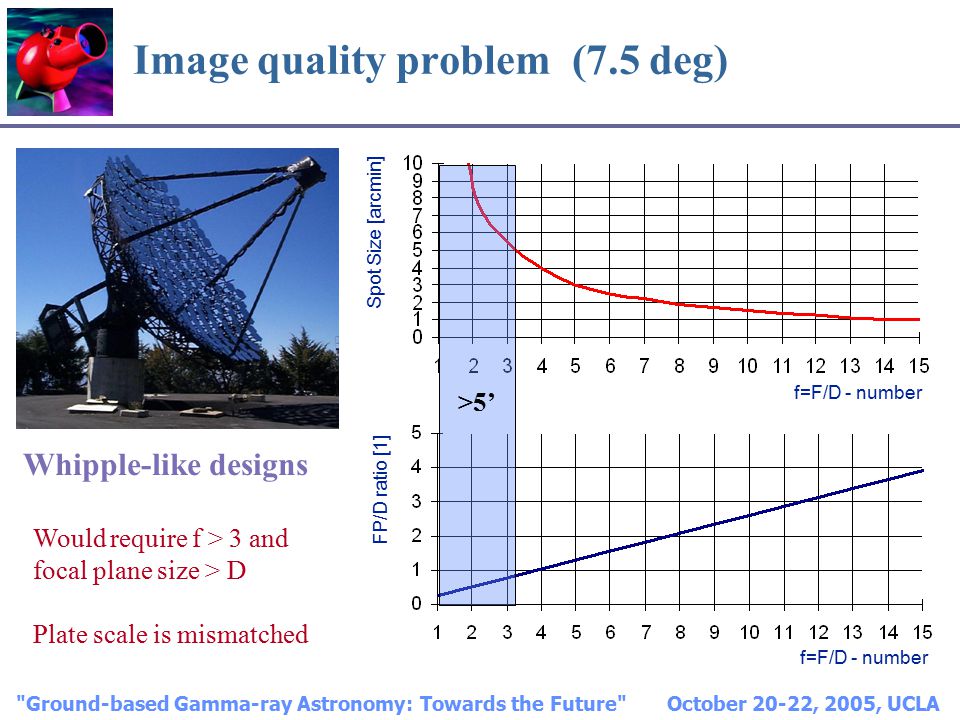

3 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Image quality problem (7.5 deg) Whipple-like designs f=F/D - number Spot Size [arcmin] FP/D ratio [1] >5’ Would require f > 3 and focal plane size > D Plate scale is mismatched

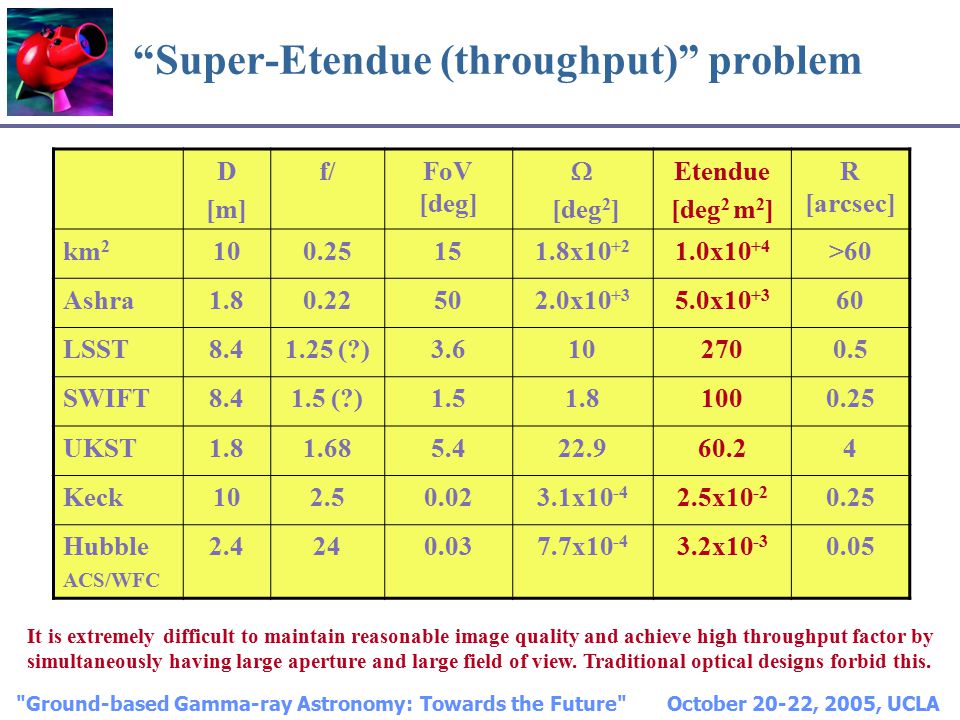

4 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA “Super-Etendue (throughput)” problem D [m] f/FoV [deg]  [deg 2 ] Etendue [deg 2 m 2 ] R [arcsec] km x x10 +4 >60 Ashra x x LSST (?) SWIFT (?) UKST Keck x x Hubble ACS/WFC x x It is extremely difficult to maintain reasonable image quality and achieve high throughput factor by simultaneously having large aperture and large field of view. Traditional optical designs forbid this.

5 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA “Super-fast” problem Duration of Cherenkov light flash is a few nanosec. Thus unlike optical telescopes the imaging cannot be improved through increased exposure. Because of this severely light limited imaging regime optical system of “1 km 2 array” telescope must be composed from minimal number of optical elements. Plate scale and FoV requirement are compatible with effective focal length 1.9 m (II, <) or 12.6 m (MAPMTs, <) suggesting f/0.19 – f/1.26 At present it seems that f/0.19: VERY expensive telescope, REASONABLE cost camera f/1.26: VERY expensive camera, REASONABLE cost telescope

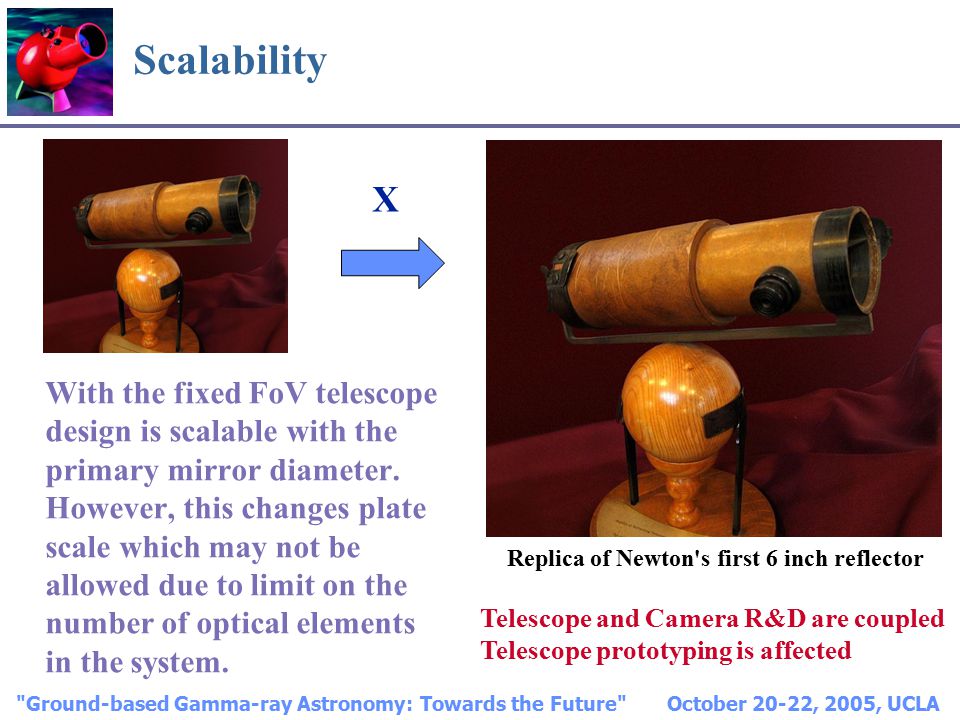

6 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Scalability With the fixed FoV telescope design is scalable with the primary mirror diameter. However, this changes plate scale which may not be allowed due to limit on the number of optical elements in the system. Replica of Newton's first 6 inch reflector X Telescope and Camera R&D are coupled Telescope prototyping is affected

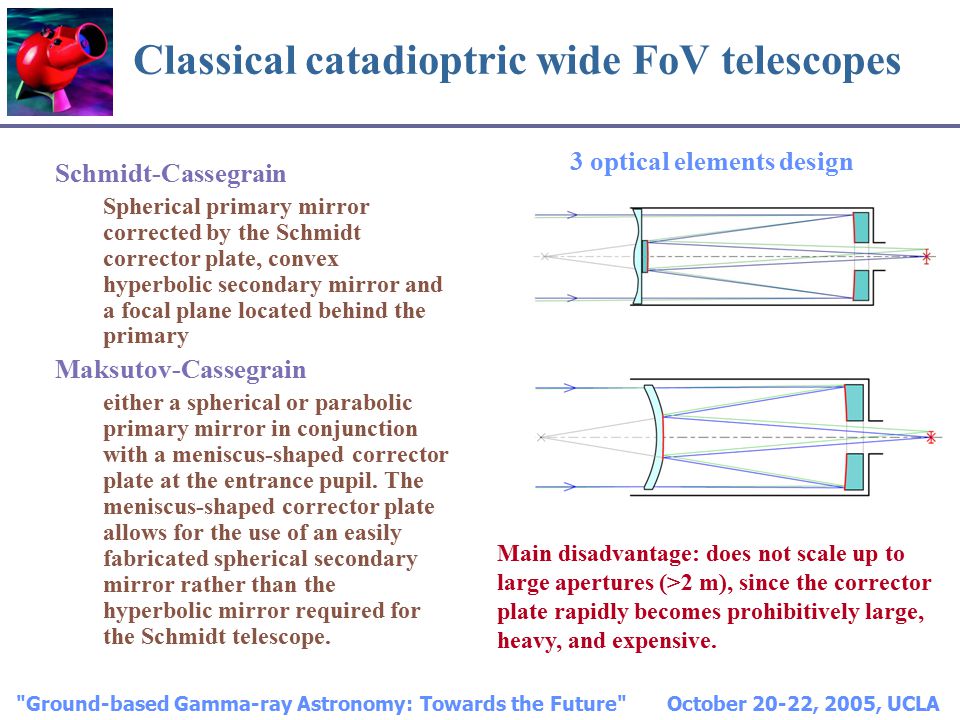

7 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Classical catadioptric wide FoV telescopes Schmidt-Cassegrain Spherical primary mirror corrected by the Schmidt corrector plate, convex hyperbolic secondary mirror and a focal plane located behind the primary Maksutov-Cassegrain either a spherical or parabolic primary mirror in conjunction with a meniscus-shaped corrector plate at the entrance pupil. The meniscus-shaped corrector plate allows for the use of an easily fabricated spherical secondary mirror rather than the hyperbolic mirror required for the Schmidt telescope. 3 optical elements design Main disadvantage: does not scale up to large apertures (>2 m), since the corrector plate rapidly becomes prohibitively large, heavy, and expensive.

8 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Primary aberrations / design requirements Spherical ~1/f 3 Coma (1 st order) ~  /f 2 Astigmatism ~  2 /f 1 Field curvature ~  2 /f 1 Fast (small f-ratio) systems are severely affected by spherical aberrations and coma. Design requirements: Optical system consists of minimal number of optical surfaces Spherical and Coma aberrations free Tolerable Astigmatism and high order Coma

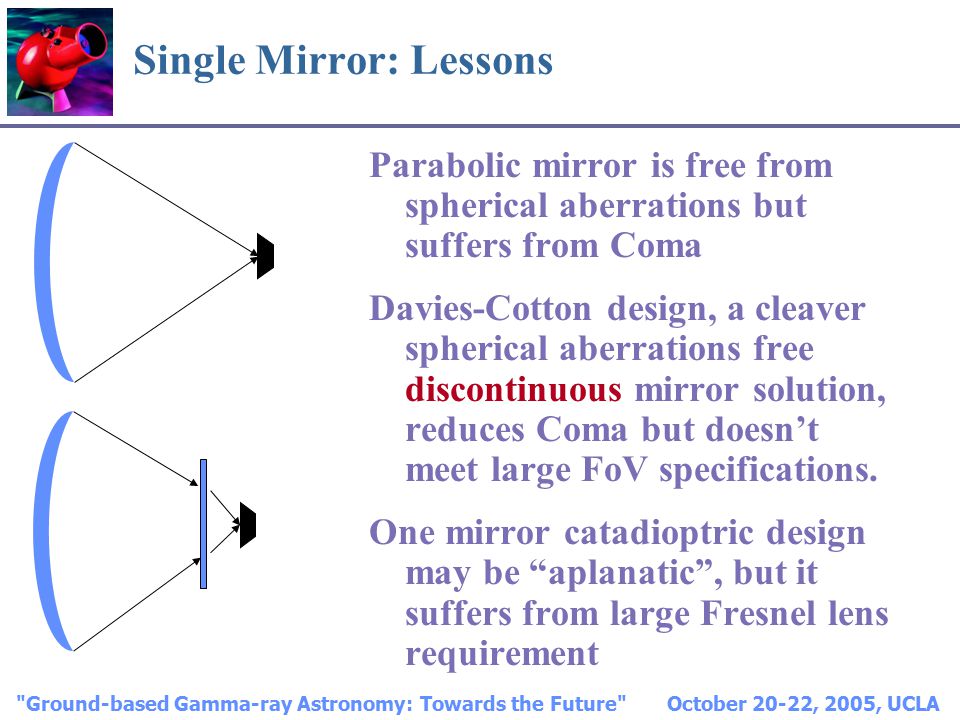

9 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Single Mirror: Lessons Parabolic mirror is free from spherical aberrations but suffers from Coma Davies-Cotton design, a cleaver spherical aberrations free discontinuous mirror solution, reduces Coma but doesn’t meet large FoV specifications. One mirror catadioptric design may be “aplanatic”, but it suffers from large Fresnel lens requirement

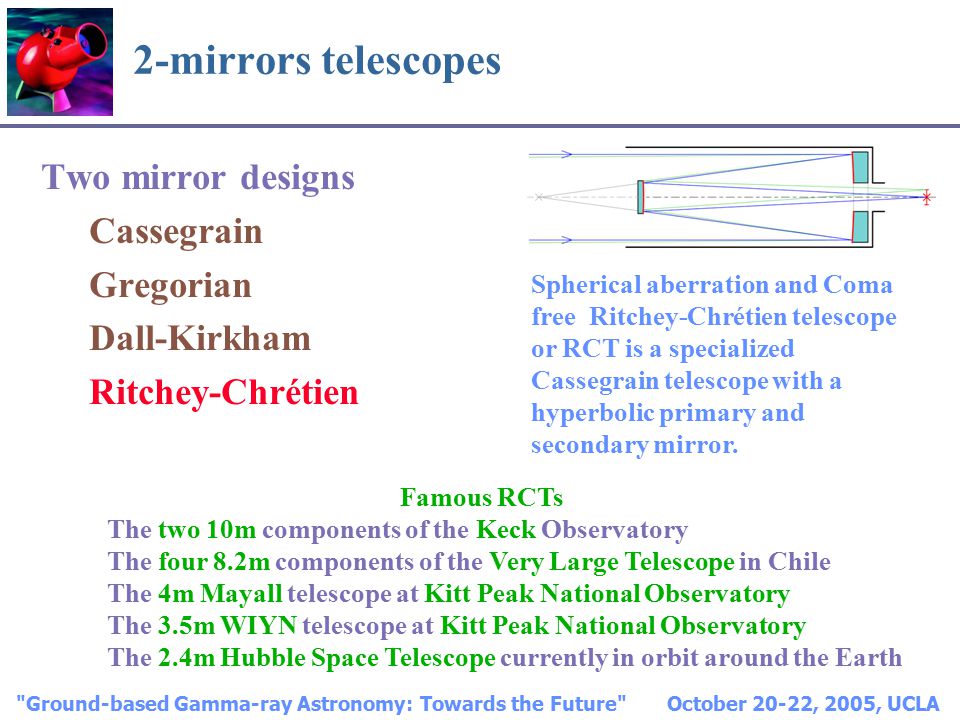

10 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA 2-mirrors telescopes Two mirror designs Cassegrain Gregorian Dall-Kirkham Ritchey-Chrétien Spherical aberration and Coma free Ritchey-Chrétien telescope or RCT is a specialized Cassegrain telescope with a hyperbolic primary and secondary mirror. Famous RCTs The two 10m components of the Keck Observatory The four 8.2m components of the Very Large Telescope in Chile The 4m Mayall telescope at Kitt Peak National Observatory The 3.5m WIYN telescope at Kitt Peak National Observatory The 2.4m Hubble Space Telescope currently in orbit around the Earth

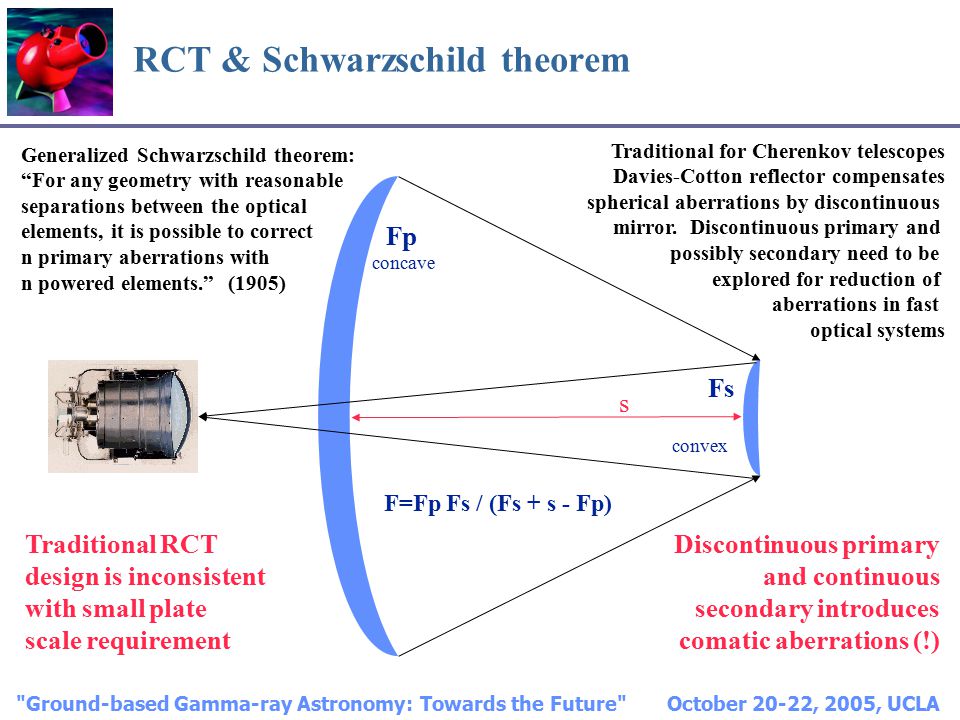

11 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA RCT & Schwarzschild theorem Generalized Schwarzschild theorem: “For any geometry with reasonable separations between the optical elements, it is possible to correct n primary aberrations with n powered elements.” (1905) Traditional for Cherenkov telescopes Davies-Cotton reflector compensates spherical aberrations by discontinuous mirror. Discontinuous primary and possibly secondary need to be explored for reduction of aberrations in fast optical systems s Fs Fp convex concave F=Fp Fs / (Fs + s - Fp) Traditional RCT design is inconsistent with small plate scale requirement Discontinuous primary and continuous secondary introduces comatic aberrations (!)

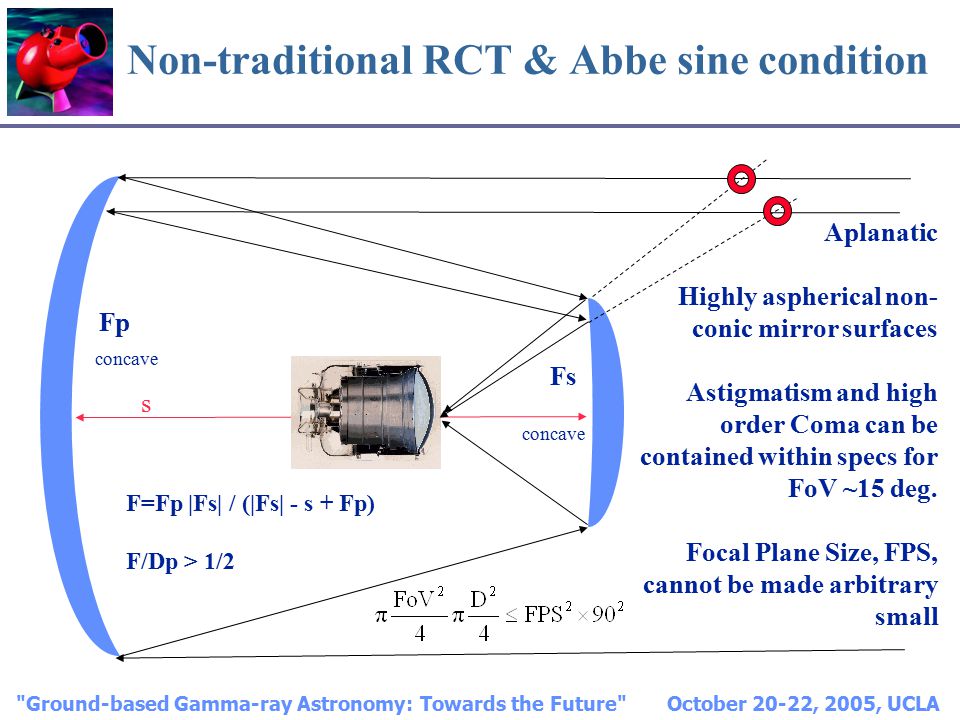

12 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Non-traditional RCT & Abbe sine condition s Fs Fp concave F=Fp |Fs| / (|Fs| - s + Fp) F/Dp > 1/2 Aplanatic Highly aspherical non- conic mirror surfaces Astigmatism and high order Coma can be contained within specs for FoV ~15 deg. Focal Plane Size, FPS, cannot be made arbitrary small

13 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Ray Tracing: Design Example of detailed ray tracing in modified RC design Dp=10m Ds=4.1m Df=1.6m A(0)=0.81 x pi D 2 /4 A(7.5)=0.55 x pi D 2 /4 Spot size can be a few arcmin at the edge of the FoV

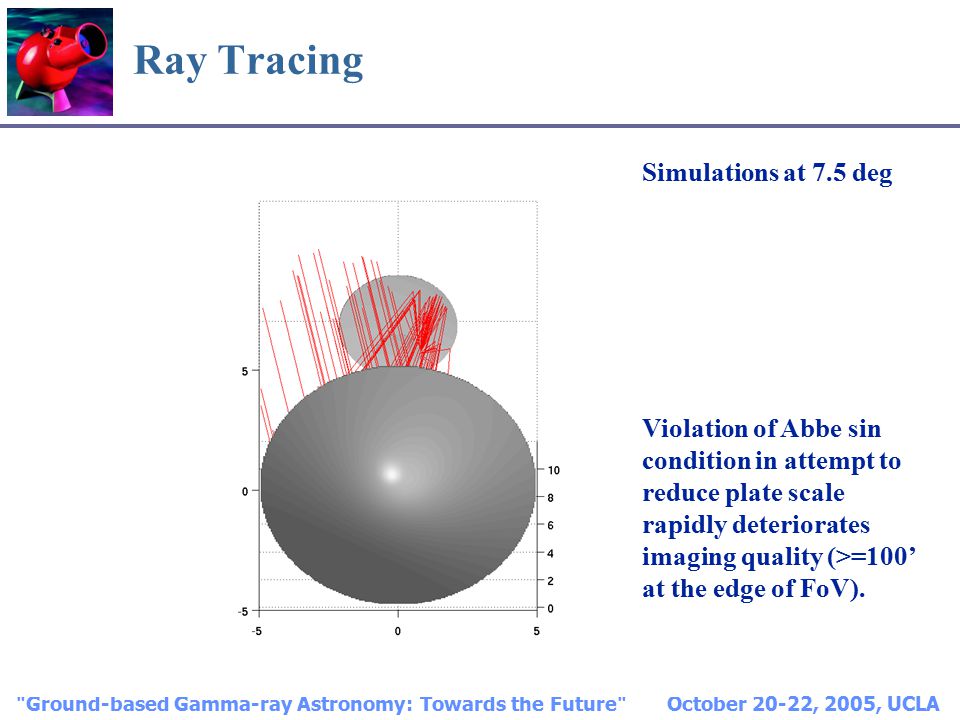

14 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Ray Tracing Simulations at 7.5 deg Violation of Abbe sin condition in attempt to reduce plate scale rapidly deteriorates imaging quality (>=100’ at the edge of FoV).

15 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Ray Tracing: Spot size

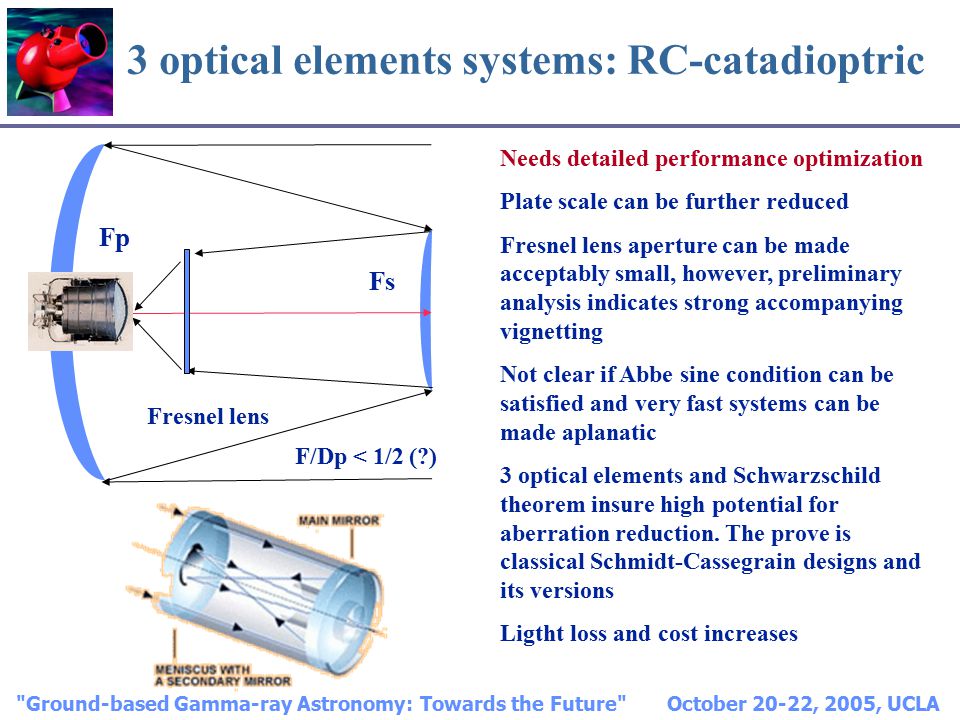

16 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA 3 optical elements systems: RC-catadioptric Needs detailed performance optimization Plate scale can be further reduced Fresnel lens aperture can be made acceptably small, however, preliminary analysis indicates strong accompanying vignetting Not clear if Abbe sine condition can be satisfied and very fast systems can be made aplanatic 3 optical elements and Schwarzschild theorem insure high potential for aberration reduction. The prove is classical Schmidt-Cassegrain designs and its versions Ligtht loss and cost increases s Fs Fp Fresnel lens F/Dp < 1/2 (?)

17 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Three-Mirror Telescope: Paul design LSST: 8.4-meter primary mirror, 3.4-meter secondary mirror, 5.2- meter tertiary mirror. The light reflected by this tertiary mirror then passes through a 1.4-meter lens to the camera detector. 10 deg 2 FoV, < 0.5’’ image quality Needs detailed performance study for fast IACT applications

18 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Emerging Options Large Aperture D > 7m PMT or MAPMT based camera SiPMs Avalanche Geiger discharge ? >1.5 m II ?

19 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Emerging Options: D < 5 m Combine optical signals (MMT, Keck, SALT,…) “Ashra-like” approach Combine electrical signals from all cameras operating in single photon counting mode “Star-like” approach Telescopes could be deployed individually or combined on a single mount To trigger To single camera II PMT

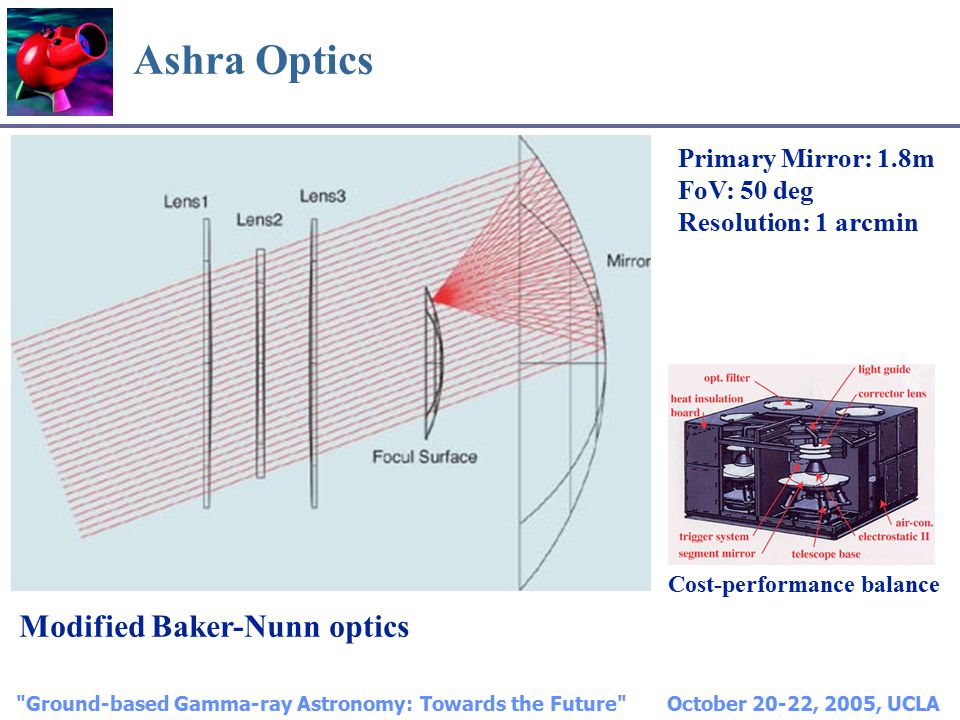

20 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Ashra Optics Modified Baker-Nunn optics Primary Mirror: 1.8m FoV: 50 deg Resolution: 1 arcmin Cost-performance balance

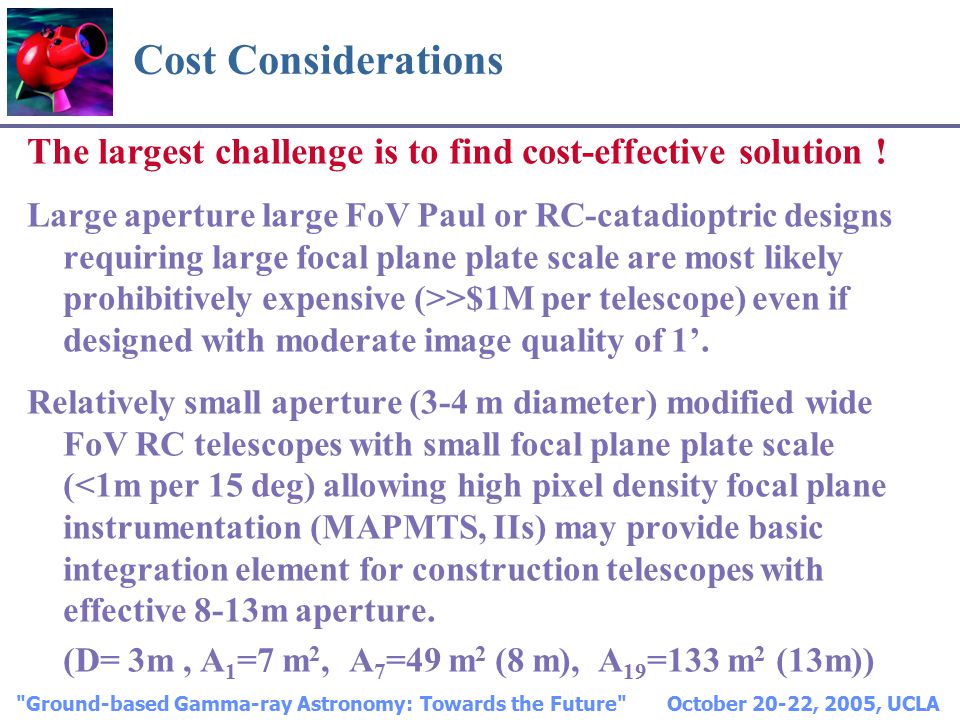

21 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Cost Considerations The largest challenge is to find cost-effective solution ! Large aperture large FoV Paul or RC-catadioptric designs requiring large focal plane plate scale are most likely prohibitively expensive (>>$1M per telescope) even if designed with moderate image quality of 1’. Relatively small aperture (3-4 m diameter) modified wide FoV RC telescopes with small focal plane plate scale (<1m per 15 deg) allowing high pixel density focal plane instrumentation (MAPMTS, IIs) may provide basic integration element for construction telescopes with effective 8-13m aperture. (D= 3m, A 1 =7 m 2, A 7 =49 m 2 (8 m), A 19 =133 m 2 (13m))

22 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA 3-4 m RC advantages It appears to be consistent with virtually all proposed in this workshop telescope array concepts (1km 2, STAR, small telescopes for high energy regime) and with operation in wide FoV sky survey mode It appears to be compatible with potentially low cost high pixel density focal plane instruments based on MAPMT mosaics, IIs, and possibly SiPMs and APDs. It might be utilized as a basic element for integrated moderate and large aperture telescopes for 1km 2 array or (<10 GeV) large aperture telescope concepts via combining optical or electronic images Utilizing innovative engineering designs have high potential for cost effective solution

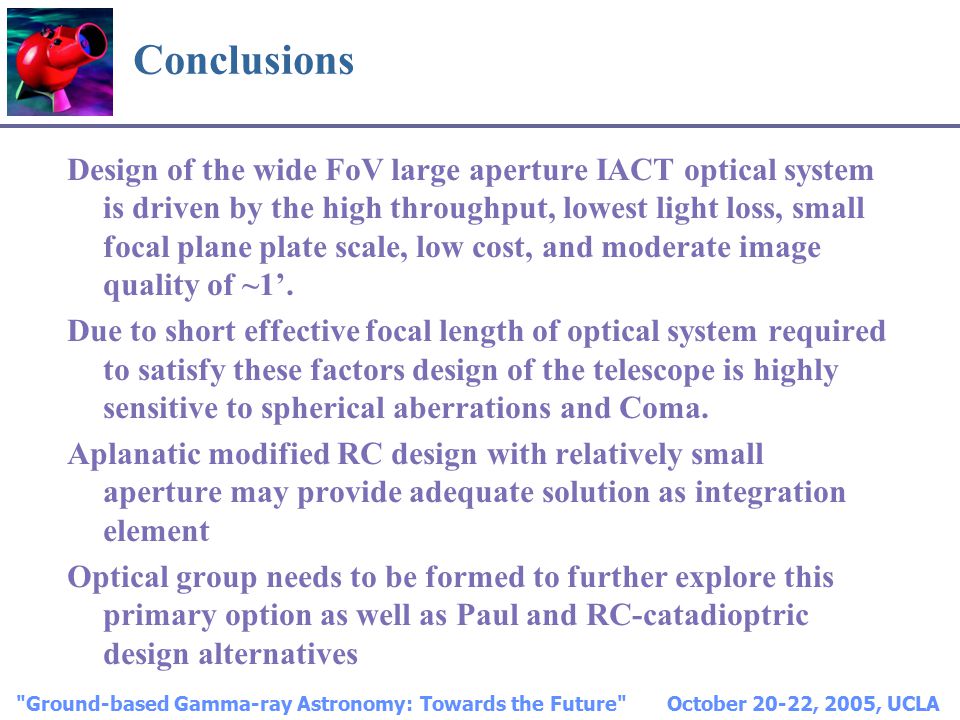

23 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Conclusions Design of the wide FoV large aperture IACT optical system is driven by the high throughput, lowest light loss, small focal plane plate scale, low cost, and moderate image quality of ~1’. Due to short effective focal length of optical system required to satisfy these factors design of the telescope is highly sensitive to spherical aberrations and Coma. Aplanatic modified RC design with relatively small aperture may provide adequate solution as integration element Optical group needs to be formed to further explore this primary option as well as Paul and RC-catadioptric design alternatives

24 "Ground-based Gamma-ray Astronomy: Towards the Future"October 20-22, 2005, UCLA Newspaper Ad The original Edmund Scientific Astroscan 3m diameter RC IACT is an inexpensive, high- performance telescope that is easy-to-use, maintenance-free and completely portable. Its wide field of view, beautiful images and ease of use make it an excellent telescope for beginner and expert stargazers VHE astronomer alike.
