500 km. Adapted from Fink and Reiner (2003) Squall Line Generation 12.5°-20°N 5°-12.5°N Mid-level Vortex What do we know about the AEW-MCS Relationship?

Similar presentations


Presentation on theme: "500 km. Adapted from Fink and Reiner (2003) Squall Line Generation 12.5°-20°N 5°-12.5°N Mid-level Vortex What do we know about the AEW-MCS Relationship?"— Presentation transcript:

1 500 km

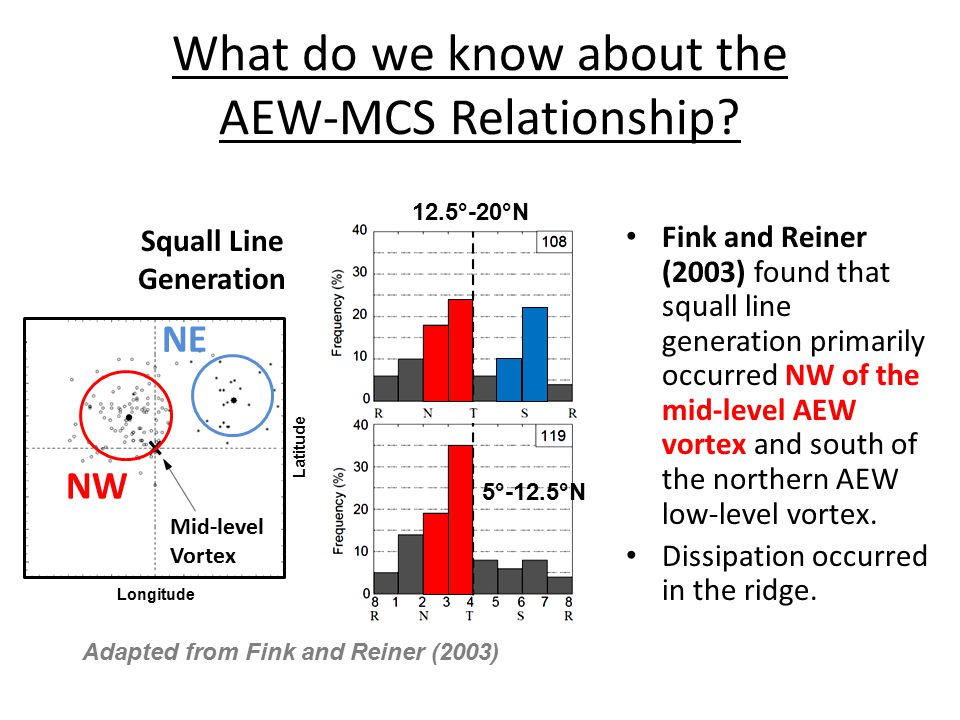

2 Adapted from Fink and Reiner (2003) Squall Line Generation 12.5°-20°N 5°-12.5°N Mid-level Vortex What do we know about the AEW-MCS Relationship? Longitude Latitude NW NE Fink and Reiner (2003) found that squall line generation primarily occurred NW of the mid-level AEW vortex and south of the northern AEW low-level vortex. Dissipation occurred in the ridge.

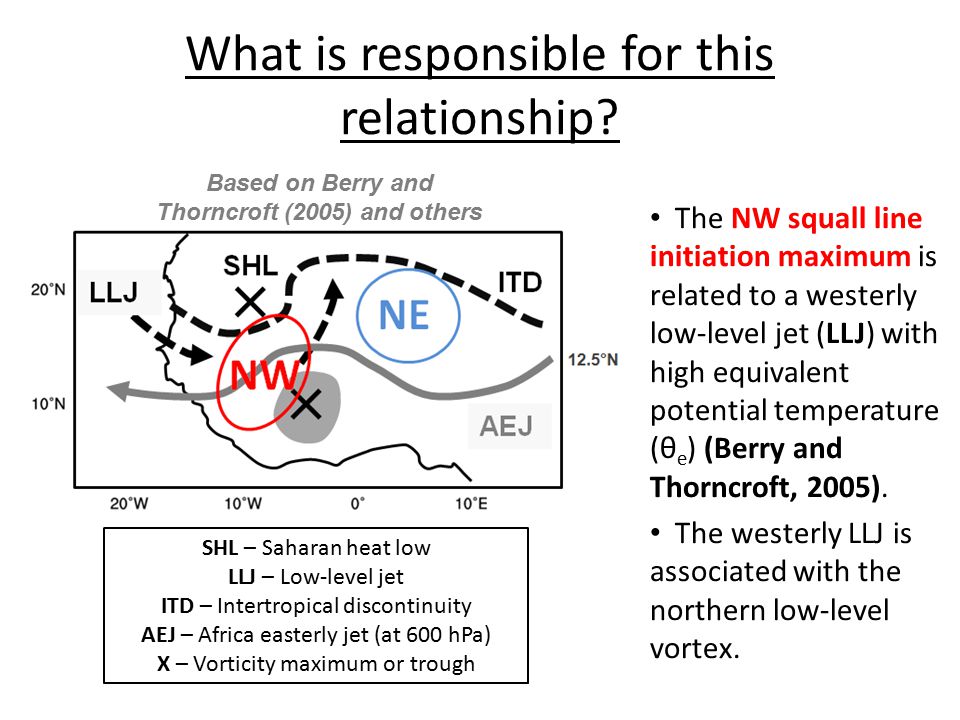

3 What is responsible for this relationship? The NW squall line initiation maximum is related to a westerly low-level jet (LLJ) with high equivalent potential temperature (θ e ) (Berry and Thorncroft, 2005). The westerly LLJ is associated with the northern low-level vortex. SHL – Saharan heat low LLJ – Low-level jet ITD – Intertropical discontinuity AEJ – Africa easterly jet (at 600 hPa) X – Vorticity maximum or trough Based on Berry and Thorncroft (2005) and others

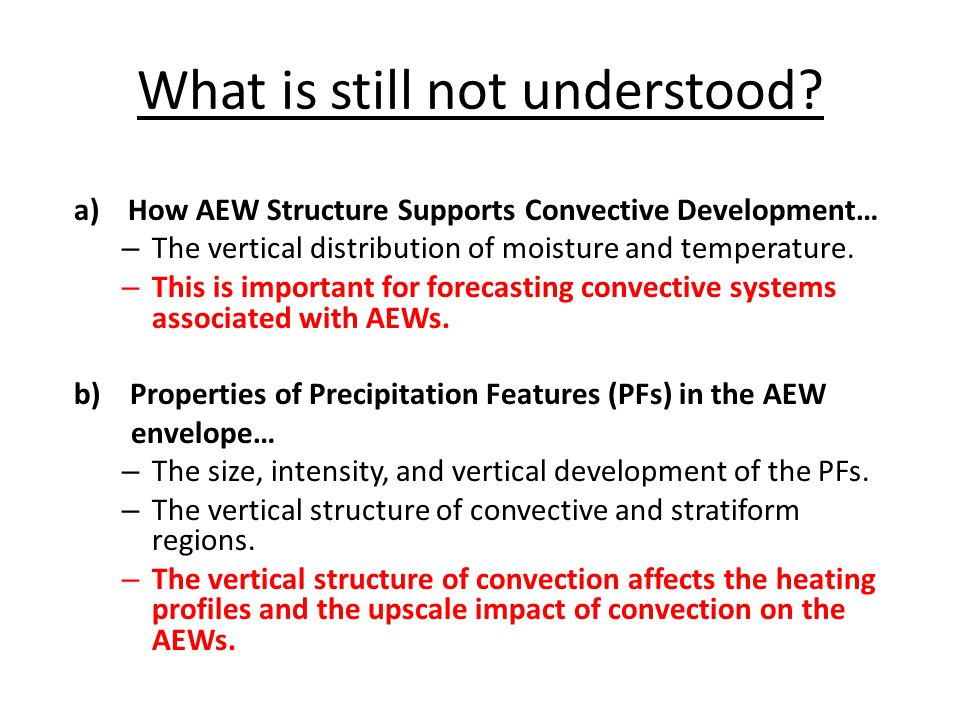

4 What is still not understood? a)How AEW Structure Supports Convective Development… – The vertical distribution of moisture and temperature. – This is important for forecasting convective systems associated with AEWs. b) Properties of Precipitation Features (PFs) in the AEW envelope… – The size, intensity, and vertical development of the PFs. – The vertical structure of convective and stratiform regions. – The vertical structure of convection affects the heating profiles and the upscale impact of convection on the AEWs.

5 TRMM 3B42 is a continuous gridded rain rate dataset (Huffman et al., 2007) utilizing passive microwave, precipitation radar (PR), geostationary infrared (IR), and rain gauge data. – Wavenumber-frequency filtered TRMM 3B42 is used to determine AEW phase and amplitude. The NCEP Climate Forecast System Reanalysis (CFSR) (Saha et al., 2010) is one of the latest-generation reanalyses. – Analyses are composited by AEW phase to diagnose the thermodynamic and kinematic AEW structure. TRMM PR and TMI orbital swaths contain information on the vertical structure of convection and PF properties. – Orbital data is binned by AEW phase using 3B42 rain rate filtered for synoptic westward propagating convection. Data

6 Convection as Viewed by the TRMM Platform C S

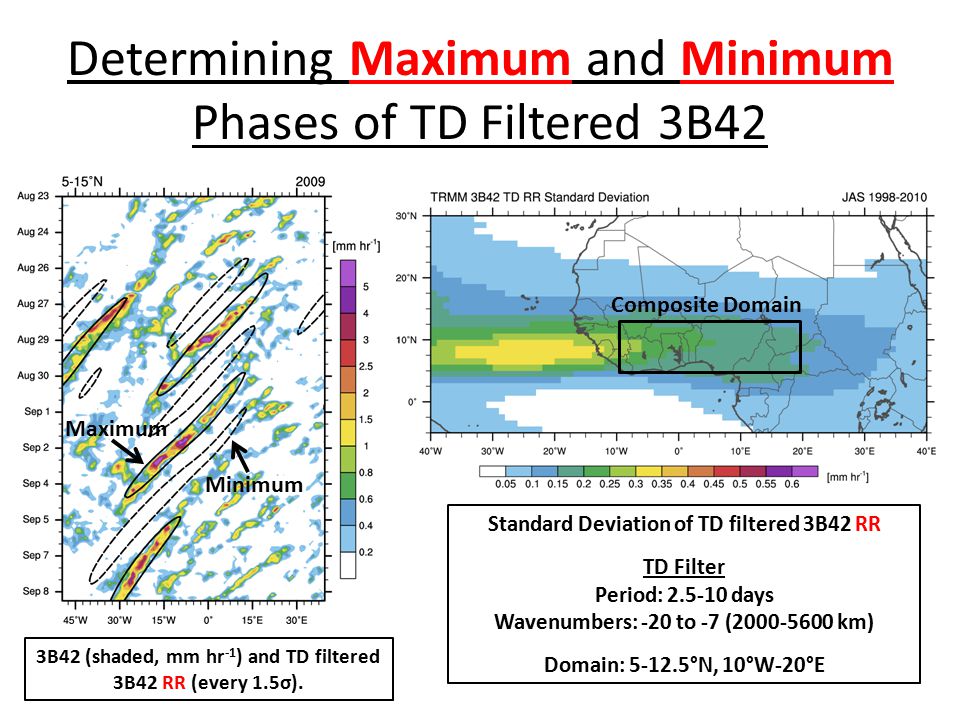

7 Determining Maximum and Minimum Phases of TD Filtered 3B42 3B42 (shaded, mm hr -1 ) and TD filtered 3B42 RR (every 1.5σ). Composite Domain Maximum Minimum Standard Deviation of TD filtered 3B42 RR TD Filter Period: days Wavenumbers: -20 to -7 ( km) Domain: °N, 10°W-20°E

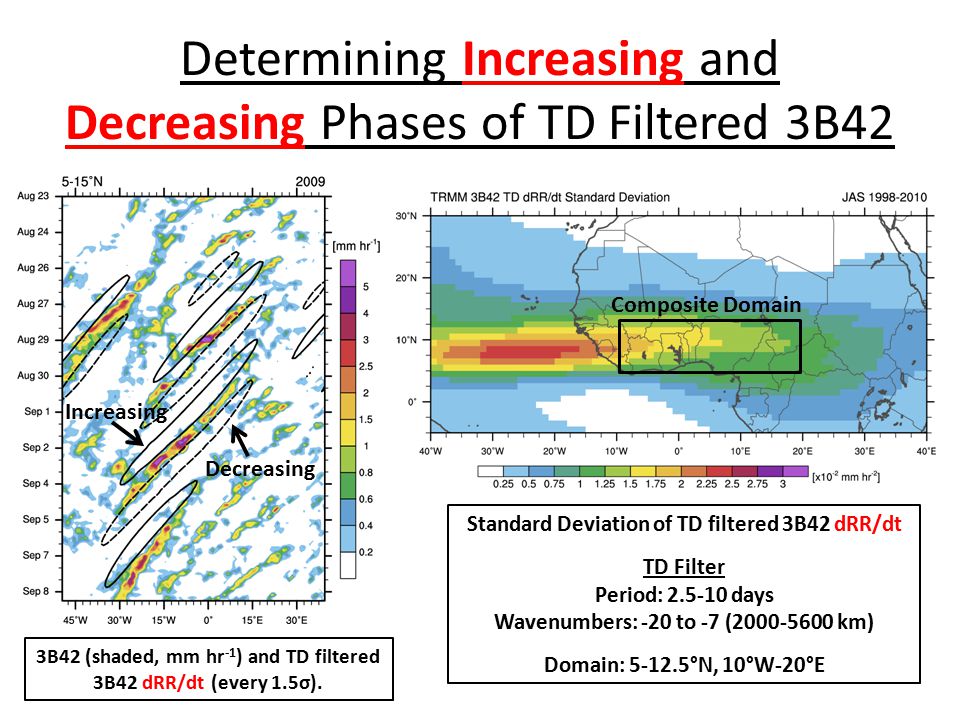

8 Determining Increasing and Decreasing Phases of TD Filtered 3B42 3B42 (shaded, mm hr -1 ) and TD filtered 3B42 dRR/dt (every 1.5σ). Increasing Decreasing Composite Domain Standard Deviation of TD filtered 3B42 dRR/dt TD Filter Period: days Wavenumbers: -20 to -7 ( km) Domain: °N, 10°W-20°E

9 AEW Phase Partitioning using Wavenumber-Frequency Filtered 3B42 MAX MIN INC DEC TOO WEAK 1.5σ TRMM Orbital Binning Schematic MAX MIN DEC INC AEW Phases for > 1.5σ Amplitude (shaded) and TD Filtered 3B42 RR (every 1.5σ). 8 AEW phases are identified using the 3B42 TD filtered RR and dRR/dt. The AEW phase and amplitude is used to partition orbital data binned to the same 1.0°x1.0° grid. 3B42 TD RR (standard deviations ) 3B42 TD dRR/dt (standard deviations ) Maximum Minimum

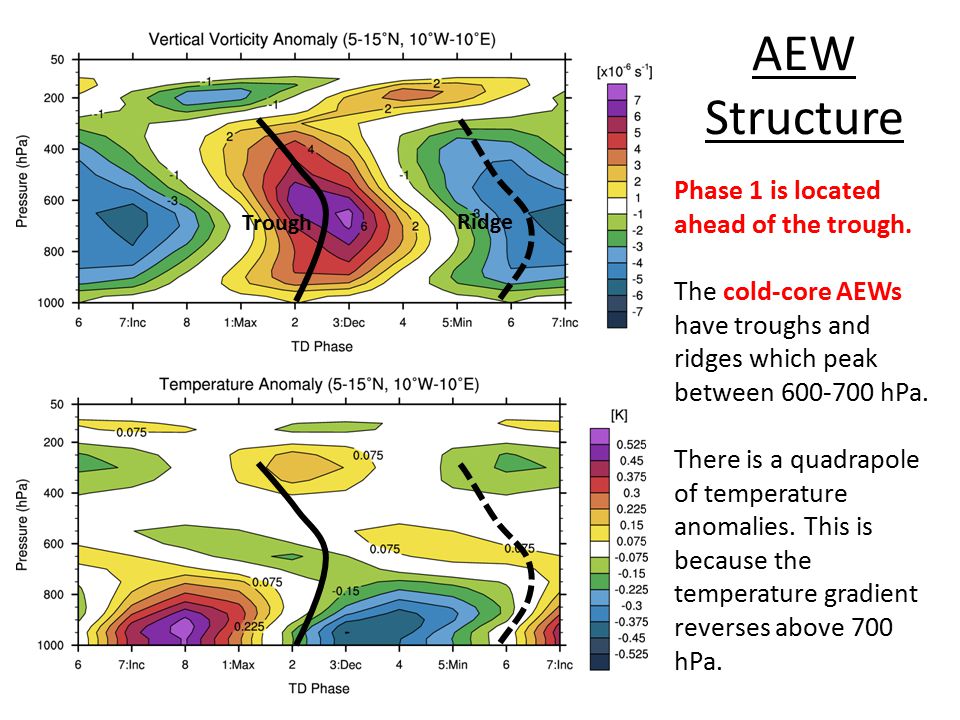

10 AEW Structure Phase 1 is located ahead of the trough. The cold-core AEWs have troughs and ridges which peak between hPa. There is a quadrapole of temperature anomalies. This is because the temperature gradient reverses above 700 hPa. Trough Ridge

11 Moisture and Thermodynamics There is increased moisture ahead of the and within the AEW trough. Within and ahead of the ridge is dry. High low-level θ e (and CAPE) is found ahead of the trough with lower low-level θ e in the southerlies. MoistDry High CAPE Low CAPE

12 Shear The AEJ strengthens ahead of the trough and weakens behind it. Surface westerlies are enhanced ahead of the trough. Both of these act to increase the shear ahead of the trough and weaken it behind the trough. Enhanced Shear Reduced Shear

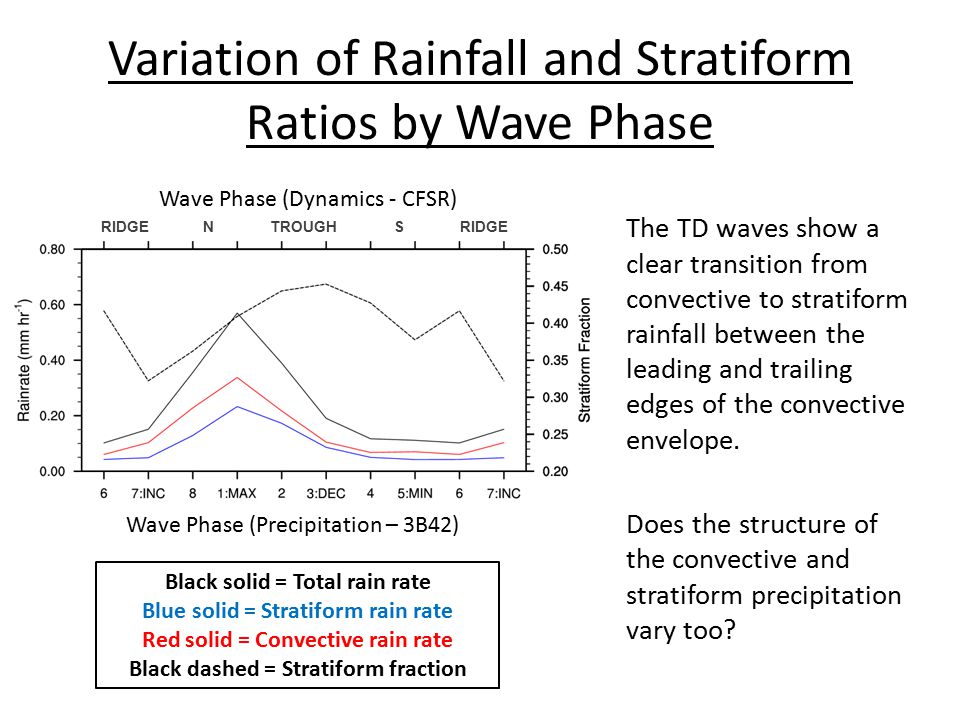

13 Variation of Rainfall and Stratiform Ratios by Wave Phase The TD waves show a clear transition from convective to stratiform rainfall between the leading and trailing edges of the convective envelope. Does the structure of the convective and stratiform precipitation vary too? Black solid = Total rain rate Blue solid = Stratiform rain rate Red solid = Convective rain rate Black dashed = Stratiform fraction RIDGE N TROUGH S RIDGE Wave Phase (Precipitation – 3B42) Wave Phase (Dynamics - CFSR)

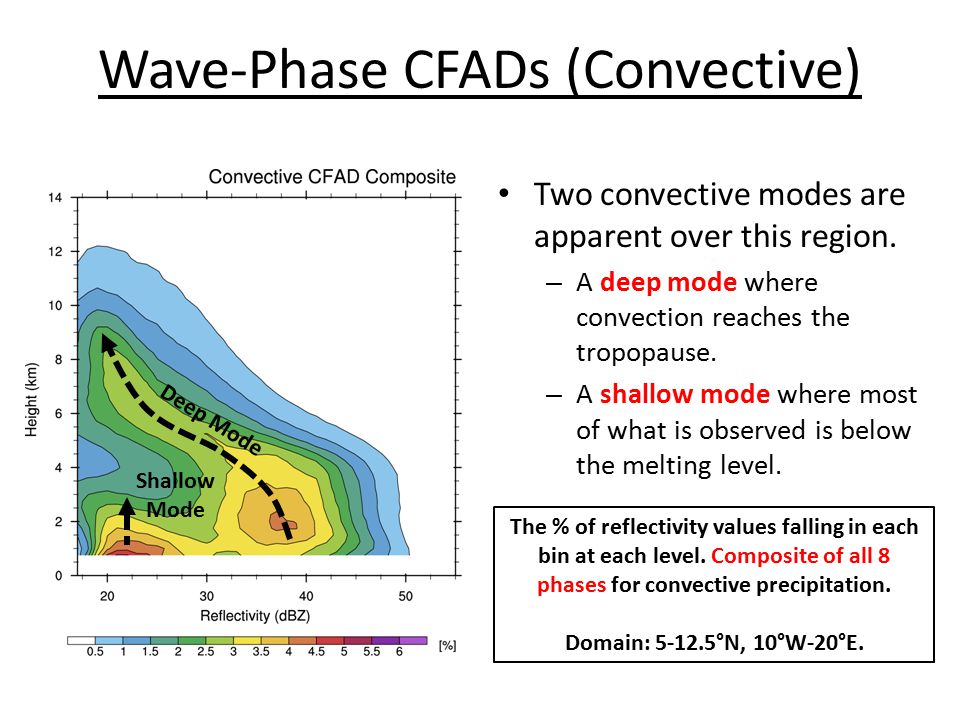

14 Wave-Phase CFADs (Convective) Two convective modes are apparent over this region. – A deep mode where convection reaches the tropopause. – A shallow mode where most of what is observed is below the melting level. The % of reflectivity values falling in each bin at each level. Composite of all 8 phases for convective precipitation. Domain: °N, 10°W-20°E. Deep Mode Shallow Mode

15 Wave-Phase CFADs (Convective) 7:INC8 1: MAX 5: MIN 3: DEC 2 46 Comp. Shows a composite CFAD for all phases and the differences between each phase. CFADs are normalized for each phase. The main difference is a tendency towards increased shallow-warm rain in the suppressed phase and deep convection in the enhanced phase.

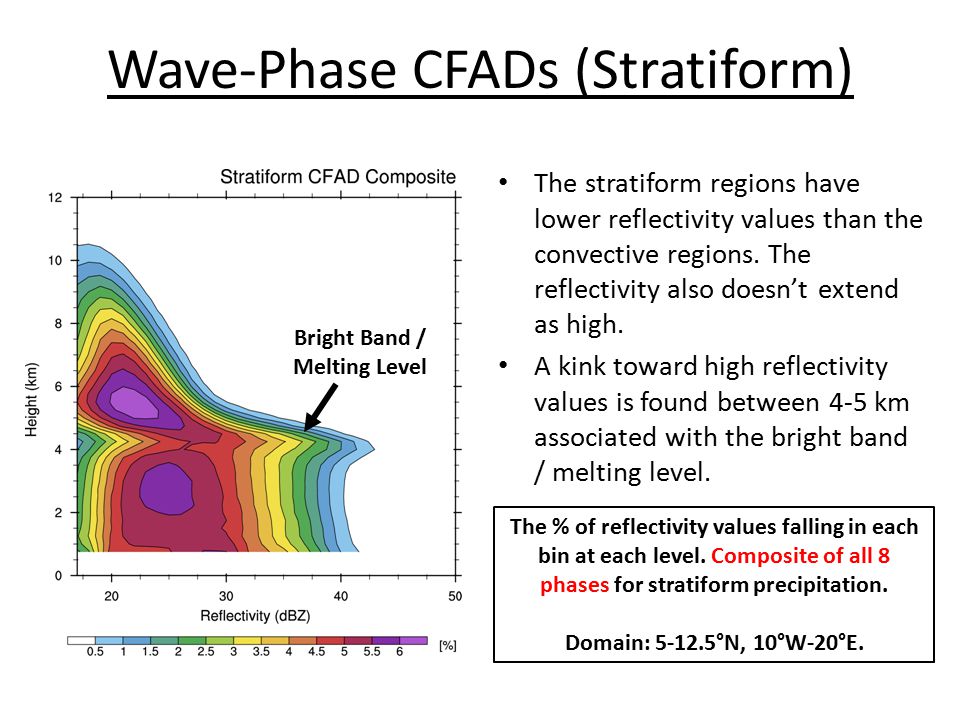

16 Wave-Phase CFADs (Stratiform) The stratiform regions have lower reflectivity values than the convective regions. The reflectivity also doesn’t extend as high. A kink toward high reflectivity values is found between 4-5 km associated with the bright band / melting level. The % of reflectivity values falling in each bin at each level. Composite of all 8 phases for stratiform precipitation. Domain: °N, 10°W-20°E. Bright Band / Melting Level

17 Wave-Phase CFADs (Stratiform) 7:INC8 1: MAX 5: MIN 3: DEC 2 46 Comp. The main difference is a tendency towards increased reflectivity in the enhanced phase and reduced reflectivity in the suppressed phase. The enhanced phases have a deeper column of observable reflectivity above the melting level.

18 Modification of the Diurnal Cycle Enhanced (Phase 1) Suppressed (Phase 5) The enhanced phase has the “flattest” diurnal cycle with the largest fractional contributions from early morning ( LT) rainfall. In the suppressed phase, the greatest percentage occurs at 1800 LT. There is very little contribution from the diurnal minimum ( LT). Climatology The % of the diurnal cycle’s rainfall coming from each 3-hr block (local time) for Phase 1, Phase 5, and the domain climatology. Domain: °N, 10°W-20°E

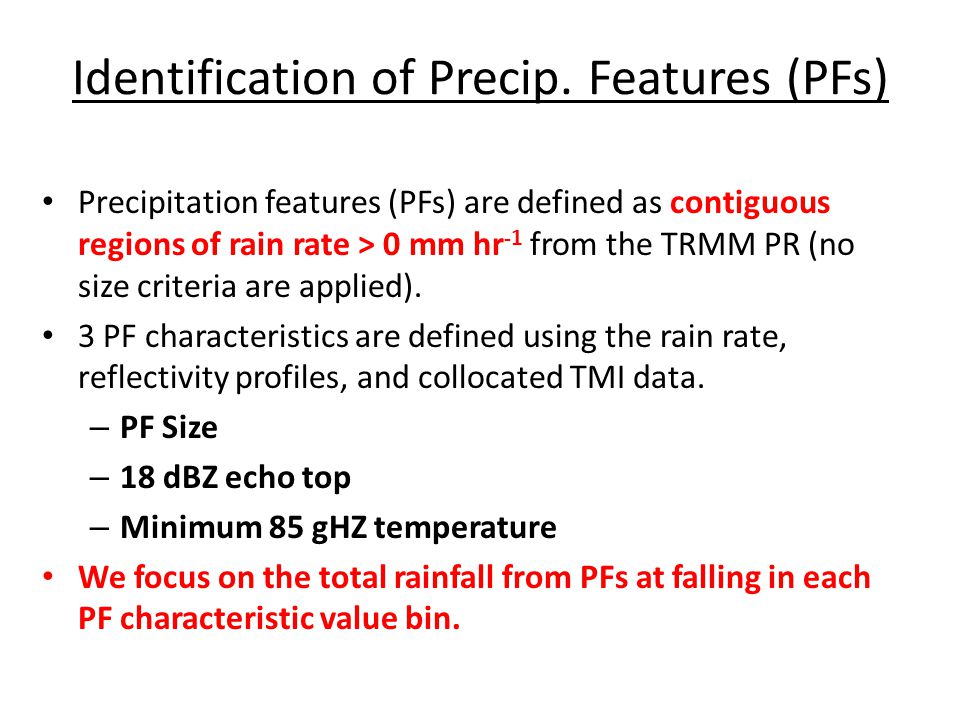

19 Identification of Precip. Features (PFs) Precipitation features (PFs) are defined as contiguous regions of rain rate > 0 mm hr -1 from the TRMM PR (no size criteria are applied). 3 PF characteristics are defined using the rain rate, reflectivity profiles, and collocated TMI data. – PF Size – 18 dBZ echo top – Minimum 85 gHZ temperature We focus on the total rainfall from PFs at falling in each PF characteristic value bin.

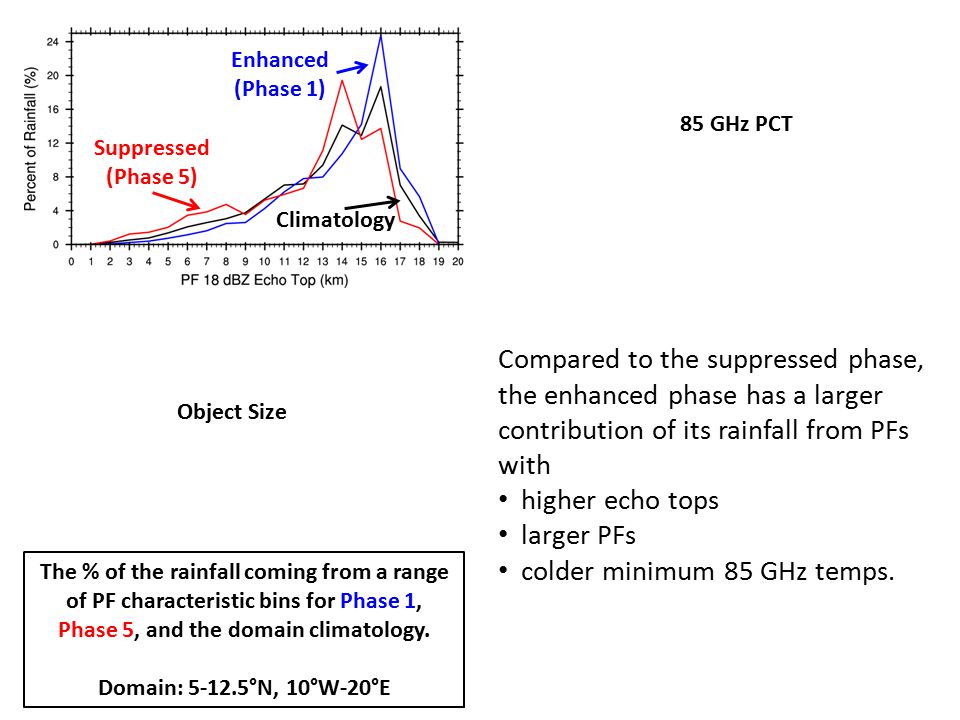

20 The % of the rainfall coming from a range of PF characteristic bins for Phase 1, Phase 5, and the domain climatology. Domain: °N, 10°W-20°E Enhanced (Phase 1) Suppressed (Phase 5) Climatology Object Size 85 GHz PCT Compared to the suppressed phase, the enhanced phase has a larger contribution of its rainfall from PFs with higher echo tops larger PFs colder minimum 85 GHz temps.

21 Summary of the AEW-Convection Relationship AEWs increase the vertical extent, size, and rainfall intensity of convective systems. The enhanced (suppressed) phases particularly enhance (suppress) rainfall early in the day ( LT). Shear, instability, lift, and moisture are all increased in the northerlies.

22 Questions?

23 Percent of Rainfall From Various PF Characteristic Values

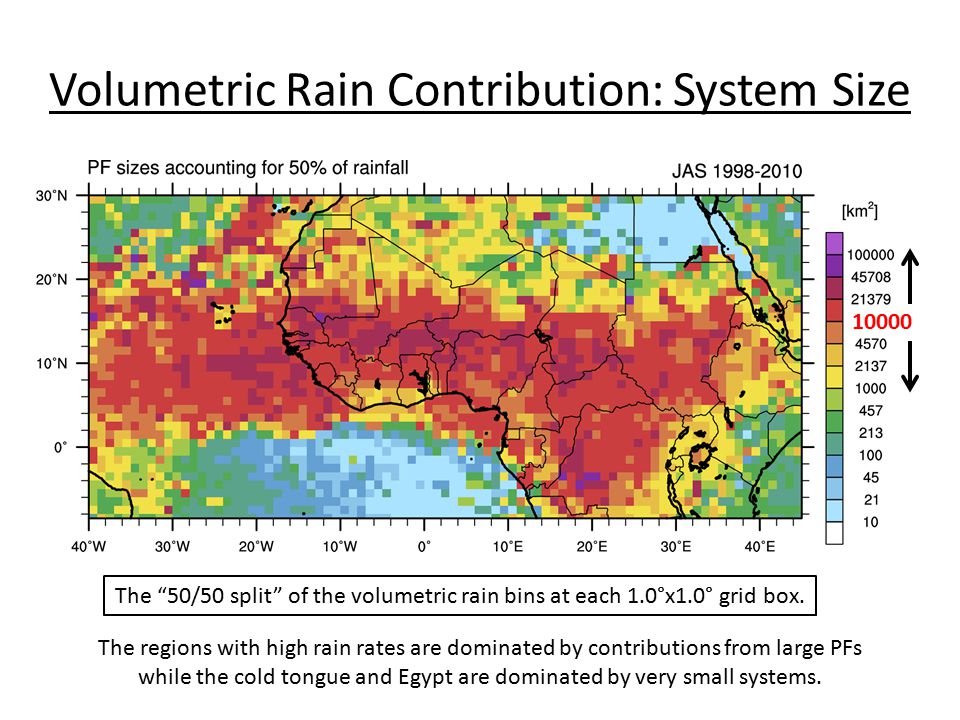

24 Volumetric Rain Contribution: System Size The “50/50 split” of the volumetric rain bins at each 1.0°x1.0° grid box. The regions with high rain rates are dominated by contributions from large PFs while the cold tongue and Egypt are dominated by very small systems

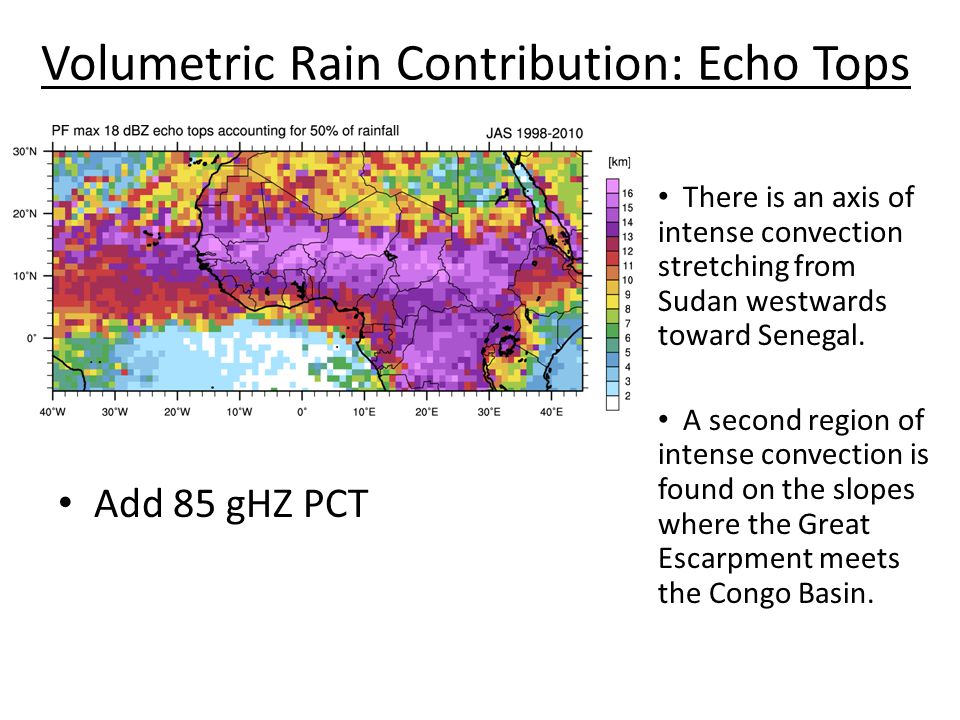

25 Volumetric Rain Contribution: Echo Tops There is an axis of intense convection stretching from Sudan westwards toward Senegal. A second region of intense convection is found on the slopes where the Great Escarpment meets the Congo Basin. Add 85 gHZ PCT

26 MCSs associated with the “Helene AEW” of 2006

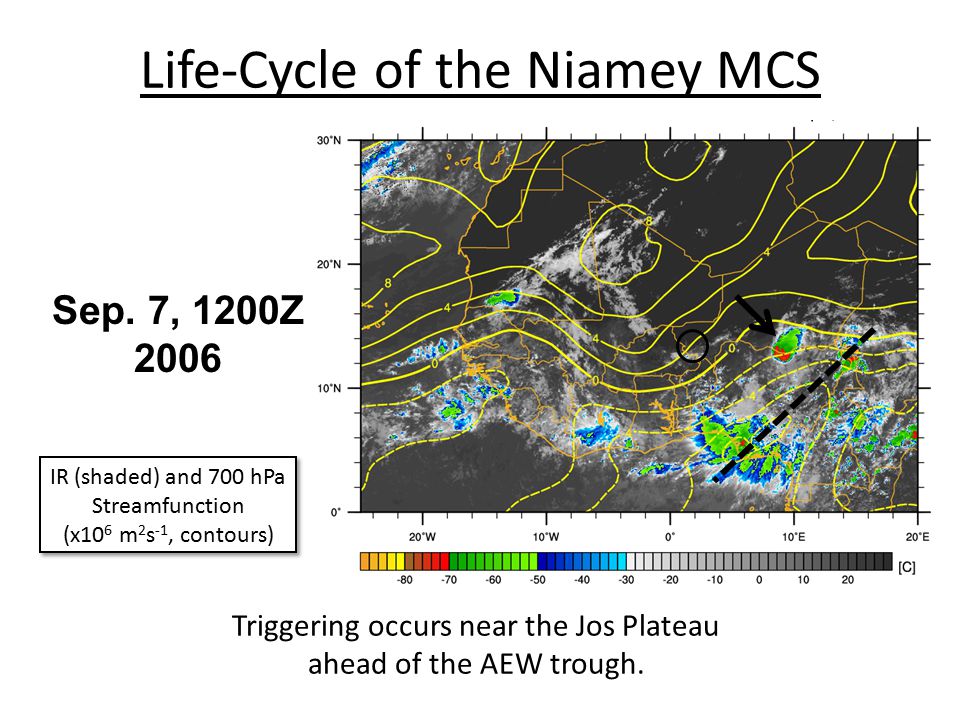

27 Triggering occurs near the Jos Plateau ahead of the AEW trough. Life-Cycle of the Niamey MCS Sep. 7, 1200Z 2006 IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

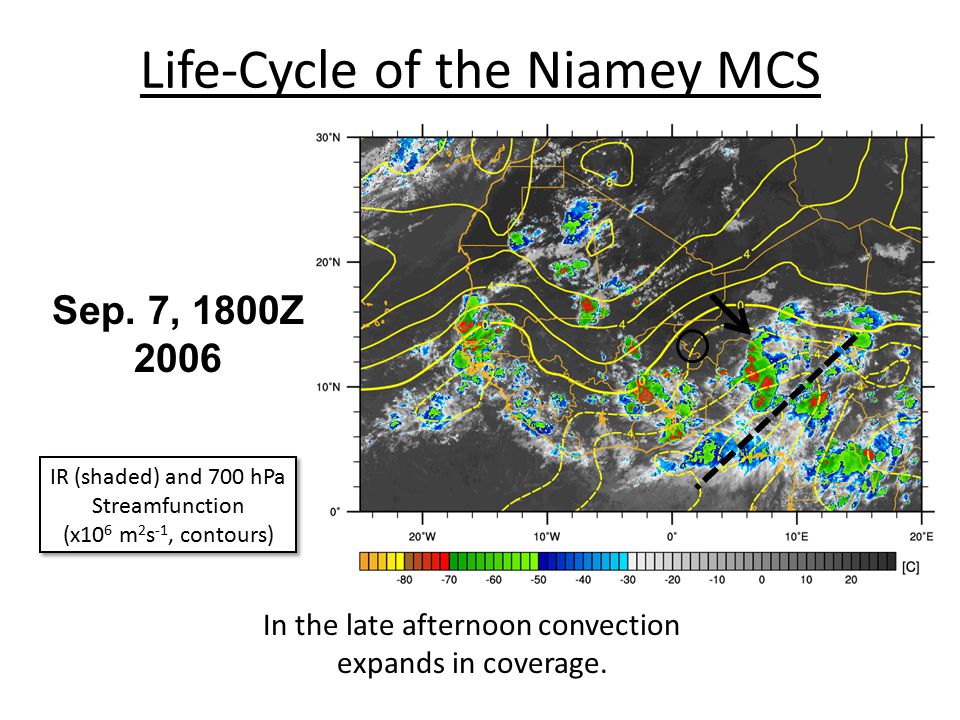

28 In the late afternoon convection expands in coverage. Life-Cycle of the Niamey MCS Sep. 7, 1800Z 2006 IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

29 Most of the other convection weakens but the Niamey MCS strengthens as the nocturnal LLJ develops. Life-Cycle of the Niamey MCS Sep. 8, 0000Z 2006 IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

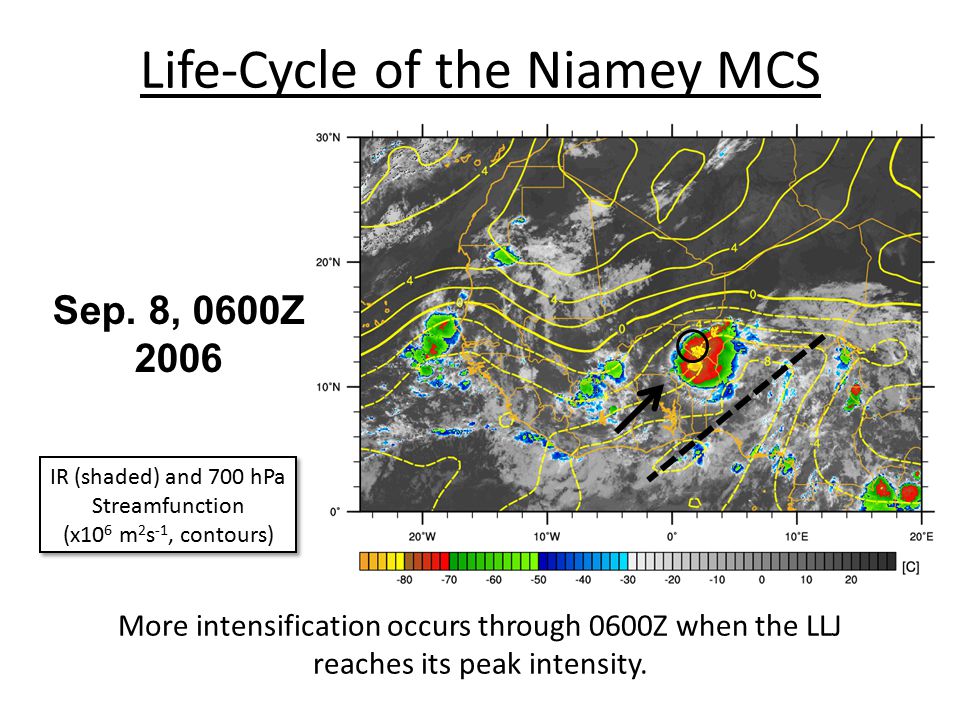

30 More intensification occurs through 0600Z when the LLJ reaches its peak intensity. Life-Cycle of the Niamey MCS Sep. 8, 0600Z 2006 IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

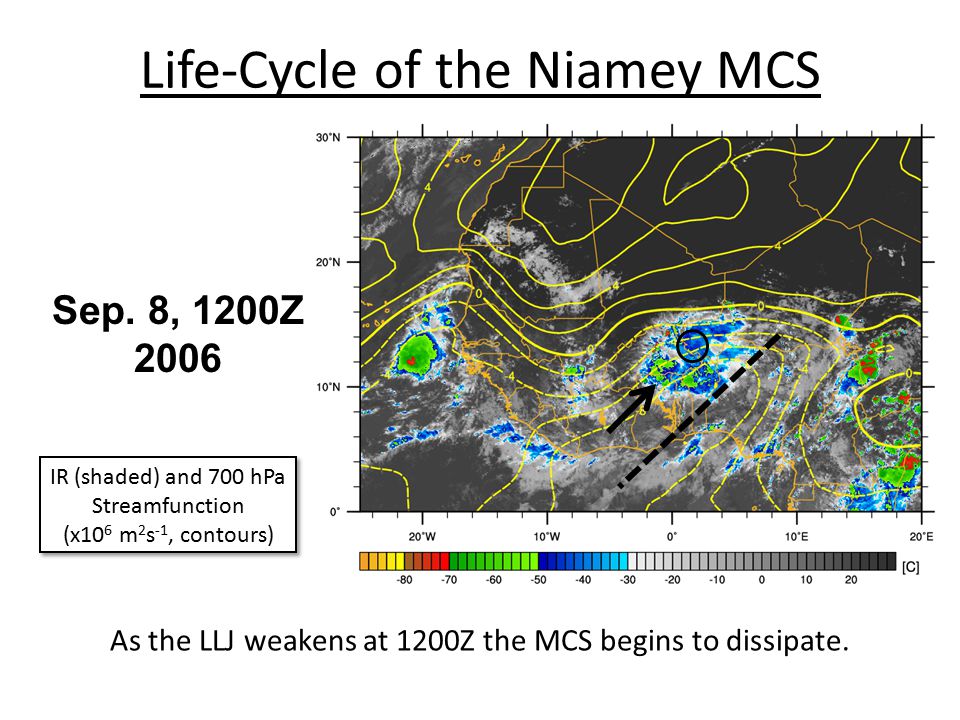

31 As the LLJ weakens at 1200Z the MCS begins to dissipate. Life-Cycle of the Niamey MCS Sep. 8, 1200Z 2006 IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

32 925 hPa θ e (K, shaded), streamfunction (x10 6 m 2 s -1, contours), winds (ms -1, vectors), and vorticity (> 2.5x10 -5 s -1, pattern). MCS NV MCS 925 hPa θ v (K, shaded), streamfunction (x10 6 m 2 s -1, contours), winds (ms -1, vectors), and vorticity (> 2.5x10 -5 s -1, pattern). Sep. 8, 0600Z 2006

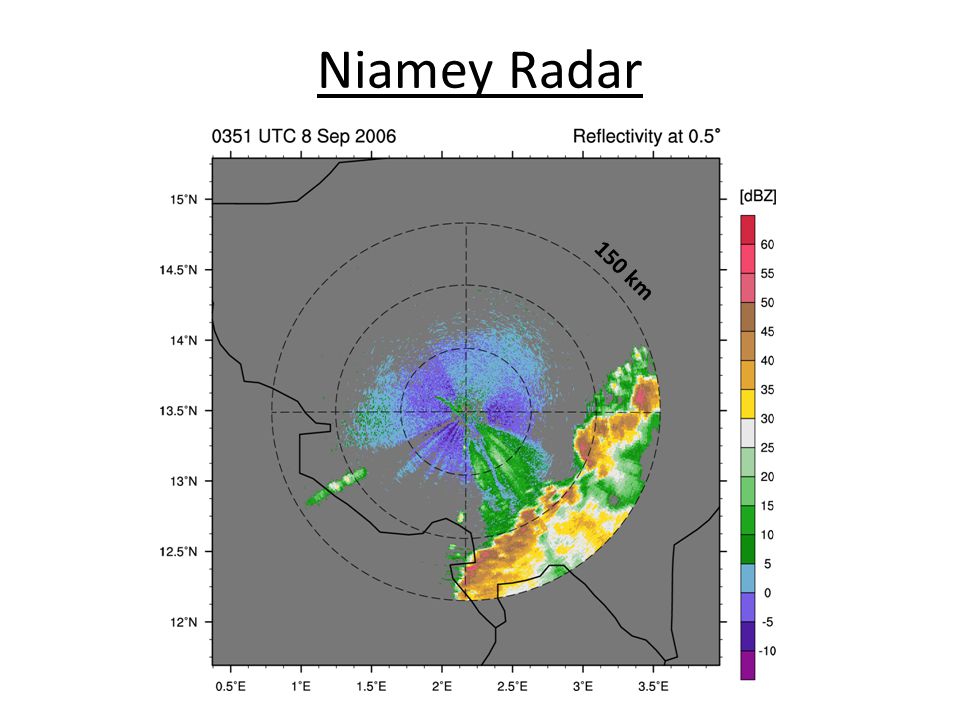

33 Niamey Radar 150 km

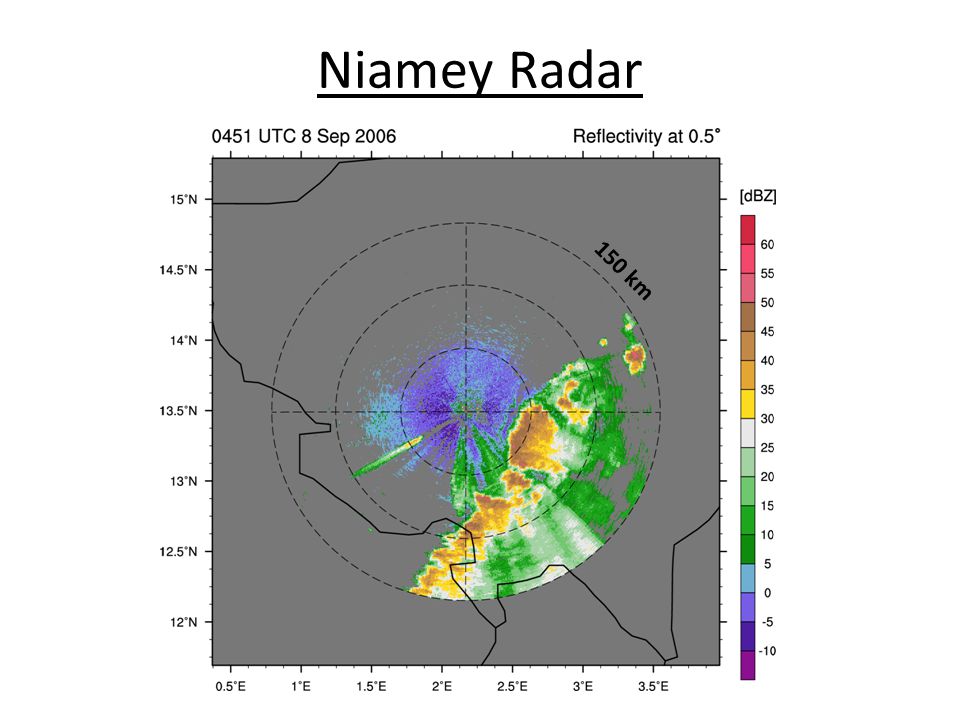

34 Niamey Radar 150 km

35 Niamey Radar 150 km

36 Niamey Radar 150 km

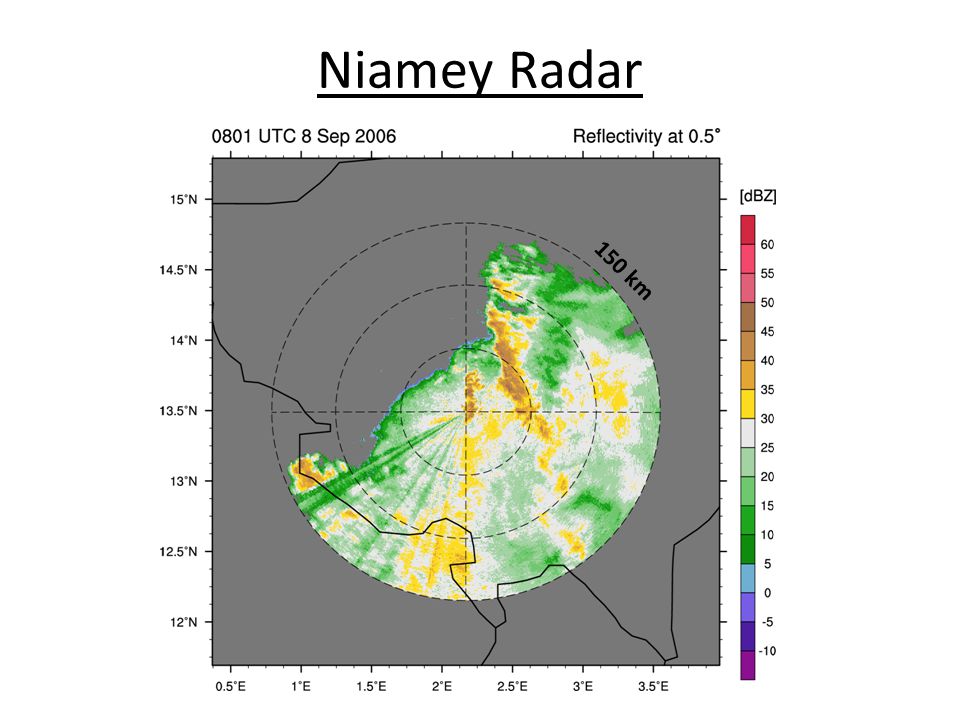

37 Niamey Radar 150 km

38 Niamey Radar 150 km

39 Niamey Radar 150 km

40 Niamey Radar 150 km

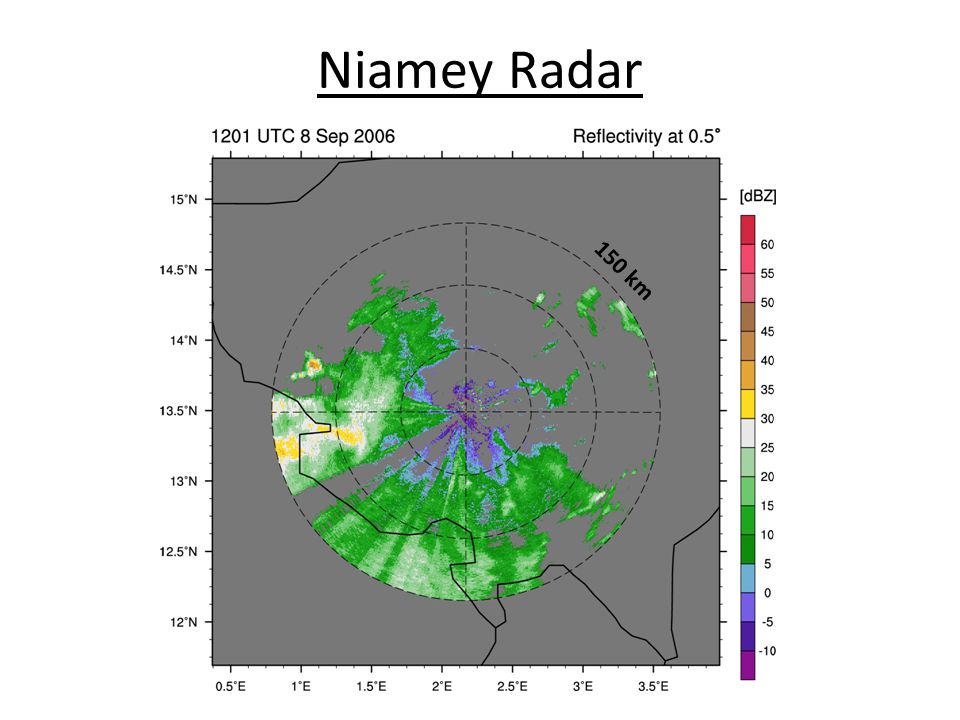

41 Niamey Radar 150 km

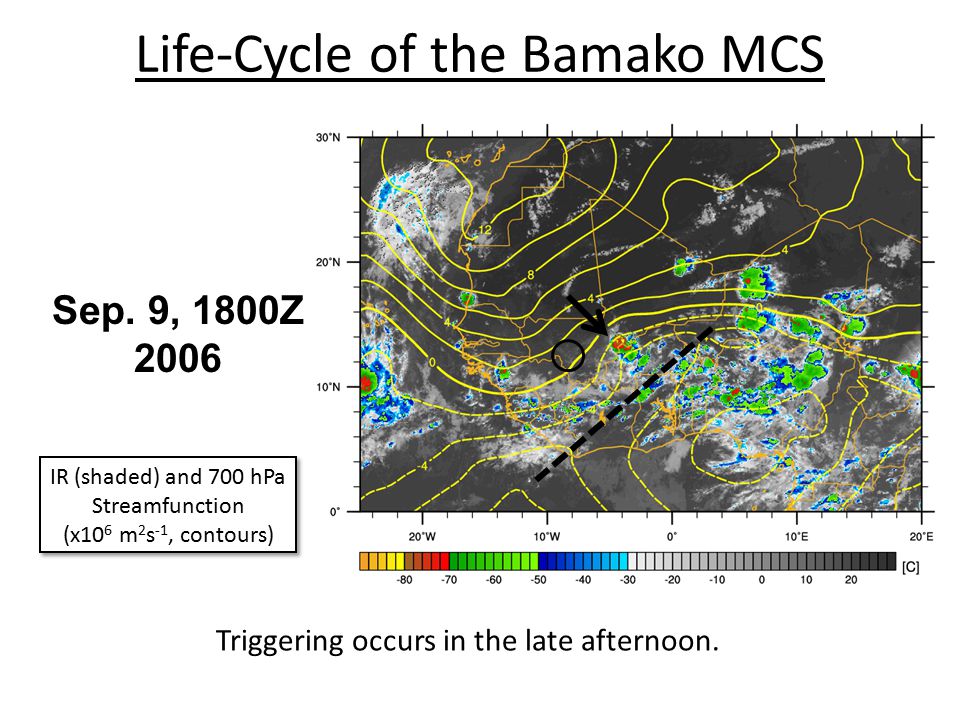

42 Sep. 9, 1800Z 2006 Triggering occurs in the late afternoon. Life-Cycle of the Bamako MCS IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

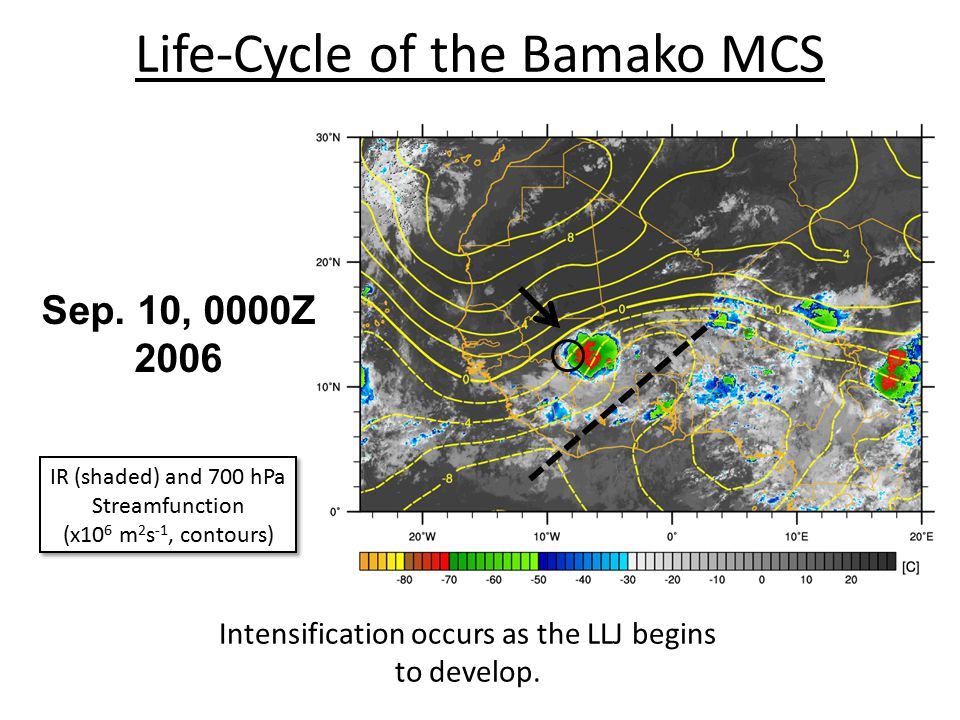

43 Sep. 10, 0000Z 2006 Intensification occurs as the LLJ begins to develop. Life-Cycle of the Bamako MCS IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

44 Sep. 10, 0600Z 2006 Continued intensification occurs up through 0600Z when the LLJ reaches its peak intensity. Life-Cycle of the Bamako MCS IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

45 Sep. 10, 1200Z 2006 The MCS begins to weaken at 1200Z as the LLJ begins to weaken. Life-Cycle of the Bamako MCS IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours) IR (shaded) and 700 hPa Streamfunction (x10 6 m 2 s -1, contours)

46 NV MCS 925 hPa θ e (K, shaded), streamfunction (x10 6 m 2 s -1, contours), winds (ms -1, vectors), and vorticity (> 2.5x10 -5 s -1, pattern). 925 hPa θ v (K, shaded), streamfunction (x10 6 m 2 s -1, contours), winds (ms -1, vectors), and vorticity (> 2.5x10 -5 s -1, pattern). Sep. 10, 0600Z 2006

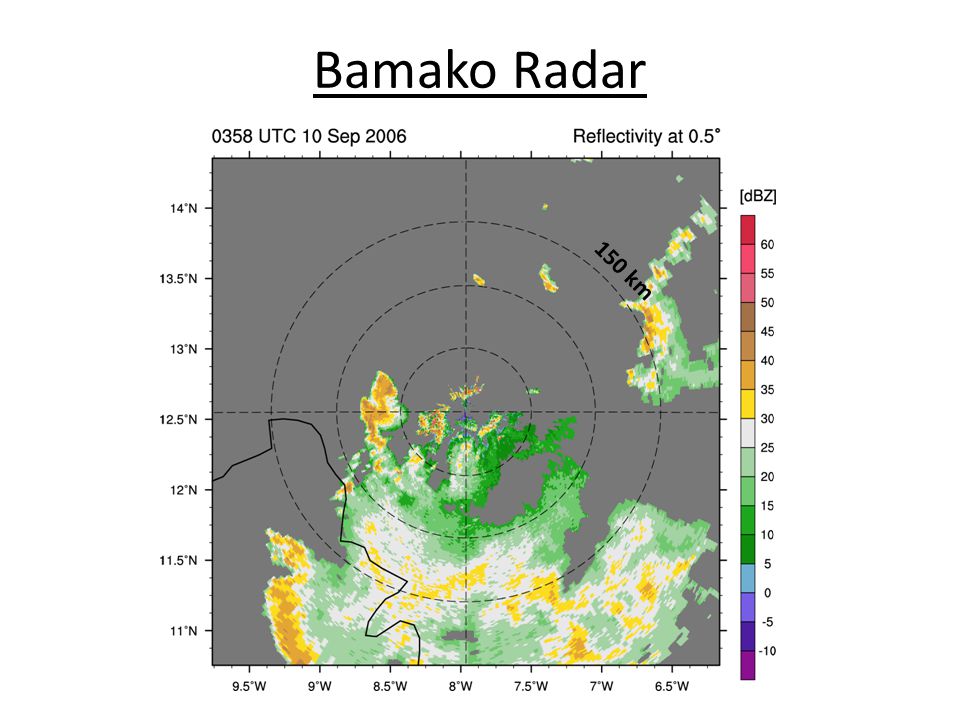

47 Bamako Radar 150 km

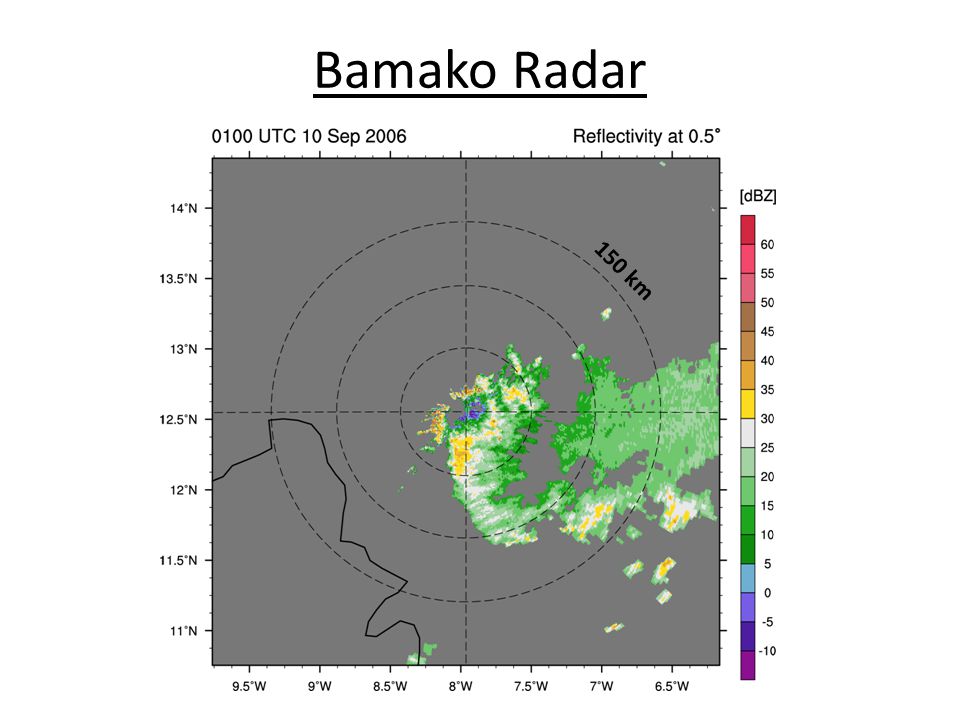

48 Bamako Radar 150 km

49 Bamako Radar 150 km

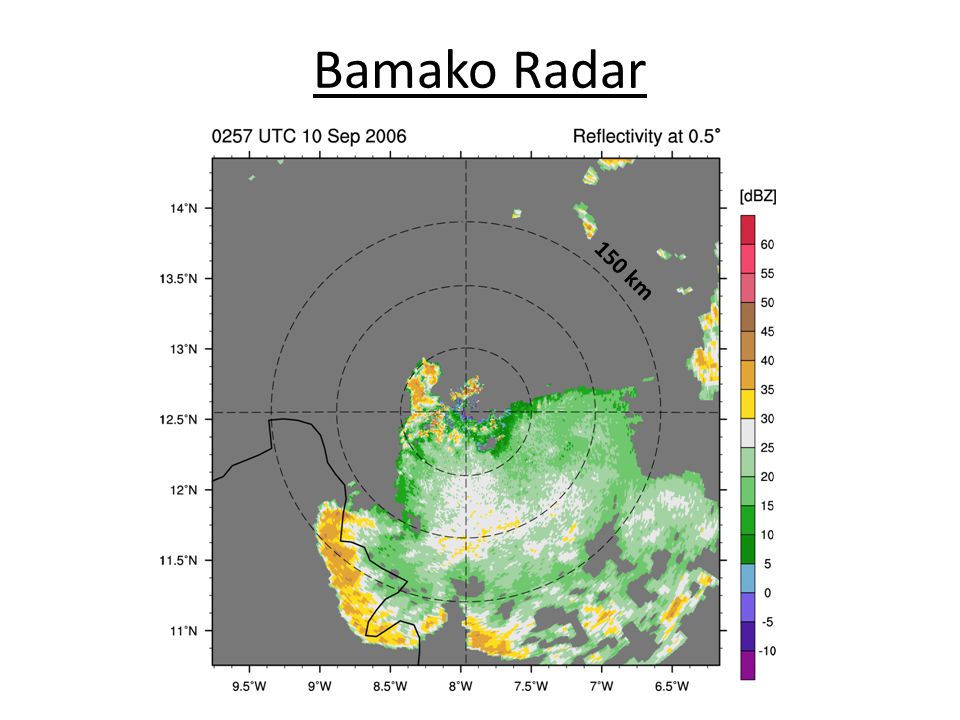

50 Bamako Radar 150 km

51 Bamako Radar 150 km

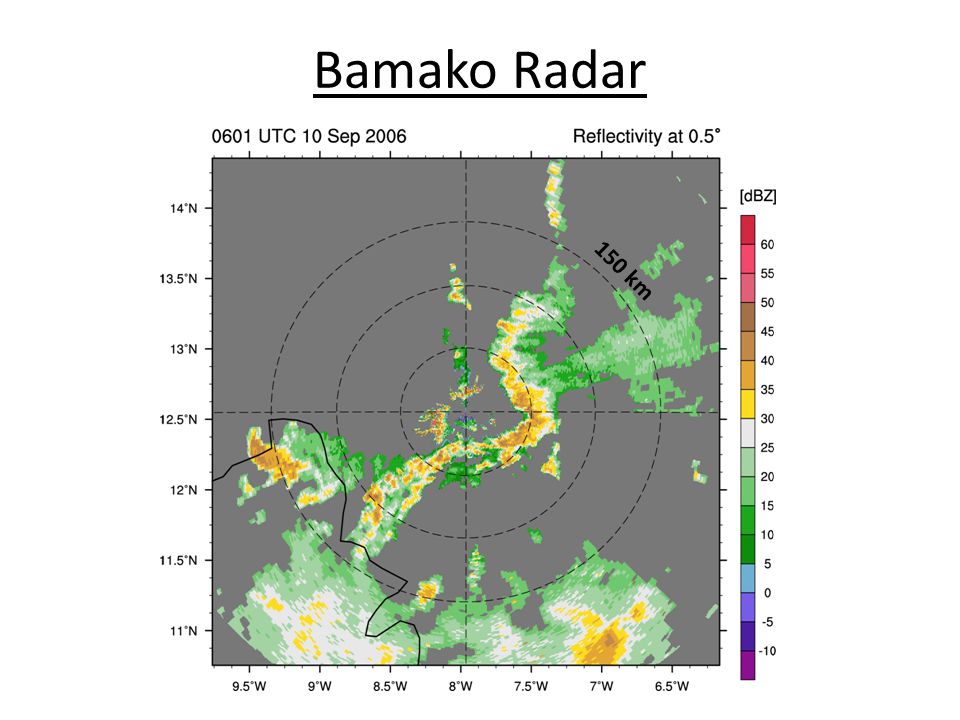

52 Bamako Radar 150 km

53 Bamako Radar 150 km

54 Bamako Radar 150 km

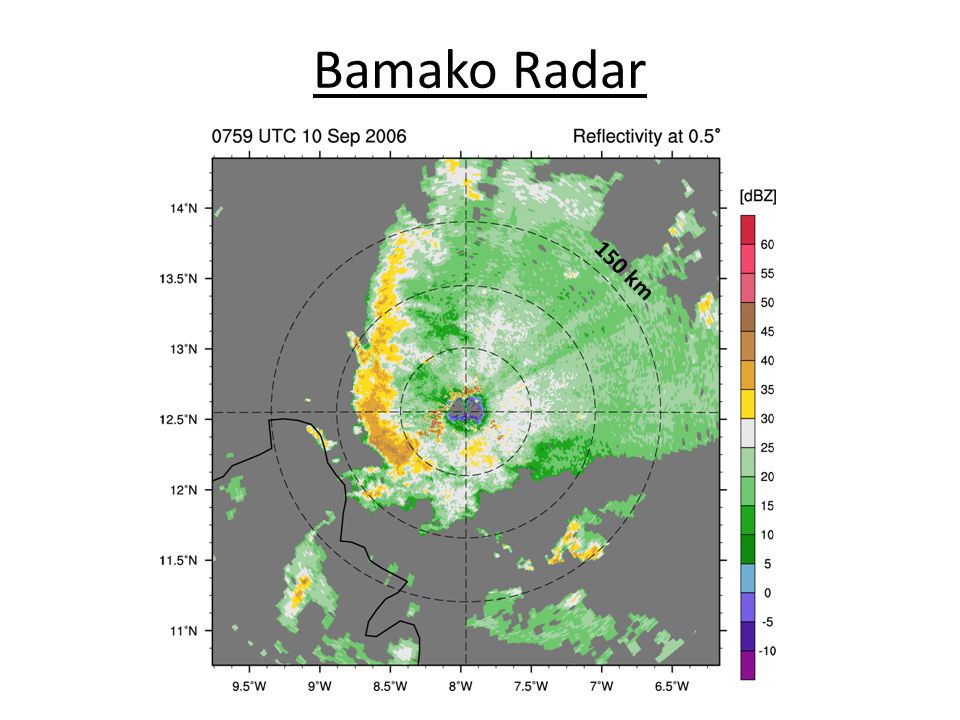

55 Bamako Radar 150 km

56 Bamako Radar 150 km

57 Bamako Radar 150 km

58 Bamako Radar 150 km

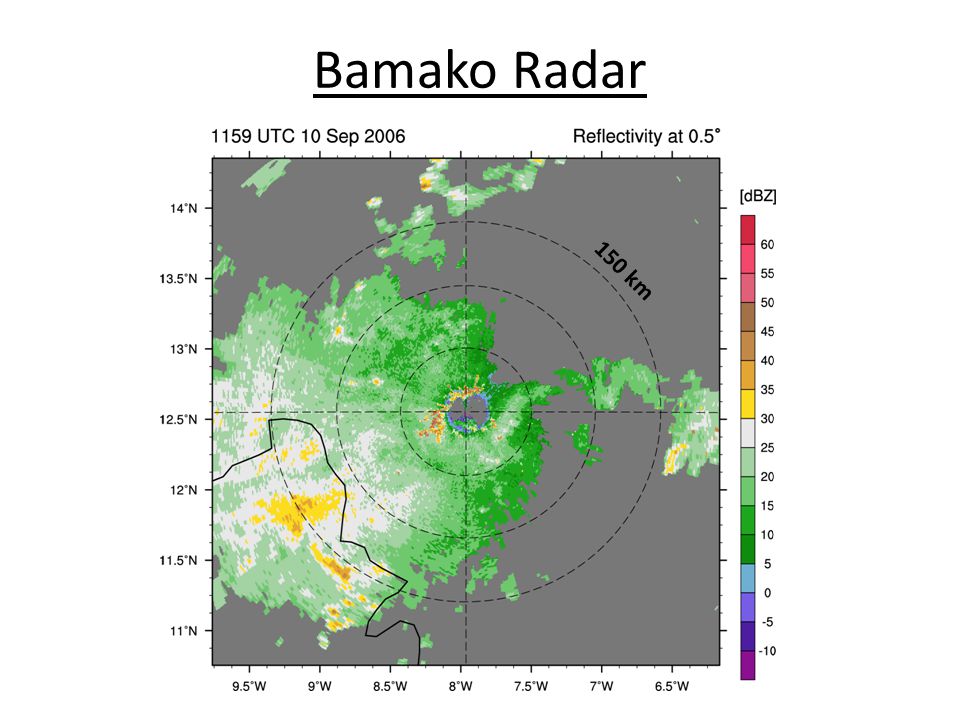

59 Bamako Radar 150 km

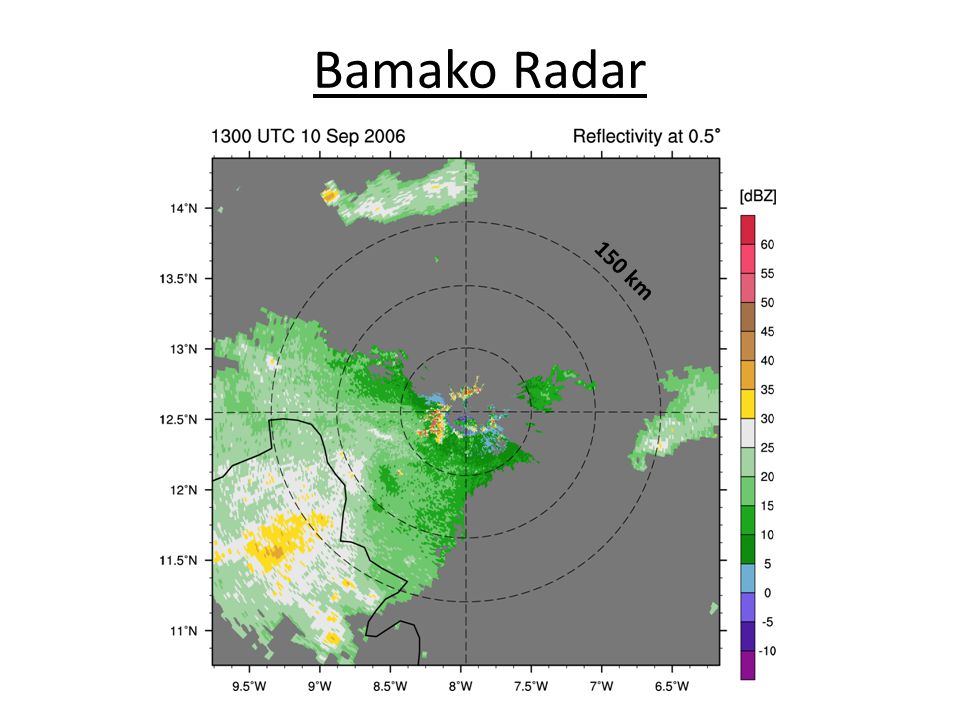

60 Bamako Radar 150 km

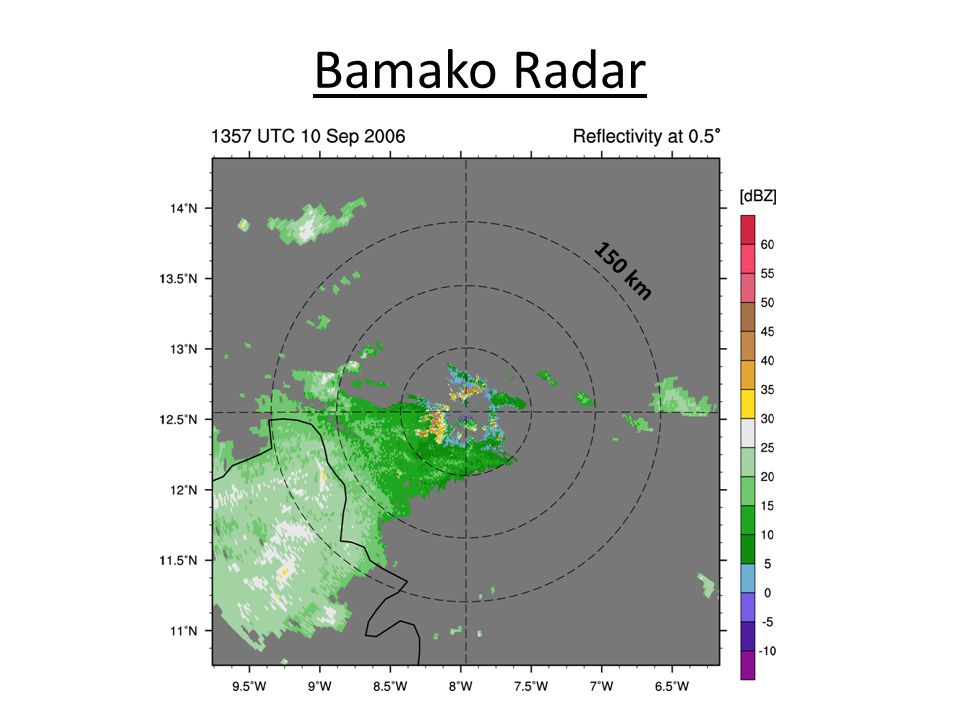

61 Bamako Radar 150 km
