Gomory’s cutting plane algorithm for integer programming Prepared by Shin-ichi Tanigawa

2

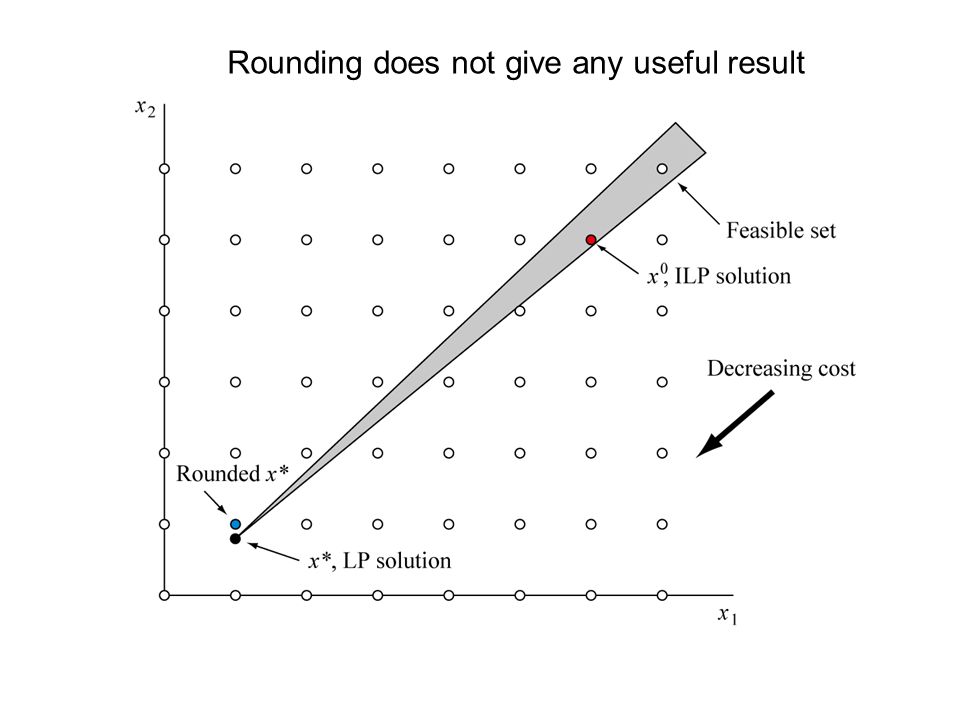

Rounding does not give any useful result

3

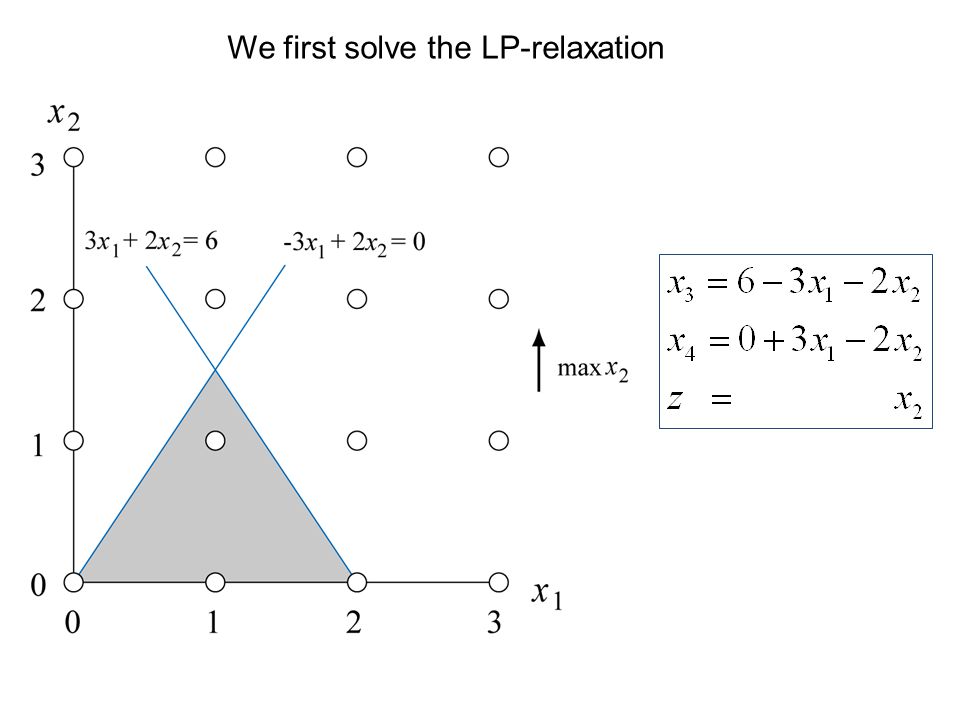

We first solve the LP-relaxation

4

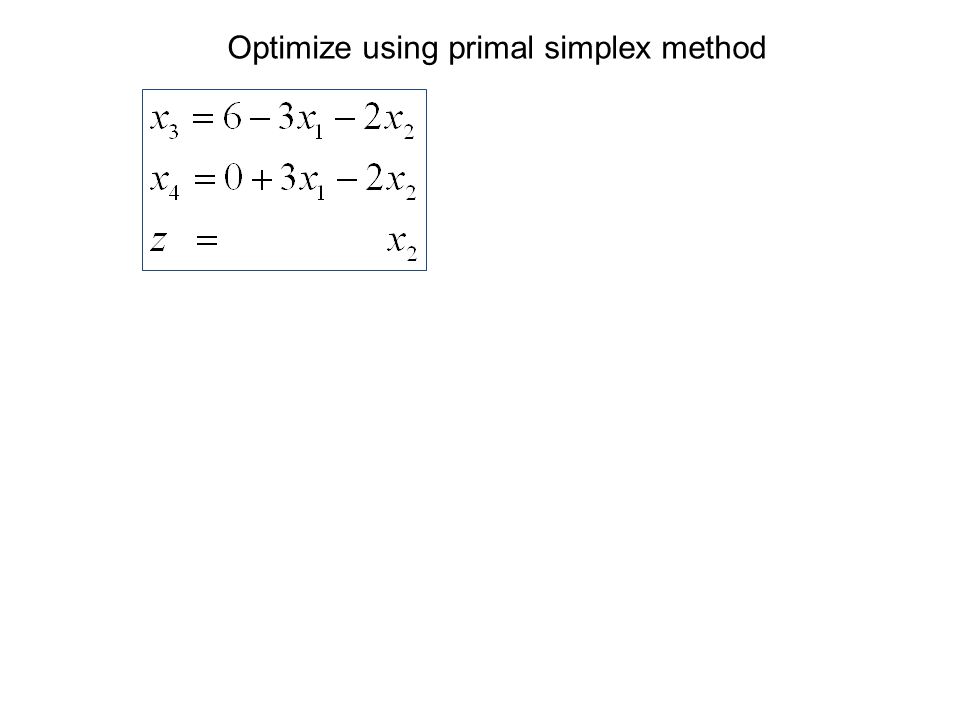

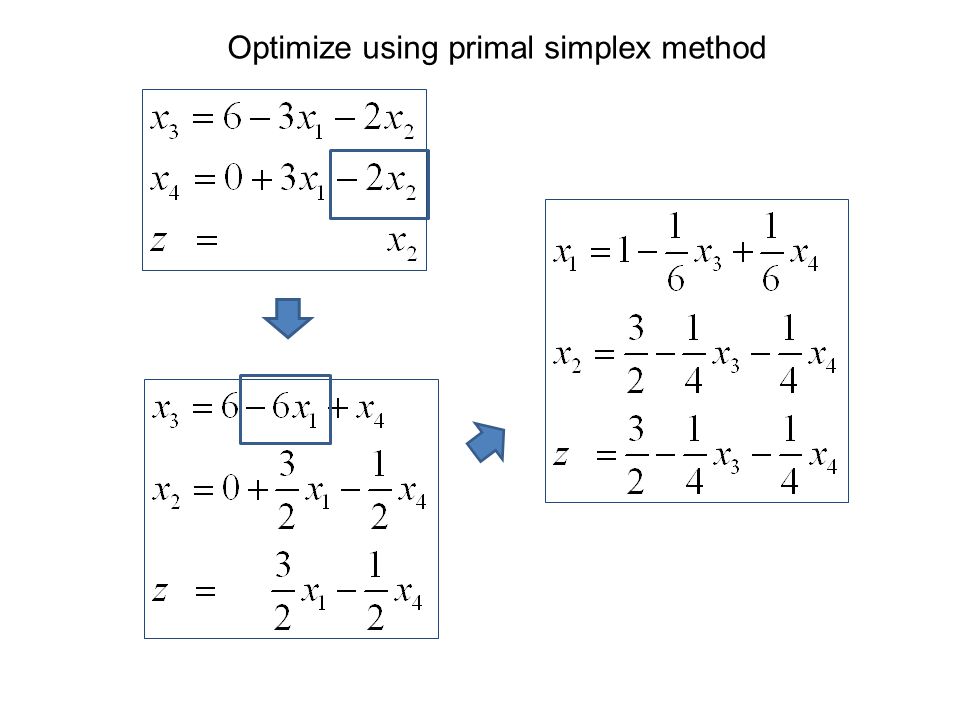

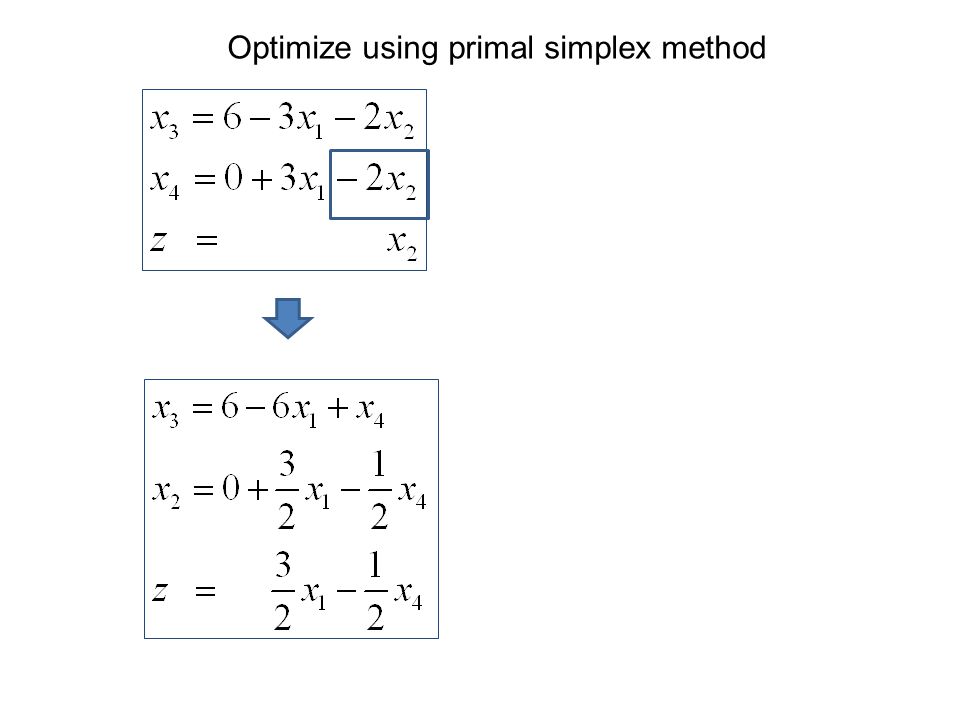

Optimize using primal simplex method

7

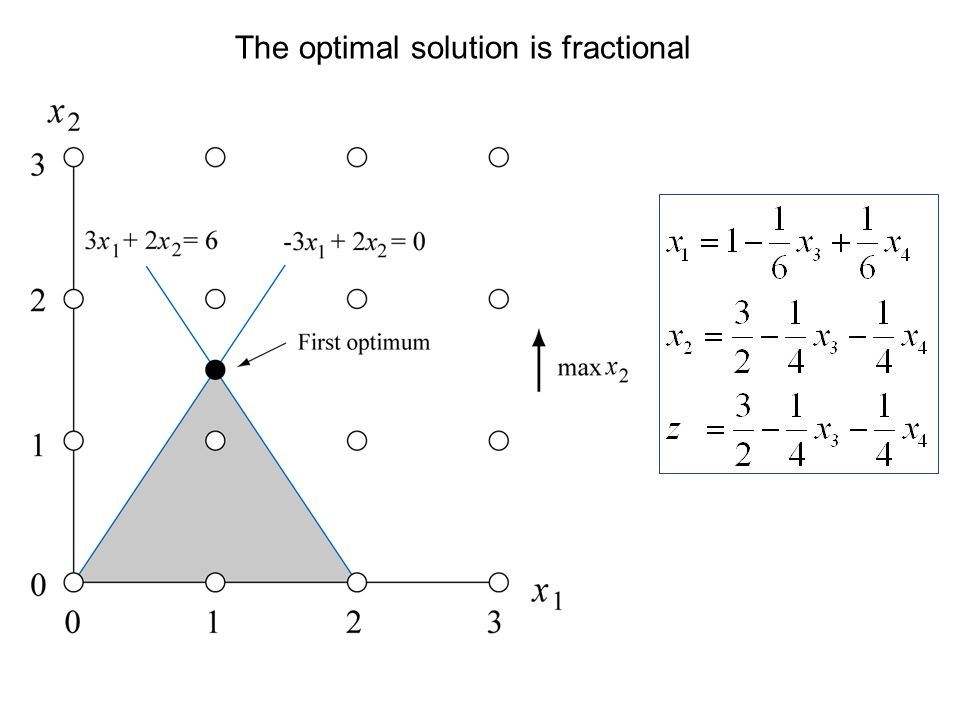

The optimal solution is fractional

8

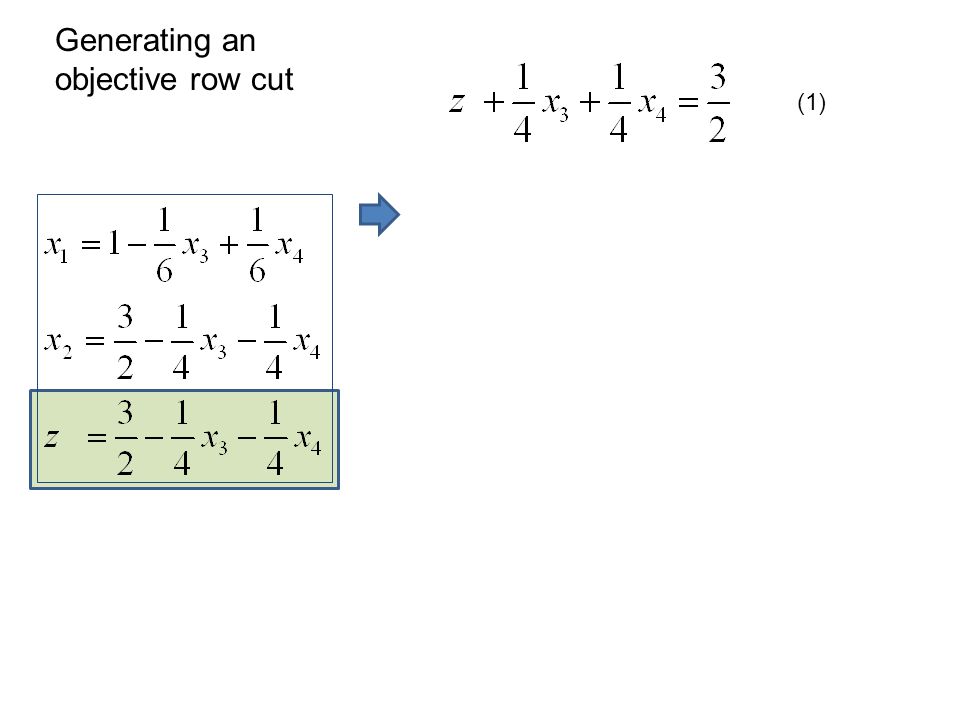

(1) Generating an objective row cut

9

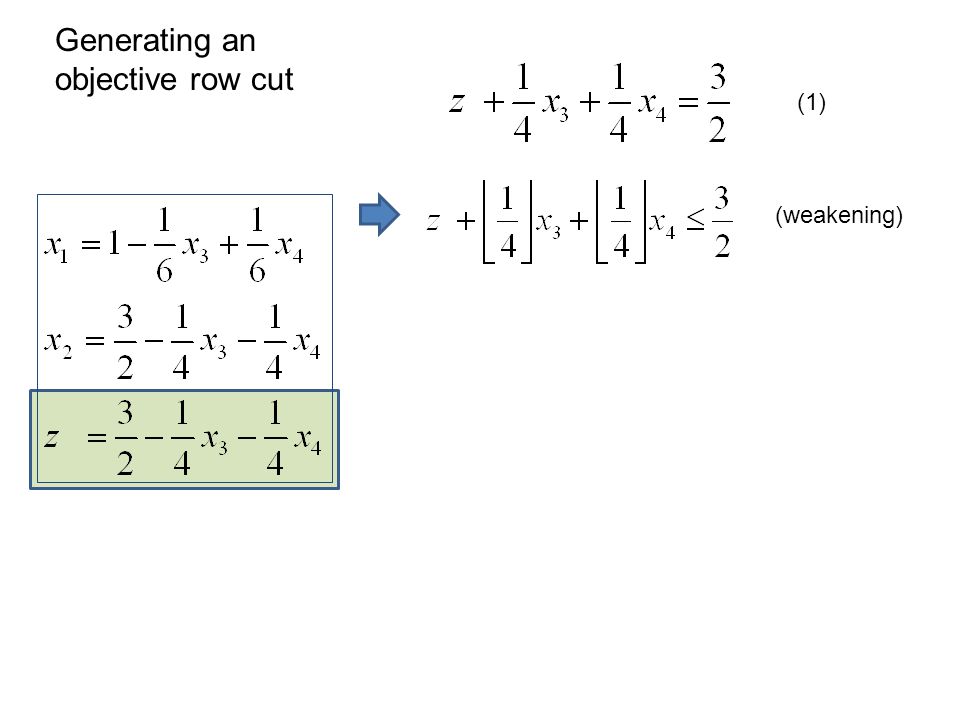

(weakening) (1) Generating an objective row cut

10
(weakening) (1) (2) (for integers) Generating an objective row cut

11
(weakening) (1) (2) (for integers) (2) - (1) Generating an objective row cut Cutting plane is violated by current optimum solution

12
(weakening) (1) (2) (for integers) (2) - (1) (substitute for slacks) Generating an objective row cut

13

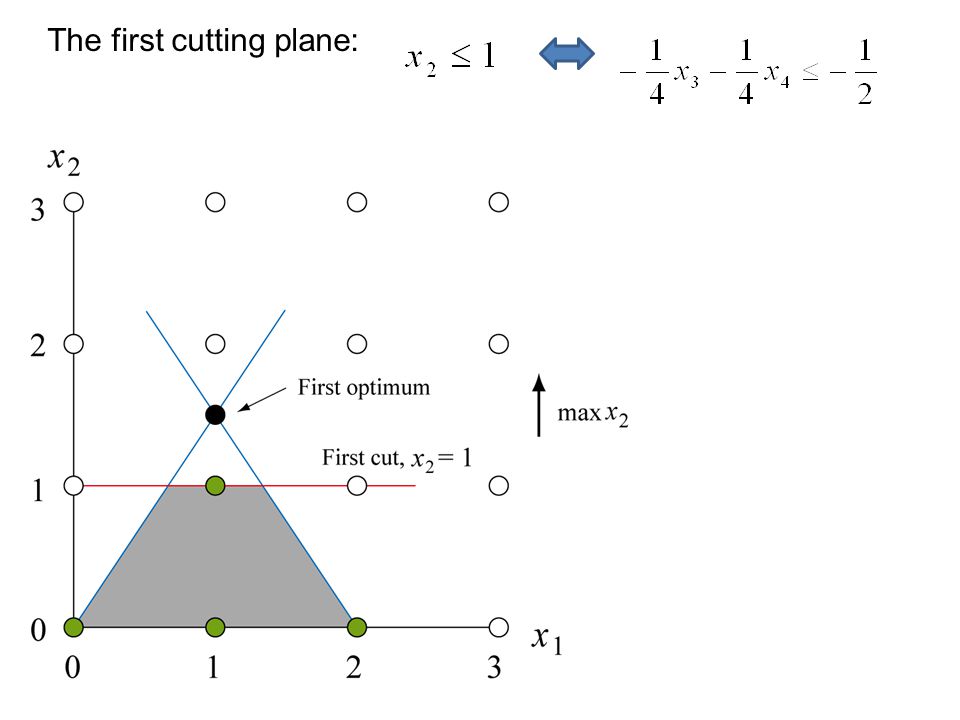

The first cutting plane:

14
A new slack variable is added:

15

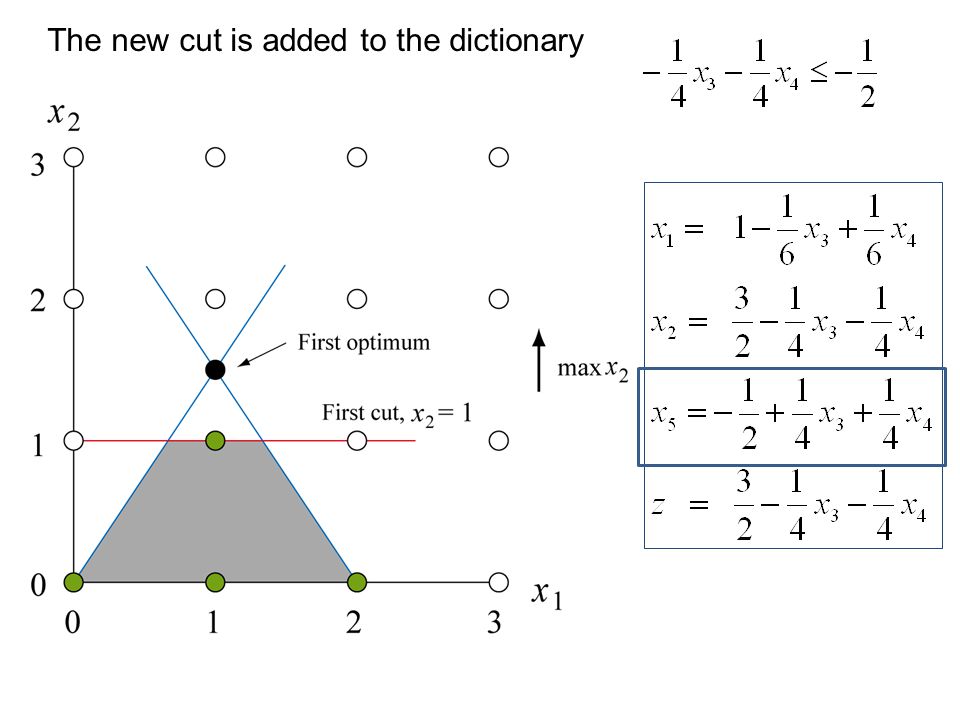

The new cut is added to the dictionary

16

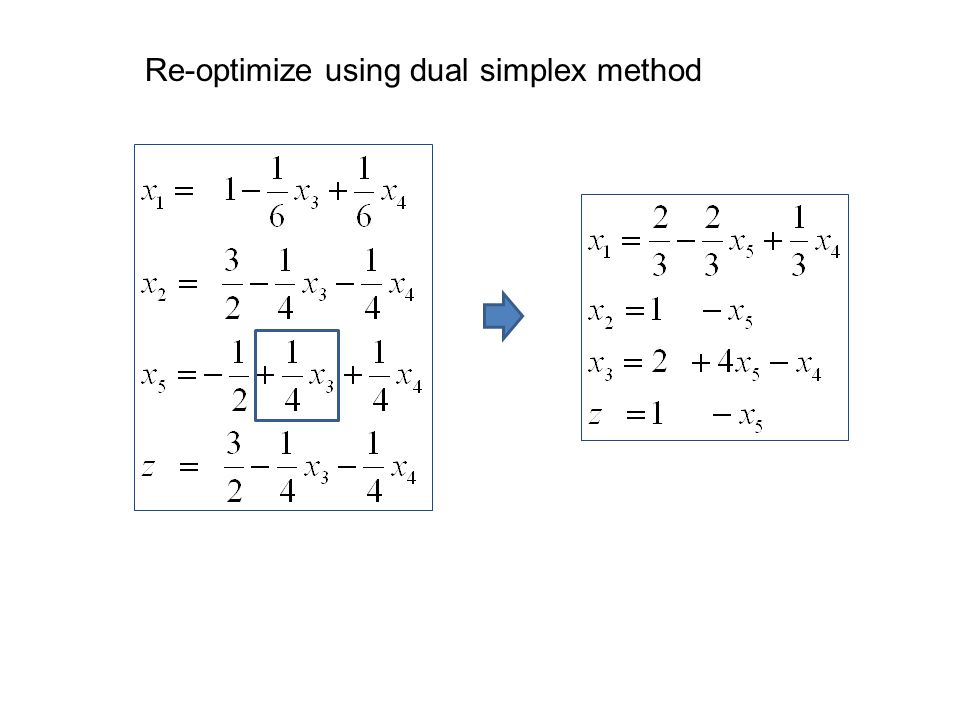

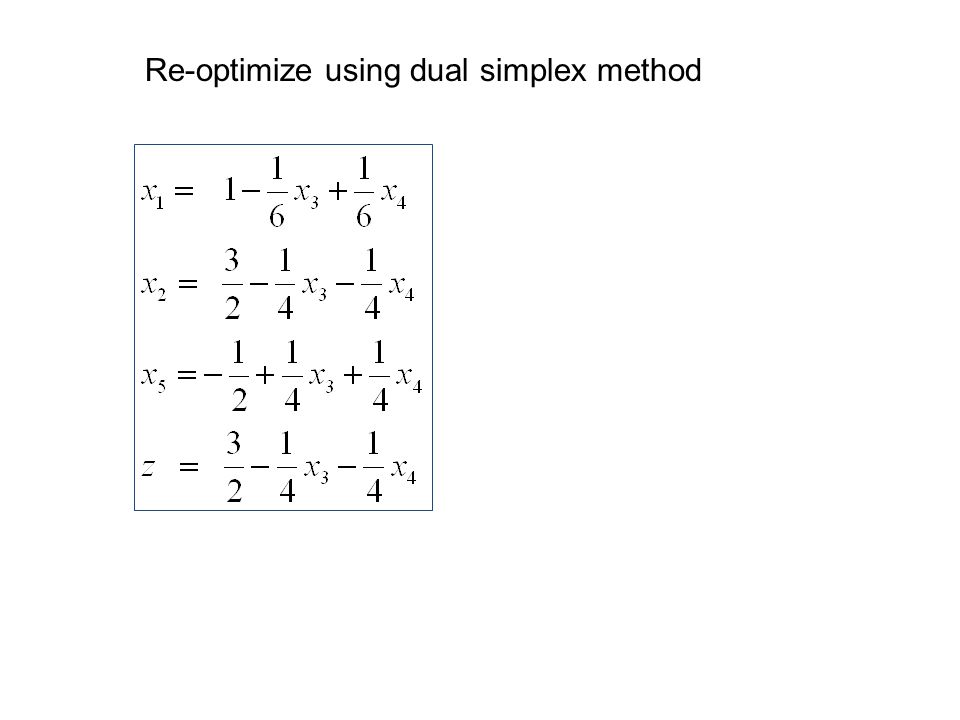

Re-optimize using dual simplex method

18

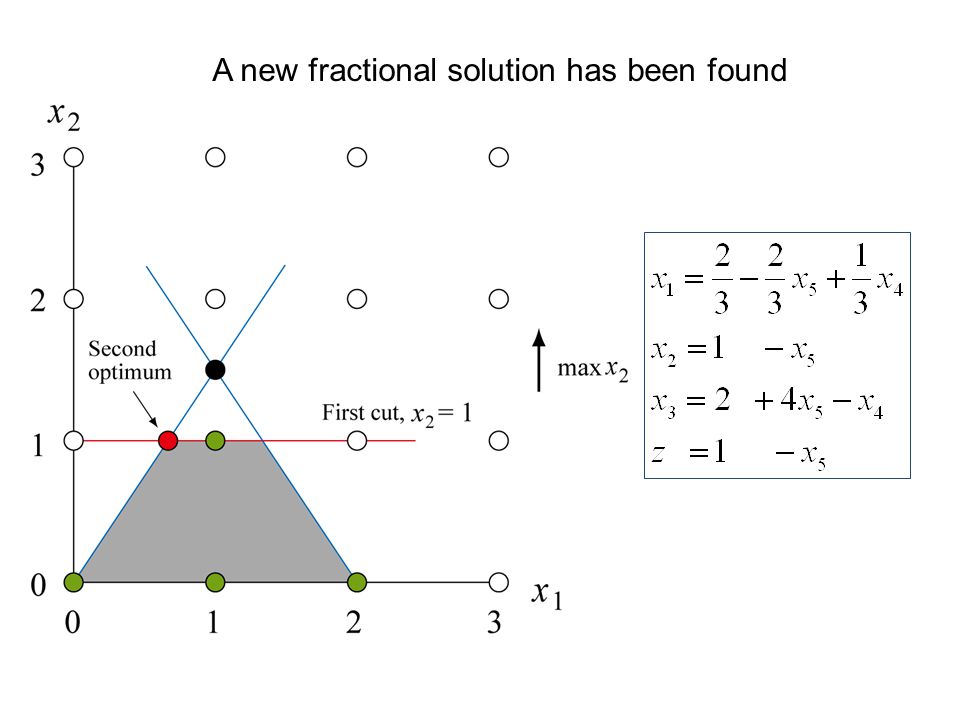

A new fractional solution has been found

19

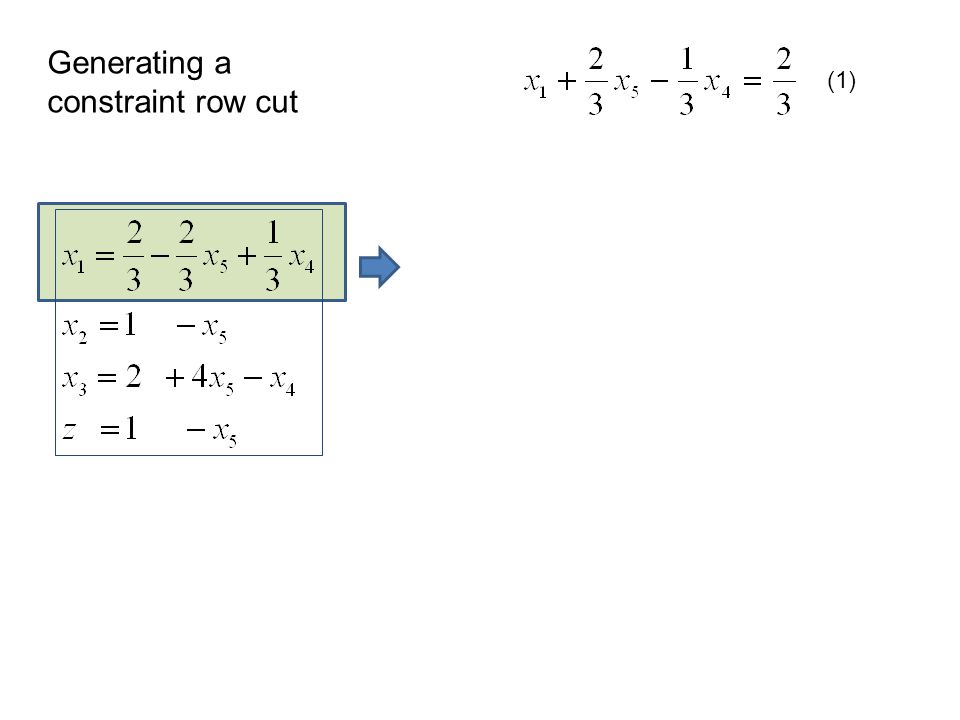

(1) Generating a constraint row cut

20

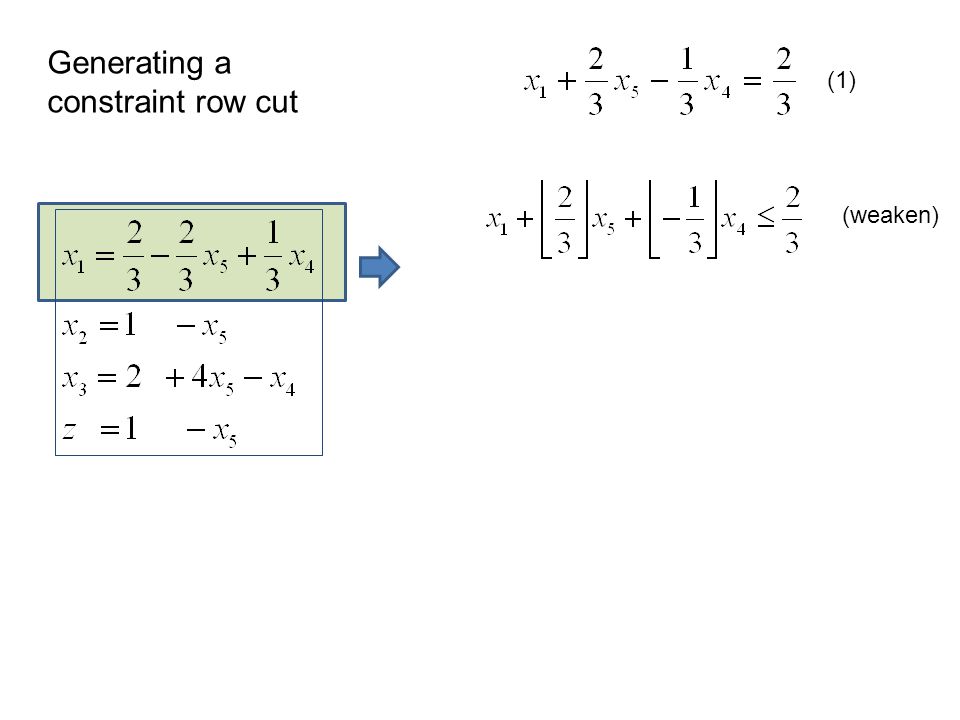

(1) (weaken) Generating a constraint row cut

21

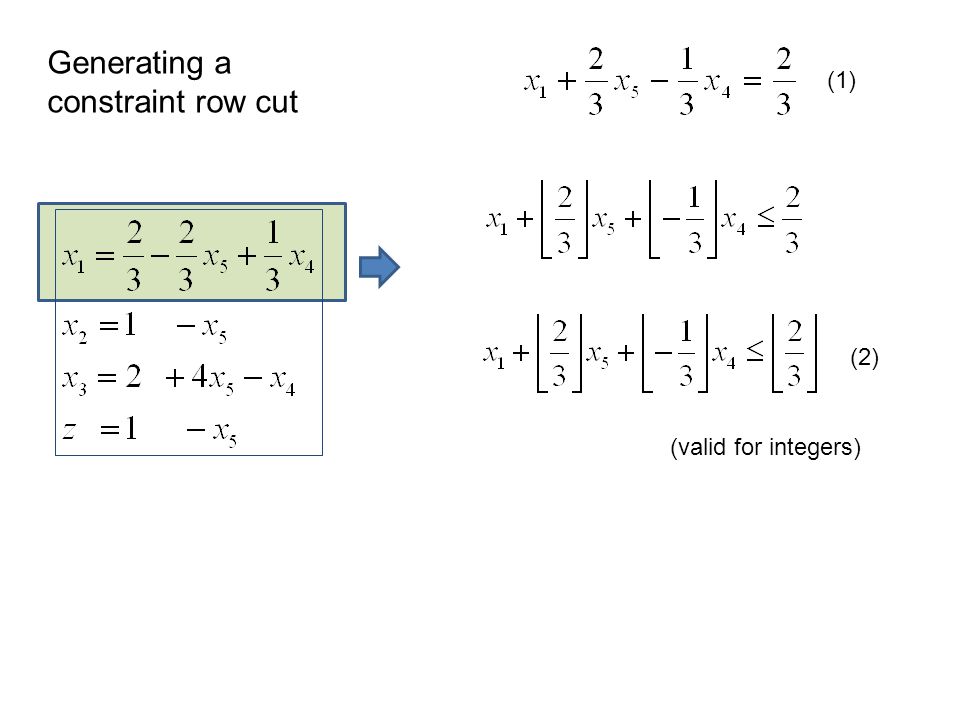

(1) (2) Generating a constraint row cut (valid for integers)

22

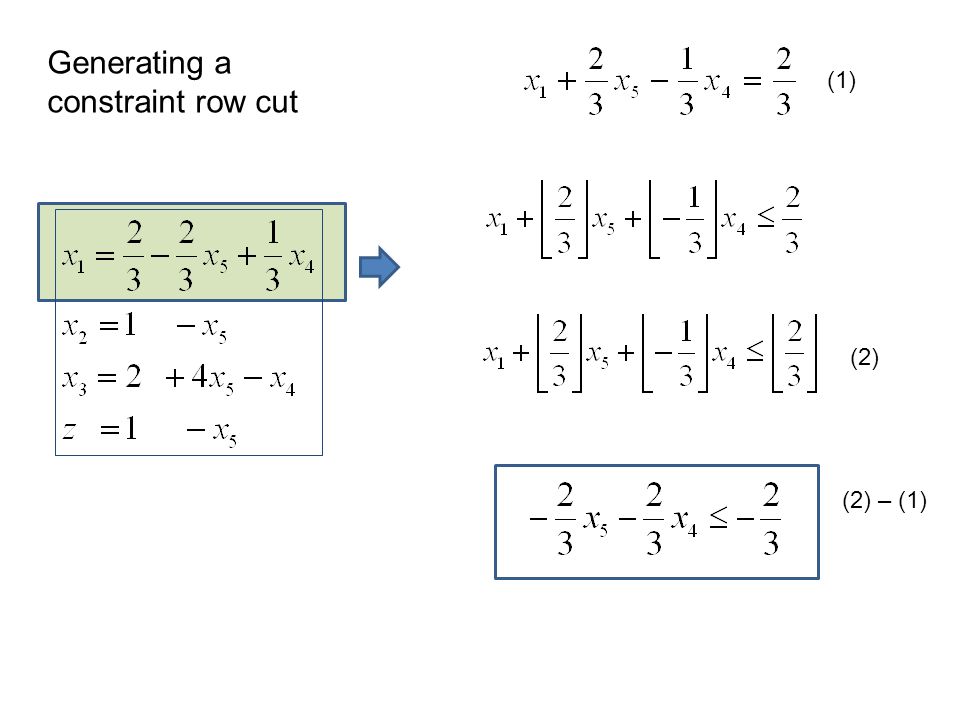

(1) (2) (2) – (1) Generating a constraint row cut

23

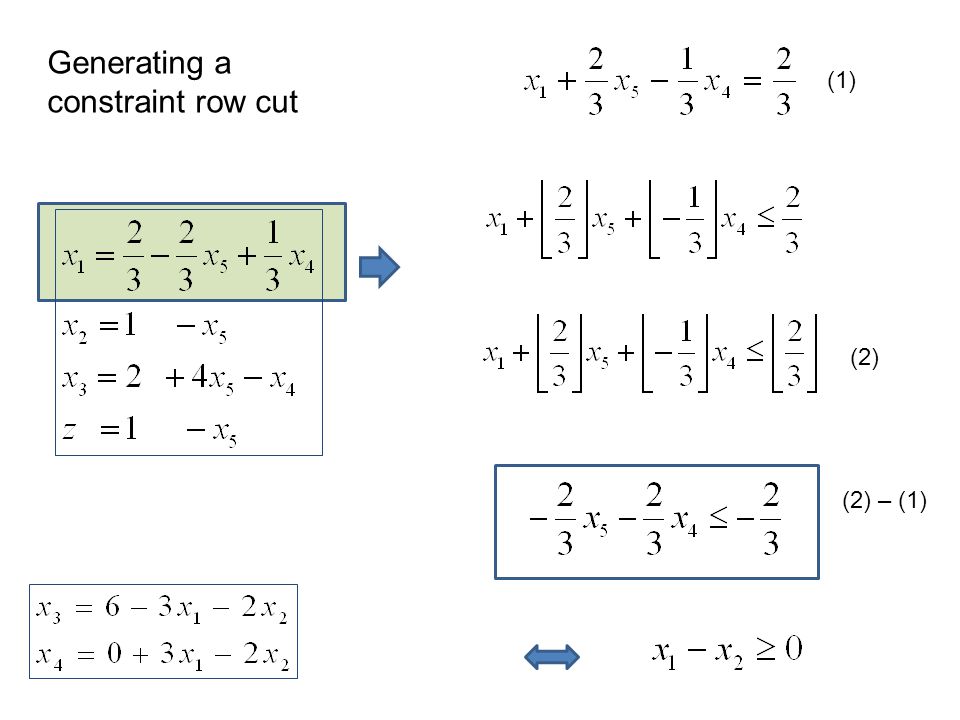

(1) (2) (2) – (1) Generating a constraint row cut

24
The second cutting plane

25
Add a new slack variable:

26

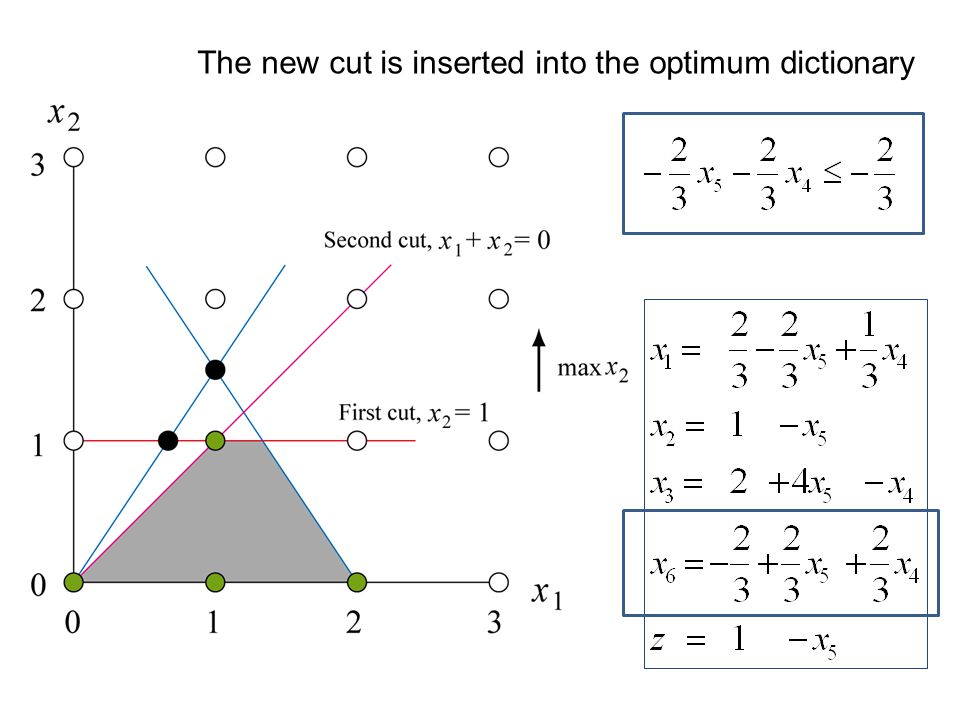

The new cut is inserted into the optimum dictionary

27
Re-optimize using dual simplex method

28

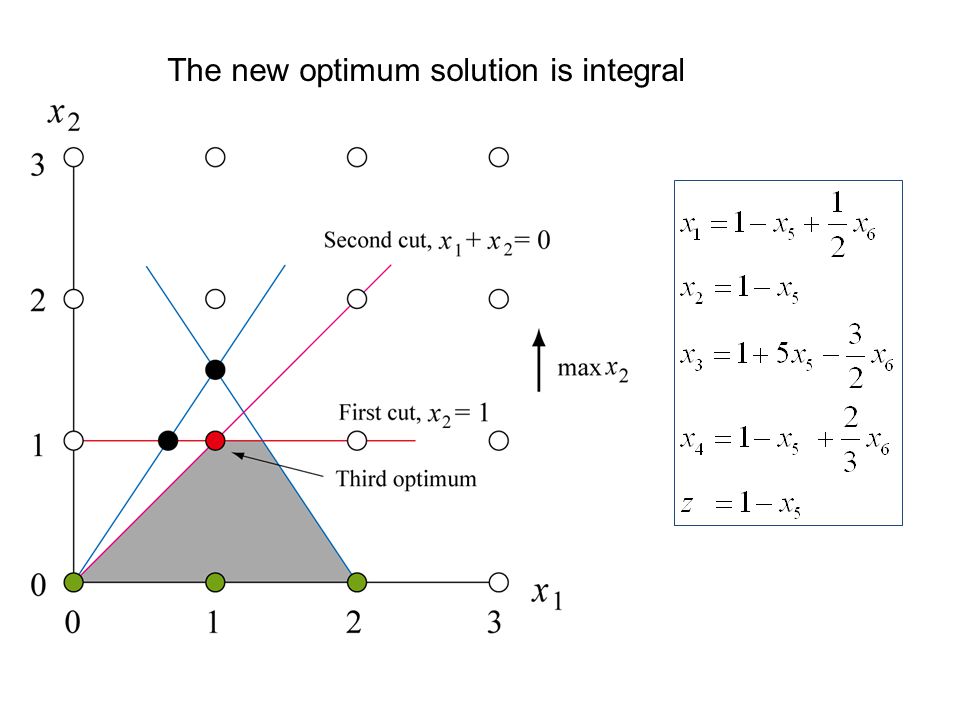

The new optimum solution is integral
