1 Models of Learning Hebbian ~ coincidence Recruitment ~ one trial Supervised ~ correction (backprop) Reinforcement ~ delayed reward Unsupervised ~ similarity

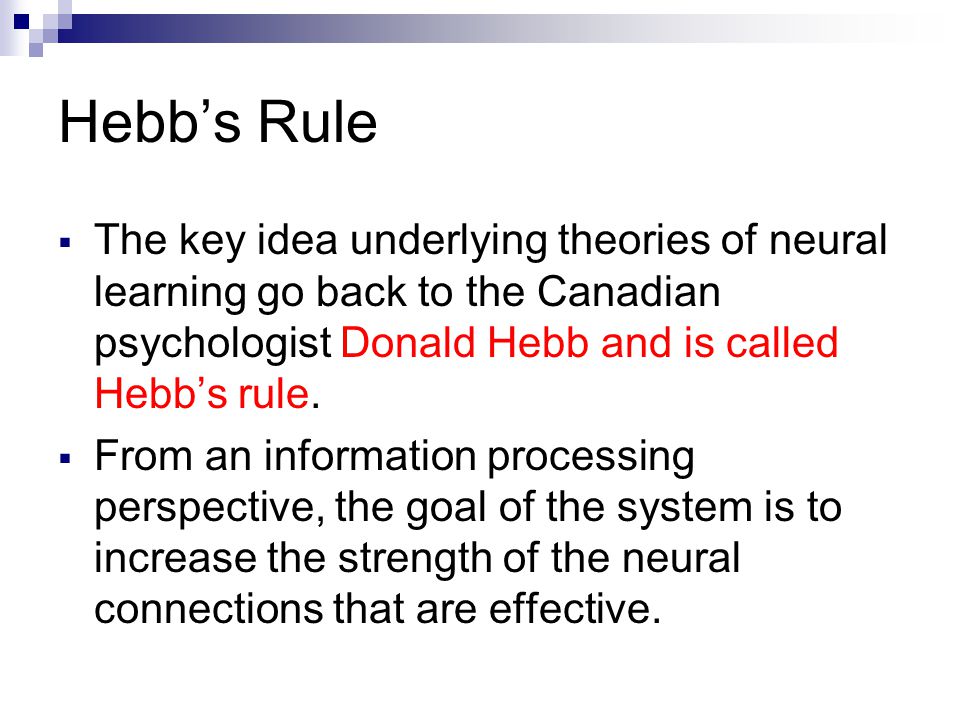

2 Hebb’s Rule  The key idea underlying theories of neural learning go back to the Canadian psychologist Donald Hebb and is called Hebb’s rule.  From an information processing perspective, the goal of the system is to increase the strength of the neural connections that are effective.

3 Hebb (1949) “When an axon of cell A is near enough to excite a cell B and repeatedly or persistently takes part in firing it, some growth process or metabolic change takes place in one or both cells such that A’s efficiency, as one of the cells firing B, is increased” From: The organization of behavior.

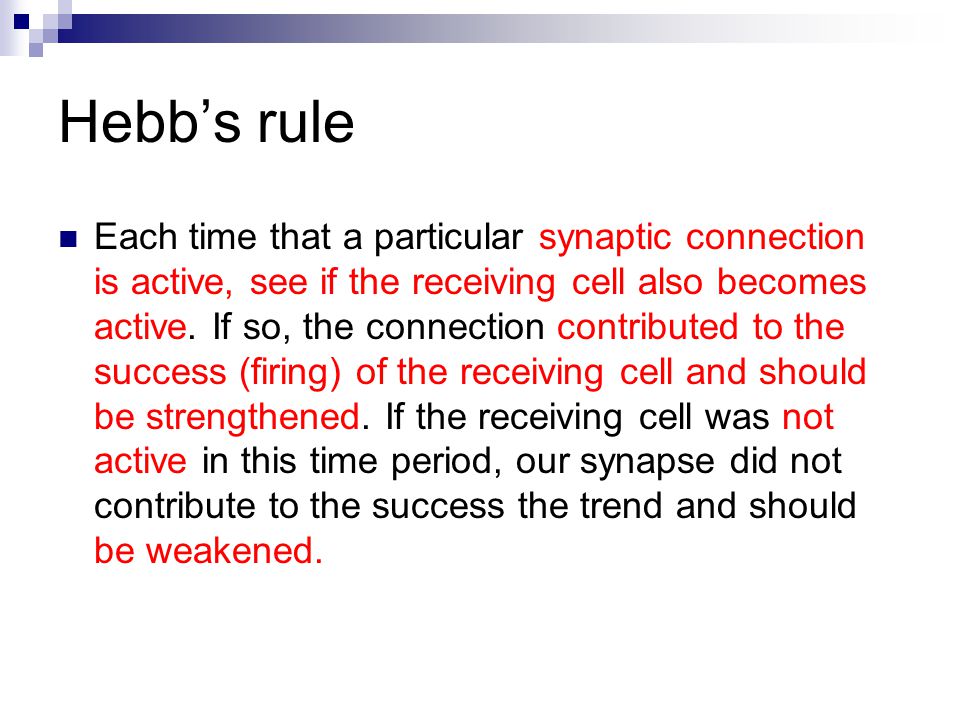

4 Hebb’s rule Each time that a particular synaptic connection is active, see if the receiving cell also becomes active. If so, the connection contributed to the success (firing) of the receiving cell and should be strengthened. If the receiving cell was not active in this time period, our synapse did not contribute to the success the trend and should be weakened.

5 Hebb’s Rule: neurons that fire together wire together Long Term Potentiation (LTP) is the biological basis of Hebb’s Rule Calcium channels are the key mechanism LTP and Hebb’s Rule strengthenweaken

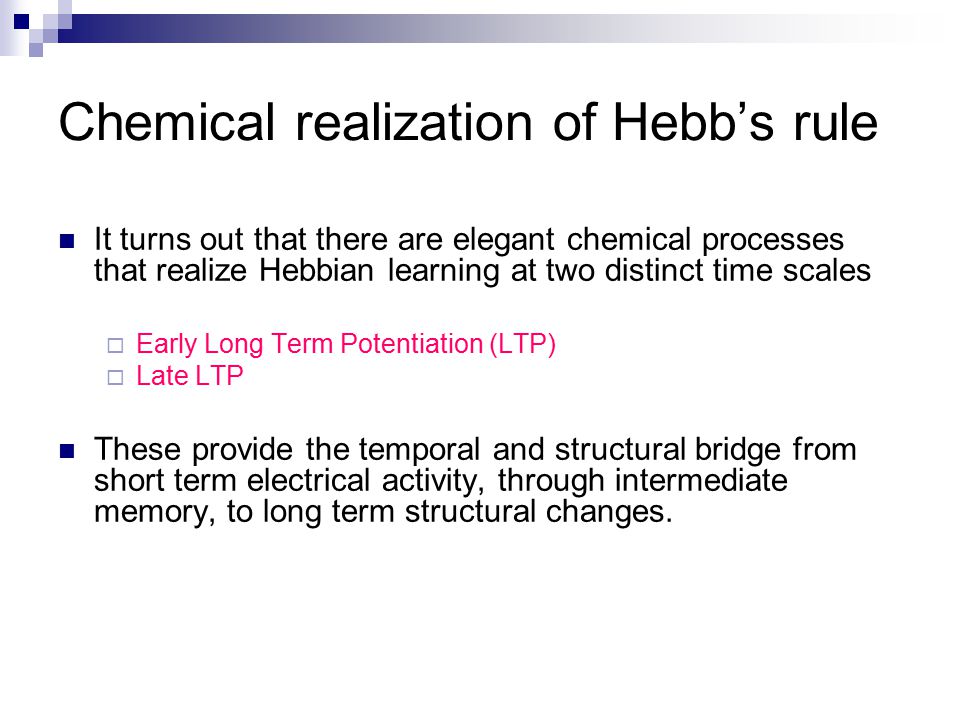

6 Chemical realization of Hebb’s rule It turns out that there are elegant chemical processes that realize Hebbian learning at two distinct time scales  Early Long Term Potentiation (LTP)  Late LTP These provide the temporal and structural bridge from short term electrical activity, through intermediate memory, to long term structural changes.

7 Calcium Channels Facilitate Learning In addition to the synaptic channels responsible for neural signaling, there are also Calcium- based channels that facilitate learning.  As Hebb suggested, when a receiving neuron fires, chemical changes take place at each synapse that was active shortly before the event.

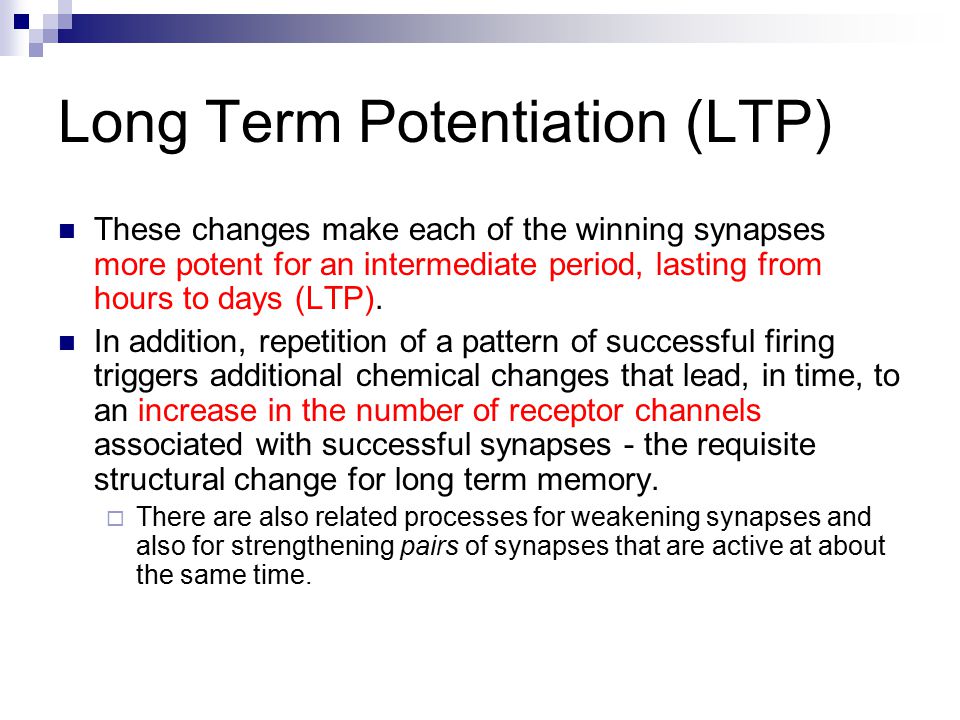

8 Long Term Potentiation (LTP) These changes make each of the winning synapses more potent for an intermediate period, lasting from hours to days (LTP). In addition, repetition of a pattern of successful firing triggers additional chemical changes that lead, in time, to an increase in the number of receptor channels associated with successful synapses - the requisite structural change for long term memory.  There are also related processes for weakening synapses and also for strengthening pairs of synapses that are active at about the same time.

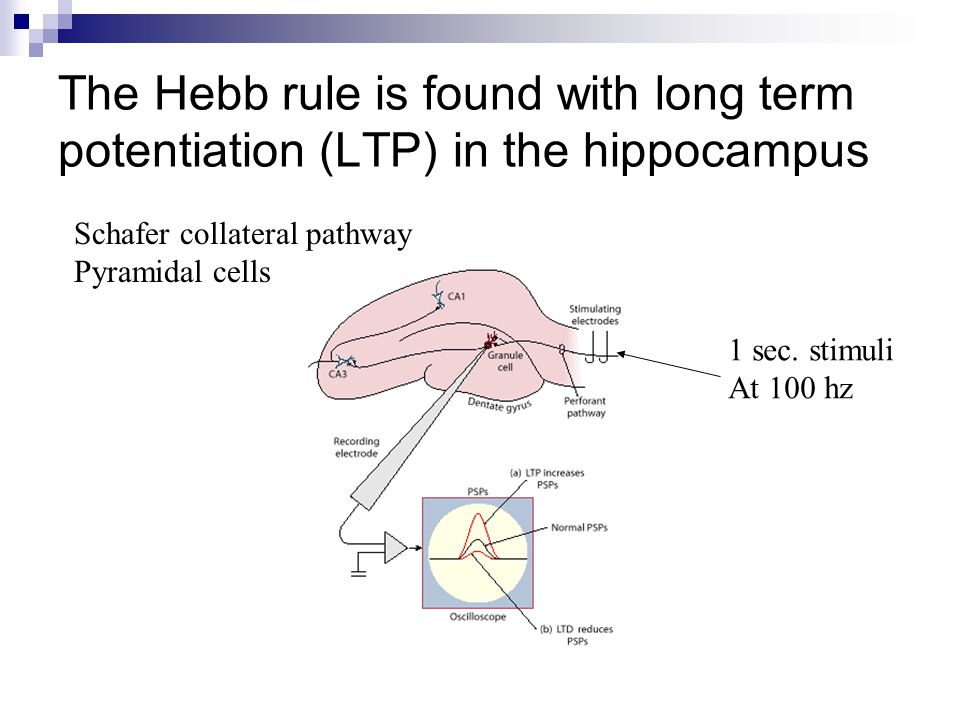

9 The Hebb rule is found with long term potentiation (LTP) in the hippocampus 1 sec. stimuli At 100 hz Schafer collateral pathway Pyramidal cells

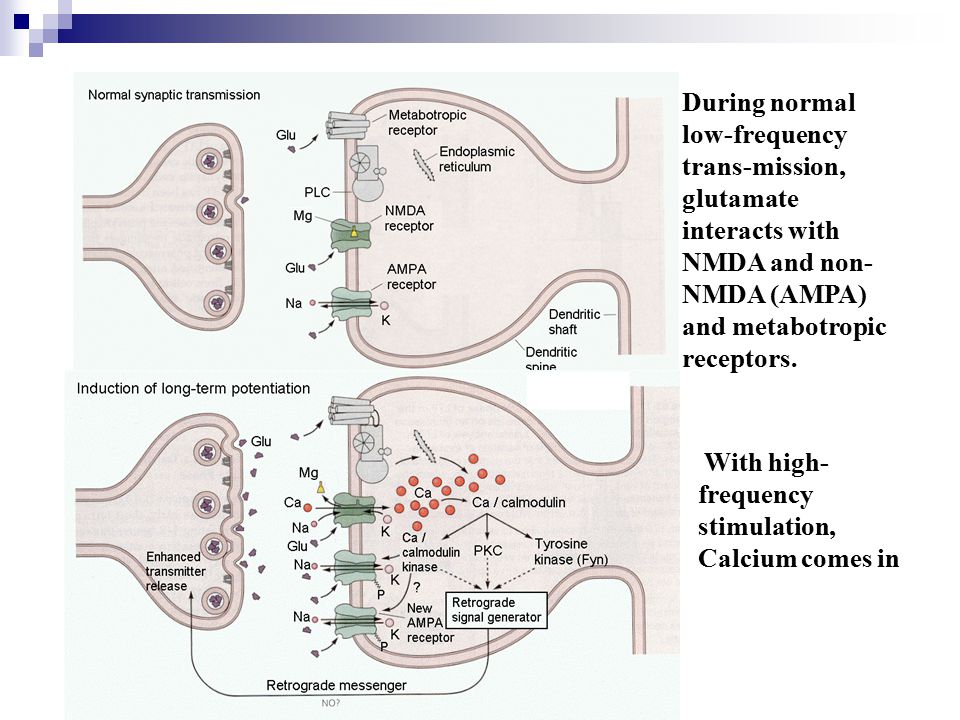

11 With high- frequency stimulation, Calcium comes in During normal low-frequency trans-mission, glutamate interacts with NMDA and non- NMDA (AMPA) and metabotropic receptors.

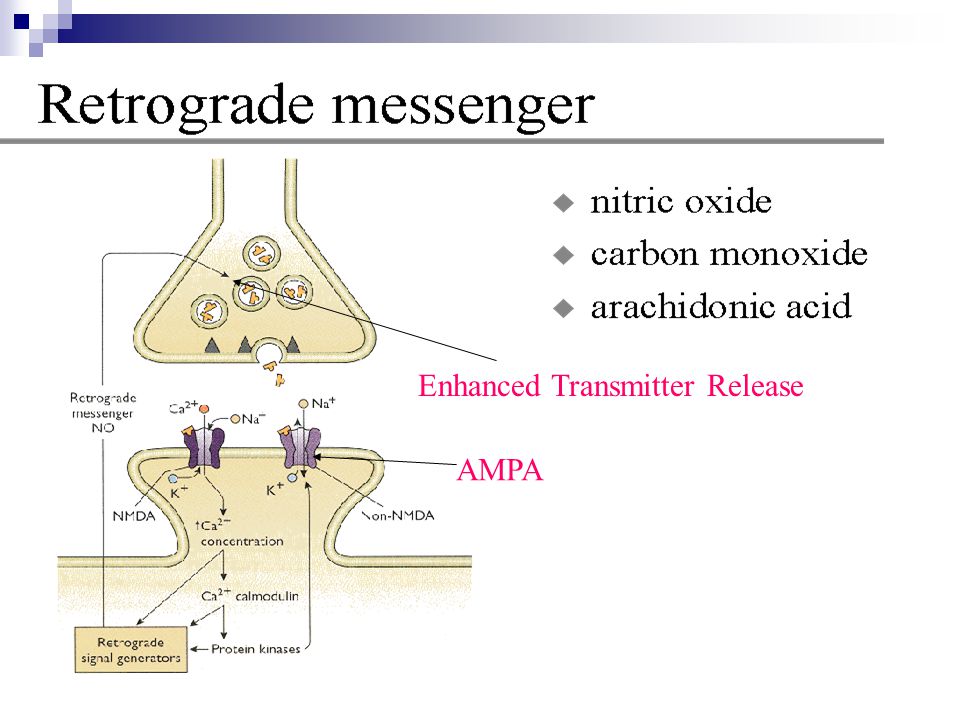

12 Enhanced Transmitter Release AMPA

13 Early and late LTP (Kandel, ER, JH Schwartz and TM Jessell (2000) Principles of Neural Science. New York: McGraw-Hill.) A.Experimental setup for demonstrating LTP in the hippocampus. The Schaffer collateral pathway is stimulated to cause a response in pyramidal cells of CA1. B.Comparison of EPSP size in early and late LTP with the early phase evoked by a single train and the late phase by 4 trains of pulses.

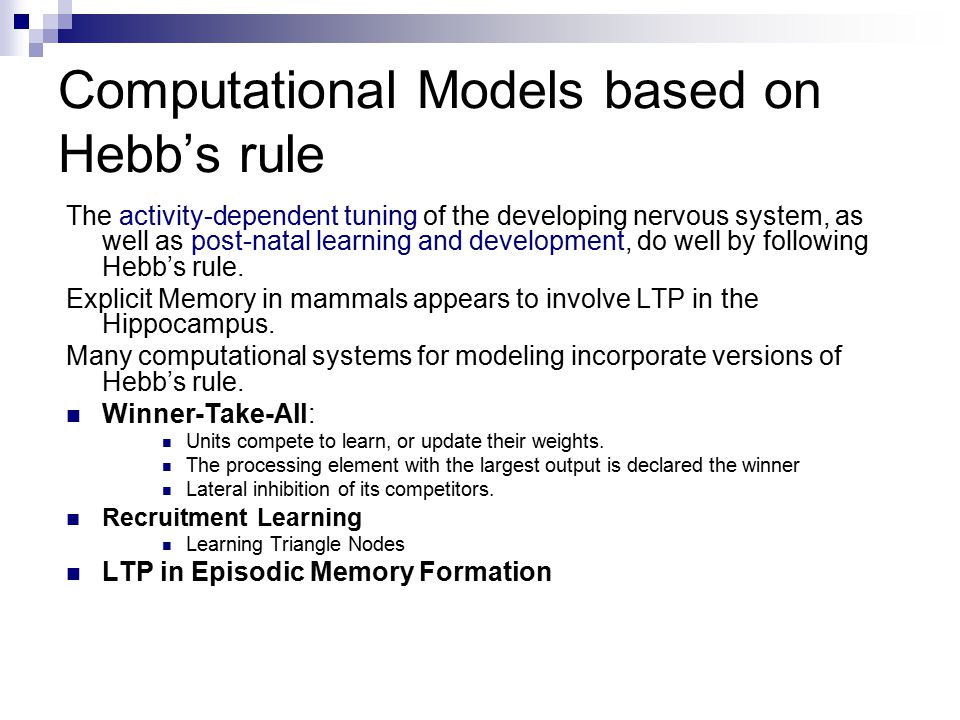

15 Computational Models based on Hebb’s rule The activity-dependent tuning of the developing nervous system, as well as post-natal learning and development, do well by following Hebb’s rule. Explicit Memory in mammals appears to involve LTP in the Hippocampus. Many computational systems for modeling incorporate versions of Hebb’s rule. Winner-Take-All: Units compete to learn, or update their weights. The processing element with the largest output is declared the winner Lateral inhibition of its competitors. Recruitment Learning Learning Triangle Nodes LTP in Episodic Memory Formation


17 Computational Models based on Hebb’s rule Many computational systems for engineering tasks incorporate versions of Hebb’s rule.  Hopfield Law : It states, "If the desired output and the input are both active, increment the connection weight by the learning rate, otherwise decrement the weight by the learning rate."  Winner-Take-All: Units compete to learn, or update their weights. The processing element with the largest output is declared the winner and has the capability of inhibiting its competitors as well as exciting its neighbours. Only the winner is permitted an output, and only the winner along with its neighbours are allowed to adjust their connection weights.  LTP in Episodic Memory Formation

18 WTA: Stimulus ‘at’ is presented ato 12

19 Competition starts at category level ato 12

20 Competition resolves ato 12

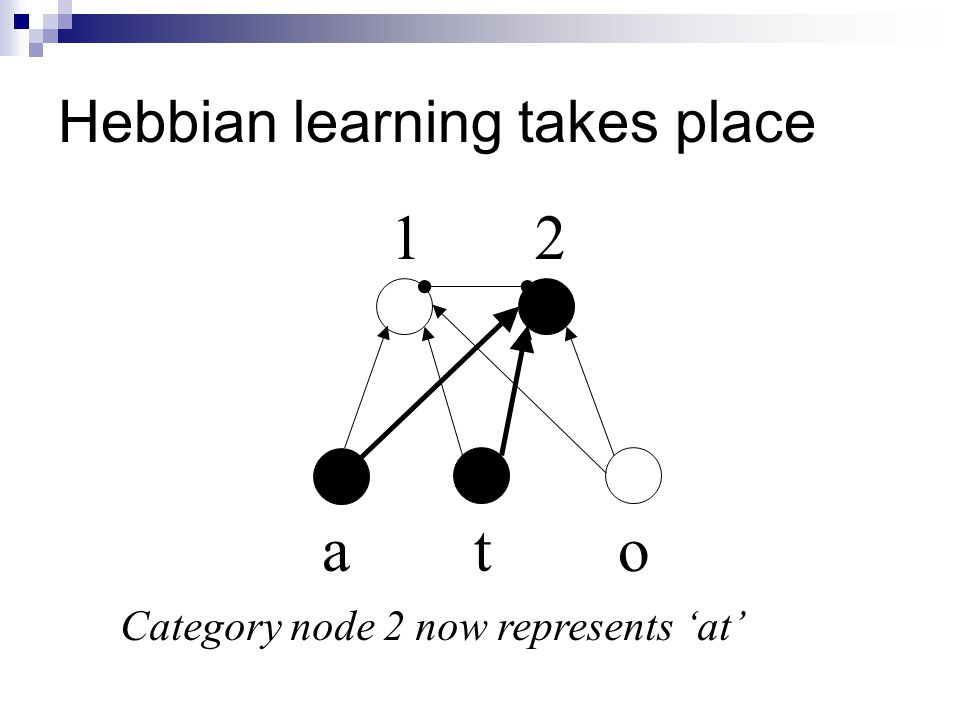

21 Hebbian learning takes place ato 12 Category node 2 now represents ‘at’

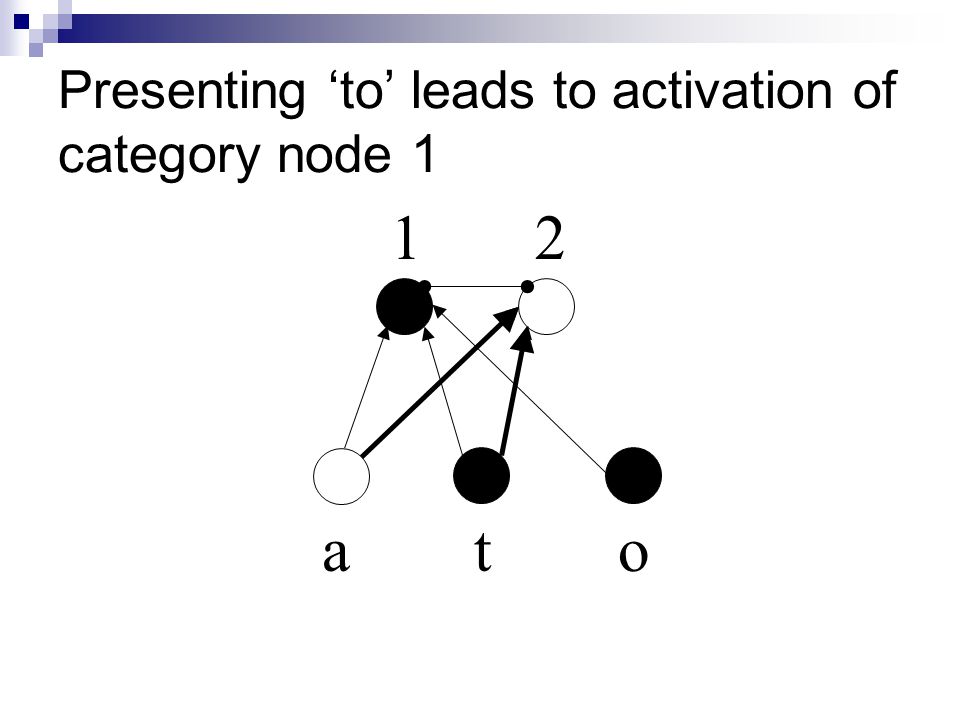

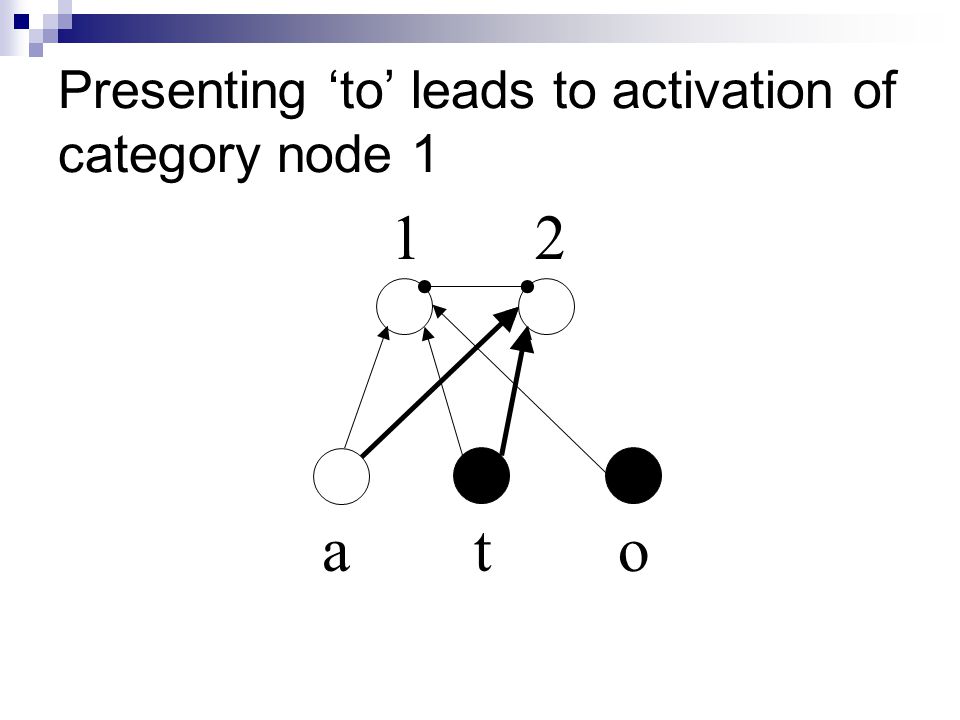

22 Presenting ‘to’ leads to activation of category node 1 ato 12

23 ato 12

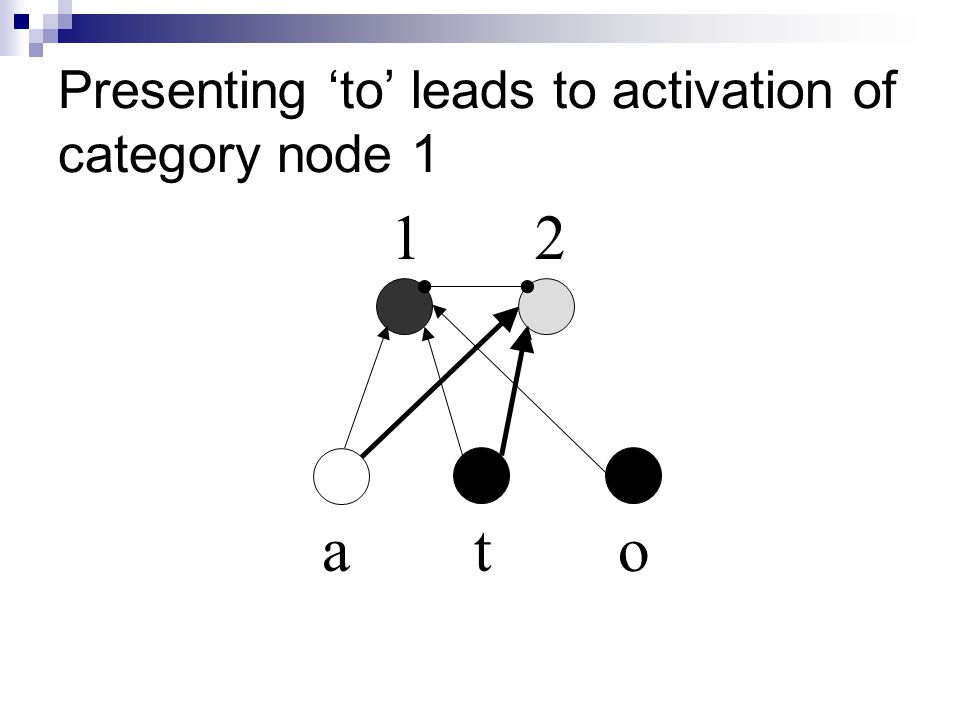

24 ato 12

25 ato 12

26 Category 1 is established through Hebbian learning as well ato 12 Category node 1 now represents ‘to’

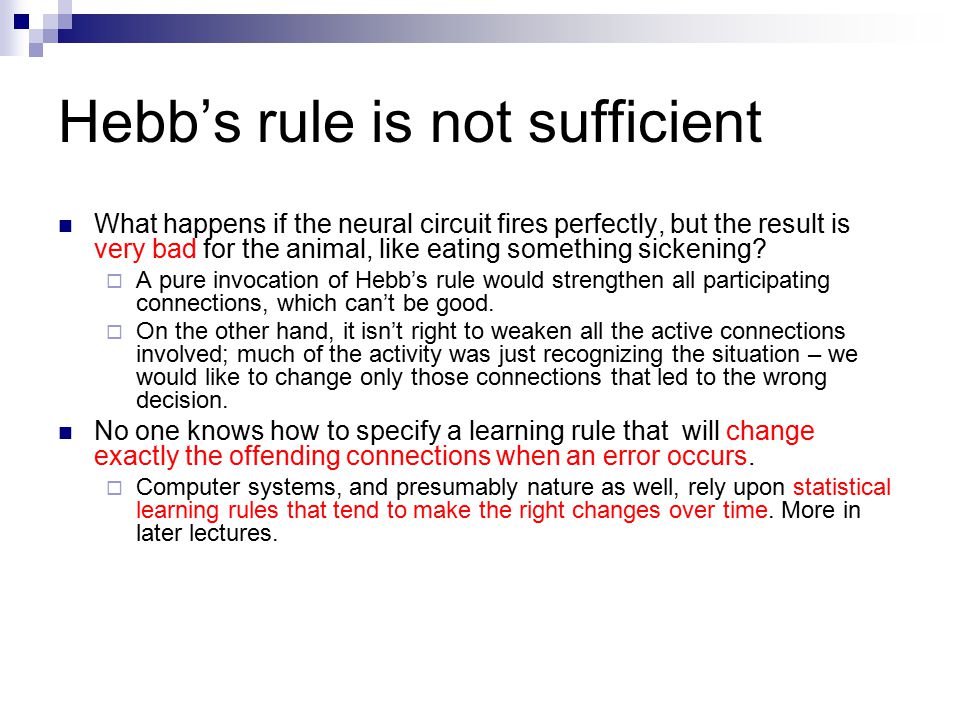

27 Hebb’s rule is not sufficient What happens if the neural circuit fires perfectly, but the result is very bad for the animal, like eating something sickening?  A pure invocation of Hebb’s rule would strengthen all participating connections, which can’t be good.  On the other hand, it isn’t right to weaken all the active connections involved; much of the activity was just recognizing the situation – we would like to change only those connections that led to the wrong decision. No one knows how to specify a learning rule that will change exactly the offending connections when an error occurs.  Computer systems, and presumably nature as well, rely upon statistical learning rules that tend to make the right changes over time. More in later lectures.

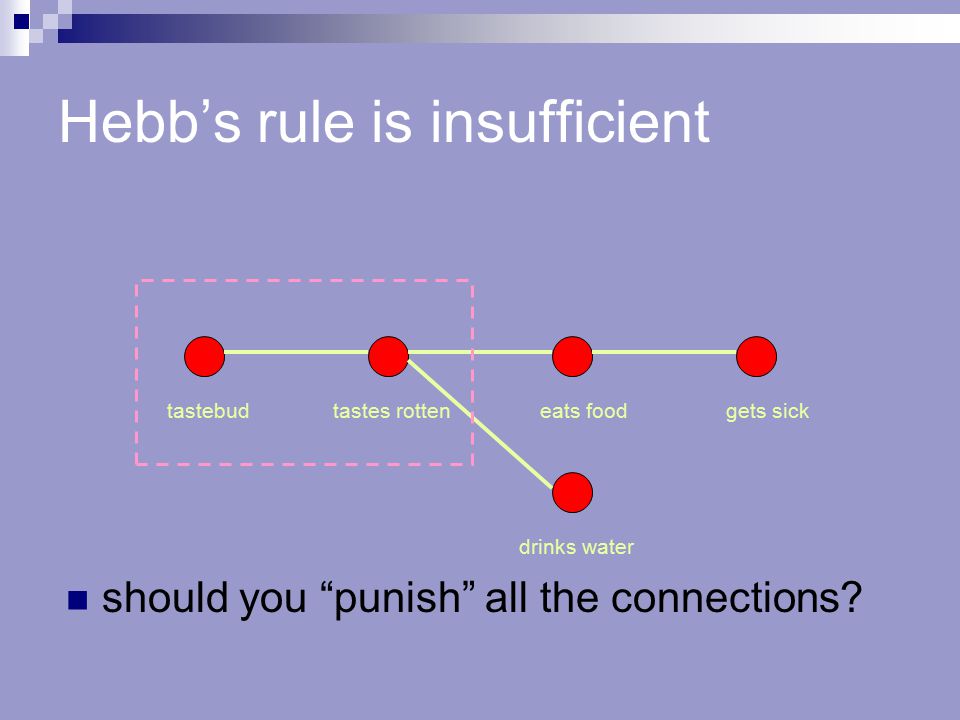

28 Hebb’s rule is insufficient should you “punish” all the connections? tastebudtastes rotteneats foodgets sick drinks water

29 Models of Learning Hebbian ~ coincidence Recruitment ~ one trial Supervised ~ correction (backprop) Reinforcement ~ delayed reward Unsupervised ~ similarity

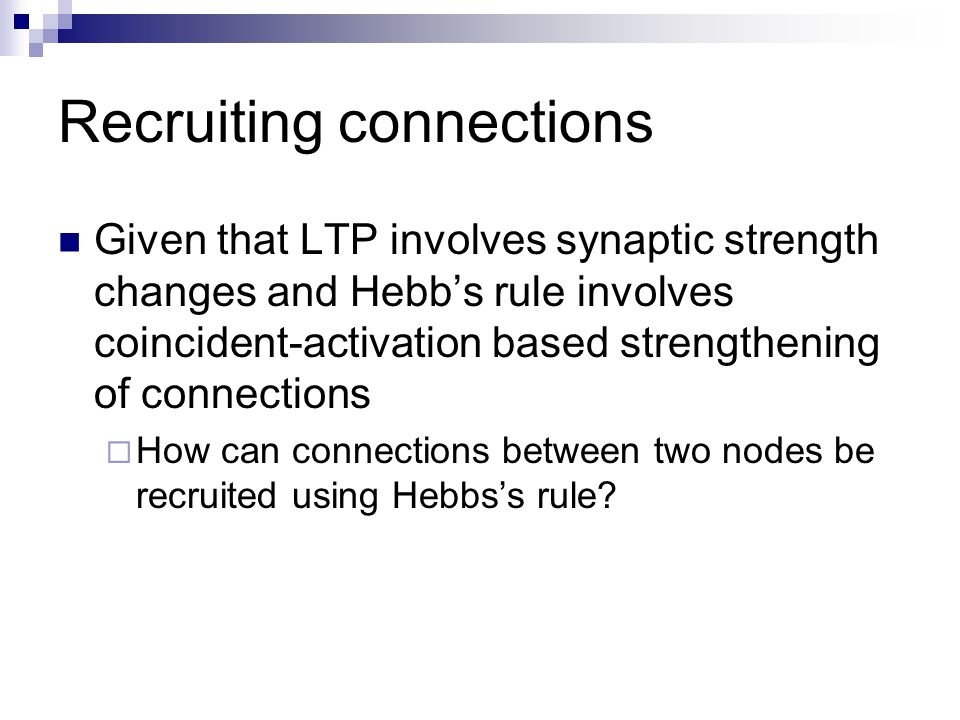

30 Recruiting connections Given that LTP involves synaptic strength changes and Hebb’s rule involves coincident-activation based strengthening of connections  How can connections between two nodes be recruited using Hebbs’s rule?

31 The Idea of Recruitment Learning Suppose we want to link up node X to node Y The idea is to pick the two nodes in the middle to link them up Can we be sure that we can find a path to get from X to Y? the point is, with a fan-out of 1000, if we allow 2 intermediate layers, we can almost always find a path X Y BNK F = B/N

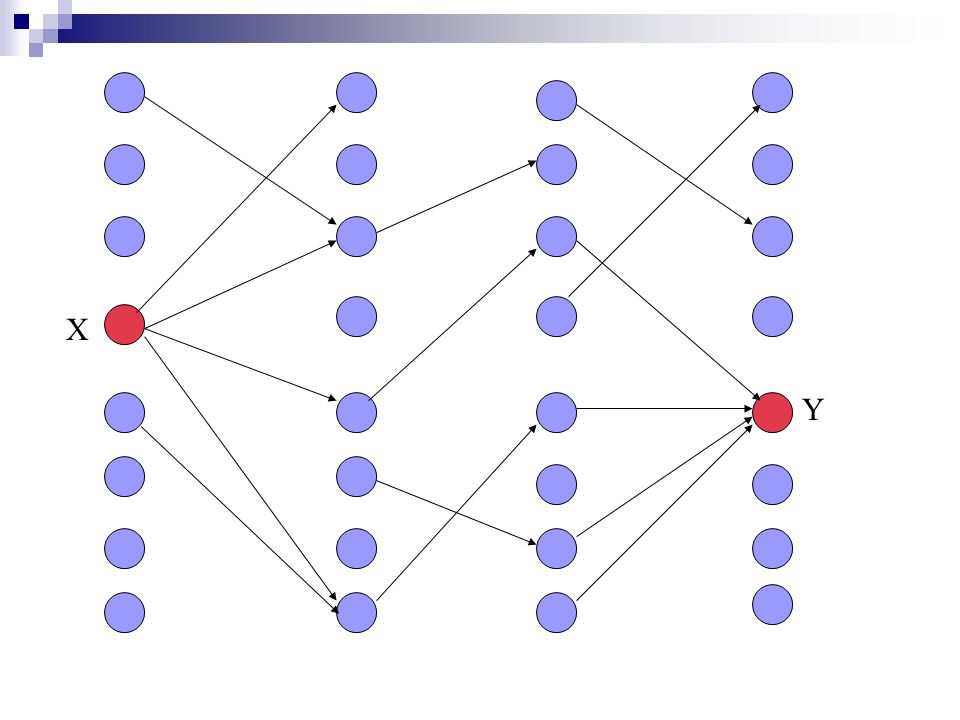

32 X Y

33 X Y

34 Finding a Connection P = Probability of NO link between X and Y N = Number of units in a “layer” B = Number of randomly outgoing units per unit F = B/N, the branching factor K = Number of Intermediate layers, 2 in the example 0.999.9999.99999 1.367.905.989 210 -440 10 -44 10 -5 N= K= # Paths = (1-P k-1 )*(N/F) = (1-P k-1 )*B P = (1-F) **B**K 10 6 10 7 10 8

35 Finding a Connection in Random Networks For Networks with N nodes and branching factor, there is a high probability of finding good links. (Valiant 1995)

36 Recruiting a Connection in Random Networks Informal Algorithm 1.Activate the two nodes to be linked 2. Have nodes with double activation strengthen their active synapses (Hebb) 3.There is evidence for a “now print” signal based on LTP (episodic memory)


38 Triangle nodes and feature structures BC A ABC

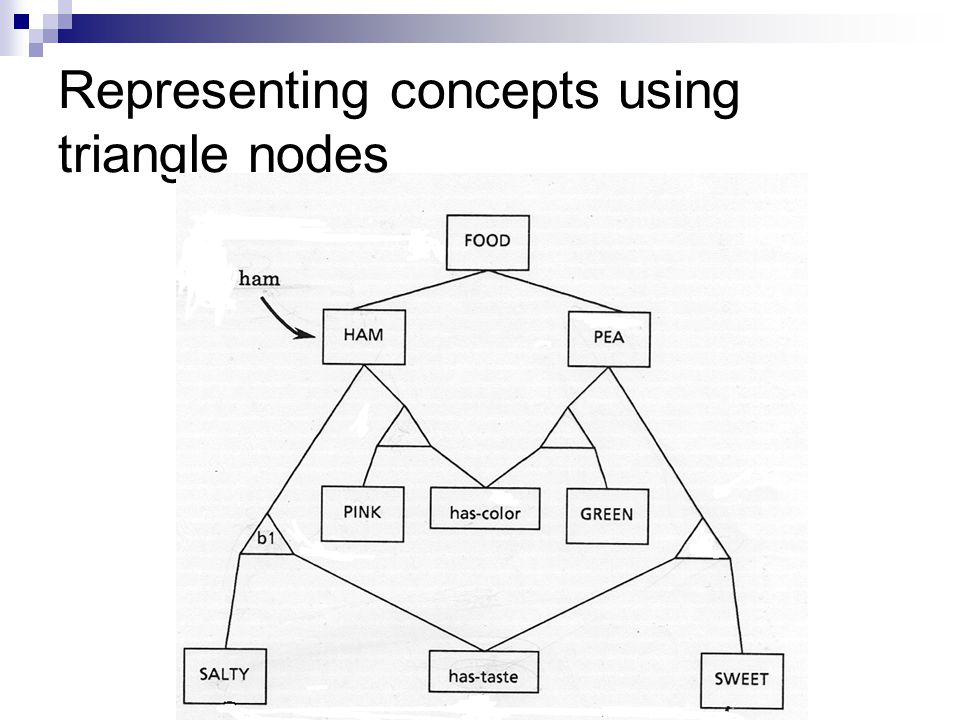

39 Representing concepts using triangle nodes

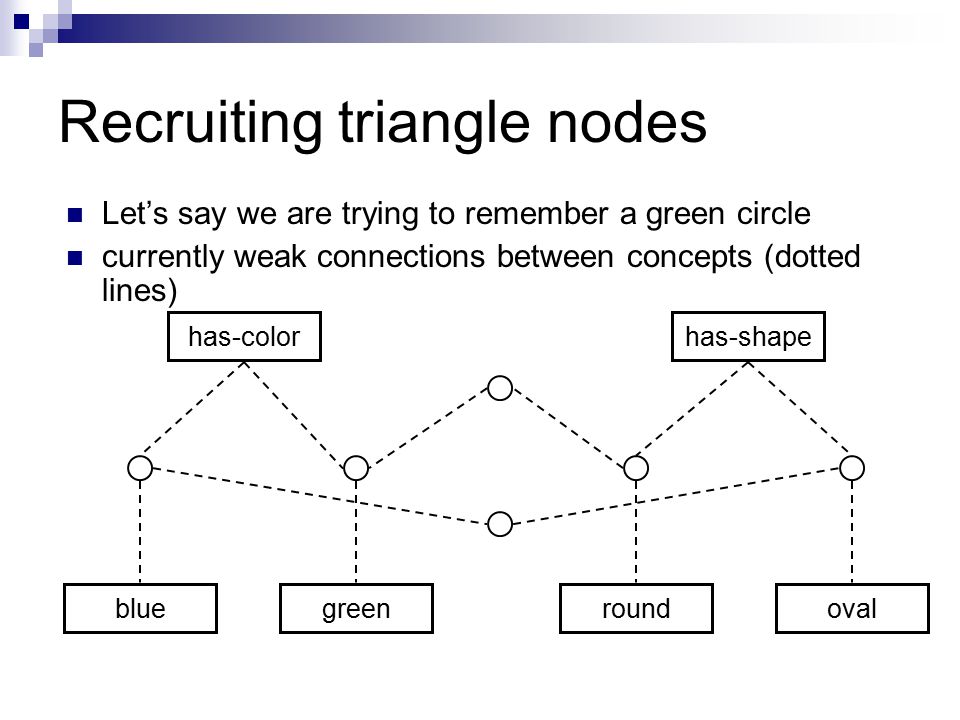

40 Recruiting triangle nodes Let’s say we are trying to remember a green circle currently weak connections between concepts (dotted lines) has-color bluegreenroundoval has-shape

41 Strengthen these connections and you end up with this picture has-color bluegreenroundoval has-shape Green circle


43 Has-color Green Has-shape Round

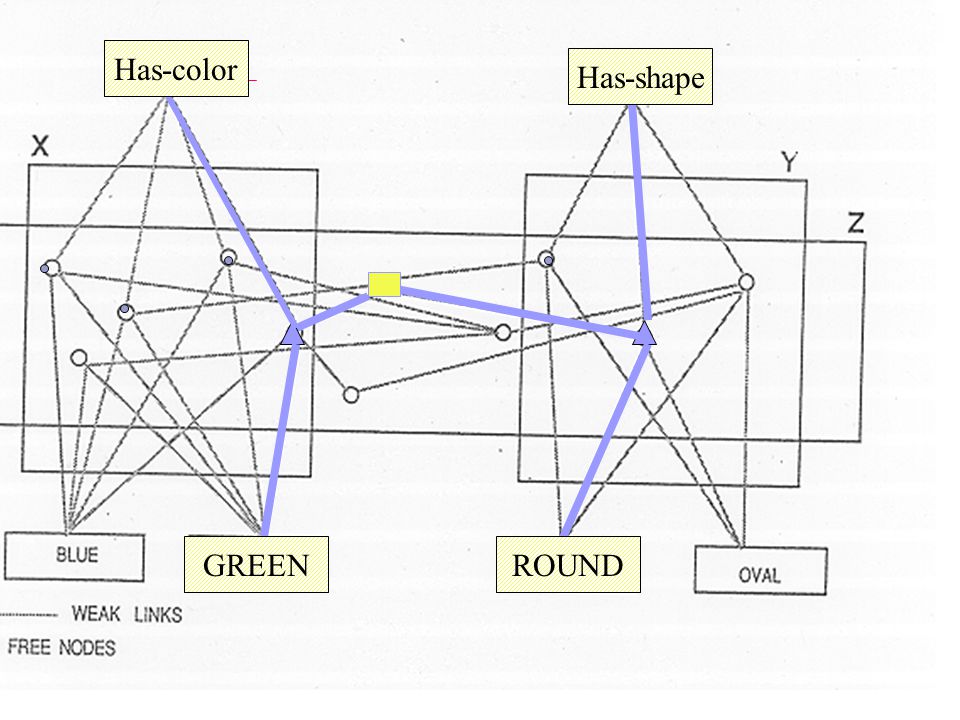

44 Has-color Has-shape GREENROUND

45 Back Propagation Jerome Feldman CS182/CogSci110/Ling109 Spring 2007

46 The Abstract Neuron y j : output from unit j W ij : weight on connection from j to i x i : weighted sum of input to unit i xixi f yjyj w ij yiyi x i = ∑ j w ij y j y i = f(x i ) t i : target

47 Types of Activation functions

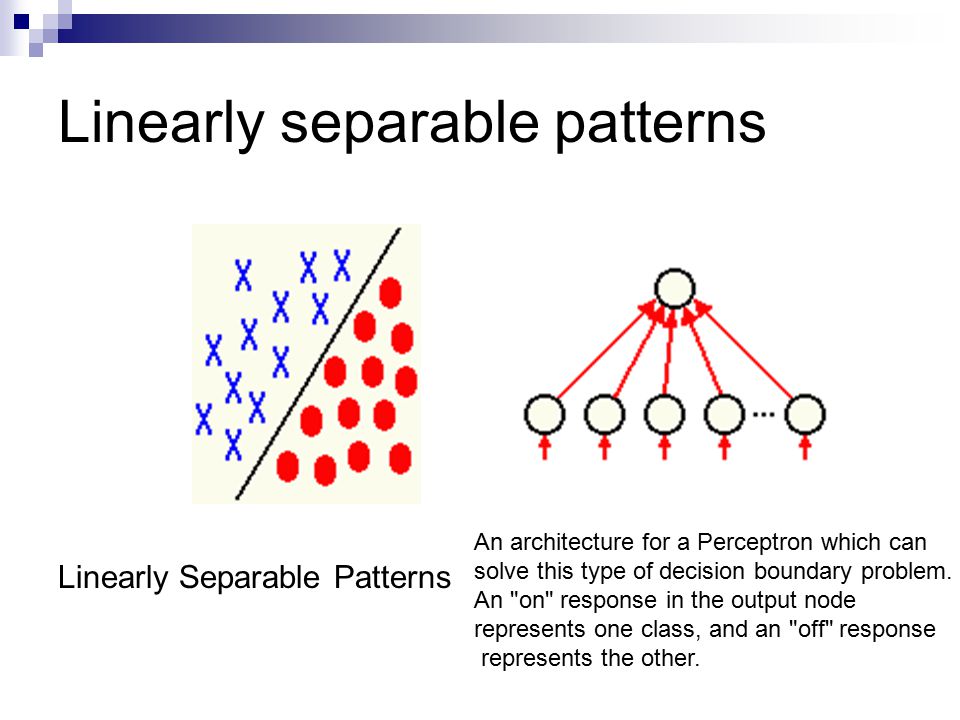

48 Linearly separable patterns Linearly Separable Patterns An architecture for a Perceptron which can solve this type of decision boundary problem. An "on" response in the output node represents one class, and an "off" response represents the other.

49 Multi-layer Feed-forward Network

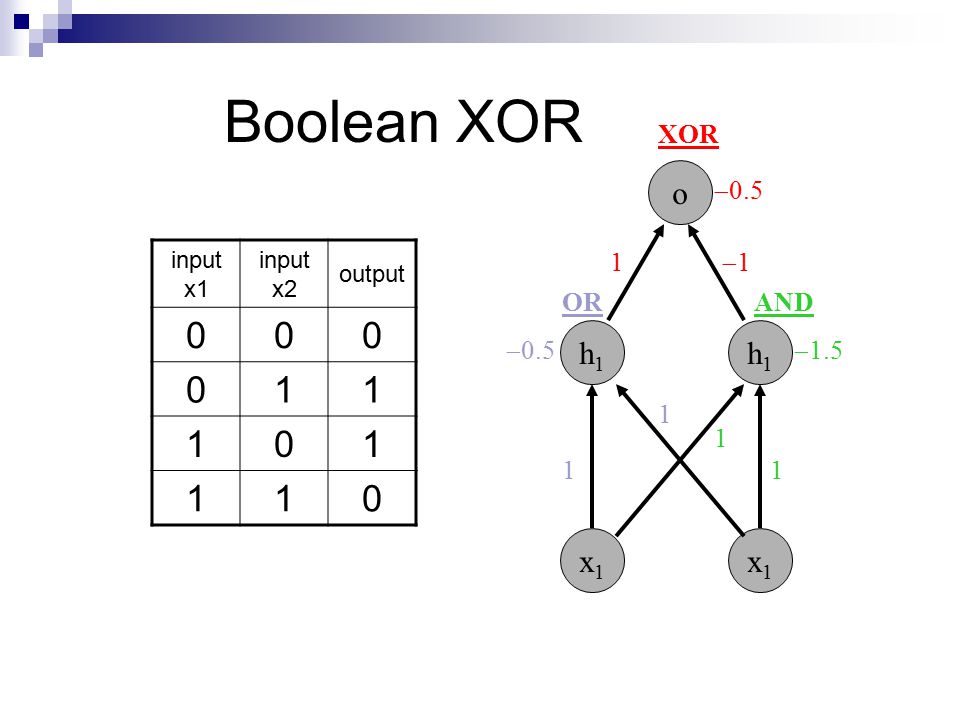

50 Boolean XOR input x1 input x2 output 000 011 101 110 h1h1 x1x1 o x1x1 h1h1 1  1.5 AND 1 1  0.5 OR 1 1  0.5 XOR 11

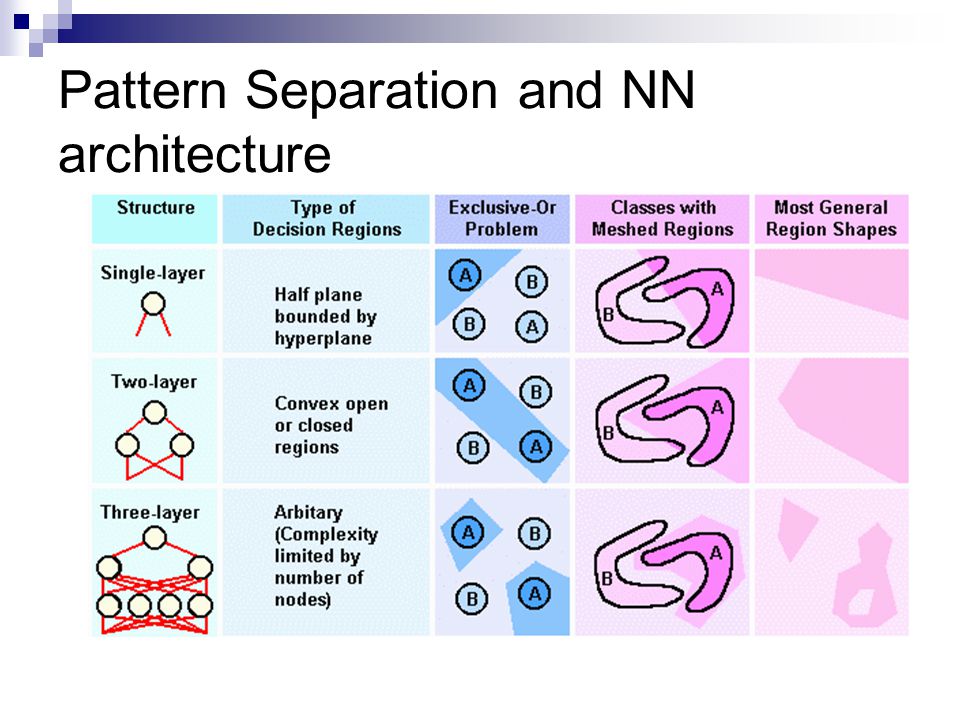

51 Pattern Separation and NN architecture

52 Supervised Learning - Backprop How do we train the weights of the network  Basic Concepts Use a continuous, differentiable activation function (Sigmoid) Use the idea of gradient descent on the error surface Extend to multiple layers

53 Backpropagation Algorithm “activations” “errors”

54 Backprop To learn on data which is not linearly separable:  Build multiple layer networks (hidden layer)  Use a sigmoid squashing function instead of a step function.

55 Tasks Unconstrained pattern classification Credit assessment Digit Classification Function approximation Learning control Stock prediction

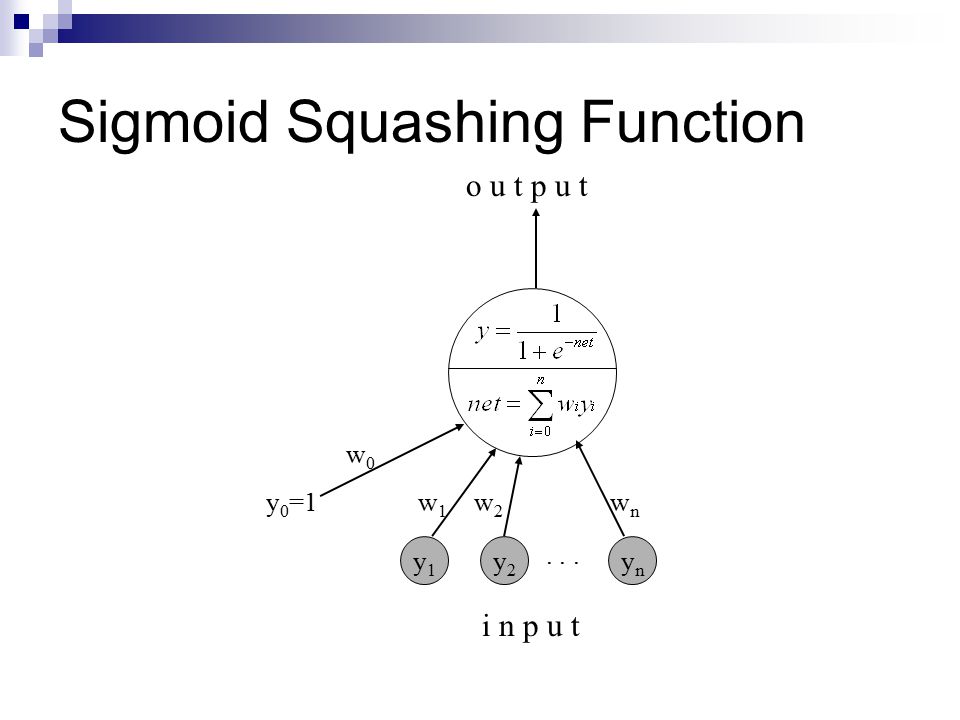

56 Sigmoid Squashing Function w2w2 wnwn w1w1 w0w0 y 0 =1 o u t p u t y2y2 ynyn y1y1... i n p u t

57 The Sigmoid Function x=neti y=a

58 Nice Property of Sigmoids

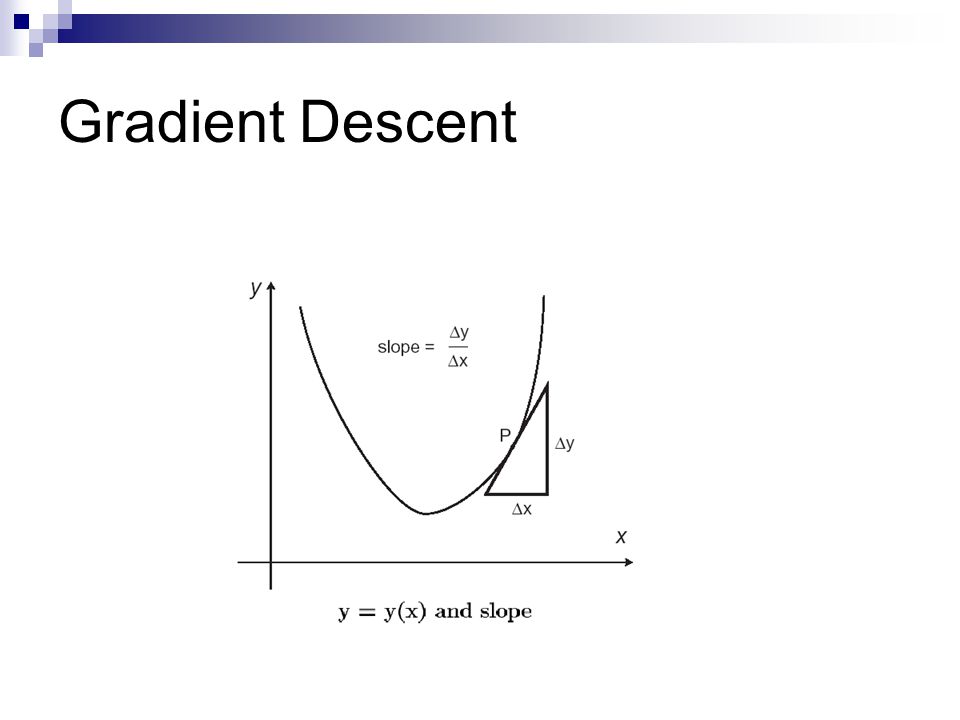

59 Gradient Descent

60 Gradient Descent on an error

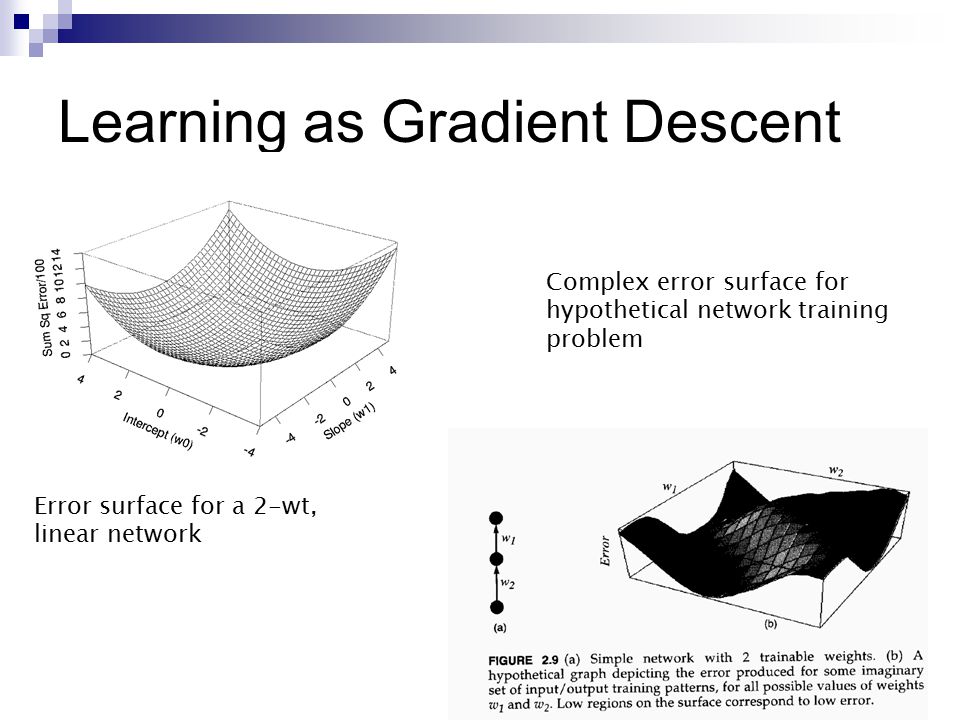

61 Learning as Gradient Descent Error surface for a 2-wt, linear network Complex error surface for hypothetical network training problem

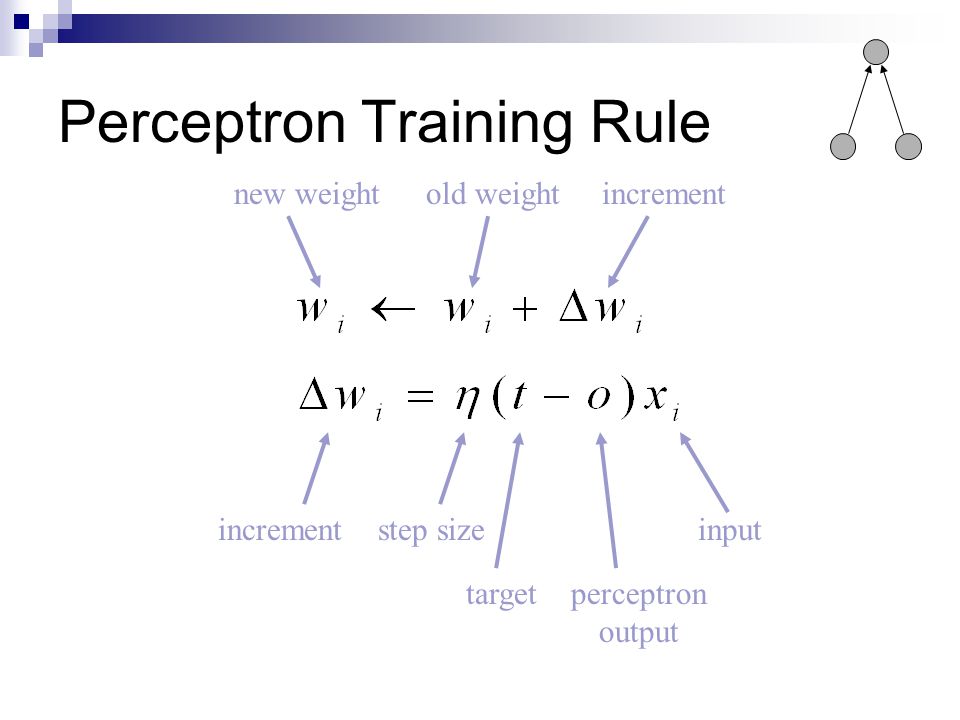

62 Perceptron Training Rule step size perceptron output input target increment new weightincrementold weight

63 Converges, if… … step size  sufficiently small … training data linearly separable 

64 Learning Rule – Gradient Descent on an Root Mean Square (RMS) Learn w i ’s that minimize squared error O = output layer

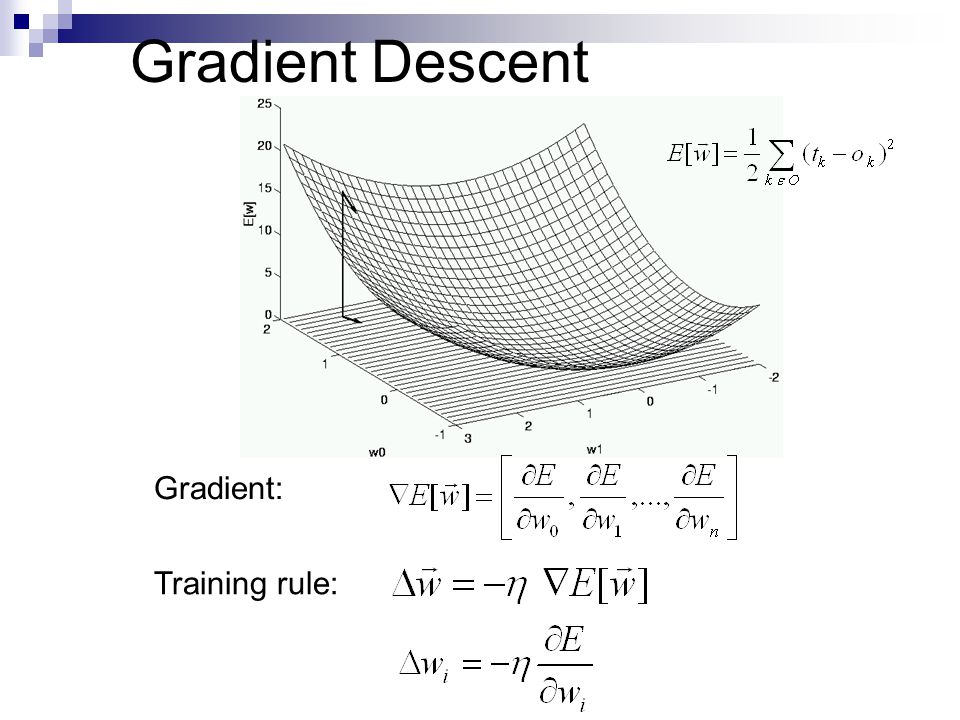

66 Gradient Descent Gradient: Training rule:

67 Gradient Descent i2i2 i1i1 global mimimum: this is your goal it should be 4-D (3 weights) but you get the idea

68 Backpropagation Algorithm Generalization to multiple layers and multiple output units

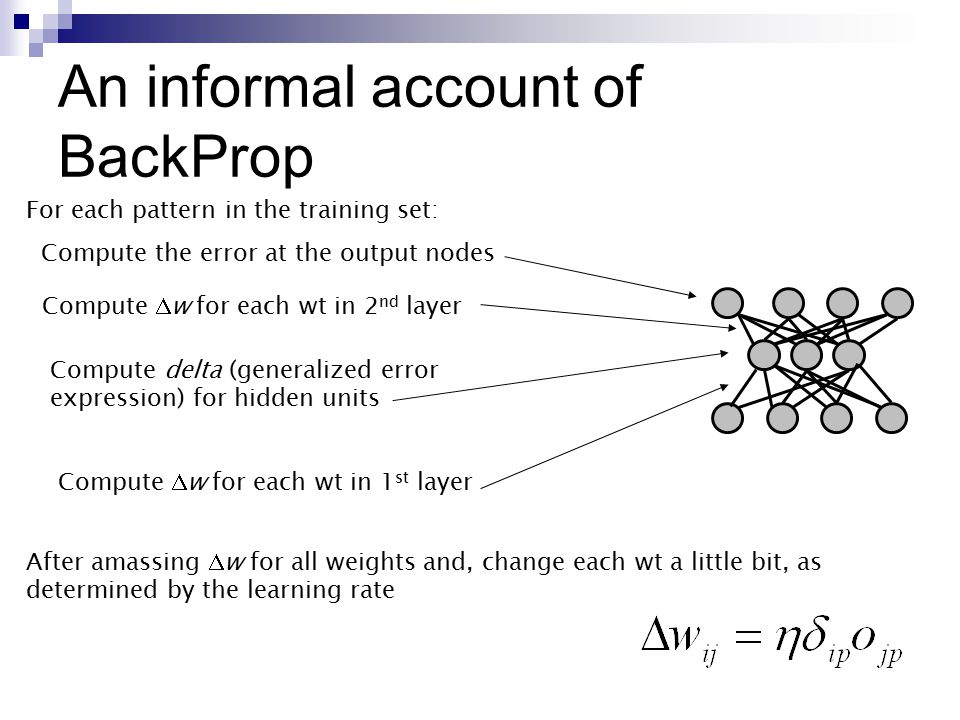

69 An informal account of BackProp For each pattern in the training set: Compute the error at the output nodes Compute  w for each wt in 2 nd layer Compute delta (generalized error expression) for hidden units Compute  w for each wt in 1 st layer After amassing  w for all weights and, change each wt a little bit, as determined by the learning rate

70 Back-Propagation Algorithm We define the error term for a single node to be t i - y i xixi f yjyj w ij yiyi x i = ∑ j w ij y j y i = f(x i ) t i :target Sigmoid:

71 Backprop Details Here we go… Also refer to web notes for derivation

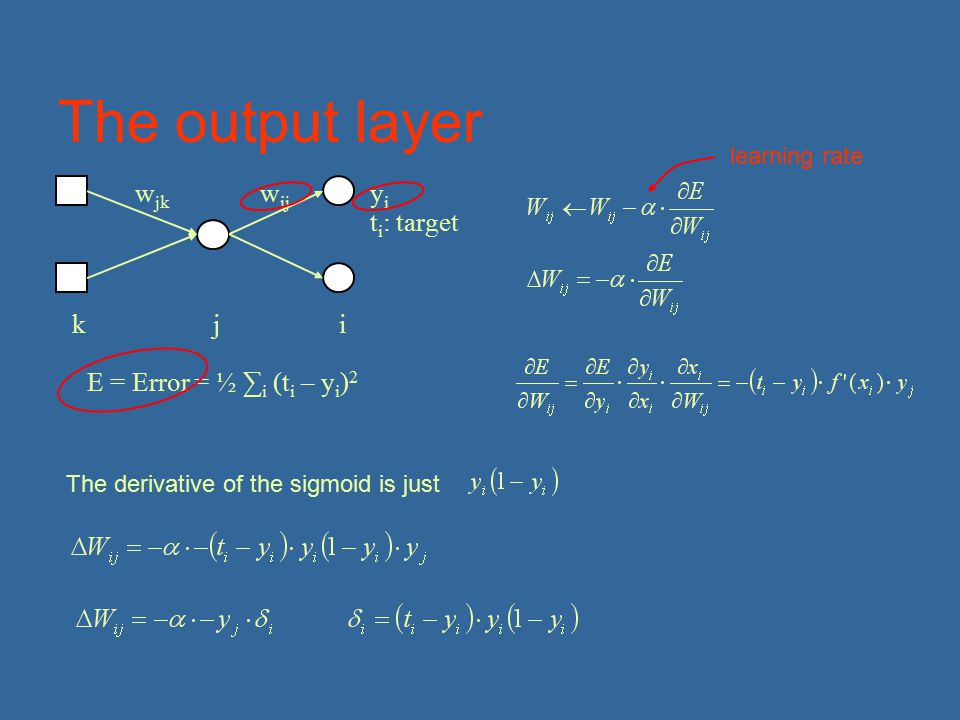

72 kji w jk w ij E = Error = ½ ∑ i (t i – y i ) 2 yiyi t i : target The derivative of the sigmoid is just The output layer learning rate

73 kji w jk w ij E = Error = ½ ∑ i (t i – y i ) 2 yiyi t i : target The hidden layer

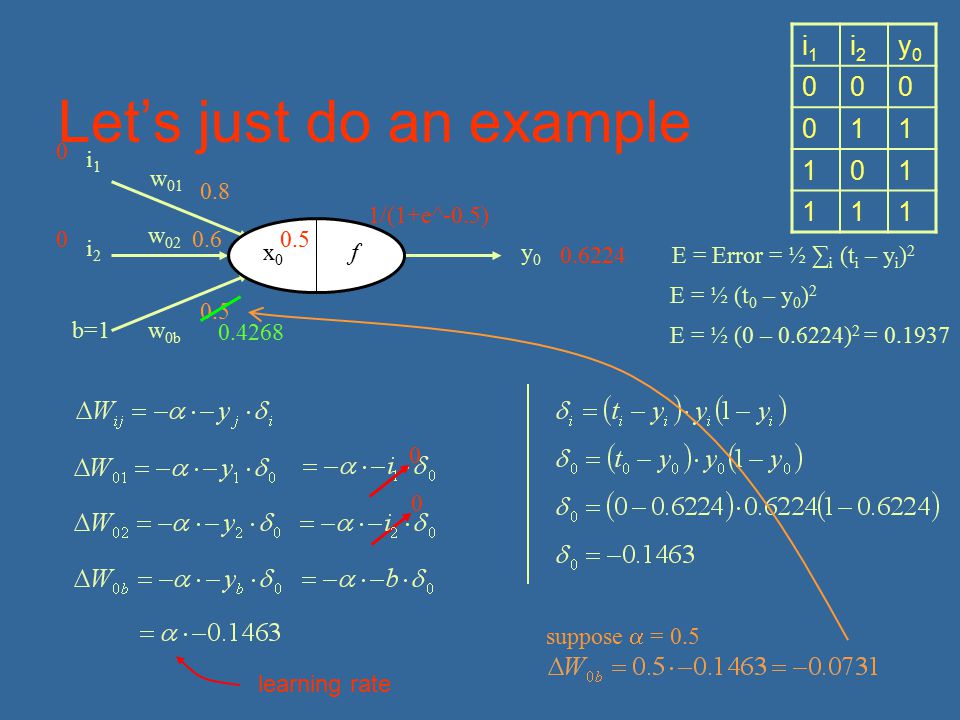

74 Let’s just do an example E = Error = ½ ∑ i (t i – y i ) 2 x0x0 f i1i1 w 01 y0y0 i2i2 b=1 w 02 w 0b E = ½ (t 0 – y 0 ) 2 i1i1 i2i2 y0y0 000 011 101 111 0.8 0.6 0.5 0 0 0.6224 0.5 1/(1+e^-0.5) E = ½ (0 – 0.6224) 2 = 0.1937 0 0 learning rate suppose  = 0.5 0.4268

75 Backprop learning algorithm n=1; initialize w(n) randomly; while (stopping criterion not satisfied and n { "@context": "", "@type": "ImageObject", "contentUrl": "", "name": "Backprop learning algorithm n=1; initialize w(n) randomly; while (stopping criterion not satisfied and n

76 Backpropagation Algorithm Initialize all weights to small random numbers For each training example do  For each hidden unit h:  For each output unit k:  For each hidden unit h:  Update each network weight w ij : with

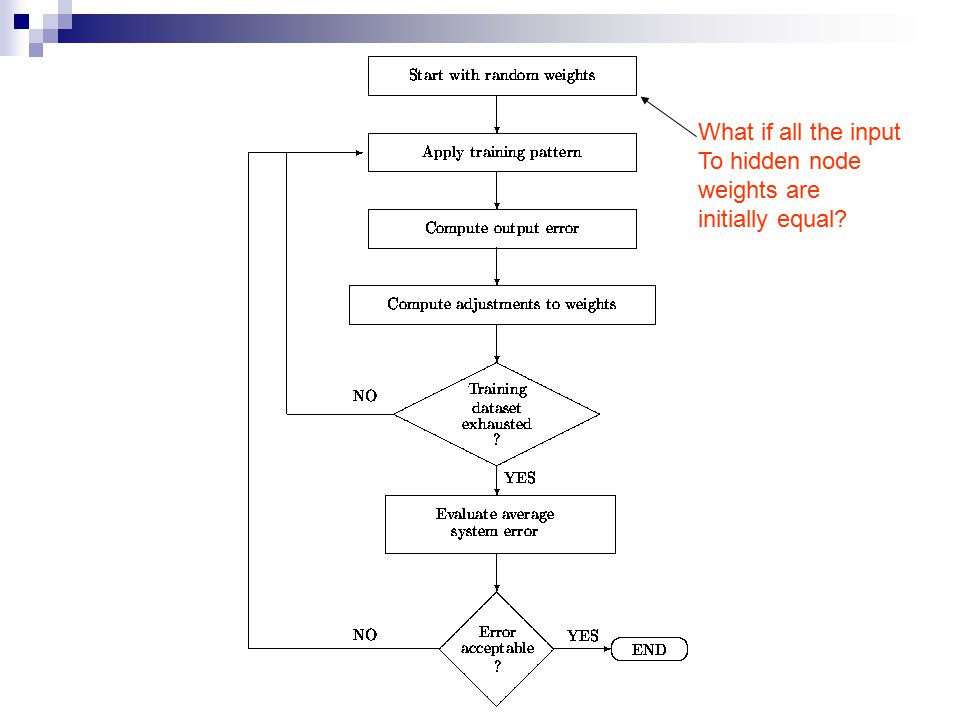

77 What if all the input To hidden node weights are initially equal?

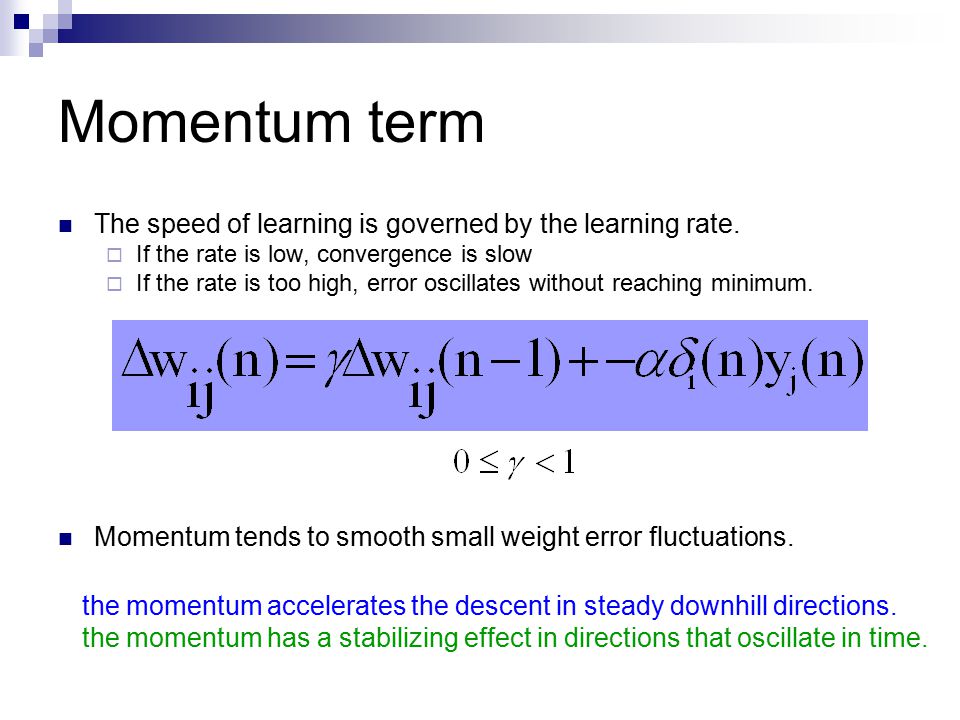

78 Momentum term The speed of learning is governed by the learning rate.  If the rate is low, convergence is slow  If the rate is too high, error oscillates without reaching minimum. Momentum tends to smooth small weight error fluctuations. the momentum accelerates the descent in steady downhill directions. the momentum has a stabilizing effect in directions that oscillate in time.

79 Convergence May get stuck in local minima Weights may diverge …but works well in practice Representation power:  2 layer networks : any continuous function  3 layer networks : any function

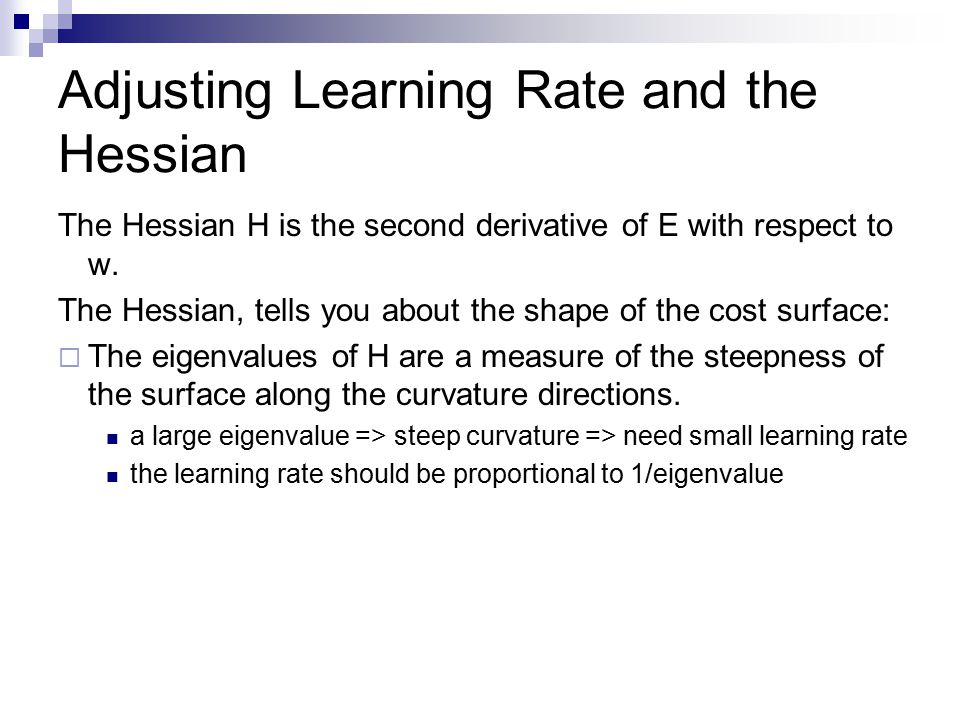

81 Adjusting Learning Rate and the Hessian The Hessian H is the second derivative of E with respect to w. The Hessian, tells you about the shape of the cost surface:  The eigenvalues of H are a measure of the steepness of the surface along the curvature directions. a large eigenvalue => steep curvature => need small learning rate the learning rate should be proportional to 1/eigenvalue

82 Overfitting and generalization TOO MANY HIDDEN NODES TENDS TO OVERFIT

83 Overfitting in ANNs

84 Early Stopping (Important!!!) Stop training when error goes up on validation set

85 Stopping criteria Sensible stopping criteria:  total mean squared error change: Back-prop is considered to have converged when the absolute rate of change in the average squared error per epoch is sufficiently small (in the range [0.01, 0.1]).  generalization based criterion: After each epoch the NN is tested for generalization. If the generalization performance is adequate then stop. If this stopping criterion is used then the part of the training set used for testing the network generalization will not be used for updating the weights.

86 Architectural Considerations What is the right size network for a given job? How many hidden units? Too many: no generalization Too few: no solution Possible answer: Constructive algorithm, e.g. Cascade Correlation (Fahlman, & Lebiere 1990) etc

87 The number of layers and of neurons depend on the specific task. In practice this issue is solved by trial and error. Two types of adaptive algorithms can be used:  start from a large network and successively remove some nodes and links until network performance degrades.  begin with a small network and introduce new neurons until performance is satisfactory. Network Topology

88 Supervised vs Unsupervised Learning Backprop requires a 'target' how realistic is that? Hebbian learning is unsupervised, but limited in power How can we combine the power of backprop (and friends) with the ideal of unsupervised learning?

89 Autoassociative Networks input copy of input as target Network trained to reproduce the input at the output layer Non-trivial if number of hidden units is smaller than inputs/outputs Forced to develop compressed representations of the patterns Hidden unit representations may reveal natural kinds (e.g. Vowels vs Consonants) Problem of explicit teacher is circumvented

90 Problems and Networks Some problems have natural "good" solutions Solving a problem may be possible by providing the right armory of general-purpose tools, and recruiting them as needed Networks are general purpose tools. Choice of network type, training, architecture, etc greatly influences the chances of successfully solving a problem Tension: Tailoring tools for a specific job Vs Exploiting general purpose learning mechanism

91 Summary Multiple layer feed-forward networks  Replace Step with Sigmoid (differentiable) function  Learn weights by gradient descent on error function  Backpropagation algorithm for learning  Avoid overfitting by early stopping

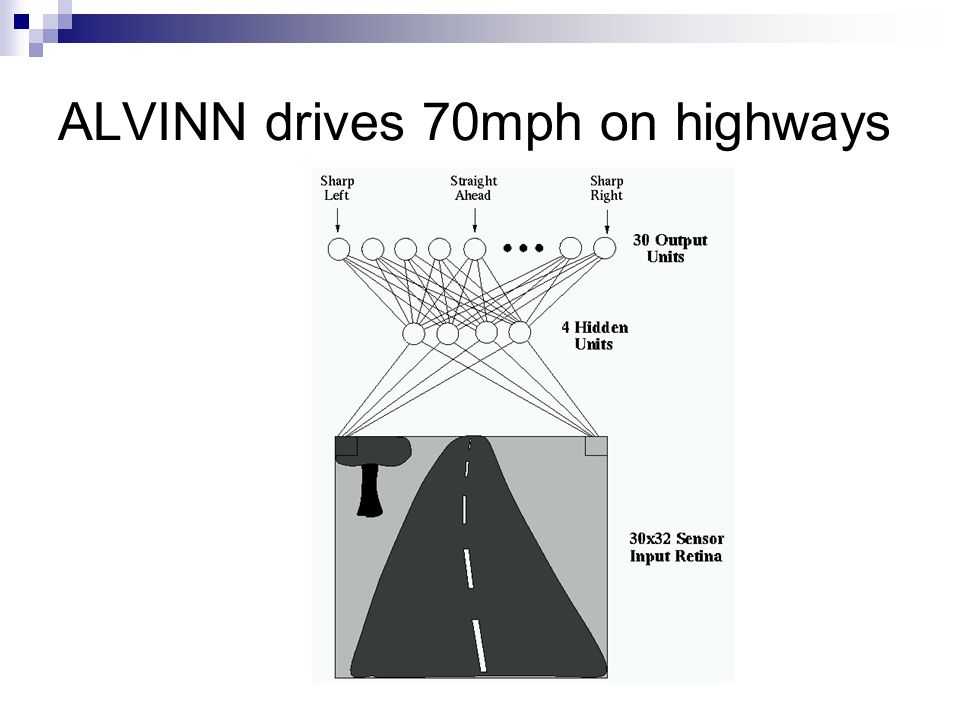

92 ALVINN drives 70mph on highways

93 Use MLP Neural Networks when … (vectored) Real inputs, (vectored) real outputs You’re not interested in understanding how it works Long training times acceptable Short execution (prediction) times required Robust to noise in the dataset

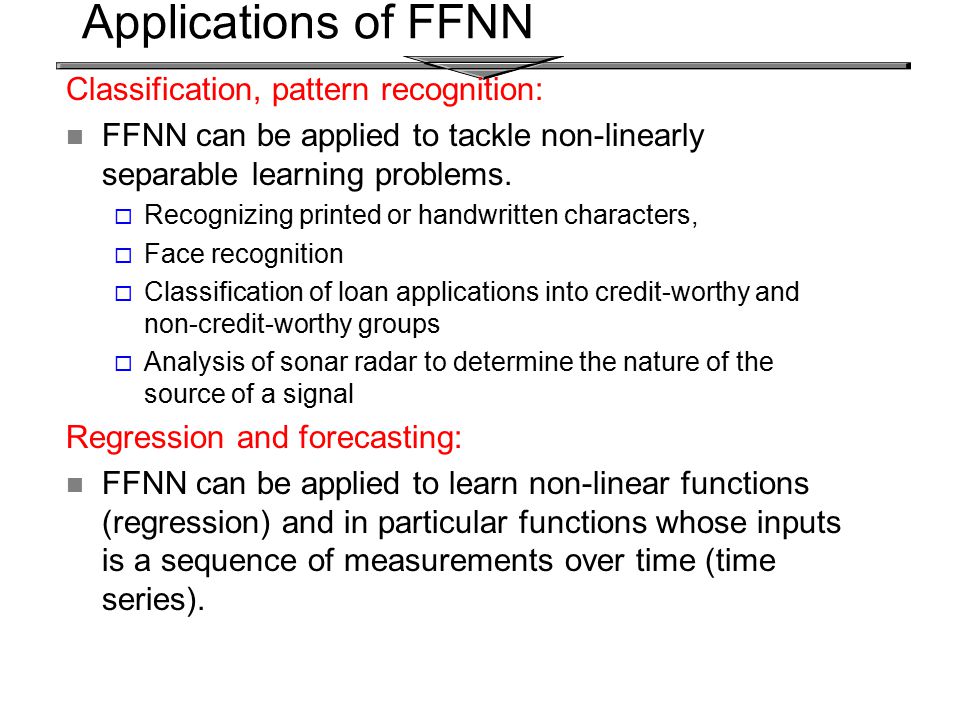

94 Applications of FFNN Classification, pattern recognition: FFNN can be applied to tackle non-linearly separable learning problems.  Recognizing printed or handwritten characters,  Face recognition  Classification of loan applications into credit-worthy and non-credit-worthy groups  Analysis of sonar radar to determine the nature of the source of a signal Regression and forecasting: FFNN can be applied to learn non-linear functions (regression) and in particular functions whose inputs is a sequence of measurements over time (time series).

95 Extensions of Backprop Nets Recurrent Architectures Backprop through time


97 Elman Nets & Jordan Nets Updating the context as we receive input In Jordan nets we model “forgetting” as well The recurrent connections have fixed weights You can train these networks using good ol’ backprop Output Hidden ContextInput 1 α Output Hidden ContextInput 1

98 Recurrent Backprop we’ll pretend to step through the network one iteration at a time backprop as usual, but average equivalent weights (e.g. all 3 highlighted edges on the right are equivalent) abc unrolling 3 iterations abc abc abc w2 w1w3 w4 w1w2w3w4 abc
