1 SRT25 - Construction and Structures Major Assignment Architect CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References BEN HUTTON Lecturer: Jeremy Ham

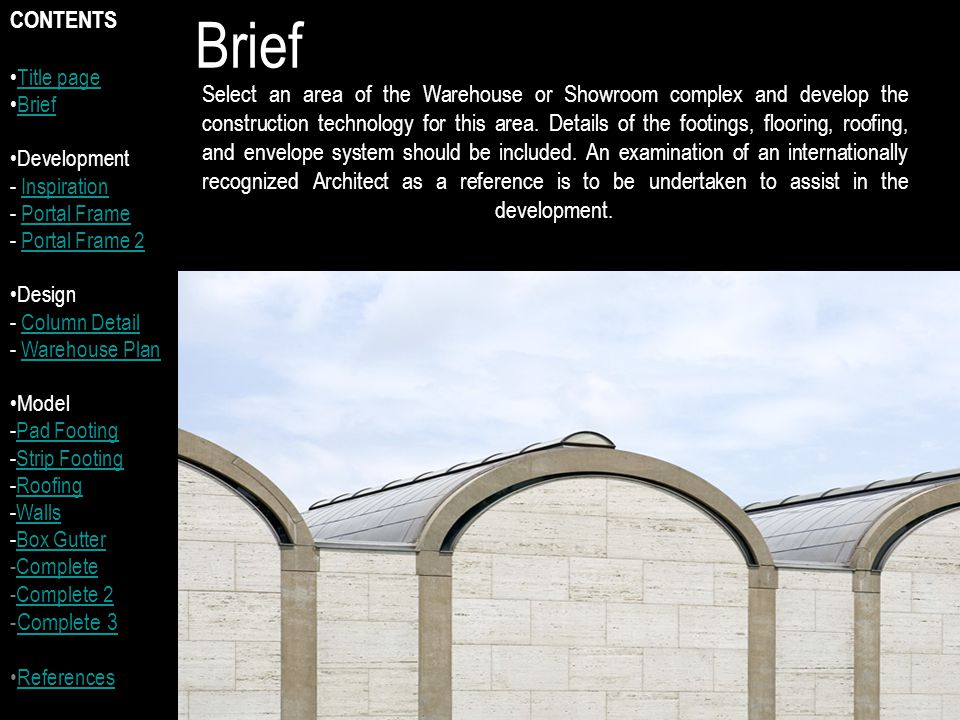

2 Brief Select an area of the Warehouse or Showroom complex and develop the construction technology for this area. Details of the footings, flooring, roofing, and envelope system should be included. An examination of an internationally recognized Architect as a reference is to be undertaken to assist in the development. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

3 Design Inspiration – Louis Kahn’s Kimbell Art Museum The Kimbell Art Museum by Louis Kahn is also a disciplined, coherent, and visually clear statement, but here the aesthetics derive from the more classically oriented sensiblity of its architect. It has an austere yet rich simplicity that comes from the repetition of a vaultlike form, given a dull sheen from its lead-covered exterior, and a beautifully articulated concrete structural frame with infill paneled walls of travertine. Its classic sense of timelessness is ennobled by a reverence for material and detail. Its interior form, bathed in a diffused natural light that enters the space via continuous interior suspended screen and reflected downward off the curve of the vault." Paul Heyer. American Architecture: Ideas and Ideologies in the Late Twentieth Century. p CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

4 Portal Frame Louis Kahn is famous for his use of concrete in his buildings in keeping with this, i am incorporation a concrete portal frame into my design. G-Frame Concrete Portal Frame The G-Frame is a precast concrete structural frame with a 7’7" roof beam pitch. Its unique "scarf joint" detail facilitates larger clear spans of up to 40 m. approx. The G-Frame is ideal for single and multiple bay frames, which can be designed as either fixed or pinned base. Design Roof beam pitch 7 degrees 7 minutes (i.e. 1 in 8) Span Clear span capabilities are available up to 40m approx. Bay width 6.0m is a recommended economic spacing of frames. Eaves height 3.0 to 13.0m approx. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

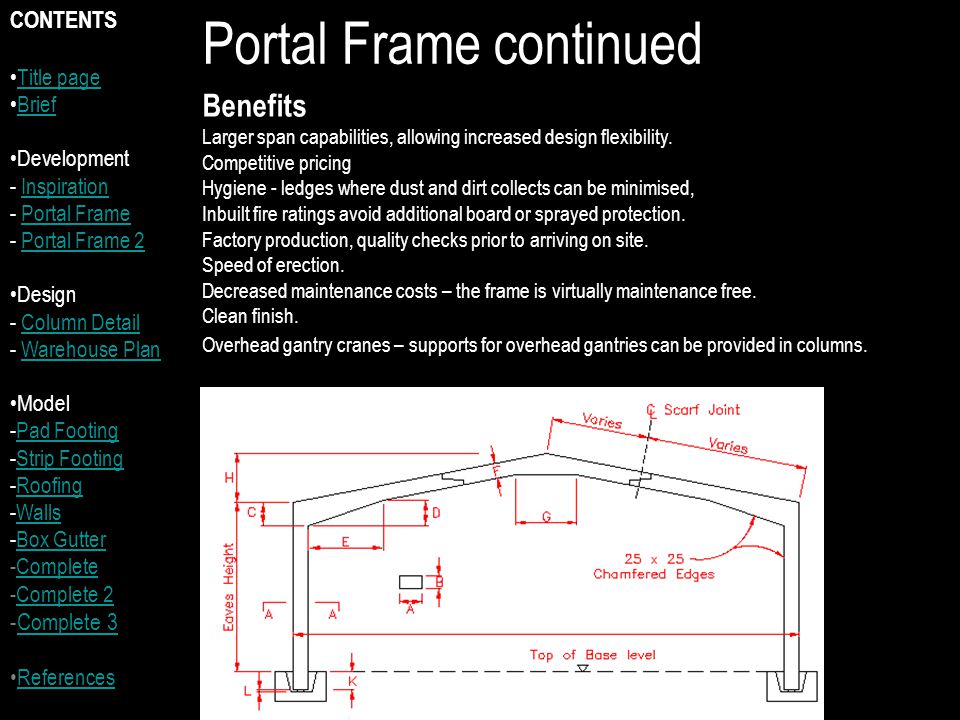

5 Portal Frame continued Benefits Larger span capabilities, allowing increased design flexibility. Competitive pricing Hygiene - ledges where dust and dirt collects can be minimised, Inbuilt fire ratings avoid additional board or sprayed protection. Factory production, quality checks prior to arriving on site. Speed of erection. Decreased maintenance costs – the frame is virtually maintenance free. Clean finish. Overhead gantry cranes – supports for overhead gantries can be provided in columns. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

6 Design – Column Detail CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

7 Design – Warehouse Plan CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

8 Model – Pad Footing Reinforced concrete pad footing to support the pre-cast concrete column. Bars protrude from the Pad which connect the column to the footing, via a metal base plate cast into the column. A 300mm shim Is placed on the Pad and allows the columns position to be adjusted, grout is then filled around the shim. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

9 Model – Strip Footing Reinforced concrete strip footings support the concrete panel and travertine panel walls. Rebate included to support the infill slab for the warehouse floor. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

10 Model – Roofing Purlins fixed to the pre cast beam via cleats and metal brackets which are set into the beam. Safety mesh and flashing placed under the steel roof. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

11 Model – Wall Panels Concrete Panels, reinforced and poured on site in form work. Lifted into place and fixed to the column and footing. Travertine Panels fixed to the structure using metal brackets. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

12 Model – Concrete Box Gutter Reinforced concrete box gutter, poured in formwork on site then lifted into place, fixed to the structure with metal brackets and supported by a reinforced concrete lintel. CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

13 Model - Complete CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 - Complete 3 Complete 3 References

14 Model Complete 2 CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

15 Model Complete 3 CONTENTS Title page Brief Development - InspirationInspiration - Portal FramePortal Frame - Portal Frame 2Portal Frame 2 Design - Column DetailColumn Detail - Warehouse PlanWarehouse Plan Model -Pad FootingPad Footing -Strip FootingStrip Footing -RoofingRoofing -WallsWalls -Box GutterBox Gutter -CompleteComplete -Complete 2Complete 2 -Complete 3Complete 3 References

16 Konedant, August E, 18 Years with Archittect Louis Kahn, Aloray, Englewood, N.J, 1975 BlueScope Steel, LYSAGHT Purlins and Girts, purlins-and-girtshttp://www.bluescopesteel.com.au/go/product/lysaght-supazed-and-lysaght-supacee- purlins-and-girts, May 2006 Concast, Portal Frames May 2006 Kimbell Art Museum May 2006
