From Magic 208 Pb to the 170 Dy Mid-Shell Paddy Regan WNSL, Yale University, New Haven, CT and Dept. of Physics, University of Surrey, UK

Similar presentations


Presentation on theme: "From Magic 208 Pb to the 170 Dy Mid-Shell Paddy Regan WNSL, Yale University, New Haven, CT and Dept. of Physics, University of Surrey, UK"— Presentation transcript:

1

2 From Magic 208 Pb to the 170 Dy Mid-Shell Paddy Regan WNSL, Yale University, New Haven, CT and Dept. of Physics, University of Surrey, UK

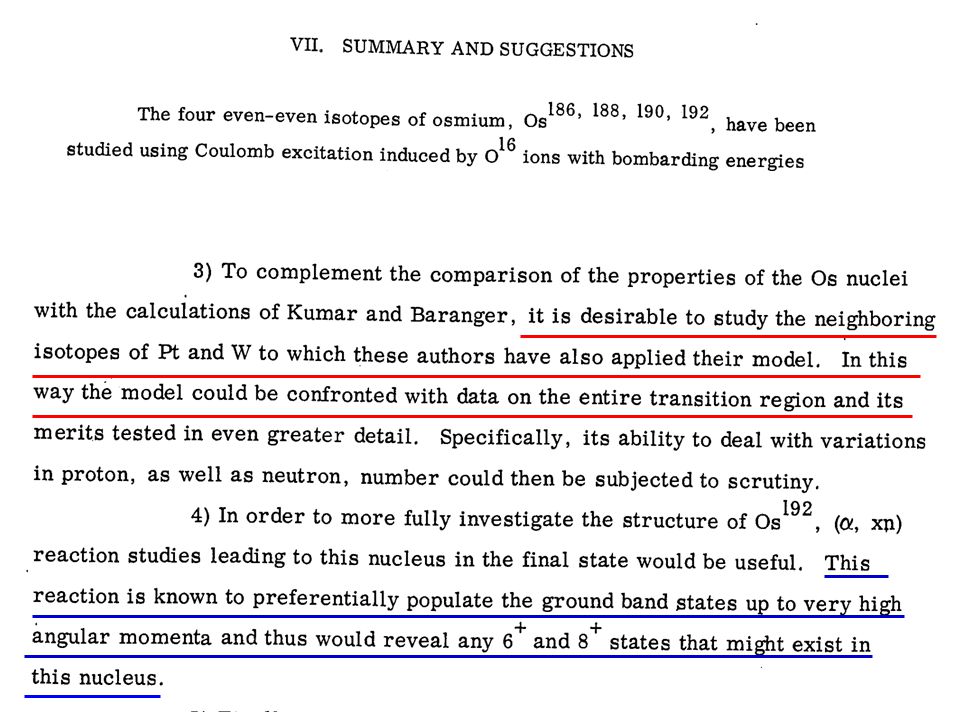

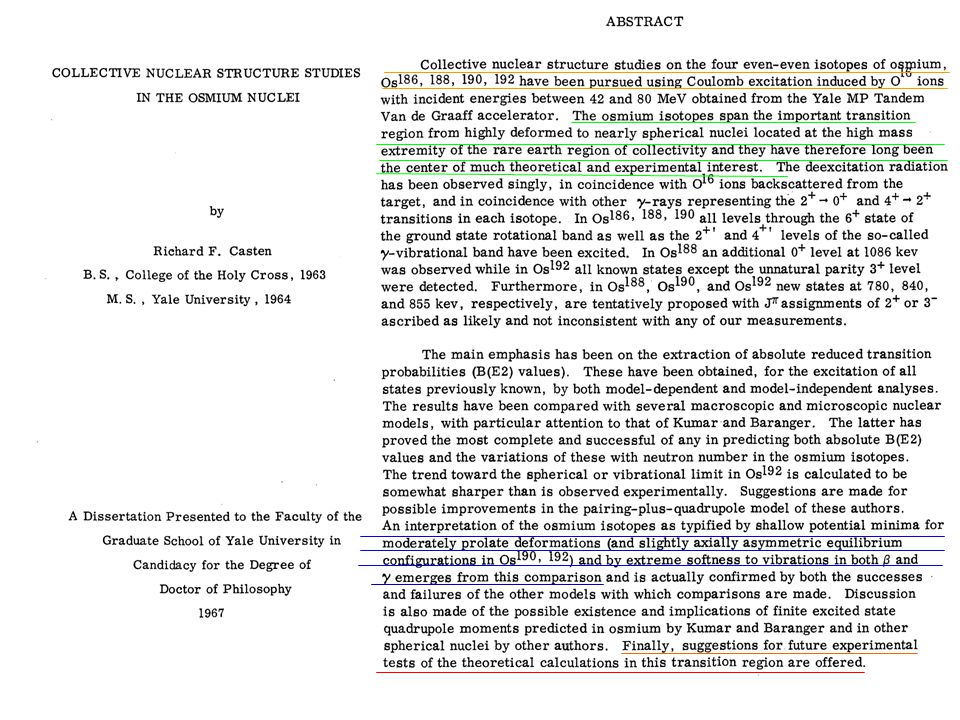

3 Outline Rick’s thesis work (circa 1967, ‘before my time’) A hard act to follow....heavy, neutron-rich DIC around 194 Os (shape shifters). ISOL work, pushing the limits, 182 Yb. Isomer fragentation spectroscopy at GSI – 202 Pt single particle state inversion – 190 W, sub-shell closure ? Towards 170 Dy, best K-isomer and SU(3) Future prospects with RIA and others ?

4

5

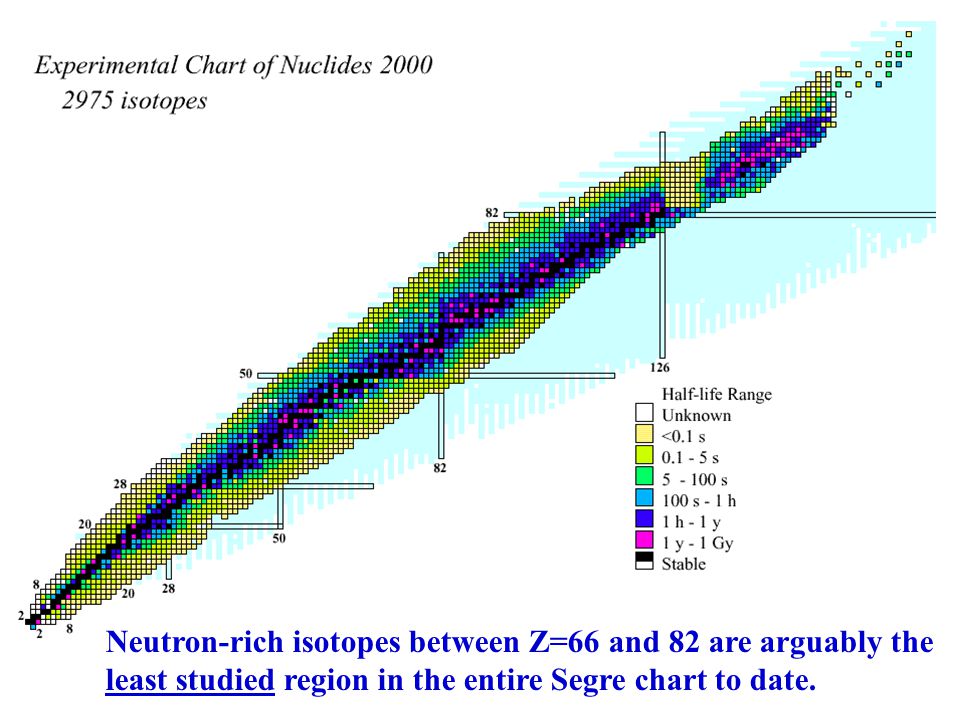

6 Neutron-rich isotopes between Z=66 and 82 are arguably the least studied region in the entire Segre chart to date.

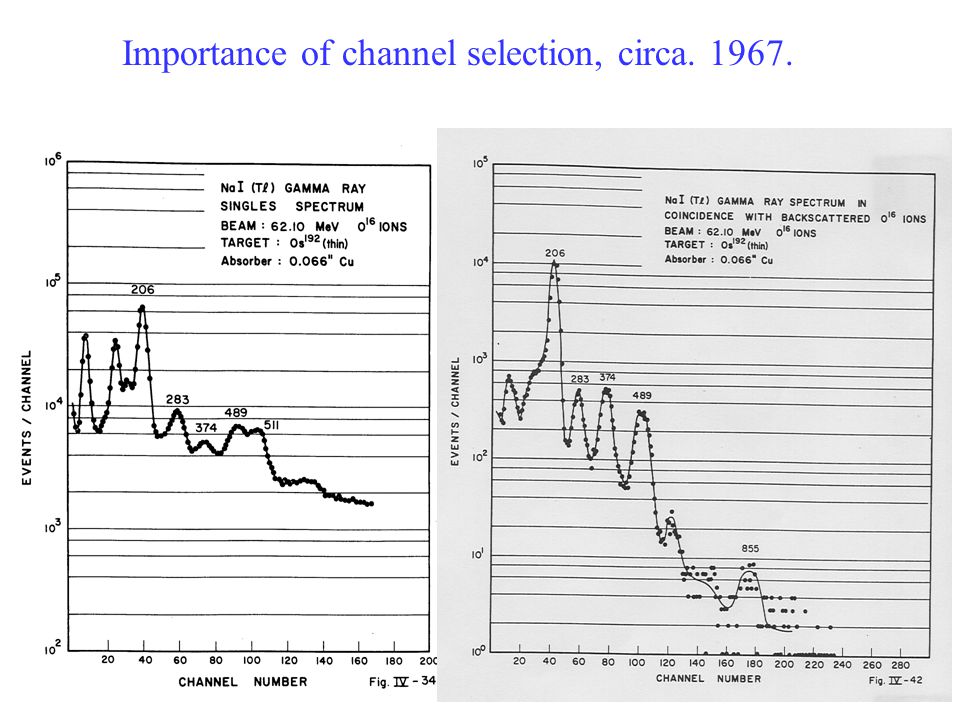

7 Importance of channel selection, circa

8 > >0 + 1 Ge arrays and HI beams allow  ) coincs. to probe yrast states to ‘high spins’ (12 + in 192 Os currently) and study eg. rotational alignments. Ga.Sp data (2001), Surrey, Legnaro et al. WNSL data, c. 1967

9

10

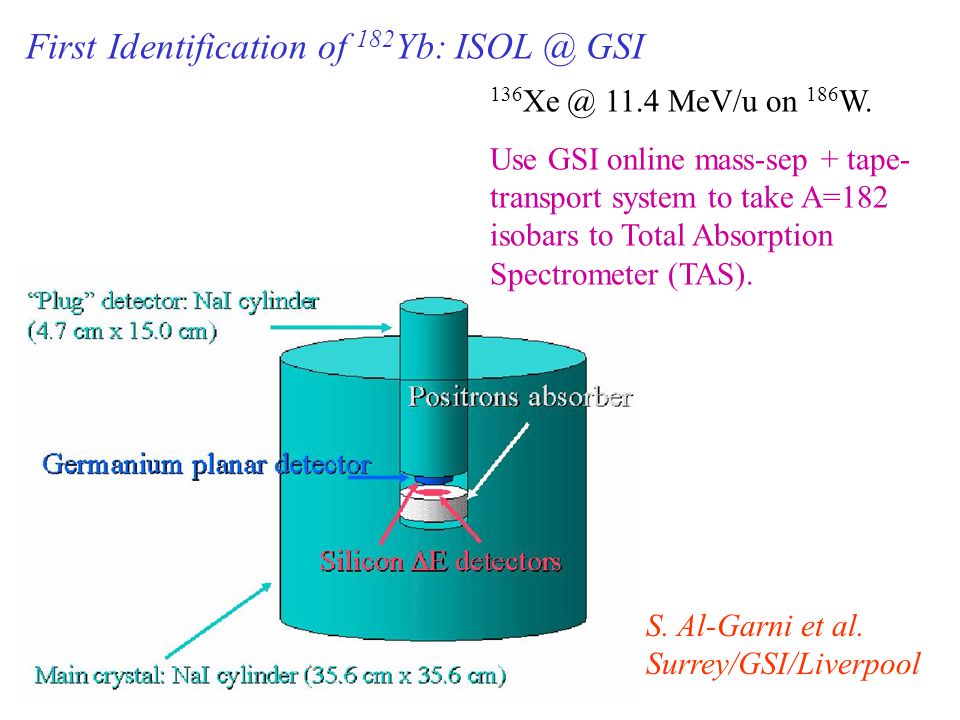

11 First Identification of 182 Yb: GSI MeV/u on 186 W. Use GSI online mass-sep + tape- transport system to take A=182 isobars to Total Absorption Spectrometer (TAS). S. Al-Garni et al. Surrey/GSI/Liverpool

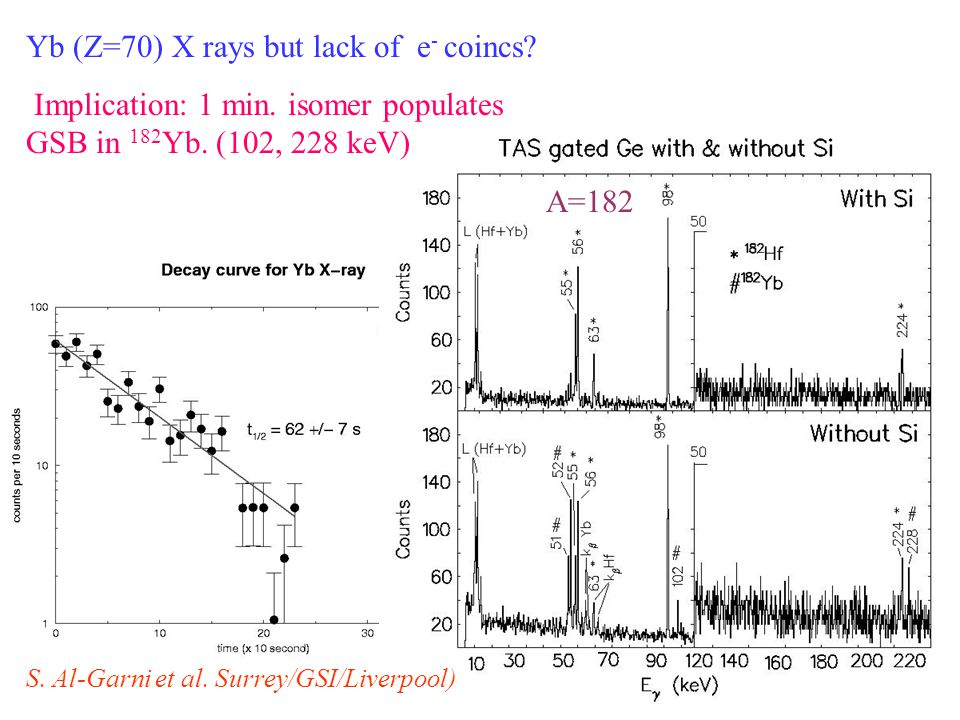

12 S. Al-Garni et al. Surrey/GSI/Liverpool) Yb (Z=70) X rays but lack of e - coincs? Implication: 1 min. isomer populates GSB in 182 Yb. (102, 228 keV) A=182

13 primary beam 1GeV/u Production target Central focus, S2 Final focus, S4  E(Z 2 ) catcher degrader dipole, B  scint MW=x,y scint (veto) Use FRS (or LISE3) to ID exotic nuclei. Transport some in isomeric states (TOF~ x00ns). Stop and correlate isomeric decays with nuclei id. eg. R. Grzywacz et al. Phys. Rev. C55 (1997) p1126 -> LISE C.Chandler et al. Phys. Rev. C61 (2000) >LISE M. Pfutzner et al. Phys. Lett. B444 (1998) p32 -> FRS

14 Gamma-gamma analysis on 200 Pt isomer (21 ns!), Caamano et al. Nucl. Phys. A682 (2001) p223c; Acta Phys. Pol. B32 (2001) p763

15 Podolyak et al. Phys. Lett. 491B (2000) 225

16

17 33 ns isomer in 195 Os (last stable 192 Os), useful test of structure in prolate/oblate shape coexistence region. 194 Os Wheldon et al. Phys. Rev. C63 (2001) (R) First id of ‘doubly mid-shell’ nucleus, 170 Dy (N=104, Z=66). K=6 + isomers predicted for well deformed N=104 nuclei. TRS calcs (F.Xu) predict a very ‘stiff’, highly deformed prolate nucleus. Could be the best K-isomer? Data from M.Caamano et al.

18

19

20 TRS Calcs for 170 Dy (Z=66, N=104, N  N =352) (see PHR, F. Xu et al. PRC65 (2002) )

21 ‘Best’ K-isomer in SU(3) 170 Dy 170 Dy Phys. Rev. C65 (2002)

22 Pfutzner, Hellstrom, Mineva et al.

23 Other ways to get around the gamma-flash problem? Segmented germanium detectors and digital electronics for each individual segment. EURYSIS 6 x 6 germanium, Surrey/Liverpool/Darebury UK Gamma-Ray Tracking Project.
