CSC 213 – Large Scale Programming

2
Today’s Goals Review discussion of merge sort and quick sort How do they work & why divide-and-conquer? Are they fastest possible sorts? Another way to sort data presented How can we sort data with single simple value? What are limits on using buckets to sort our data? If we want more buckets, can we expand these limits? How does radix sort work? How long does it need?

3

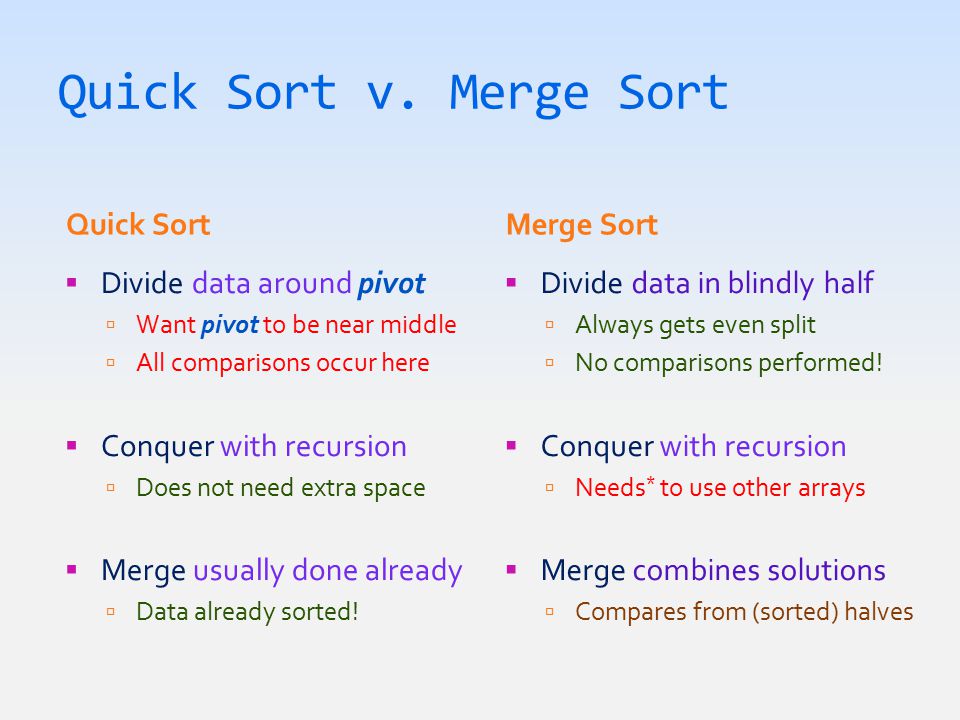

Quick Sort v. Merge Sort Quick SortMerge Sort Divide data around pivot Want pivot to be near middle All comparisons occur here Conquer with recursion Does not need extra space Merge usually done already Data already sorted! Divide data in blindly half Always gets even split No comparisons performed! Conquer with recursion Needs * to use other arrays Merge combines solutions Compares from (sorted) halves

4
Complexity of Sorting With n ! external nodes, binary tree’s height is: O(n log n)

5
Bucket-Sort Buckets, B, is array of Sequence Sorts Collection, C, in two phases: 1. Remove each element v from C & add to B[v] 2. Move elements from each bucket back to C A B C

6
Bucket-Sort Buckets, B, is array of Sequence Sorts Collection, C, in two phases: 1. Remove each element v from C & add to B[v] 2. Move elements from each bucket back to C

7
Bucket-Sort Algorithm Algorithm bucketSort( Sequence C) B = new Sequence [10] // & instantiate each Sequence // Phase 1 for each element v in C B[v].addLast(v) // Assumes each number in C between 0 & 9 endfor // Phase 2 loc = 0 for each Sequence b in B for each element v in b C.set(loc, v) loc += 1 endfor endfor return C

8

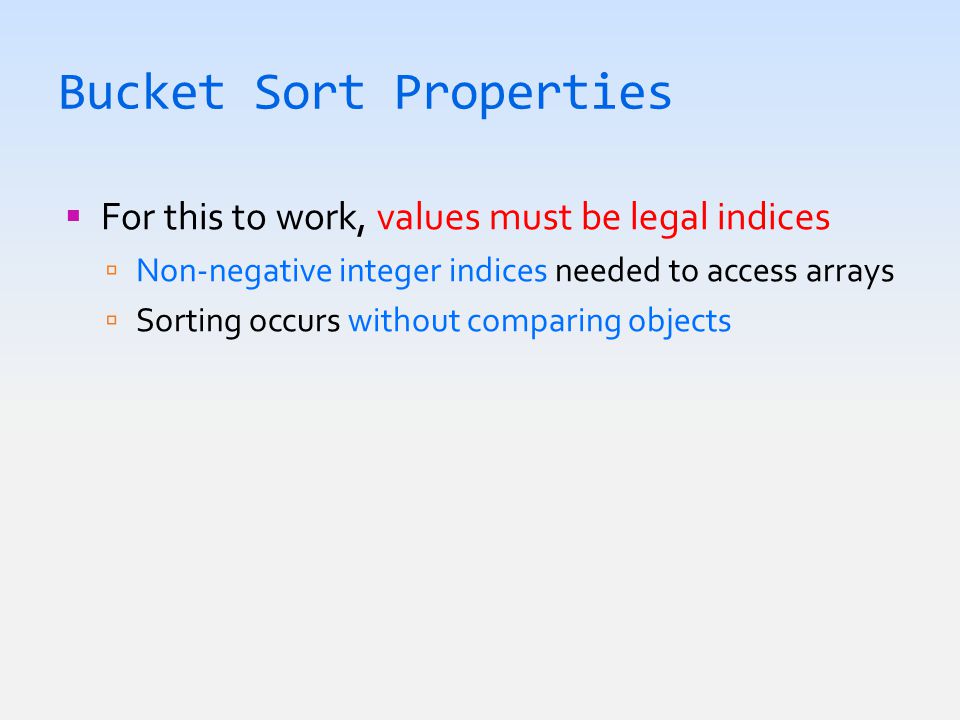

Bucket Sort Properties For this to work, values must be legal indices Non-negative integer indices needed to access arrays Sorting occurs without comparing objects

9

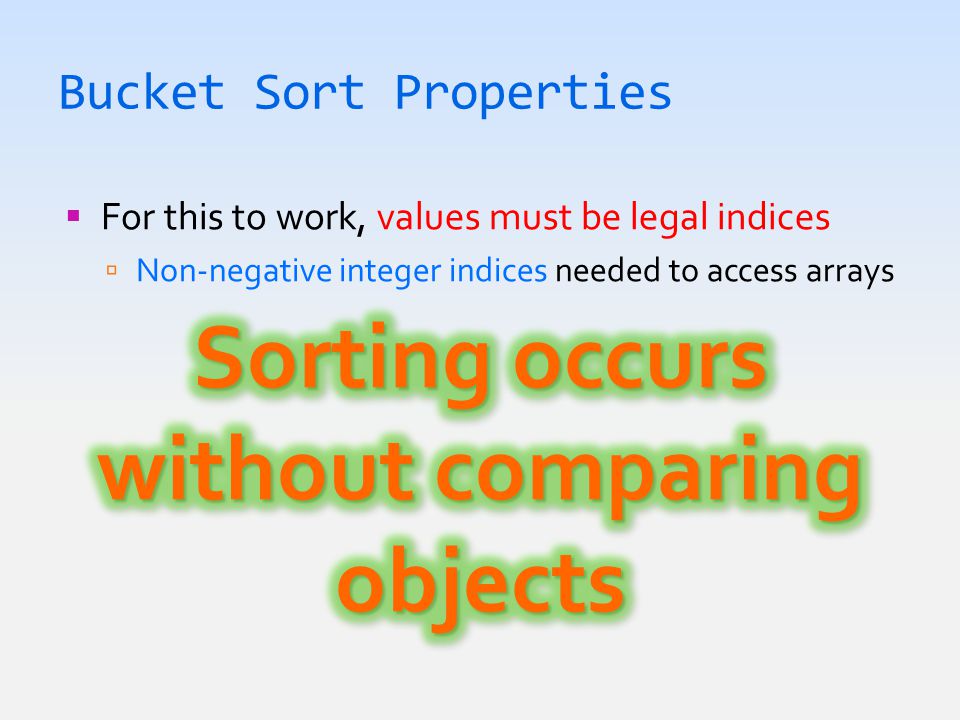

Bucket Sort Properties For this to work, values must be legal indices Non-negative integer indices needed to access arrays Sorting occurs without comparing objects

10
Bucket Sort Properties

11
For this to work, values must be legal indices Non-negative integer indices needed to access arrays Sorting occurs without comparing objects Stable sort describes any sort of this type Preserves relative ordering of objects with same value (B UBBLE - SORT & M ERGE - SORT are other stable sorts)

12

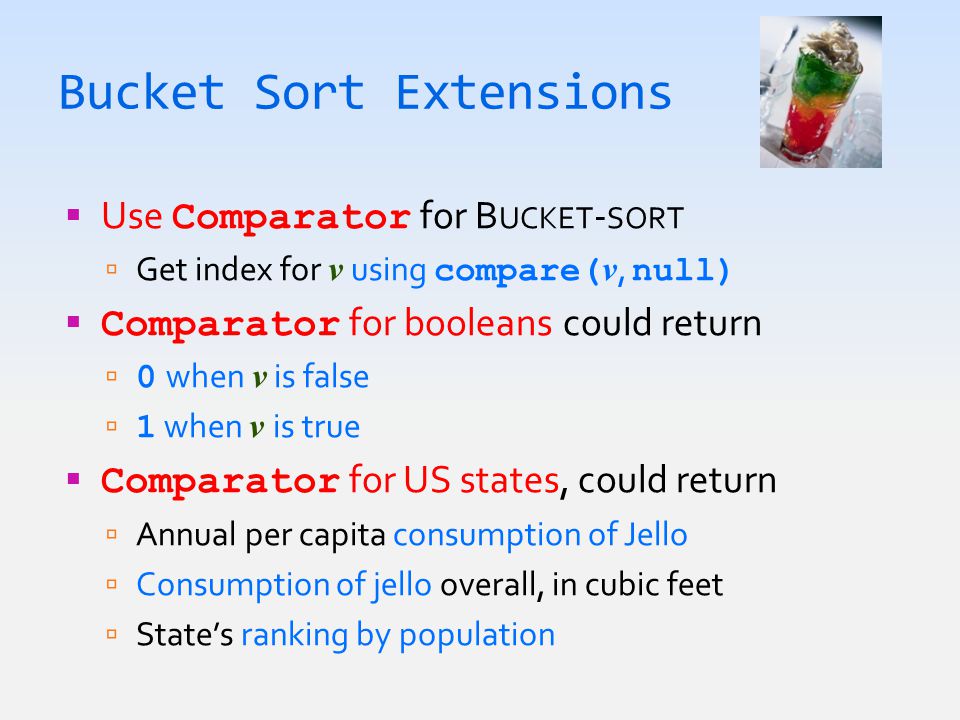

Bucket Sort Extensions Use Comparator for B UCKET - SORT Get index for v using compare( v, null) Comparator for booleans could return 0 when v is false 1 when v is true Comparator for US states, could return Annual per capita consumption of Jello Consumption of jello overall, in cubic feet State’s ranking by population

13
Bucket Sort Extensions State’s ranking by population 1 California 2 Texas 3 New York 4 Florida 5 Illinois 6 Pennsylvania 7 Ohio 8 Michigan 9 Georgia

14
Bucket Sort Extensions Extended B UCKET - SORT works with many types Limited set of data needed for this to work enumerate Need way to enumerate values of the set

15
Bucket Sort Extensions Extended B UCKET - SORT works with many types Limited set of data needed for this to work enumerate Need way to enumerate values of the set enumerate is subtle hint

16
d -Tuples Combination of d values such as ( k 1, k 2, …, k d ) k i is i th dimension of the tuple A point ( x, y, z ) is 3-tuple x is 1 st dimension’s value Value of 2 nd dimension is y z is 3 rd dimension’s value

17
Lexicographic Order Assume a & b are both d-tuples a = ( a 1, a 2, …, a d ) b = ( b 1, b 2, …, b d ) Can say a < b if and only if a 1 < b 1 OR a 1 = b 1 && ( a 2, …, a d ) < ( b 2, …, b d ) Order these 2-tuples using previous definition (3 4) (7 8) (3 2) (1 4) (4 8)

18
Lexicographic Order Assume a & b are both d-tuples a = ( a 1, a 2, …, a d ) b = ( b 1, b 2, …, b d ) Can say a < b if and only if a 1 < b 1 OR a 1 = b 1 && ( a 2, …, a d ) < ( b 2, …, b d ) Order these 2-tuples using previous definition (3 4) (7 8) (3 2) (1 4) (4 8) (1 4) (3 2) (3 4) (4 8) (7 8)

19
Radix-Sort Very fast sort for data expressed as d-tuple Cheats to win Cheats to win; faster than sorting’s lower bound Sort performed using d calls to bucket sort Sorts least to most important dimension of tuple Luckily lots of data are d-tuples String is d-tuple of char

20
Radix-Sort Very fast sort for data expressed as d-tuple Cheats to win Cheats to win; faster than sorting’s lower bound Sort performed using d calls to bucket sort Sorts least to most important dimension of tuple Luckily lots of data are d-tuples Digits of an int can be used for sorting, also

21
Radix-Sort For Integers Represent int as a d-tuple of digits: 6210 10 = 111110 2 0410 10 = 000100 2 Decimal digits needs 10 buckets to use for sorting Ordering using their bits needs 2 buckets O (d∙ n ) time needed to run R ADIX - SORT d is length of longest element in input In most cases value of d is constant (d = 31 for int ) Radix sort takes O ( n ) time, ignoring constant

22
Radix-Sort In Action List of 4-bit integers sorted using R ADIX - SORT 1001 0010 1101 0001 1110

23

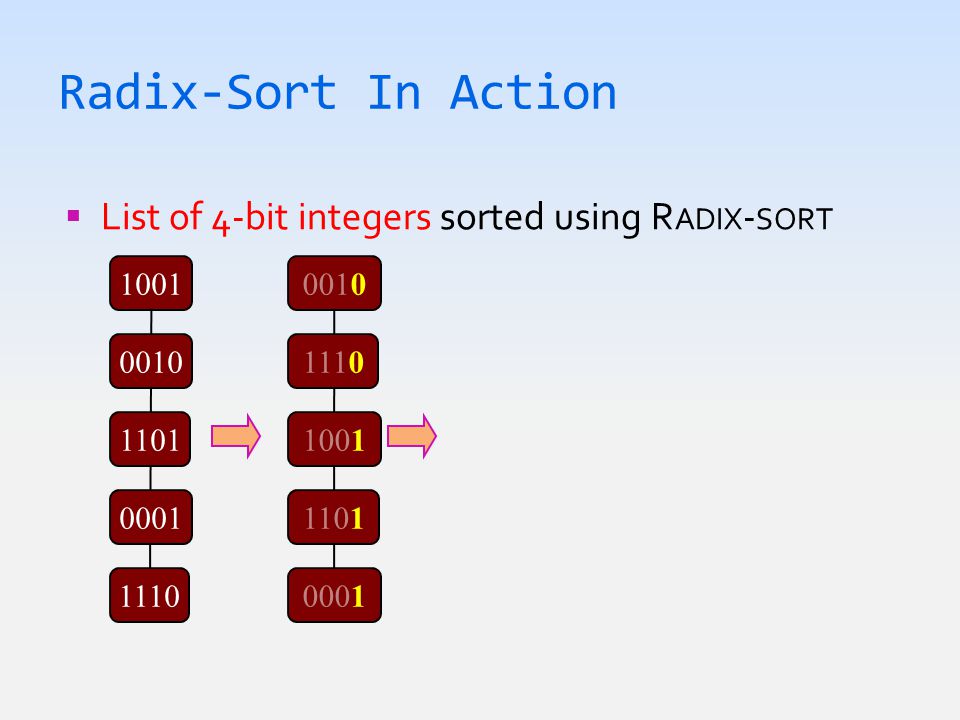

Radix-Sort In Action List of 4-bit integers sorted using R ADIX - SORT 1001 0010 1101 0001 1110 0010 1110 1001 1101 0001

24

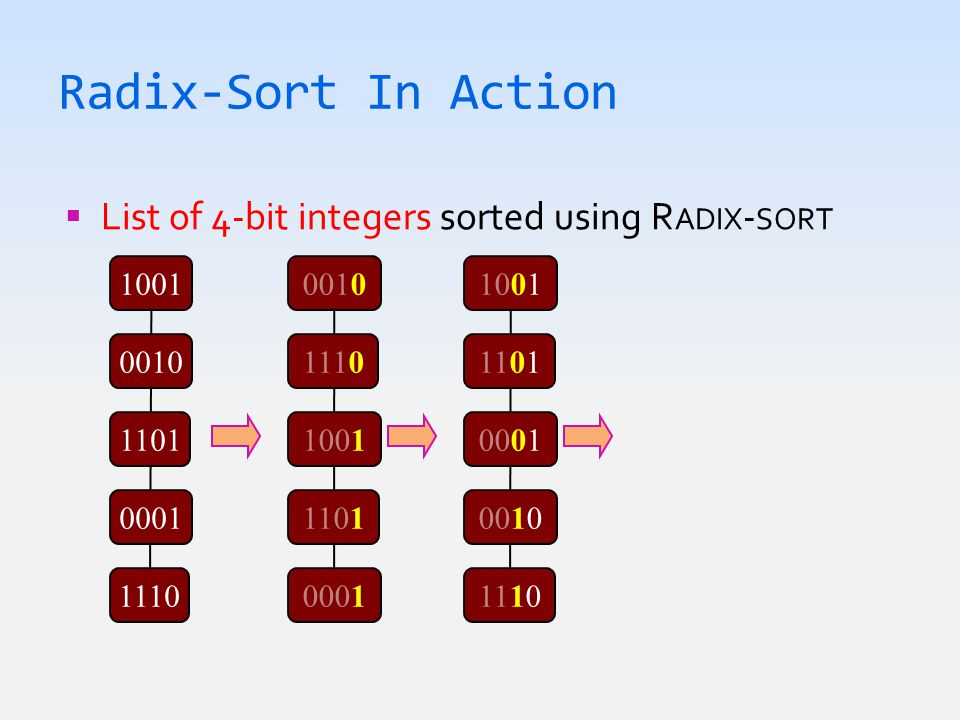

Radix-Sort In Action List of 4-bit integers sorted using R ADIX - SORT 1001 0010 1101 0001 1110 1001 1101 0001 0010 1110 0010 1110 1001 1101 0001

25
Radix-Sort In Action List of 4-bit integers sorted using R ADIX - SORT 1001 0010 1101 0001 1110 1001 0001 0010 1101 1110 1001 1101 0001 0010 1110 0010 1110 1001 1101 0001

26

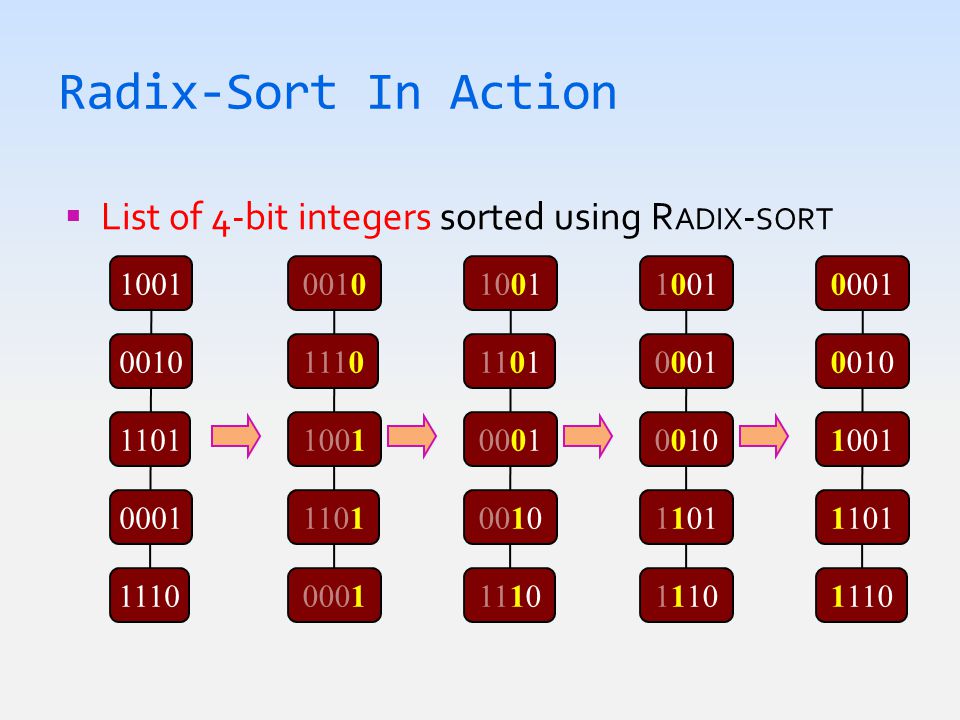

Radix-Sort In Action List of 4-bit integers sorted using R ADIX - SORT 0001 0010 1001 1101 1110 1001 0010 1101 0001 1110 1001 0001 0010 1101 1110 1001 1101 0001 0010 1110 0010 1110 1001 1101 0001

27
Radix-Sort Algorithm radixSort( Sequence C) // Works from least to most significant value for bit = 0 to 30 C = bucketSort(C, bit) // Sort C using the specified bit endfor return C What is big-Oh complexity for Radix-Sort? Call in loop uses each element twice Loop repeats once per digit to complete sort

28
Radix-Sort Algorithm radixSort( Sequence C) // Works from least to most significant value for bit = 0 to 30 C = bucketSort(C, bit) // Sort C using the specified bit endfor return C What is big-Oh complexity for Radix-Sort? Call in loop uses each element twice O(n) Loop repeats once per digit to complete sort * O(1) O(n)

29
Radix-Sort

30
For Next Lecture Start thinking test cases for program #2 Friday is next deadline when these must be submitted Spend time on this: tests & design saves coding Next weekly assignment available tomorrow As is usual, this will be due next Tuesday Reading on Graph ADT for Wednesday Note: these have nothing to do with bar charts What are mathematical graphs? Why are they the basis of everything in CS?
