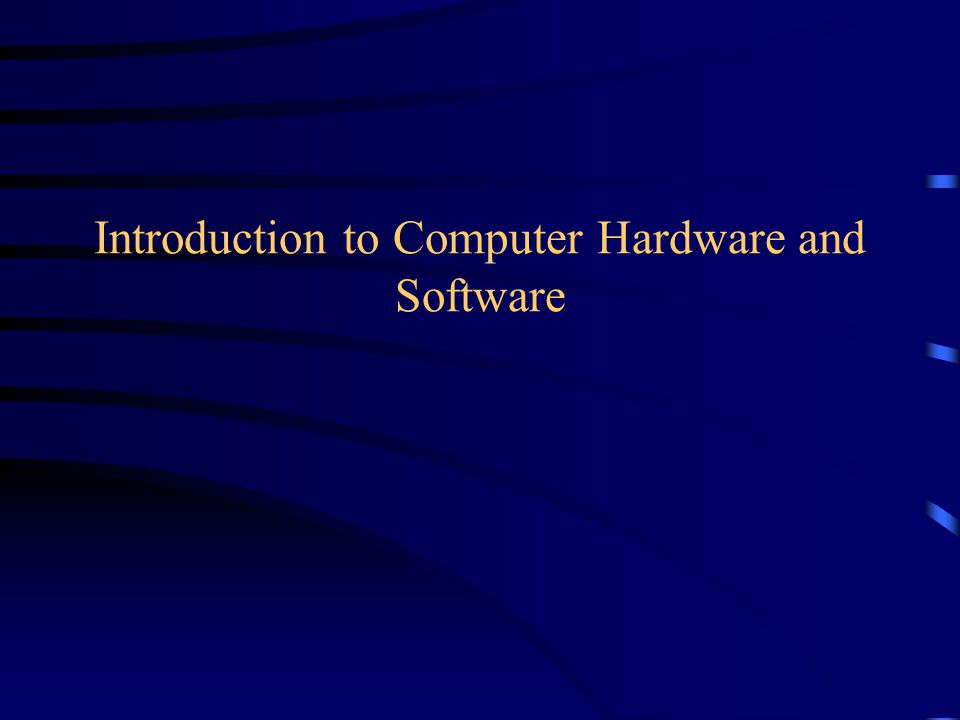

1 Introduction to Computer Hardware and Software

2 Definition of a Computer “A computer is an electronic device, operating under the control of instructions stored in its own memory unit, that can accept data (input), process data arithmetically and logically, produce information (output) from the processing, and store the results for future use.”

3 Functions of a Computer Four operations performed The four operations are referred to as the information processing cycle: Input, Process, Output, and Storage. Computers transform raw data into information People who use this information are referred to as end users, computer users or users

4 Introduction to Computer Hardware Hardware vs Software Hardware is everything you can touch and see Examples: Monitor, hard drive, CD-ROM, computer cables, keyboard, mouse, modem, printer, etc.

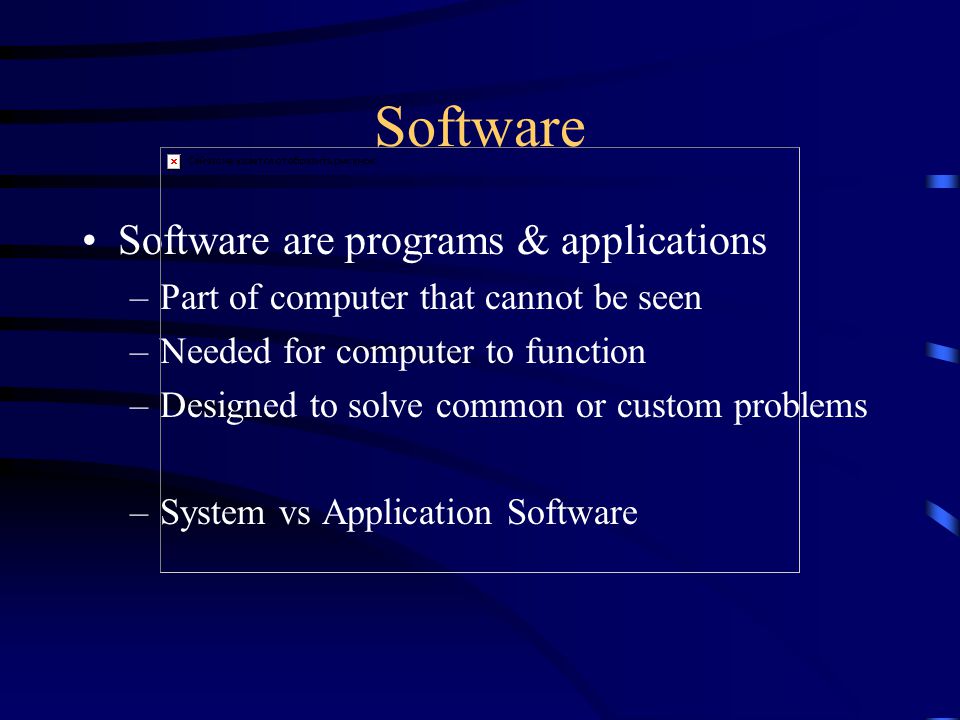

5 Software Software are programs & applications –Part of computer that cannot be seen –Needed for computer to function –Designed to solve common or custom problems –System vs Application Software

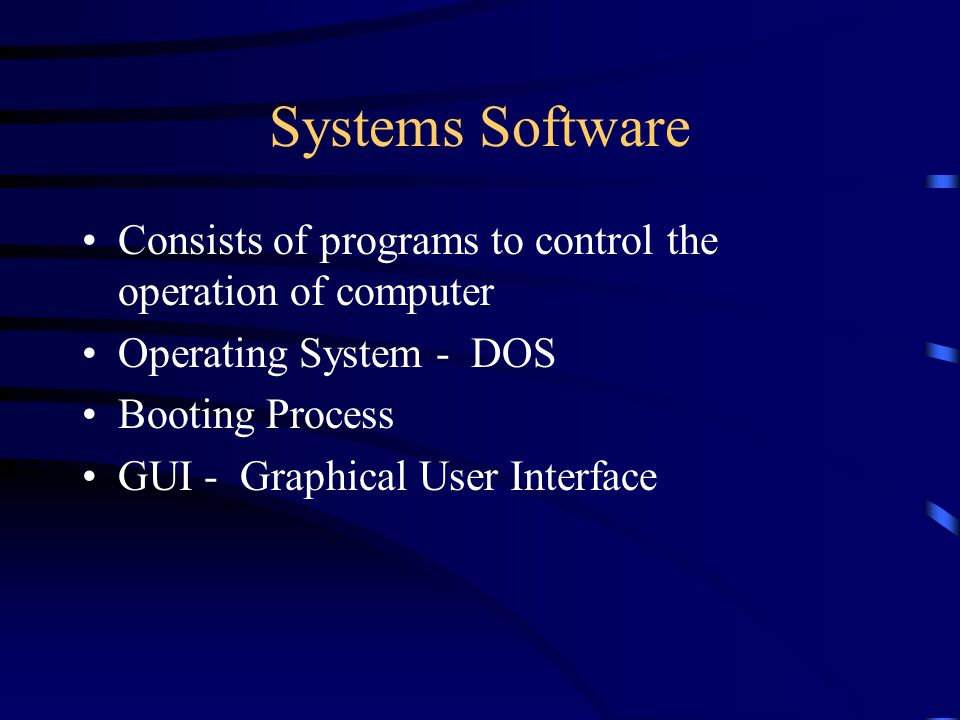

6 Systems Software Consists of programs to control the operation of computer Operating System - DOS Booting Process GUI - Graphical User Interface

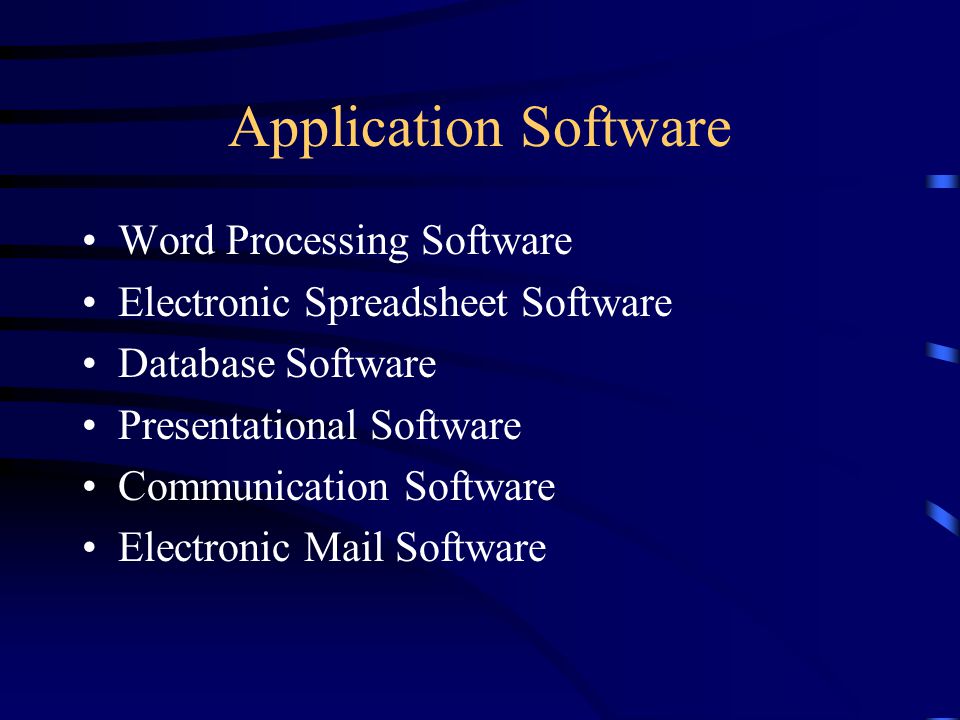

7 Application Software Word Processing Software Electronic Spreadsheet Software Database Software Presentational Software Communication Software Electronic Mail Software

8 Components of a Computer There are four components to a computer –Input Devices –Processor Unit –Output Devices –Auxiliary Storage Devices

9 Input Devices Input Devices enable the user to enter data into memory Examples of input devices: –Keyboard –Mouse –Scanner –Touch Screen Input –OCR

10 The Processor Unit The Processor Unit is comprised of two components: –Central Processing Unit (CPU) –Memory

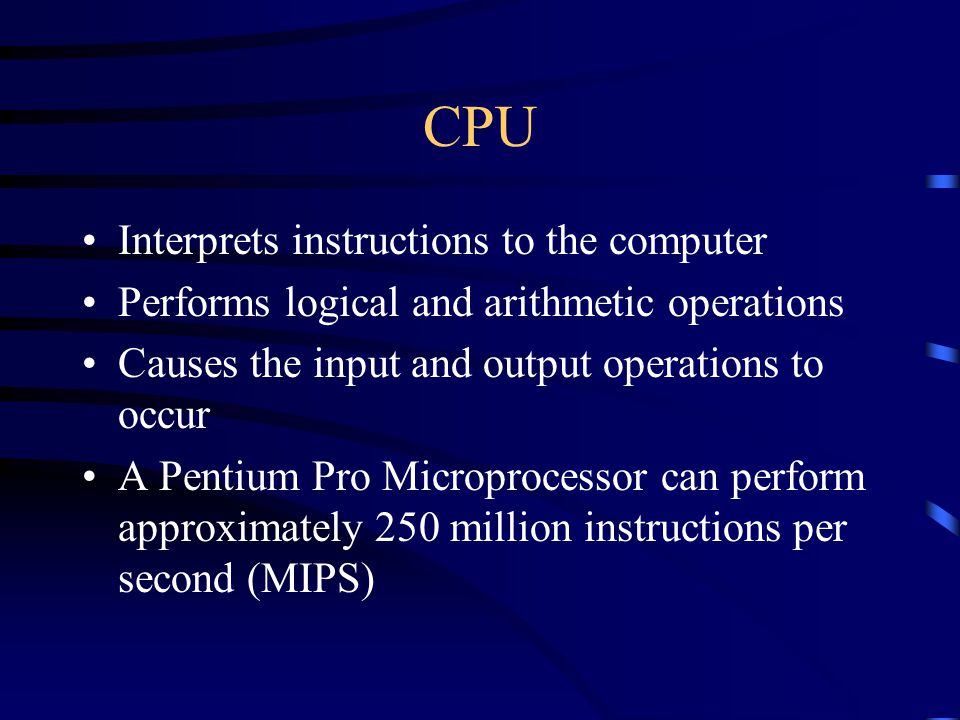

11 CPU Interprets instructions to the computer Performs logical and arithmetic operations Causes the input and output operations to occur A Pentium Pro Microprocessor can perform approximately 250 million instructions per second (MIPS)

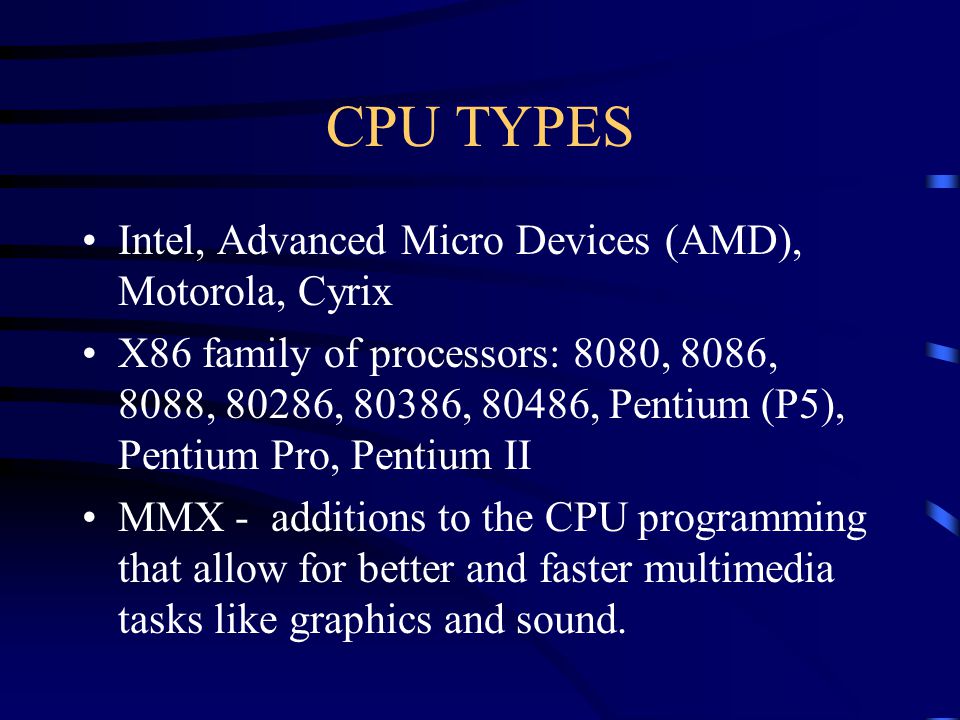

12 CPU TYPES Intel, Advanced Micro Devices (AMD), Motorola, Cyrix X86 family of processors: 8080, 8086, 8088, 80286, 80386, 80486, Pentium (P5), Pentium Pro, Pentium II MMX - additions to the CPU programming that allow for better and faster multimedia tasks like graphics and sound.

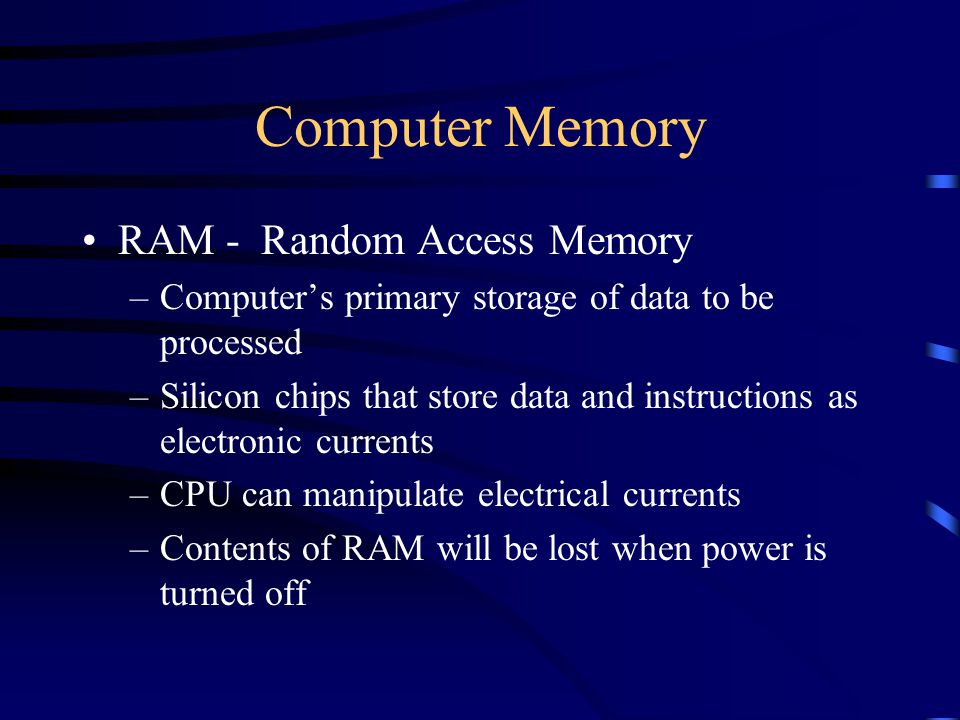

13 Computer Memory RAM - Random Access Memory –Computer’s primary storage of data to be processed –Silicon chips that store data and instructions as electronic currents –CPU can manipulate electrical currents –Contents of RAM will be lost when power is turned off

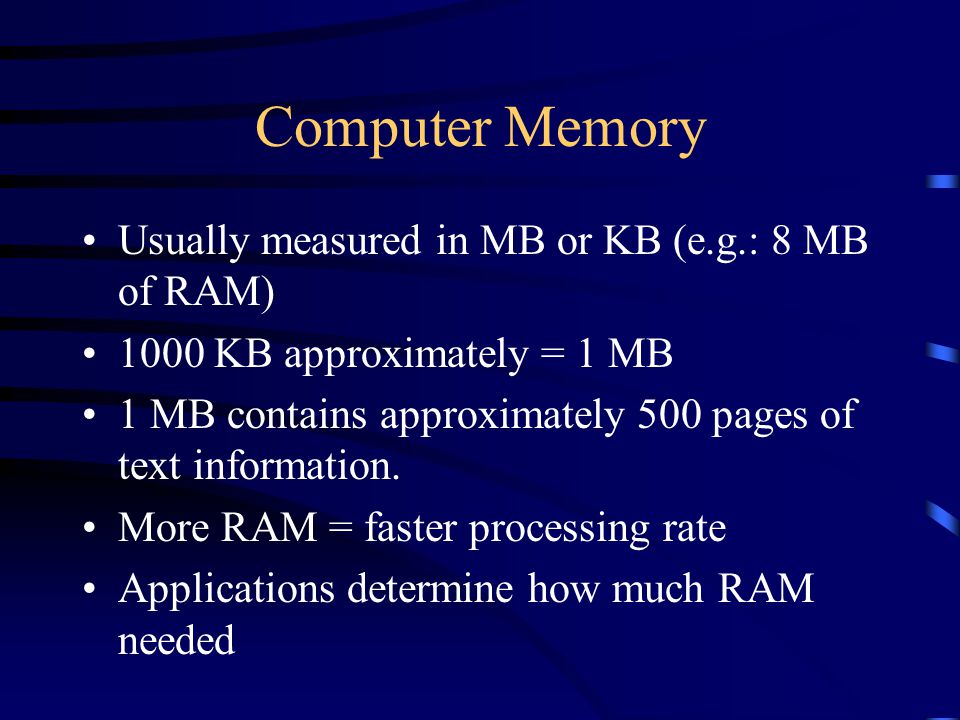

14 Computer Memory Usually measured in MB or KB (e.g.: 8 MB of RAM) 1000 KB approximately = 1 MB 1 MB contains approximately 500 pages of text information. More RAM = faster processing rate Applications determine how much RAM needed

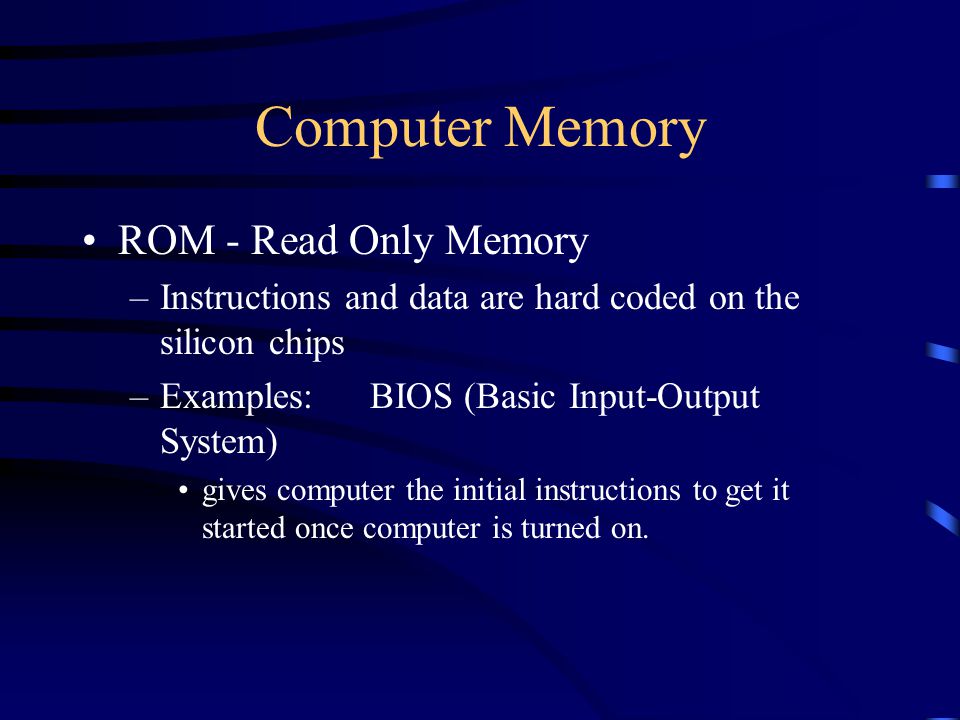

15 Computer Memory ROM - Read Only Memory –Instructions and data are hard coded on the silicon chips –Examples:BIOS (Basic Input-Output System) gives computer the initial instructions to get it started once computer is turned on.

16 Cache Temporary holding area where the system stores frequently accessed information Allows the processor to operate faster Size measured in KB (e.g. 256K or 512 K) Cache associated with the terms L1 or L2 L1 is internal to the microprocessor L2 is separate from the microprocessor

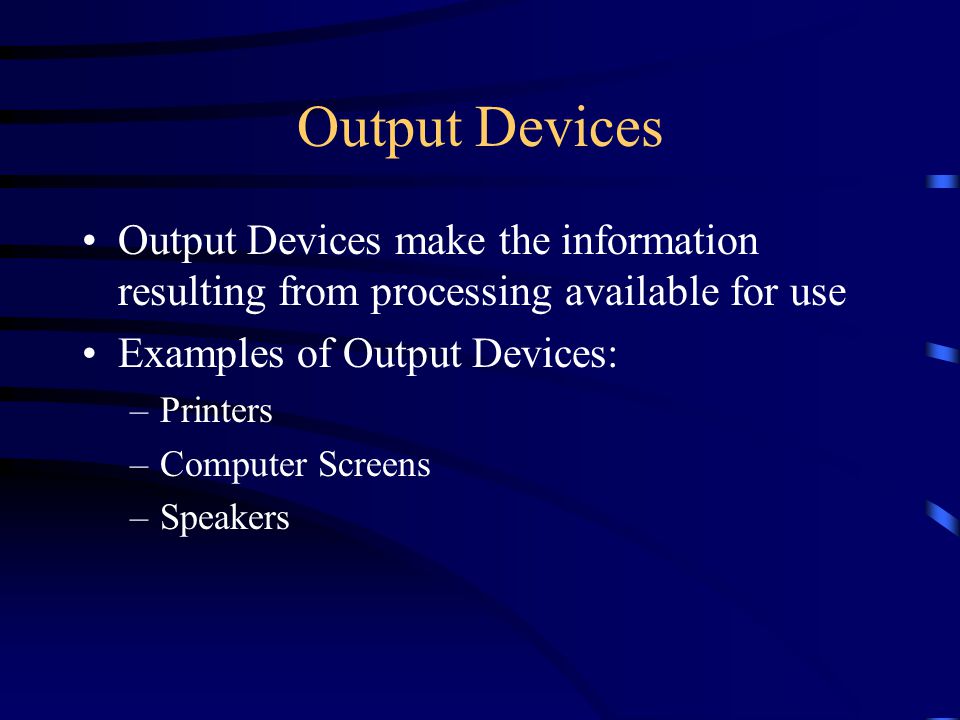

17 Output Devices Output Devices make the information resulting from processing available for use Examples of Output Devices: –Printers –Computer Screens –Speakers

18 Computer Screens Also called monitor or Cathode Ray Tube (CRT) Flat panel screens - LCD (Liquid Crystal Display) Screen is made up of pixels

19 Auxiliary Devices Also know as Secondary Storage Devices Examples of Auxiliary Devices: –Floppy Disks –Hard Drives –CD-ROM –Tape Backup Drives –ZIP Drives

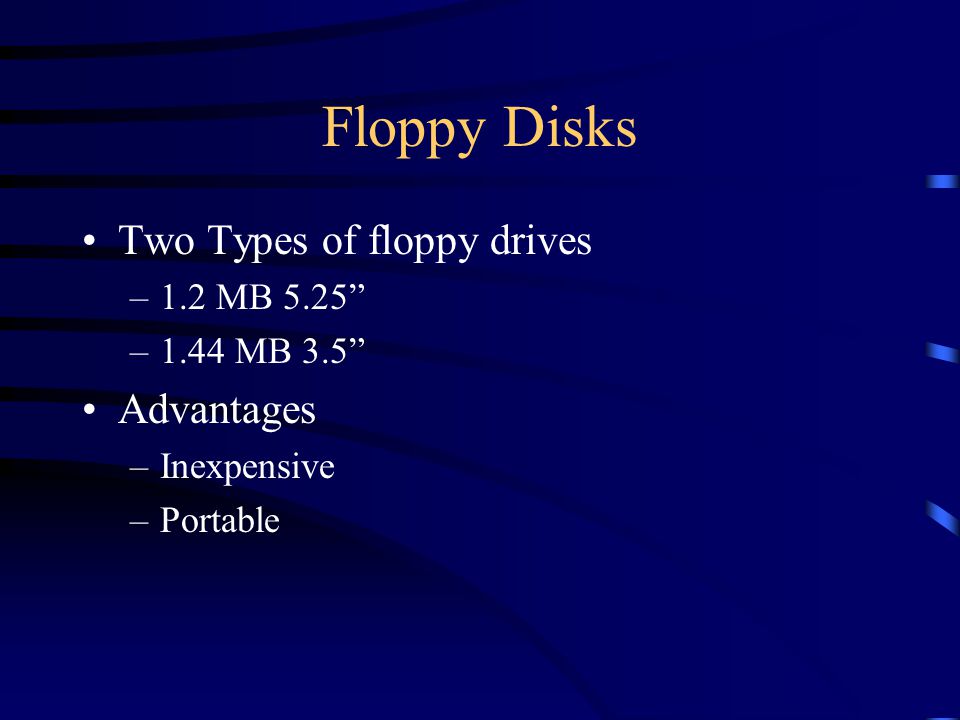

20 Floppy Disks Two Types of floppy drives –1.2 MB 5.25” –1.44 MB 3.5” Advantages –Inexpensive –Portable

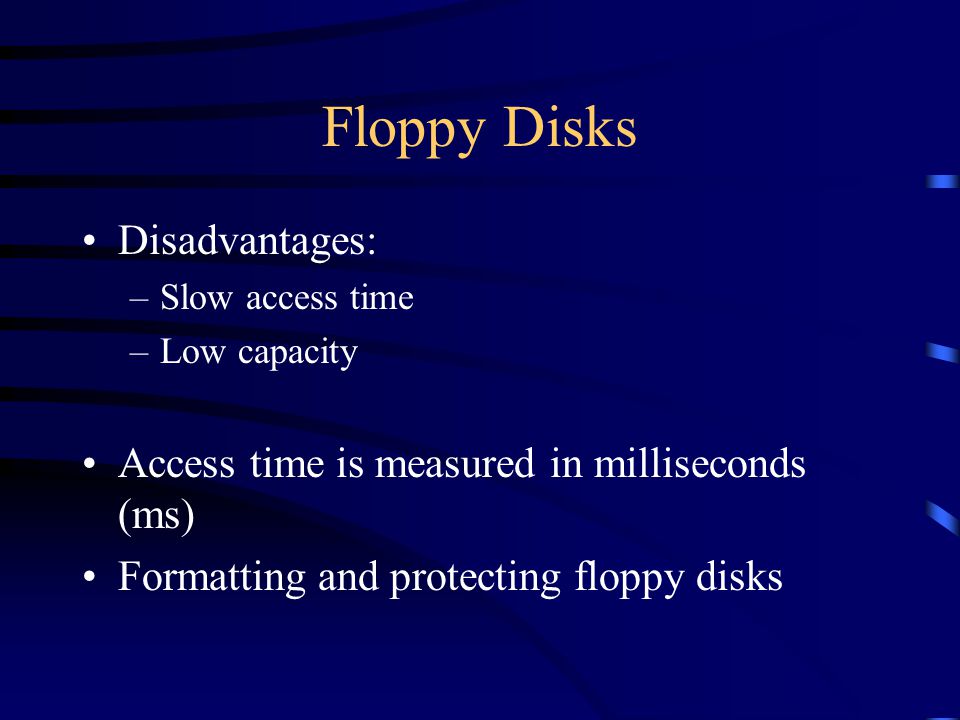

21 Floppy Disks Disadvantages: –Slow access time –Low capacity Access time is measured in milliseconds (ms) Formatting and protecting floppy disks

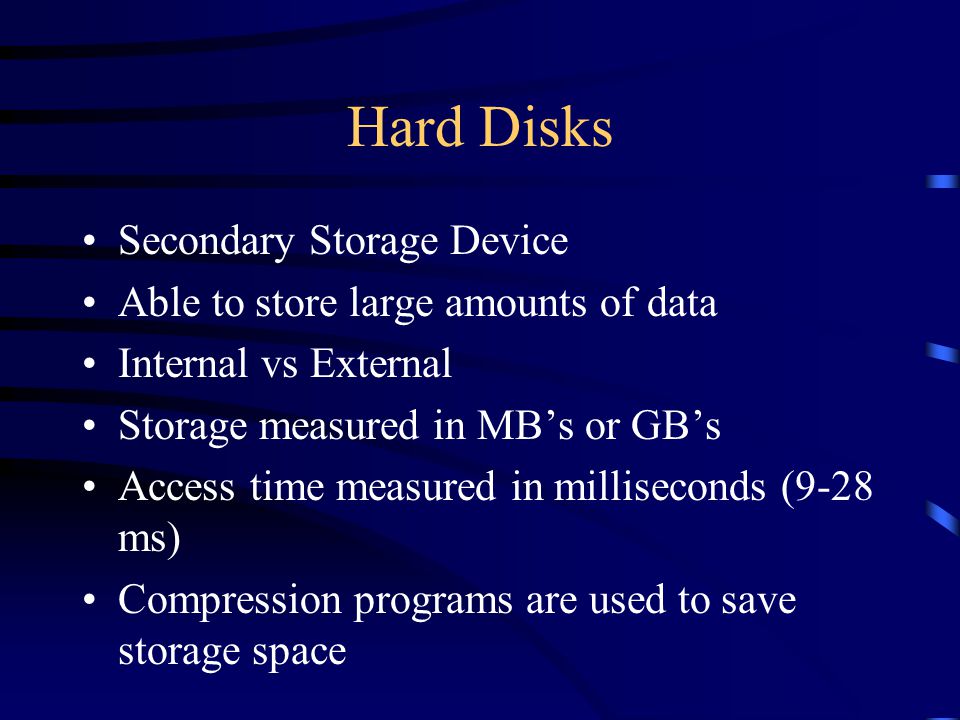

22 Hard Disks Secondary Storage Device Able to store large amounts of data Internal vs External Storage measured in MB’s or GB’s Access time measured in milliseconds (9-28 ms) Compression programs are used to save storage space

23 CD-ROM Compact disk read-only memory disks are used to store large amounts of prerecorded information Since programs are getting bigger, it is a good medium for storage of programs Drive Speeds: 4X, 6X, 8X, 10X, 16X, 20X, 24X Read-Write CD’s are now available

24 Tape Backup Drives Used primarily for backup important information on HD as a precaution against system failure or crashes Can be used to archive information Can store large amounts of information, but access time is slower than floppy or hard disks

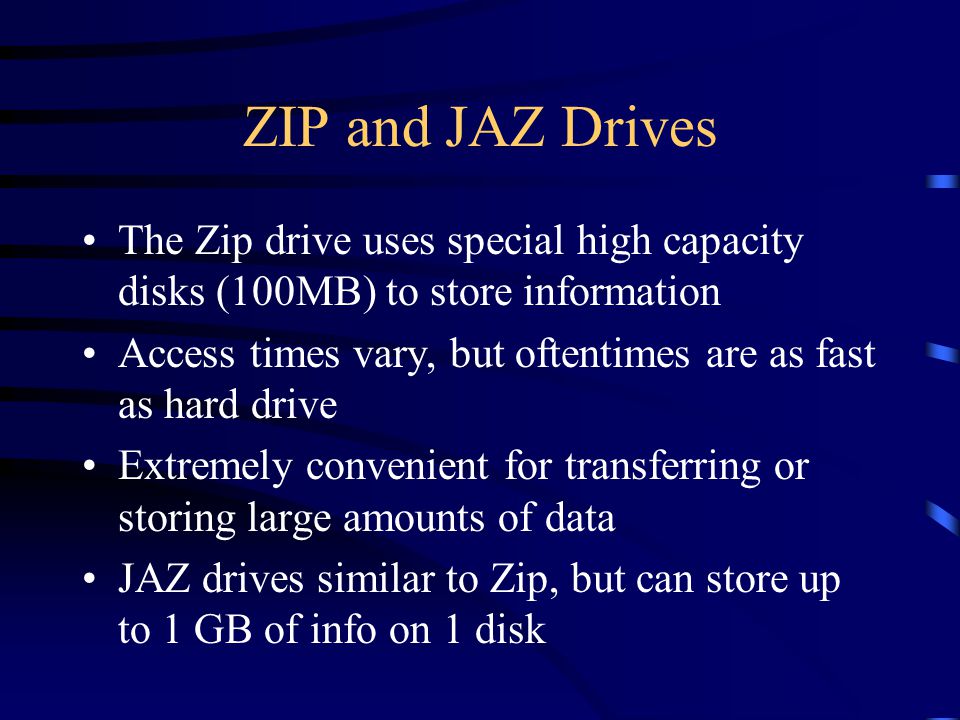

25 ZIP and JAZ Drives The Zip drive uses special high capacity disks (100MB) to store information Access times vary, but oftentimes are as fast as hard drive Extremely convenient for transferring or storing large amounts of data JAZ drives similar to Zip, but can store up to 1 GB of info on 1 disk

26 Monitor Measured diagonally in inches Actual viewable area is less Monochrome –Black and white display Color Monitors –SVGA, VGA, EGA, CGA:

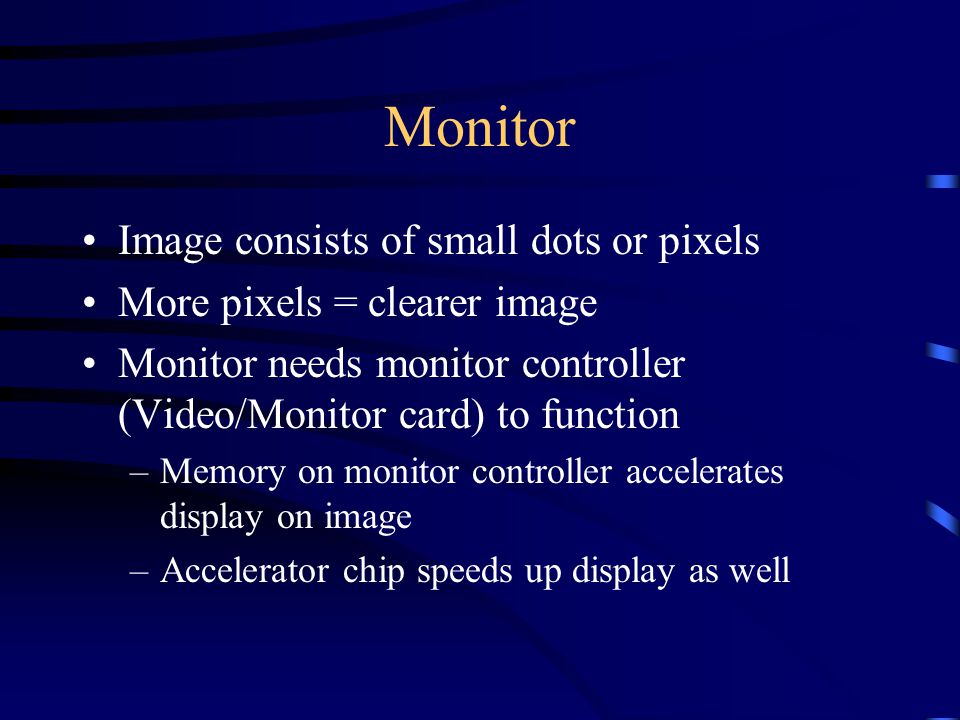

27 Monitor Image consists of small dots or pixels More pixels = clearer image Monitor needs monitor controller (Video/Monitor card) to function –Memory on monitor controller accelerates display on image –Accelerator chip speeds up display as well

28 Modem Device that allows transfer of data over phone lines (internet access, faxing, etc..) BAUD - Speed of modem measured in bits per second or bps Examples: 14.4 bps (or 14,400 bits per second), 28.8 bps, 33.6 bps, etc.. Internal or External

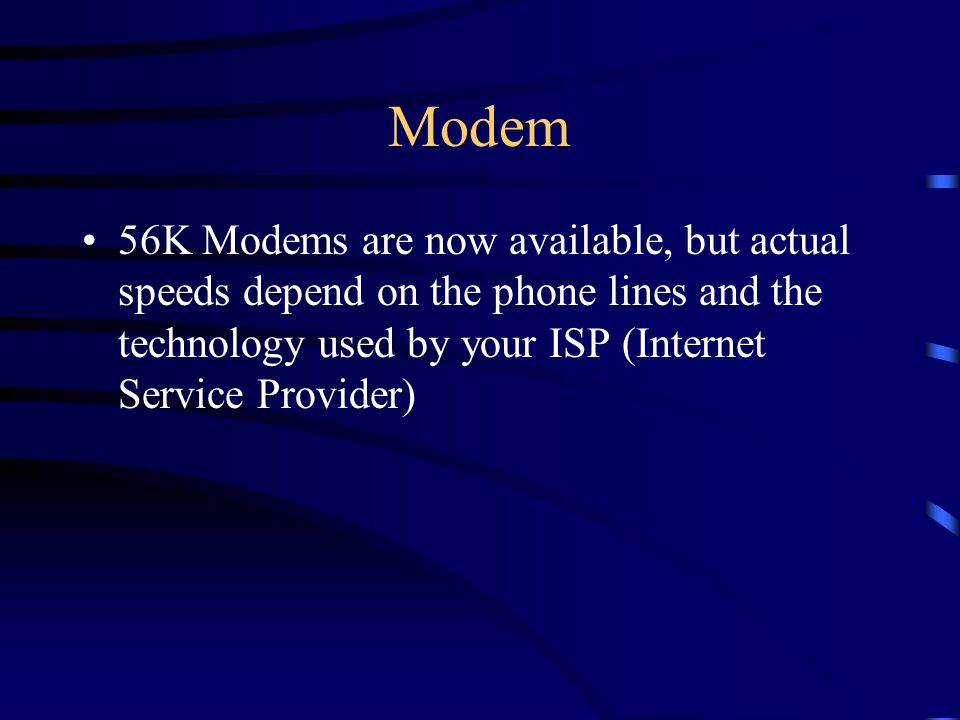

29 Modem 56K Modems are now available, but actual speeds depend on the phone lines and the technology used by your ISP (Internet Service Provider)

30 Next Class We will meet in TAH 1007 Bring your book and a floppy disk Read first two chapters of textbook
