1 Chapter 10 Flip-Flops and Registers Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

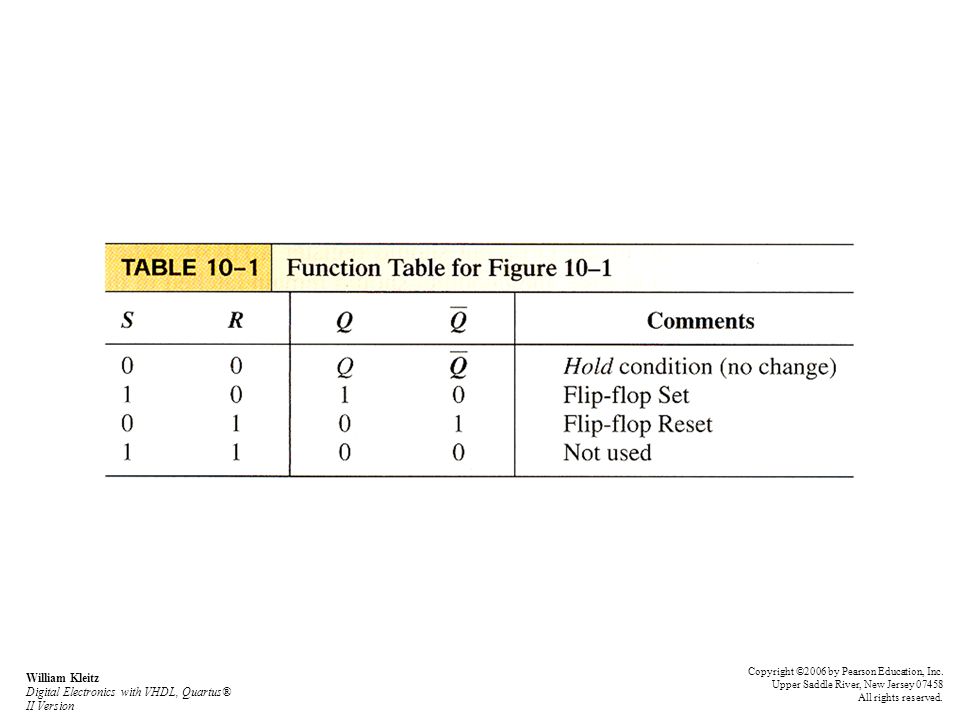

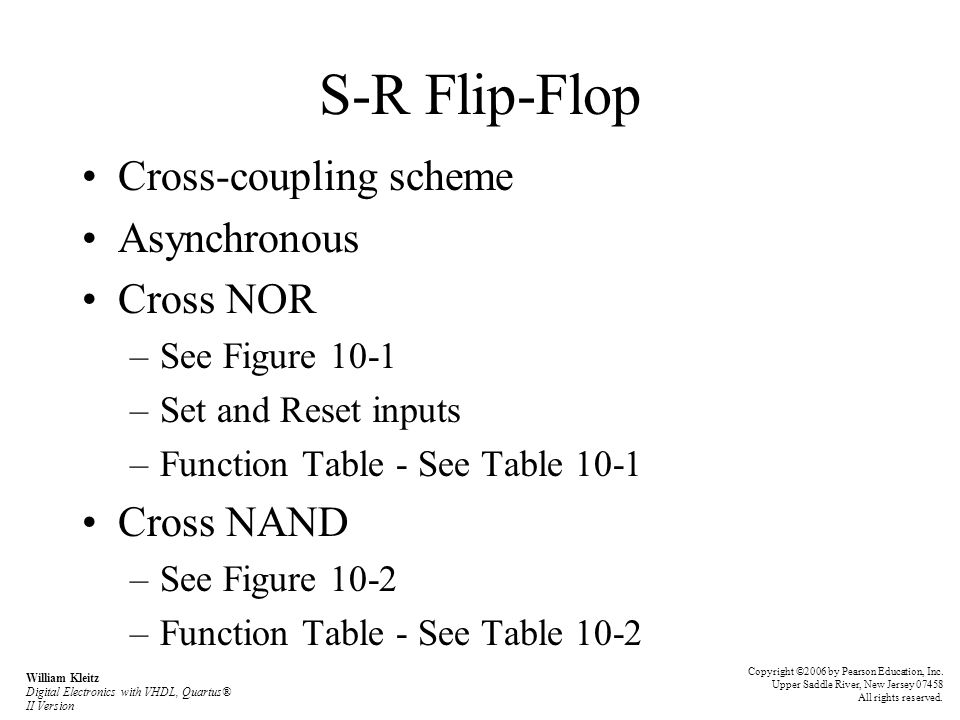

2 S-R Flip-Flop Cross-coupling scheme Asynchronous Cross NOR –See Figure 10-1 –Set and Reset inputs –Function Table - See Table 10-1 Cross NAND –See Figure 10-2 –Function Table - See Table 10-2 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

3 Figure 10-1 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

4 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

5 Figure 10-2 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

6 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

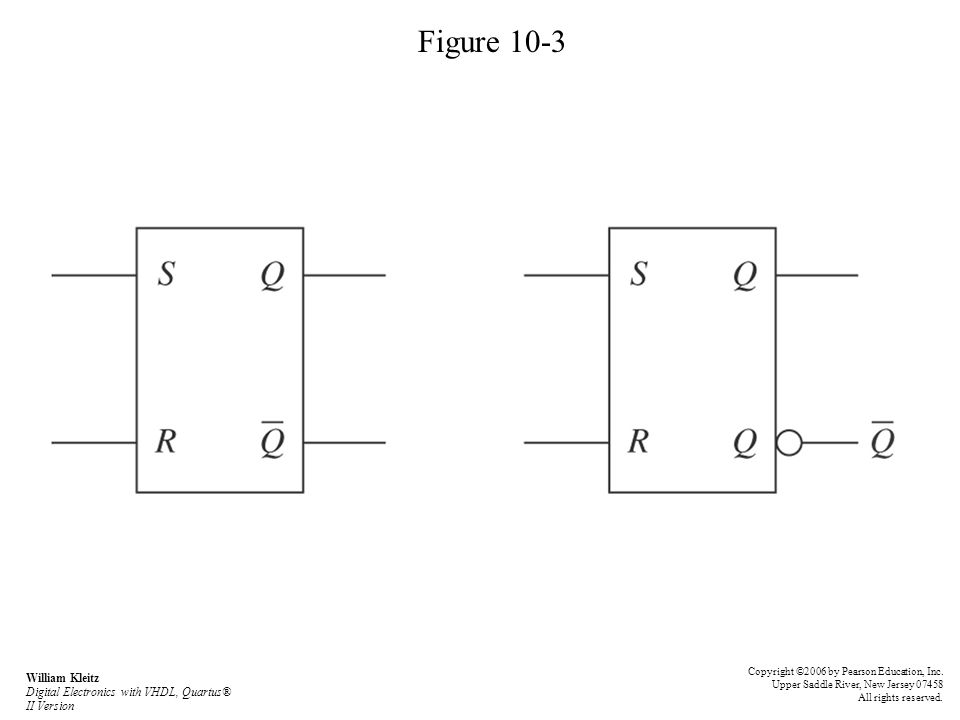

7 S-R Flip-Flop Both true and complemented Q outputs Symbols - See Figure 10-3 Timing Analysis –See Example 10-1 S-R Flip-Flop Application –Strobe Gates –See Figure 10-7 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

8 Figure 10-3 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

9 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

10 Figure 10-7 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

11 Gated S-R Flip-Flop Synchronous - operates sequentially See Figure 10-8 Function Table and symbol –See Figure 10-9 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

12 Figure 10-8 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

13 Figure 10-9 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

14 Gated D Flip-Flop Data flip-flop Inverter added to S-R flip-flop Single input for both Set and Reset See Figure Output waveform - See Example 10-4 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

15 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

16 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

17 D-Latch: 7475 IC; VHDL Description 7475 –four transparent D latches –bistable latch –See Figure logic symbol pin configuration –Function Table - See Table 10-3 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

18 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

19 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

20 D-Latch: 7475 IC; VHDL Description VHDL description of a D-Latch –implemented using a graphic design file –implemented using VHDL –see example 10-6 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

21 D Flip-Flop: 7474 IC; VHDL Description 7474 –positive edge-triggered device transitions of output occur at the edge of input trigger pulse clock signal usually used –See Figure logic symbol pin configuration Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

22 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

23 D Flip-Flop: 7474 IC; VHDL Description –positive edge-detection circuit See Figure –synchronous inputs D (Data) C p (Clock) –asynchronous inputs S D (Set) R D (Reset) Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

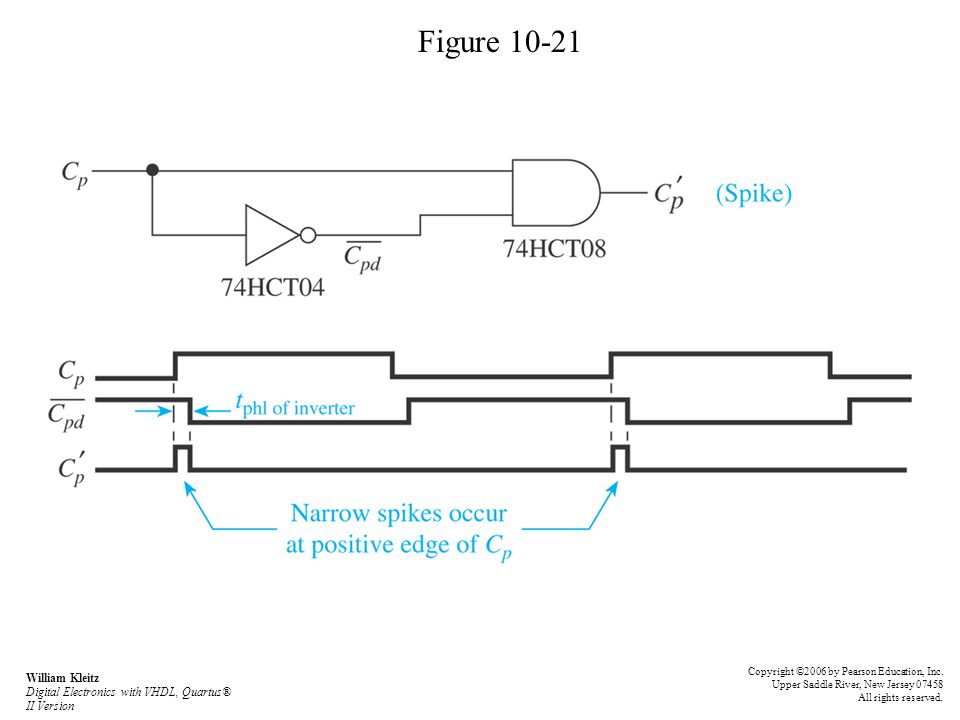

24 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

25 D Flip-Flop: 7474 IC; VHDL Description –Function Table See Table 10-4 –Setup Time time D must be stable before transition of C p Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

26 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

27 D Flip-Flop: 7474 IC; VHDL Description VHDL description of a D flip-flop –implemented using a graphic design file –implemented using VHDL –see examples 10-9 and Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

28 Master-Slave J-K Flip-Flop Toggle mode –switch to opposite state at active clock edge Master-Slave –master receives data while input trigger is HIGH –slave receives data from master and outputs it when clock goes LOW Function Table - See Table 10-5 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

29 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

30 Master-Slave J-K Flip-Flop See Figure –equivalent circuit –logic symbol Digital State Pulse-Triggered (Level-Triggered) –input data read during entire time clock pulse is at a HIGH level –ones catching Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

31 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

32 Edge-Triggered J-K Flip-Flop With VHDL Model Accepts data only on the J and K inputs at the active clock edge See Figure Function Table - See Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

33 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

34 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

35 Edge-Triggered J-K Flip-Flop With VHDL Model VHDL description of an edge triggered J-K flip-flop –using the CASE statement instead of multiple IF-THEN-ELSE statements –using graphic design or VHDL methods –see example Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

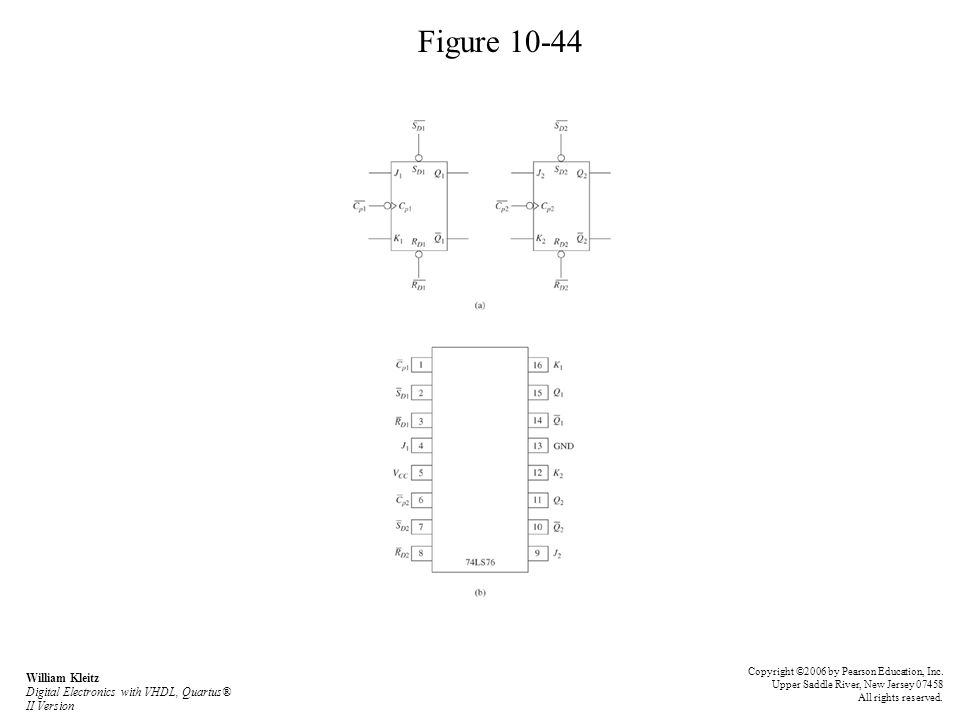

36 Integrated Circuit J-K Flip-Flop master-slave 74LS76 - negative edge-triggered –See Figure logic symbol pin configuration –Function Table see Table 10-6 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

37 Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

38 Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

39 Integrated Circuit J-K Flip-Flop –To form a D flip-flop add an inverter See Figure –To form a toggle flip-flop tie inputs to HIGH See Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

40 Figure Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

41 Using an Octal D Flip-Flop in a Microcontroller Application Octal ICs - eight on a chip 8-bit register 74HCT273 –See Figure logic diagram –See Figure –storage Register Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

42 Figure Figure Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

43 Using Altera’s LPM Flip-Flop General purpose FF called LPM_FF in LPM subdirectory called \mega_lpm Parameters are described in help screens Examples and illustrate some basic operating features Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

44 Summary The S-R flip-flop is a single-bit data storage circuit that can be constructed using basic gates. Adding gate enable circuitry to the S-R flip- flop makes it synchronous. This means that it will operate only under the control of a clock or enable signal. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

45 Summary The D flip-flop operates similar to the S-R, except it has only a single data input, D. The 7475 is an integrated-circuit D latch. The output (Q) follows D while the enable (E) is HIGH. When E goes LOW, Q remains latched. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

46 Summary The 7474 is an integrated-circuit D flip- flop. It has two synchronous inputs, D and C p, and two asynchronous inputs, S D and R D. Q changes to the level of D at the positive edge of C p. Q responds immediately to the asynchronous inputs regardless of the synchronous operations. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

47 Summary The J-K flip-flop differs from the S-R flip- flop because it can also perform a toggle operation. Toggling means that Q flips to its opposite state. The master-slave J-K slip-flop consists of two latches: a master that receives data while the clock trigger is HIGH, and a slave that receives data from the master and outputs it to Q when the clock goes LOW. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

48 Summary The 74LS76 is an edge-triggered J-K flip- flop IC. It has synchronous and asynchronous inputs. The 7476 is similar, except it is a pulse-triggered master-slave type. The 74HCT273 is an example of an octal D flip-flop. It has eight D flip-flops in a single IC package, making it ideal for microprocessor applications. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version

49 Summary D latches, D flip-flops and J-K flip-flops can be described in VHDL and implemented in CPLDs. The Quartus II software provides a general purpose flip-flop in their LPM subdirectory that can be used to implement multi-bit D and toggle flip flops. Copyright ©2006 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. William Kleitz Digital Electronics with VHDL, Quartus® II Version
