Several systems of tooth notation are available, but the systems commonly used in the UK are the FDI (Federation Dentaire International) and Palmer systems.

Similar presentations


Presentation on theme: "Several systems of tooth notation are available, but the systems commonly used in the UK are the FDI (Federation Dentaire International) and Palmer systems."— Presentation transcript:

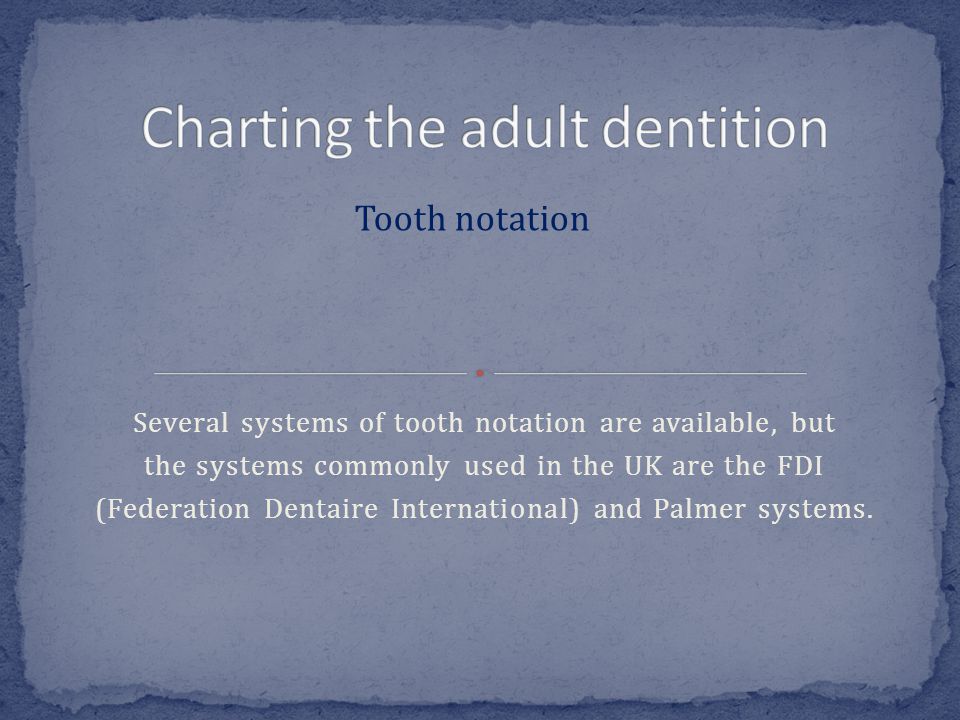

1 Several systems of tooth notation are available, but the systems commonly used in the UK are the FDI (Federation Dentaire International) and Palmer systems. Tooth notation

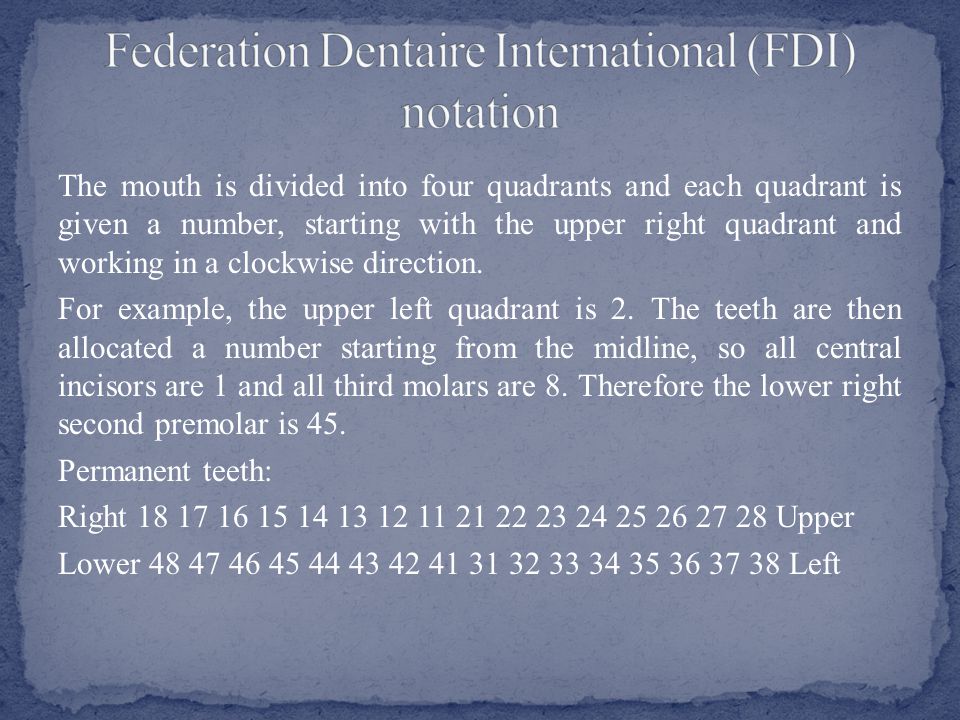

2 The mouth is divided into four quadrants and each quadrant is given a number, starting with the upper right quadrant and working in a clockwise direction. For example, the upper left quadrant is 2. The teeth are then allocated a number starting from the midline, so all central incisors are 1 and all third molars are 8. Therefore the lower right second premolar is 45. Permanent teeth: Right Upper Lower Left

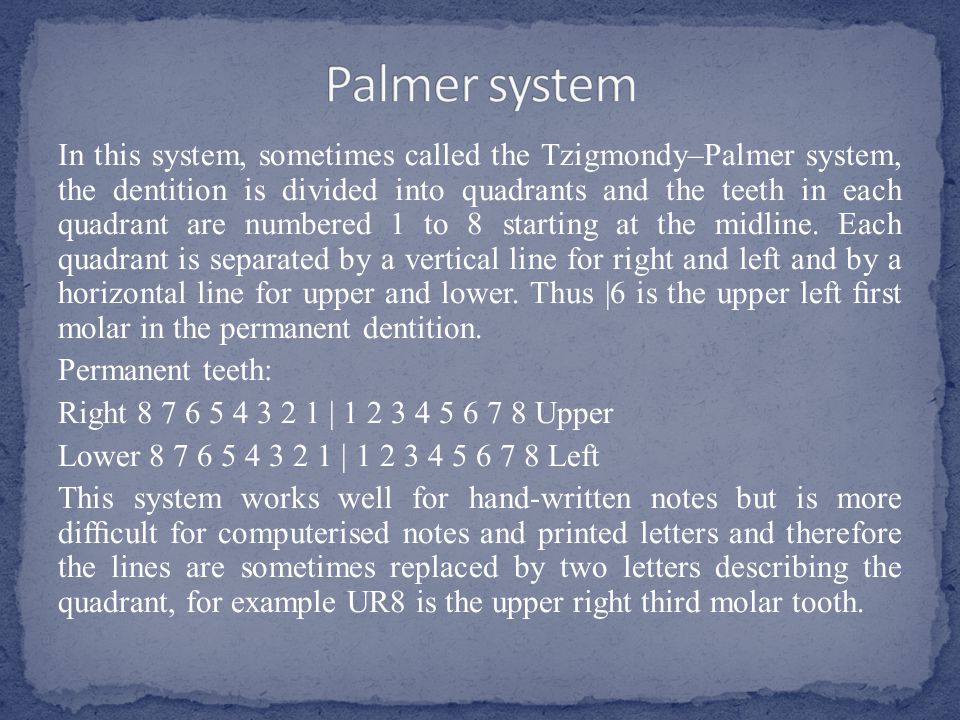

3 In this system, sometimes called the Tzigmondy–Palmer system, the dentition is divided into quadrants and the teeth in each quadrant are numbered 1 to 8 starting at the midline. Each quadrant is separated by a vertical line for right and left and by a horizontal line for upper and lower. Thus |6 is the upper left first molar in the permanent dentition. Permanent teeth: Right | Upper Lower | Left This system works well for hand-written notes but is more difficult for computerised notes and printed letters and therefore the lines are sometimes replaced by two letters describing the quadrant, for example UR8 is the upper right third molar tooth.

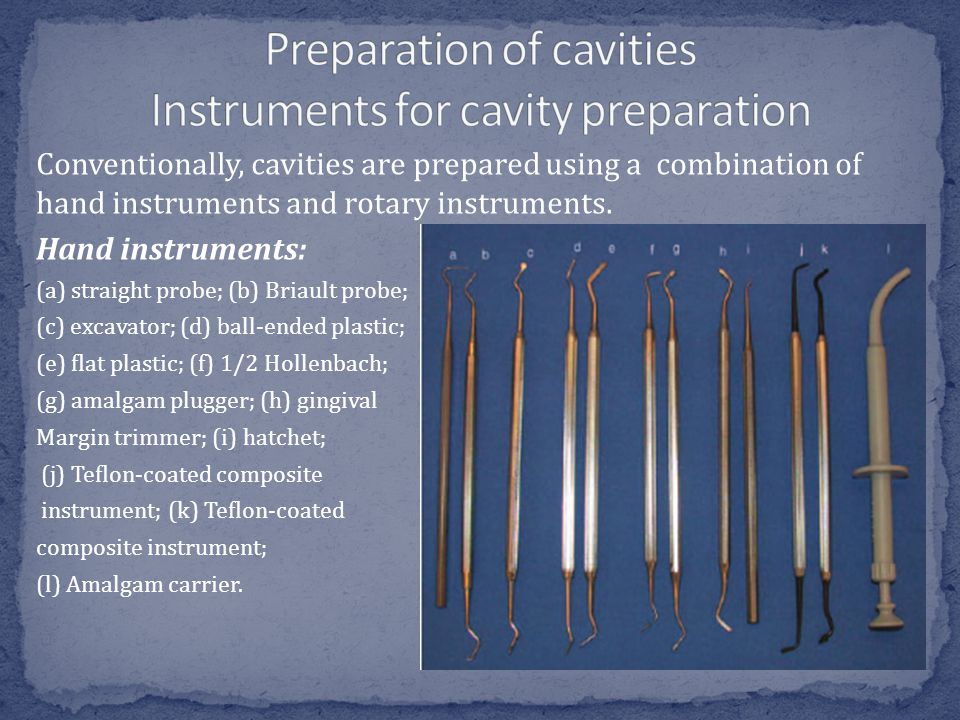

4 Conventionally, cavities are prepared using a combination of hand instruments and rotary instruments. Hand instruments: (a) straight probe; (b) Briault probe; (c) excavator; (d) ball-ended plastic; (e) flat plastic; (f) 1/2 Hollenbach; (g) amalgam plugger; (h) gingival Margin trimmer; (i) hatchet; (j) Teflon-coated composite instrument; (k) Teflon-coated composite instrument; (l) Amalgam carrier.

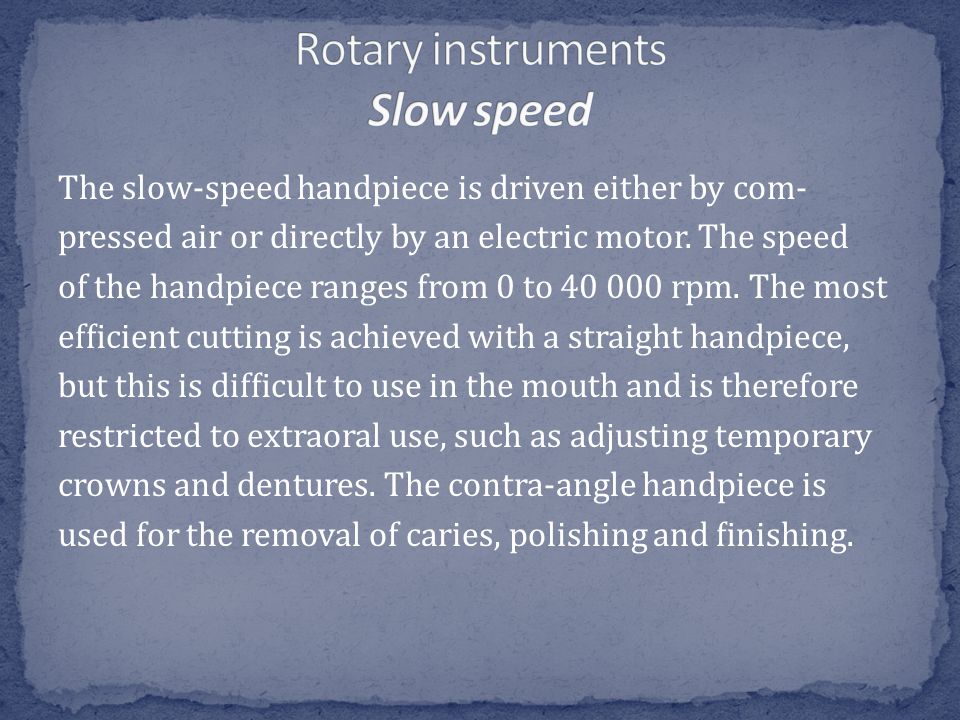

5 The slow-speed handpiece is driven either by com- pressed air or directly by an electric motor. The speed of the handpiece ranges from 0 to rpm. The most efficient cutting is achieved with a straight handpiece, but this is difficult to use in the mouth and is therefore restricted to extraoral use, such as adjusting temporary crowns and dentures. The contra-angle handpiece is used for the removal of caries, polishing and finishing.

6 Straight handpiece Electric motor Contra-angled slow speed handpiece

7 The high-speed handpiece is driven by compressed air and is sometimes referred to as an air-turbine. It is used for cutting through enamel and dentine and removing previous restorations. It has a speed of – rpm and, to keep it cool, a water spray is directed at the cutting part of the bur which is held in the head of the handpiece by friction. A fibreoptic light in the head of the handpiece aids visibility.

8 Most often called burs, but also available are wheels, discs, rubber points, rubber cups and stones Each has a particular function (cutting, polishing, finishing or caries removal) Are made from various materials (tungsten carbide, diamond and steel) Can have flutes (the cutting edges) The end of the shank determines which handpiece the attachment will fit into: Long straight shank – straight handpiece Latch grip – conventional type/slow speed handpiece Friction grip shank – air turbine handpiece/high speed handpiece Most often called burs, but also available are wheels, discs, rubber points, rubber cups and stones Each has a particular function (cutting, polishing, finishing or caries removal) Are made from various materials (tungsten carbide, diamond and steel) Can have flutes (the cutting edges) The end of the shank determines which handpiece the attachment will fit into: Long straight shank – straight handpiece Latch grip – conventional type/slow speed handpiece Friction grip shank – air turbine handpiece/high speed handpiece

9 (a) latch grip stainless steel large round; (b) latch grip stainless steel small round; (c) latch grip superfine diamond flame; (d) latch grip superfine diamond football; (e) latch grip composite finishing point; (f) latch grip abrasive disc; (g) friction grip diamond fissure; (h) friction grip diamond round; (i) friction grip diamond pear; (j) friction grip superfine diamond flame; (k) friction grip superfine diamond tapered fissure; (l) friction grip superfine diamond football. (a) latch grip stainless steel large round; (b) latch grip stainless steel small round; (c) latch grip superfine diamond flame; (d) latch grip superfine diamond football; (e) latch grip composite finishing point; (f) latch grip abrasive disc; (g) friction grip diamond fissure; (h) friction grip diamond round; (i) friction grip diamond pear; (j) friction grip superfine diamond flame; (k) friction grip superfine diamond tapered fissure; (l) friction grip superfine diamond football.

10 Functions and precautions An amalgam capsule contains amalgam material (contents will vary depending on the manufacturer) Care must be taken when handling amalgam to prevent inhalation of vapours, skin absorption and inhalation of air-borne particles Amalgamator is used to titrate amalgam prior to use Amalgamators must have a plastic covering over the area where the amalgam is titrated for safety in case of displacement

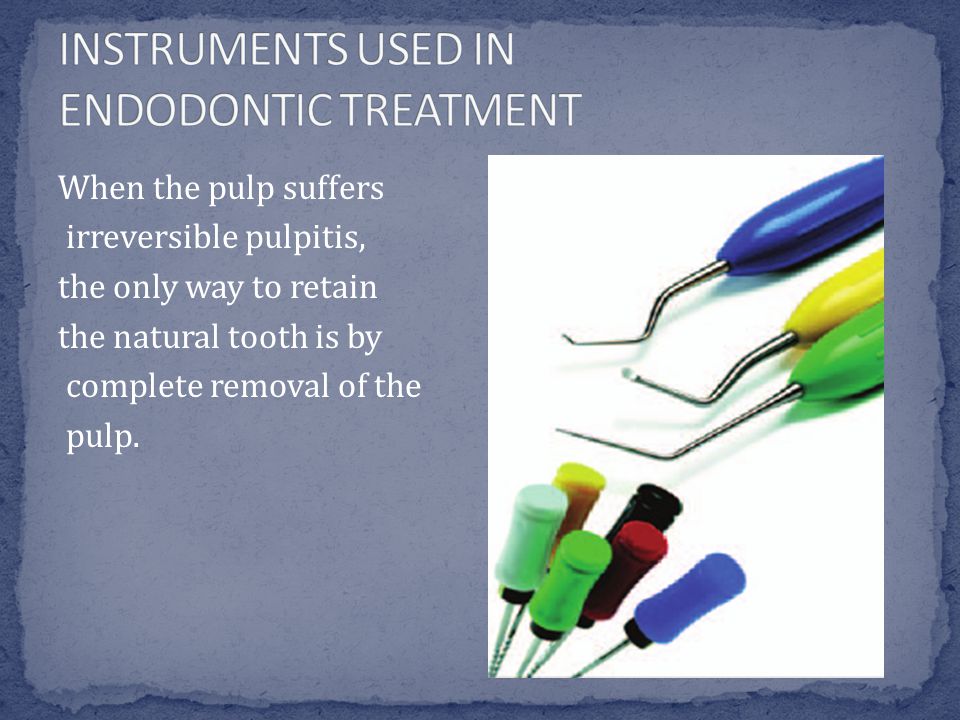

11 When the pulp suffers irreversible pulpitis, the only way to retain the natural tooth is by complete removal of the pulp.

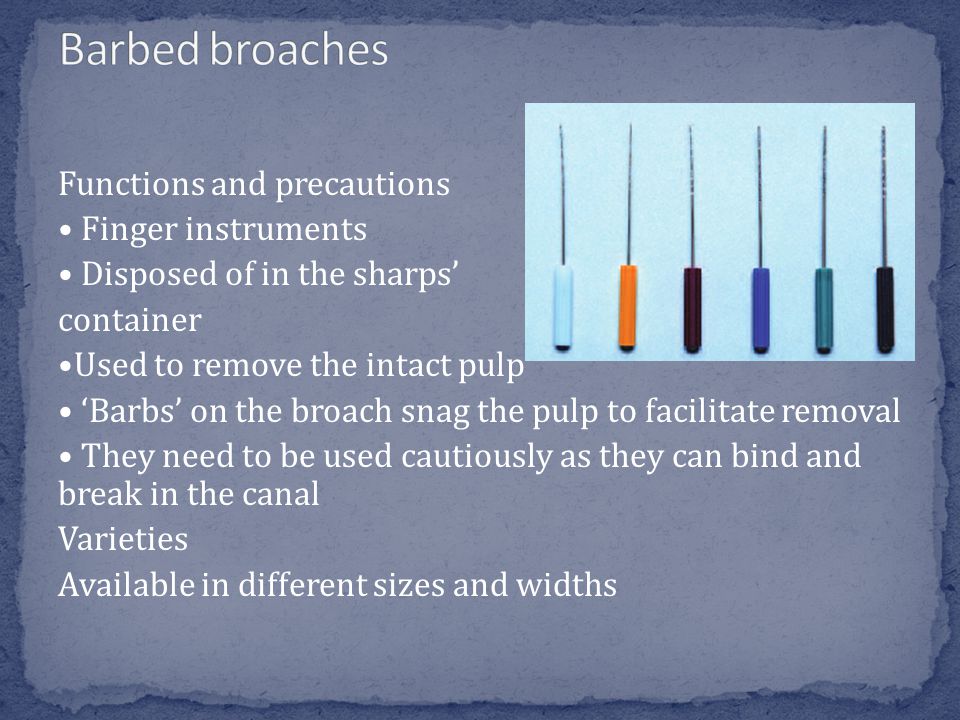

12 Functions and precautions Finger instruments Disposed of in the sharps’ container Used to remove the intact pulp ‘Barbs’ on the broach snag the pulp to facilitate removal They need to be used cautiously as they can bind and break in the canal Varieties Available in different sizes and widths

13 Function, features and precaution Finger instrument Colour coded by size. The 6 colours used most often are: size 15 (white); 20 (yellow);25 (red); 30 (blue); 35 (green); 40 (black). Also available in size 6 (pink), 8 (grey) and 10 (purple) Operator gradually increases the size of the file to smooth, shape and enlarge canal The larger the number of the file, the larger the diameter of the working end Disposed of in the sharps’ container Varieties Different lengths: 21mm, 25mm and 30mm Hedstrцm files, Flexofiles

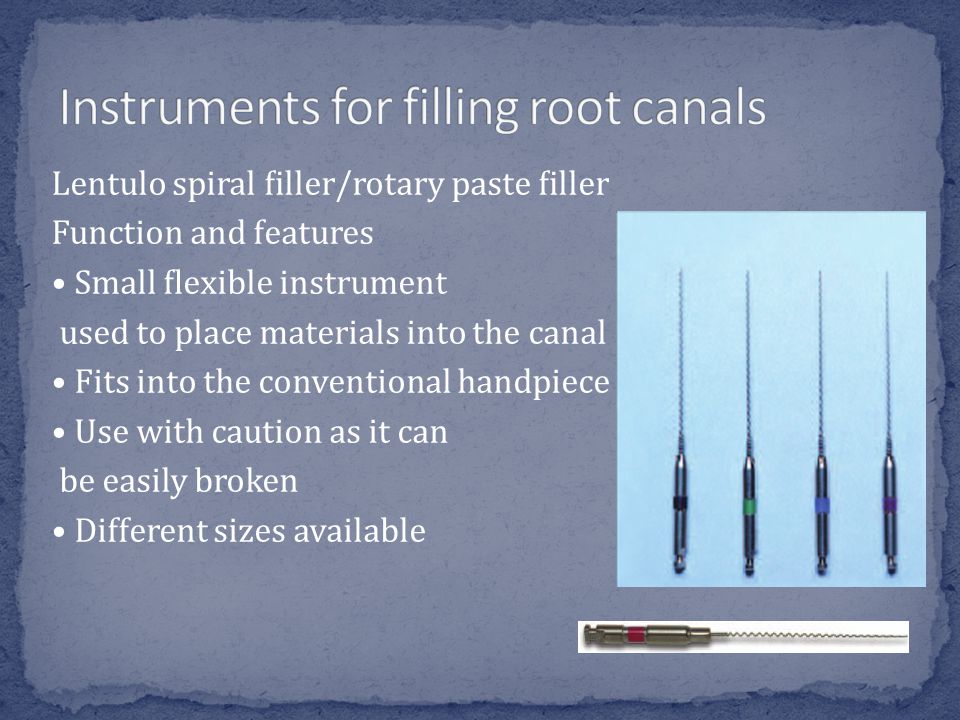

14 Lentulo spiral filler/rotary paste filler Function and features Small flexible instrument used to place materials into the canal Fits into the conventional handpiece Use with caution as it can be easily broken Different sizes available

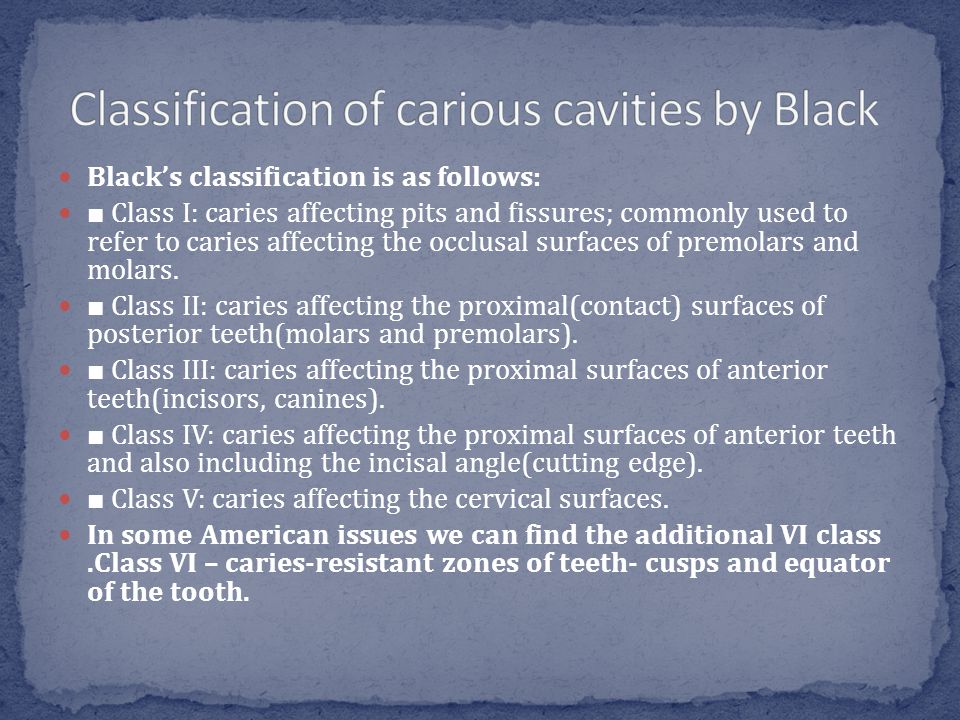

15 Black’s classification is as follows: ■ Class I: caries affecting pits and fissures; commonly used to refer to caries affecting the occlusal surfaces of premolars and molars. ■ Class II: caries affecting the proximal(contact) surfaces of posterior teeth(molars and premolars). ■ Class III: caries affecting the proximal surfaces of anterior teeth(incisors, canines). ■ Class IV: caries affecting the proximal surfaces of anterior teeth and also including the incisal angle(cutting edge). ■ Class V: caries affecting the cervical surfaces. In some American issues we can find the additional VI class.Class VI – caries-resistant zones of teeth- cusps and equator of the tooth.

16 Class I Class II Class III Class IV Class V

17
