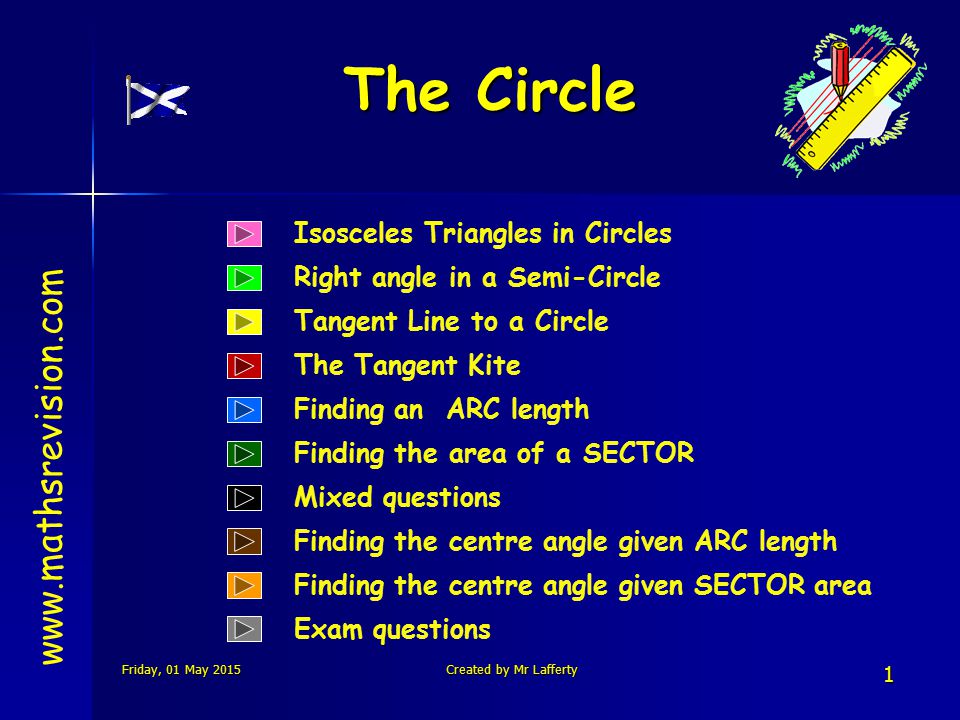

Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty 1 The Circle www.mathsrevision.com Finding an ARC length Finding the area of a SECTOR Finding the centre angle given ARC length Finding the centre angle given SECTOR area Mixed questions Exam questions Isosceles Triangles in Circles Right angle in a Semi-Circle Tangent Line to a Circle The Tangent Kite

2
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty2 Starter Questions Q1. True or false Q2. How many degrees in one eighth of a circle. Q3. After a discount of 20% an iPod is £160. How much was it originally. www.mathsrevision.com

3

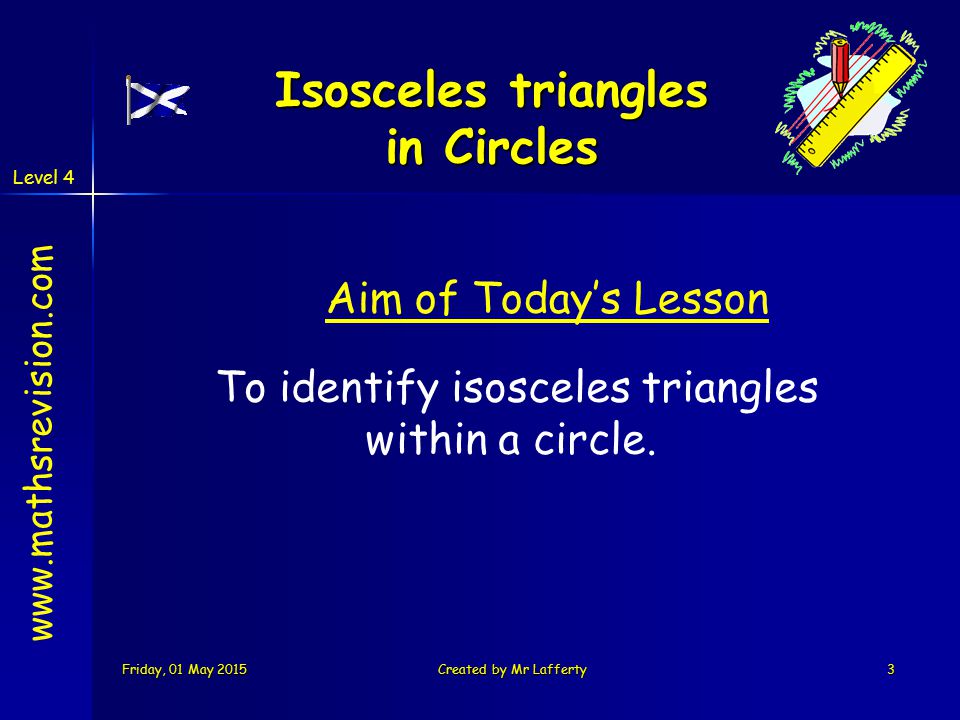

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty3 www.mathsrevision.com To identify isosceles triangles within a circle. Aim of Today’s Lesson Isosceles triangles in Circles

4
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty4 When two radii are drawn to the ends of a chord, An isosceles triangle is formed. C AB www.mathsrevision.com Isosceles triangles in Circles x o x o DEMO

5
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty5 Special Properties of Isosceles Triangles Two equal lengths Two equal angles Angles in any triangle sum to 180 o www.mathsrevision.com Isosceles triangles in Circles

6
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty6 Q.Find the angle x o. A B C Solution Angle at C is equal to: Since the triangle is isosceles we have xoxo 280 o www.mathsrevision.com Isosceles triangles in Circles

7

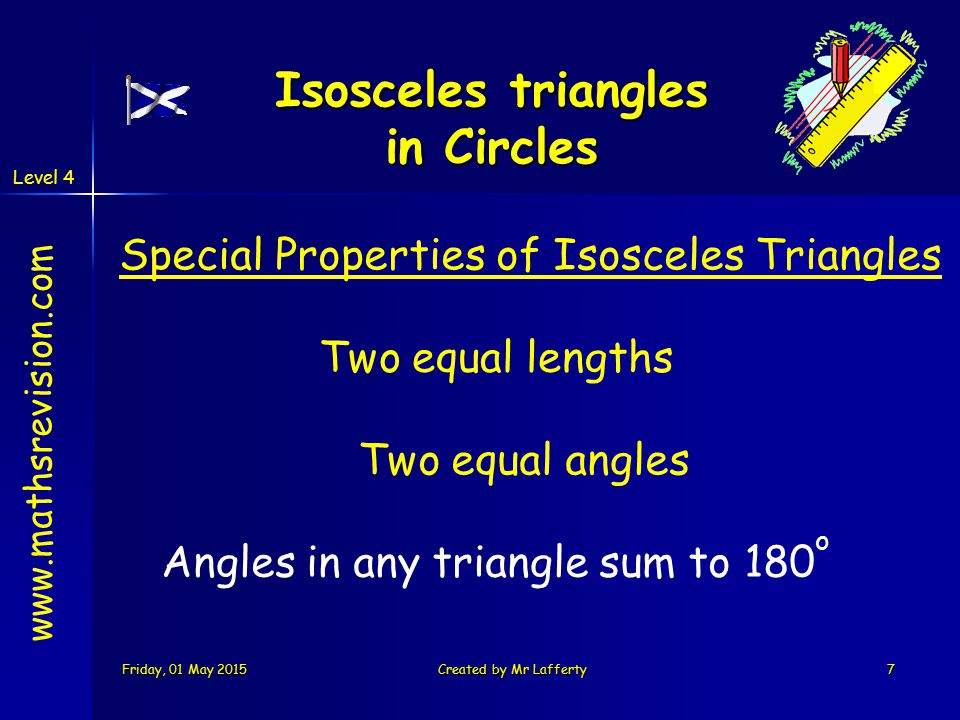

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty7 Special Properties of Isosceles Triangles Two equal lengths Two equal angles Angles in any triangle sum to 180 o www.mathsrevision.com Isosceles triangles in Circles

8

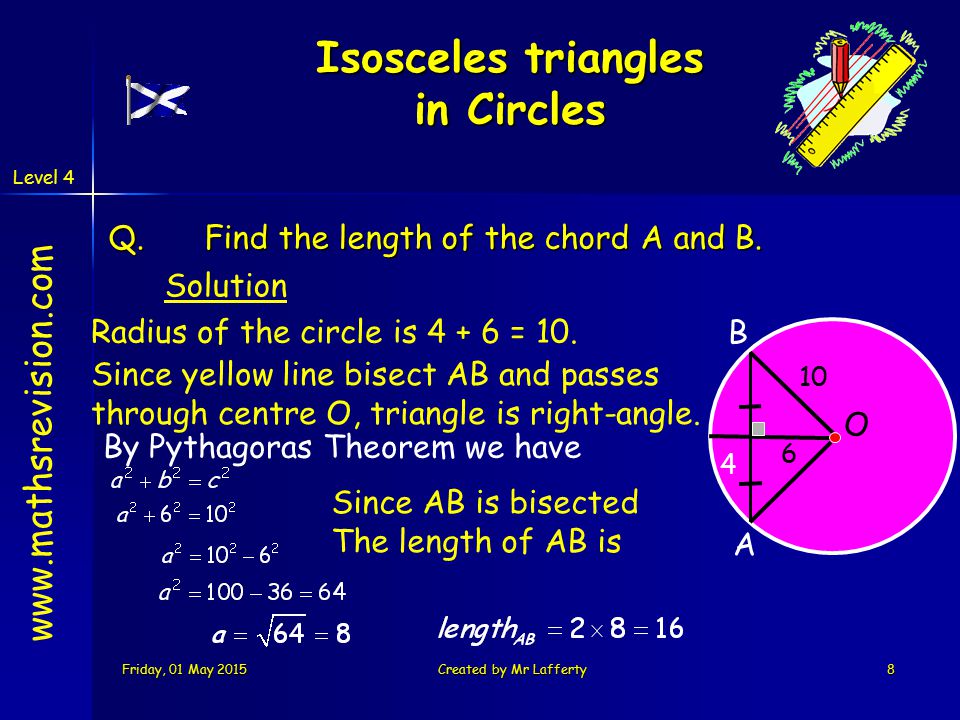

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty8 Q.Find the length of the chord A and B. A B 6 O Solution By Pythagoras Theorem we have Isosceles triangles in Circles 4 Since yellow line bisect AB and passes through centre O, triangle is right-angle. Radius of the circle is 4 + 6 = 10. 10 Since AB is bisected The length of AB is www.mathsrevision.com

9
Level 4 1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N4+ TJ Ex18.1 Ch18 (page 139) www.mathsrevision.com Isosceles triangles in Circles

10
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty10 Starter Questions Q1. Explain how we solve Q2. How many degrees in one tenth of a circle. Q3. After a discount of 40% a Digital Radio is £120. Explain why the originally price was £200. www.mathsrevision.com

11

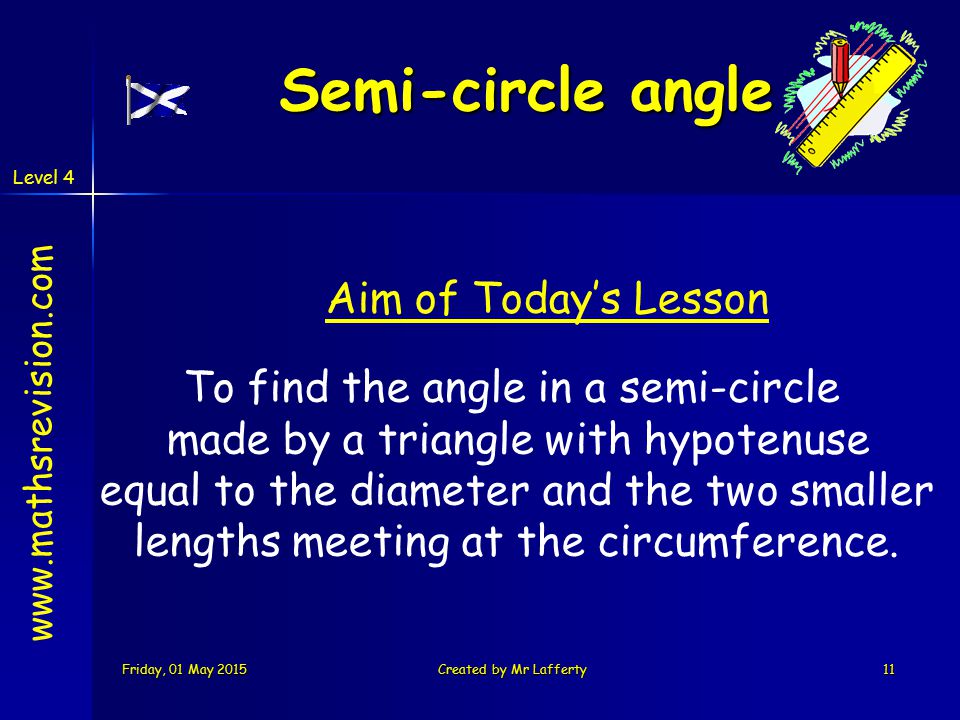

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty11 Semi-circle angle To find the angle in a semi-circle made by a triangle with hypotenuse equal to the diameter and the two smaller lengths meeting at the circumference. Aim of Today’s Lesson www.mathsrevision.com

12

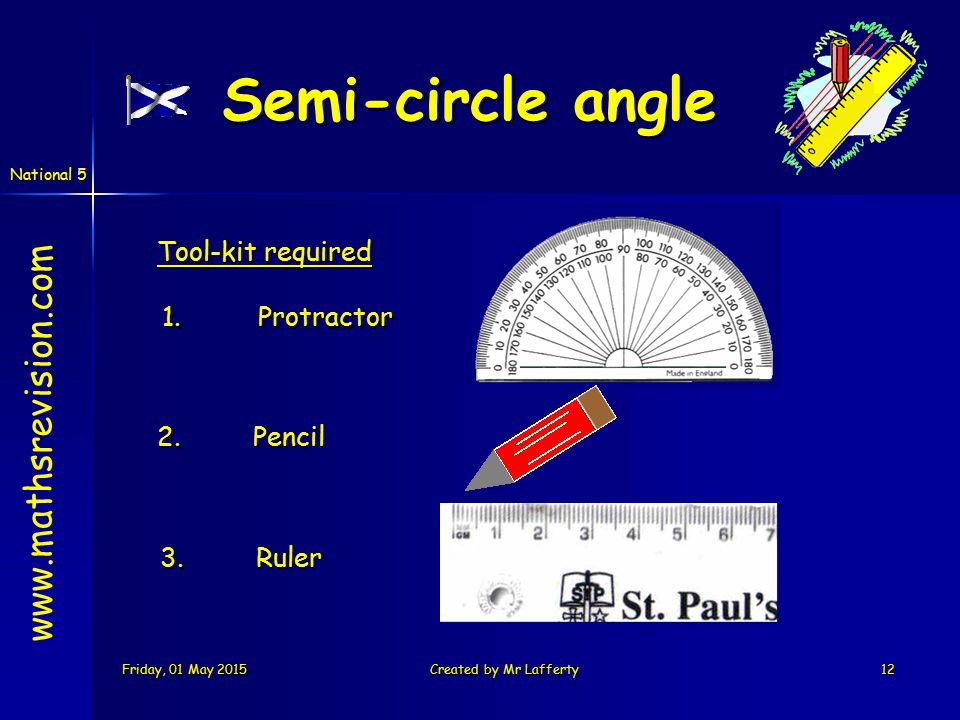

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty12 Semi-circle angle Tool-kit required 1.Protractor 2.Pencil 3.Ruler www.mathsrevision.com

13

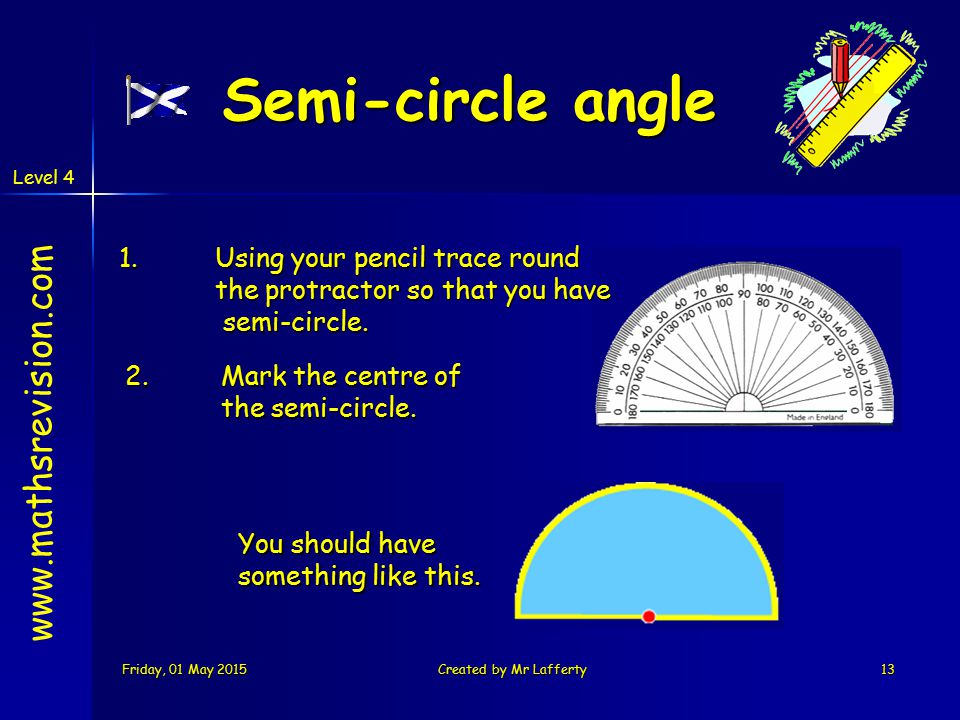

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty13 1.Using your pencil trace round the protractor so that you have semi-circle. semi-circle. 2.Mark the centre of the semi-circle. You should have something like this. Semi-circle angle www.mathsrevision.com

14
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty14 Mark three points 1.Outside the circle x x x x x x x x x 2. On the circumference 3. Inside the circle www.mathsrevision.com Semi-Circle Angle

15

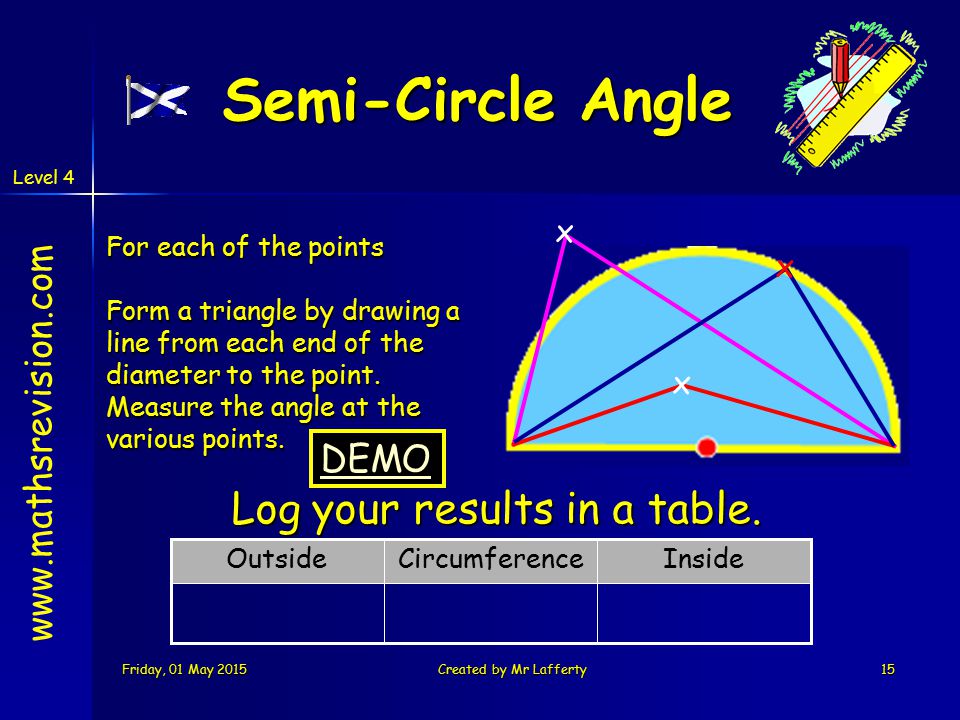

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty15 For each of the points Form a triangle by drawing a line from each end of the diameter to the point. Measure the angle at the various points. x x x Log your results in a table. InsideCircumferenceOutside www.mathsrevision.com DEMO Semi-Circle Angle

16

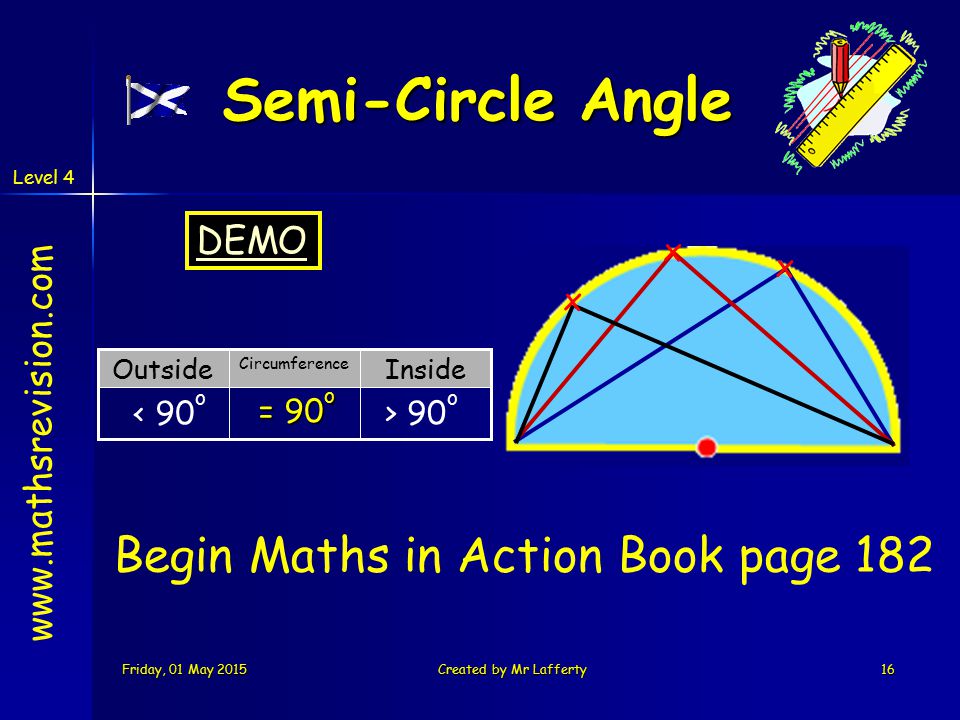

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty16 Inside Circumference Outside x x x < 90 o > 90 o = 90 o Begin Maths in Action Book page 182 www.mathsrevision.com DEMO Semi-Circle Angle

17

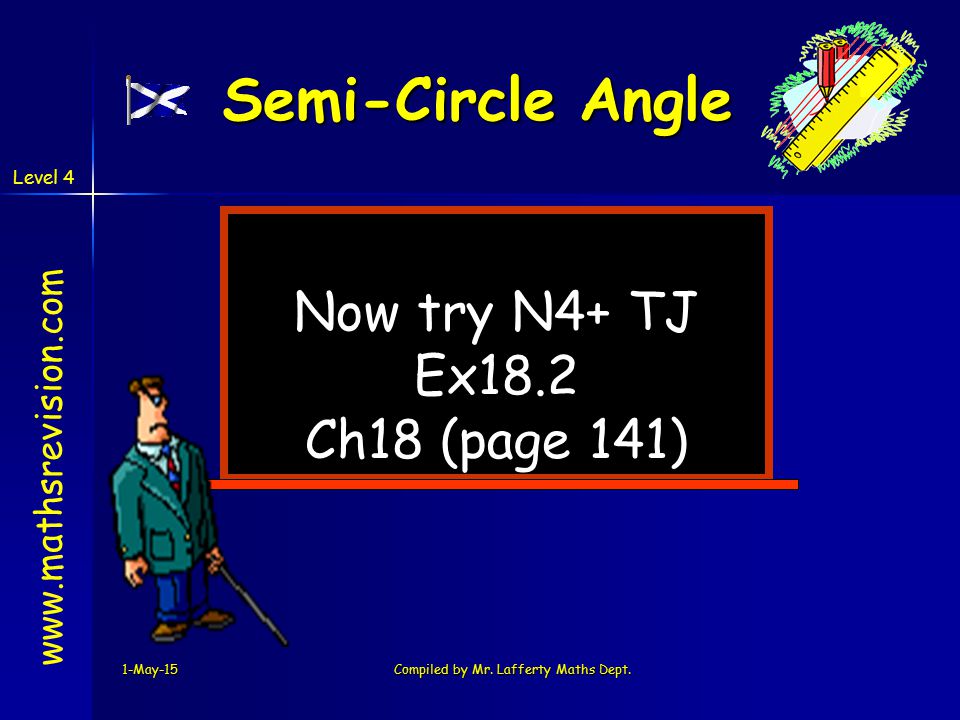

Level 4 1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N4+ TJ Ex18.2 Ch18 (page 141) www.mathsrevision.com Semi-Circle Angle

18
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty18 Starter Questions Starter Questions www.mathsrevision.com If a = 7 b = 4 and c = 10 Write down as many equations as you can e.g.a + b = 11

19
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty19 To understand what a tangent line is and its special property with the radius at the point of contact. Aim of Today’s Lesson Tangent line www.mathsrevision.com

20

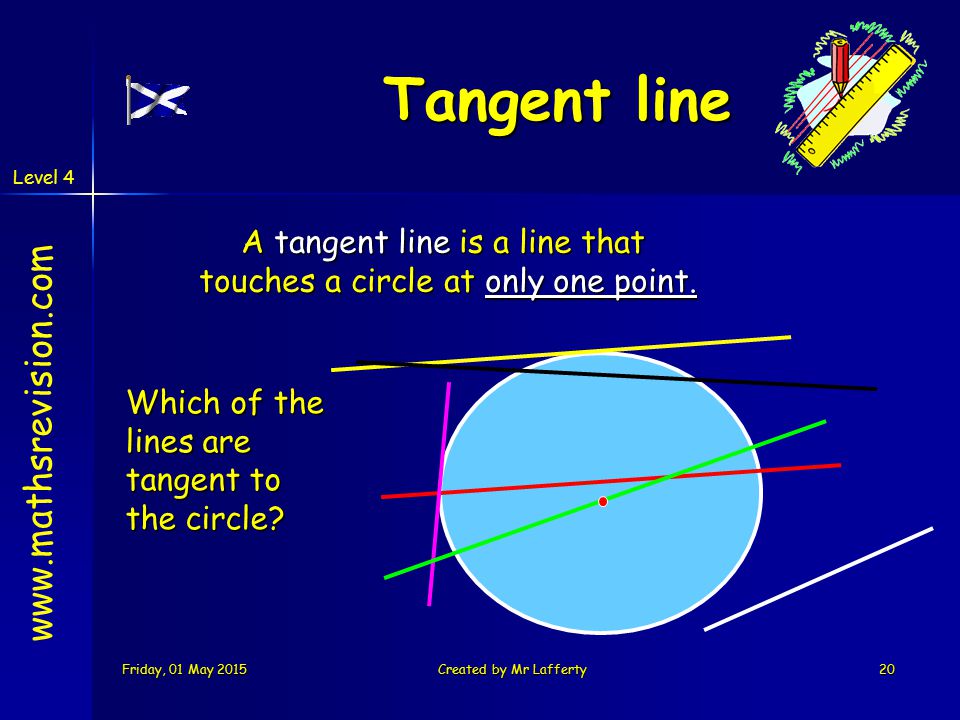

Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty20 Tangent line A tangent line is a line that touches a circle at only one point. Which of the lines are tangent to the circle? www.mathsrevision.com

21
Level 4 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty21 Tangent line The radius of the circle that touches the tangent line is called the point of contact radius. Special Property The point of contact radius is always perpendicular (right-angled) to the tangent line. www.mathsrevision.com DDDD EEEE MMMM OOOO

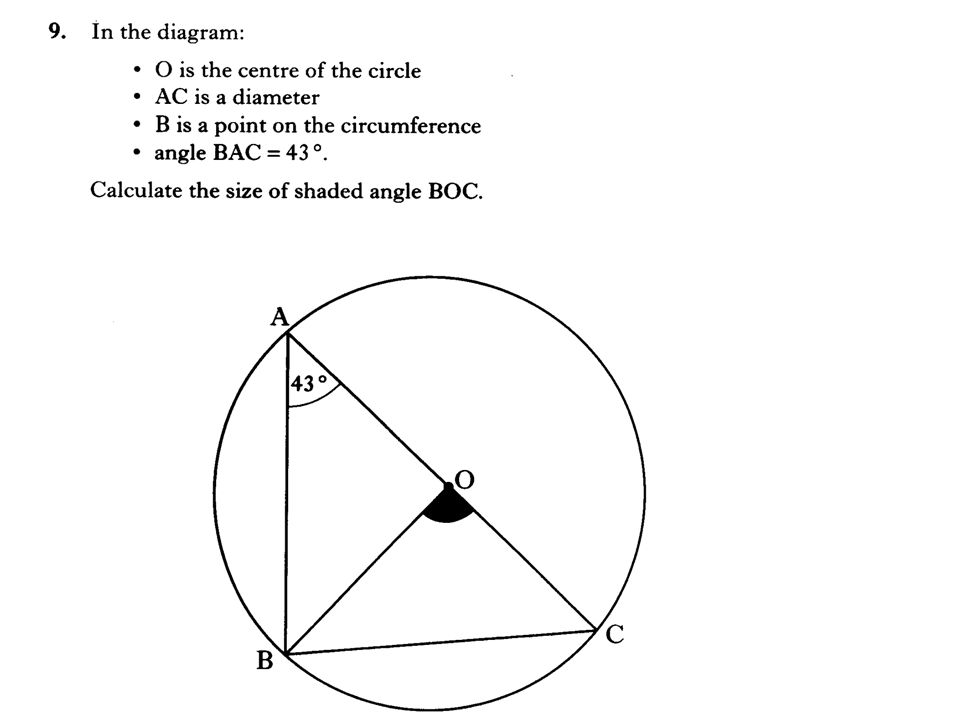

24

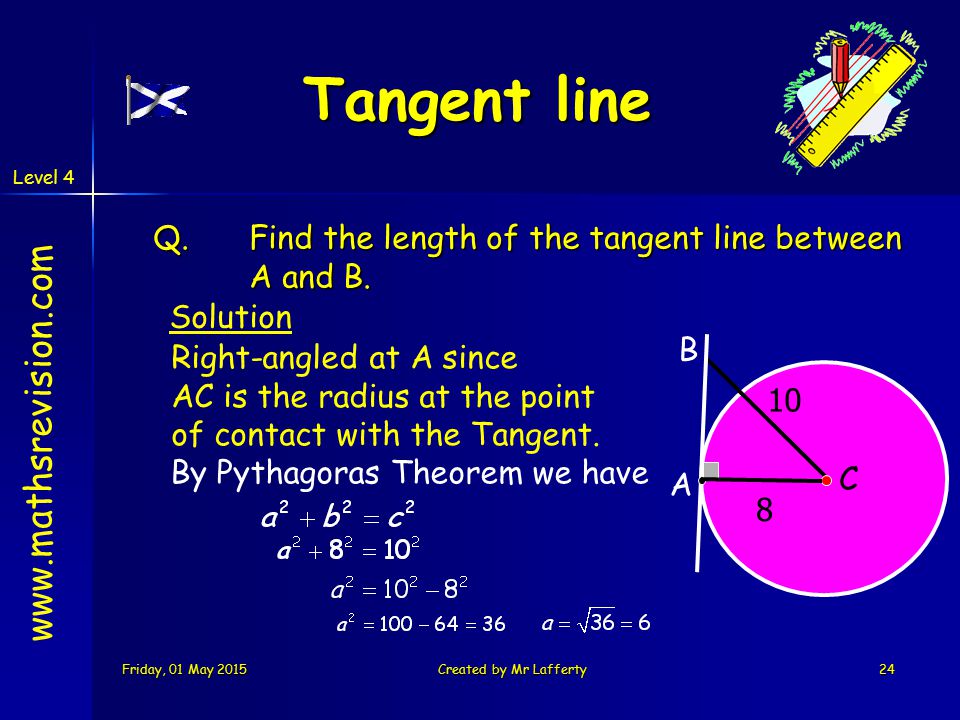

Level 4 Right-angled at A since AC is the radius at the point of contact with the Tangent. Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty24 Tangent line Q.Find the length of the tangent line between A and B. A and B. A B 8 10 C Solution By Pythagoras Theorem we have www.mathsrevision.com

26
Level 4 1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N4+ TJ Ex18.3 Ch18.3 (page 143) www.mathsrevision.com Tangent Line

27

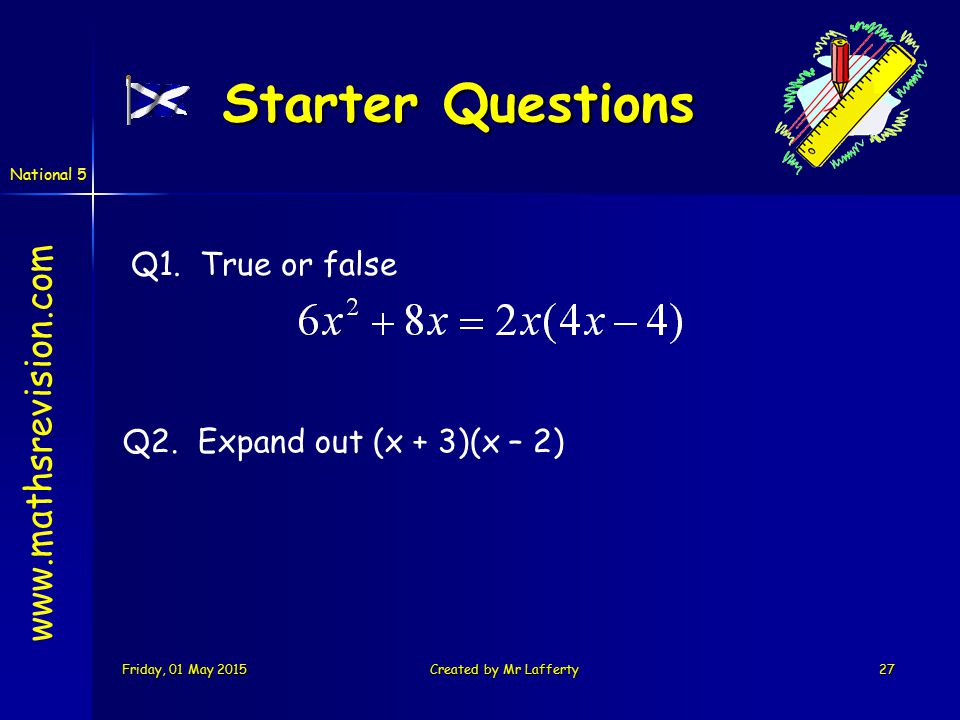

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty27 Starter Questions Q1. True or false Q2. Expand out (x + 3)(x – 2) www.mathsrevision.com

28

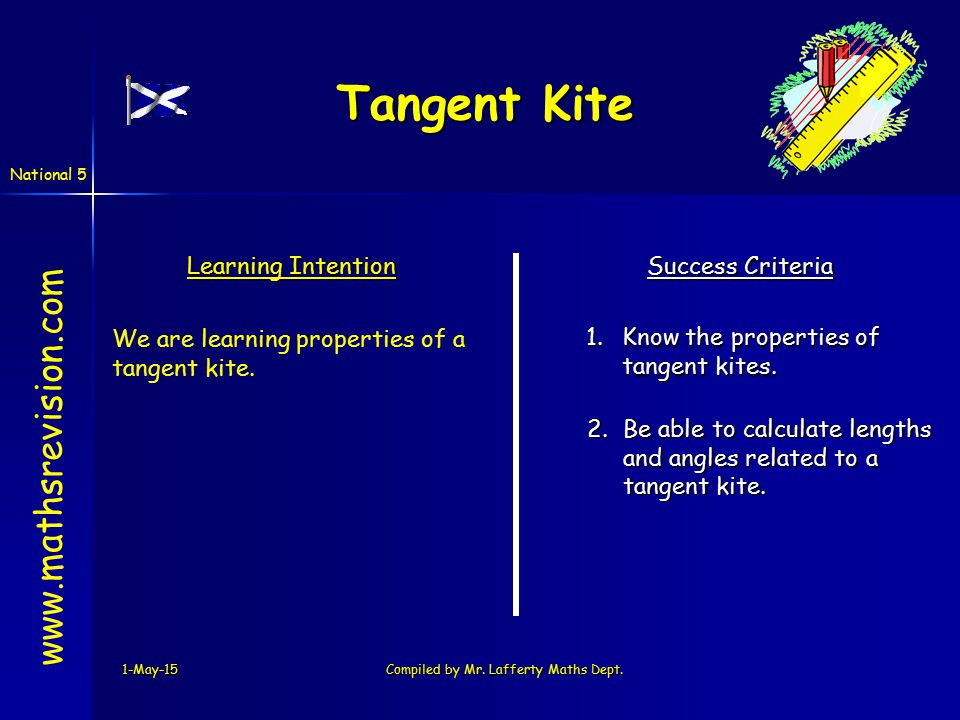

National 5 Tangent Kite 1-May-15Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Know the properties of tangent kites. We are learning properties of a tangent kite. 2.Be able to calculate lengths and angles related to a tangent kite.

29

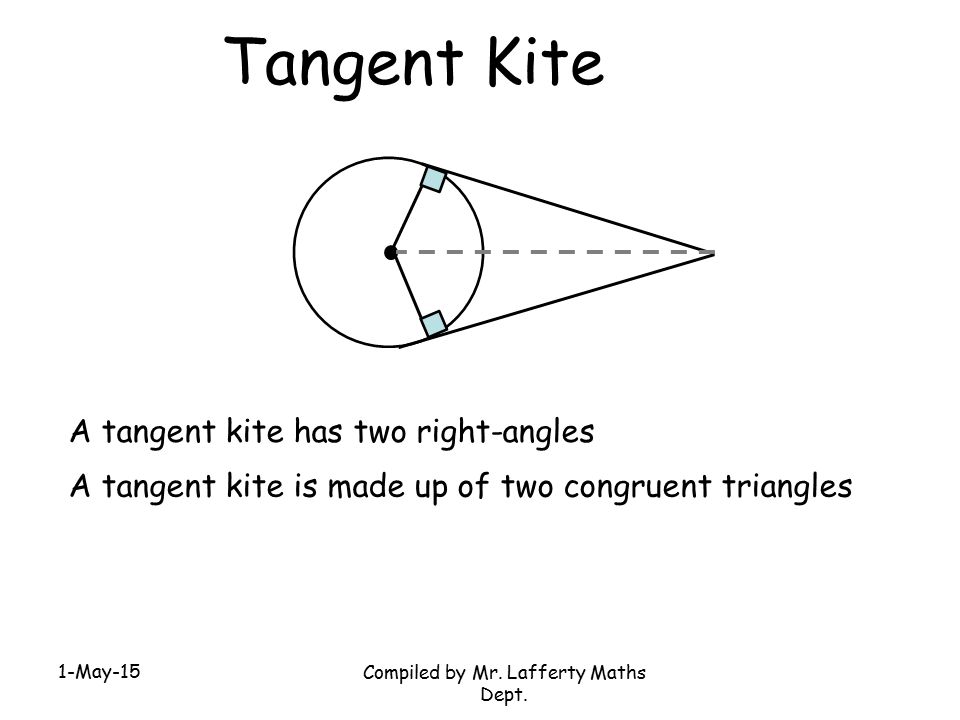

1-May-15 Compiled by Mr. Lafferty Maths Dept. Tangent Kite A tangent kite has two right-angles A tangent kite is made up of two congruent triangles

30

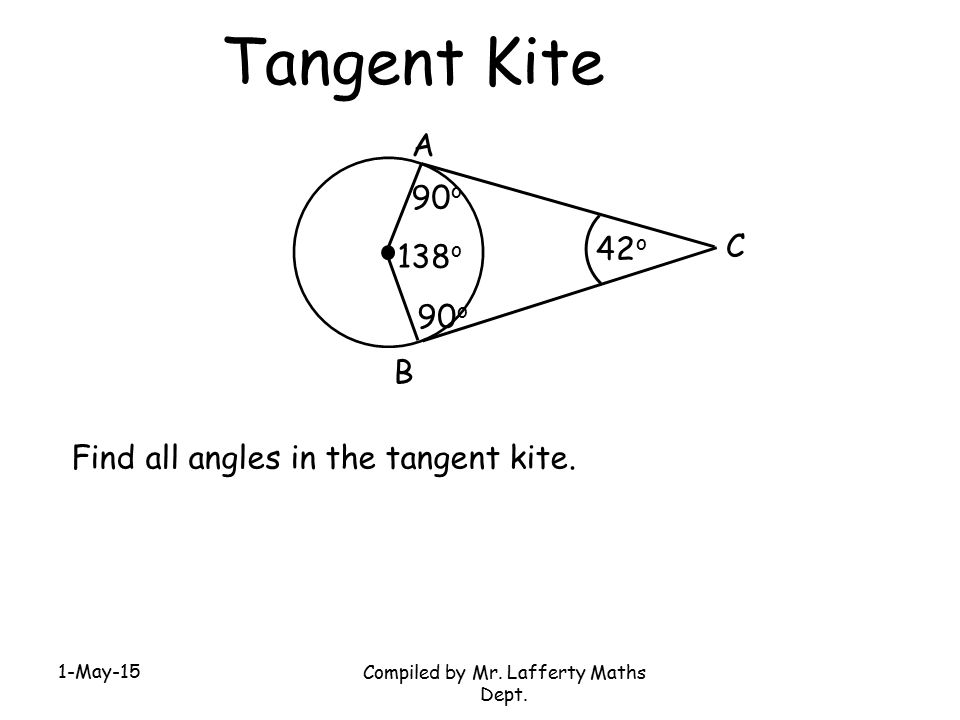

1-May-15 Compiled by Mr. Lafferty Maths Dept. Tangent Kite Find all angles in the tangent kite. 42 o 90 o 90 o 138 o A B C

31
1-May-15 Compiled by Mr. Lafferty Maths Dept. Tangent Kite Find the area of the circle. 40cm 50cm Using Pythagoras Theorem r r 2 = 50 2 - 40 2 r 2 = 2500 - 1600 r 2 = 900 r = 30cm √ A = πr 2 A = π(30) 2 A = 2827cm 2

32
Level 4 1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N4+ TJ Ex18.4 Ch18.3 (page 145) www.mathsrevision.com Tangent Line

33
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty33 Starter Questions Q1. True or false Q2. Expand out (x + 3)(x 2 + 40 – 9) Q3. I want to make 30% profit on a DVD player I bought for £80. How much must I sell it for. www.mathsrevision.com

34
National 5 Arc length of a circle 1-May-15Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Know the arc length formula. We are learning to use the arc length formula. 2.Be able to calculate arc length showing appropriate work.

35
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty35 Q. What is an arc ? A B Answer An arc is a fraction of the circumference. minor arc major arc www.mathsrevision.com Arc length of a circle

36
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty36 Q. Find the circumference of the circle ?Solution 10cm www.mathsrevision.com Arc length of a circle

37
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty37 www.mathsrevision.com Arc length of a circle Arc length πD Arc angle 360 o = Q. Find the length of the minor arc XY below ? 6 cm 45 o x y 360 o connection DEMO

38
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty38 www.mathsrevision.com Arc length of a circle Arc length πDπD Arc angle 360 o = Q. Find the length of the minor arc AB below ? 9 cm 60 o A B connection

39

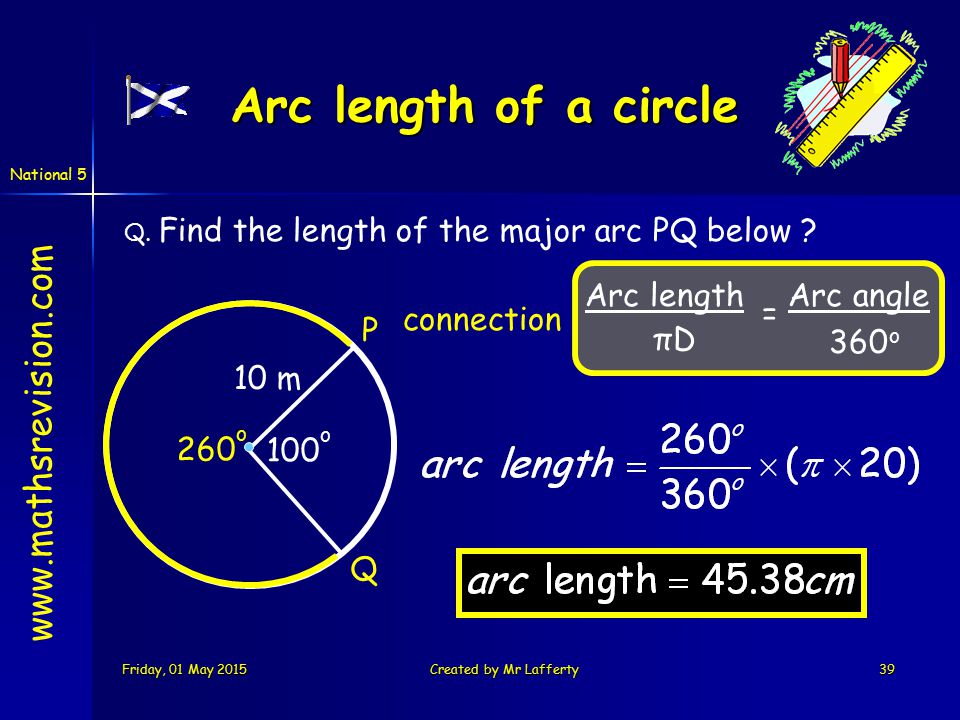

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty39 www.mathsrevision.com Arc length of a circle Arc length πDπD Arc angle 360 o = Q. Find the length of the major arc PQ below ? 10 m 100 o P Q connection 260 o

40
1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N5 TJ Ex13.1 Ch13 (page 126) www.mathsrevision.com Nat 5 Arc length of a circle

41
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty41 Starter Questions Q1. True or false Q2. Expand out (x + 3)(x 2 + 40 – 9) Q3. I want to make 30% profit on a DVD player I bought for £80. How much must I sell it for. www.mathsrevision.com

42

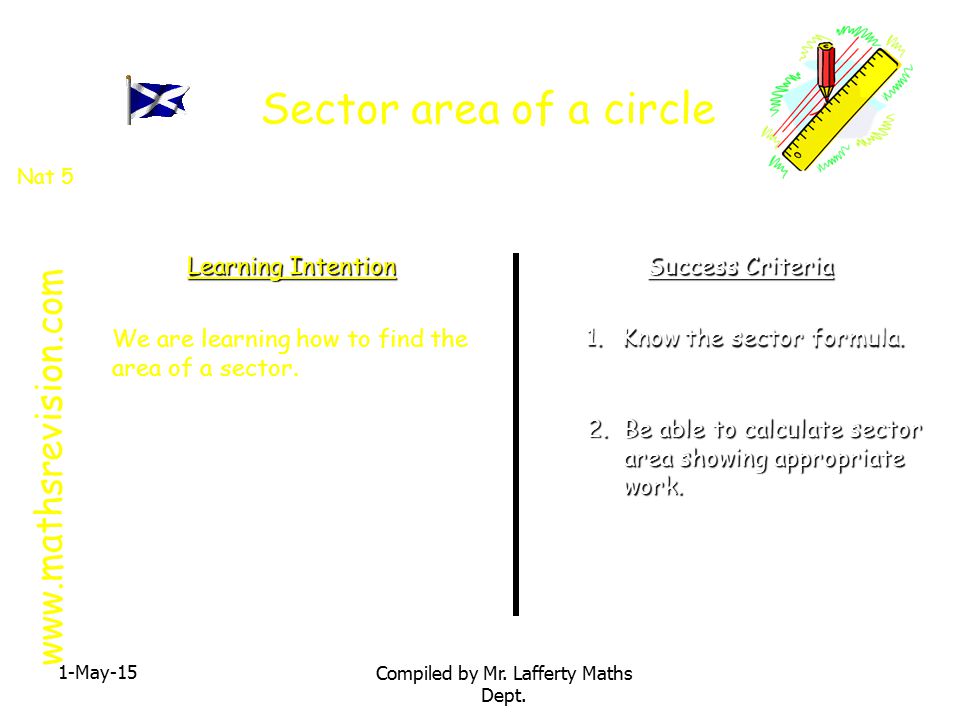

Sector area of a circle 1-May-15 Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Know the sector formula. We are learning how to find the area of a sector. 2.Be able to calculate sector area showing appropriate work. Nat 5

43

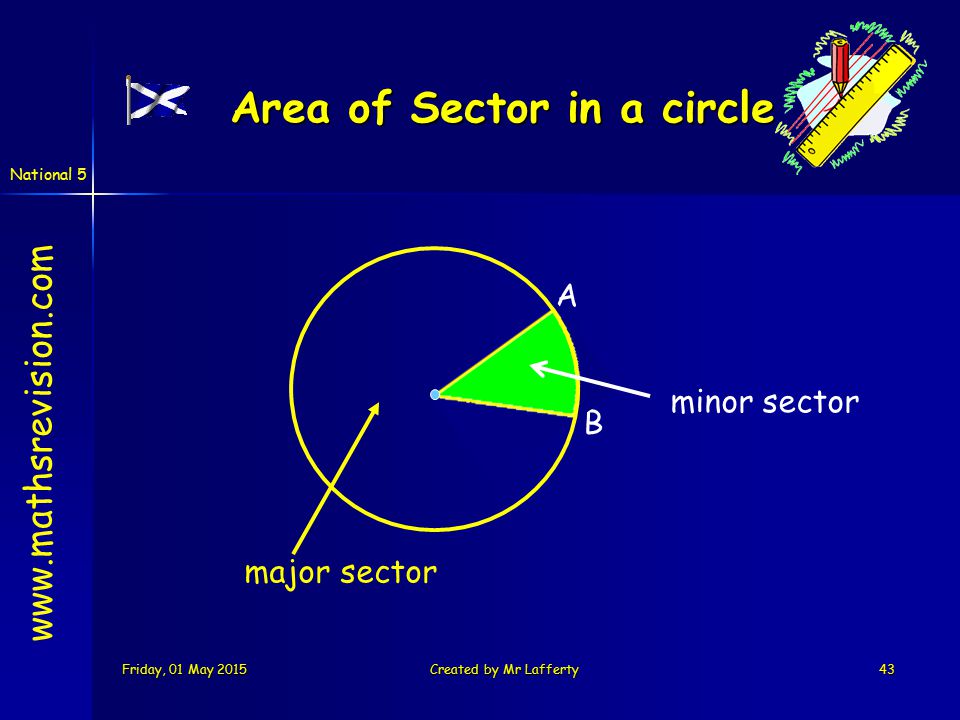

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty43 A B major sector www.mathsrevision.com Area of Sector in a circle minor sector

44

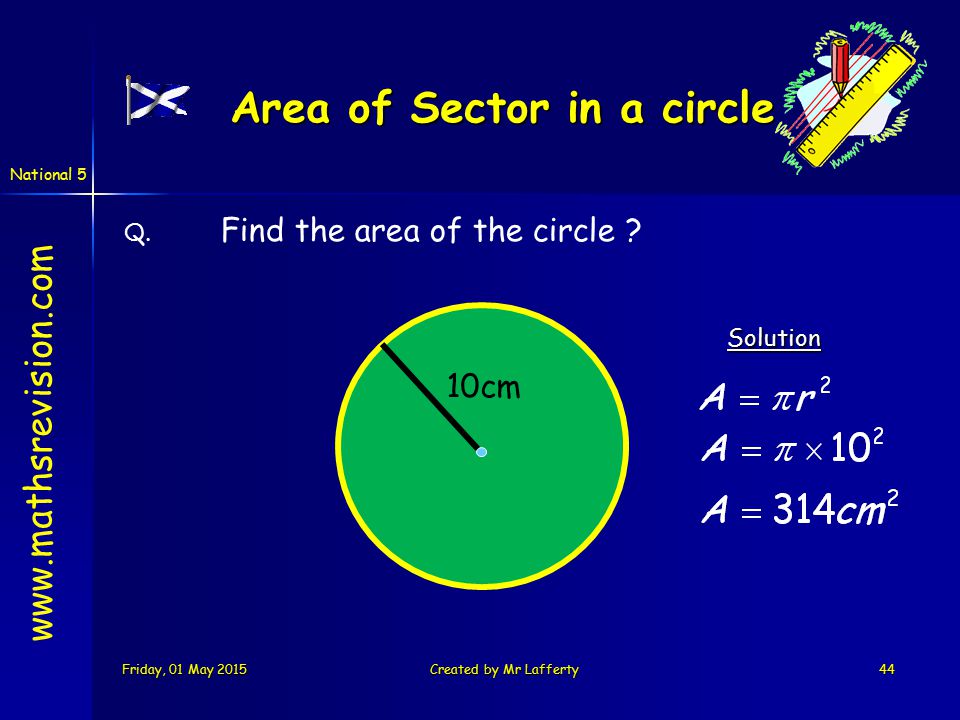

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty44 Q. Find the area of the circle ?Solution 10cm www.mathsrevision.com Area of Sector in a circle

45
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty45 www.mathsrevision.com Area Sector πr 2 Sector angle 360 o = Find the area of the minor sector XY below ? 6 cm 45 o x y 360 o connection Area of Sector in a circle DEMO

46

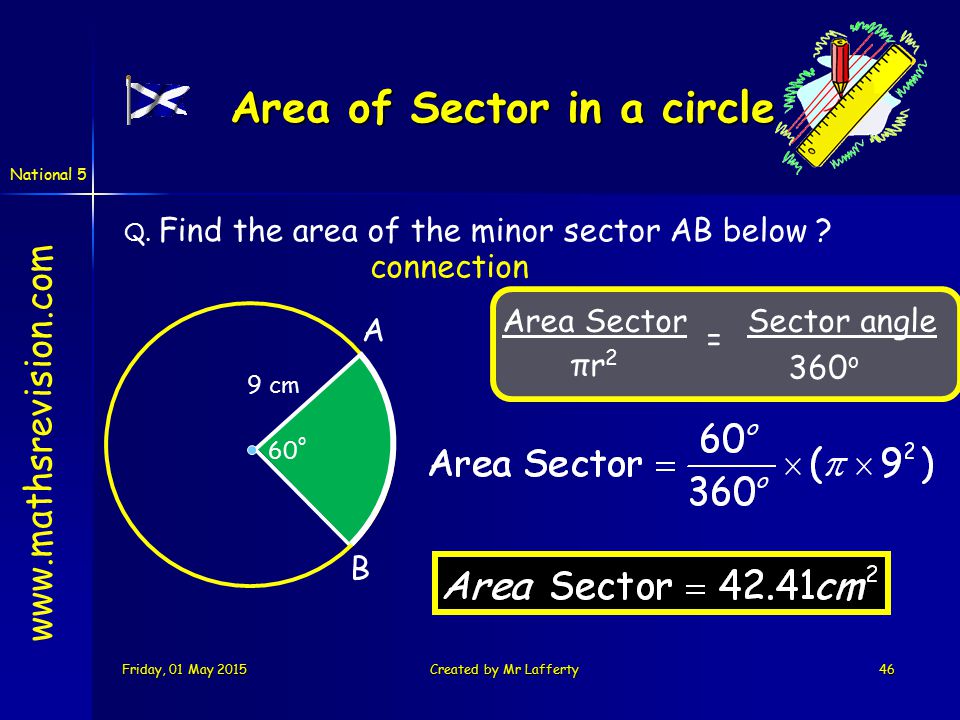

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty46 www.mathsrevision.com Area Sector πr2πr2 Sector angle 360 o = Q. Find the area of the minor sector AB below ? 9 cm A B connection Area of Sector in a circle 60 o

47

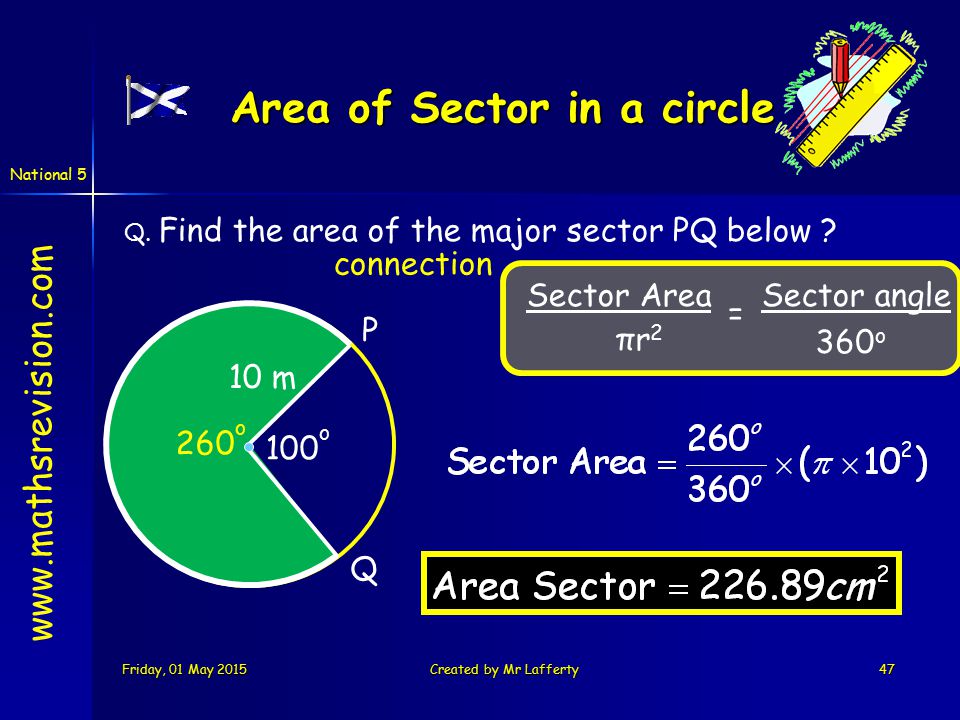

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty47 www.mathsrevision.com Area of Sector in a circle Sector Area πr2πr2 Sector angle 360 o = Q. Find the area of the major sector PQ below ? 10 m 100 o P Q connection 260 o

48
1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N5 TJ Ex13.2 Ch13 (page 127) www.mathsrevision.com Nat 5 Arc length of a circle

49
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty49 Starter Questions Q3. Q1. Using the balancing method rearrange into x = Q2. True or false 2(x - 3) + 3x = 5x - 6 www.mathsrevision.com

50

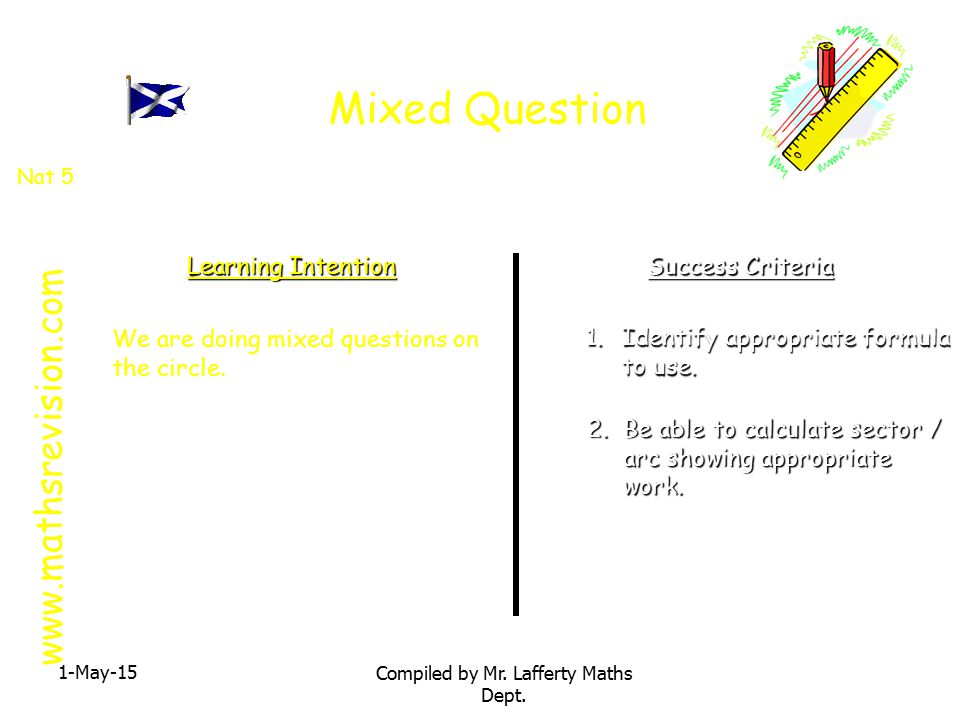

Mixed Question 1-May-15 Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Identify appropriate formula to use. We are doing mixed questions on the circle. 2.Be able to calculate sector / arc showing appropriate work. Nat 5

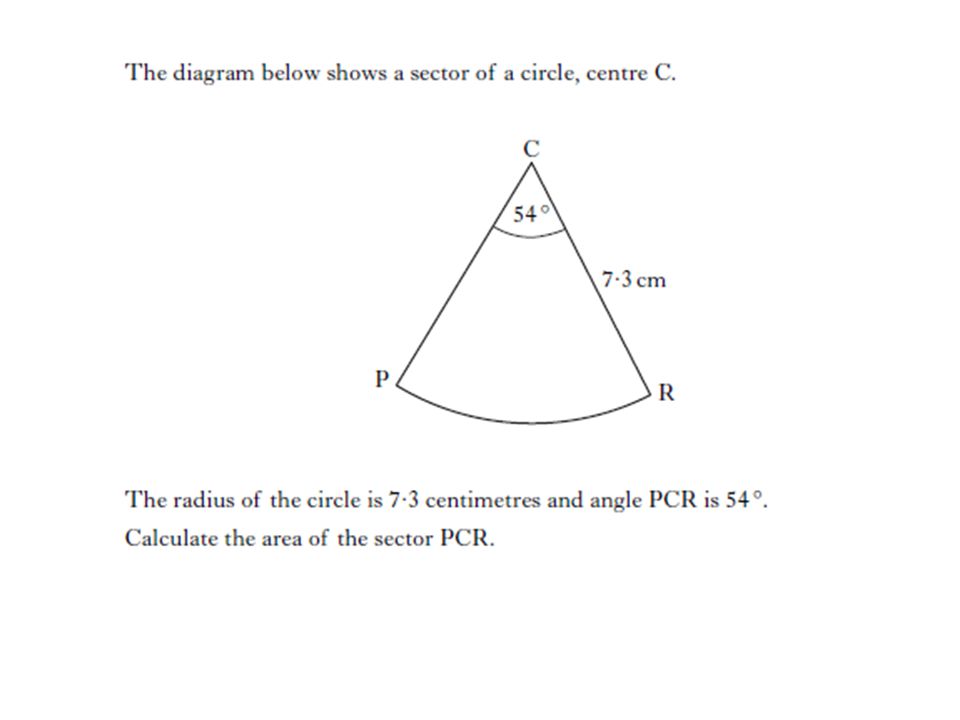

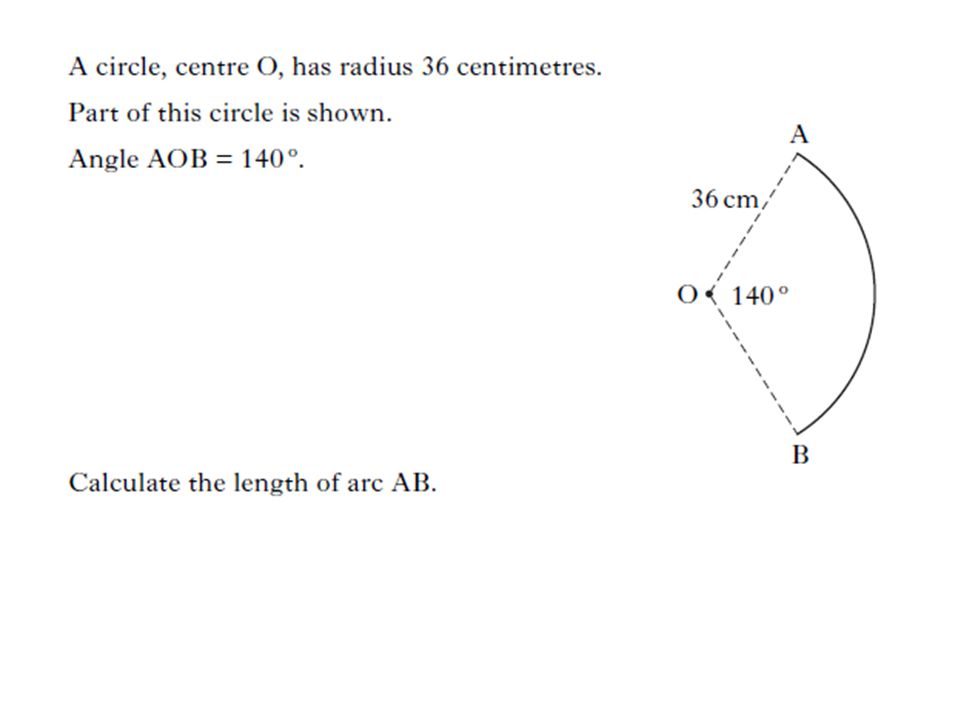

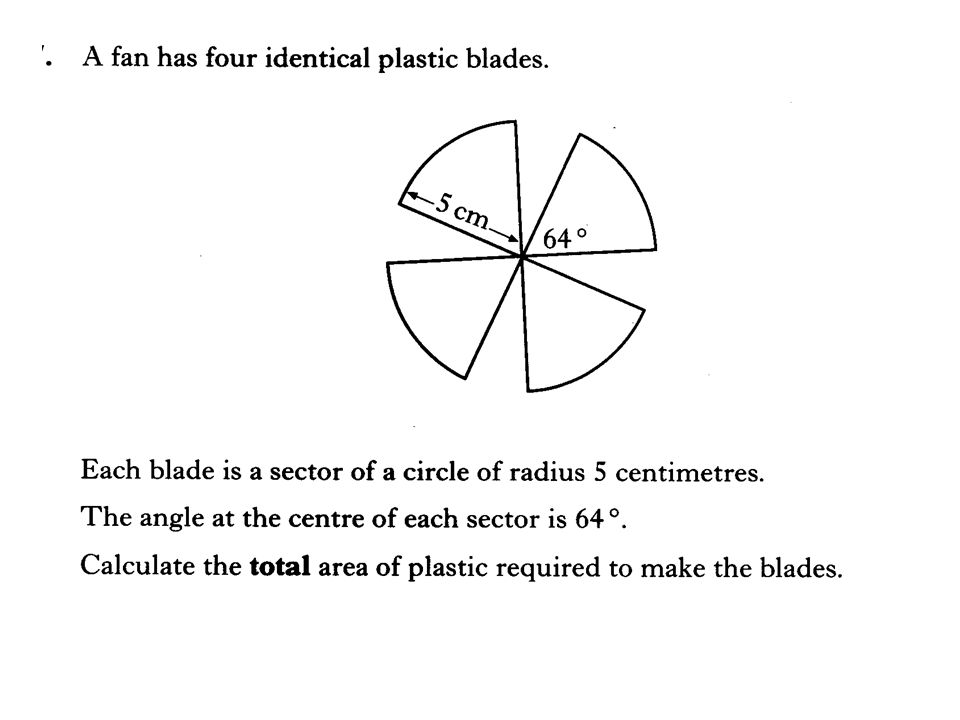

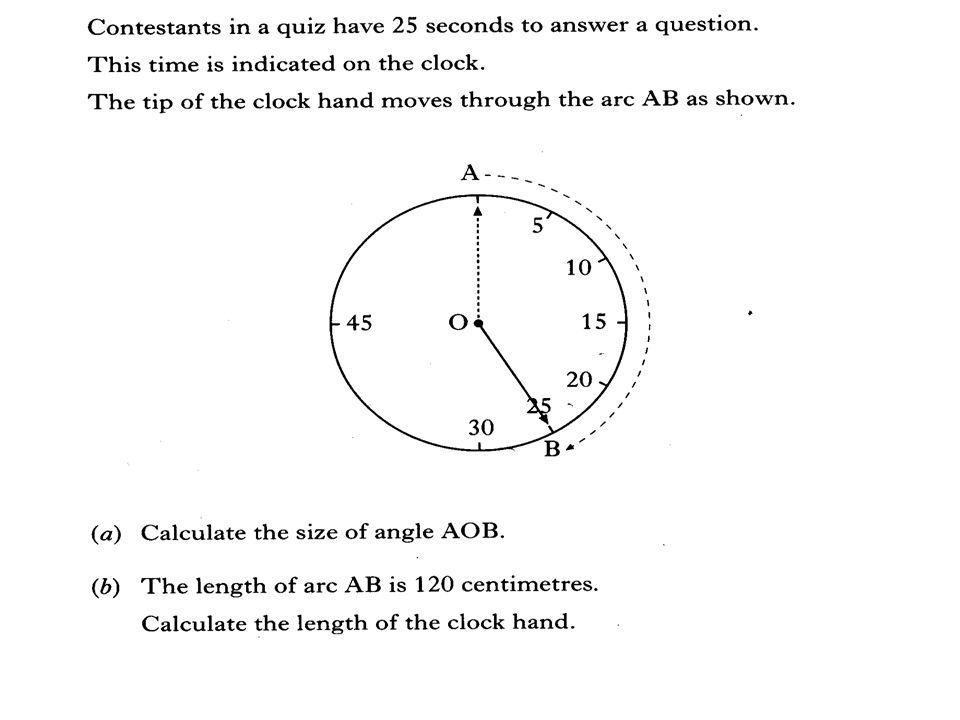

55
1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N5 TJ Ex13.3 Ch13 (page 128) www.mathsrevision.com Nat 5 Arc length of a circle

56
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty56 Starter Questions Rearrange the formula below into x o = www.mathsrevision.com

57
1-May-15 Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Know formula. We are learning how to find the centre angle given the arc length. 2.Be able to calculate centre angle showing appropriate work. Nat 5 Centre Angle (Arc length)

58

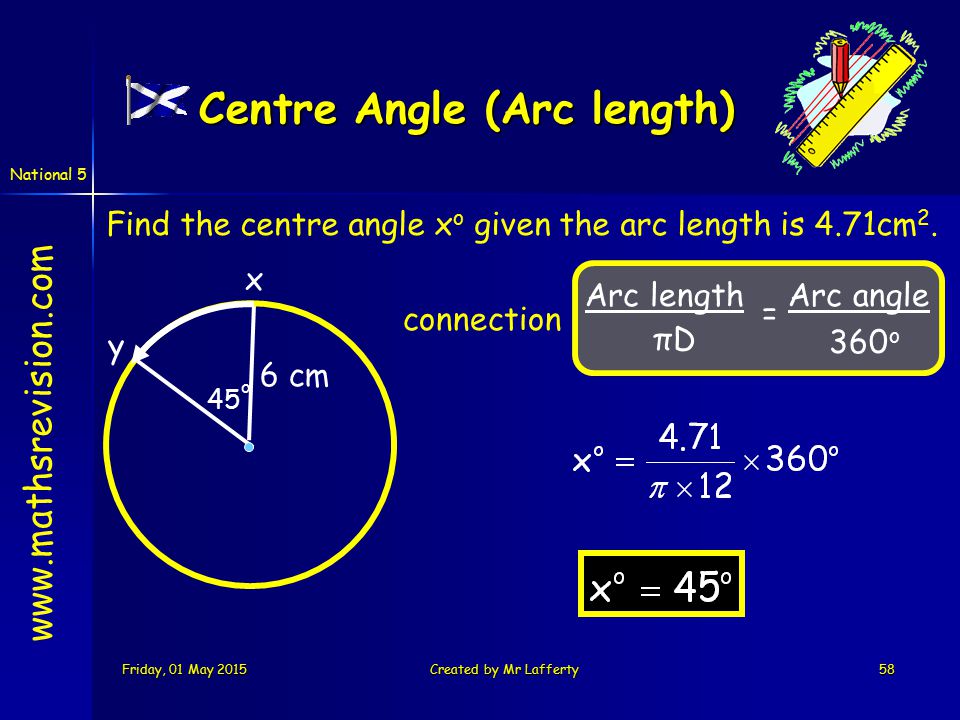

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty58 www.mathsrevision.com Arc length πD Arc angle 360 o = Find the centre angle x o given the arc length is 4.71cm 2. 6 cm 45 o x y connection Centre Angle (Arc length)

60
1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N5 TJ Ex13.4 Ch13 (page 129) www.mathsrevision.com Nat 5 Centre Angle (Arc length)

61

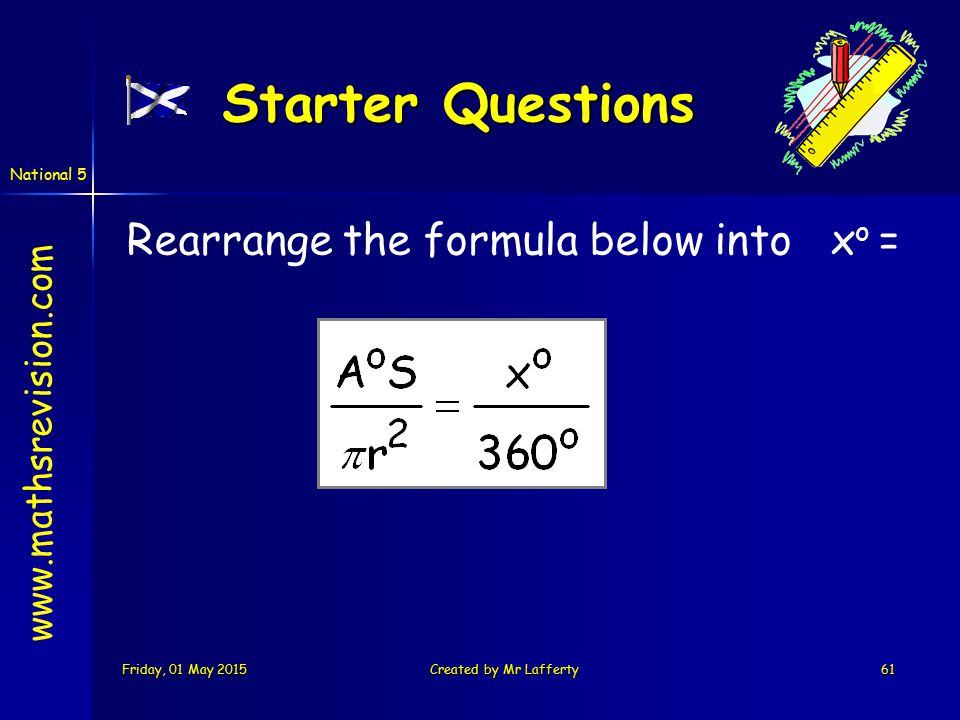

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty61 Starter Questions Rearrange the formula below into x o = www.mathsrevision.com

62
Centre Angle (A o S) 1-May-15 Compiled by Mr. Lafferty Maths Dept. www.mathsrevision.com Learning Intention Success Criteria 1.Know formula. We are learning how to find the centre angle given the sector area. 2.Be able to calculate centre angle showing appropriate work. Nat 5

63

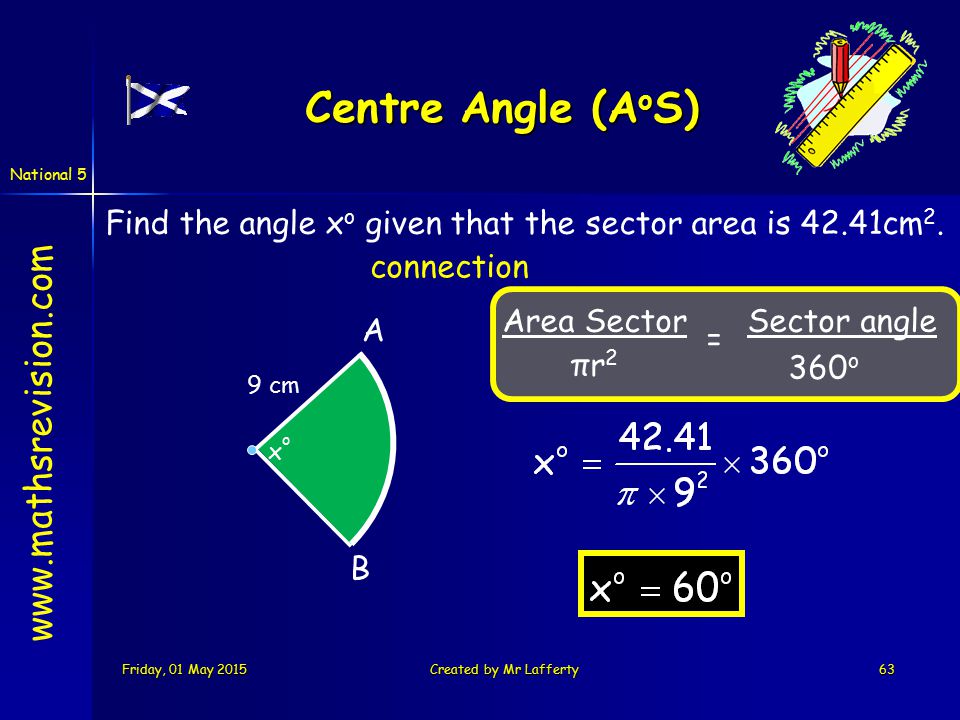

National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty63 www.mathsrevision.com Area Sector πr2πr2 Sector angle 360 o = Find the angle x o given that the sector area is 42.41cm 2. 9 cm A B connection Centre Angle (A o S) xoxo

64
National 5 Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Friday, 01 May 2015Created by Mr Lafferty64 www.mathsrevision.com Area Sector πr2πr2 Sector angle 360 o = Find the angle x o given that the sector area is 51.3mm 2. 7 mm A B connection Centre Angle (A o S) xoxo

65
1-May-15Compiled by Mr. Lafferty Maths Dept. Now try N5 TJ Ex13.5 Ch13 (page 130) www.mathsrevision.com Nat 5 Centre Angle (A o S)

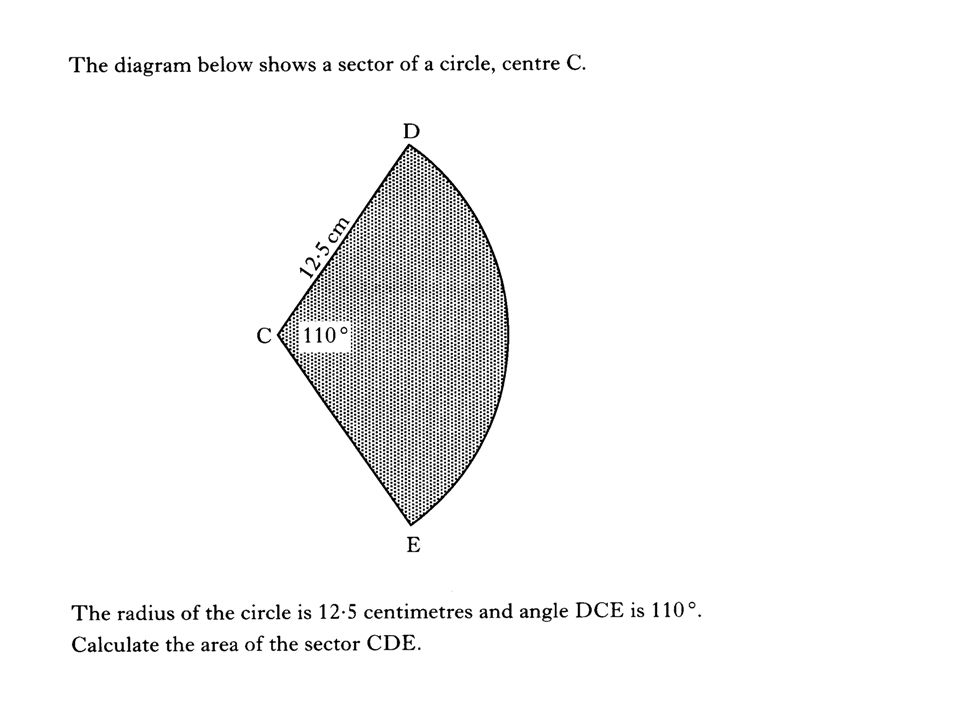

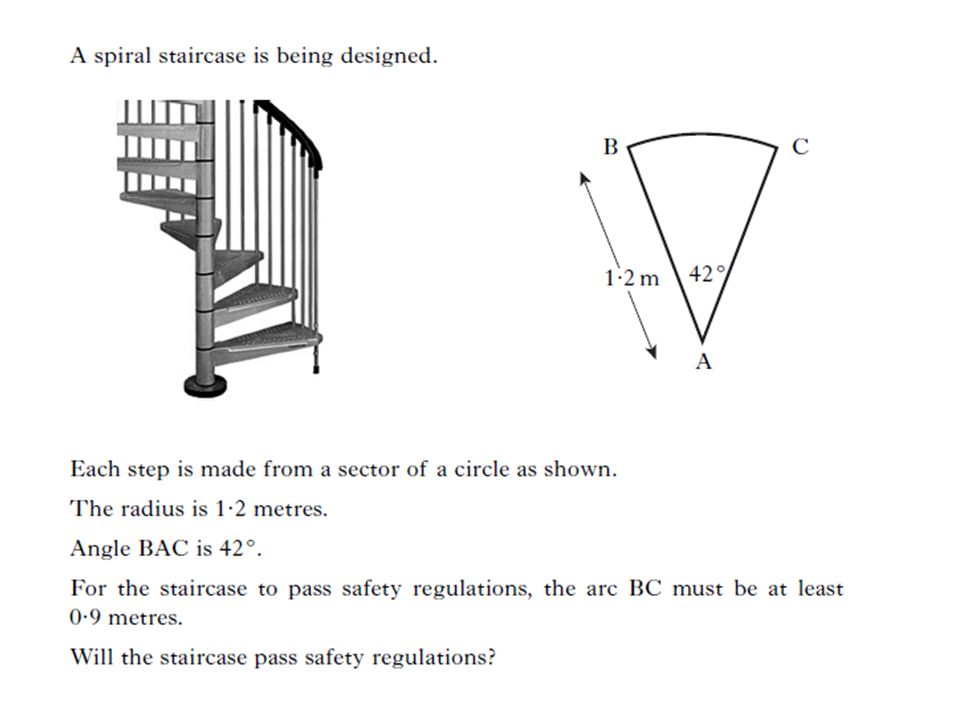

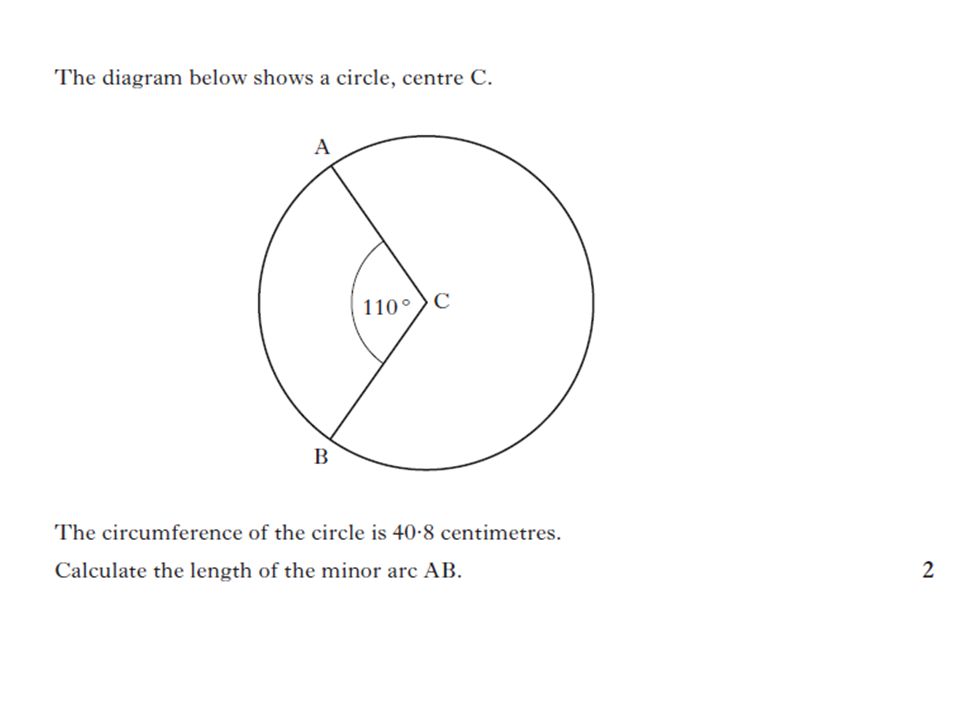

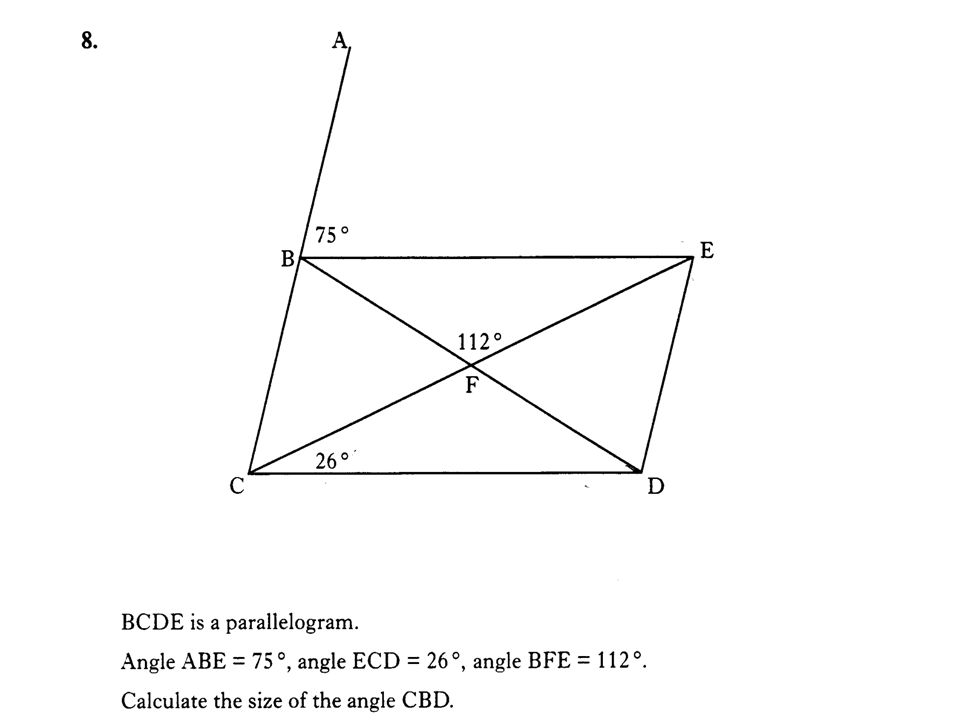

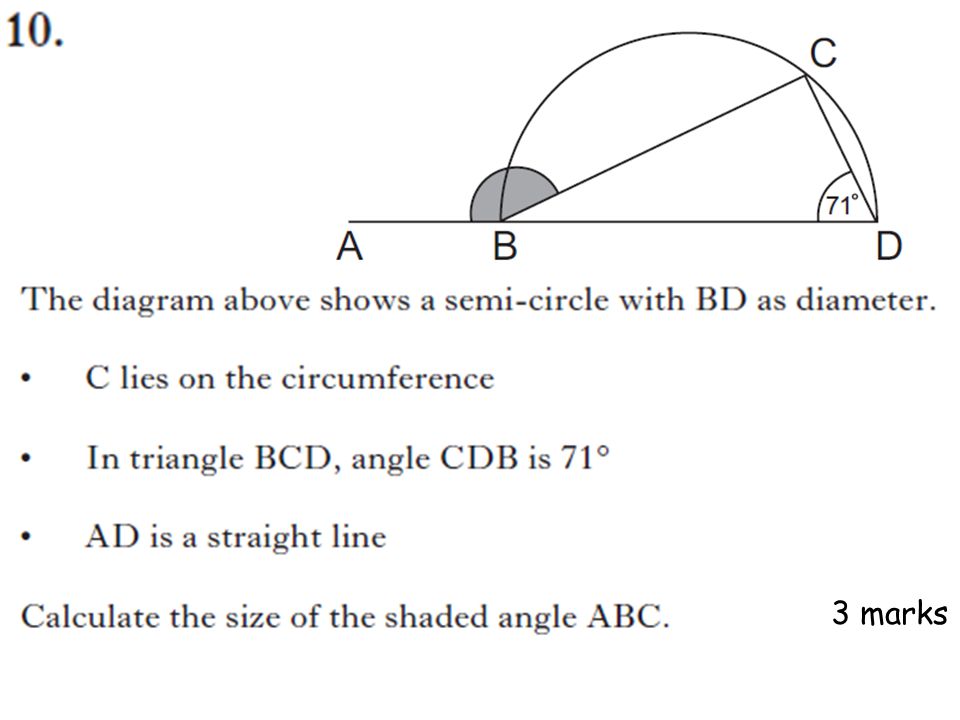

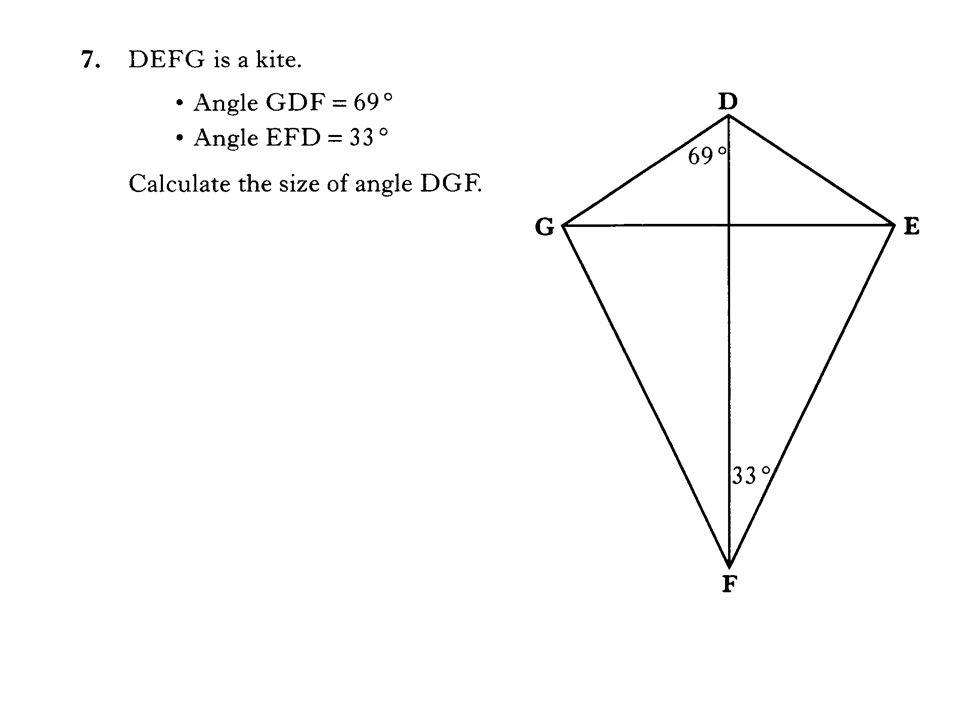

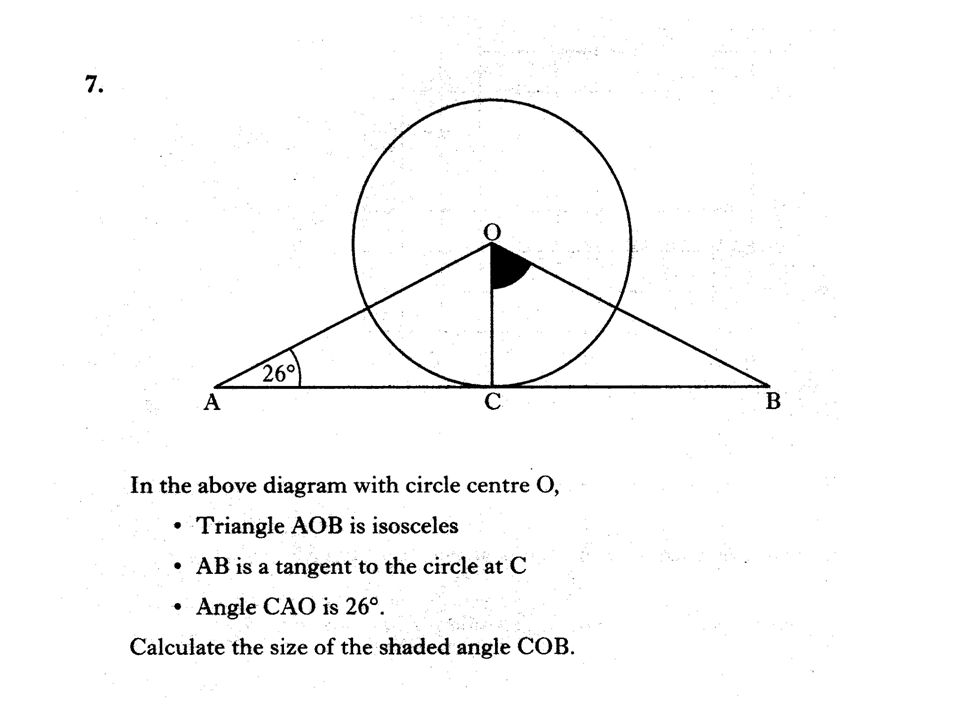

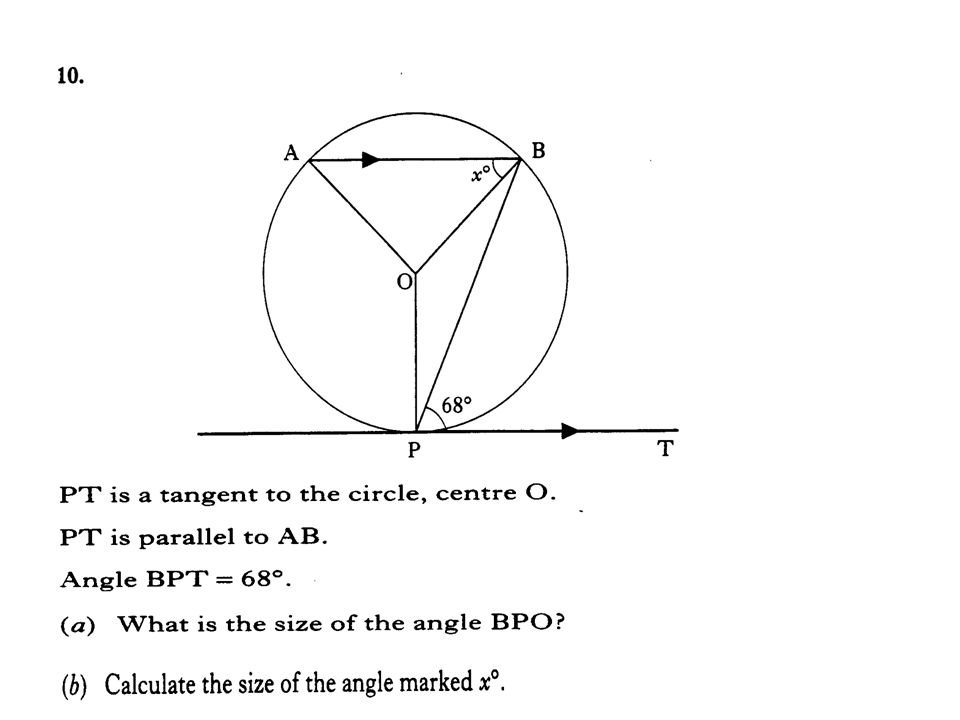

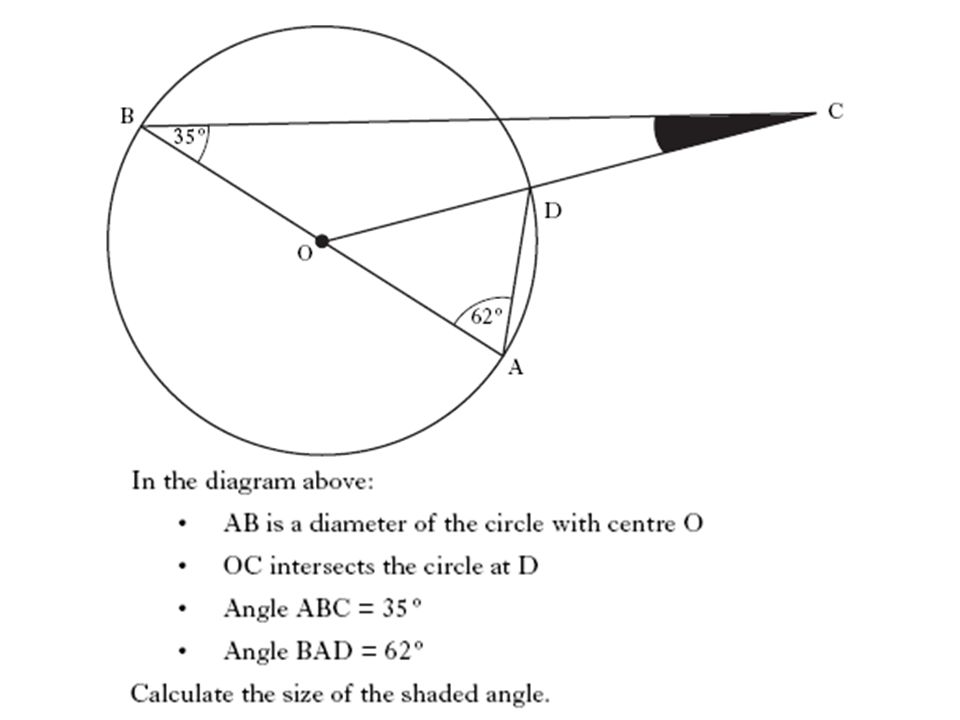

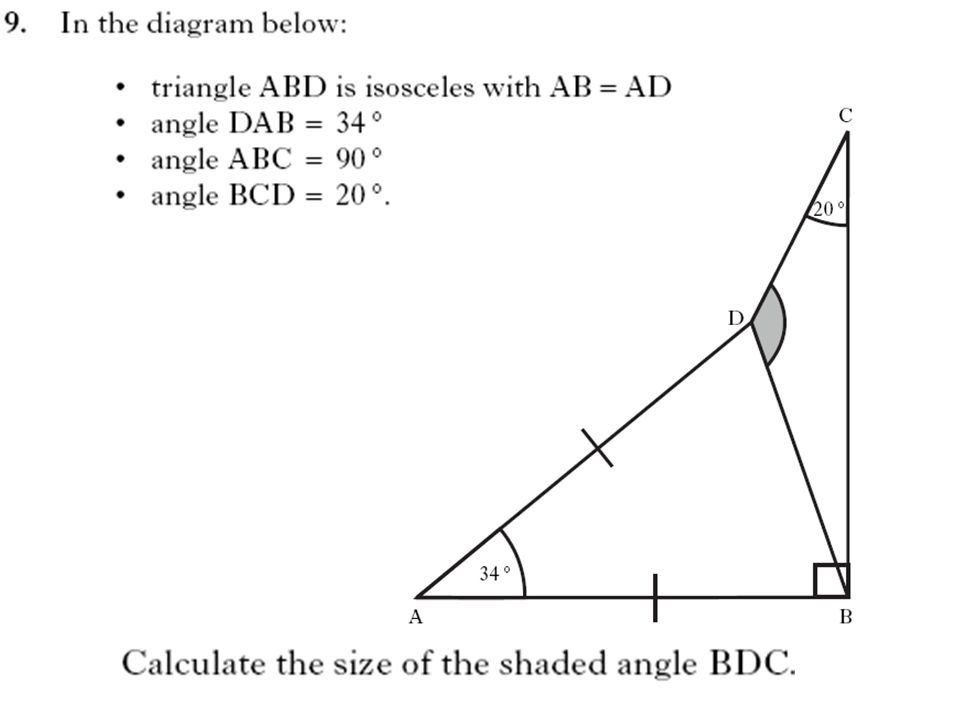

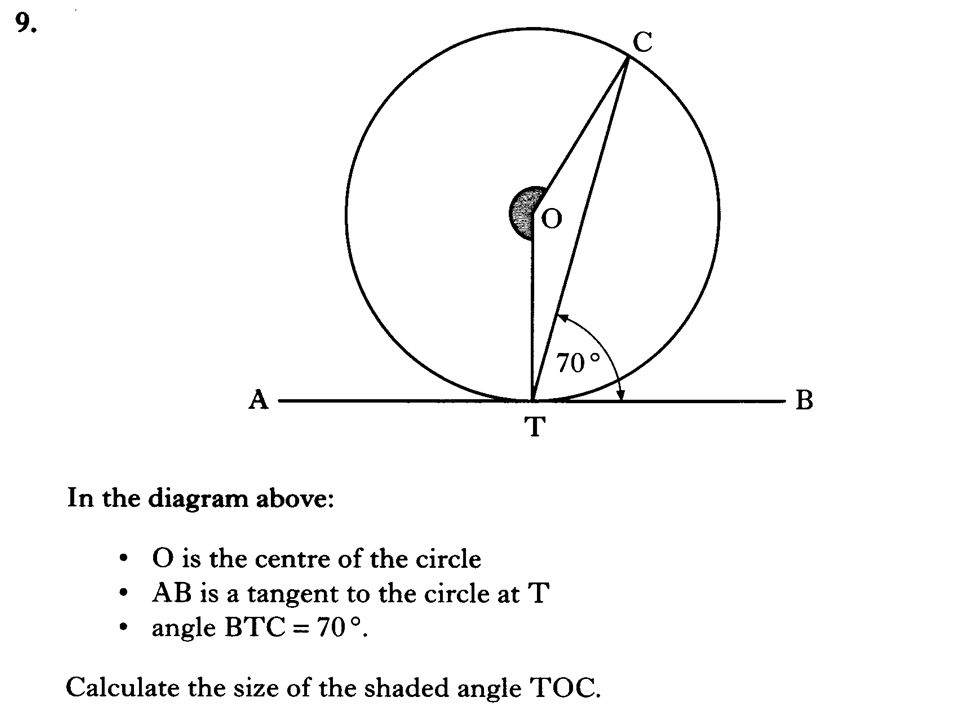

84

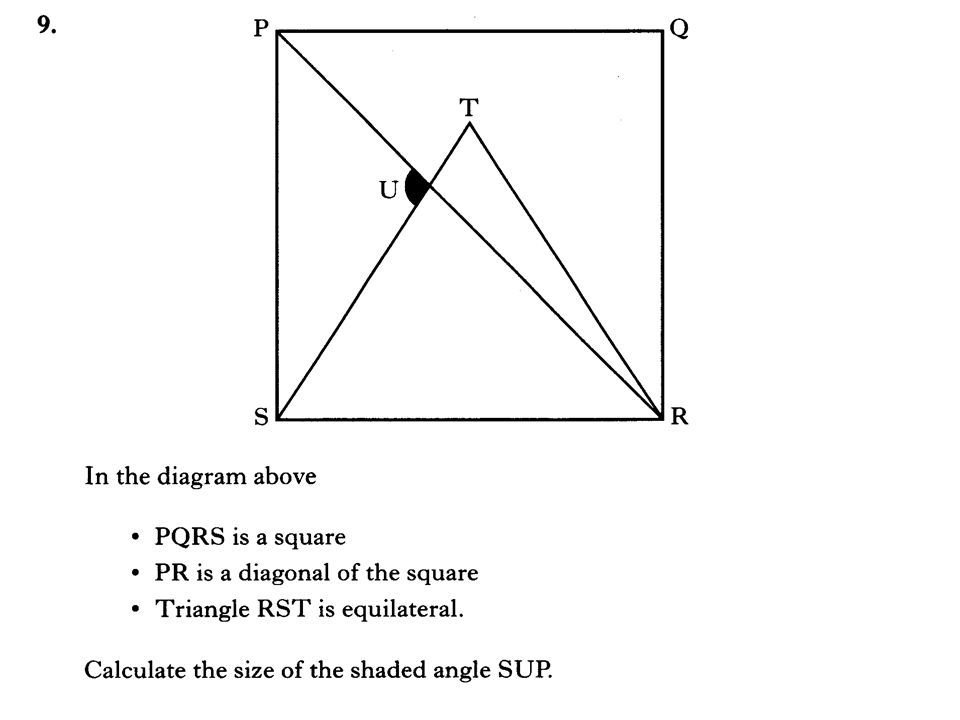

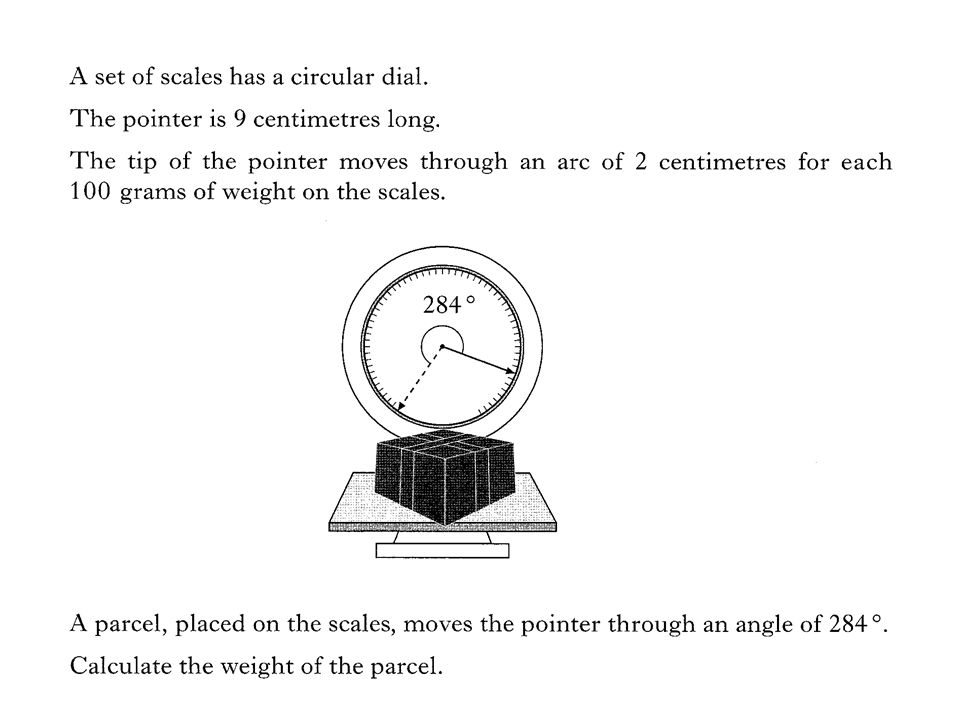

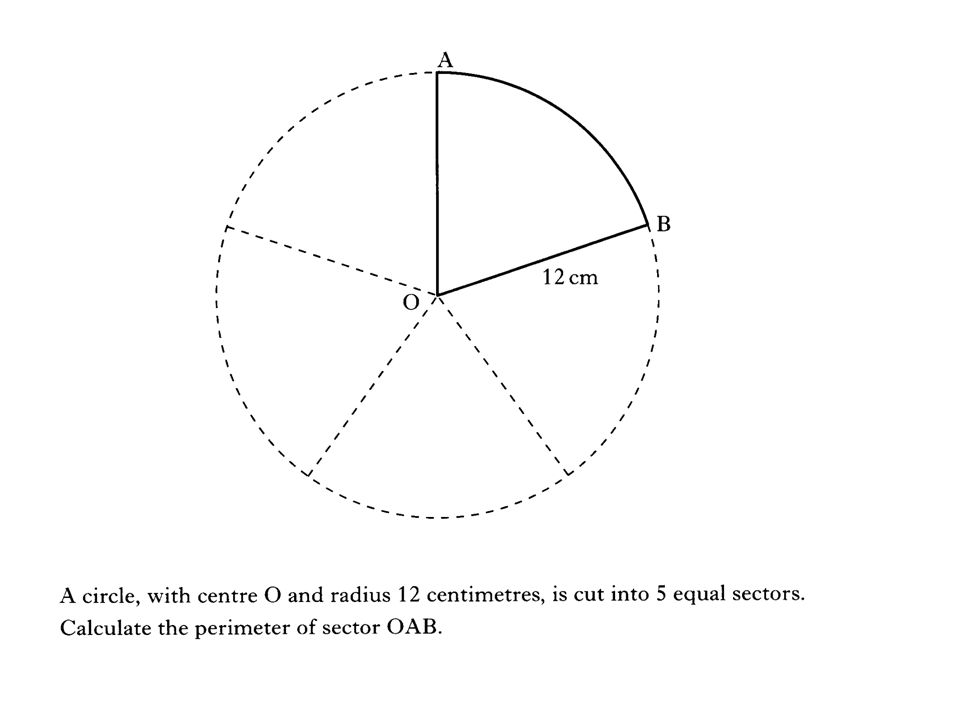

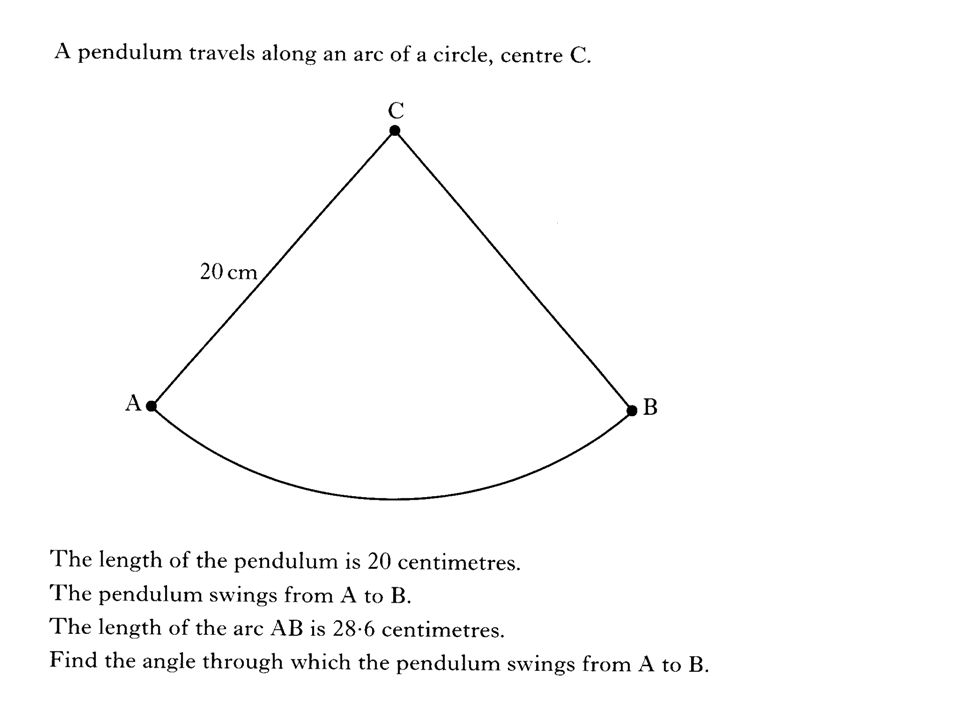

3 marks
