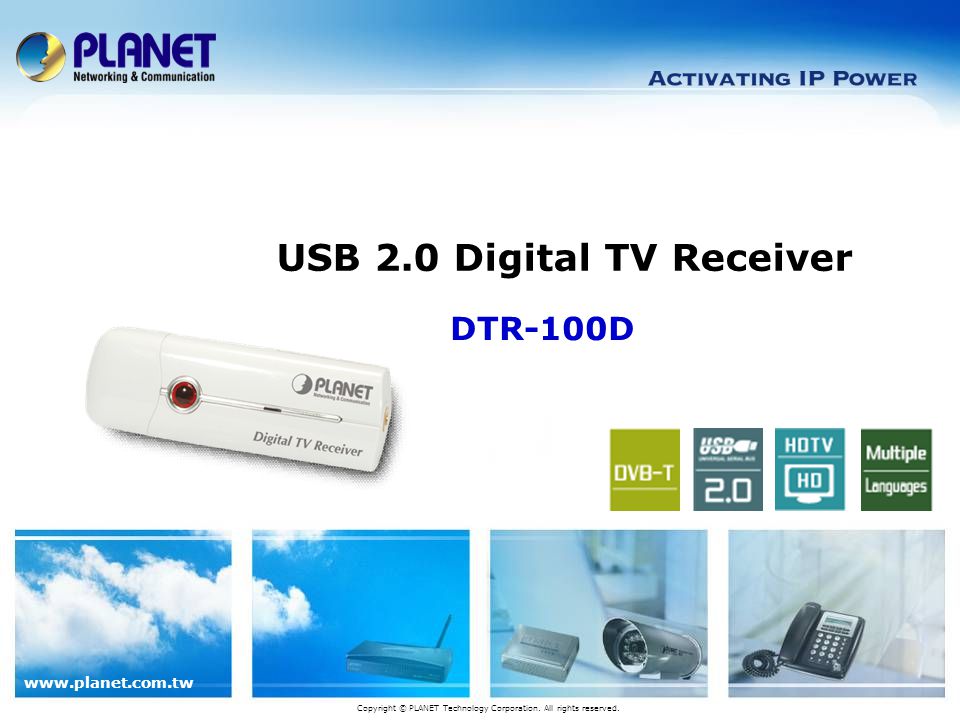

1 DTR-100D USB 2.0 Digital TV Receiver Copyright © PLANET Technology Corporation. All rights reserved.

2 2 / 10  Product Overview  Key Features  Application

3 3 / 10 Product Overview DTR-100D TV Receiver Outlook High-Speed USB 2.0 Supplied DVB-T Antenna for the VHF/UHF Remote Sensor – Build-in sensor for remote controller

4 4 / 10 Product Overview DTR-100D Remote Controller View Button Definition – Power / Number keys – Channel / Volume Adjust – Full Screen mode switch – Snap-Shot - Capture the channel screen you are just watching – Time-Shift - Pause while watching TV program and continue from where left – Recall - Go back the last channel – Subitle - View the extra text on the channel screen – Mute – Switch volume to mute mode

5 5 / 10 Key Feature Product Feature  Compliant Digital Video Broadcasting-Terrestrial Standard (ETS )  Complaint USB 2.0  Real Time Digital Video Recording (MPEG 2)  Support HDTV Quality  Includes Antenna / Remote Controller Utility Feature  Schedule Recoding  Support Time-Shifting / EPG / Teletex / Subtitle  Snap Shot in JPEG format  Multi-Channel Preview  Multiple 10 countries language  Firmware Upgrade

6 6 / 10 Main Monitor page  TotalMedia Introduce Main sections as TV, Picture, Music, Video, and Setup Signal Strength Section Bar Program monitor Multi-Channel Preview Simply click the screen to view it Switch into Full Screen Mode User should check the “Time-Shift” option in TV Settings to display the time bar

7 7 / 10 Recording in MPEG-2 video format Recode TV schedule Recording allows you not miss out any favorite TV programs Recode Schedule Information TV Recoded Electronic Program Guide (EPG) offers you more information about the TV programs  TotalMedia Introduce

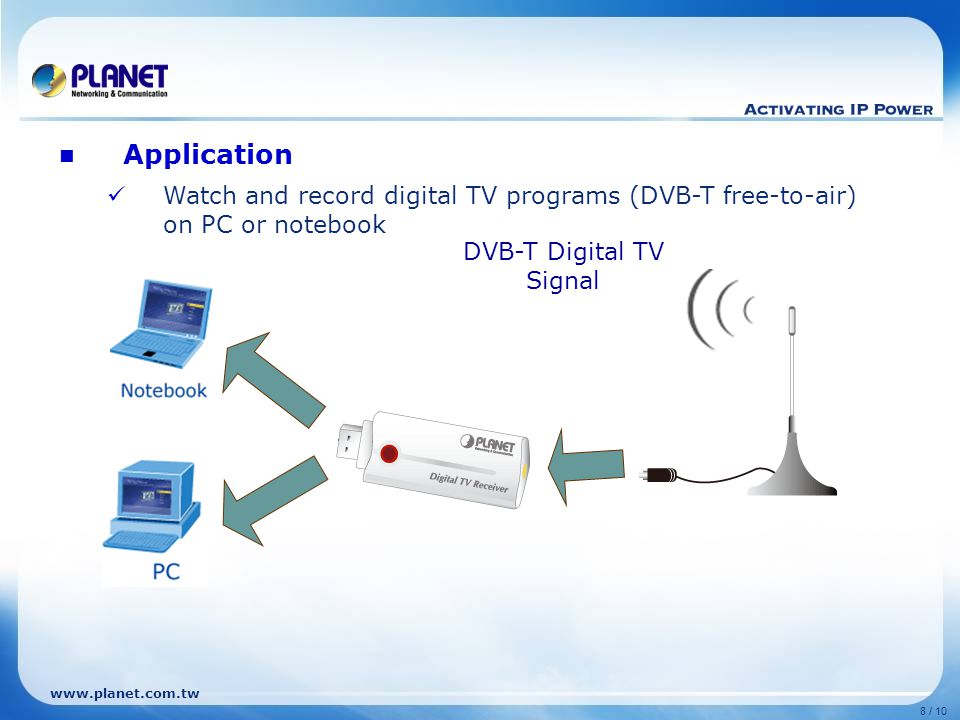

8 8 / 10 Application Watch and record digital TV programs (DVB-T free-to-air) on PC or notebook DVB-T Digital TV Signal

9 9 / 10  Specification Model DTR-100D Standard DVB-T (ETS ) Interface USB2.0 Connectors 1 VHF/UHF connector (MCX type), 1 USB connector (B type) TV Tuner 75 Ohm (UHF/VHF) TV Antenna Receiving Frequency MHz Bandwidth 6, 7, 8 MHz Code Rate 1/2, 2/3, 3/4, 4/5, 5/6 and 7/8 Support OS Windows 2000 (SP4) / XP (SP2) / VISTA(32/64bit) Minimum System Requirements  Pentium 4 compatible processor 1.2GHz or higher (2.0GHz recommended)  Minimum 256MB RAM or above (512MB recommended)  VGA card with minimum 32MB memory  AC97 compatible sound card  HD space at least 1 GB free for installation  Microsoft DirectX 9 or above  Windows 2000 or above  Windows Media Player 9 or above

10
