Tonight ‘s Presenters Bob Harvey Mhairi Blacklock Brian Torresen Peter Blacklock Ann Ball.

Similar presentations

Presentation on theme: "Tonight ‘s Presenters Bob Harvey Mhairi Blacklock Brian Torresen Peter Blacklock Ann Ball."— Presentation transcript:


2 Tonight ‘s Presenters Bob Harvey Mhairi Blacklock Brian Torresen Peter Blacklock Ann Ball

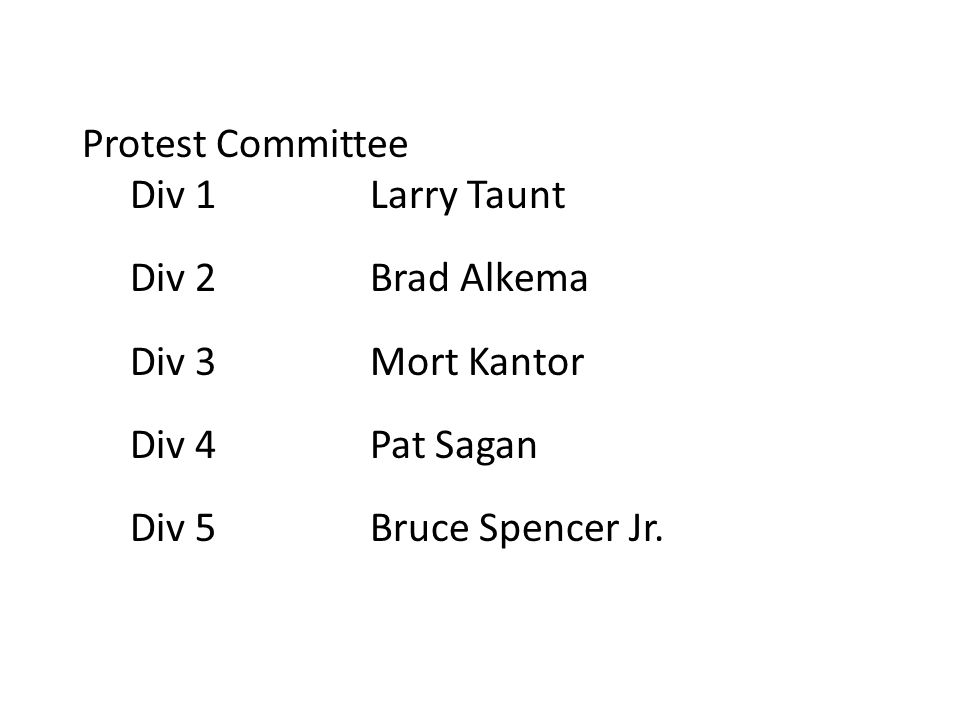

3 Protest Committee Div 1Larry Taunt Div 2Brad Alkema Div 3Mort Kantor Div 4Pat Sagan Div 5Bruce Spencer Jr.


5 Class Representatives: 1 - Eric Landman 2 -Brad Alkema 3 -Dave Timmer 4 -John Schumacher 5a-John Tasker 5b -Bruce Spencer Jr.

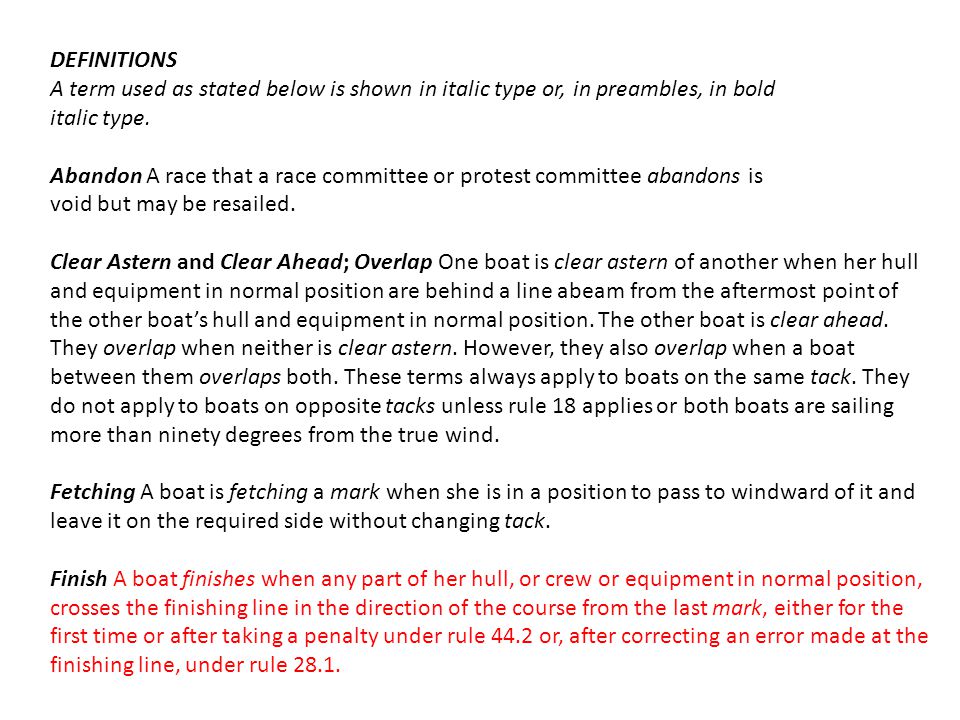

7 DEFINITIONS A term used as stated below is shown in italic type or, in preambles, in bold italic type. Abandon A race that a race committee or protest committee abandons is void but may be resailed. Clear Astern and Clear Ahead; Overlap One boat is clear astern of another when her hull and equipment in normal position are behind a line abeam from the aftermost point of the other boat’s hull and equipment in normal position. The other boat is clear ahead. They overlap when neither is clear astern. However, they also overlap when a boat between them overlaps both. These terms always apply to boats on the same tack. They do not apply to boats on opposite tacks unless rule 18 applies or both boats are sailing more than ninety degrees from the true wind. Fetching A boat is fetching a mark when she is in a position to pass to windward of it and leave it on the required side without changing tack. Finish A boat finishes when any part of her hull, or crew or equipment in normal position, crosses the finishing line in the direction of the course from the last mark, either for the first time or after taking a penalty under rule 44.2 or, after correcting an error made at the finishing line, under rule 28.1.

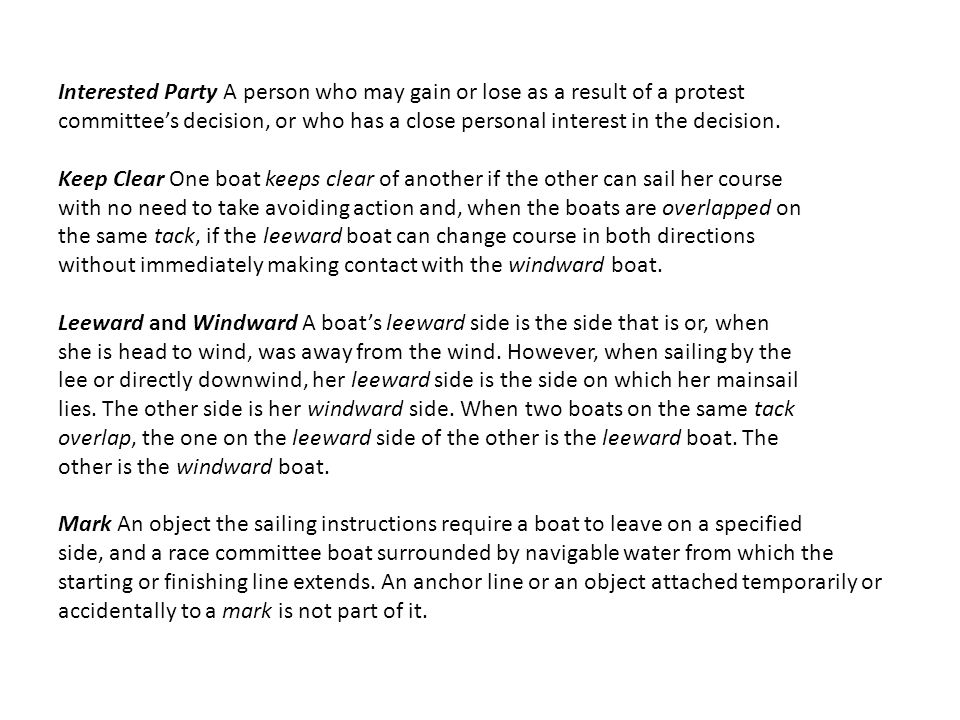

8 Interested Party A person who may gain or lose as a result of a protest committee’s decision, or who has a close personal interest in the decision. Keep Clear One boat keeps clear of another if the other can sail her course with no need to take avoiding action and, when the boats are overlapped on the same tack, if the leeward boat can change course in both directions without immediately making contact with the windward boat. Leeward and Windward A boat’s leeward side is the side that is or, when she is head to wind, was away from the wind. However, when sailing by the lee or directly downwind, her leeward side is the side on which her mainsail lies. The other side is her windward side. When two boats on the same tack overlap, the one on the leeward side of the other is the leeward boat. The other is the windward boat. Mark An object the sailing instructions require a boat to leave on a specified side, and a race committee boat surrounded by navigable water from which the starting or finishing line extends. An anchor line or an object attached temporarily or accidentally to a mark is not part of it.

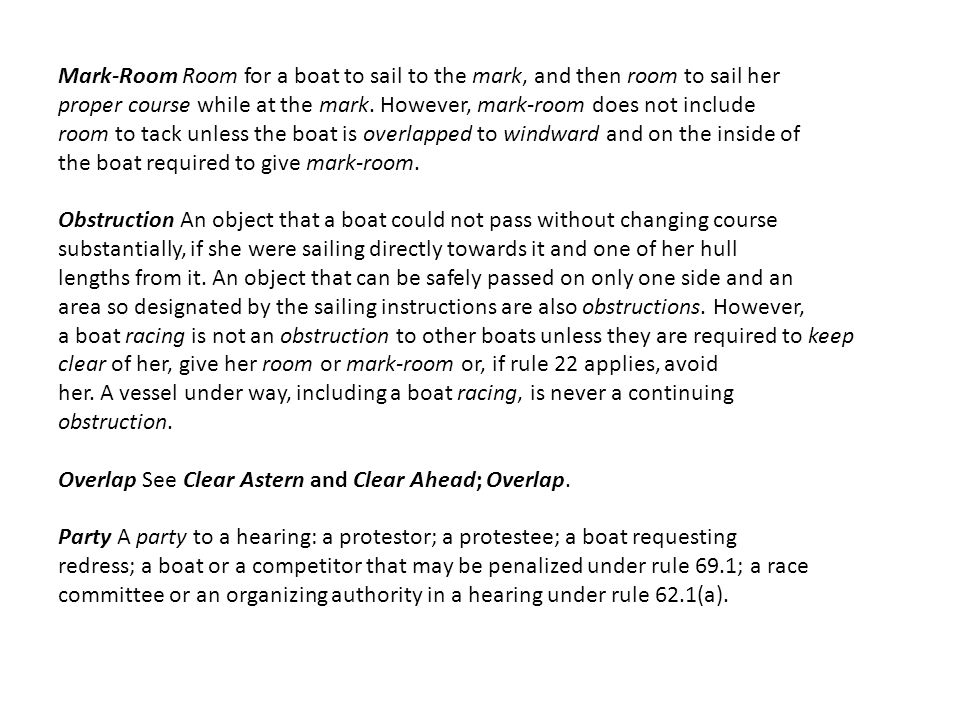

9 Mark-Room Room for a boat to sail to the mark, and then room to sail her proper course while at the mark. However, mark-room does not include room to tack unless the boat is overlapped to windward and on the inside of the boat required to give mark-room. Obstruction An object that a boat could not pass without changing course substantially, if she were sailing directly towards it and one of her hull lengths from it. An object that can be safely passed on only one side and an area so designated by the sailing instructions are also obstructions. However, a boat racing is not an obstruction to other boats unless they are required to keep clear of her, give her room or mark-room or, if rule 22 applies, avoid her. A vessel under way, including a boat racing, is never a continuing obstruction. Overlap See Clear Astern and Clear Ahead; Overlap. Party A party to a hearing: a protestor; a protestee; a boat requesting redress; a boat or a competitor that may be penalized under rule 69.1; a race committee or an organizing authority in a hearing under rule 62.1(a).

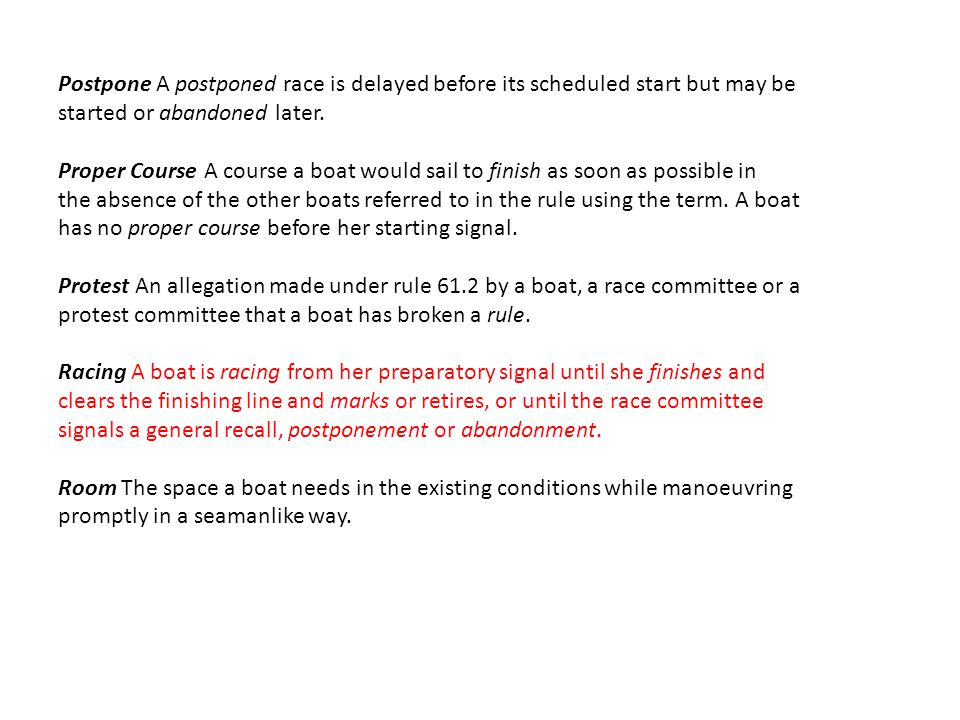

10 Postpone A postponed race is delayed before its scheduled start but may be started or abandoned later. Proper Course A course a boat would sail to finish as soon as possible in the absence of the other boats referred to in the rule using the term. A boat has no proper course before her starting signal. Protest An allegation made under rule 61.2 by a boat, a race committee or a protest committee that a boat has broken a rule. Racing A boat is racing from her preparatory signal until she finishes and clears the finishing line and marks or retires, or until the race committee signals a general recall, postponement or abandonment. Room The space a boat needs in the existing conditions while manoeuvring promptly in a seamanlike way.

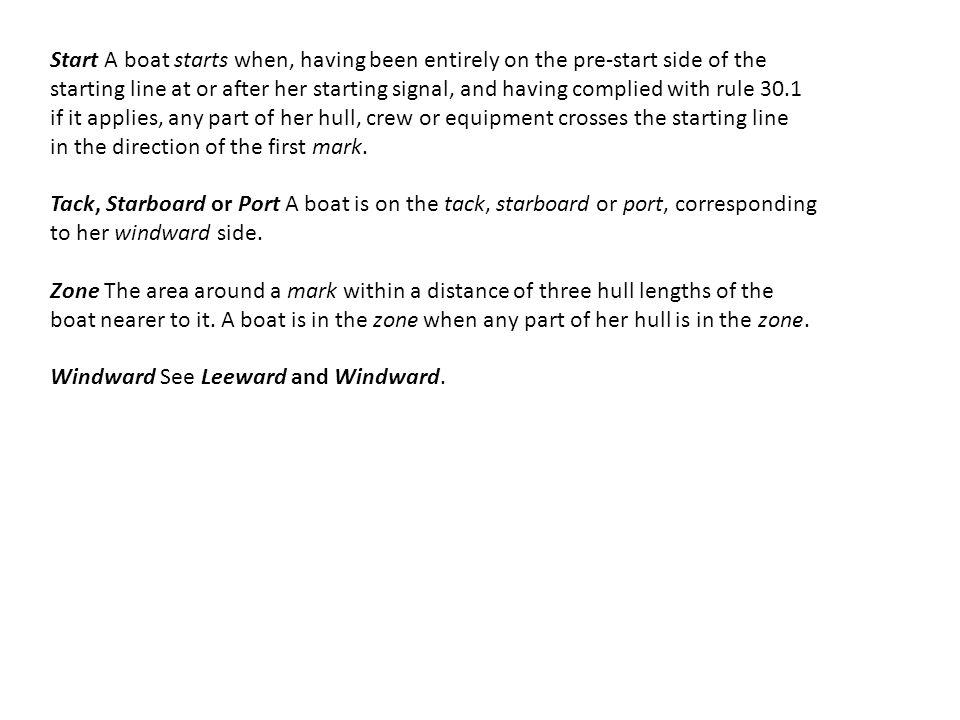

11 Start A boat starts when, having been entirely on the pre-start side of the starting line at or after her starting signal, and having complied with rule 30.1 if it applies, any part of her hull, crew or equipment crosses the starting line in the direction of the first mark. Tack, Starboard or Port A boat is on the tack, starboard or port, corresponding to her windward side. Zone The area around a mark within a distance of three hull lengths of the boat nearer to it. A boat is in the zone when any part of her hull is in the zone. Windward See Leeward and Windward.

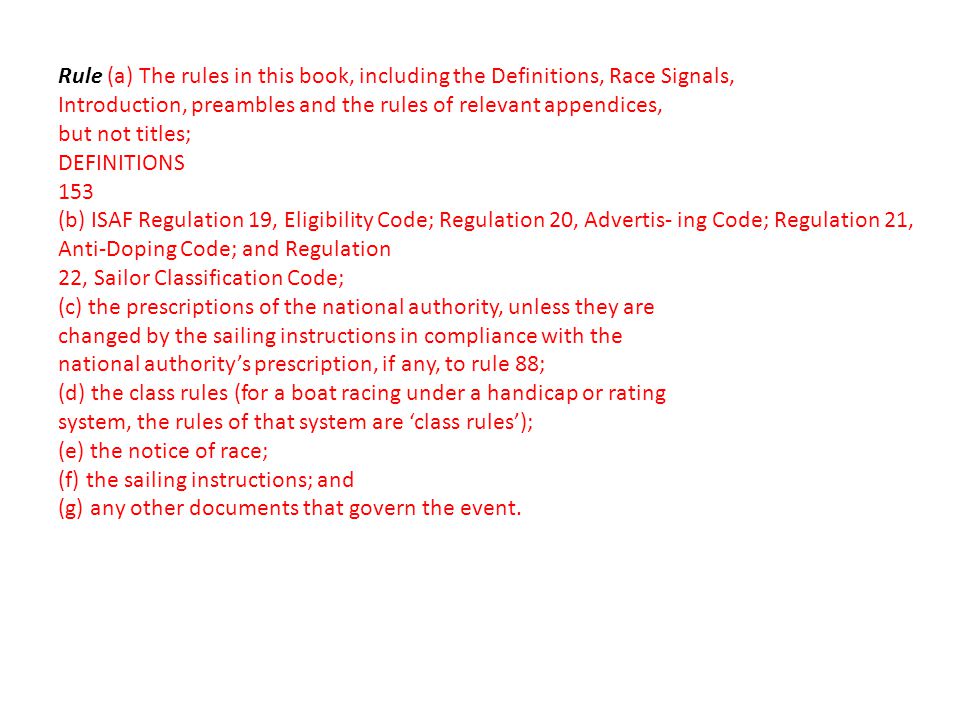

13 Rule (a) The rules in this book, including the Definitions, Race Signals, Introduction, preambles and the rules of relevant appendices, but not titles; DEFINITIONS 153 (b) ISAF Regulation 19, Eligibility Code; Regulation 20, Advertis- ing Code; Regulation 21, Anti-Doping Code; and Regulation 22, Sailor Classification Code; (c) the prescriptions of the national authority, unless they are changed by the sailing instructions in compliance with the national authority’s prescription, if any, to rule 88; (d) the class rules (for a boat racing under a handicap or rating system, the rules of that system are ‘class rules’); (e) the notice of race; (f) the sailing instructions; and (g) any other documents that govern the event.

14 Luffing - When?, Where?, & How Far? Bob Harvey

15 Rule 17 – On the same tack; Proper Course Definitions Tack – A boat is on the tack (starboard or port) corresponding to her windward side. Proper Course – A course a boat would sail to finish as soon as possible in the absence of the other boats referred to in the rule using the term. A boat has no proper course before her starting signal. (Note that this doesn’t say in the absence of other boats, just those mentioned in a specific rule). Bob’s definition of luffing – Sailing above close hauled up to dead into the wind … any further you’d be tacking and Rule 13 would take over.

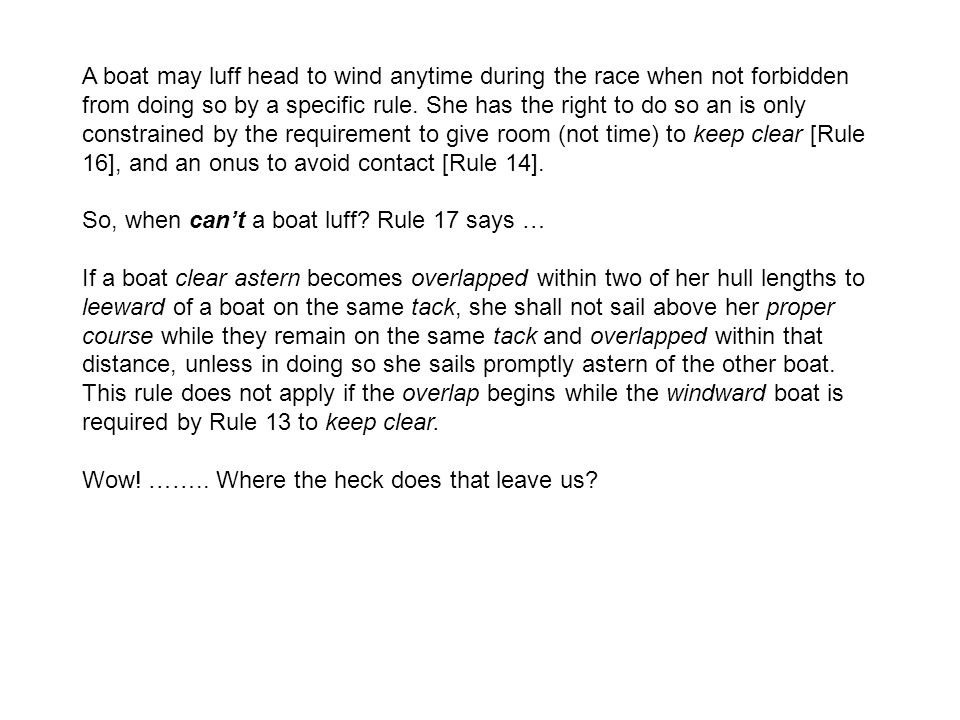

16 A boat may luff head to wind anytime during the race when not forbidden from doing so by a specific rule. She has the right to do so an is only constrained by the requirement to give room (not time) to keep clear [Rule 16], and an onus to avoid contact [Rule 14]. So, when can’t a boat luff? Rule 17 says … If a boat clear astern becomes overlapped within two of her hull lengths to leeward of a boat on the same tack, she shall not sail above her proper course while they remain on the same tack and overlapped within that distance, unless in doing so she sails promptly astern of the other boat. This rule does not apply if the overlap begins while the windward boat is required by Rule 13 to keep clear. Wow! …….. Where the heck does that leave us?

17 We know proper course can vary a bit from boat to boat upwind, say as much as ten degrees, but there’s little doubt upwind that leeward boat, while burdened by Rule 17, can’t luff (sail above close hauled) because that wouldn’t be her proper course. Downwind is a LOT more interesting! Proper course varies all over the place for different boat types in varying wind speeds (Discuss!!). The leeward boat still can’t sail above her proper course while burdened by Rule 17, but that could be considerably higher than the windward boat wants to sail. Let’s remember that Rule 17 only puts a burden on the leeward boat, it does not convey a right to the windward boat. Windward doesn’t have any right to sail her proper course! Leeward simply can’t sail above hers. Let’s also remember that Rule 17 only applies when the overlap is ESTABLISHED within two of leeward’s hull lengths … if the overlap existed prior to the two hull length separation, leeward isn’t burdened by Rule 17 and can head as high as they like.


19 Performance Advantages Of Modern Cordage and his rigger Juan. Brian Torresen

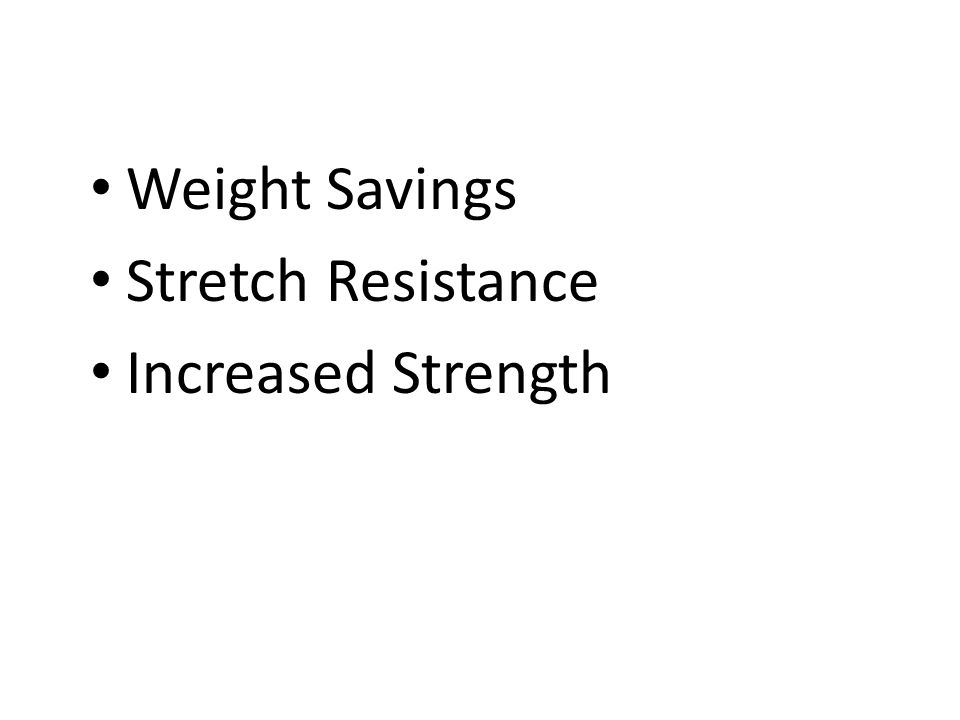

20 Weight Savings Stretch Resistance Increased Strength

21 Puff in 3…2…1….

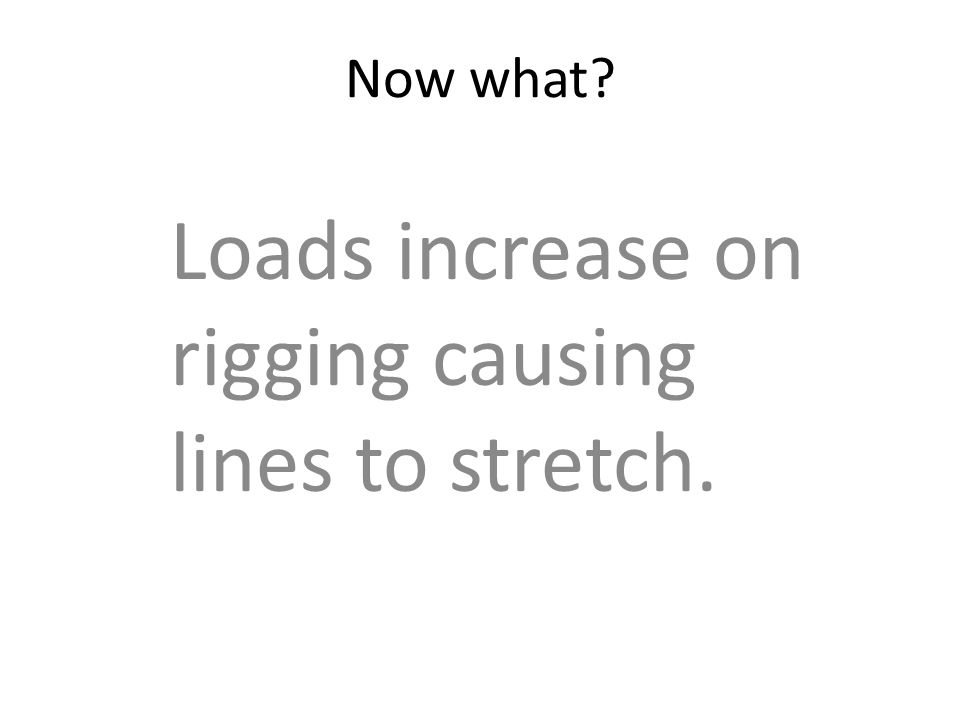

22 Now what? Loads increase on rigging causing lines to stretch.

23 Ease the Spinaker Sheet……..About 20 feet

24 What are the Effects of Stretch??? Somebody go buy John a drink.

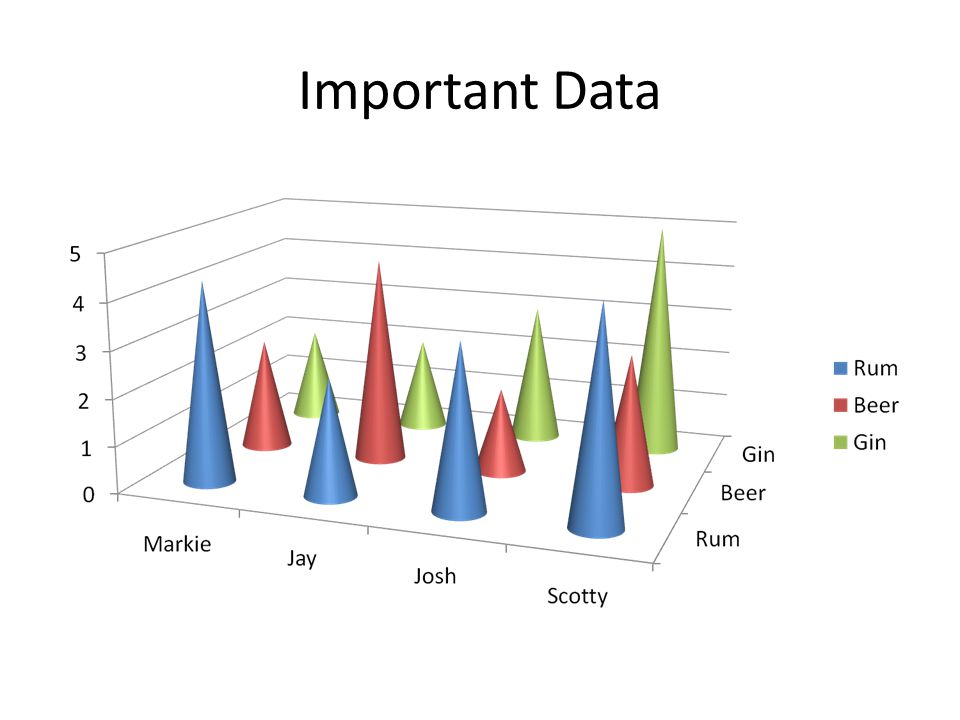

25 Important Data

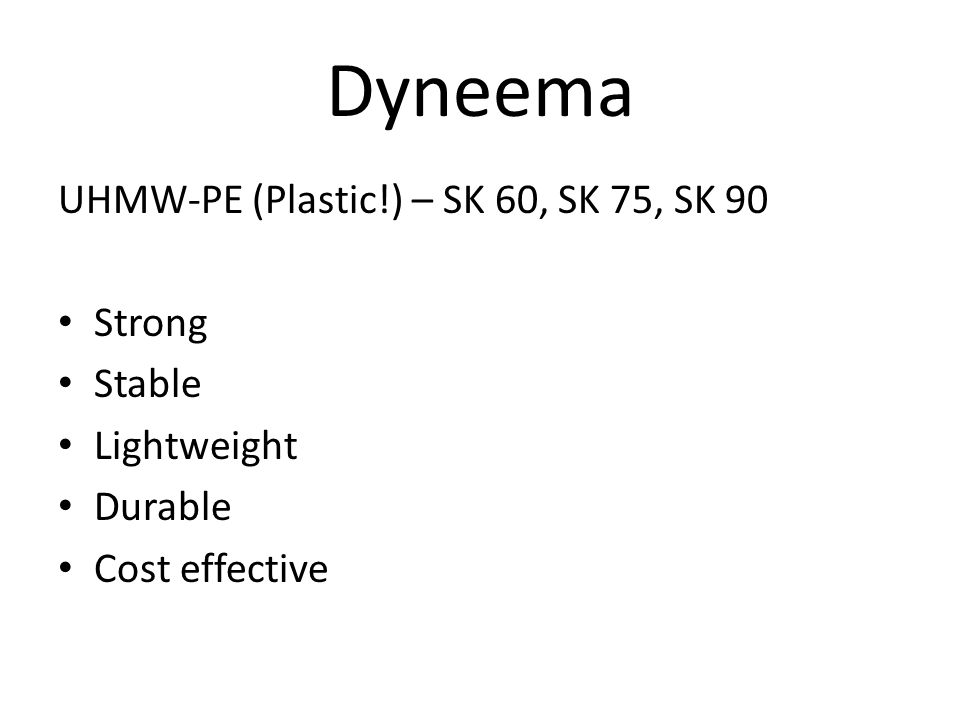

26 Dyneema UHMW-PE (Plastic!) – SK 60, SK 75, SK 90 Strong Stable Lightweight Durable Cost effective

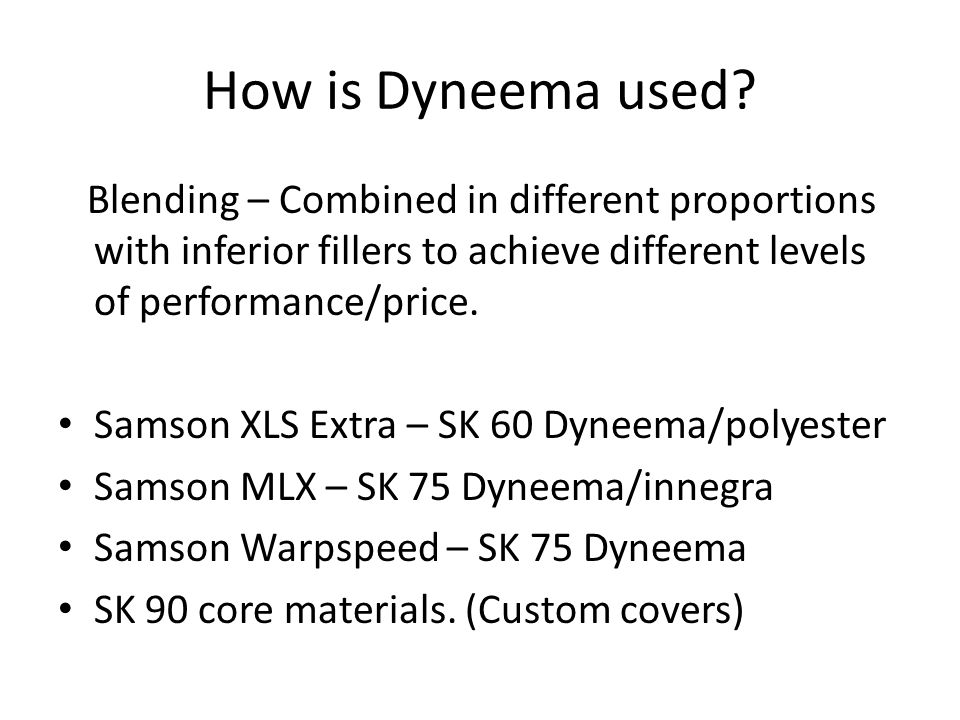

27 How is Dyneema used? Blending – Combined in different proportions with inferior fillers to achieve different levels of performance/price. Samson XLS Extra – SK 60 Dyneema/polyester Samson MLX – SK 75 Dyneema/innegra Samson Warpspeed – SK 75 Dyneema SK 90 core materials. (Custom covers)

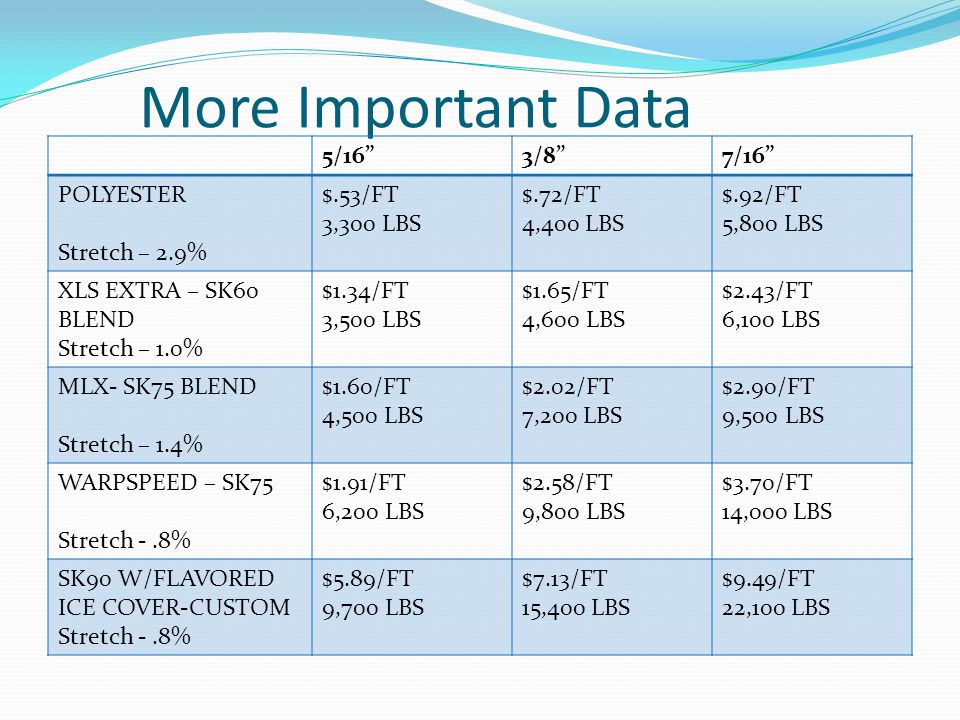

28 More Important Data 5/16”3/8”7/16” POLYESTER Stretch – 2.9% $.53/FT 3,300 LBS $.72/FT 4,400 LBS $.92/FT 5,800 LBS XLS EXTRA – SK60 BLEND Stretch – 1.0% $1.34/FT 3,500 LBS $1.65/FT 4,600 LBS $2.43/FT 6,100 LBS MLX- SK75 BLEND Stretch – 1.4% $1.60/FT 4,500 LBS $2.02/FT 7,200 LBS $2.90/FT 9,500 LBS WARPSPEED – SK75 Stretch -.8% $1.91/FT 6,200 LBS $2.58/FT 9,800 LBS $3.70/FT 14,000 LBS SK90 W/FLAVORED ICE COVER-CUSTOM Stretch -.8% $5.89/FT 9,700 LBS $7.13/FT 15,400 LBS $9.49/FT 22,100 LBS

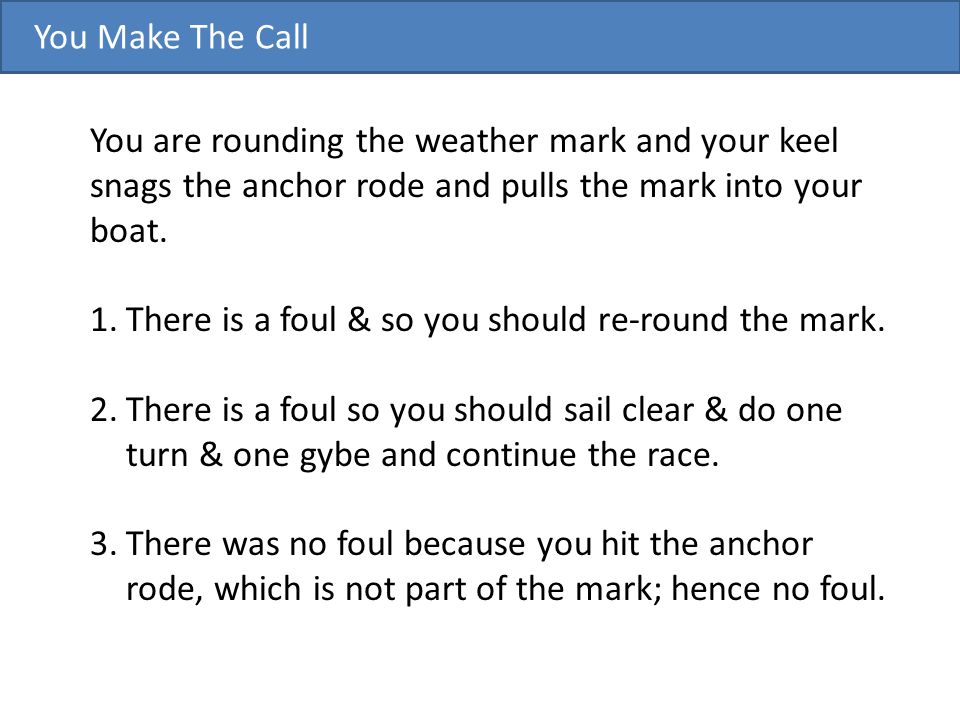

32 You Make The Call You are rounding the weather mark and your keel snags the anchor rode and pulls the mark into your boat. 1.There is a foul & so you should re-round the mark. 2.There is a foul so you should sail clear & do one turn & one gybe and continue the race. 3.There was no foul because you hit the anchor rode, which is not part of the mark; hence no foul.

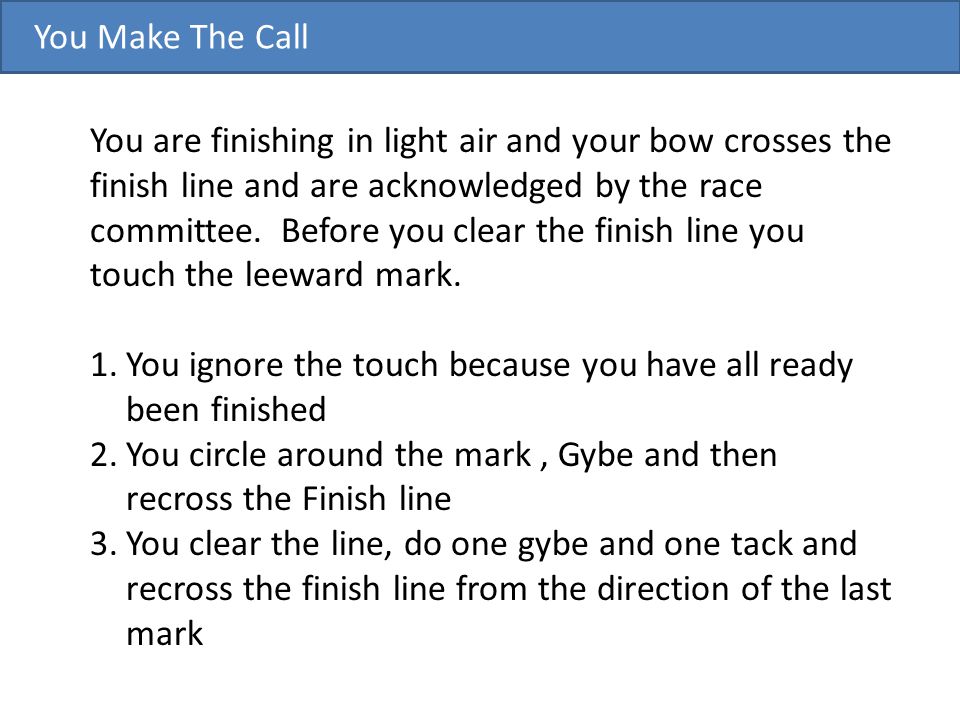

34 You Make The Call You are finishing in light air and your bow crosses the finish line and are acknowledged by the race committee. Before you clear the finish line you touch the leeward mark. 1.You ignore the touch because you have all ready been finished 2.You circle around the mark, Gybe and then recross the Finish line 3.You clear the line, do one gybe and one tack and recross the finish line from the direction of the last mark


36 You Make The Call In reviewing the posted score you find that the boat that finished behind you is scored ahead. 1.Later in the bar, demand the race committee change the scoring. 2.Storm out of the club vowing never to race again. 3.Ask for a scoring review. Provide your finish time, and the number of the boat that finish ahead of you and the number of the boat that finished after you [ which you always record]. Bring another competitor as a witness.
