1
Greedy Algorithms Pasi Fränti 8.10.2013

2
Greedy algorithm 1.Coin problem 2.Minimum spanning tree 3.Generalized knapsack problem 4.Traveling salesman problem

3
Task: Given a coin set, pay the required amount (36 snt) using least number of coins. Coin problem

4
25 1 10 Coin problem Another coin set Amount to be paid: 30 Greedy: Optimal:

5
Blank space for notes

6
Minimum spanning tree When greedy works Needs problem definition! Tree = … (no cycles) Spanning Tree = … Minimum = … (couple of examples with simple graph)

7
Prim(V, E): RETURN T Select (u,v) E with min weight S S {u,v}; P P {(u,v)}; E E\{(u,v)}; REPEAT Select (u,v) with min weight (u,v) E, u S, v S S S {v}; P P {(u,v)}; E E\{(u,v)}; UNTIL S=V Return P; Minimum spanning tree Prim’s algorithm

8
136 170 315 14878 231 234 120 89 131109 116 86 246 182 216 110 117 199 121 142 242 79 191 178 191 126 149 170 51 112 90 163 59 143 73 6353 27 135 105 58 116 72 79 Example of Prim

10
Proof of optimality General properties of spanning trees Spanning tree includes N-1 links There are no cycles Minimum spanning tree is the one with the smallest weights A B C A B C Remove Link BC Cycle No cycle

11
Proof of optimality Case: minimum link 2 A B C 2 1 2 A B C 2 1 Link AB is minimum Suppose it is not in MST Path A → B must exist Add AB Adding AB we can remove another link (e.g. AC) Path A → C exists All nodes reached from C can now be reached from B

12
Proof of optimality Induction step A B C 4 3 E D Replace CD by CE MST solved for Subset S Suppose CE is minimum connecting S outside Path D → E must exist and is outside S

13
Proof of optimality Induction step A B C 4 3 E D MST solved for Subset S Path D → E still exist as before All nodes reachable via D can now be reached via C → D

14
Source of data just for fun

15
1. A // initially A is empty 2. for each vertex v V[G] // line 2-3 takes O(V) time 3. do Create-Set(v)// create set for each vertex 4. sort the edges of E by nondecreasing weight w 5. for each edge (u,v) E, in order by nondecreasing weight 6. do if Find-Set(u) Find-Set(v) // u&v on different trees 7. then A A {(u,v)} 8. Union(u,v) 9. return A Total running time is O(E lg E). Minimum spanning tree Kruskal’s algorithm Needs revisions: -Remove numbers -Change terminology

16
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

17
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

18
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

19
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

20
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

21
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

22
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

23
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

24

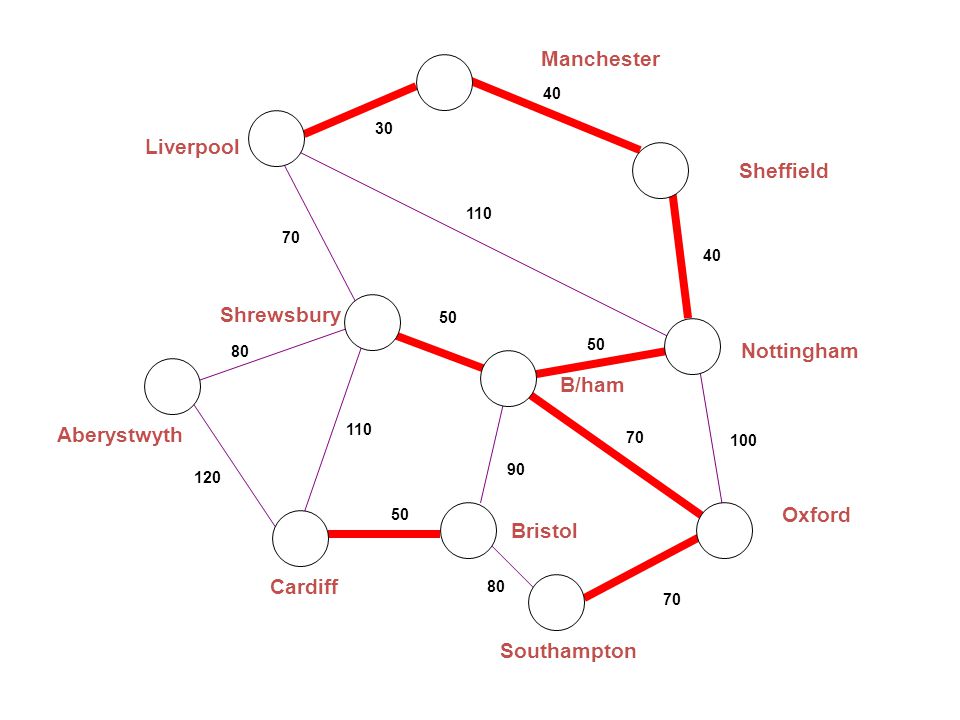

Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

25
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

26
Cardiff Sheffield Nottingham Oxford Southampton Bristol Shrewsbury Liverpool Aberystwyth B/ham Manchester 50 40 30 80 70 80 50 90 50 110 70 120 110 70 100

27
Input:Weight of N items {w 1, w 2,..., w n } Cost of N items {c 1, c 2,..., c n } Knapsack limit S Output:Selection for knapsack: {x 1,x 2,…x n } where x i {0,1}. Sample input: w i ={1,1,2,4,12} c i = {1,2,2,10,4} S=15 Generalized Knapsack problem Problem definition

28
Will appear 2014… Generalized Knapsack problem

29
Semi-blank space

30
Traveling salesman problem GreedyTSP(V, E, home): RETURN T X[1] home; FOR i 1 TO N-1 DO Select (u,v) with min weight (u,v) E, u S, v S X[………….. S S {v}; …. UNTIL V≠{} Return something; Needs to be done

31
Greedy algorithms 1.Coin problem 2.Minimum spanning tree 3.Generalized knapsack problem 4.Traveling salesman problem Solved Not Solved Not
