1 Gino Tosti – INFN Perugia1DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 Source Detection with the Perugia Wavelet code (PGWave) Gamma-ray Large Area Space Telescope G. Tosti, G. Discepoli, D.Impiombato Physics Dept. & INFN - Perugia

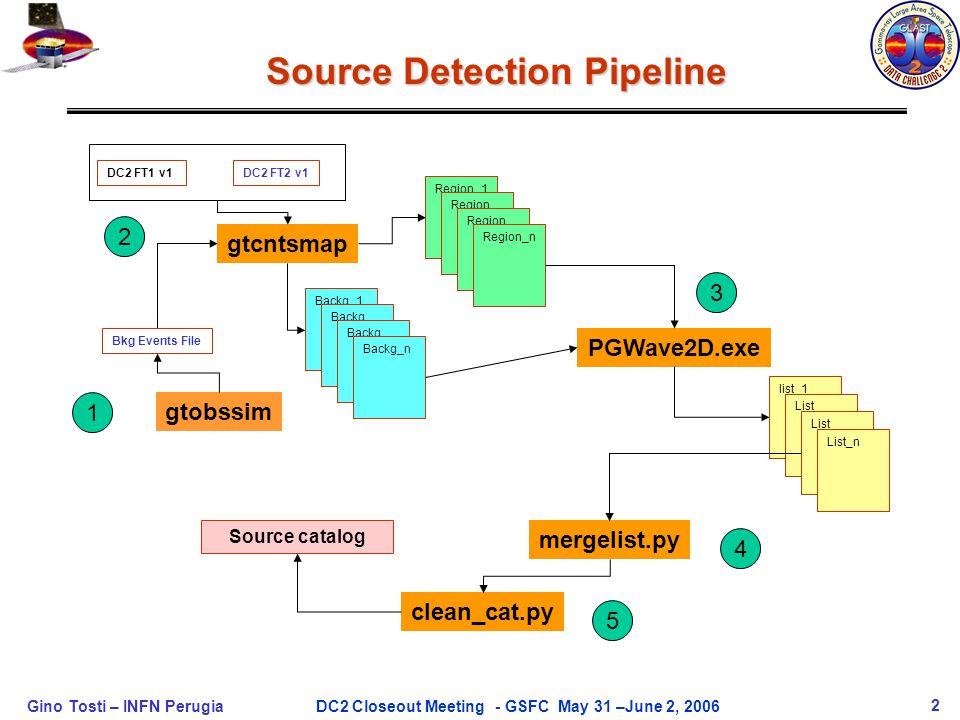

2 Gino Tosti – INFN Perugia2DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 Source Detection Pipeline gtcntsmap PGWave2D.exe mergelist.py clean_cat.py Region_1 Region_ Region_n Backg_1 Backg_ Backg_n list_1 List_ List List_n Source catalog gtobssim Bkg Events File DC2 FT2 v1DC2 FT1 v1 1 4 3 2 5

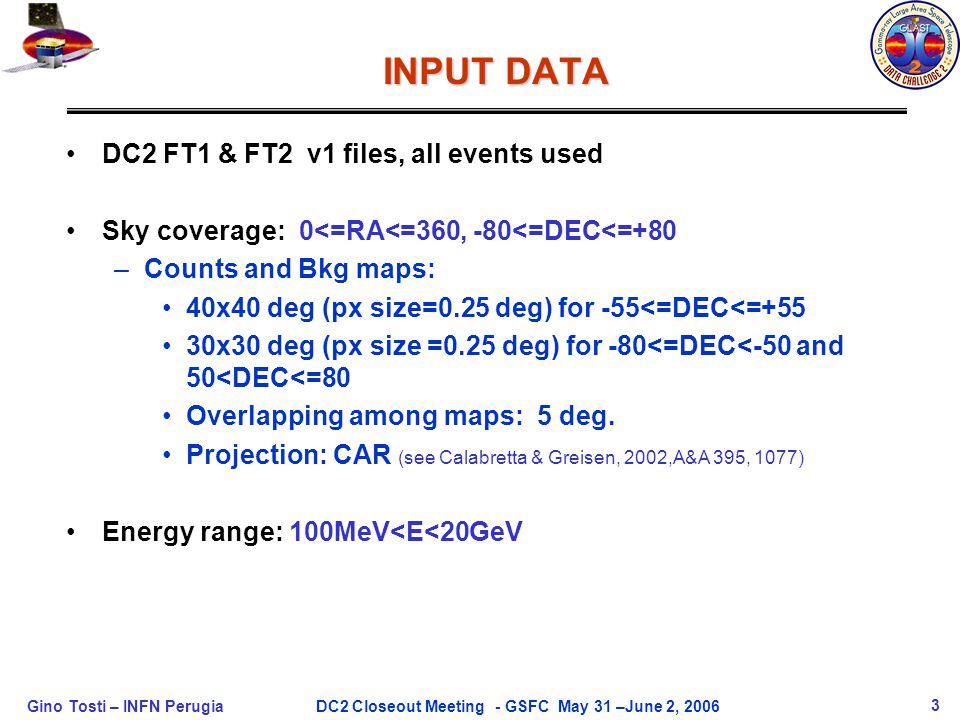

3 Gino Tosti – INFN Perugia3DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 INPUT DATA DC2 FT1 & FT2 v1 files, all events used Sky coverage: 0<=RA<=360, -80<=DEC<=+80 –Counts and Bkg maps: 40x40 deg (px size=0.25 deg) for -55<=DEC<=+55 30x30 deg (px size =0.25 deg) for -80<=DEC<-50 and 50 { "@context": "http://schema.org", "@type": "ImageObject", "contentUrl": "http://images.slideplayer.com/13/3934699/slides/slide_3.jpg", "name": "Gino Tosti – INFN Perugia3DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 INPUT DATA DC2 FT1 & FT2 v1 files, all events used Sky coverage: 0<=RA<=360, -80<=DEC<=+80 –Counts and Bkg maps: 40x40 deg (px size=0.25 deg) for -55<=DEC<=+55 30x30 deg (px size =0.25 deg) for -80<=DEC<-50 and 50

4 Gino Tosti – INFN Perugia4DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 PGWave Code PGWave is the “a priori” source detection code which implement a medley of several methods: Wavelet Transform (Mexican Hat) - Sliding Cell - Threshold and Find algorithms

5 Gino Tosti – INFN Perugia5DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 PGWave input options In order to detect the maximum number of sources: We used 8 Wavelet scales: 1.5 2.5 3.5 4.5 6 9 (in pixels). We set the threshold k-significance of the detection at the minimum (equivalent to about 2 sigma, see Damiani et al. 1997). We disabled the more than one scale detection option. We disabled the S/N ratio threshold option

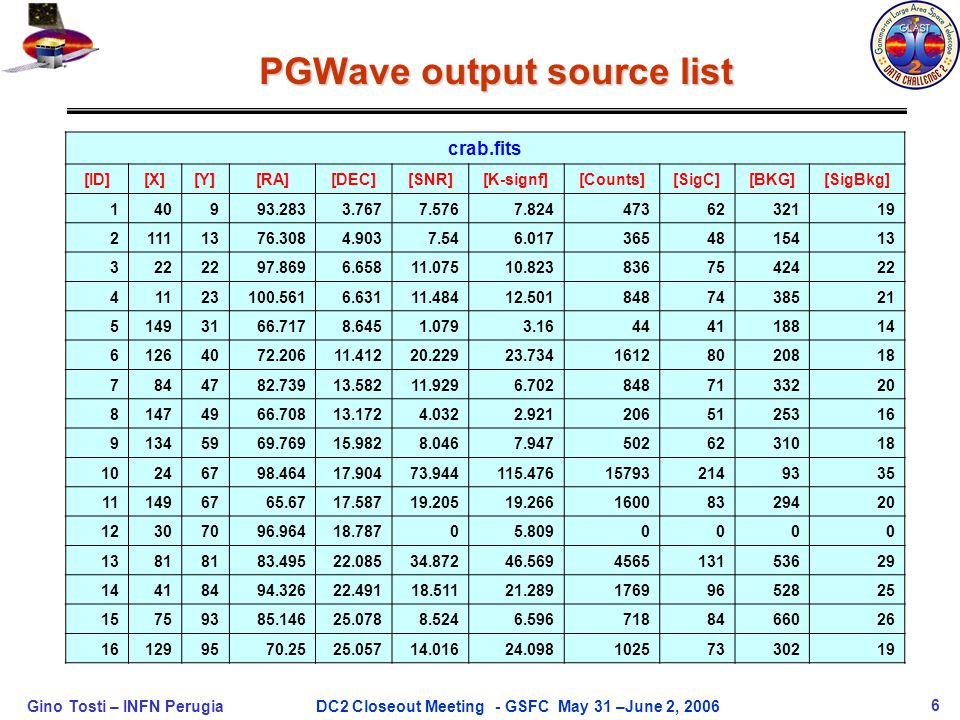

6 Gino Tosti – INFN Perugia6DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 PGWave output source list crab.fits [ID][X][Y][RA][DEC][SNR][K-signf][Counts][SigC][BKG][SigBkg] 140993.2833.7677.5767.8244736232119 21111376.3084.9037.546.0173654815413 322 97.8696.65811.07510.8238367542422 41123100.5616.63111.48412.5018487438521 51493166.7178.6451.0793.16444118814 61264072.20611.41220.22923.73416128020818 7844782.73913.58211.9296.7028487133220 81474966.70813.1724.0322.9212065125316 91345969.76915.9828.0467.9475026231018 10246798.46417.90473.944115.476157932149335 111496765.6717.58719.20519.26616008329420 12307096.96418.78705.8090000 1381 83.49522.08534.87246.569456513153629 14418494.32622.49118.51121.28917699652825 15759385.14625.0788.5246.5967188466026 161299570.2525.05714.01624.09810257330219

7 Gino Tosti – INFN Perugia7DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 The Crab region gtobssim Background Mapgtcntsmap Counts Map

8 Gino Tosti – INFN Perugia8DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 The Crab region Boxcircle = PGW Box = 3EG Cross = LAT_DC2_v1 Wavelet Transformed Map

9 Gino Tosti – INFN Perugia9DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 Significance map Boxcircle = PGW Box = 3EG Cross = LAT_DC2_v1 k-Significance Map

10 Gino Tosti – INFN Perugia10DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 DC2 PGWave Catalog 934 Sources detected

11 Gino Tosti – INFN Perugia11DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 PGWave Catalog at ASDC http://www.asdc.asi.it/glast/gino_dc2/ (the on-line catalog was obtained applying cuts on the S/N & k-sign value)

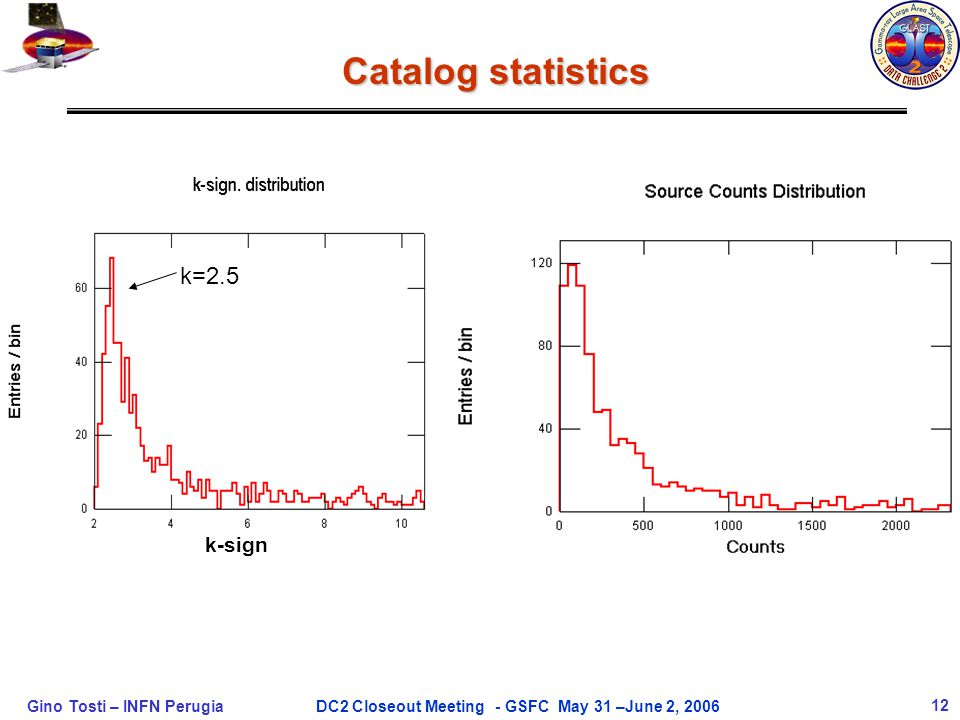

12 Gino Tosti – INFN Perugia12DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 Catalog statistics k=2.5 k-sign

13 Gino Tosti – INFN Perugia13DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 DC2 v1 LAT_cat & 3EG Matching

14 Gino Tosti – INFN Perugia14DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 DC2 v1 LAT_cat & 3EG Matching 329 LAT_Cat_v1 sources detected 229 3EG sources detected

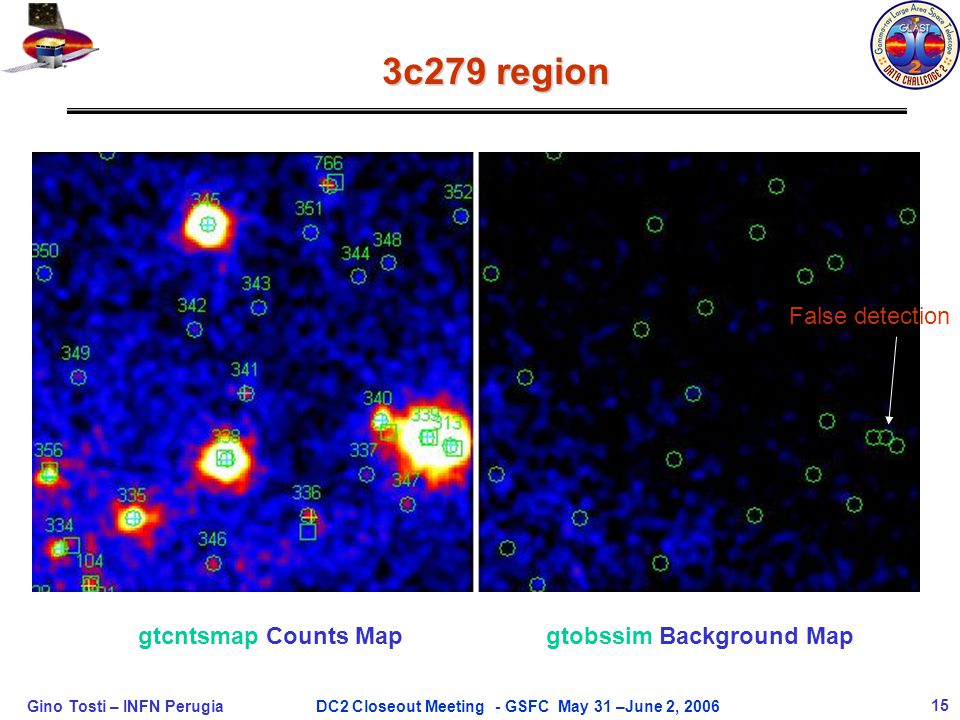

15 Gino Tosti – INFN Perugia15DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 3c279 region False detection gtobssim Background Mapgtcntsmap Counts Map

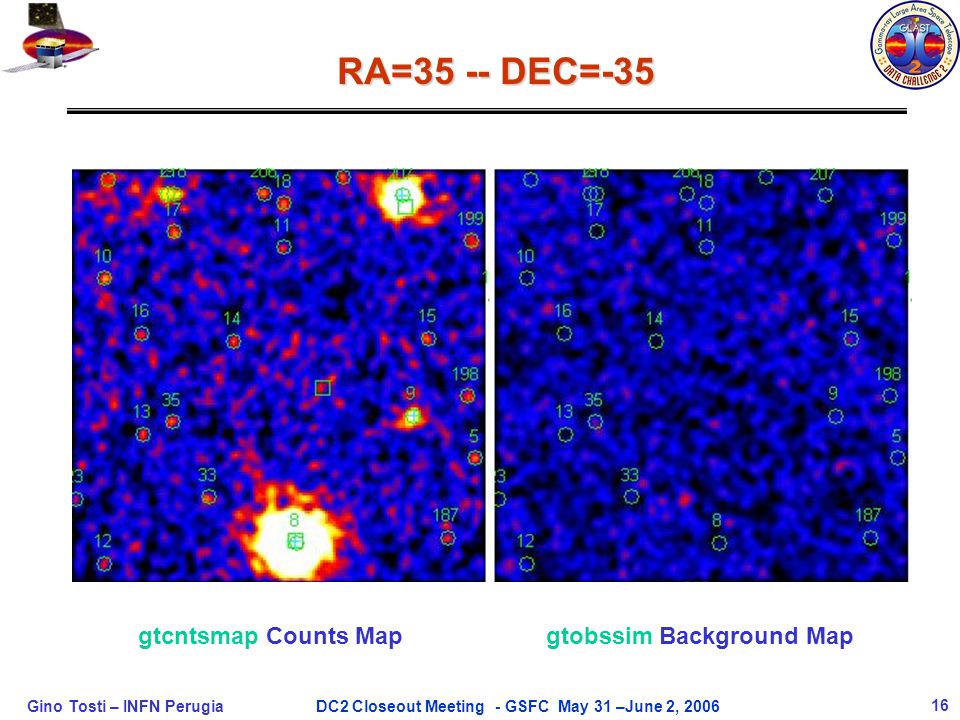

16 Gino Tosti – INFN Perugia16DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 RA=35 -- DEC=-35 gtobssim Background Mapgtcntsmap Counts Map

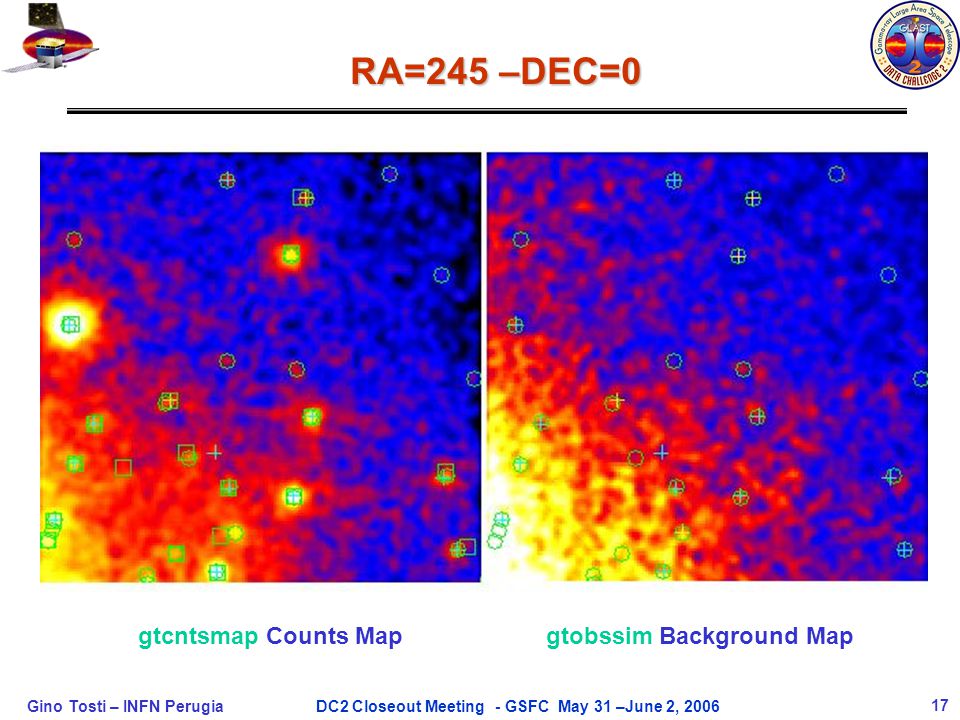

17 Gino Tosti – INFN Perugia17DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 RA=245 –DEC=0 gtobssim Background Mapgtcntsmap Counts Map

18 Gino Tosti – INFN Perugia18DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 The Moon and Sun Paths Sun Moon 01/01/208

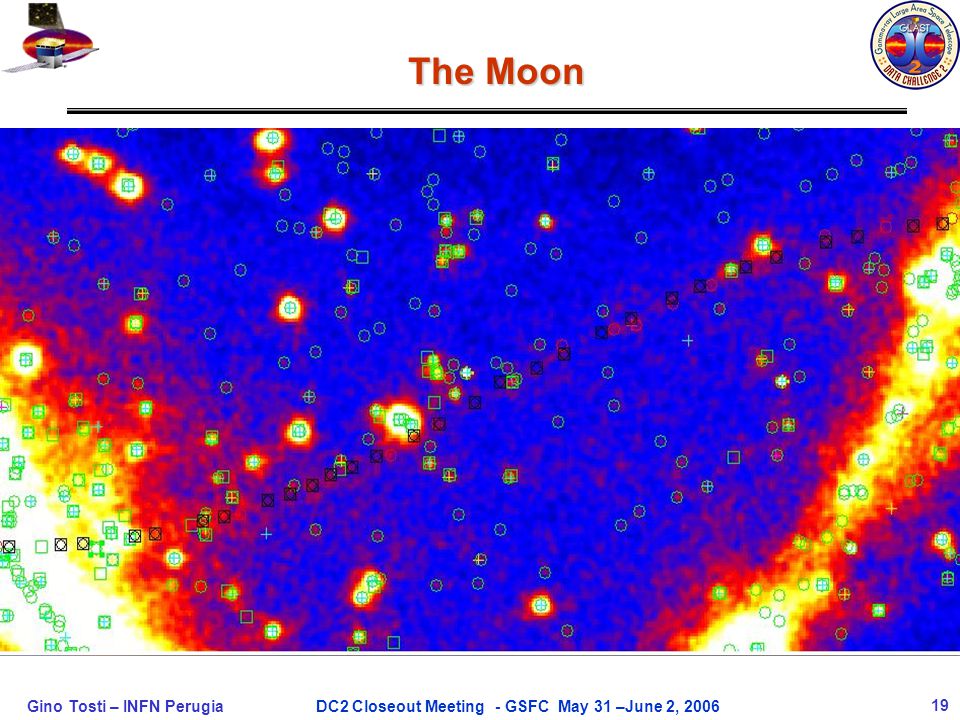

19 Gino Tosti – INFN Perugia19DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 The Moon

20 Gino Tosti – INFN Perugia20DC2 Closeout Meeting - GSFC May 31 –June 2, 2006 Conclusion We have created a catalog of 934 sources (including the false ones) 339/934 are in common with The LAT v1 229/934 are in common with the 3EG Catalog Next step: comparison with the ‘true’ simulated sources catalog
