1 Protecting the border stretch of the river from pollution Hornad Sewerage Territory river Hornad - implemented and planned projects financed from EU funds Eastern Slovak Water Company, a.s. Košice

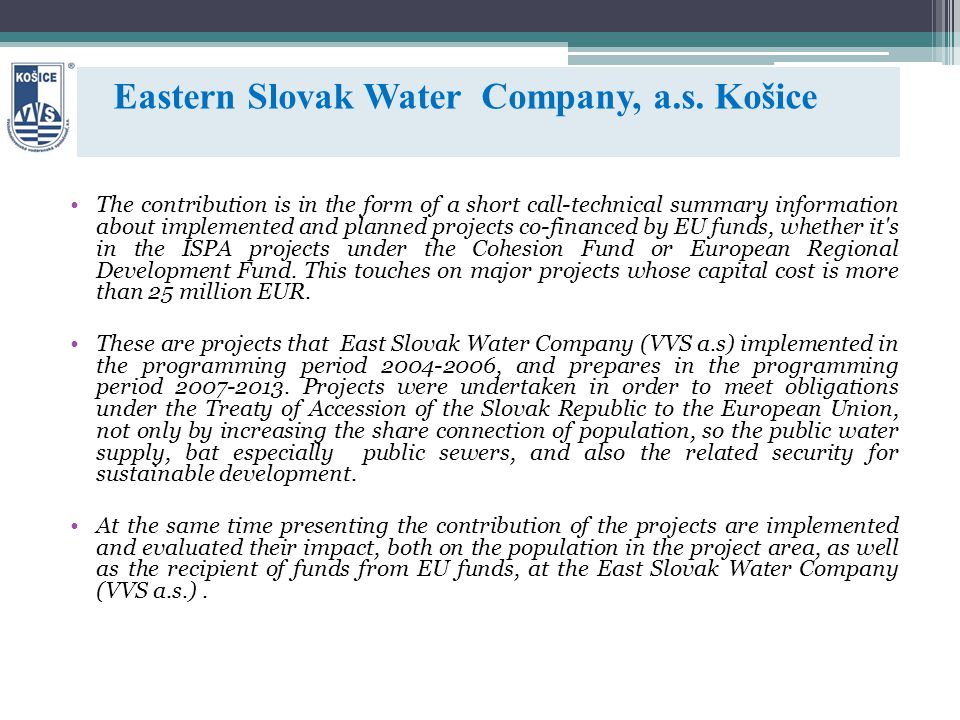

2 The contribution is in the form of a short call-technical summary information about implemented and planned projects co-financed by EU funds, whether it's in the ISPA projects under the Cohesion Fund or European Regional Development Fund. This touches on major projects whose capital cost is more than 25 million EUR. These are projects that East Slovak Water Company (VVS a.s) implemented in the programming period , and prepares in the programming period Projects were undertaken in order to meet obligations under the Treaty of Accession of the Slovak Republic to the European Union, not only by increasing the share connection of population, so the public water supply, bat especially public sewers, and also the related security for sustainable development. At the same time presenting the contribution of the projects are implemented and evaluated their impact, both on the population in the project area, as well as the recipient of funds from EU funds, at the East Slovak Water Company (VVS a.s.). Eastern Slovak Water Company, a.s. Košice

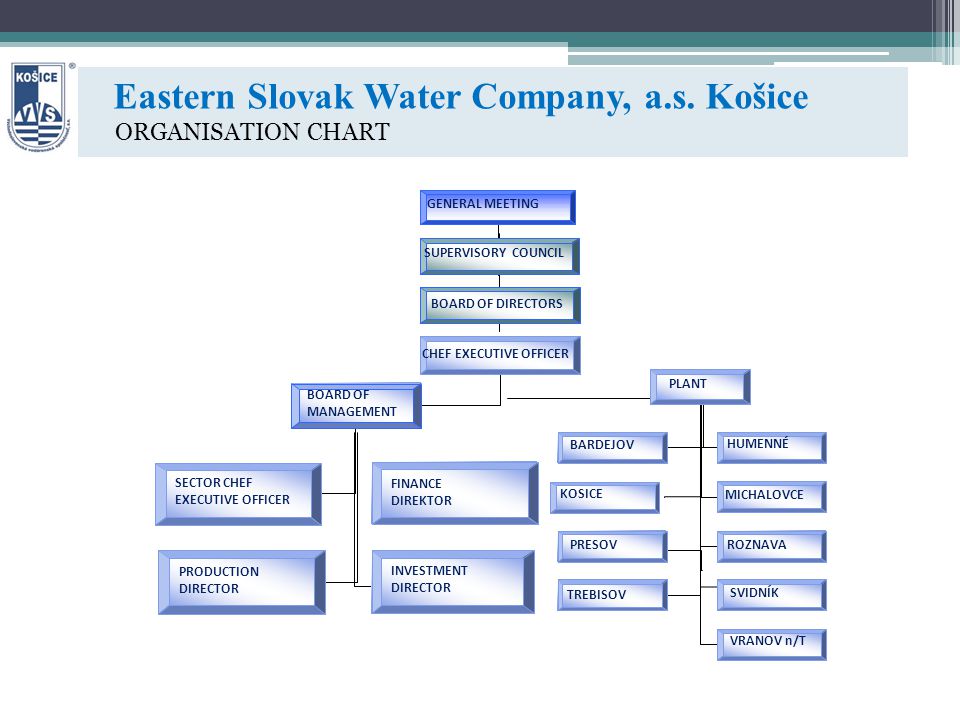

3 ORGANISATION CHART

4 Basin Hornádu and Bodvy Scope of plant Kosice and Presov VVS, a.s. Eastern Slovak Water Company, a.s. Košice

5 The present water network According to date from 2007, people used the public water network, which means 72,2 percent of the population. Of the total of 944 towns and villages, 494 have a local water network, of which 321 are owned by VVS, a.s., Kosice and 103 are run by the company trough agreements with the local councils that own the network. In a further 70 towns and villages, local networks are operated partly by the respective local councils and partly by our company. The company supplies water to these towns and villages through 227 public conduits, of which 55 are communal. The length of the network run by VVS, a.s., is km, of which km is made up of communal networks. Due to the terrain conditions, most of the water conduits operated by VVS, a.s., are pressurized, sometimes a combination of pressurised and non-pressurised. There are very few gravitational ones. The pressurised networks are more difficult the operate and consume a great deal of electricity. The supply the public, there are 788 surface and underground water sources of which 759 are underground water sources |367 springs, 392 wels| and 29 surface water sources. The most important ones are reservoirs Starina, |which supplies to the towns of Snina, Humenne, Vranov nad Toplou, Trebisov, Presov and Kosice| and Bukovec |which supplies to the Kosice municipal network| and Brezovica- Tichy Potok. Of the total water produced 52,3 percent comes from underground and 47,7 percent from surface sources. Surface water must be treated in treatment plants. The biggest one is the Stakčin water treatment plant with a capacity of l.s -1, which is part of the East Slovakia water network Starina – Košice. Eastern Slovak Water Company, a.s. Košice

6 The present sewage system inhabitants 51,5 percent of the population – now use the public sewage system. Sewage systems are utilised in 99 communities, with 51 sewage networks owned by VVS, a.s. and 13 run by it on agreement with local councils. In 35 towns and villages networks are jointly by run VVS, a.s. and the local councils VVS, a.s. also has 70 sewage systems with treatment plants, of which 65 are mechanical – biological and 5 mechanical people use sewage systems with treatment facilities. The length of the sewage systems run by VVS, a.s. is 1,708 km. Eastern Slovak Water Company, a.s. Košice

7 Vision The East Slovak Water Company, a.s. aims to improve the quality of life of the people is its region of operation through supplying quality drinking water via water network, and draining away waste water via sewage systems. VVS,a.s. is aware of the need for further developing of its network s of drinking and waste water conduits, in order that more and more people can get connected to these public systems. VVS, a.s. protects the environment in its range of business operations in compliance with the regulations concerning water quality and waste water treatment. The company builds water treatment plants, or completes the construction of partly-built water treatment plants in order to increase their effectiveness. The company is governed by the aim of creating a viable business, with a profitability similar to that of other businesses in this field, and to increase the shareholder value. VVS, a.s. sales policy is to always establish the right price for water, so that it is both acceptable to the population and profitable for the company. Last but not least, corporate social responsibility compels the company to endeavour to ensure stability for its workforce with good remuneration and benefits. Eastern Slovak Water Company, a.s. Košice

8 Enviroment impacts The legal framework for environmental protection in Slovakia is now being approximated to that of the EU. Implementing EU directives for water management in Slovakia will cost more than 186bn SKK. EU directives stipulate the requirements for water, eg. for the quality of surface water intended for human consumption as well as qualitative parameters for water that requires protection to sustain life in water flows. Other directives stipulate limits for releasing waste water and gives stricter criteria regarding waste water monitoring. This touches on, to a great extent, the current environmental issues in the Košice and Prešov regions. In terms of qualitative protection the key issue is tackling the sources of pollution whether they be point sources (waste water released from factories, agricultural sites and residential areas) or area sources. Whole basins require revitalisation. Thus, the occurrence and intensity of flood flows will be reduced, soil erosion and subsequent sedimentation of streams and lakes will be lessened. VVS, a.s. aims at making water treatment plants highly effective, using modern technology. It also aims at maintaining the reliability and performance of all system pipelines in order to keep the risks of pollution to a minimum. VVS, a.s. aims to achieve the highest possible quality of treated waste water to be released into the environment, ie ensuring the maximum effectiveness of waste water treatment plants by utilising modern technologies and process automation, as well as maintaining the reliability and performance of all the system pipelines to keep risks of pollution at a minimum. Eastern Slovak Water Company, a.s. Košice

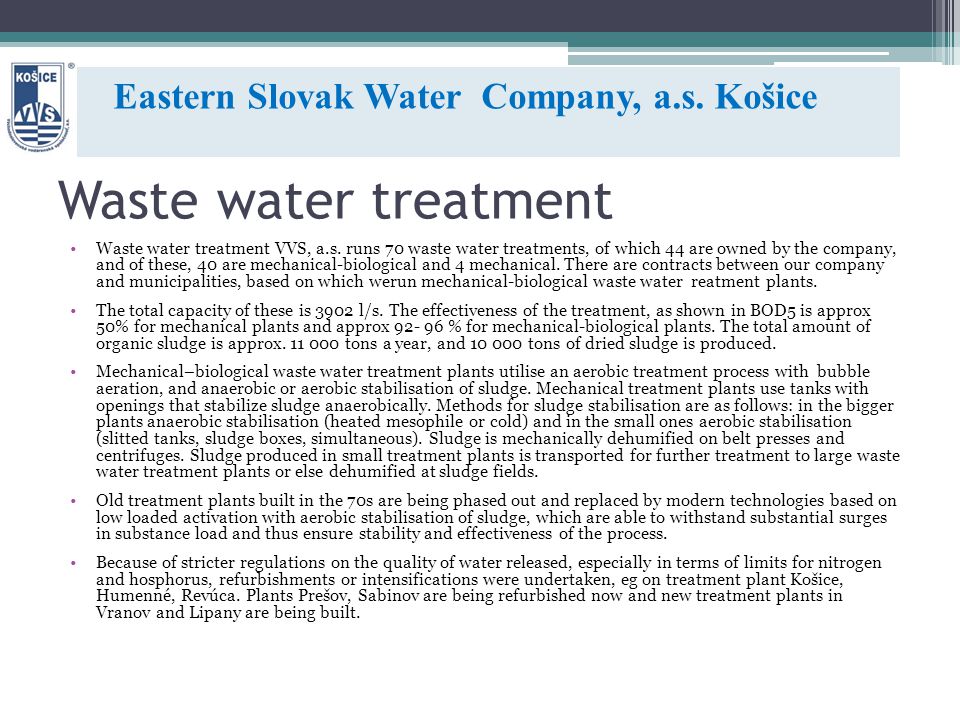

9 Waste water treatment Waste water treatment VVS, a.s. runs 70 waste water treatments, of which 44 are owned by the company, and of these, 40 are mechanical-biological and 4 mechanical. There are contracts between our company and municipalities, based on which werun mechanical-biological waste water reatment plants. The total capacity of these is 3902 l/s. The effectiveness of the treatment, as shown in BOD5 is approx 50% for mechanical plants and approx % for mechanical-biological plants. The total amount of organic sludge is approx tons a year, and tons of dried sludge is produced. Mechanical–biological waste water treatment plants utilise an aerobic treatment process with bubble aeration, and anaerobic or aerobic stabilisation of sludge. Mechanical treatment plants use tanks with openings that stabilize sludge anaerobically. Methods for sludge stabilisation are as follows: in the bigger plants anaerobic stabilisation (heated mesophile or cold) and in the small ones aerobic stabilisation (slitted tanks, sludge boxes, simultaneous). Sludge is mechanically dehumified on belt presses and centrifuges. Sludge produced in small treatment plants is transported for further treatment to large waste water treatment plants or else dehumified at sludge fields. Old treatment plants built in the 70s are being phased out and replaced by modern technologies based on low loaded activation with aerobic stabilisation of sludge, which are able to withstand substantial surges in substance load and thus ensure stability and effectiveness of the process. Because of stricter regulations on the quality of water released, especially in terms of limits for nitrogen and hosphorus, refurbishments or intensifications were undertaken, eg on treatment plant Košice, Humenné, Revúca. Plants Prešov, Sabinov are being refurbished now and new treatment plants in Vranov and Lipany are being built. Eastern Slovak Water Company, a.s. Košice

10 List of projects implemented in the river Hornad : IMPLEMENT PROJEKT – ISPA Košice – sewerage and sewage treatment IMPLEMENT PROJEKT – COHESIVE FUND Prešov – drinking water and sewerage in the river Torysa Eastern Slovak Water Company, a.s. Košice

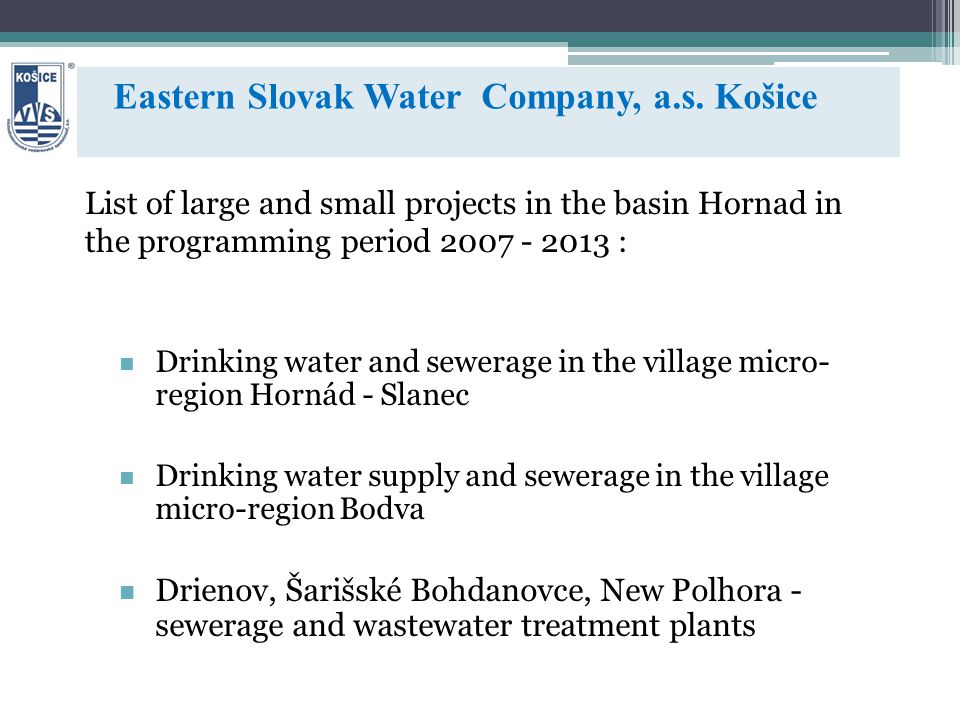

11 List of large and small projects in the basin Hornad in the programming period : Drinking water and sewerage in the village micro- region Hornád - Slanec Drinking water supply and sewerage in the village micro-region Bodva Drienov, Šarišské Bohdanovce, New Polhora - sewerage and wastewater treatment plants Eastern Slovak Water Company, a.s. Košice

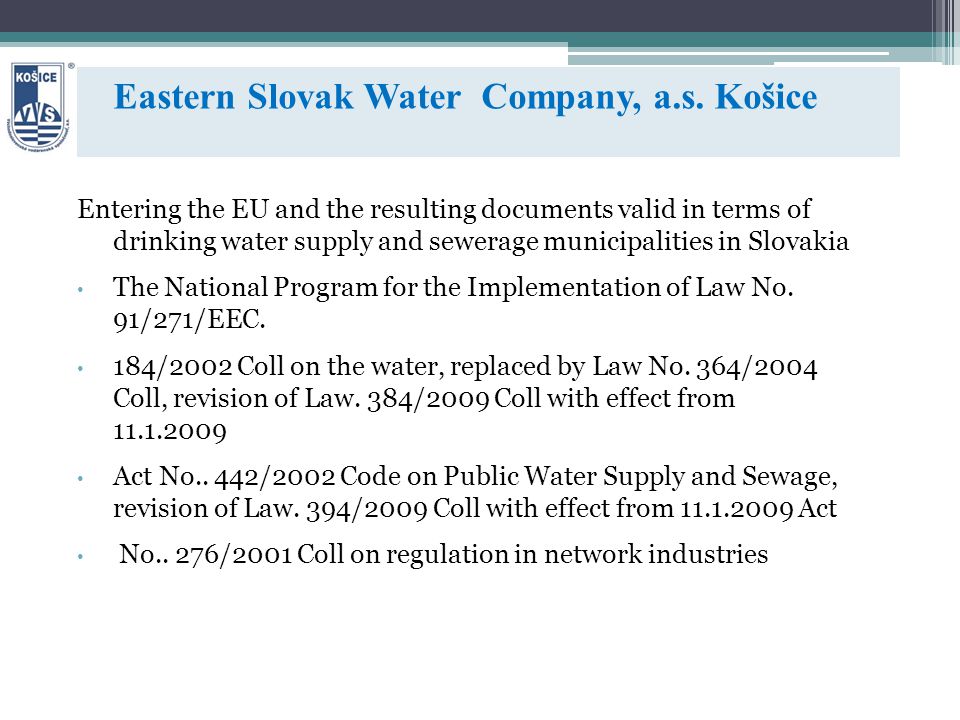

12 Entering the EU and the resulting documents valid in terms of drinking water supply and sewerage municipalities in Slovakia The National Program for the Implementation of Law No. 91/271/EEC. 184/2002 Coll on the water, replaced by Law No. 364/2004 Coll, revision of Law. 384/2009 Coll with effect from Act No.. 442/2002 Code on Public Water Supply and Sewage, revision of Law. 394/2009 Coll with effect from Act No.. 276/2001 Coll on regulation in network industries Eastern Slovak Water Company, a.s. Košice

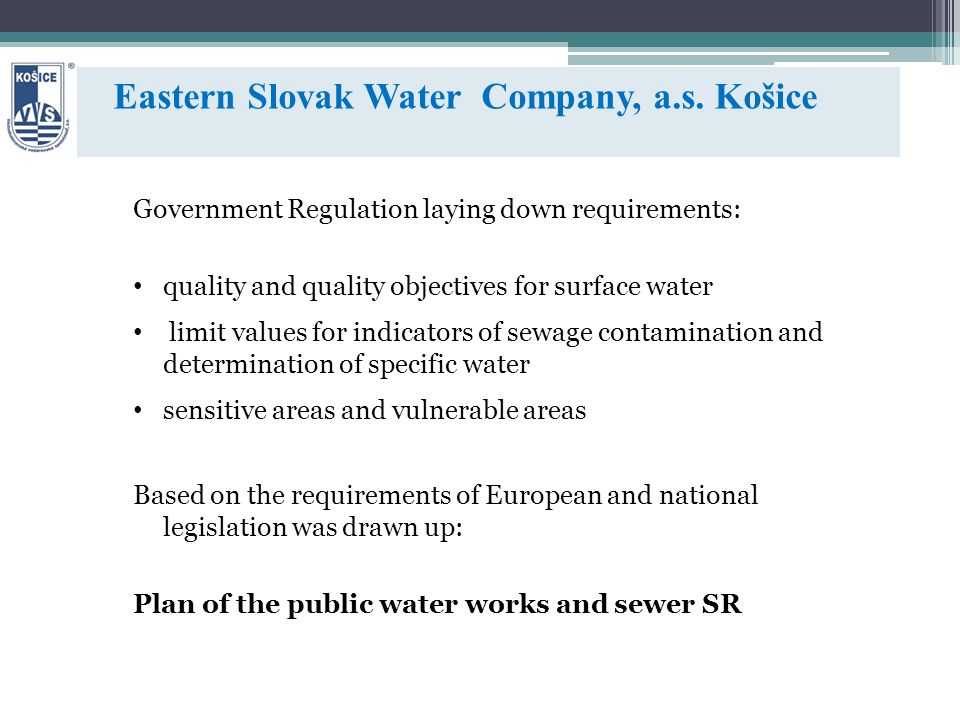

13 Government Regulation laying down requirements: quality and quality objectives for surface water limit values for indicators of sewage contamination and determination of specific water sensitive areas and vulnerable areas Based on the requirements of European and national legislation was drawn up: Plan of the public water works and sewer SR Eastern Slovak Water Company, a.s. Košice

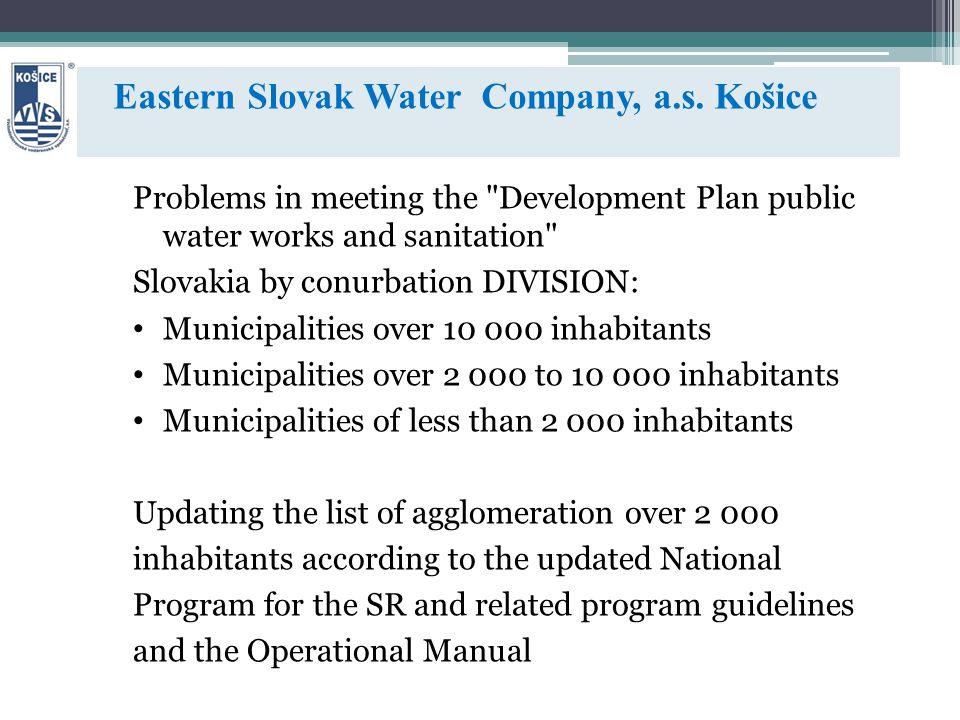

14 Problems in meeting the "Development Plan public water works and sanitation" Slovakia by conurbation DIVISION: Municipalities over inhabitants Municipalities over to inhabitants Municipalities of less than inhabitants Updating the list of agglomeration over inhabitants according to the updated National Program for the SR and related program guidelines and the Operational Manual Eastern Slovak Water Company, a.s. Košice

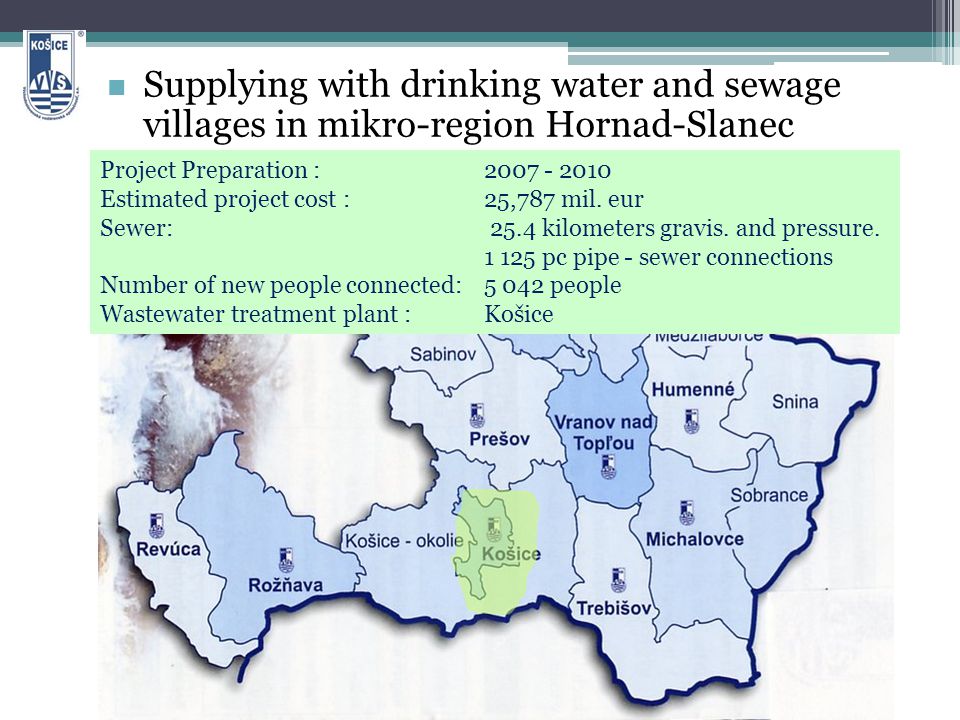

15 Supplying with drinking water and sewage villages in mikro-region Hornad-Slanec Hornád - Slanec Project Preparation : Estimated project cost :25,787 mil. eur Sewer: 25.4 kilometers gravis. and pressure pc pipe - sewer connections Number of new people connected:5 042 people Wastewater treatment plant :Košice

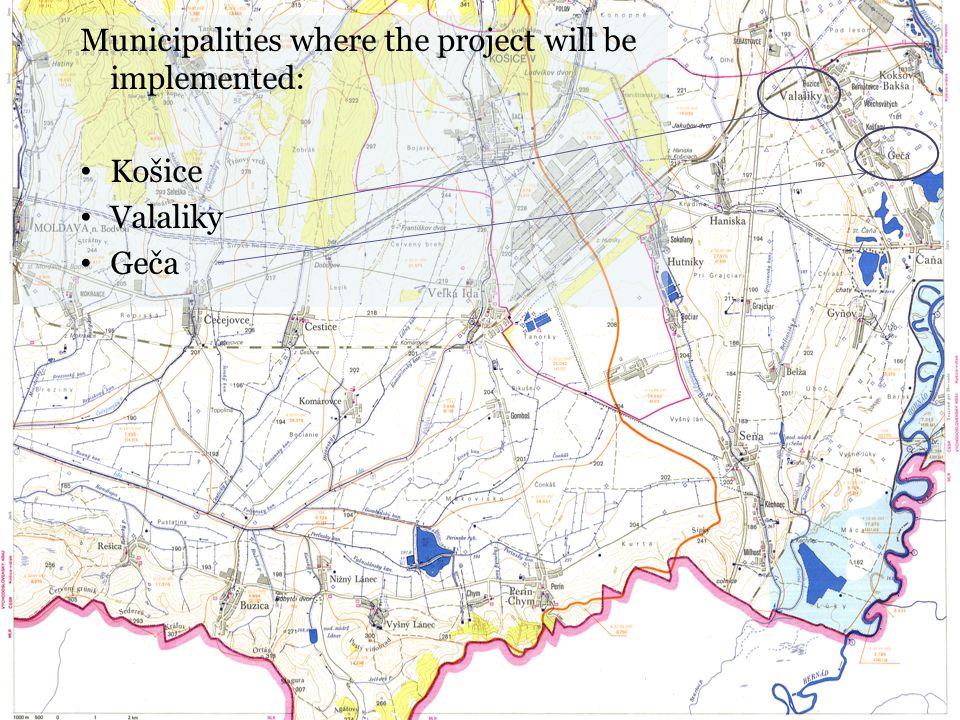

16 Municipalities where the project will be implemented: Košice Valaliky Geča

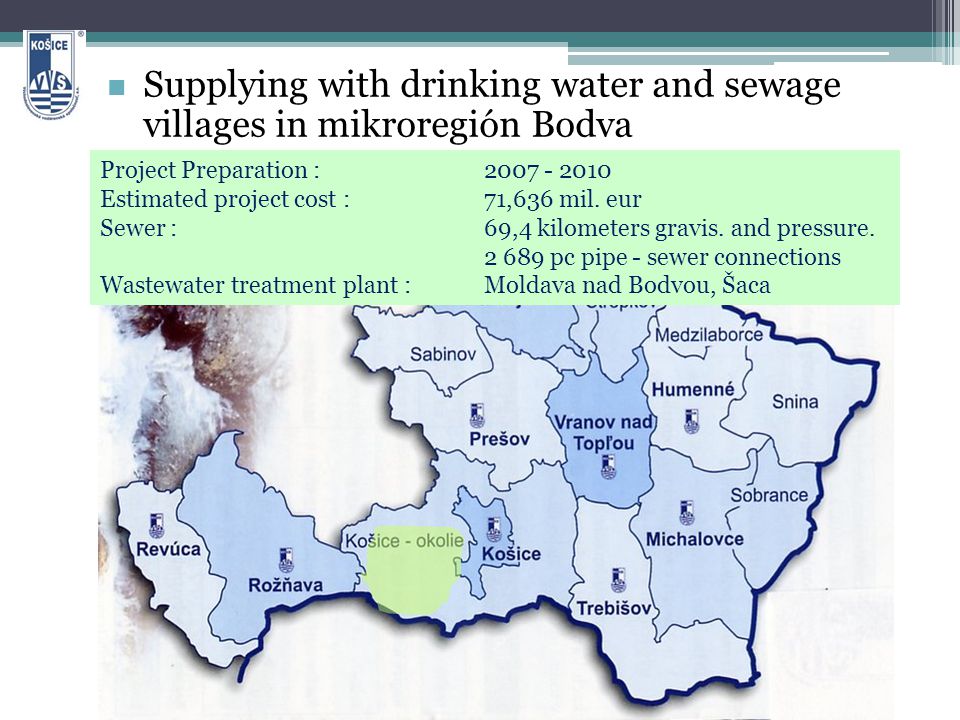

17 Supplying with drinking water and sewage villages in mikroregión Bodva Project Preparation : Estimated project cost :71,636 mil. eur Sewer : 69,4 kilometers gravis. and pressure pc pipe - sewer connections Wastewater treatment plant :Moldava nad Bodvou, Šaca

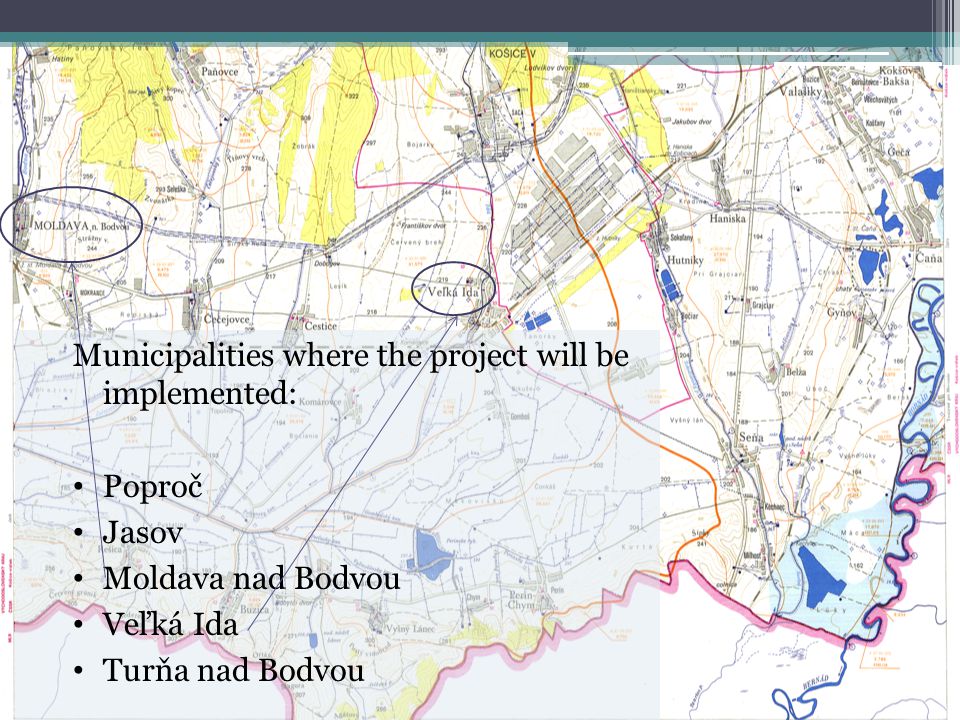

18 Municipalities where the project will be implemented: Poproč Jasov Moldava nad Bodvou Veľká Ida Turňa nad Bodvou

19 Thank you for your attention Eastern Slovak Water Company, a.s. Košice
