VIVOTEK MD7530/MD7560 Product Announcement Compact Network Dome Camera Specially designed for mobile surveillance PMD Ray 2010.06.25.

Similar presentations


Presentation on theme: "VIVOTEK MD7530/MD7560 Product Announcement Compact Network Dome Camera Specially designed for mobile surveillance PMD Ray 2010.06.25."— Presentation transcript:

1 VIVOTEK MD7530/MD7560 Product Announcement Compact Network Dome Camera Specially designed for mobile surveillance PMD Ray

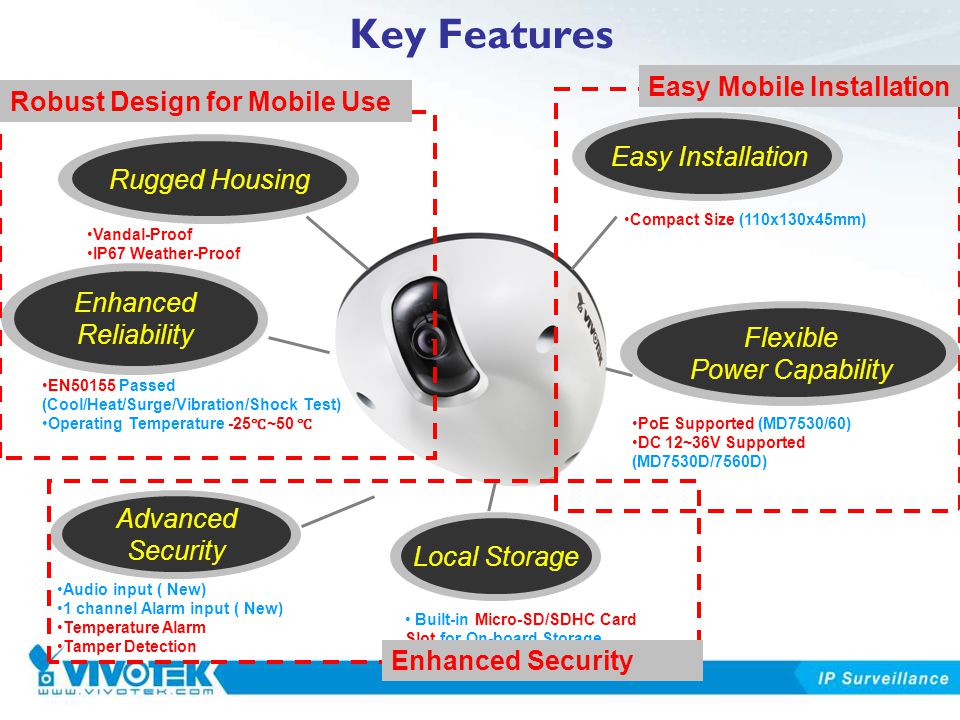

2 Key Features Rugged Housing Vandal-Proof IP67 Weather-Proof Enhanced Reliability EN50155 Passed (Cool/Heat/Surge/Vibration/Shock Test) Operating Temperature -25 ℃ ~50 ℃ Advanced Security Audio input ( New) 1 channel Alarm input ( New) Temperature Alarm Tamper Detection Local Storage Built-in Micro-SD/SDHC Card Slot for On-board Storage Compact Size (110x130x45mm) Easy Installation Flexible Power Capability PoE Supported (MD7530/60) DC 12~36V Supported (MD7530D/7560D) Robust Design for Mobile Use Easy Mobile Installation Enhanced Security

3 1. Robust Design for Mobile Surveillance Selling Points  Solid Mechanical Design  Vandal-Proof  IP-67 Weather-Proof  Enhanced Reliability  -25 ℃ ~50 ℃  EN50155 Cooling Heating Surge Shock & Vibration

4 1. Robust Design for Mobile Surveillance Selling Points More Protection on the bubble (weak point) VIVOTEK Mobile Dome Normal Mobile Dome No vandal protection on the bubble (weak point)

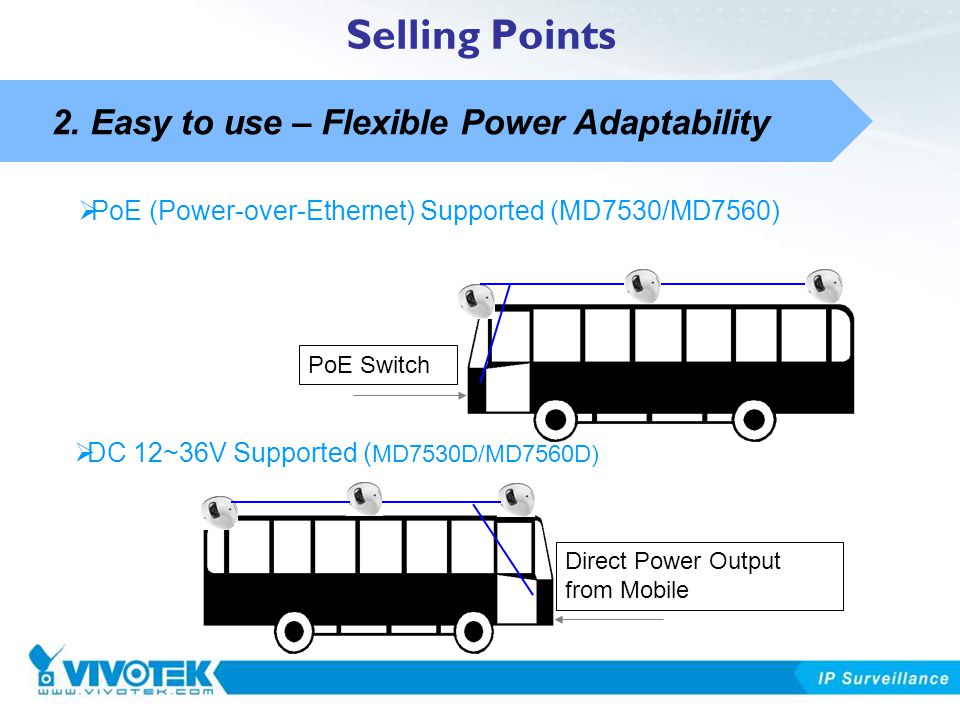

5 2. Easy to use – Flexible Power Adaptability Selling Points  PoE (Power-over-Ethernet) Supported (MD7530/MD7560)  DC 12~36V Supported ( MD7530D/MD7560D) PoE Switch Direct Power Output from Mobile

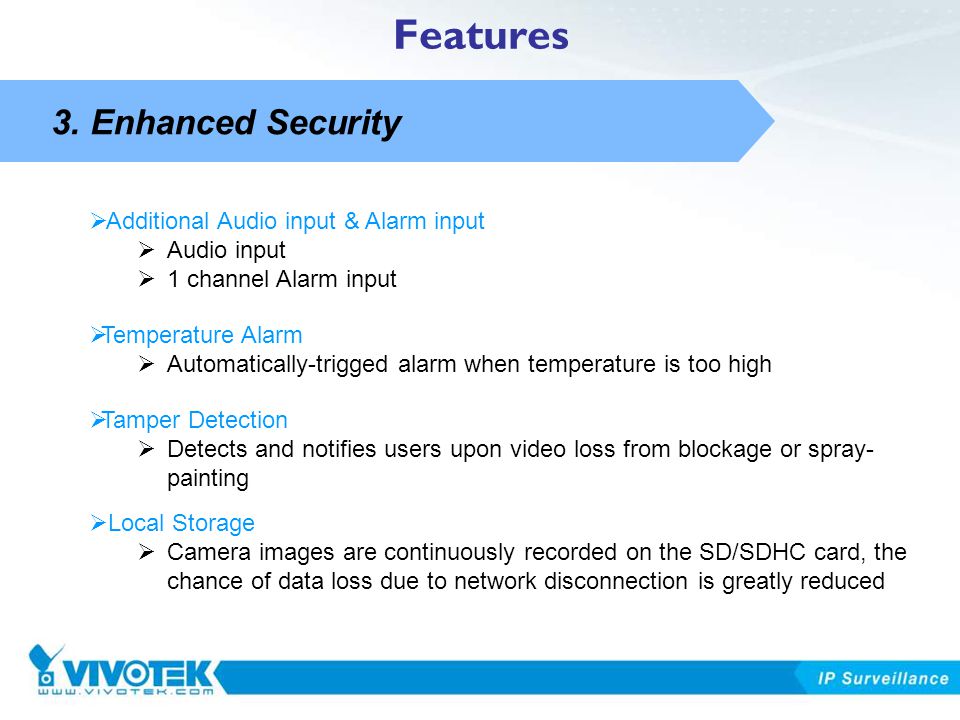

6 3. Enhanced Security  Additional Audio input & Alarm input  Audio input  1 channel Alarm input Features  Local Storage  Camera images are continuously recorded on the SD/SDHC card, the chance of data loss due to network disconnection is greatly reduced  Temperature Alarm  Automatically-trigged alarm when temperature is too high  Tamper Detection  Detects and notifies users upon video loss from blockage or spray- painting

7 Applications Mobile Video Surveillance TrainHigh Speed Rail Bus Robust Design for Mobile Surveillance Vandal & Weather-Proof Housing PoE & DC Power Supported

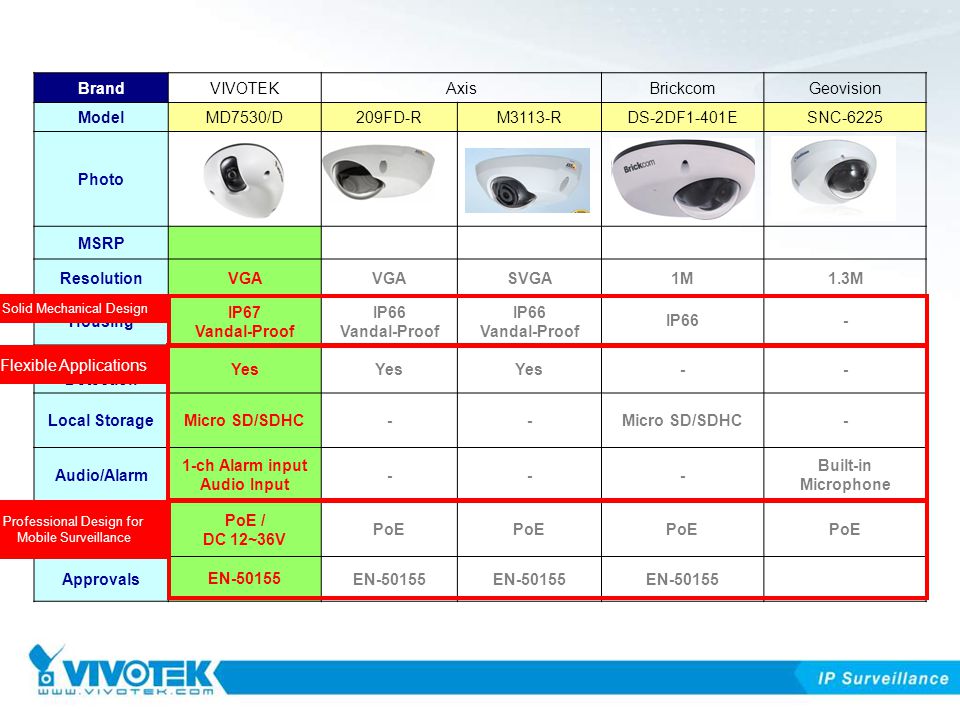

8 BrandVIVOTEKAxisBrickcomGeovision ModelMD7530/D209FD-RM3113-RDS-2DF1-401ESNC-6225 Photo MSRP ResolutionVGA SVGA1M1.3M Housing IP67 Vandal-Proof IP66 Vandal-Proof IP66- Tamper Detection Yes -- Local StorageMicro SD/SDHC-- - Audio/Alarm 1-ch Alarm input Audio Input --- Built-in Microphone Power Input PoE / DC 12~36V PoE ApprovalsEN Solid Mechanical Design Professional Design for Mobile Surveillance Flexible Applications

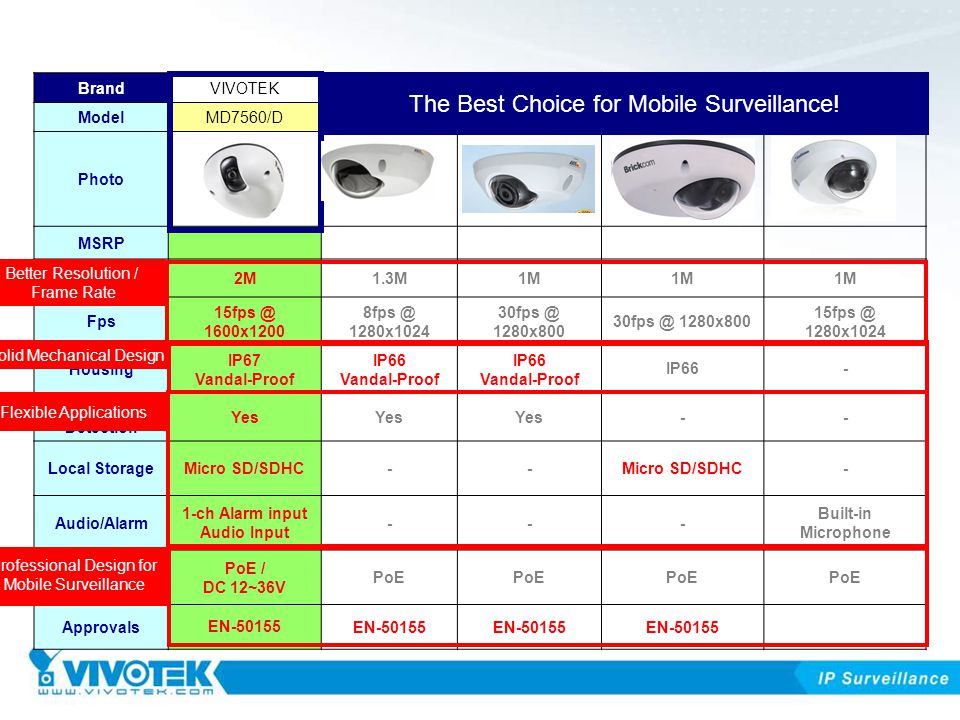

9 BrandVIVOTEKAxisBrickcomGeovision ModelMD7560/D209MFD-RM3114-RDS-2DF1-401ESNC-6225 Photo MSRP Resolution2M1.3M1M Fps 1600x x x x1024 Housing IP67 Vandal-Proof IP66 Vandal-Proof IP66- Tamper Detection Yes -- Local StorageMicro SD/SDHC-- - Audio/Alarm 1-ch Alarm input Audio Input --- Built-in Microphone Power Input PoE / DC 12~36V PoE ApprovalsEN The Best Choice for Mobile Surveillance! Solid Mechanical Design Professional Design for Mobile Surveillance Flexible Applications Better Resolution / Frame Rate

10 MD7530 vs MD7560 MD7530MD7560 Resolution VGA2 Megapixel Frame Rate 30/25 640x x x x1200 Angle of View (Diagonal) 92°100.2° Min.Illumination 0.6 F F1.8 Streams Dual-StreamMuilti-Stream

11 Key Features Rugged Housing Vandal-Proof IP67 Weather-Proof Enhanced Reliability EN50155 Passed (Cool/Heat/Surge/Vibration/Shock Test) Advanced Security Audio input 1 channel Alarm input Temperature Alarm Tamper Detection Local Storage Built-in Micro-SD/SDHC Card Slot for On-board Storage Compact Size (110x130x45mm) PoE Supported (MD7530/60) DC 12~36V Supported (MD7530/7560D) Easy Installation Flexible Power Capability PoE Supported (MD7530/60) DC 12~36V Supported (MD7530/7560D) Robust Design for Mobile Use Easy & Flexible to use Enhanced Security

12 Q & A

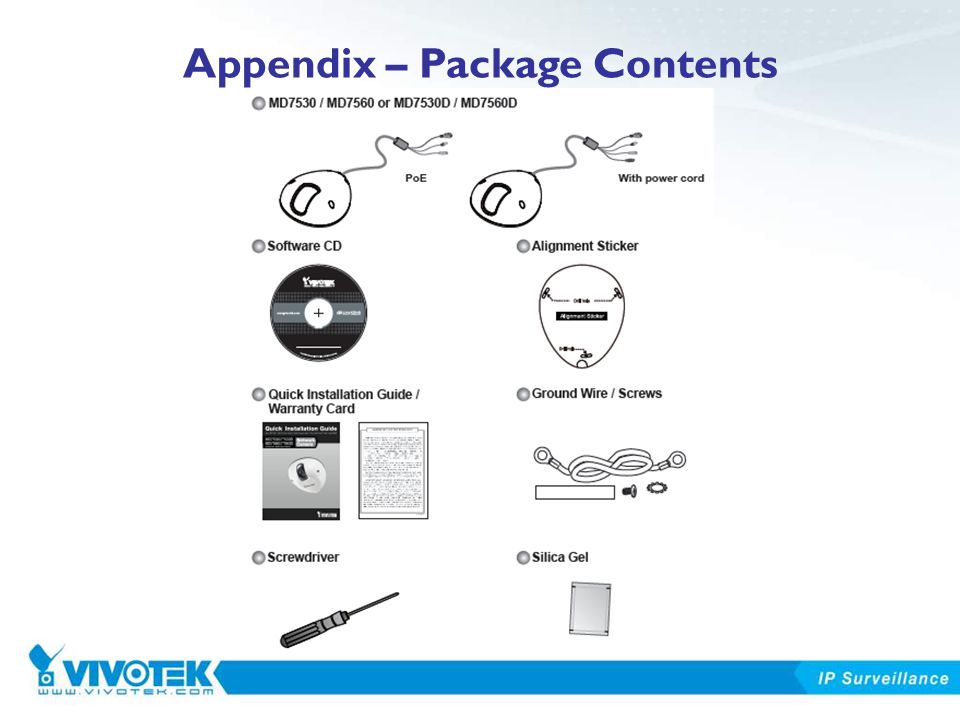

13 Appendix – Package Contents

14 Appendix – Physical Description

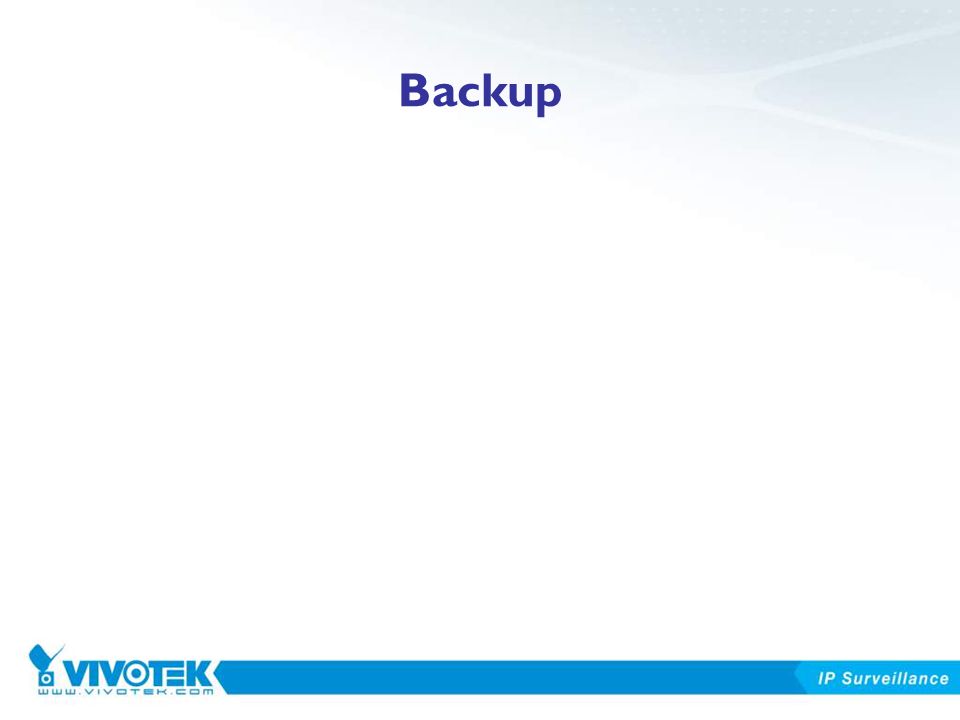

15 Backup

16 EN50155 Temperature Range

17 The End Thank you for your attention
