1 By: Tracy Ssali Medical Biophysics 3970z April 4 th 2012 Supervisors: Keith St. Lawrence, PhD Udunna Anazodo, PhD candidate

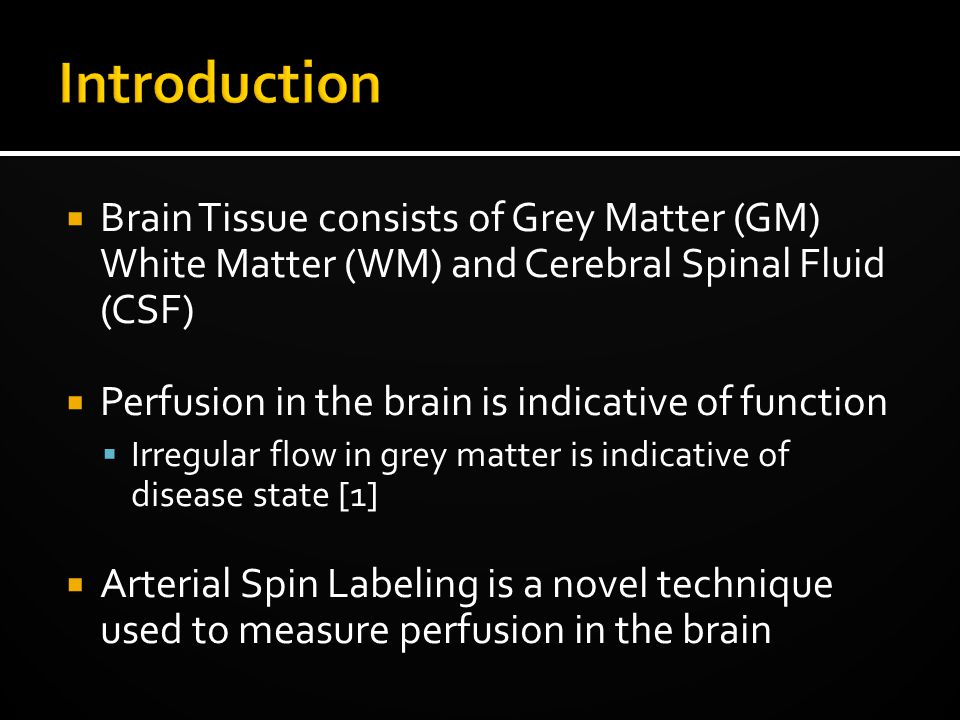

2  Brain Tissue consists of Grey Matter (GM) White Matter (WM) and Cerebral Spinal Fluid (CSF)  Perfusion in the brain is indicative of function  Irregular flow in grey matter is indicative of disease state [1]  Arterial Spin Labeling is a novel technique used to measure perfusion in the brain

3  Established techniques require radioactive exogenous tracers which cannot be used on certain patient populations, and require long clearance times.[2]  ASL MRI uses magnetized water molecules in arterial blood as a tracer to measure tissue perfusion non-invasively

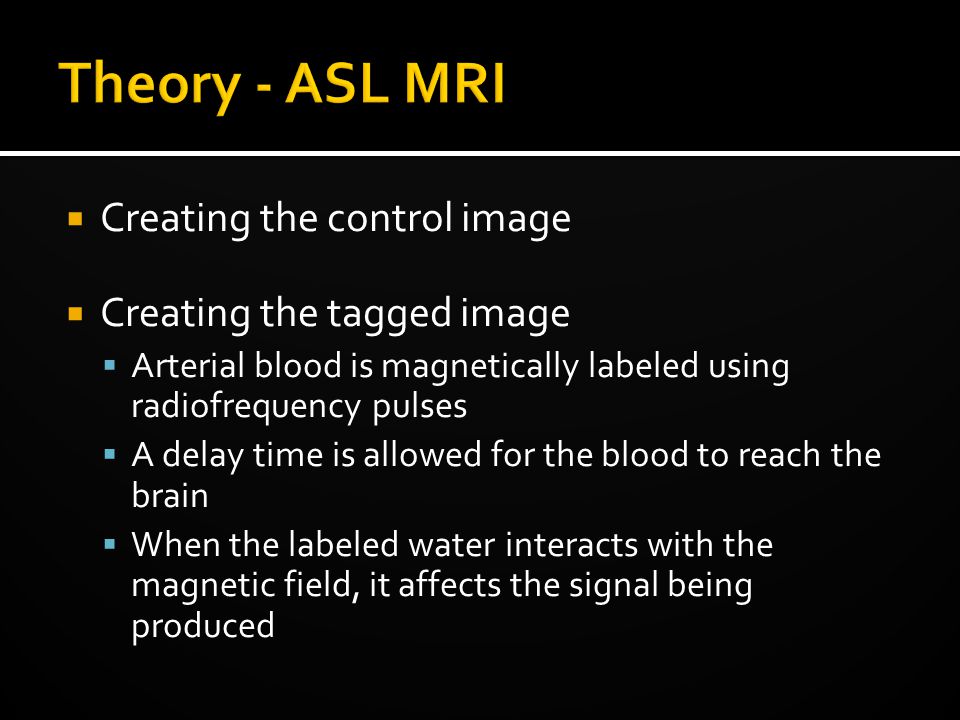

4  Creating the control image  Creating the tagged image  Arterial blood is magnetically labeled using radiofrequency pulses  A delay time is allowed for the blood to reach the brain  When the labeled water interacts with the magnetic field, it affects the signal being produced

5 ASL Image ≈ CBF Subtract Adapted from Wolf and Detre Neurother Vol. 4, 346–359, July 2007

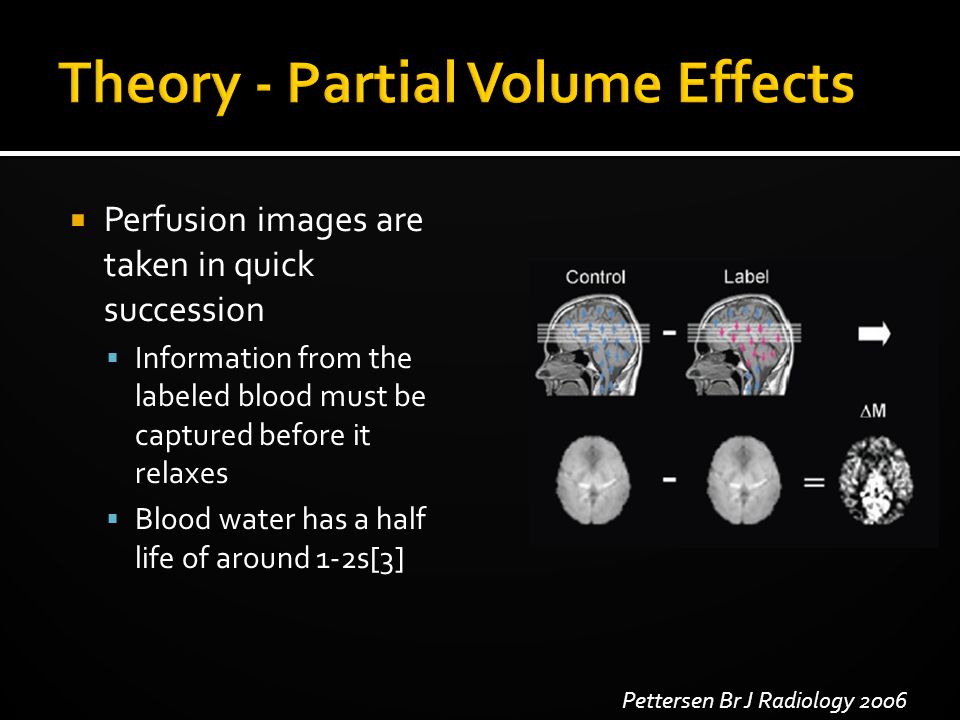

6  Perfusion images are taken in quick succession  Information from the labeled blood must be captured before it relaxes  Blood water has a half life of around 1-2s[3] Pettersen Br J Radiology 2006

7  Point spread blurring  Resolution is not fine enough to resolve GM, WM and CSF  Voxel size is approximately 3 x 3 x 3mm [2]

8  Partial Volume Effects (PVE) correction  Estimates the partial signal contribution based on the contrast information from anatomical MRI image volume

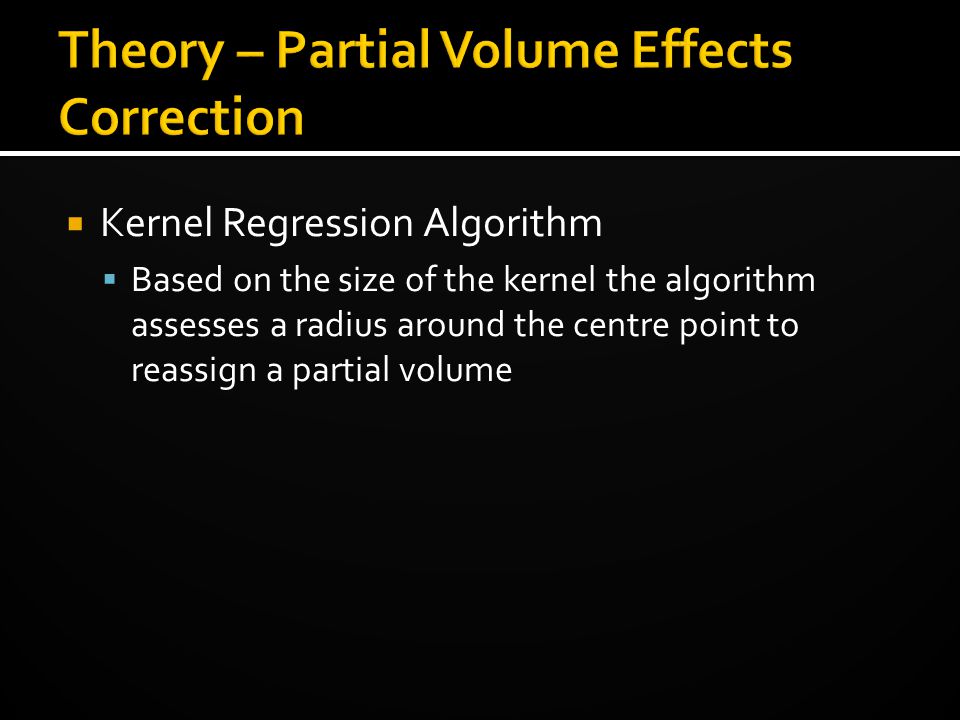

9  Kernel Regression Algorithm  Based on the size of the kernel the algorithm assesses a radius around the centre point to reassign a partial volume

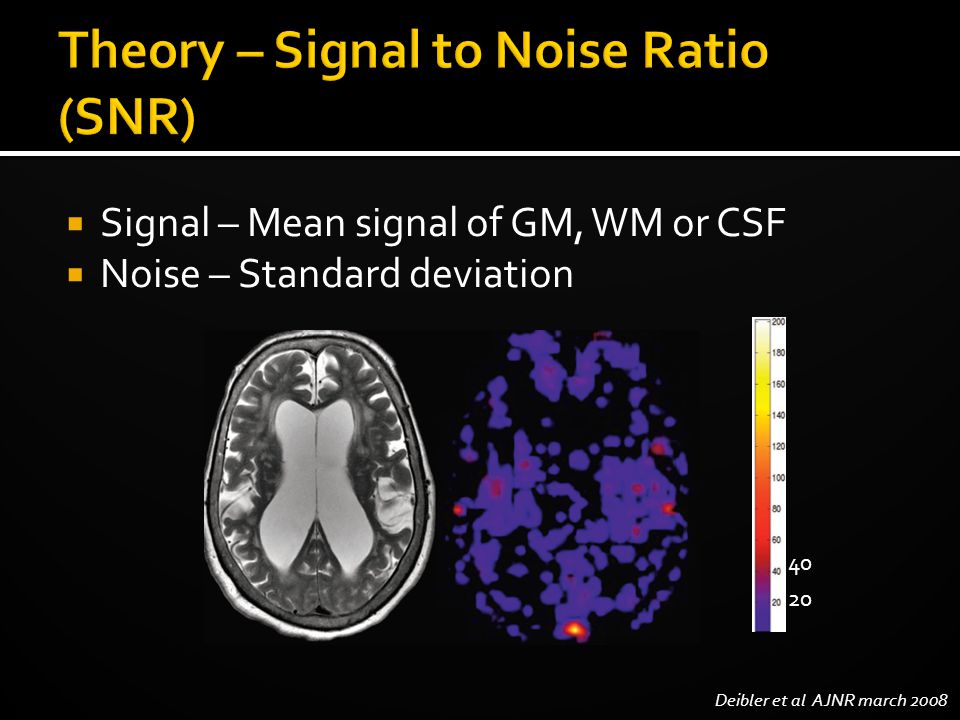

10  Signal – Mean signal of GM, WM or CSF  Noise – Standard deviation Deibler et al AJNR march 2008

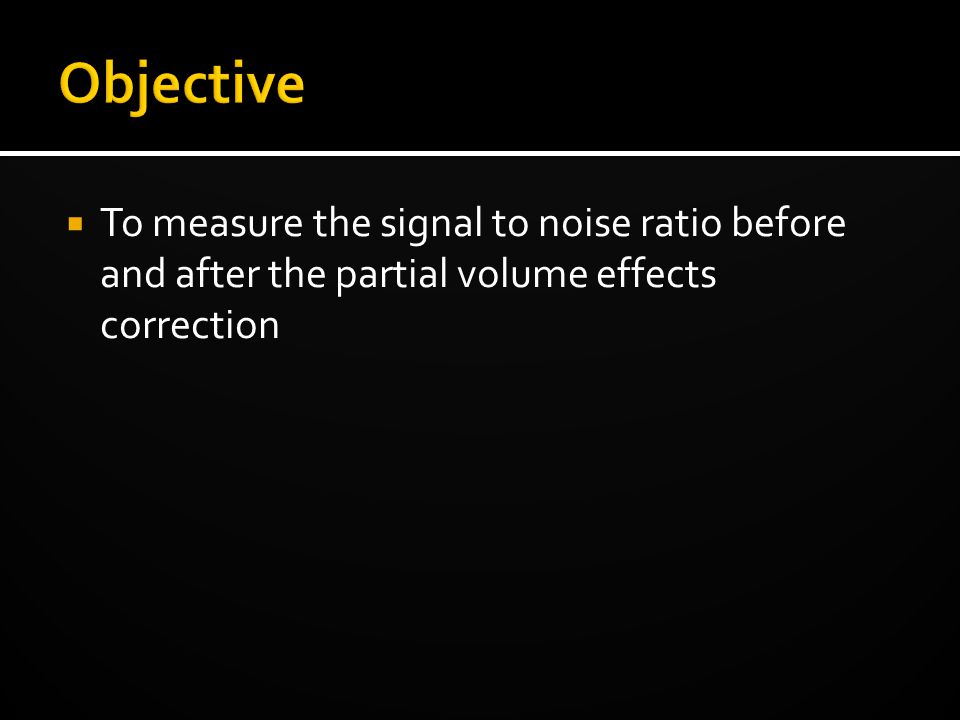

11  To measure the signal to noise ratio before and after the partial volume effects correction

12  5 Chronic Regional Pain Syndrome Patients (CRPS)  Image Preprocessing  Remove the pixels representing the skull  Motion correction Wolf and Detre Neurother Vol. 4, 346–359, July 2007

13  PVE correction  Implemented an In-house written MATLAB code created by Asllani et al. [2]  Images from 5CRPS were processed using a kernel size of 5 and 9  Kernel filter  Adjust the kernel size from to 5, 7, 9, 11 and 15  1 patient’s data

14 K = 5 Results & Discussion  Significant decrease (P<0.05) in the SNR  Variation in the voxels due to the noise could have prevented the code from working as intended

15 K = 9 Results & Discussion  Inconsistent Results  There is no significant difference (P>0.05)  It is likely that the algorithm is not functioning as intended

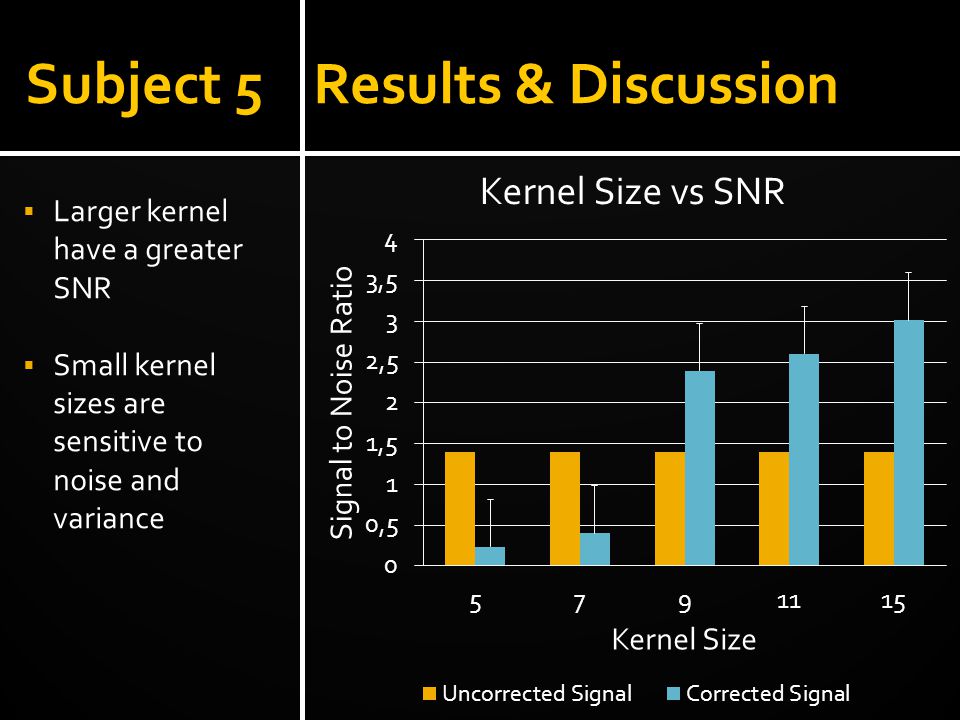

16 Subject 5Results & Discussion  Larger kernel have a greater SNR  Small kernel sizes are sensitive to noise and variance

17  The SNR decreased after the PVE correction  Kernel size needs to be chosen carefully  Our in-house implementation of the PVE correction needs to be fine tuned
