1 Let’s shake hands! On the coordination of gestures of humanoids Zsofi Ruttkay Herwin van Welbergen Balázs Varga

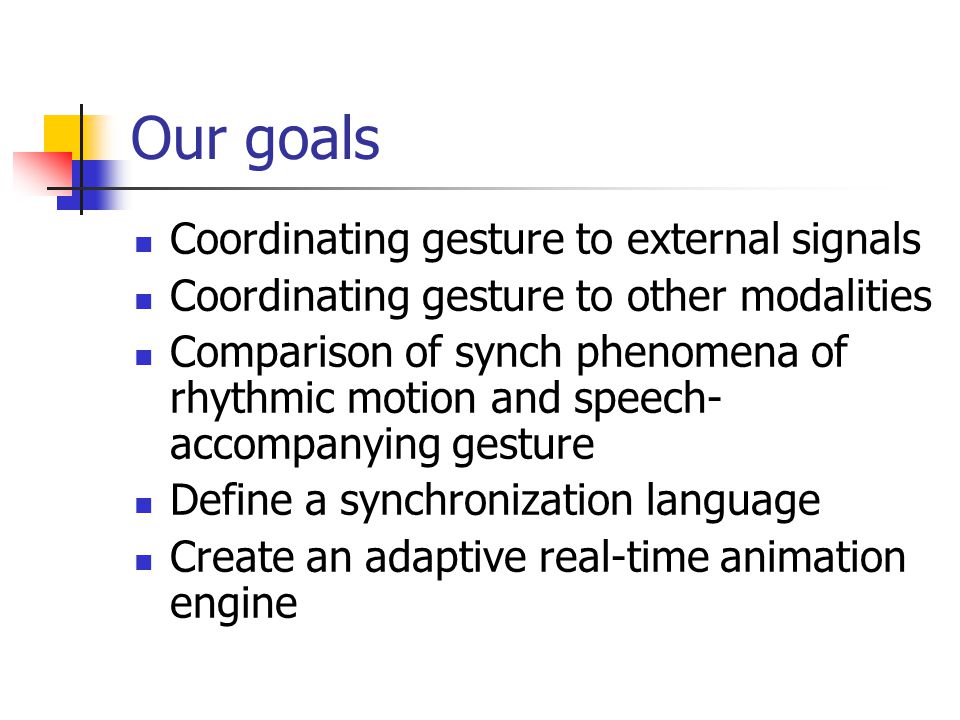

2 Our goals Coordinating gesture to external signals Coordinating gesture to other modalities Comparison of synch phenomena of rhythmic motion and speech- accompanying gesture Define a synchronization language Create an adaptive real-time animation engine

3 Content Examples of coordination The multimodal coordination problem Existing solutions Our solution Coordinating gesture To what? How to adapt gesture for coordination? How to specify coordination? Conclusions Open issues Questions

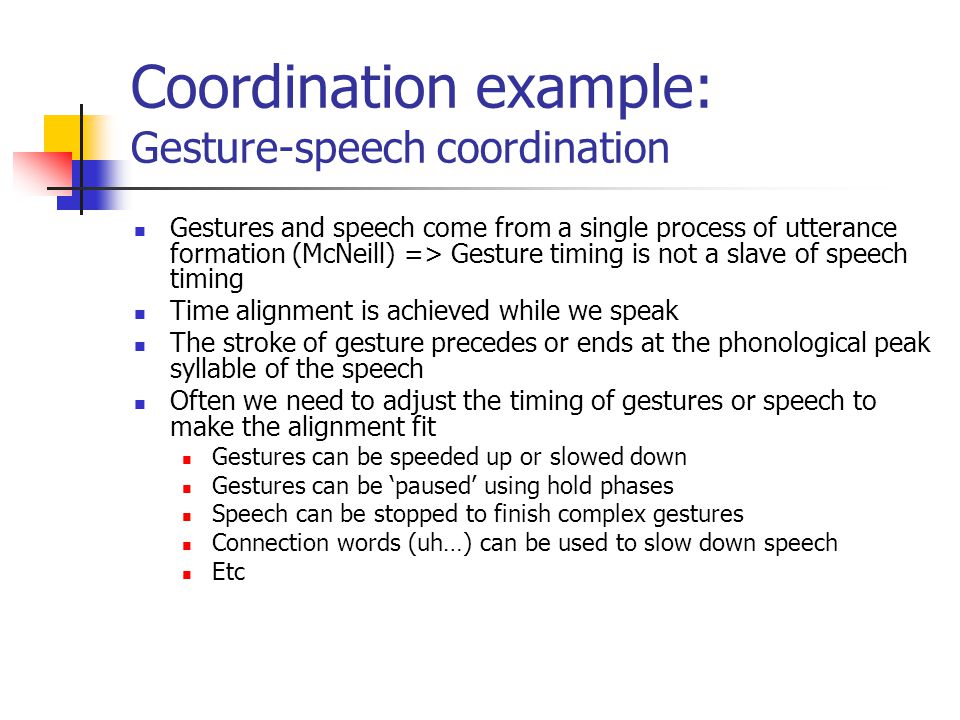

4 Coordination example: Gesture-speech coordination Gestures and speech come from a single process of utterance formation (McNeill) => Gesture timing is not a slave of speech timing Time alignment is achieved while we speak The stroke of gesture precedes or ends at the phonological peak syllable of the speech Often we need to adjust the timing of gestures or speech to make the alignment fit Gestures can be speeded up or slowed down Gestures can be ‘paused’ using hold phases Speech can be stopped to finish complex gestures Connection words (uh…) can be used to slow down speech Etc

5 Coordination example: The virtual dancer: moving to the music ‘Beat moments’ in the animation should be aligned to beats in the music Annotate all beat moments in the animation Predict the beats in the music Locally speed up or slow down the animation to fit to the music There is a maximum stretch or skew in the dance motion

6 Coordination example: The virtual trainer: tutoring exercises on music Exercises are executed using several modalities Body movement Speech Music/metronome Sound (clap, foot tap) Challenges Coordination Monitoring user => real time (re)planning Exaggeration to point out details Speed up / slow down Feedback/correction …

7 Coordination example: Handshake: coordination between 2 humans Handshake is used for greeting, agreeing and accepting Complex coordination between two persons Guided by Social protocols Haptic feedback Visual feedback

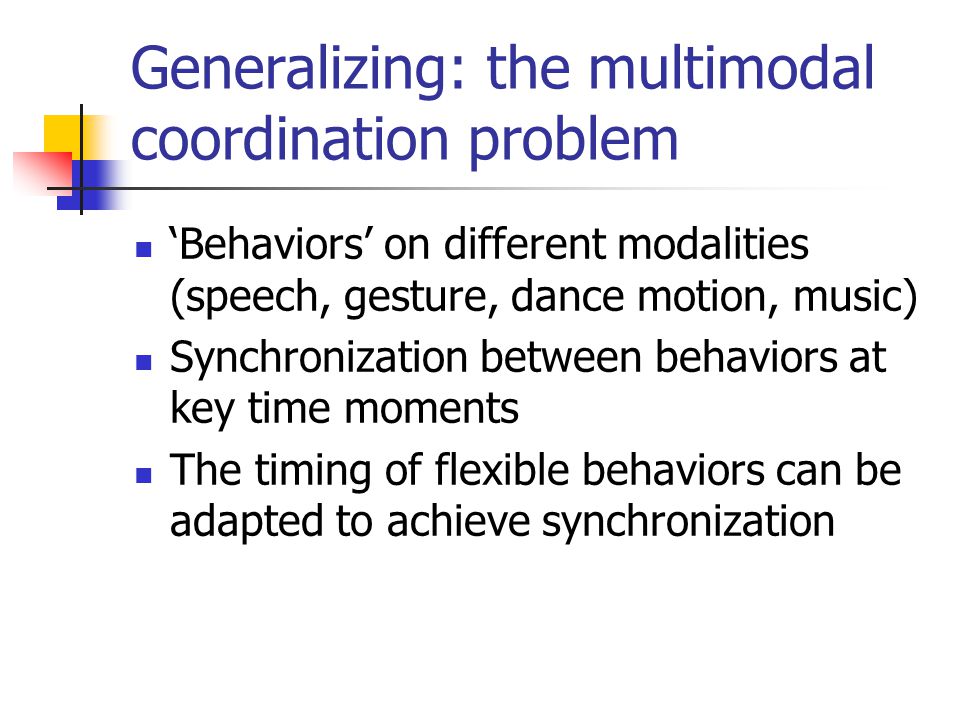

8 Generalizing: the multimodal coordination problem ‘Behaviors’ on different modalities (speech, gesture, dance motion, music) Synchronization between behaviors at key time moments The timing of flexible behaviors can be adapted to achieve synchronization

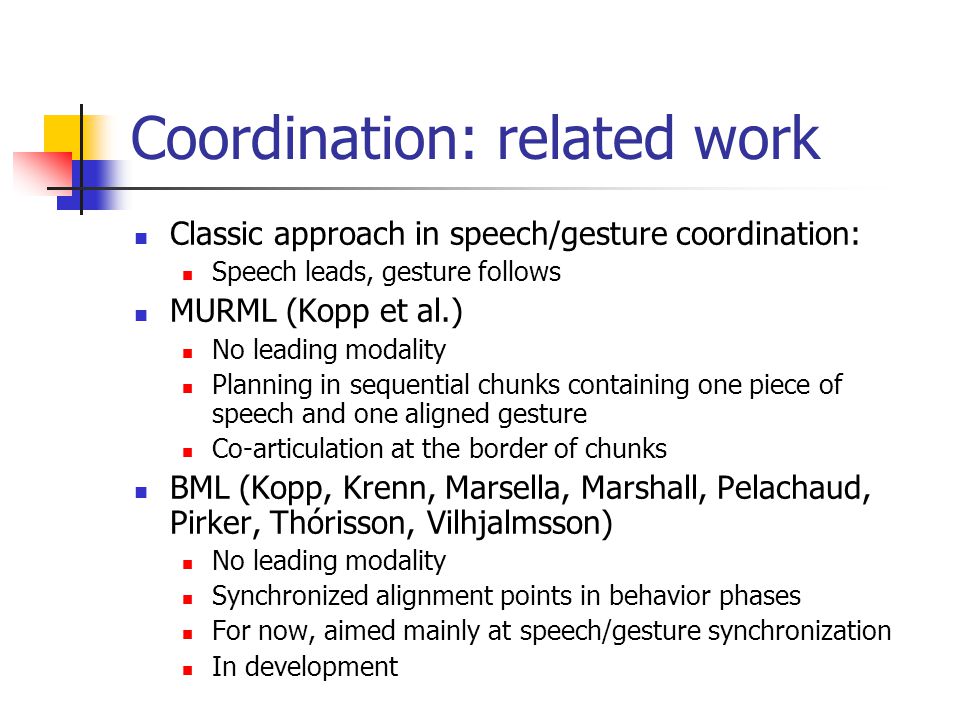

9 Coordination: related work Classic approach in speech/gesture coordination: Speech leads, gesture follows MURML (Kopp et al.) No leading modality Planning in sequential chunks containing one piece of speech and one aligned gesture Co-articulation at the border of chunks BML (Kopp, Krenn, Marsella, Marshall, Pelachaud, Pirker, Thórisson, Vilhjalmsson) No leading modality Synchronized alignment points in behavior phases For now, aimed mainly at speech/gesture synchronization In development

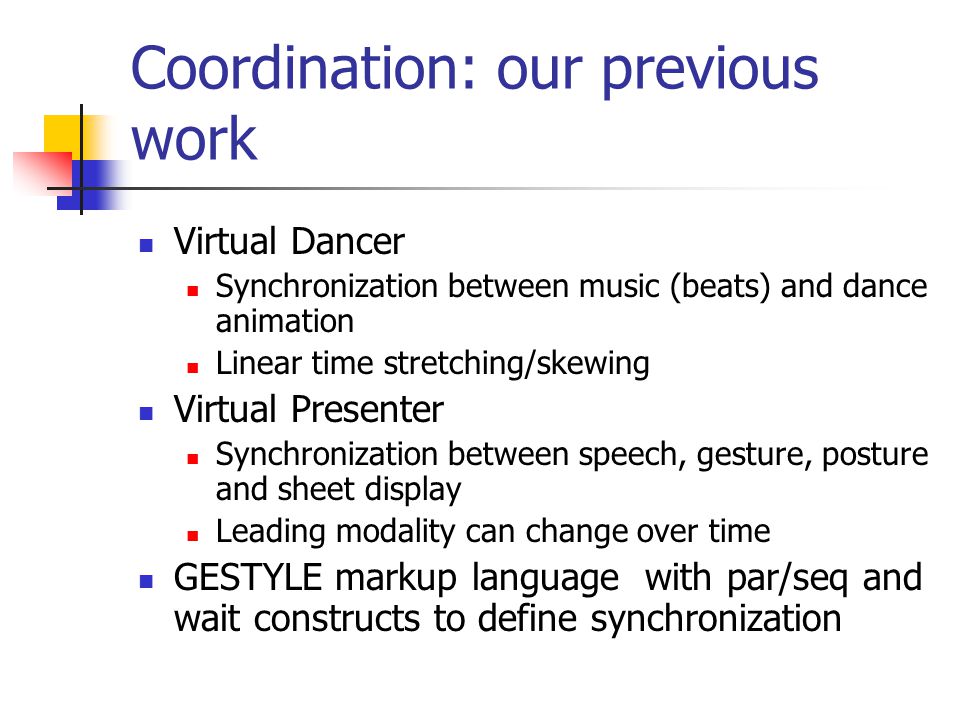

10 Coordination: our previous work Virtual Dancer Synchronization between music (beats) and dance animation Linear time stretching/skewing Virtual Presenter Synchronization between speech, gesture, posture and sheet display Leading modality can change over time GESTYLE markup language with par/seq and wait constructs to define synchronization

11 Our multimodal synchronization model No leading modality, just align key moments Every phase of a behavior has a preferred length Stretching/skewing/skipping if necessary

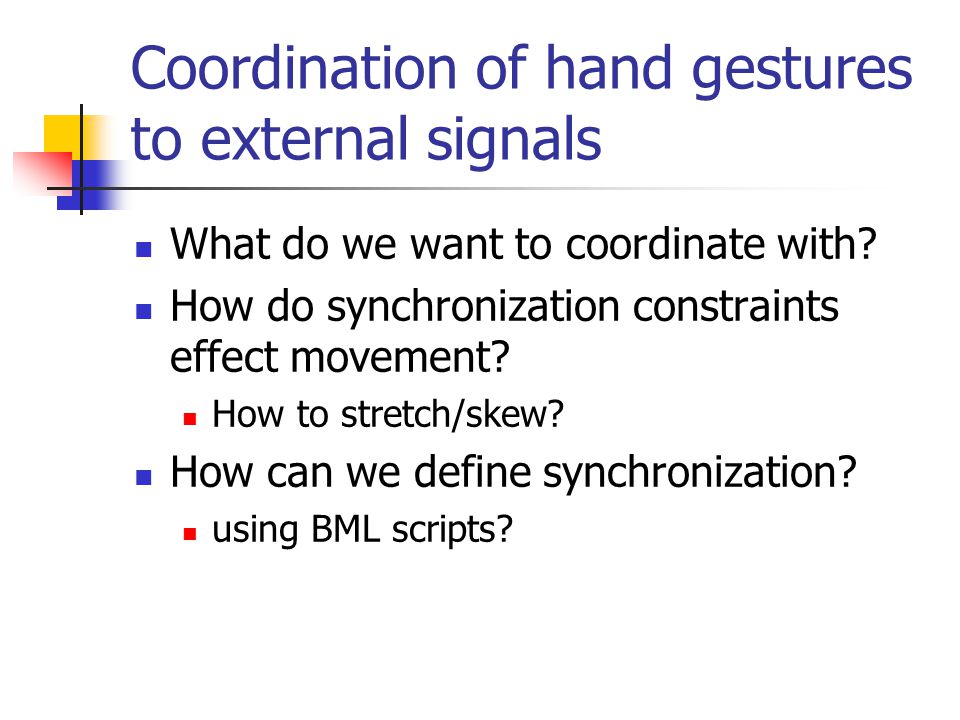

12 Coordination of hand gestures to external signals What do we want to coordinate with? How do synchronization constraints effect movement? How to stretch/skew? How can we define synchronization? using BML scripts?

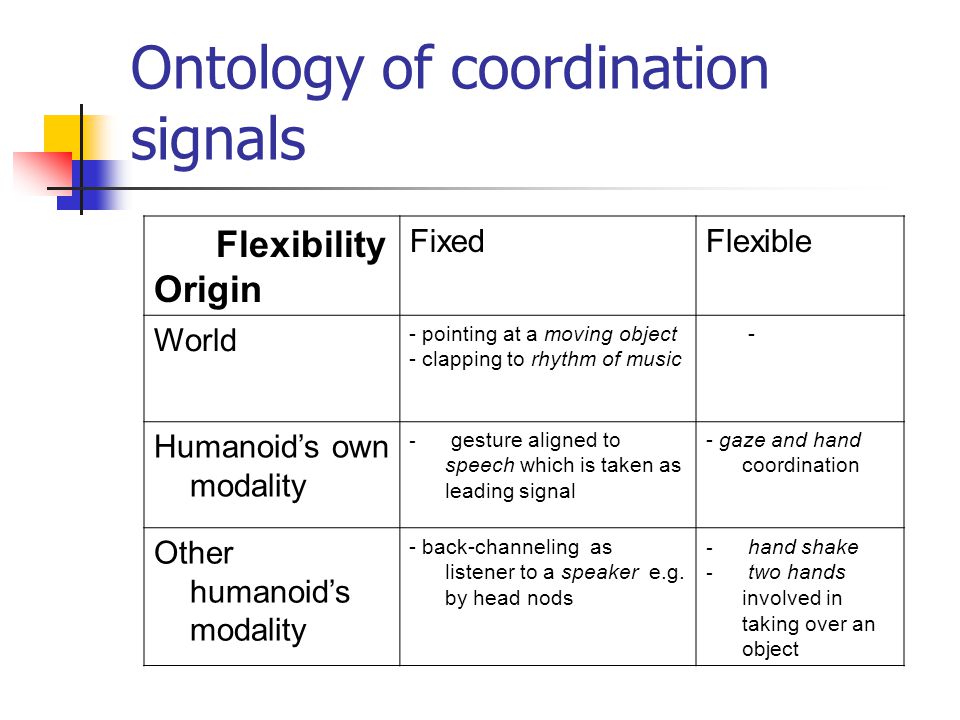

13 Ontology of coordination signals Flexibility Origin FixedFlexible World - pointing at a moving object - clapping to rhythm of music - Humanoid’s own modality - gesture aligned to speech which is taken as leading signal - gaze and hand coordination Other humanoid’s modality - back-channeling as listener to a speaker e.g. by head nods - hand shake - two hands involved in taking over an object

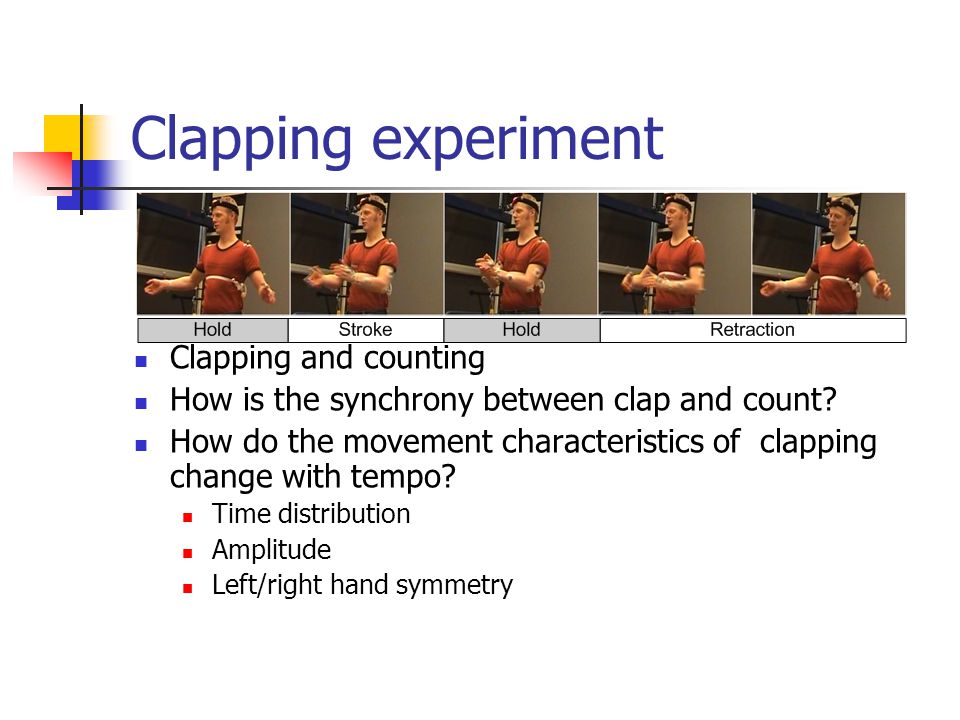

14 Clapping experiment Clapping and counting How is the synchrony between clap and count? How do the movement characteristics of clapping change with tempo? Time distribution Amplitude Left/right hand symmetry

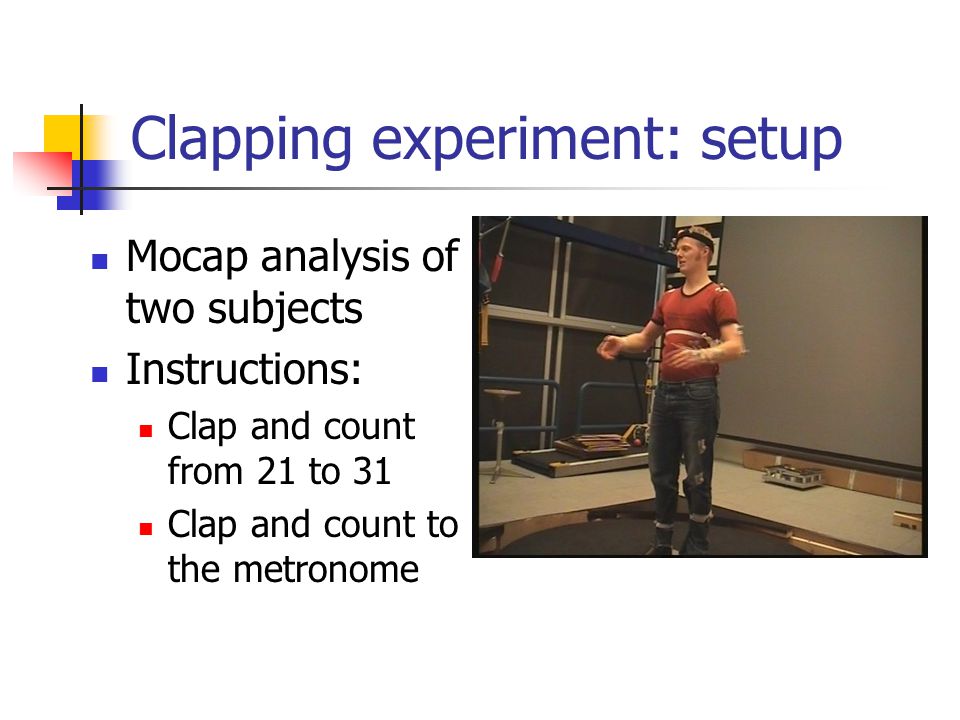

15 Clapping experiment: setup Mocap analysis of two subjects Instructions: Clap and count from 21 to 31 Clap and count to the metronome

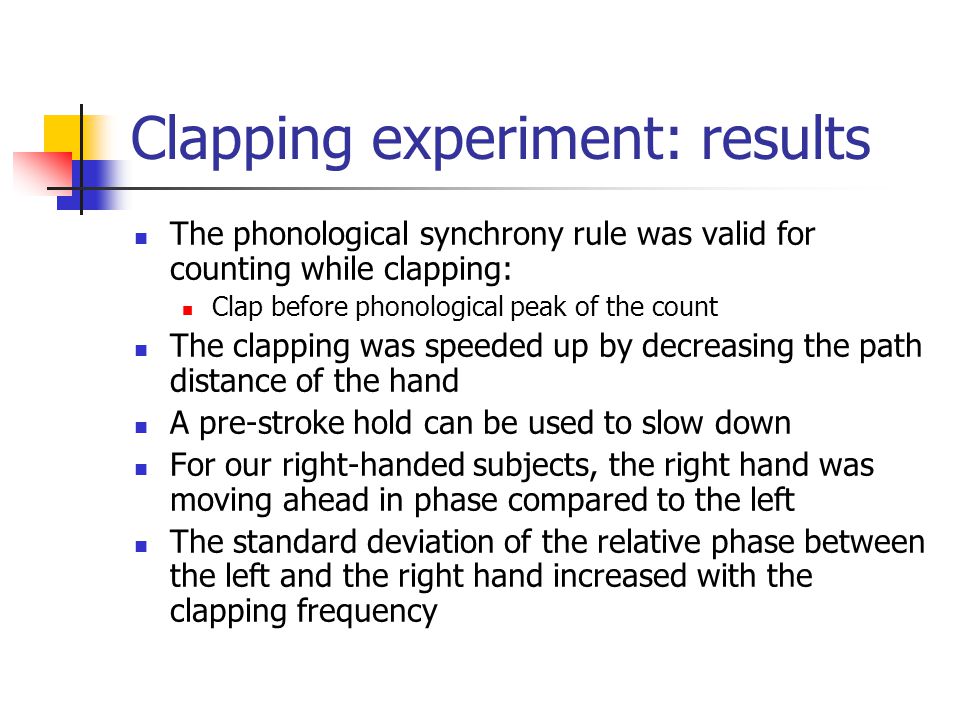

16 Clapping experiment: results The phonological synchrony rule was valid for counting while clapping: Clap before phonological peak of the count The clapping was speeded up by decreasing the path distance of the hand A pre-stroke hold can be used to slow down For our right-handed subjects, the right hand was moving ahead in phase compared to the left The standard deviation of the relative phase between the left and the right hand increased with the clapping frequency

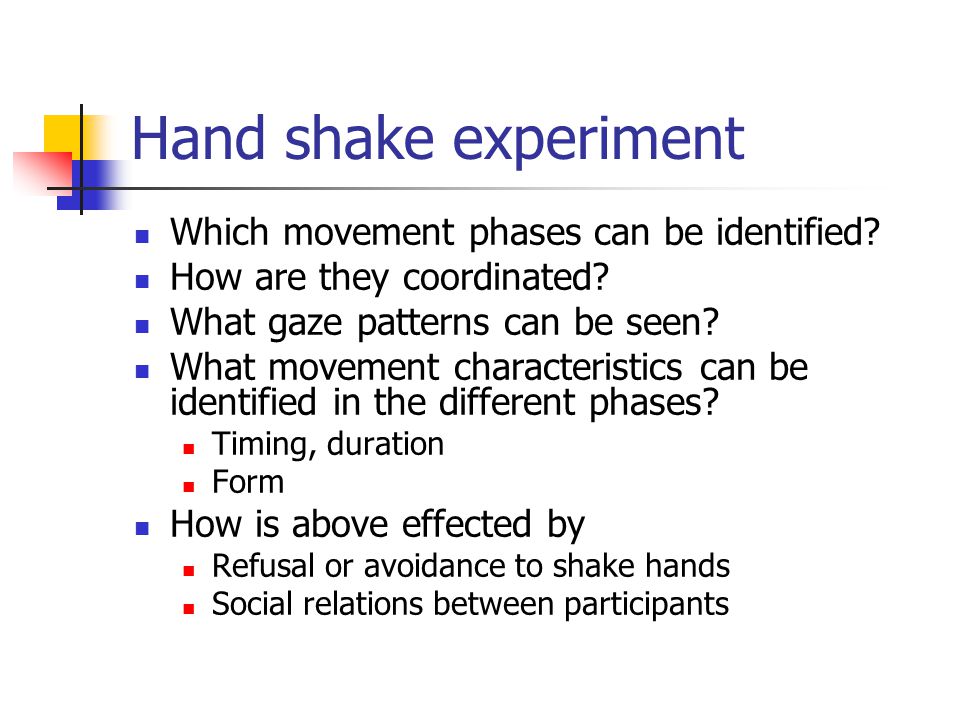

17 Hand shake experiment Which movement phases can be identified? How are they coordinated? What gaze patterns can be seen? What movement characteristics can be identified in the different phases? Timing, duration Form How is above effected by Refusal or avoidance to shake hands Social relations between participants

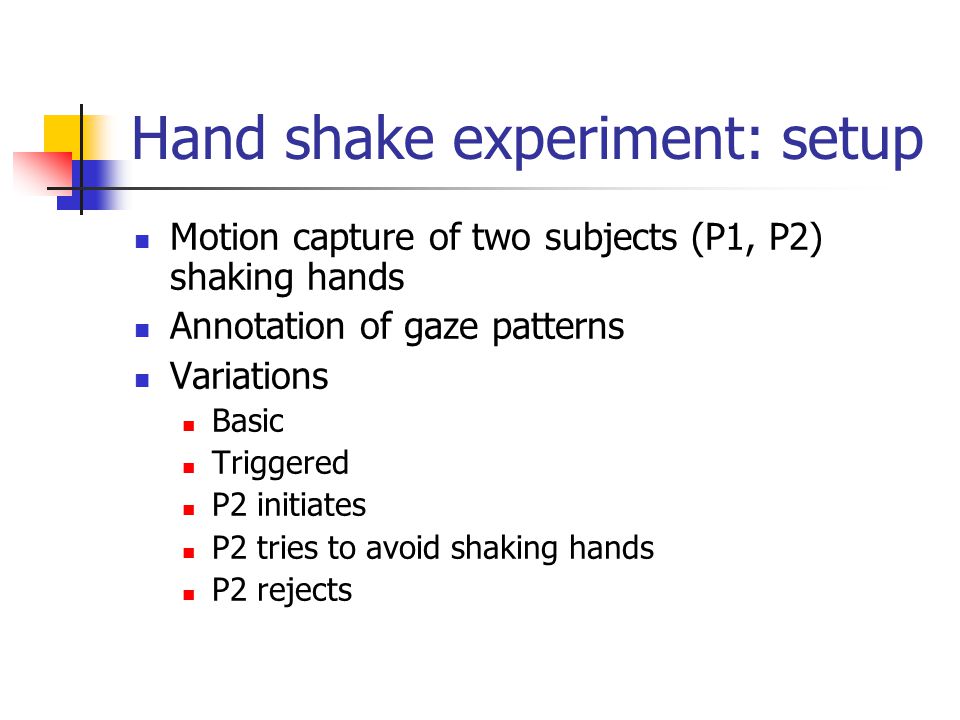

18 Hand shake experiment: setup Motion capture of two subjects (P1, P2) shaking hands Annotation of gaze patterns Variations Basic Triggered P2 initiates P2 tries to avoid shaking hands P2 rejects

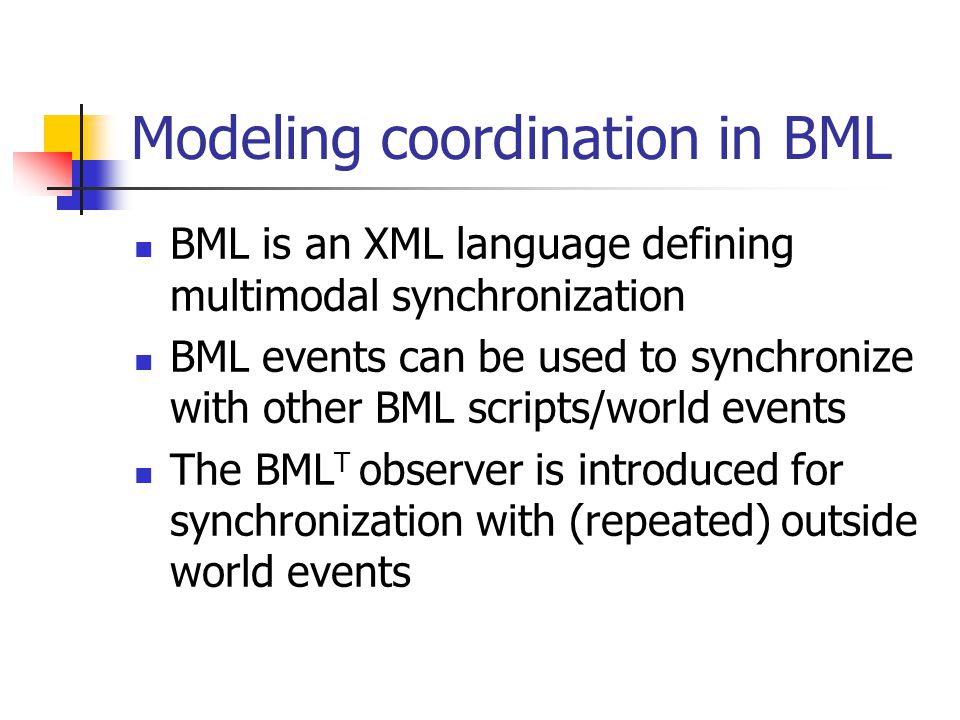

19 Modeling coordination in BML BML is an XML language defining multimodal synchronization BML events can be used to synchronize with other BML scripts/world events The BML T observer is introduced for synchronization with (repeated) outside world events

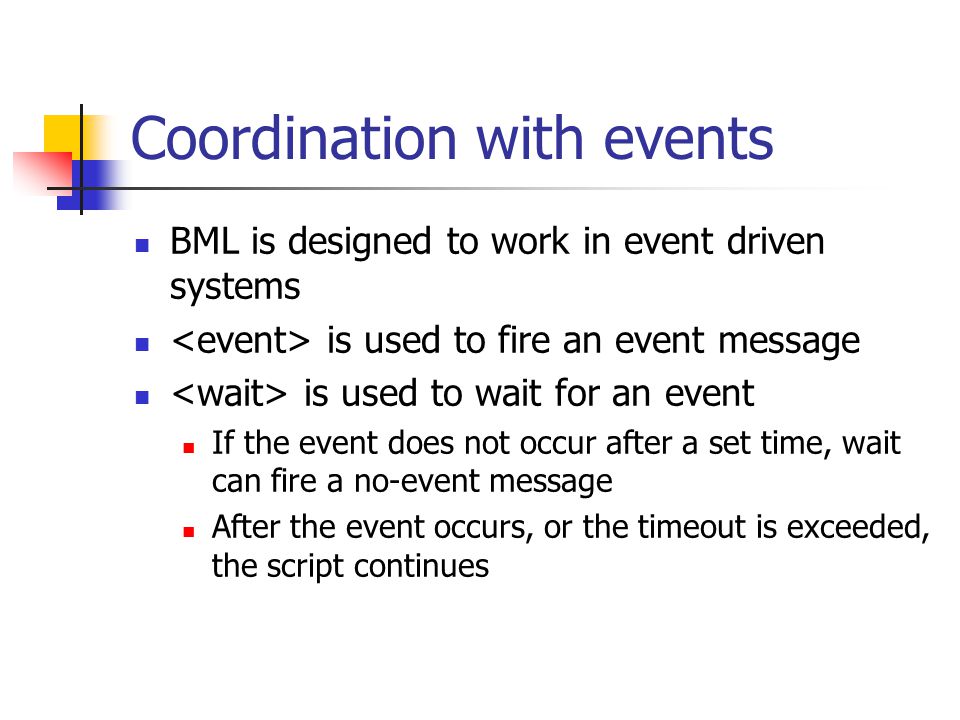

20 Coordination with events BML is designed to work in event driven systems is used to fire an event message is used to wait for an event If the event does not occur after a set time, wait can fire a no-event message After the event occurs, or the timeout is exceeded, the script continues

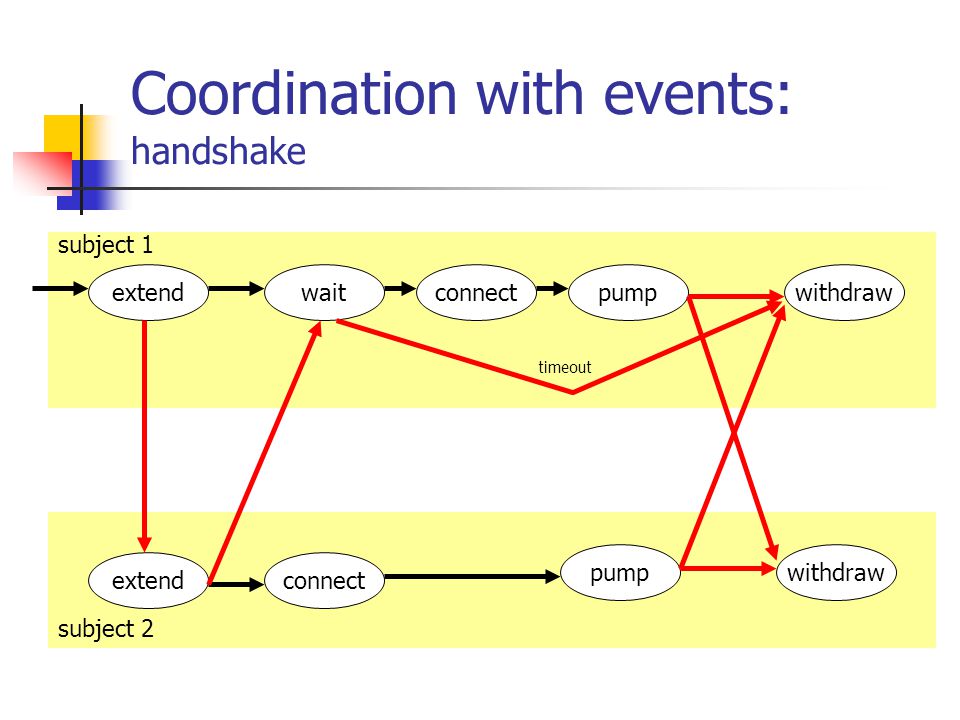

21 Coordination with events: handshake extendwithdrawpumpconnect extend withdrawpump connect wait timeout subject 1 subject 2

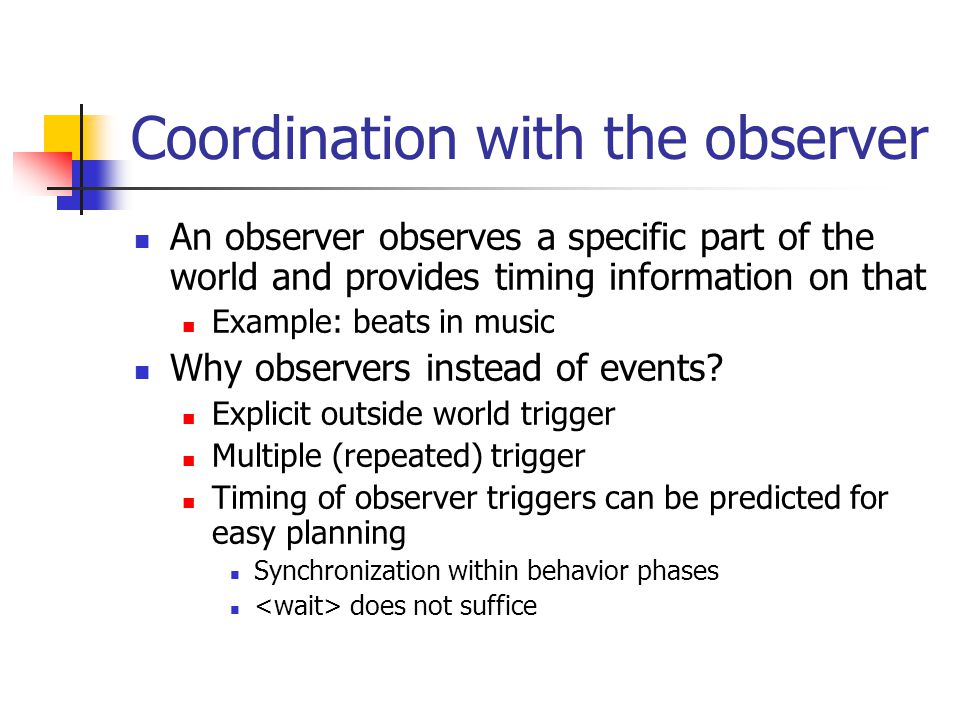

22 Coordination with the observer An observer observes a specific part of the world and provides timing information on that Example: beats in music Why observers instead of events? Explicit outside world trigger Multiple (repeated) trigger Timing of observer triggers can be predicted for easy planning Synchronization within behavior phases does not suffice

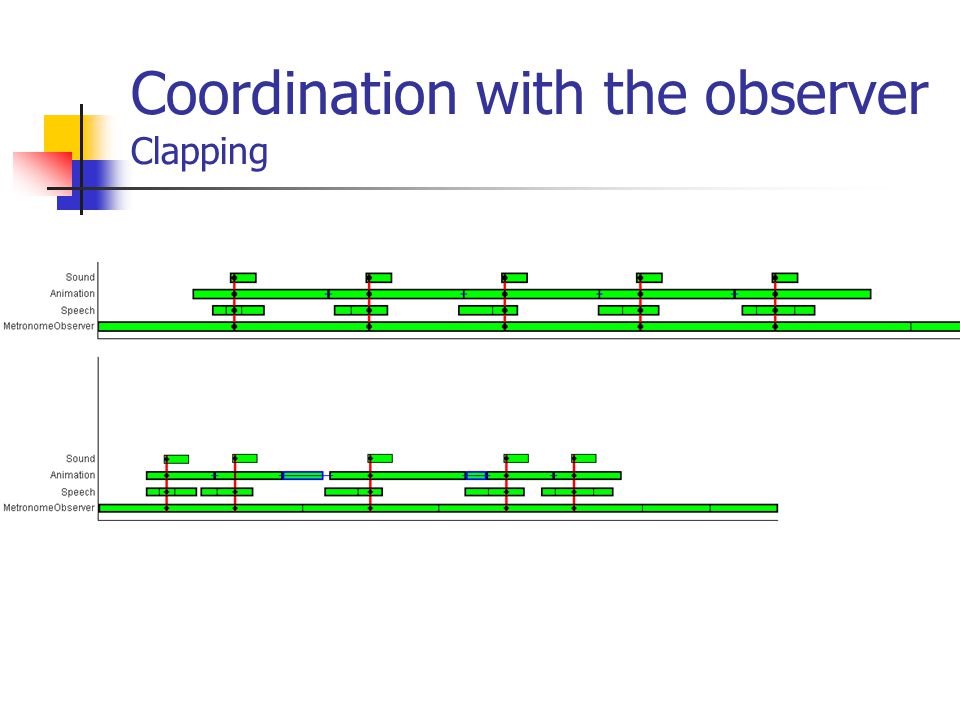

23 Coordination with the observer Clapping

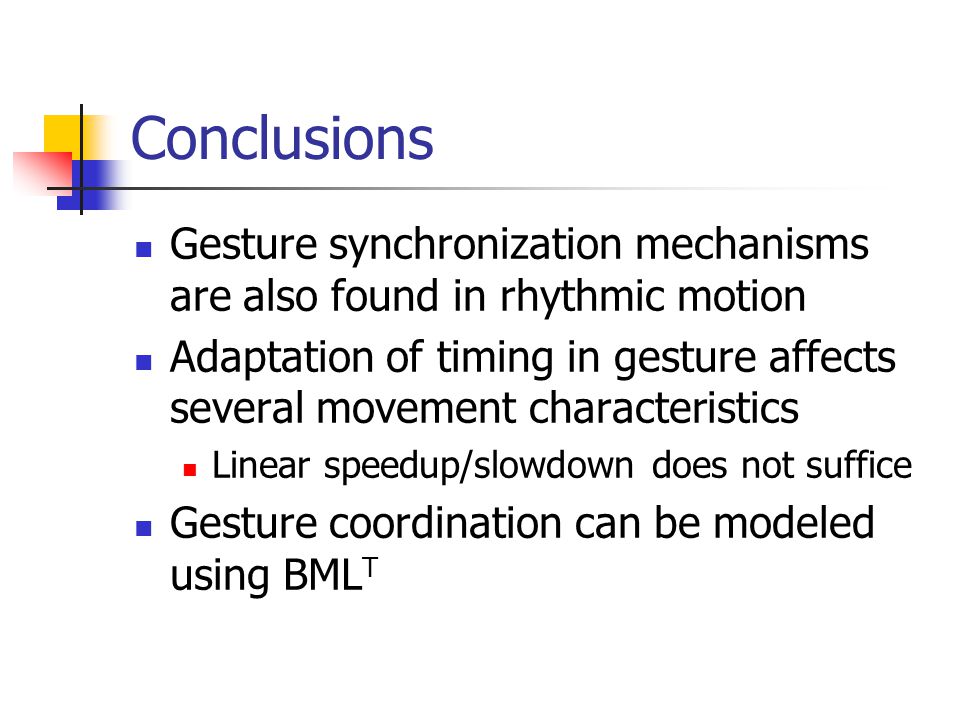

24 Conclusions Gesture synchronization mechanisms are also found in rhythmic motion Adaptation of timing in gesture affects several movement characteristics Linear speedup/slowdown does not suffice Gesture coordination can be modeled using BML T

25 Open issues What modalities do we have to stretch/skew/skip? Can we generalize our findings from clapping/handshake? Do the semantics of a motion change if we change its timing? E.g. emotions, individual features

26 Questions

27 Easter eggs

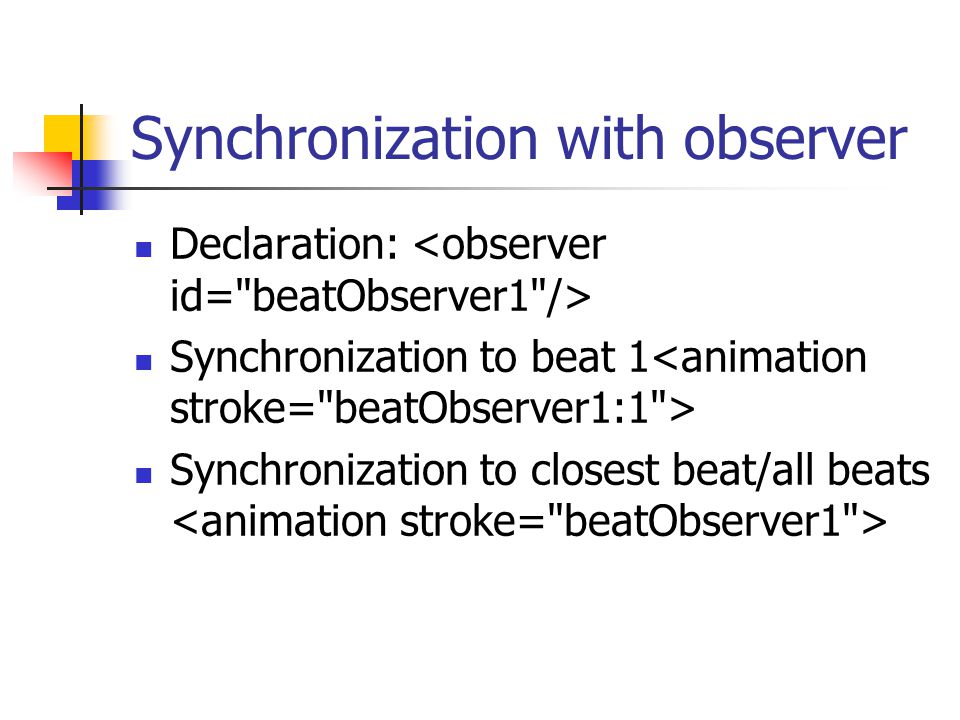

28 Synchronization with observer Declaration: Synchronization to beat 1 Synchronization to closest beat/all beats
