1 Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay Muacho, S. (1), da Silva, J.C.B., Brotas, V., Oliveira, P. (1) IPMA - Portuguese Institute for Ocean and Atmosphere

2 1.Can Internal Tidal (IT) waves influence (sub)surface chlorophyll distribution? 2.Can IT increase ocean productivity? ROI: Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay - Nazaré Canyon (western Portugal) - Central Bay of Biscay Questions:

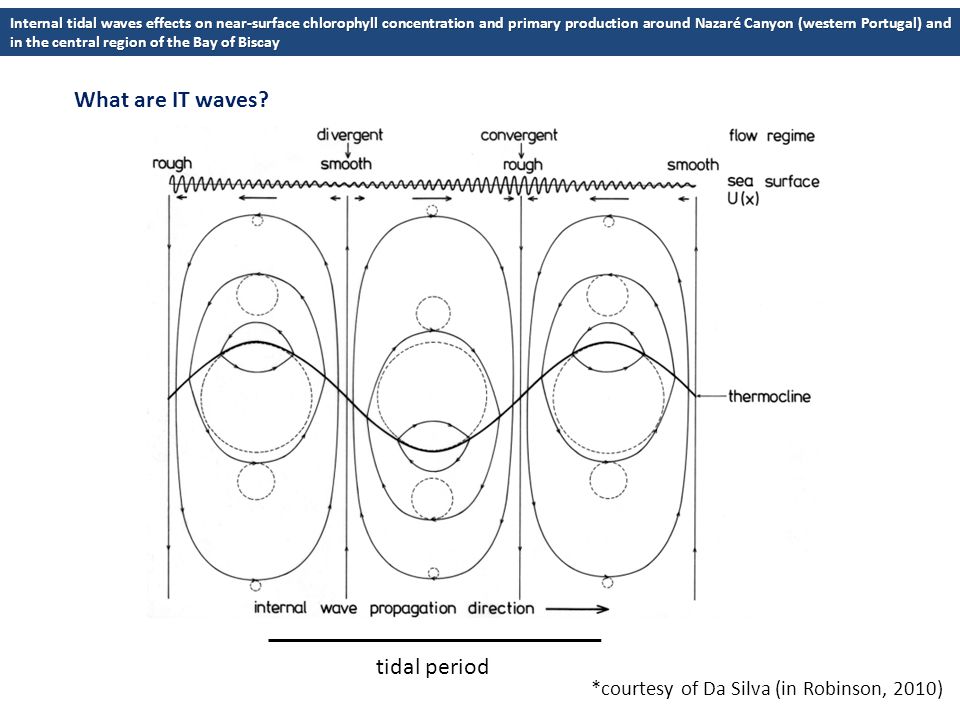

3 What are IT waves? tidal period *courtesy of Da Silva (in Robinson, 2010) Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

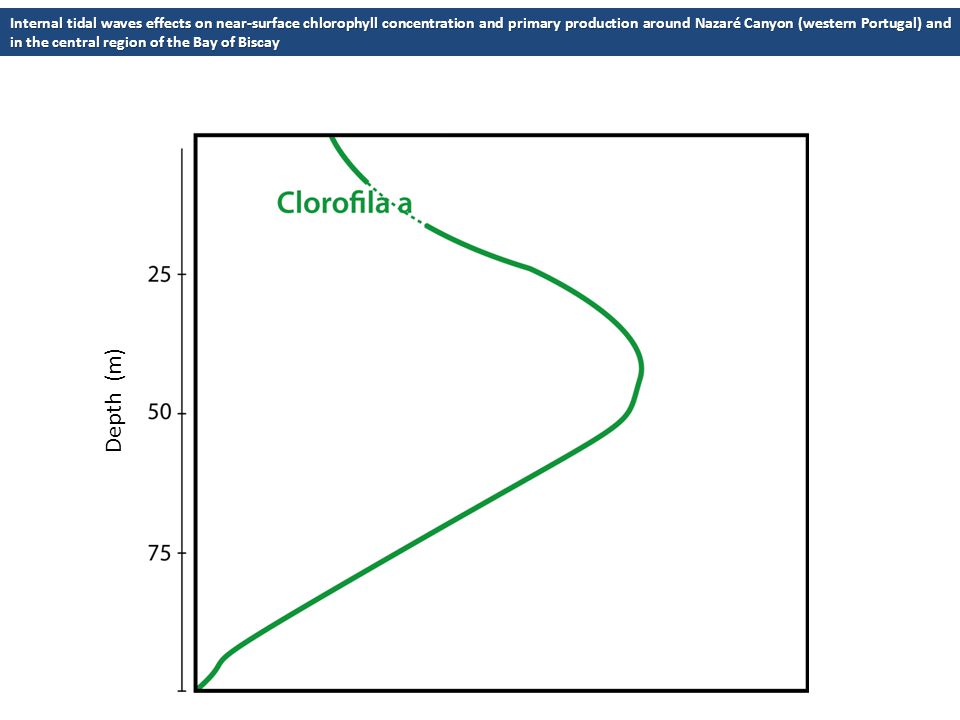

4 Depth (m) Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

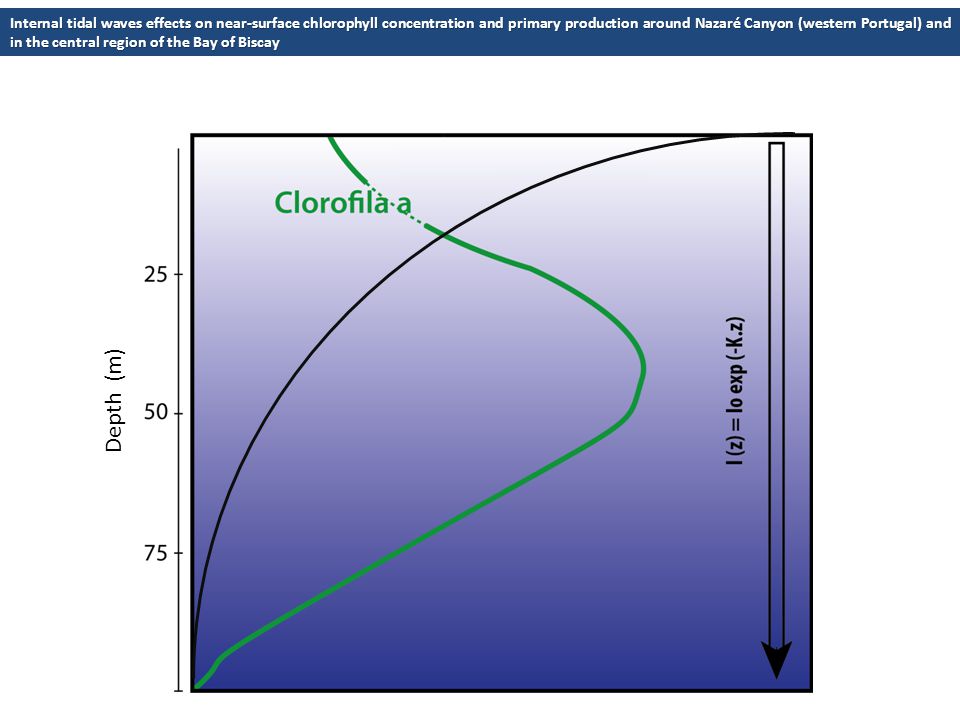

5 Depth (m) Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

6 courtesy of Quaresma, L. (2006) Internal Solitary Waves Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

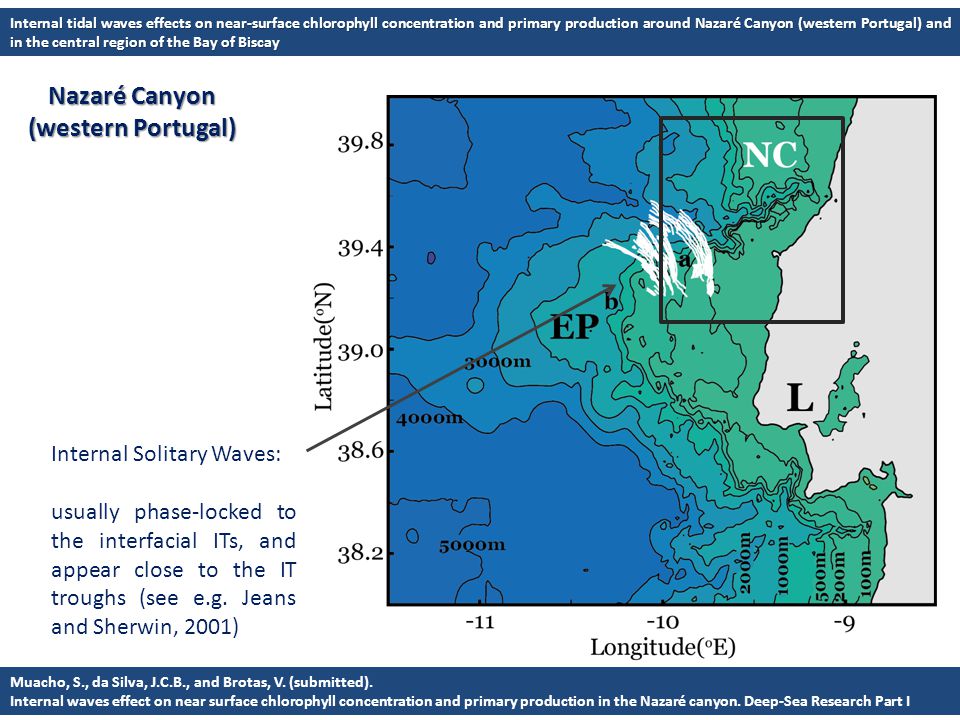

7 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal Solitary Waves: usually phase-locked to the interfacial ITs, and appear close to the IT troughs (see e.g. Jeans and Sherwin, 2001) Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay Nazaré Canyon (western Portugal)

8 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Nazaré Canyon (western Portugal) Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

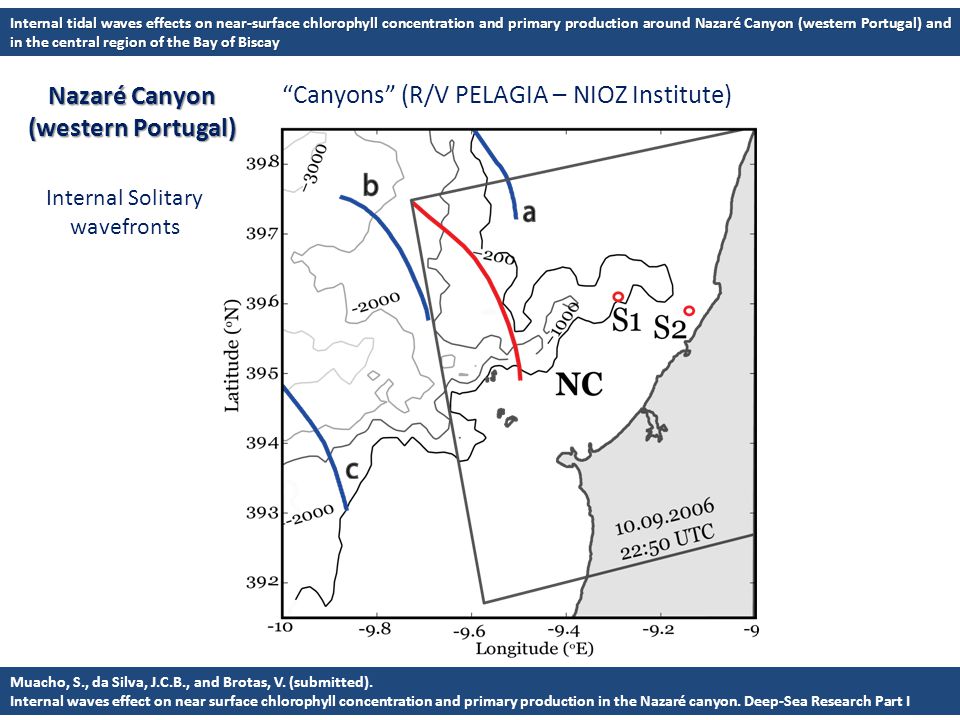

9 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I “Canyons” (R/V PELAGIA – NIOZ Institute) Nazaré Canyon (western Portugal) Internal Solitary wavefronts Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

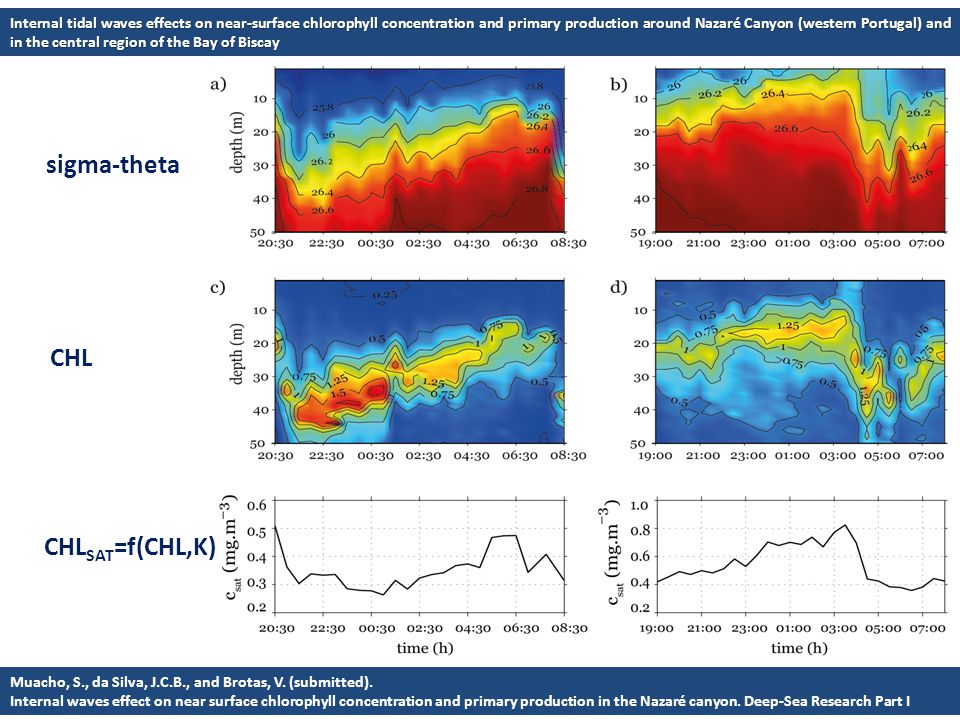

10 CHL SAT =f(CHL,K) CHL sigma-theta Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

11 v ~ 0.7 m.s -1 Synergy SAR / log(CHL(mg.m -3 )) MODIS 14:15 UTC Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

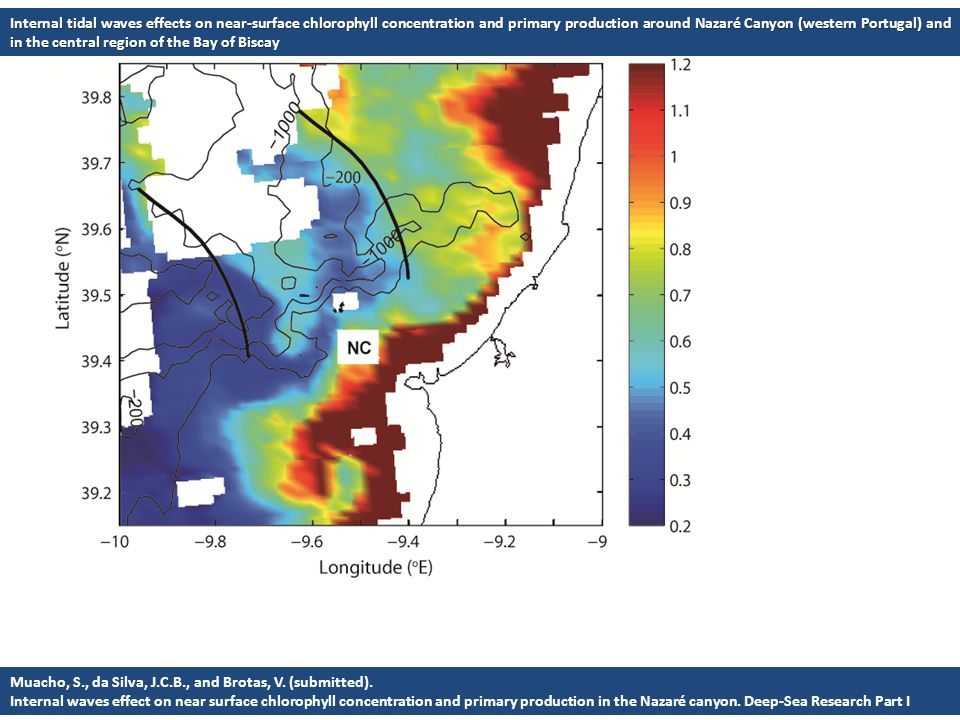

12 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

13 coherent with non-linear IT Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

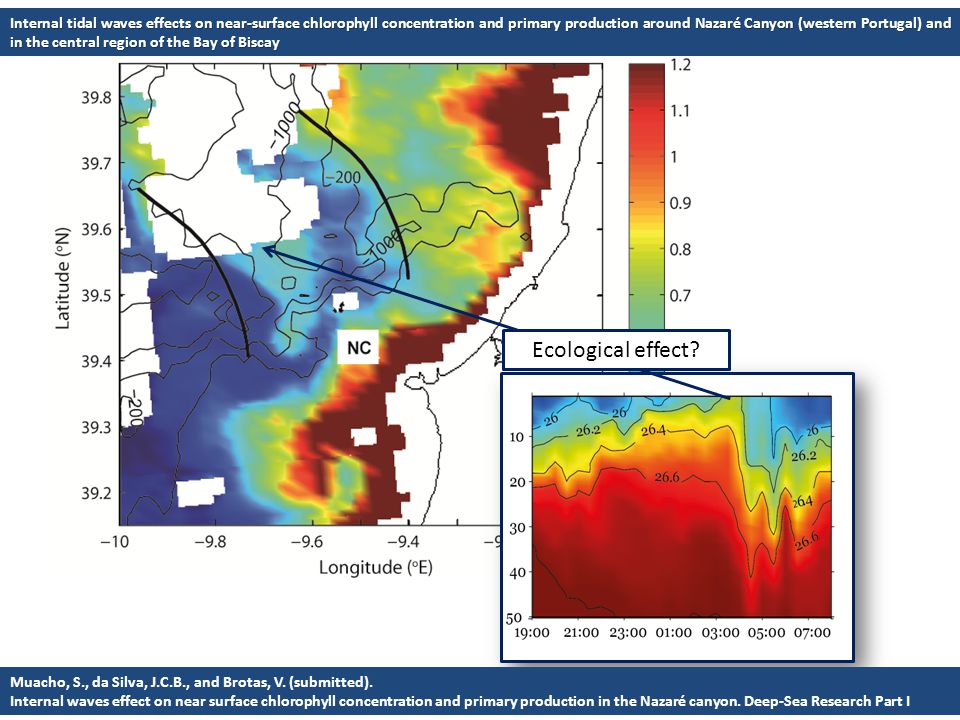

14 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Ecological effect? Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

15 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Primary production: PP (z) = CHL (z). P b max [1 – exp (-α.E(z)/ P b max ] Platt et al. (1980) formulation, without photoinhibition Sathyendranath et al. (1995) climatological data Platt T, Gallecos CL, Harrison WG (1980). Photoinhibition on photosynthesis in natural assemblages of marine phytoplankton, Journal of Marine Research, 38, Sathyendranath S, Longhurst I, Caverhill CM, Platt T (1995). Regionally and seasonally differentiated primary production in the North Atlantic, Deep Sea Research I, Vol. 42, No. 10, Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

16 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Primary production: PP (z) = CHL (z). P b max [1 – exp (-α.E(z)/ P b max ] Platt et al. (1980) formulation, without photoinhibition Sathyendranath et al. (1995) climatological data Platt T, Gallecos CL, Harrison WG (1980). Photoinhibition on photosynthesis in natural assemblages of marine phytoplankton, Journal of Marine Research, 38, Sathyendranath S, Longhurst I, Caverhill CM, Platt T (1995). Regionally and seasonally differentiated primary production in the North Atlantic, Deep Sea Research I, Vol. 42, No. 10, Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

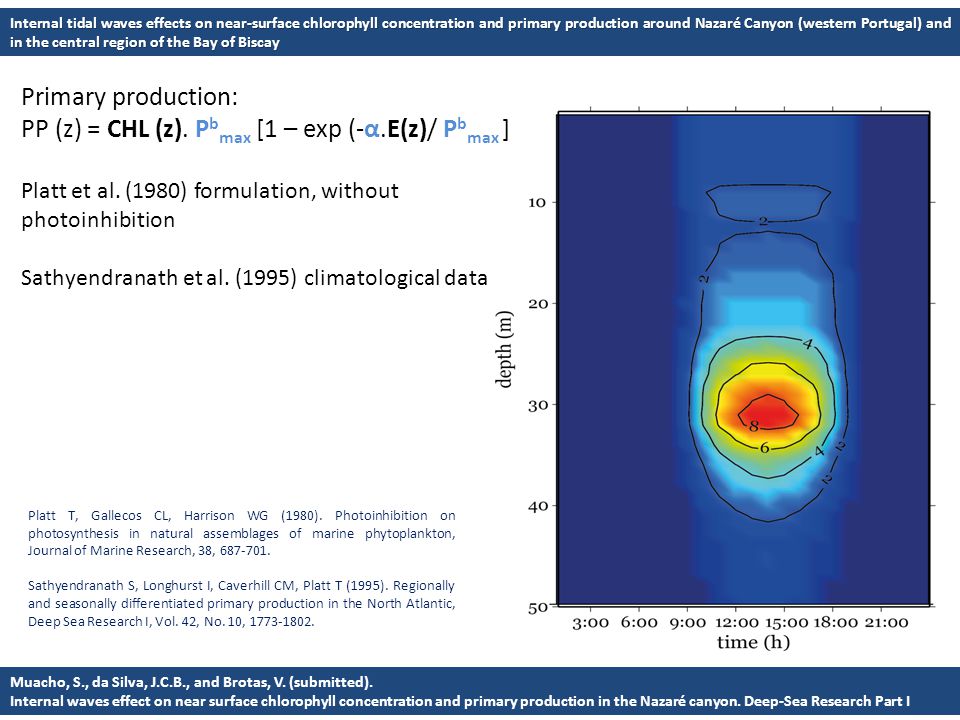

17 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Primary production: PP (z) = CHL (z). P b max [1 – exp (-α.E(z)/ P b max ] Platt et al. (1980) formulation, without photoinhibition Sathyendranath et al. (1995) climatological data Platt T, Gallecos CL, Harrison WG (1980). Photoinhibition on photosynthesis in natural assemblages of marine phytoplankton, Journal of Marine Research, 38, Sathyendranath S, Longhurst I, Caverhill CM, Platt T (1995). Regionally and seasonally differentiated primary production in the North Atlantic, Deep Sea Research I, Vol. 42, No. 10, Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

18 1497 mgC.m -2.d mgC.m -2.d -1 Muacho, S., da Silva, J.C.B., and Brotas, V. (submitted). Internal waves effect on near surface chlorophyll concentration and primary production in the Nazaré canyon. Deep-Sea Research Part I Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

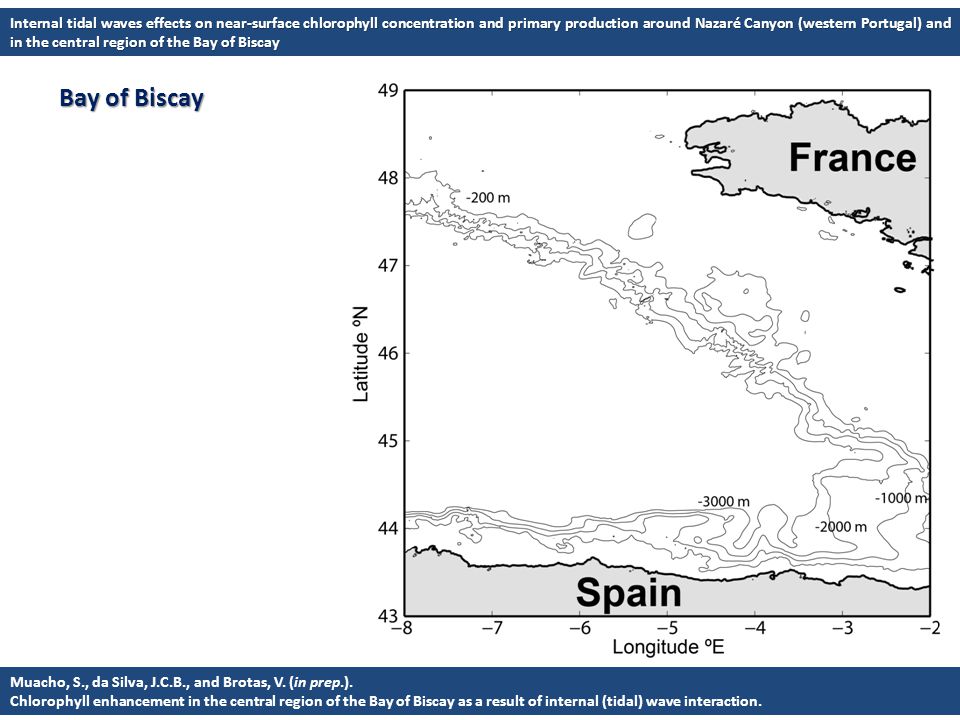

19 Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Bay of Biscay Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

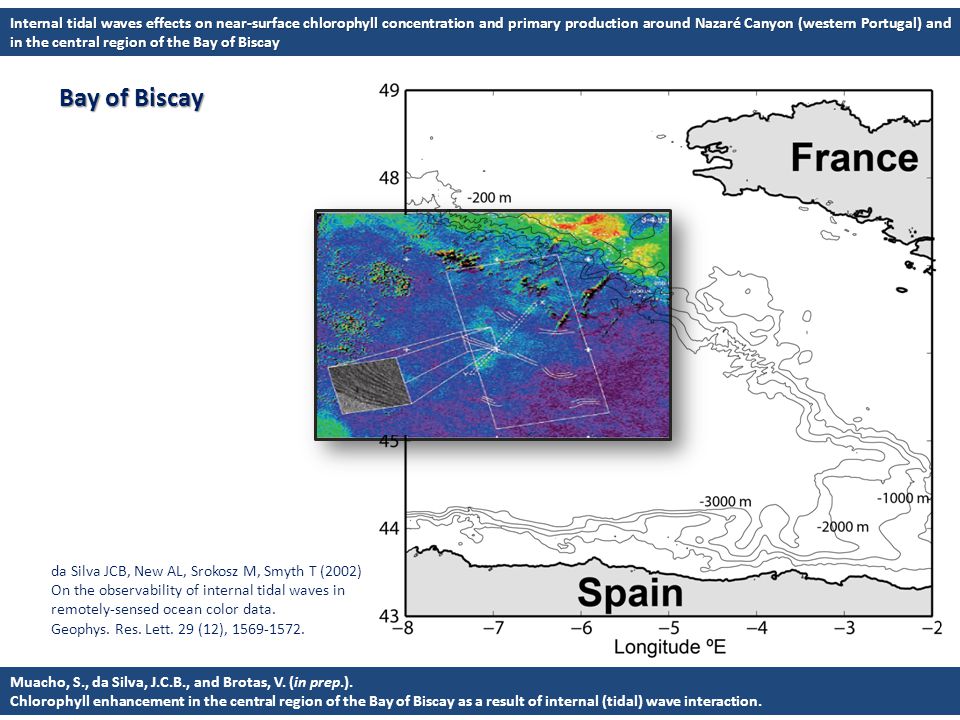

20 Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. da Silva JCB, New AL, Srokosz M, Smyth T (2002) On the observability of internal tidal waves in remotely-sensed ocean color data. Geophys. Res. Lett. 29 (12), Bay of Biscay Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

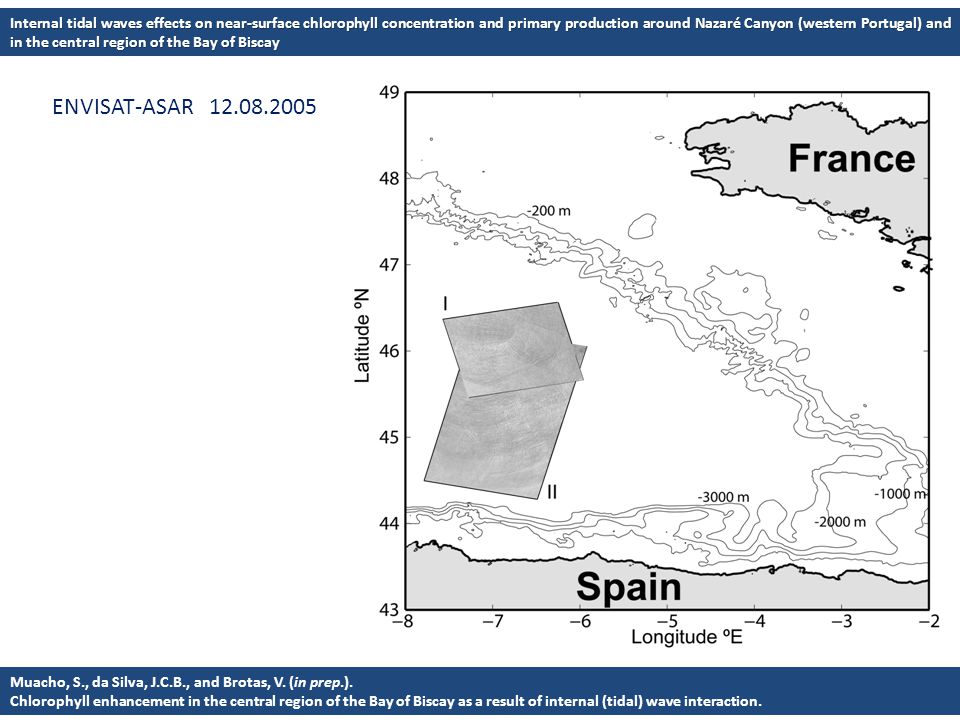

21 ENVISAT-ASAR Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

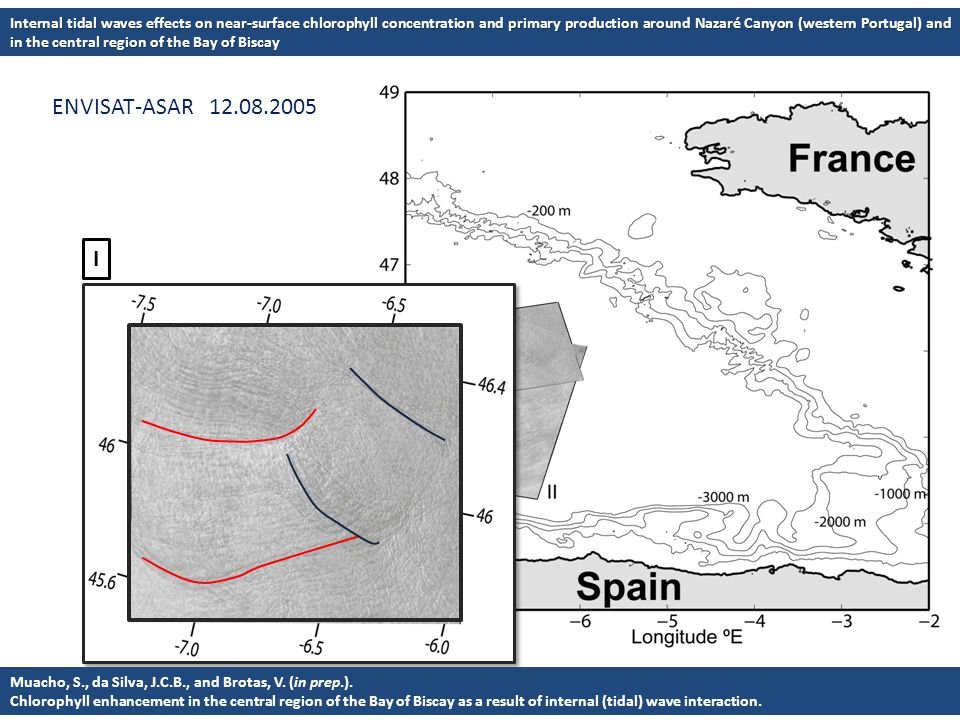

22 ENVISAT-ASAR I Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

23 Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Azevedo A, da Silva JCB, New AL (2006). On the generation and propagation of internal waves in the southern Bay of Biscay. Deep-Sea Res. I 53 da Silva JCB, New AL, Azevedo A (2007). On the role of SAR for observing “Local Generation” of internal solitary waves off the Iberian Peninsula. Can. J. Remote Sens. 33, “local generation” of ISW Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

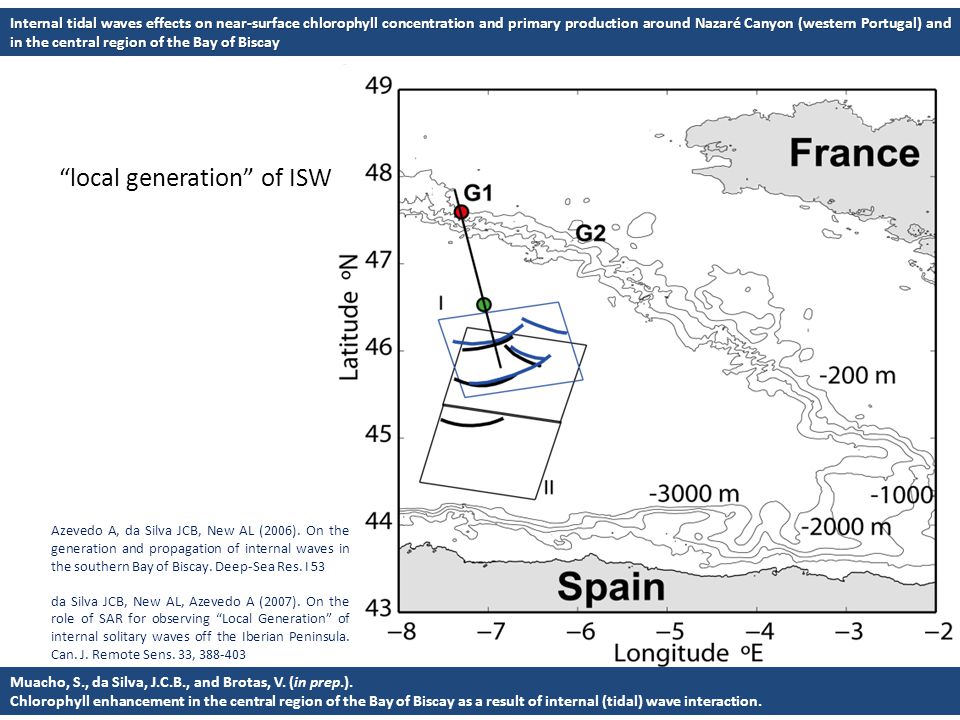

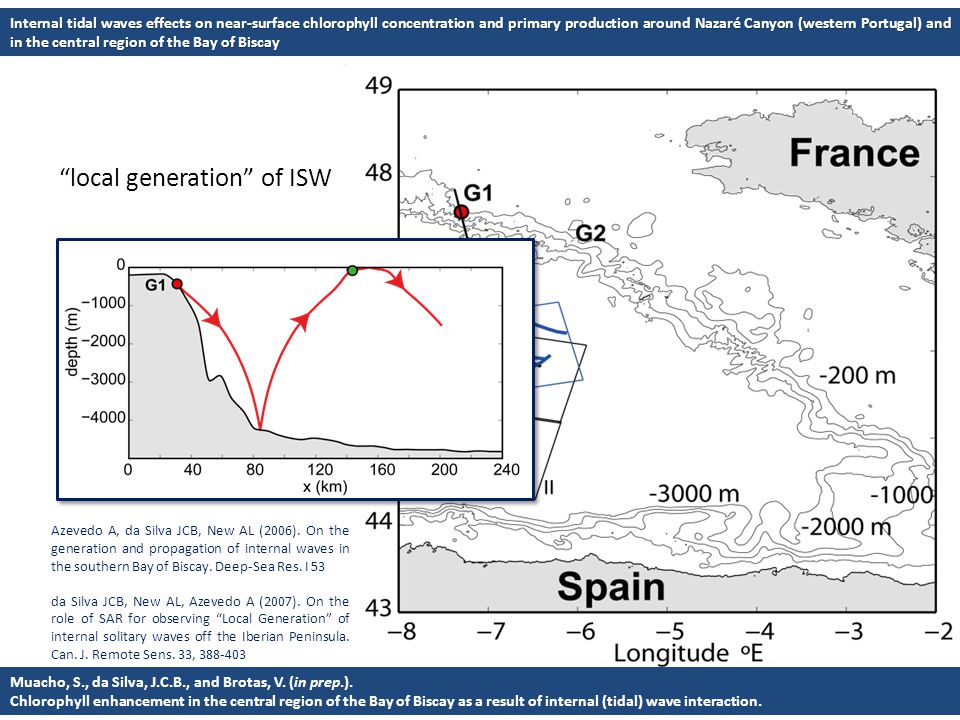

24 “local generation” of ISW Azevedo A, da Silva JCB, New AL (2006). On the generation and propagation of internal waves in the southern Bay of Biscay. Deep-Sea Res. I 53 da Silva JCB, New AL, Azevedo A (2007). On the role of SAR for observing “Local Generation” of internal solitary waves off the Iberian Peninsula. Can. J. Remote Sens. 33, Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

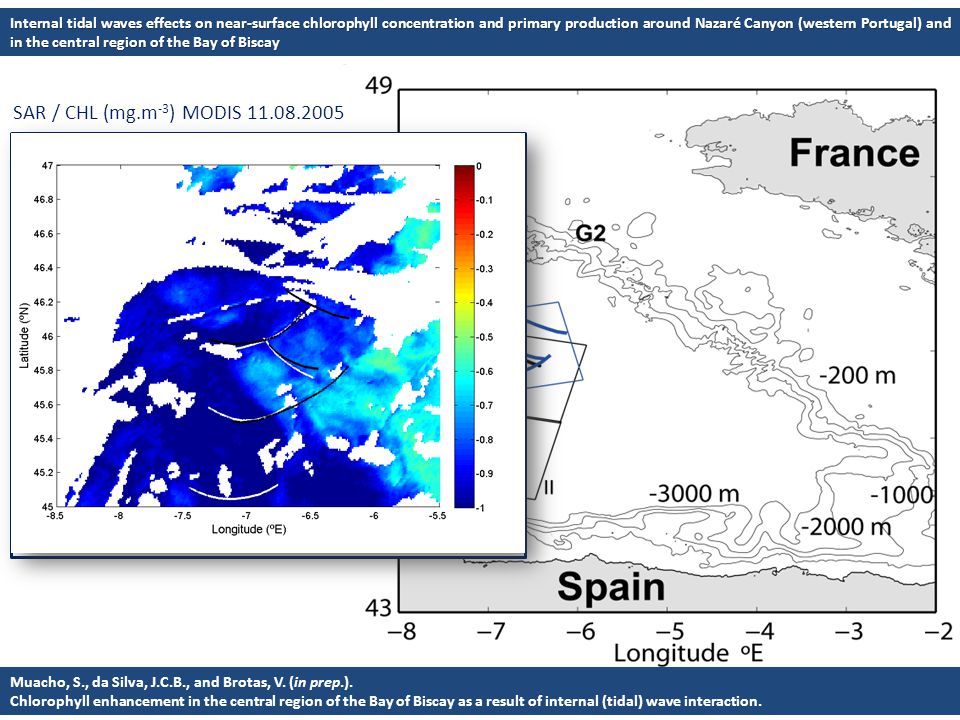

25 SAR / CHL (mg.m -3 ) MODIS Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

26 SAR / CHL (mg.m -3 ) MODIS SAR / CHL (mg.m -3 ) MODIS Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

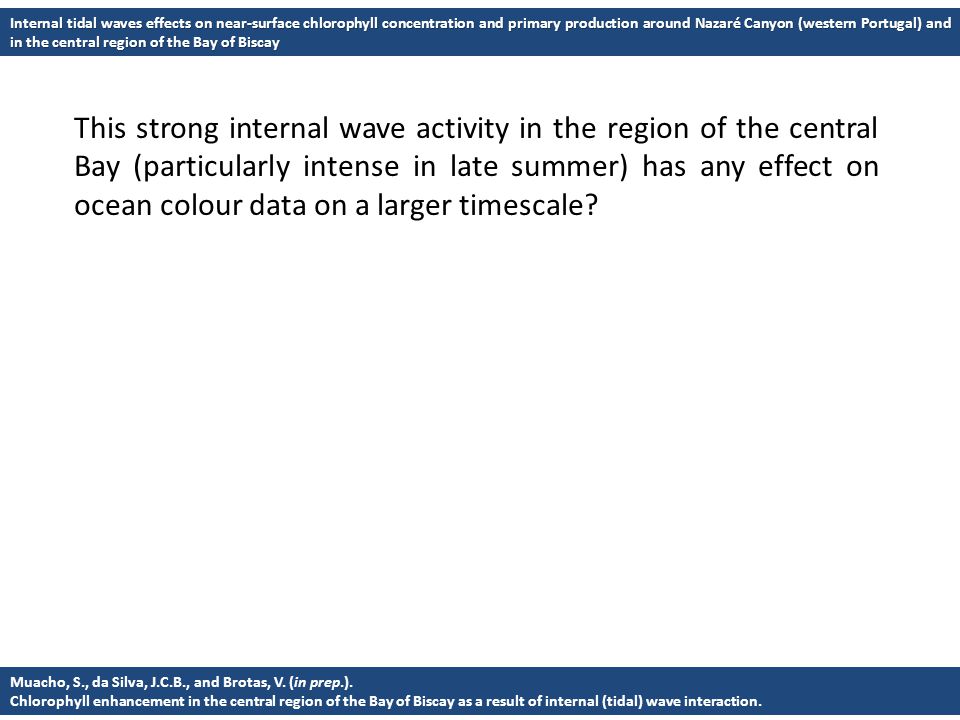

27 This strong internal wave activity in the region of the central Bay (particularly intense in late summer) has any effect on ocean colour data on a larger timescale? Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

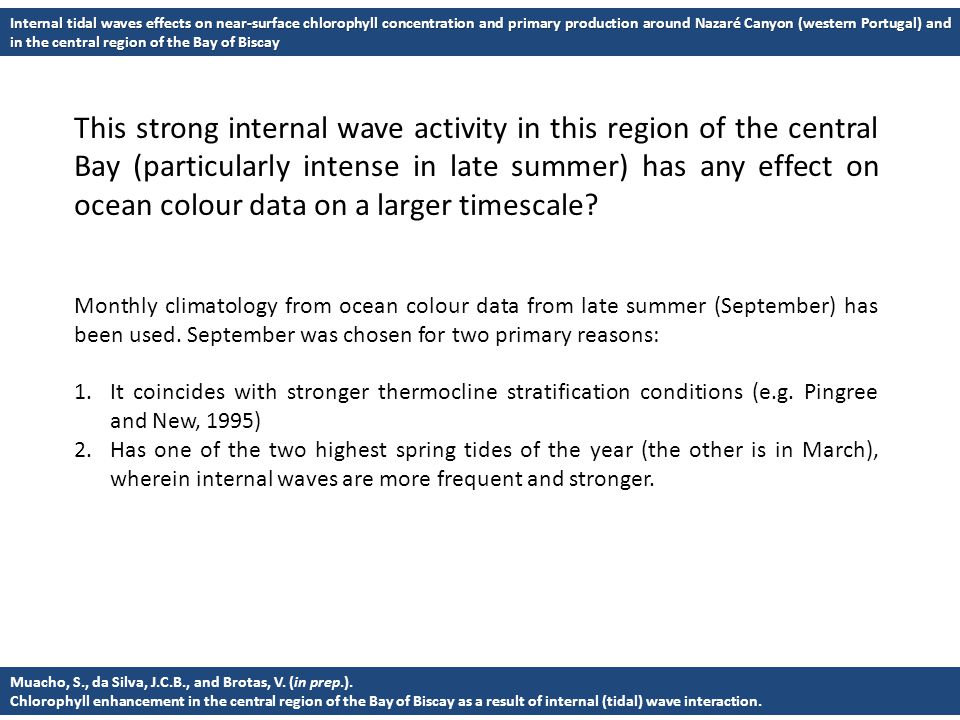

28 This strong internal wave activity in this region of the central Bay (particularly intense in late summer) has any effect on ocean colour data on a larger timescale? Monthly climatology from ocean colour data from late summer (September) has been used. September was chosen for two primary reasons: 1.It coincides with stronger thermocline stratification conditions (e.g. Pingree and New, 1995) 2.Has one of the two highest spring tides of the year (the other is in March), wherein internal waves are more frequent and stronger. Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

29 September chlorophyll (log(CHL(mg.m -3 ))) climatology ( ) from MODIS Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

30 September chlorophyll (log(CHL(mg.m -3 ))) climatology ( ) from MODIS Muacho, S., da Silva, J.C.B., and Brotas, V. (in prep.). Chlorophyll enhancement in the central region of the Bay of Biscay as a result of internal (tidal) wave interaction. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay

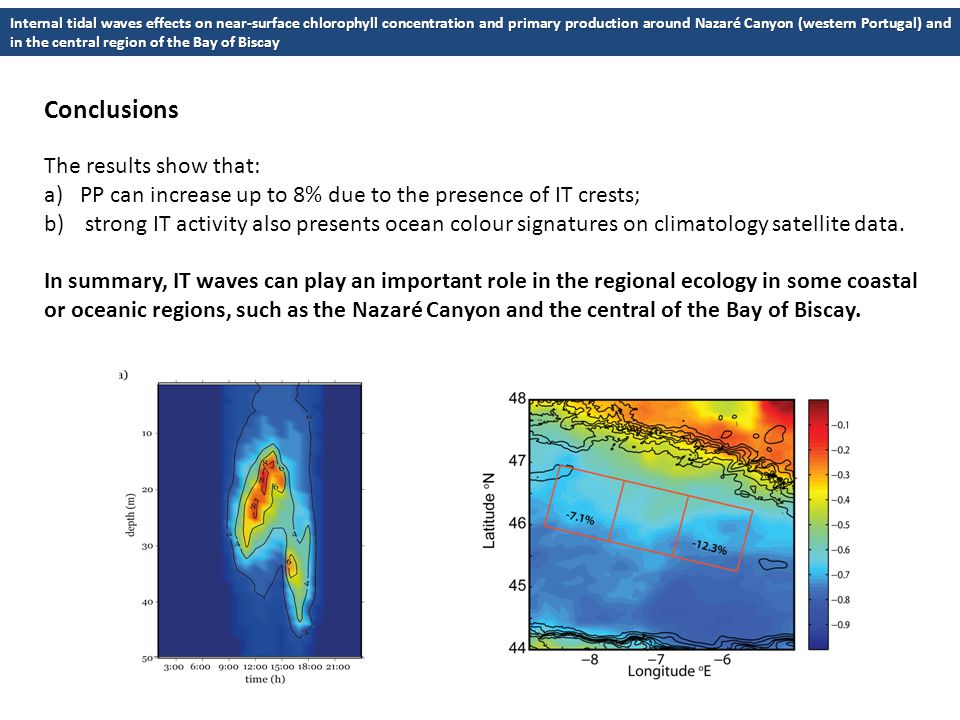

31 Conclusions The results show that: a)PP can increase up to 8% due to the presence of IT crests; b) strong IT activity also presents ocean colour signatures on climatology satellite data. In summary, IT waves can play an important role in the regional ecology in some coastal or oceanic regions, such as the Nazaré Canyon and the central of the Bay of Biscay. Internal tidal waves effects on near-surface chlorophyll concentration and primary production around Nazaré Canyon (western Portugal) and in the central region of the Bay of Biscay
