Presentation on theme: "An independent heating system consists of: 1) wall-mounted boiler flue 2) manifold of copper and its connection to the boiler 3) internal boiler chimney."— Presentation transcript:
An independent heating system consists of: 1) wall-mounted boiler flue 2) manifold of copper and its connection to the boiler 3) internal boiler chimney and flue 4) copper tubing to supply natural gas and a cost with a watertight cauldrons of 23.3 kW and a chimney 15 meters in length, the total cost for each housing unit operates in Euro 3126

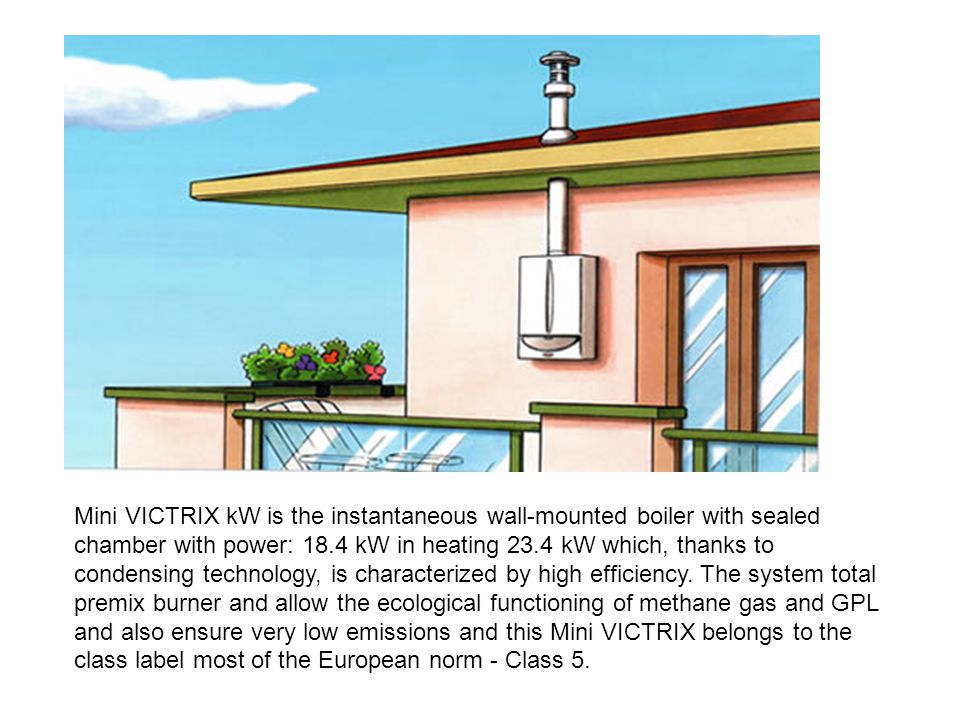

Mini VICTRIX kW is the instantaneous wall-mounted boiler with sealed chamber with power: 18.4 kW in heating 23.4 kW which, thanks to condensing technology, is characterized by high efficiency. The system total premix burner and allow the ecological functioning of methane gas and GPL and also ensure very low emissions and this Mini VICTRIX belongs to the class label most of the European norm - Class 5.
The internal diagram of a boiler wall is formed by: 1)Flue Position 2)Flow Pipe 3)Supplementary Burner & Heat Exchanger 4)Enginge Burner 5)Engine 6)Controls Enclosure 7)Spool Valve 8)Return Pipe
Benefits 1)Small size and beautiful design 2) Easy to use and easy installation 3) Reducing fuel consumption and less carbon emission in the air.
